SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151546
Price:
$5,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

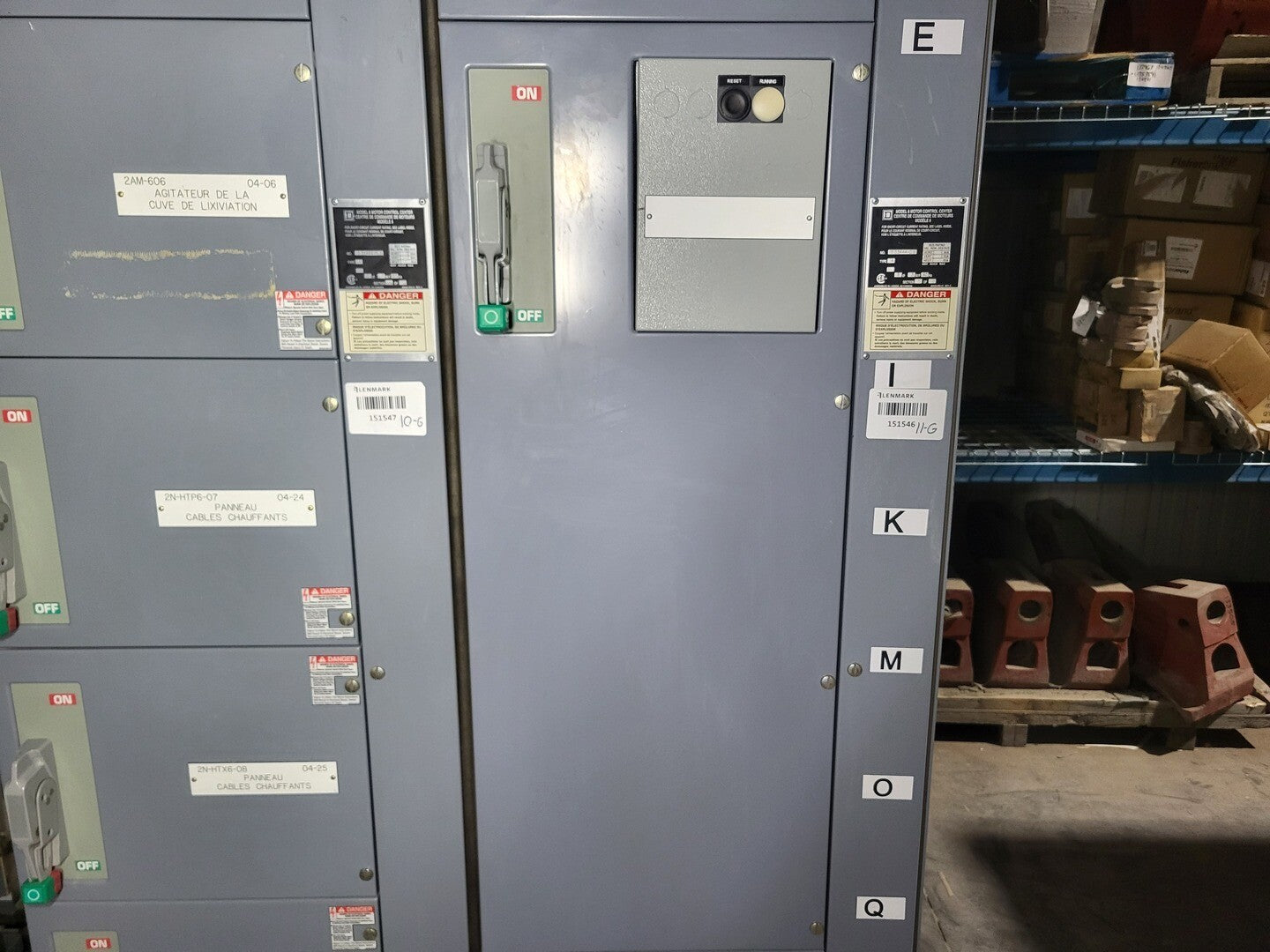

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications

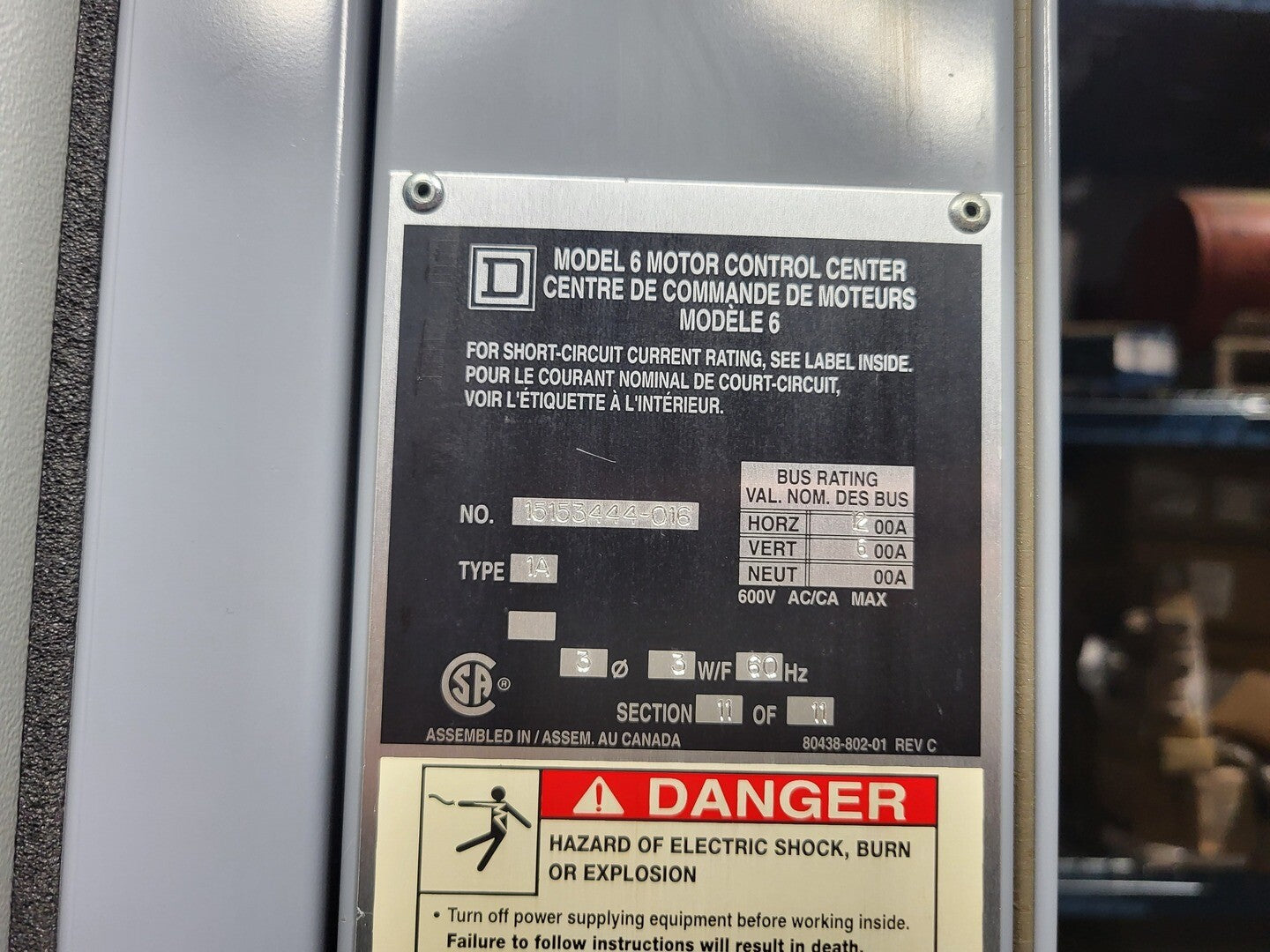

Model Model 6
Condition Used
Other Specifications

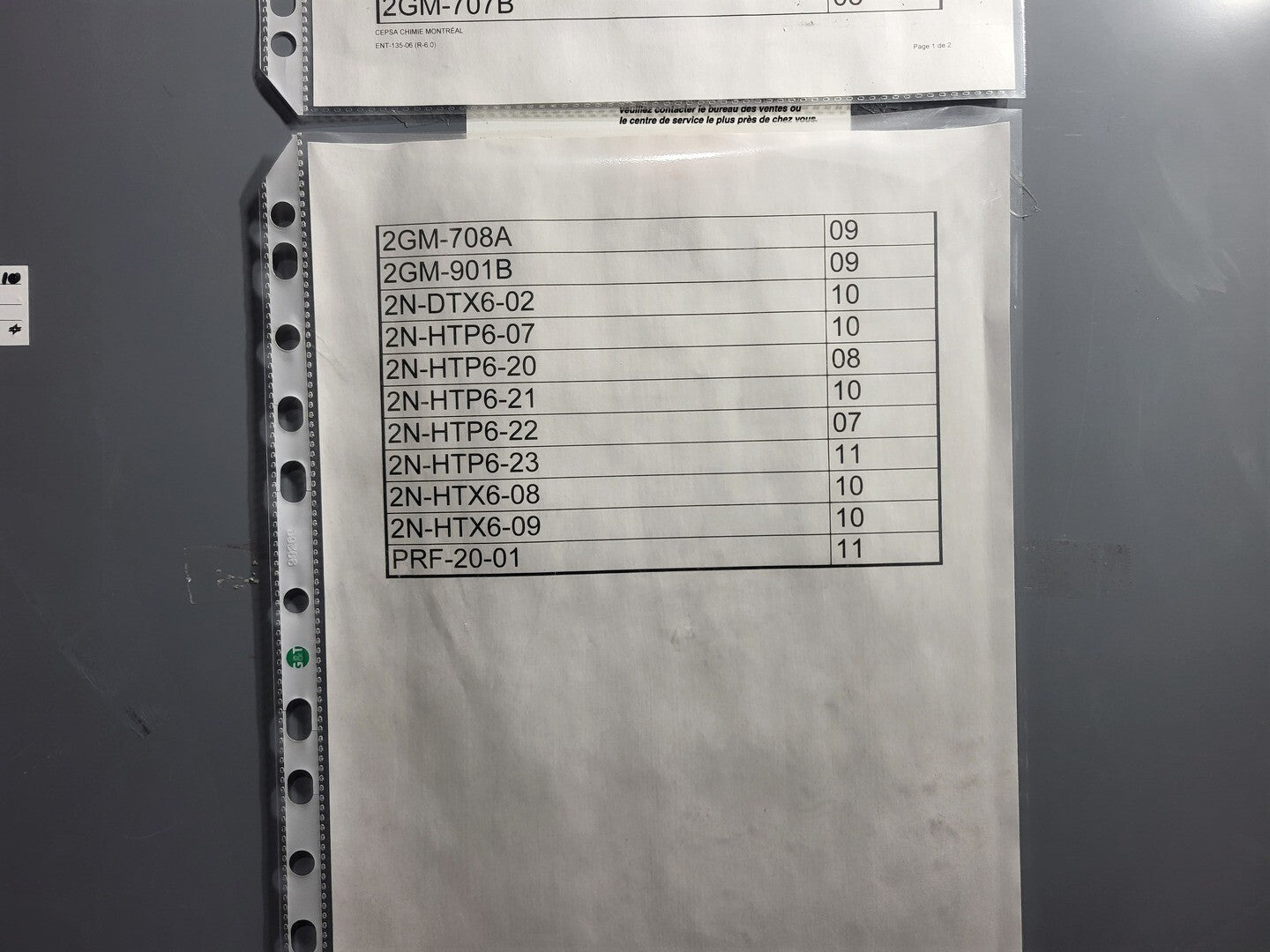

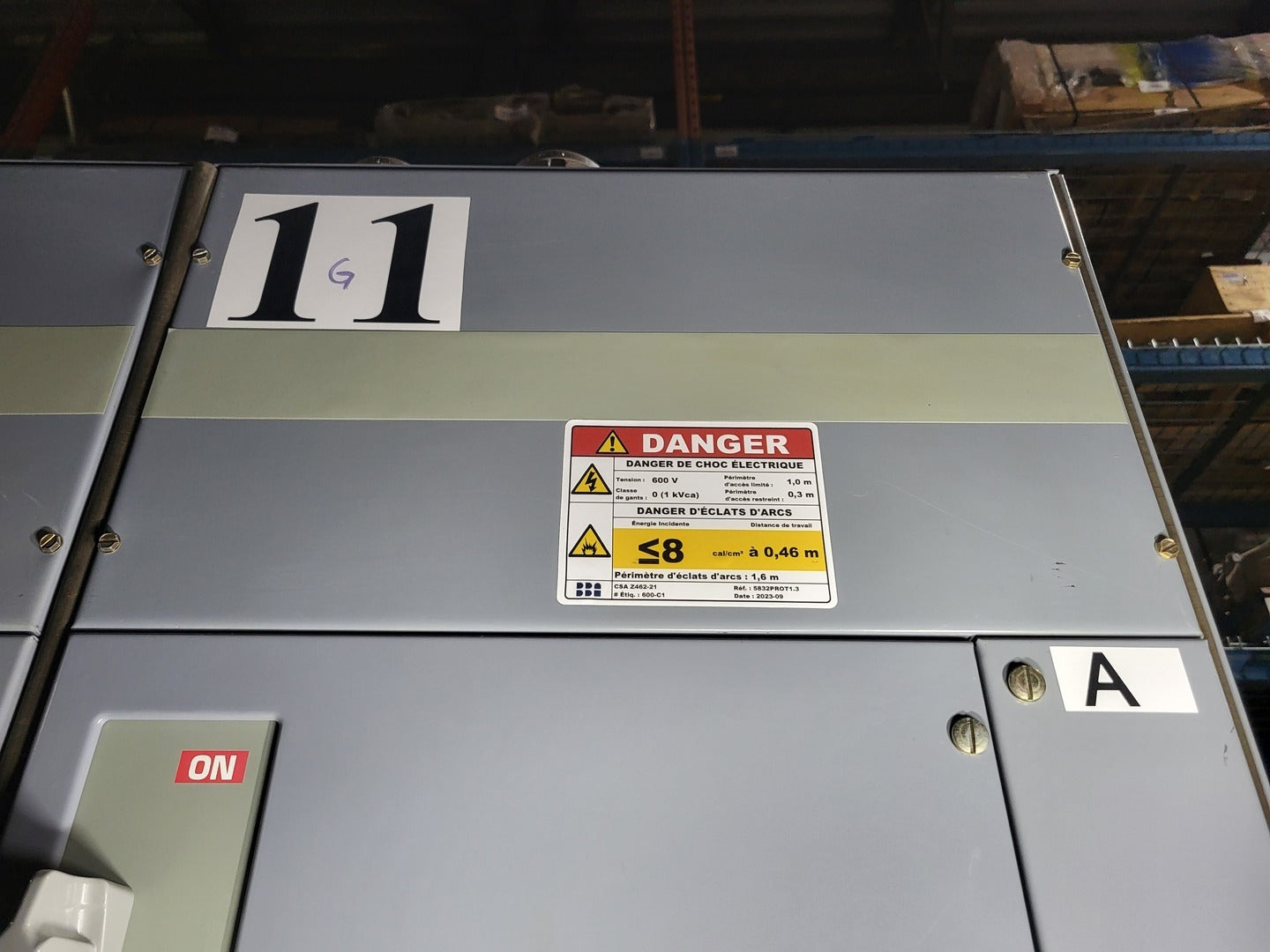

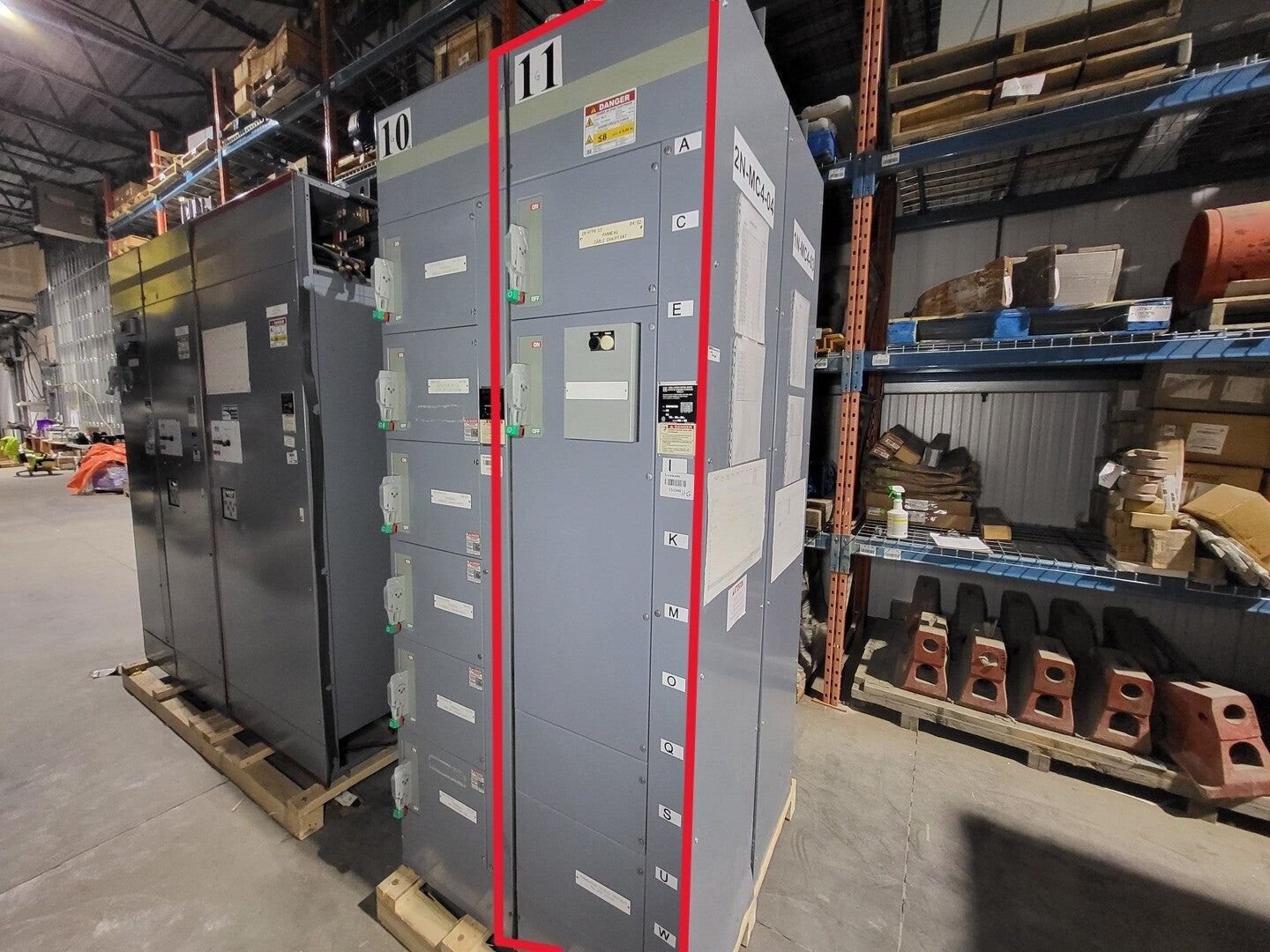

Note: Section 11 only

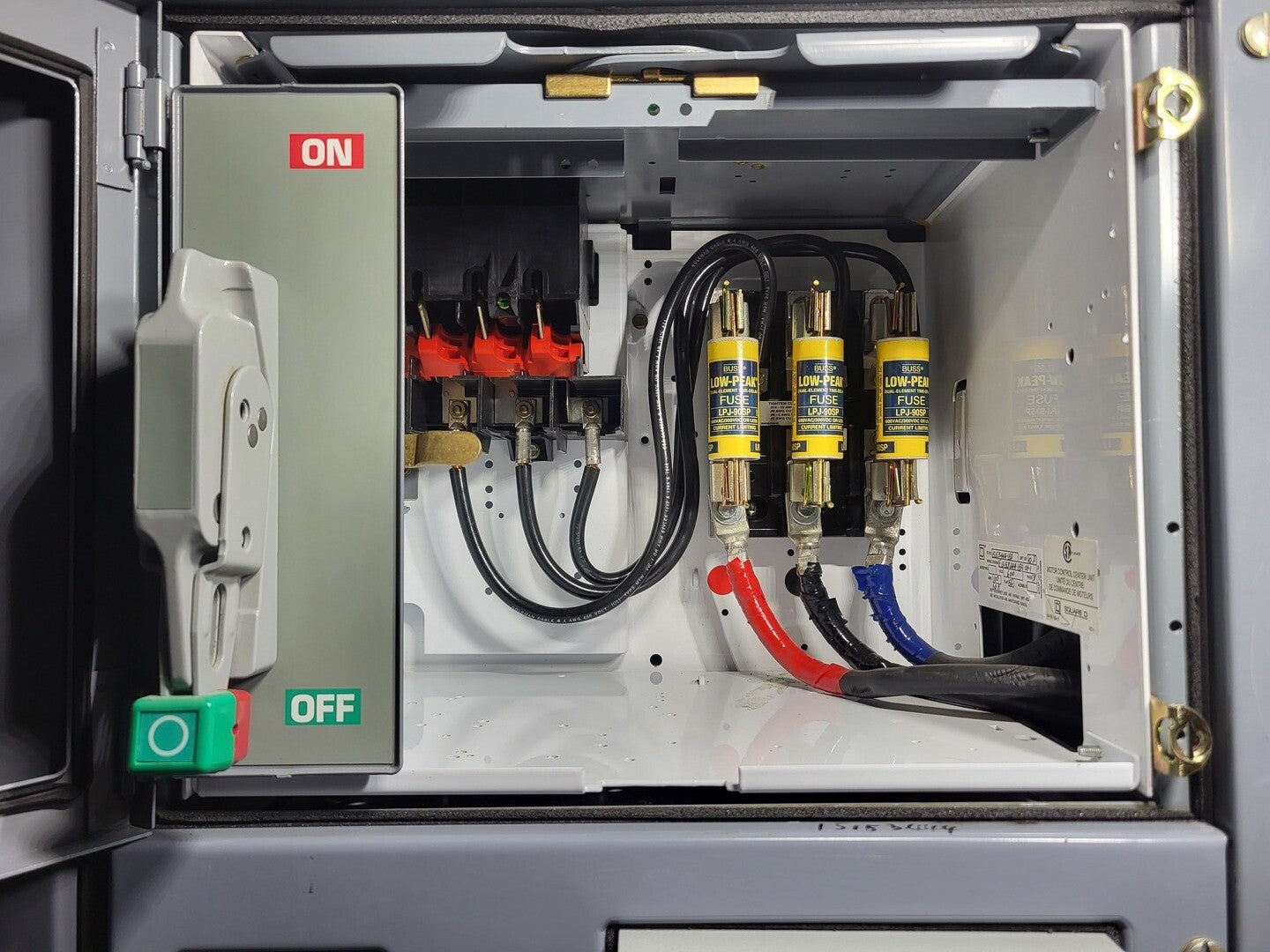

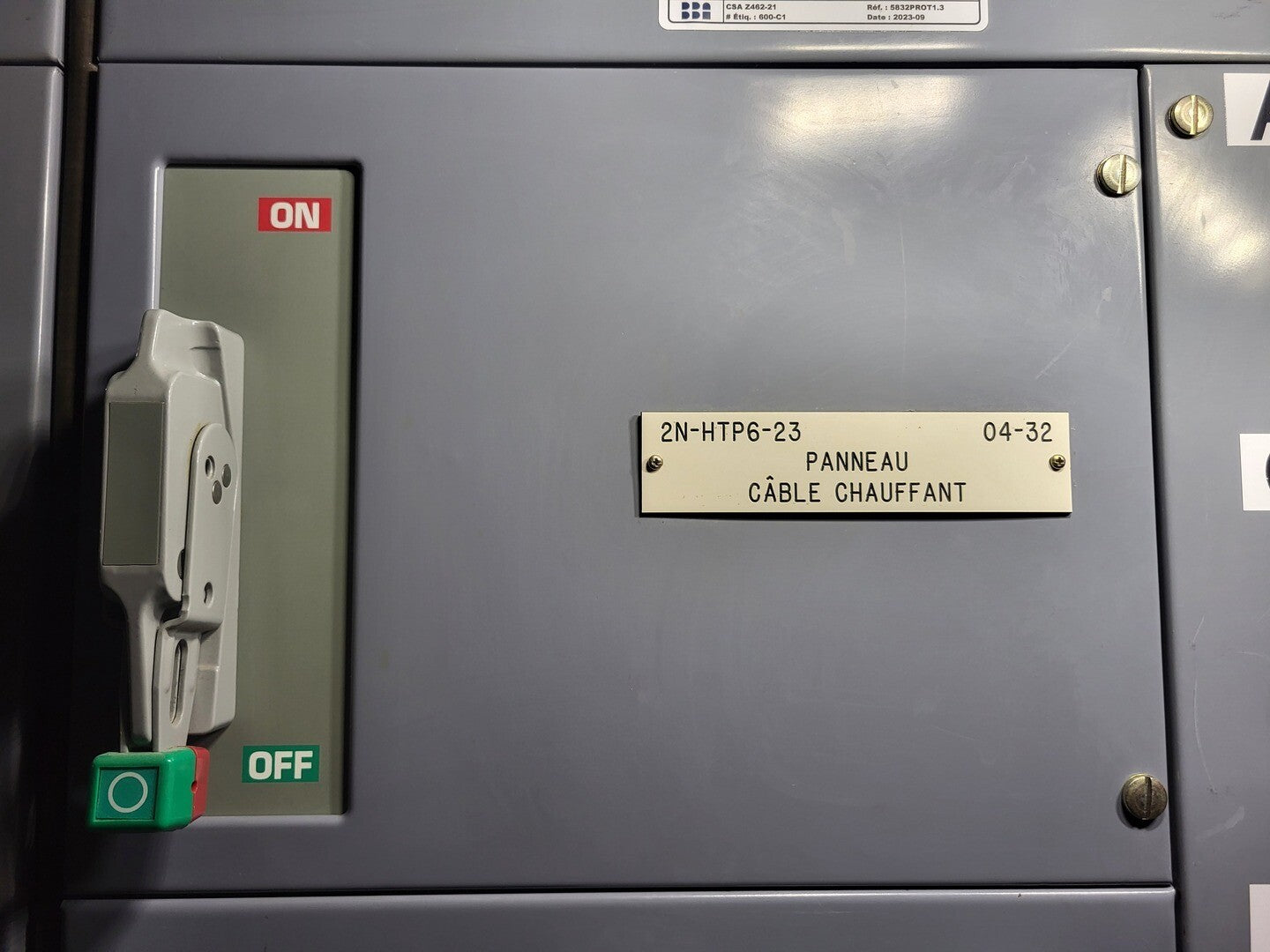

Bucket #1 2N-HTP6-23

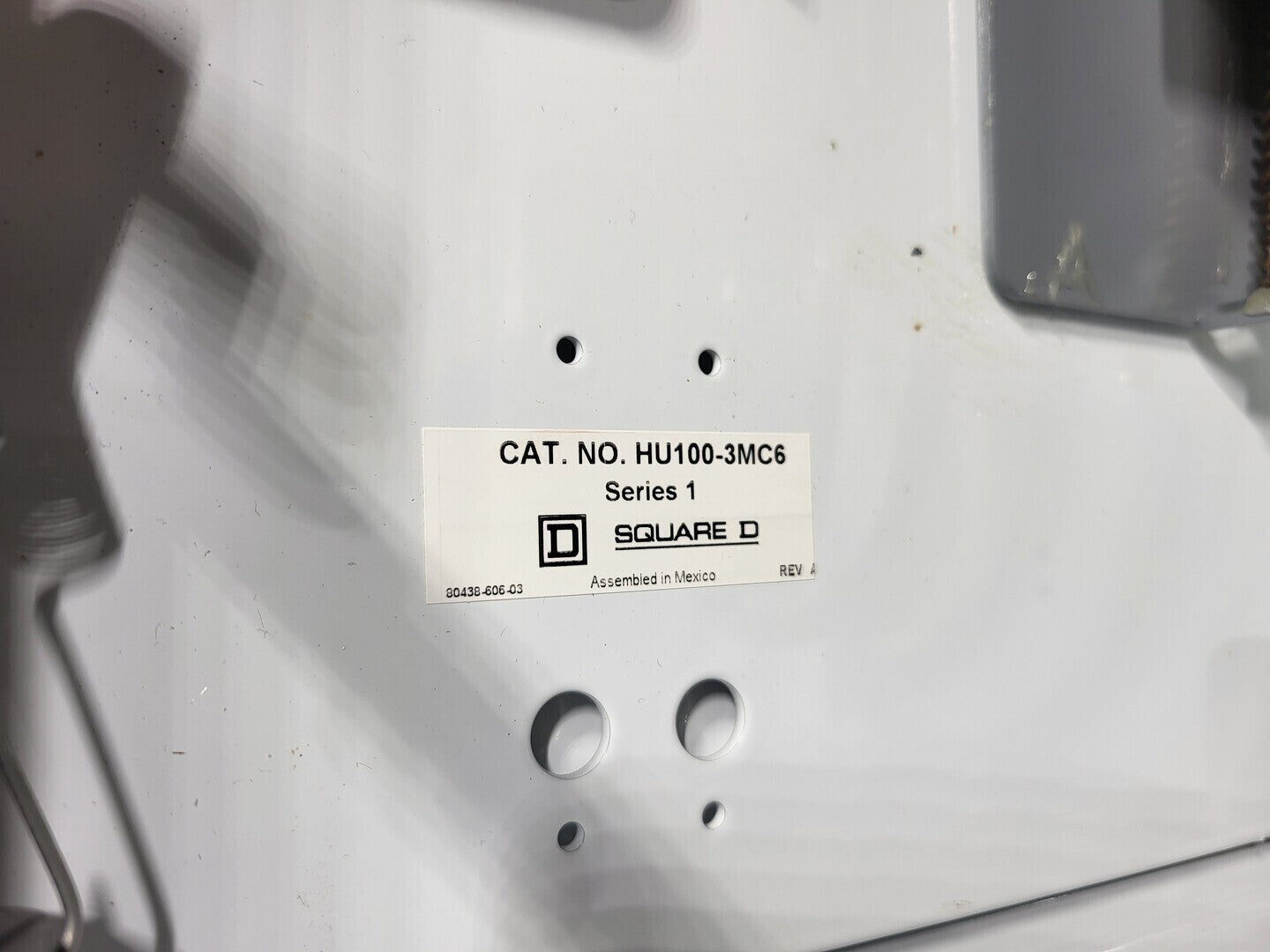

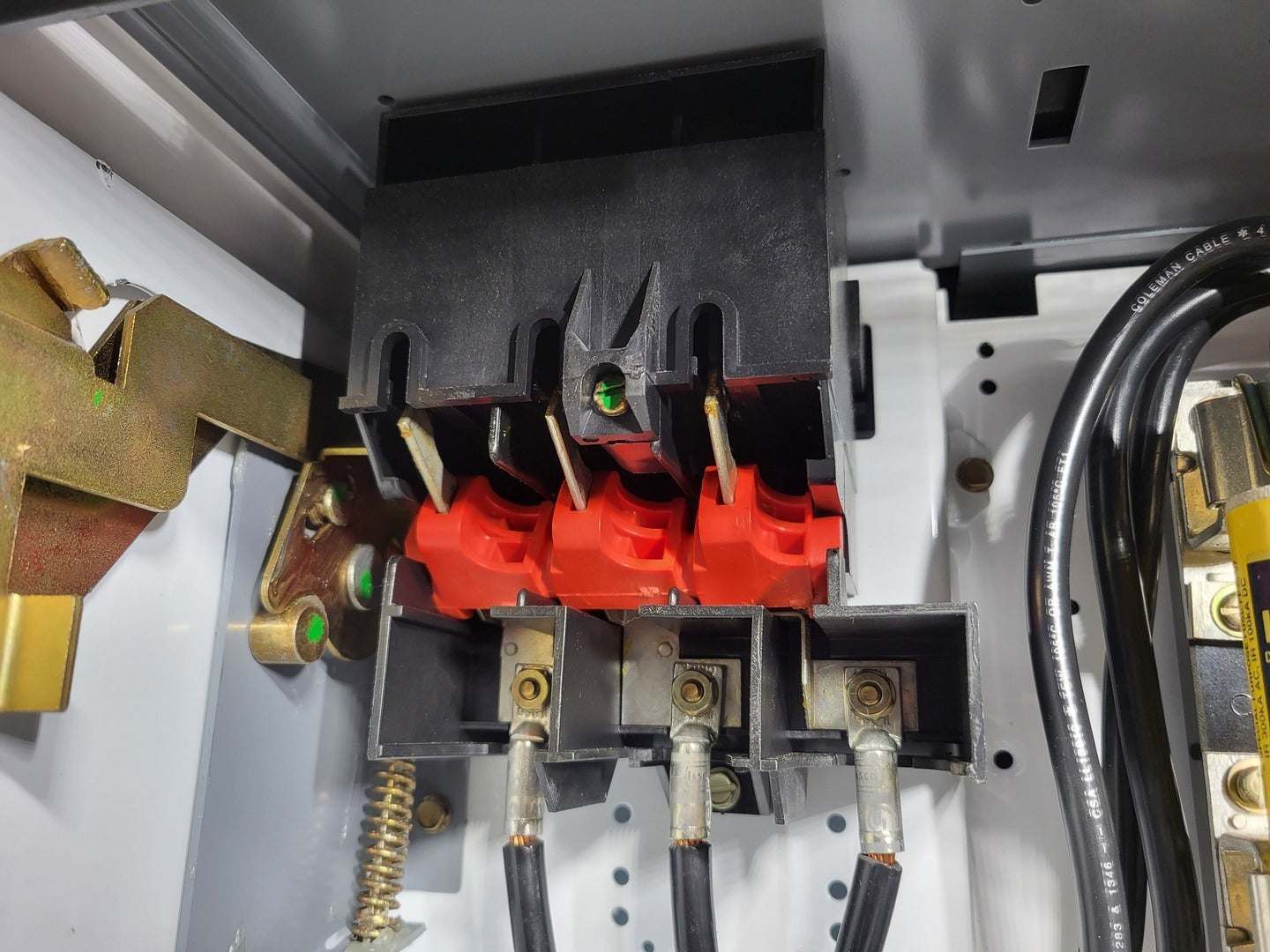

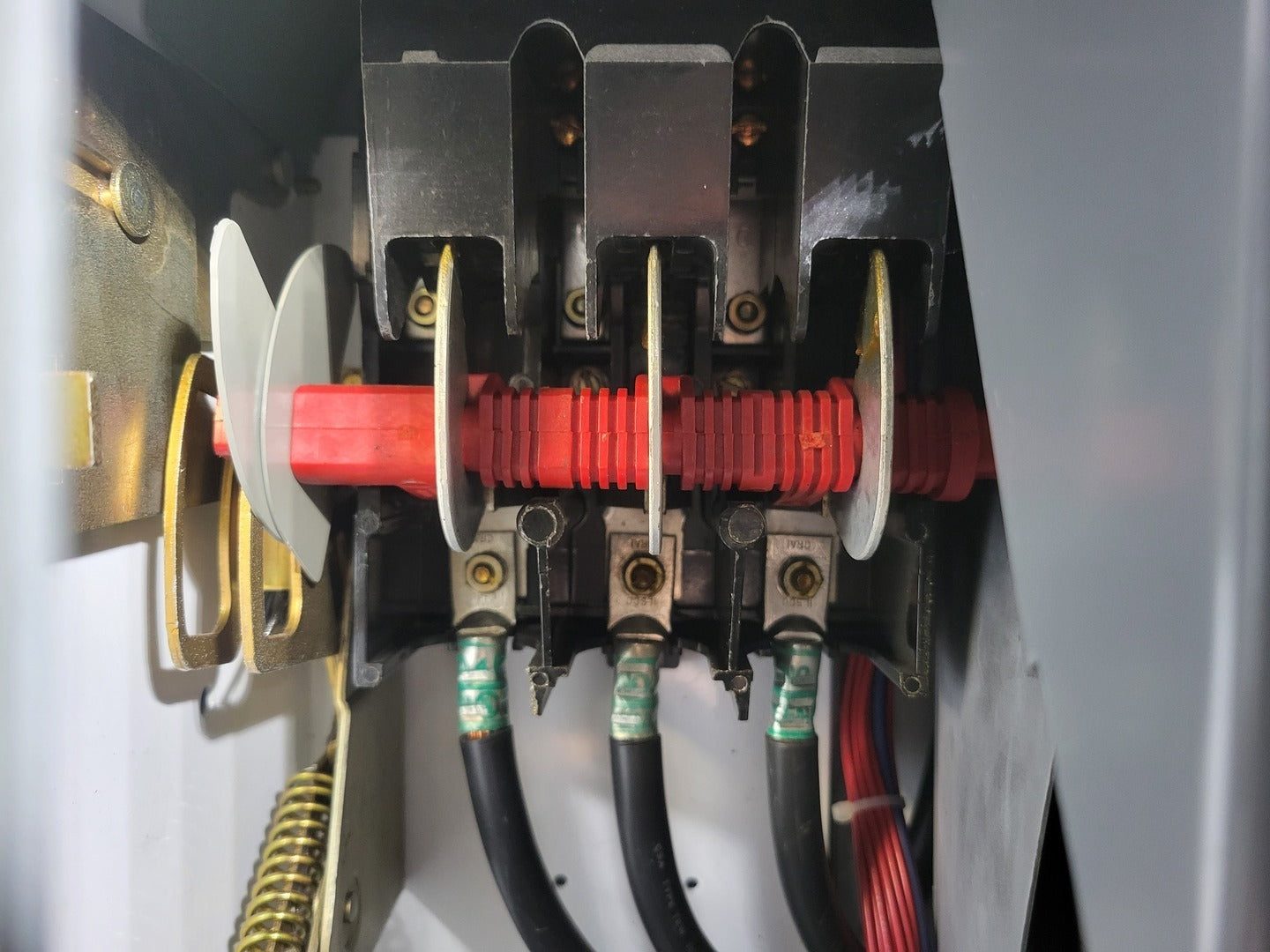

  1. Square D HU100-3MC6, Series 1, MCC bucket disconnect unit, 100A, 600VAC, 3 phase

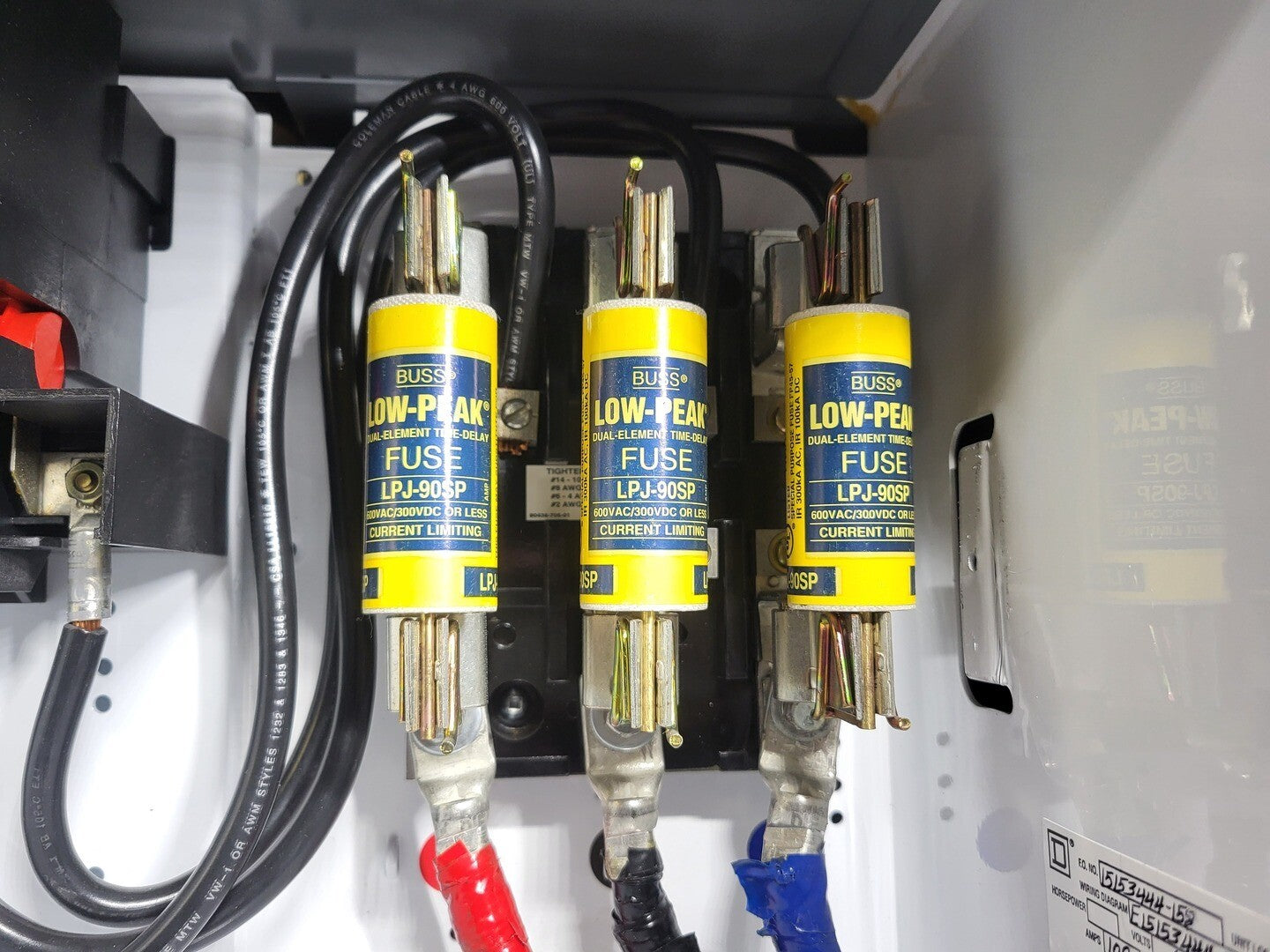

  2. 3 x Bussmann Low-Peak fuses LPJ-90SP

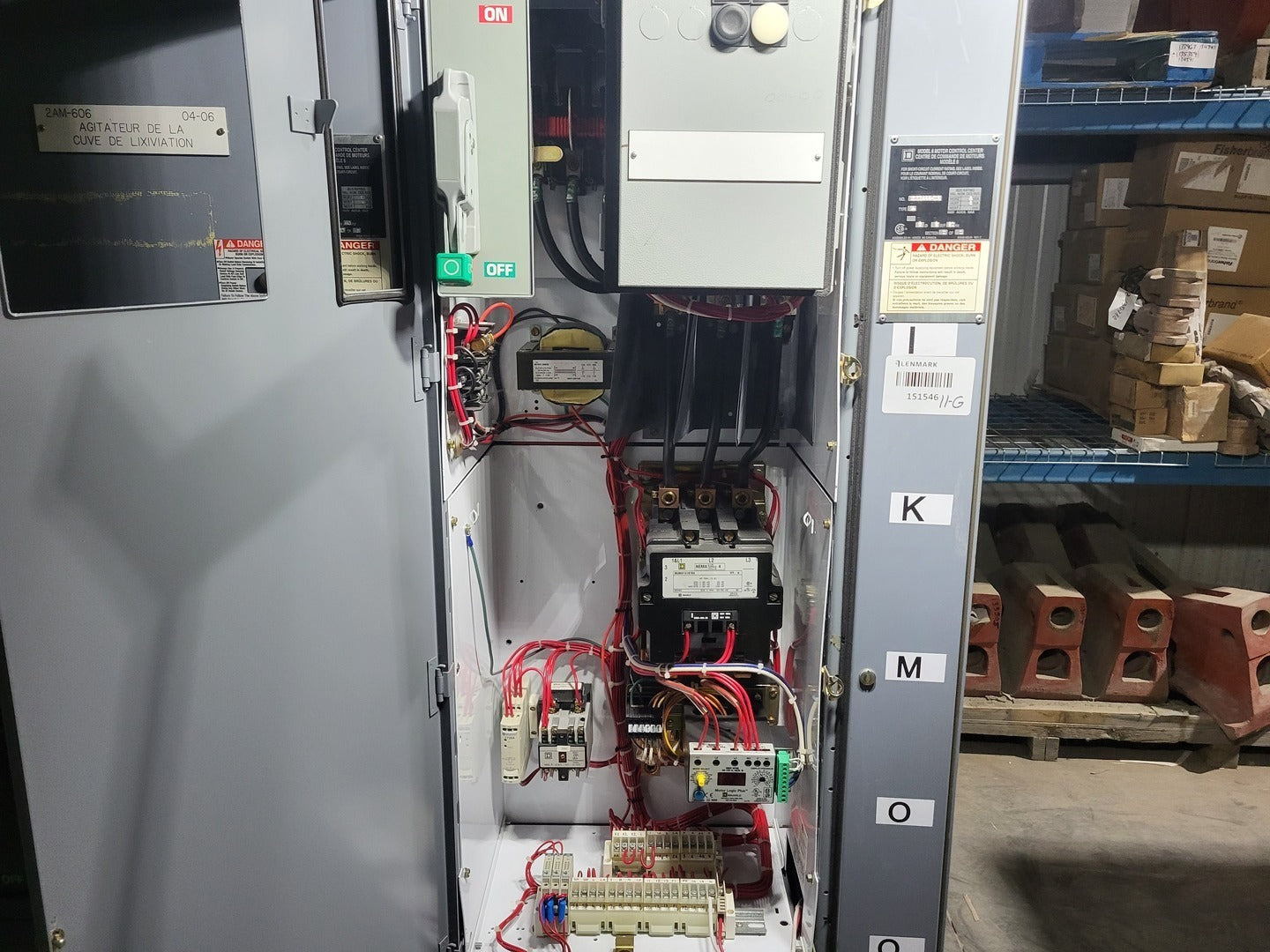

Bucket #2

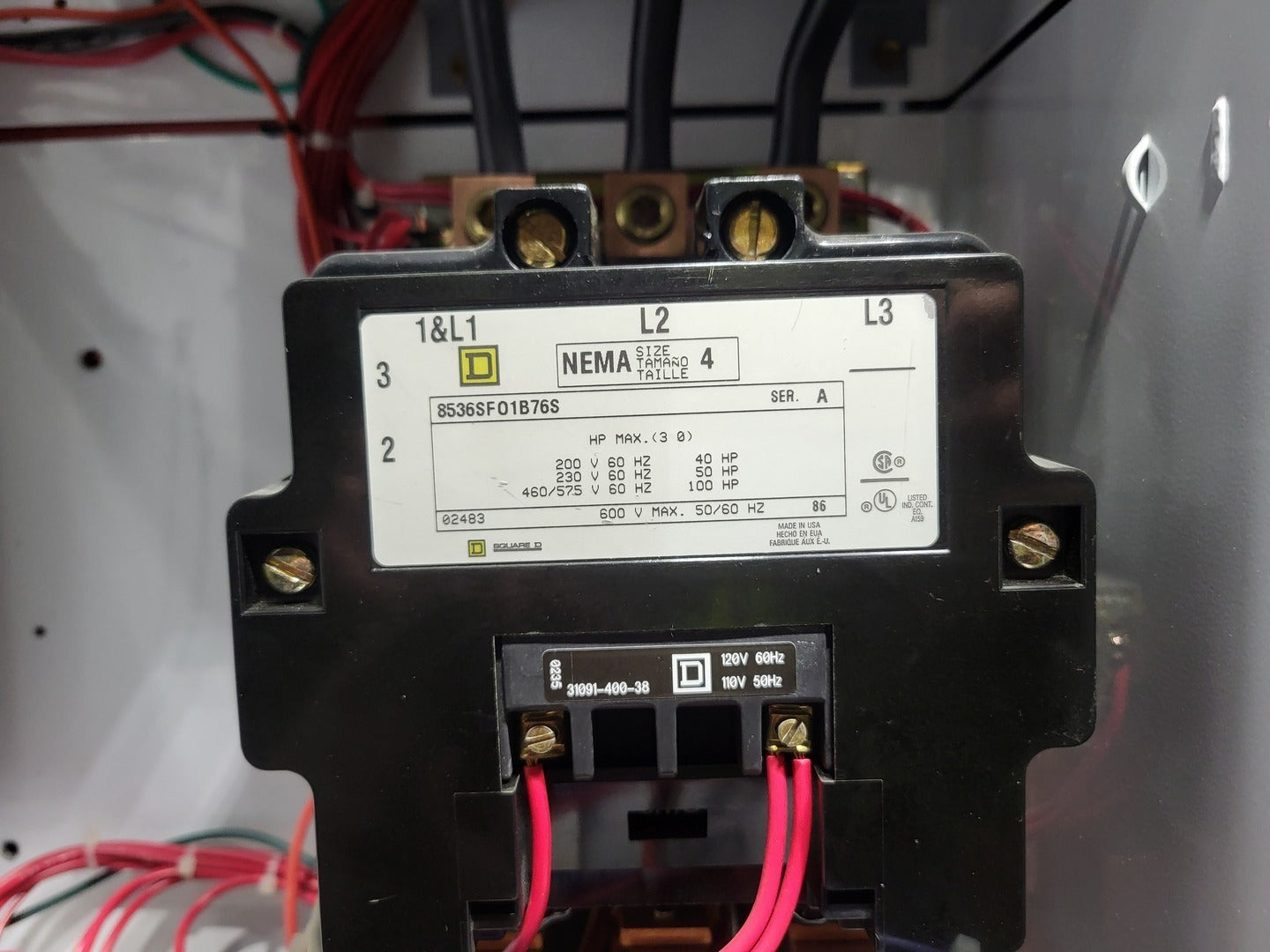

  1. Square D 8536SFO1B76S, NEMA Size 4 contactor, 100 HP @ 460/575V, 120V 60Hz coil

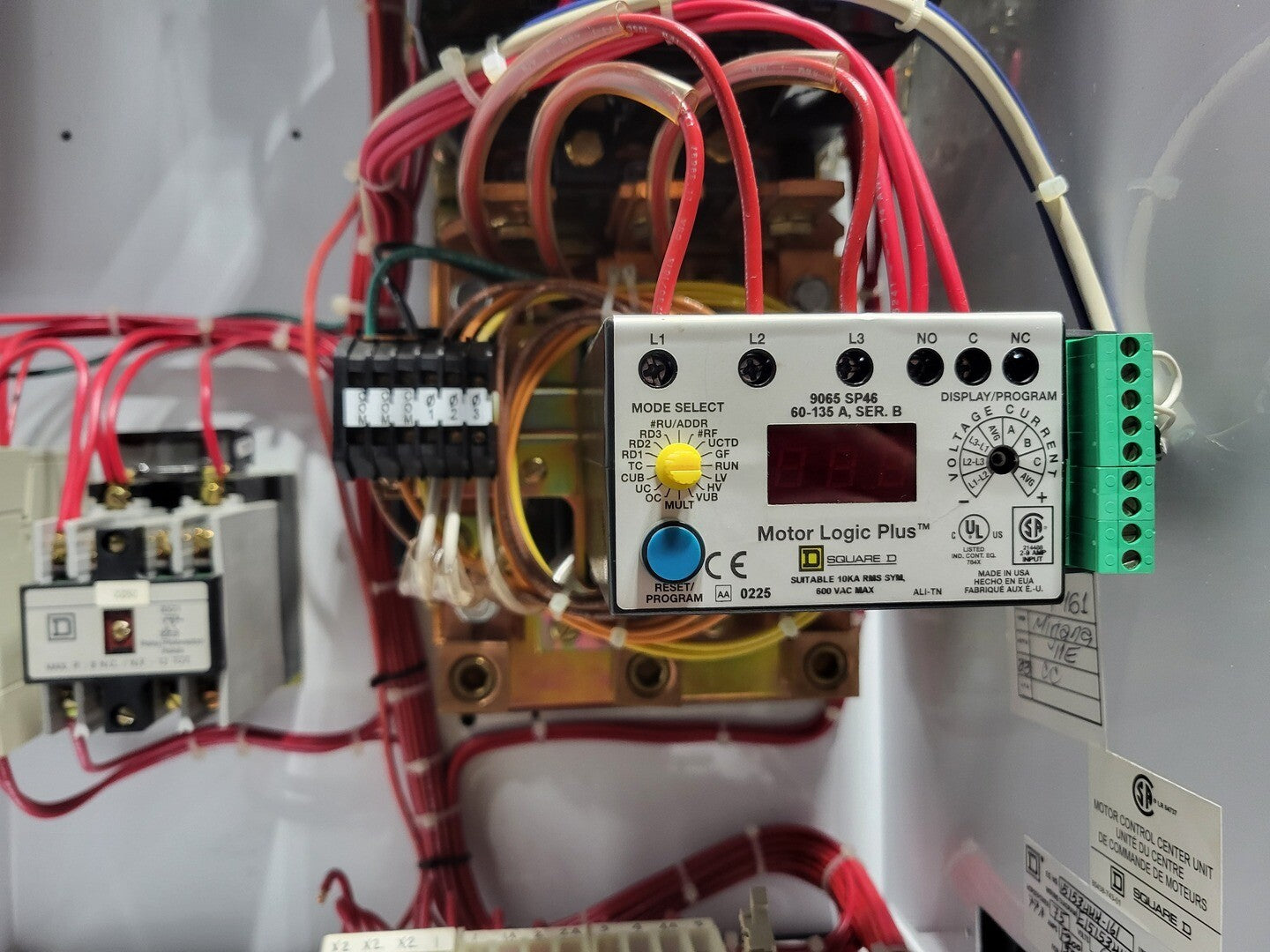

  2. Square D Motor Logic Plus 9065 SP46, motor protection relay, 60-135A range, 600VAC max

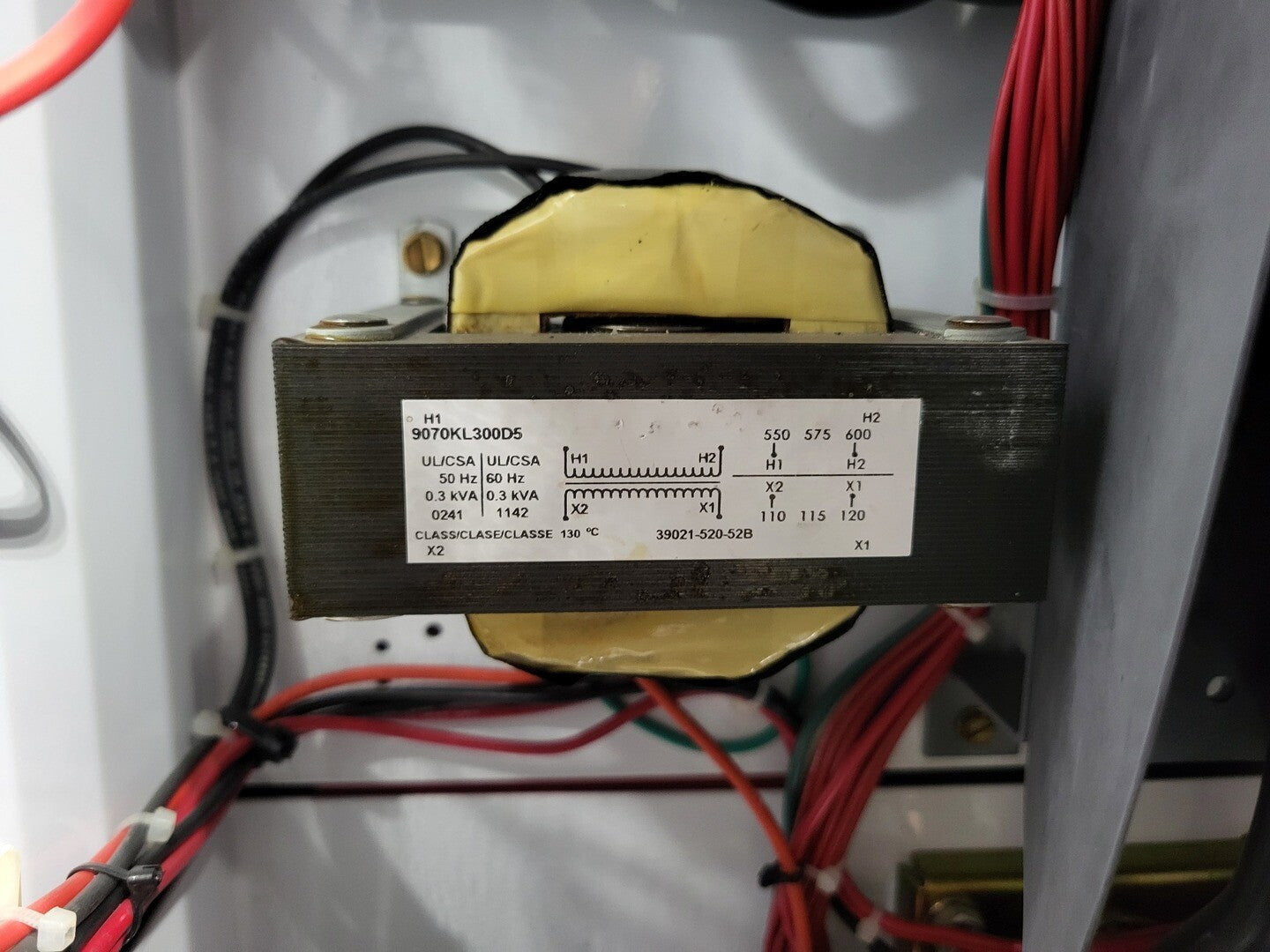

  3. Square D 9070KL300D5, control transformer, 0.3 kVA @ 50/60Hz

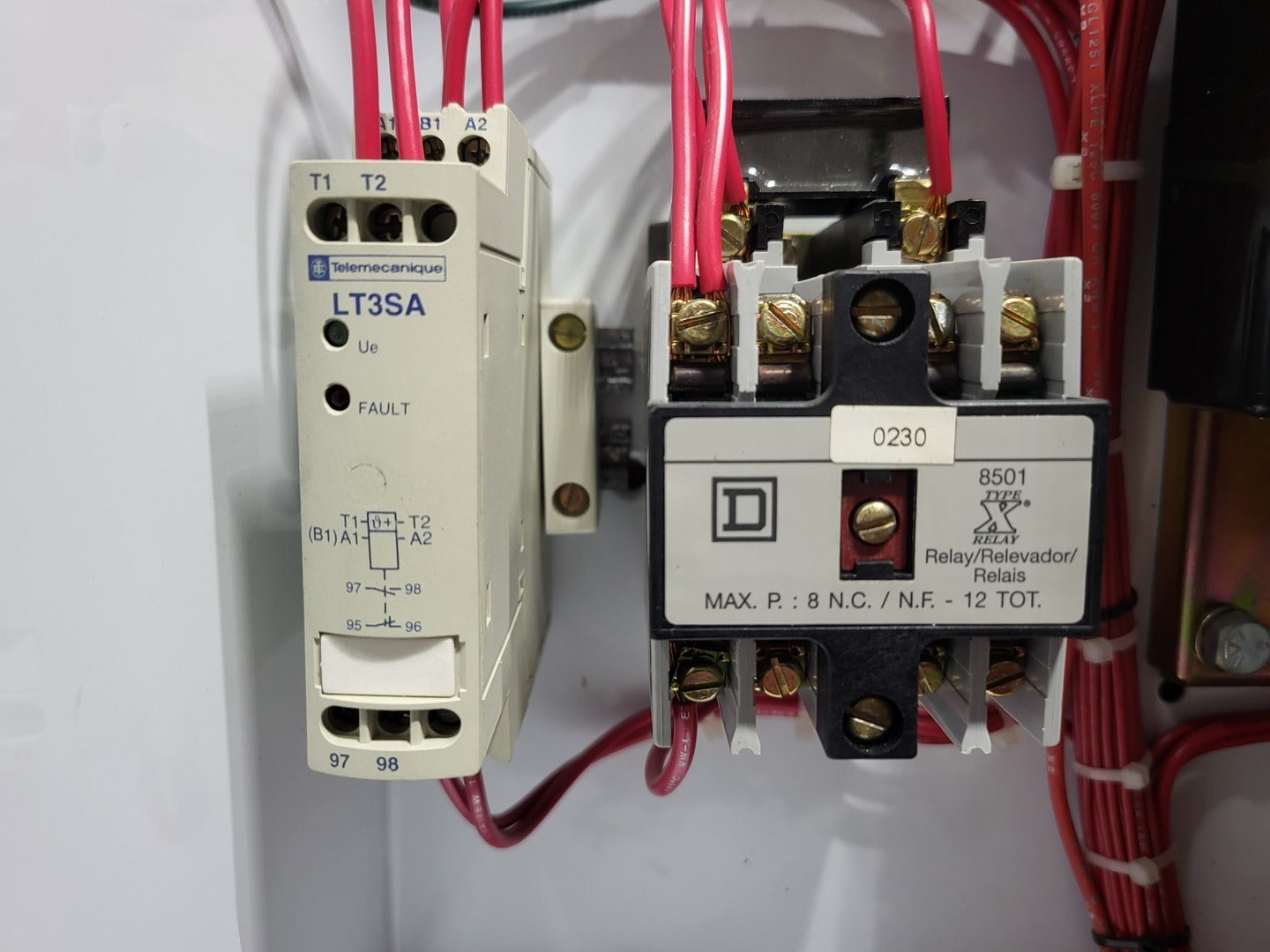

  4. Telemecanique LT3SA thermistor / motor protection relay module
  5. Square D 8501 Type X relay, max 8 N.C. / 12 total contacts

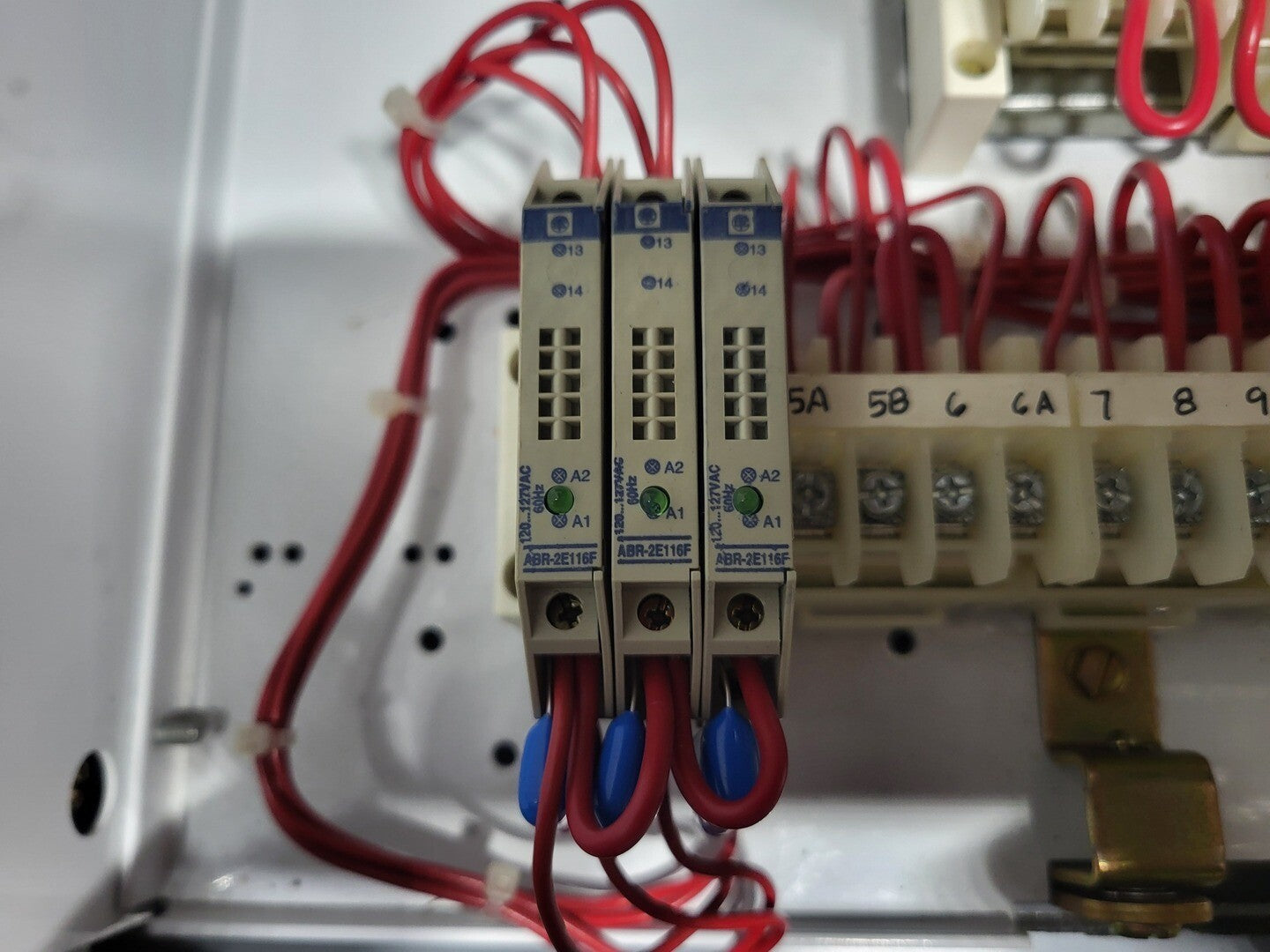

  6. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

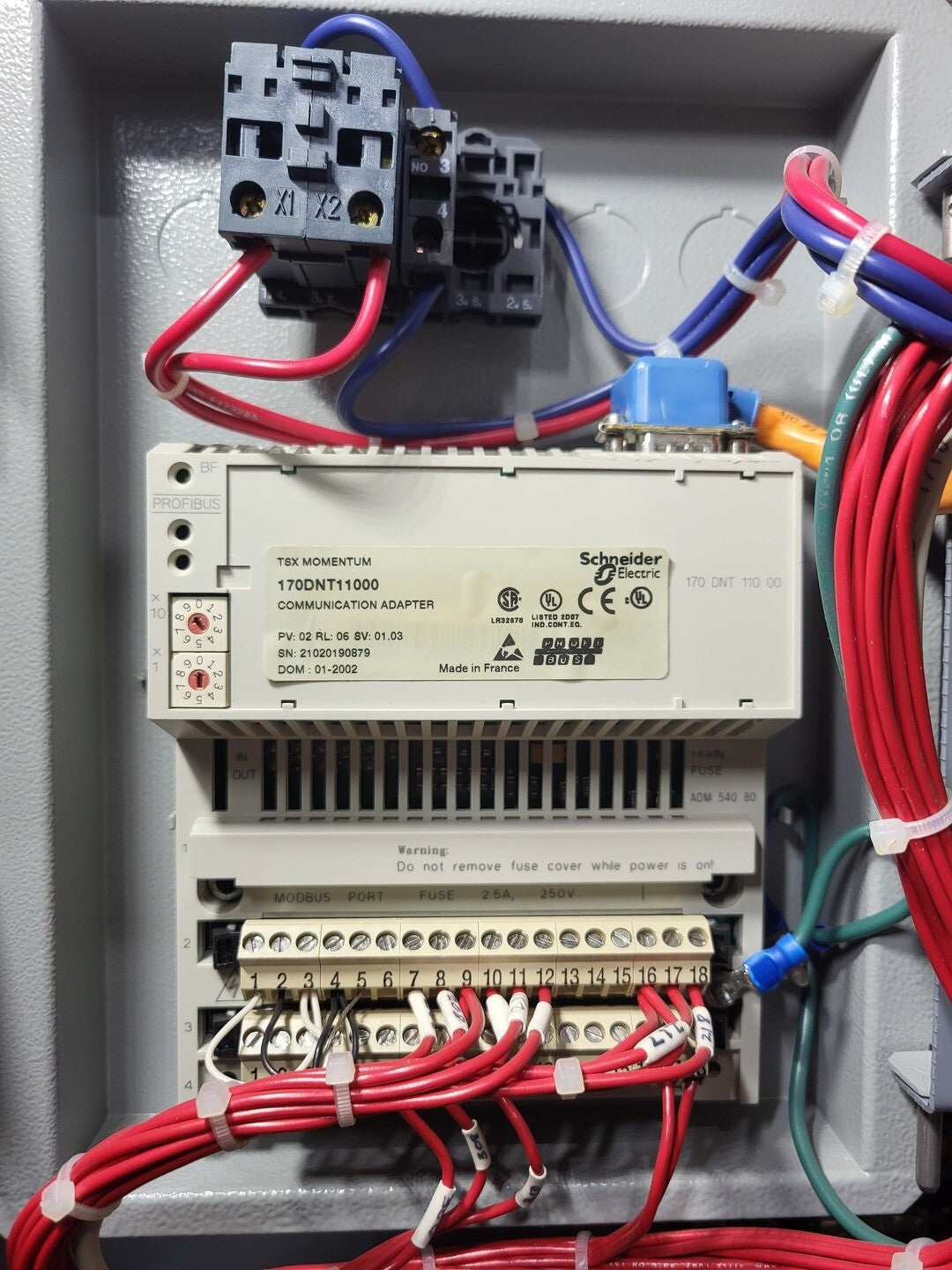

  7. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

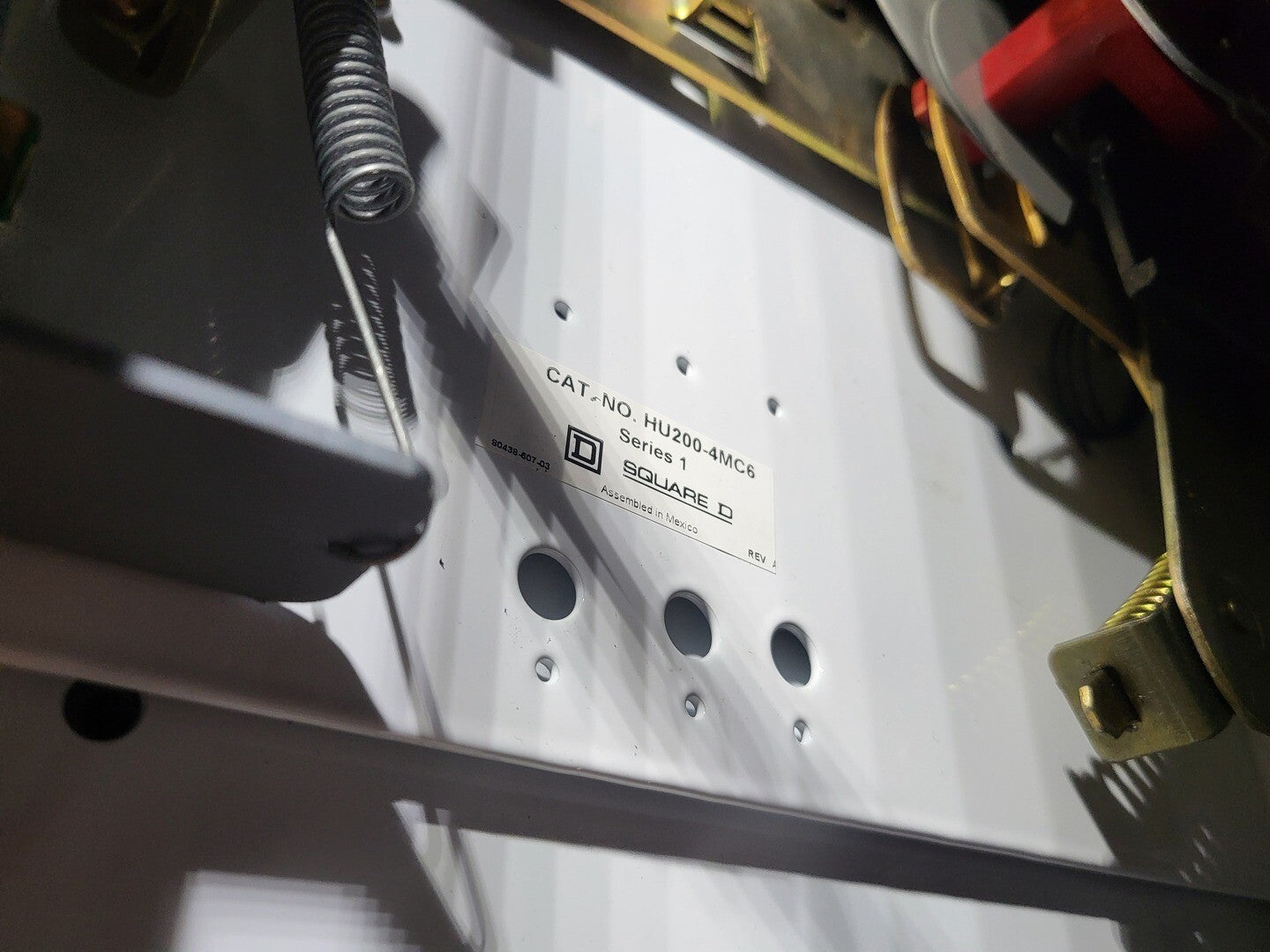

  8. Square D HU200-4MC6, Series 1, 200A MCC bucket disconnect unit

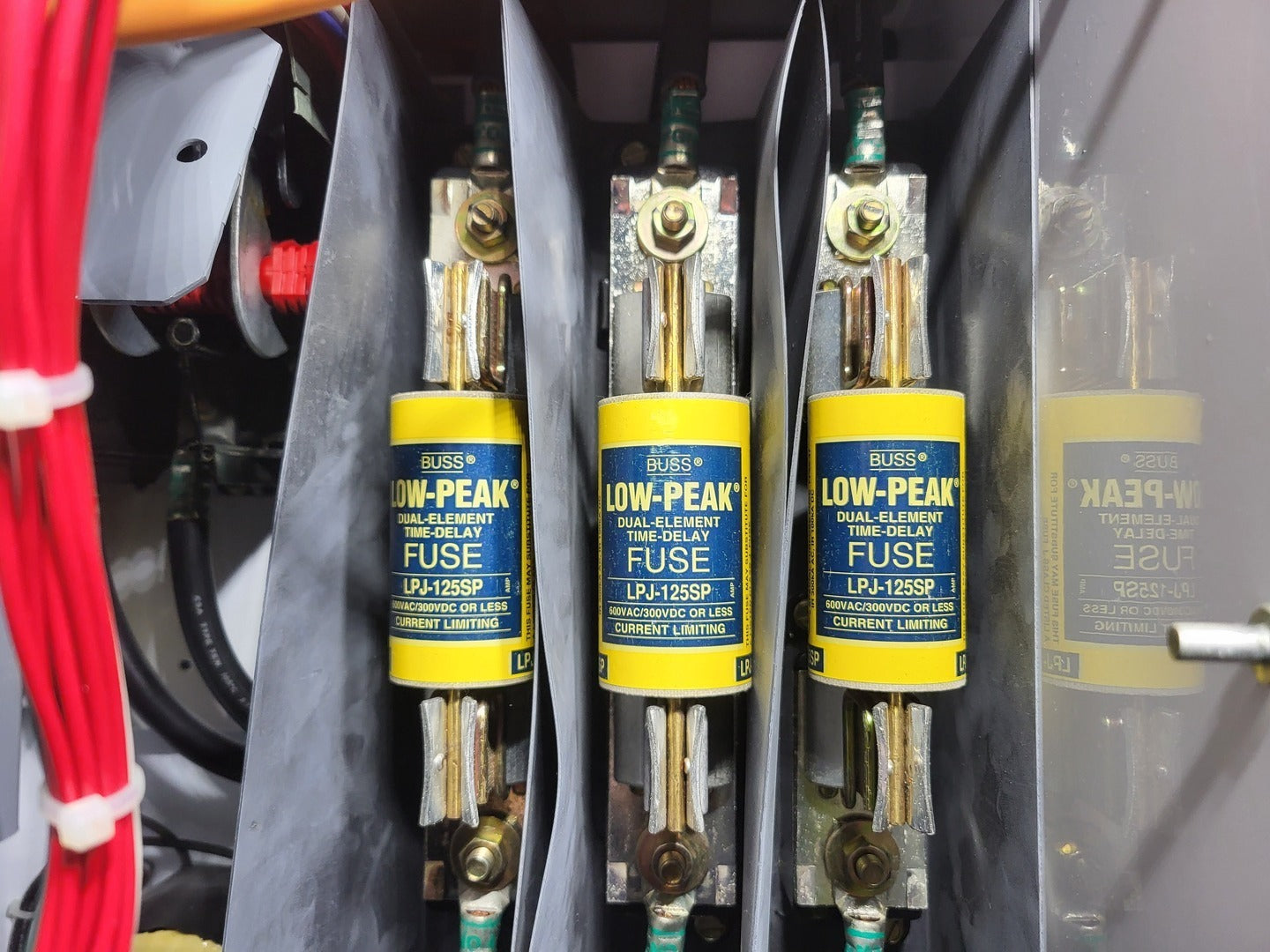

  9. 3 x Bussmann Low-Peak fuses LPJ-125SP

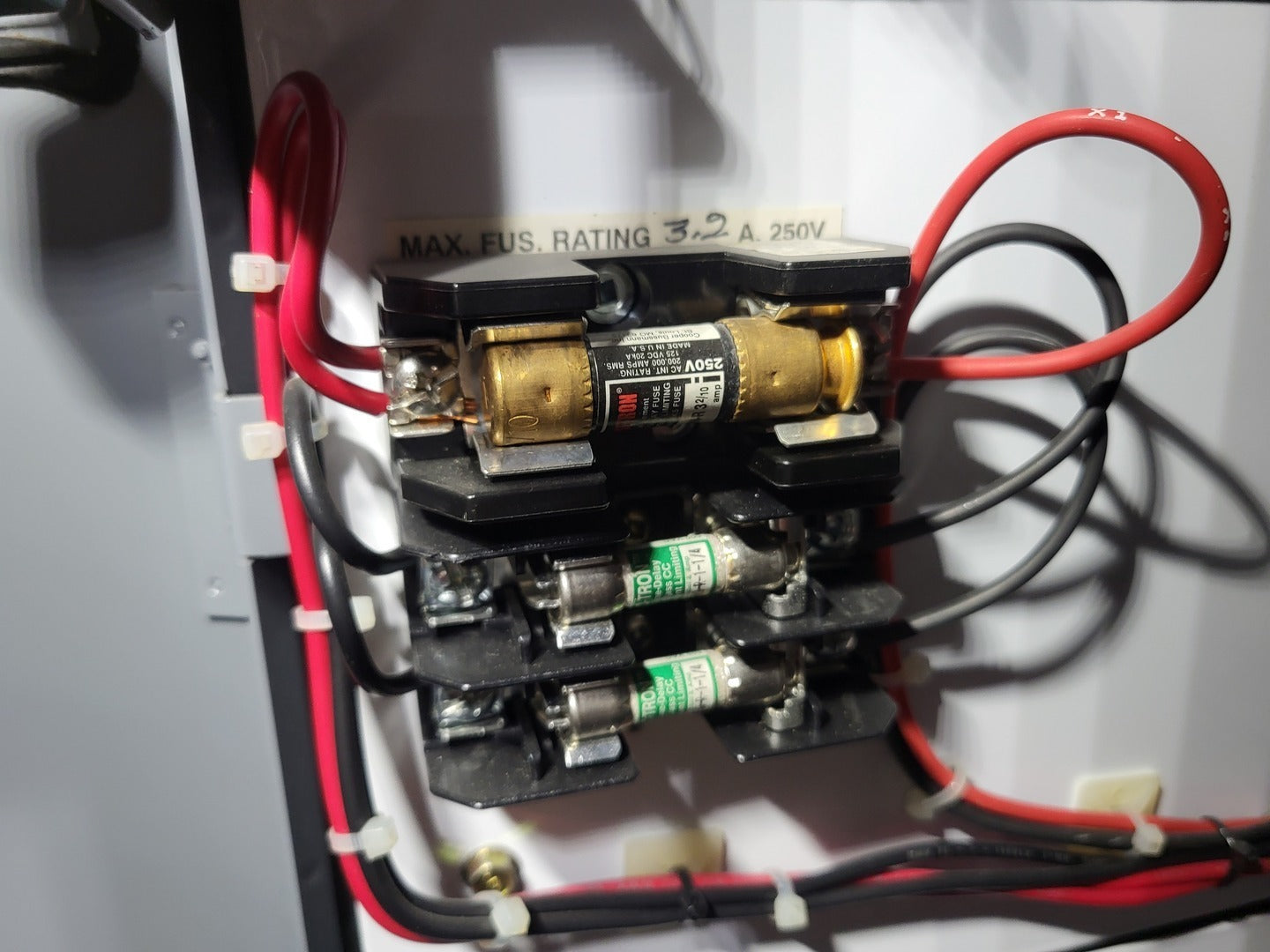

  10. 1 x Bussmann Fusetron fuse FNM-3-2/10, 3.2A, 250V
  11. 2 x Bussmann CC-Tron fuses FNQ-R-1-1/4

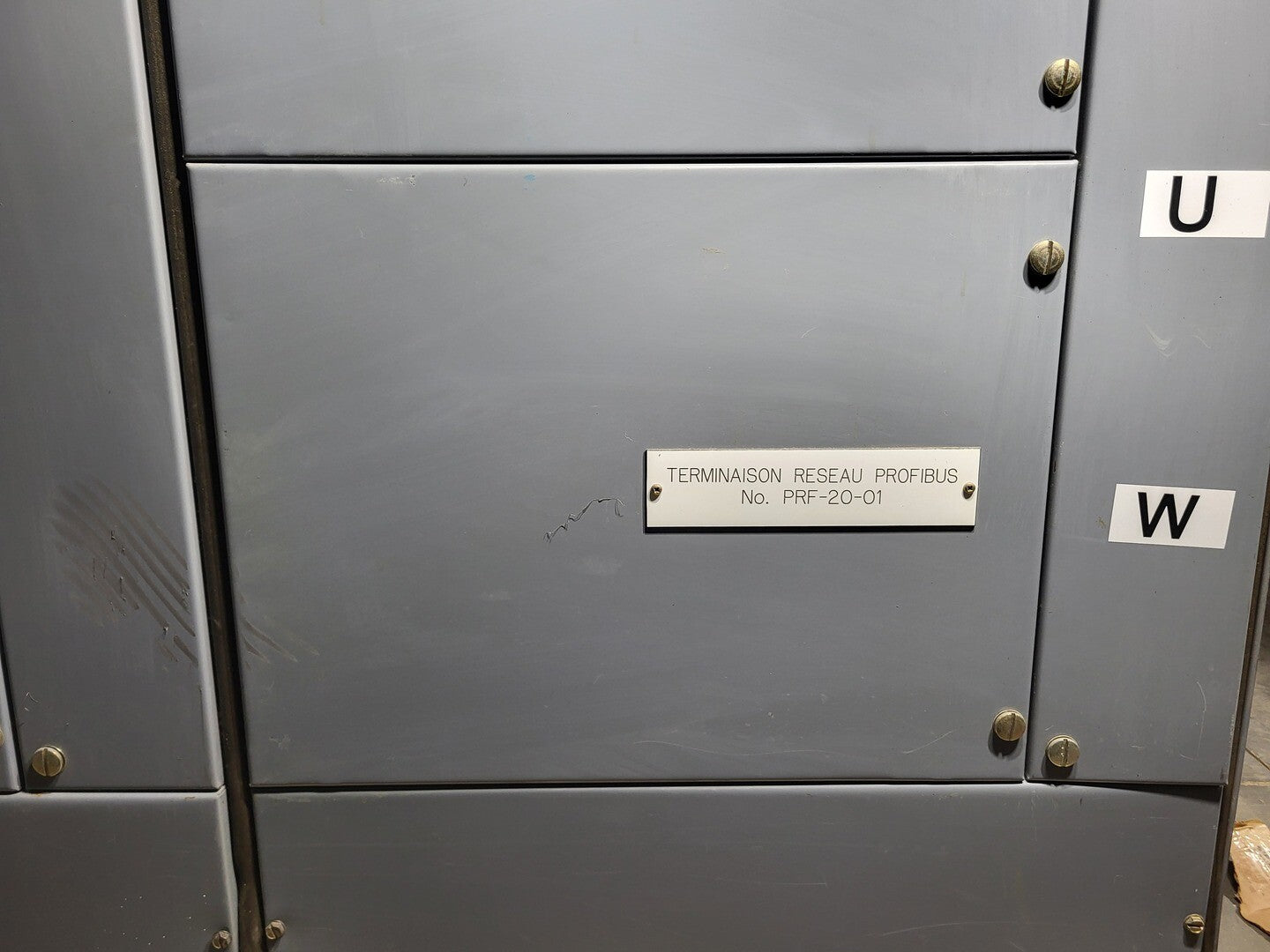

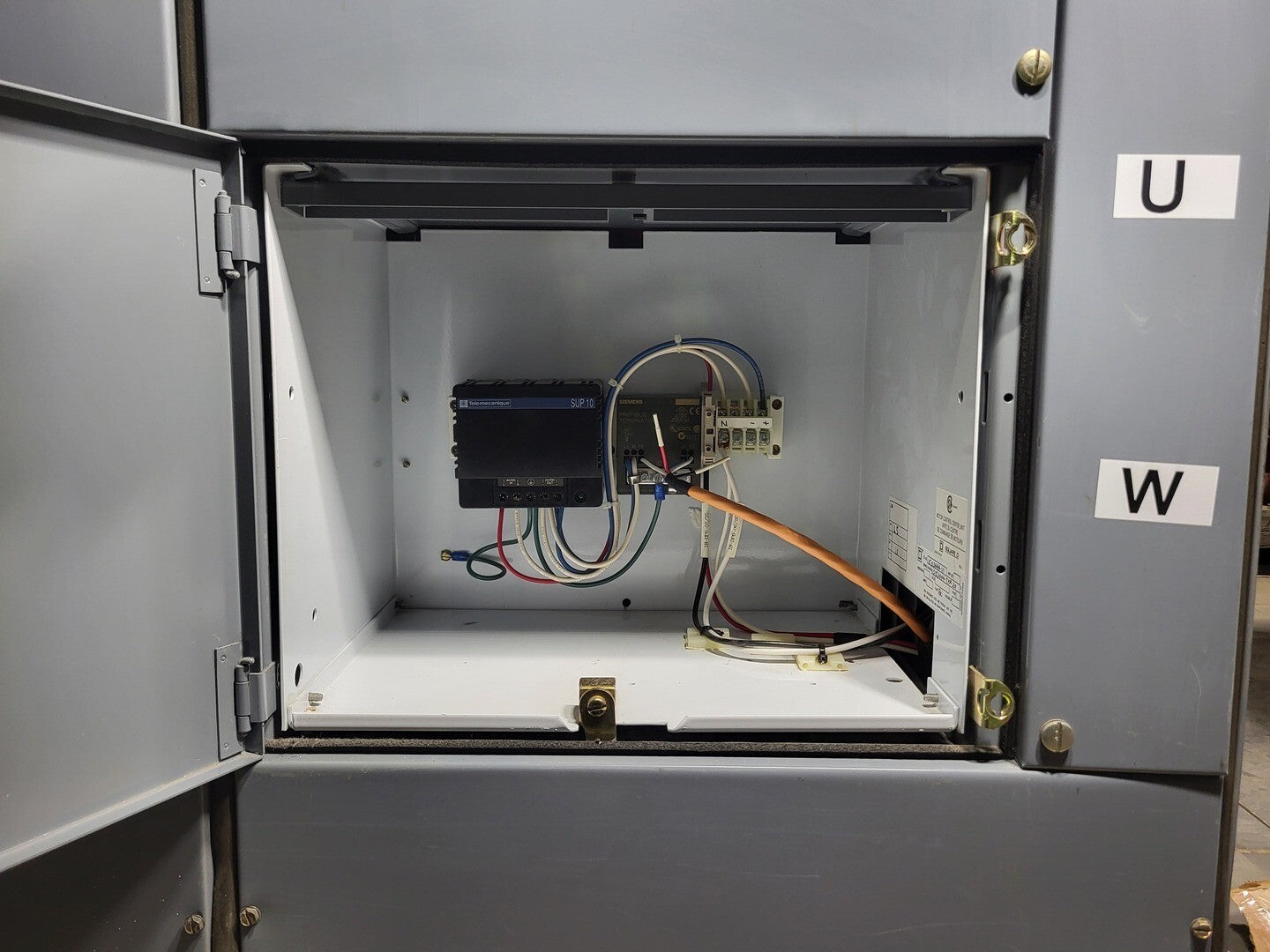

Bucket #3 PRF-20-01

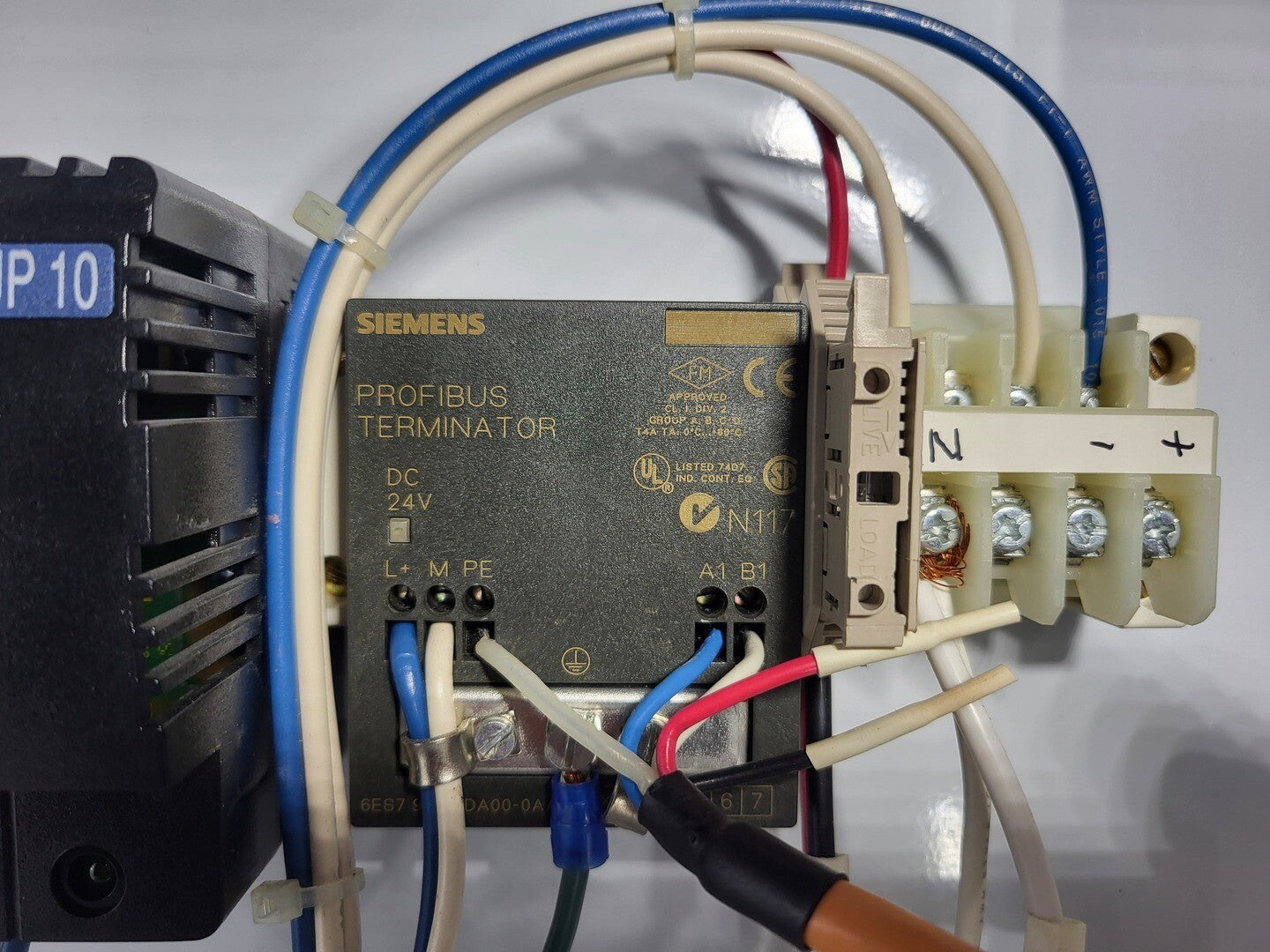

  1. Siemens PROFIBUS Terminator, 24VDC, model appears to be 6ES7 972-0DA00-0AA0

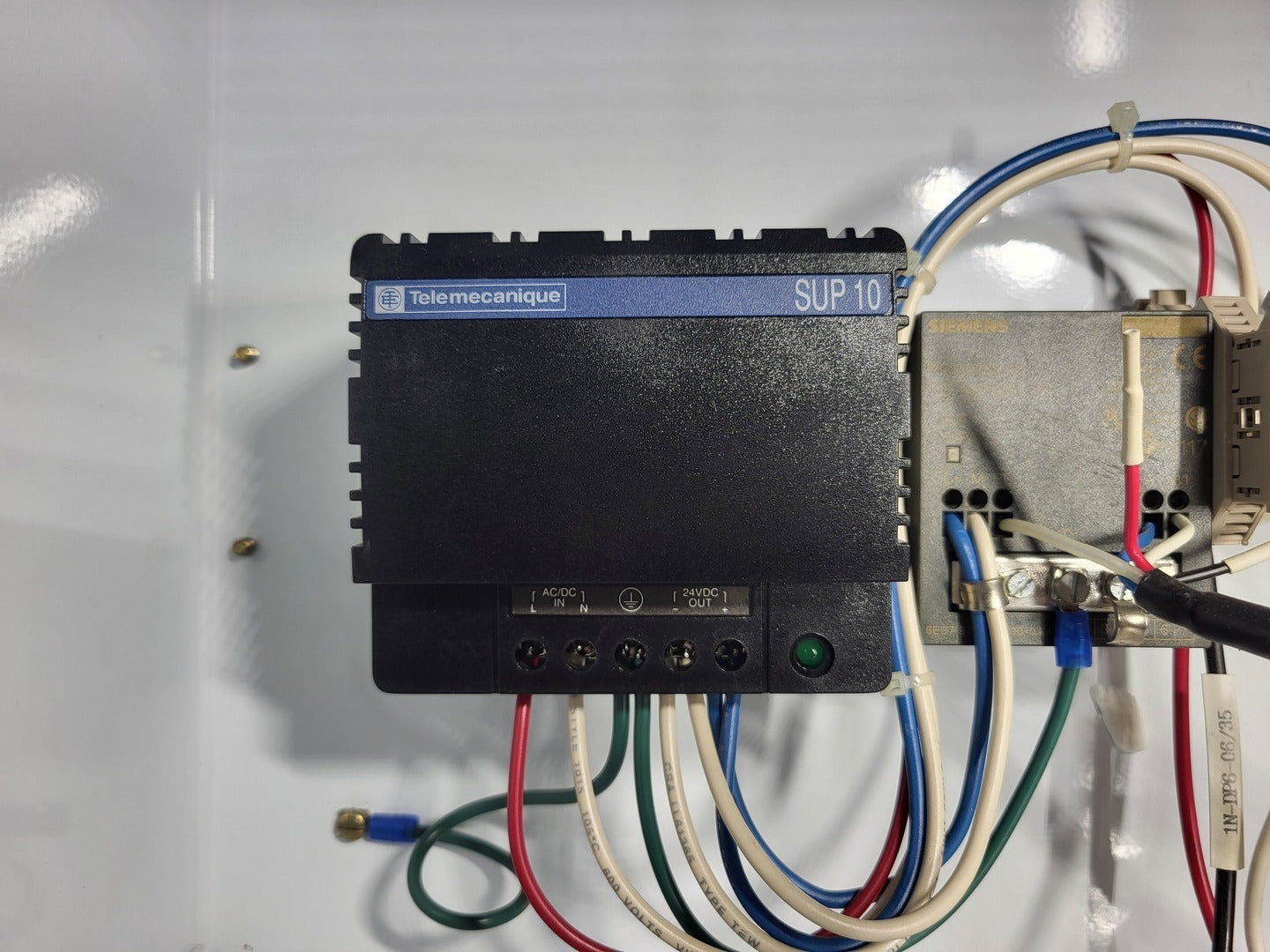

  2. Telemecanique SUP10, AC/DC input to 24VDC output power supply module
