SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151191
Price:
$5,200 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

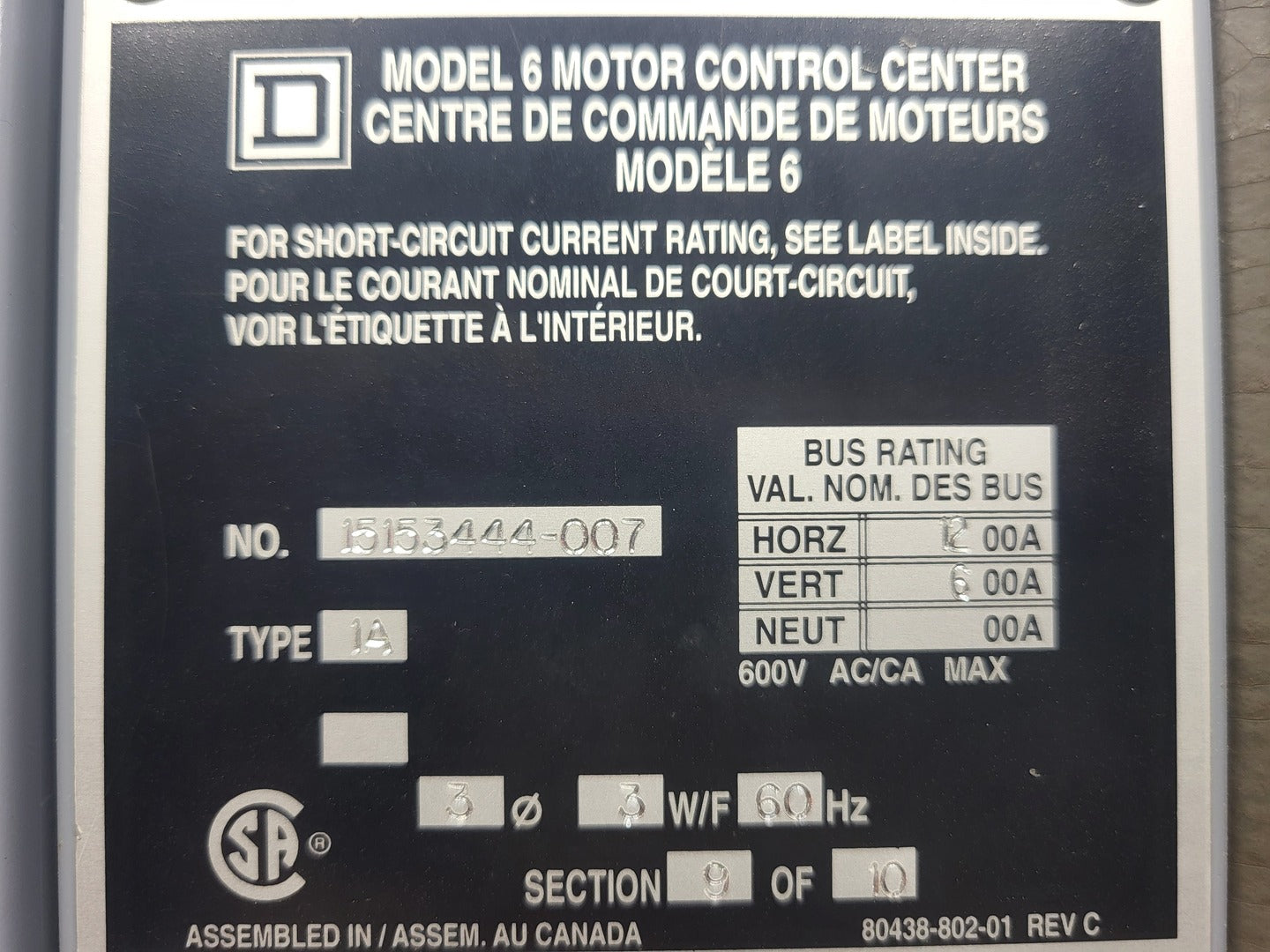

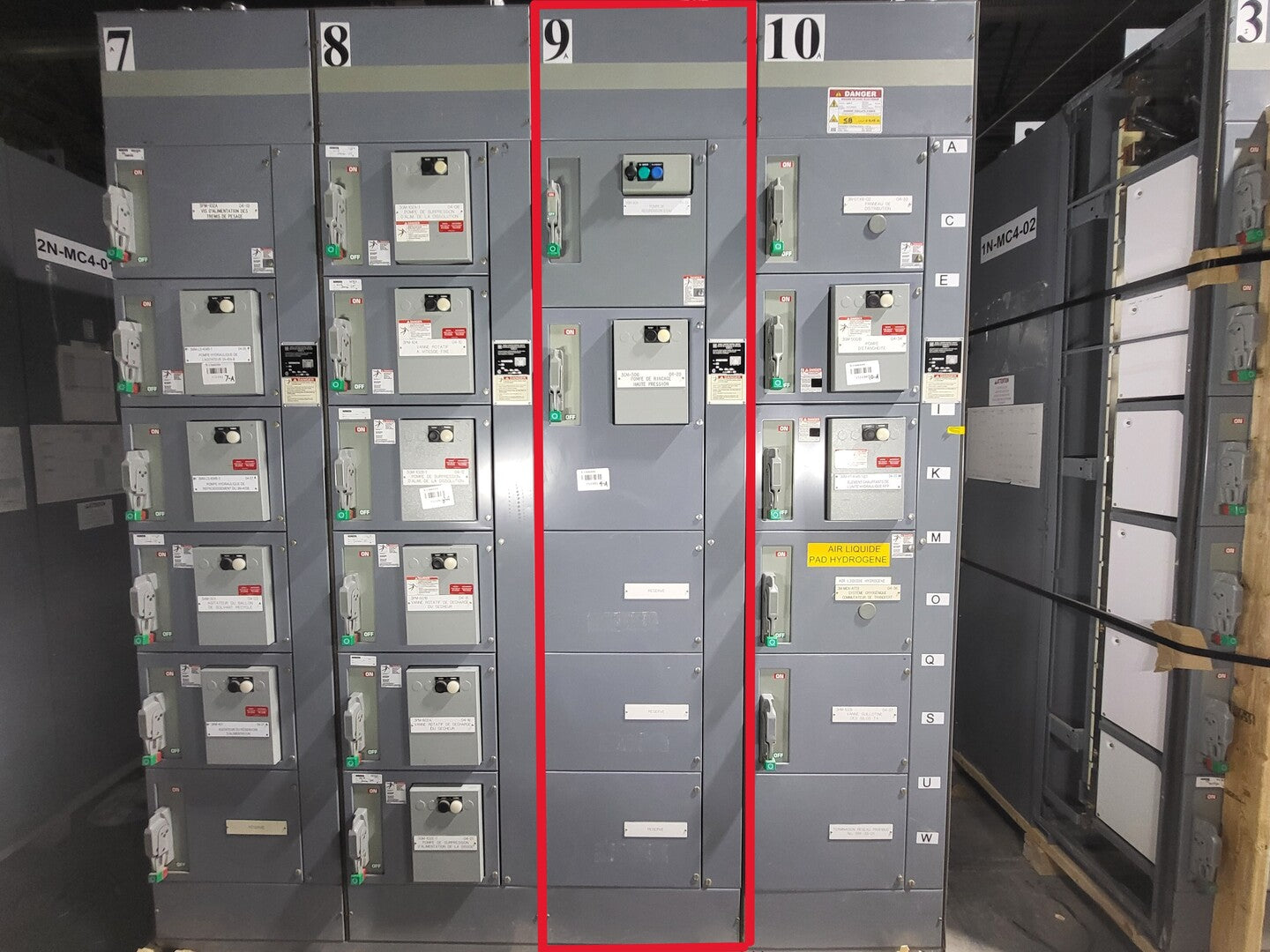

Note: Section 9 only

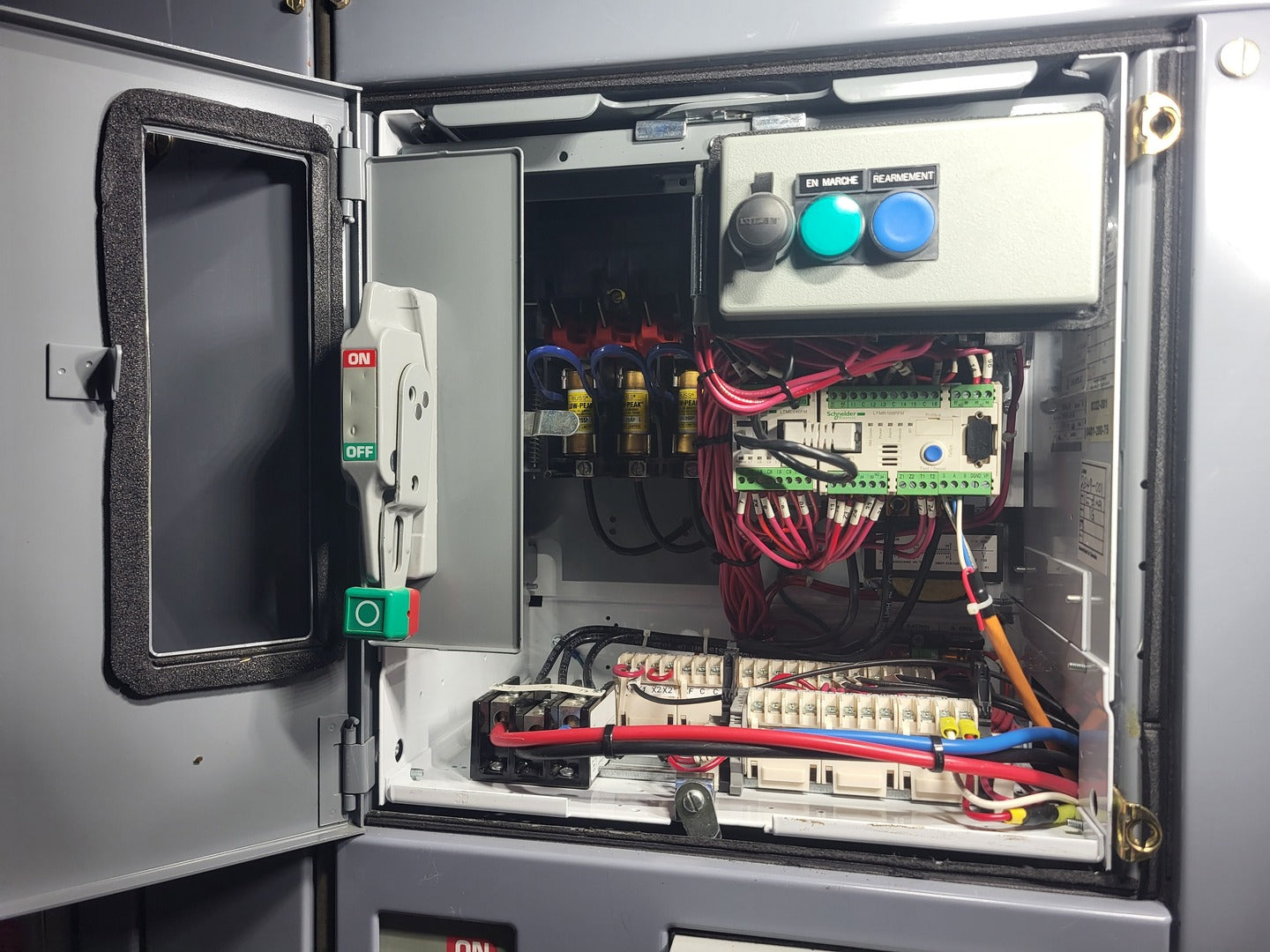

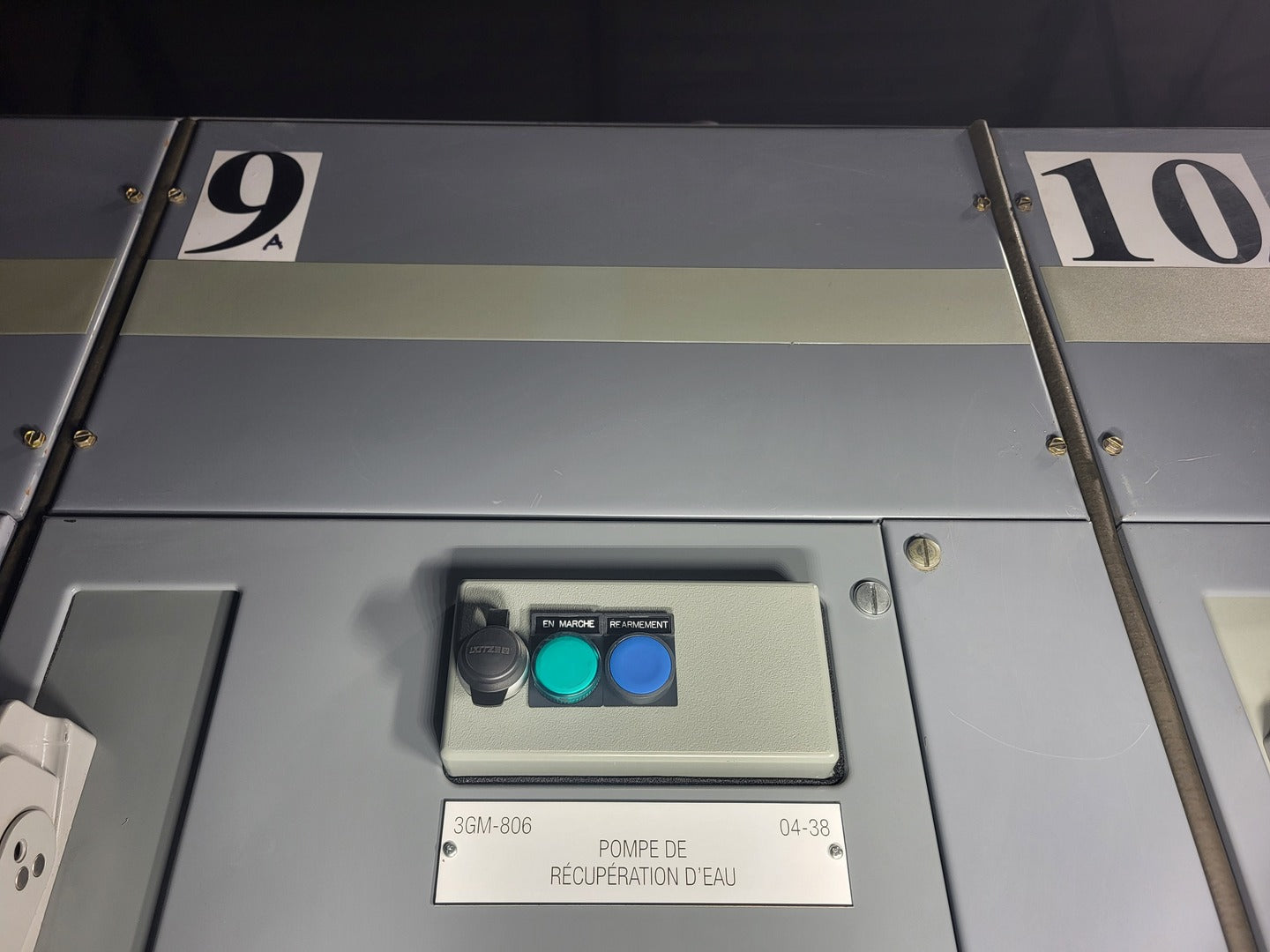

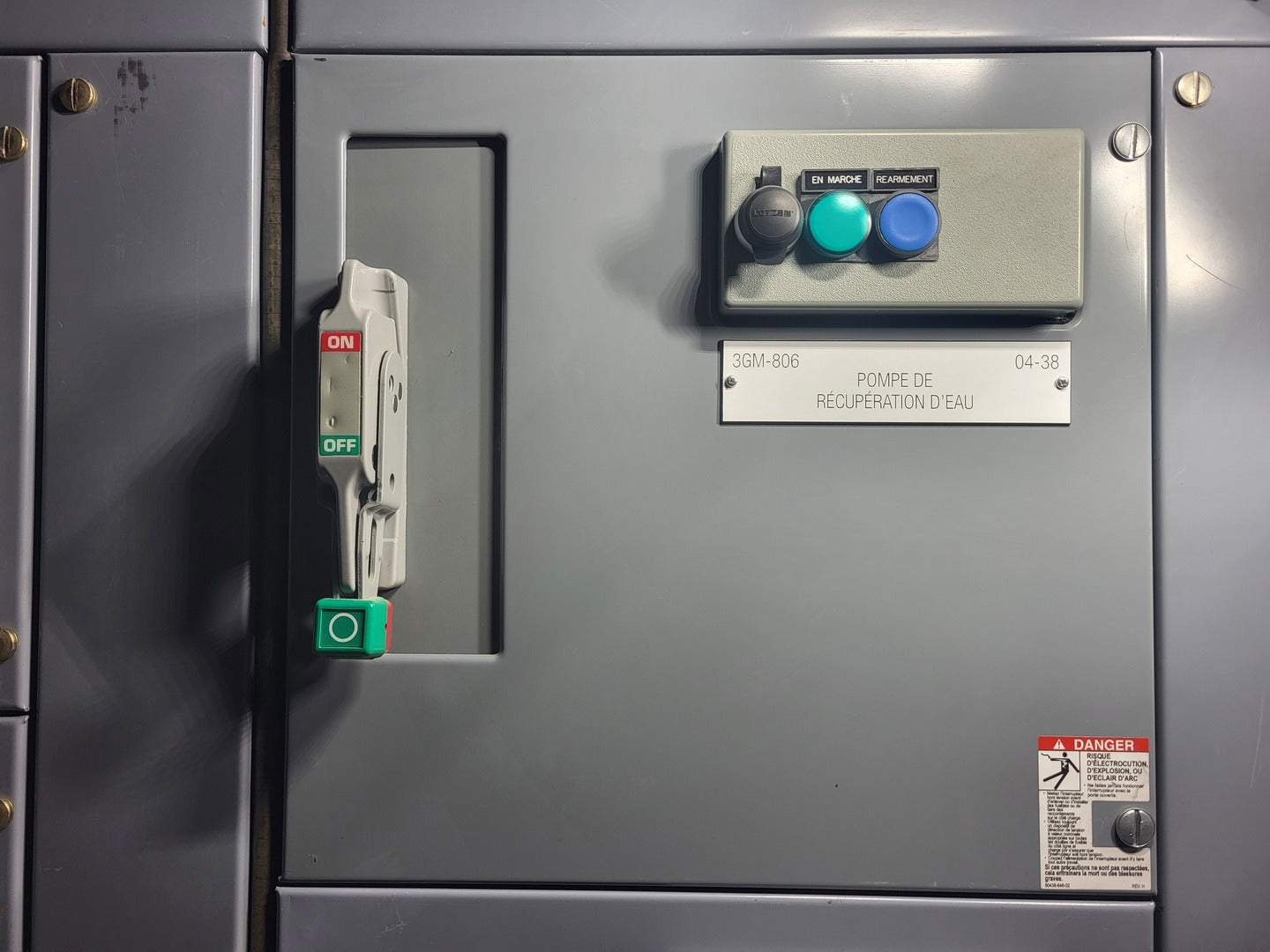

Bucket #1 3GM-806

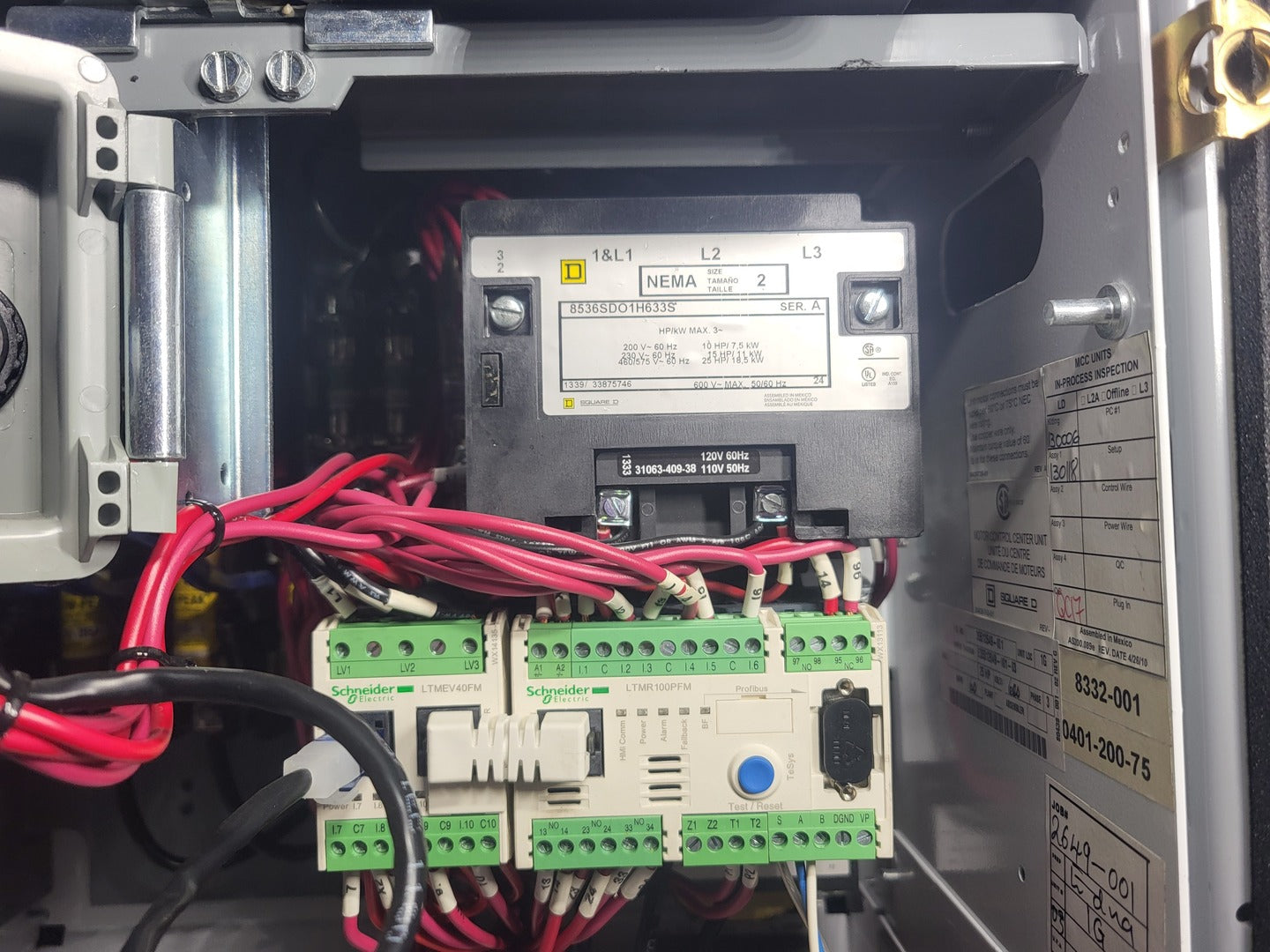

  1. Square D 8536SDO1H633S, NEMA Size 2 contactor, 25 HP @ 460/575V, 600V max
  2. Schneider Electric TeSys T LTMR100PFM motor management controller, PROFIBUS communication, 24VDC control
  3. Schneider Electric LTMEV40FM expansion module / voltage measurement module

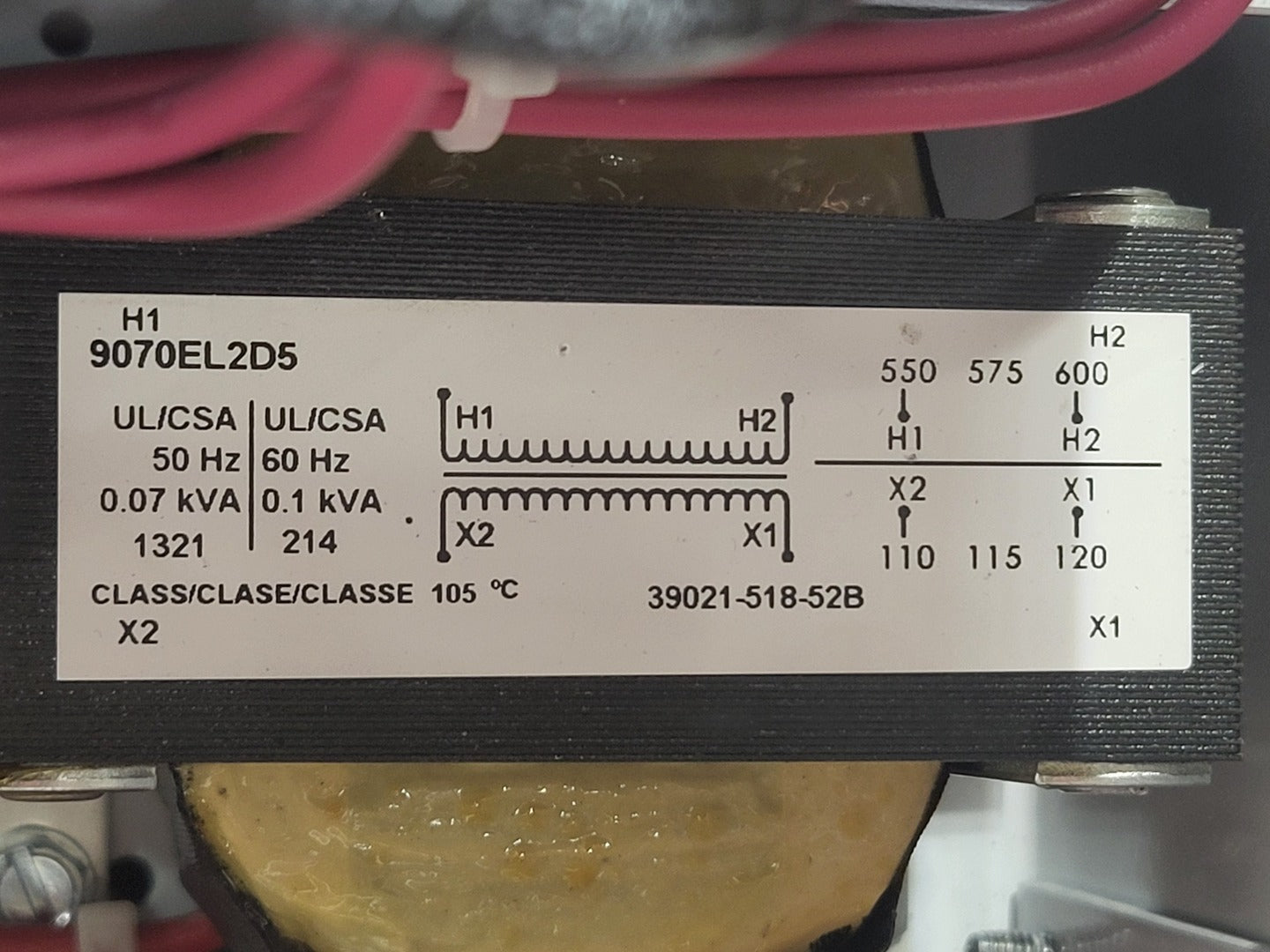

  4. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

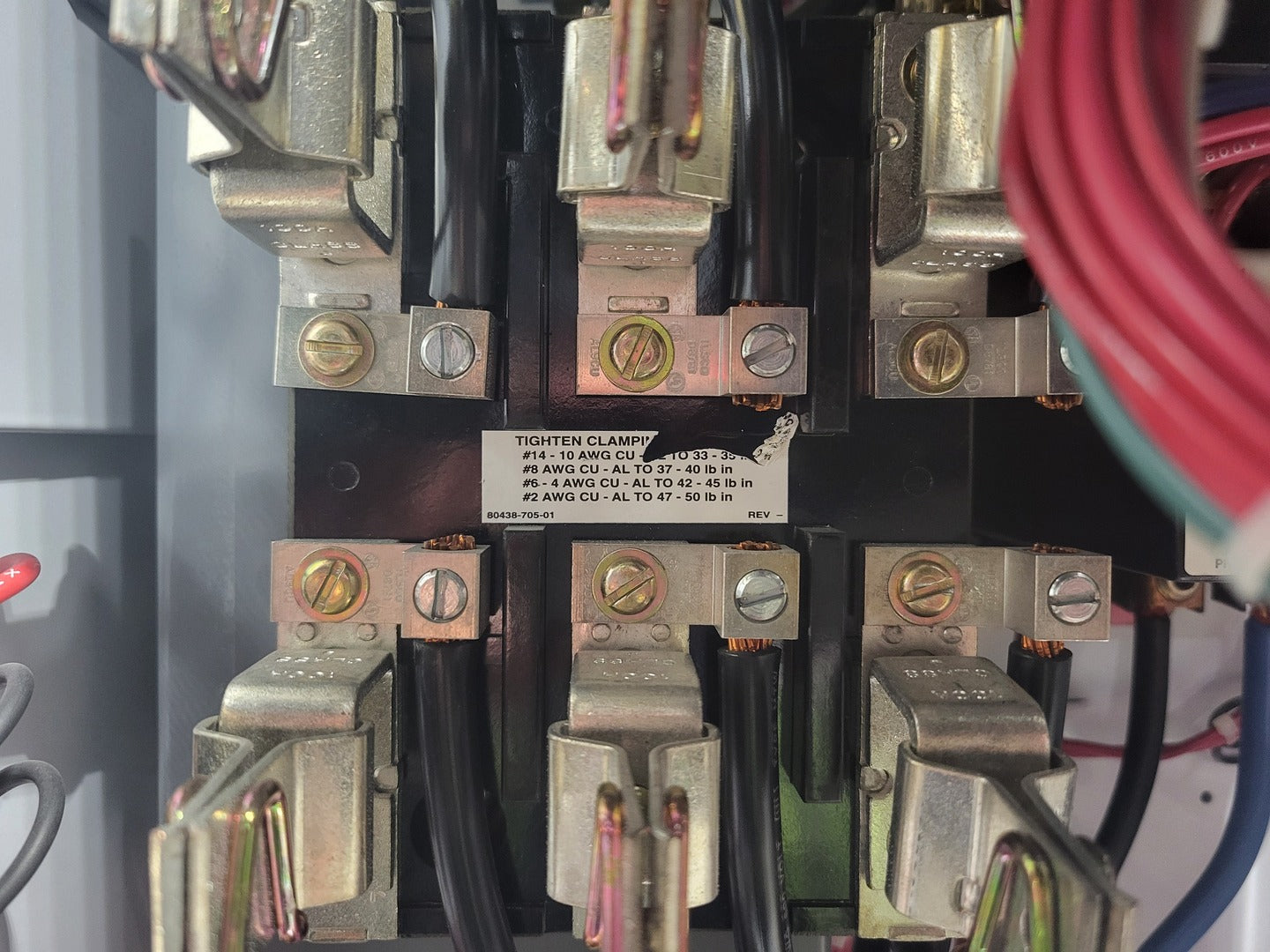

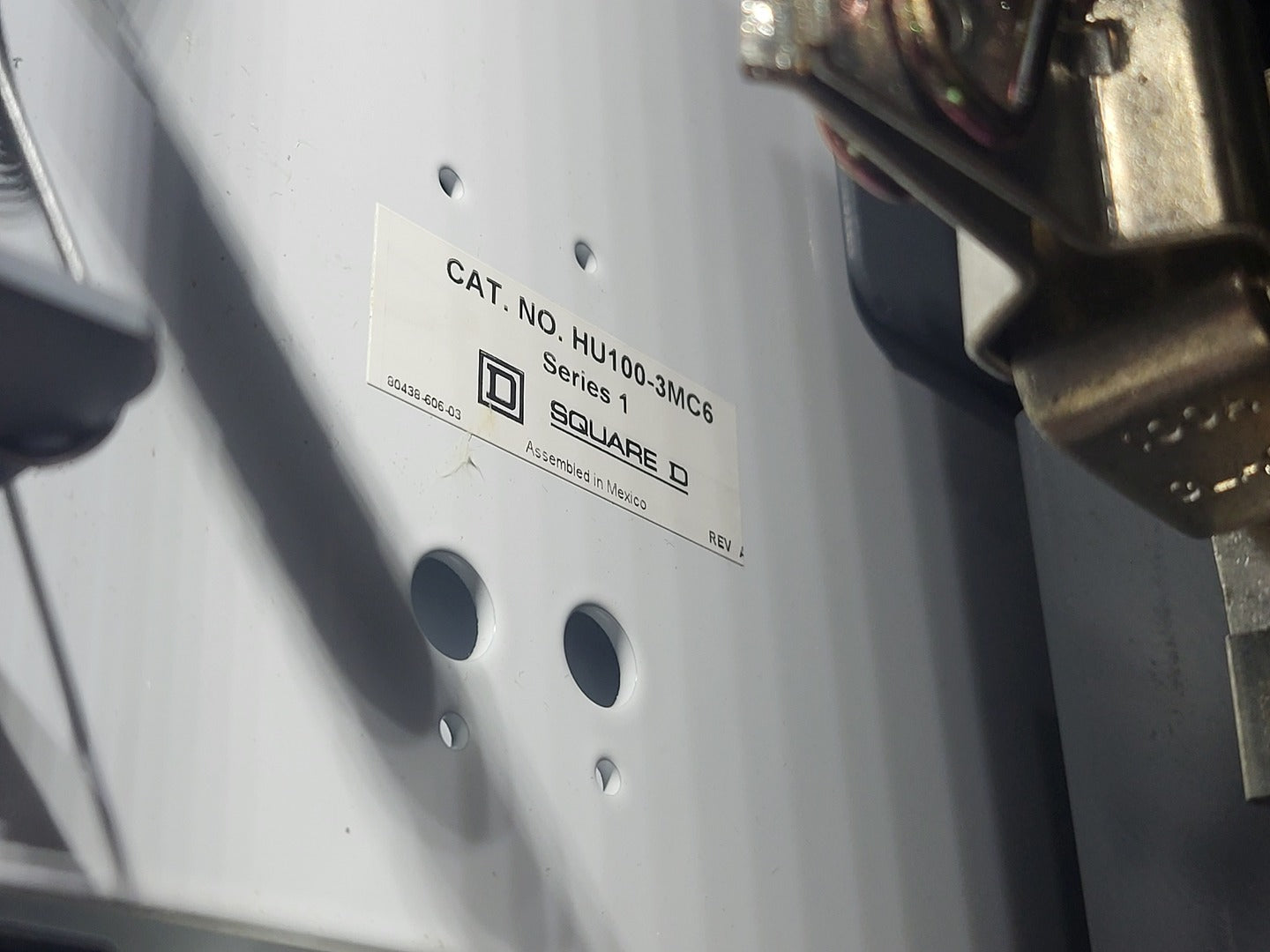

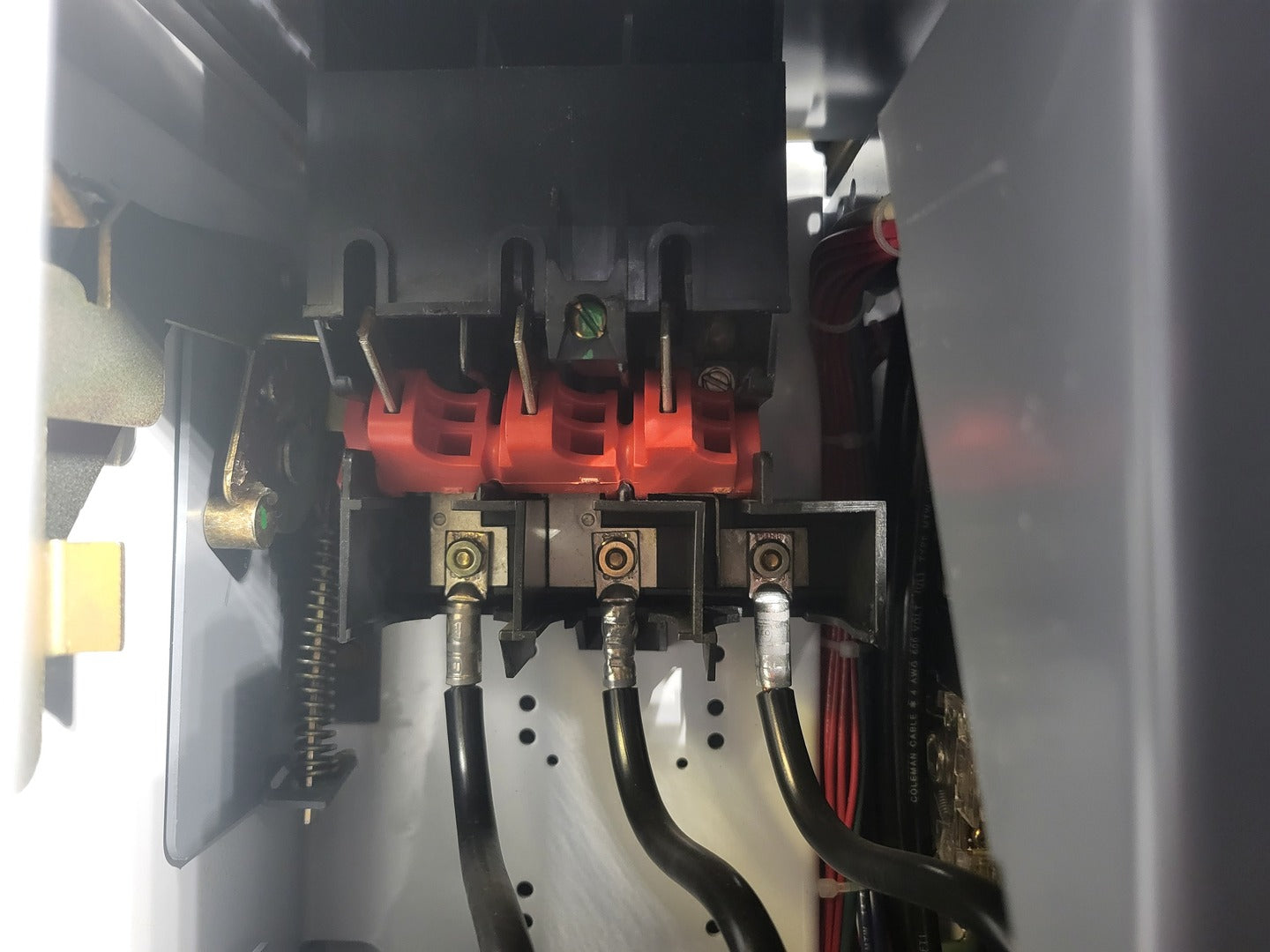

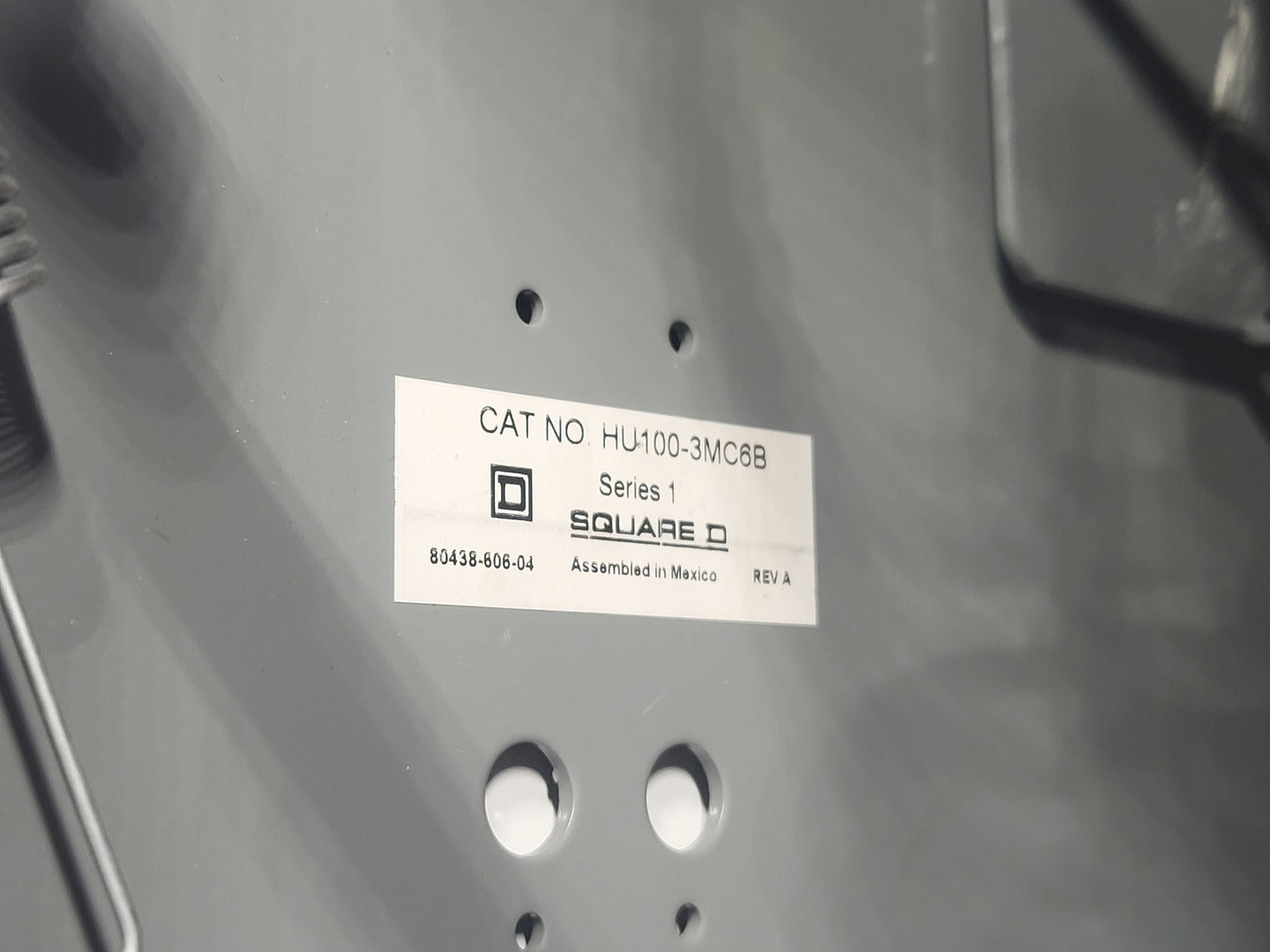

  5. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
  6. 3 x Bussmann Low-Peak fuses LPJ-25SP

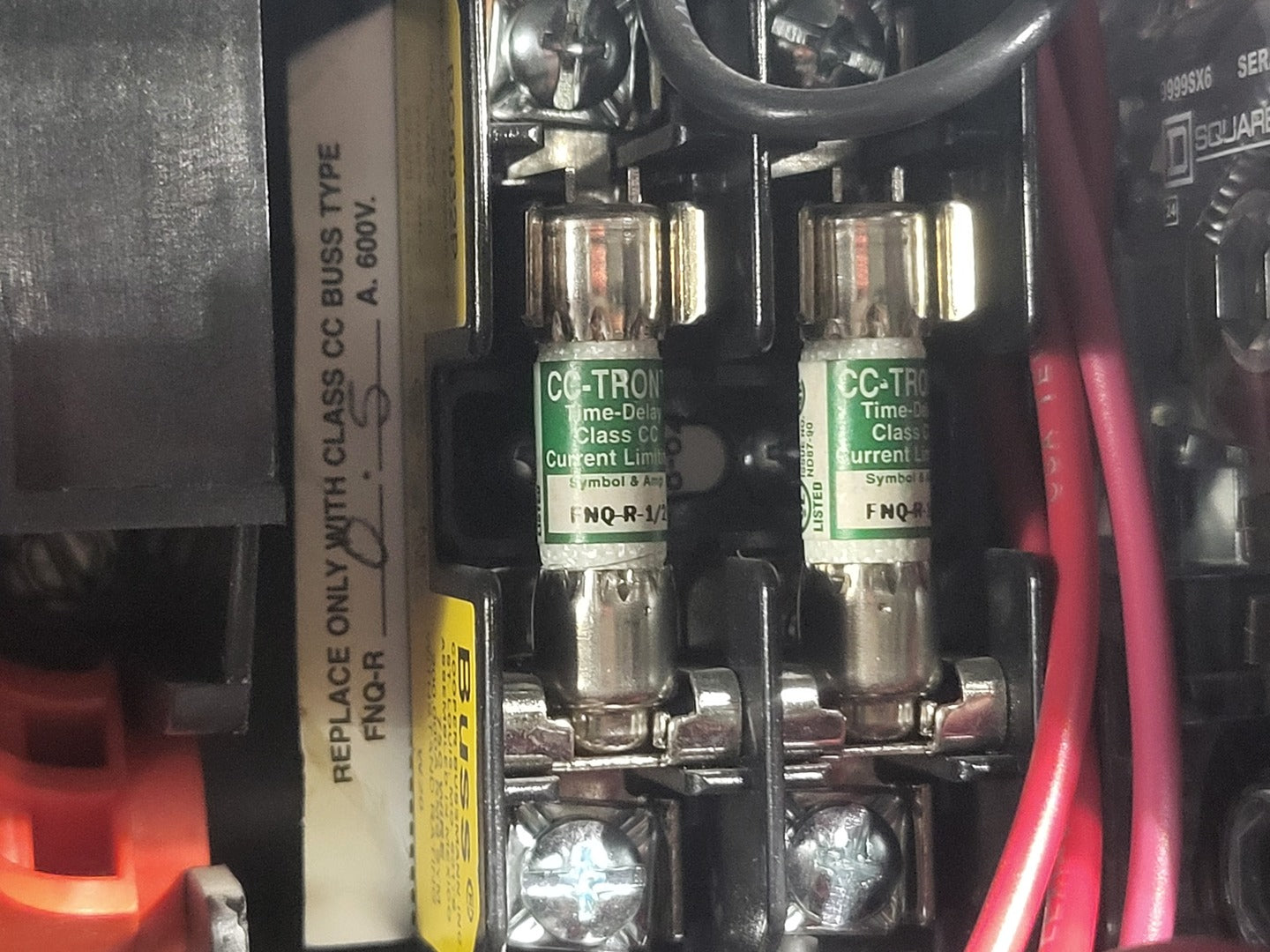

  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

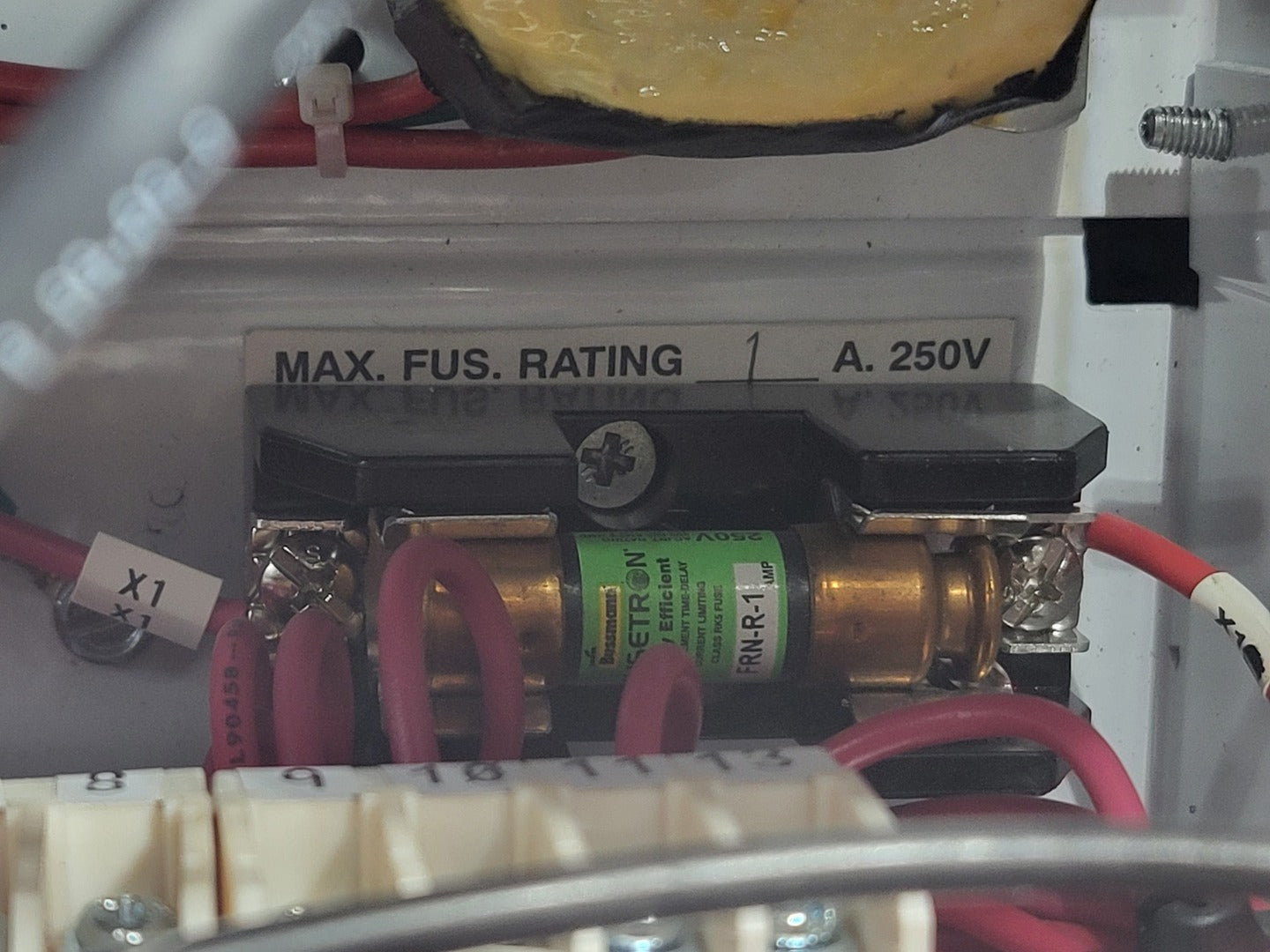

  8. 1 x Bussmann Fusetron fuse FRN-R-1

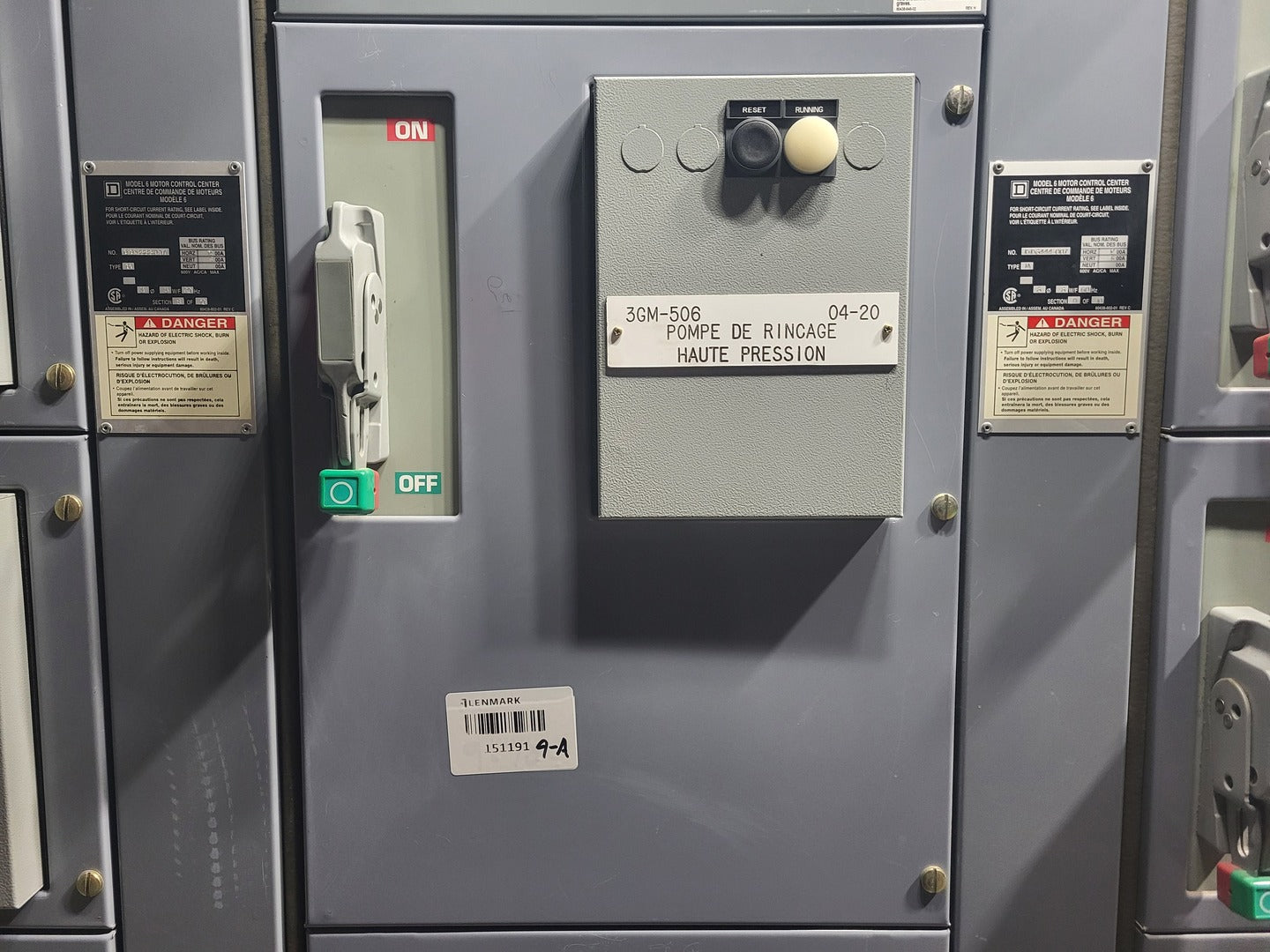

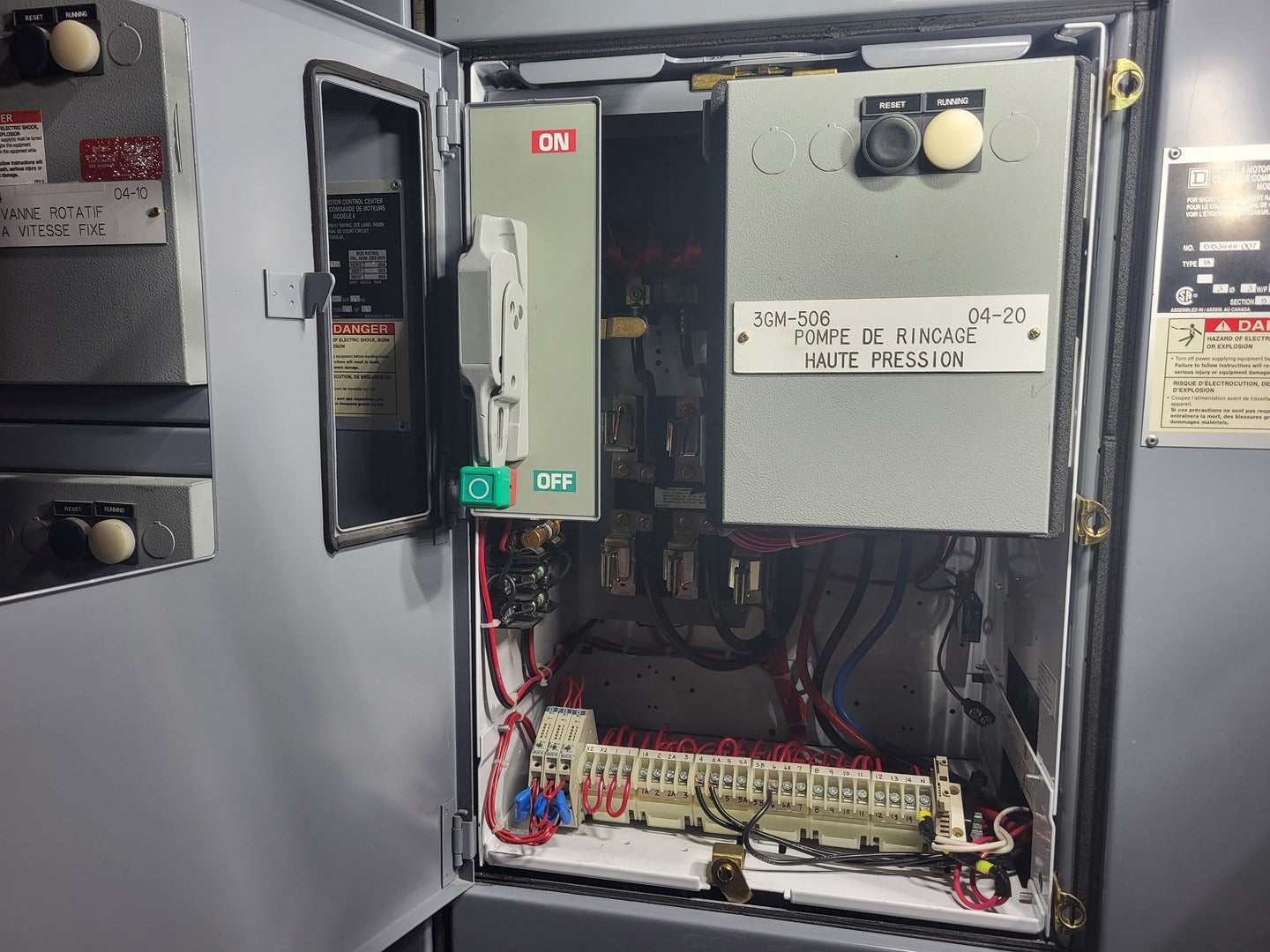

Bucket #2 3GM-506

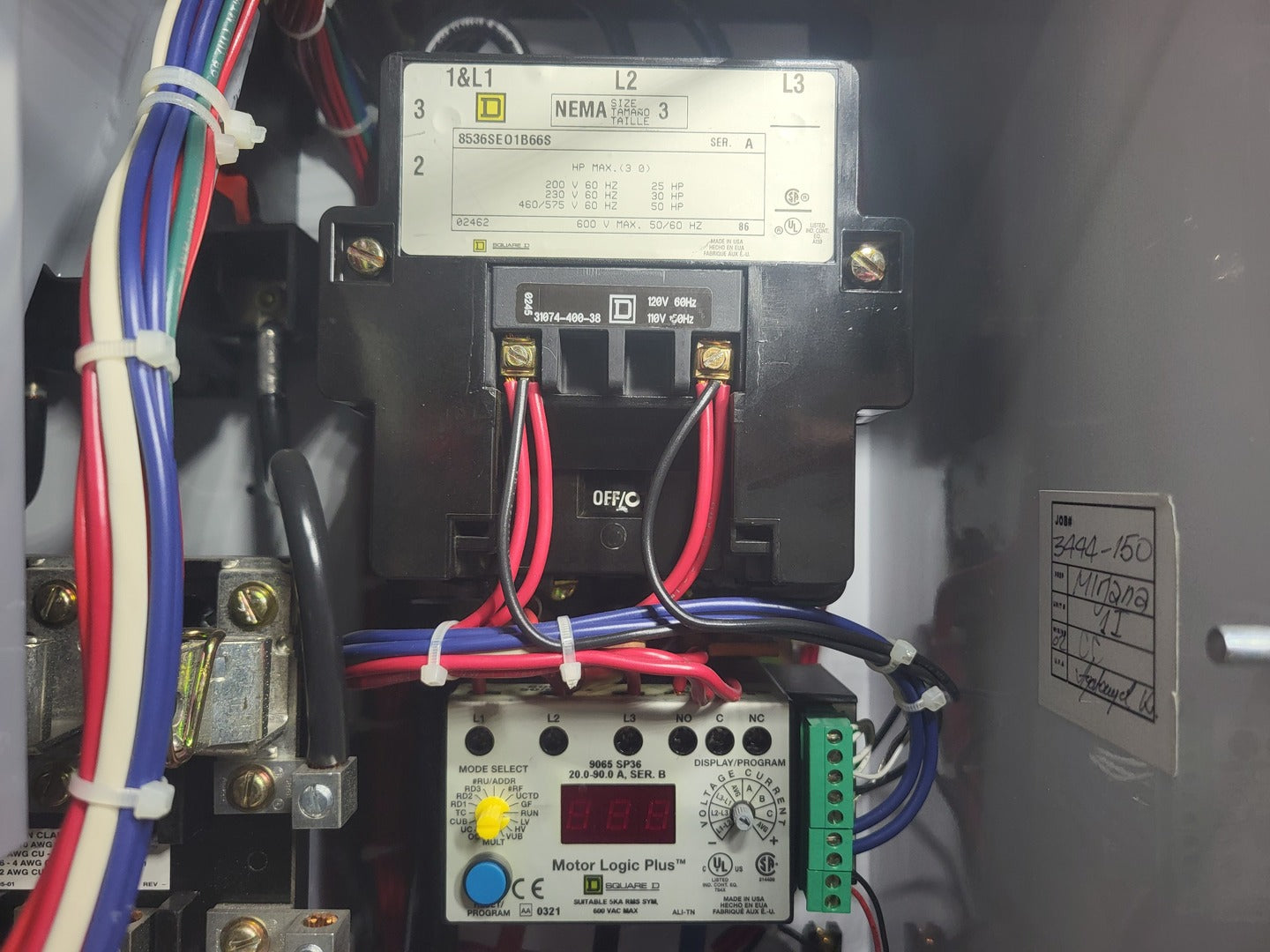

  1. Square D 8536SEO1B66S, NEMA Size 3 contactor, 50 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP36, motor protection relay, 20.0-90.0A range, 600VAC max

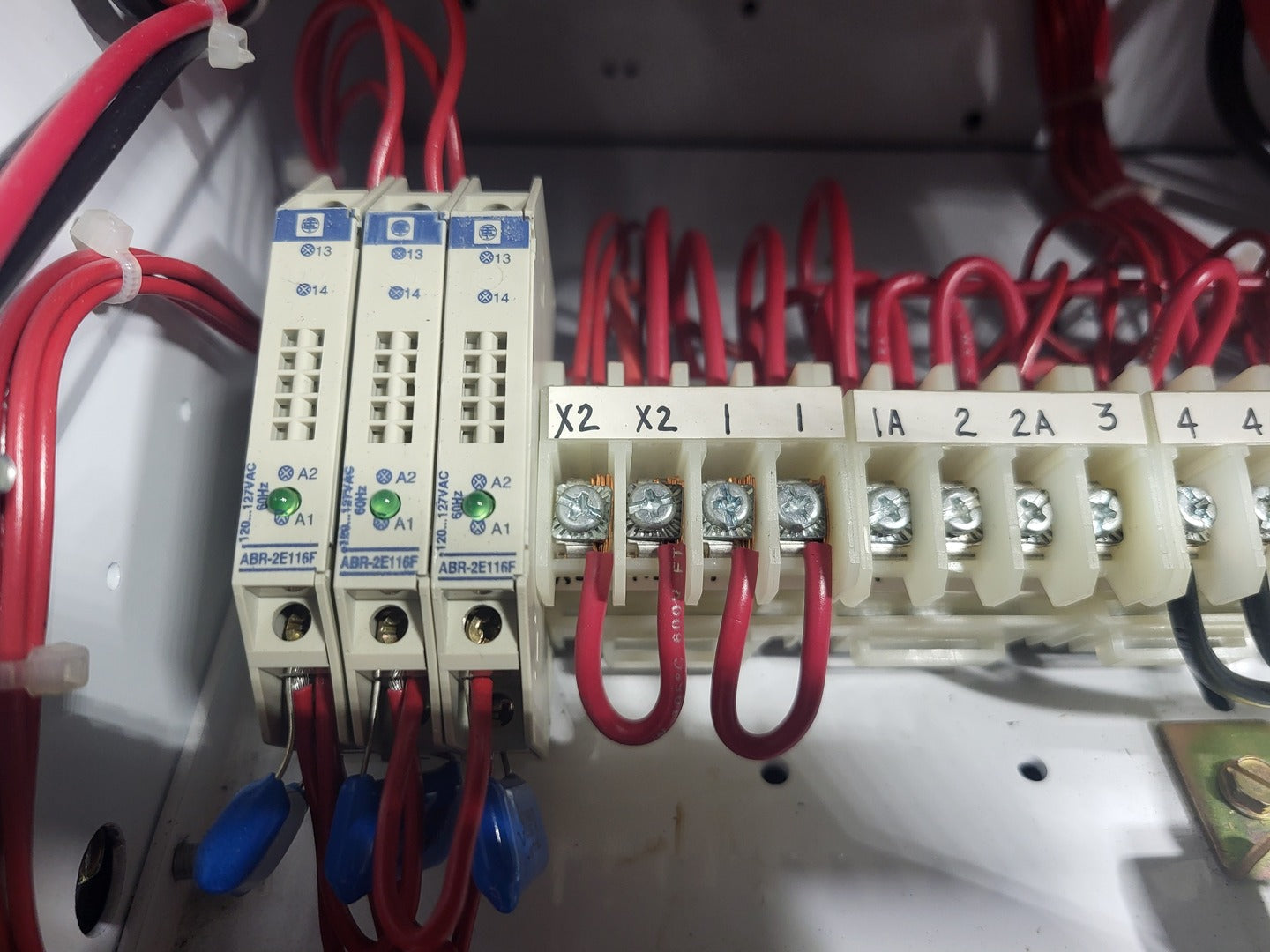

  3. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

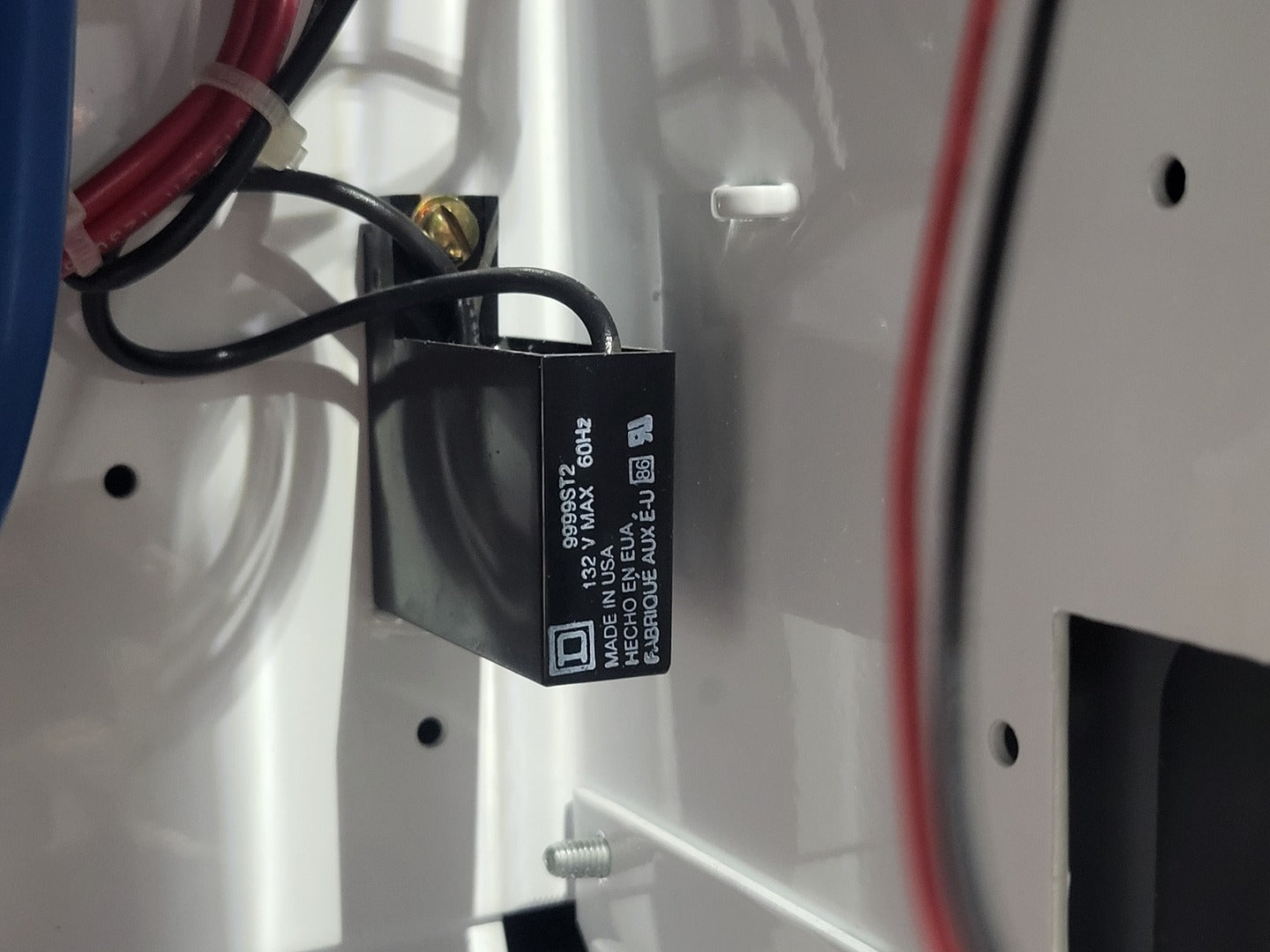

  4. Square D 9999ST2, surge suppressor / MOV module, 132V max, 60Hz

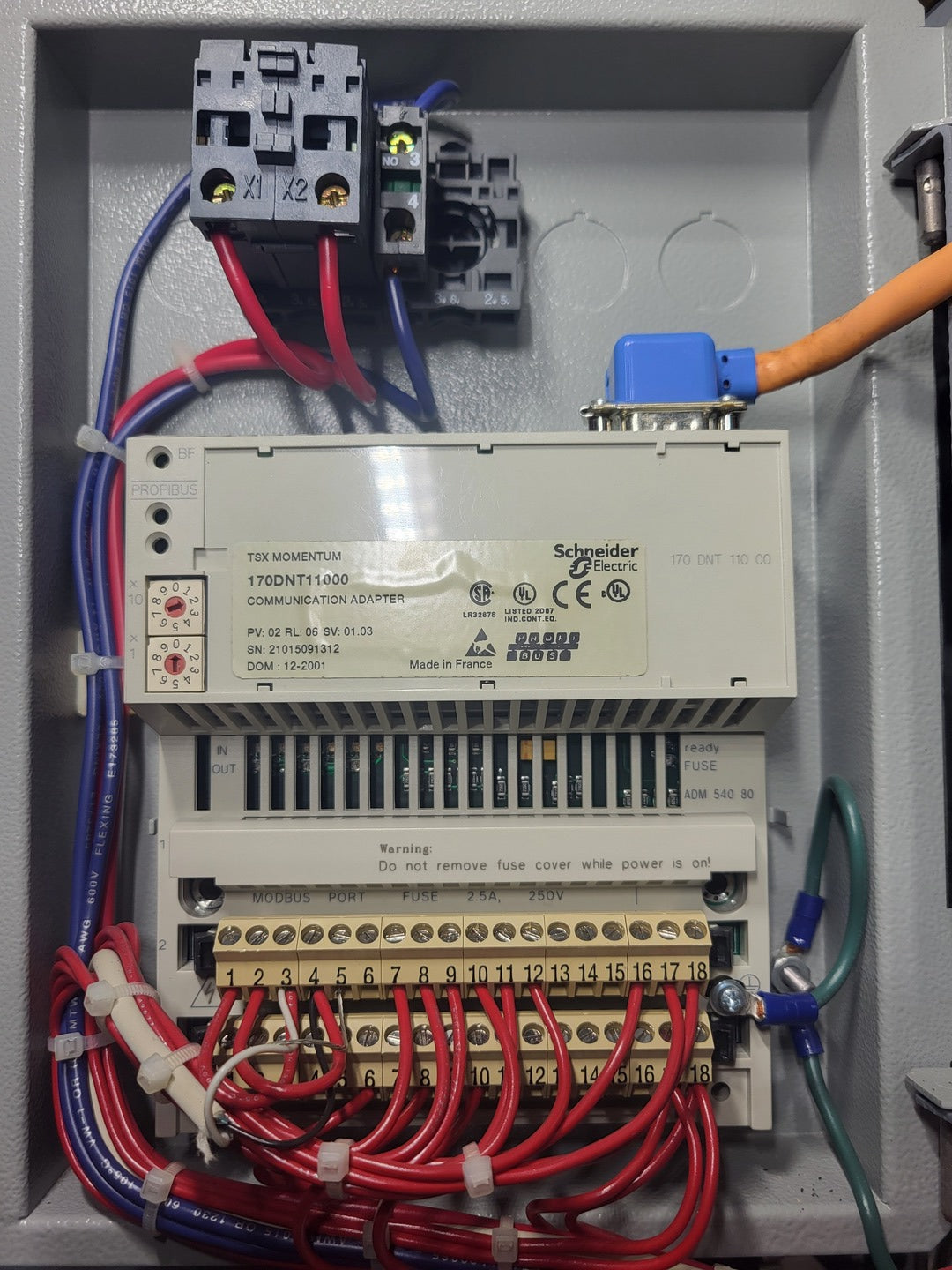

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

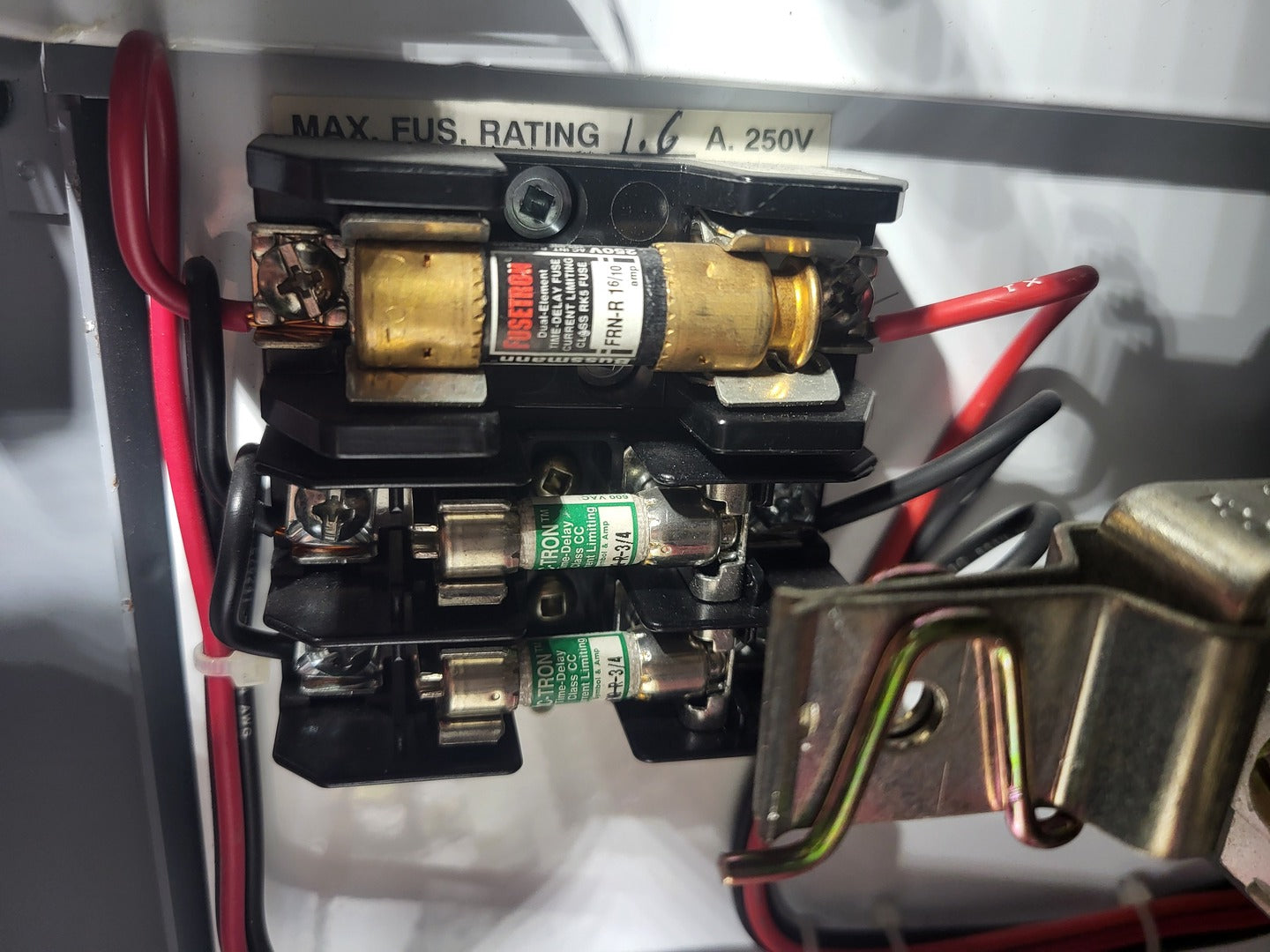

  7. 1 x Bussmann Fusetron fuse FRN-R-1-6/10
  8. 2 x Bussmann CC-Tron fuses FNQ-R-3/4
