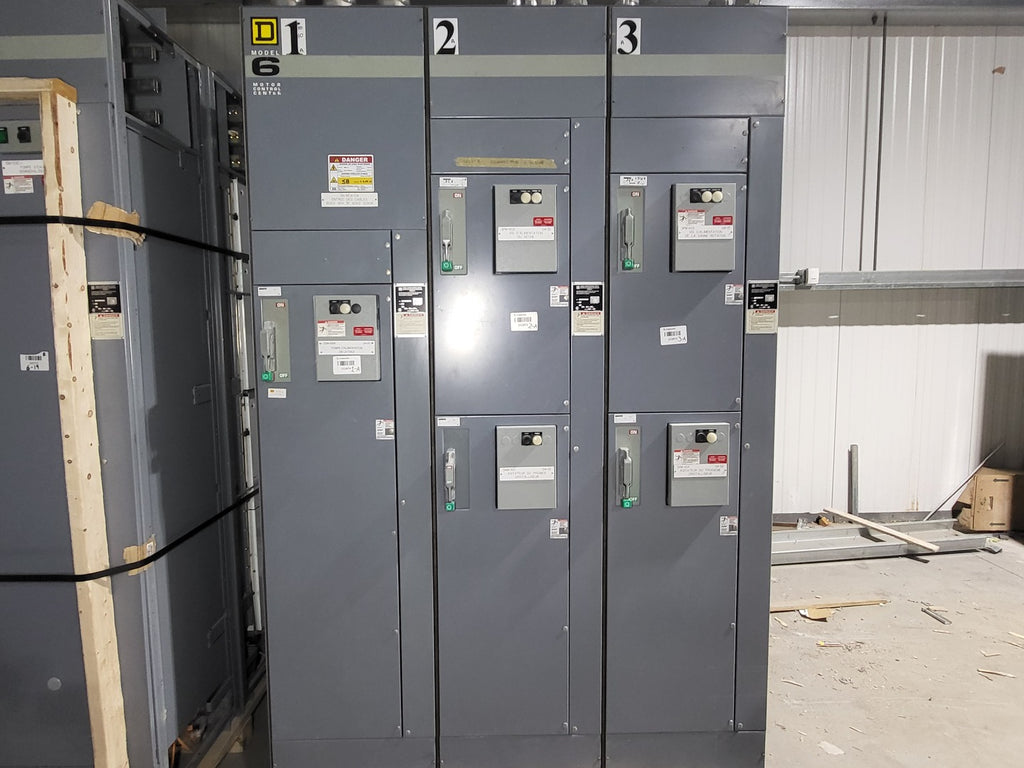

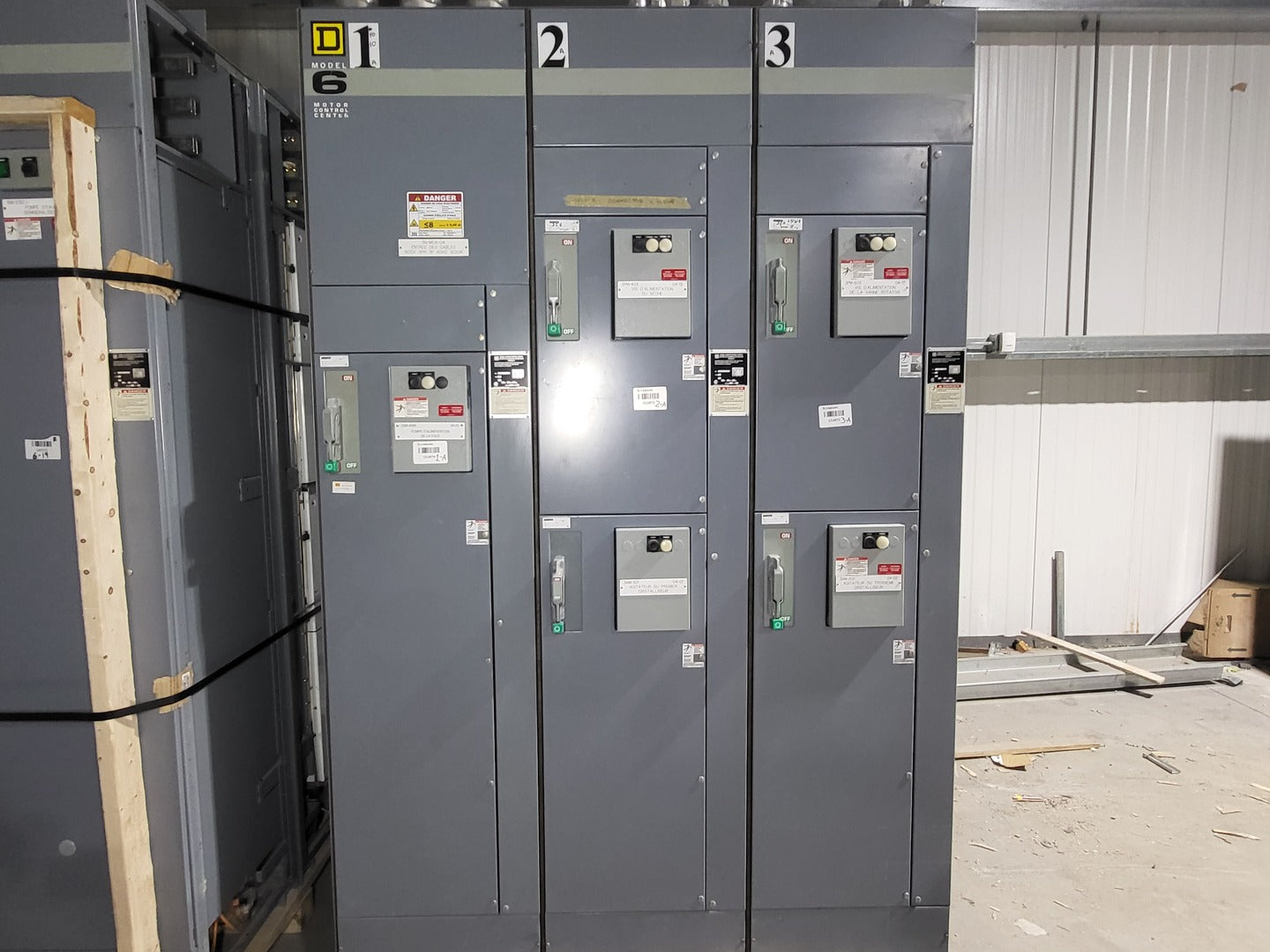

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 152073
Price:
$10,800 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications

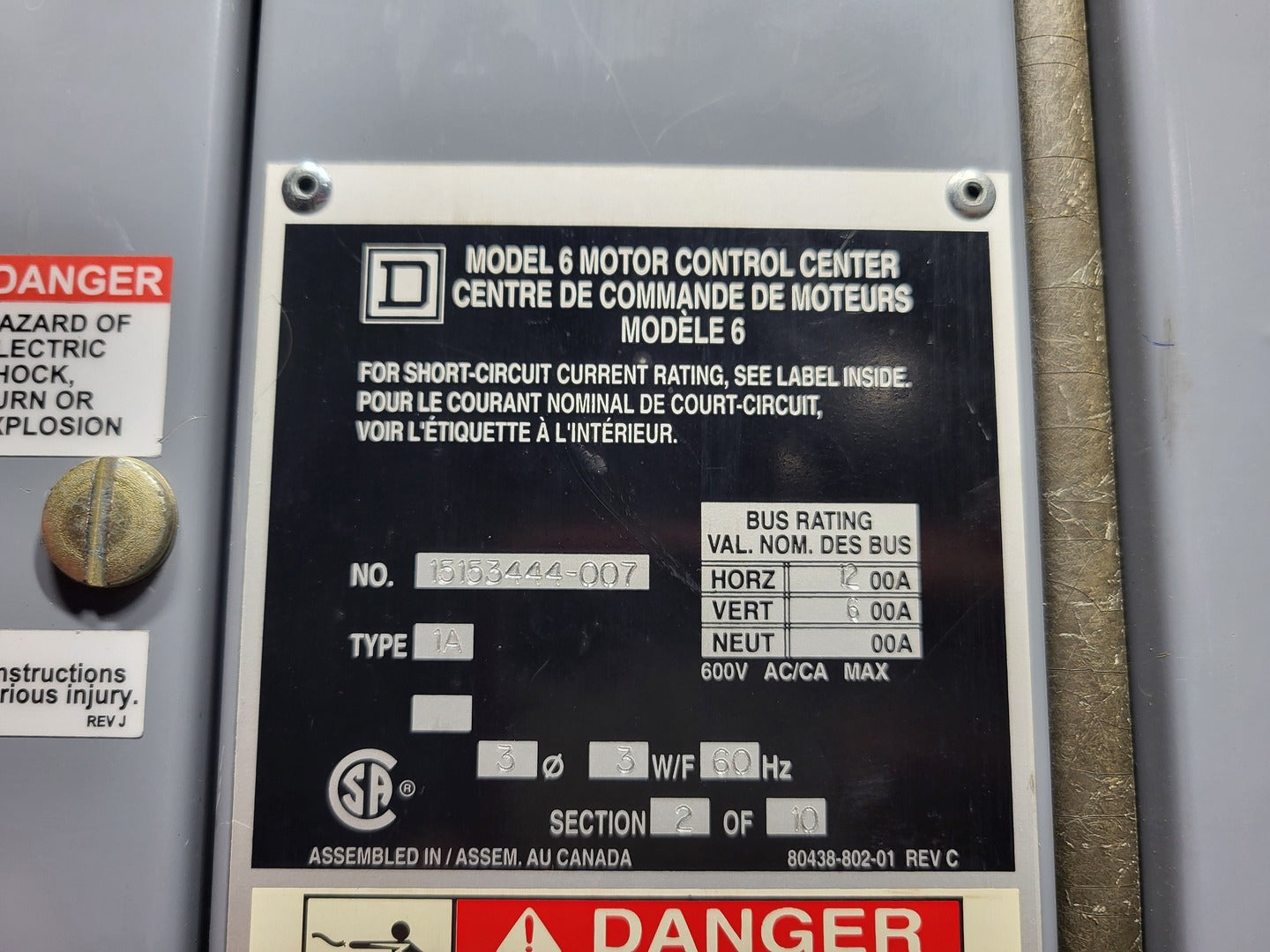

Model Model 6
Condition Used
Other Specifications

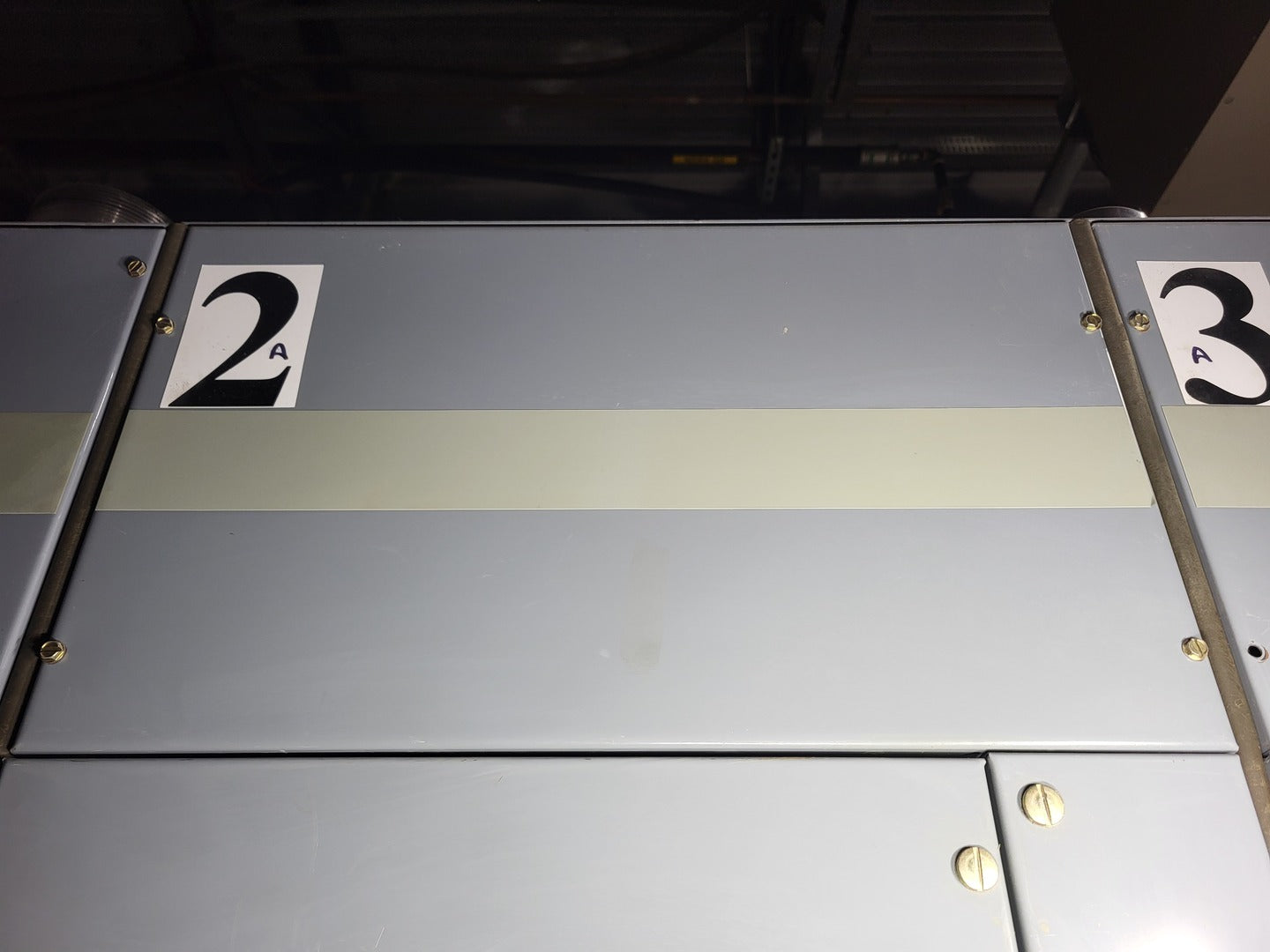

Note: Section 2 only

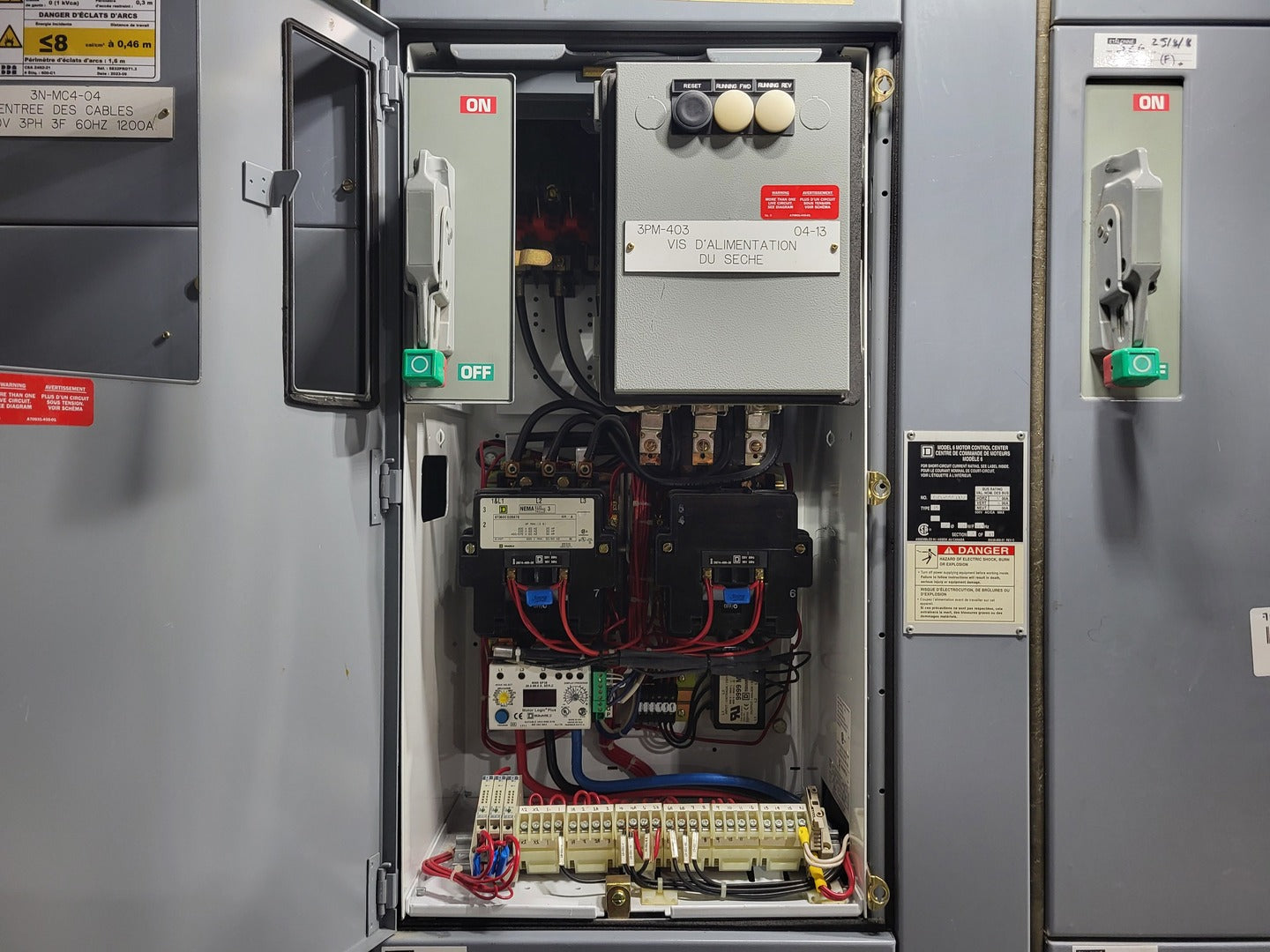

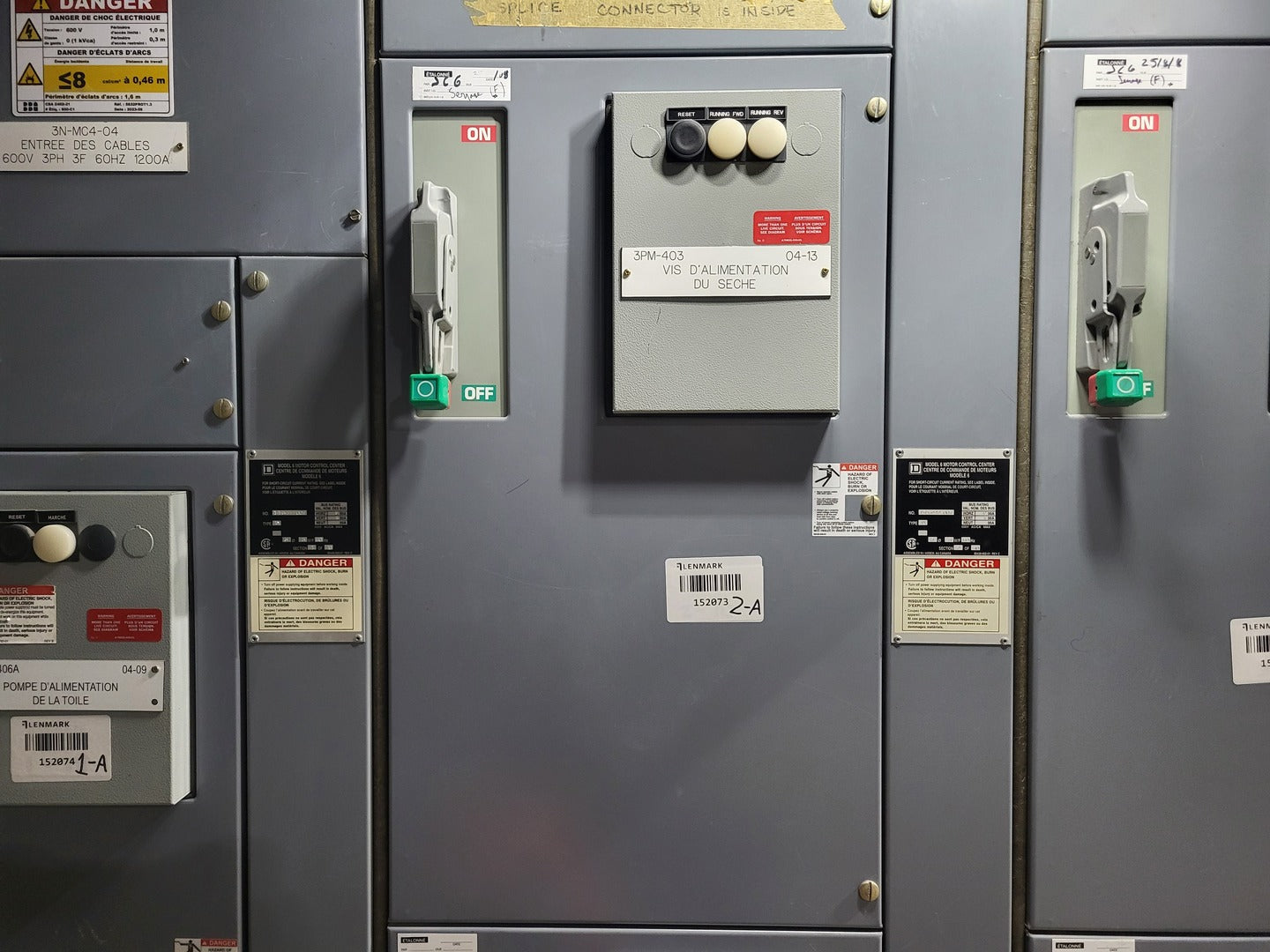

Bucket #1 3PM-403

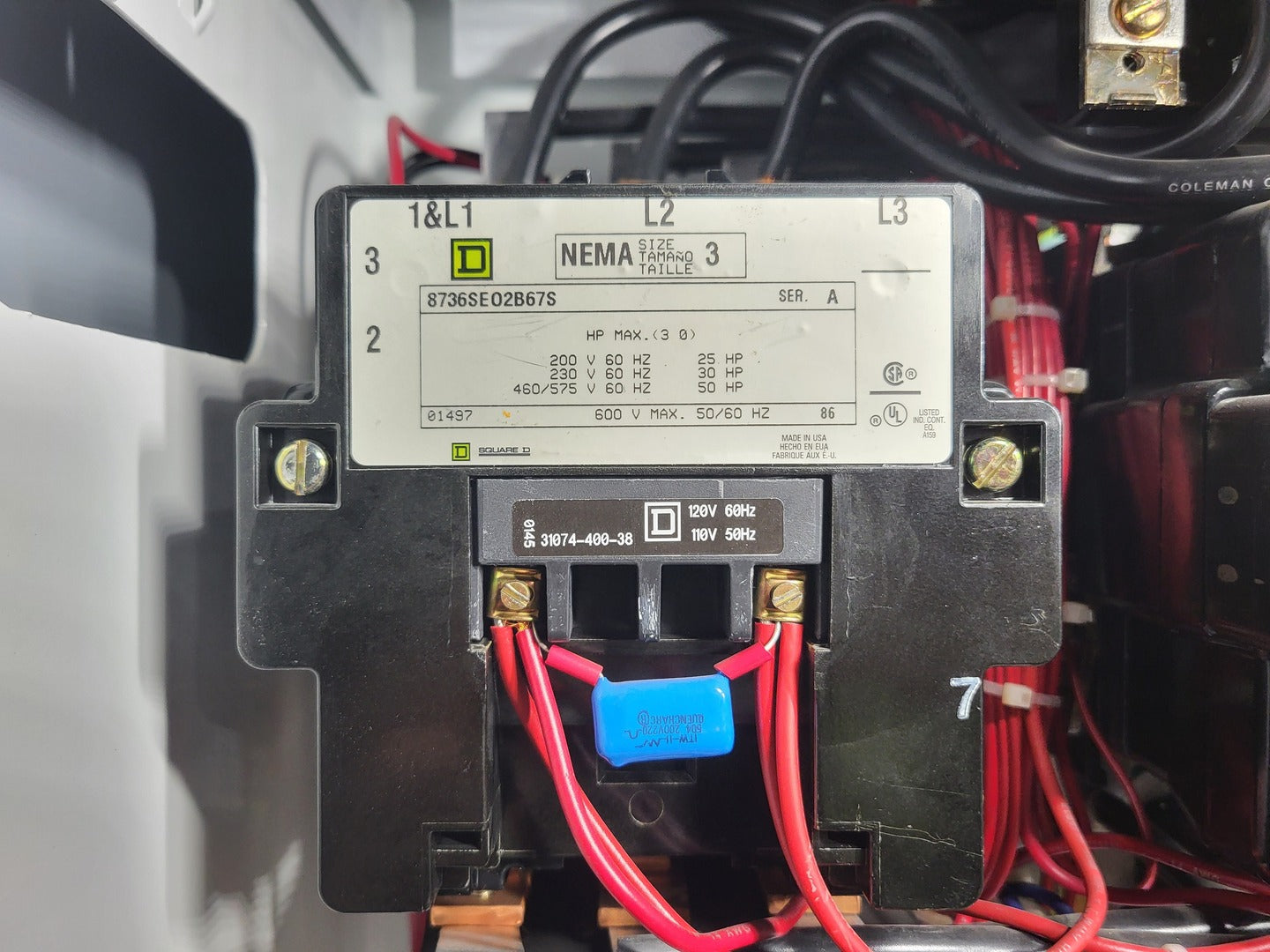

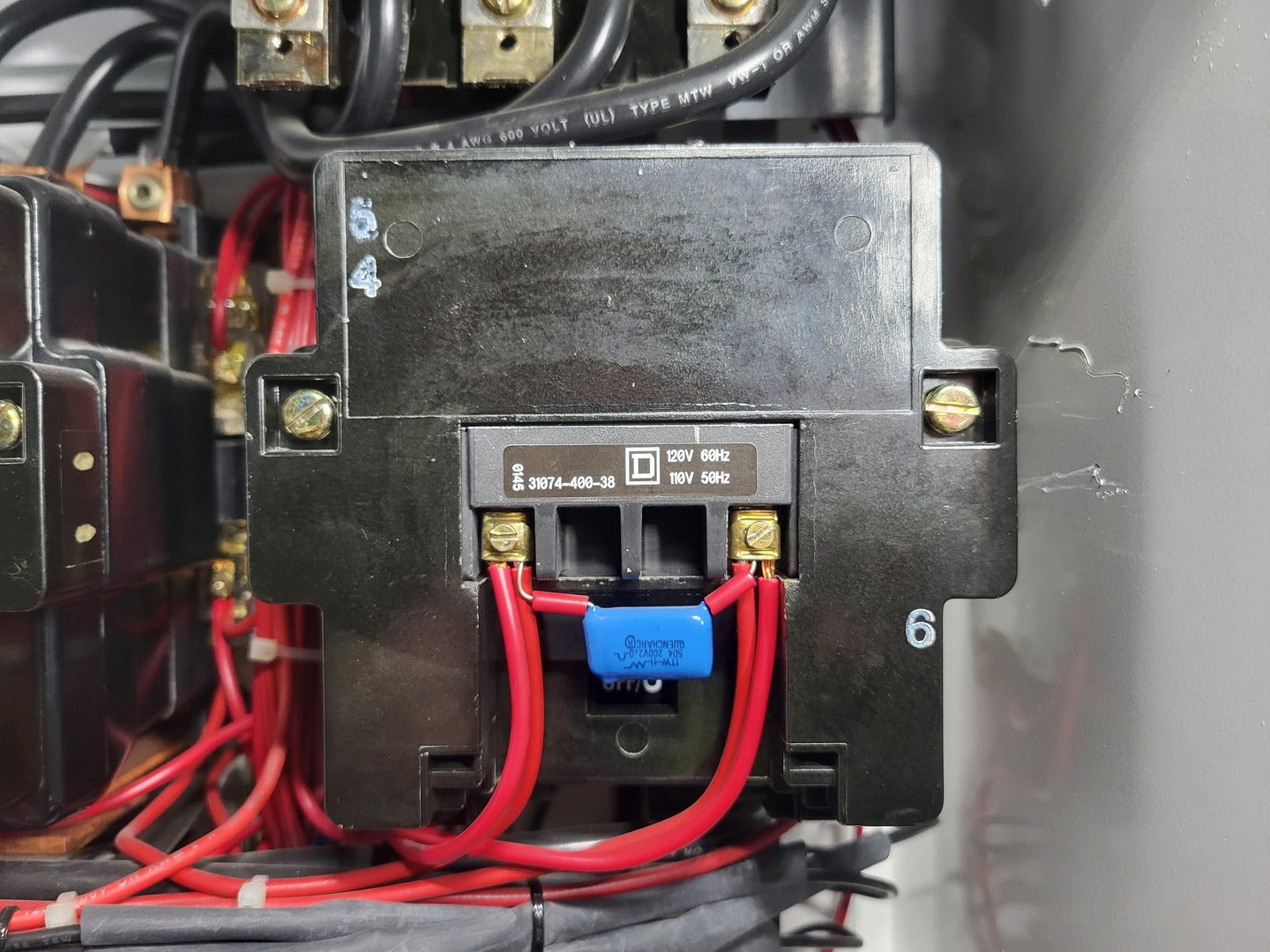

  1. Square D 8736SEO2B67S, NEMA Size 3 reversing contactor / starter, rated up to 50 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP36, 20-90A motor protection / overload relay

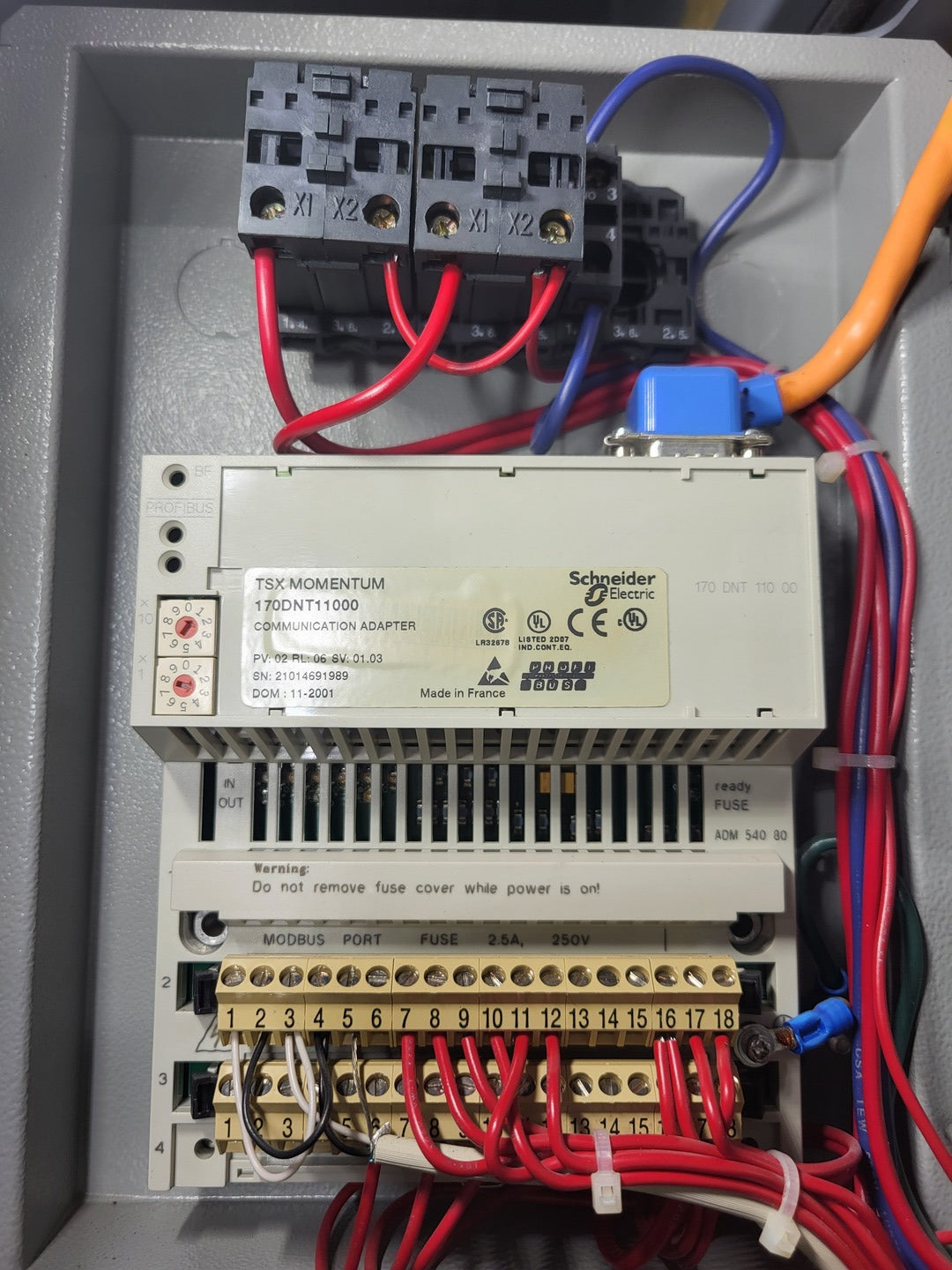

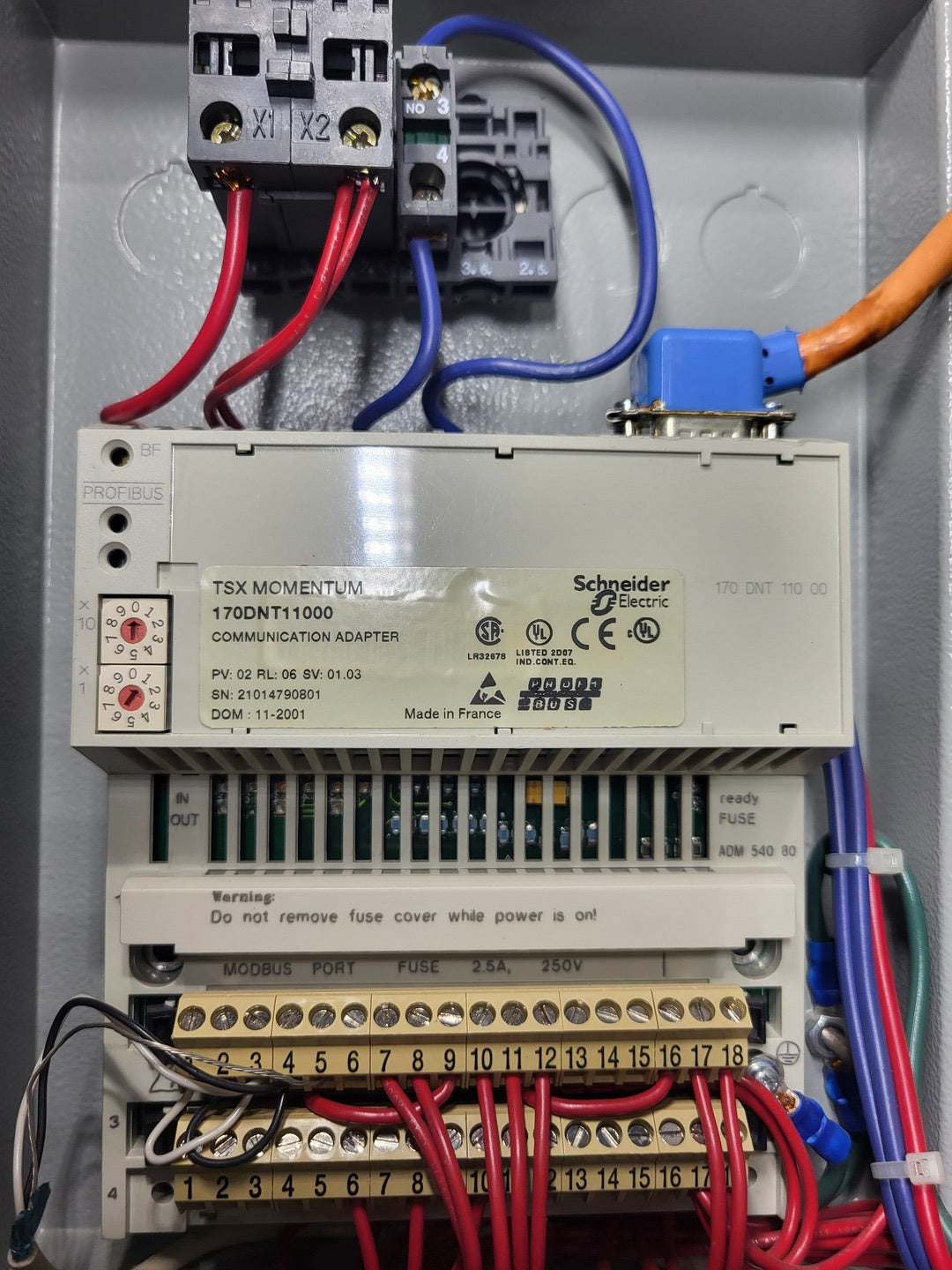

  3. Schneider Electric TSX Momentum 170DNT11000 communication adapter with ADM I/O base

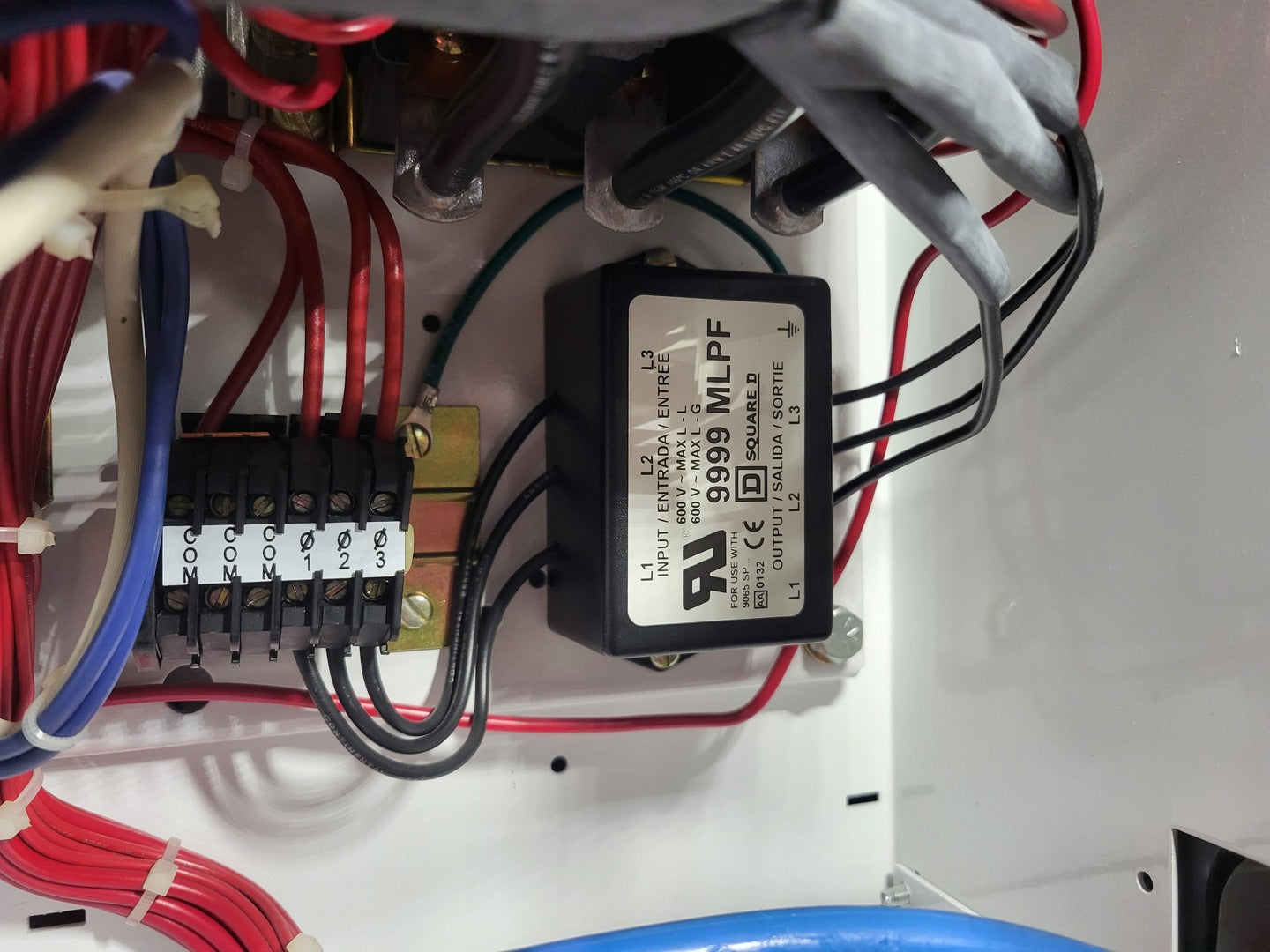

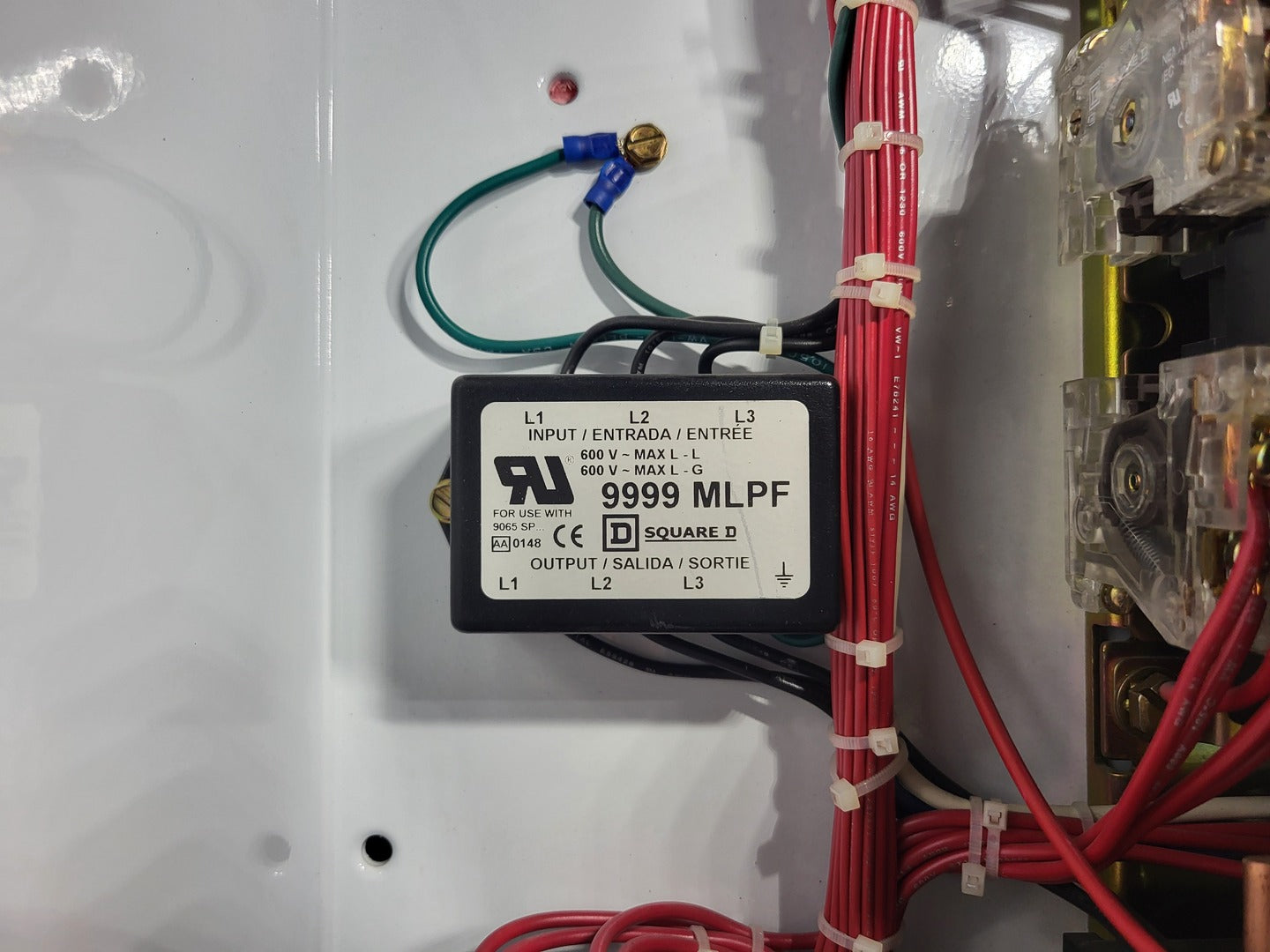

  4. Square D 9999 MLPF line/load power filter, 600V max

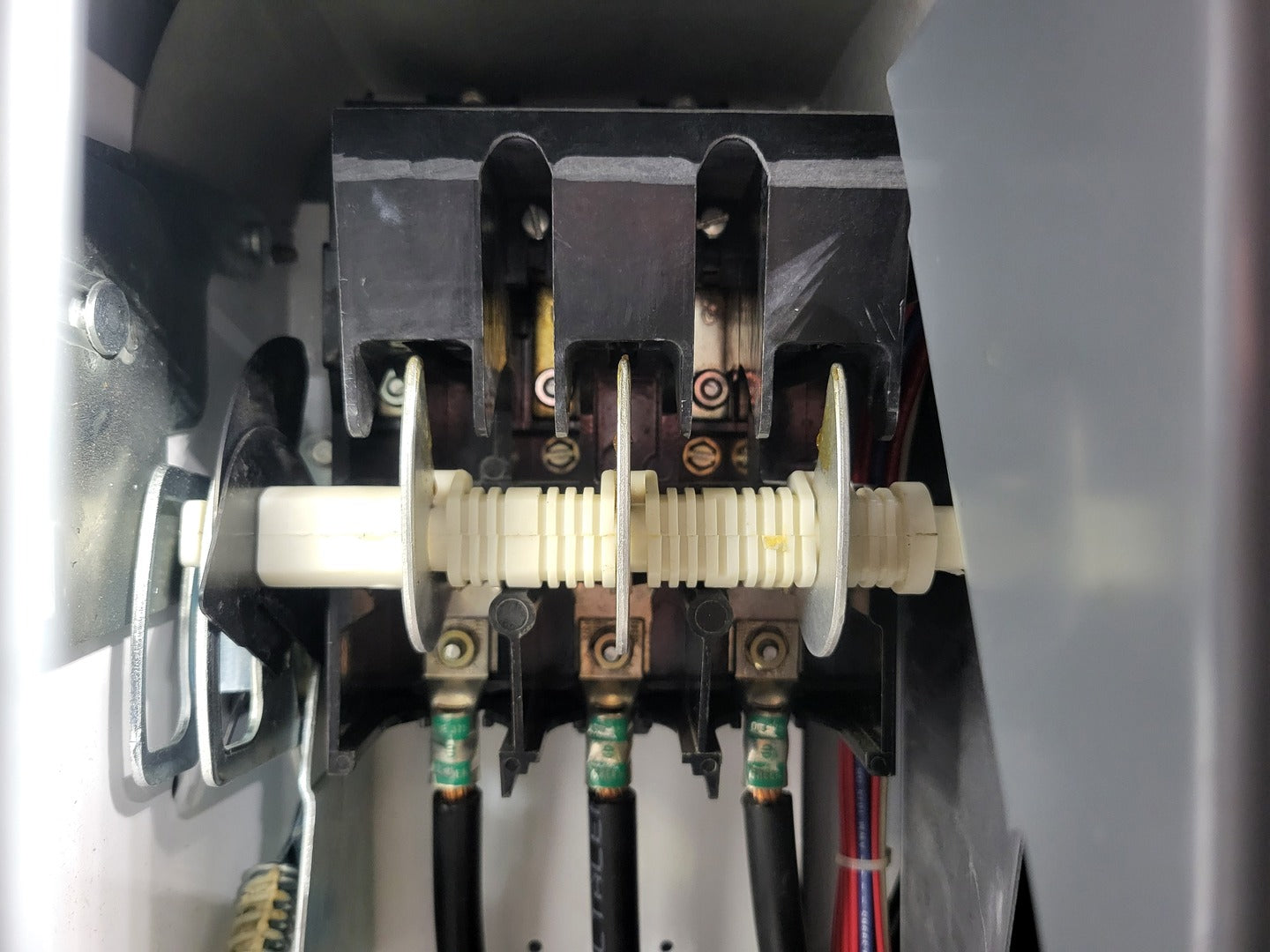

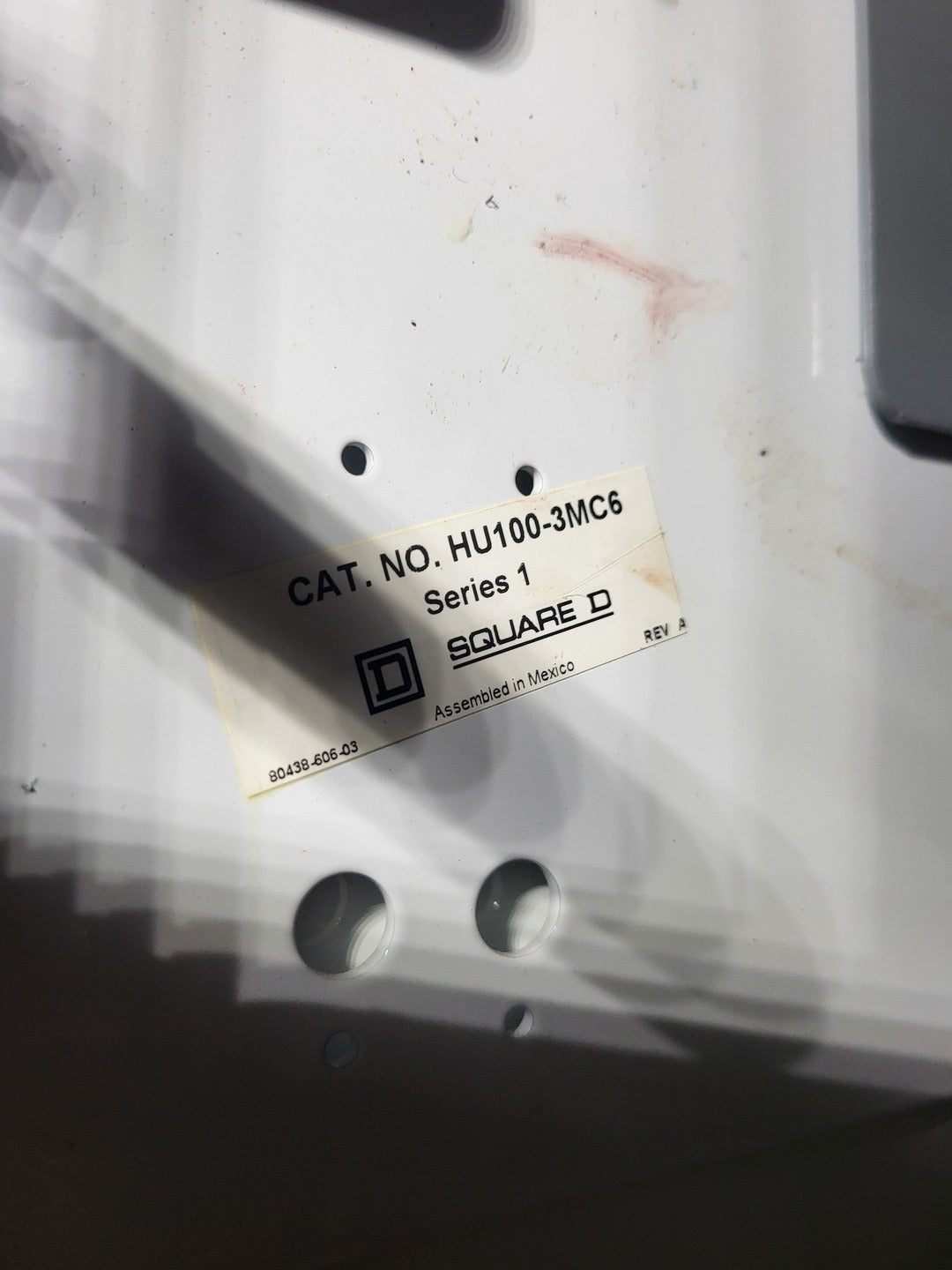

  5. Square D HU100-3MC6, 100A MCC bucket disconnect unit

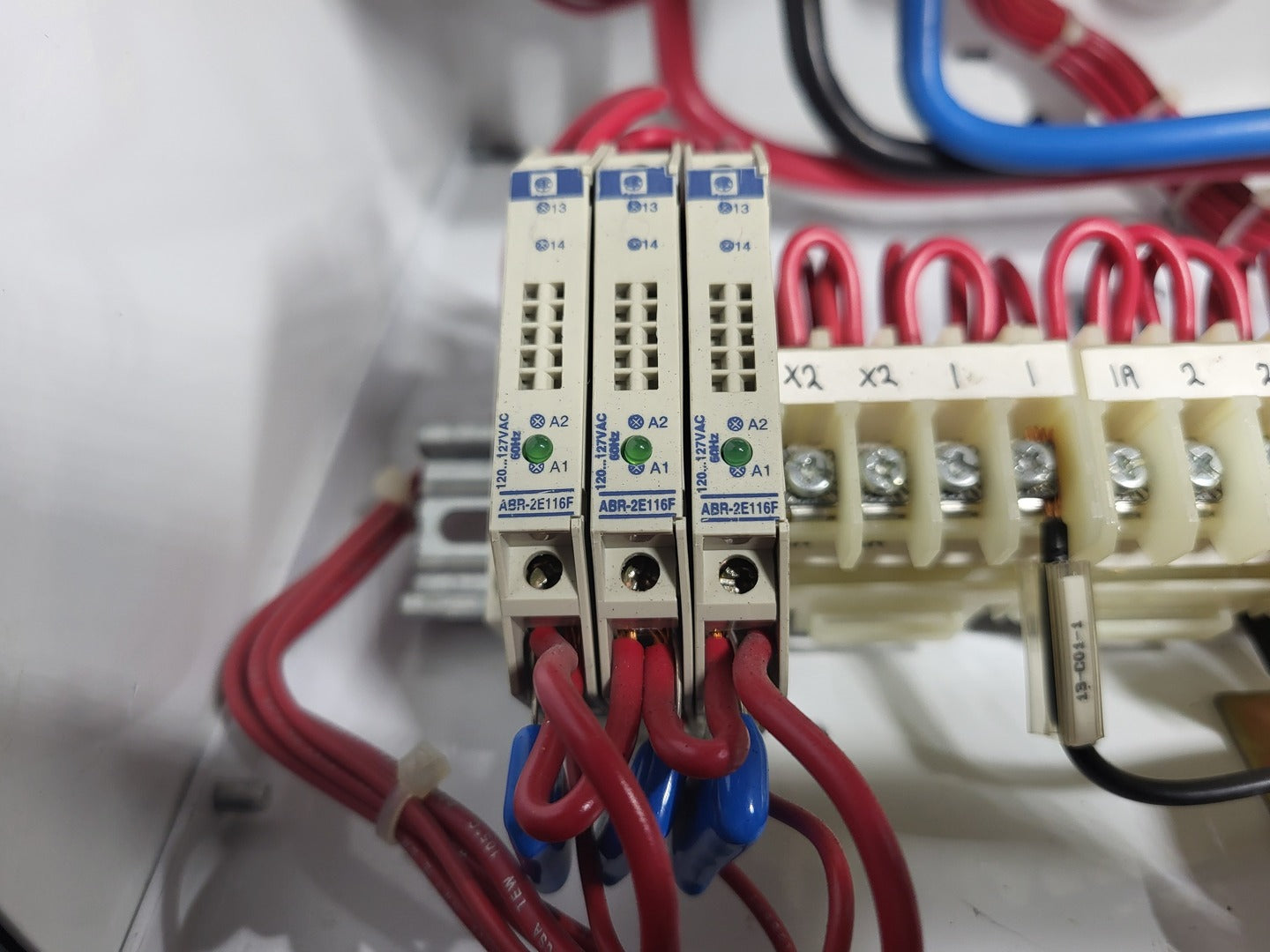

  6. 3 x Telemecanique ABR-2E116F interface relays, 120-127VAC coil

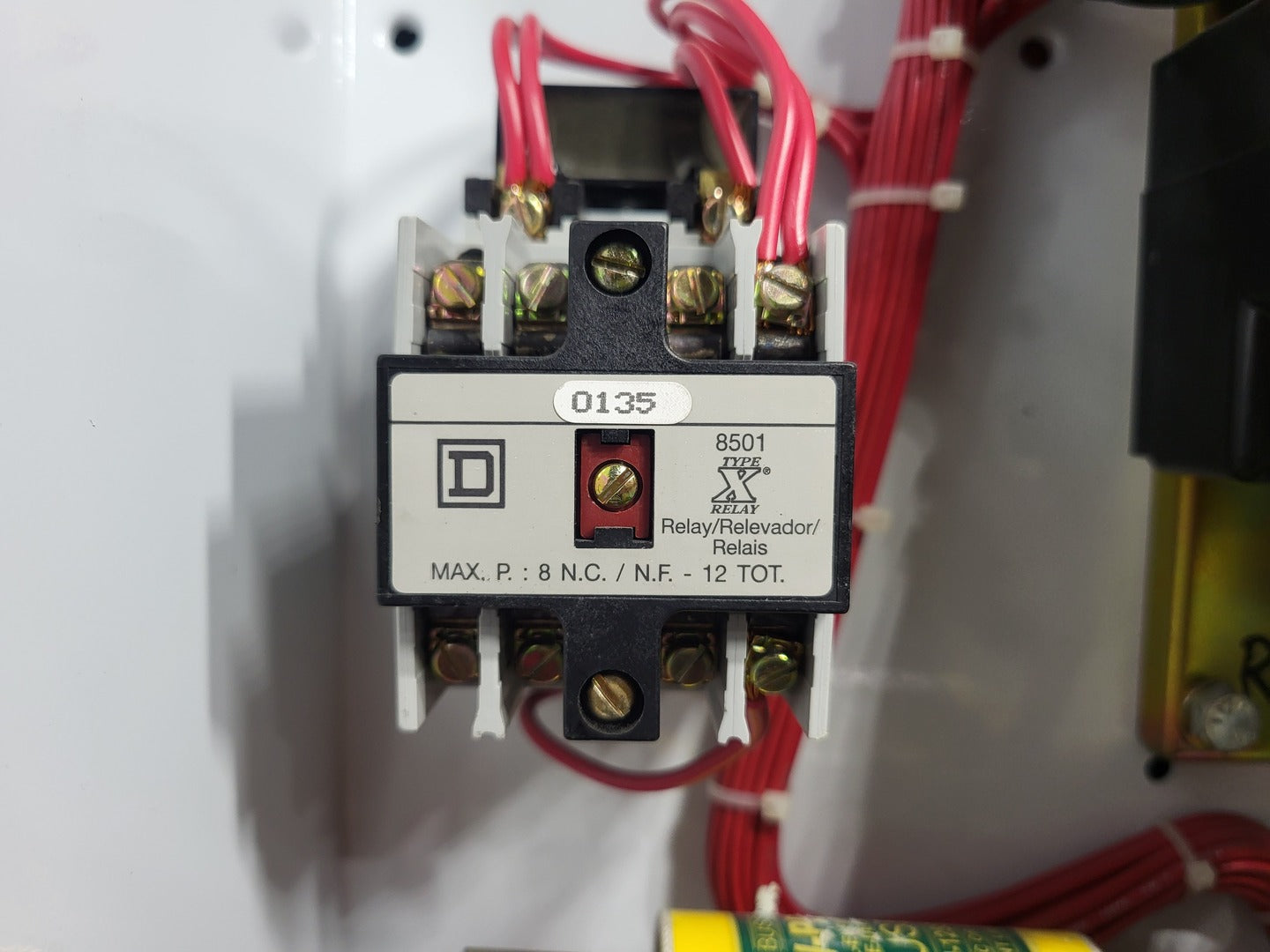

  7. Square D 8501 Type X relay, max 8 N.C. / 12 total contacts

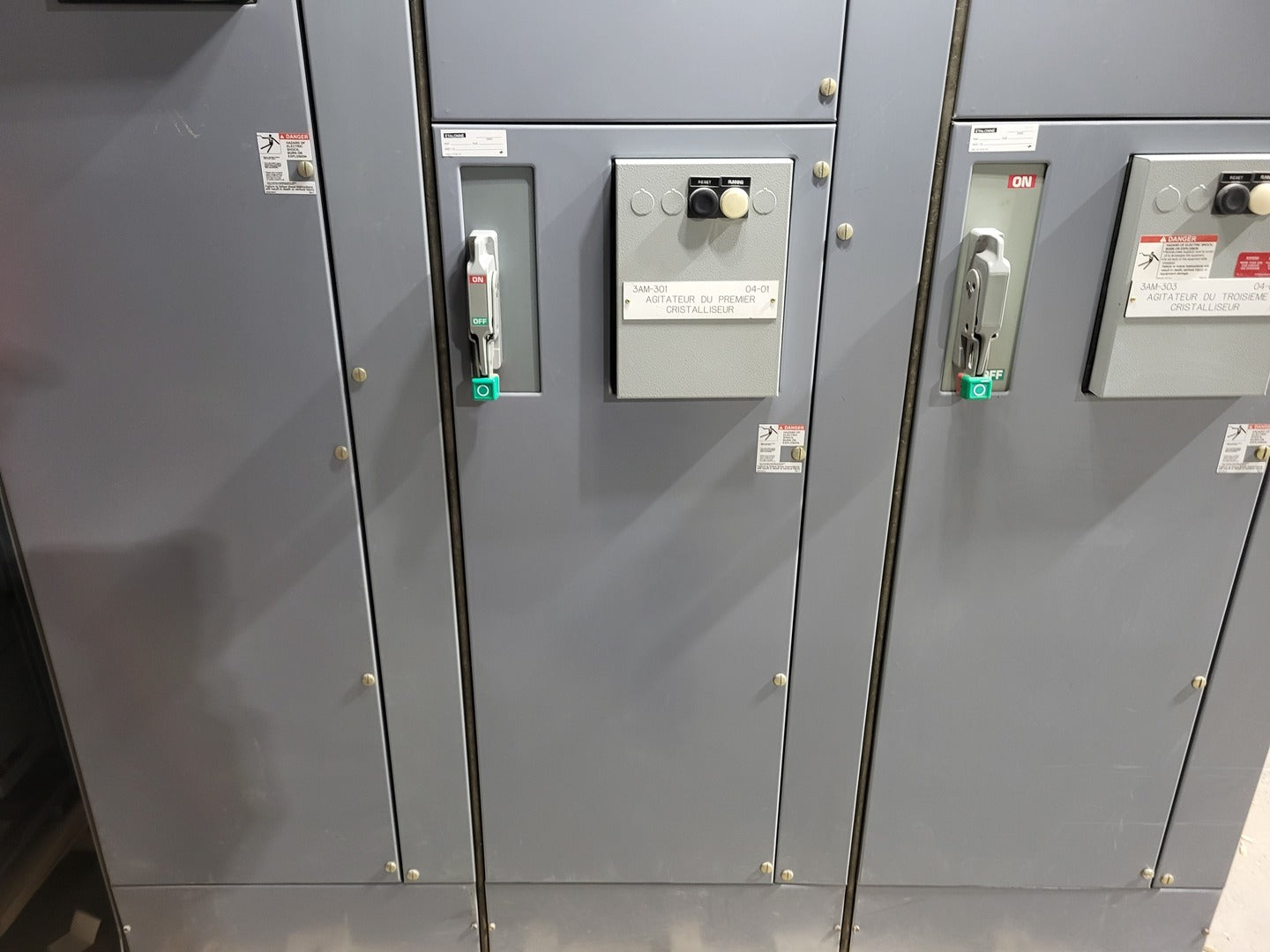

Bucket #2 3AM-301

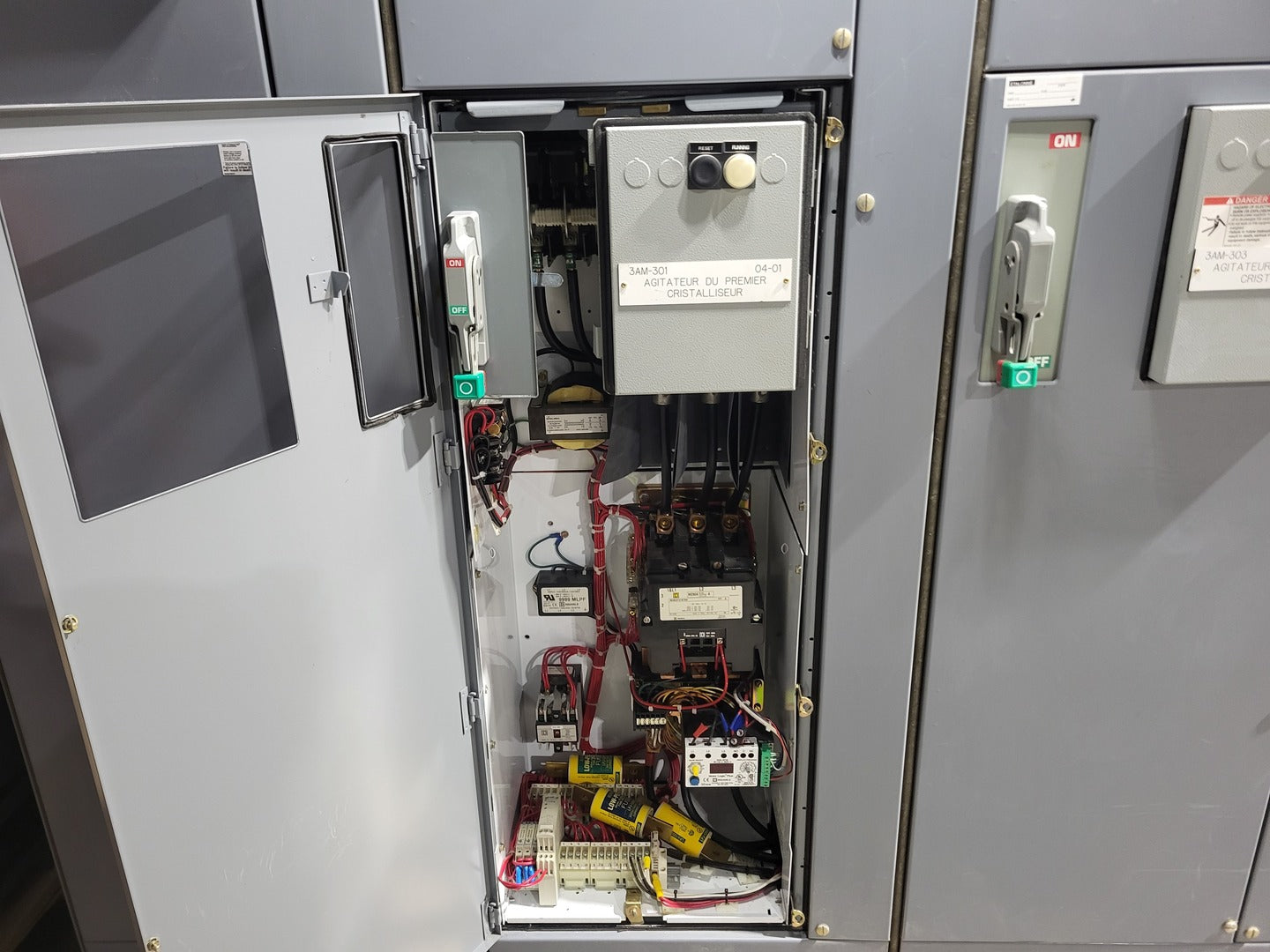

  1. Square D 8536SF01B76S, NEMA Size 4 contactor, rated up to 100 HP @ 460/575V

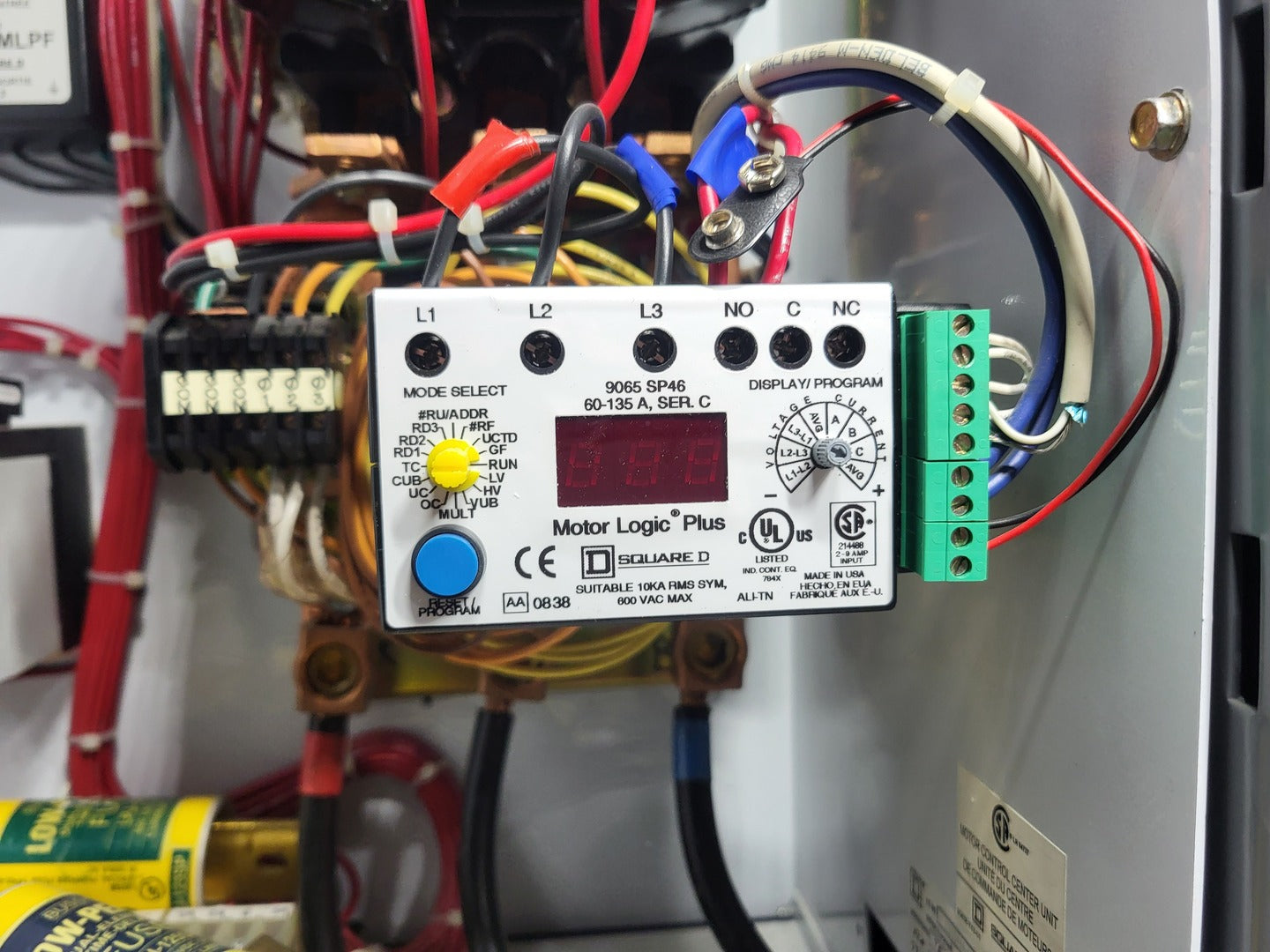

  2. Square D Motor Logic Plus 9065 SP46, 60-135A motor protection / overload relay
  3. Schneider Electric TSX Momentum 170DNT11000 communication adapter with ADM I/O base
  4. Square D 9999 MLPF line/load power filter, 600V max

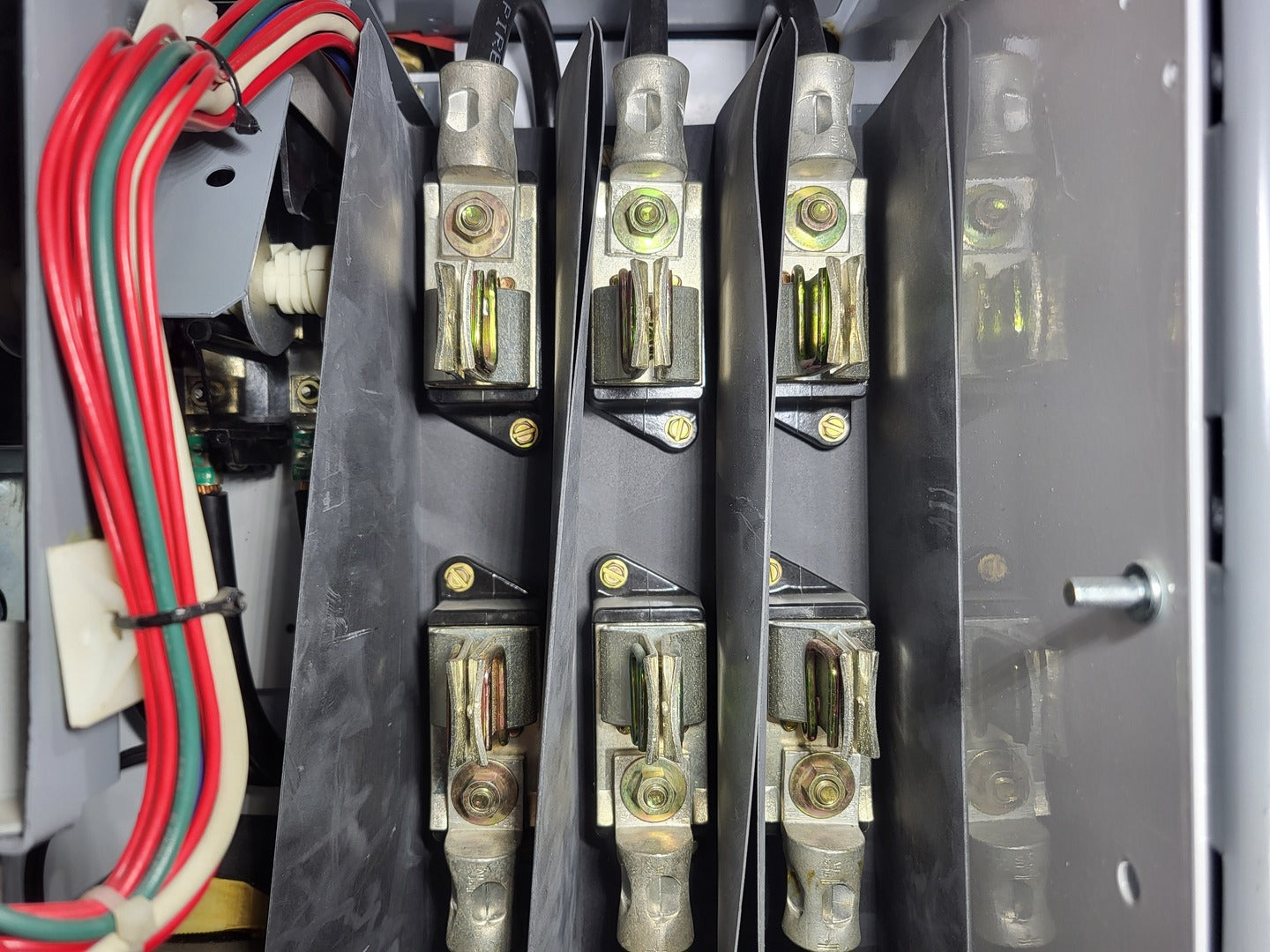

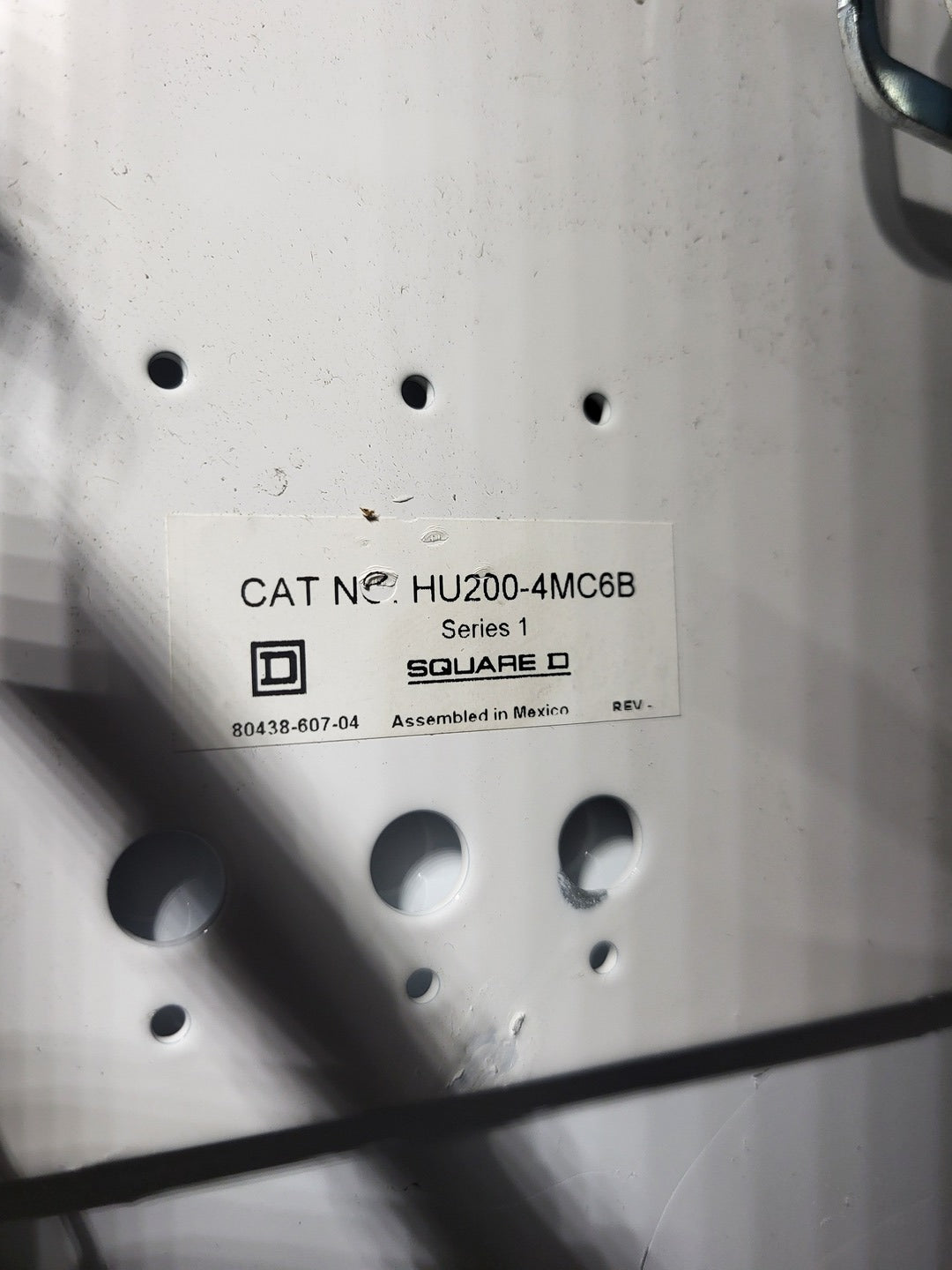

  5. Square D HU200-4MC6B, 200A MCC bucket disconnect unit

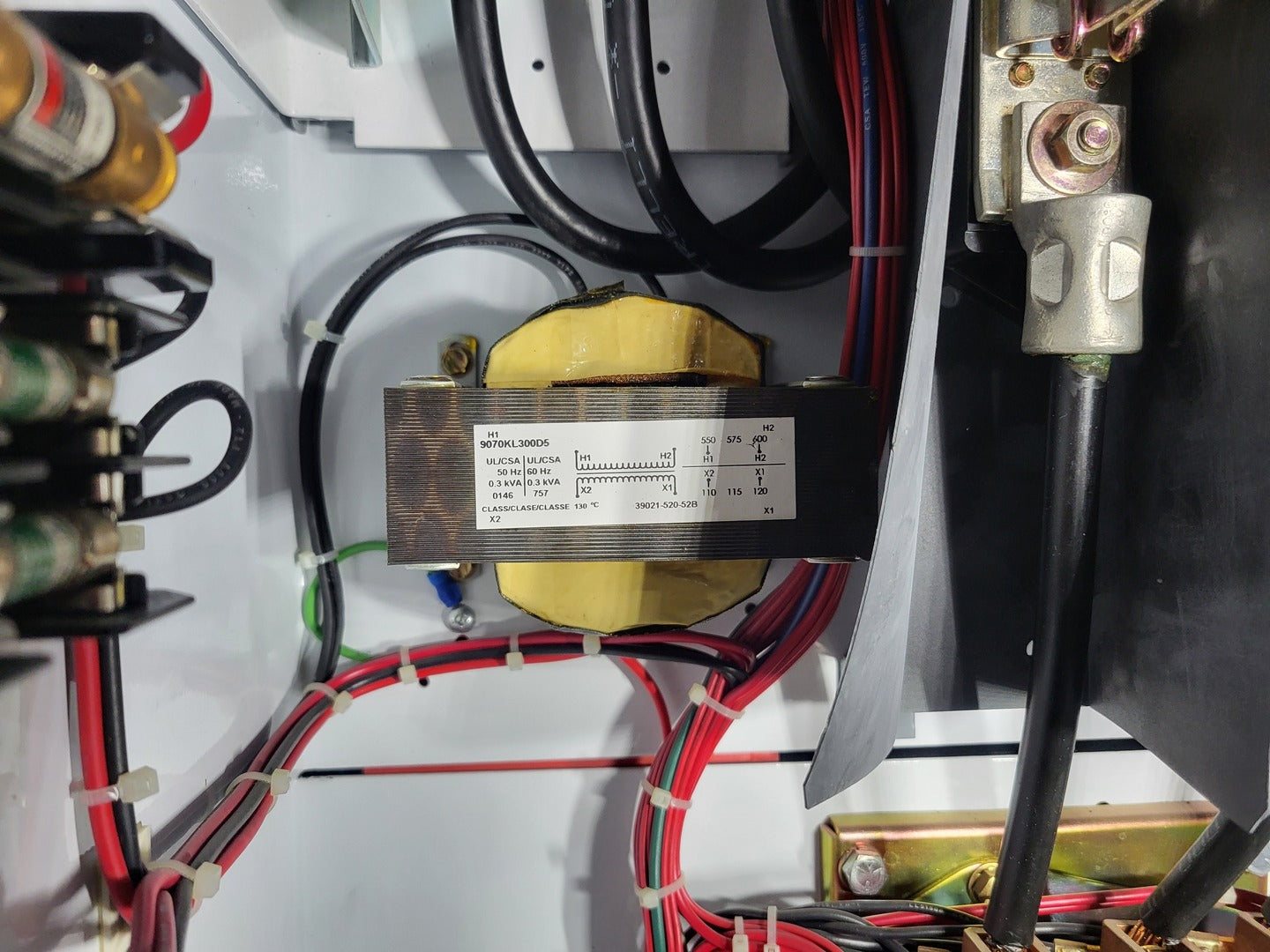

  6. Square D 9070KL300D5, 0.3 kVA control transformer, 550/575/600V primary, 110/115/120V secondary
  7. 3 x Schneider / Telemecanique ABR-2E116F interface relays, 120-127VAC coil
  8. Telemecanique LT3SA protection relay / control module
  9. Square D 8501 Type X relay, max 8 N.C. / 12 total contacts

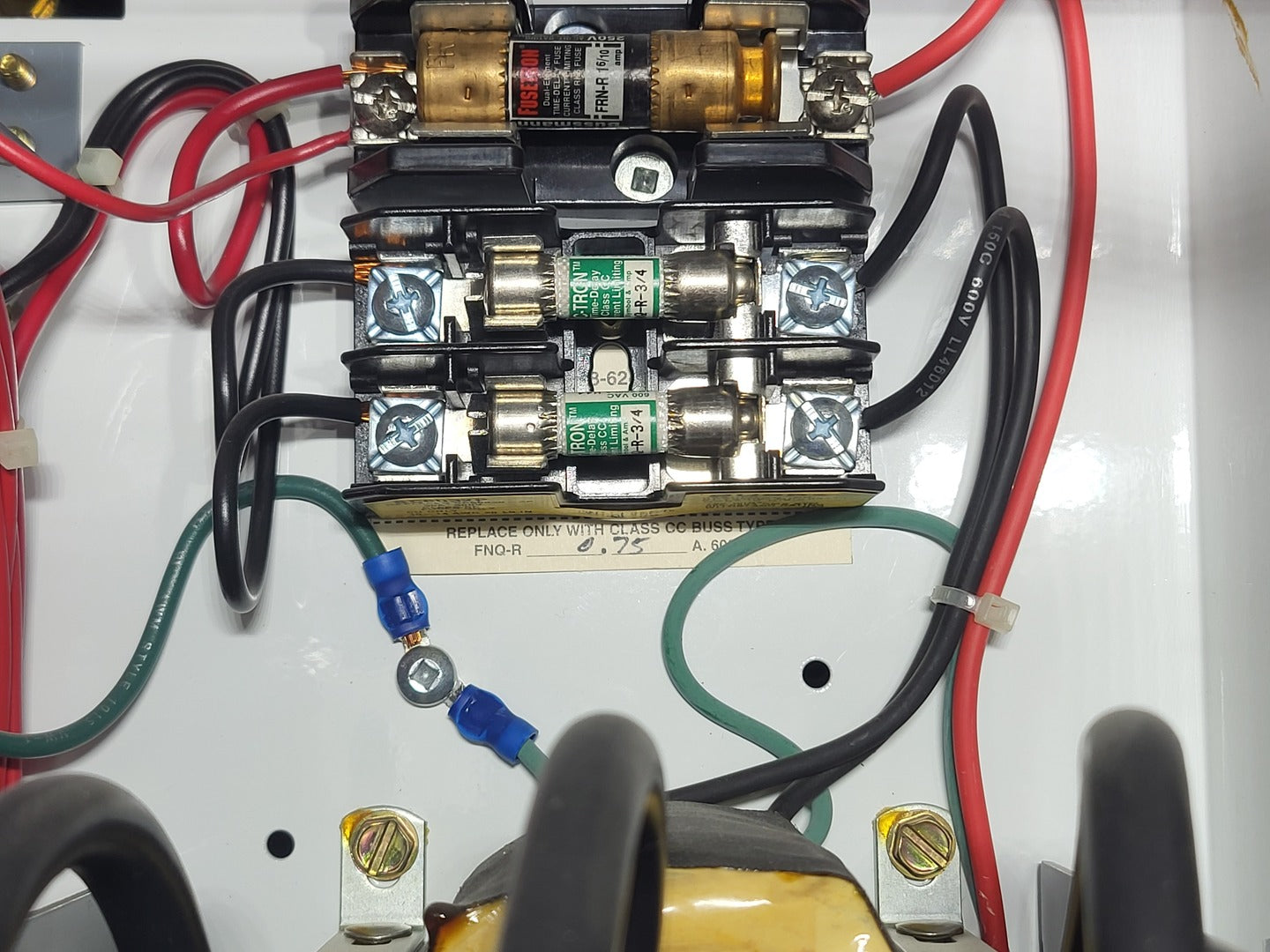

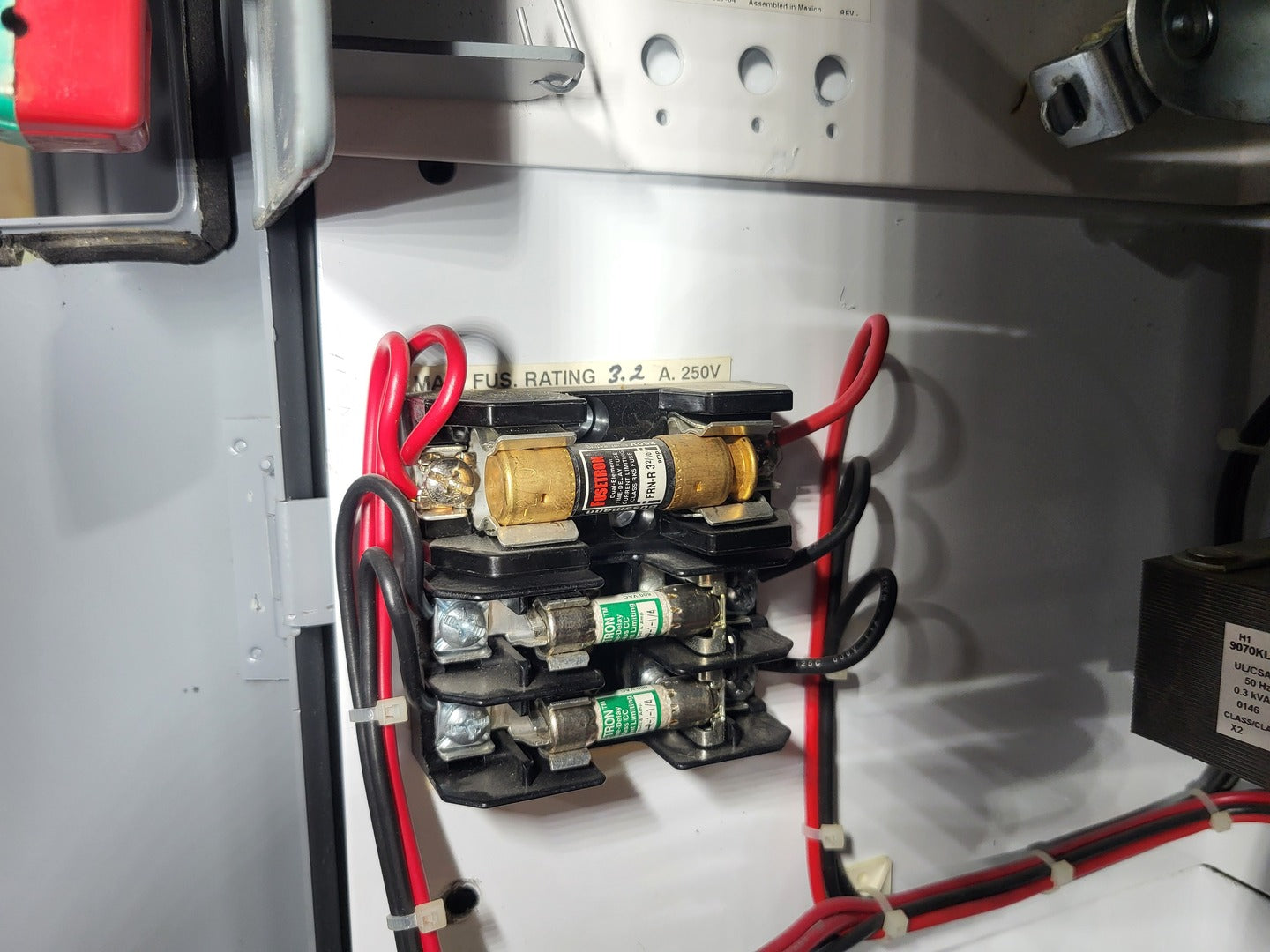

  10. 2 x Bussmann Limitron fuses FNQ-R-1-1/4
  11. 1 x Bussmann Fusetron fuse FRN-R-3-2/10
