Description
| Specifications | |
|---|---|

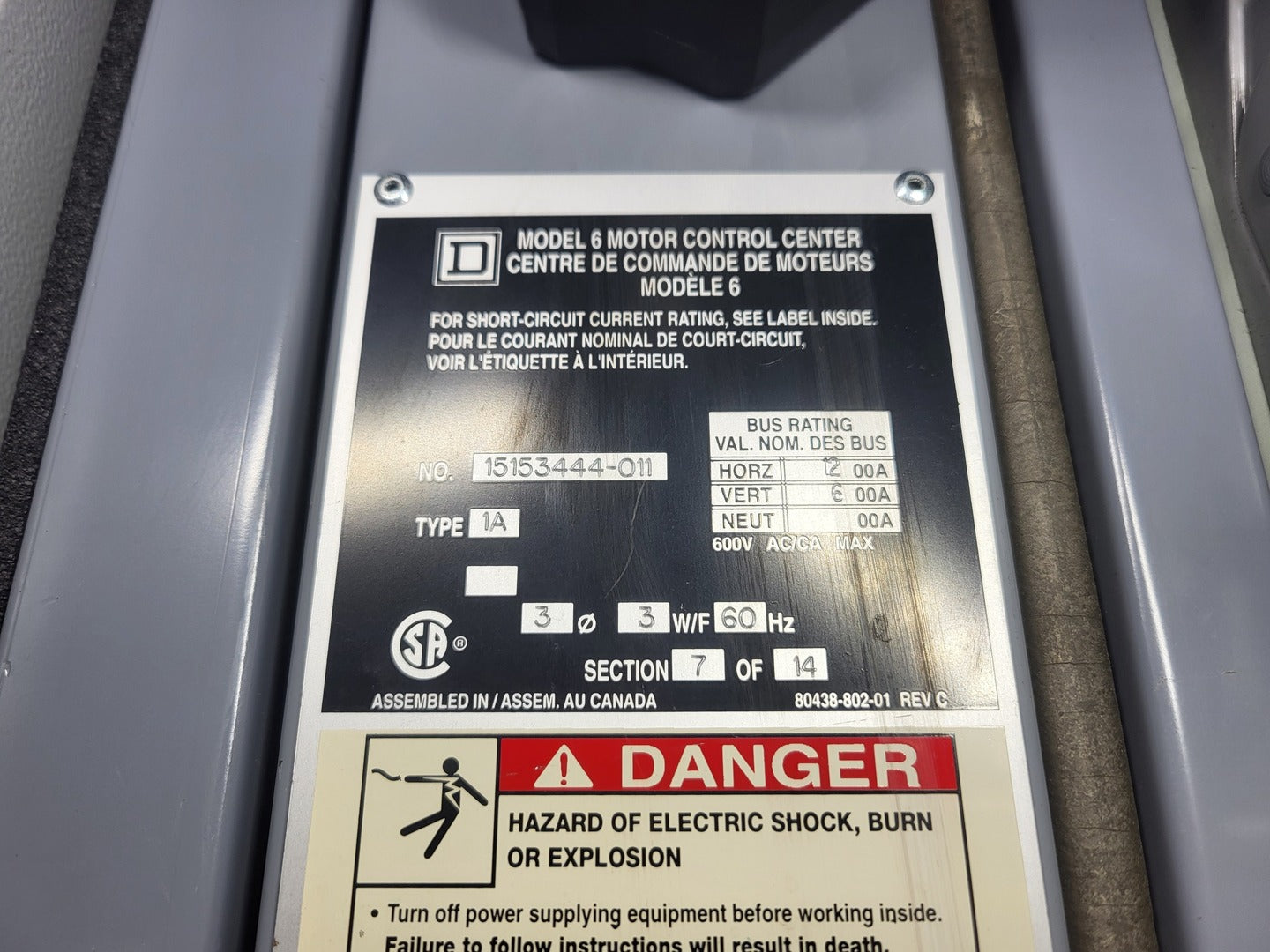

| Model | Model 6 |
| Condition | Used |
| Other Specifications |
|---|
|

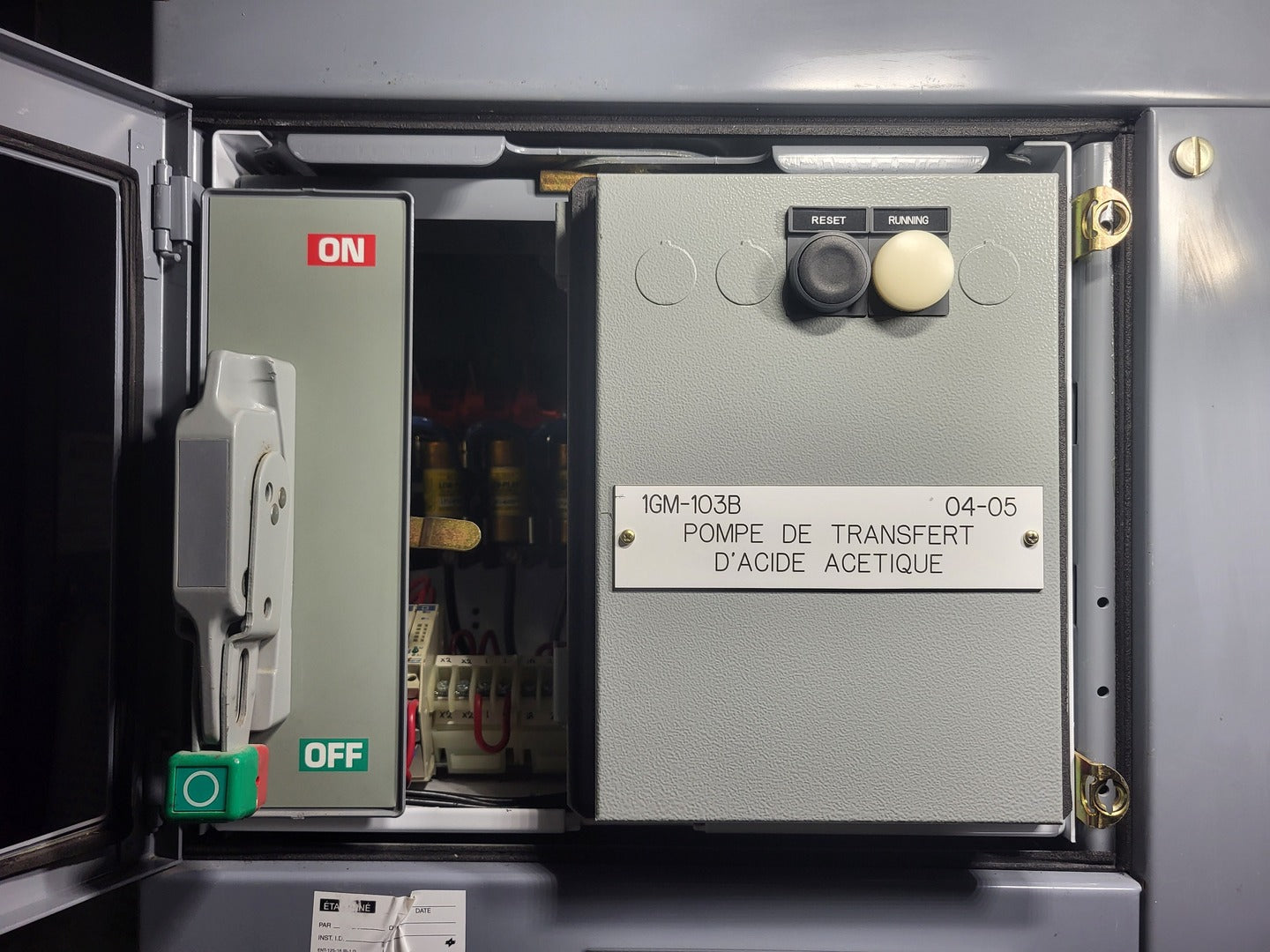

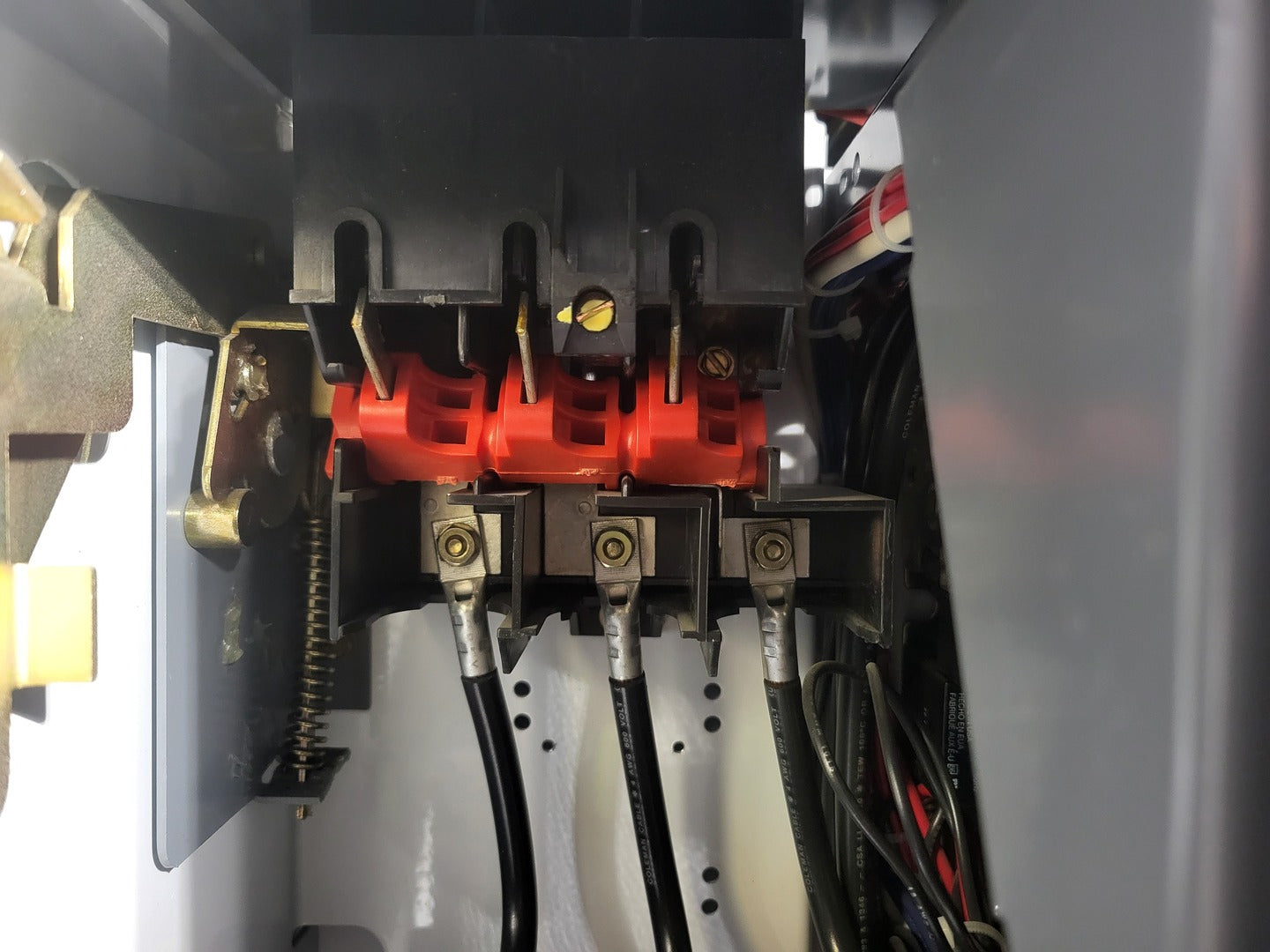

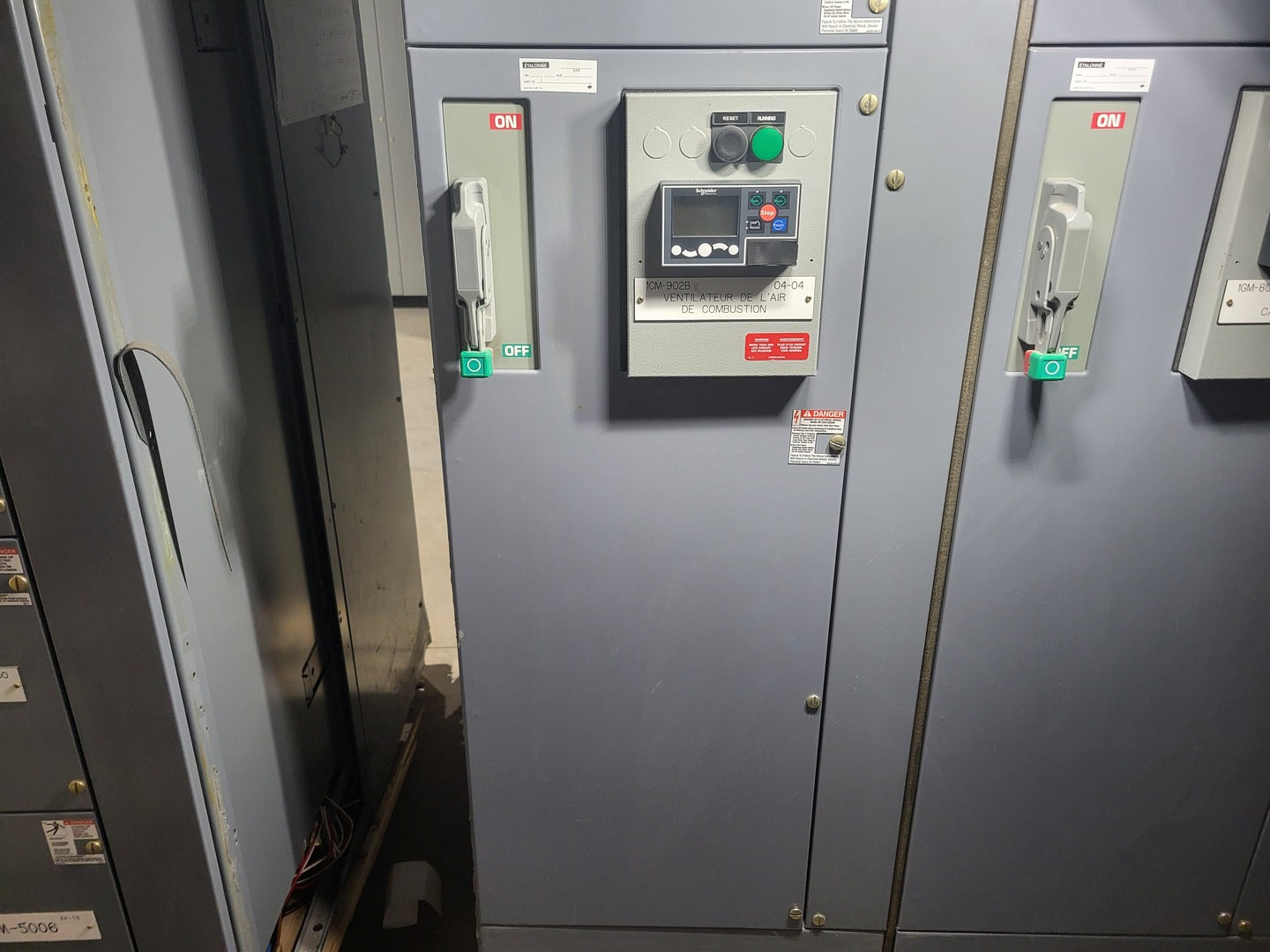

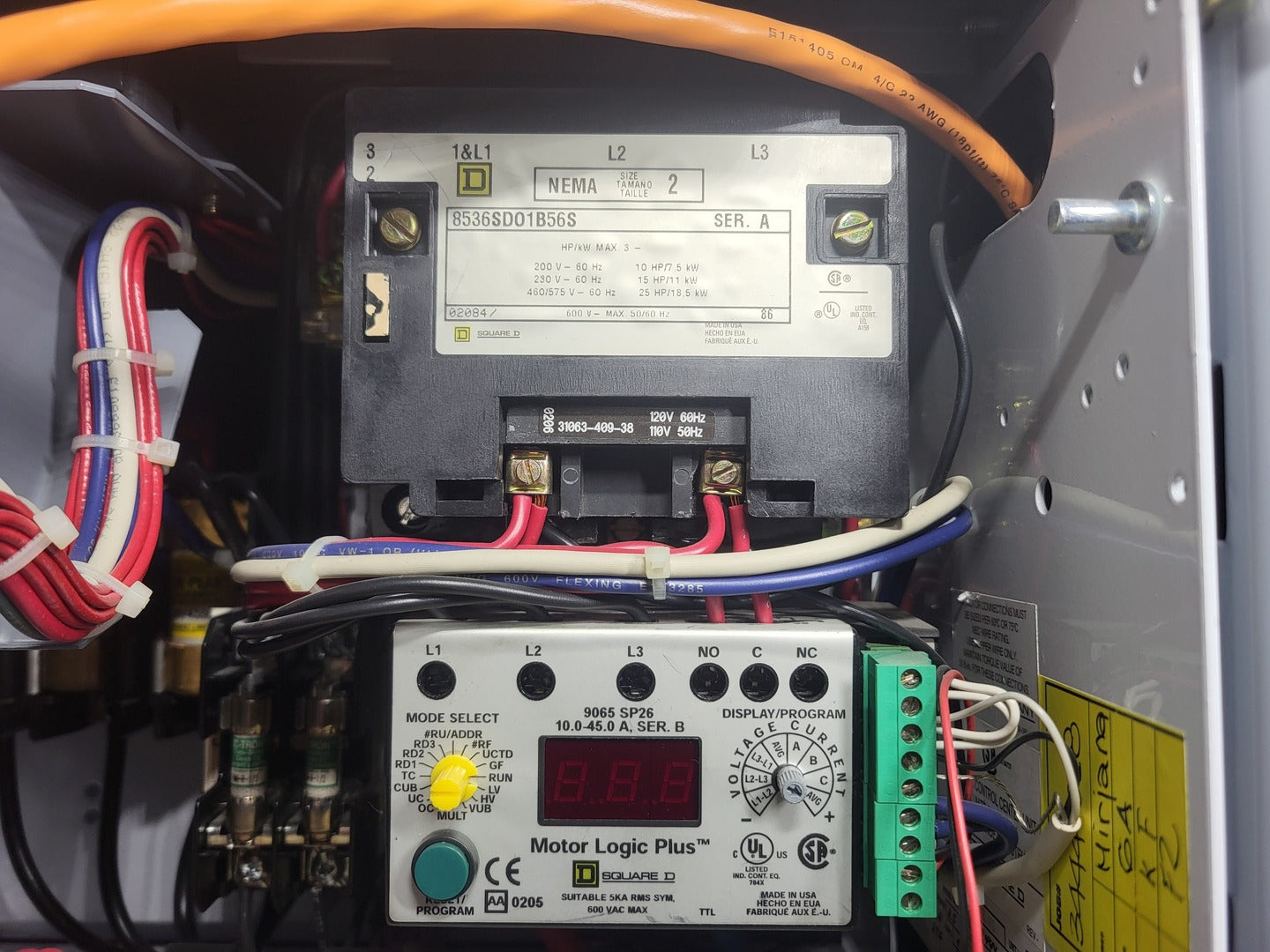

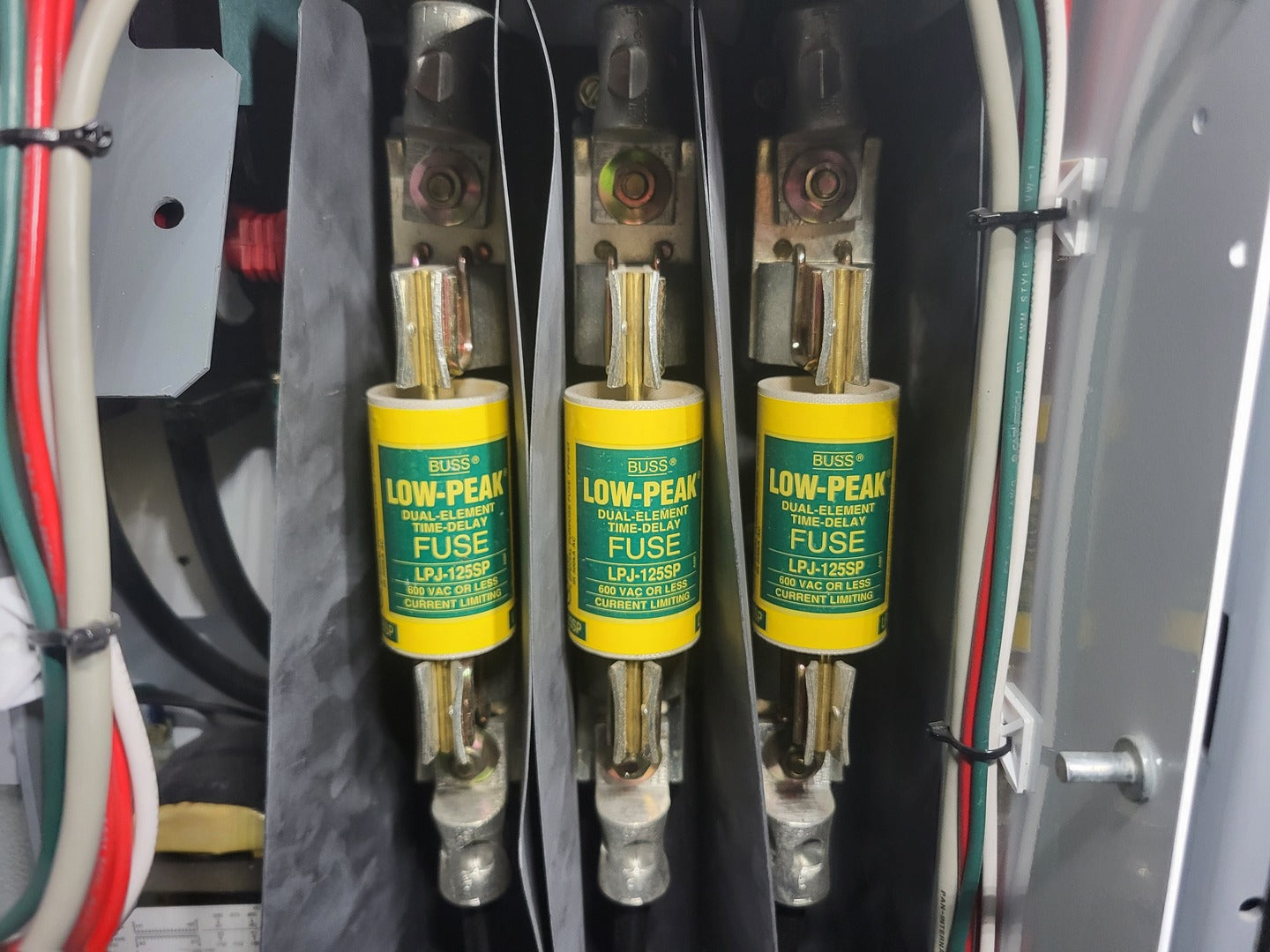

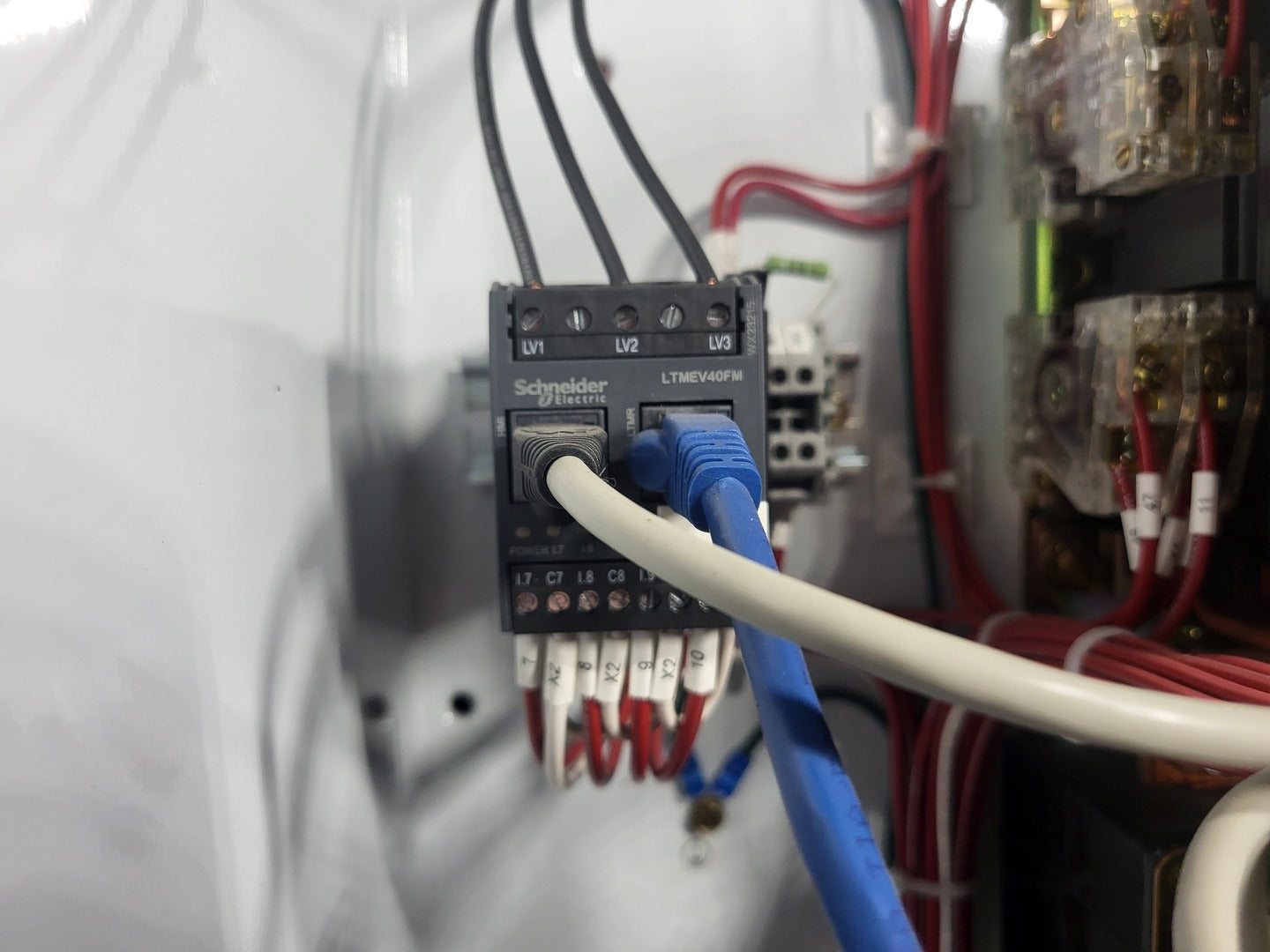

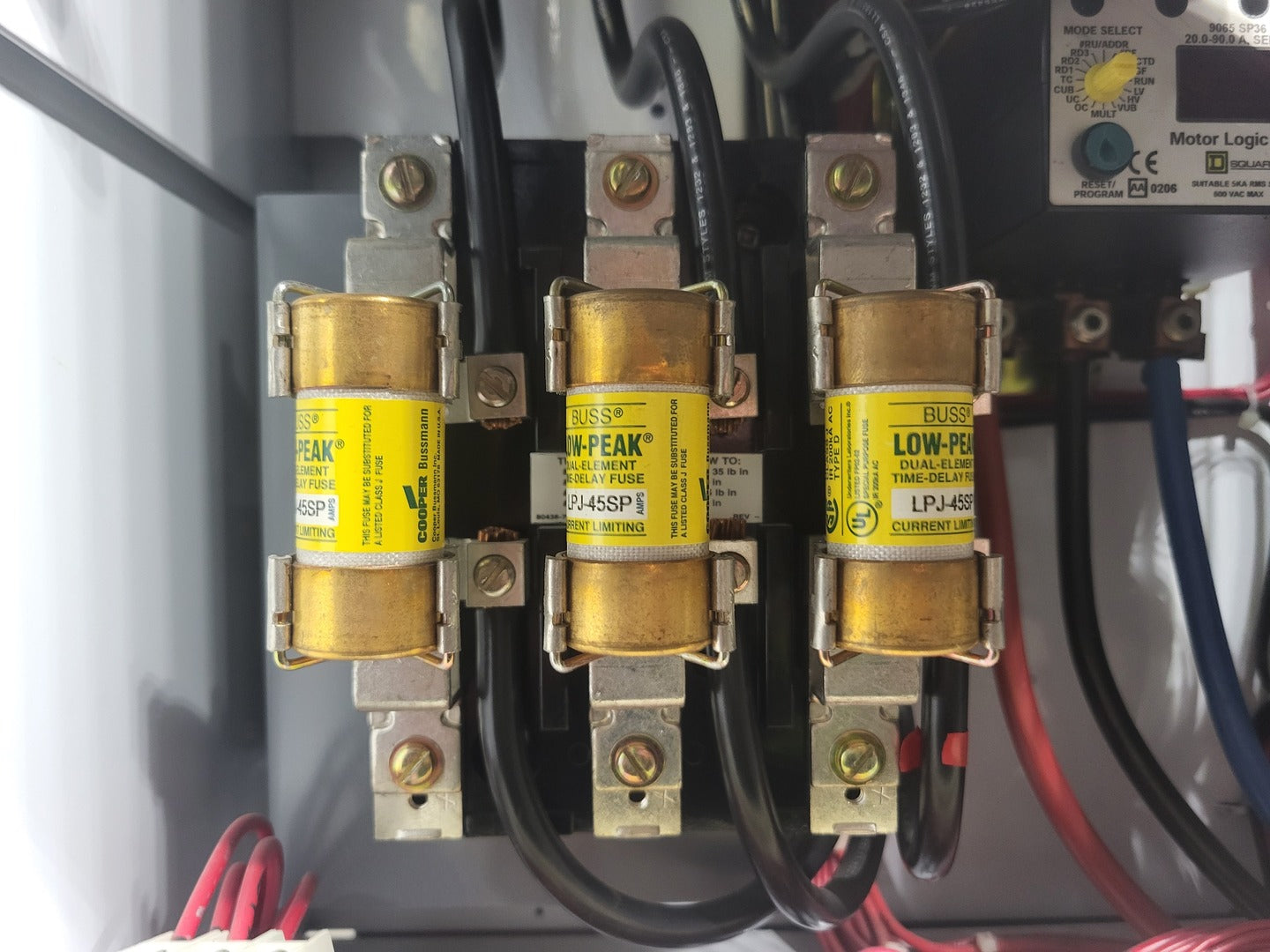

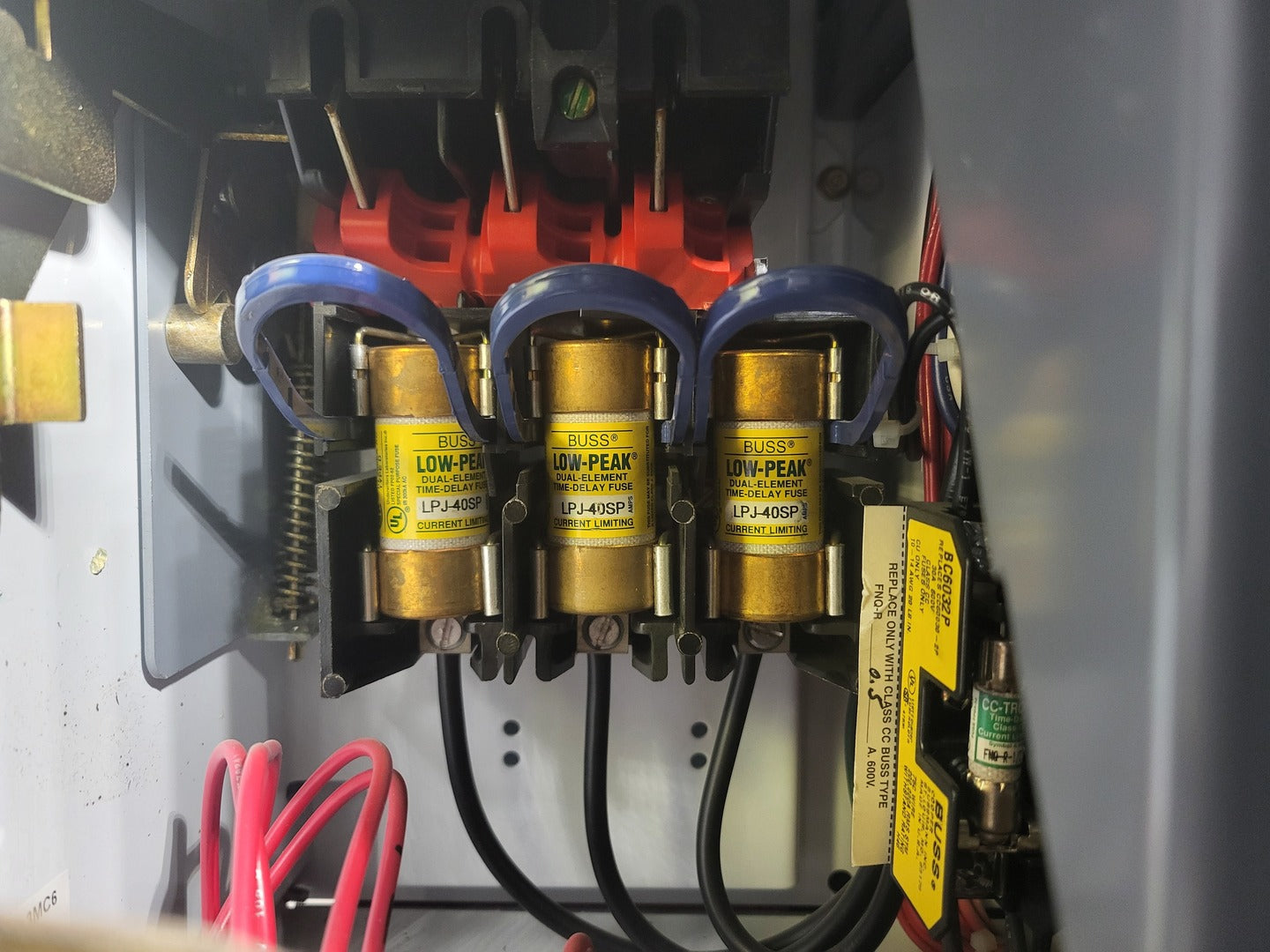

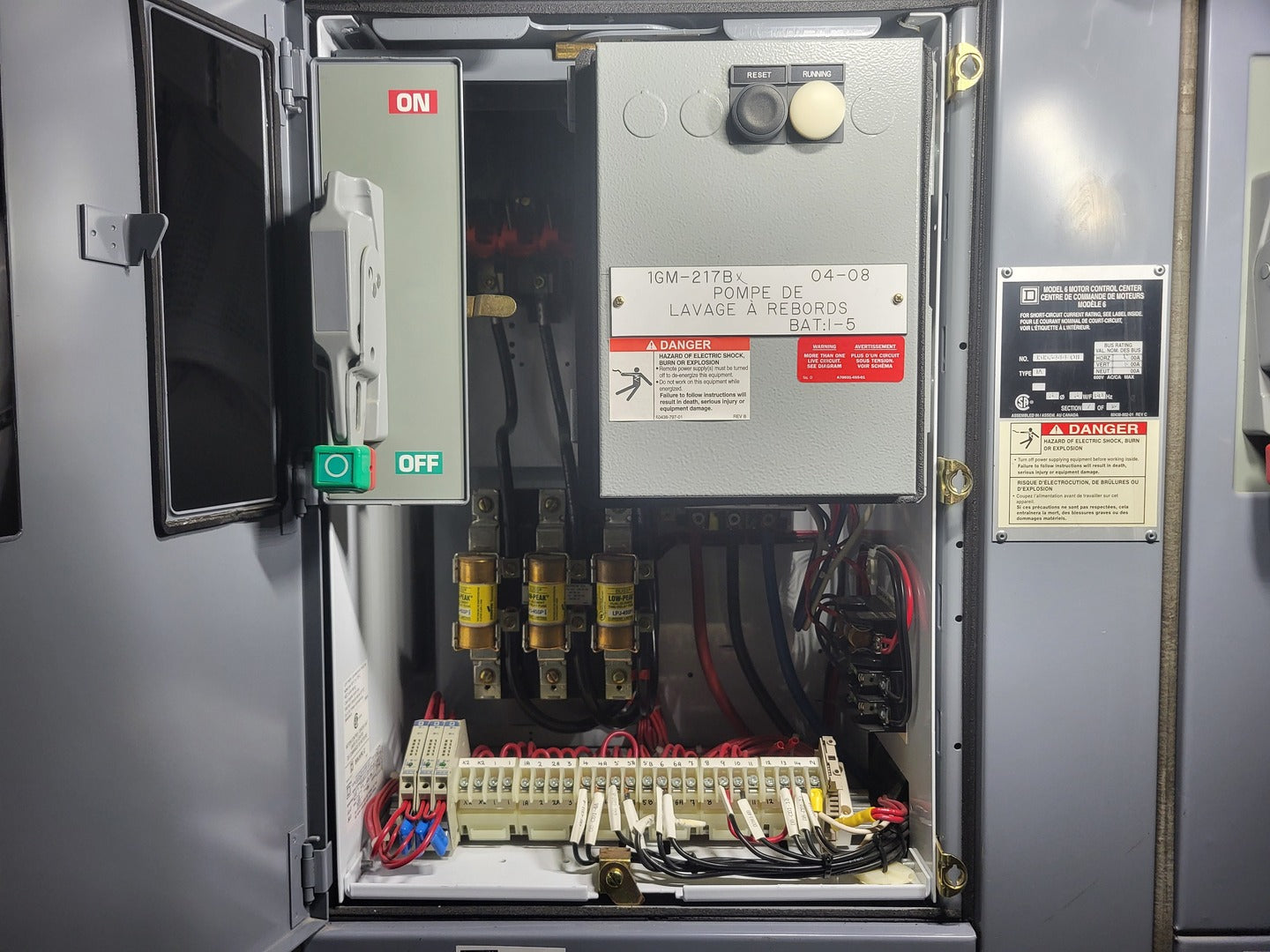

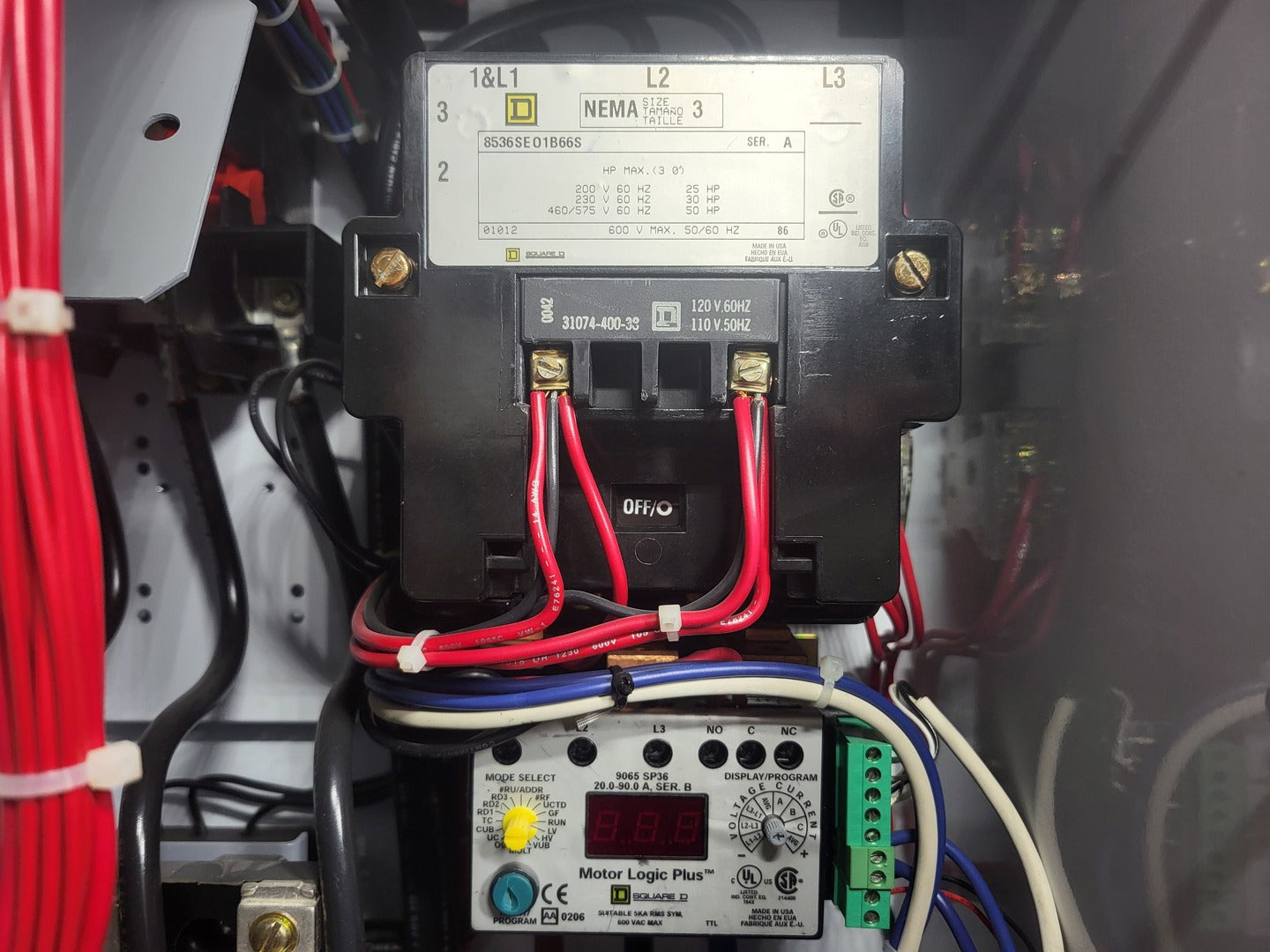

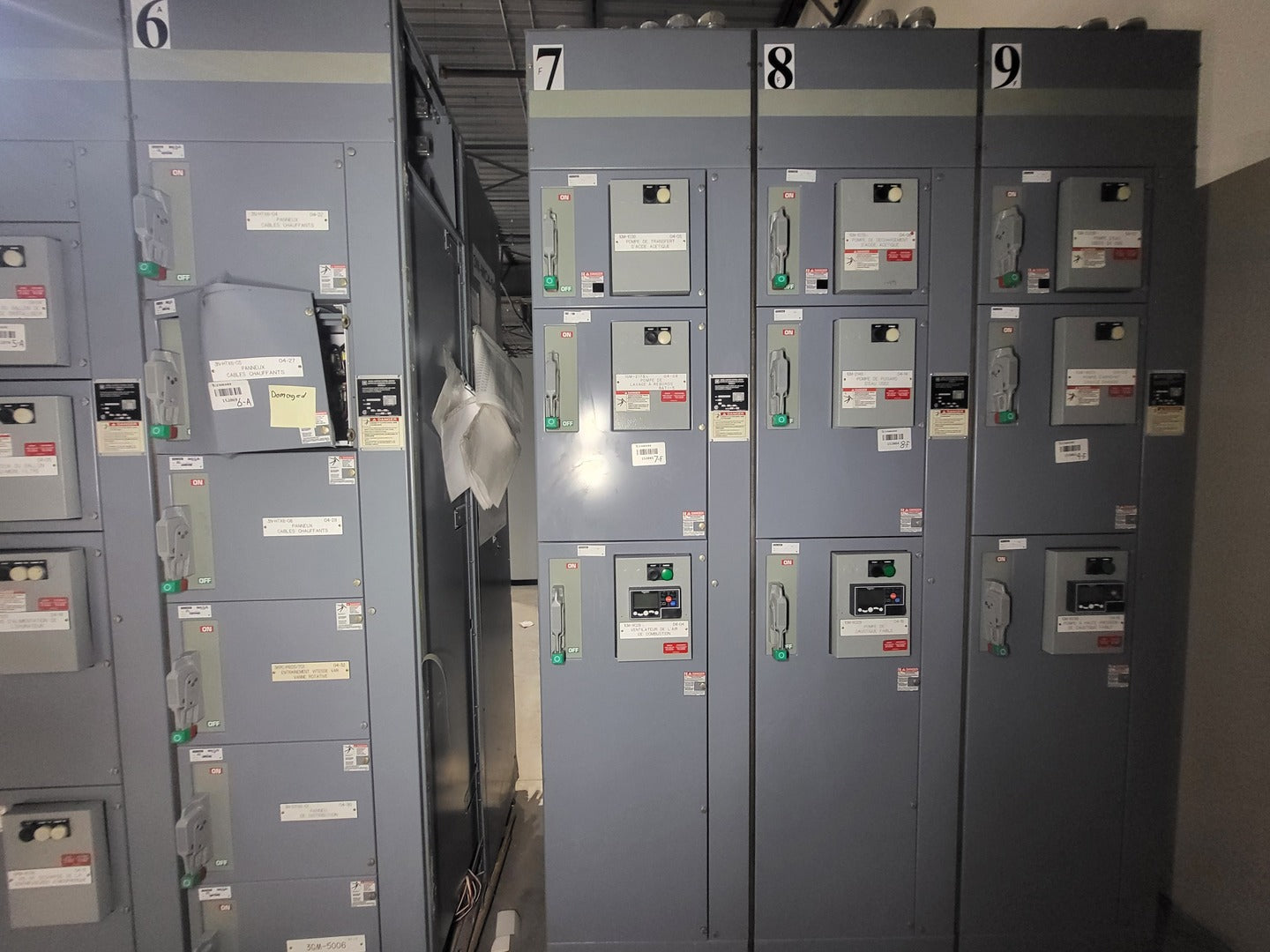

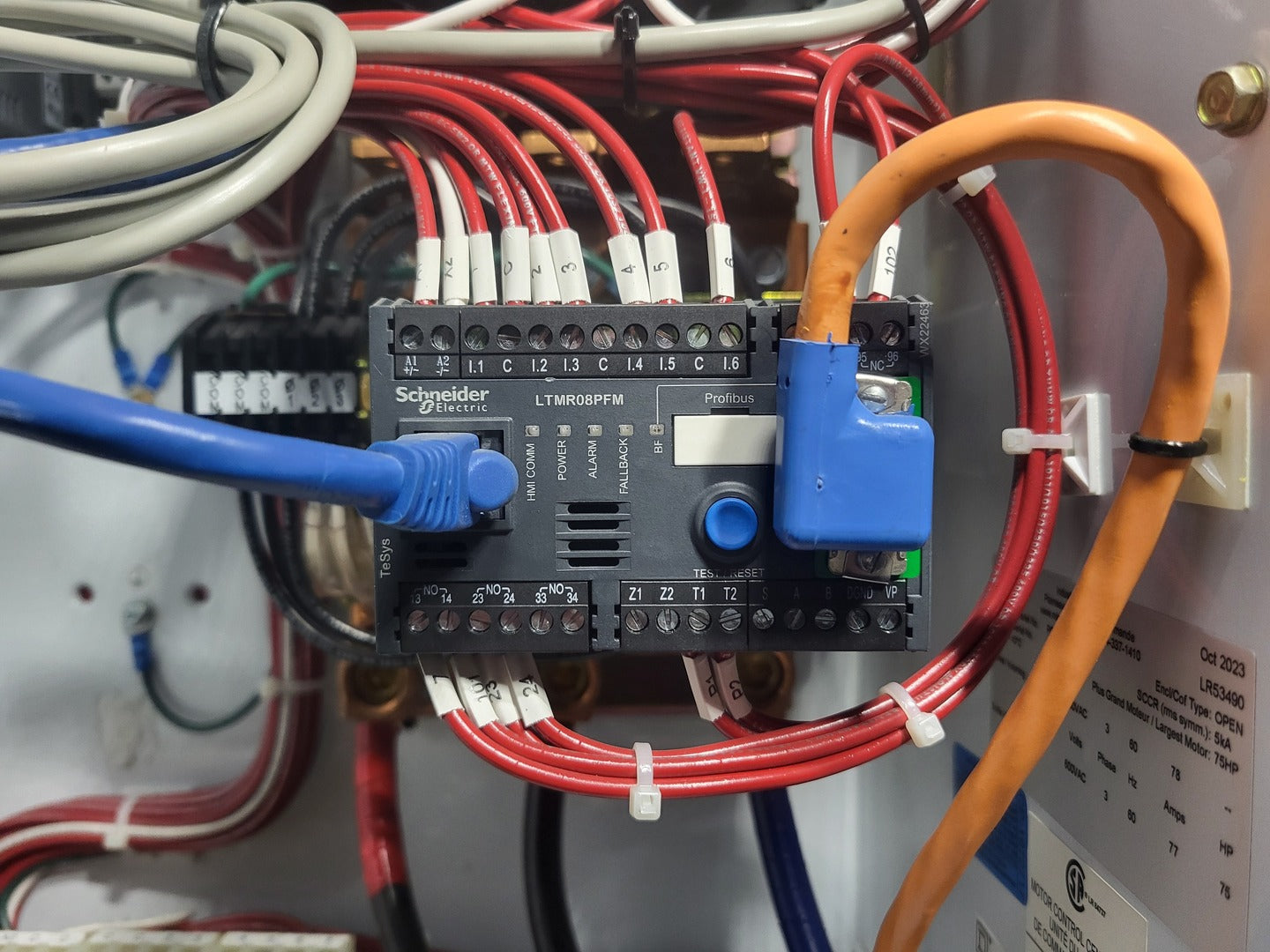

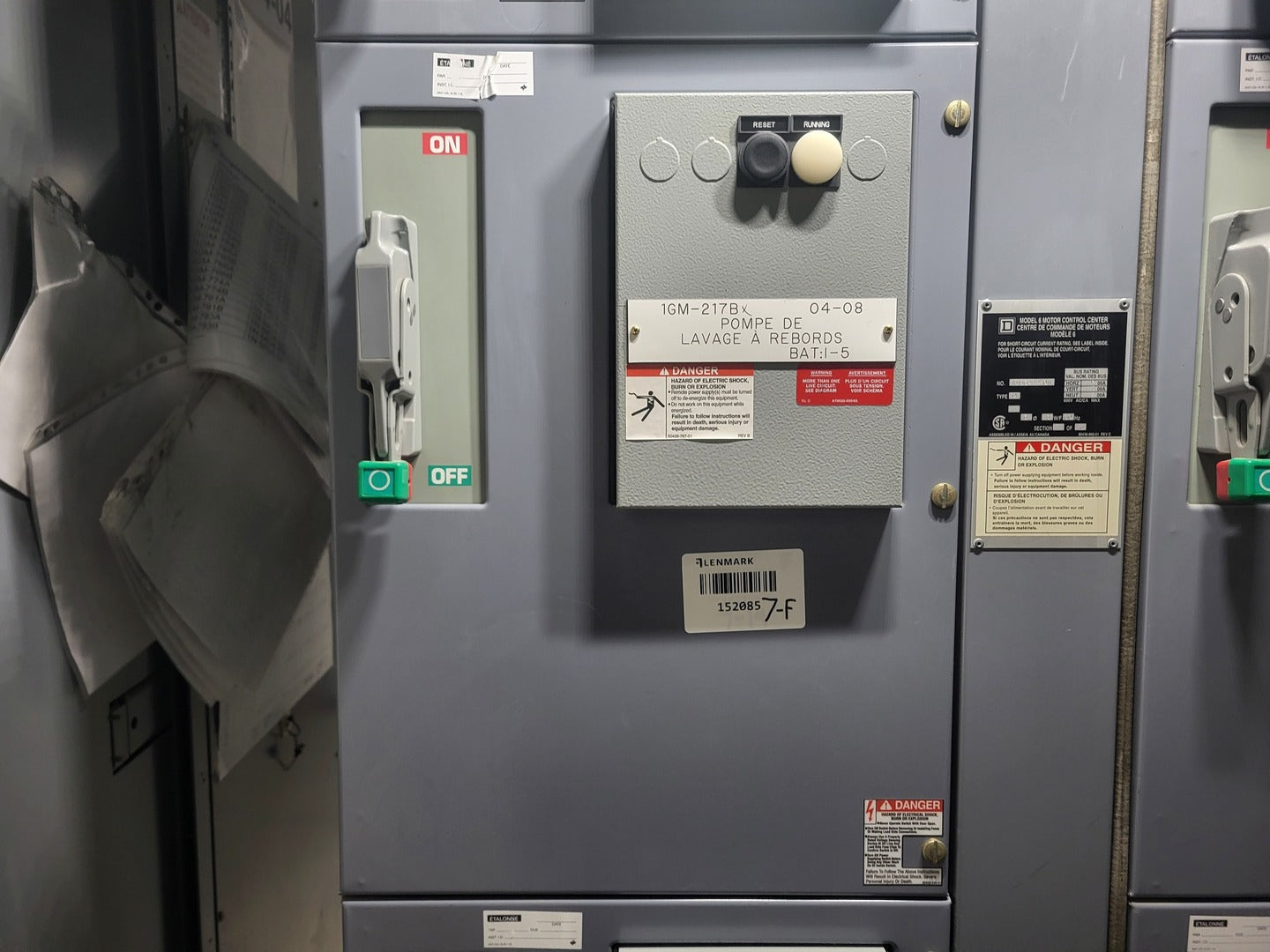

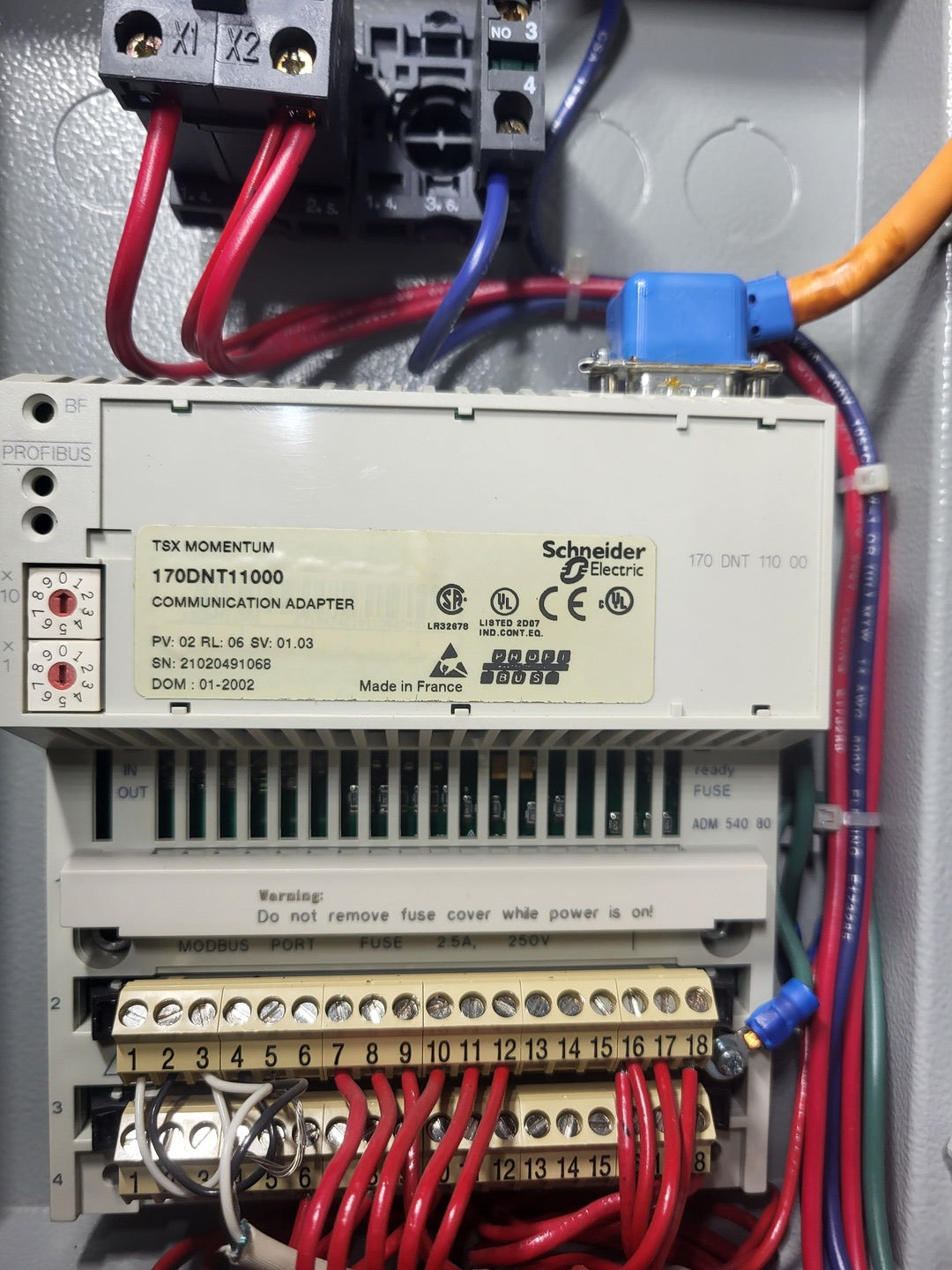

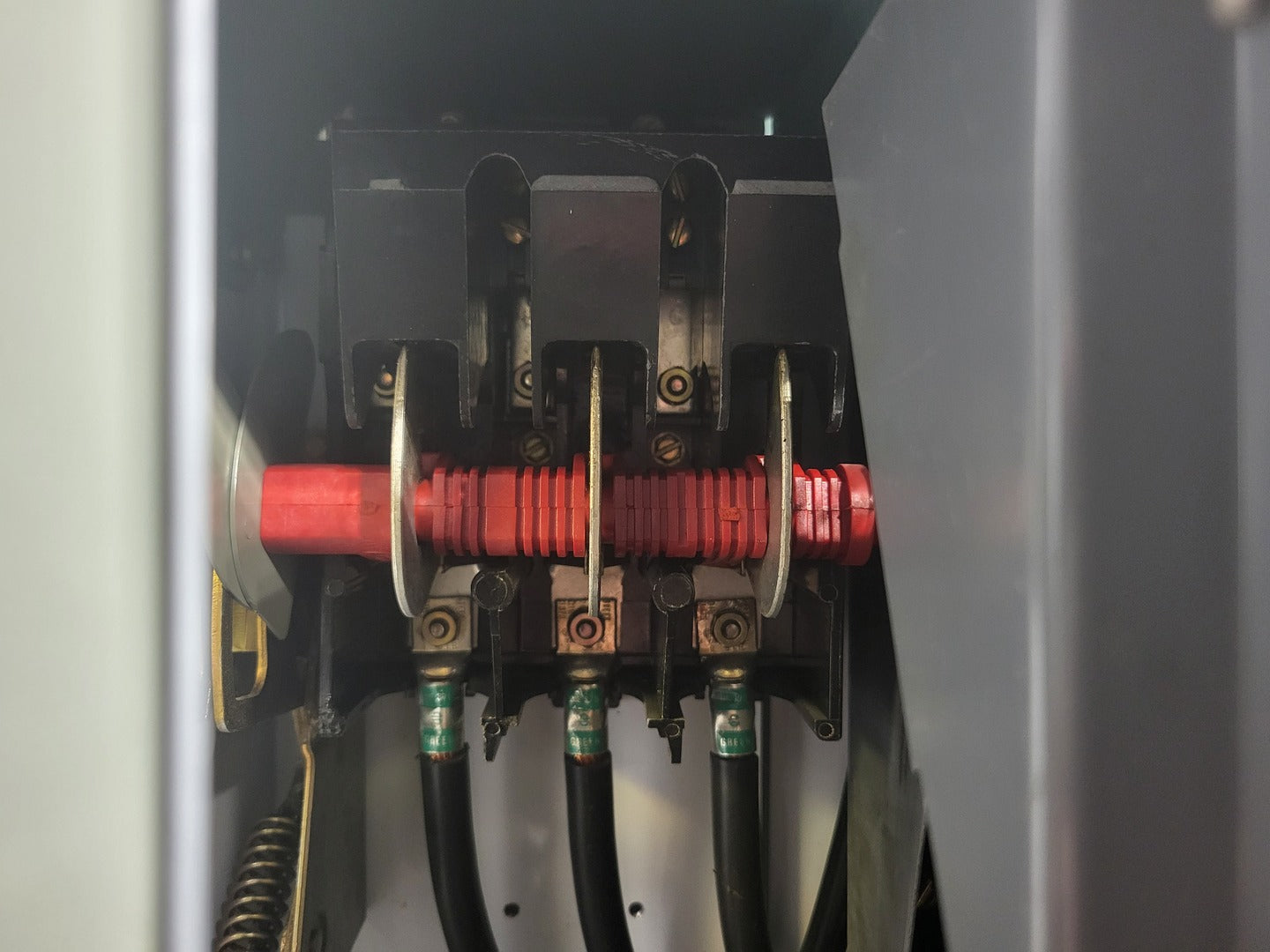

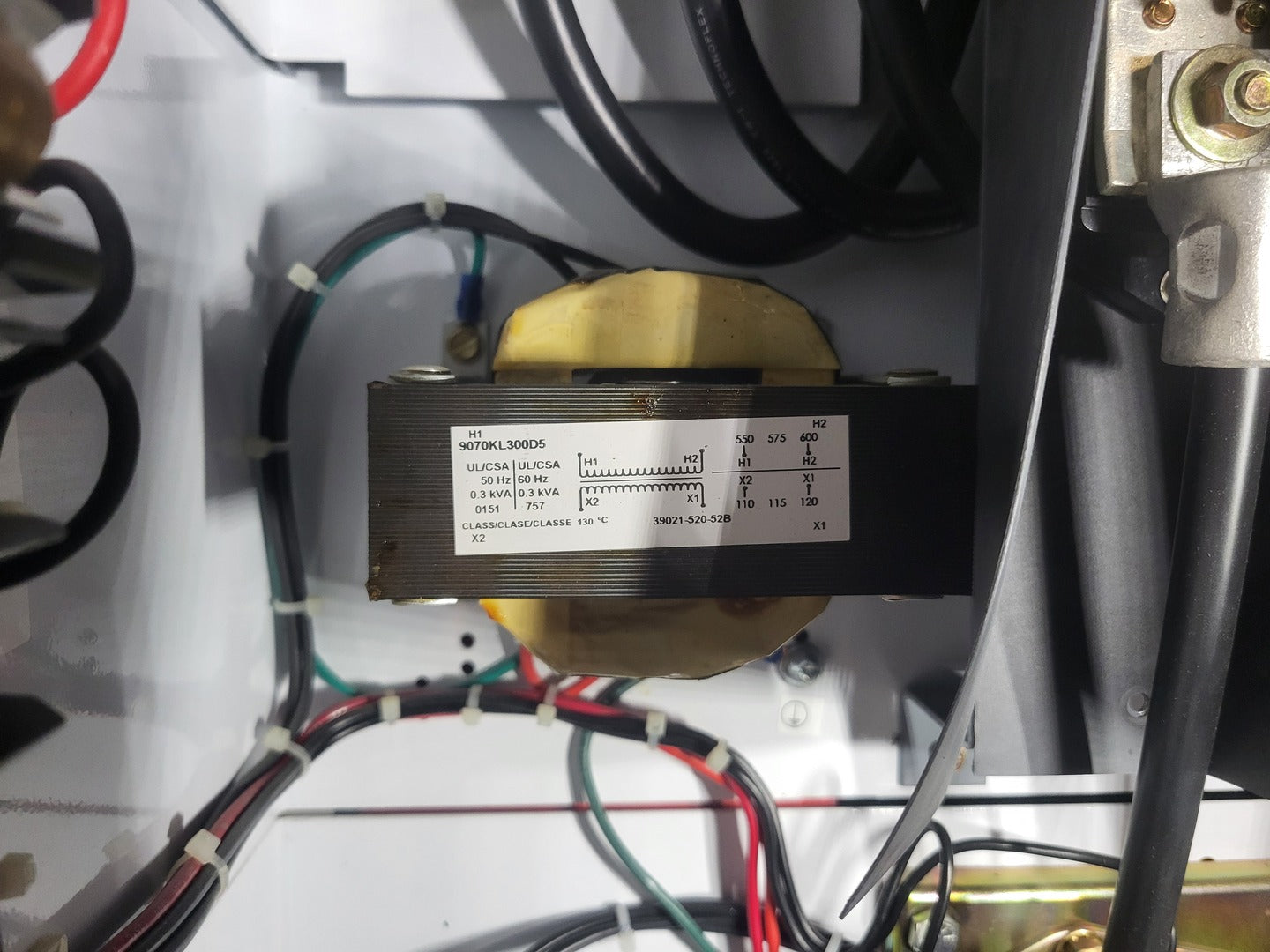

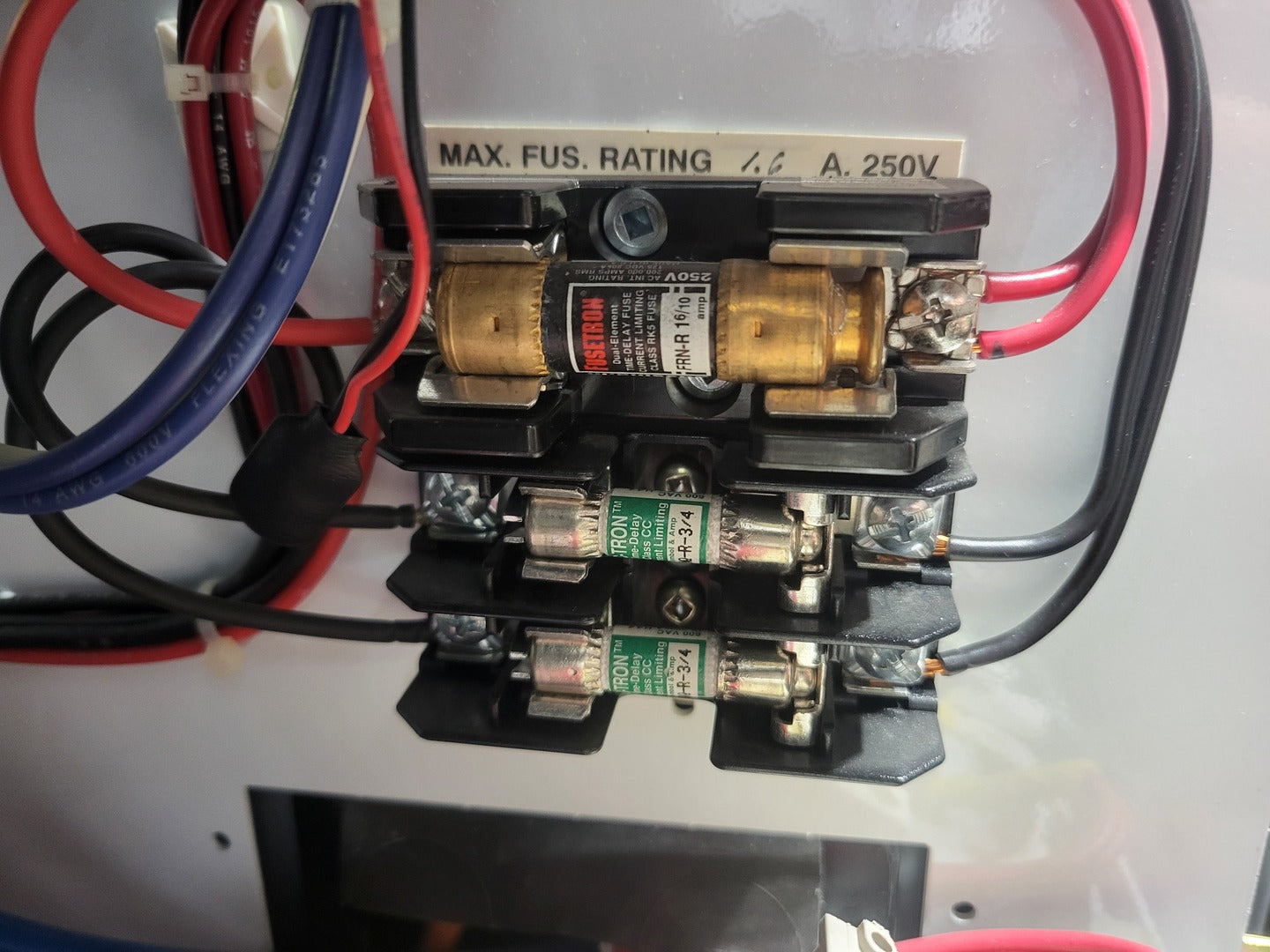

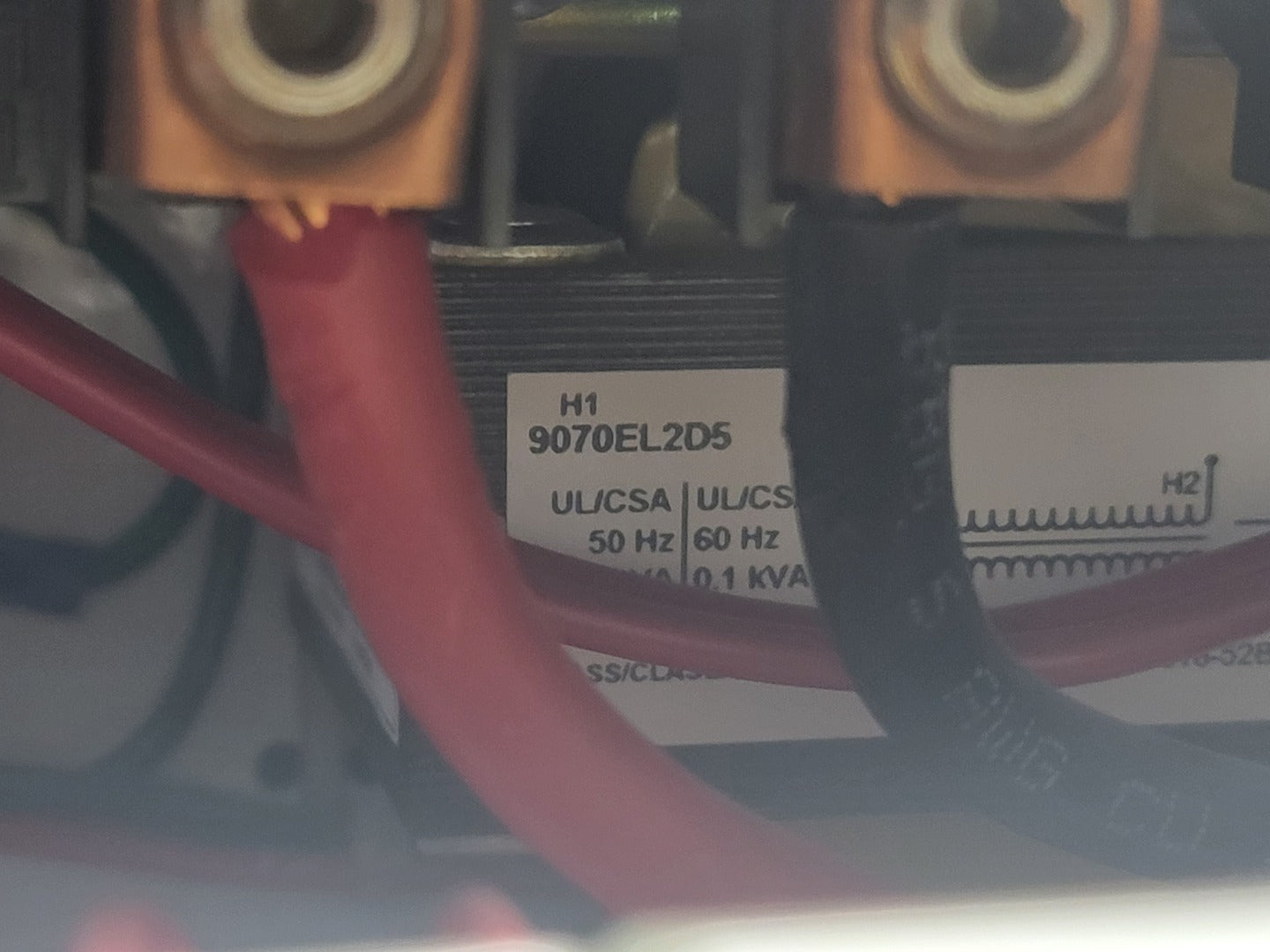

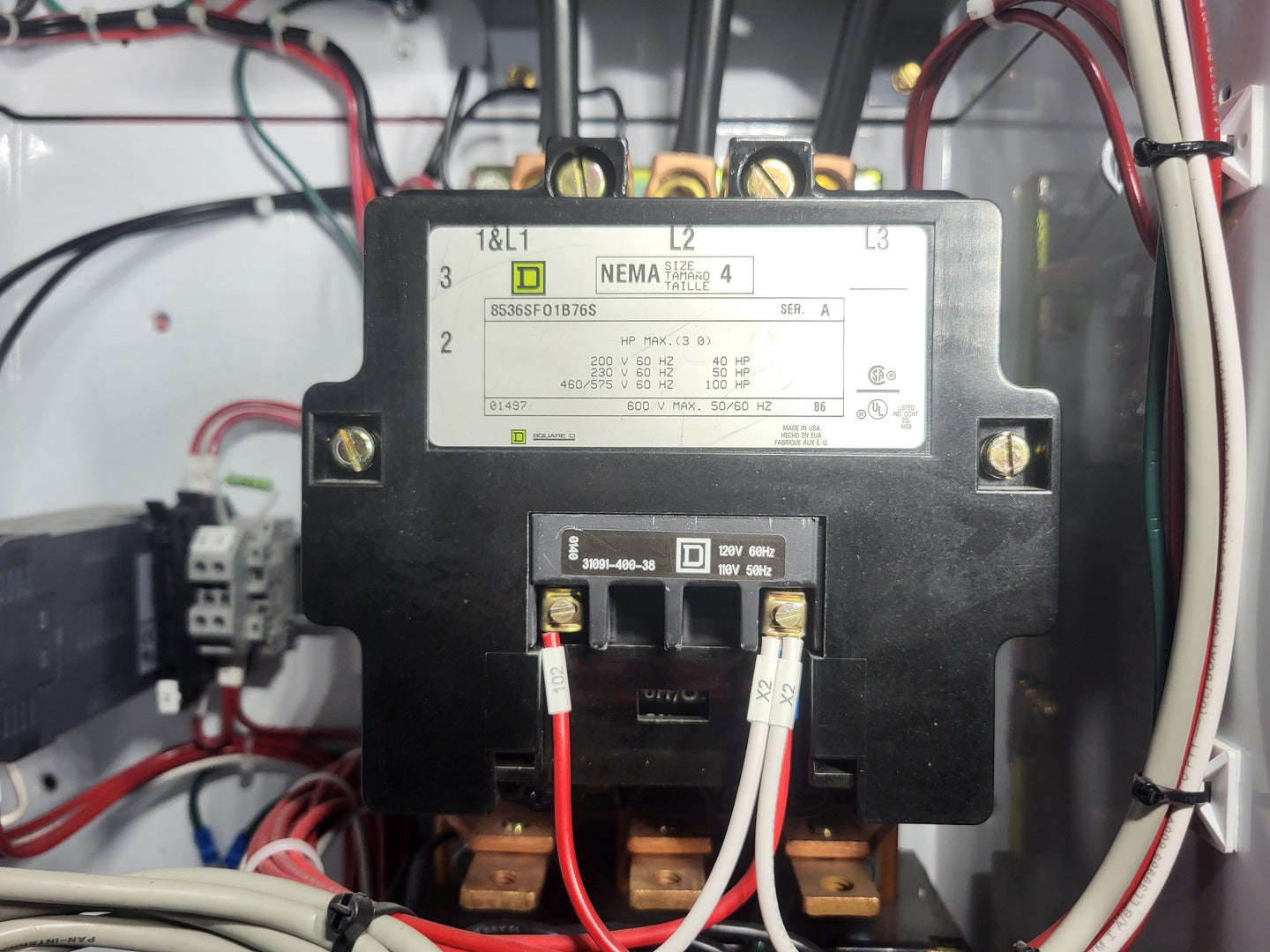

Motor Starter (3) NEMA Size 2 Contactor (1 pc) Square D 8536SDO1B56S Rated up to 25 HP @ 460/575V NEMA Size 3 Contactor (1 pc) Square D 8536SEO1B66S Rated up to 50 HP @ 460/575V NEMA Size 4 Contactor (1 pc) Square D 8536SFO1B76S Rated up to 100 HP @ 460/575V Motor Protection (2) Square D Motor Logic Plus 9065 SP26 (1 pc) 10-45 A protection relay Square D Motor Logic Plus 9065 SP36 (1 pc) 20-90 A protection relay Fuses (9) Bussmann Low-Peak, Time delay, current limiting LPJ-40SP (3 pc) LPJ-45SP (3 pc) LPJ-125SP (3 pc) Disconnect Switch (3) 40 Amp 600V Disconnect (1 pc) 45 Amp 600V Disconnect (1 pc) 125 Amp 600V Disconnect (1 pc) Control Transformer (1) Square D 9070KL300D5 (1 pc) 0.3 kVA control power transformer PLC / Communications Module (2) Schneider Electric TSX Momentum 170DNT11000 (2 pc) Profibus communication adapter Motor Management Schneider Electric Motor Controller, Profibus LTMR08PFM (1 pc) 6 logic inputs, 3 logic outputs, 0.4 to 8A, 100 to 240VAC Schneider Electric Expansion Module LTMEV40FM (1 pc) 4 inputs, 100 to 240VAC Note: Section 7 only |
