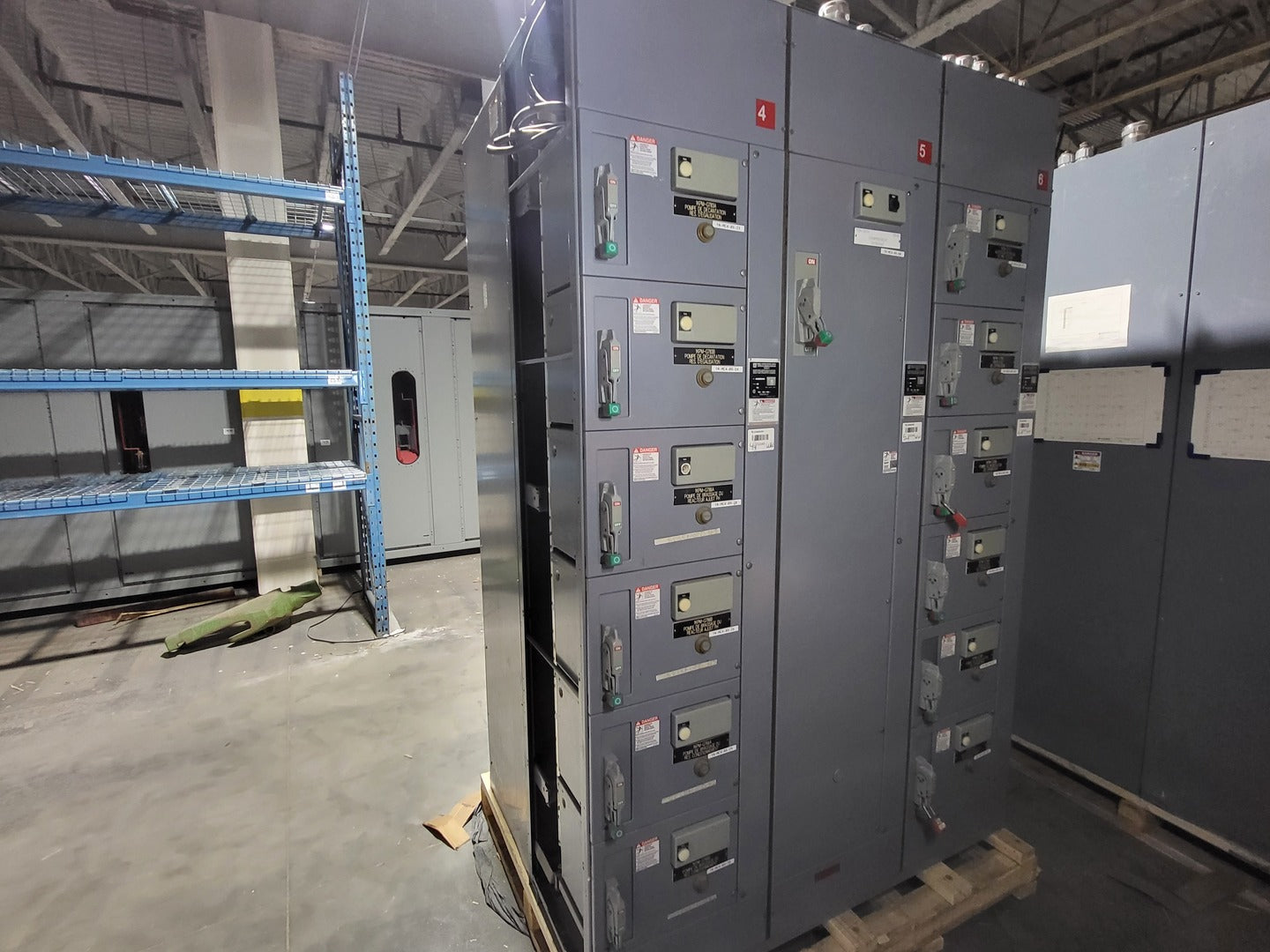

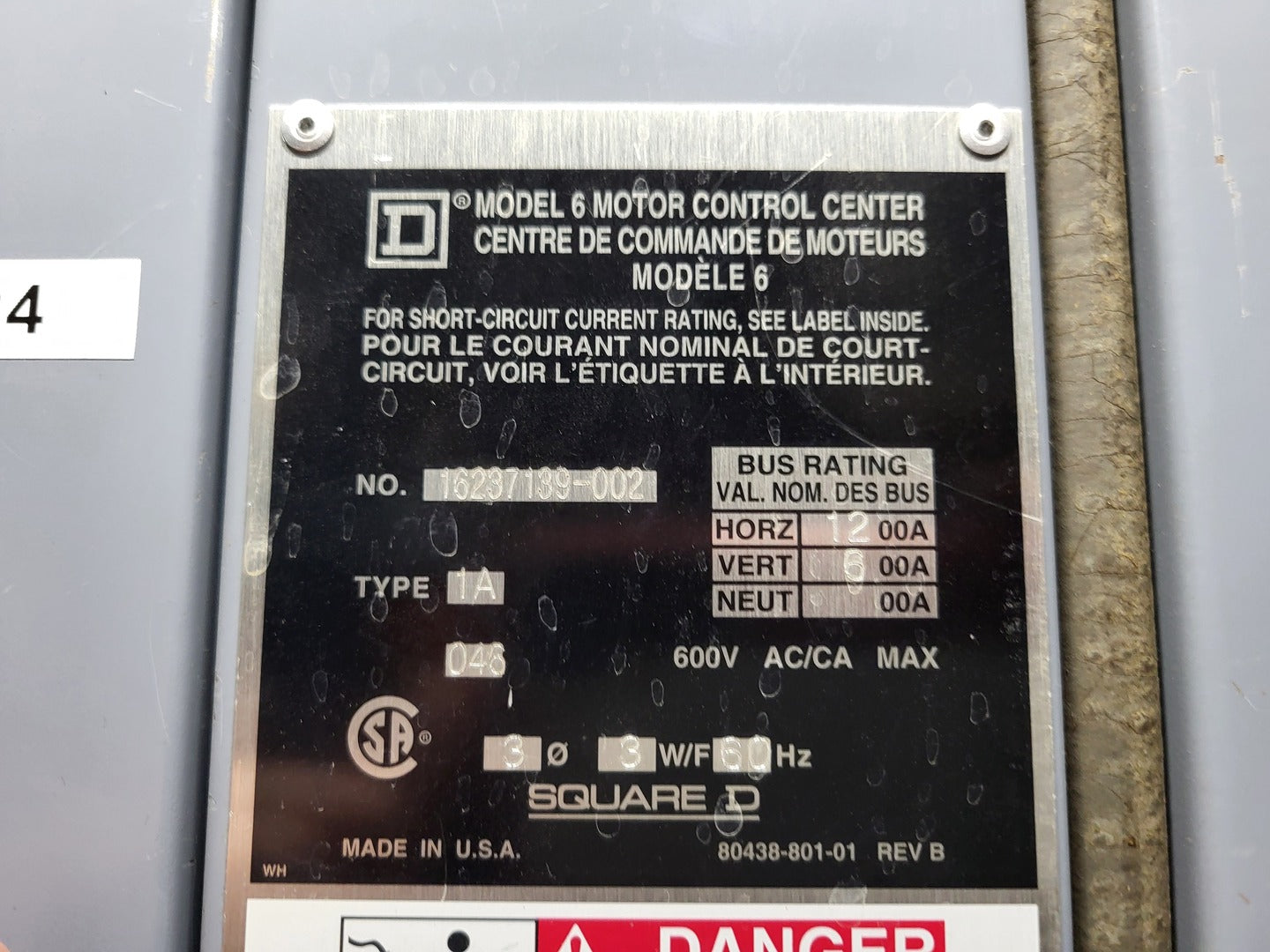

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 152143
Price:
$9,500 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Specifications
Model Model 6
Condition Used
Other Specifications

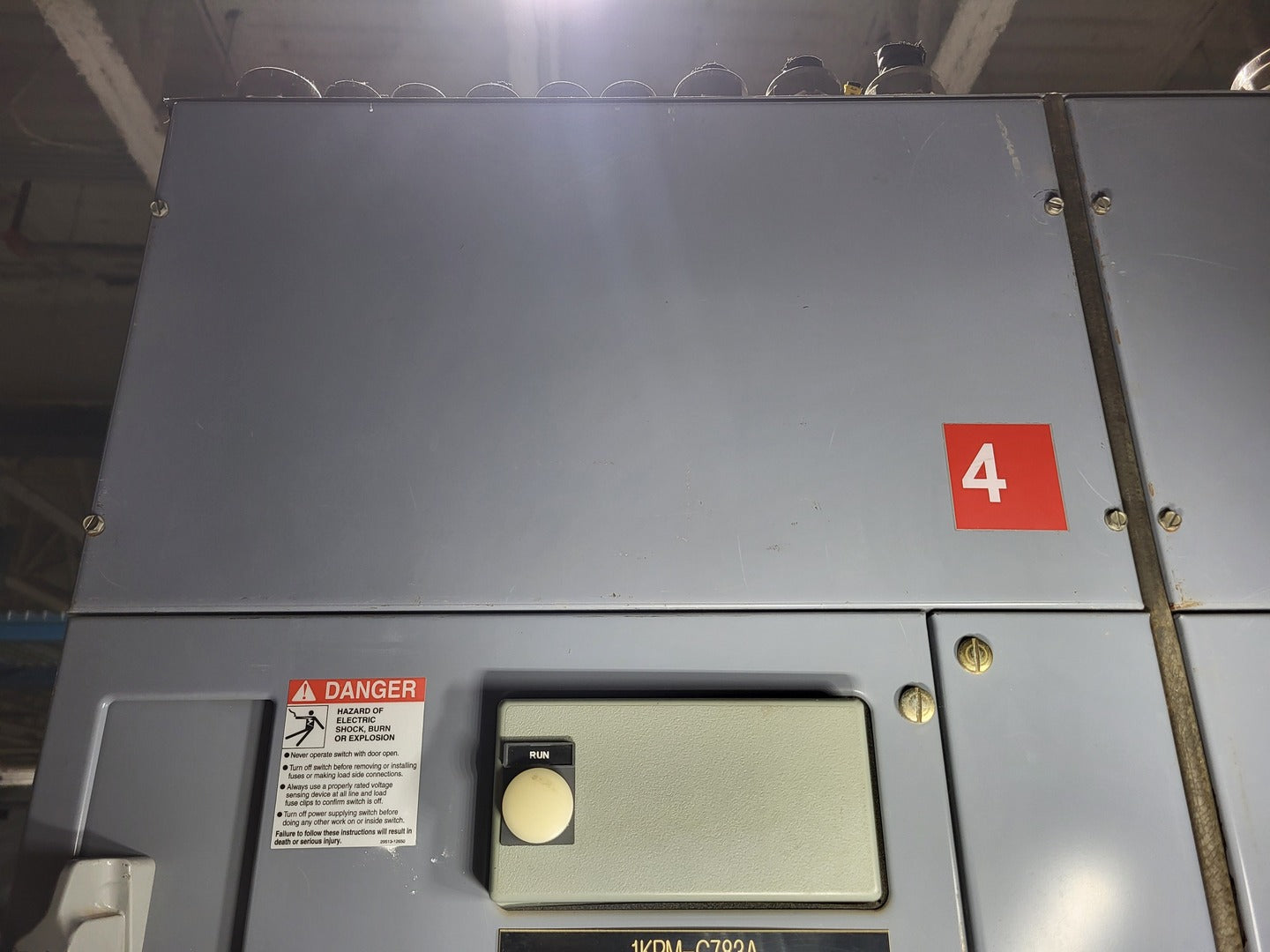

Note: Section 4 only

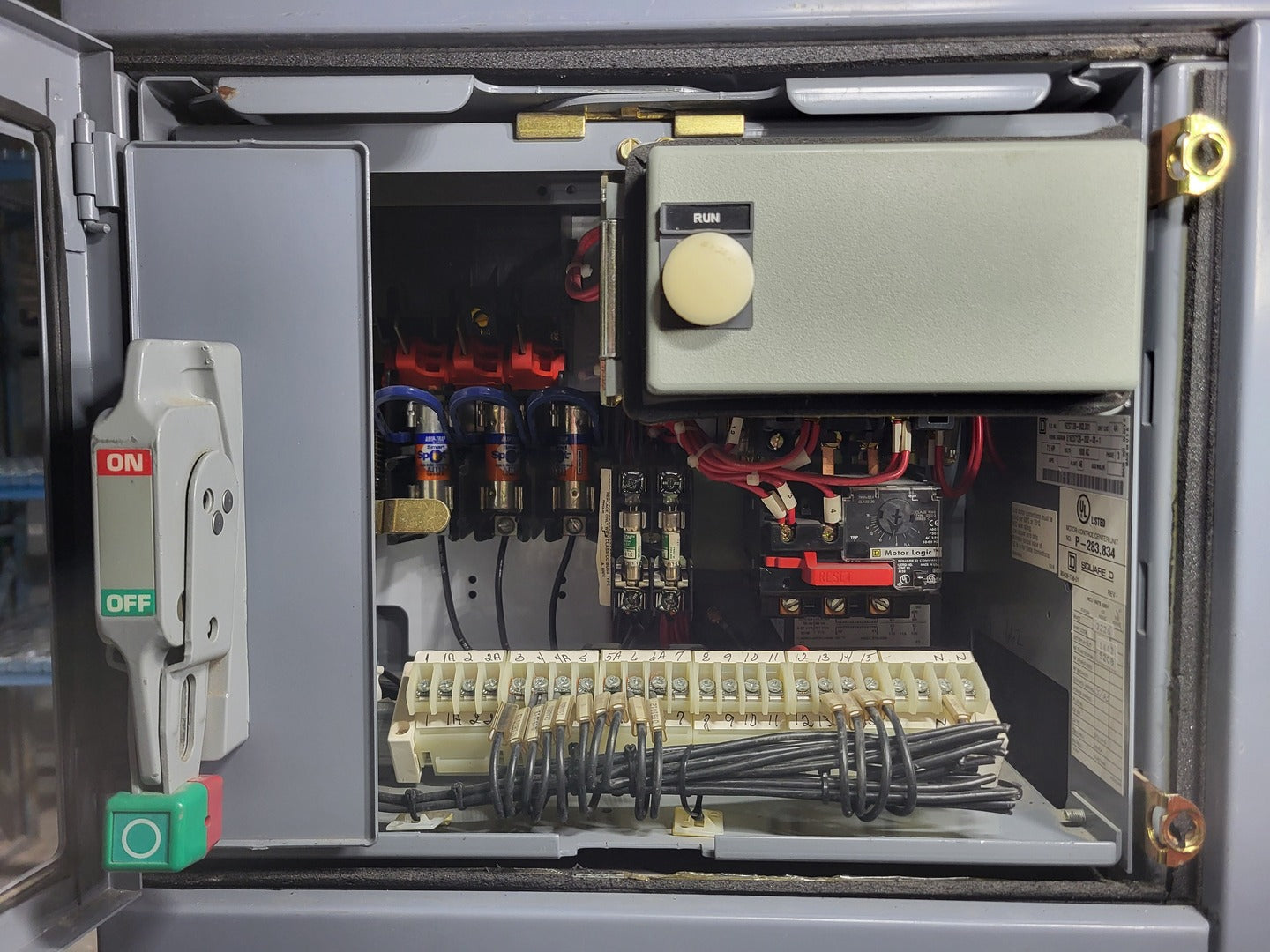

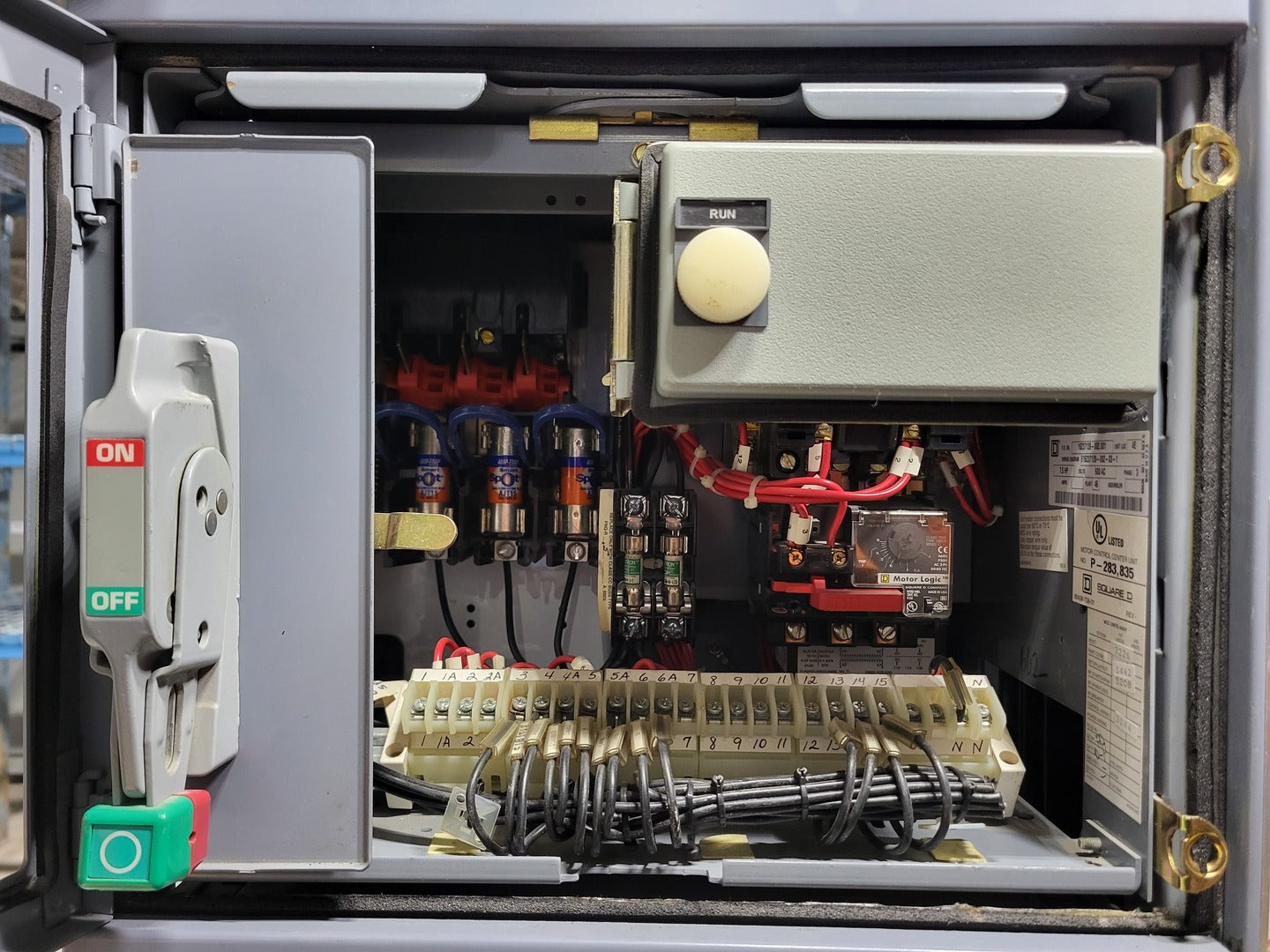

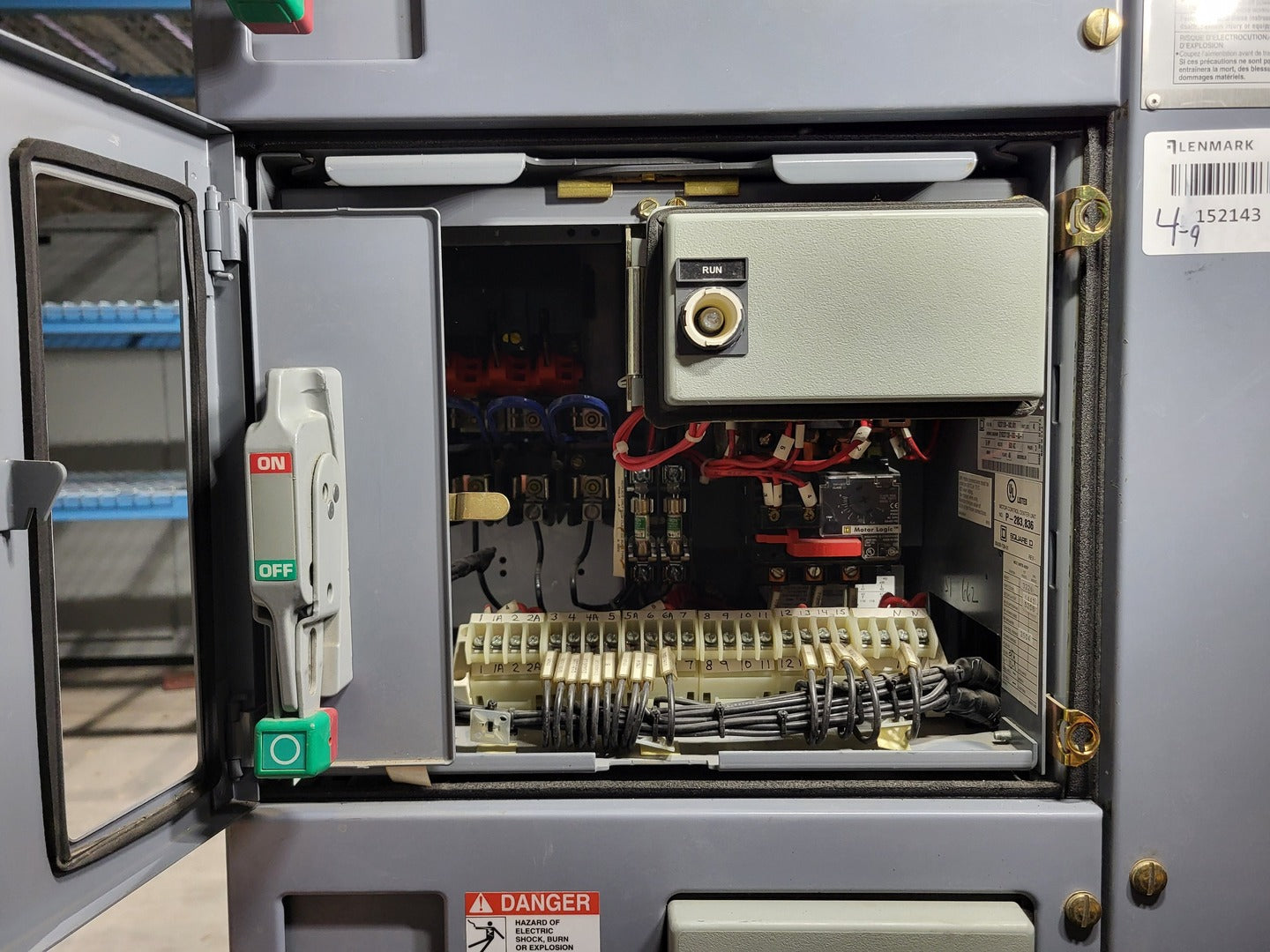

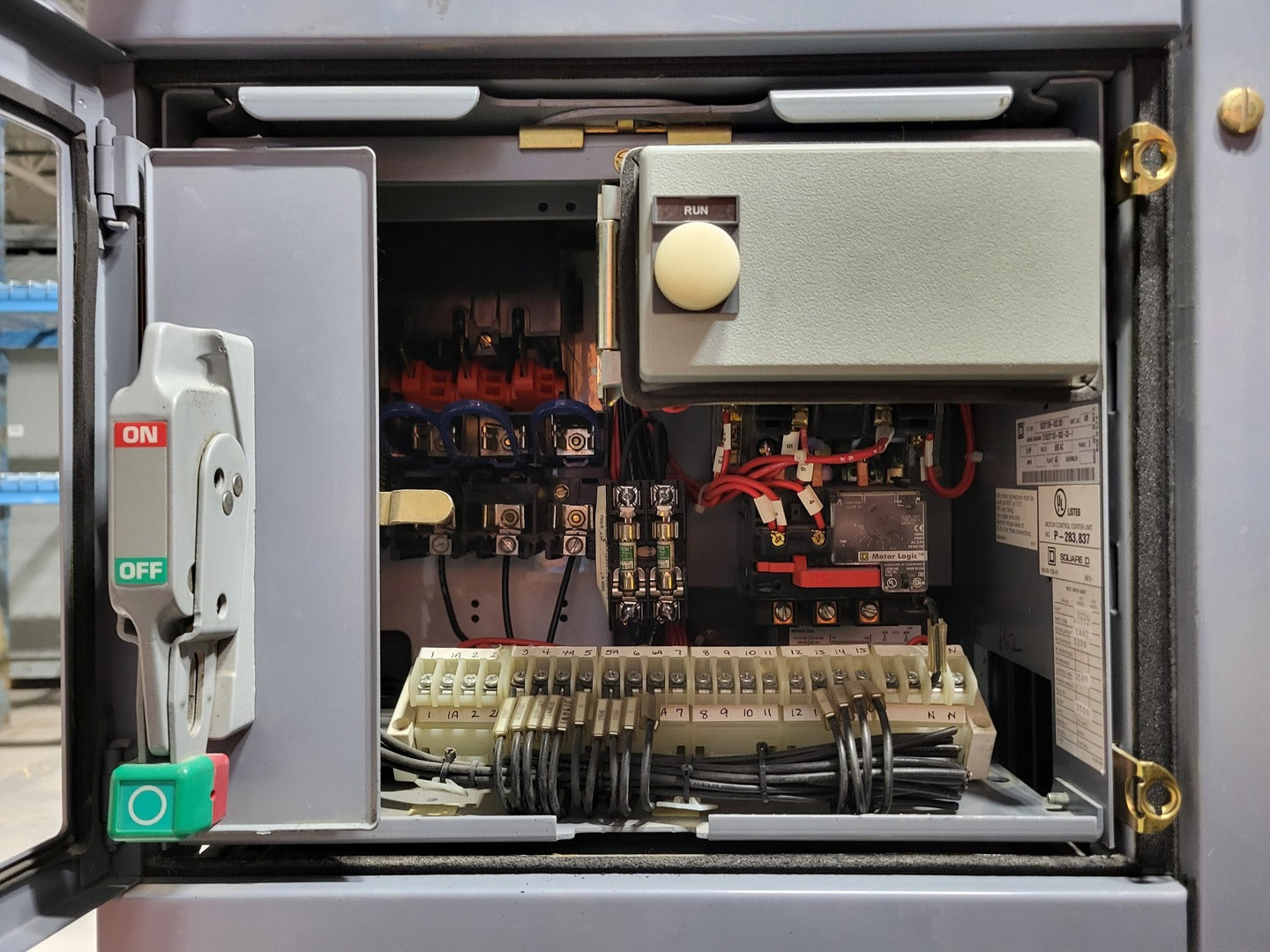

Bucket #1 1KPM-G783A

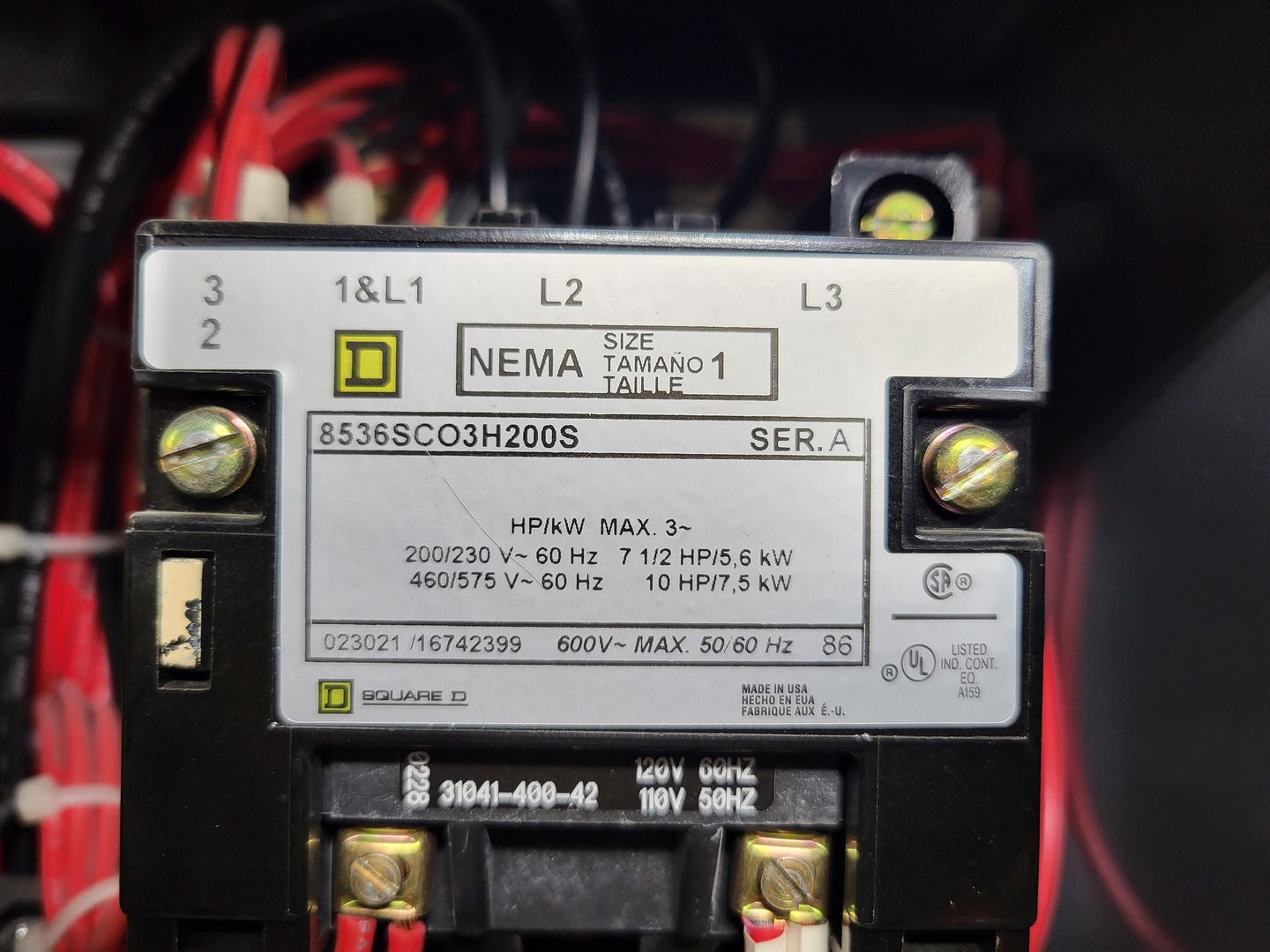

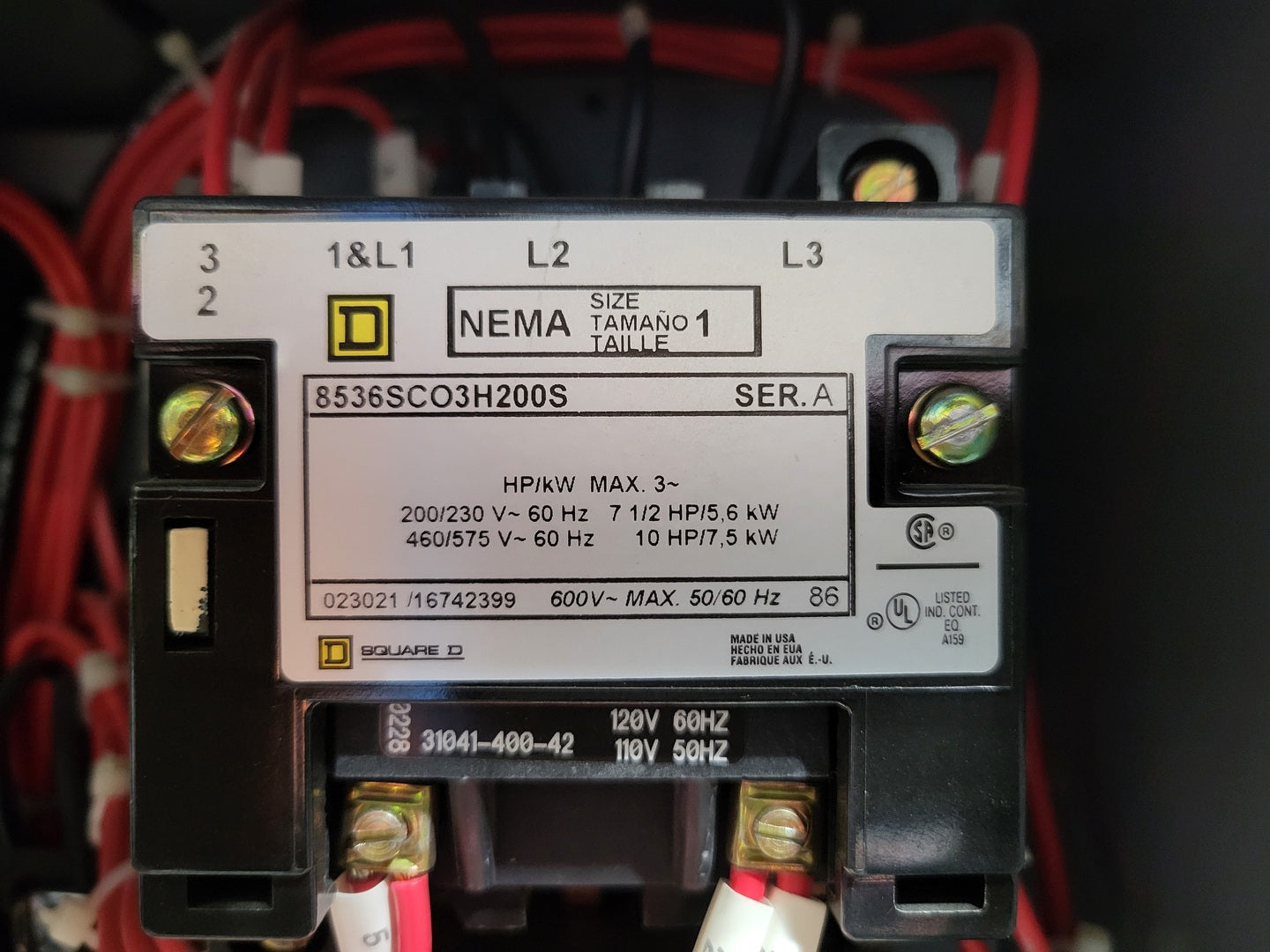

  1. Square D 8536SCO3H200S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V

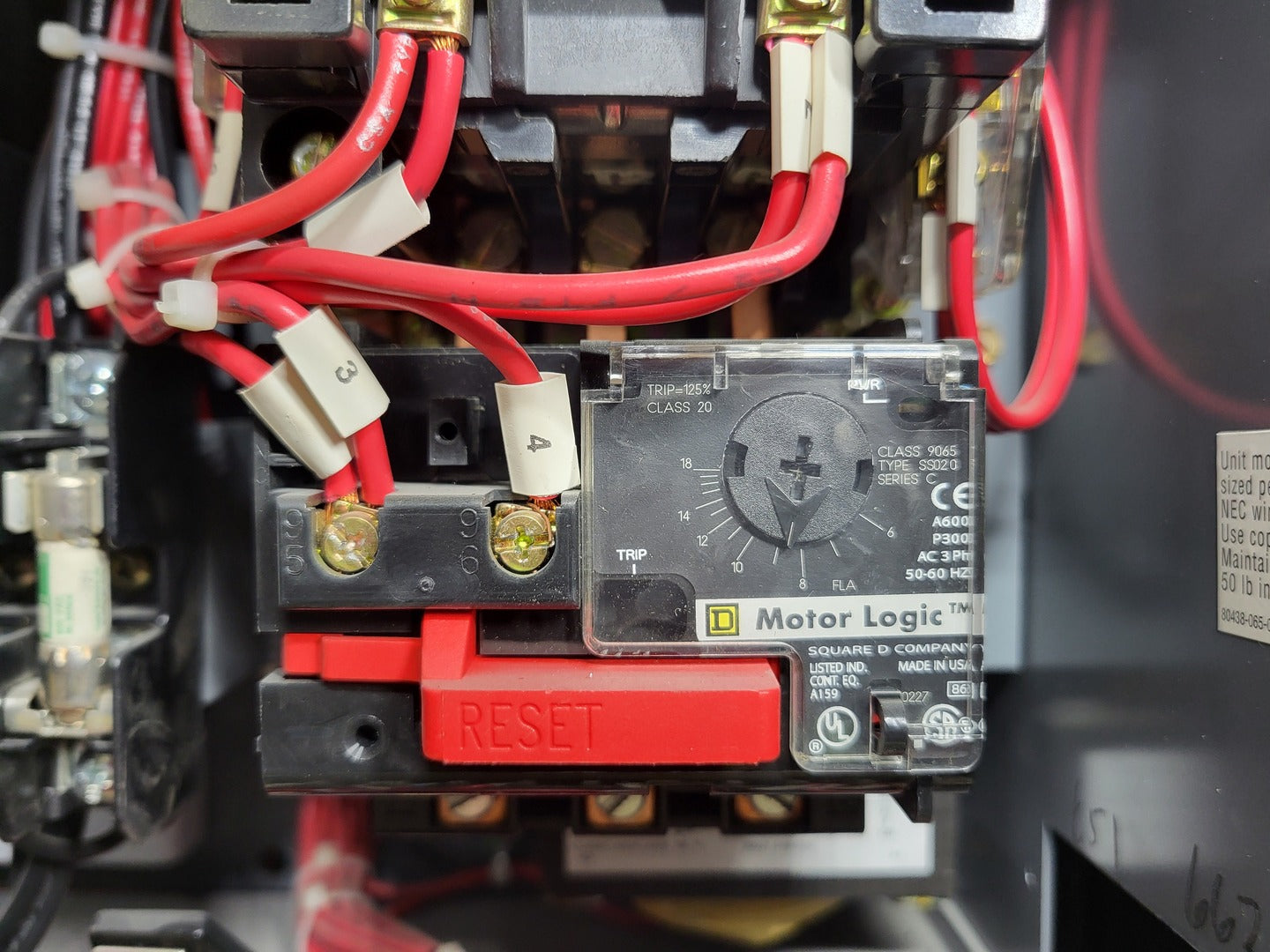

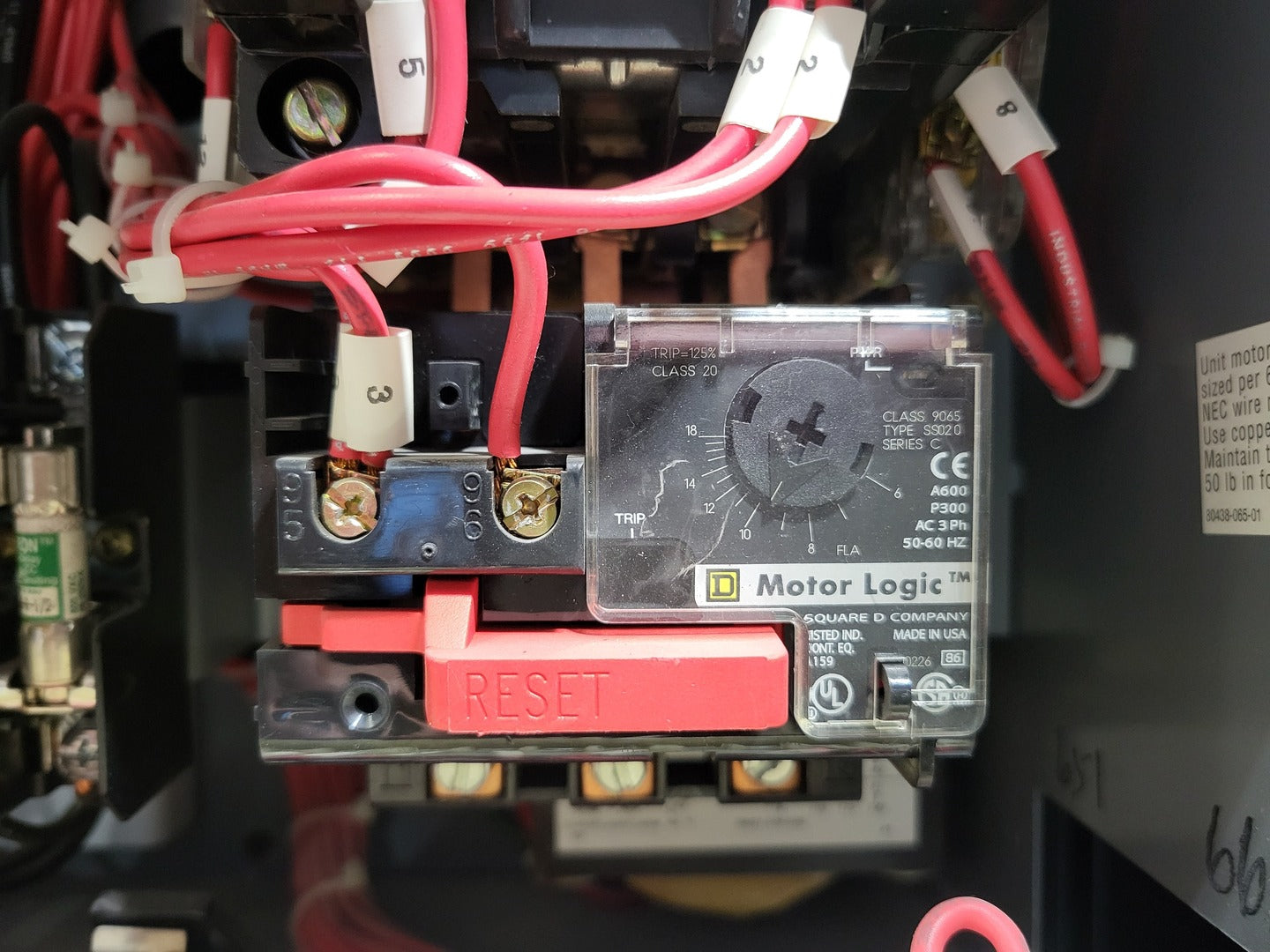

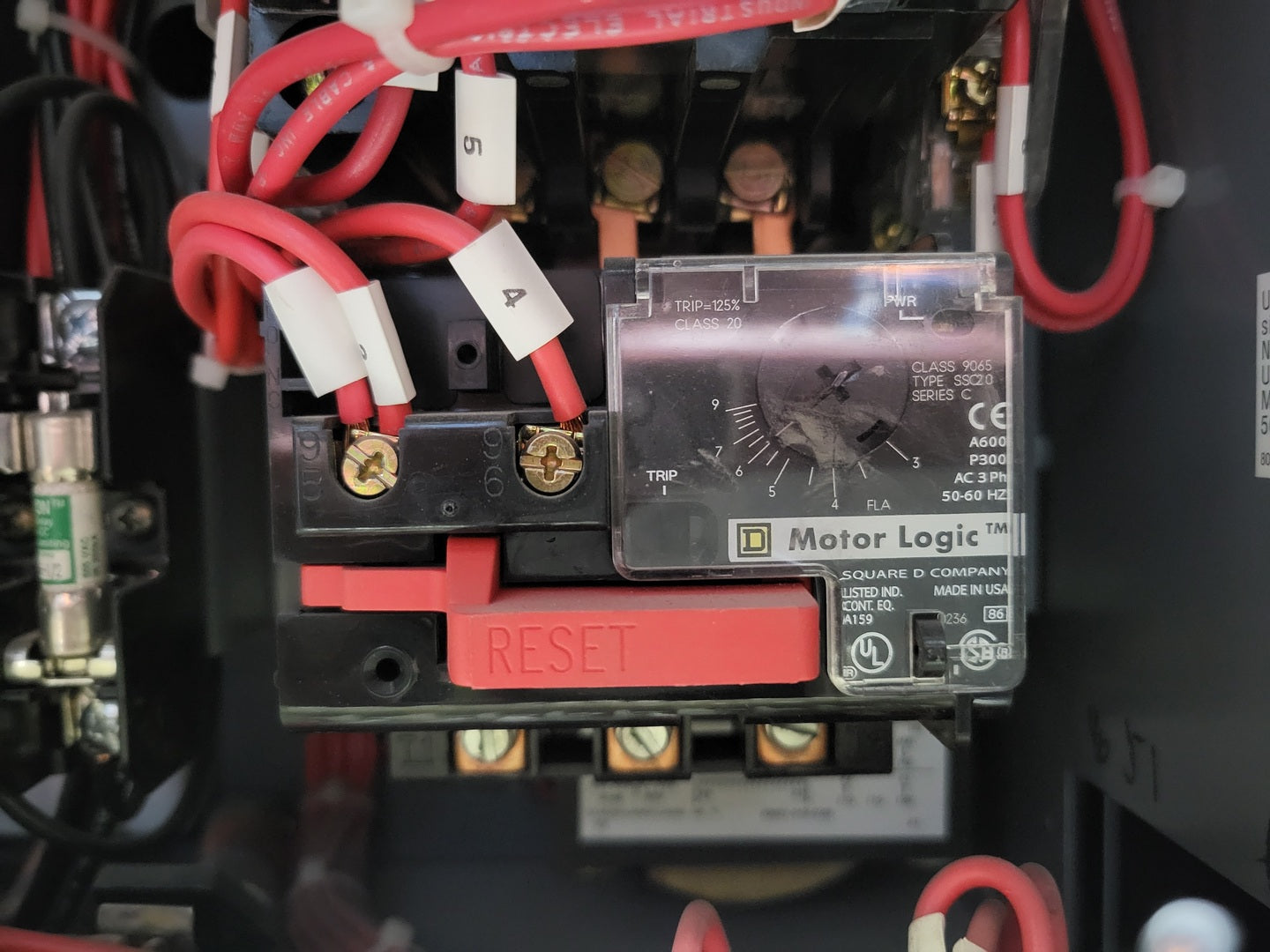

  2. Square D Motor Logic 9065 SS020, 6-18 A motor protection relay

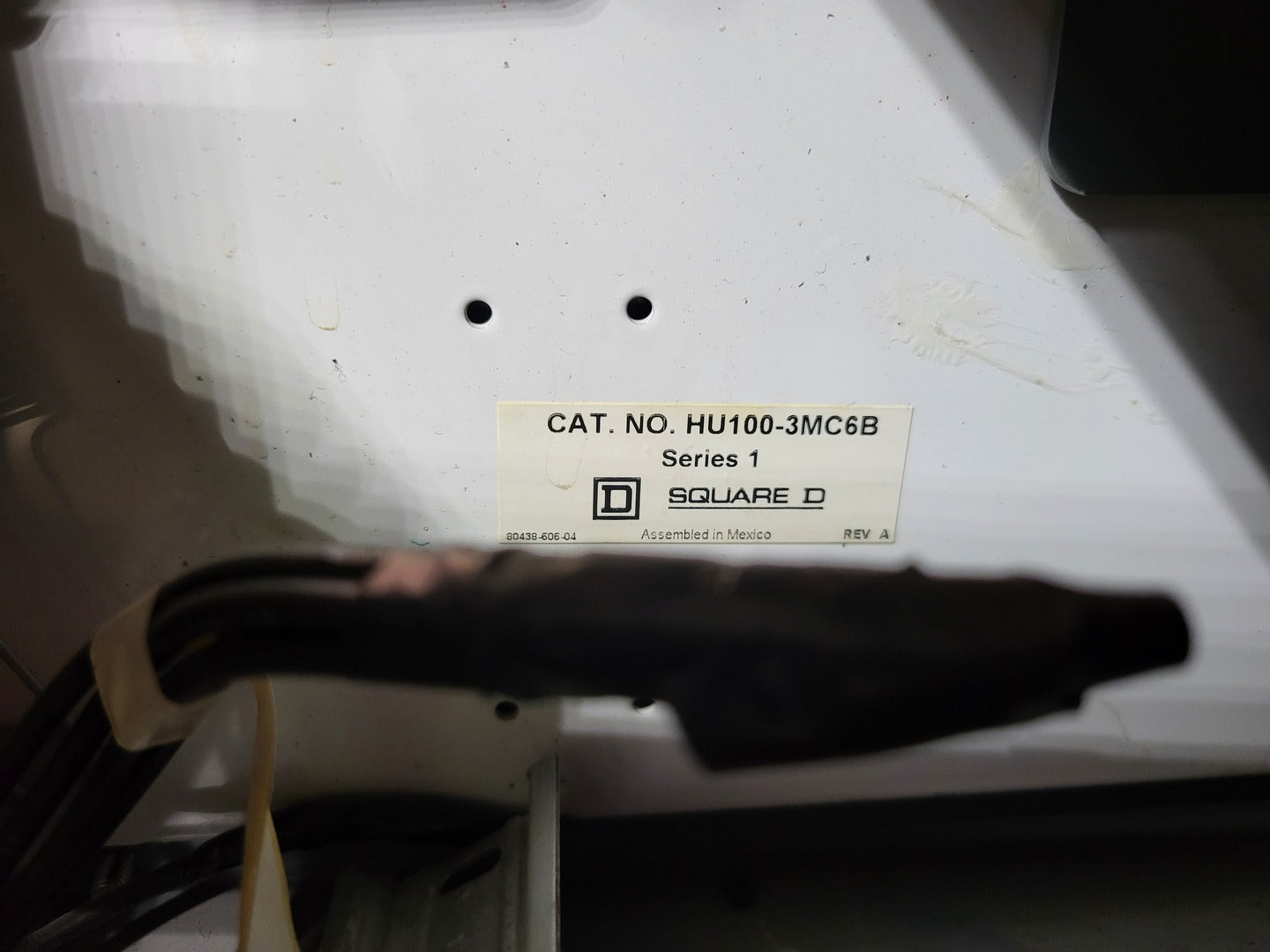

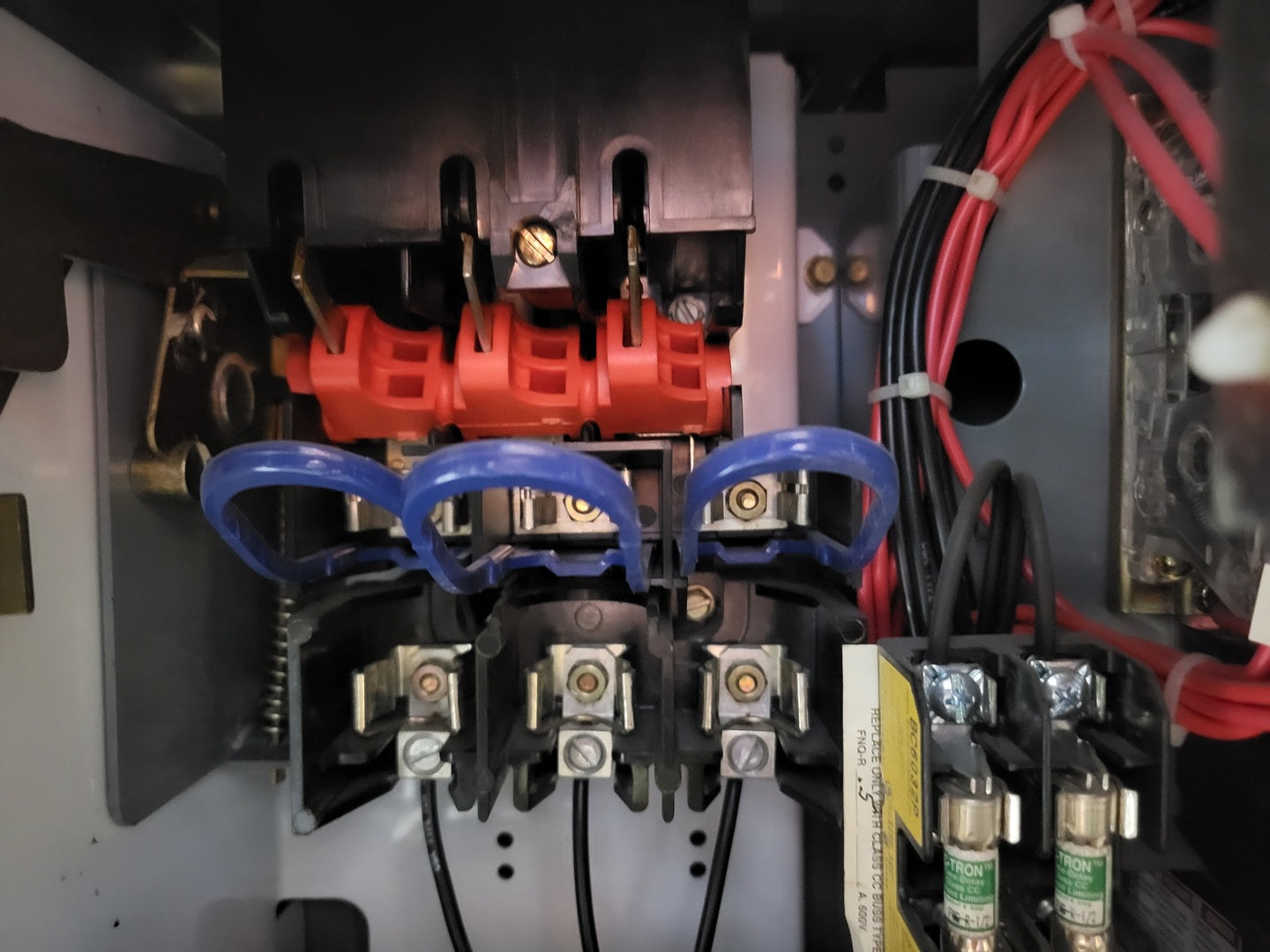

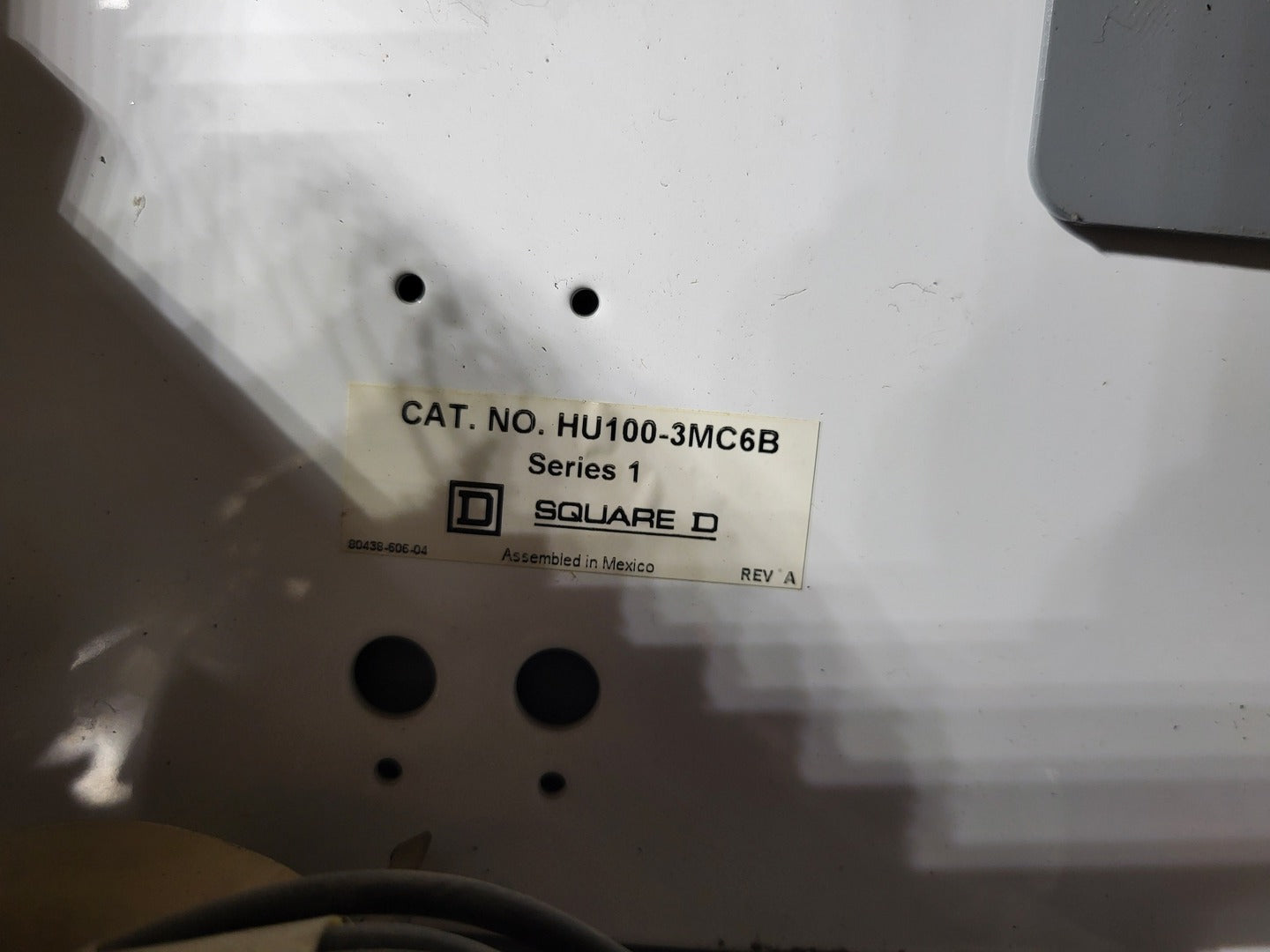

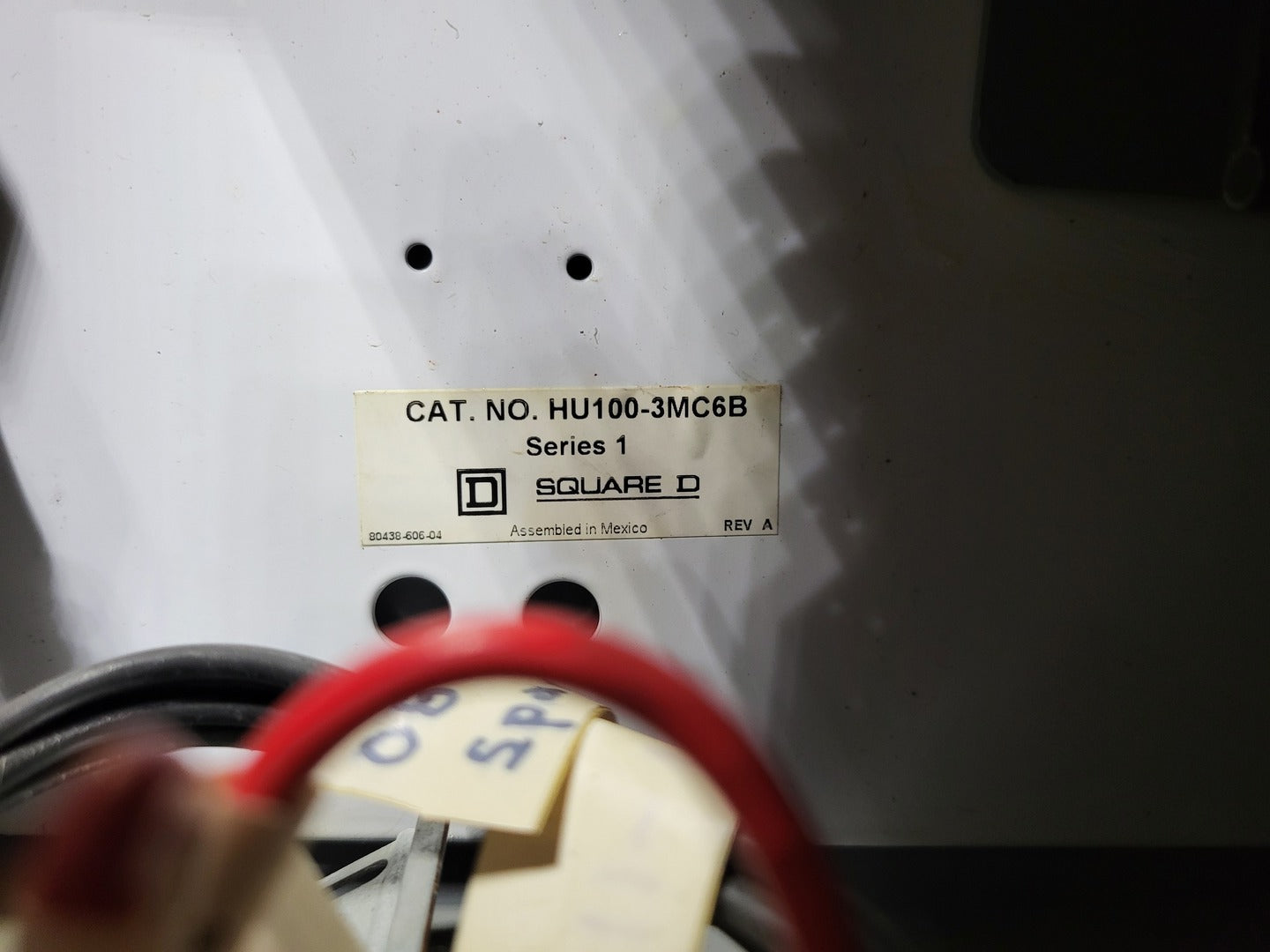

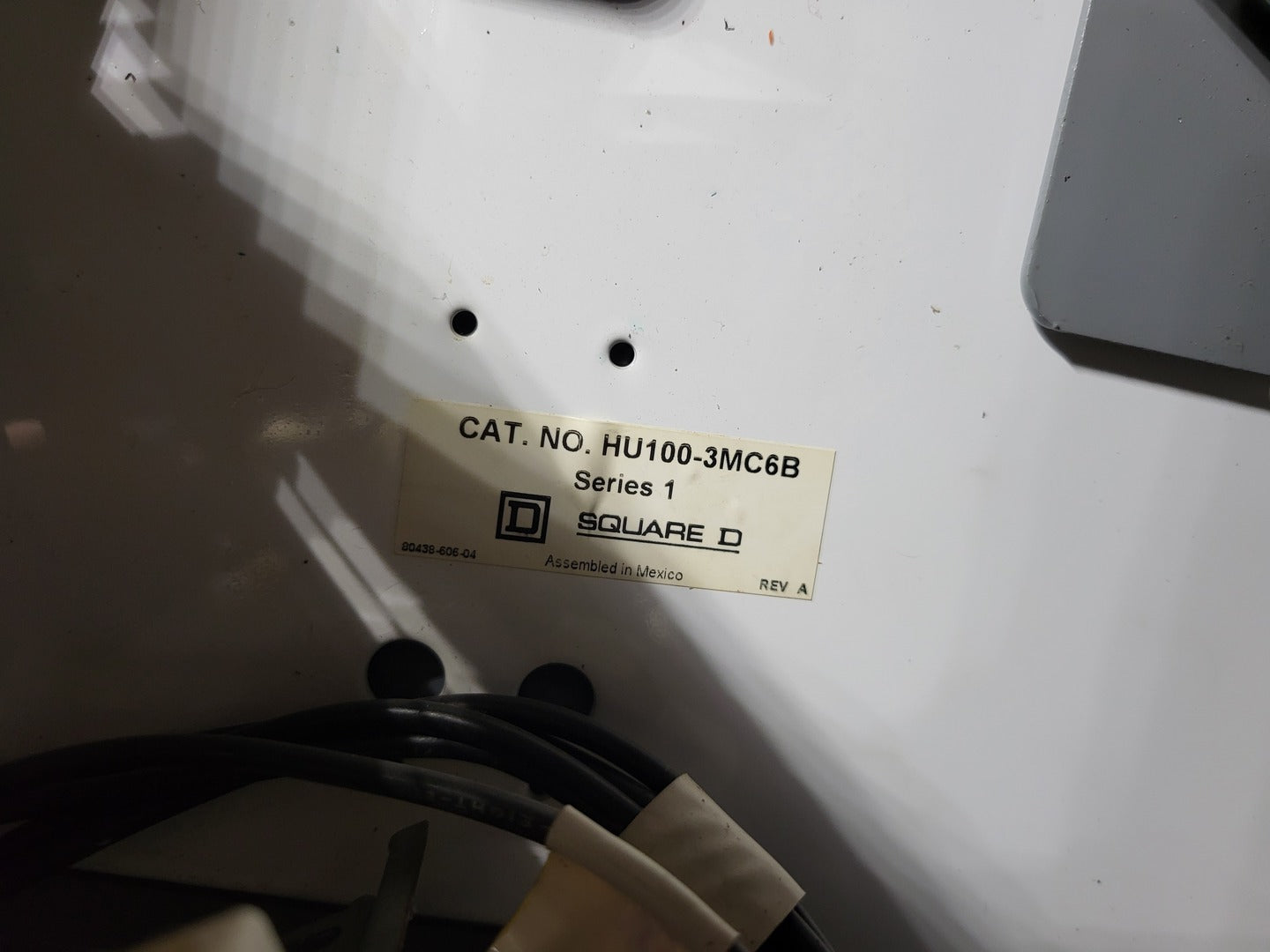

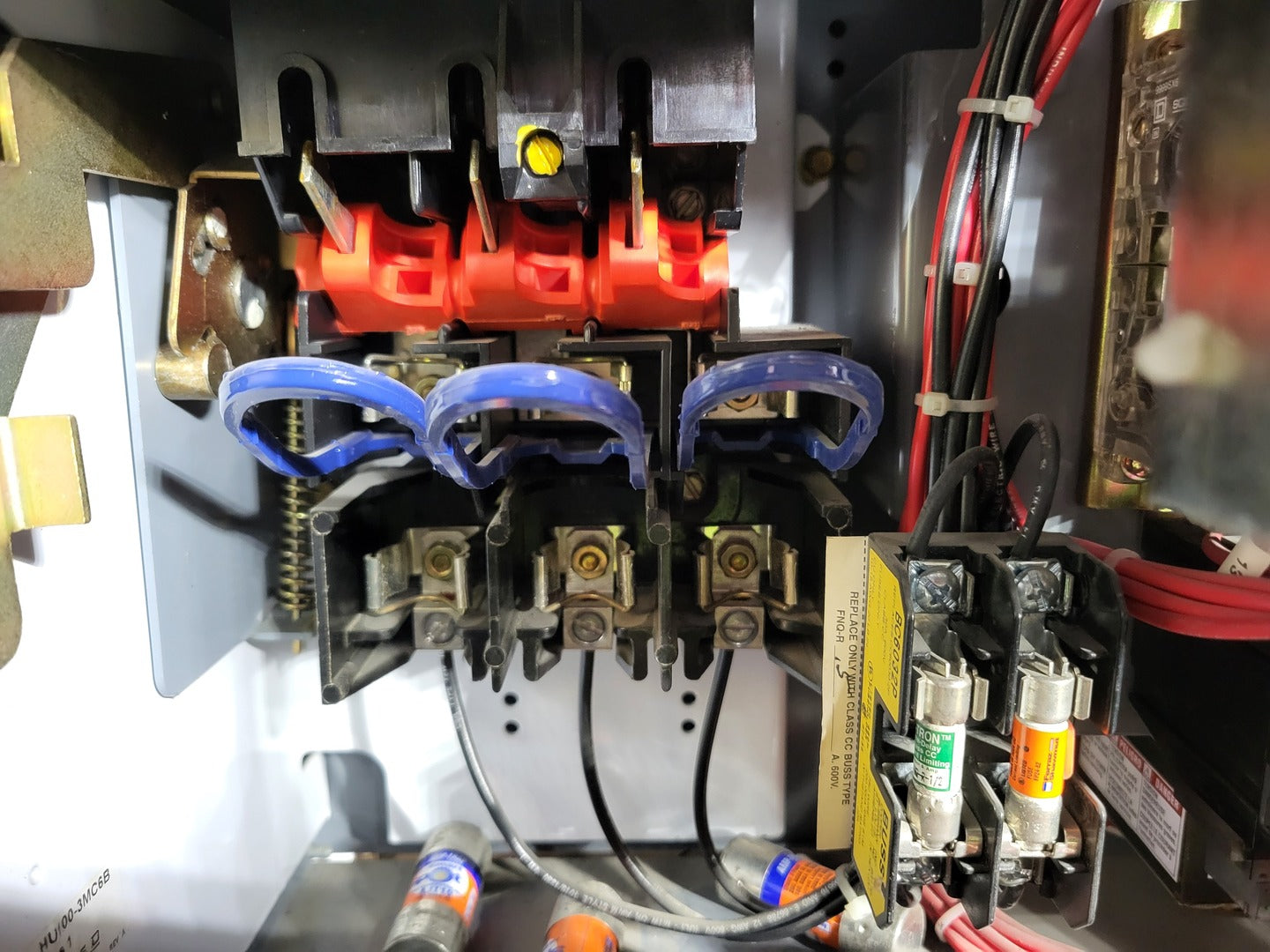

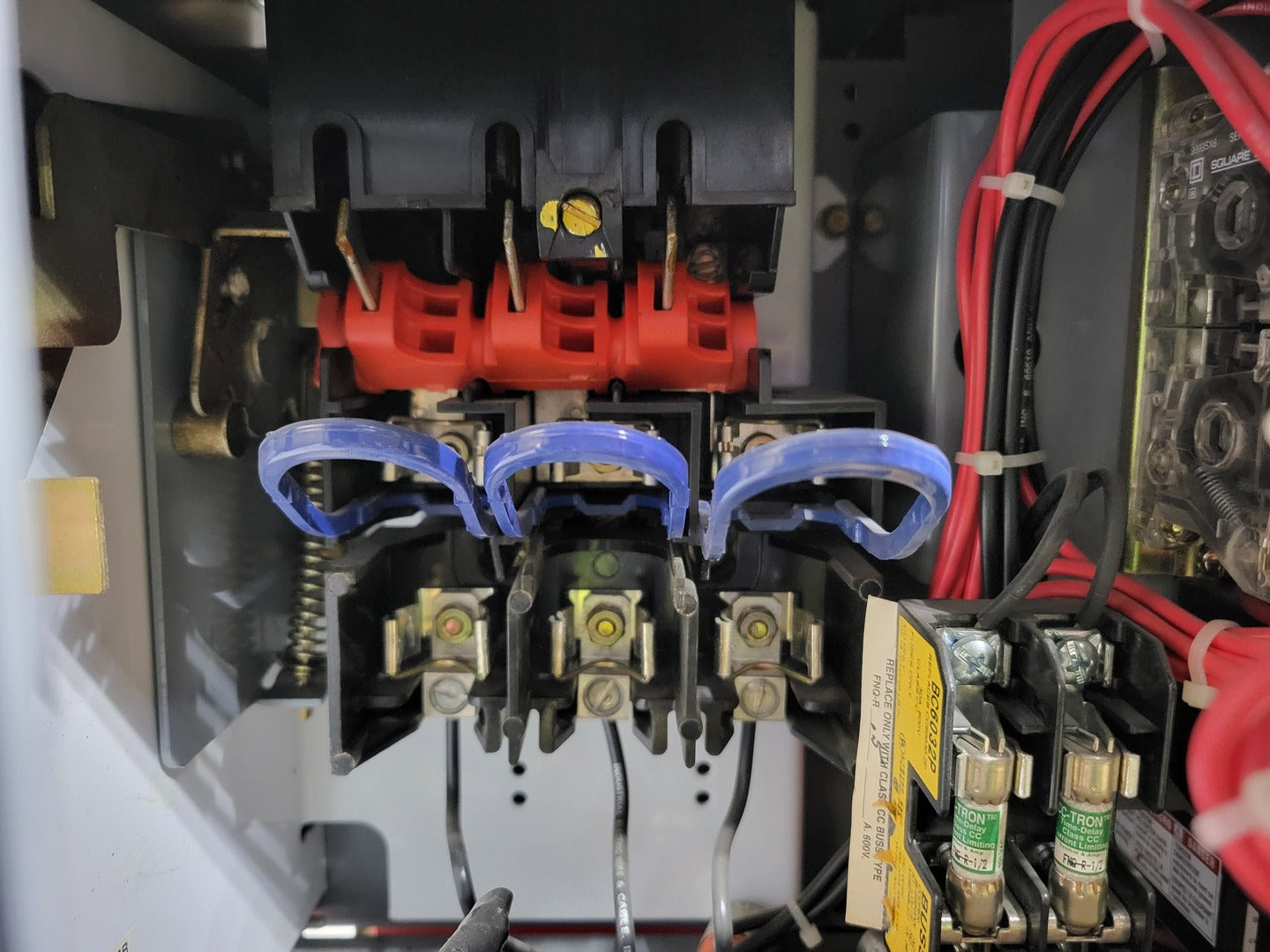

  3. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

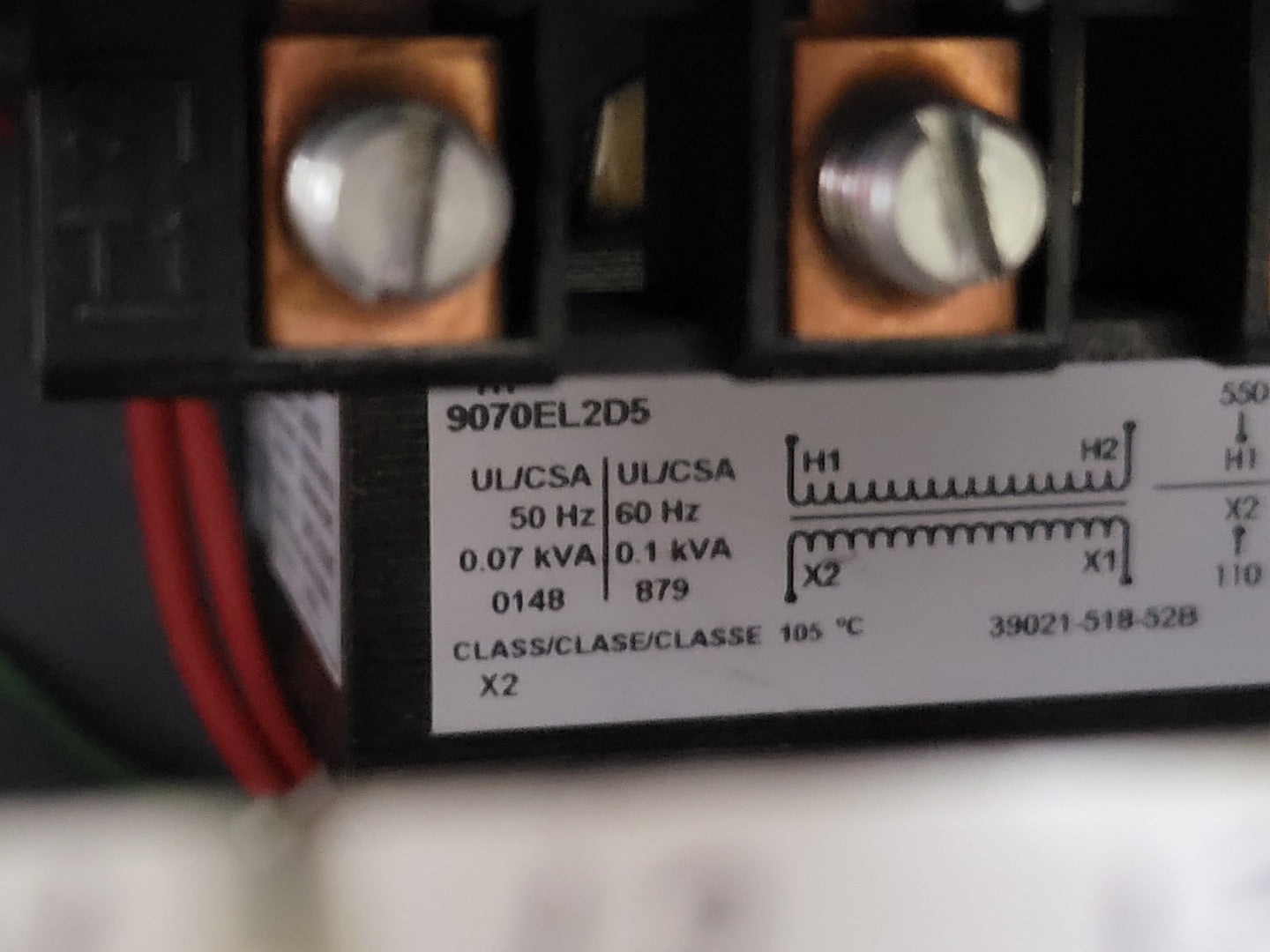

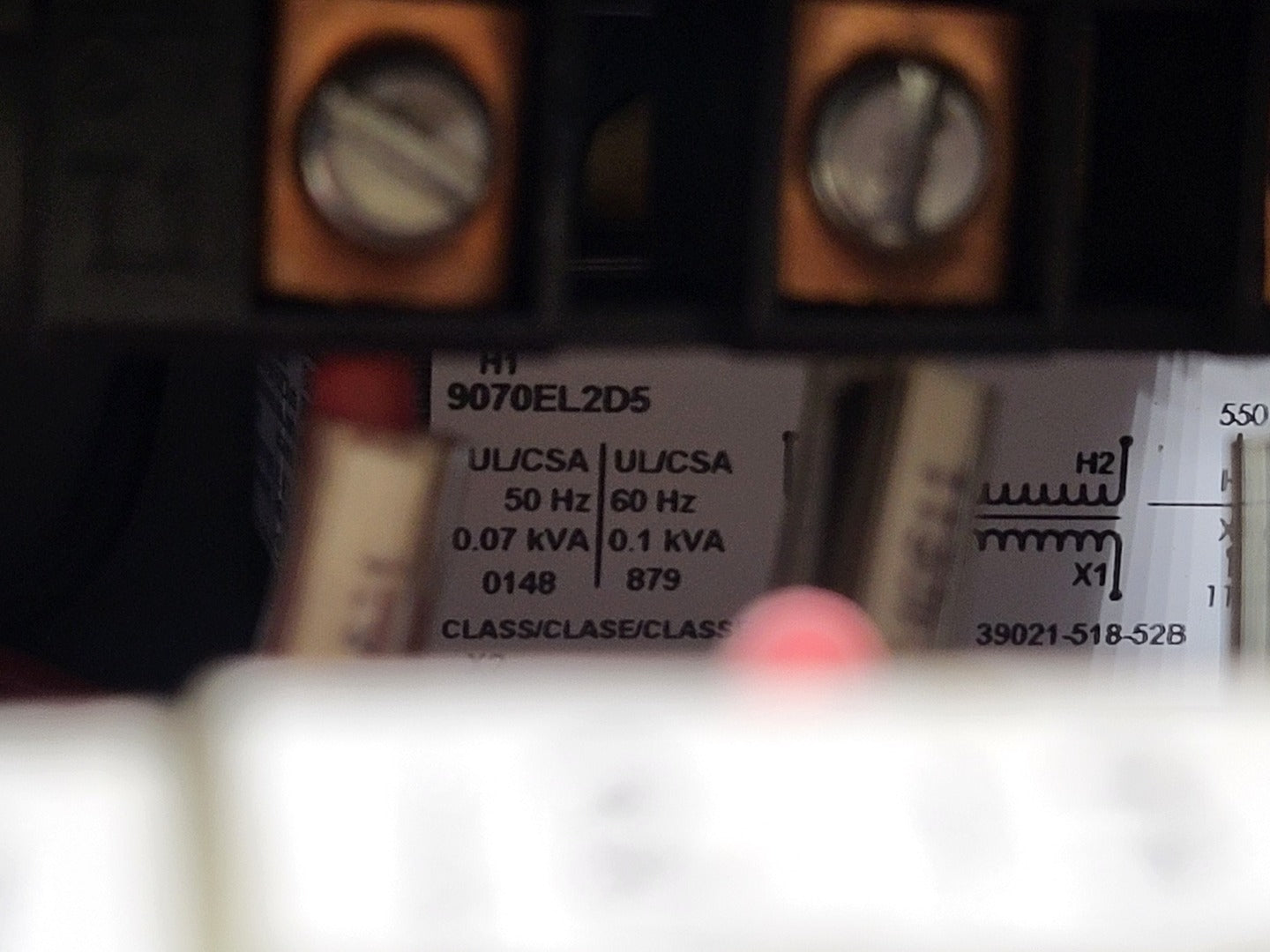

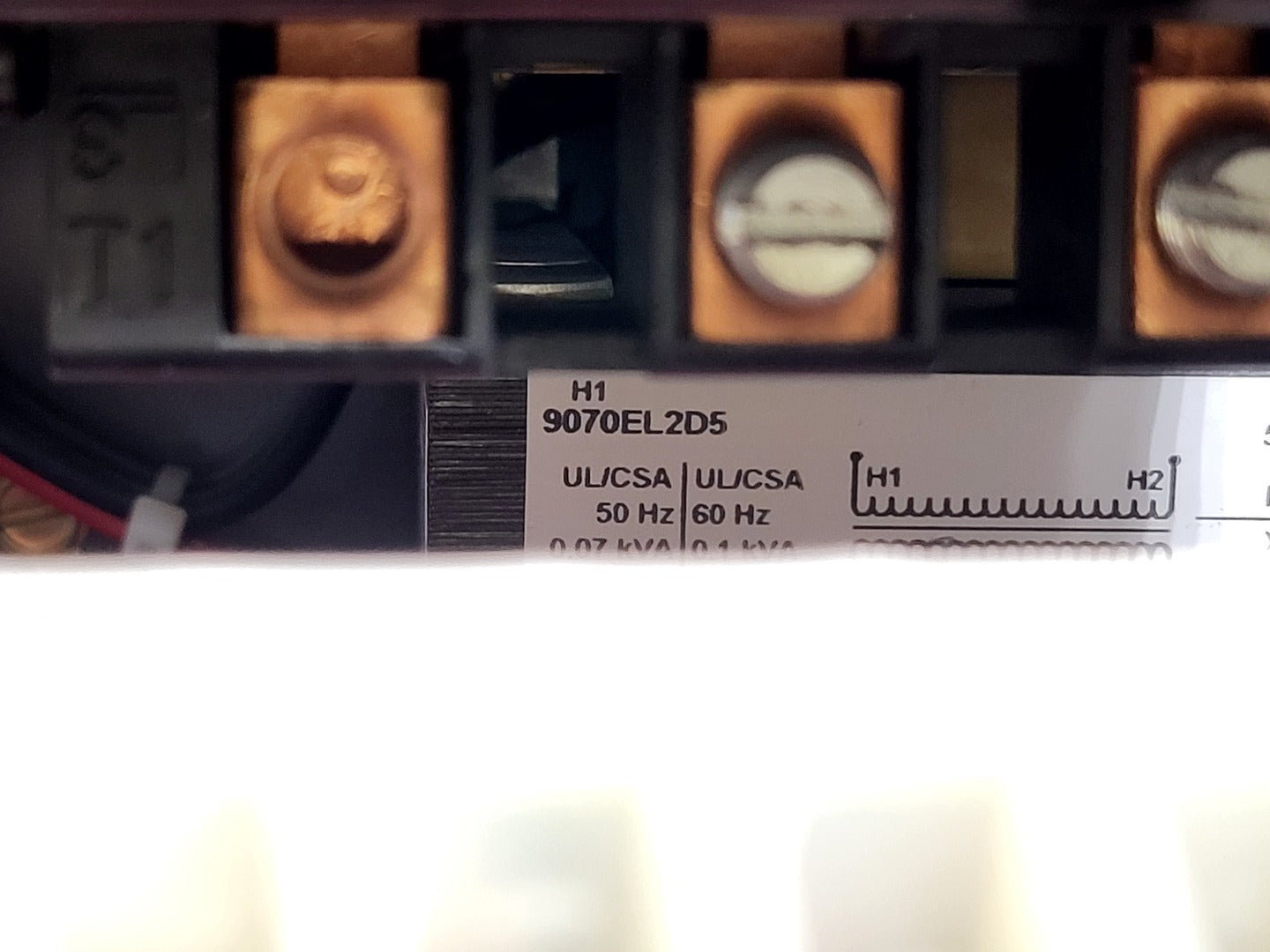

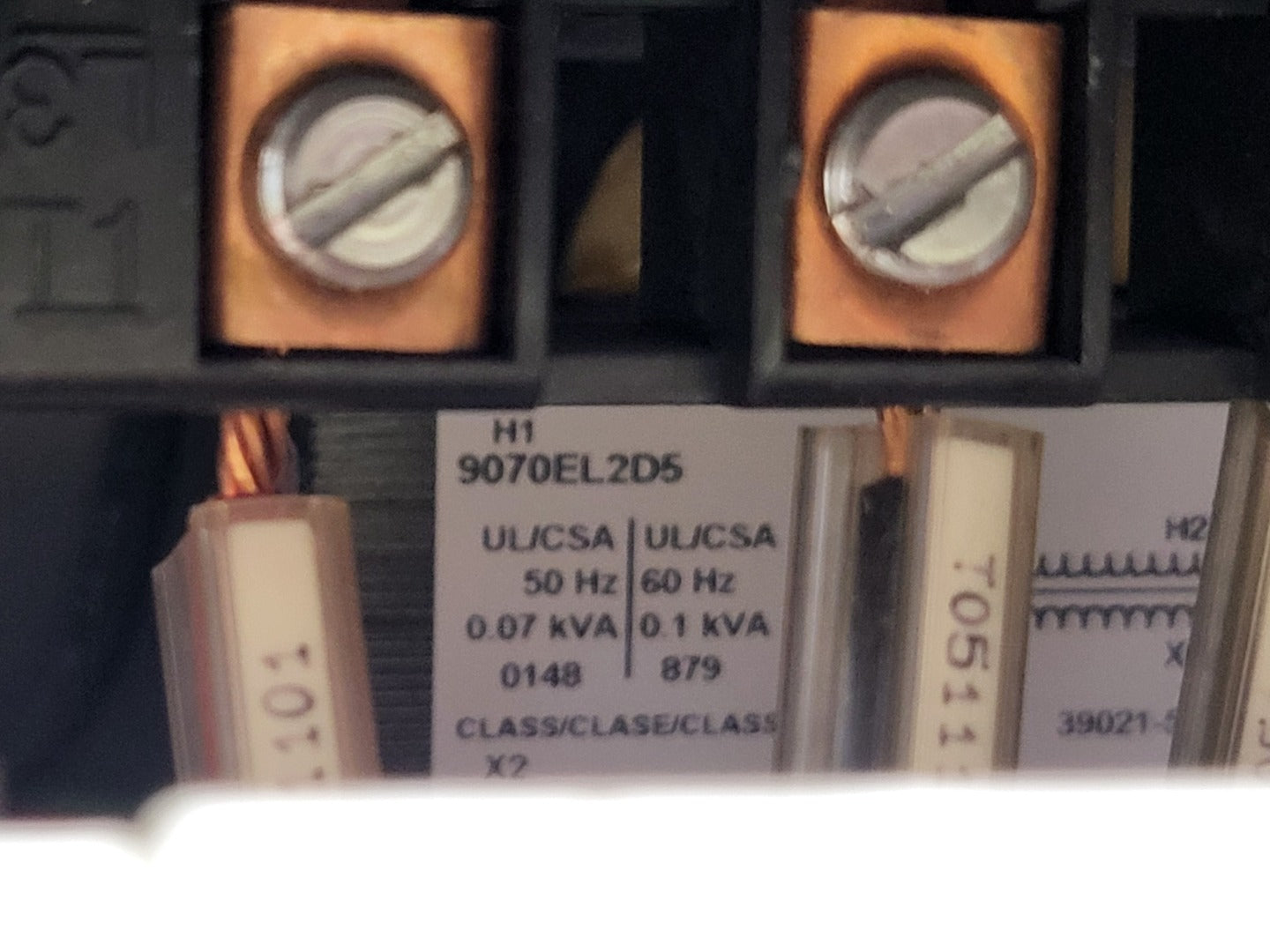

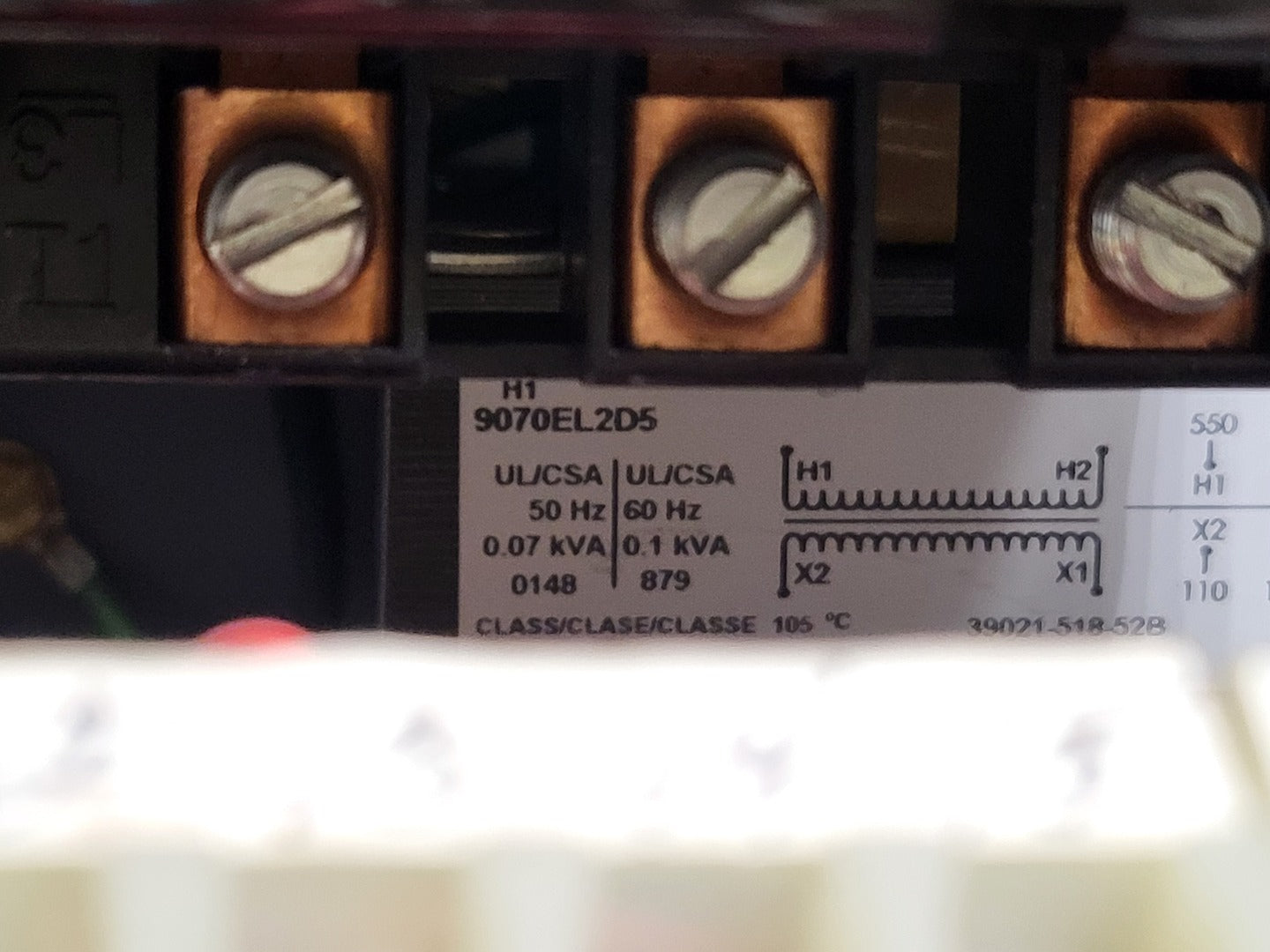

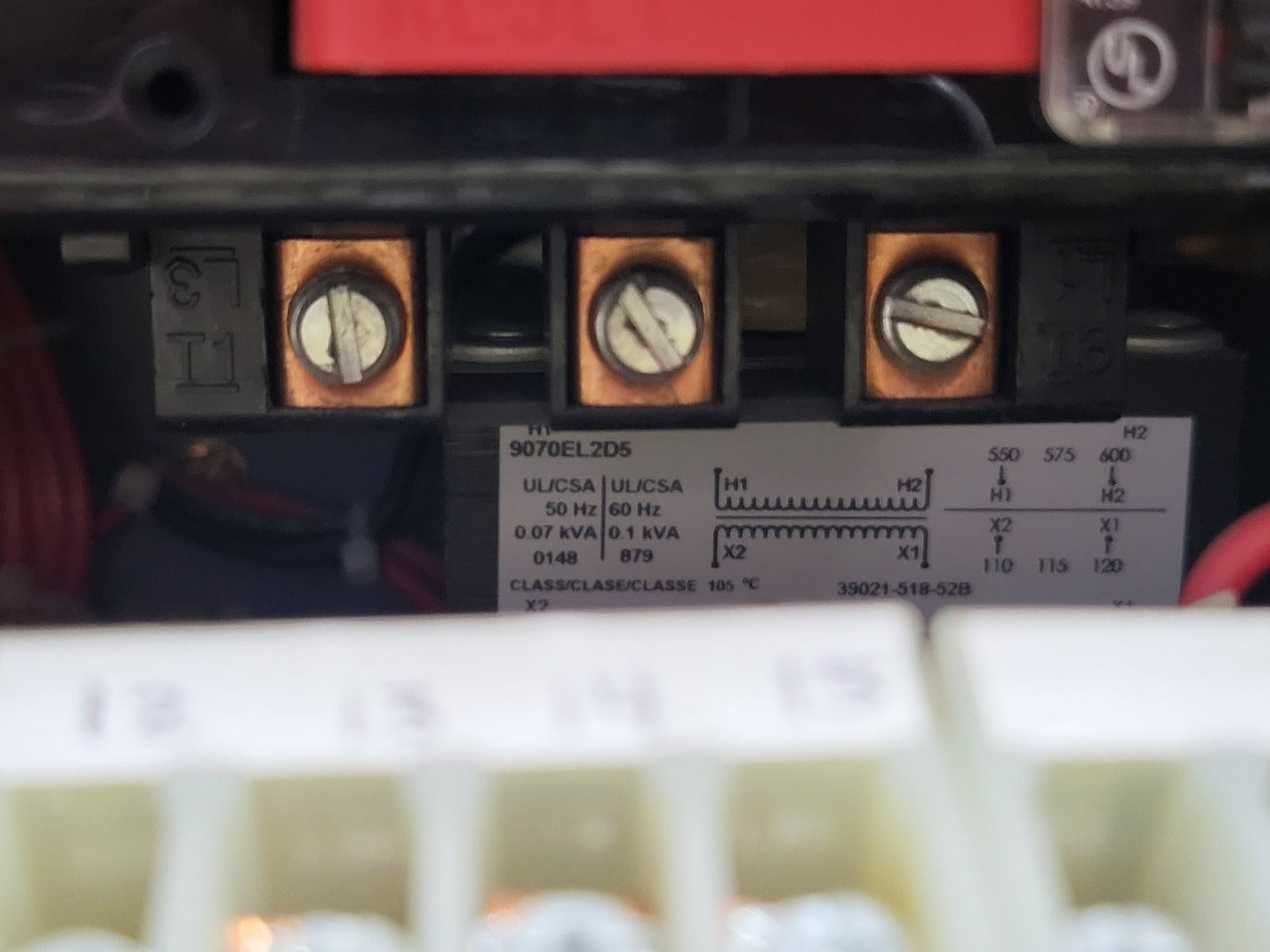

  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary

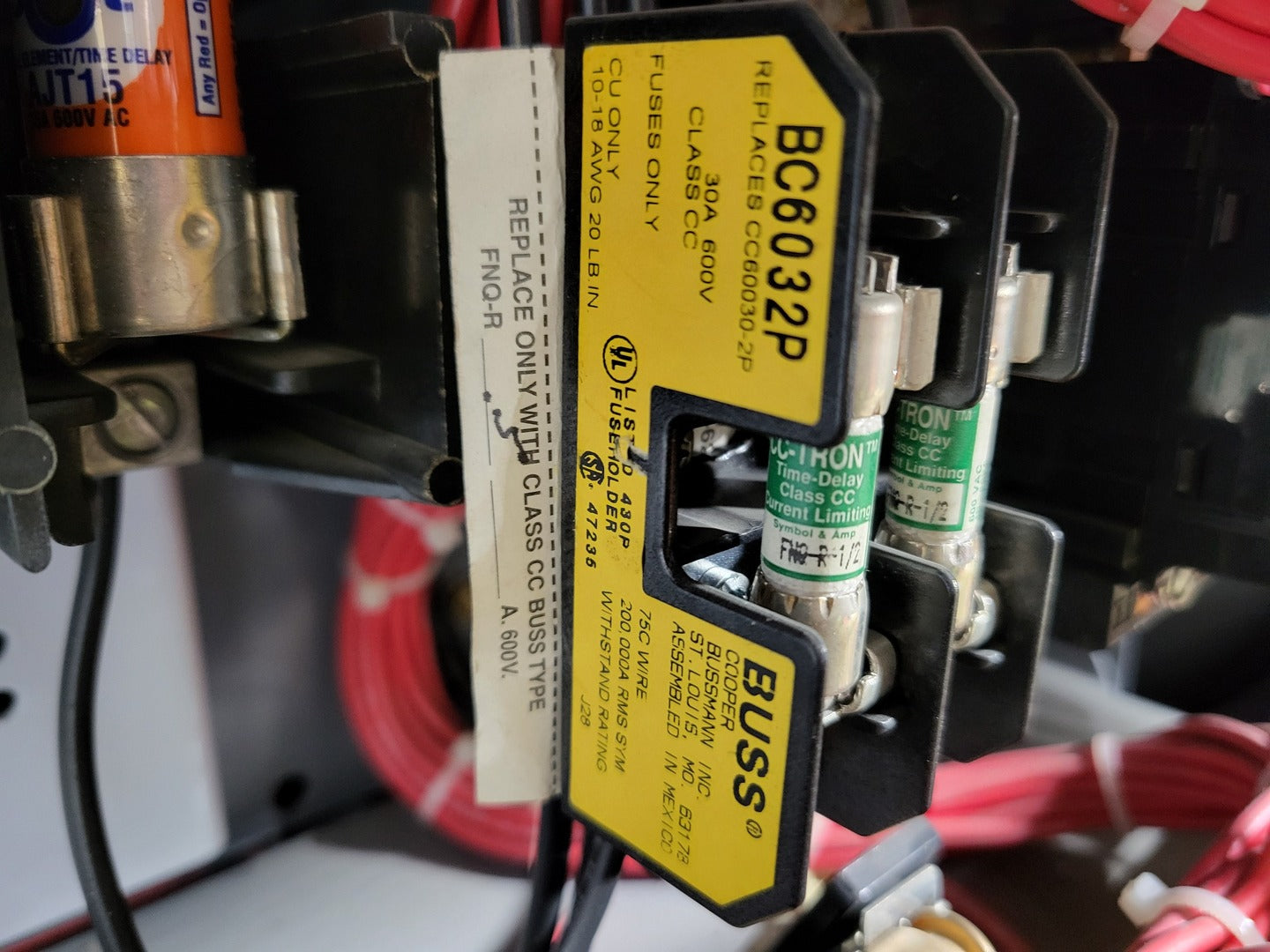

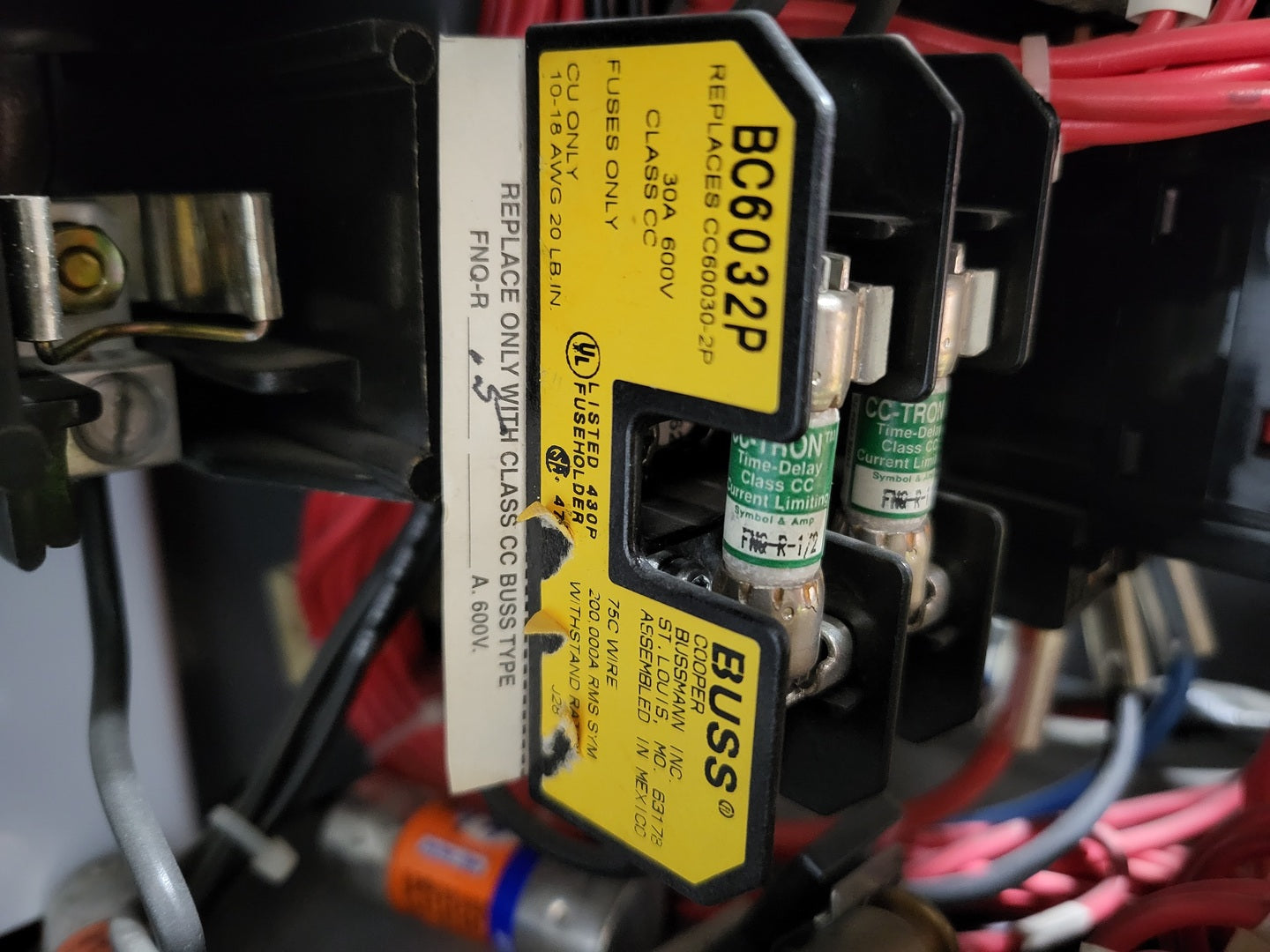

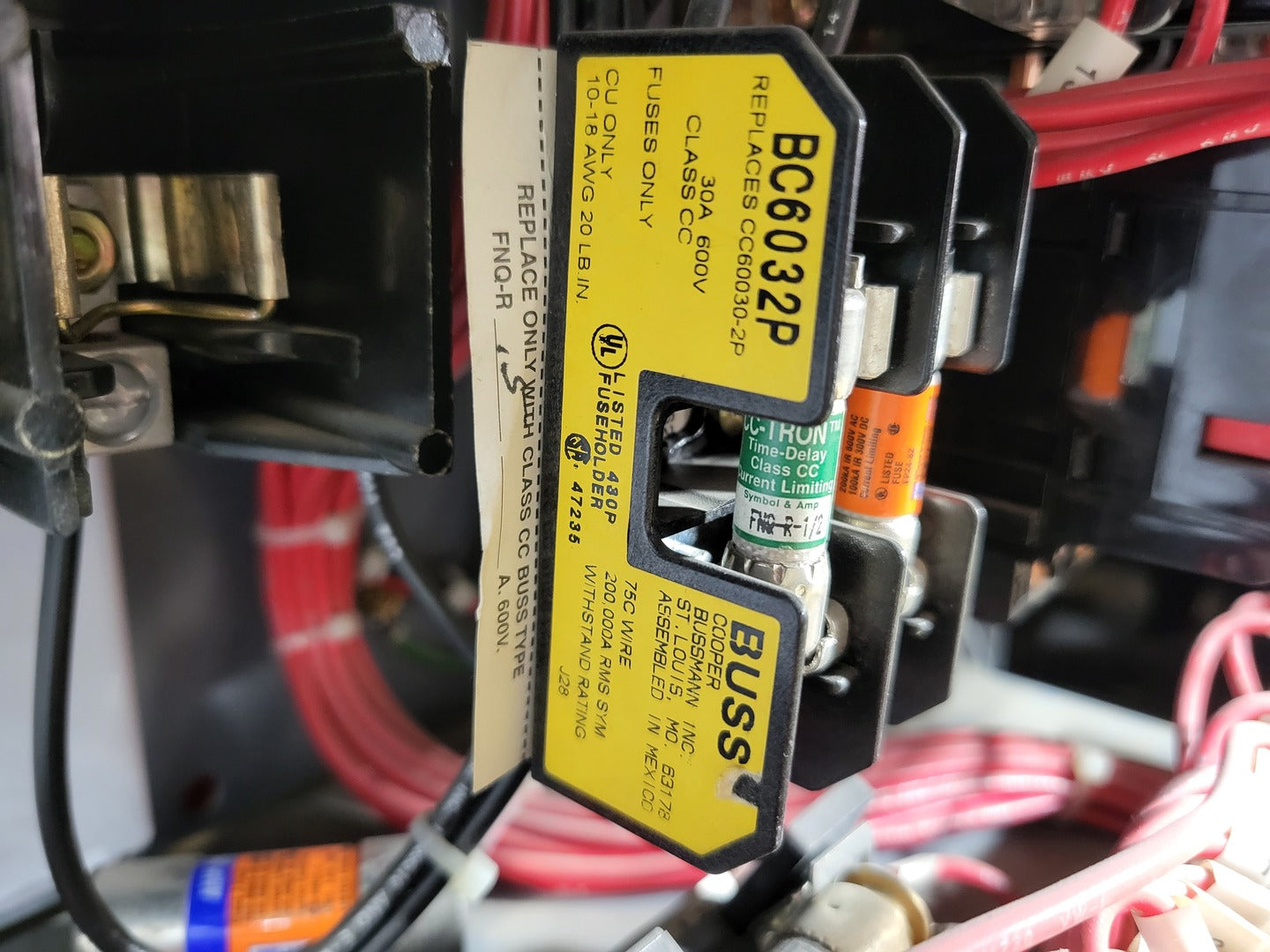

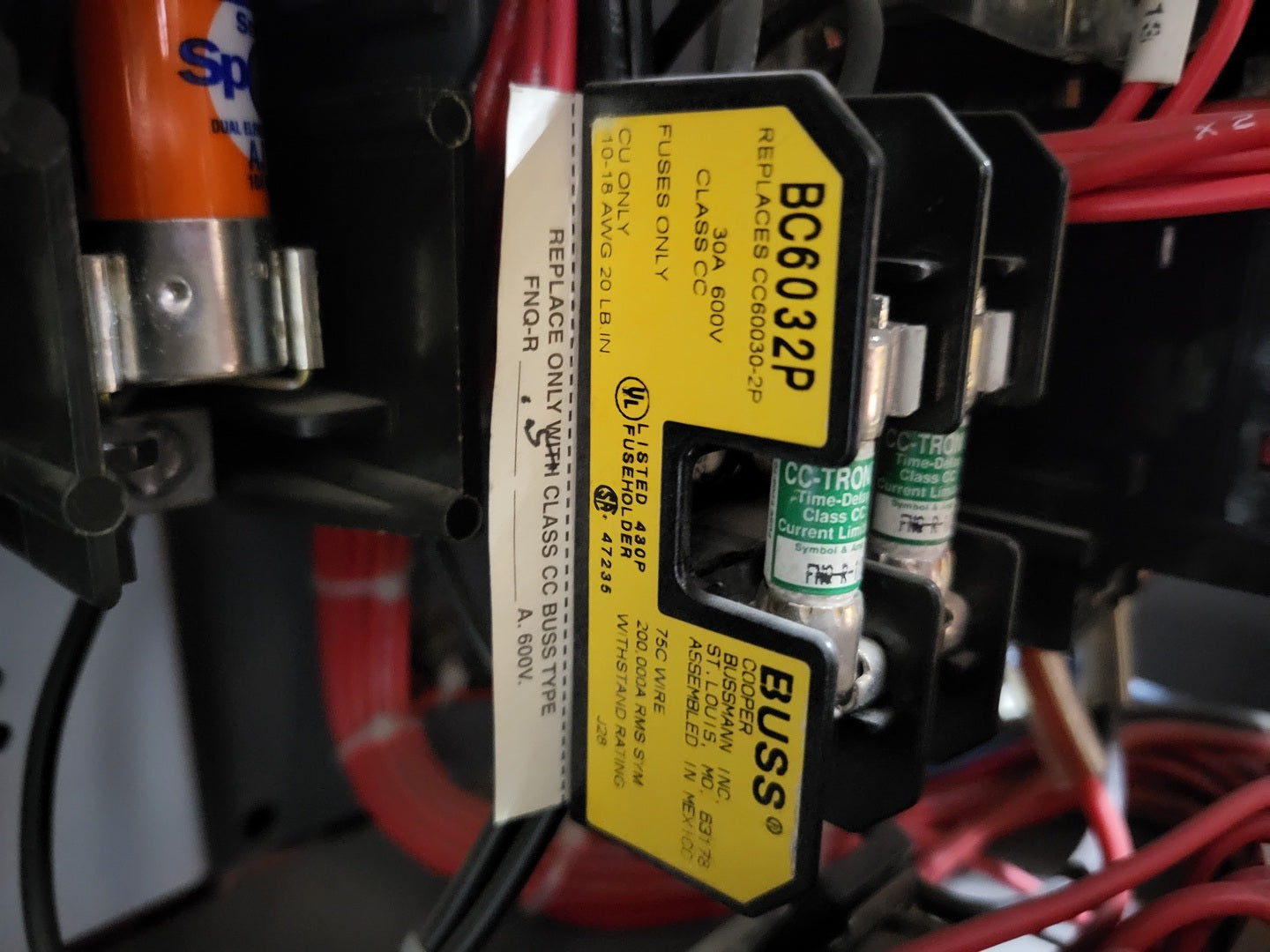

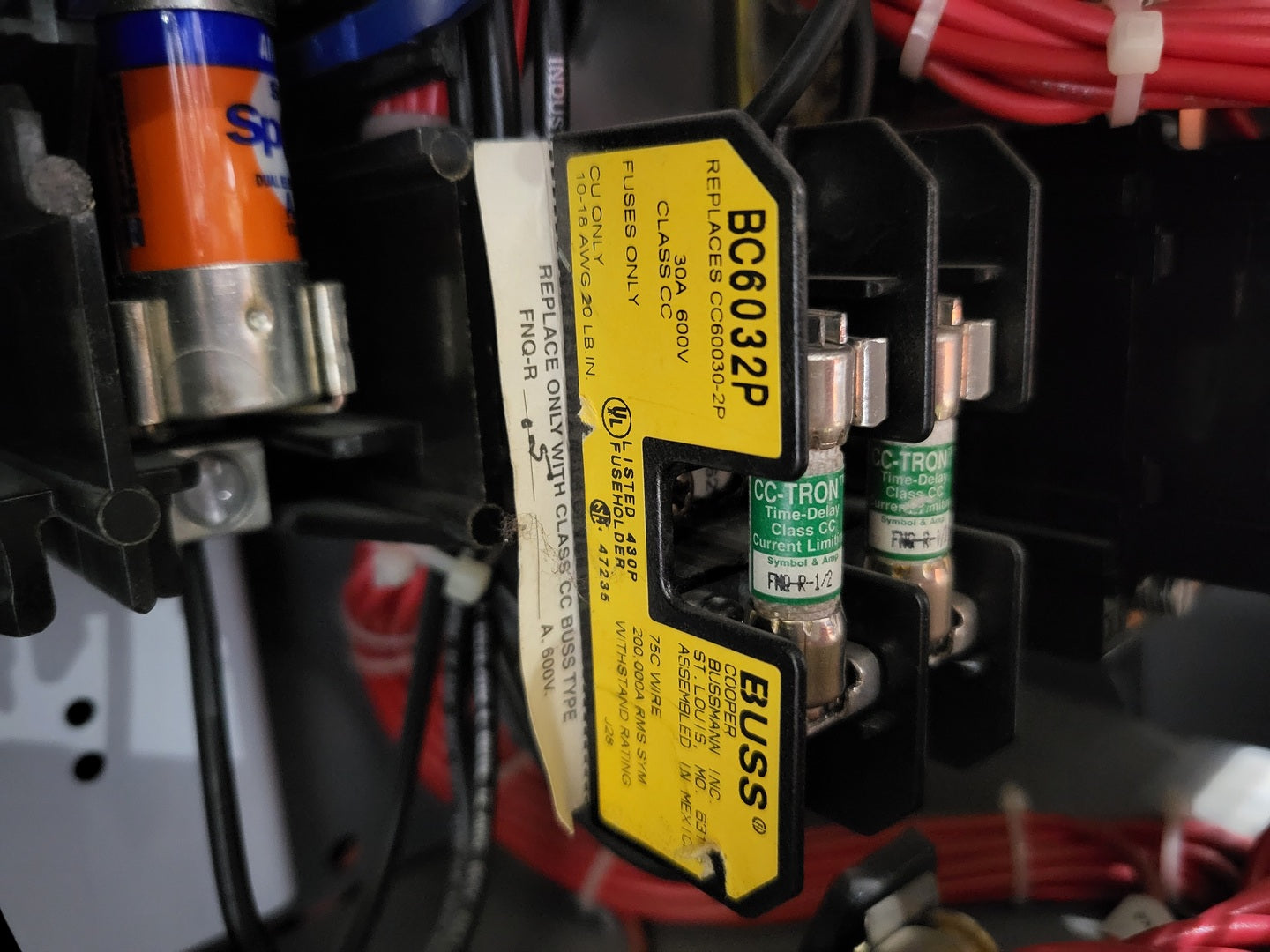

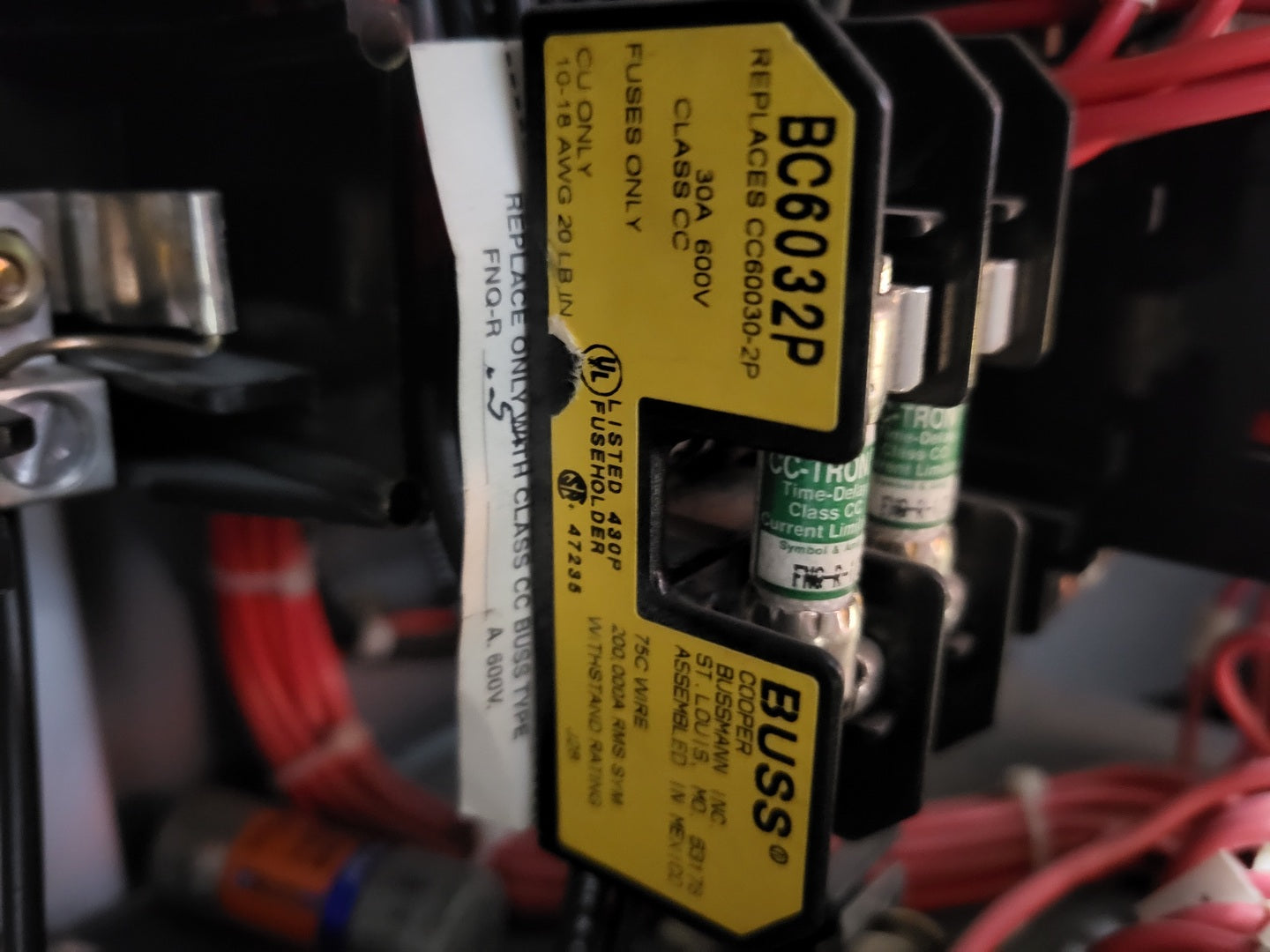

  5. 2 x Bussmann fuses FNQ-R-1/2

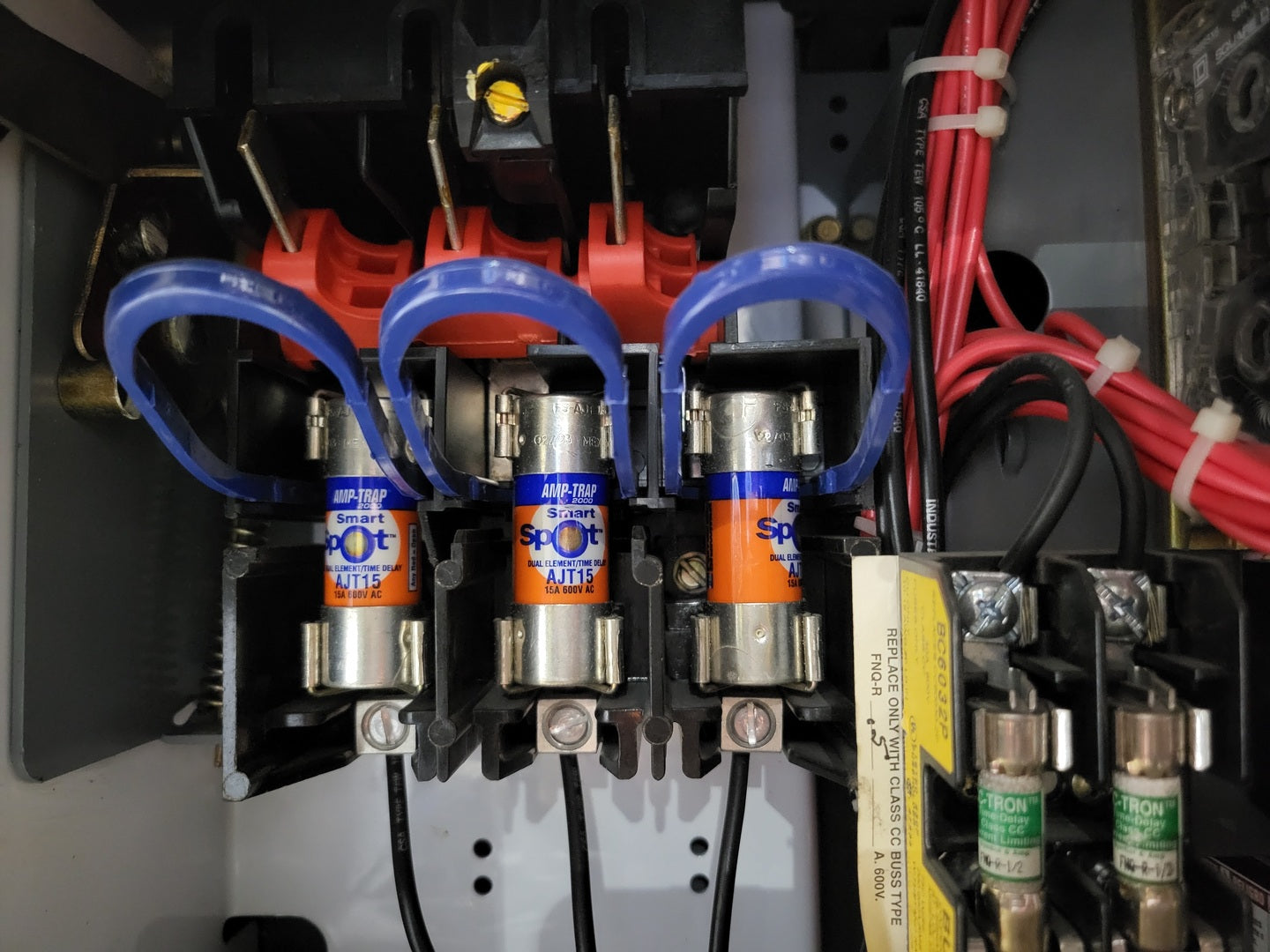

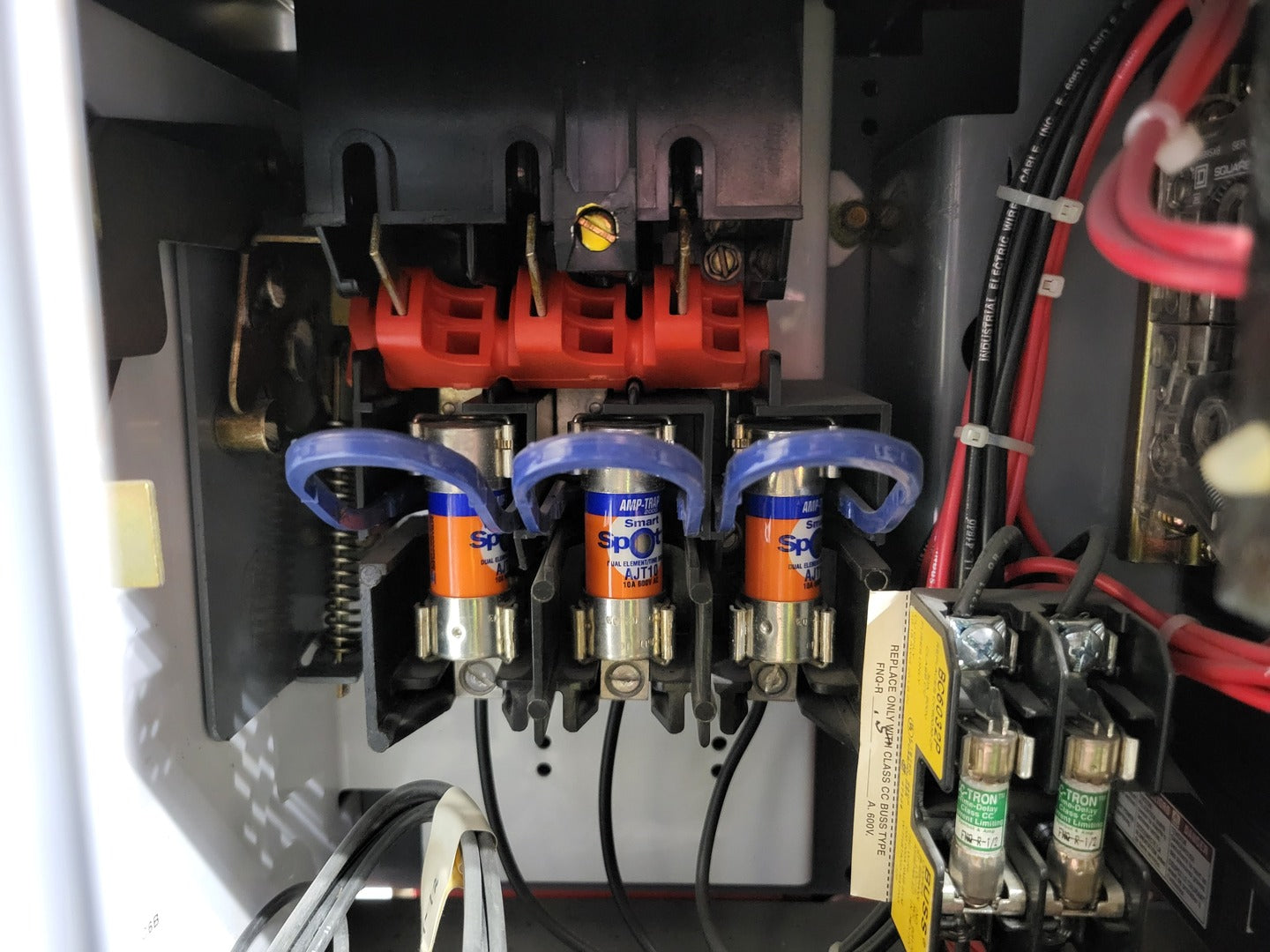

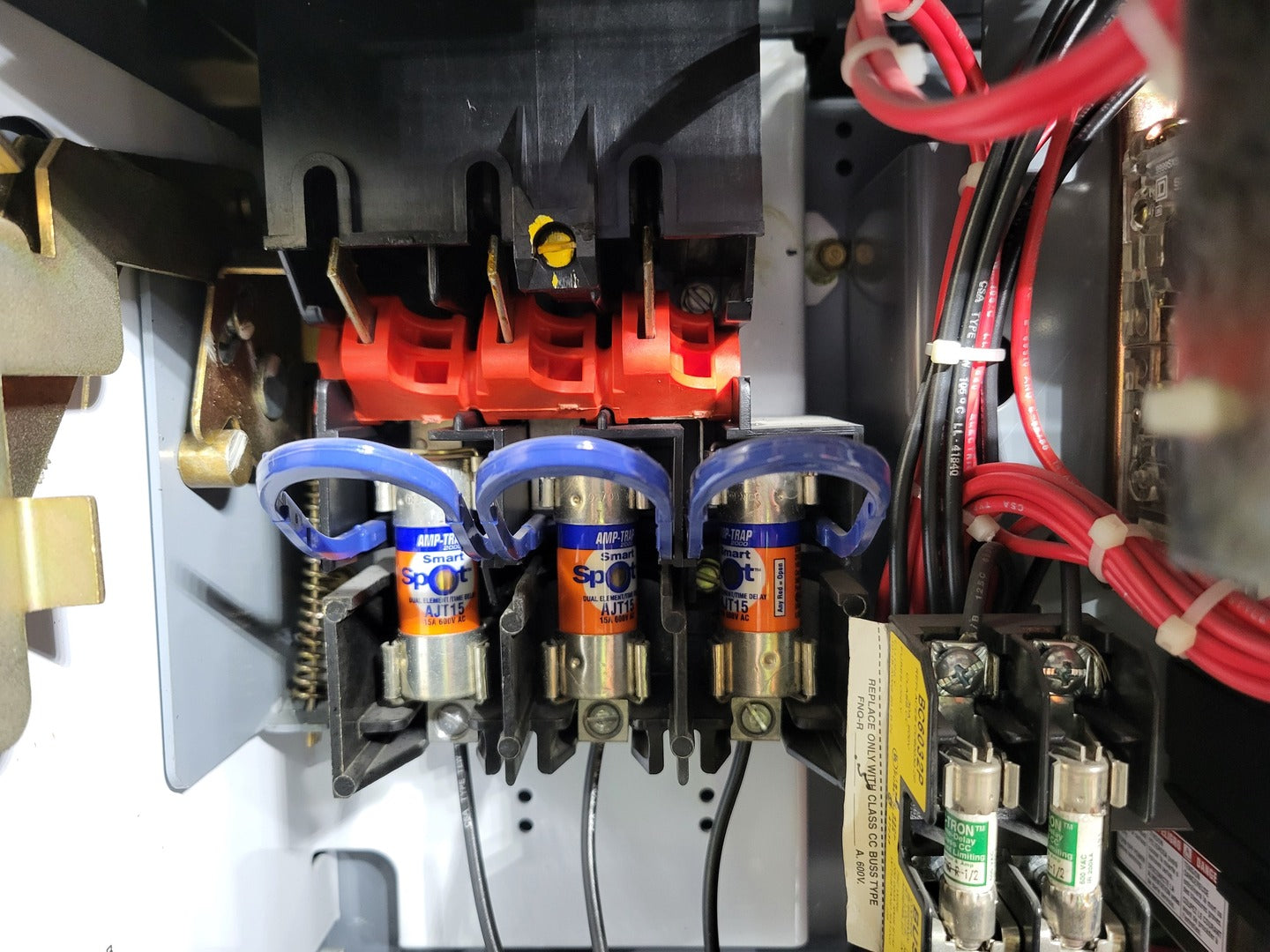

  6. 3 x Mersen Amp-Trap fuses AJT15

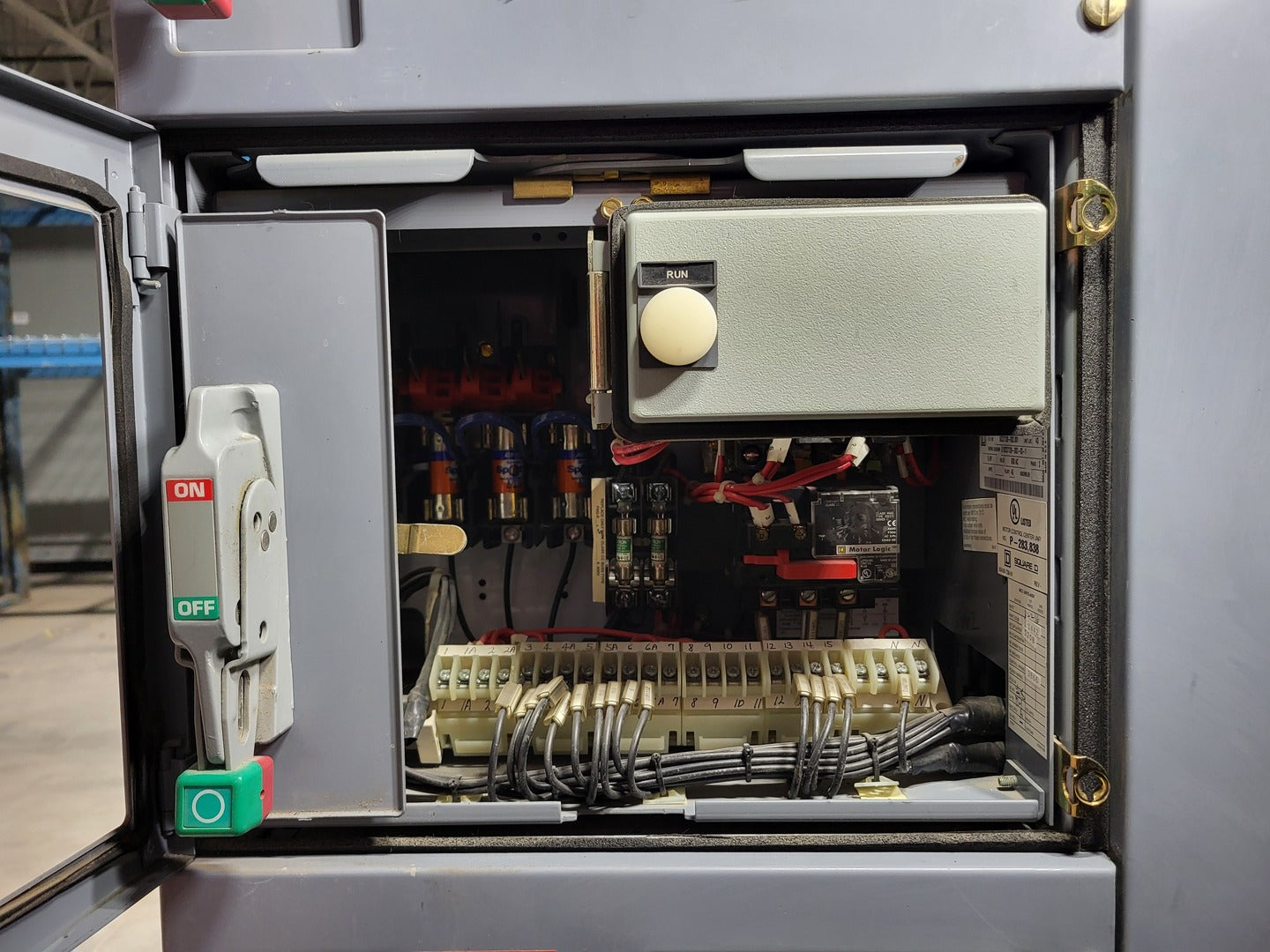

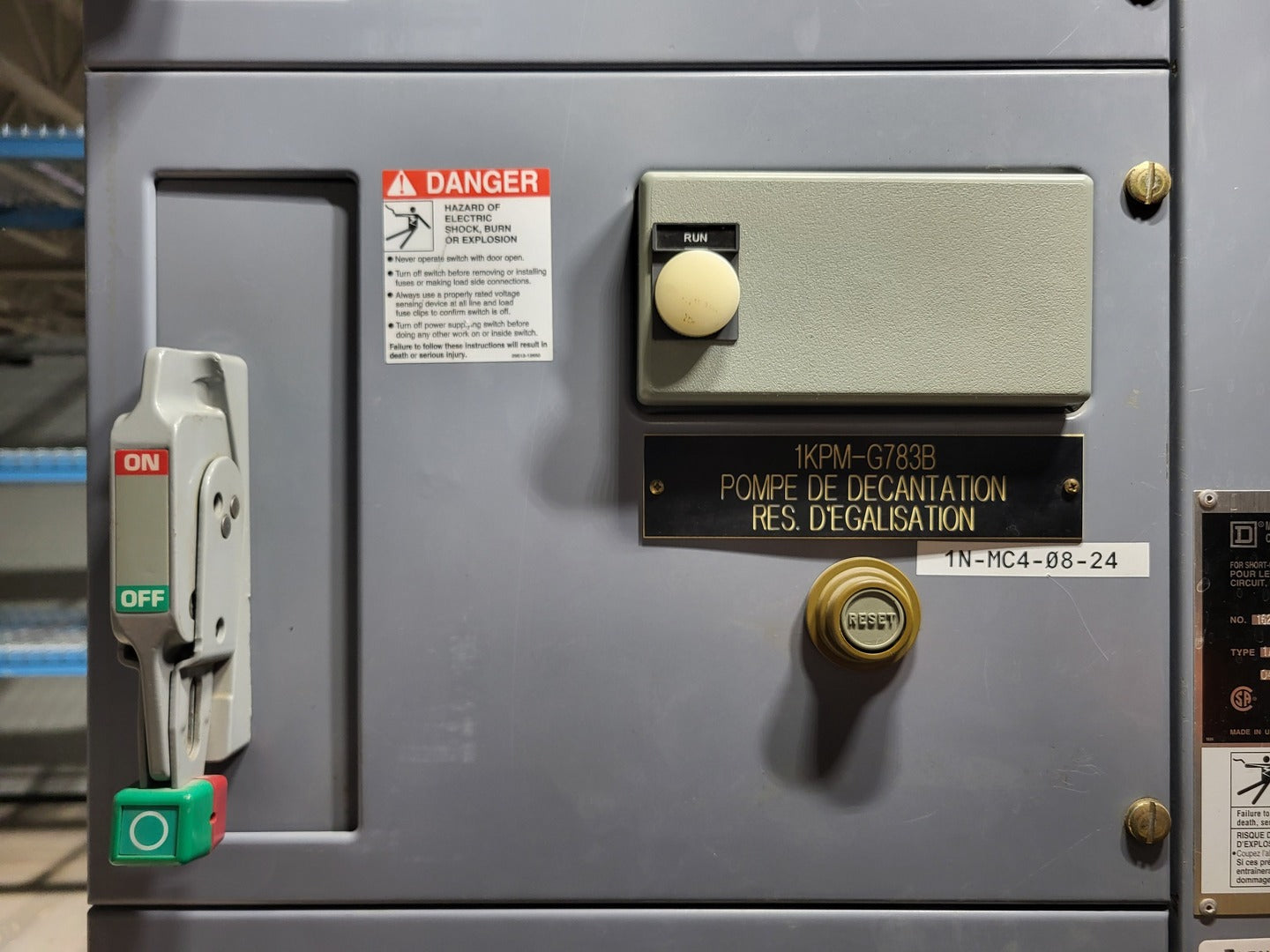

Bucket #2 1KPM-G783B

  1. Square D 8536SCO3H200S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V
  2. Square D Motor Logic 9065 SS020, 6-18 A motor protection relay

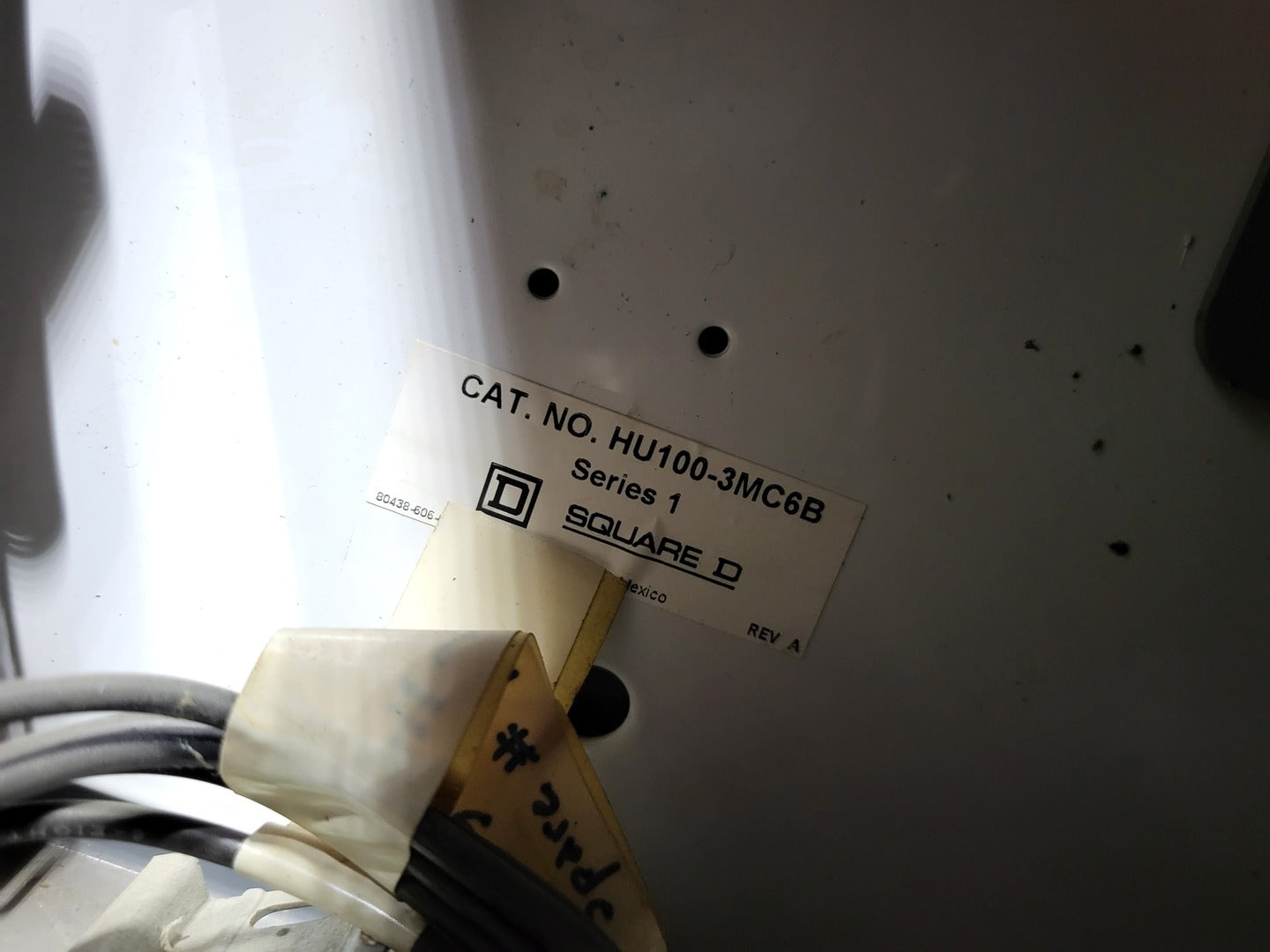

  3. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary
  5. 2 x Bussmann fuses FNQ-R-1/2
  6. 3 x Mersen Amp-Trap fuses AJT15

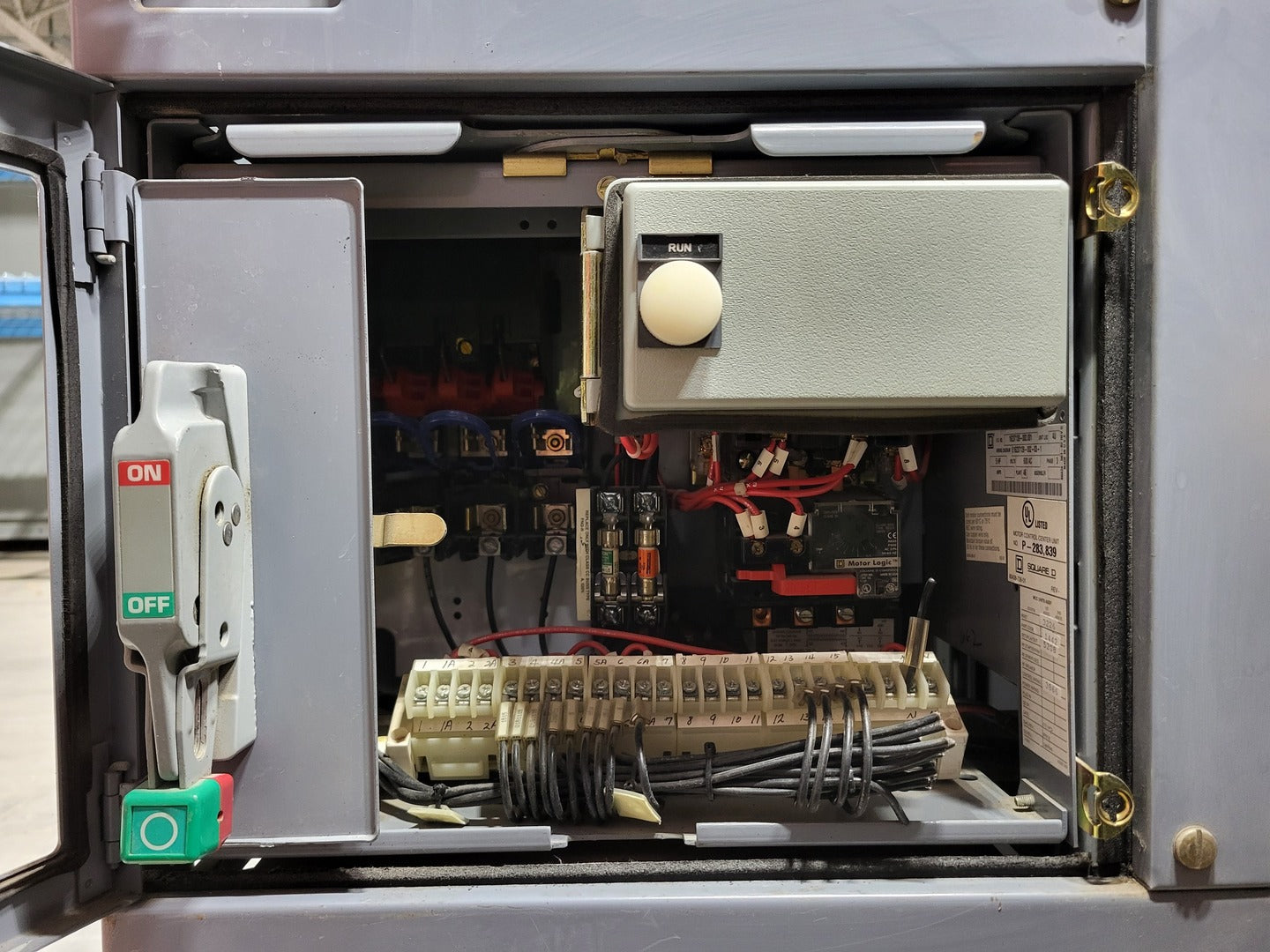

Bucket #3

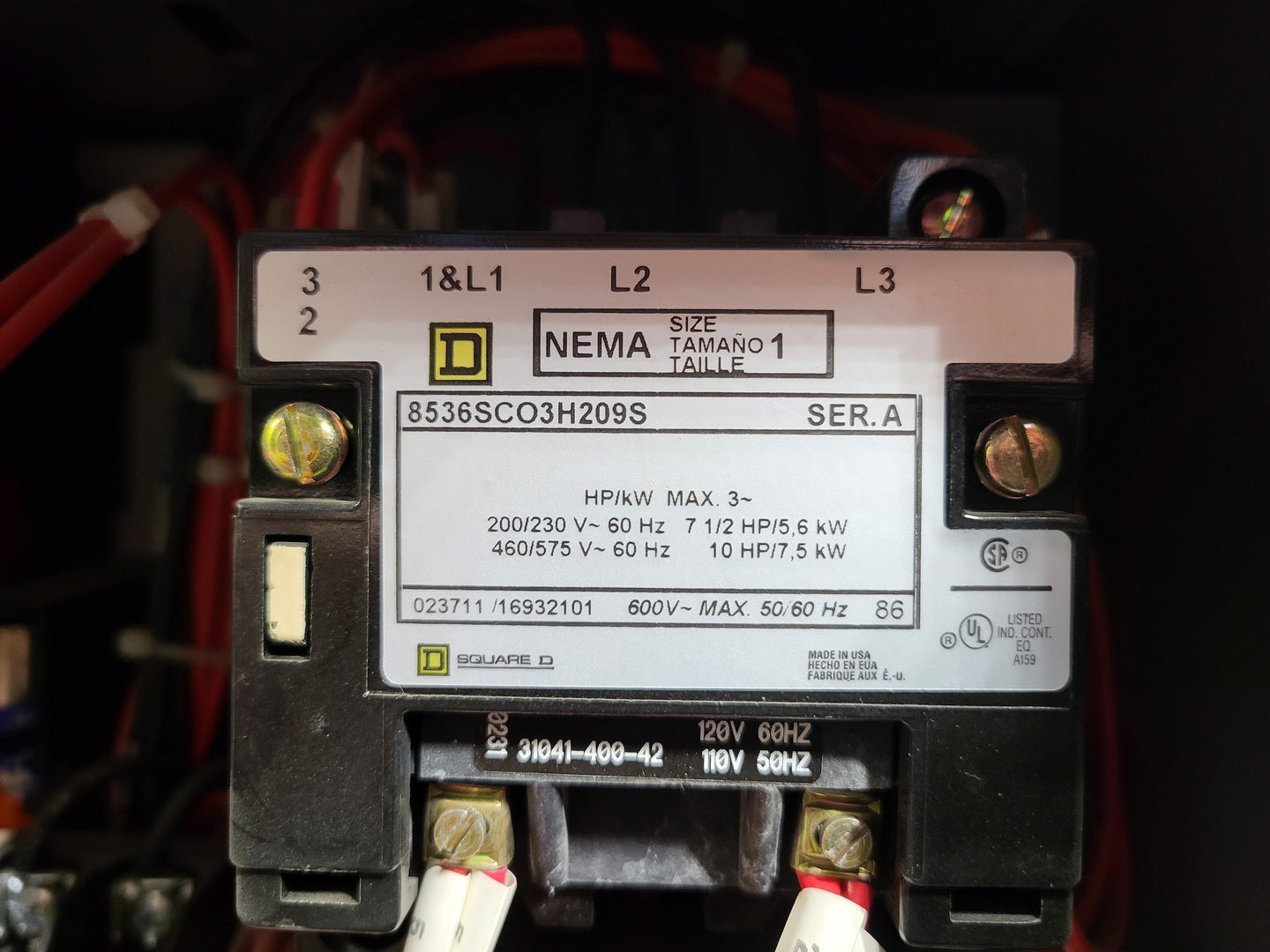

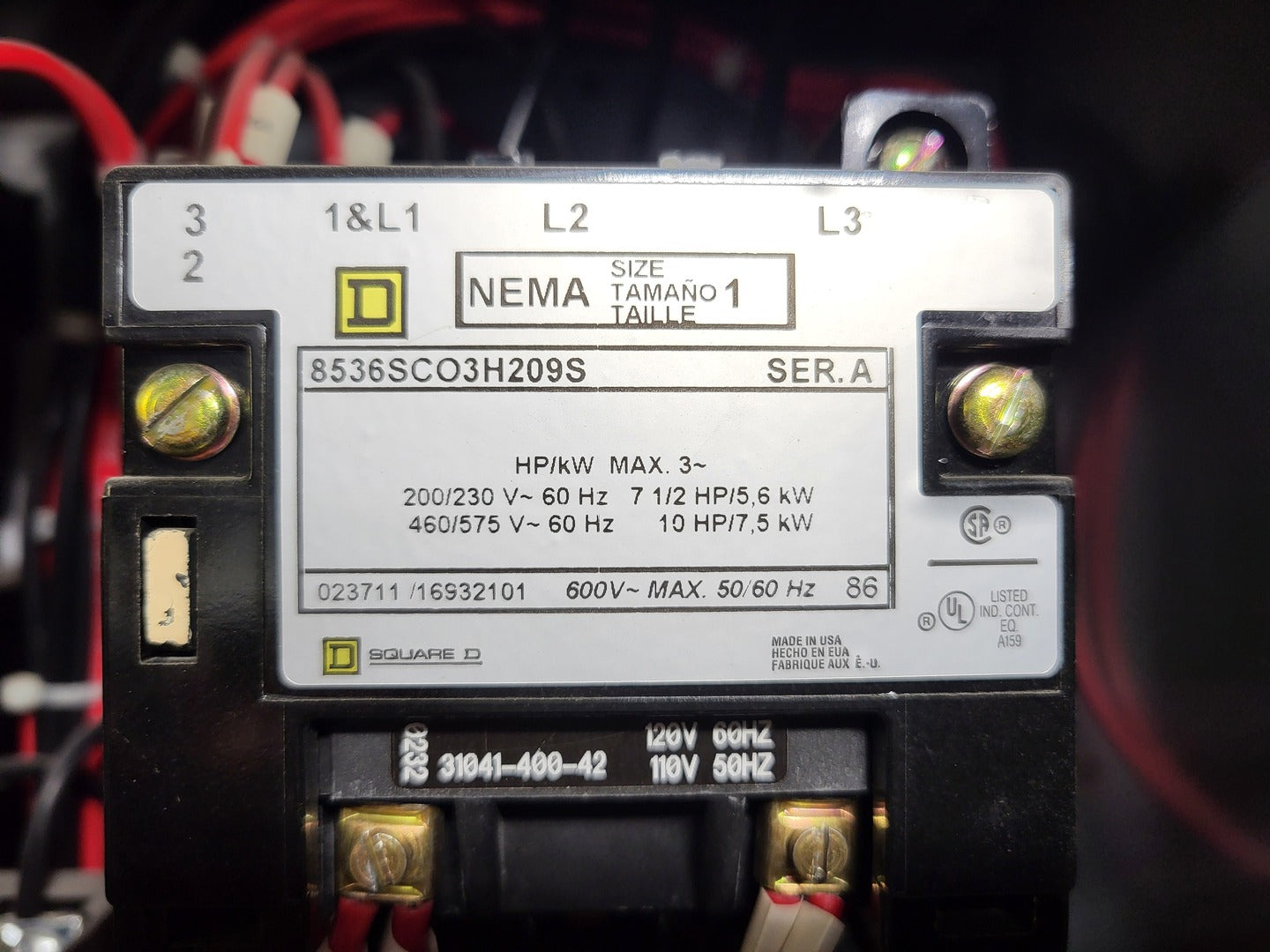

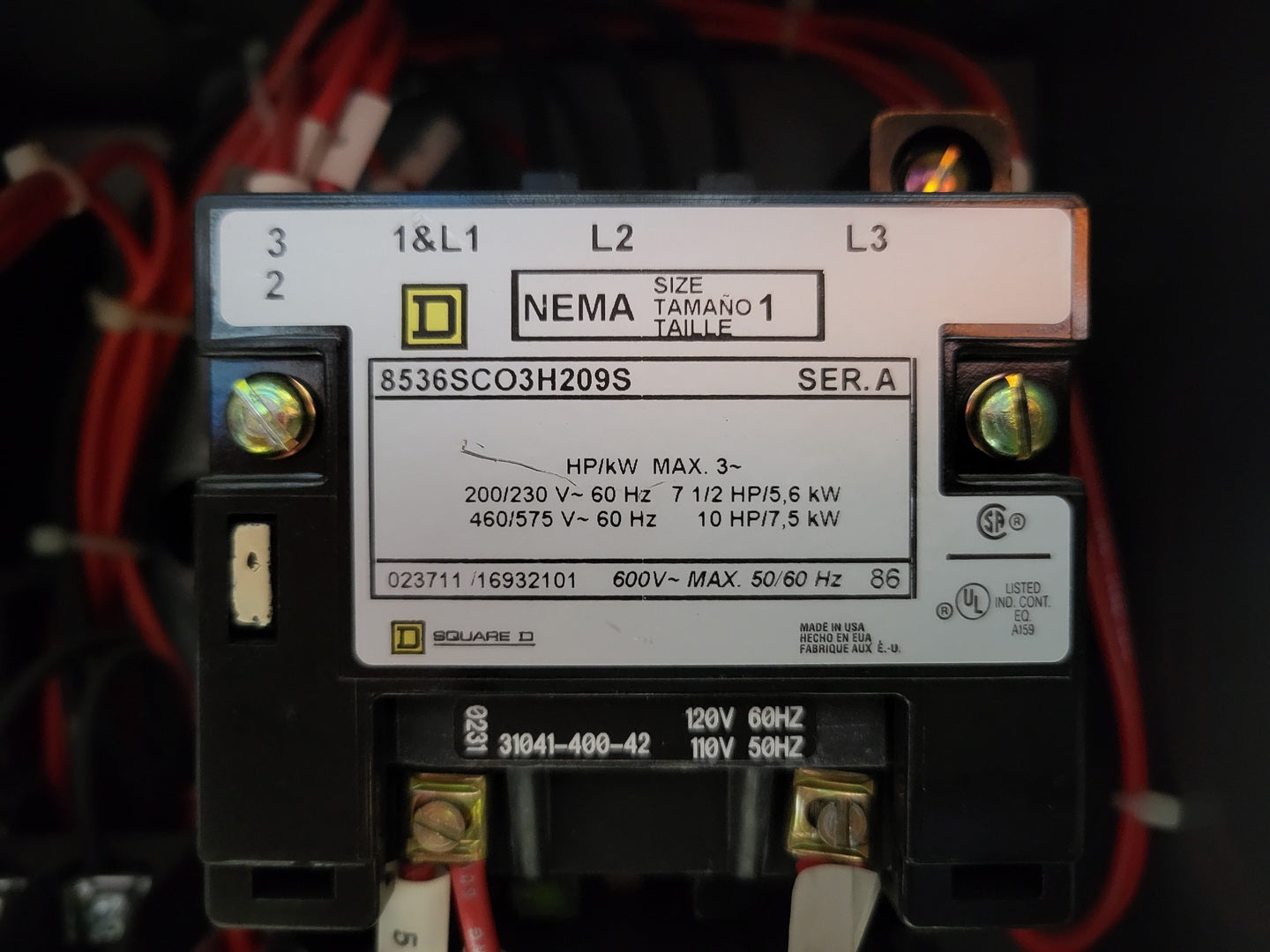

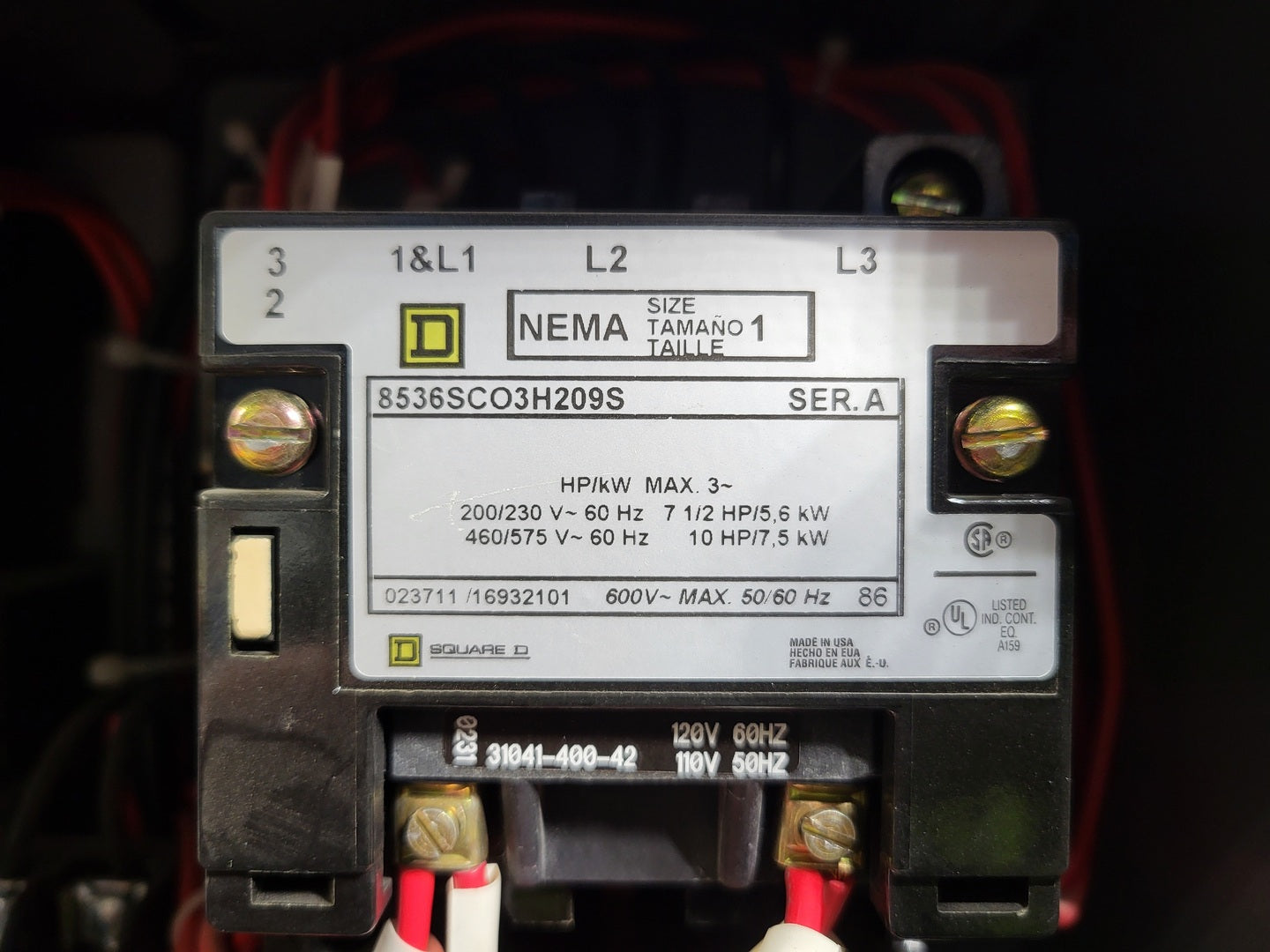

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V

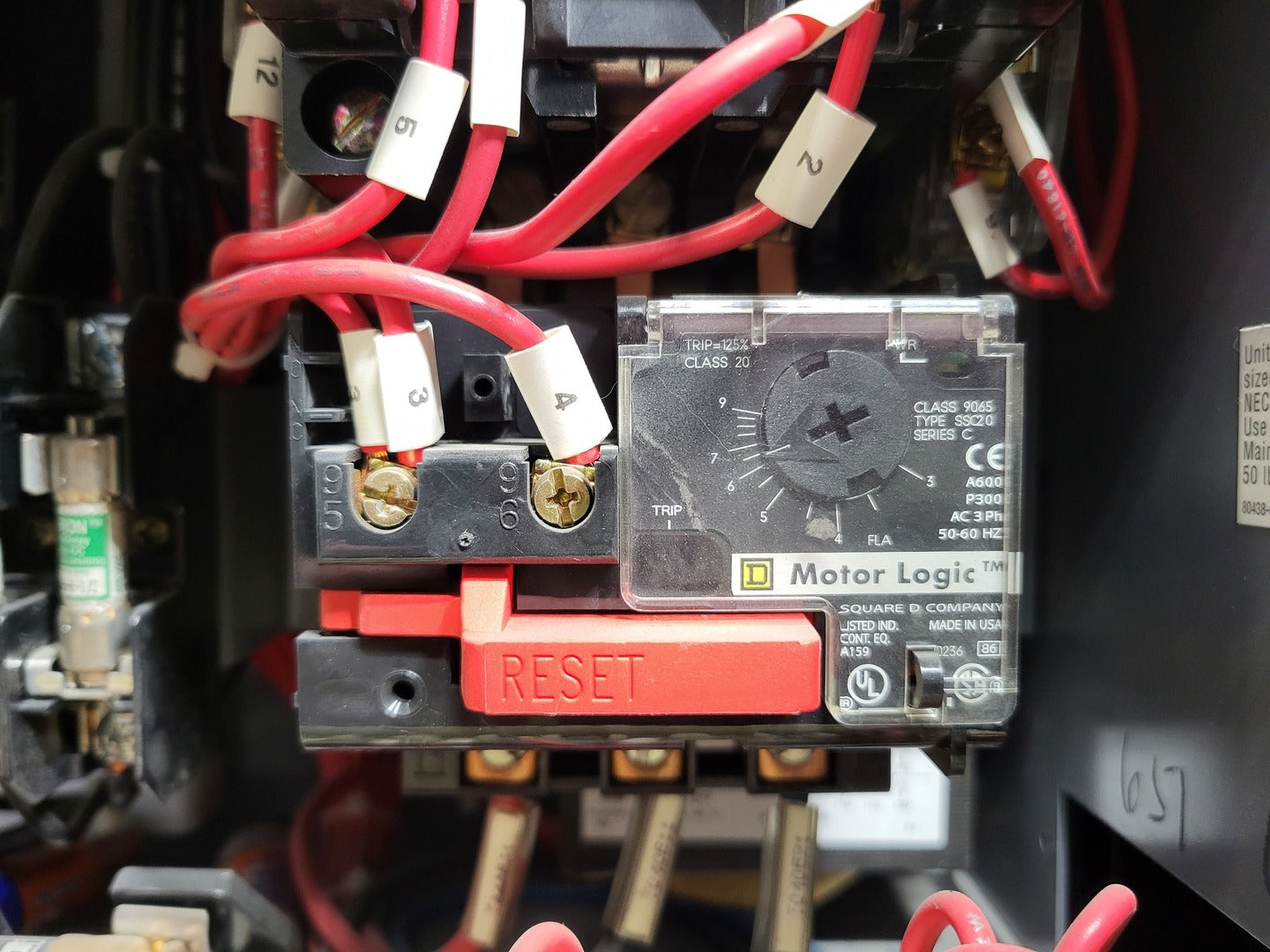

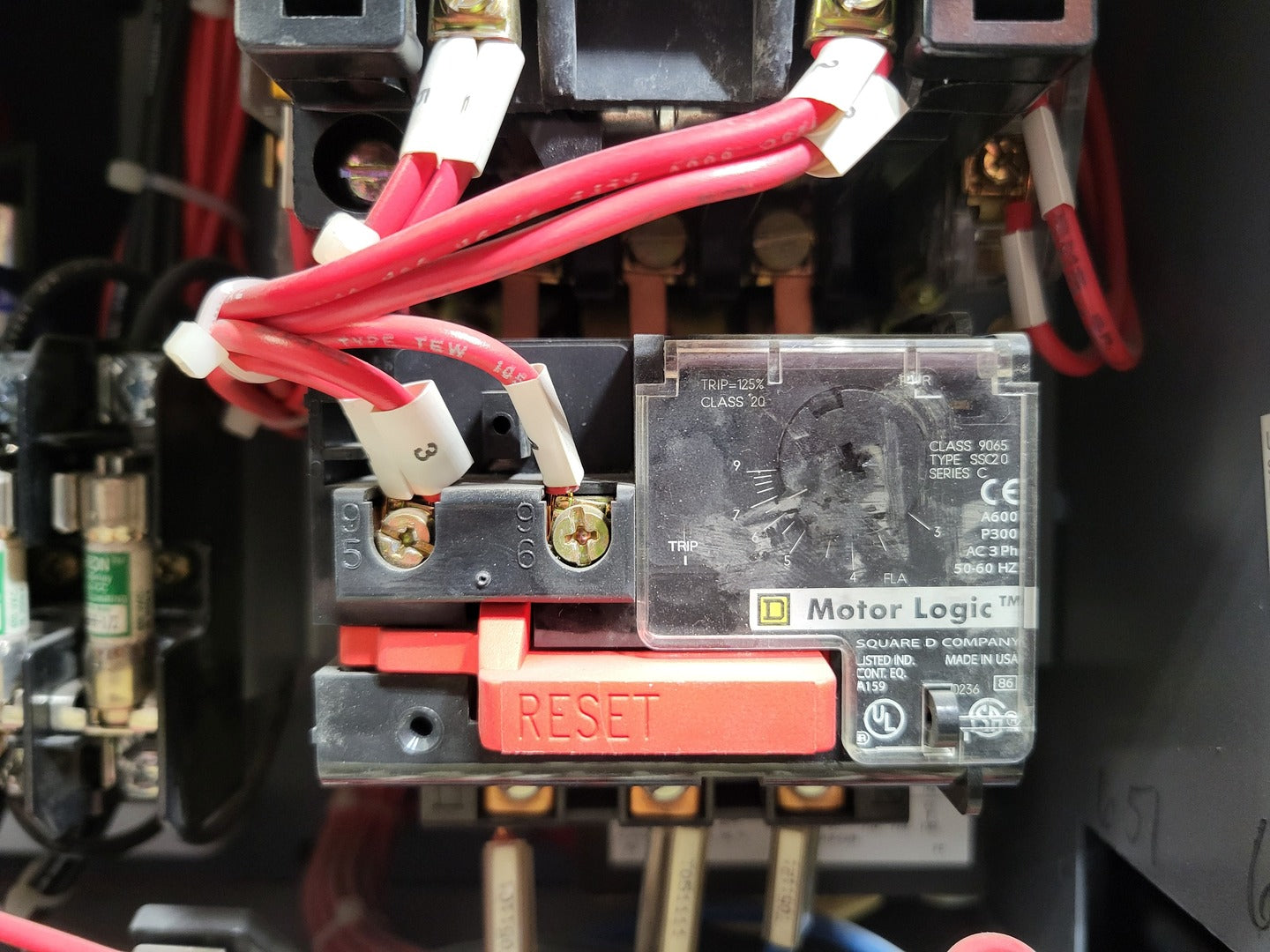

  2. Square D Motor Logic 9065 SSC20, 3-9 A motor protection relay

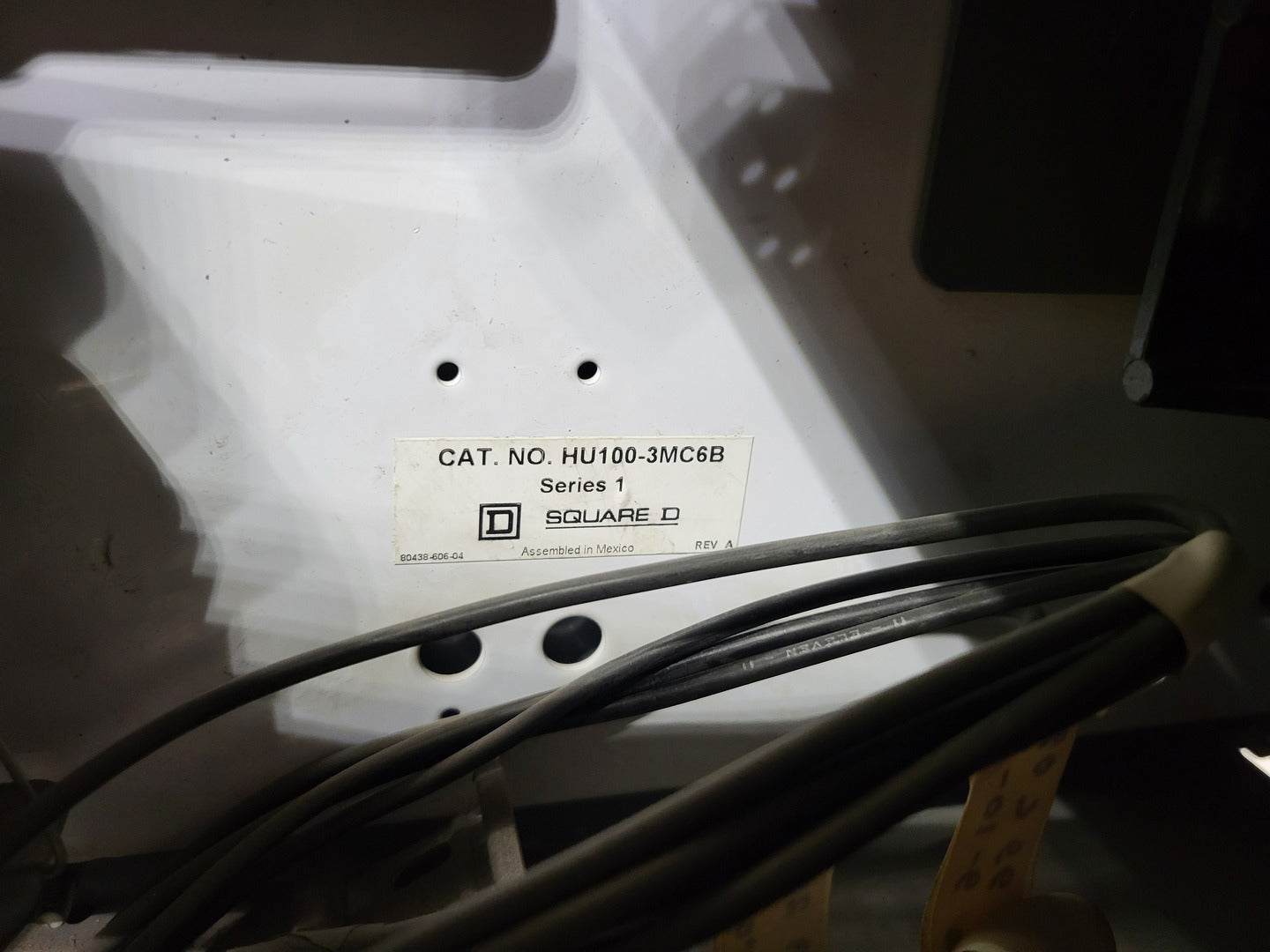

  3. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary
  5. 2 x Bussmann fuses FNQ-R-1/2

Bucket #4 1KPM-G786B

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V
  2. Square D Motor Logic 9065 SSC20, 3-9 A motor protection relay
  3. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary
  5. 2 x Bussmann fuses FNQ-R-1/2

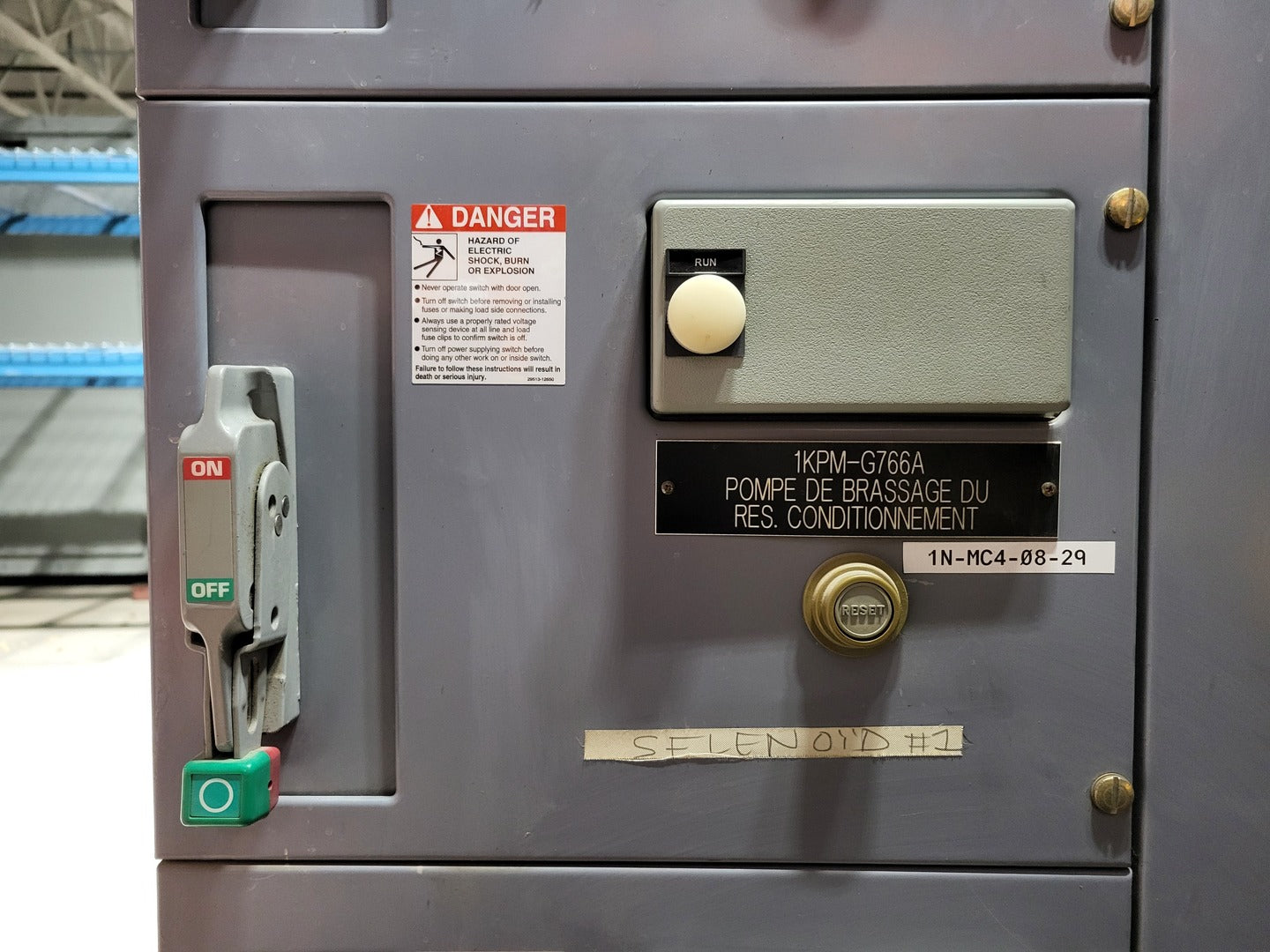

Bucket #5 1KPM-G766A

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V

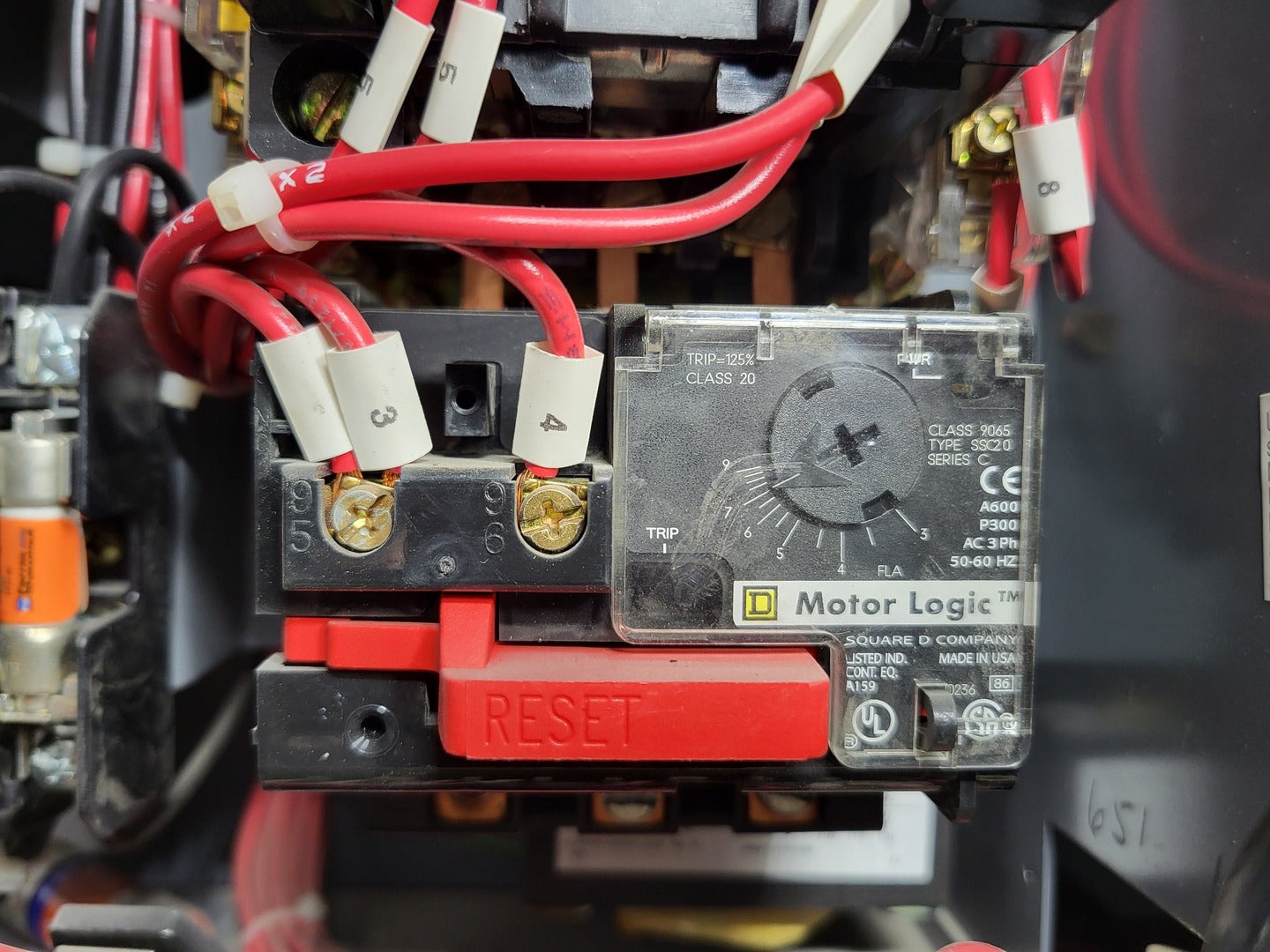

  2. Square D Motor Logic 9065 SSC20, Class 20 motor protection relay
  3. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary
  5. 2 x Bussmann fuses FNQ-R-1/2
  6. 3 x Mersen Amp-Trap fuses AJT10

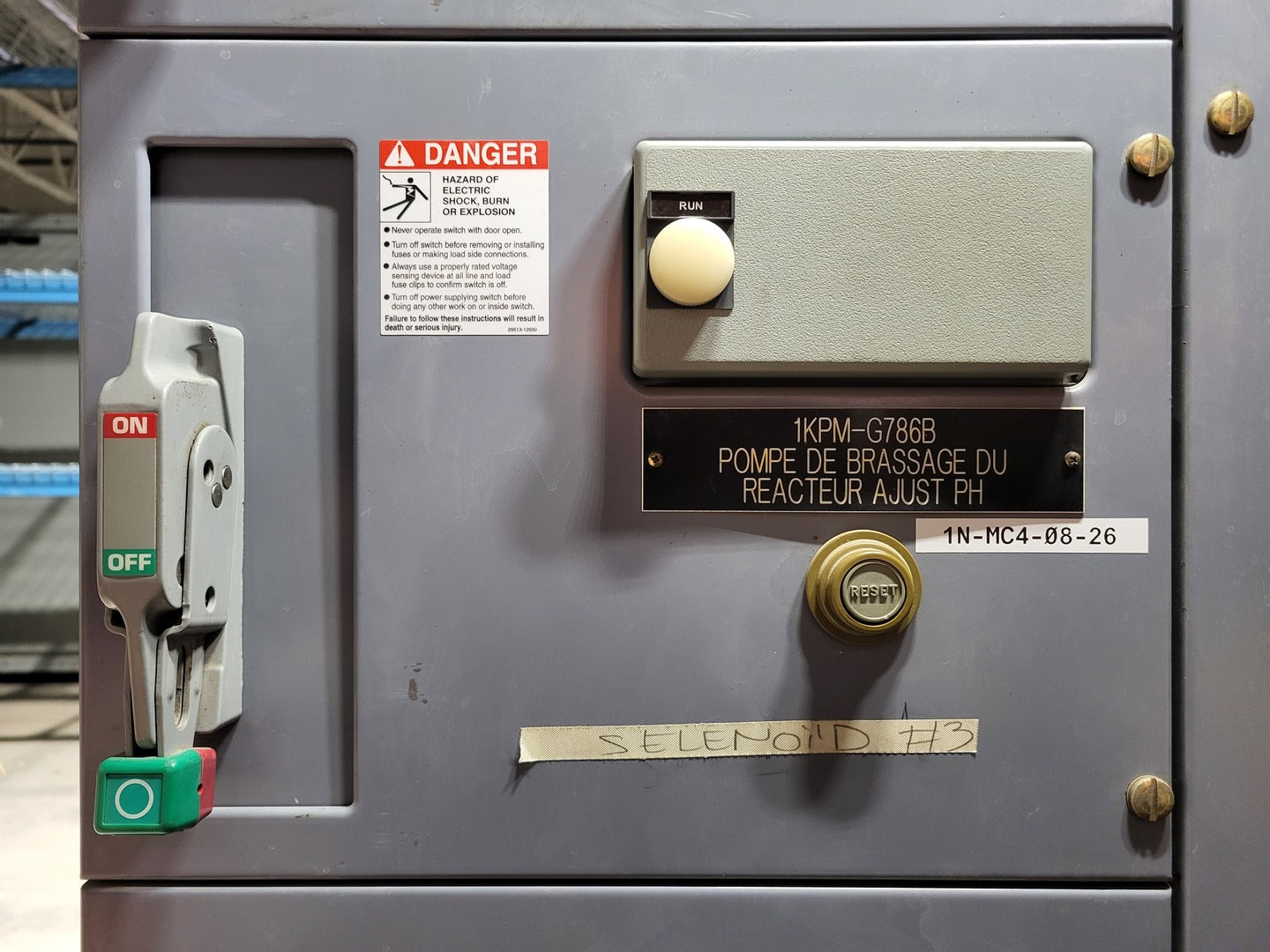

Bucket #6 1KPM-G786B

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, rated up to 10 HP @ 460/575V
  2. Square D Motor Logic 9065 SSC20, Class 20 motor protection relay
  3. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
  4. Square D 9070EL2D5, 0.1 kVA control transformer, 600V primary, 120V secondary
  5. 1 x Bussmann fuse FNQ-R-1/2
  6. 1 x Ferraz Shawmut fuse
