SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 150774
Price:
$8,500 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

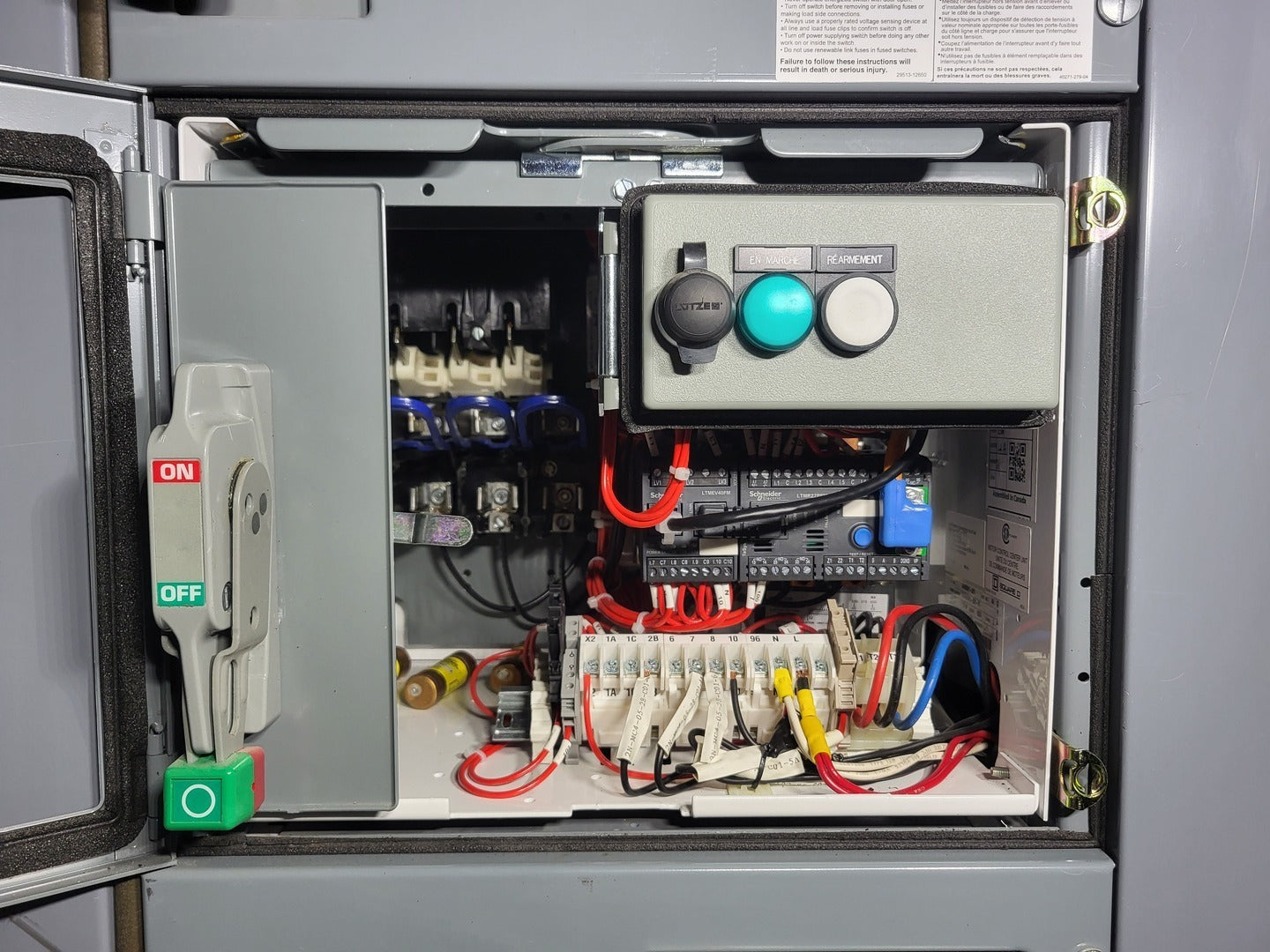

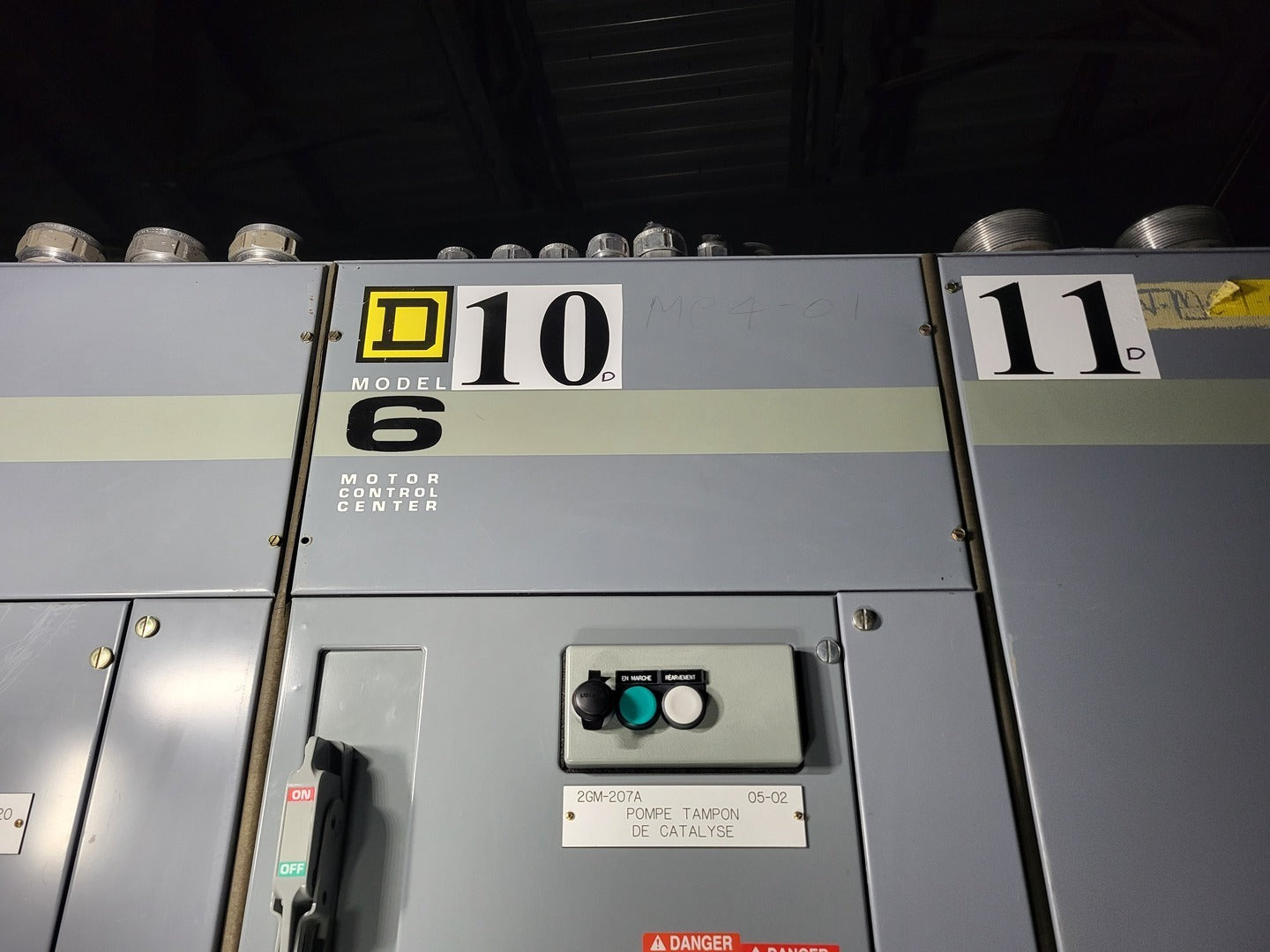

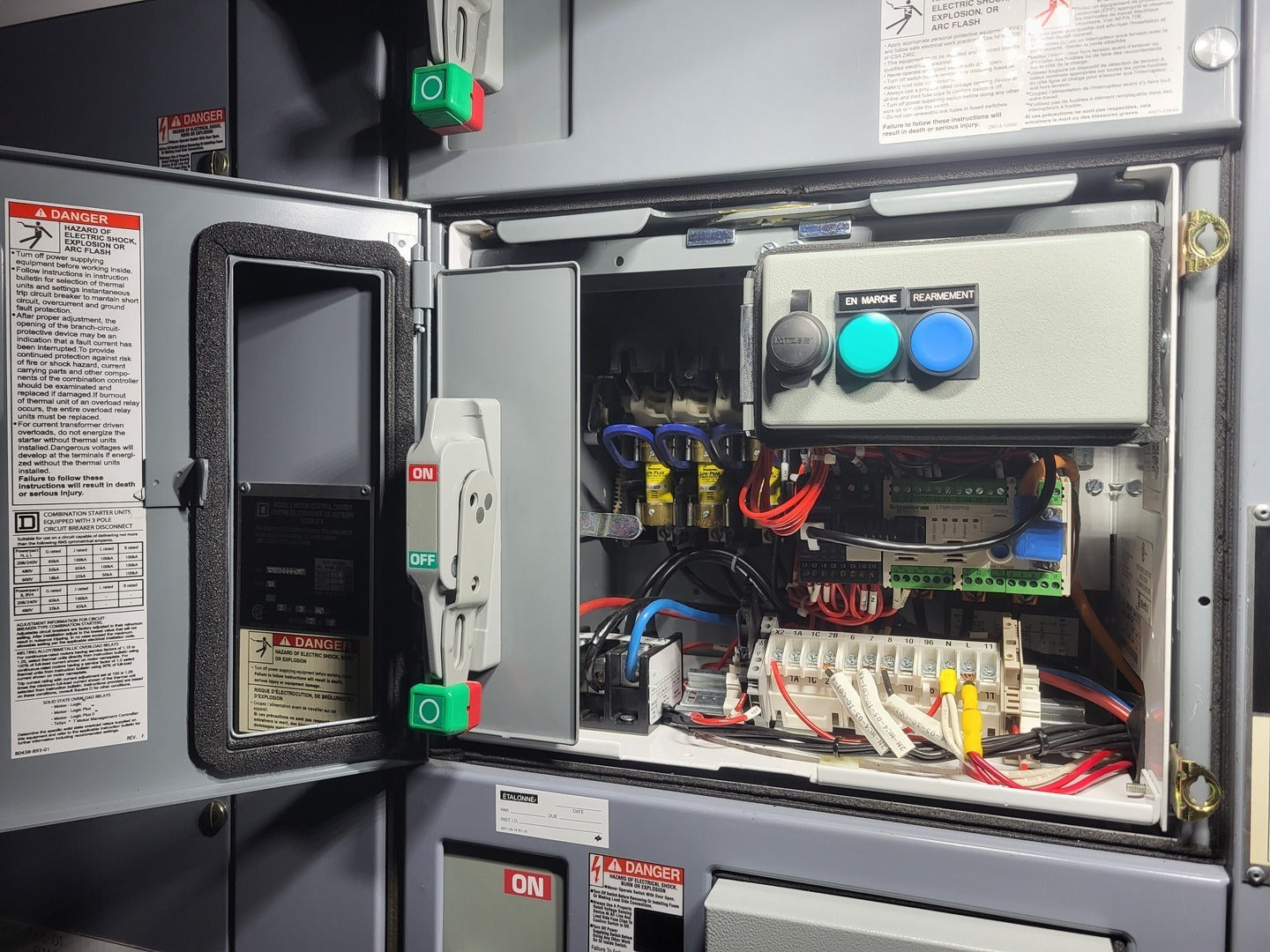

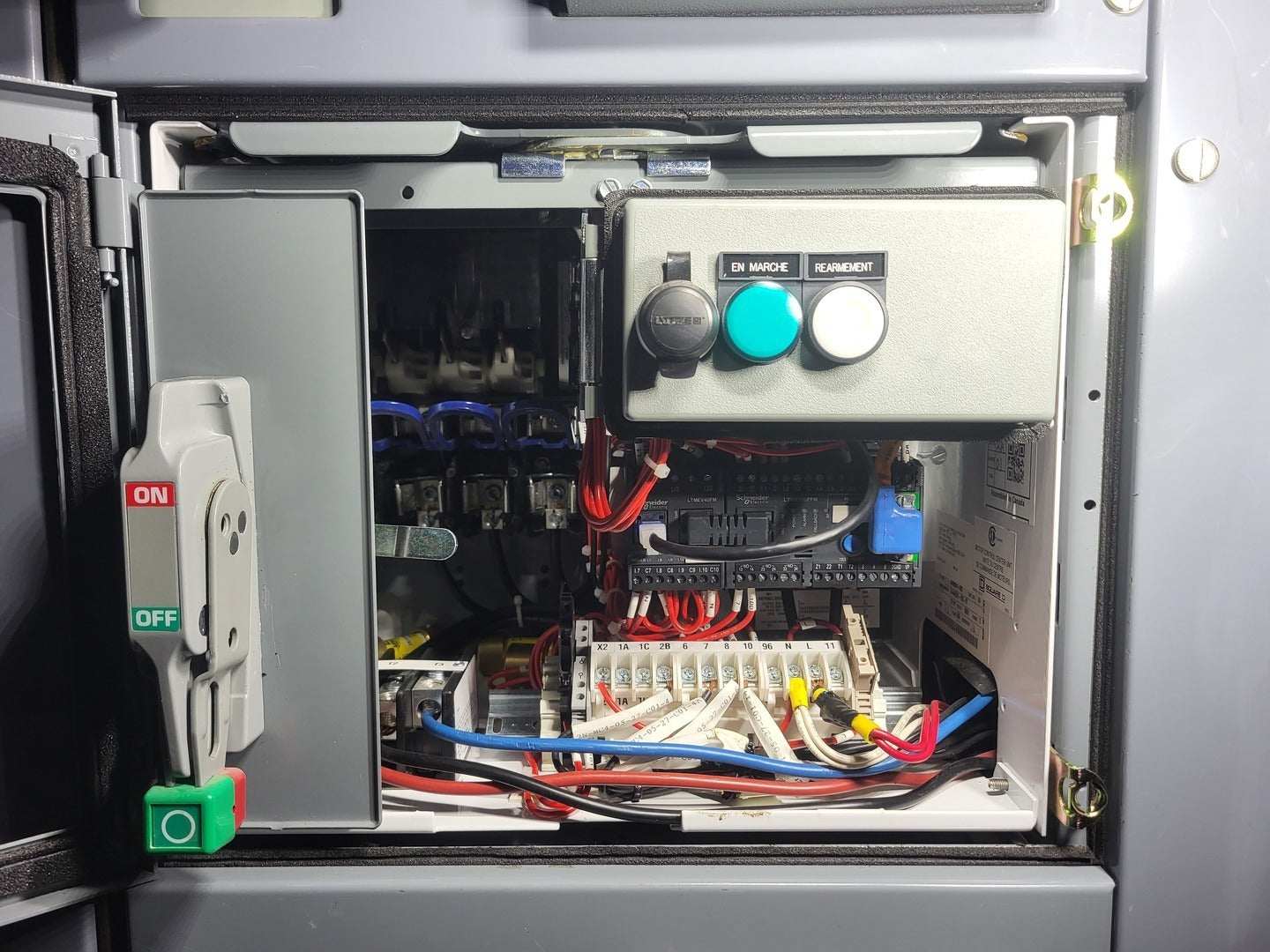

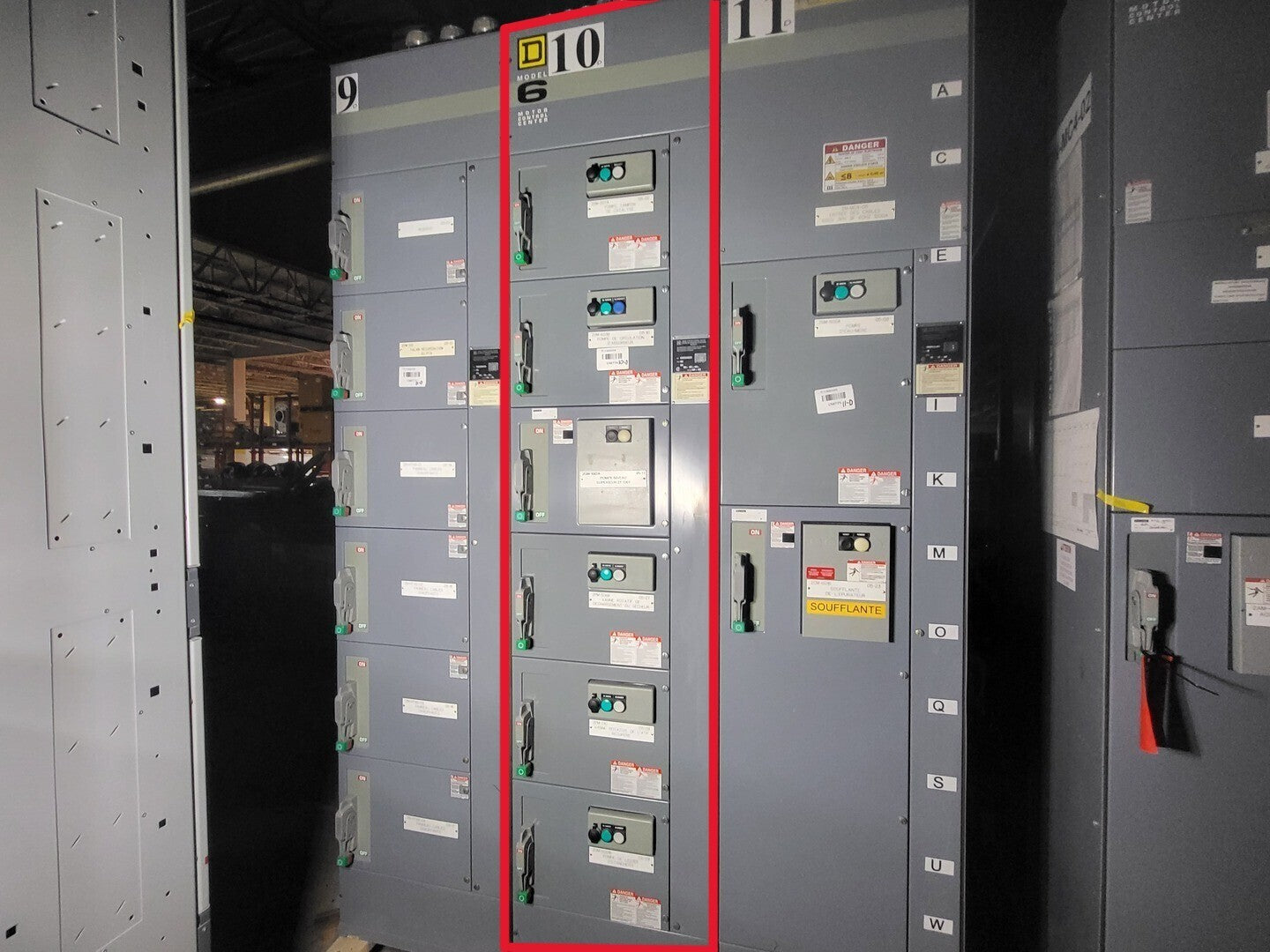

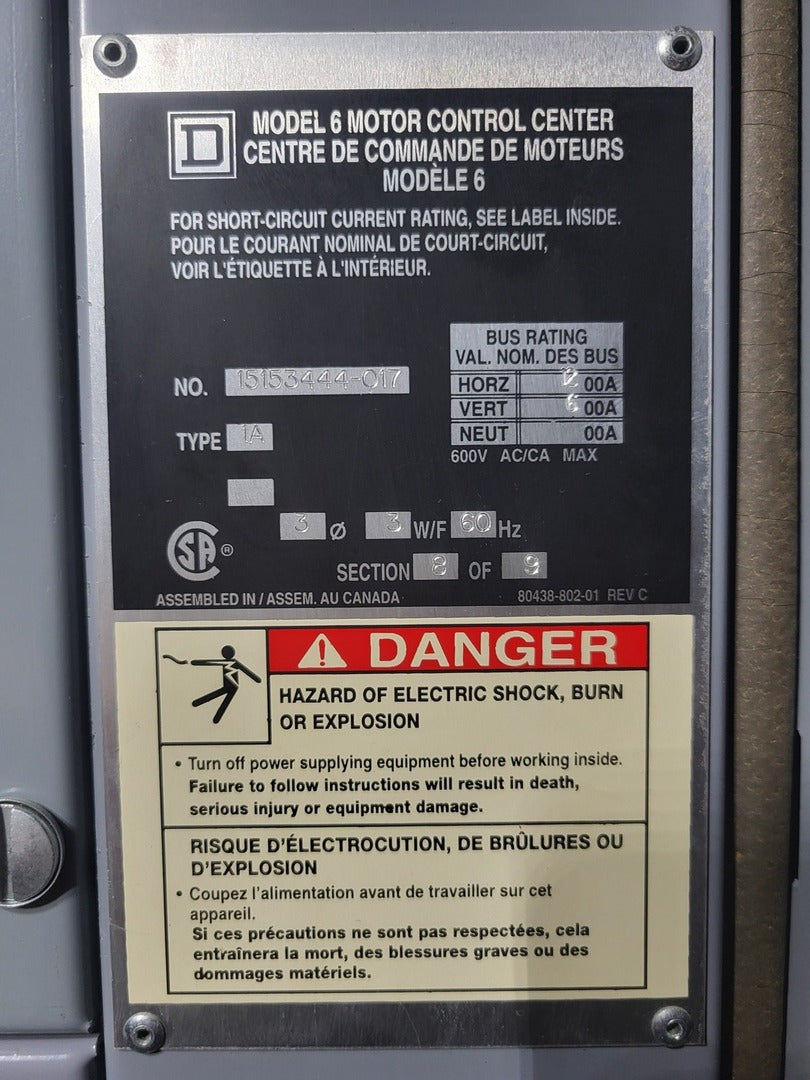

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Electrical
Max. Voltage 600
Other Specifications

Note: Section 10 only

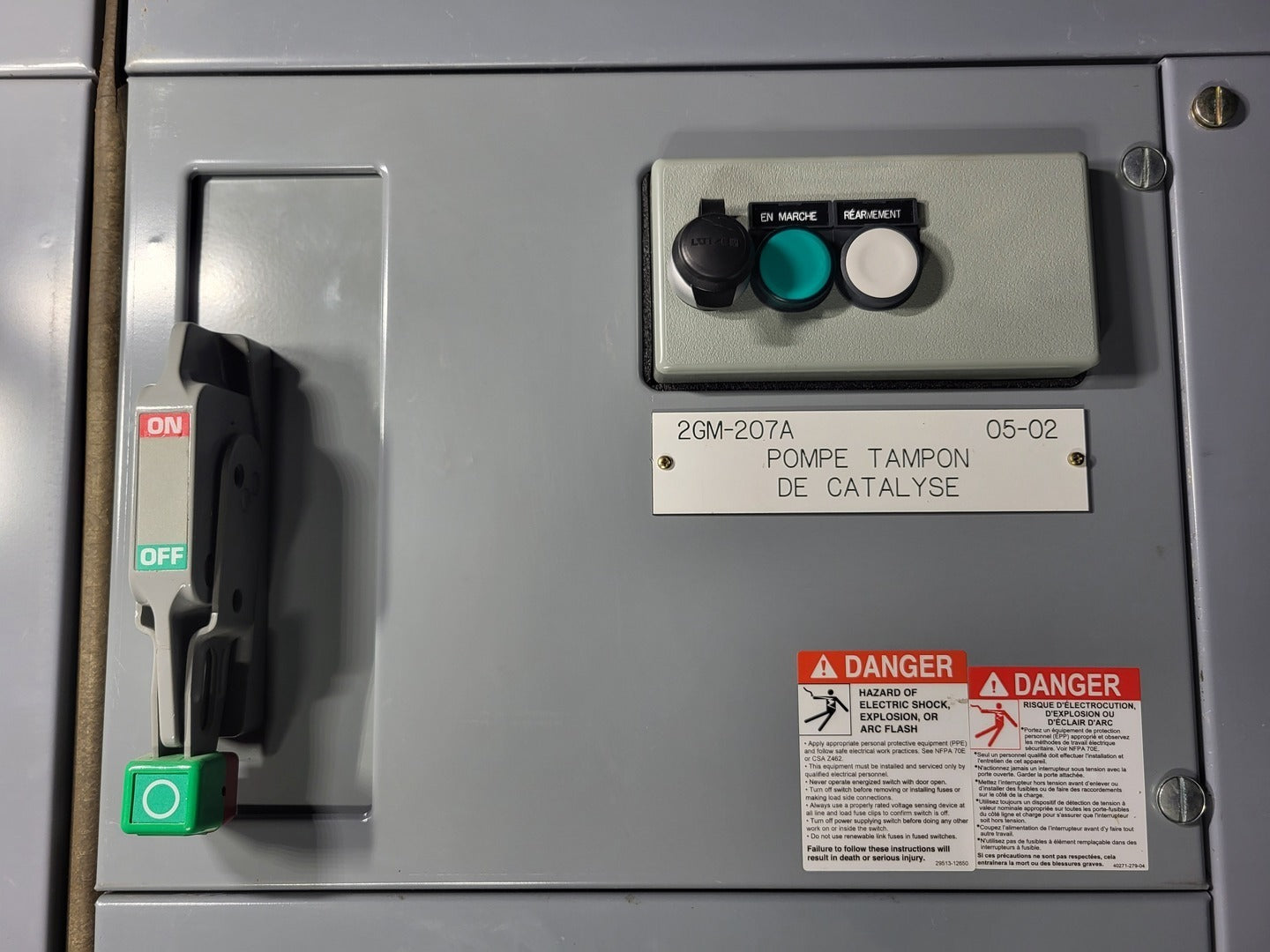

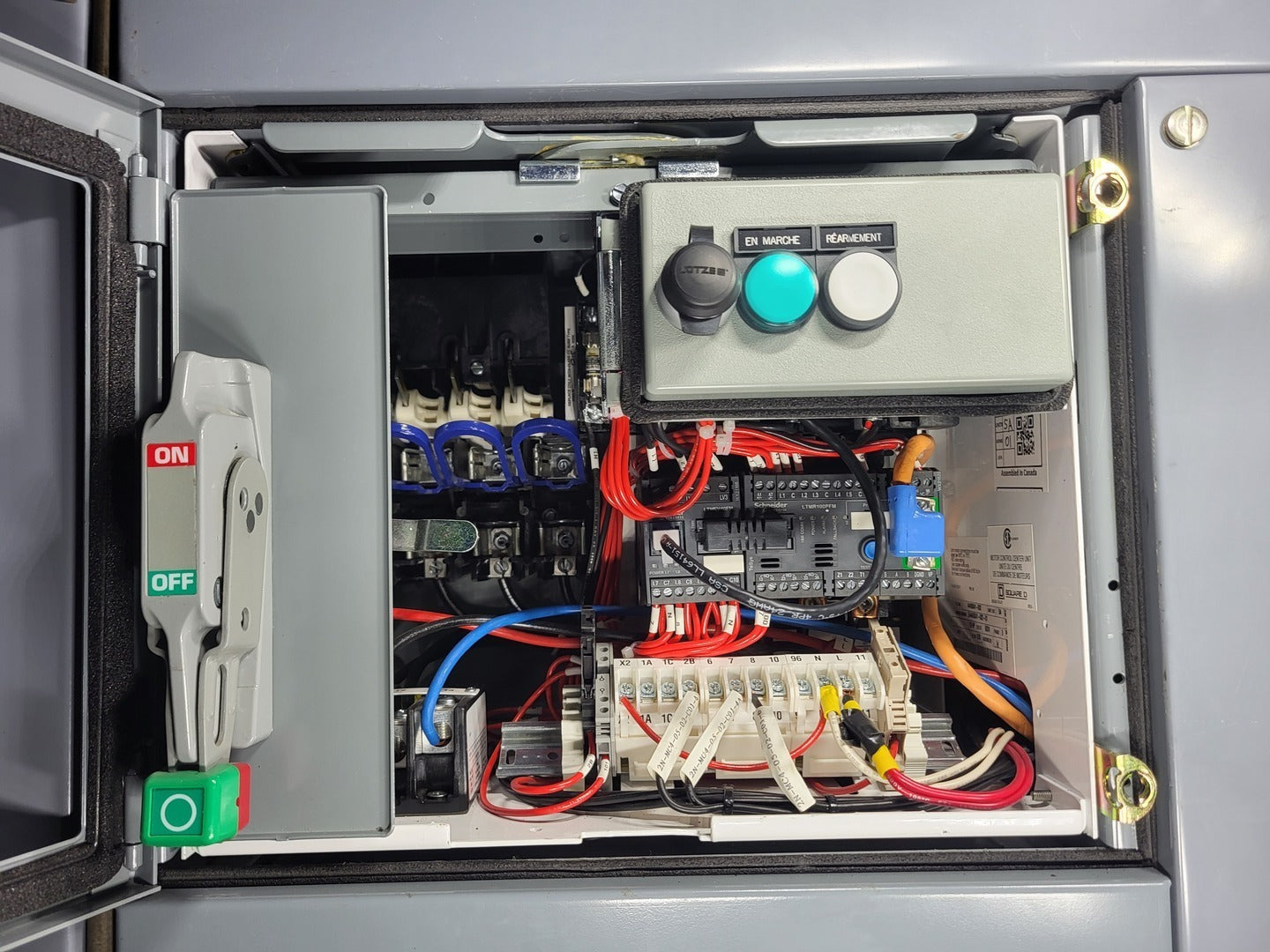

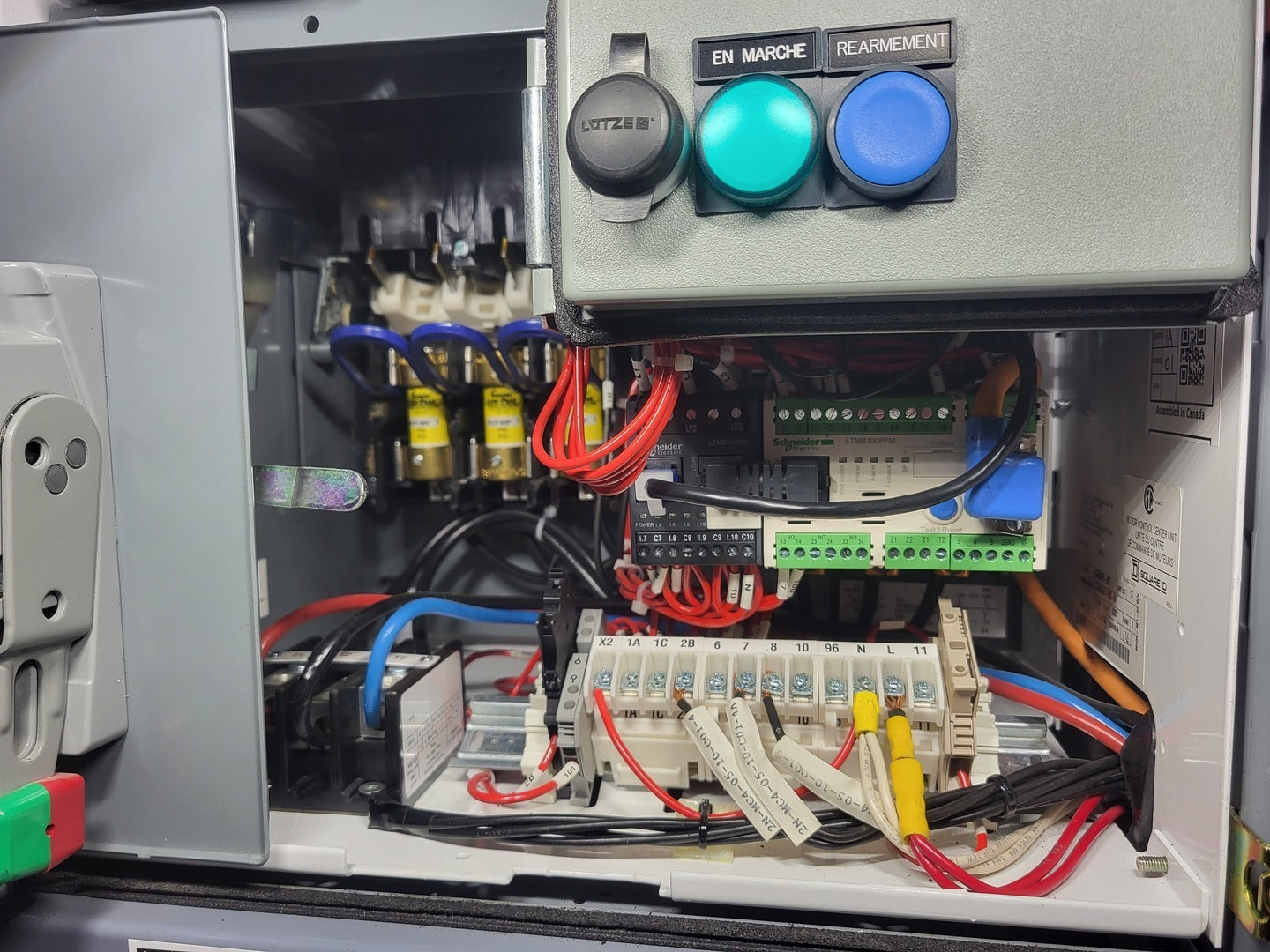

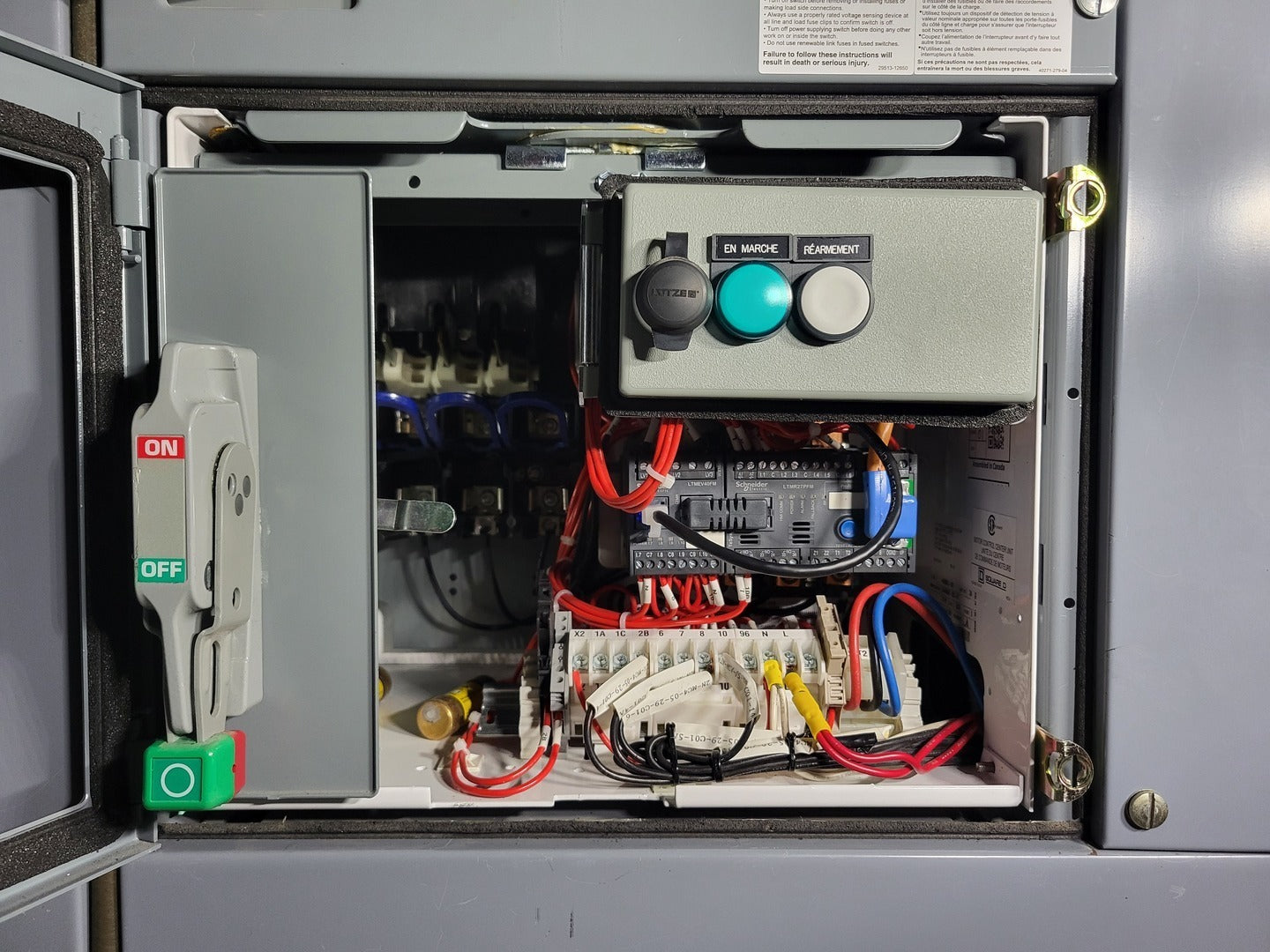

Bucket #1 2GM-207A

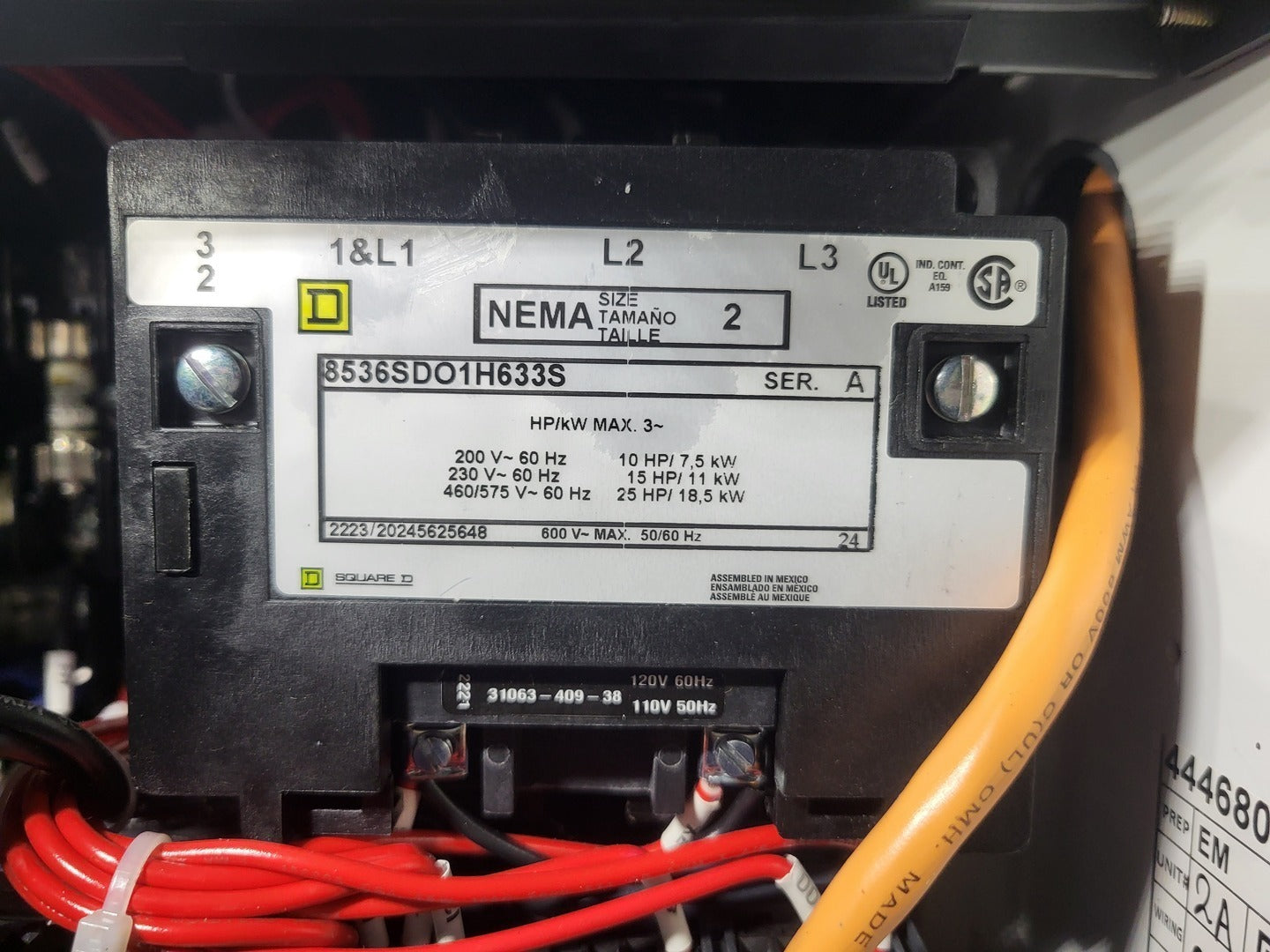

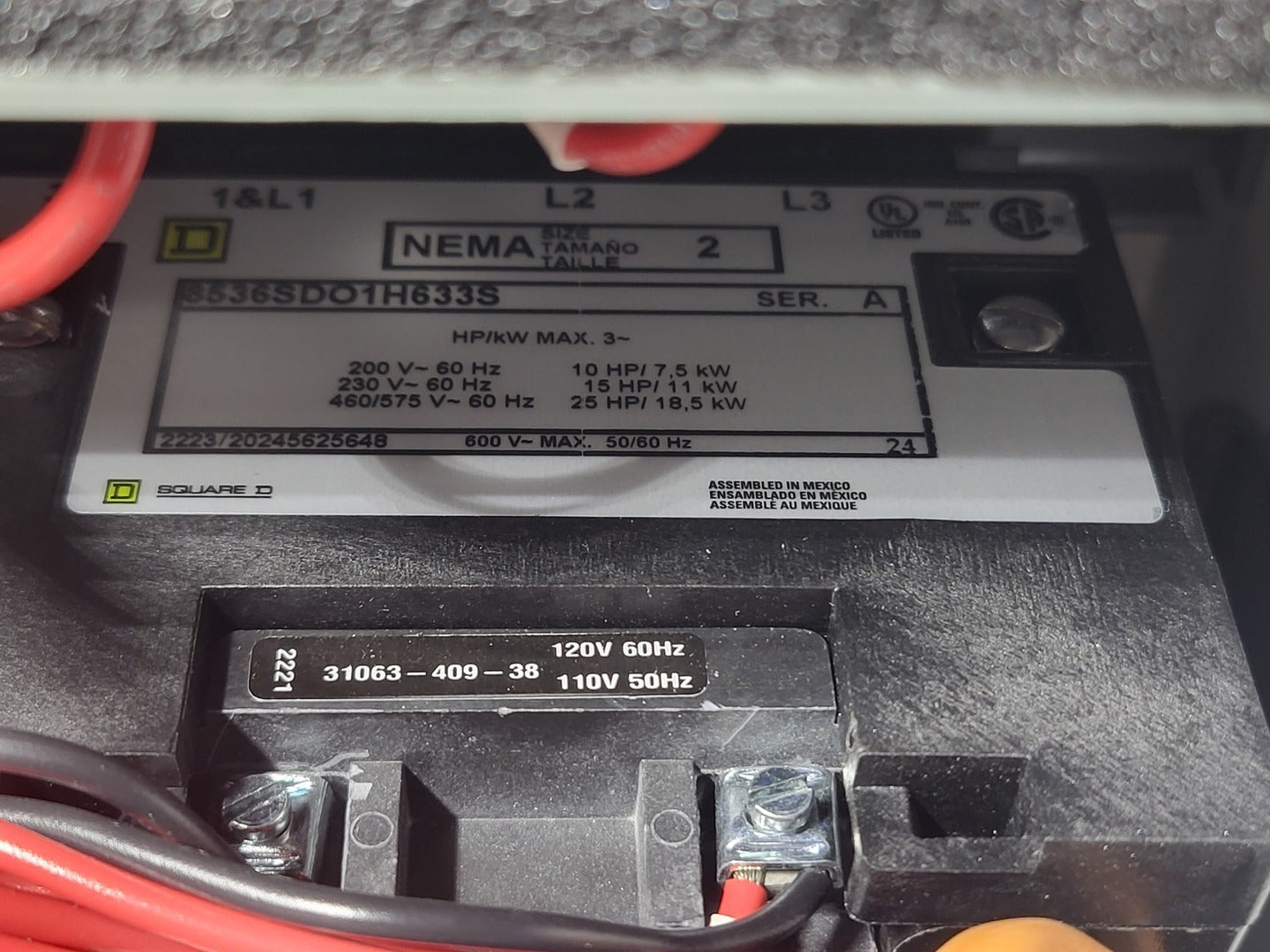

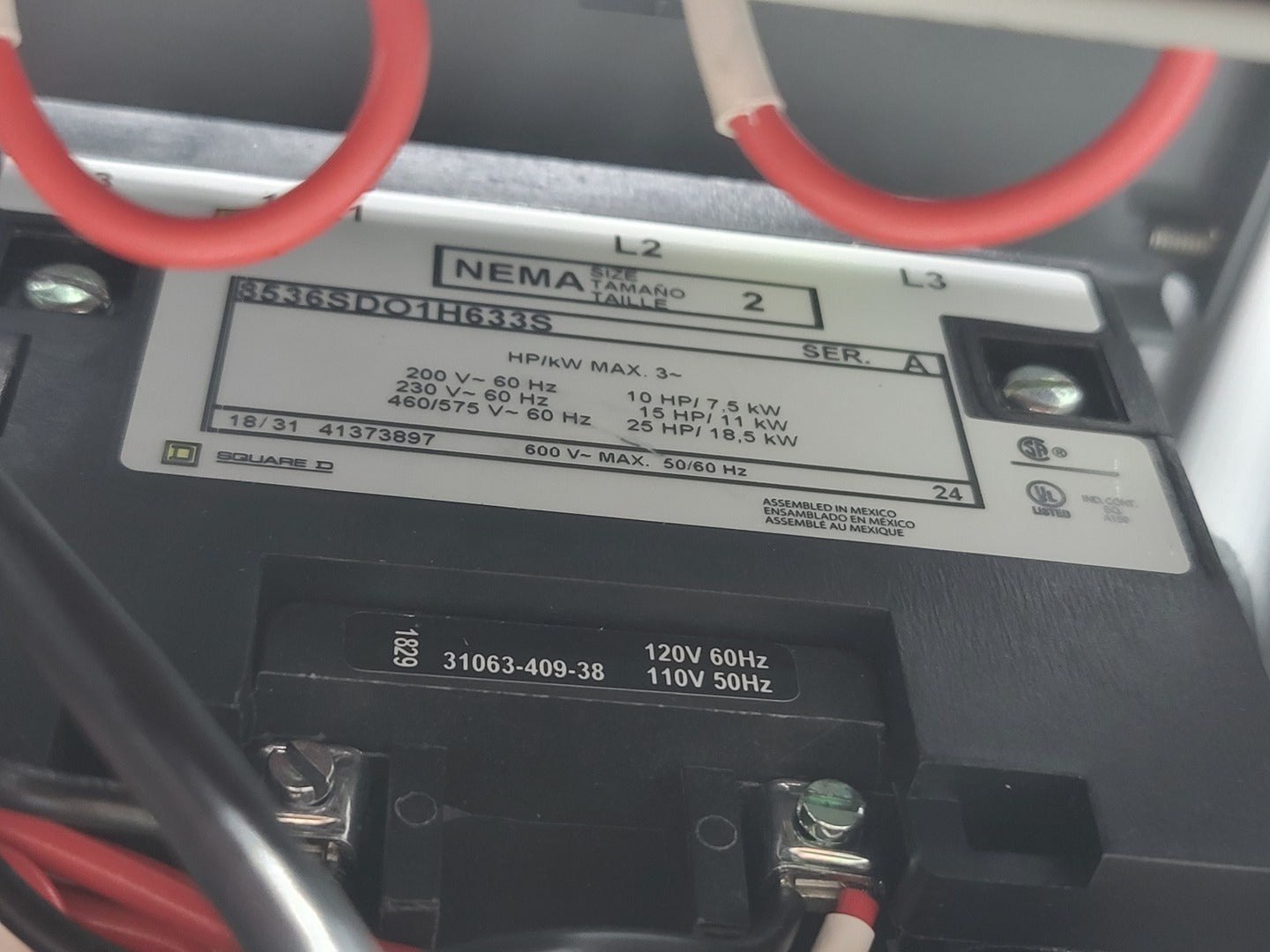

  1. Square D 8536SDO1H633S, NEMA Size 2 contactor, 25 HP @ 460/575V, 600V max

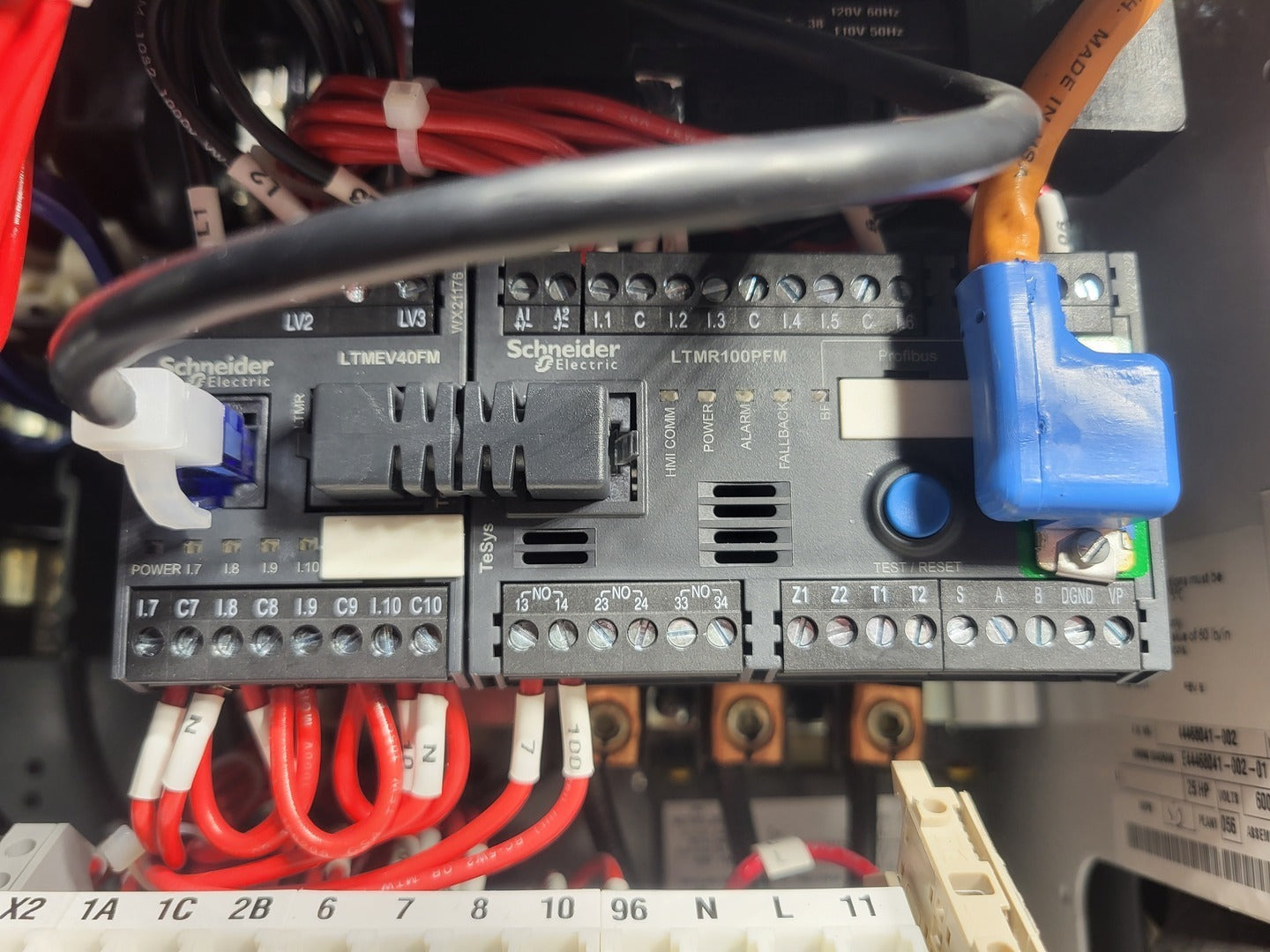

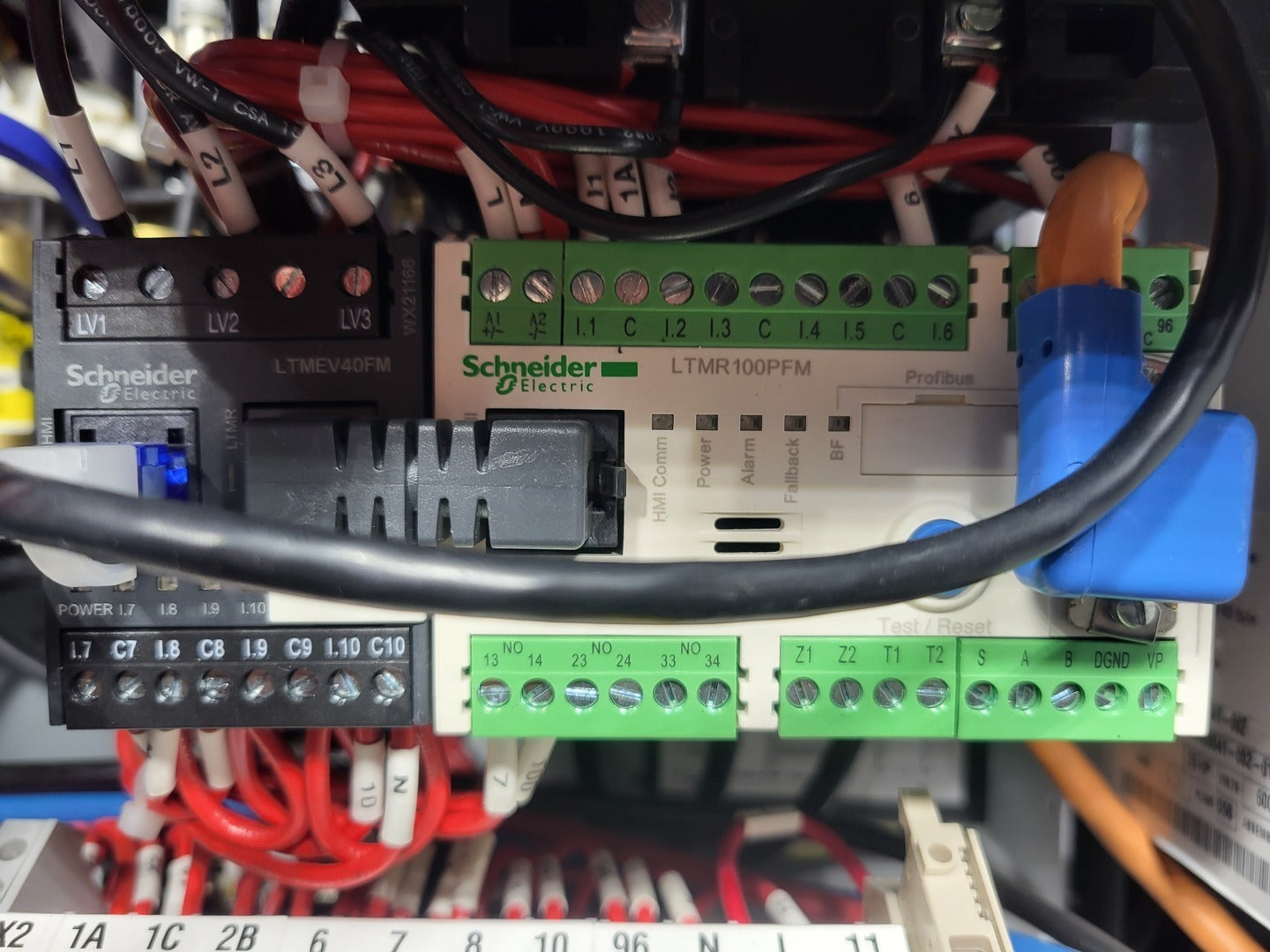

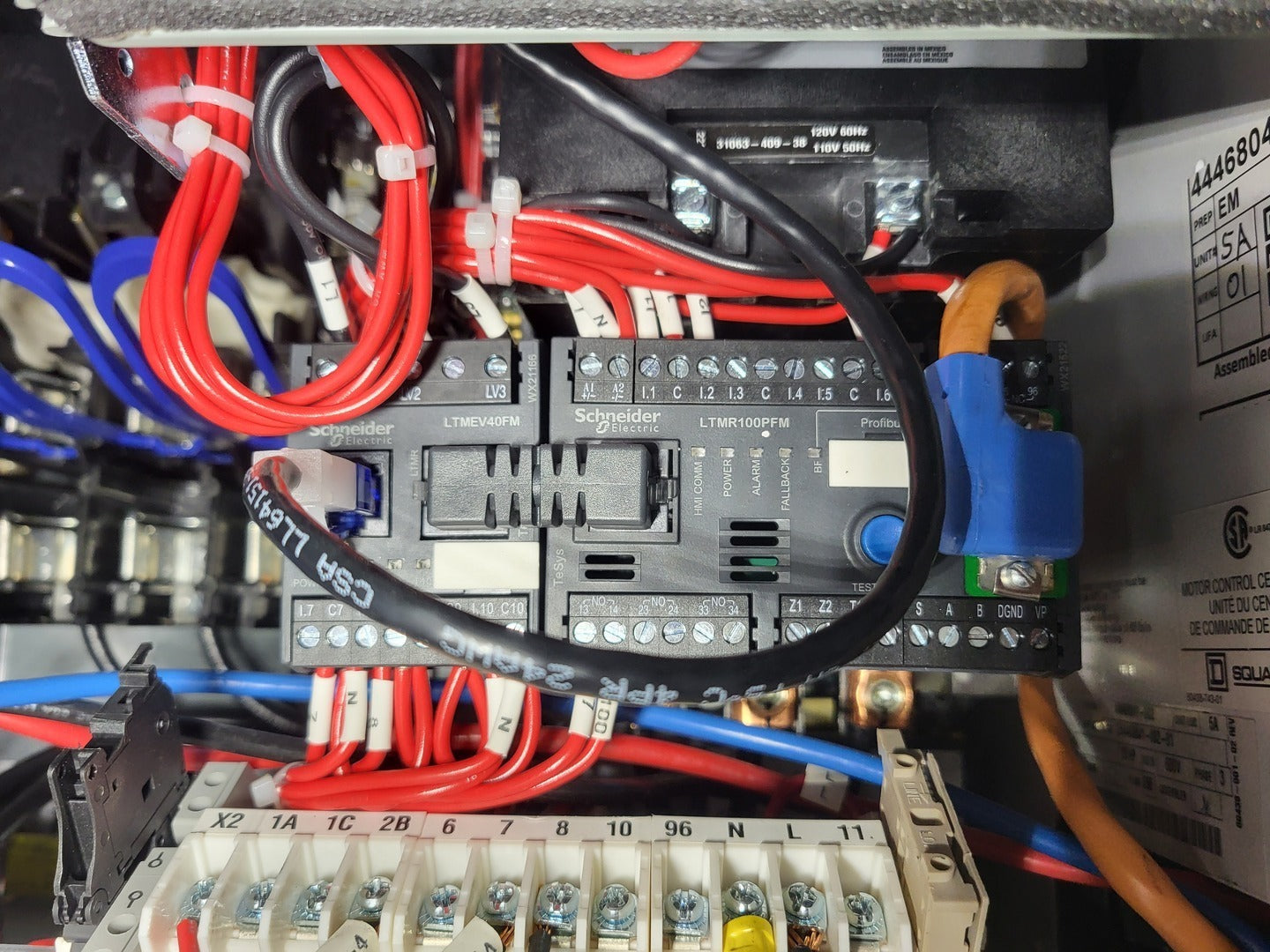

  2. Schneider Electric TeSys T LTMR100PFM motor management controller, Profibus, 100A frame

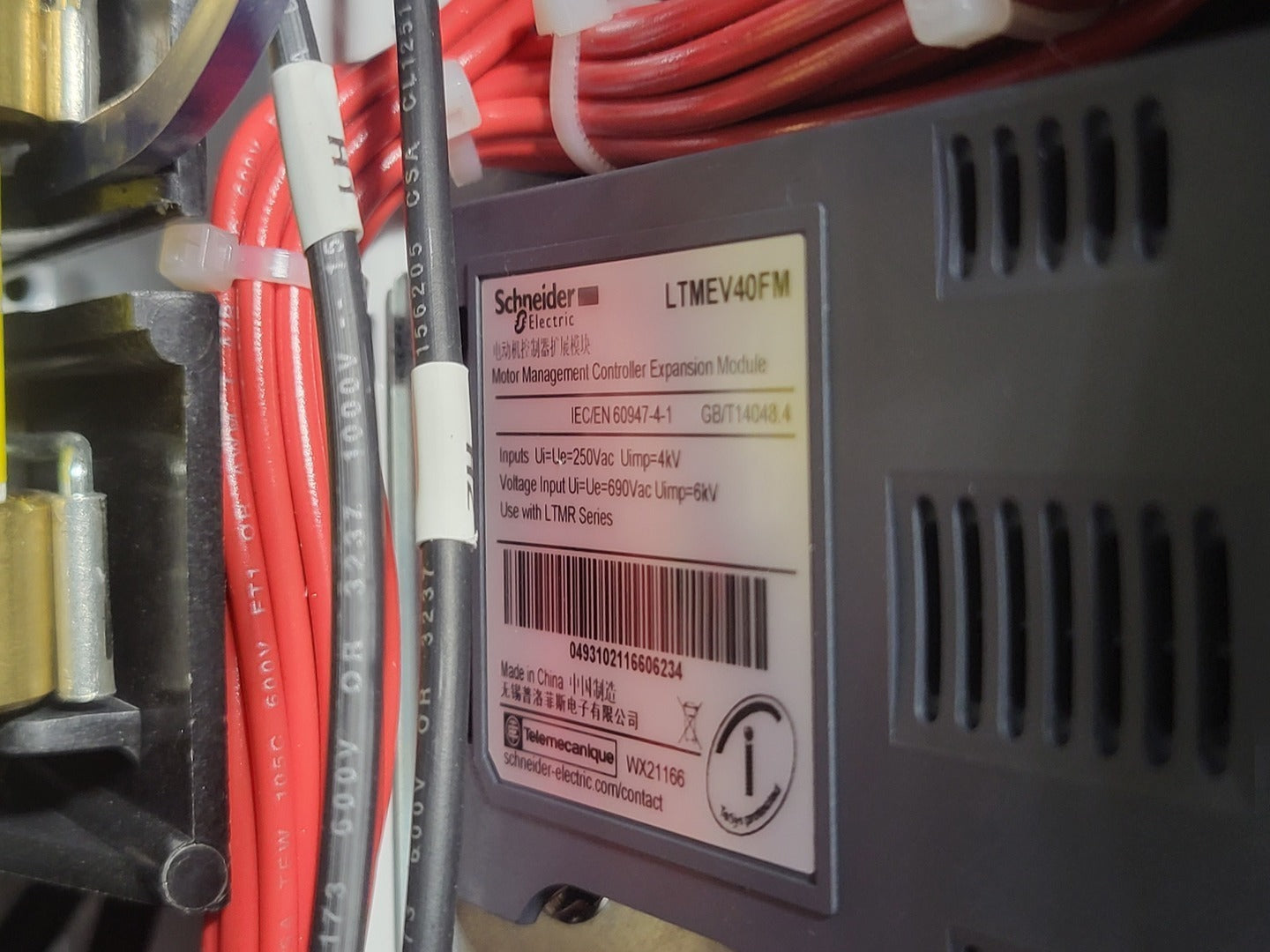

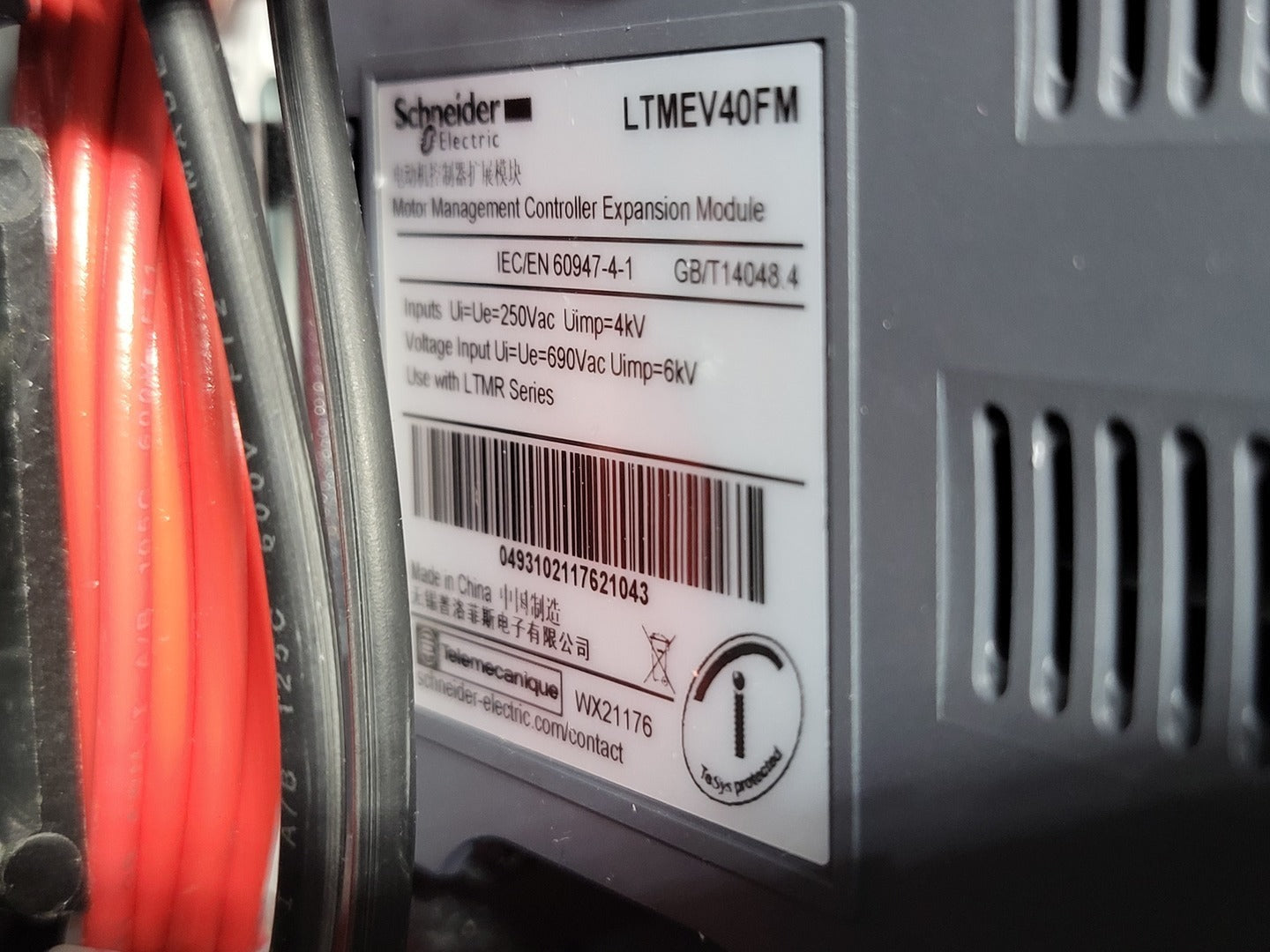

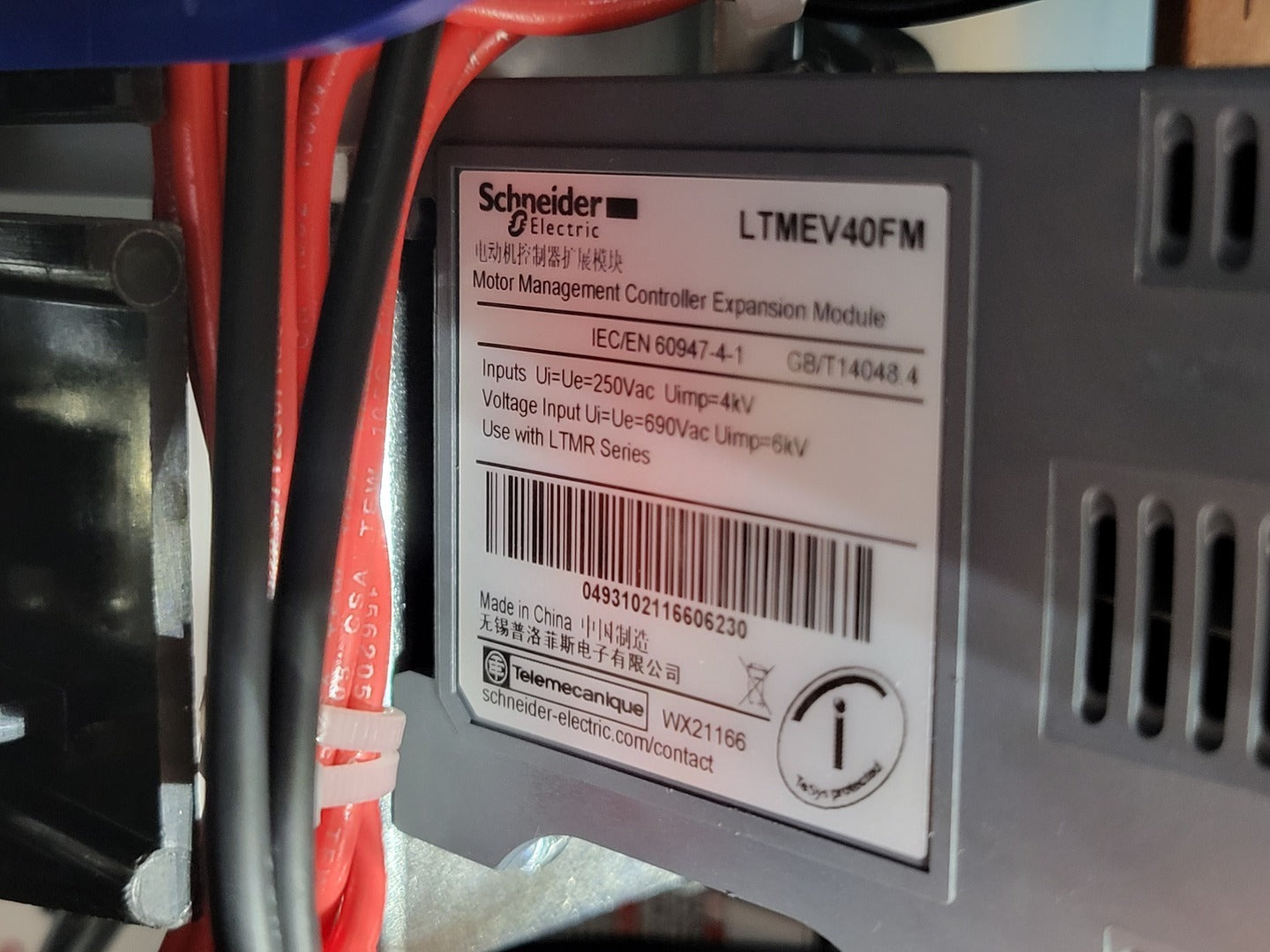

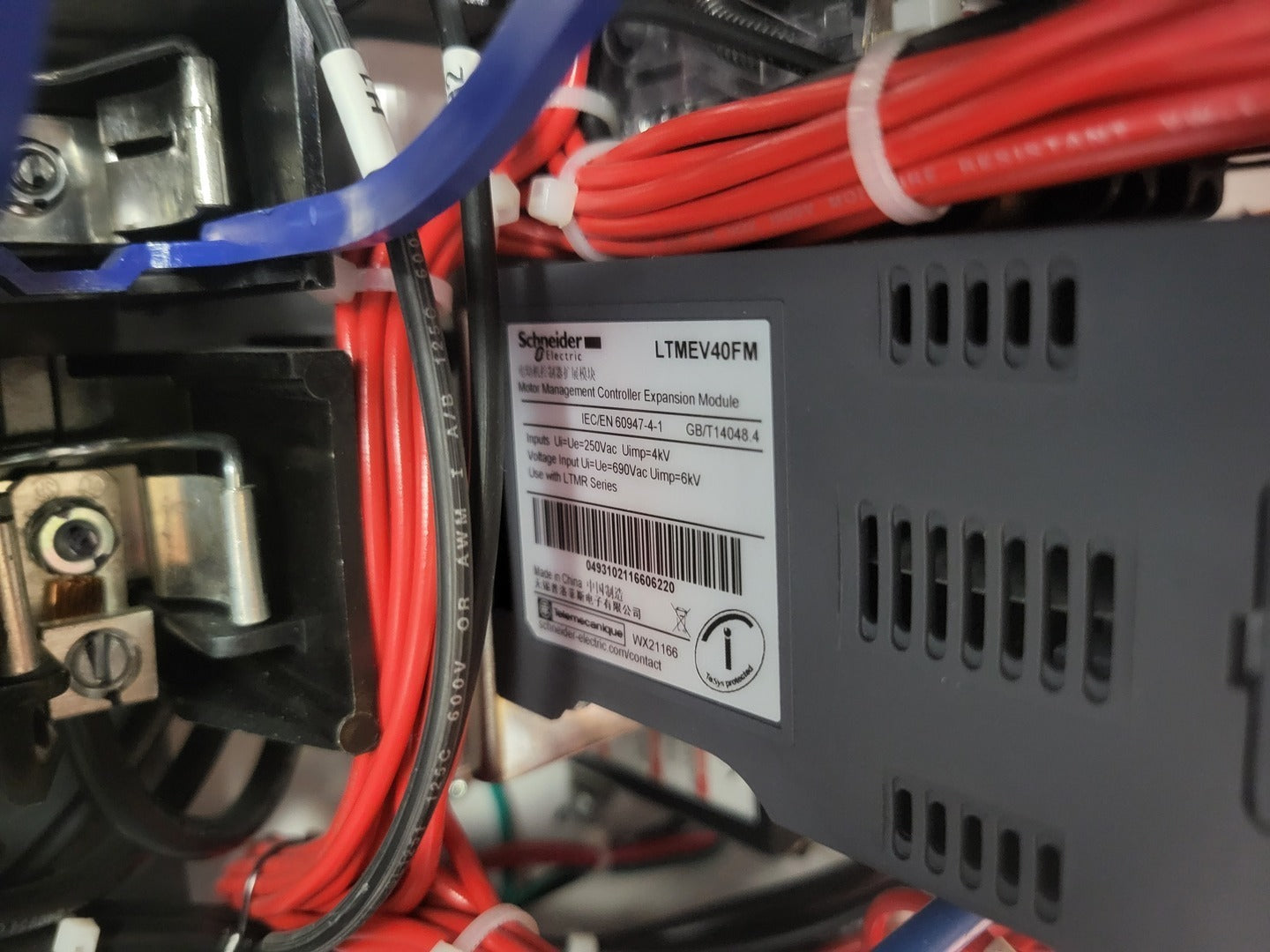

  3. Schneider Electric TeSys T LTMEV40FM motor management controller expansion module

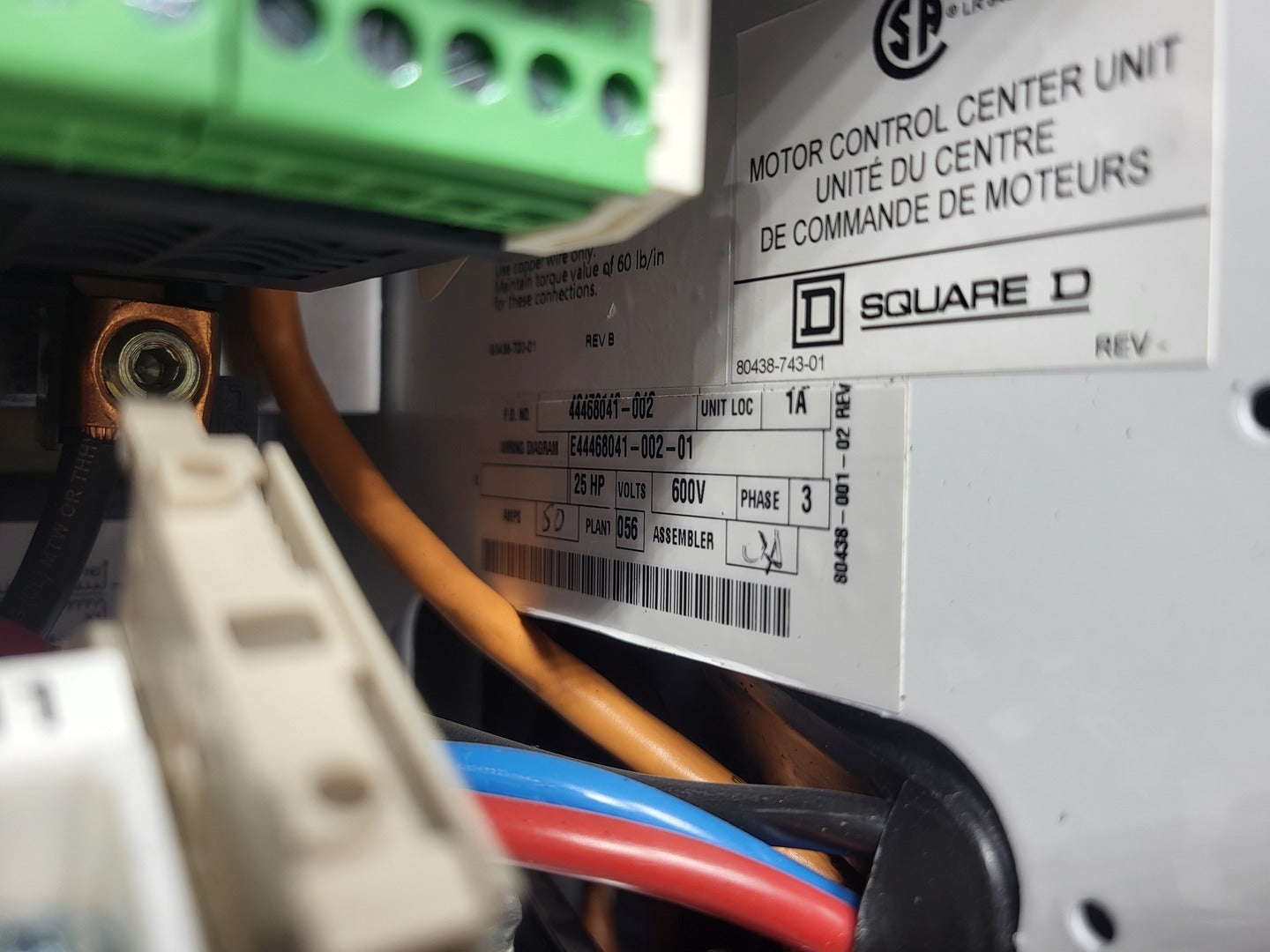

  4. Square D MCC bucket disconnect unit

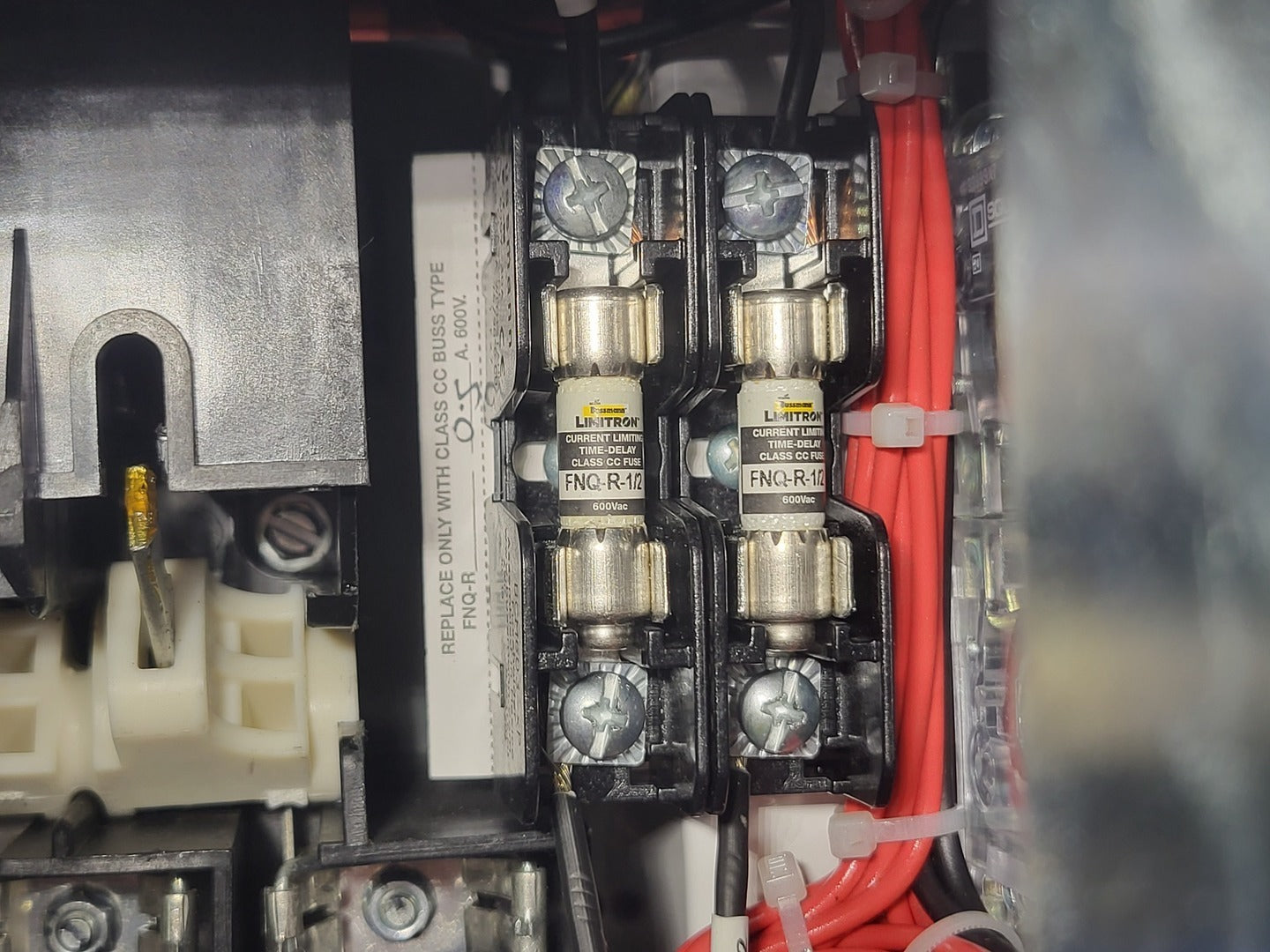

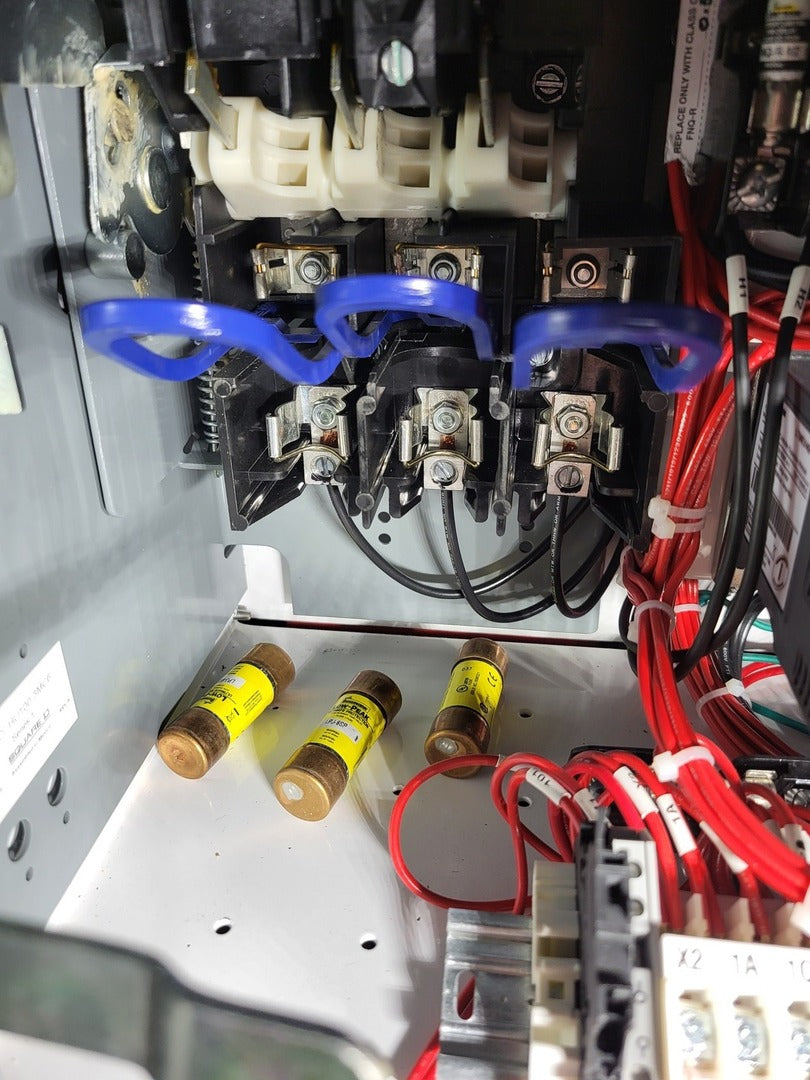

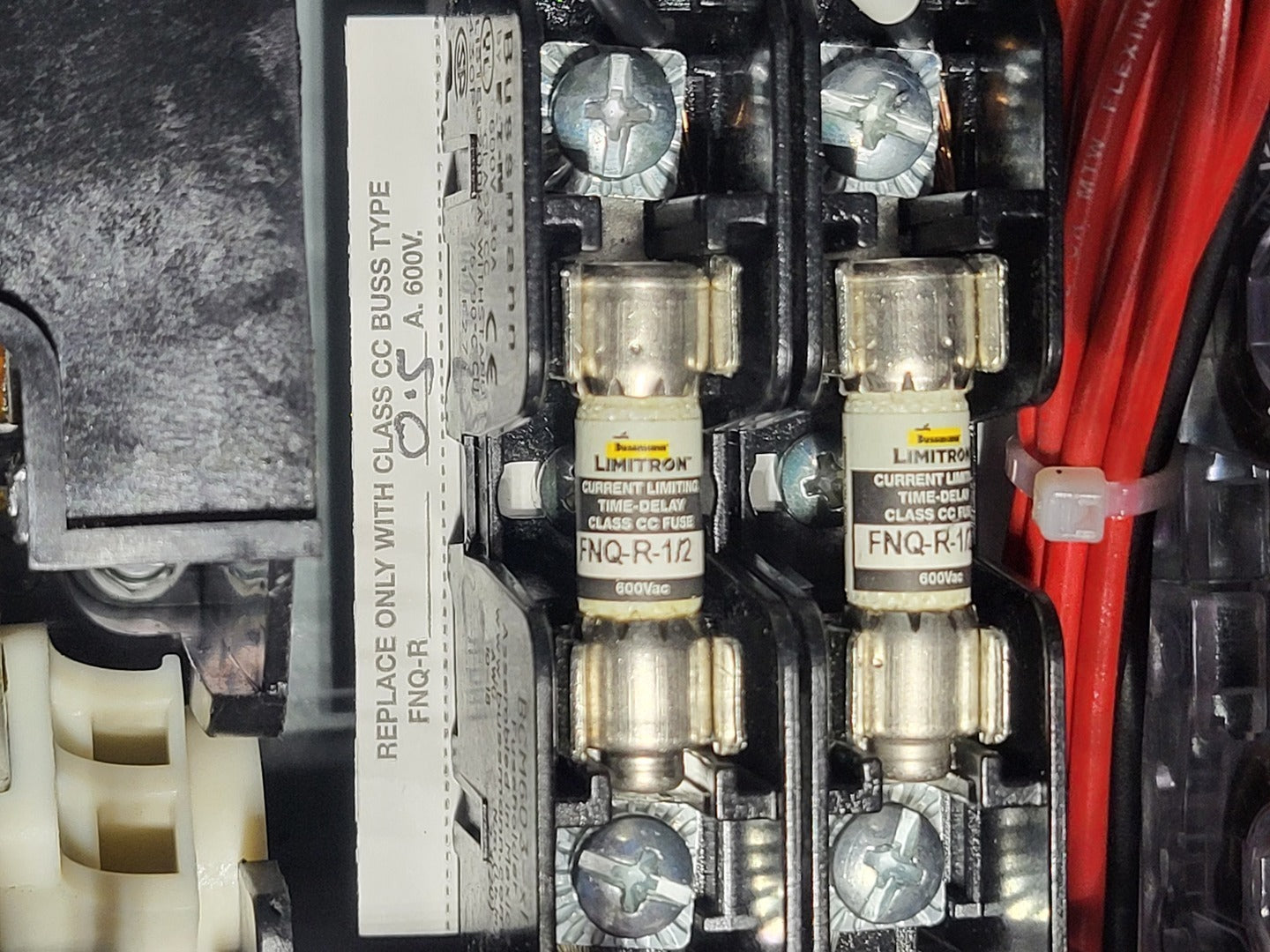

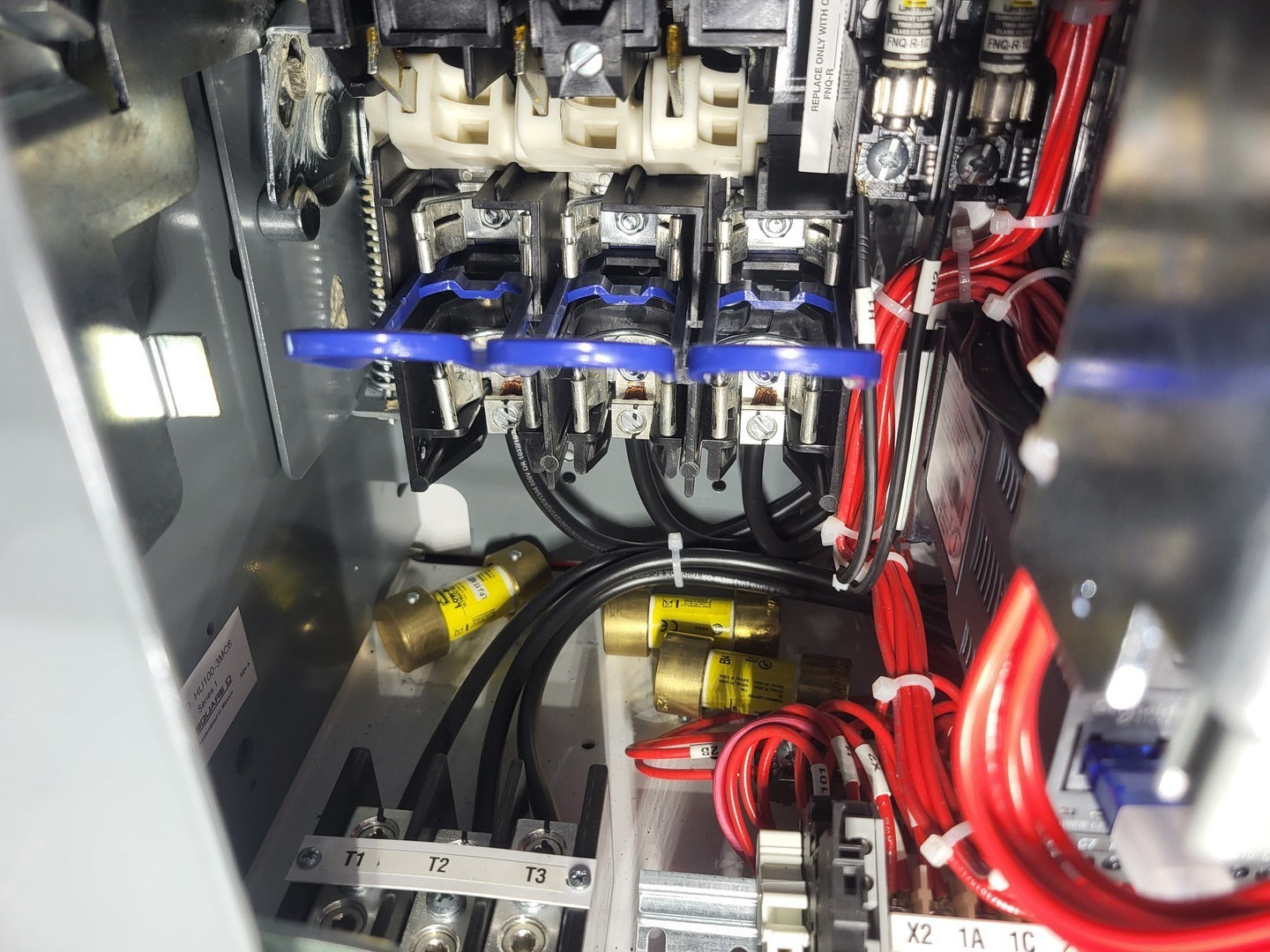

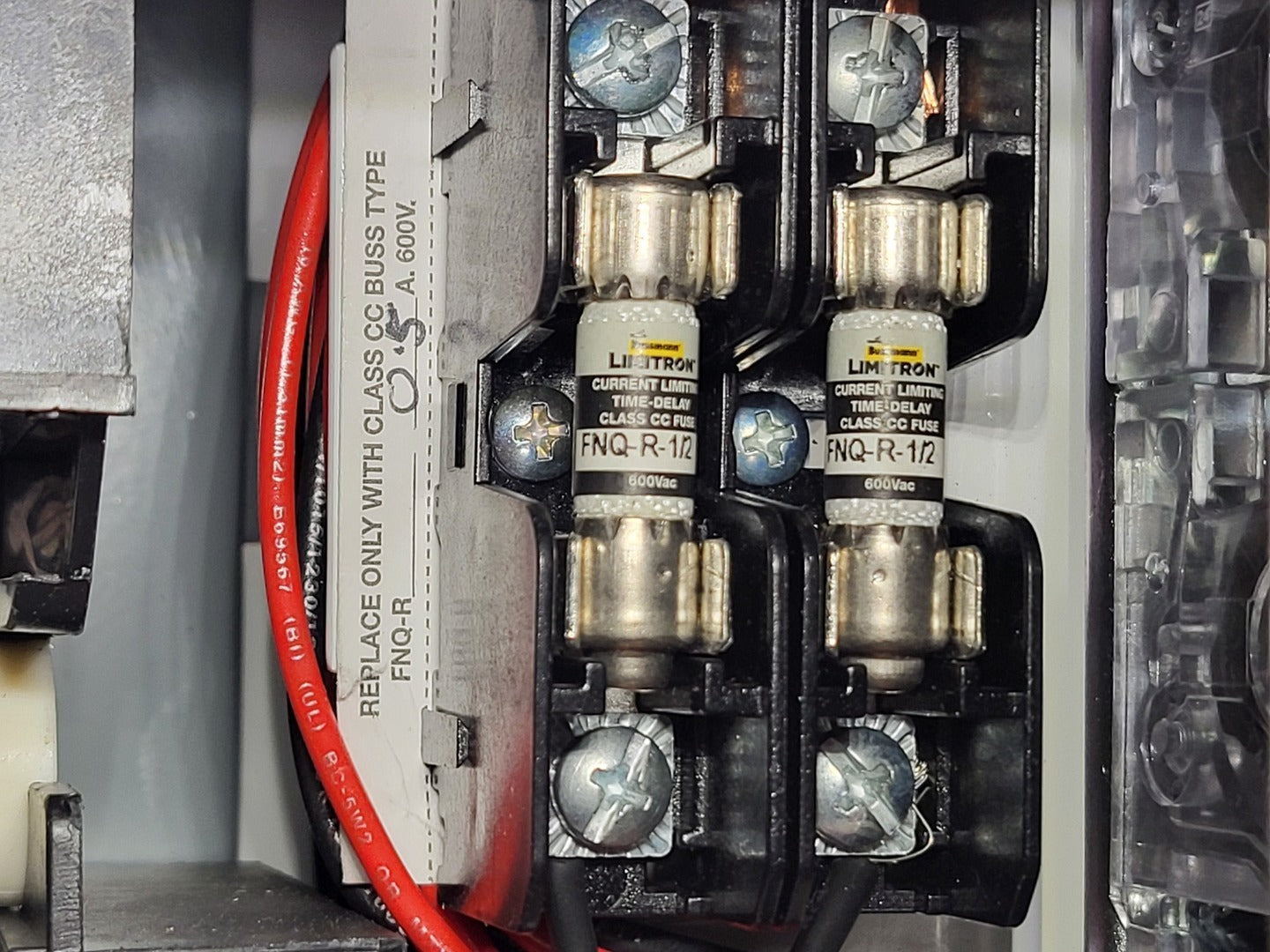

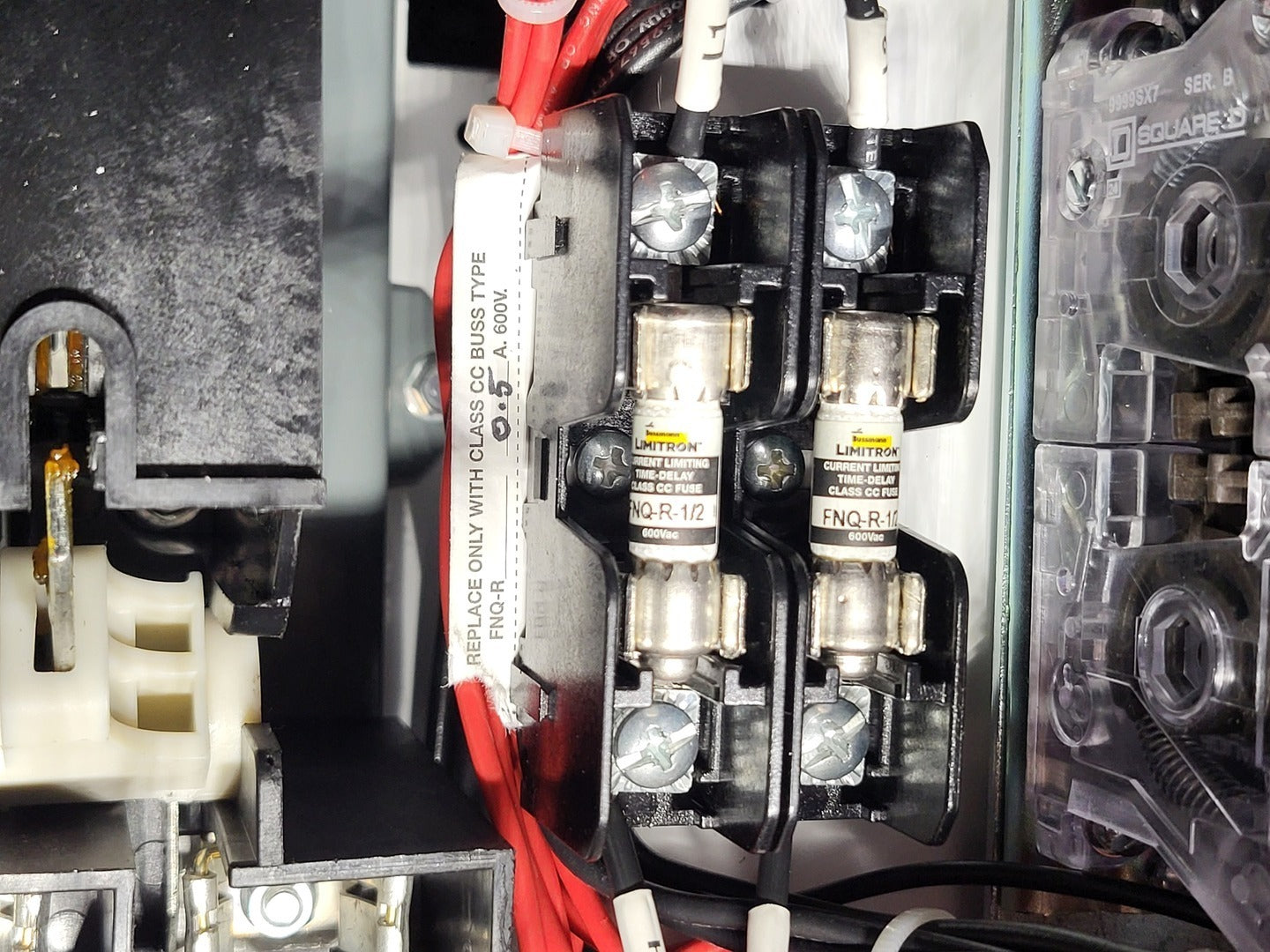

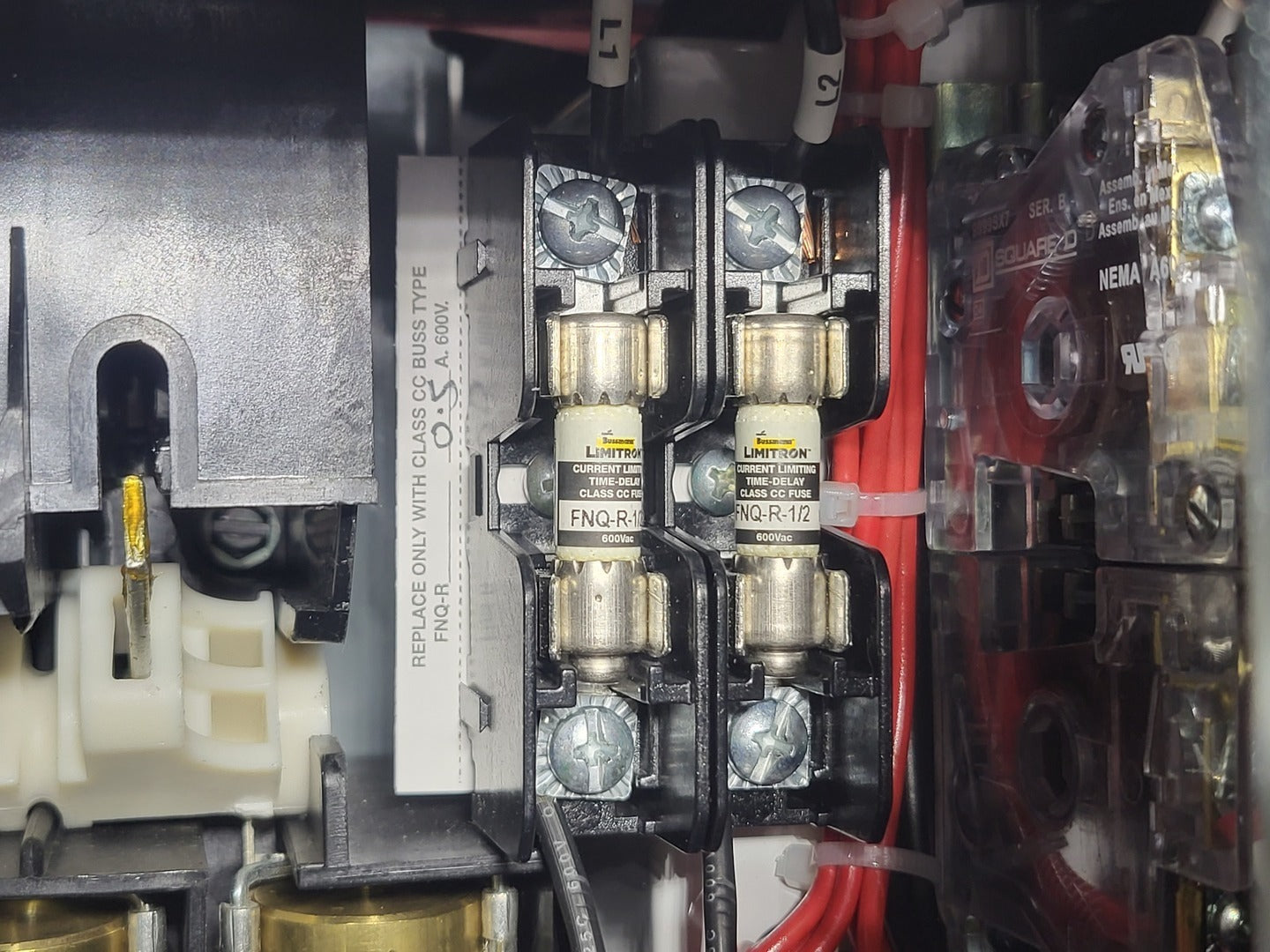

  5. 2 x Bussmann Limitron fuses FNQ-R-1/2

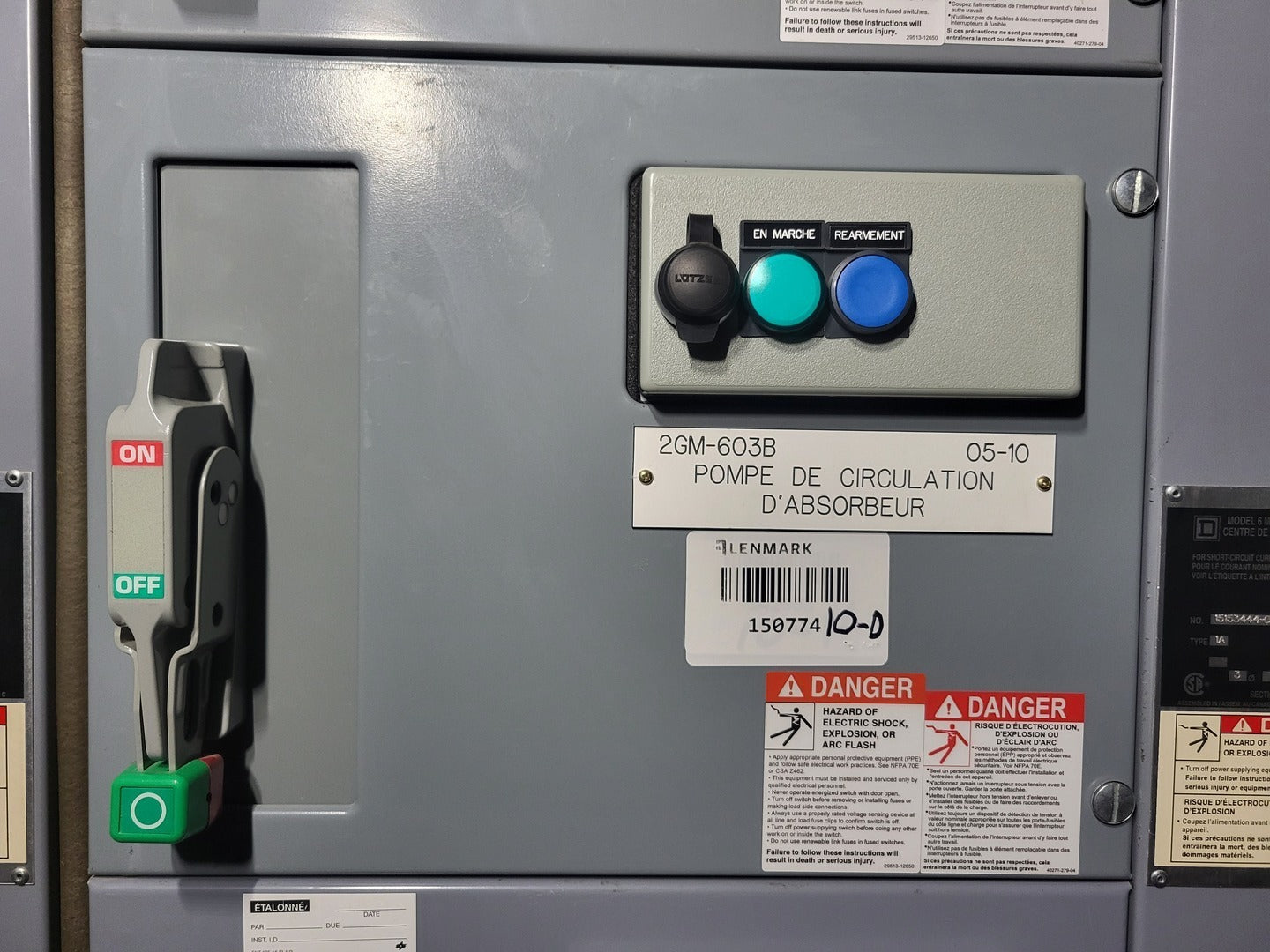

Bucket #2 2GM-603B

  1. Square D 8536SDO1H633S, NEMA Size 2 contactor, 25 HP @ 460/575V, 600V max
  2. Schneider Electric TeSys T LTMR100PFM motor management controller, Profibus, 100A frame
  3. Schneider Electric TeSys T LTMEV40FM motor management controller expansion module
  4. Square D MCC bucket disconnect unit

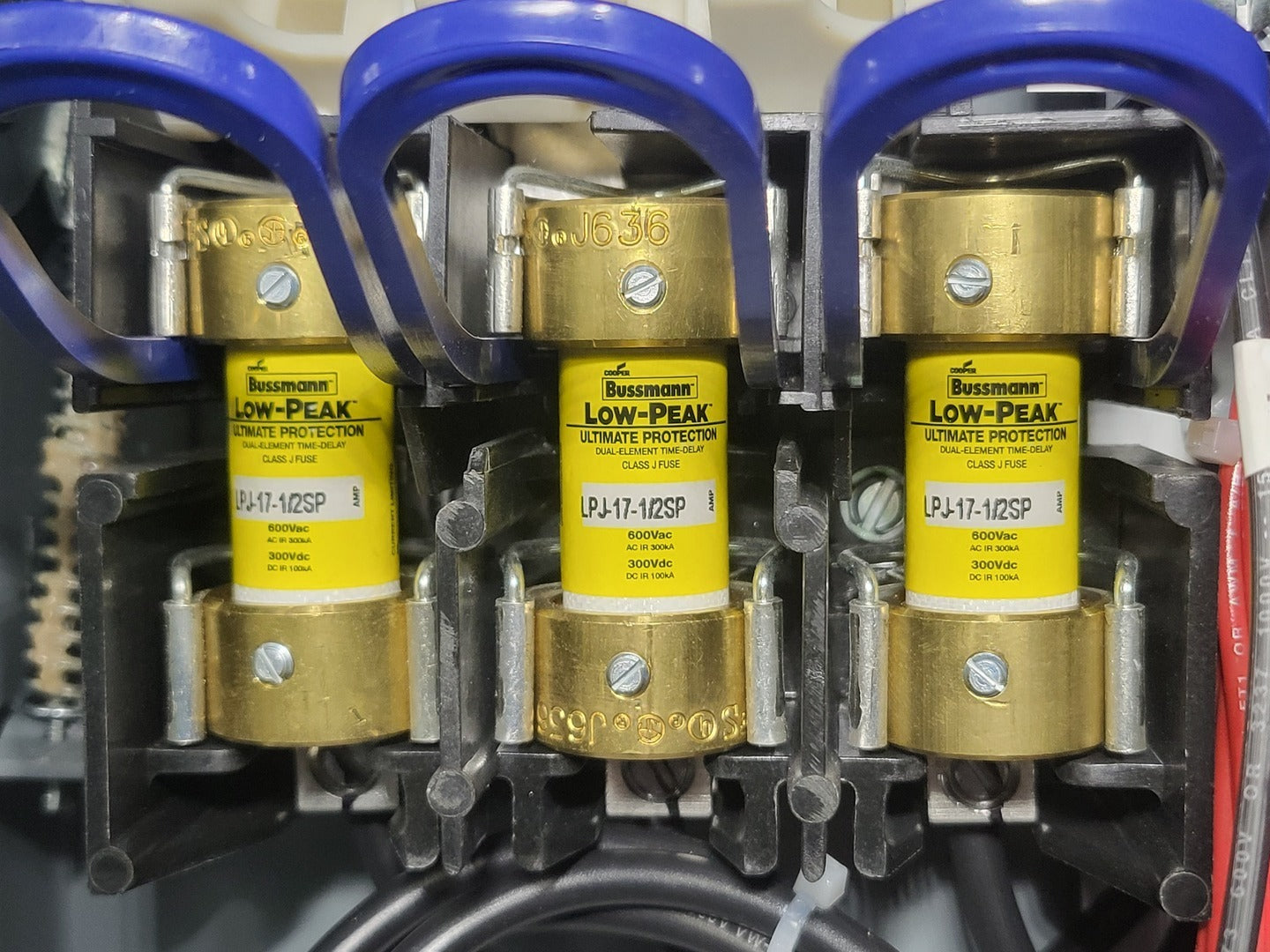

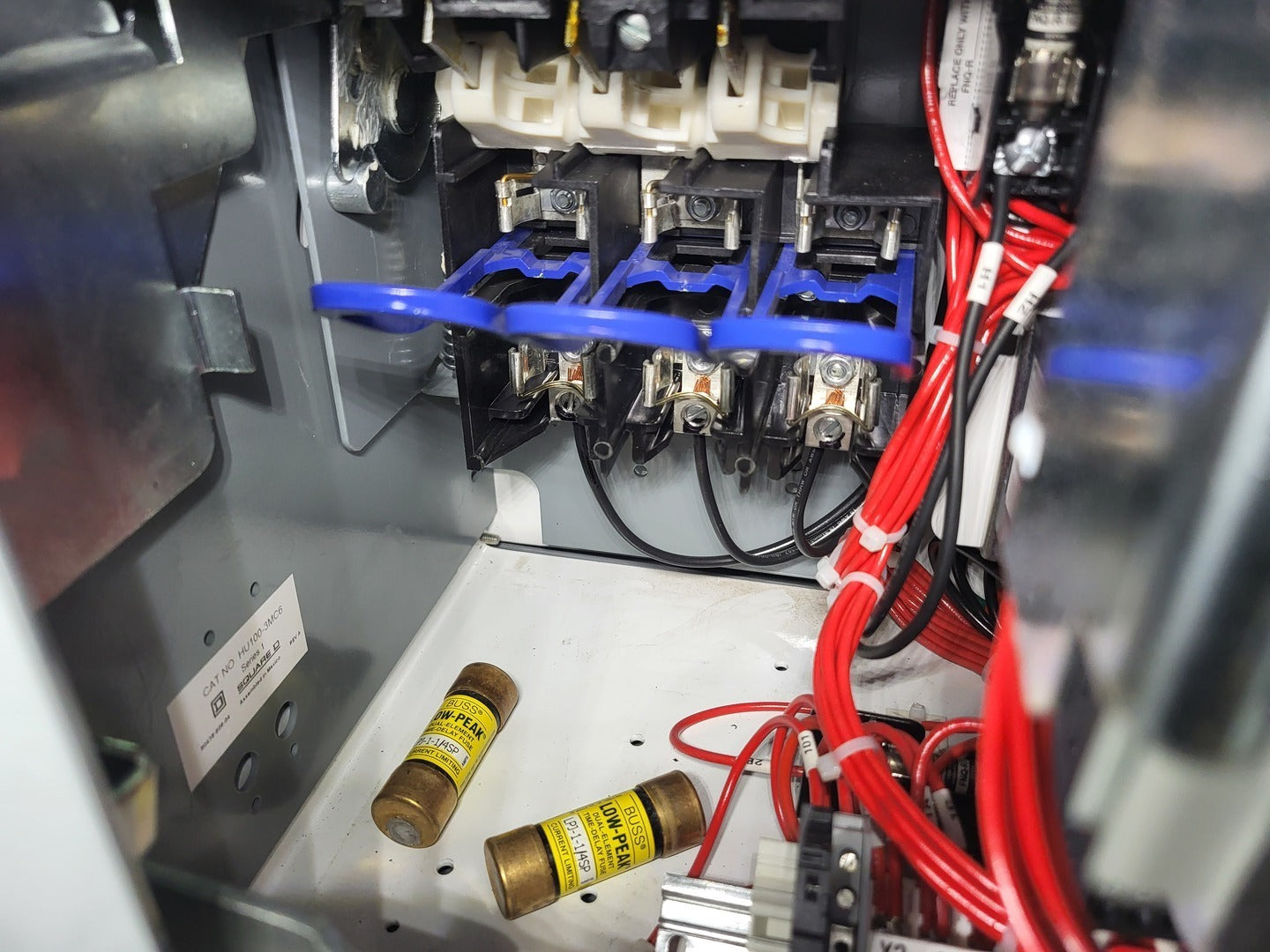

  5. 3 x Bussmann Low-Peak fuses LPJ-17-1/2SP
  6. 2 x Bussmann Limitron fuses FNQ-R-1/2

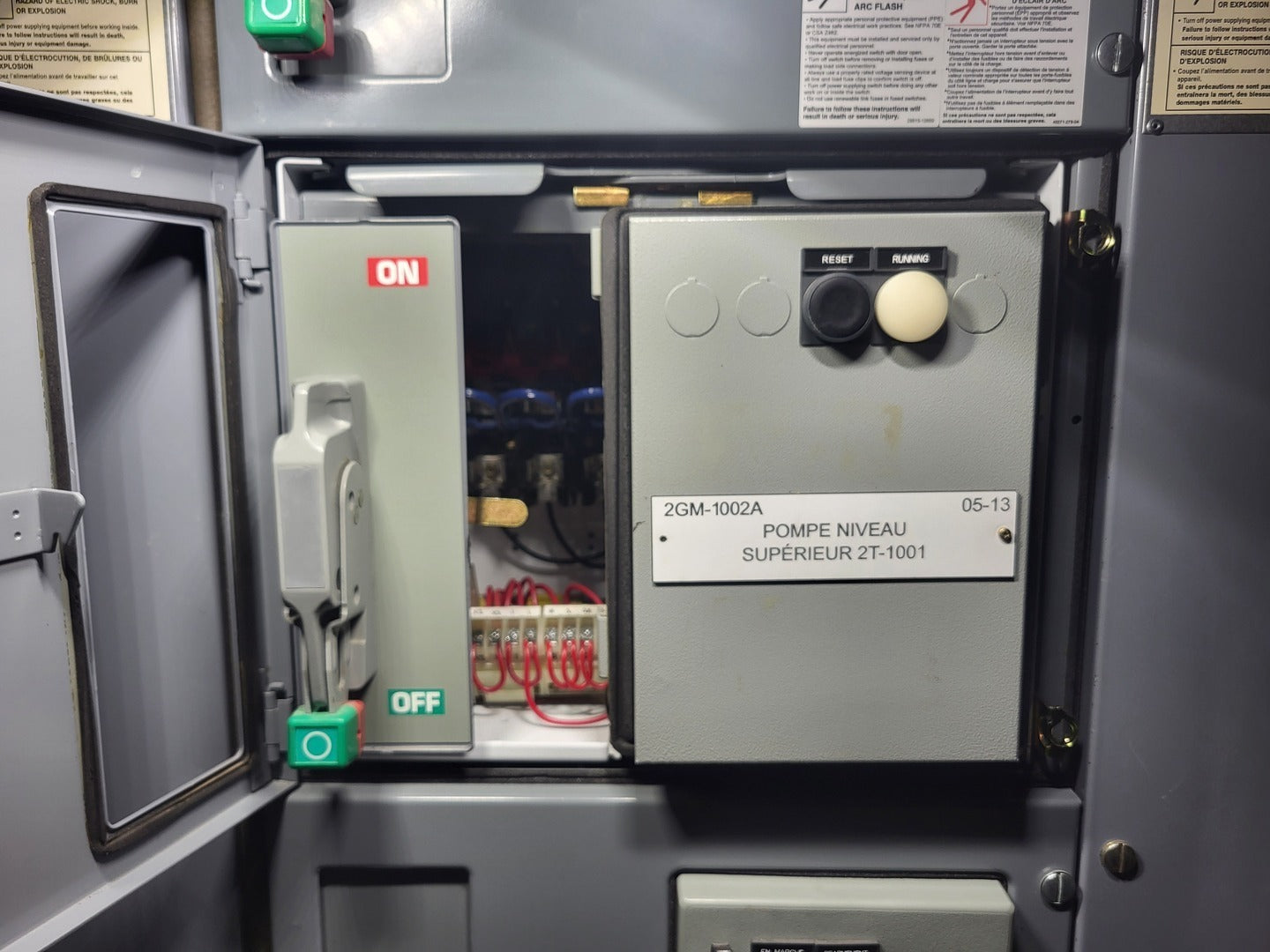

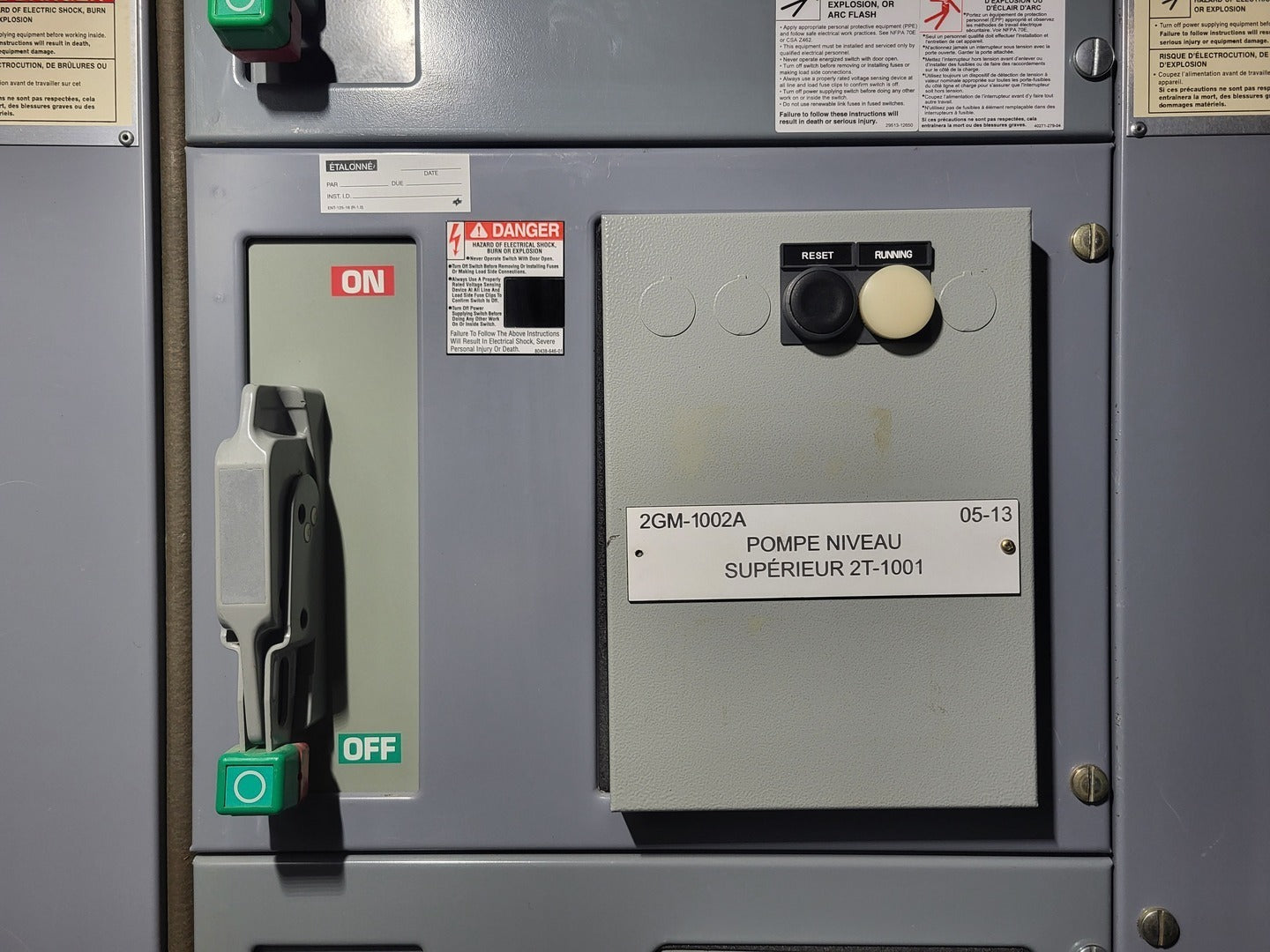

Bucket #3 2GM-1002A

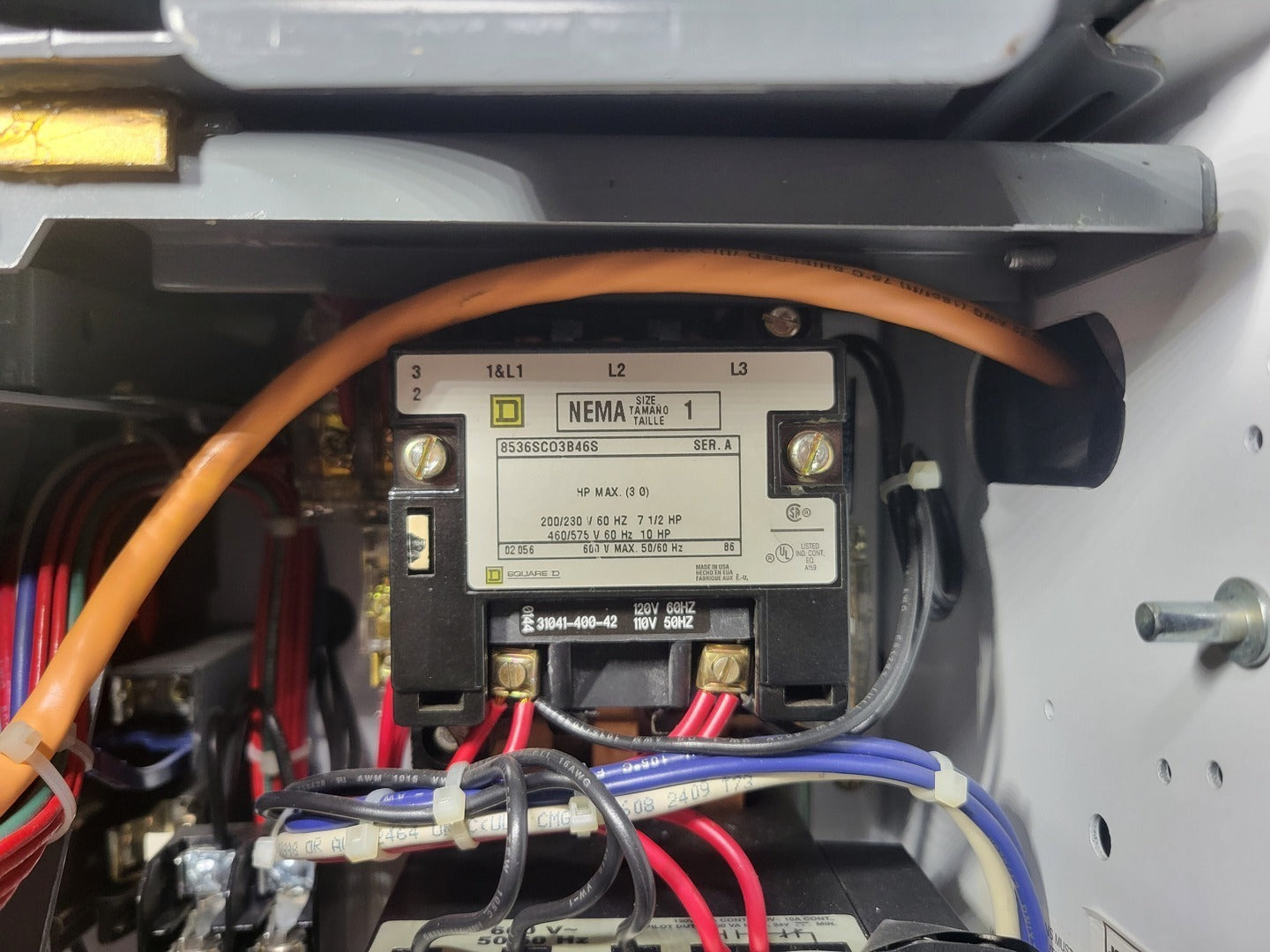

  1. Square D 8536SC03B46S, NEMA Size 1 contactor, 10 HP @ 460/575V, 600V max

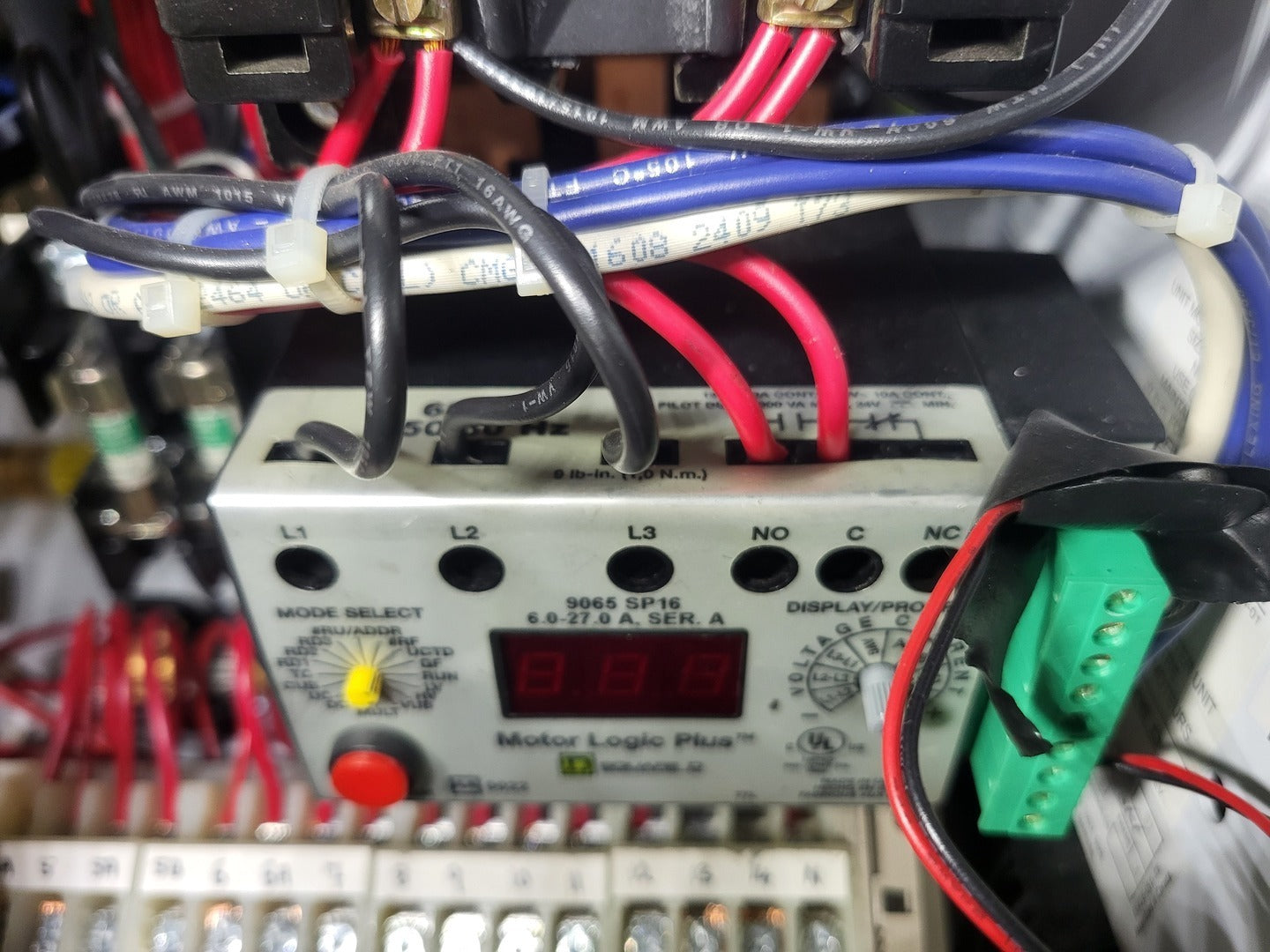

  2. Square D Motor Logic Plus 9065 SP16, motor protection relay, 6.0-27.0A range, 600VAC max

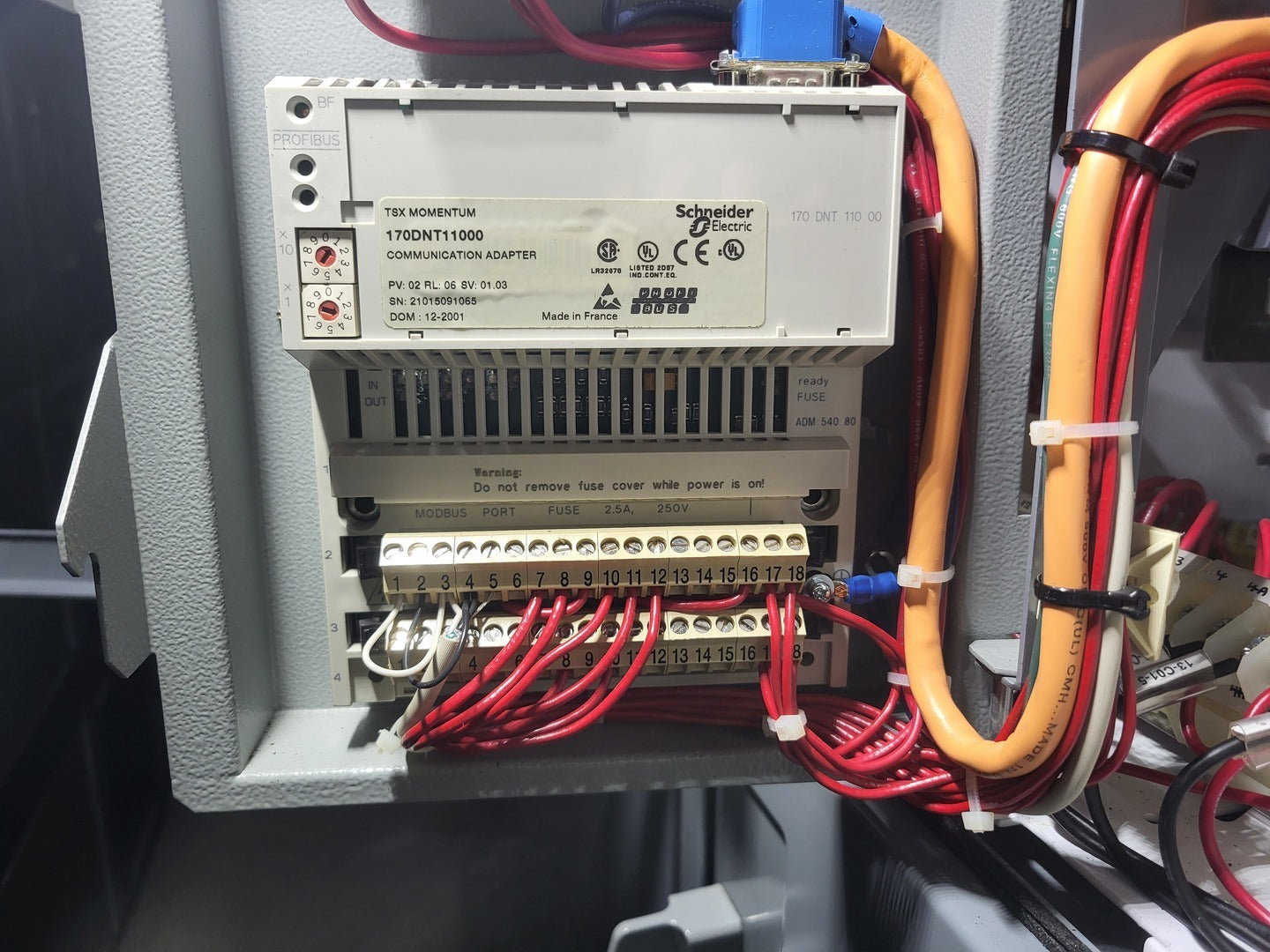

  3. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

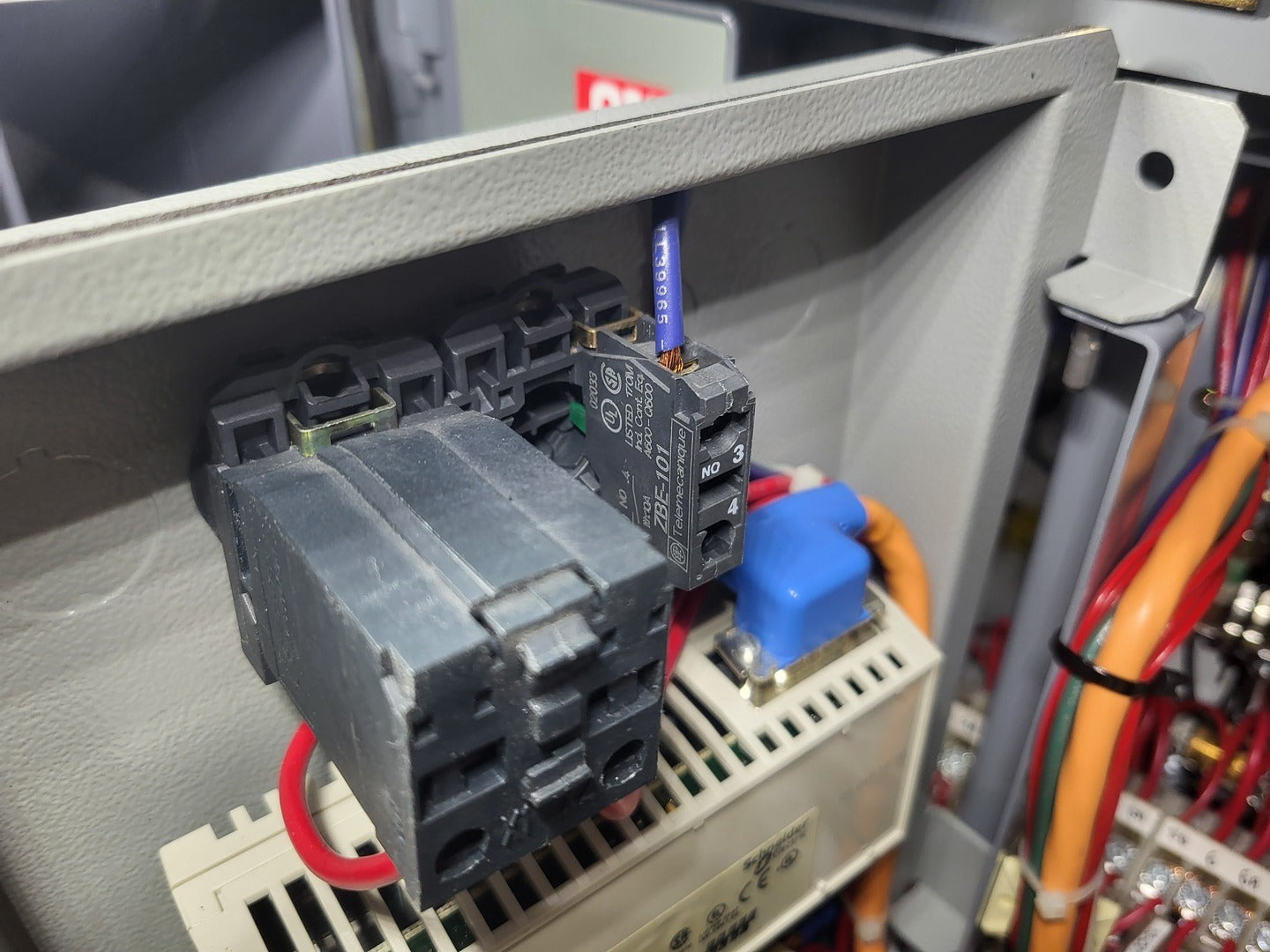

  4. Square D / Telemecanique TBE101 contact block, 1NO auxiliary contact

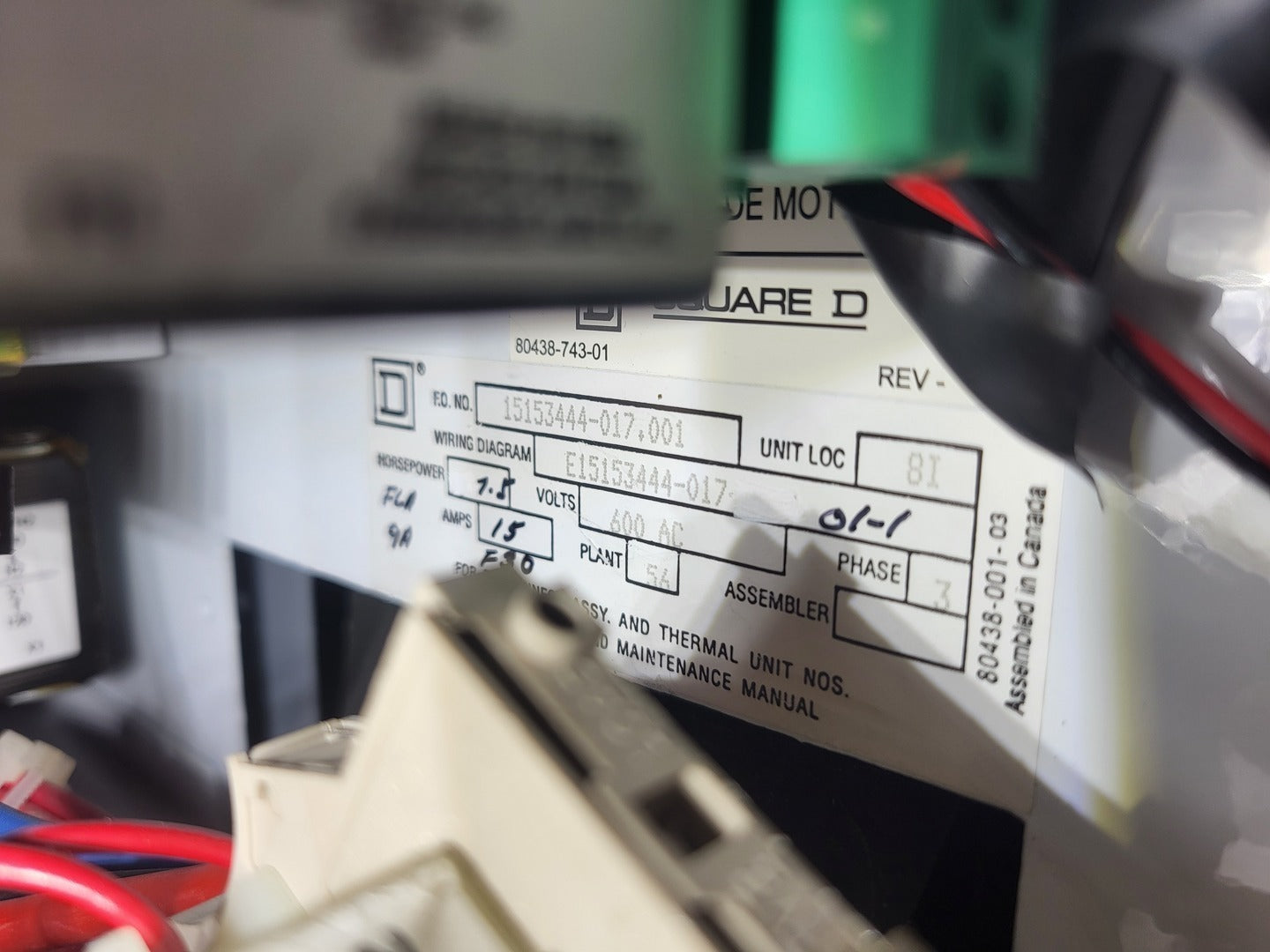

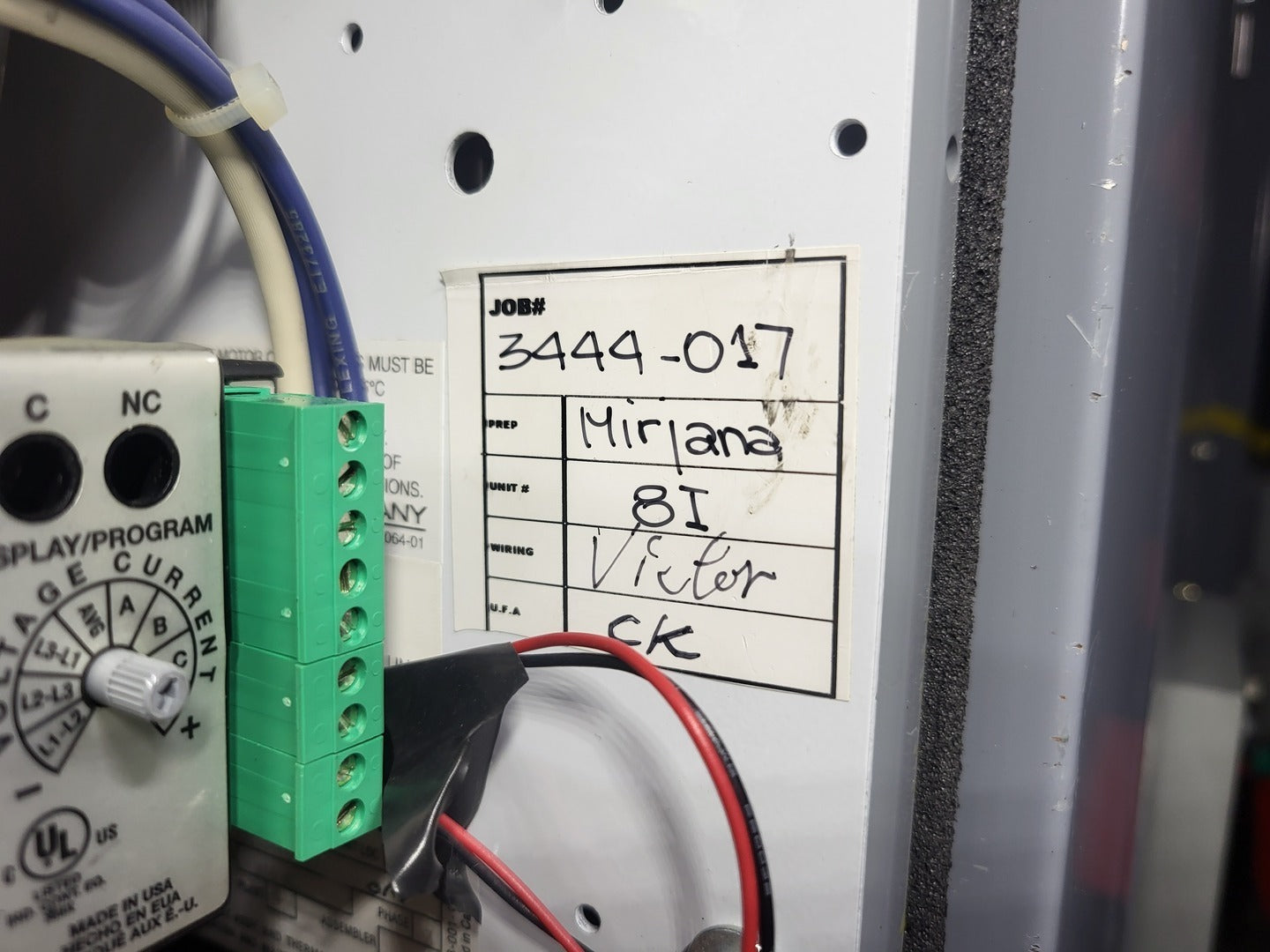

  5. Square D MCC bucket disconnect unit, F.O. 15153444-017.001, Unit Loc 8I, 600VAC, 3-phase

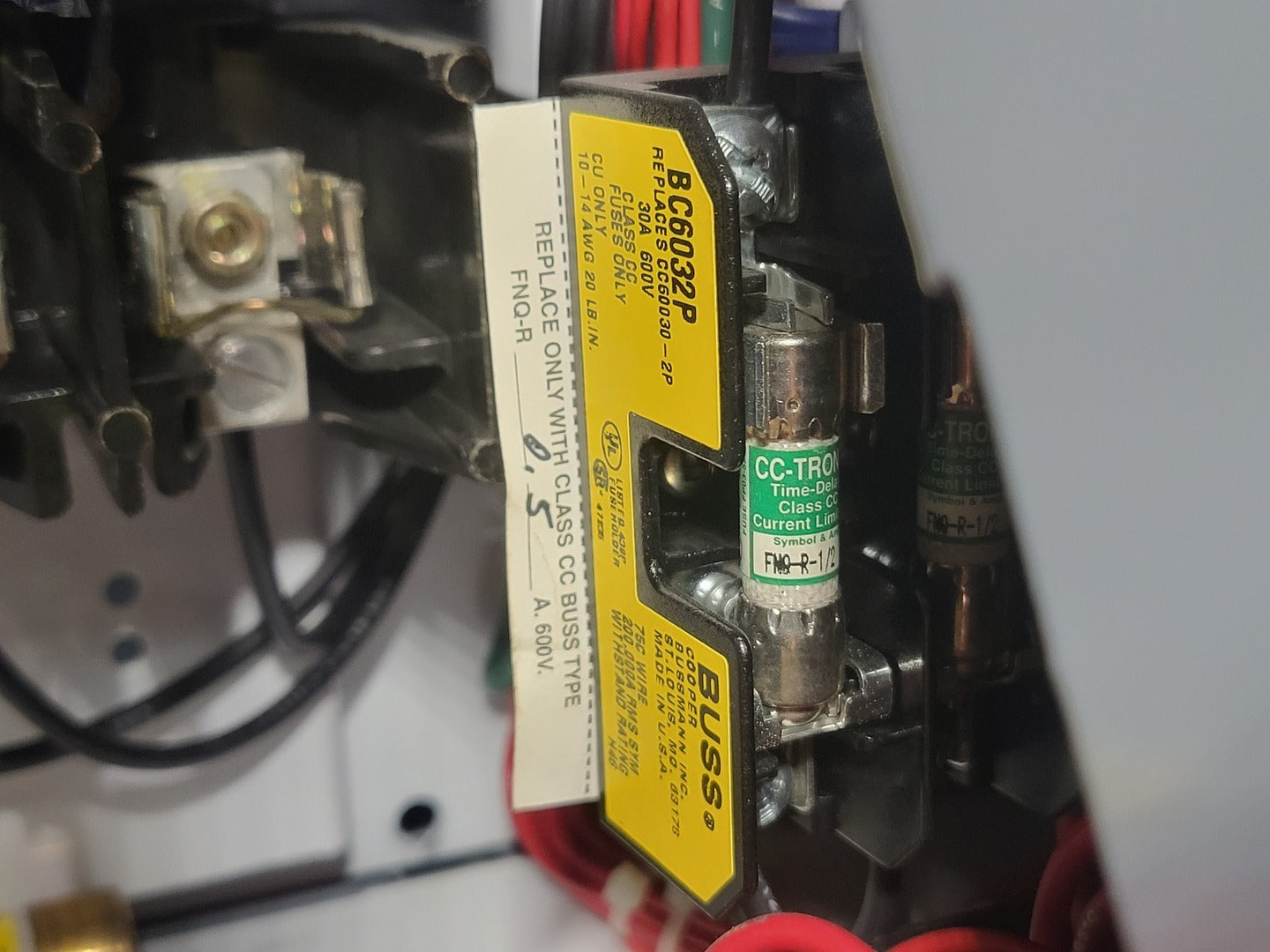

  6. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
  7. 3 x Bussmann Low-Peak fuses

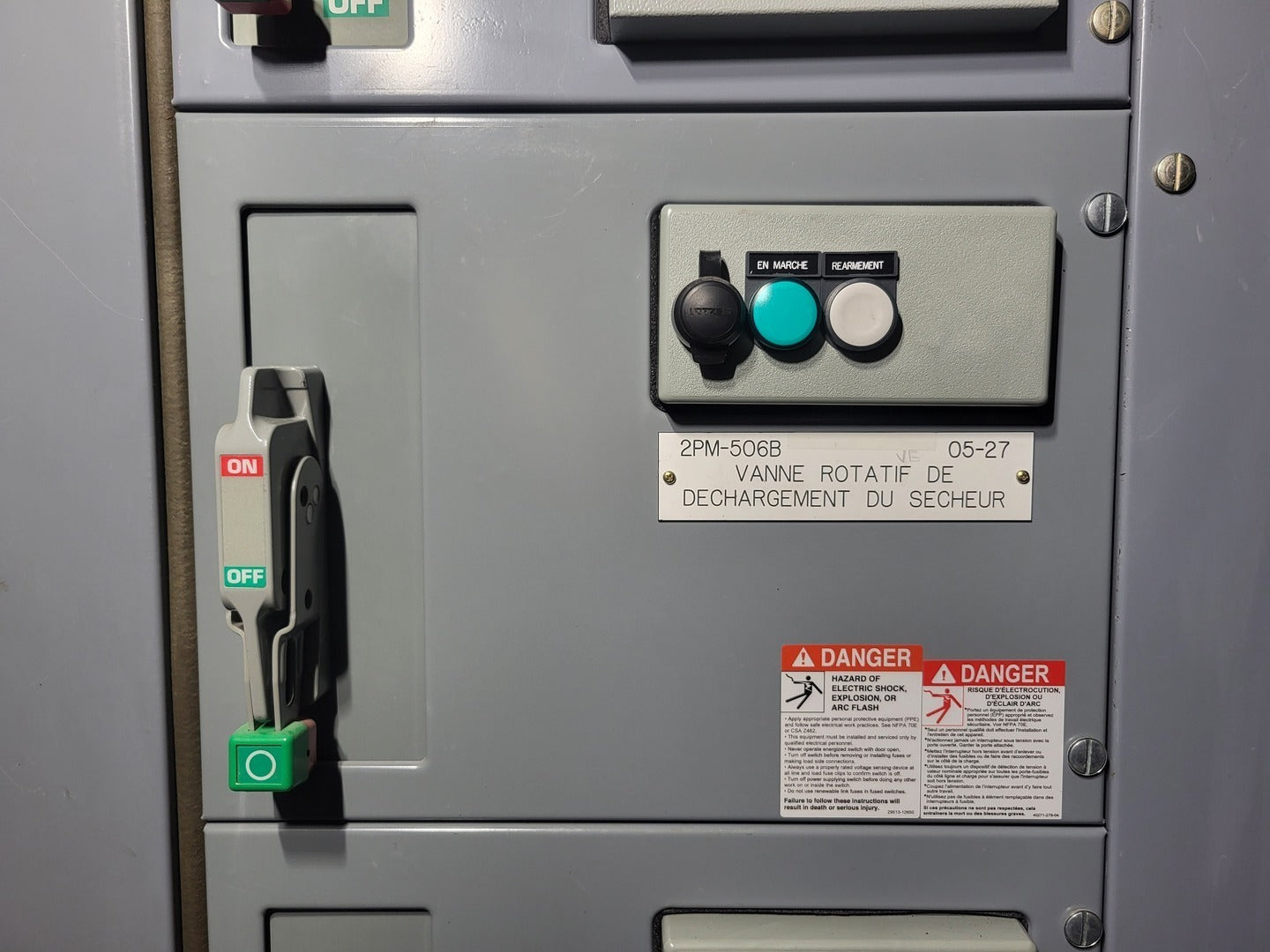

Bucket #4 2PM-506B

  1. Square D 8536SDO1H633S, NEMA Size 2 contactor, 25 HP @ 460/575V, 600V max
  2. Schneider Electric TeSys T LTMR100PFM, motor management controller / PROFIBUS module
  3. Schneider Electric LTMEV40FM, motor management controller expansion module
  4. Square D MCC bucket disconnect unit
  5. 2 x Bussmann Limitron fuses FNQ-R-1/2
  6. 3 x Bussmann Low-Peak fuses

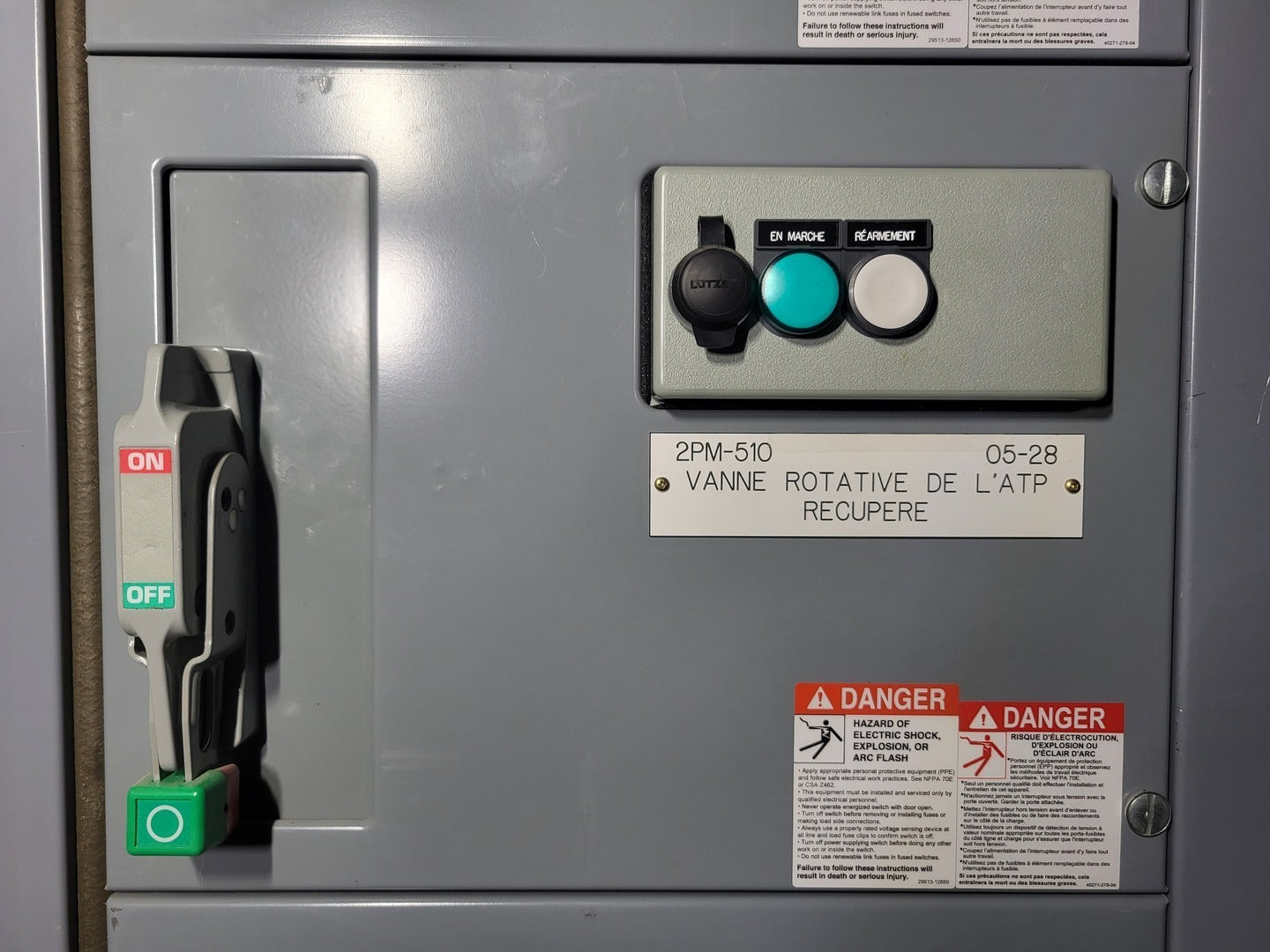

Bucket #5 2PM-510

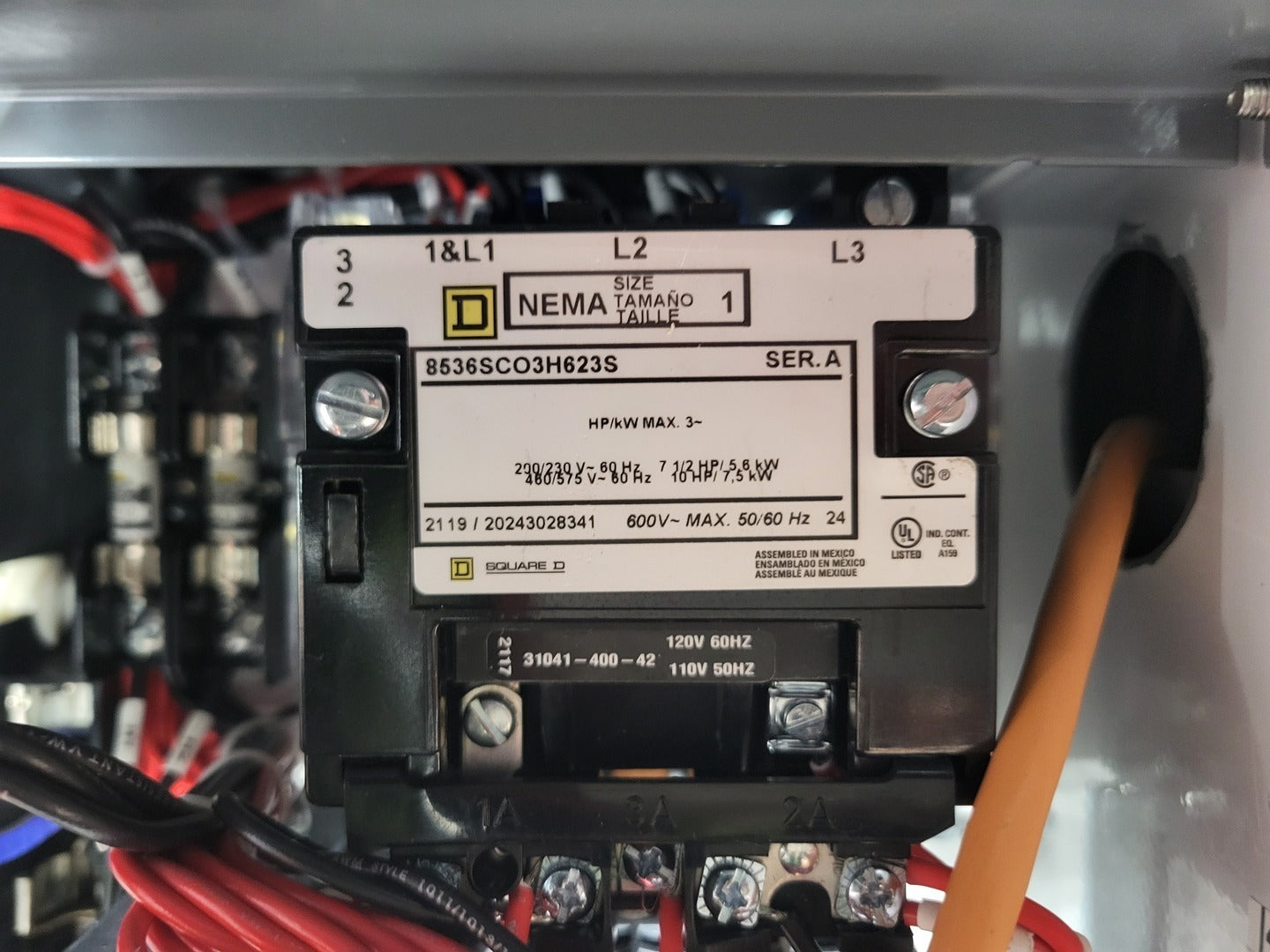

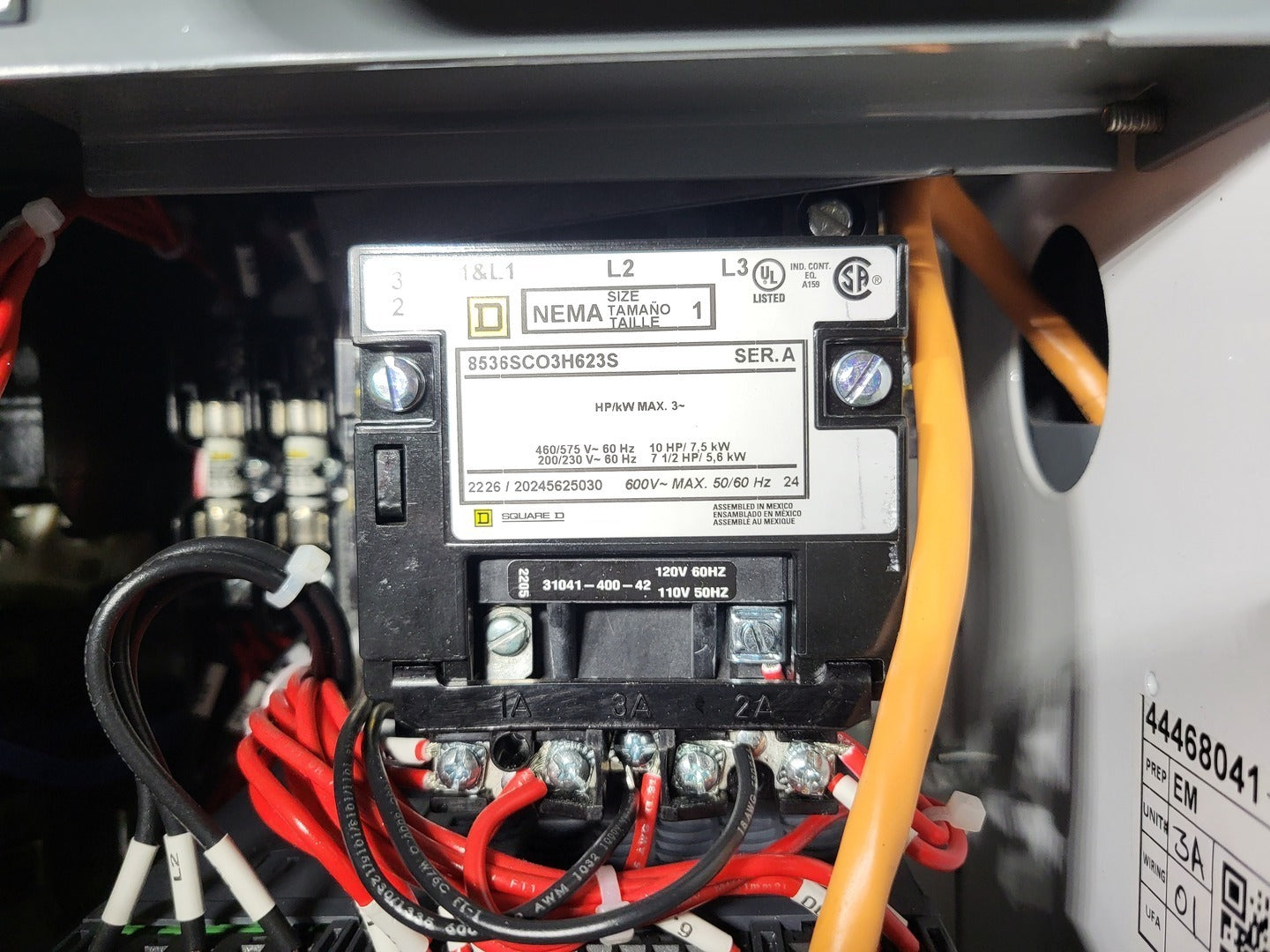

  1. Square D 8536SCO3H623S, NEMA Size 1 contactor, 10 HP @ 460/575V, 600V max

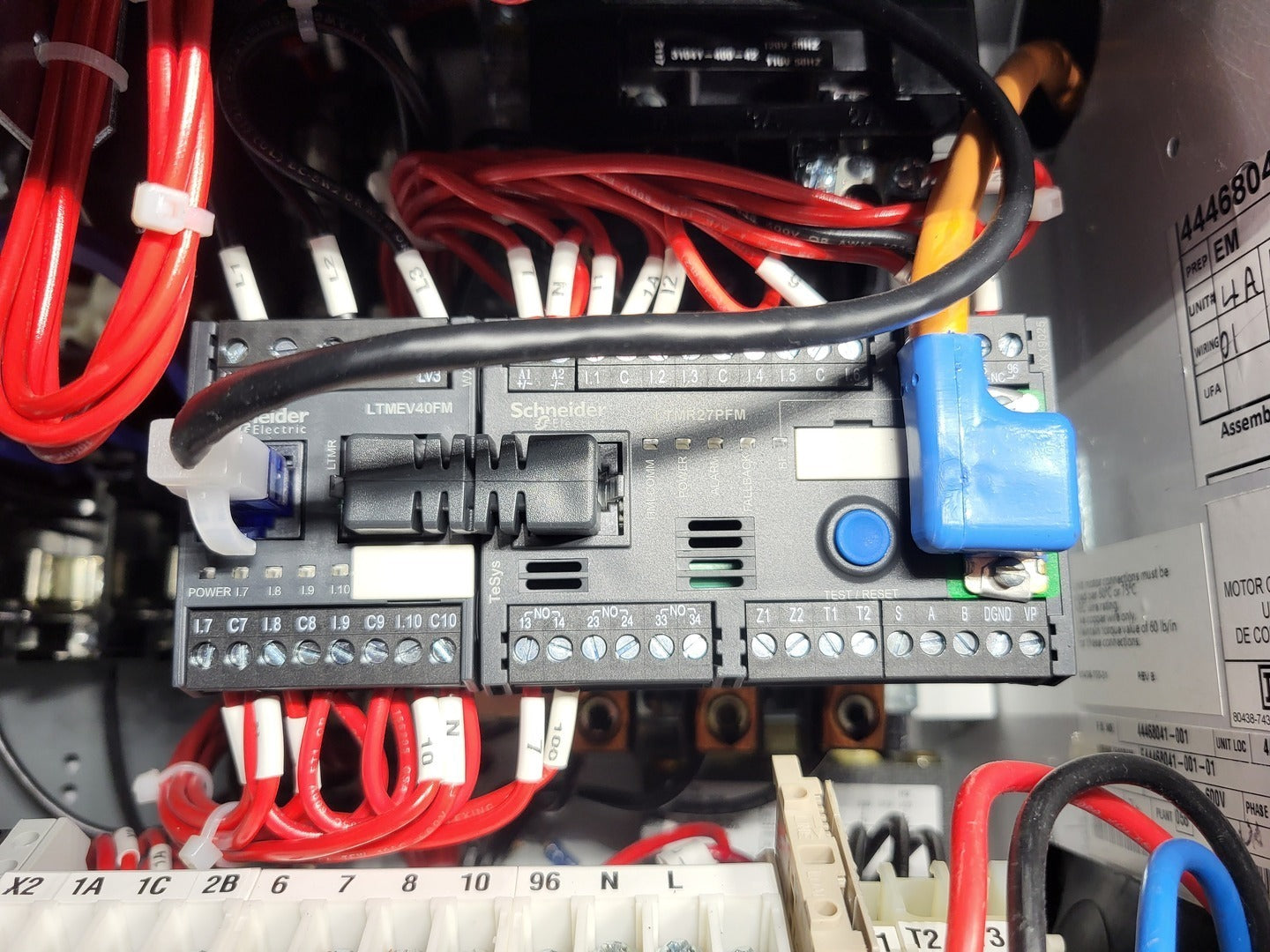

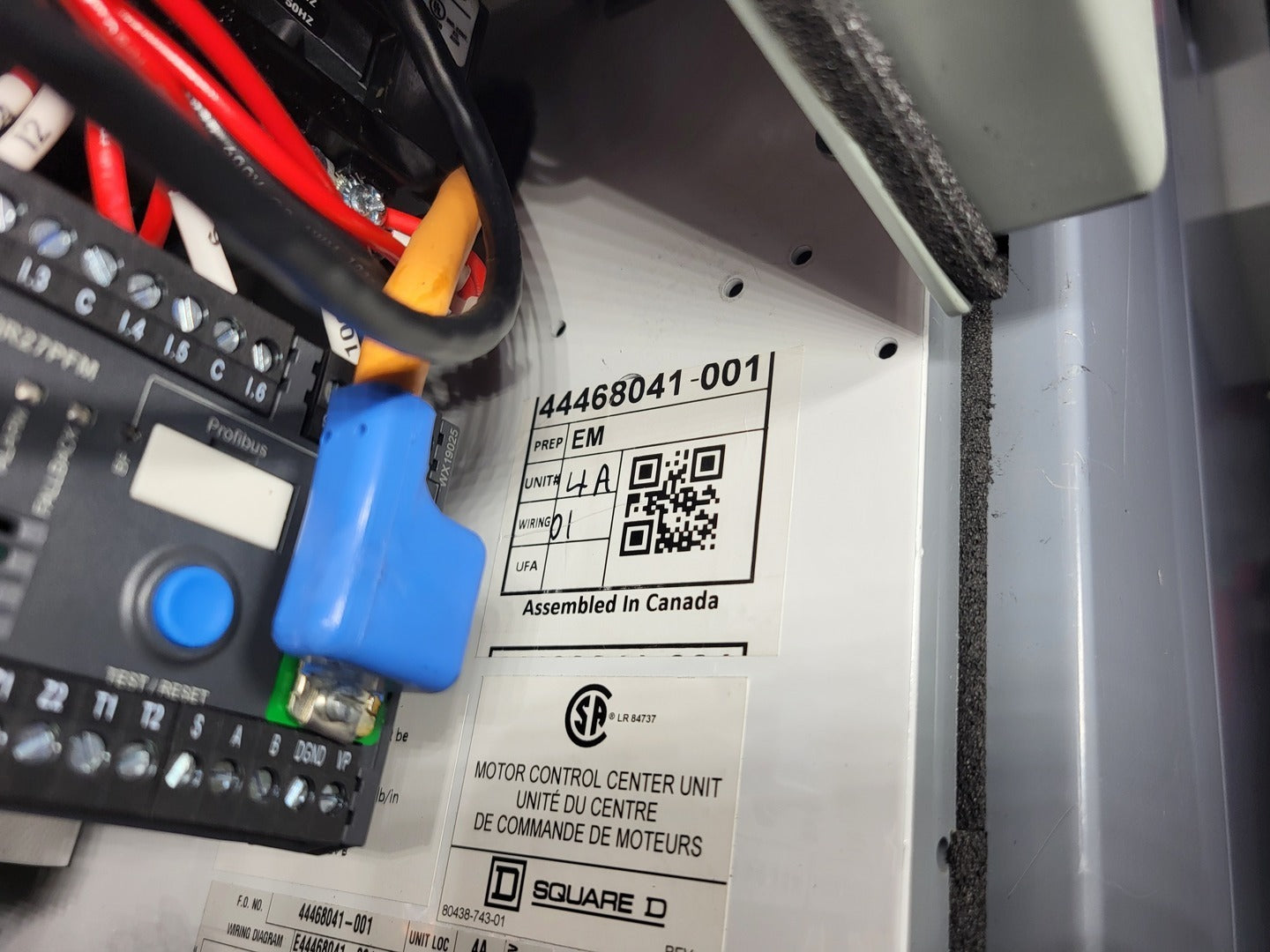

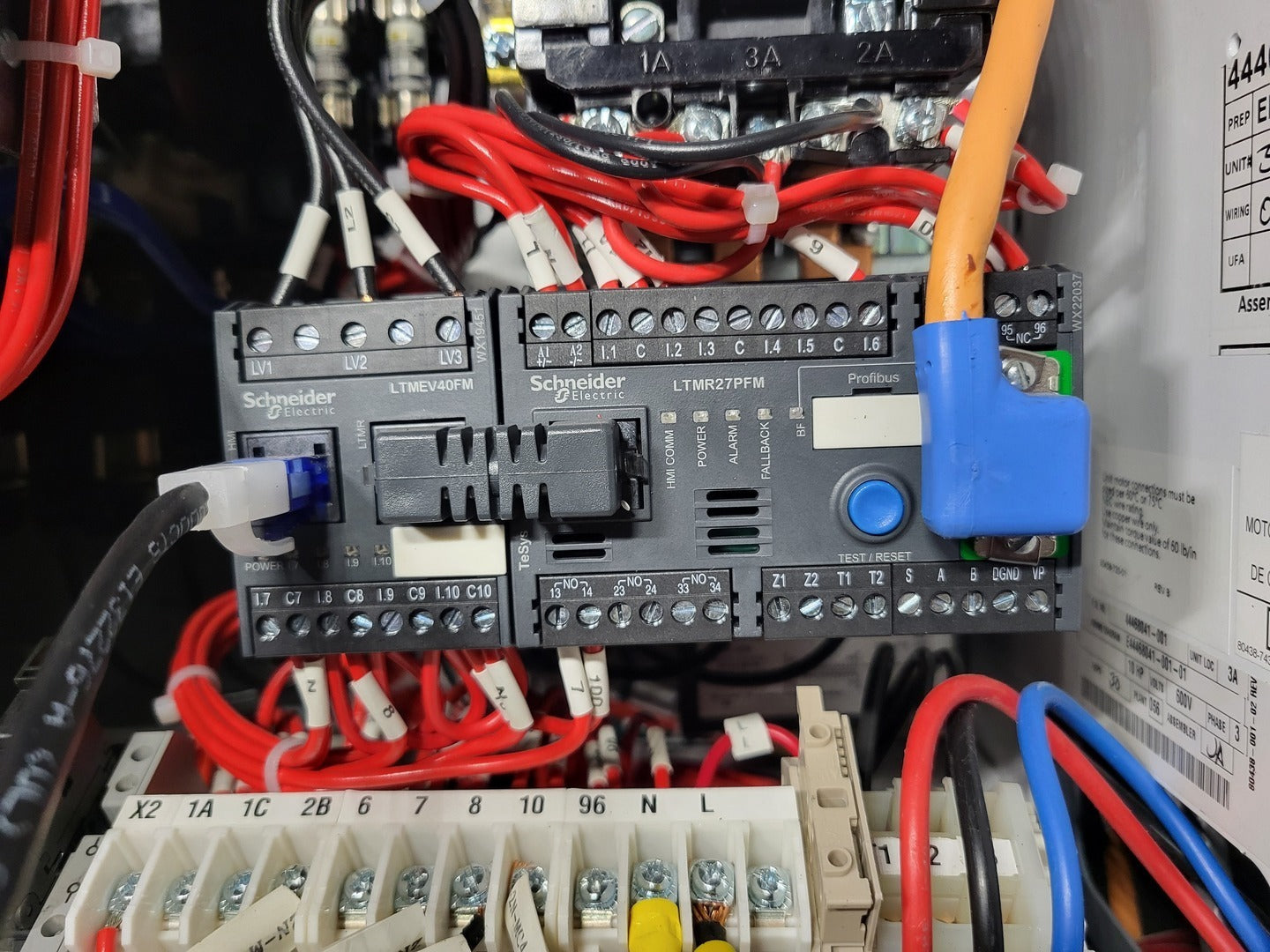

  2. Schneider Electric TeSys T LTMR27PFM, motor management controller / PROFIBUS module
  3. Schneider Electric LTMEV40FM, motor management controller expansion module
  4. Square D MCC bucket disconnect unit
  5. 2 x Bussmann Limitron fuses FNQ-R-1/2
  6. 3 x Bussmann Low-Peak fuses

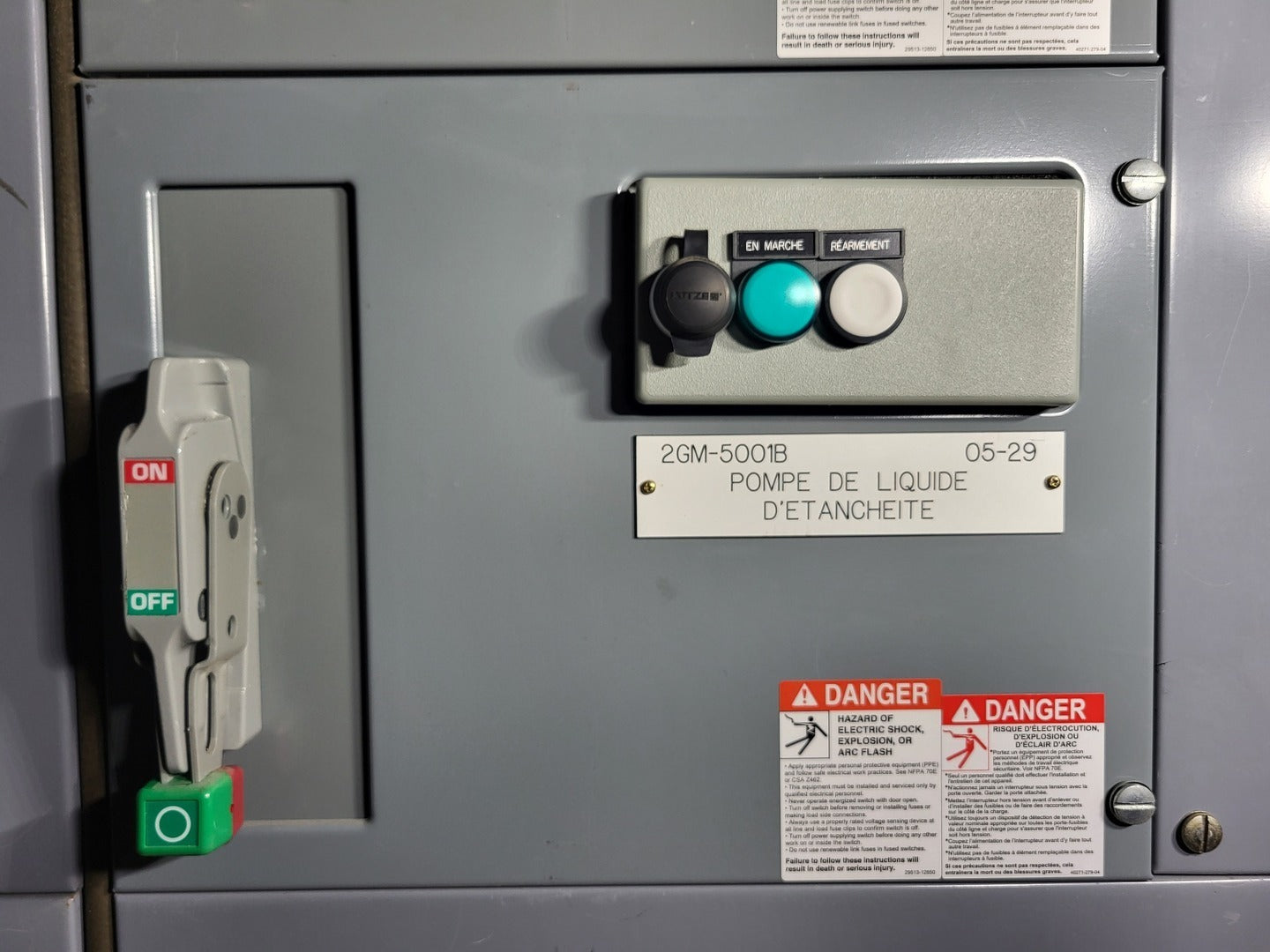

Bucket #6 2GM-5001B

  1. Square D 8536SCO3H623S, NEMA Size 1 contactor, 10 HP @ 460/575V, 600V max
  2. Schneider Electric TeSys T LTMR27PFM, motor management controller / PROFIBUS module
  3. Schneider Electric LTMEV40FM, motor management controller expansion module
  4. Square D MCC bucket disconnect unit
  5. 2 x Bussmann Limitron fuses FNQ-R-1/2
  6. 3 x Bussmann Low-Peak fuses LPJ-17-1/2SP
