SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 150775
Price:
$6,900 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

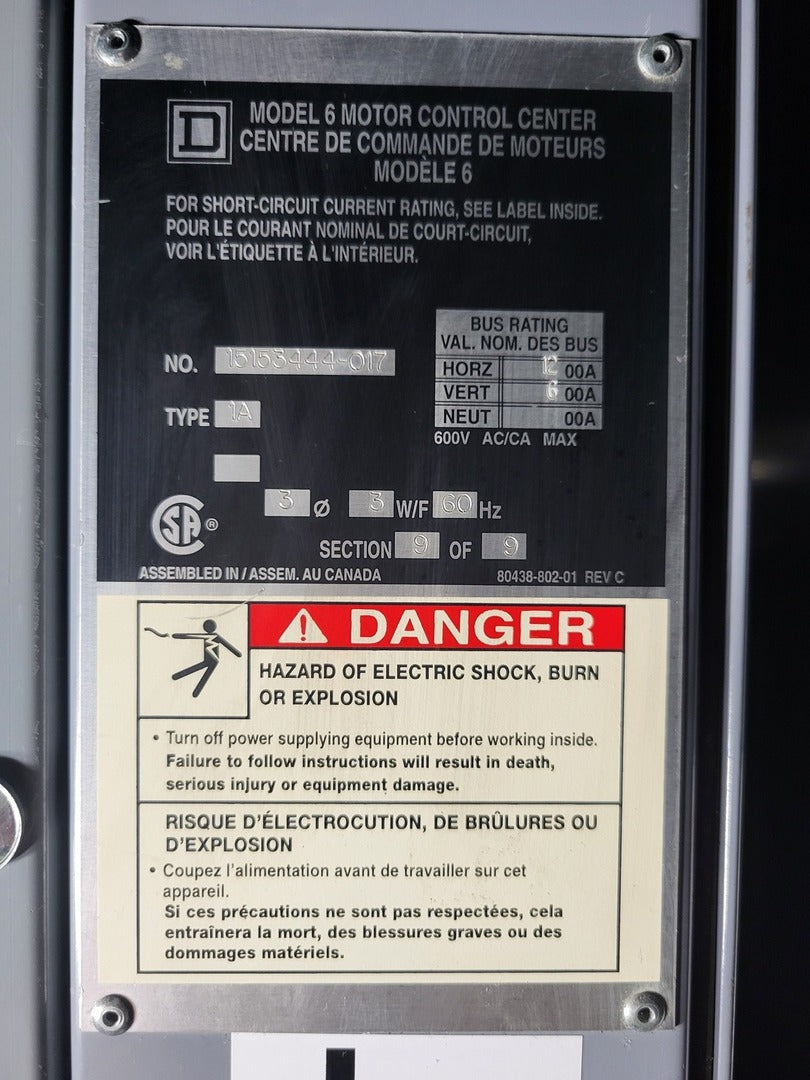

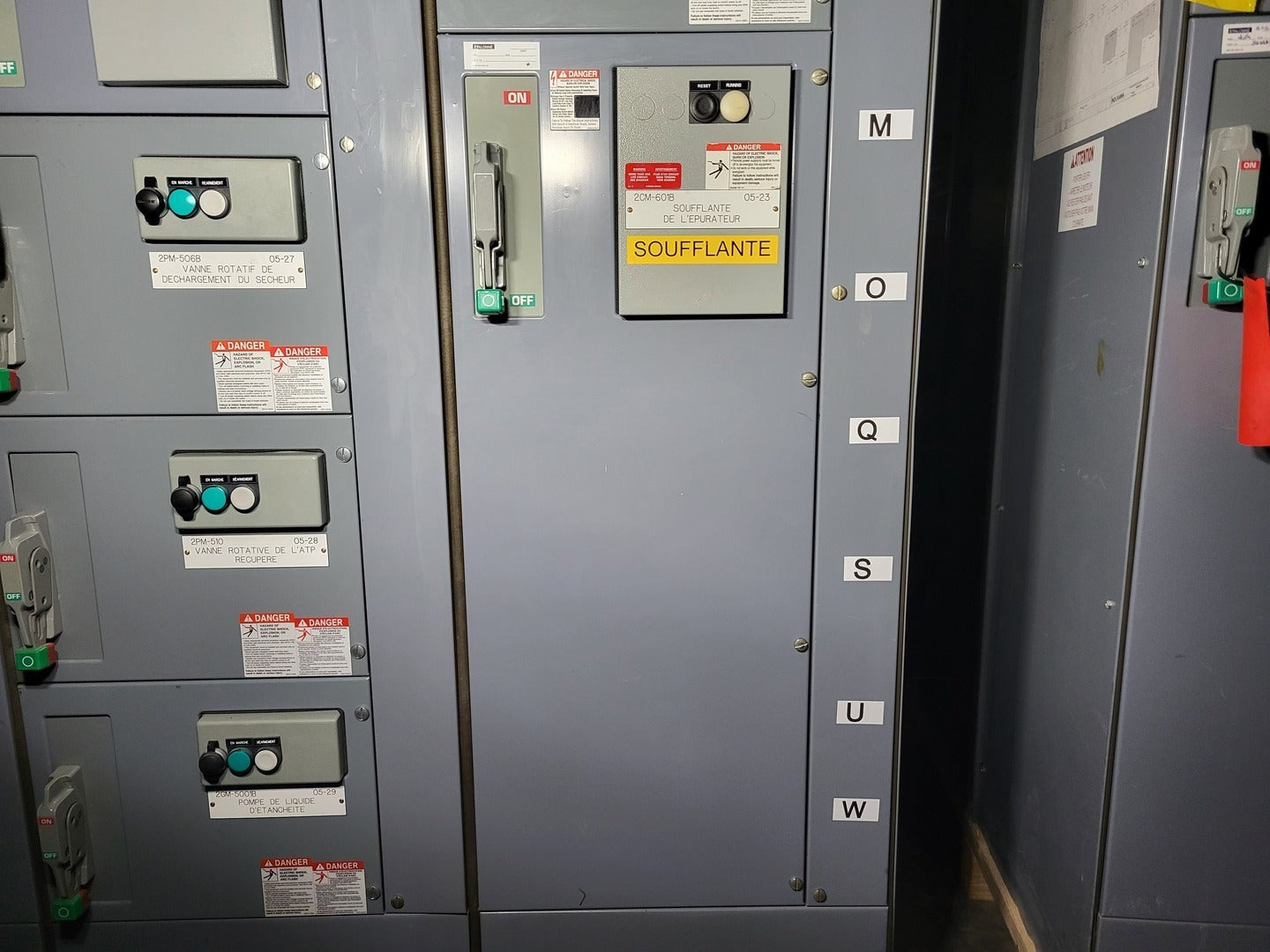

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Electrical
Max. Voltage 600
Other Specifications

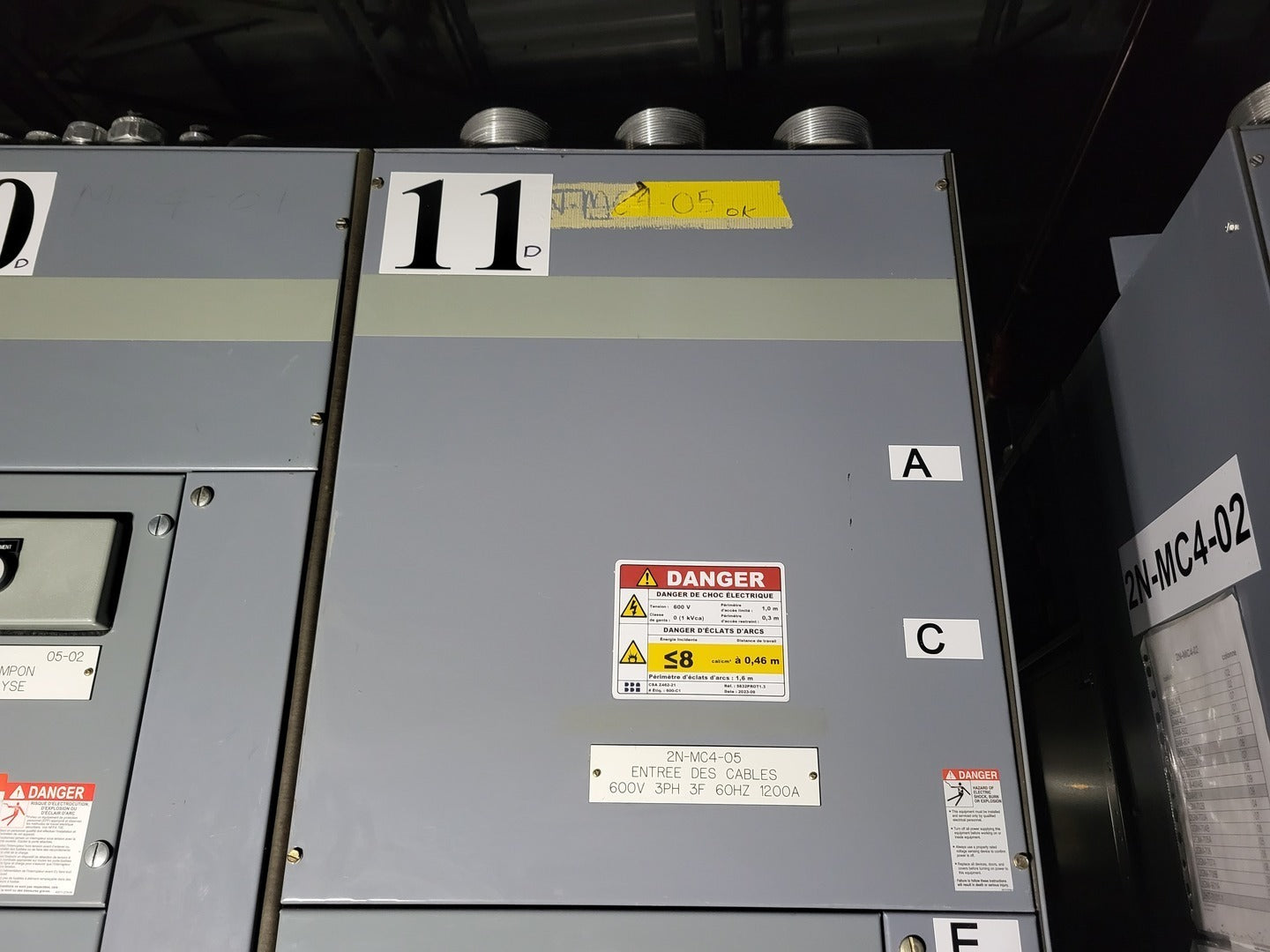

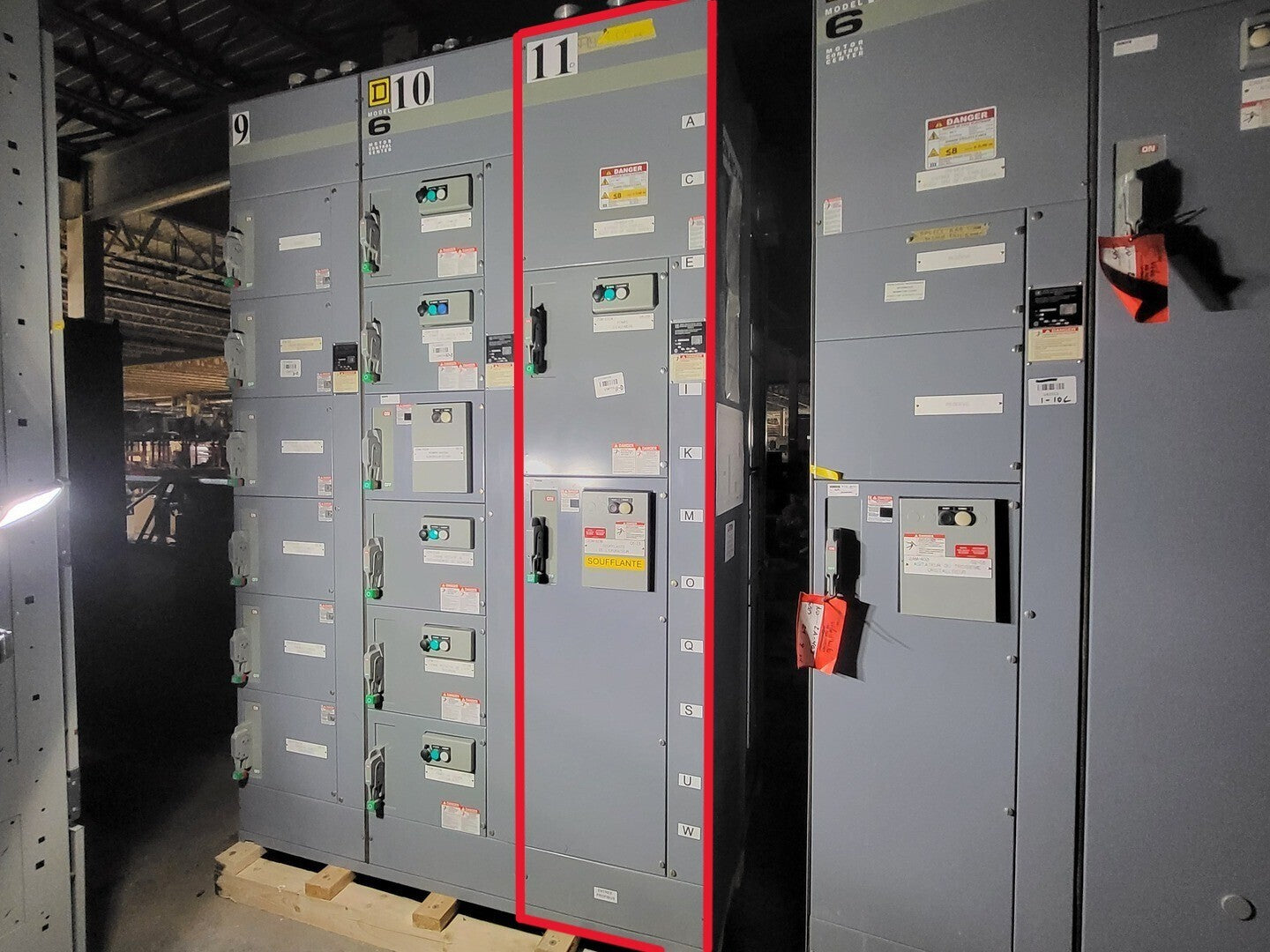

Note: Section 11 only

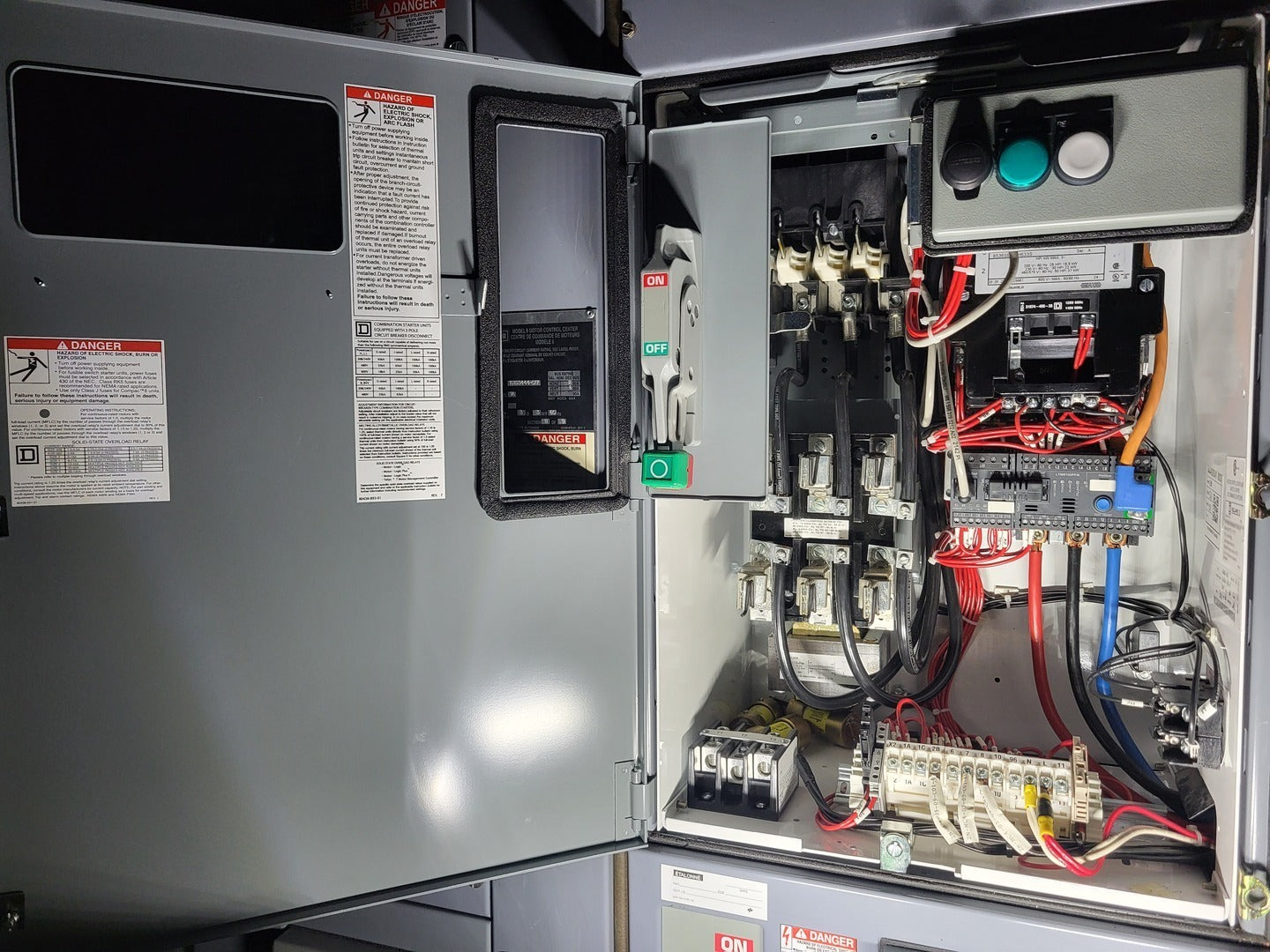

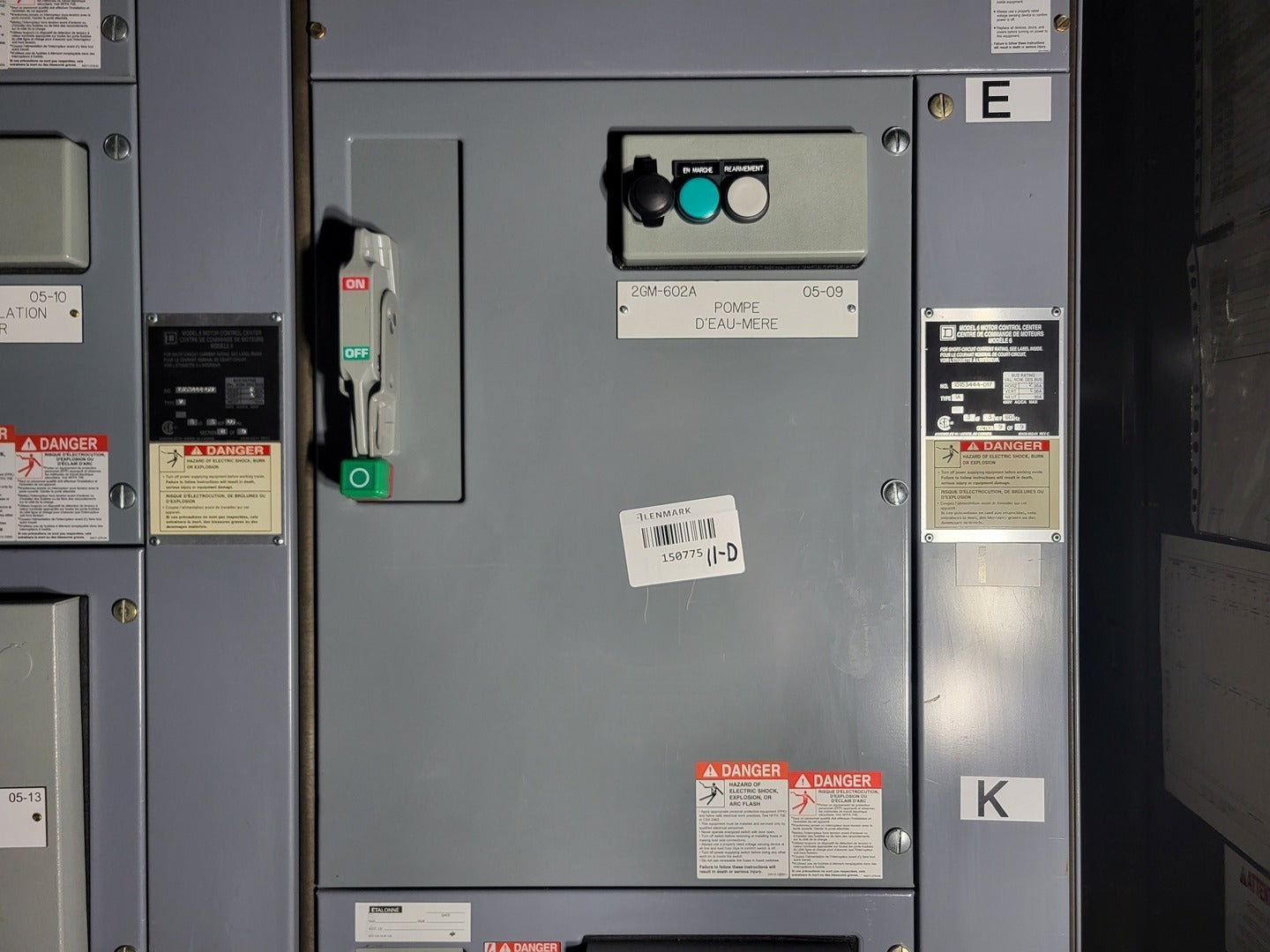

Bucket #1 2GM-602A

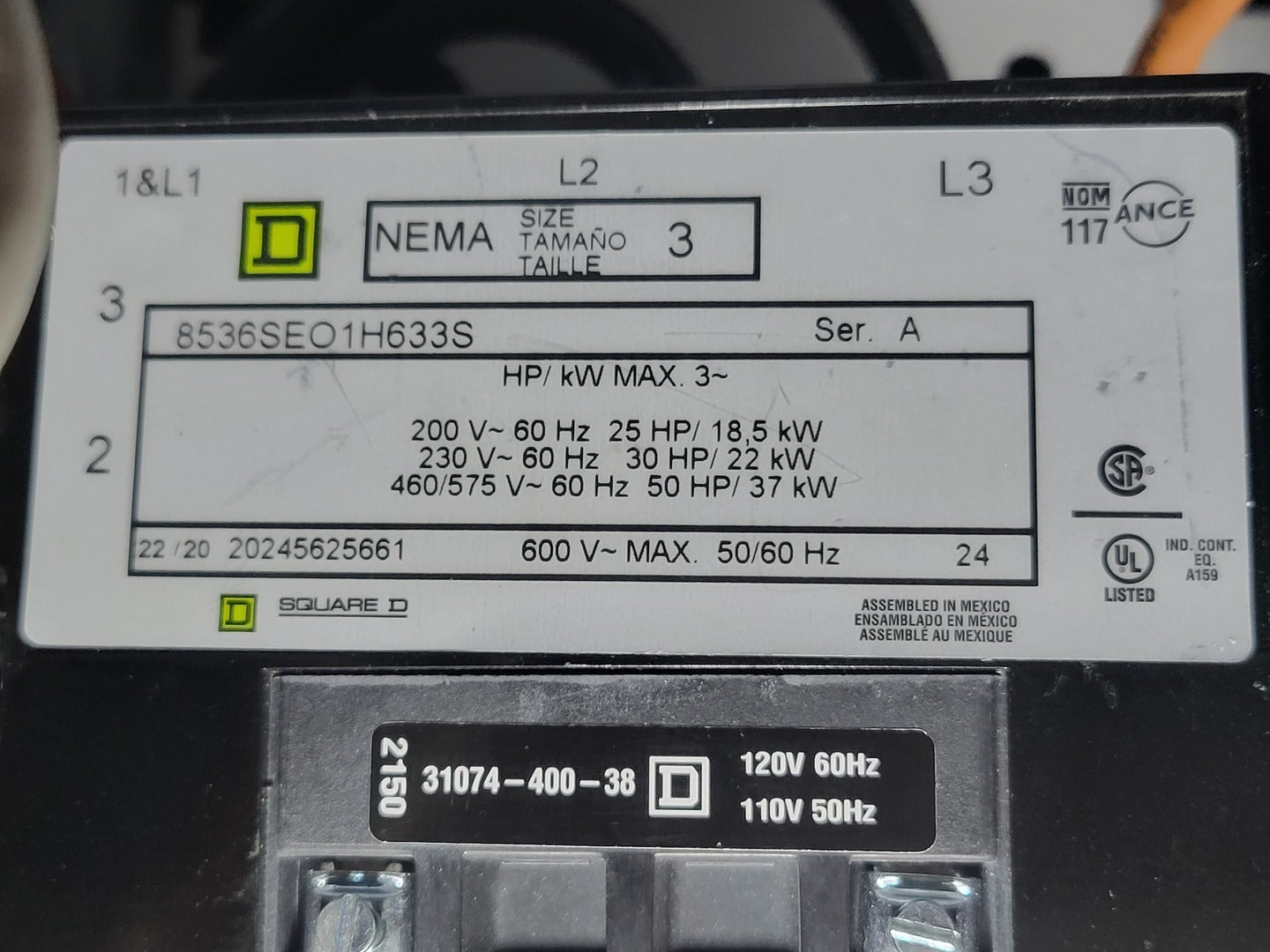

  1. Square D 8536SEO1H633S, NEMA Size 3 contactor, 50 HP @ 460/575V, 120V 60Hz coil

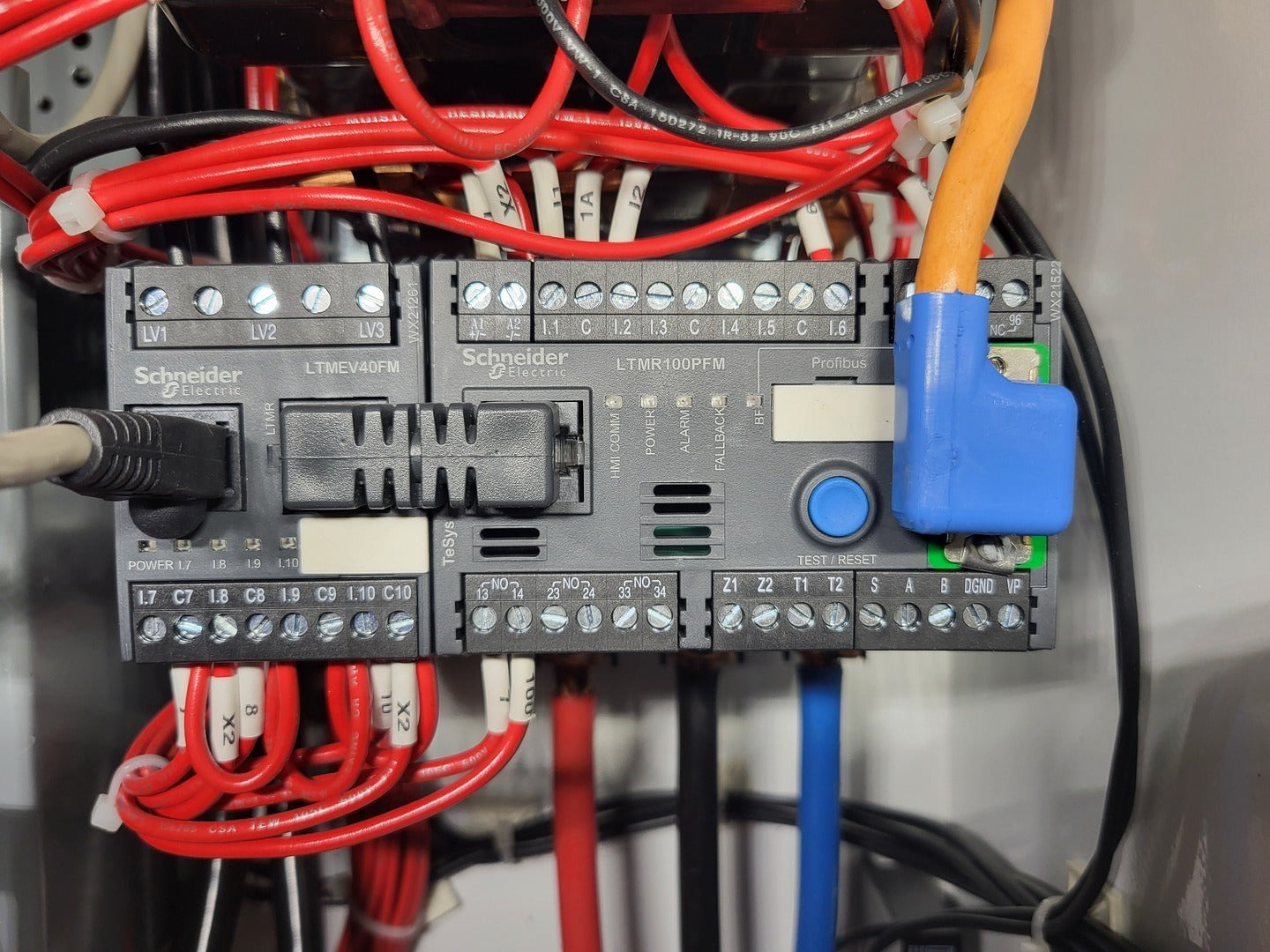

  2. Schneider Electric TeSys T LTMR100PFM motor management controller, PROFIBUS
  3. Schneider Electric LTMEV40FM motor management controller expansion module

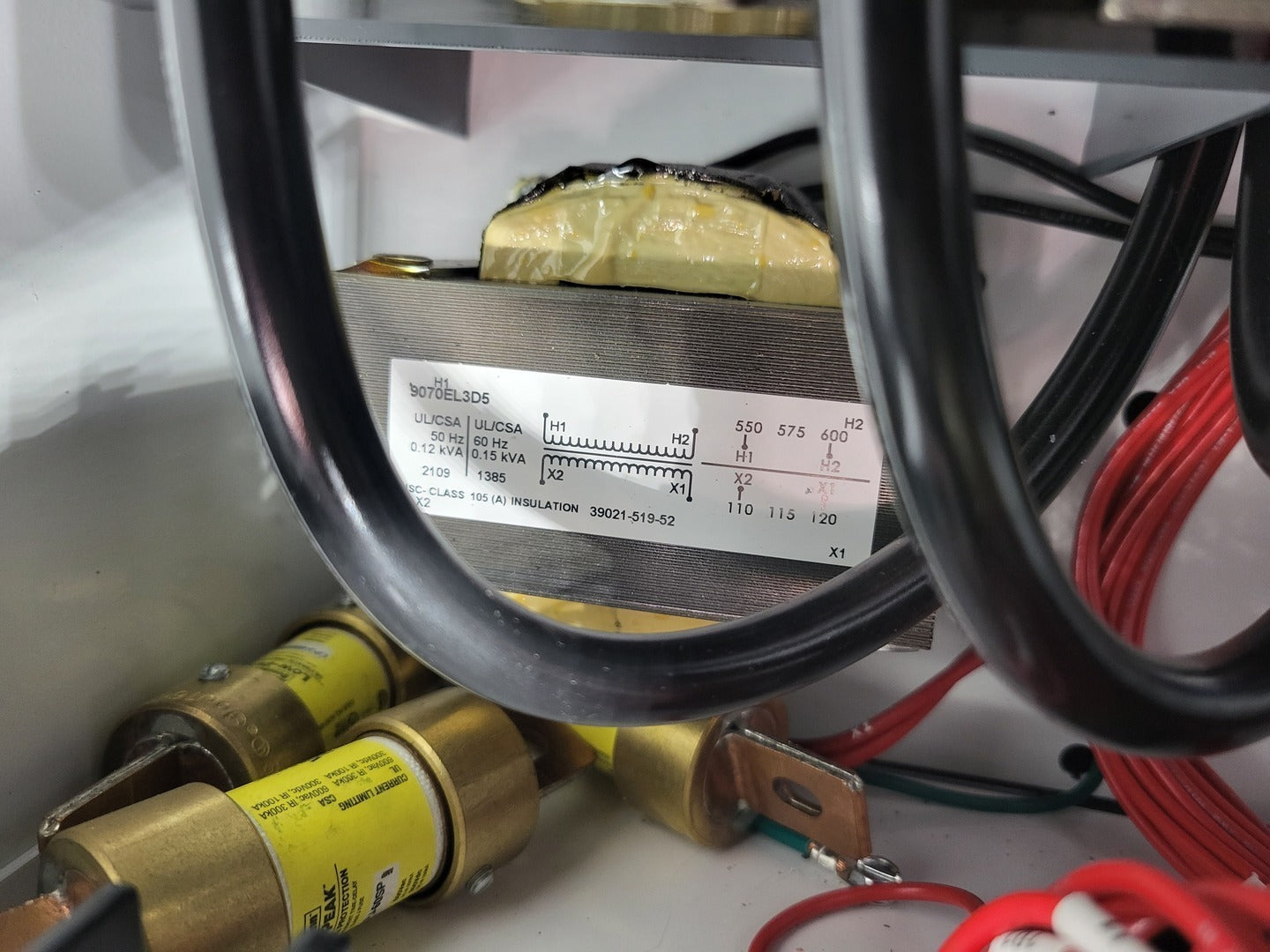

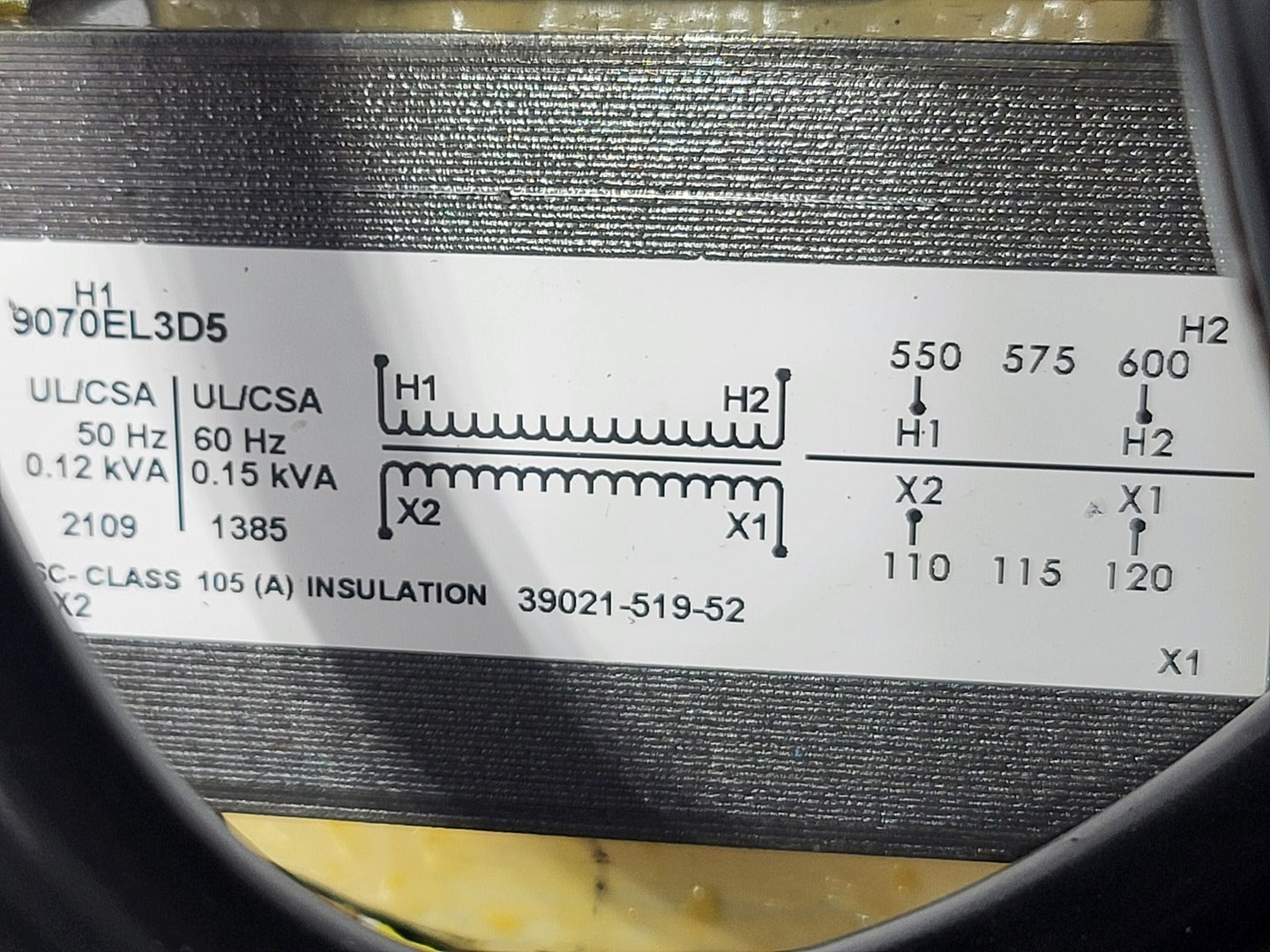

  4. Square D 9070EL3D5 control transformer, 0.12 kVA @ 50Hz / 0.15 kVA @ 60Hz, 550/575/600V primary, 110/115/120V secondary

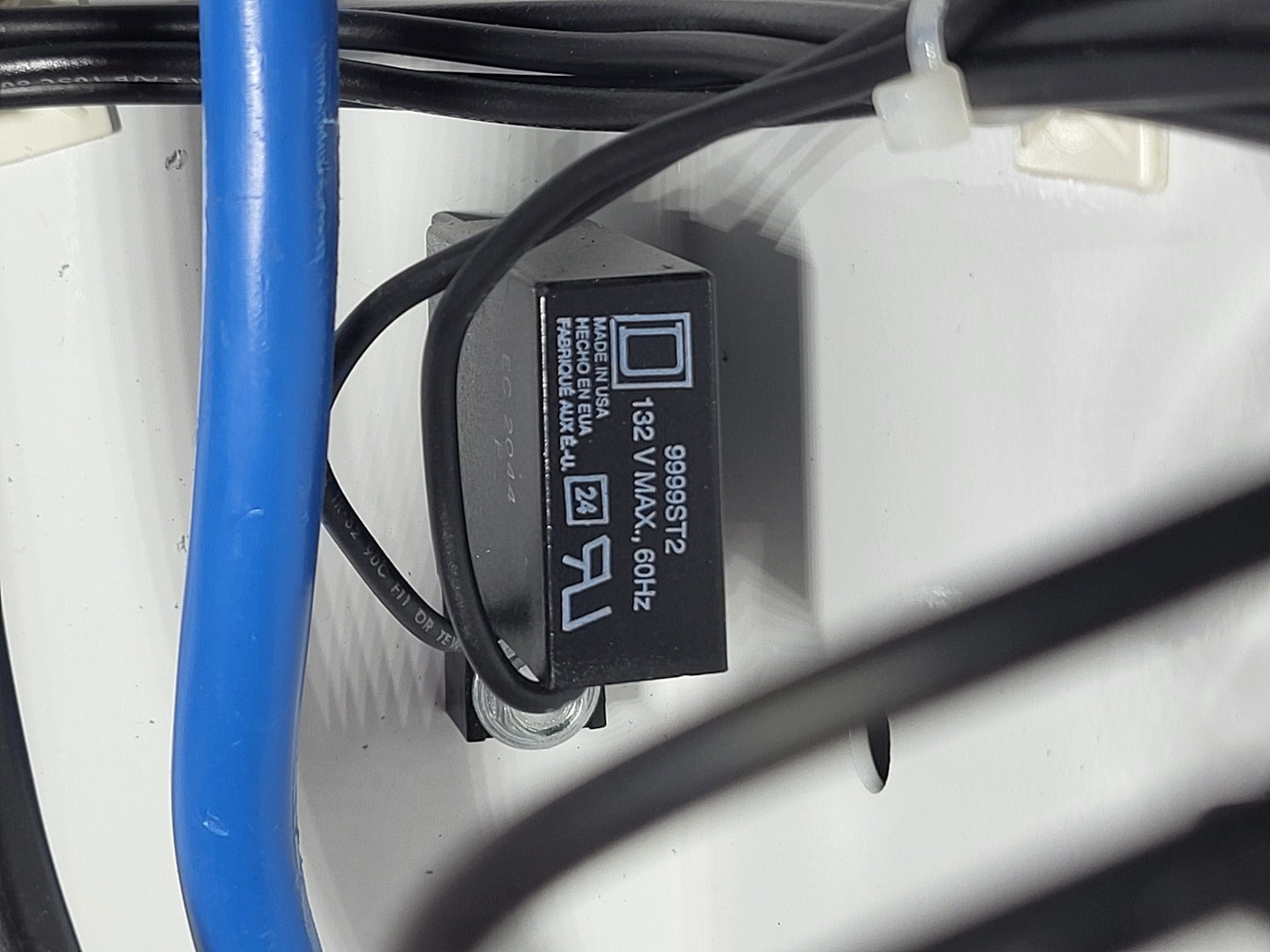

  5. Square D 9999ST2 surge suppressor / MOV module, 132V max, 60Hz

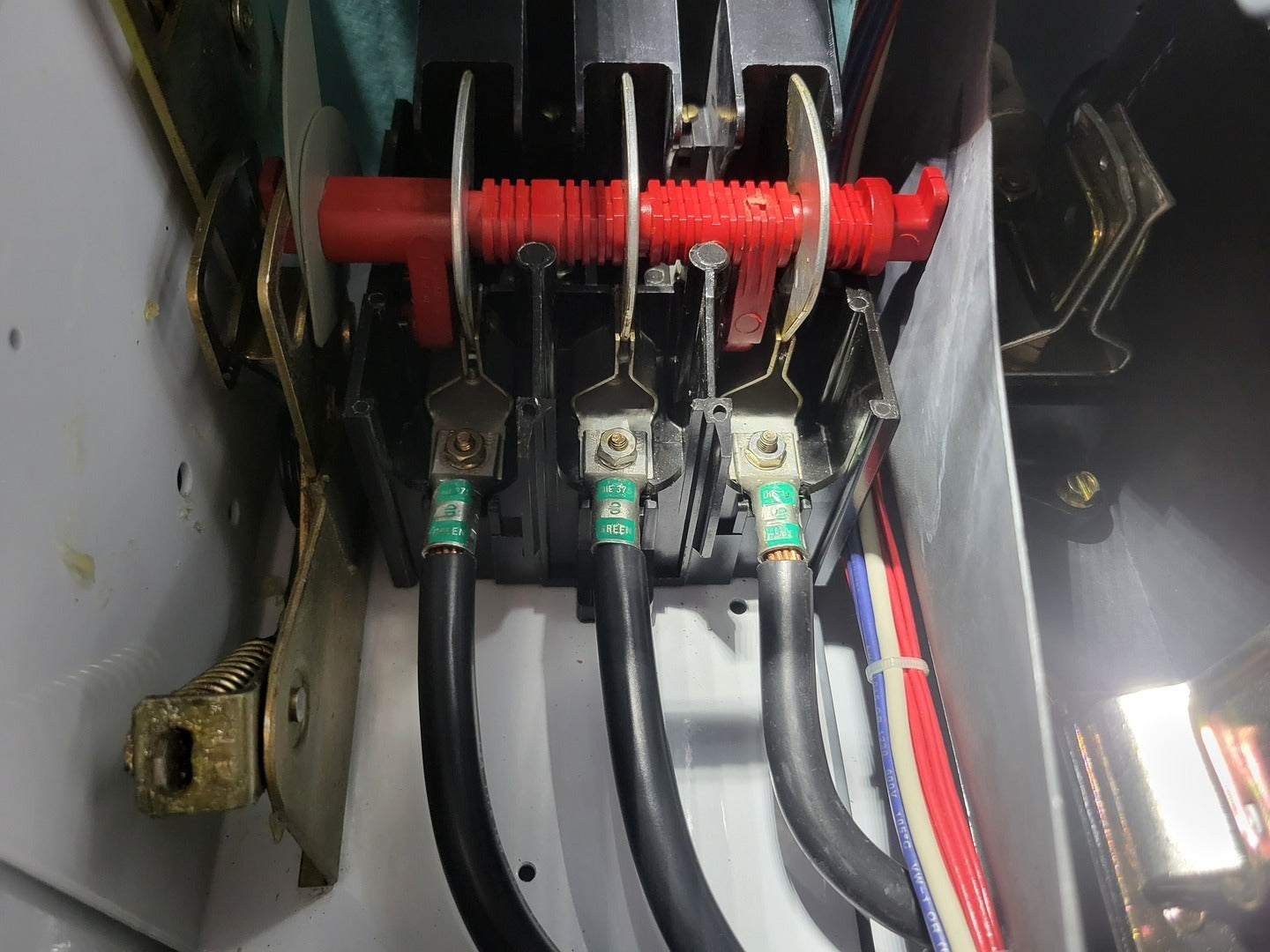

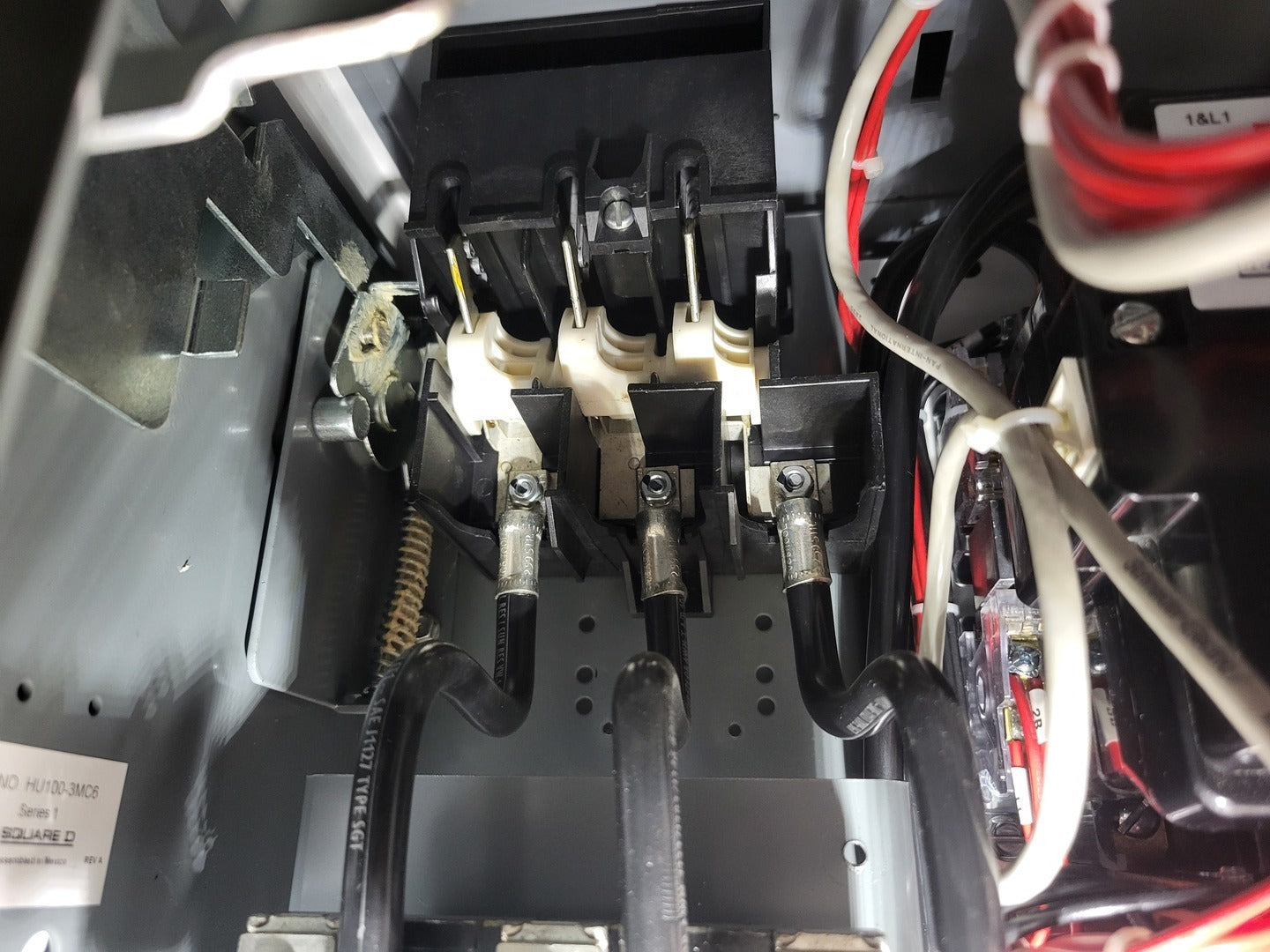

  6. Square D 3-pole circuit breaker disconnect MCC bucket unit

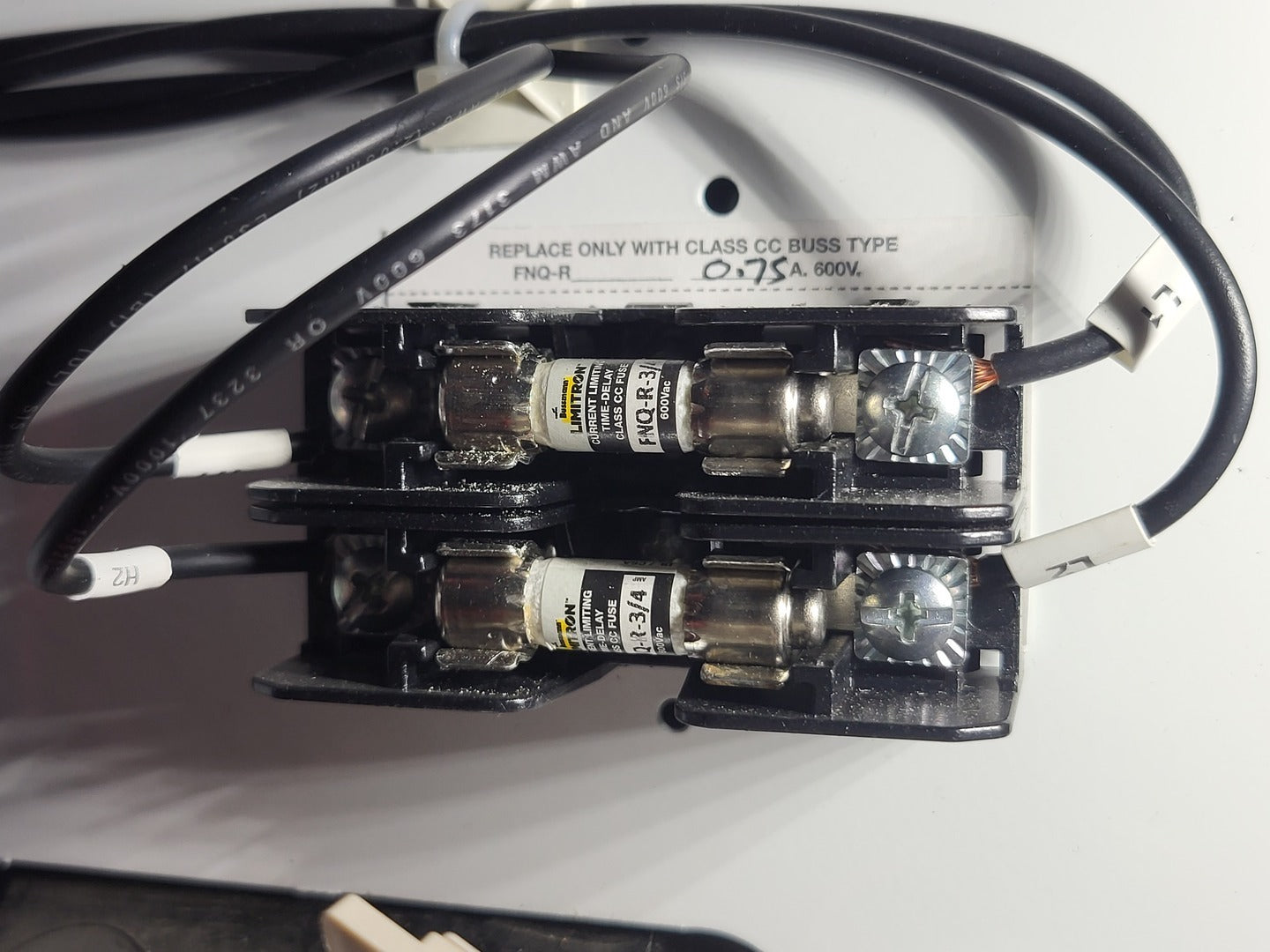

  7. 2 x Bussmann Limitron fuses FNQ-R-3/4
  8. 3 x Bussmann Low-Peak power fuses

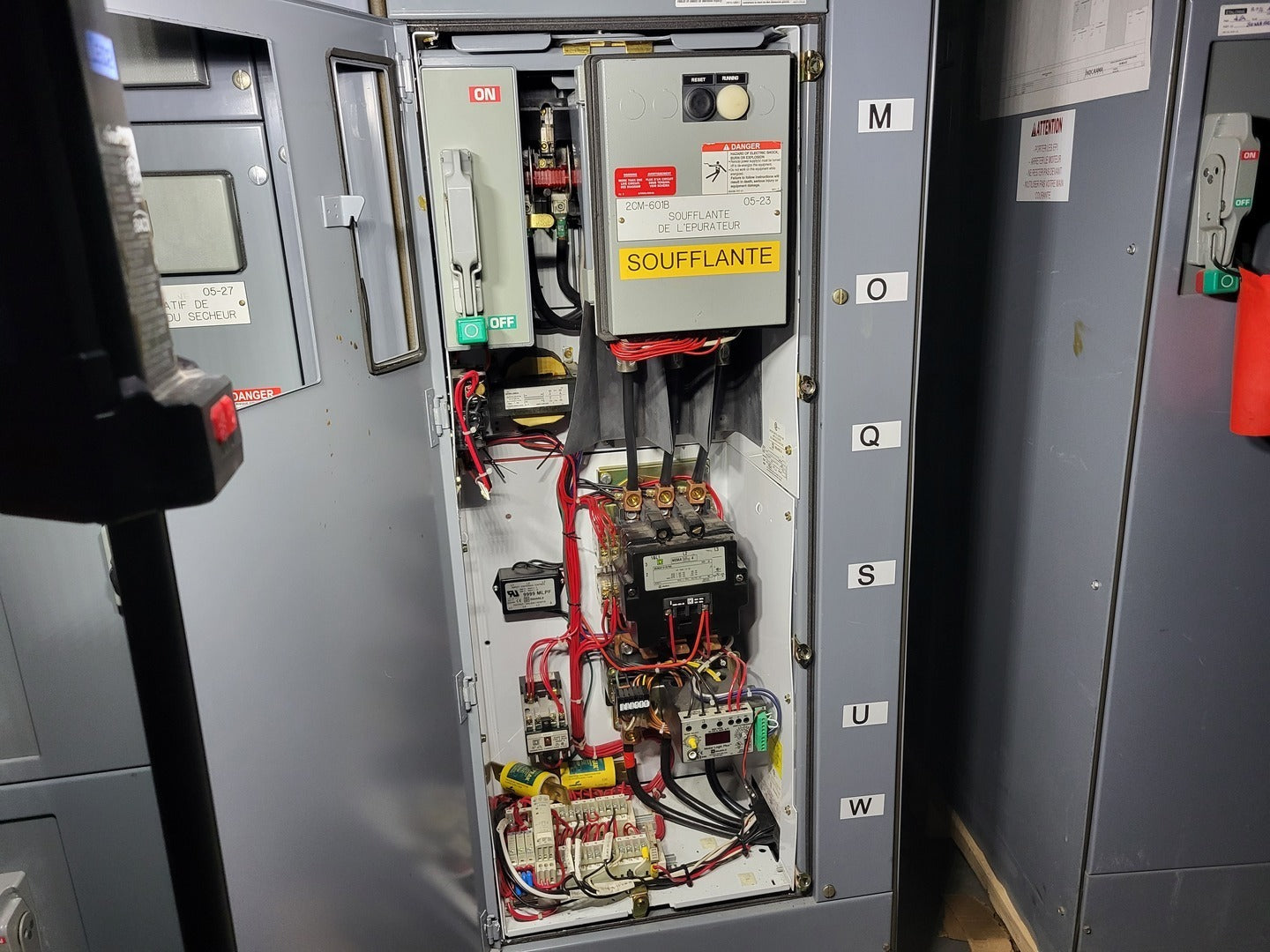

Bucket #2 2CM-601B

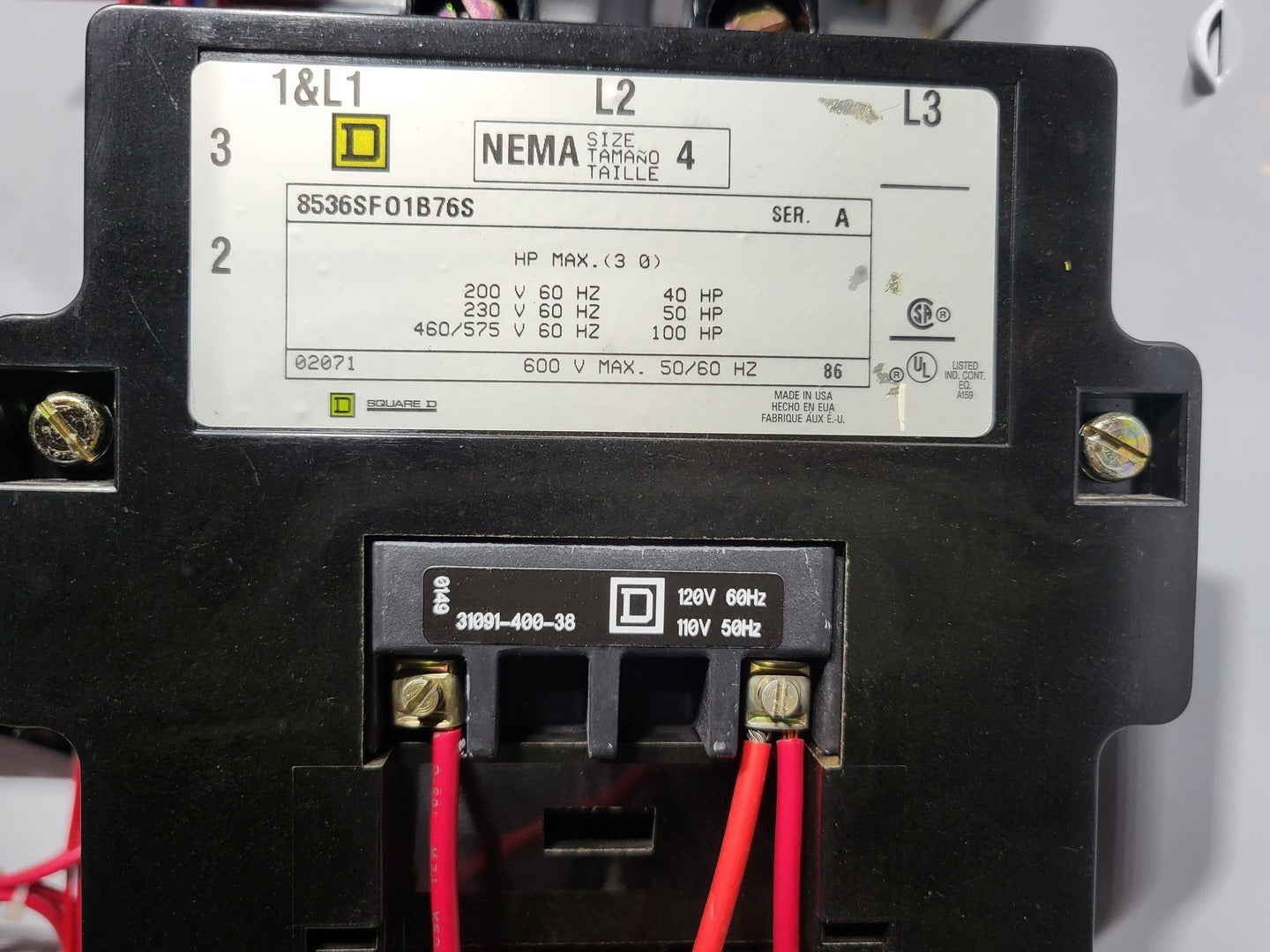

  1. Square D 8536SFO1B76S, NEMA Size 4 contactor, 100 HP @ 460/575V, 120V 60Hz coil

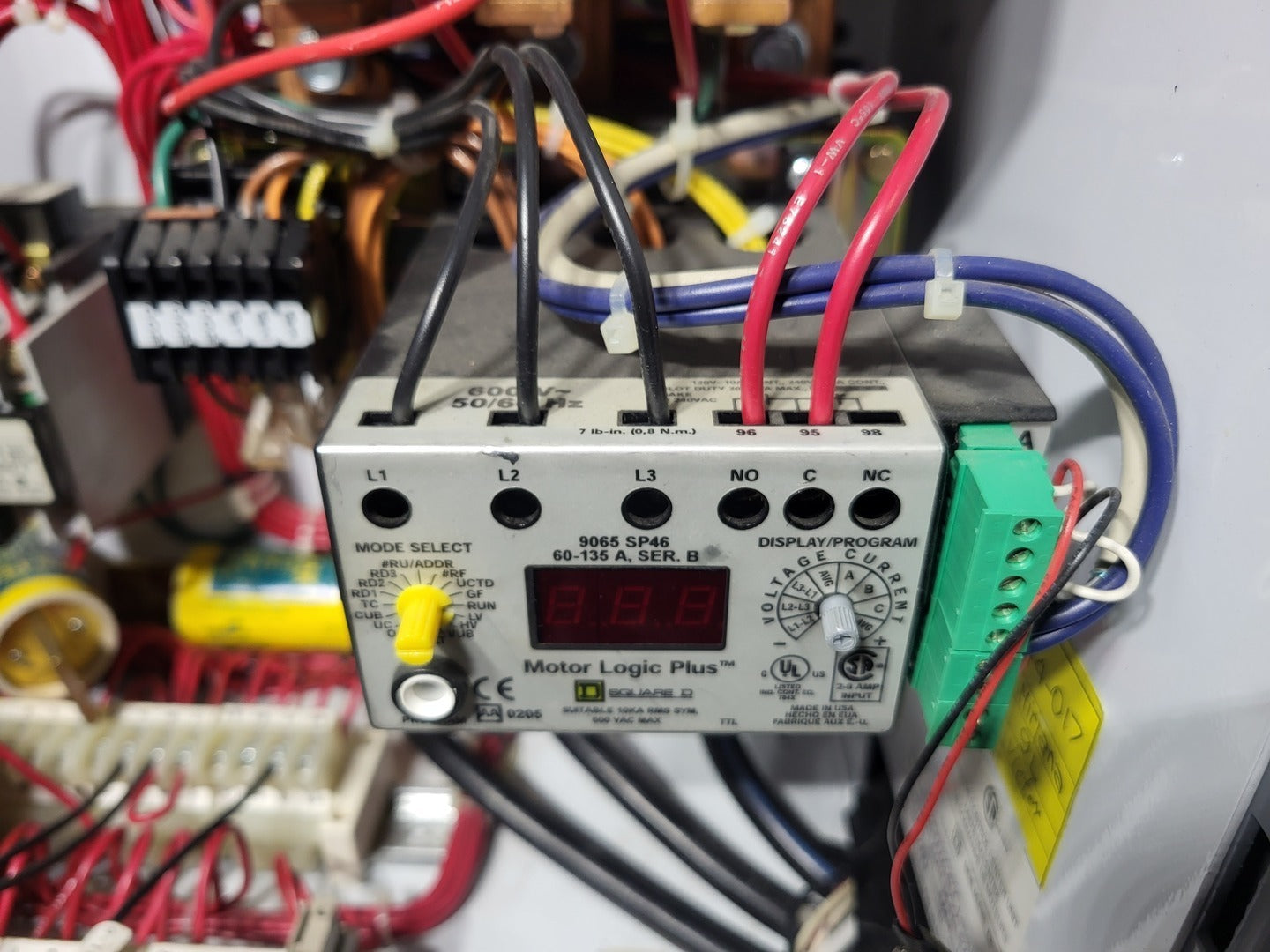

  2. Square D Motor Logic Plus 9065 SP46, motor protection relay, 60-135A range, 600VAC max

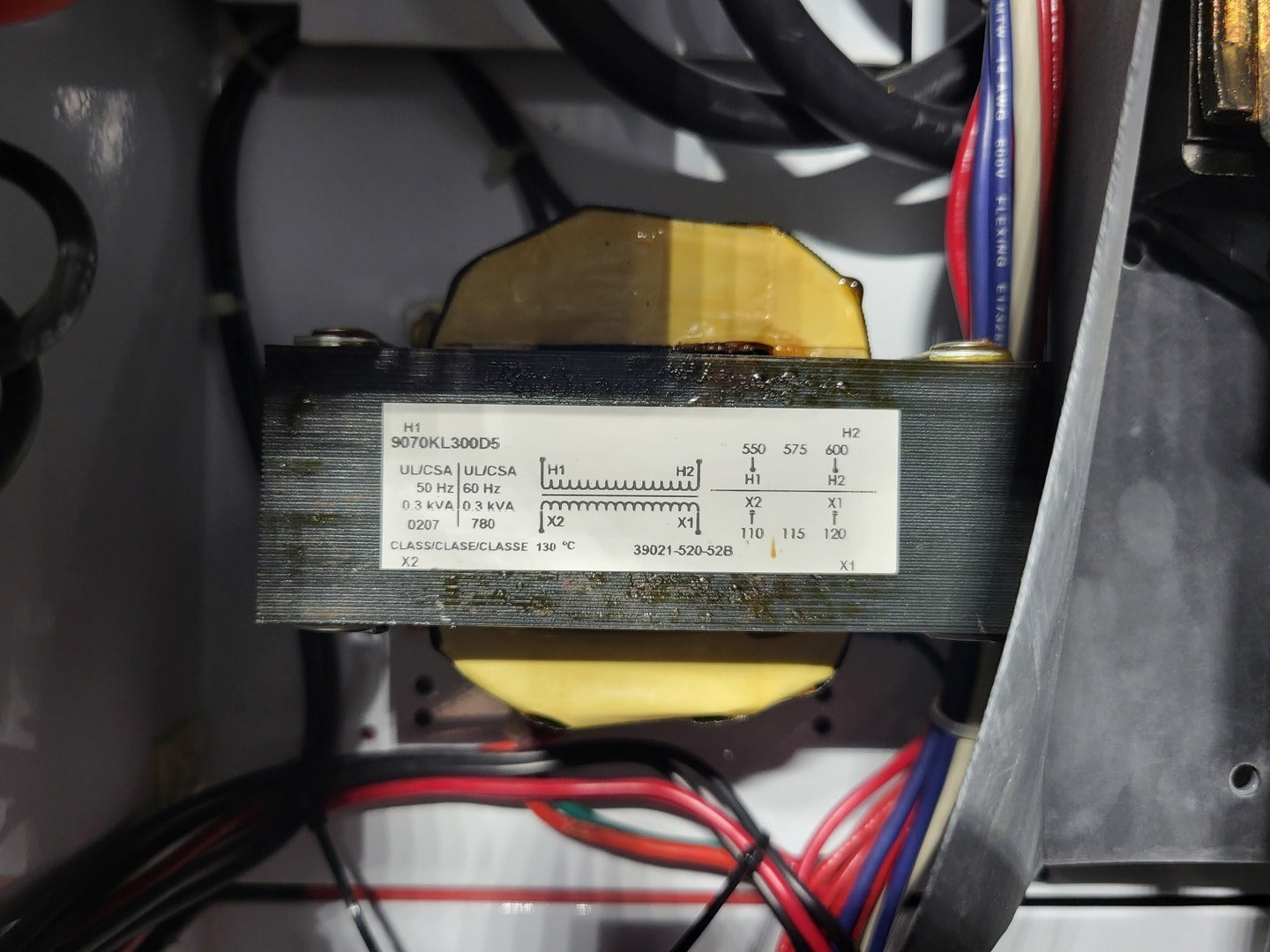

  3. Square D 9070KL300D5, control transformer, 0.3 kVA @ 50/60Hz, 550/575/600V primary, 110/115/120V secondary

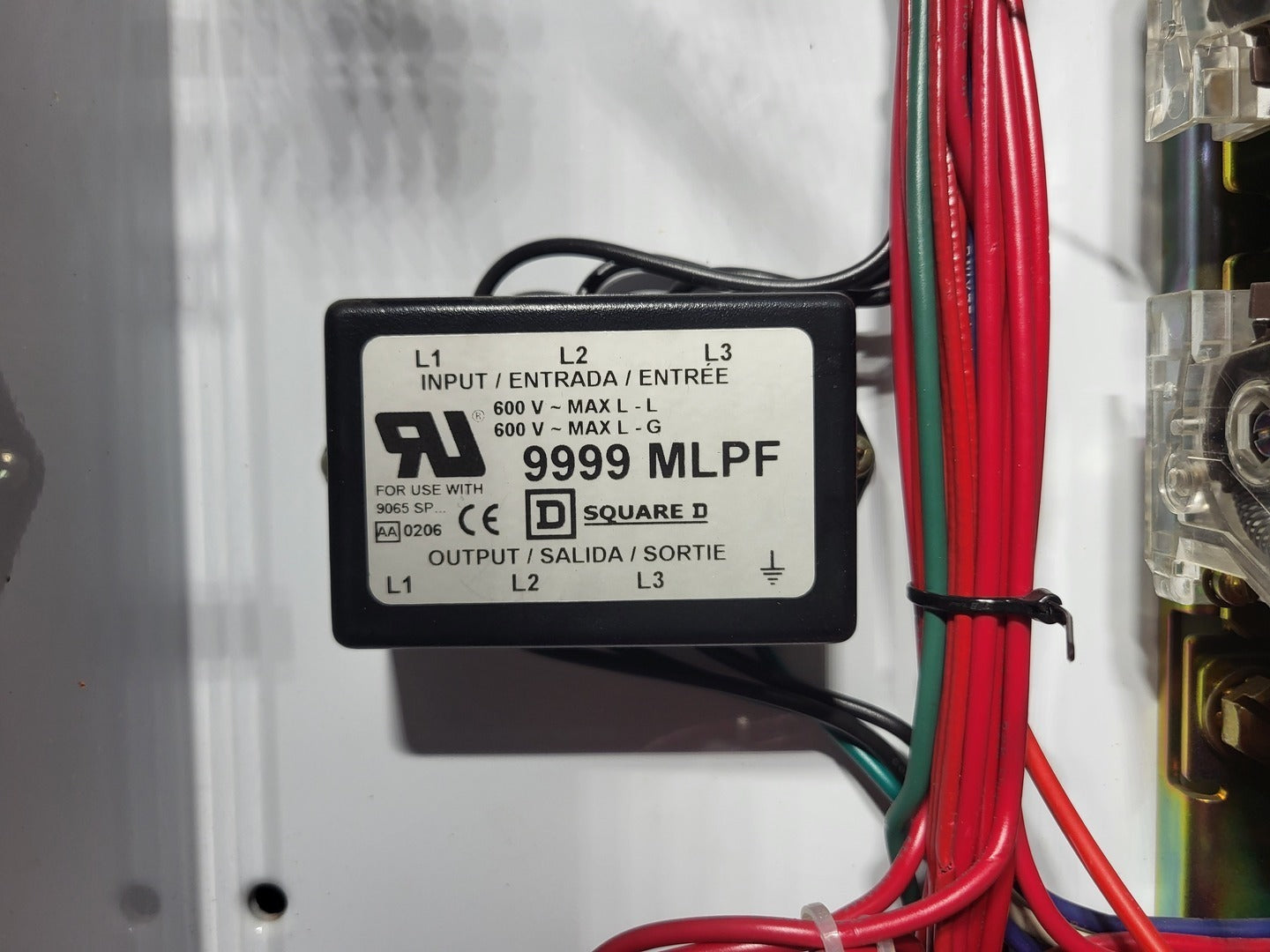

  4. Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max

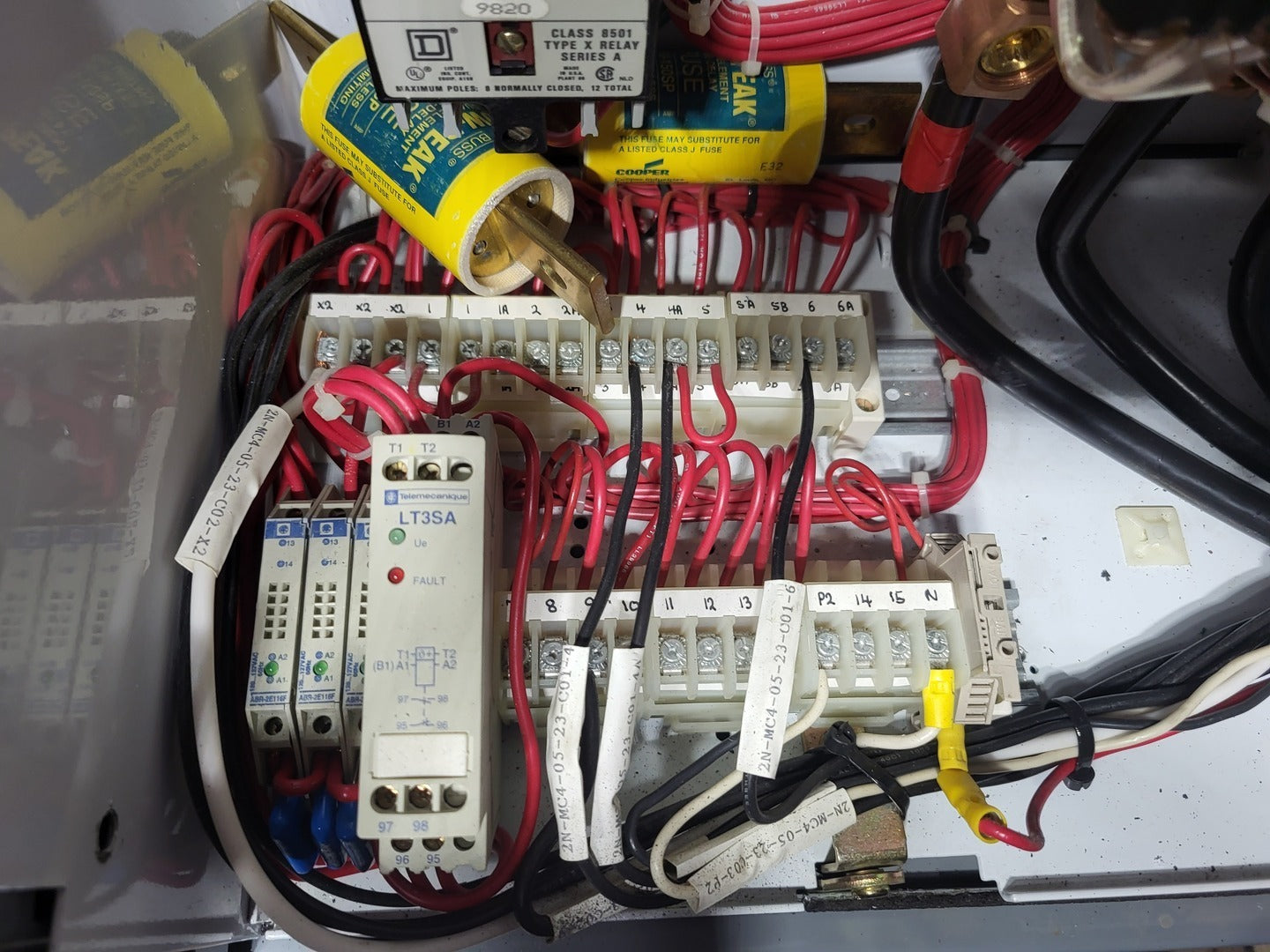

  5. Telemecanique LT3SA protection relay module

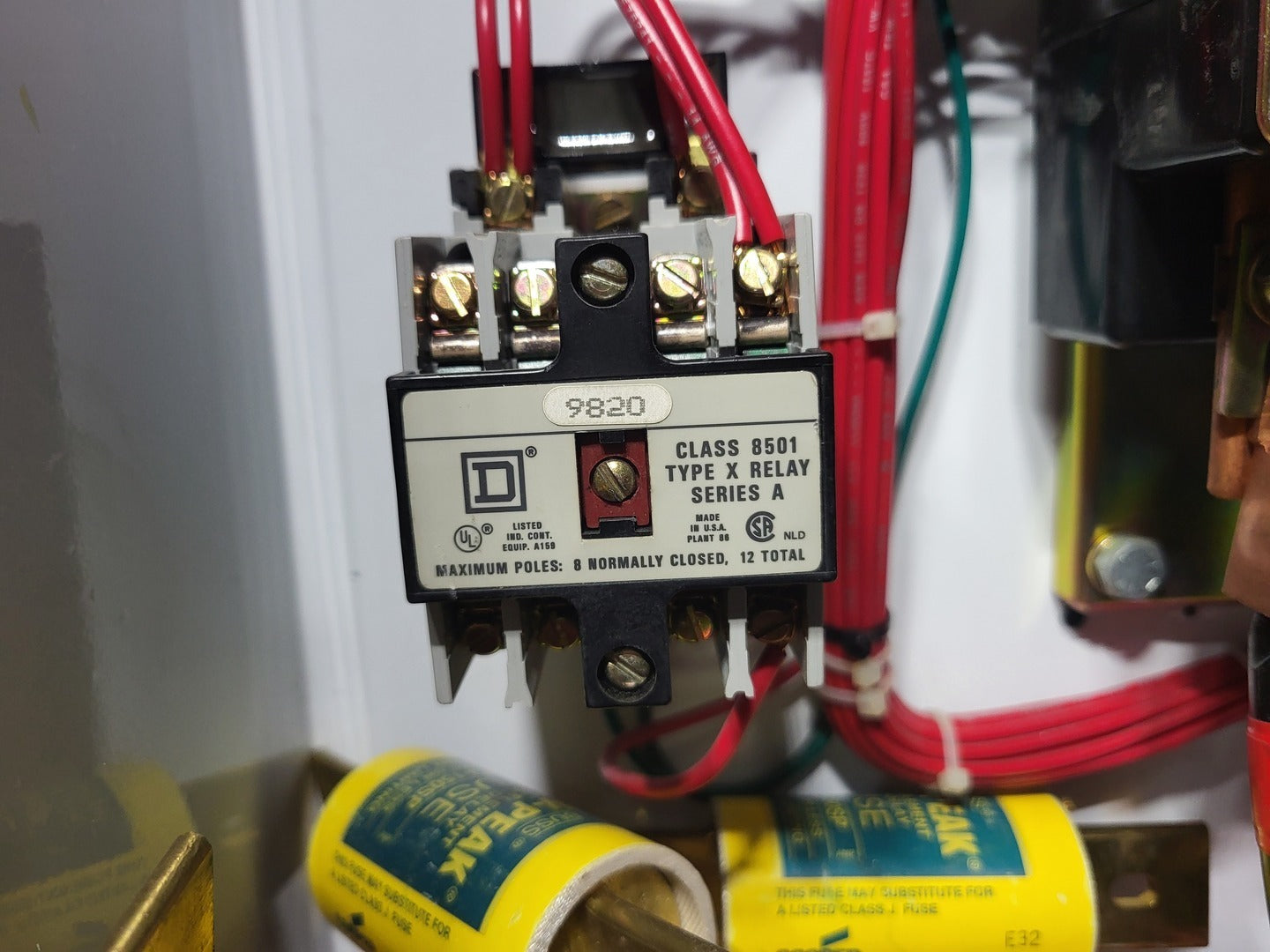

  6. Square D 8501 Type X relay, Series A, 8 normally closed / 12 total poles max
  7. 2 x Telemecanique ABR-2E116F slim relay modules, 120VAC coil

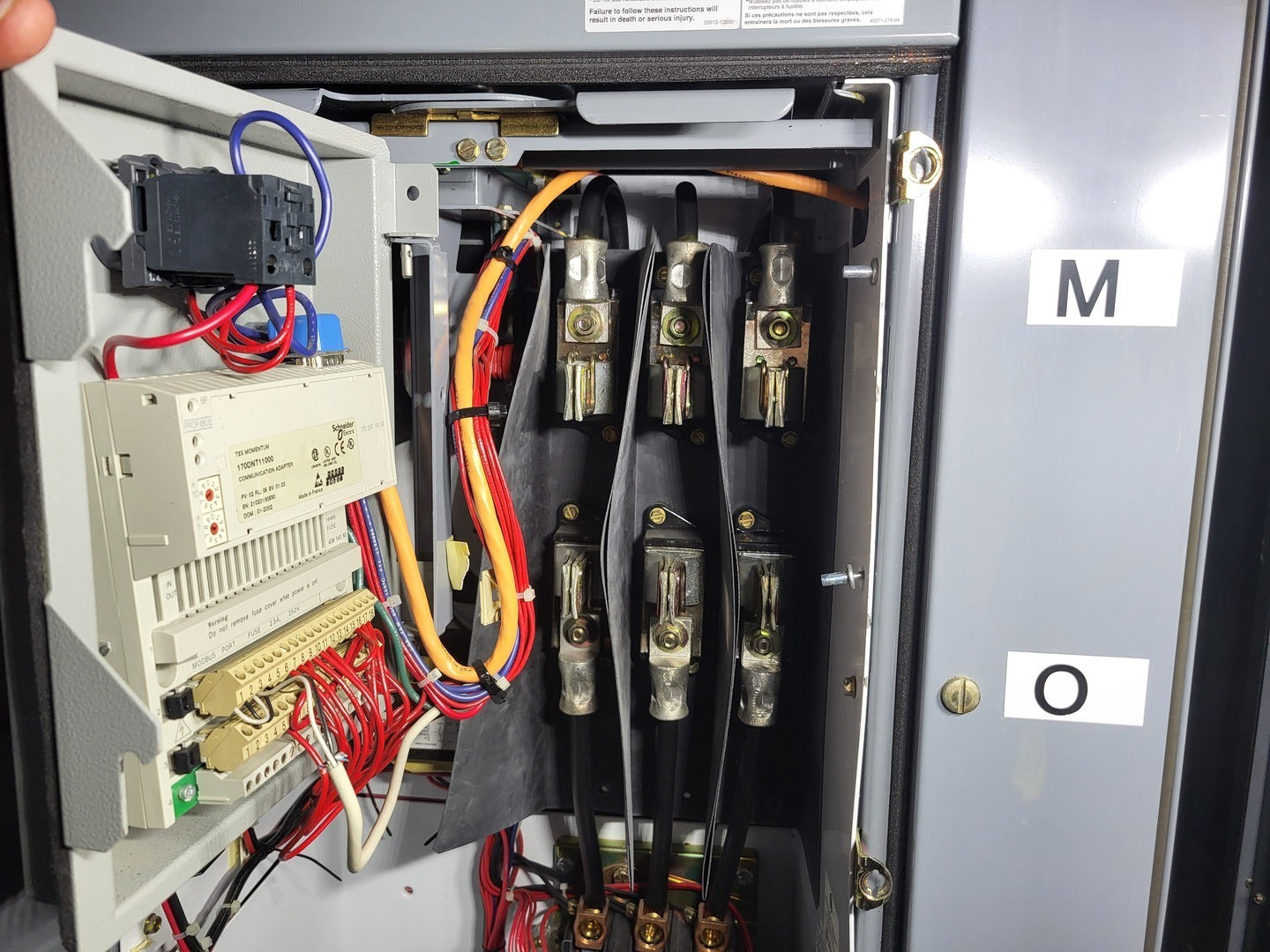

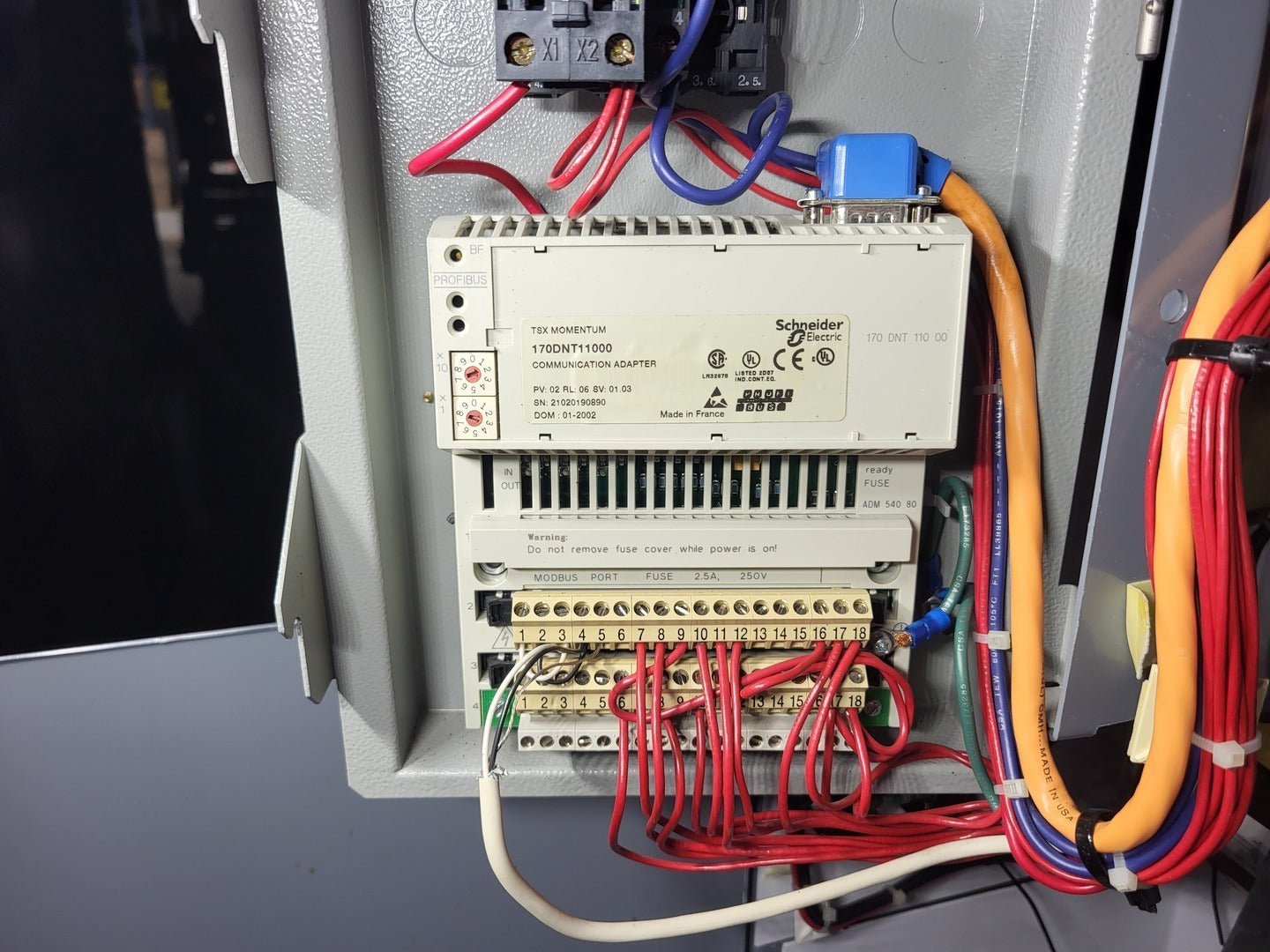

  8. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  9. Square D 3-pole circuit breaker disconnect MCC bucket unit

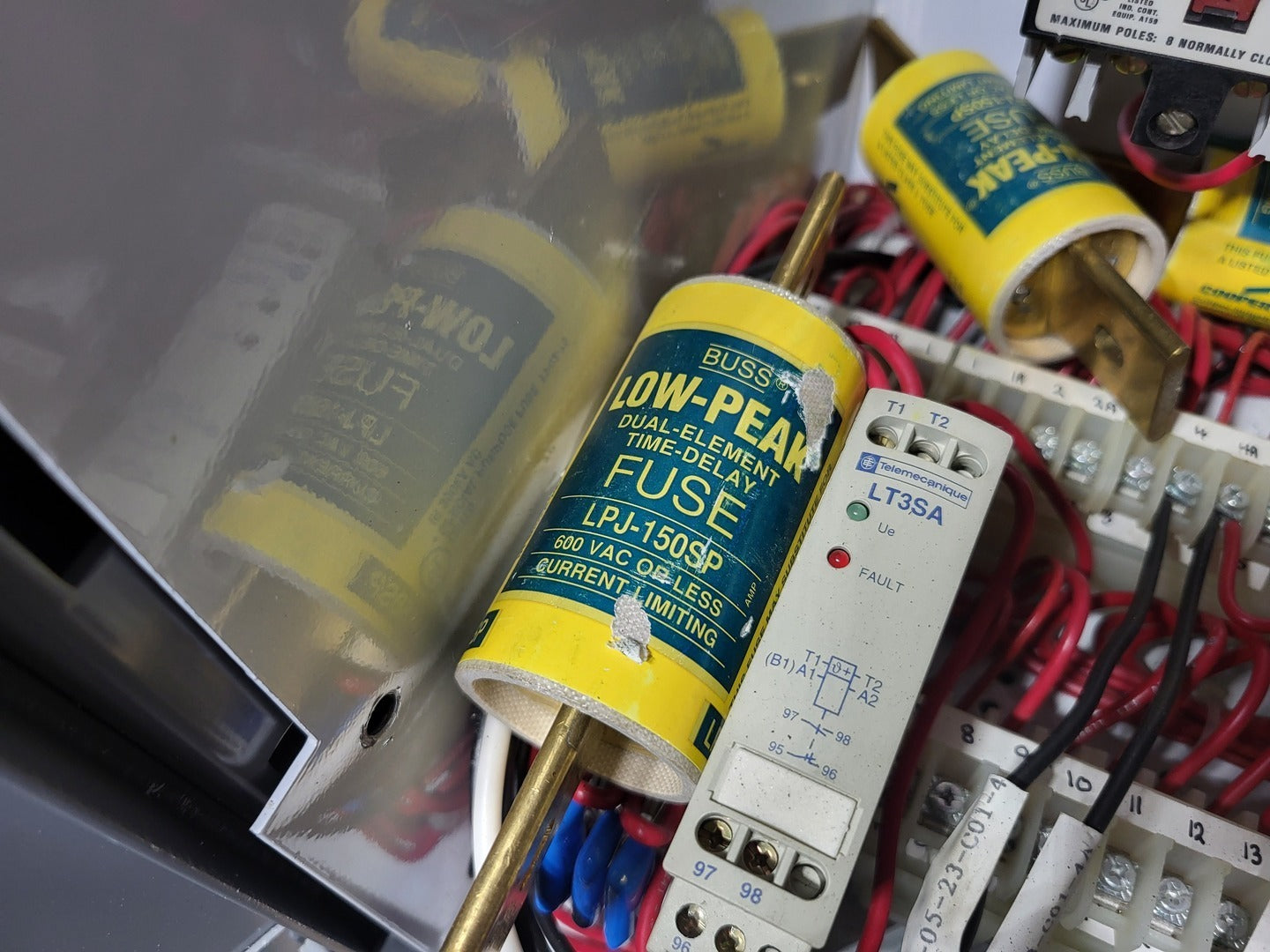

  10. 3 x Bussmann Low-Peak power fuses LPJ-150SP
