SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 150776
Price:
$9,300 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

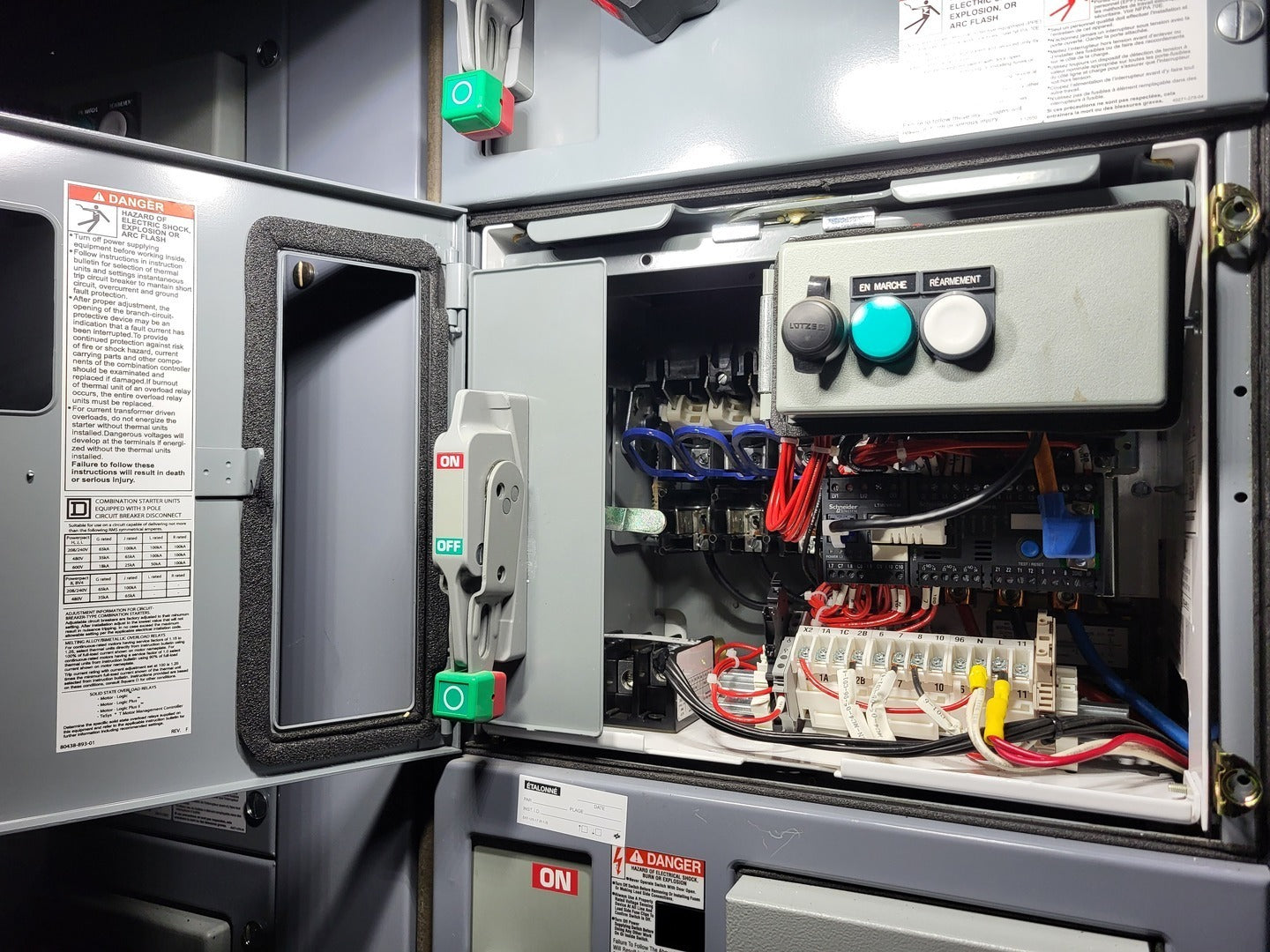

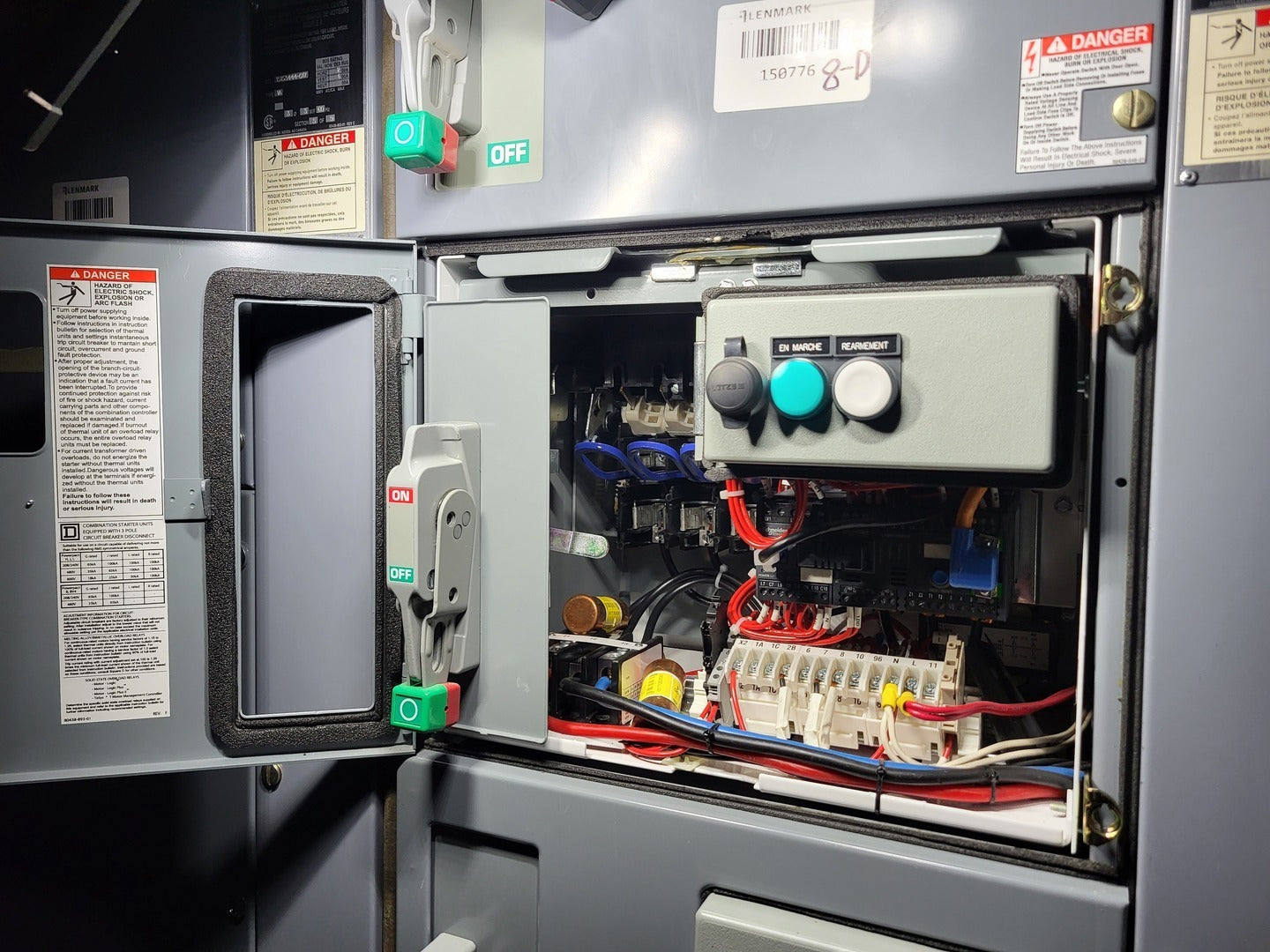

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications

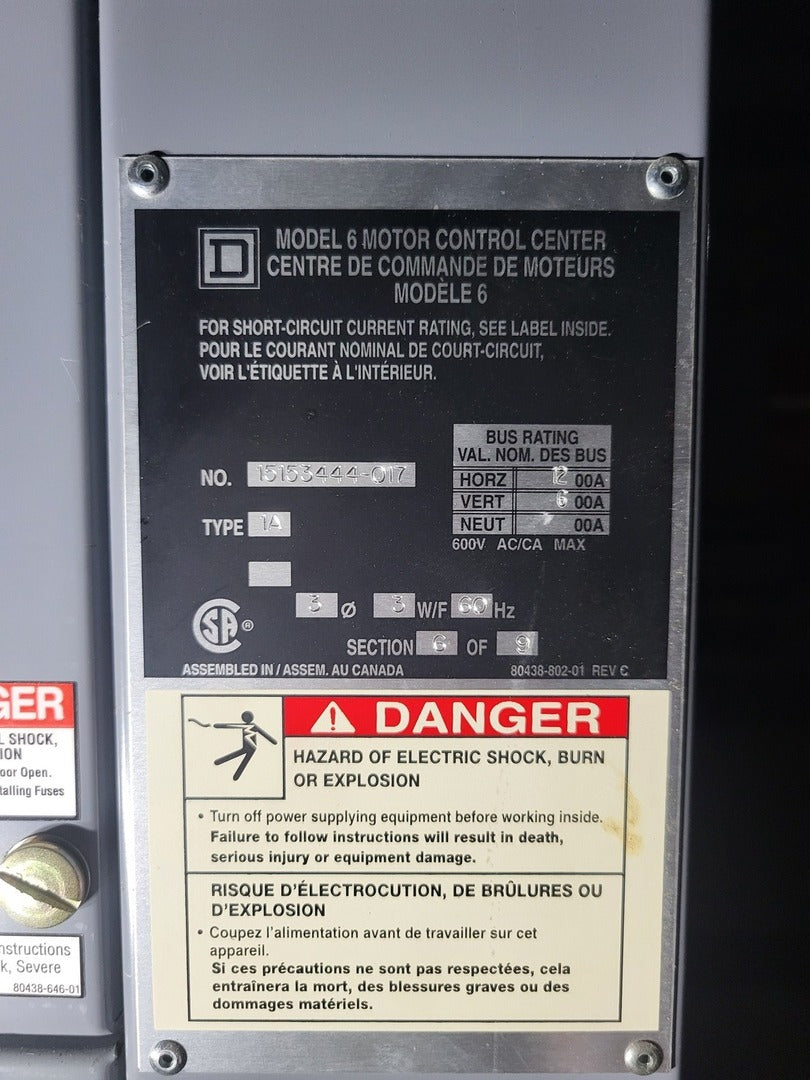

Model Model 6
Condition Used
Electrical
Max. Voltage 600
Other Specifications

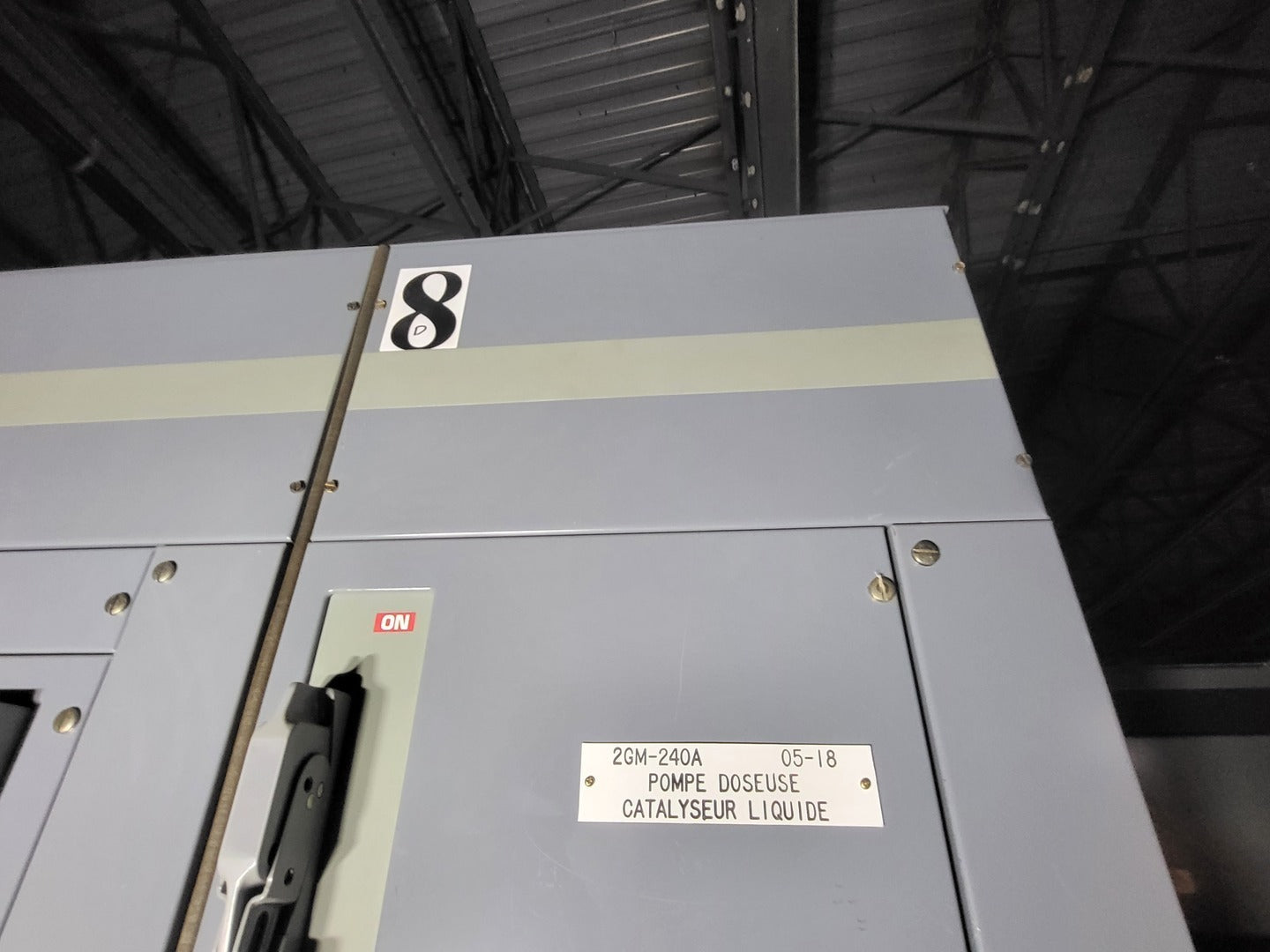

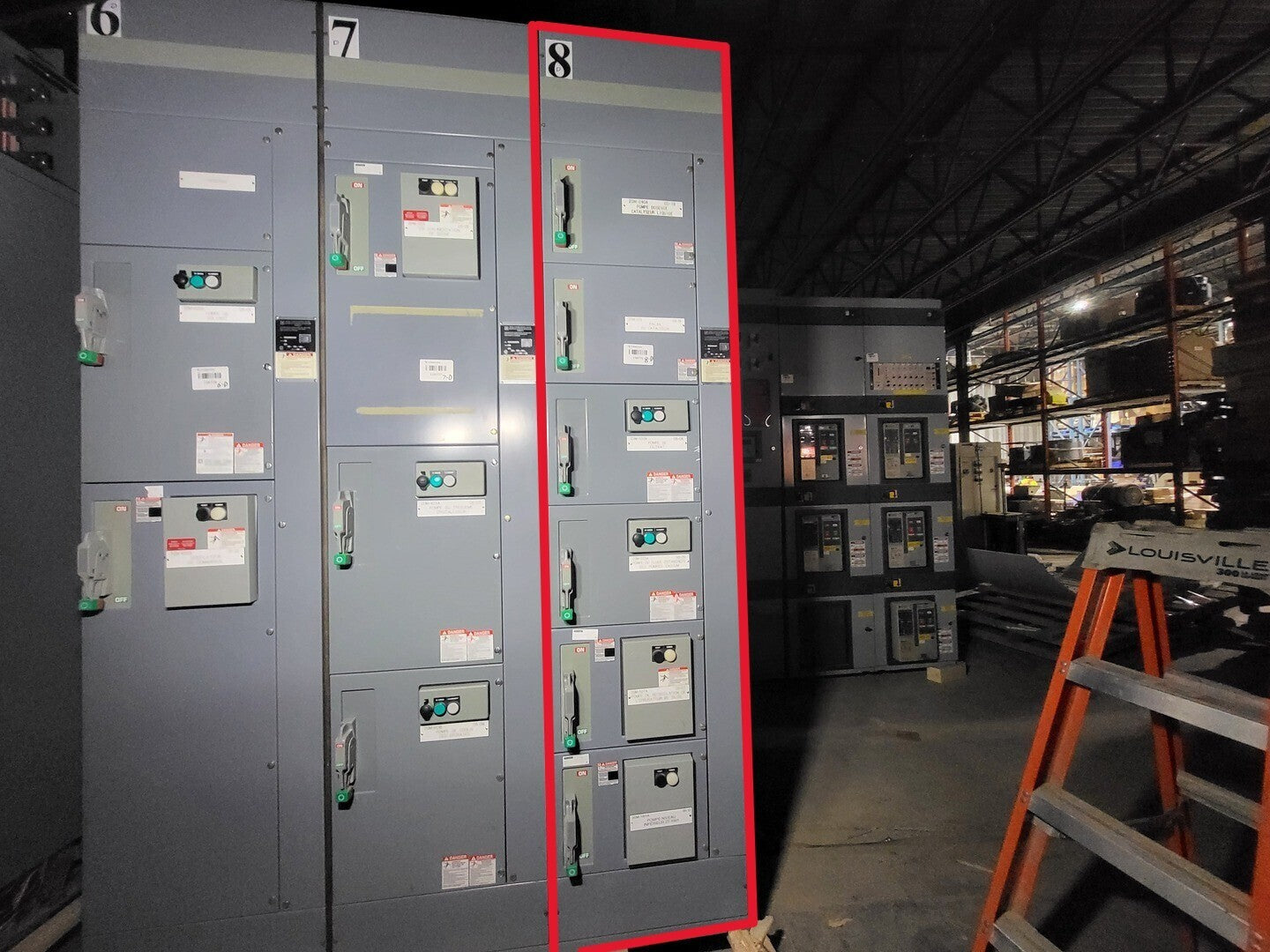

Note: Section 8 only

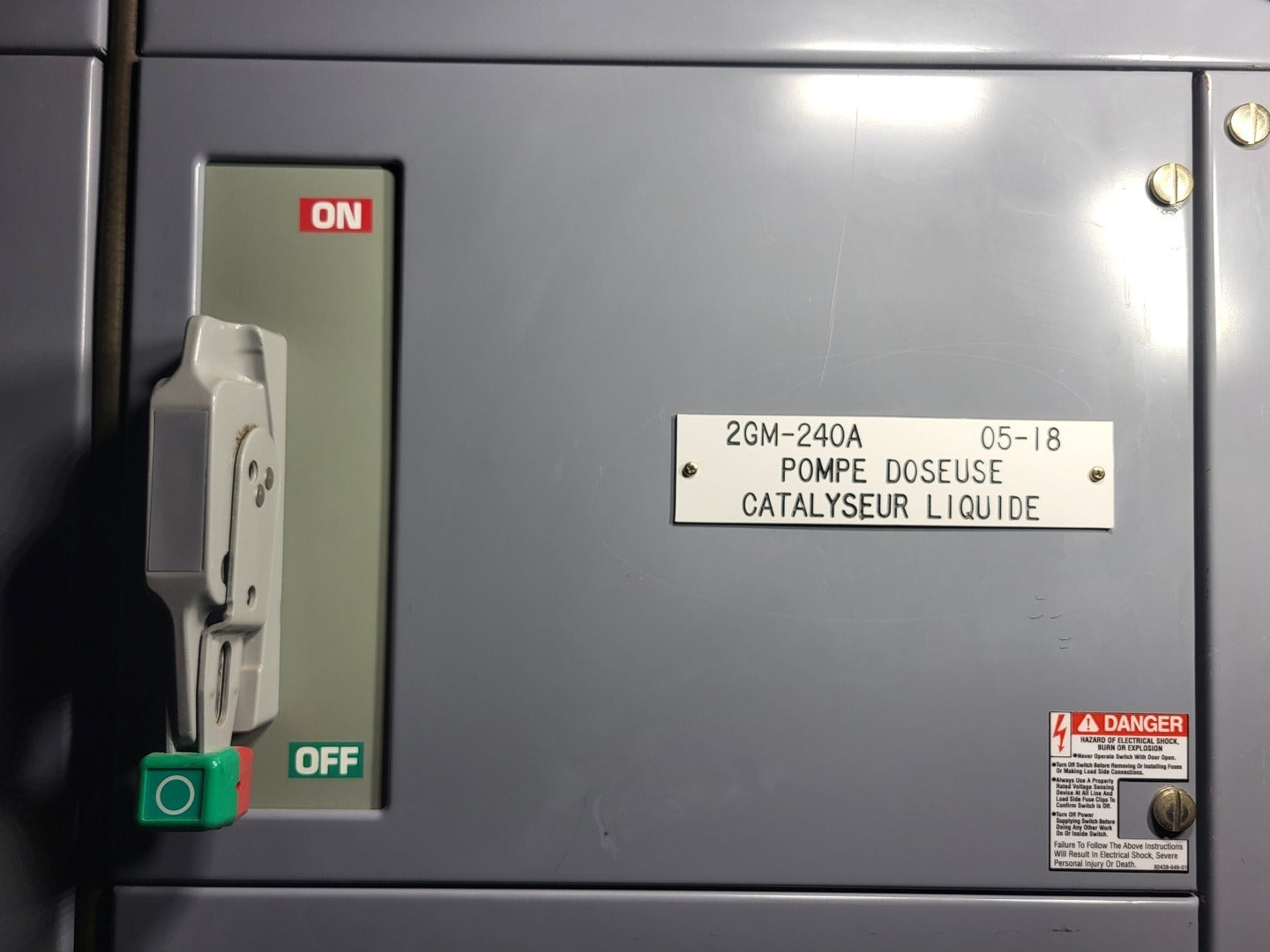

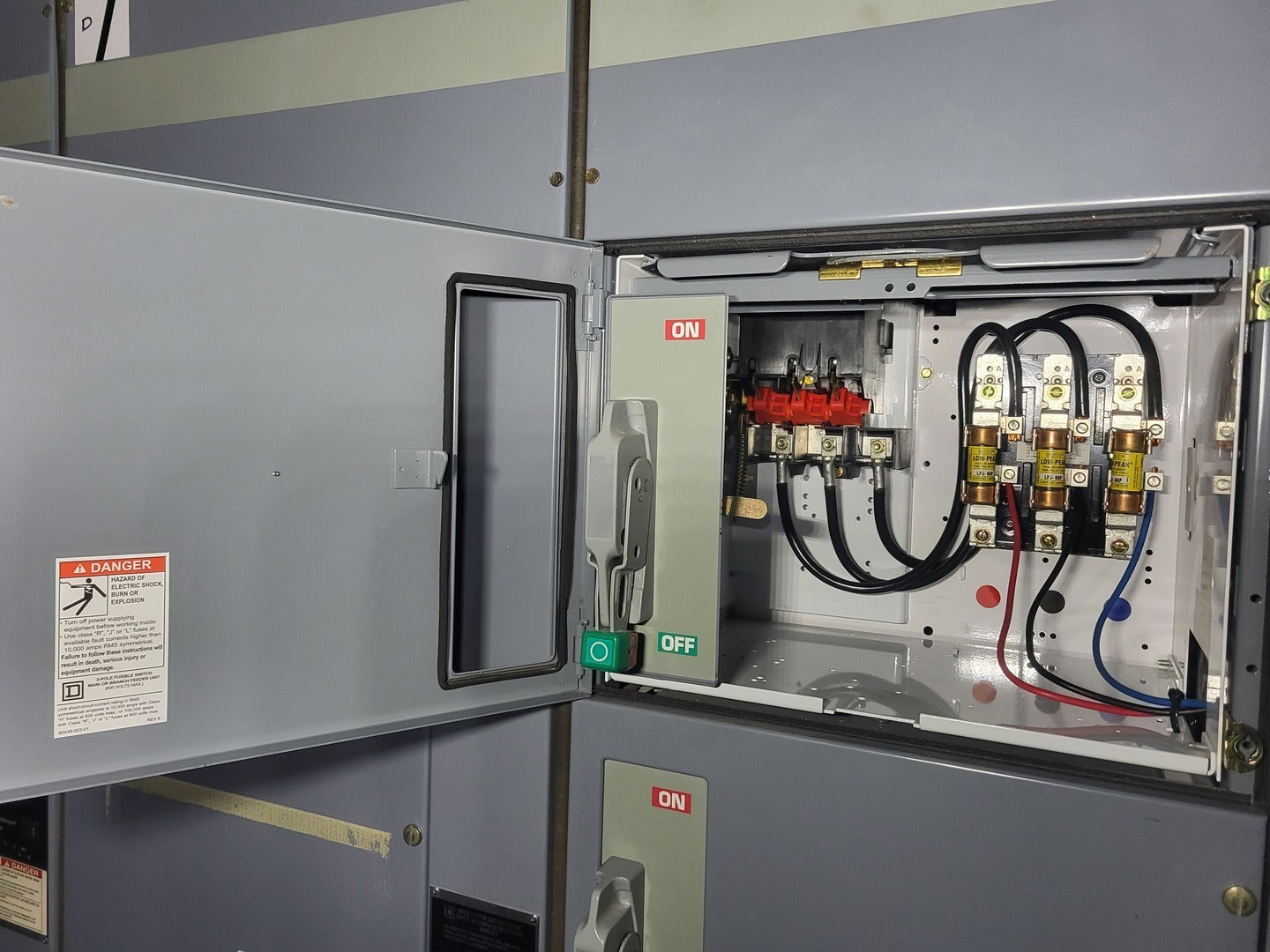

Bucket #1 2GM-240A

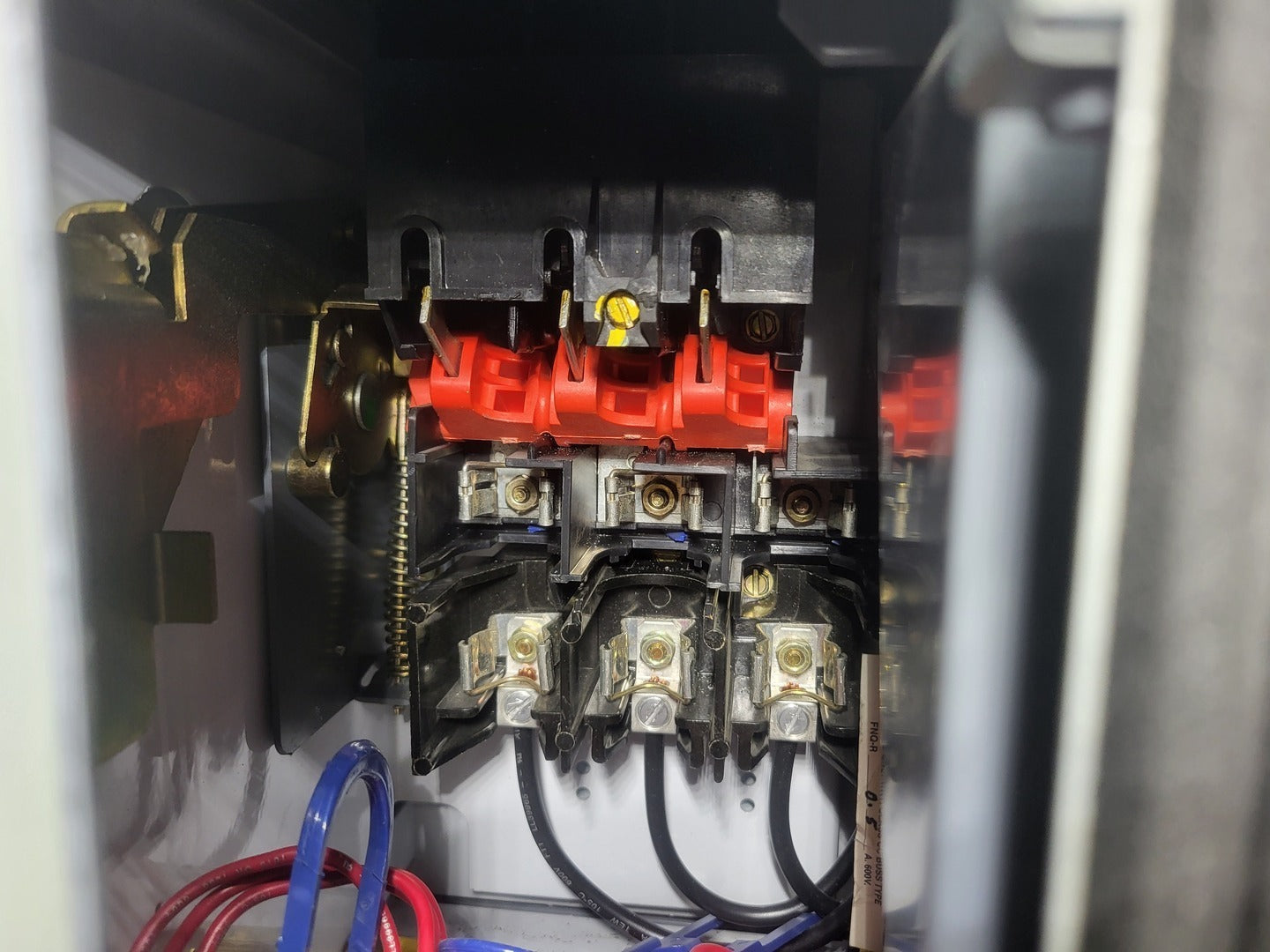

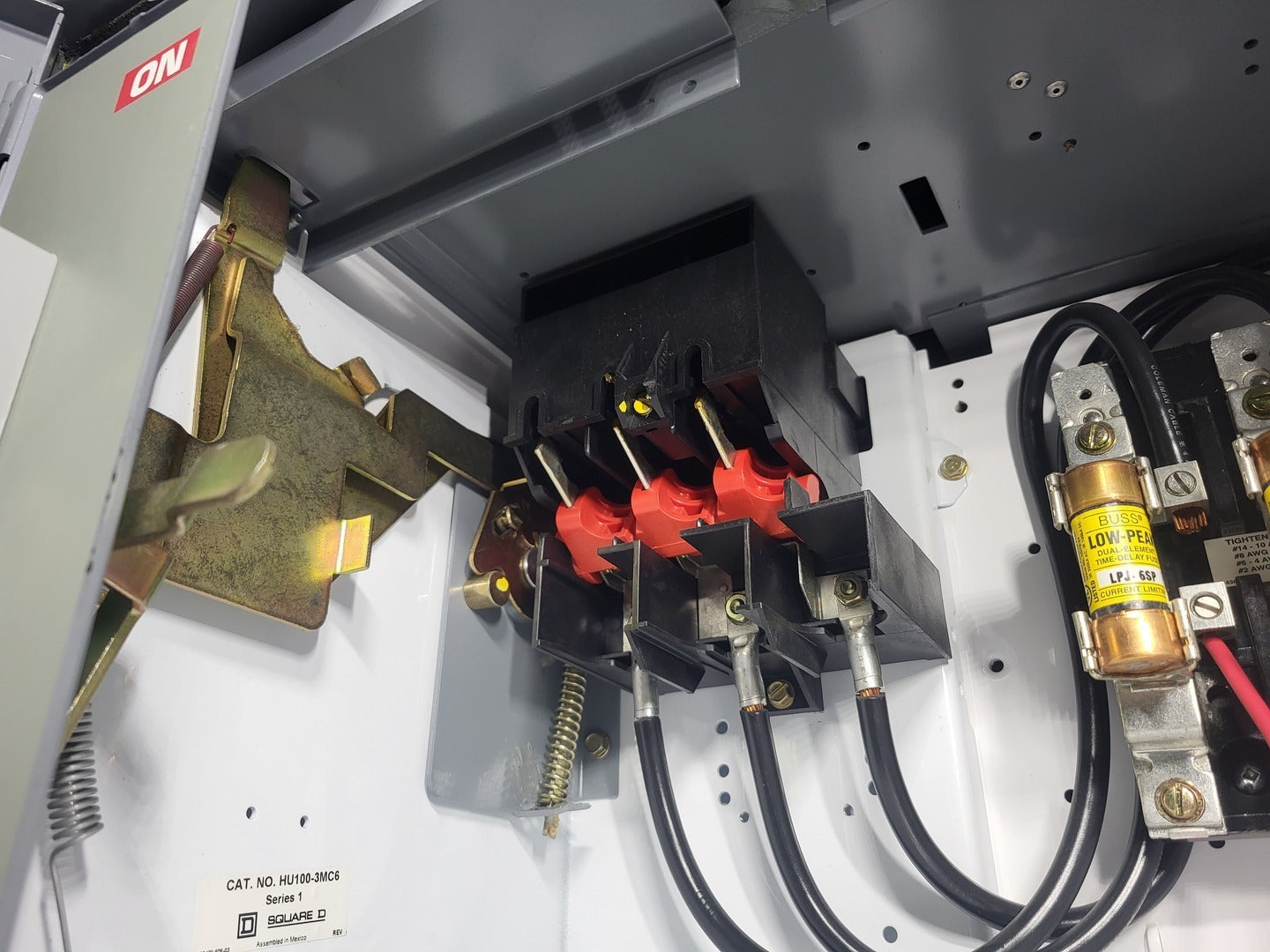

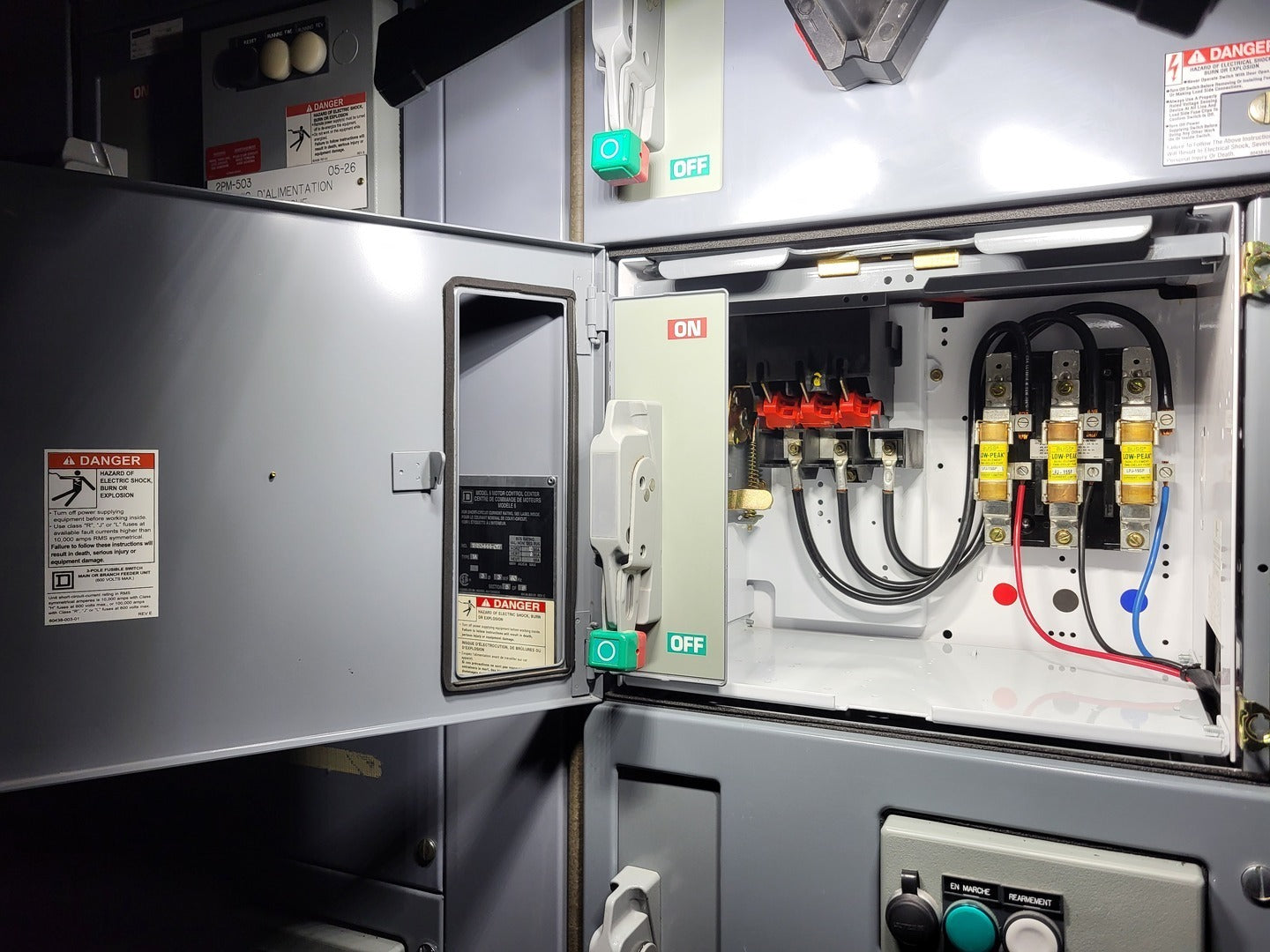

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

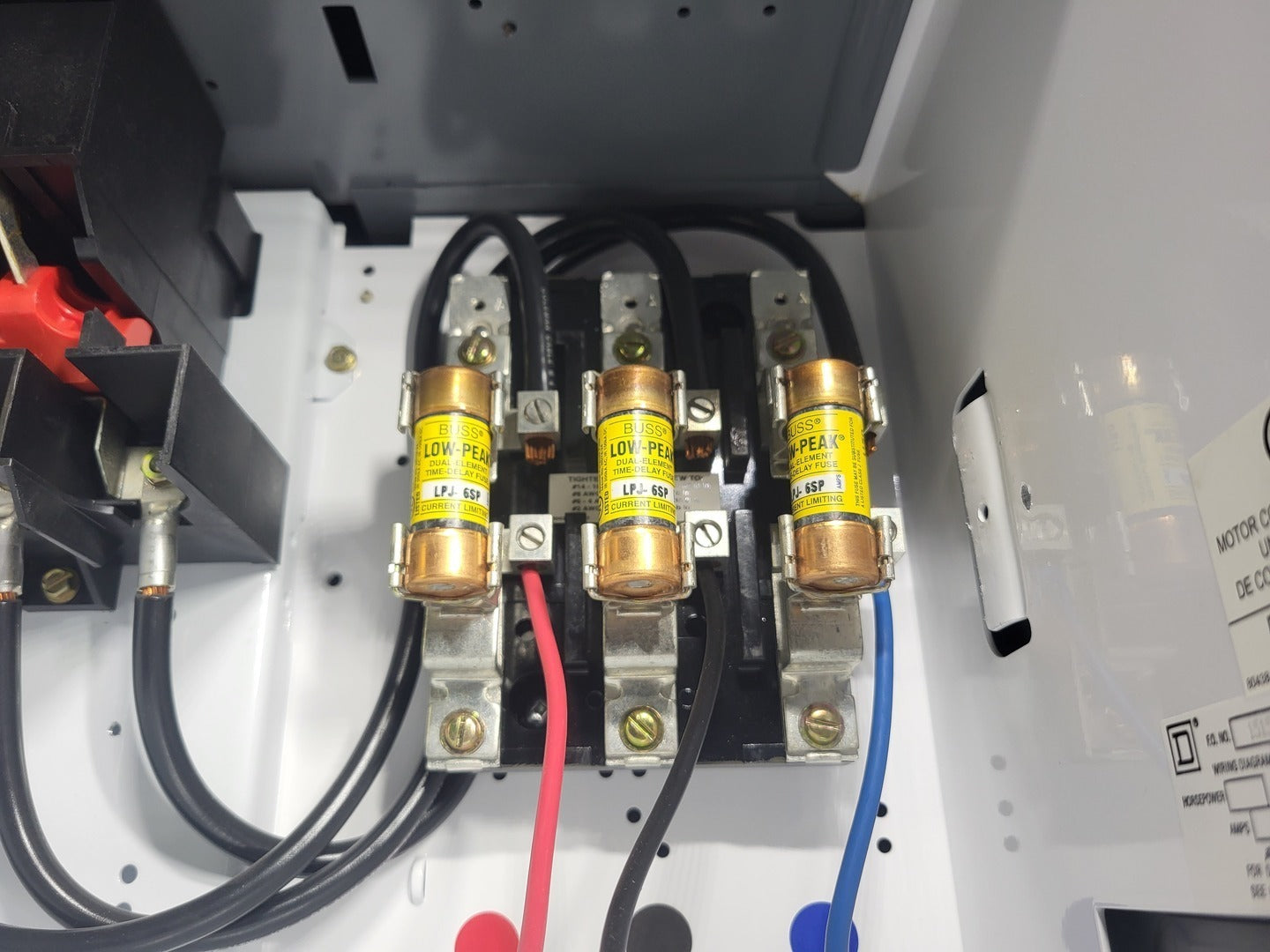

  2. 3 x Bussmann Low-Peak fuses LPJ-6SP

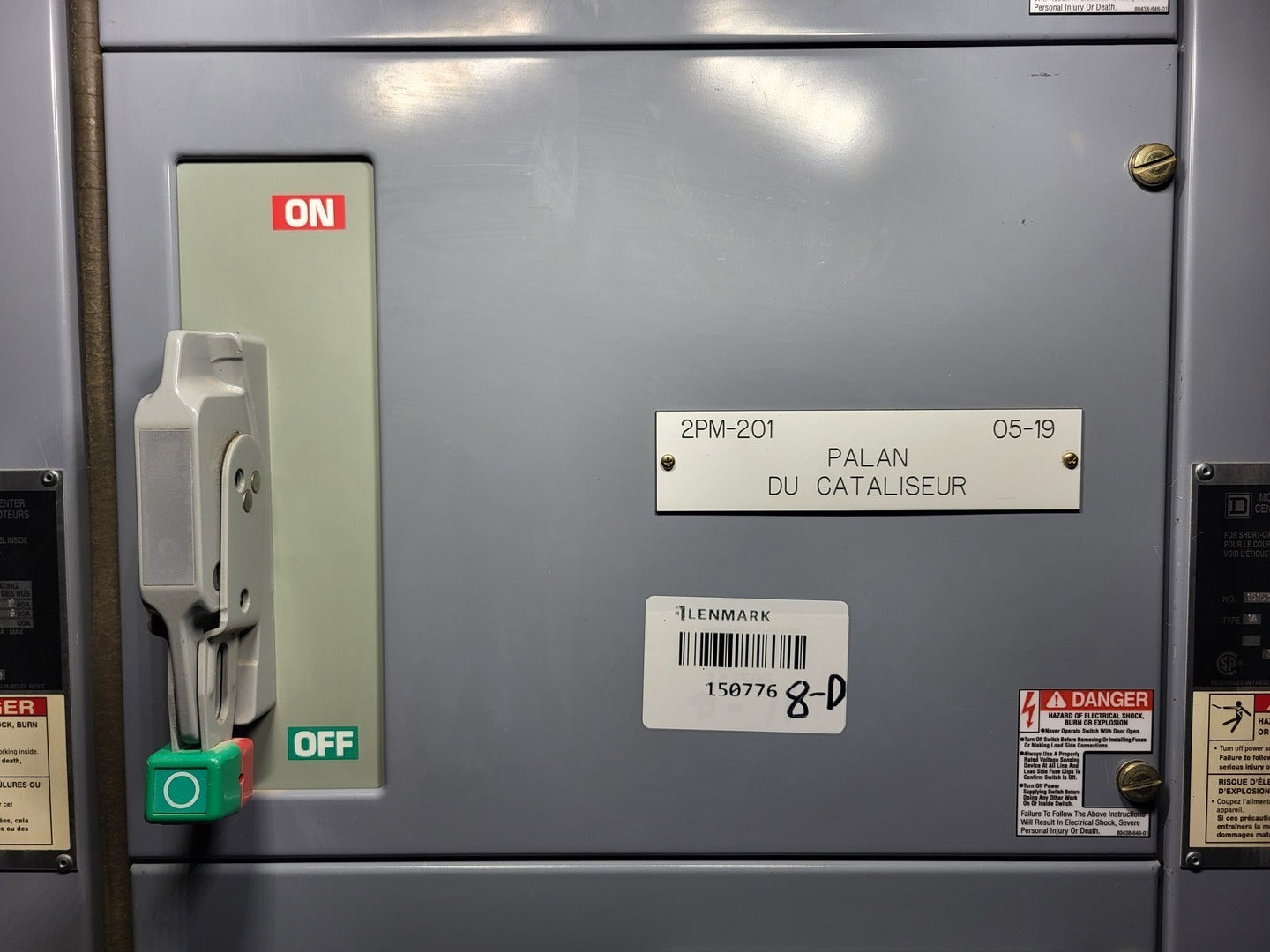

Bucket #2 2PM-201

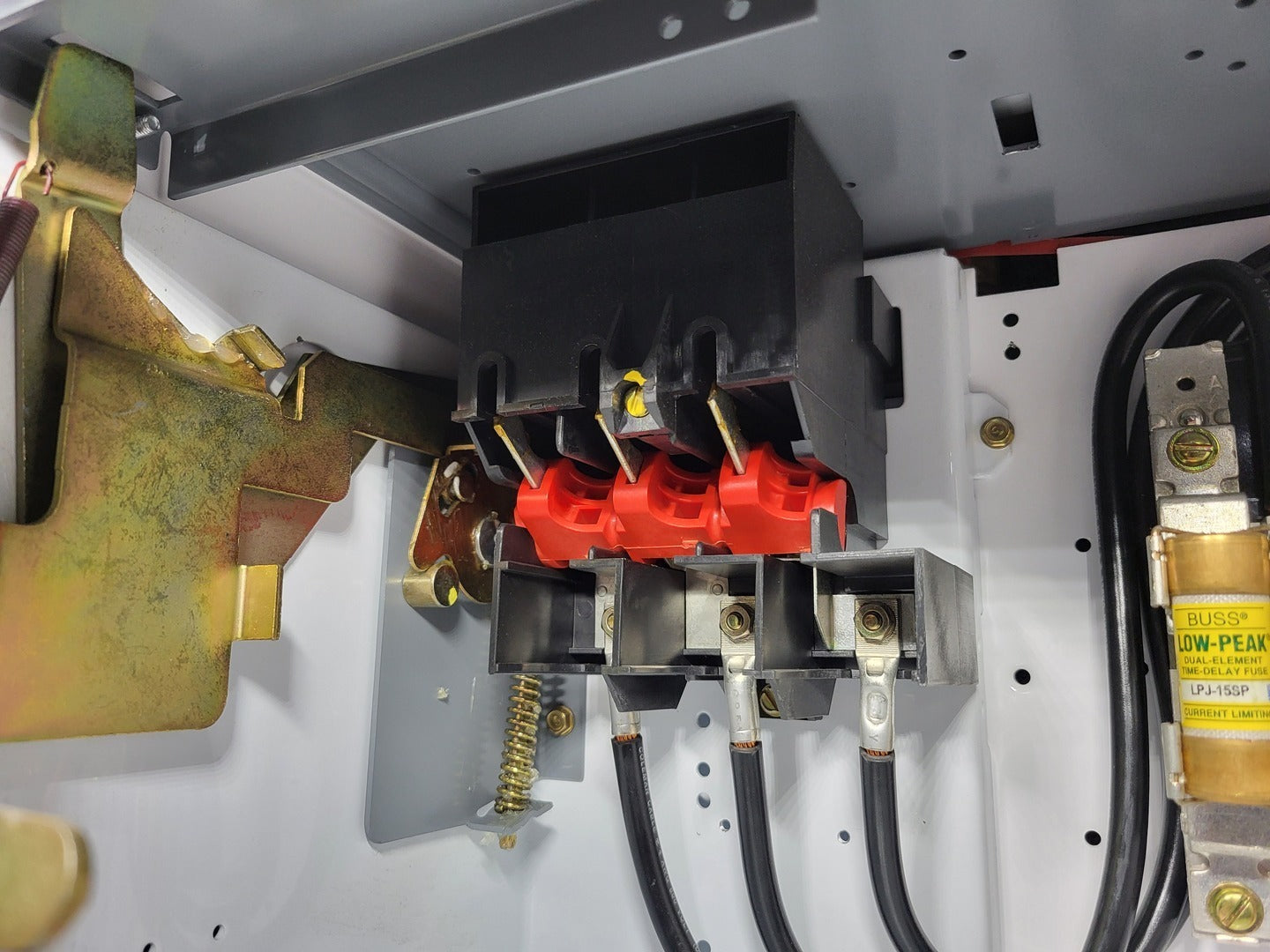

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

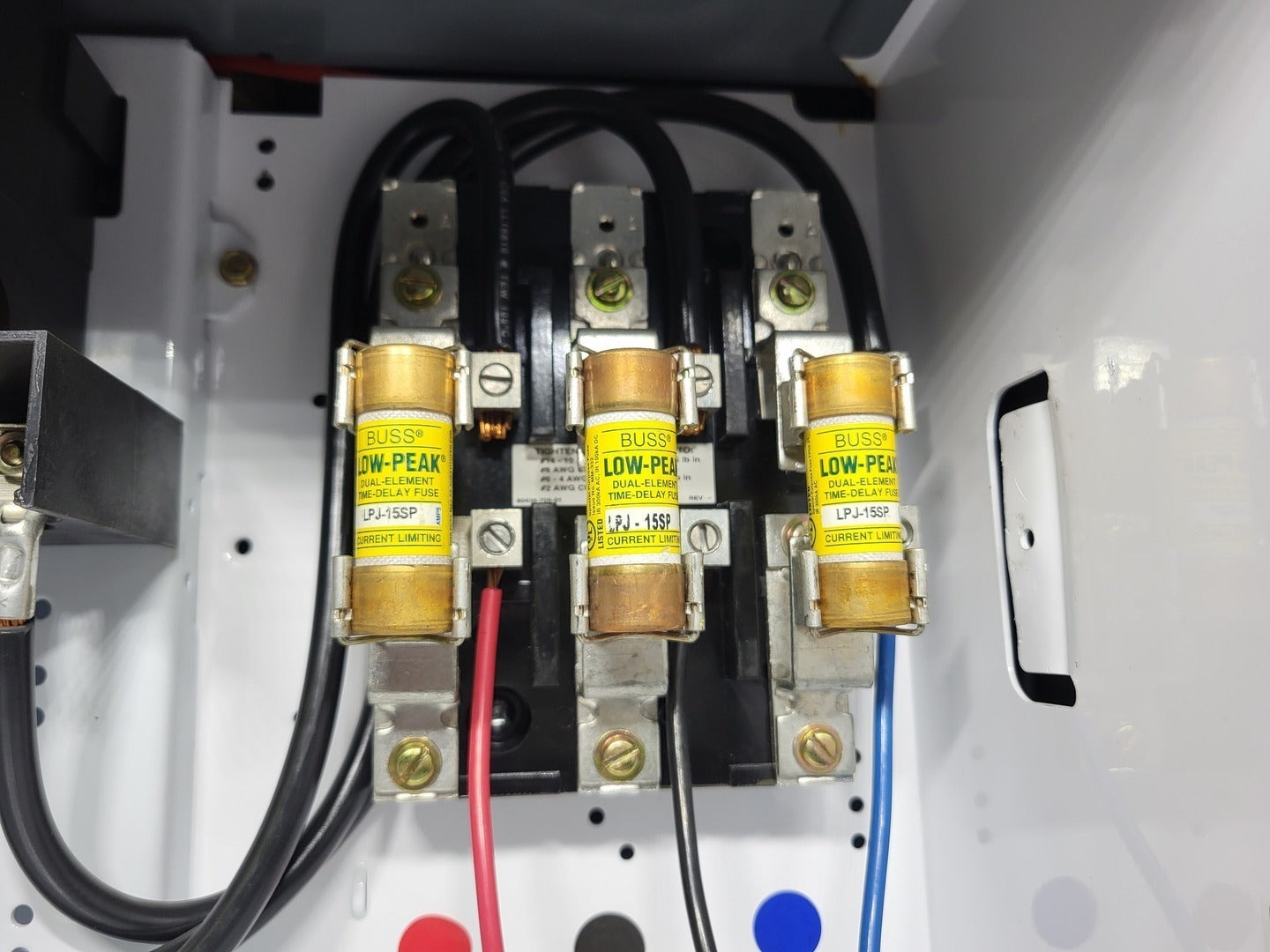

  2. 3 x Bussmann Low-Peak fuses LPJ-15SP

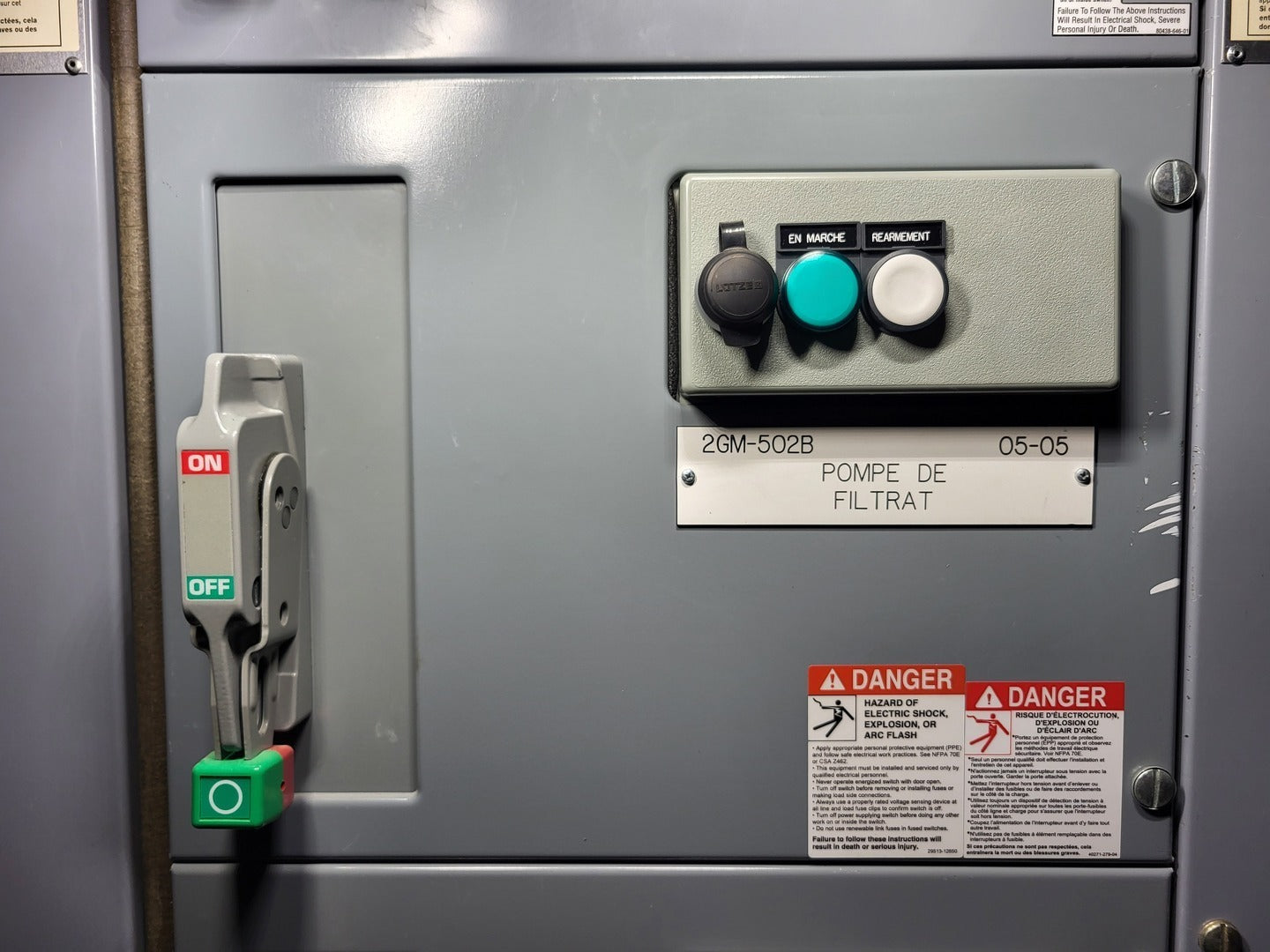

Bucket #3 2GM-502B

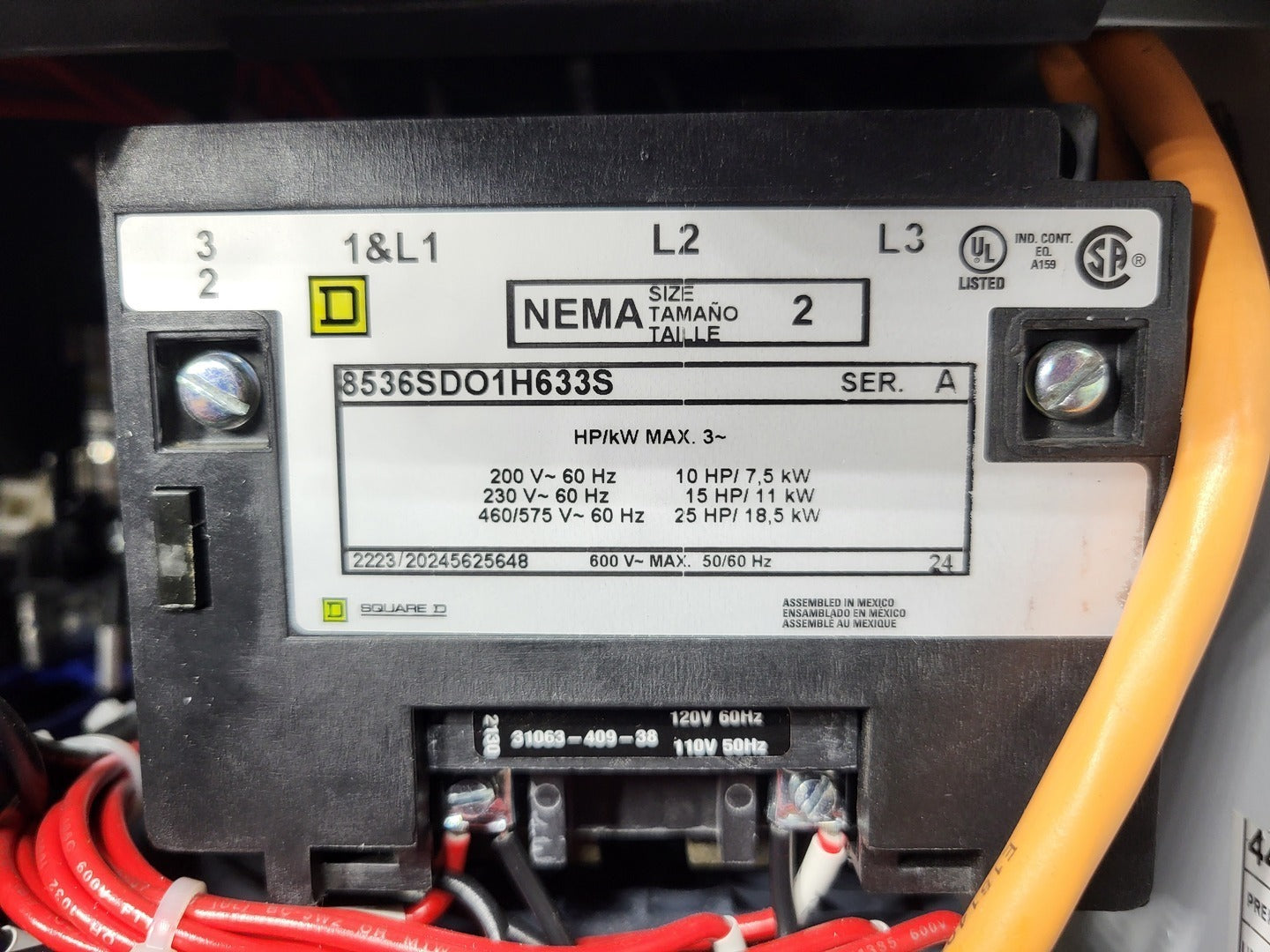

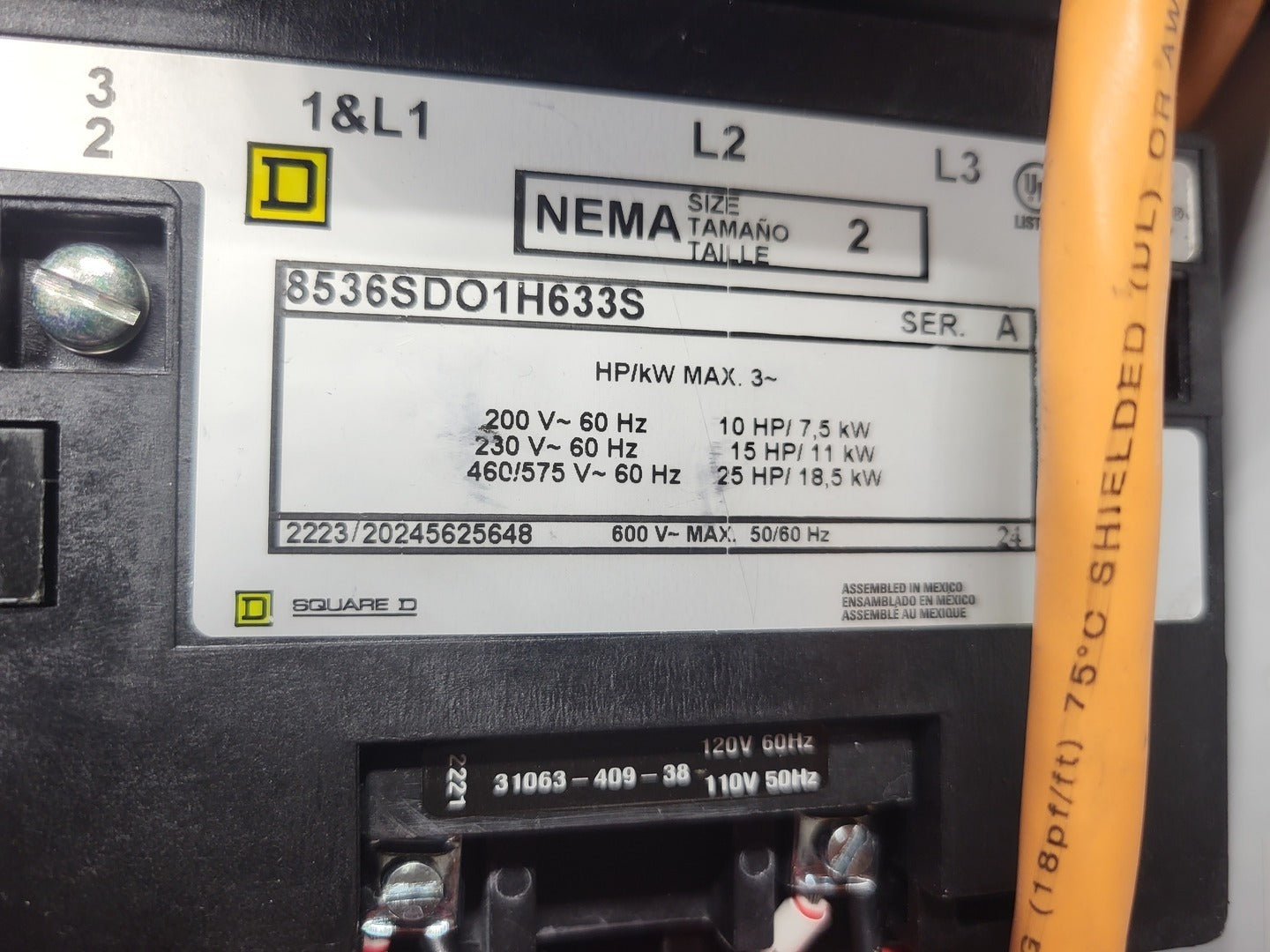

  1. Square D 8536SDO1H633S, NEMA Size 2 contactor, 25 HP @ 460/575V, 120V 60Hz coil

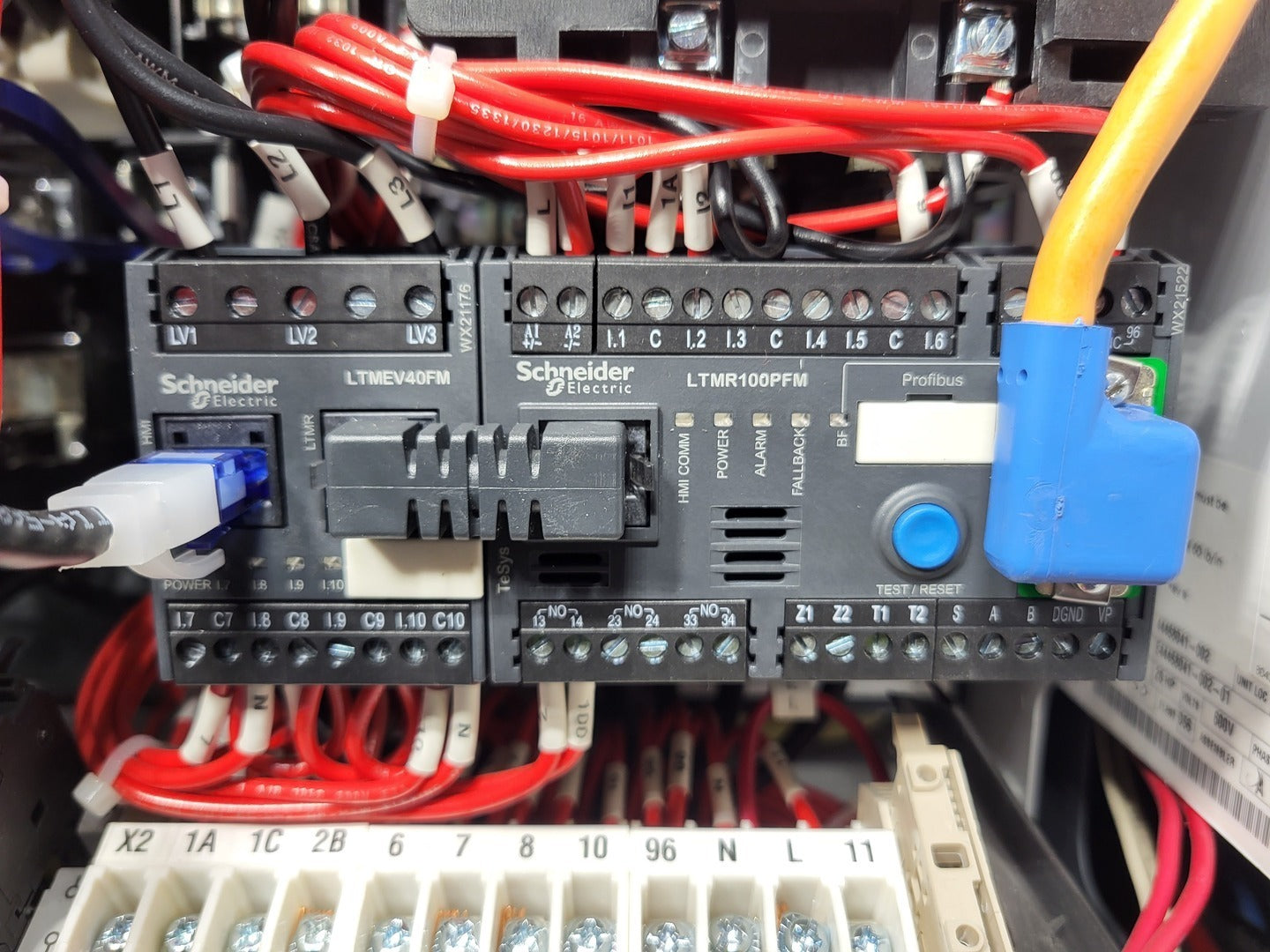

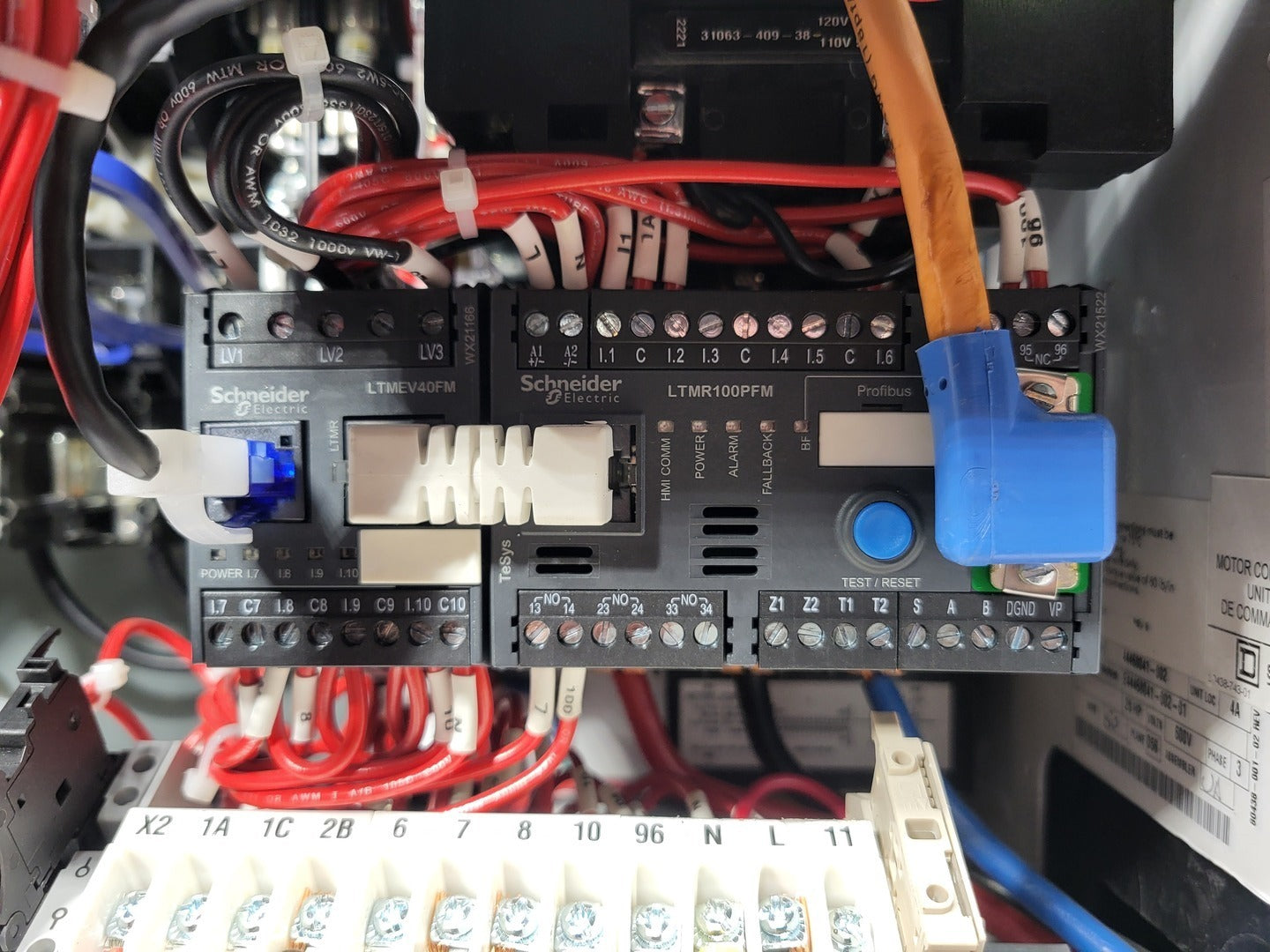

  2. Schneider Electric LTMR100PFM TeSys T motor management controller, Profibus, 100A rating

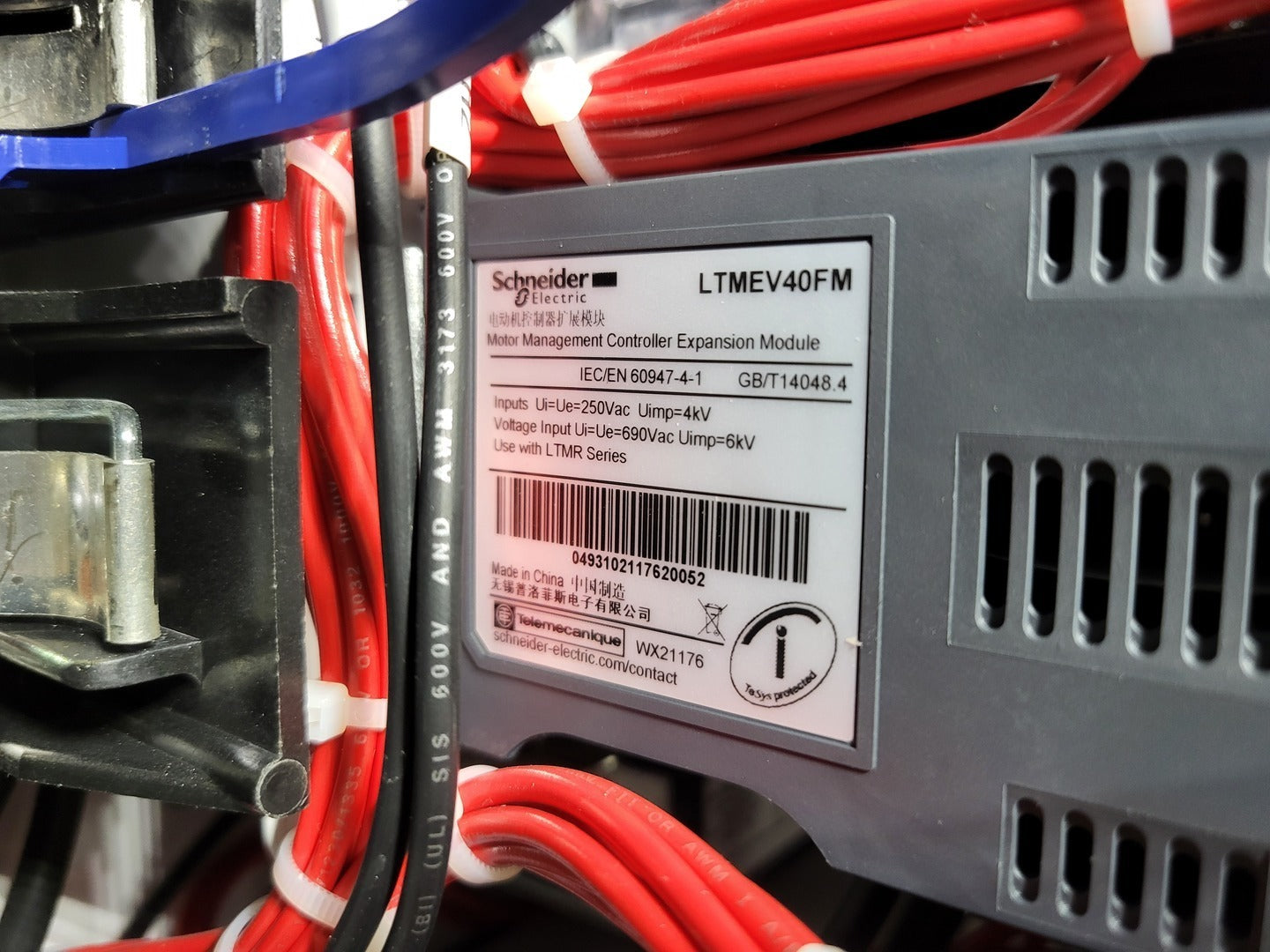

  3. Schneider Electric LTMEV40FM TeSys T expansion module, voltage input up to 690VAC

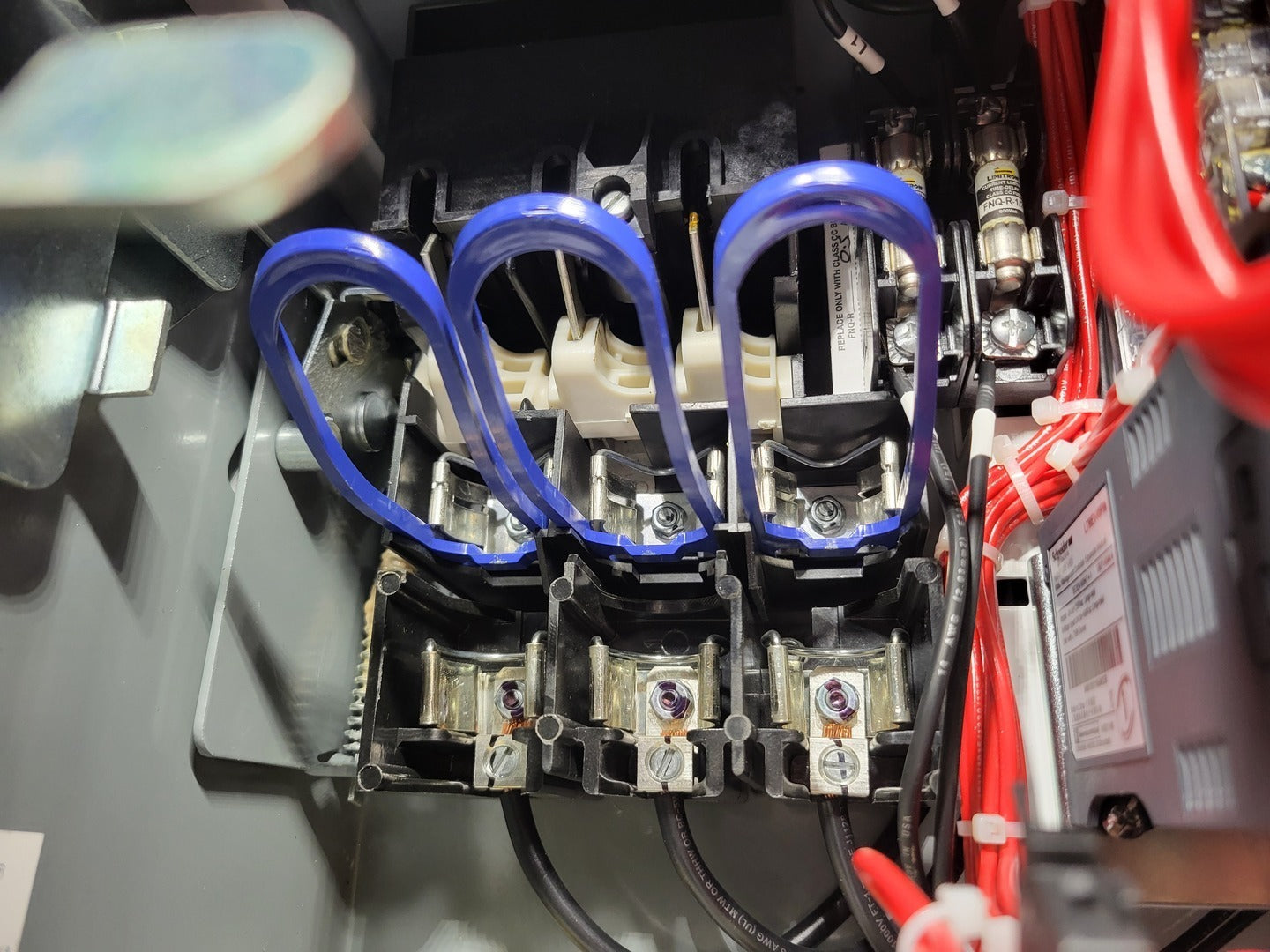

  4. Square D 3-pole circuit breaker disconnect MCC bucket unit
  5. 3 x Bussmann Low-Peak fuses

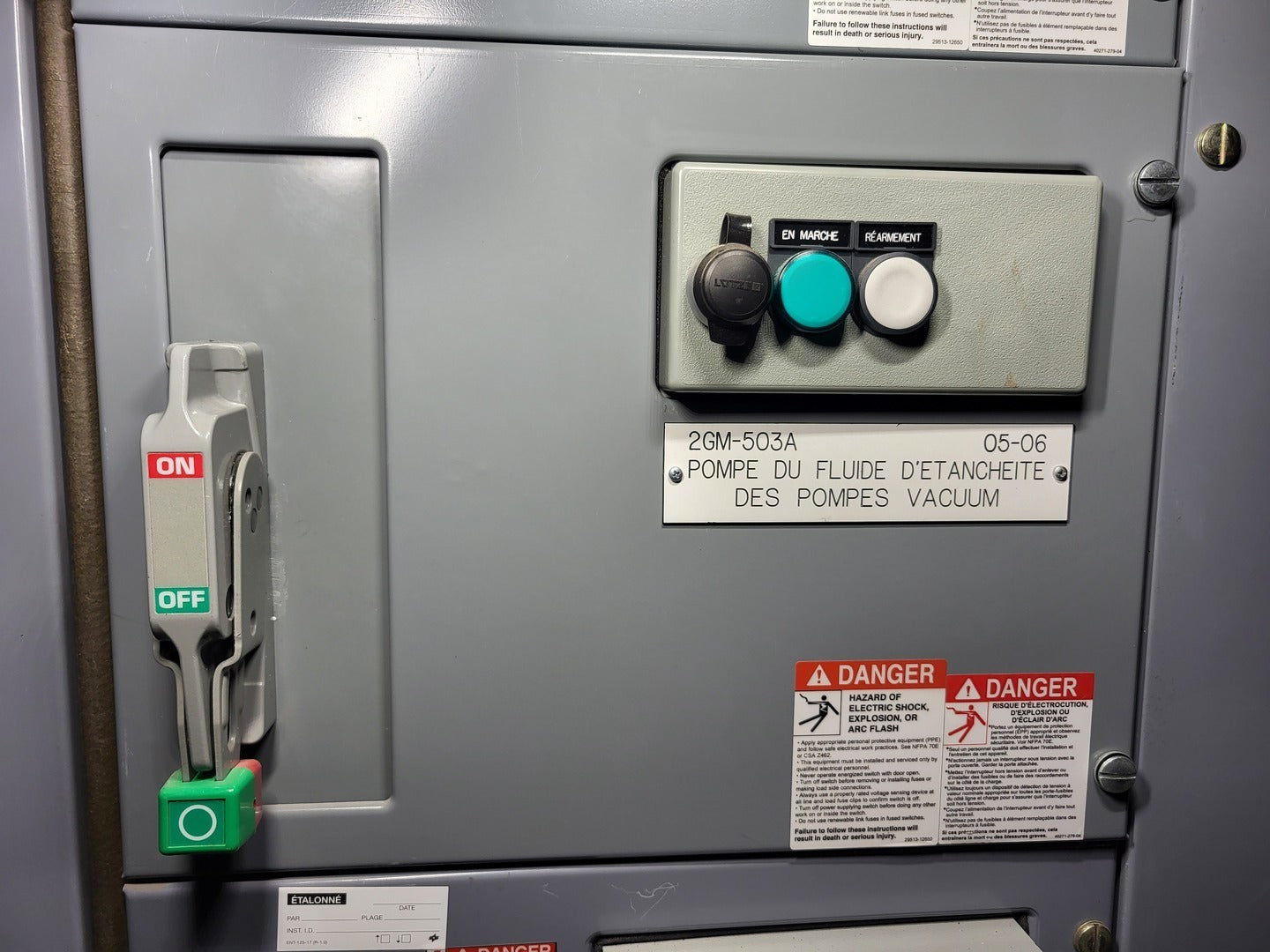

Bucket #4 2GM-503A

  1. Square D 8536SDO1H633S, NEMA Size 2 contactor, 25 HP @ 460/575V, 120V 60Hz coil
  2. Schneider Electric LTMR100PFM TeSys T motor management controller, Profibus, 100A rating
  3. Schneider Electric LTMEV40FM TeSys T expansion module, voltage input up to 690VAC
  4. Square D 3-pole circuit breaker disconnect MCC bucket unit

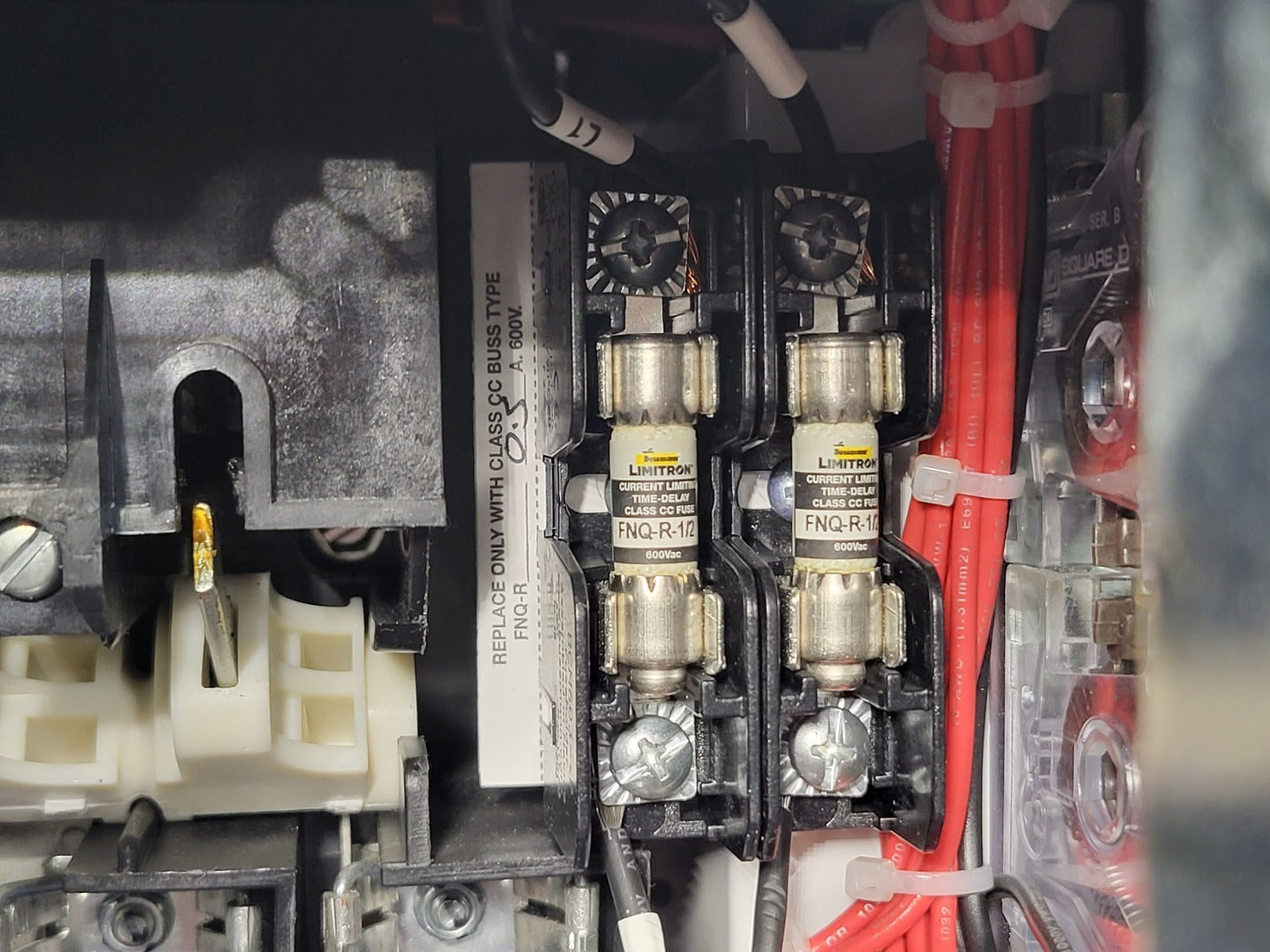

  5. 2 x Bussmann Limitron fuses FNQ-R-1/2
  6. 3 x Bussmann Low-Peak fuses

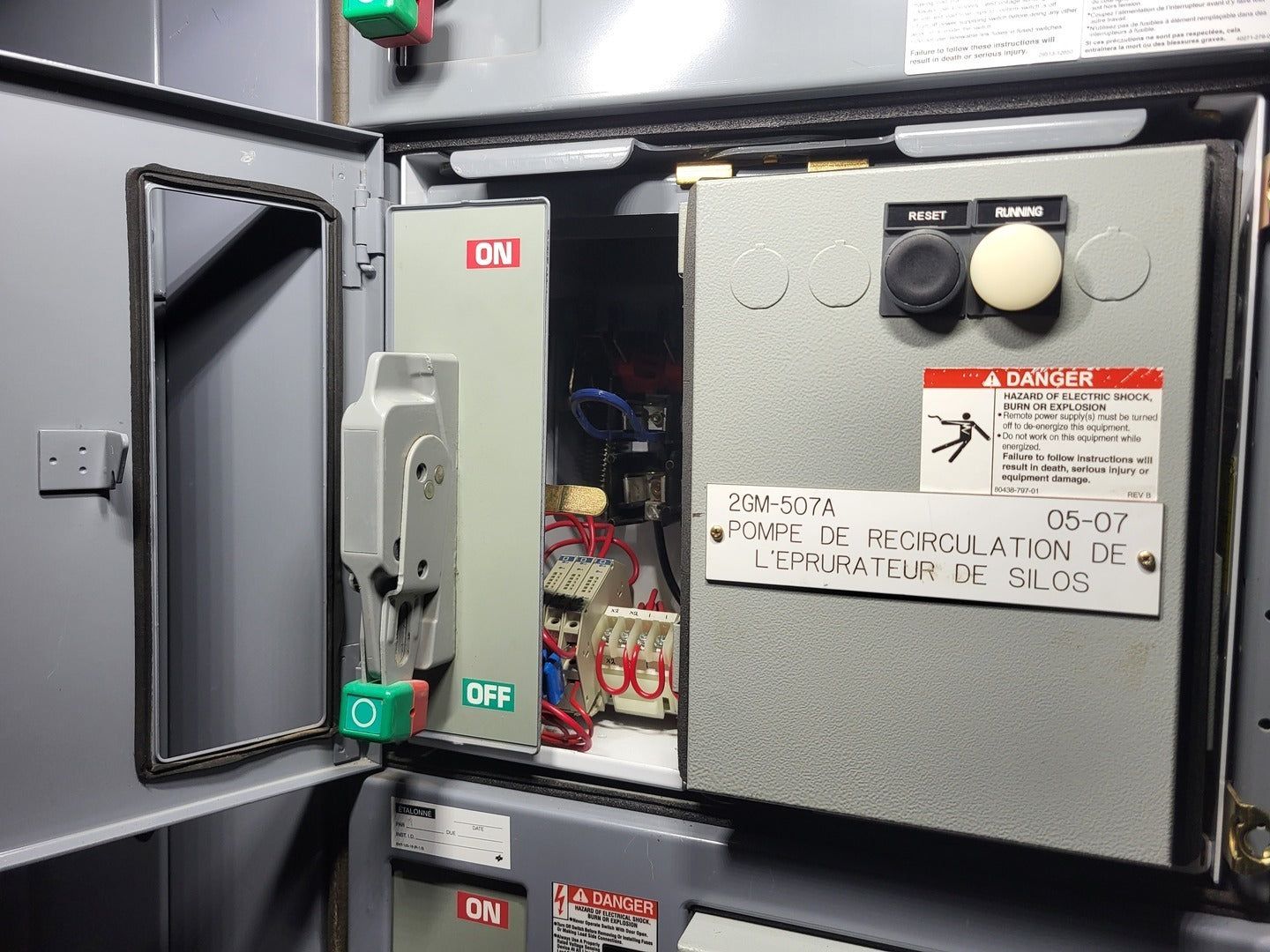

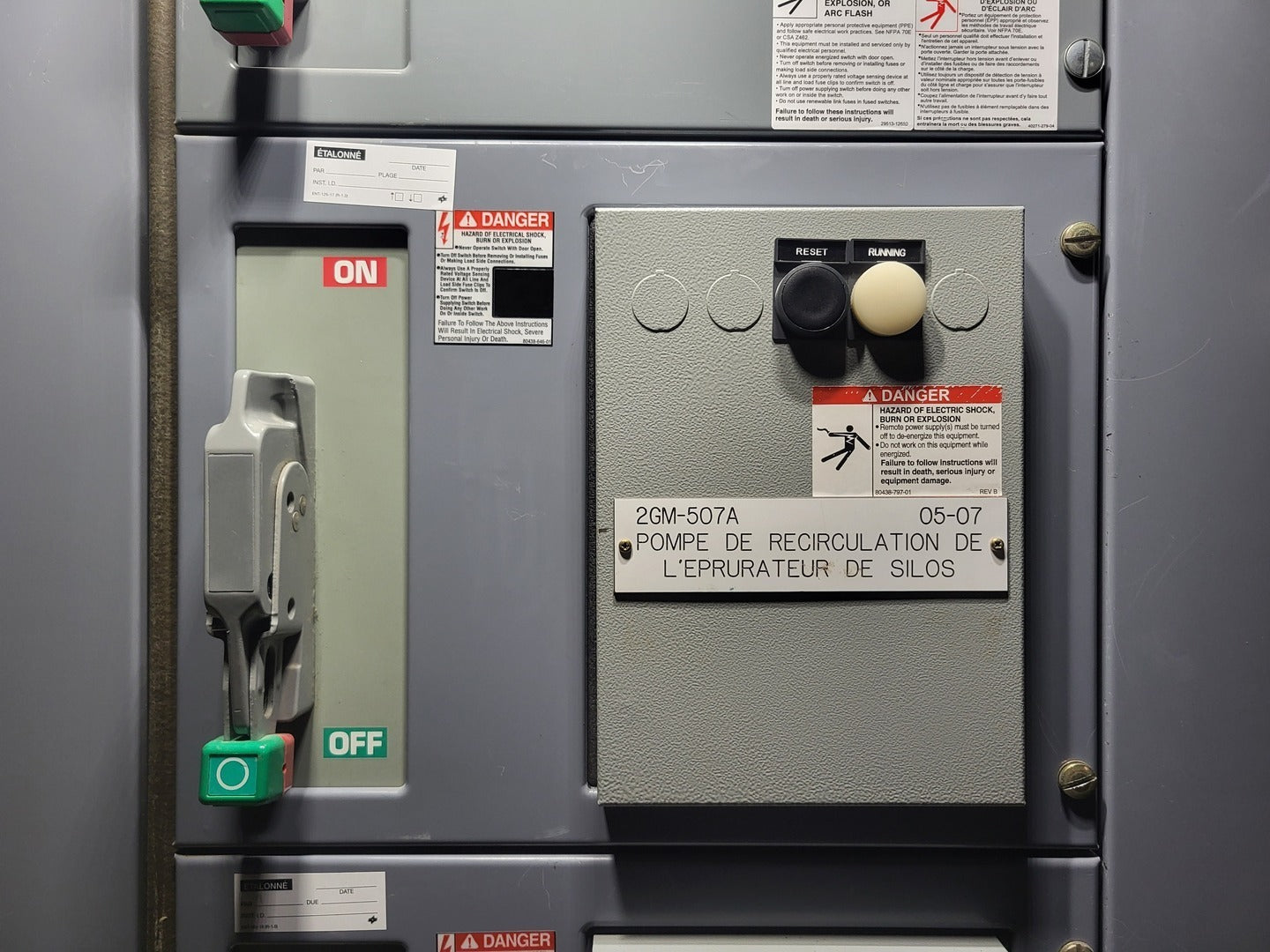

Bucket #5 2GM-507A

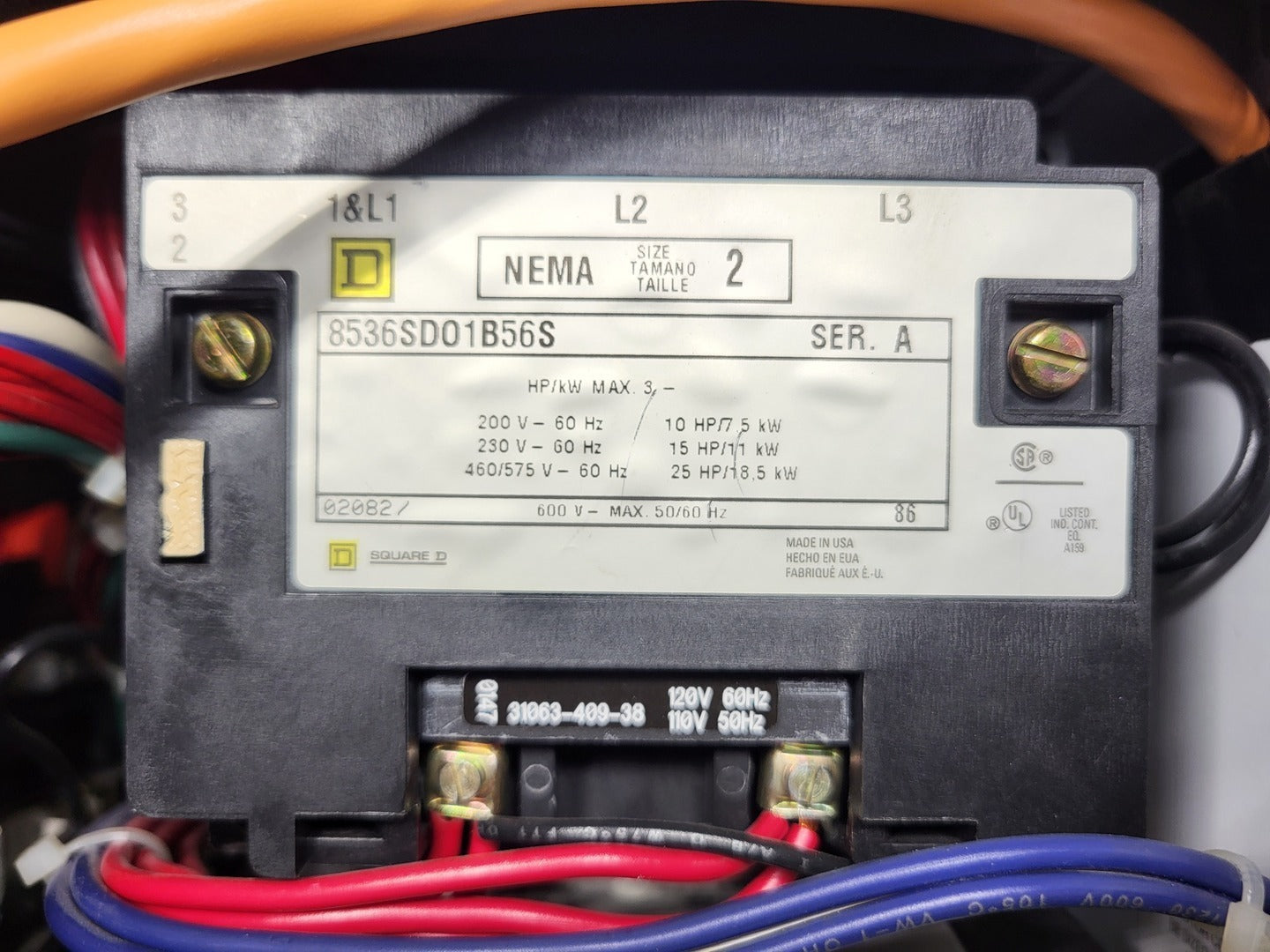

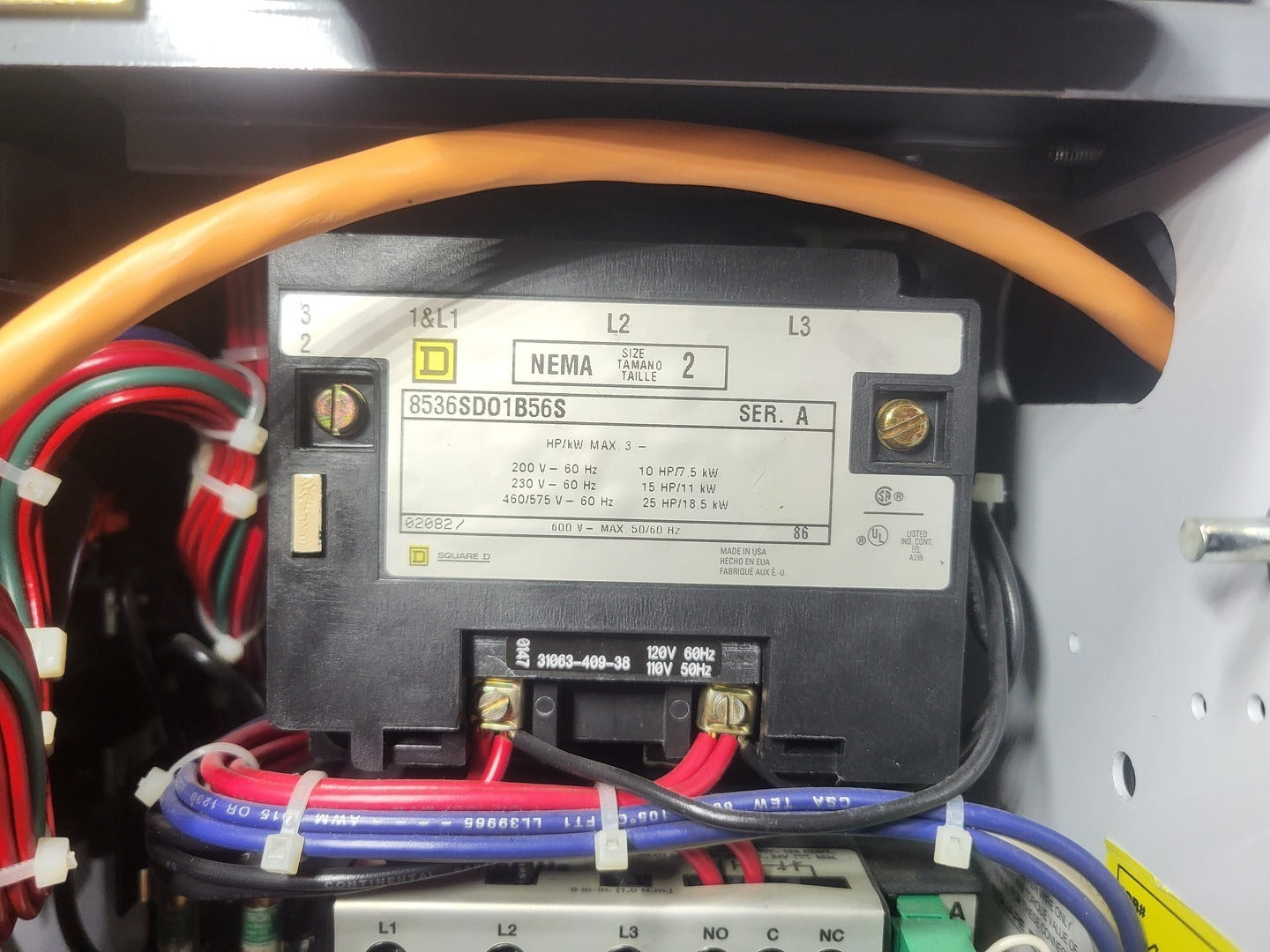

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 25 HP @ 460/575V, 120V 60Hz coil

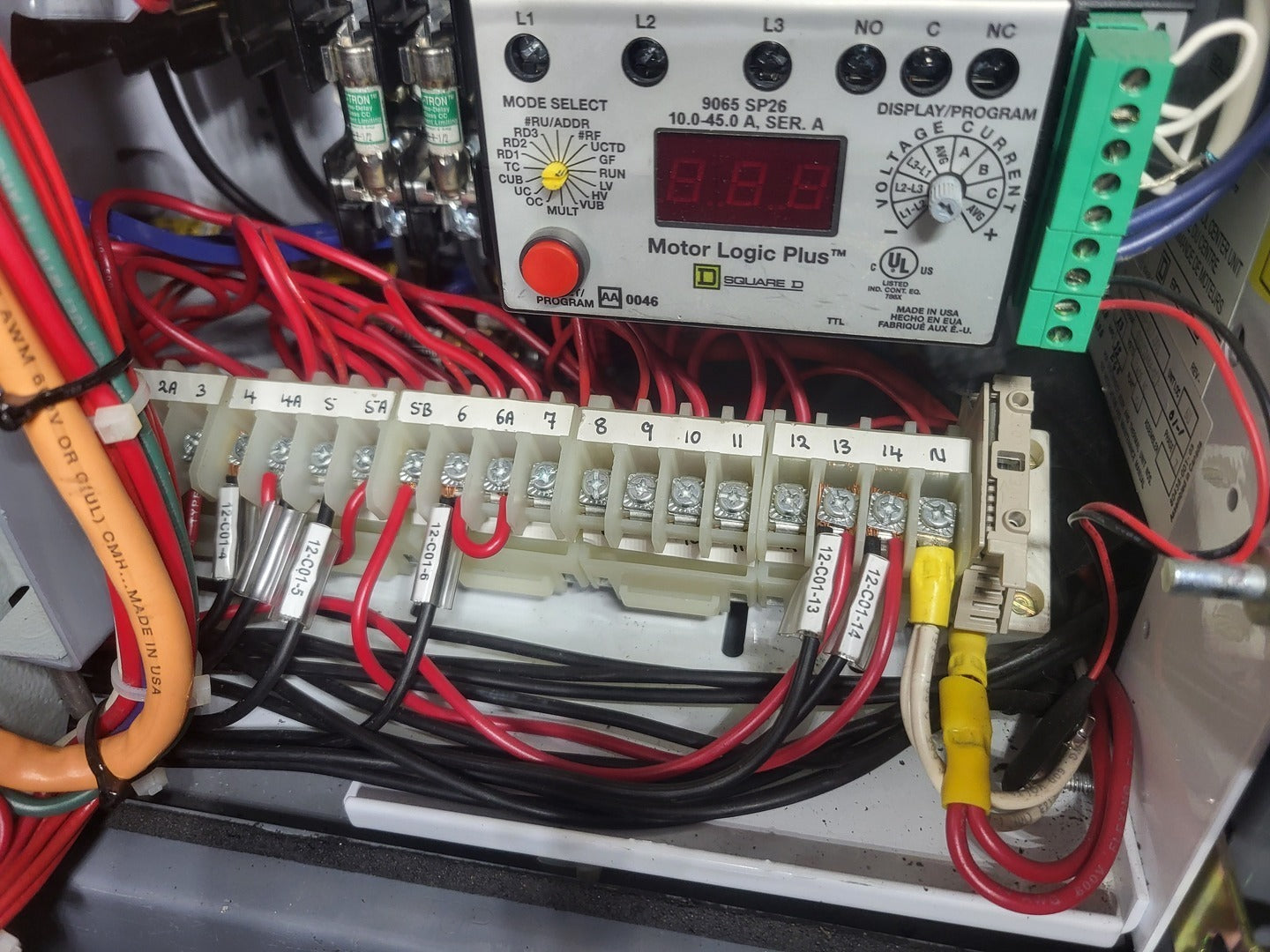

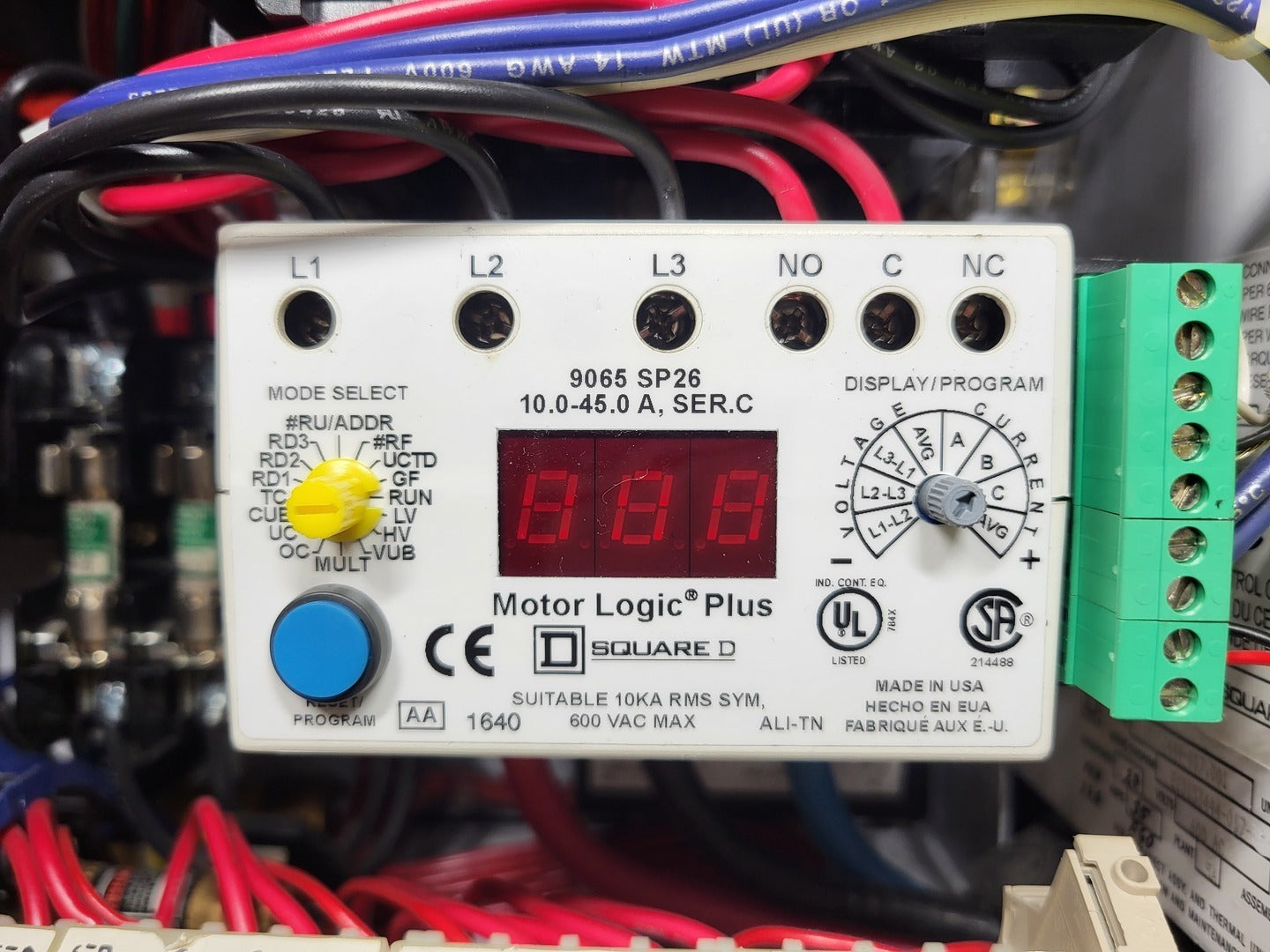

  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max

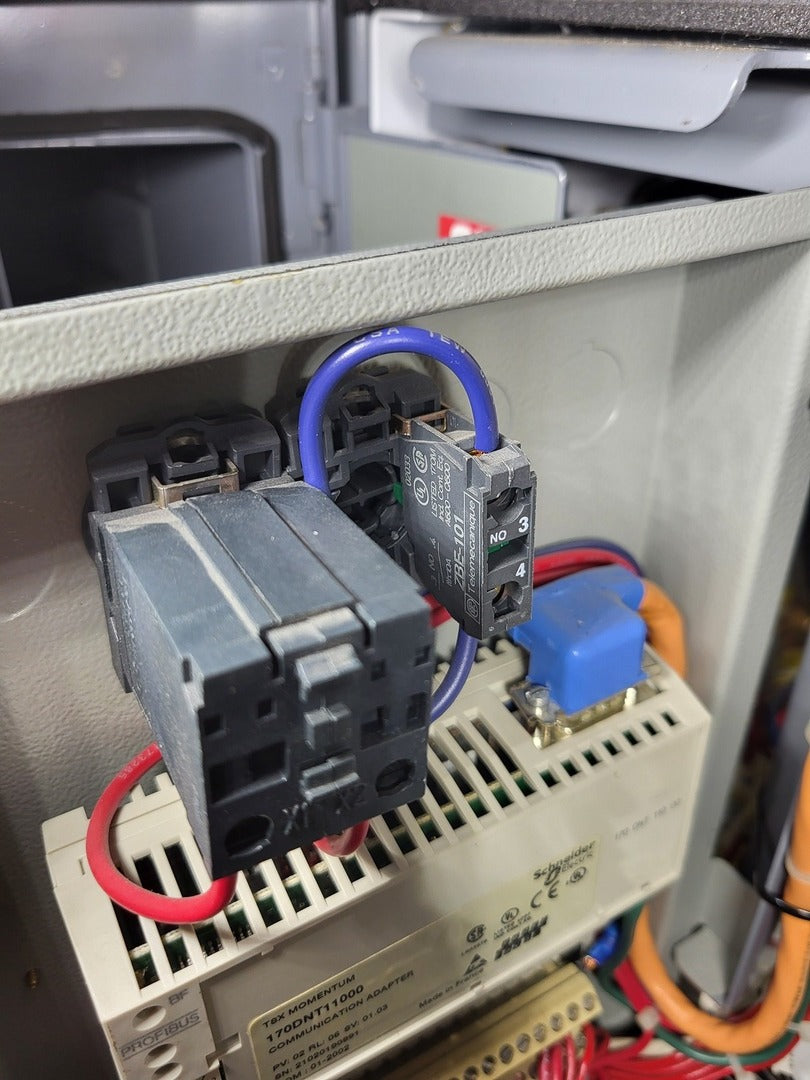

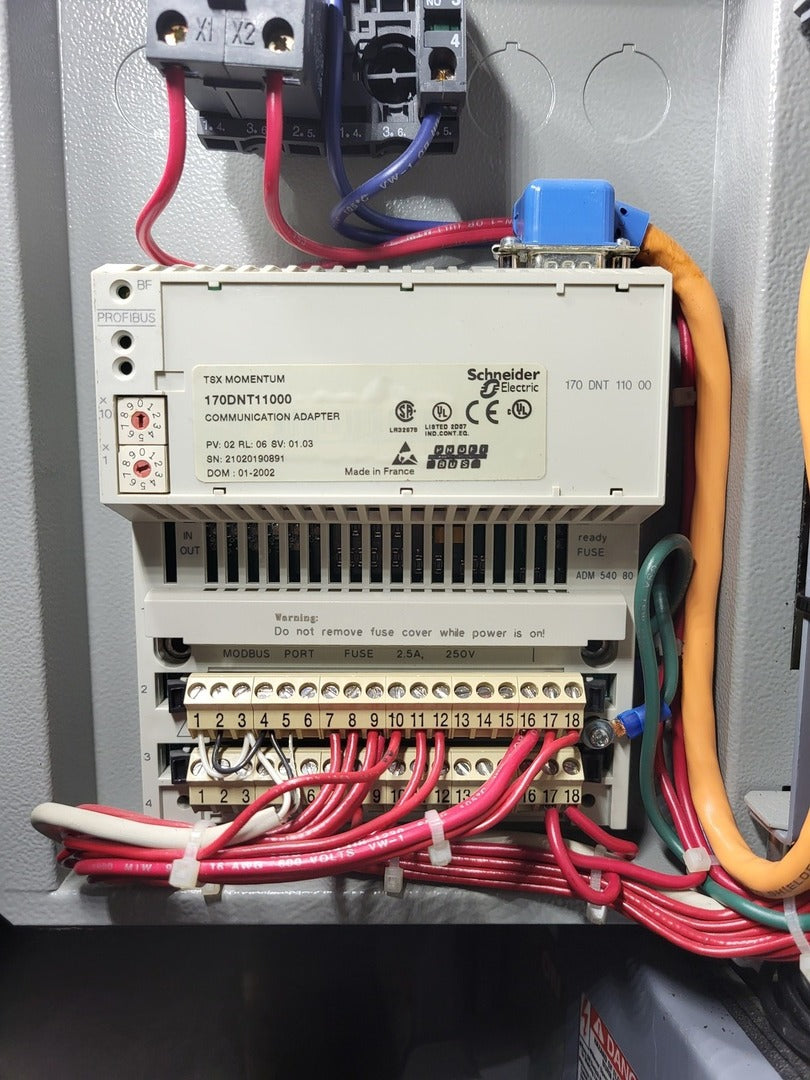

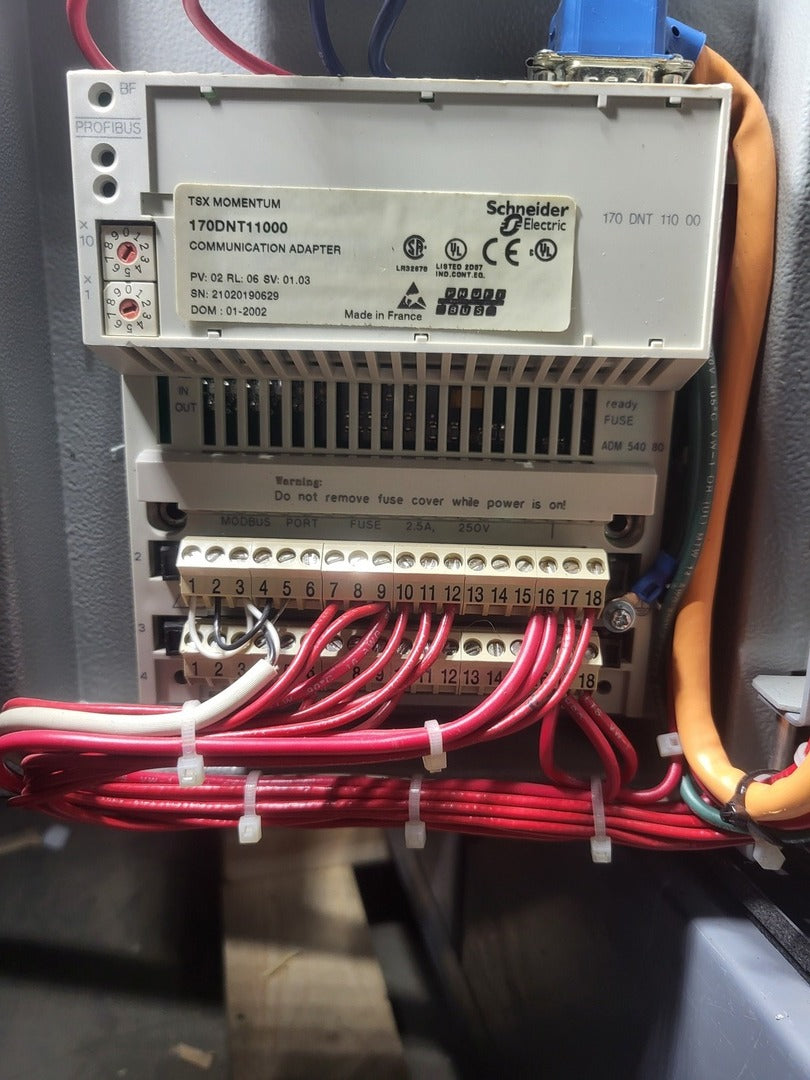

  3. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module

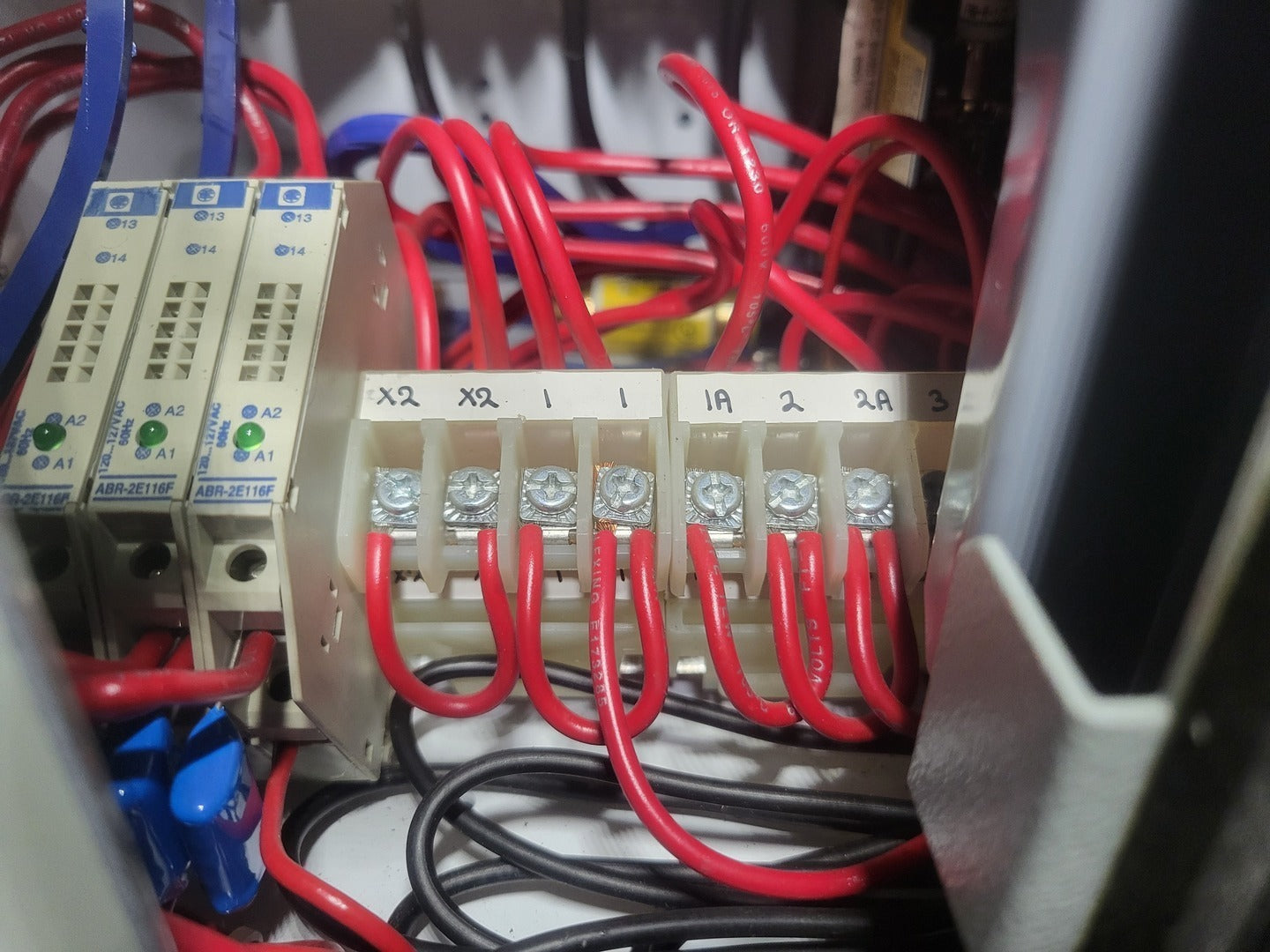

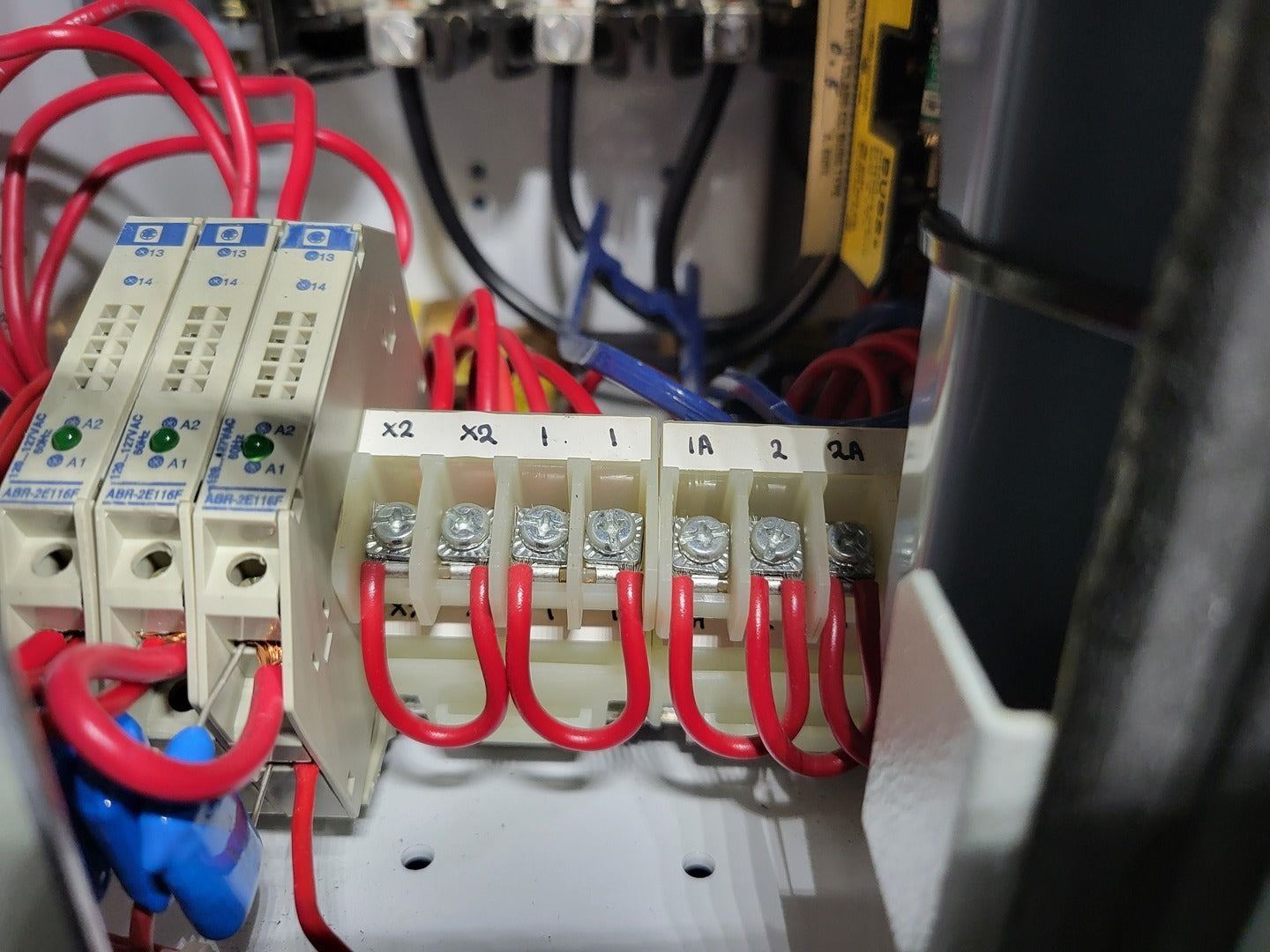

  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

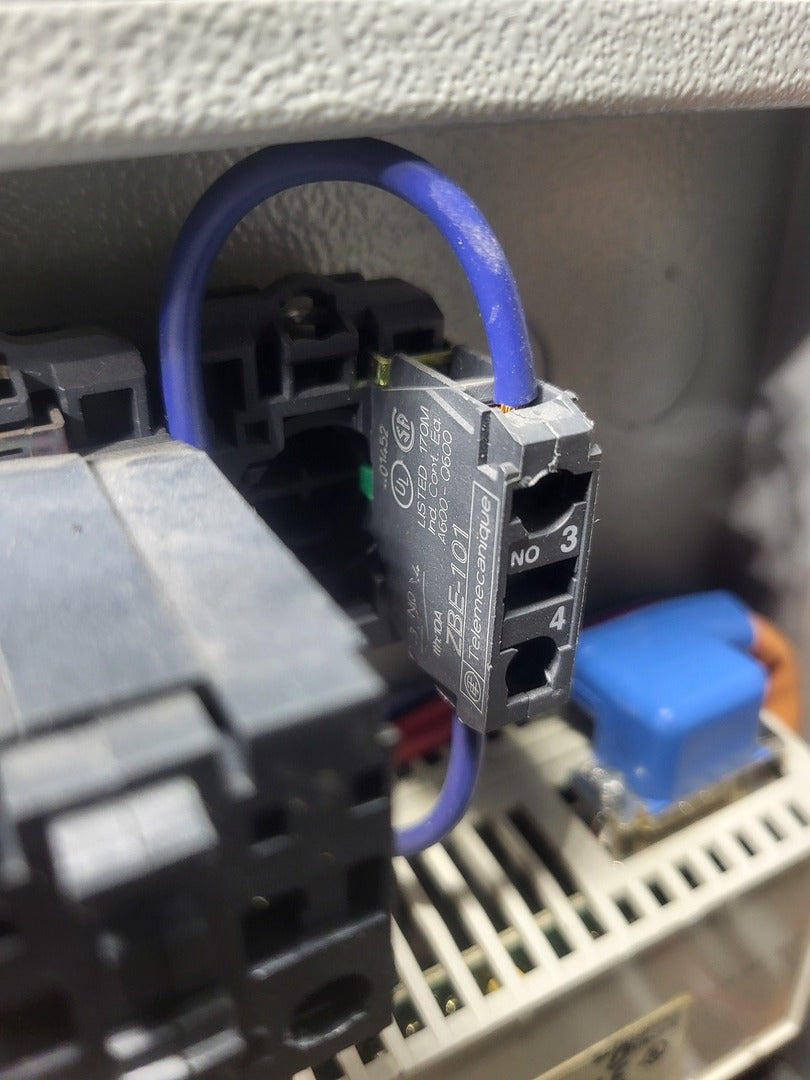

  5. Telemecanique ZBE101, contact block
  6. Square D 3-pole circuit breaker disconnect MCC bucket unit

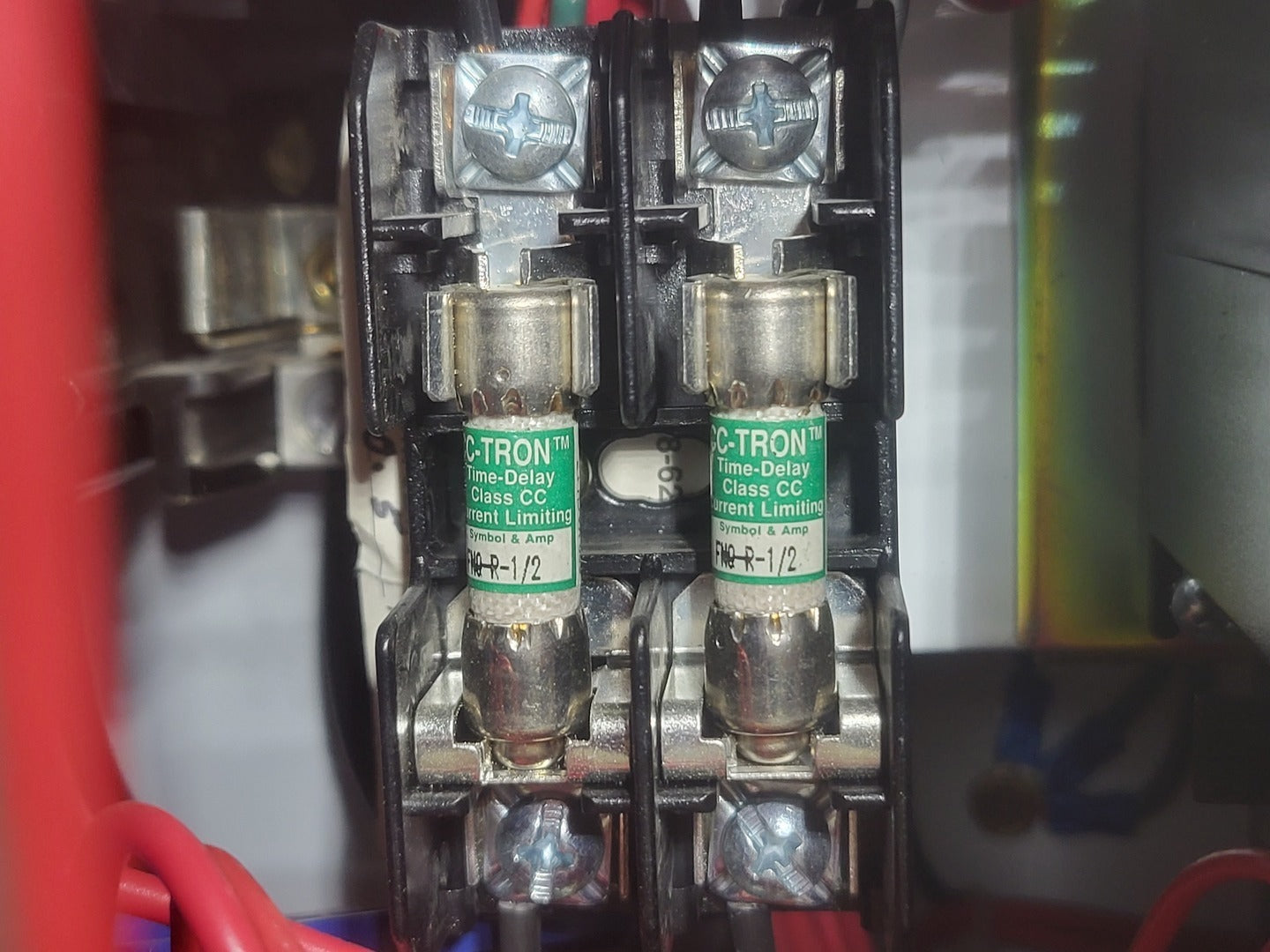

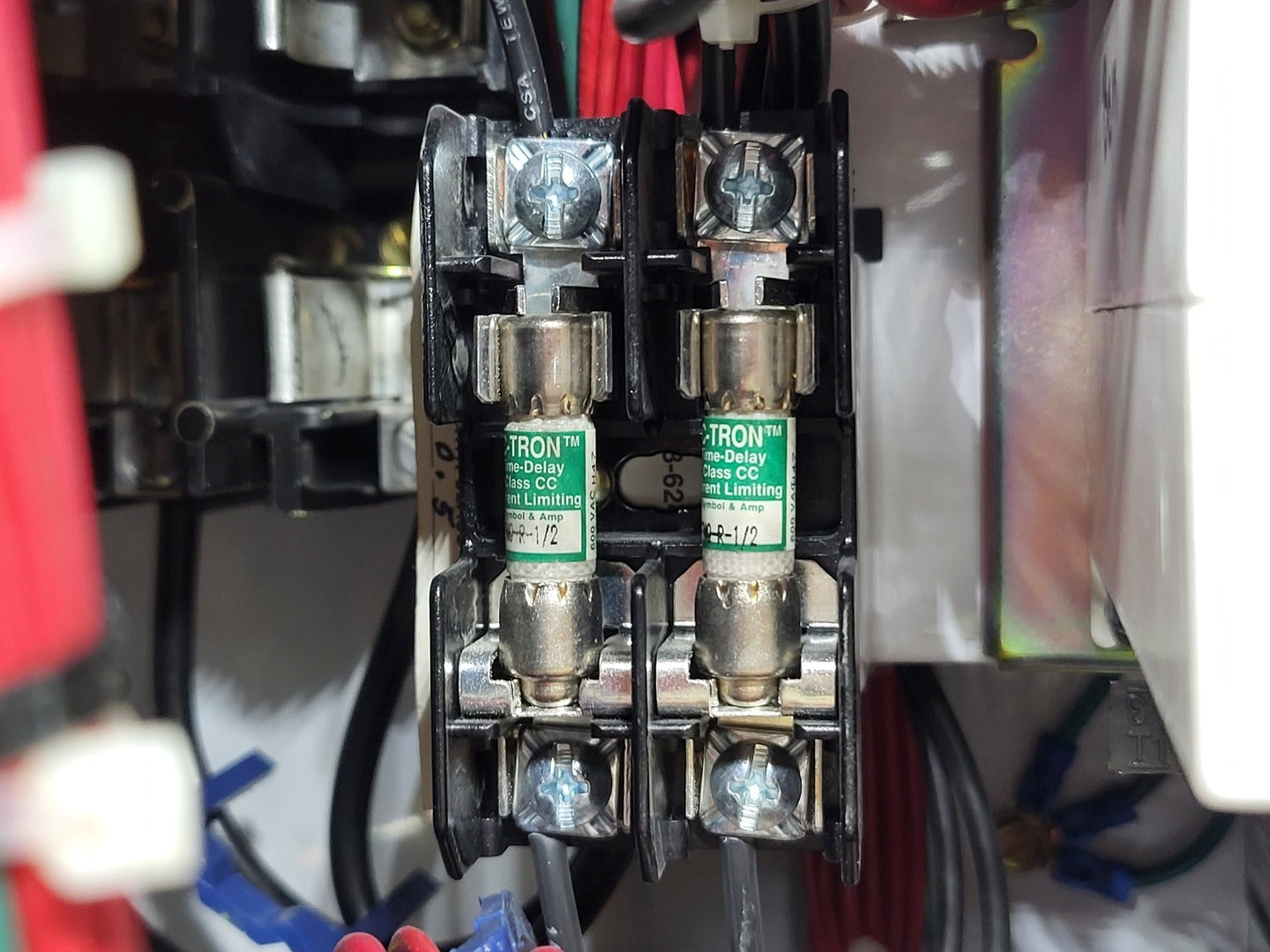

  7. 2 x Bussmann Fusetron fuses FNQ-R-1/2

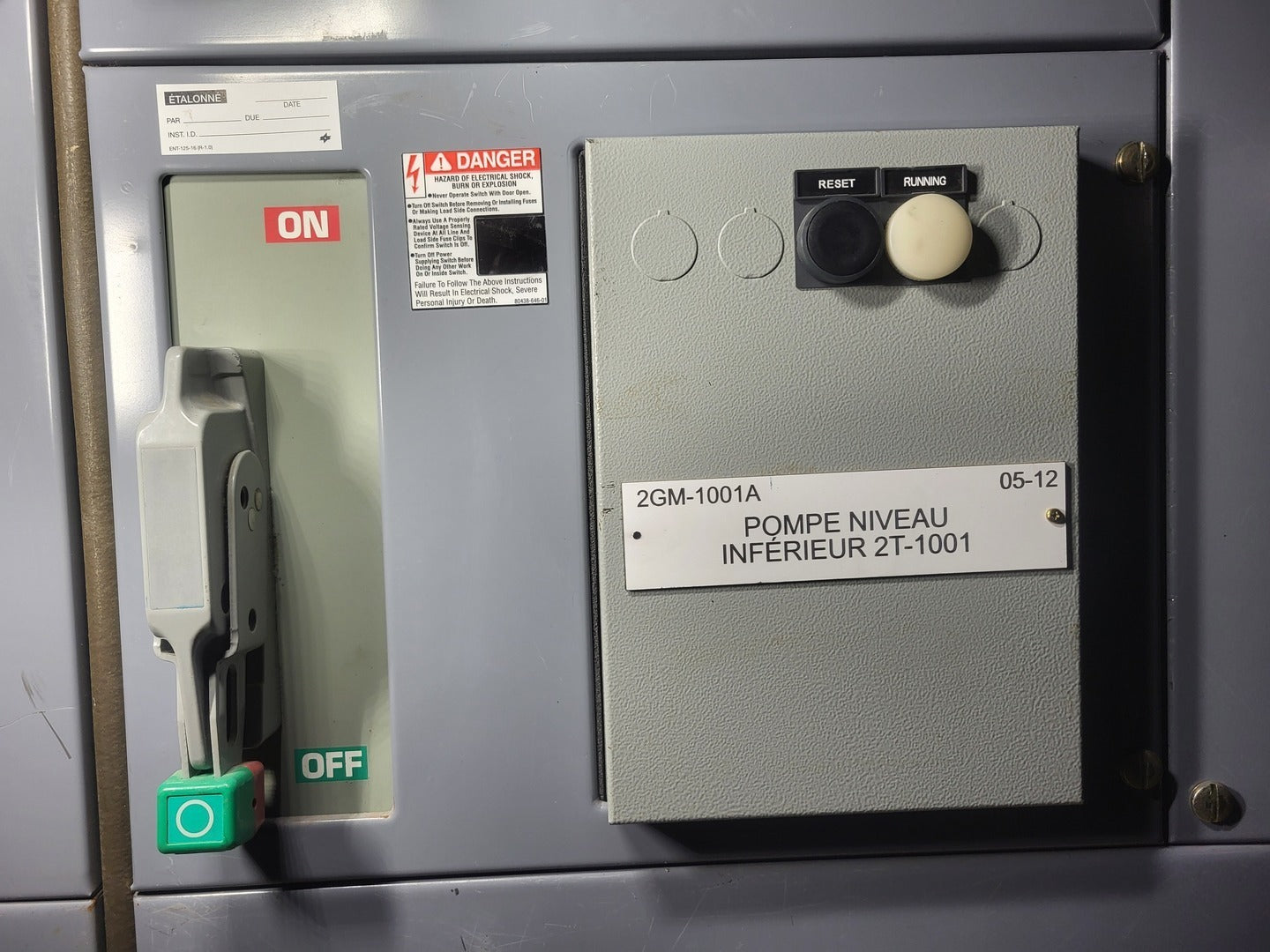

Bucket #6 2GM-1001A

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 25 HP @ 460/575V, 120V 60Hz coil
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max
  3. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Square D 3-pole circuit breaker disconnect MCC bucket unit
  6. 2 x Bussmann Fusetron fuses FNQ-R-1/2
