SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 150777
Price:
$8,200 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

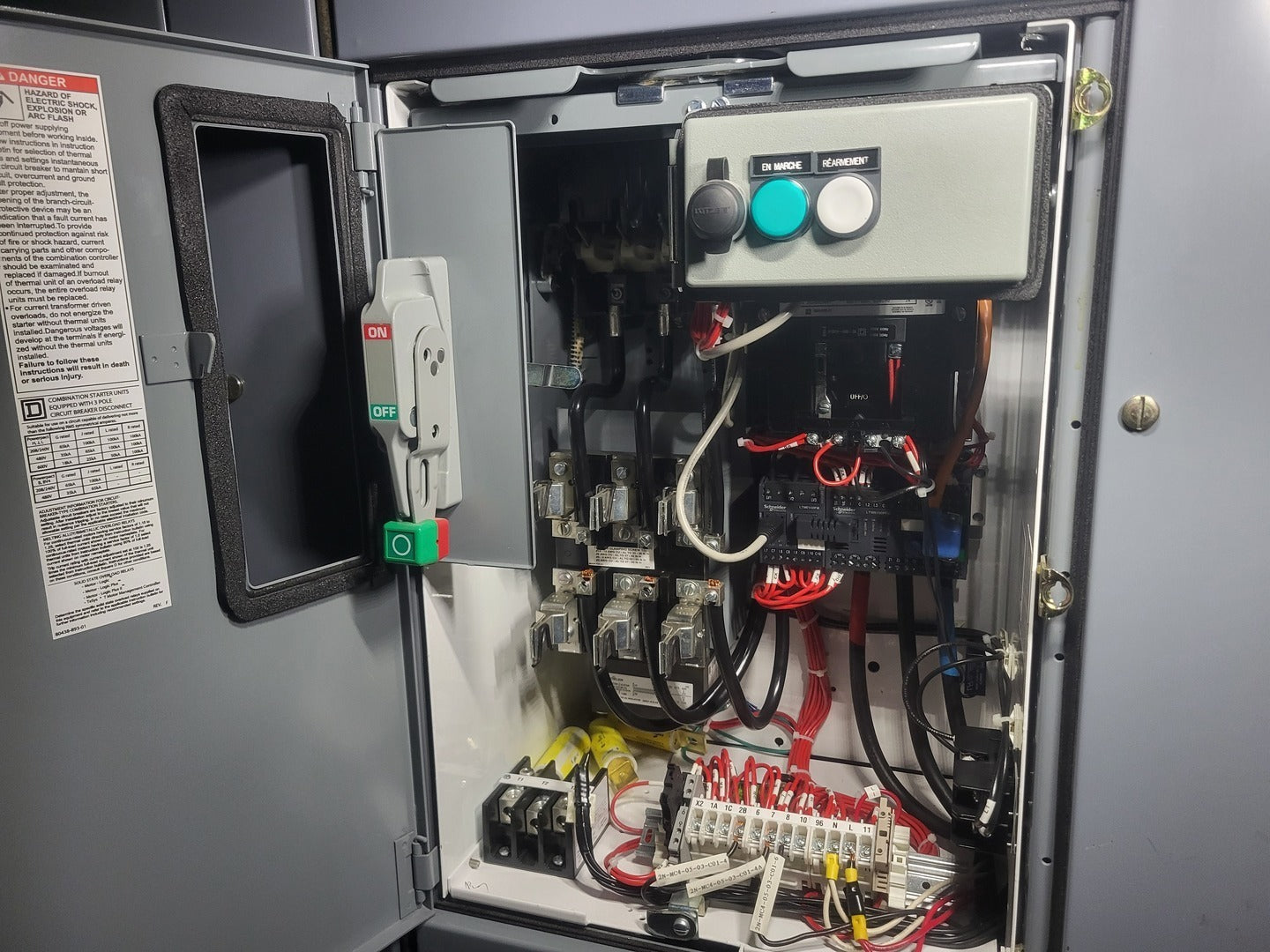

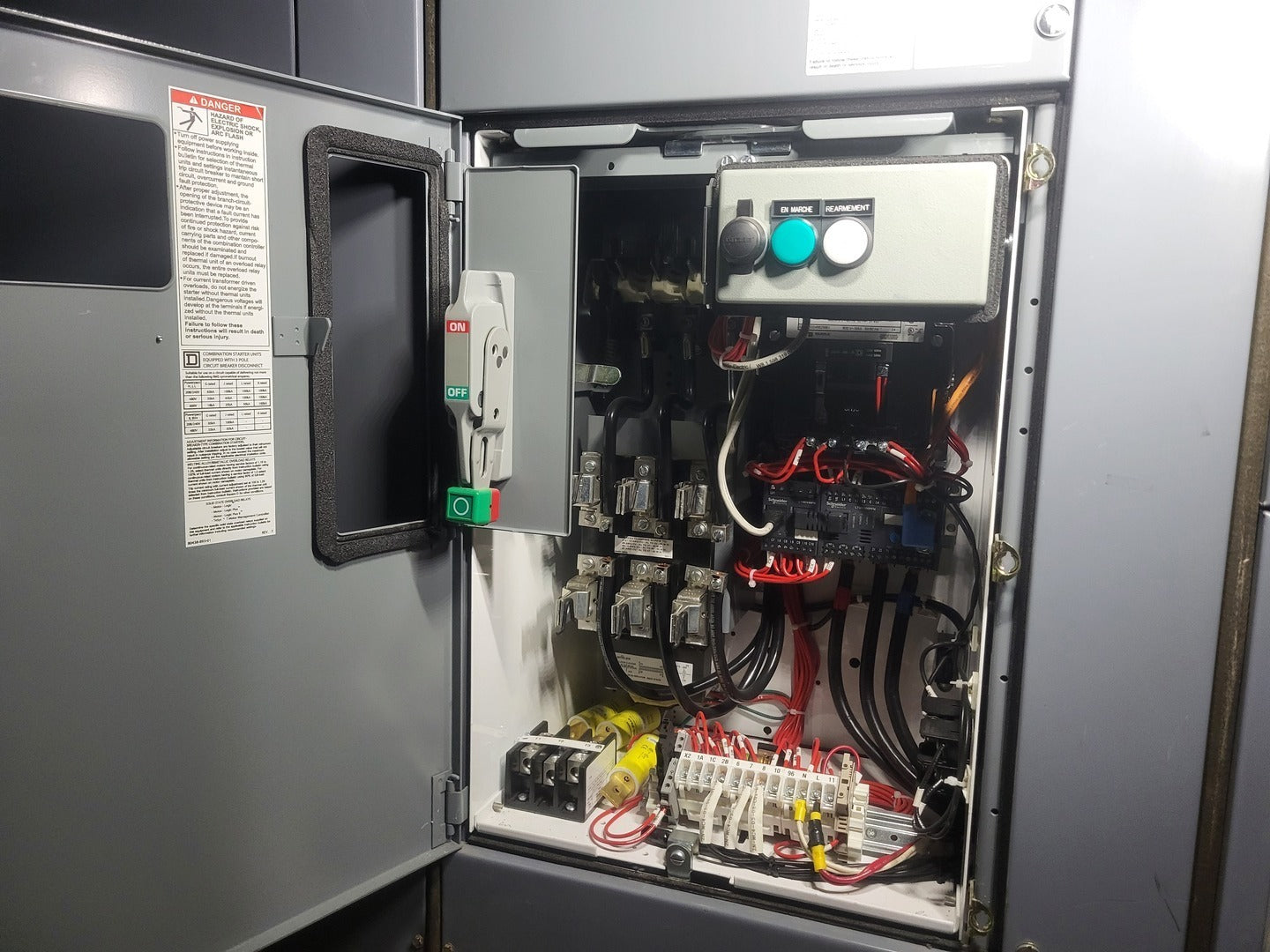

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications

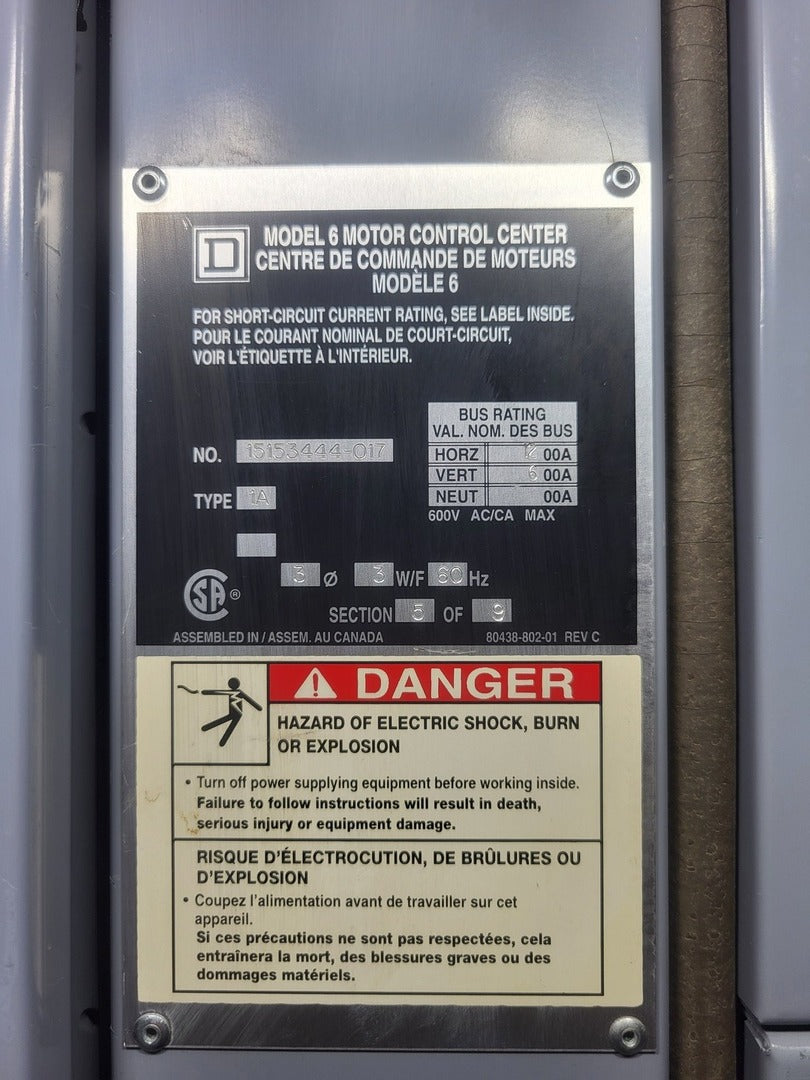

Model Model 6
Condition Used
Electrical
Max. Voltage 600
Other Specifications

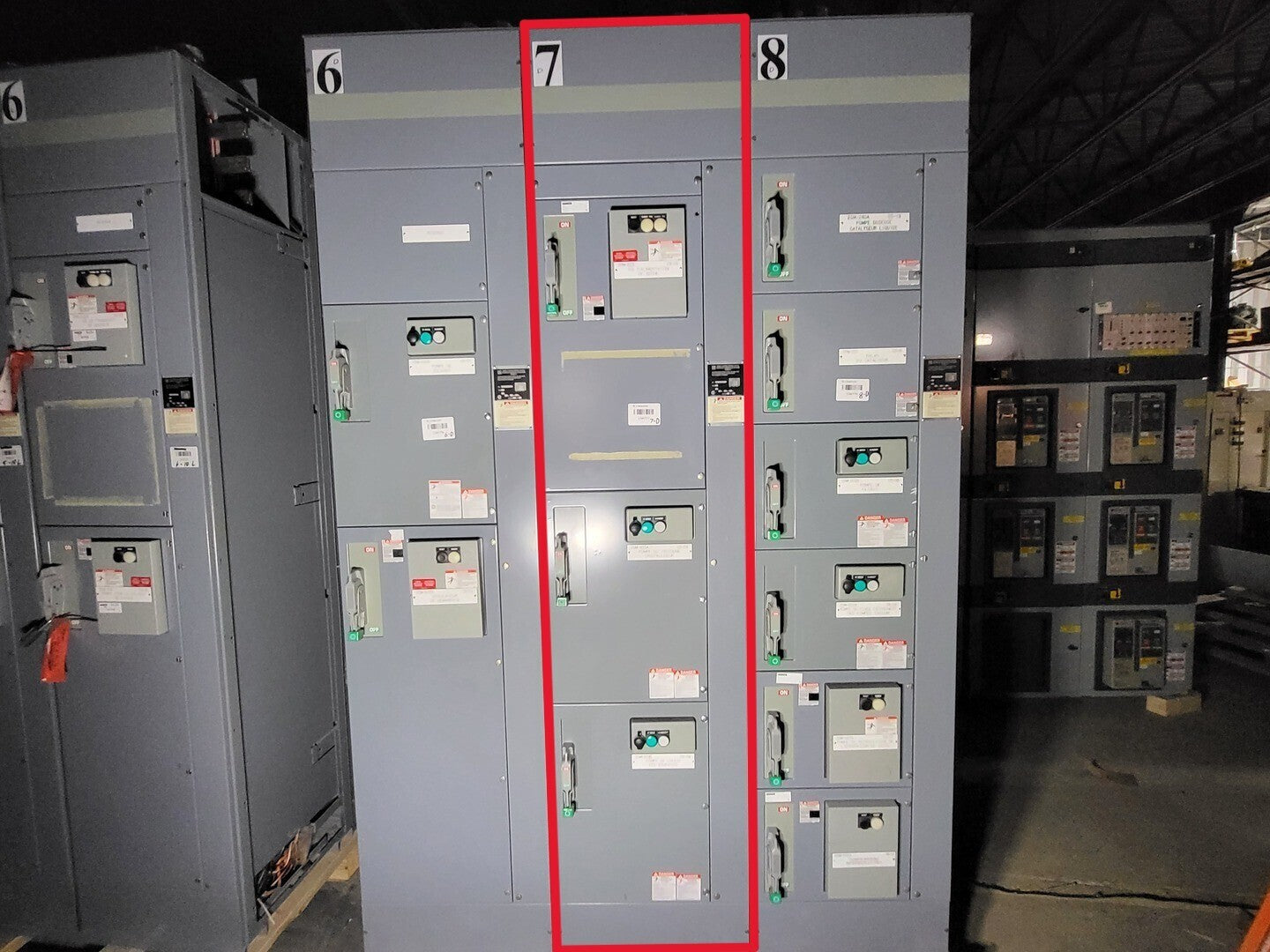

Note: Section 7 only

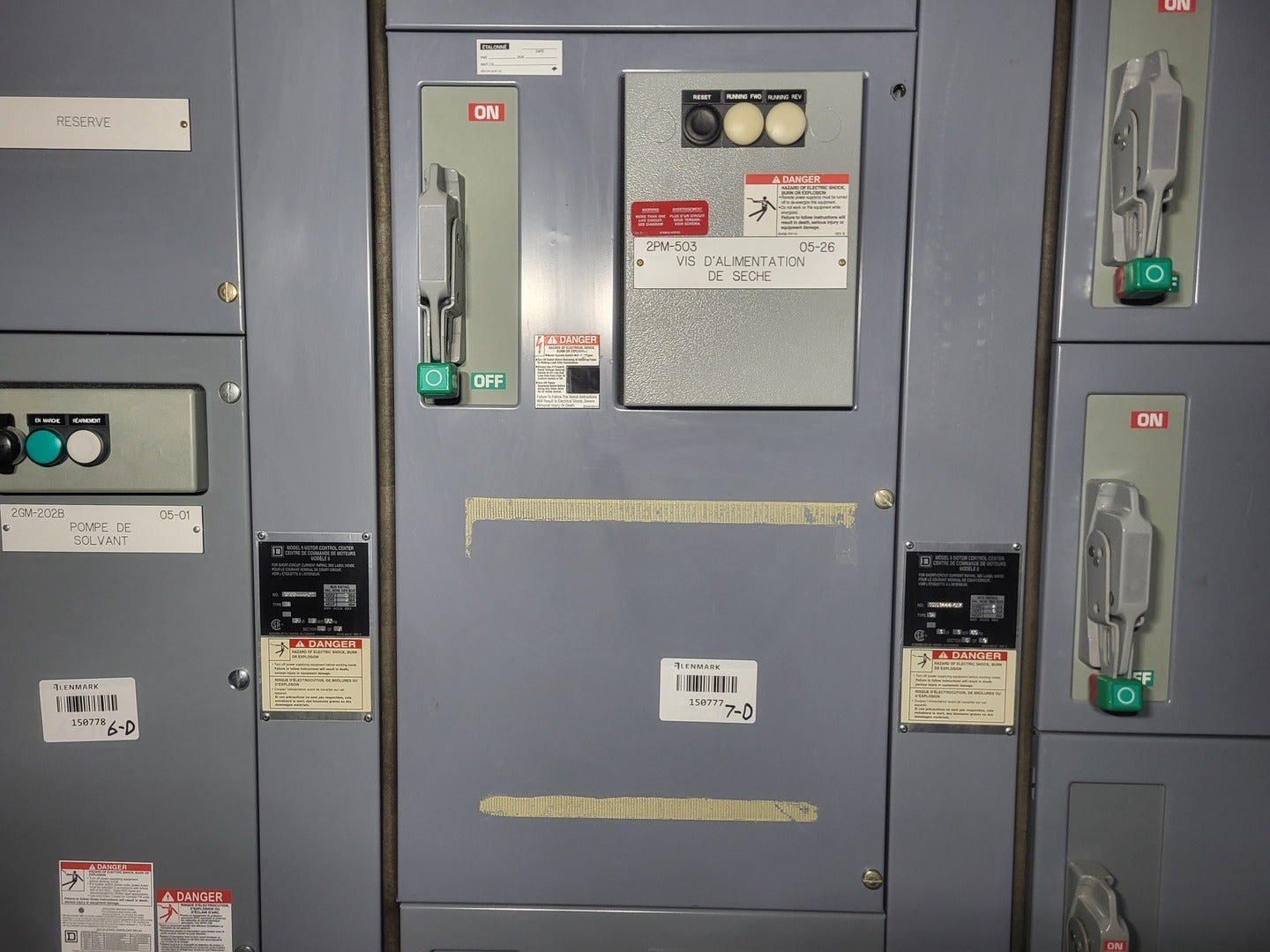

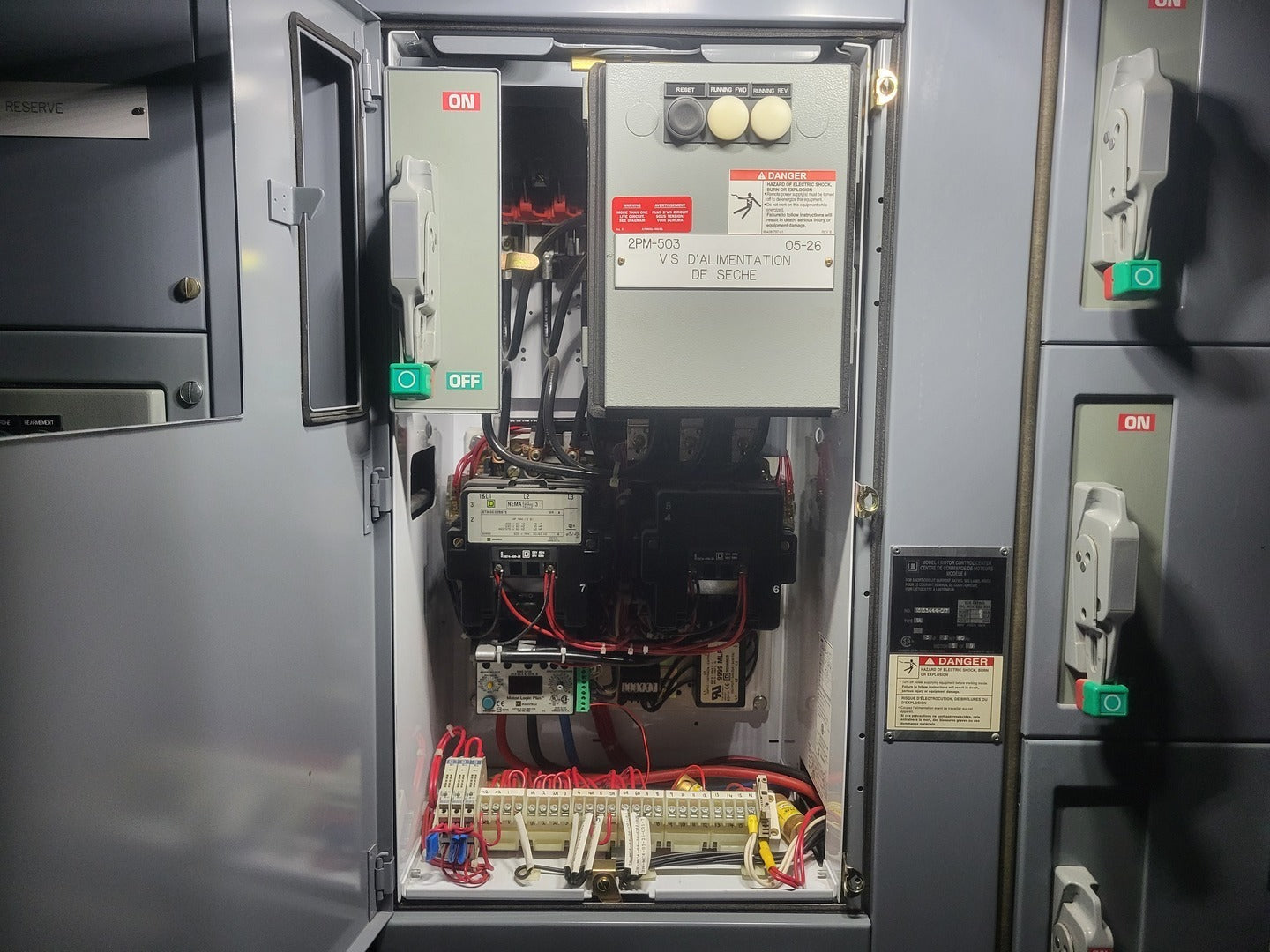

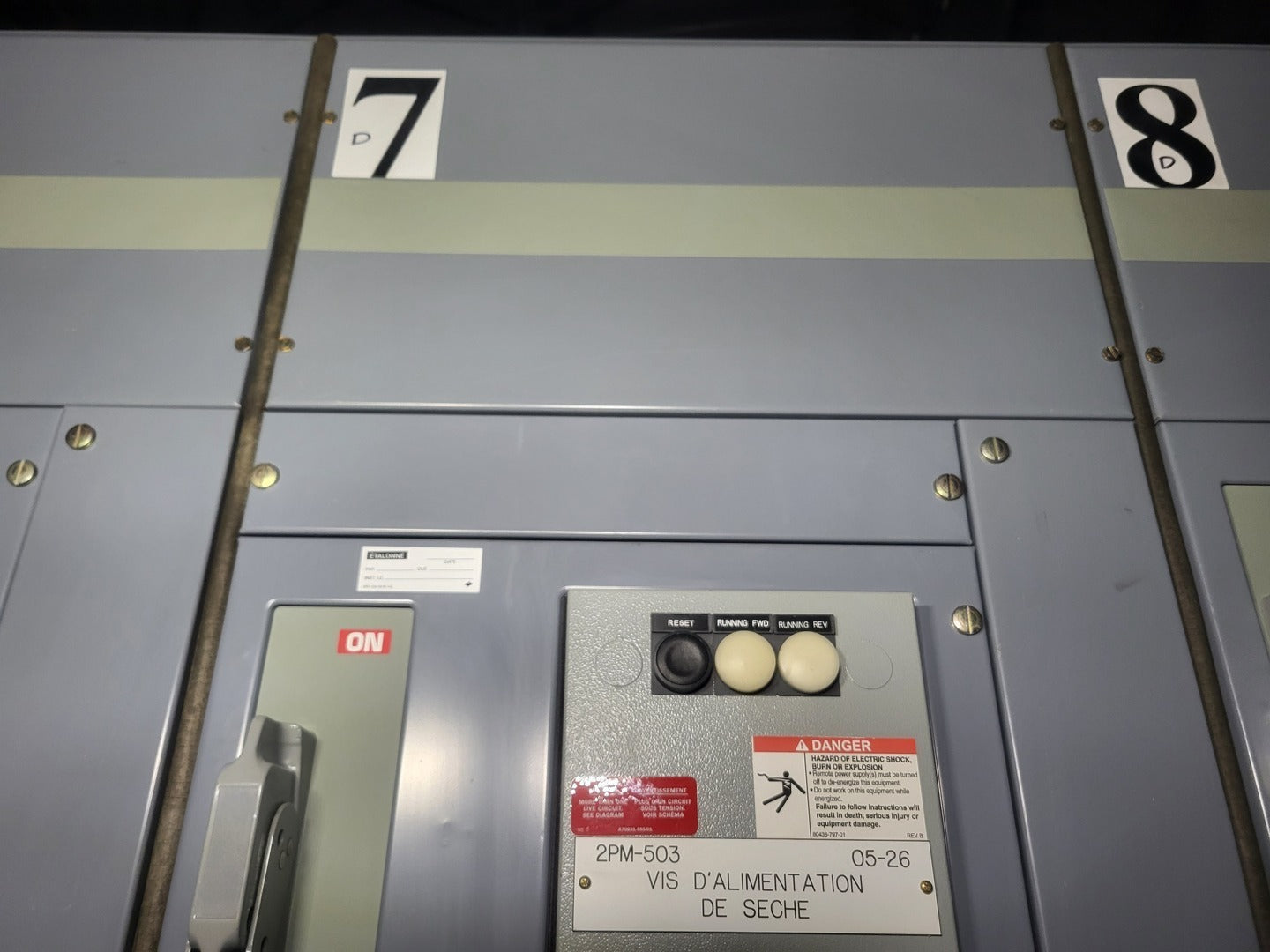

Bucket #1 2PM-503

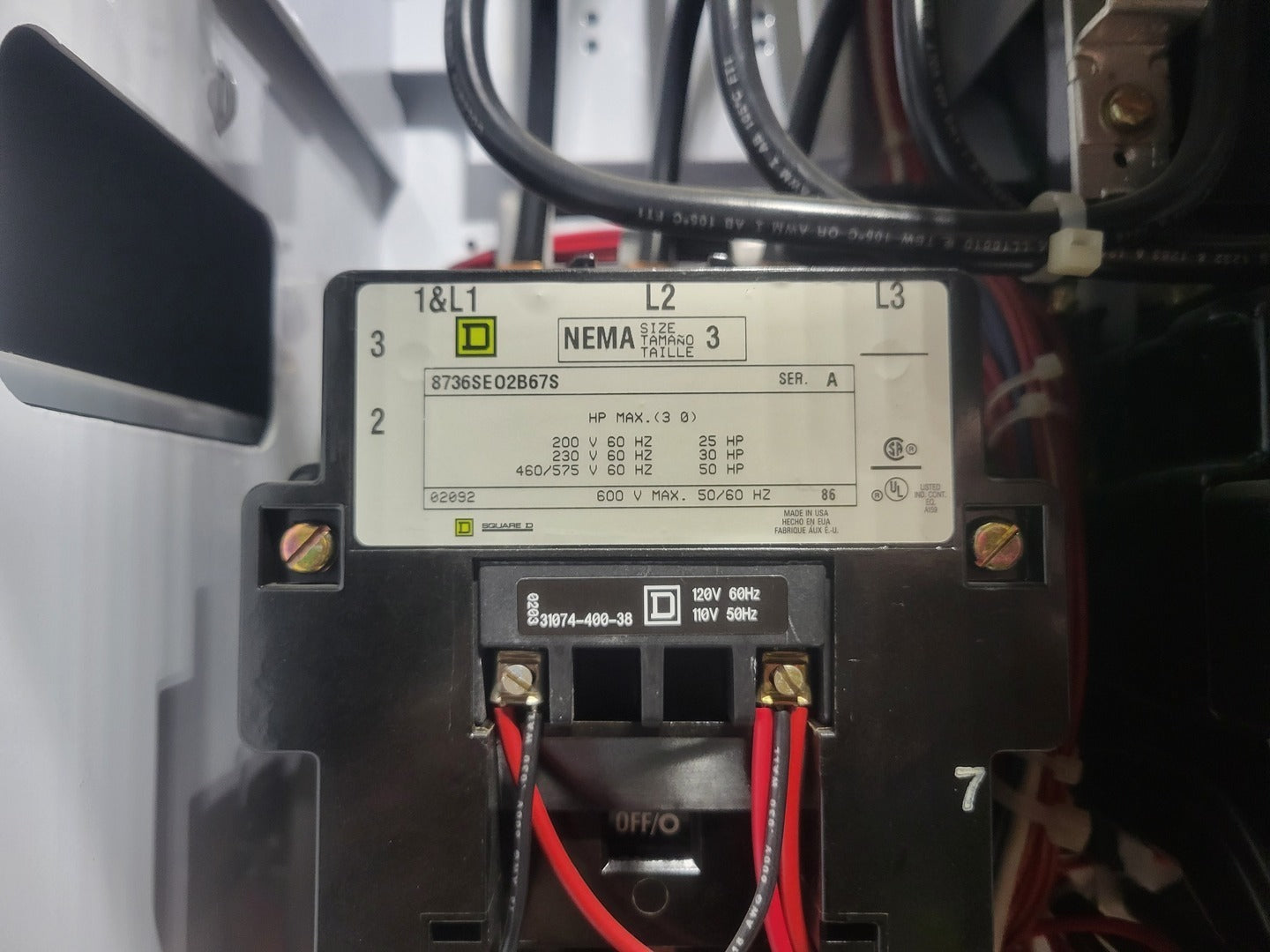

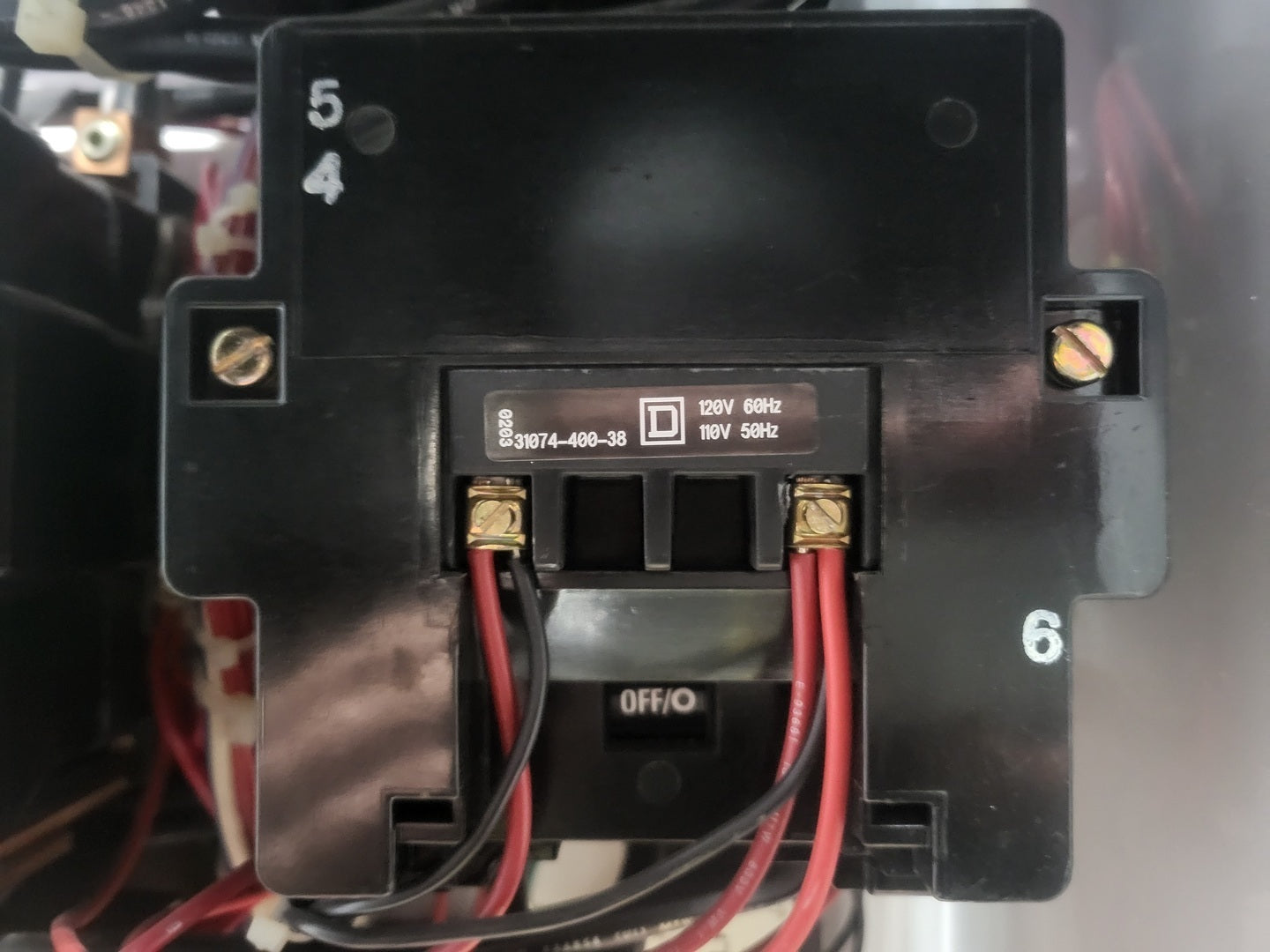

  1. Square D 8736SE02B67S, NEMA Size 3 reversing starter / contactor assembly, 50 HP @ 460/575V, 600V max, 120V coil

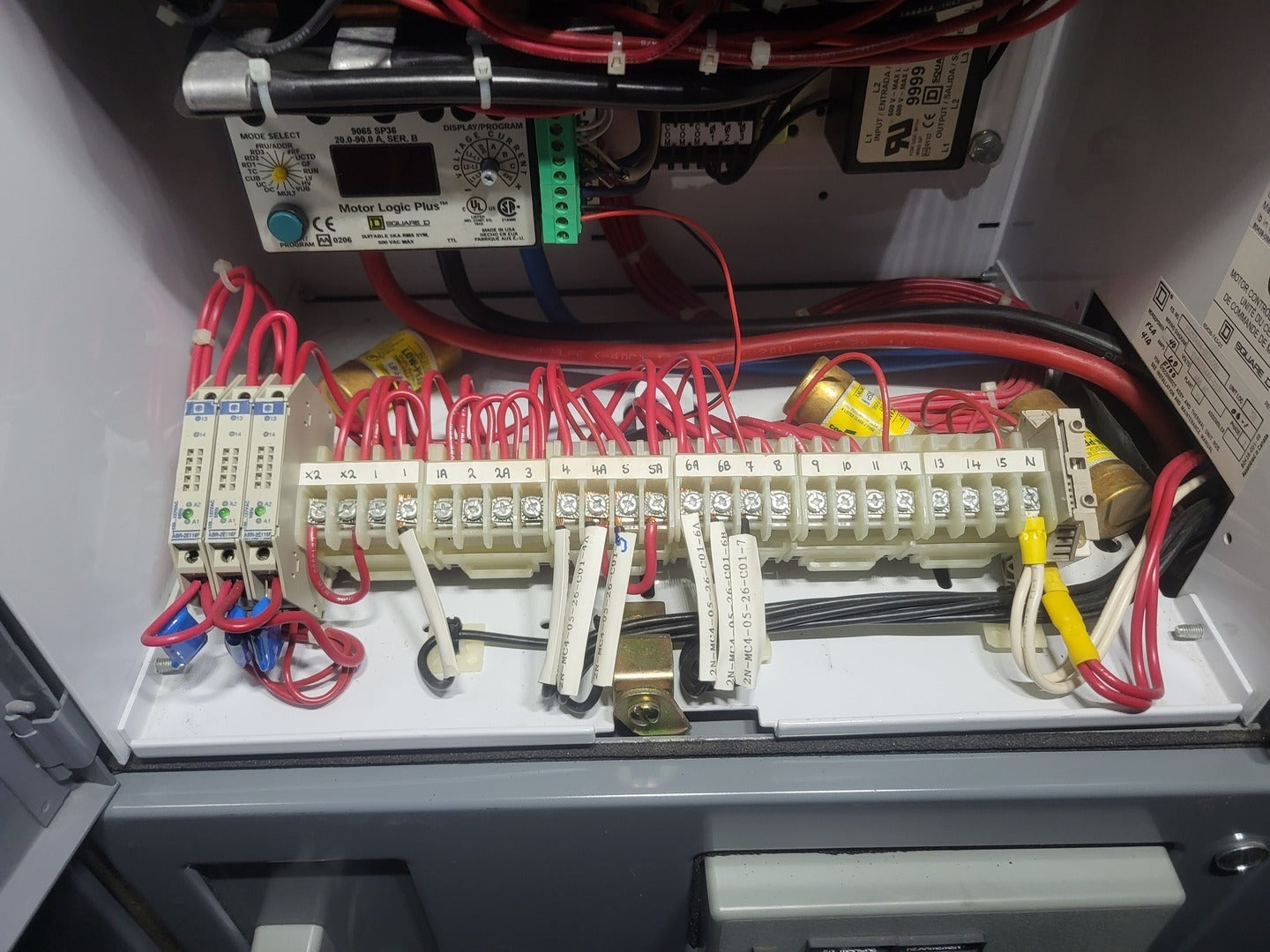

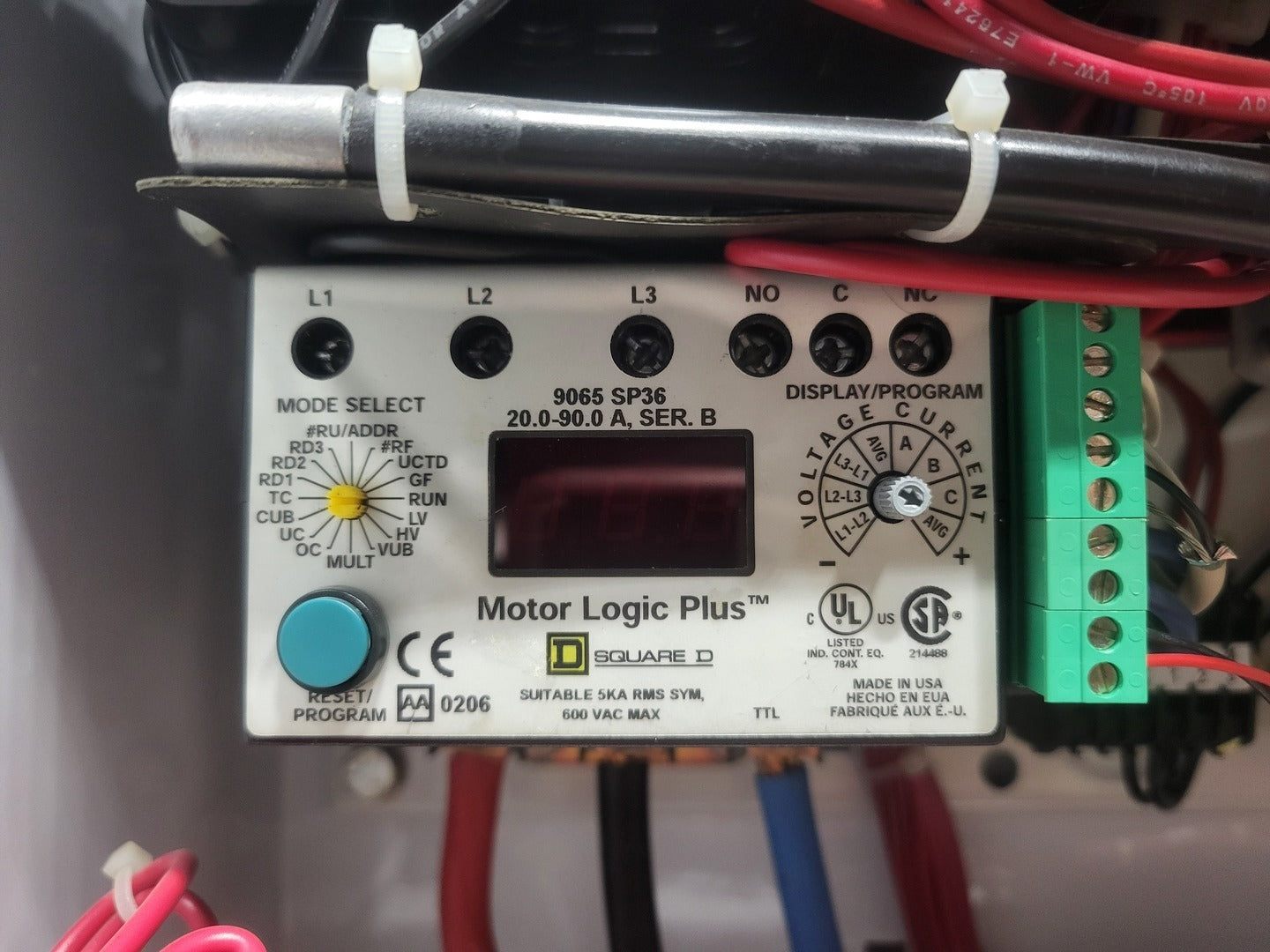

  2. Square D Motor Logic Plus 9065 SP36, motor protection relay, 20.0-90.0A range, 600VAC max

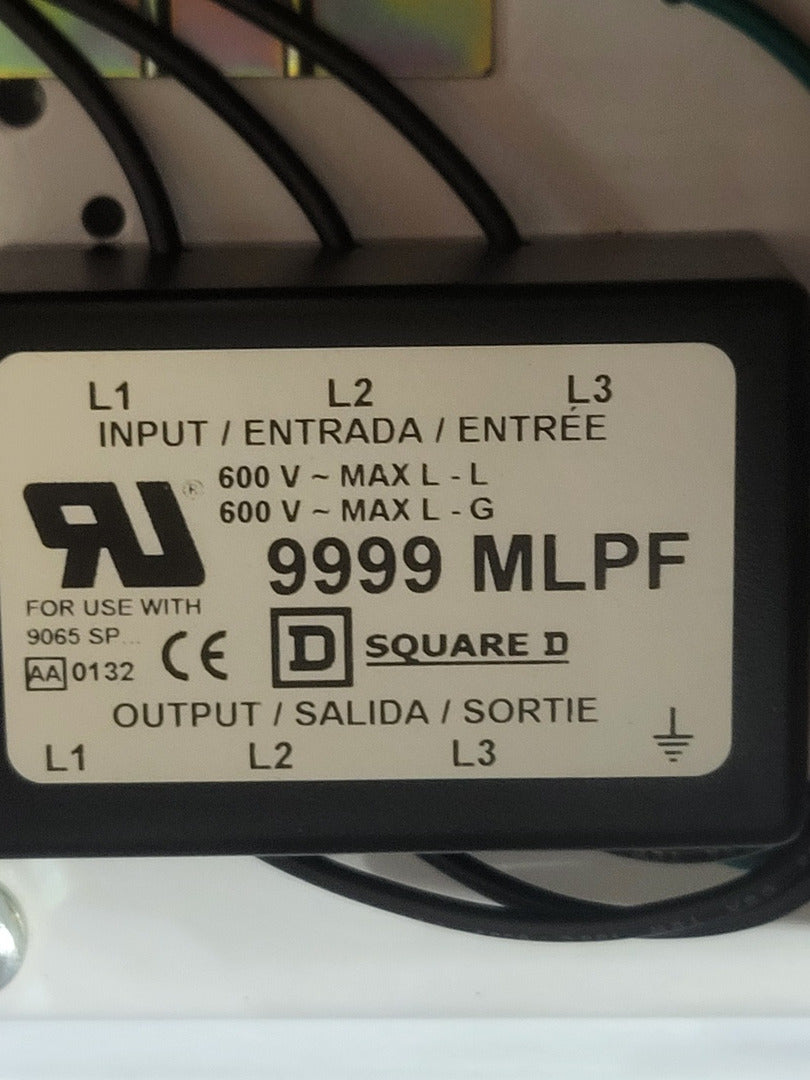

  3. Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max

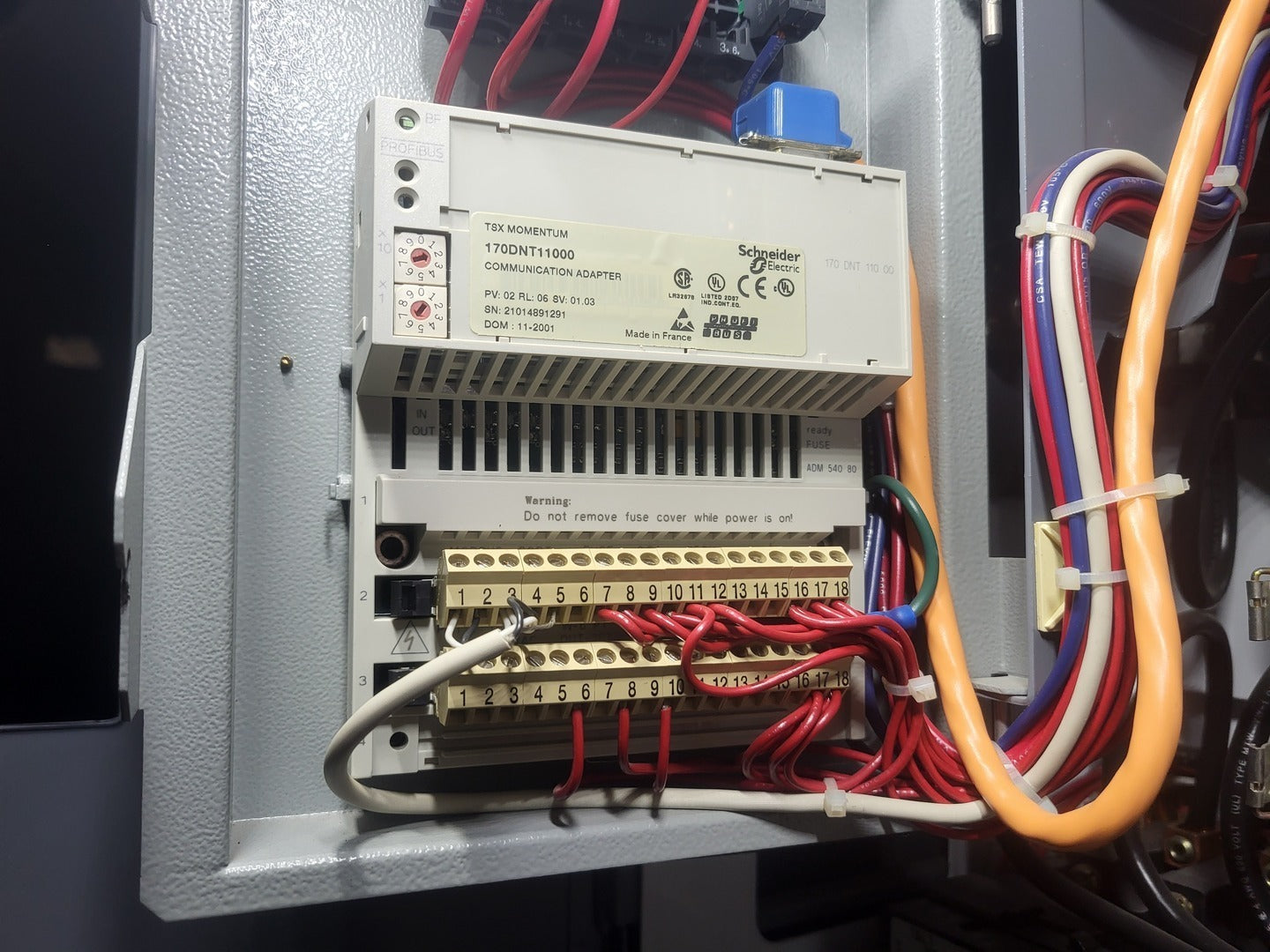

  4. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

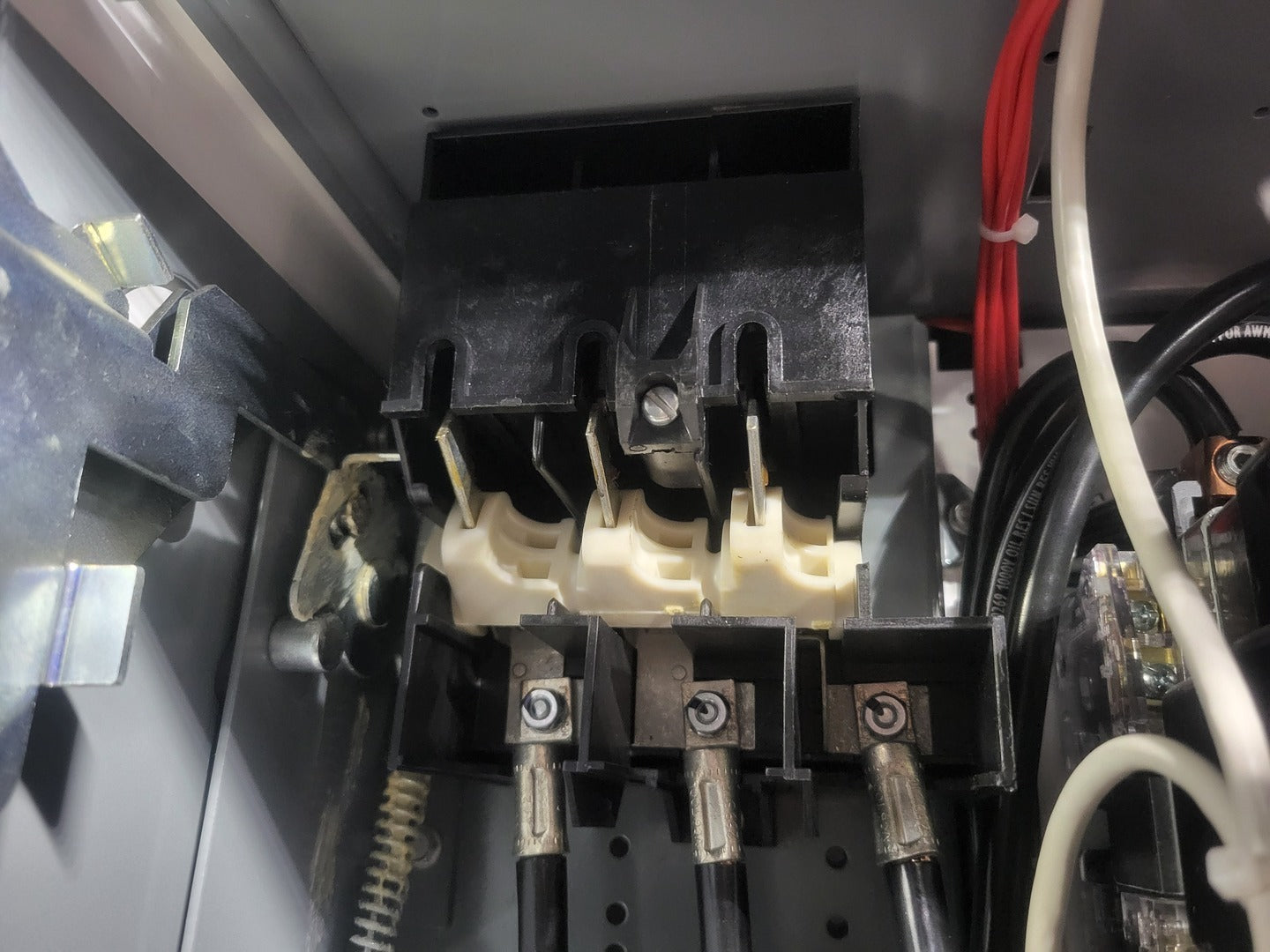

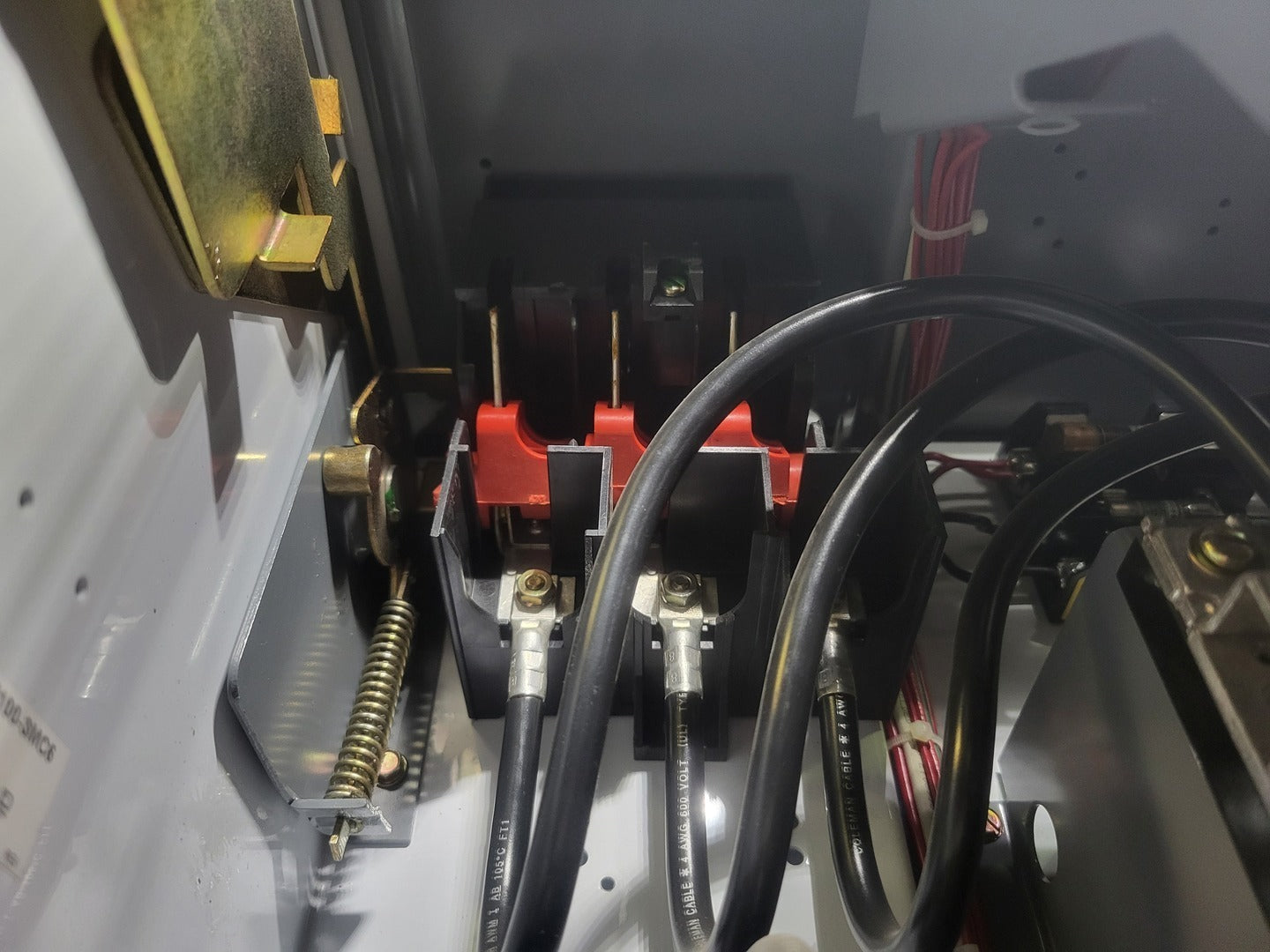

  5. Square D MCC bucket disconnect unit

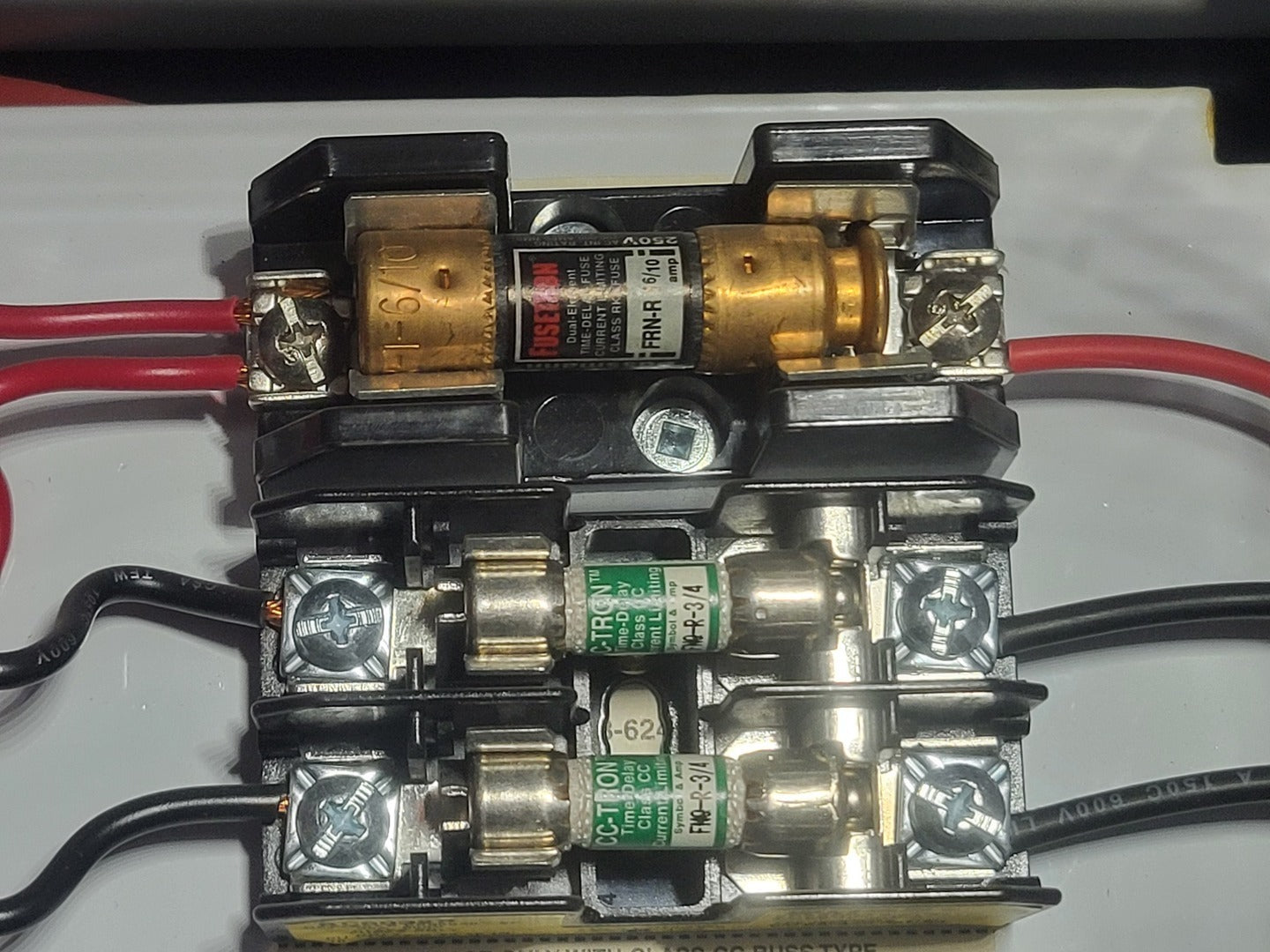

  6. 1 x Bussmann Fusetron fuse FRN-R-1-6/10

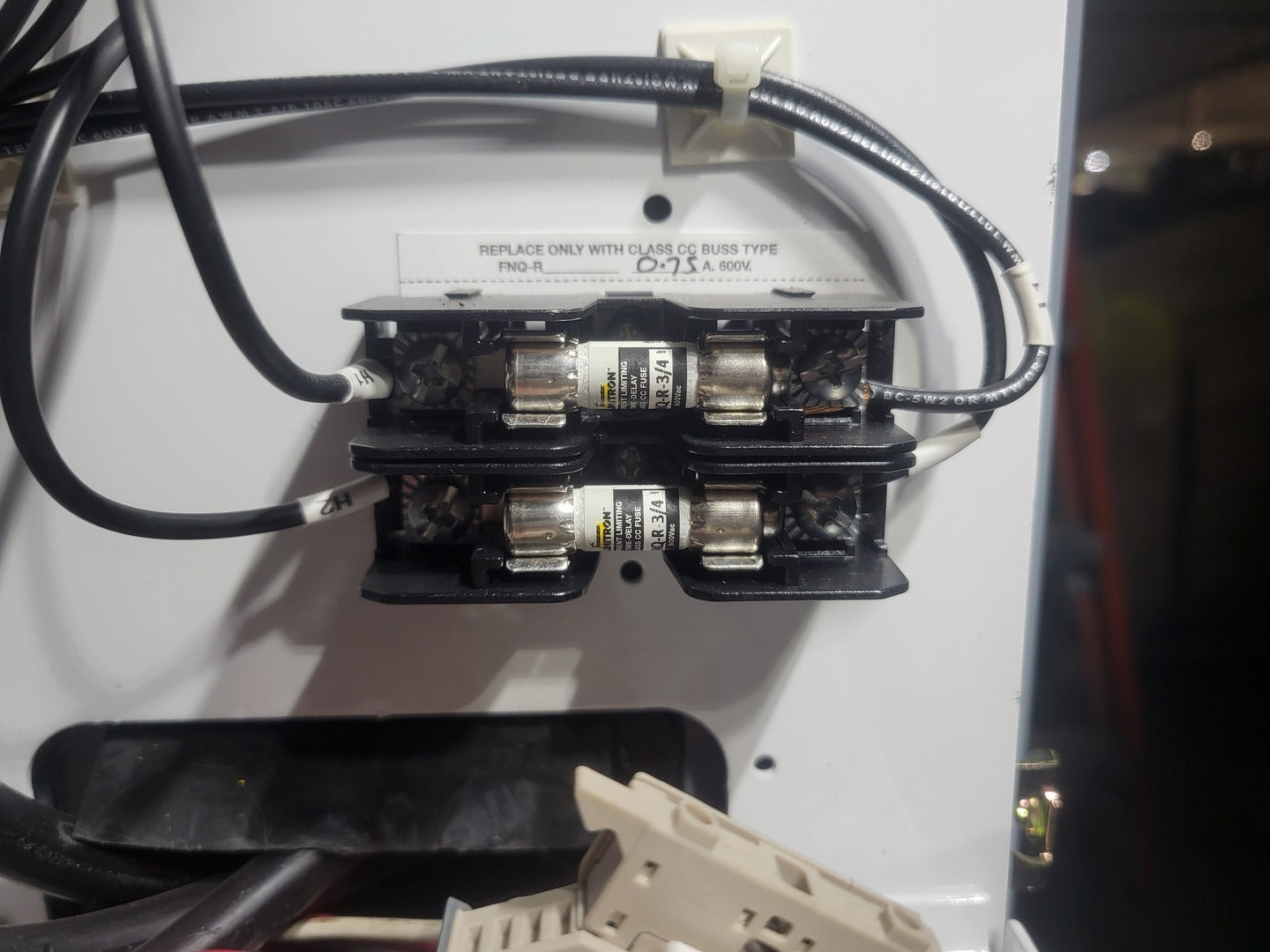

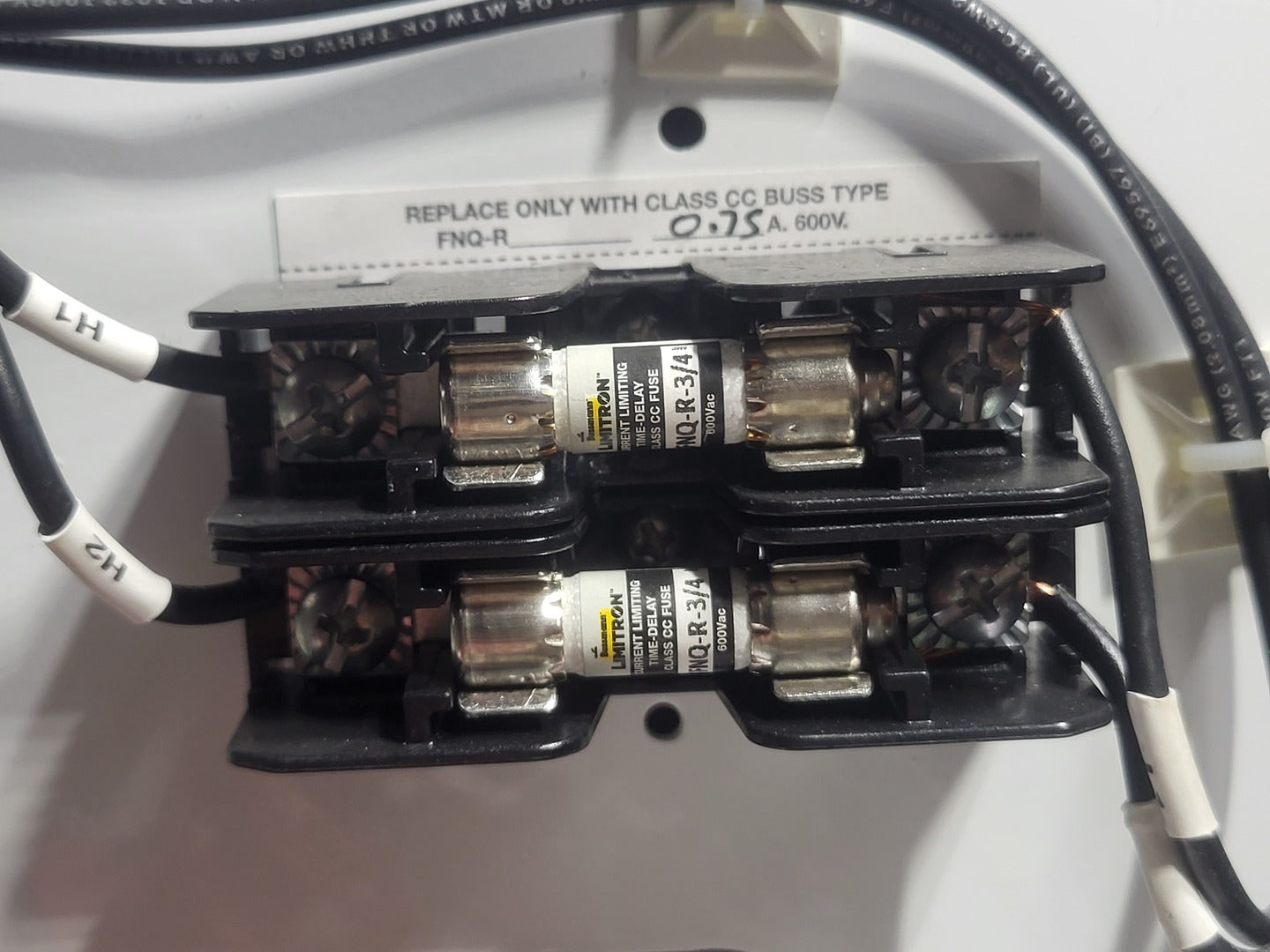

  7. 2 x Bussmann CC-Tron fuses FNQ-R-3/4

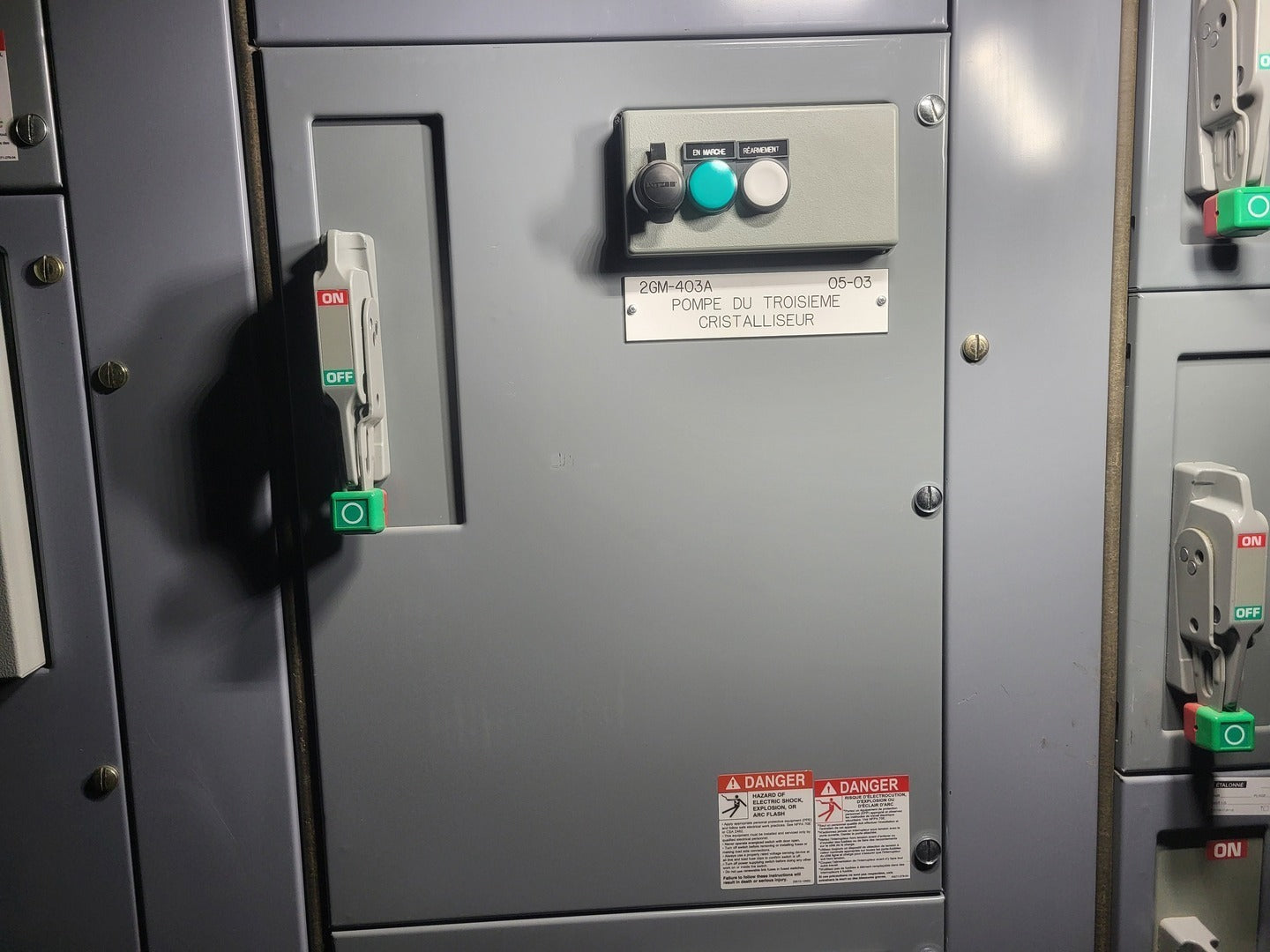

Bucket #2 2GM-403A

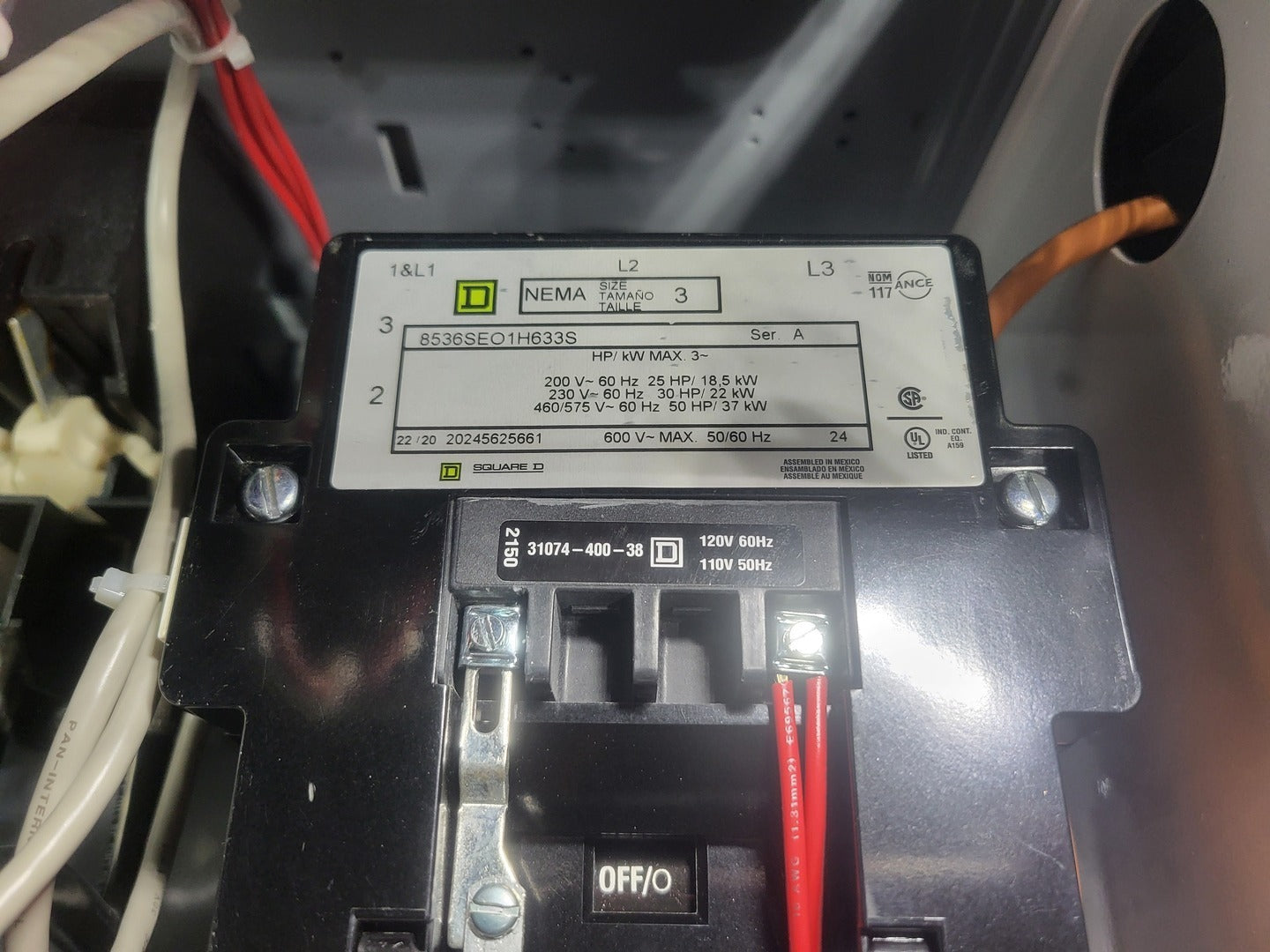

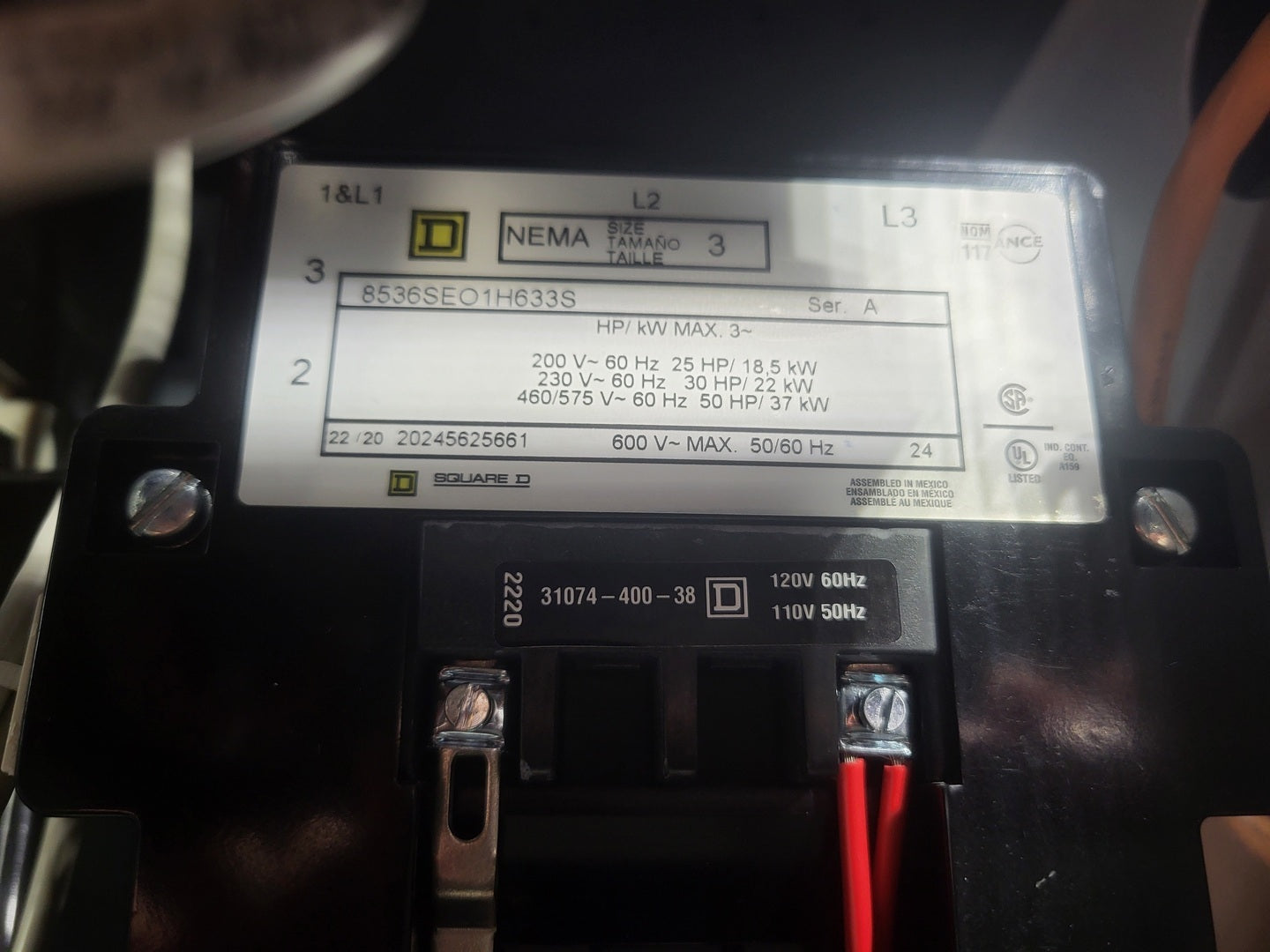

  1. Square D 8536SE01H633S, NEMA Size 3 contactor, 50 HP @ 460/575V, 600V max, 120V coil

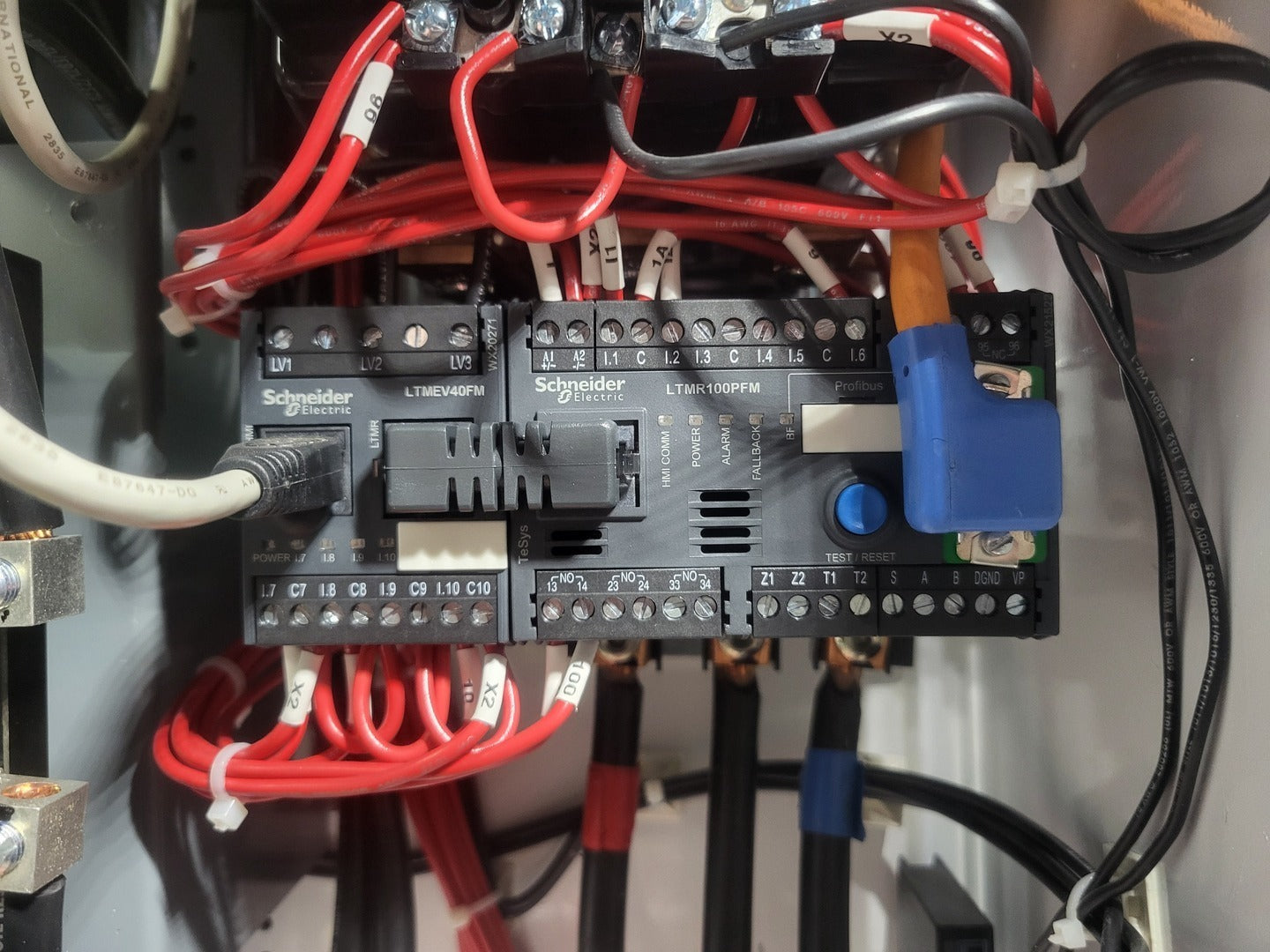

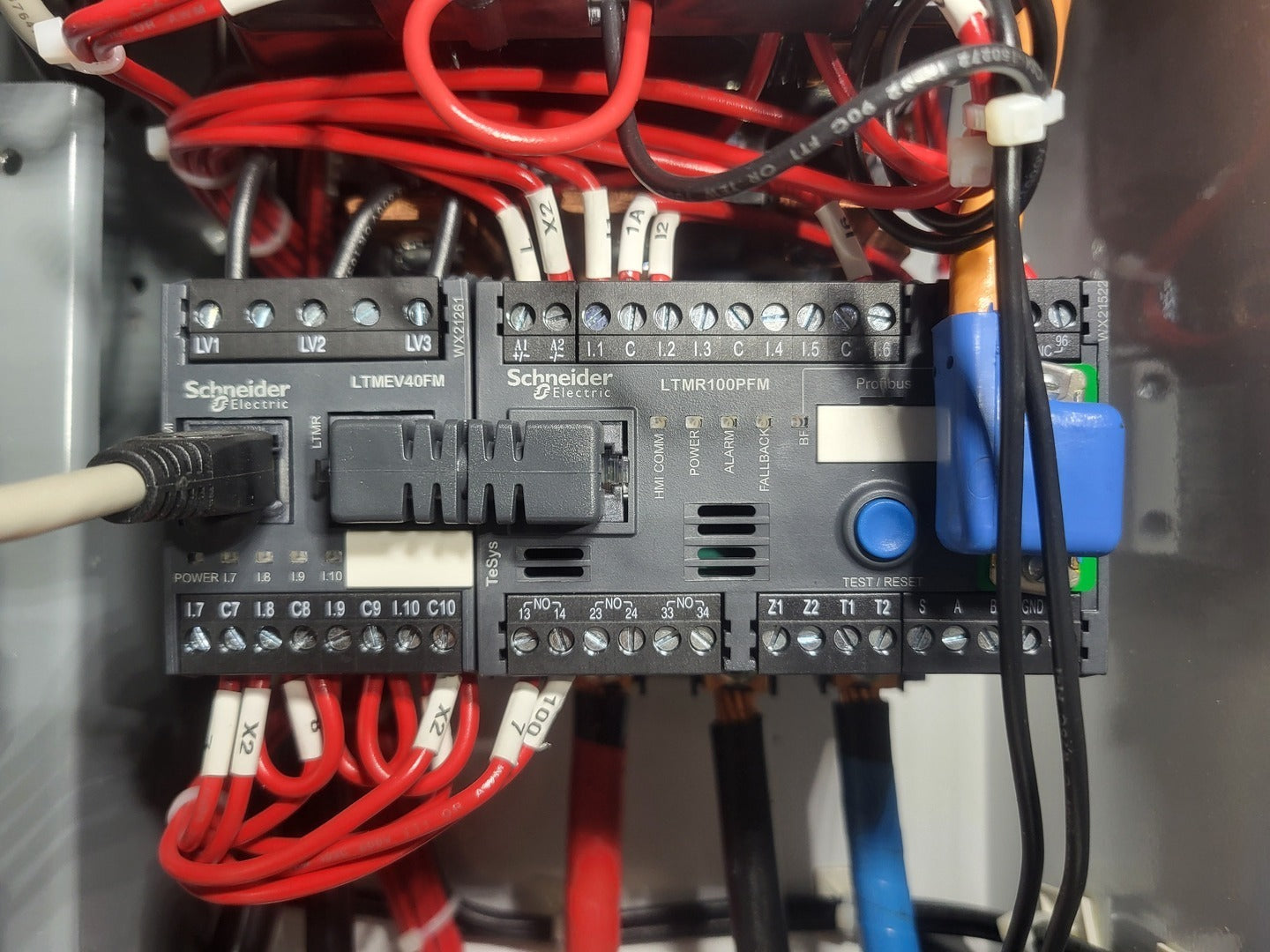

  2. Schneider Electric LTMR100PFM, TeSys T motor management controller / PROFIBUS, 100A range
  3. Schneider Electric LTMEV40FM, TeSys T motor management controller expansion module
  4. Square D MCC bucket disconnect unit

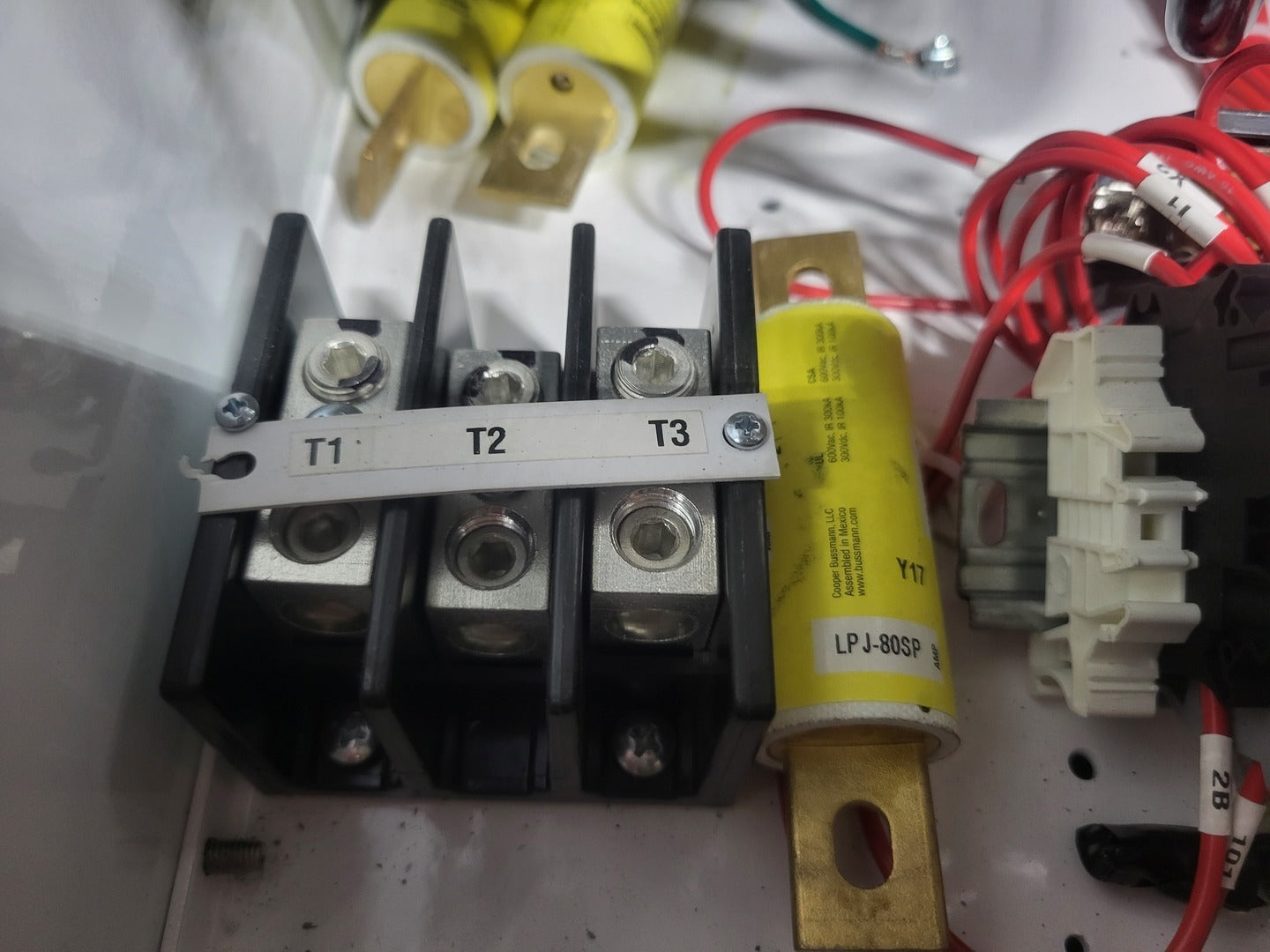

  5. 3 x Bussmann Low-Peak fuses LPJ-80SP
  6. 2 x Bussmann Limitron fuses FNQ-R-3/4

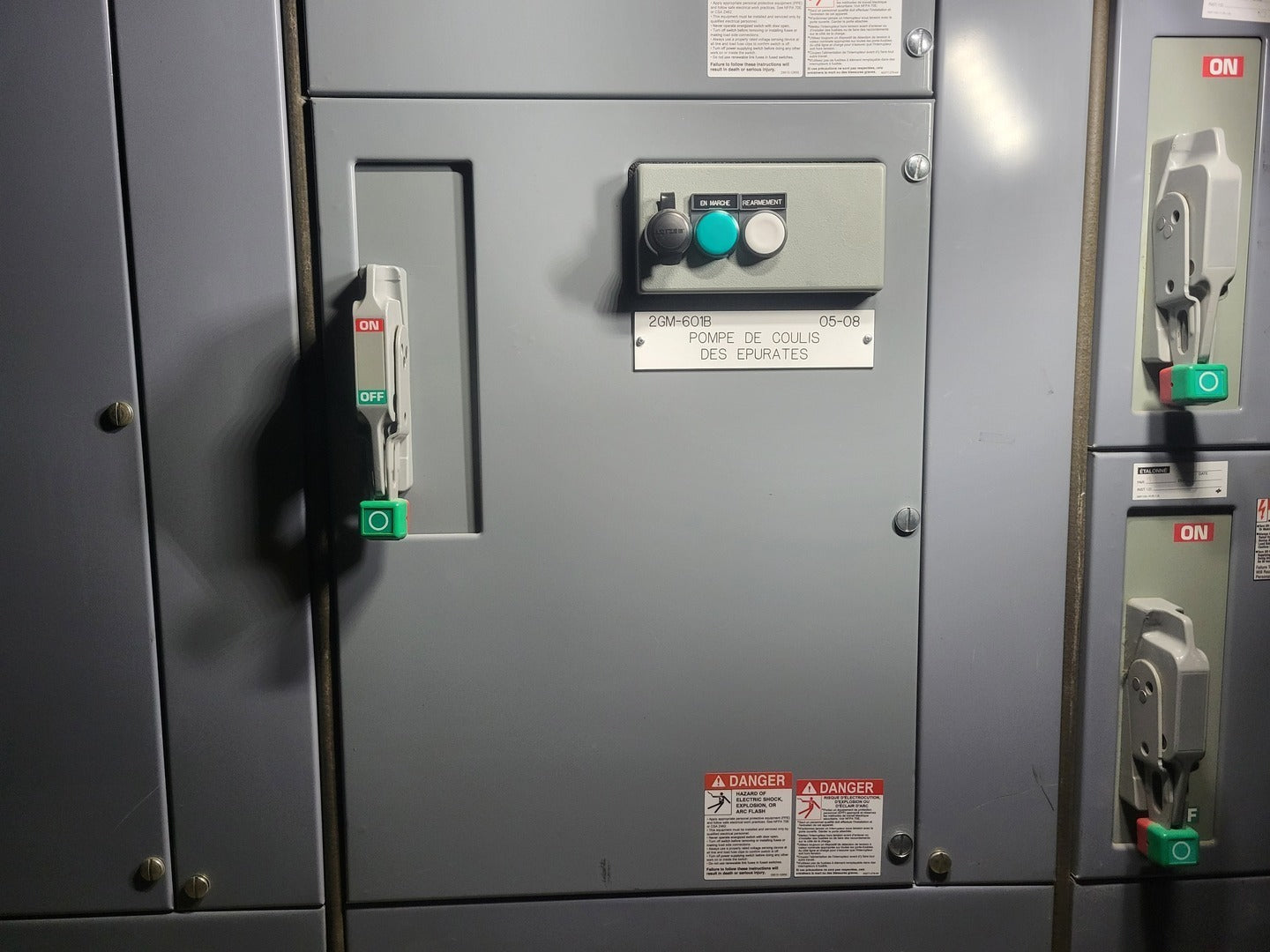

Bucket #3 2GM-601B

  1. Square D 8536SE01H633S, NEMA Size 3 contactor, 50 HP @ 460/575V, 600V max, 120V coil
  2. Schneider Electric LTMR100PFM, TeSys T motor management controller / PROFIBUS, 100A range
  3. Schneider Electric LTMEV40FM, TeSys T motor management controller expansion module

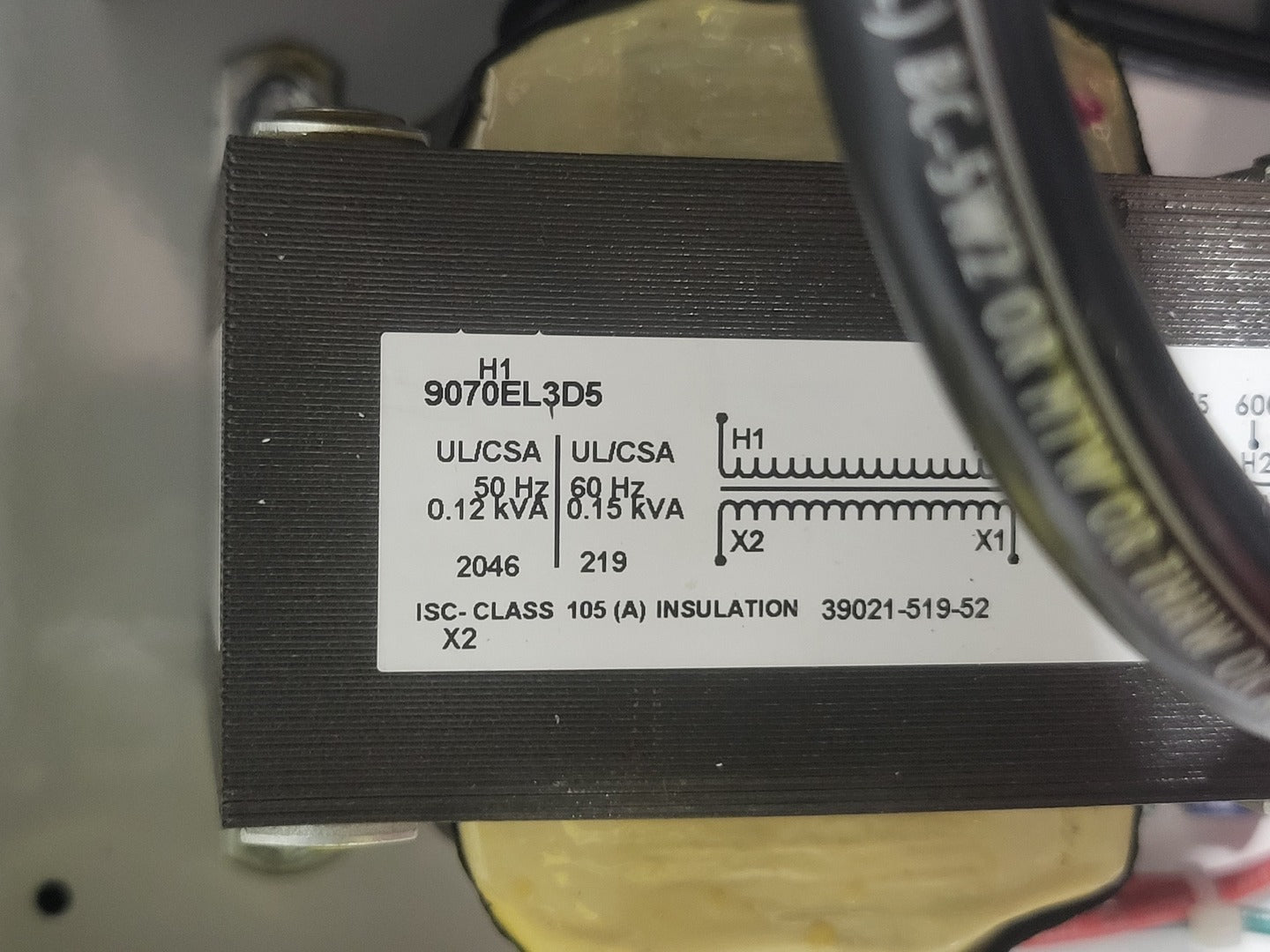

  4. Square D 9070EL3D5, control transformer, 0.12 kVA @ 50Hz / 0.15 kVA @ 60Hz
  5. Square D MCC bucket disconnect unit

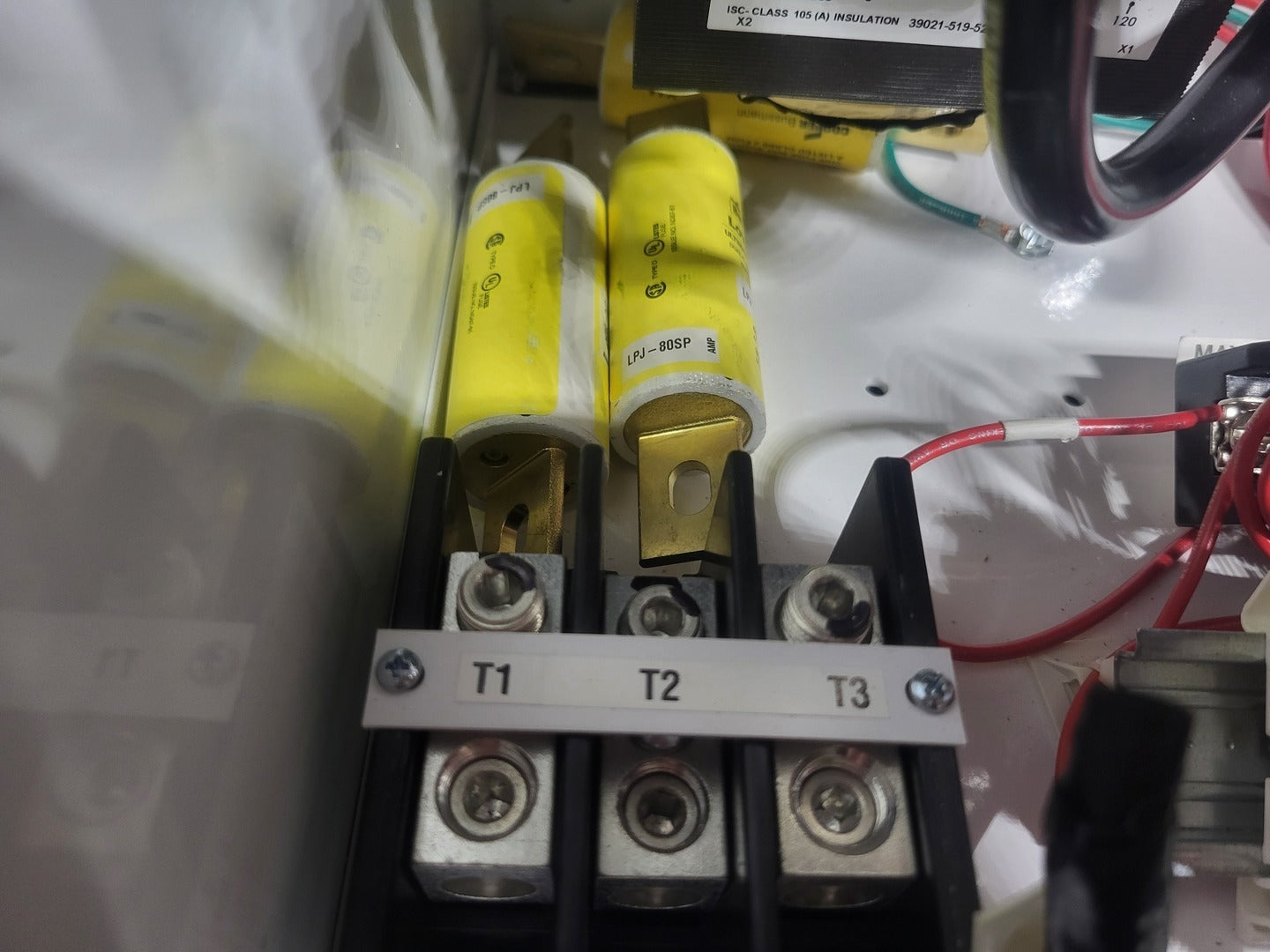

  6. 3 x Bussmann Low-Peak fuses LPJ-80SP
  7. 2 x Bussmann Limitron fuses FNQ-R-3/4
