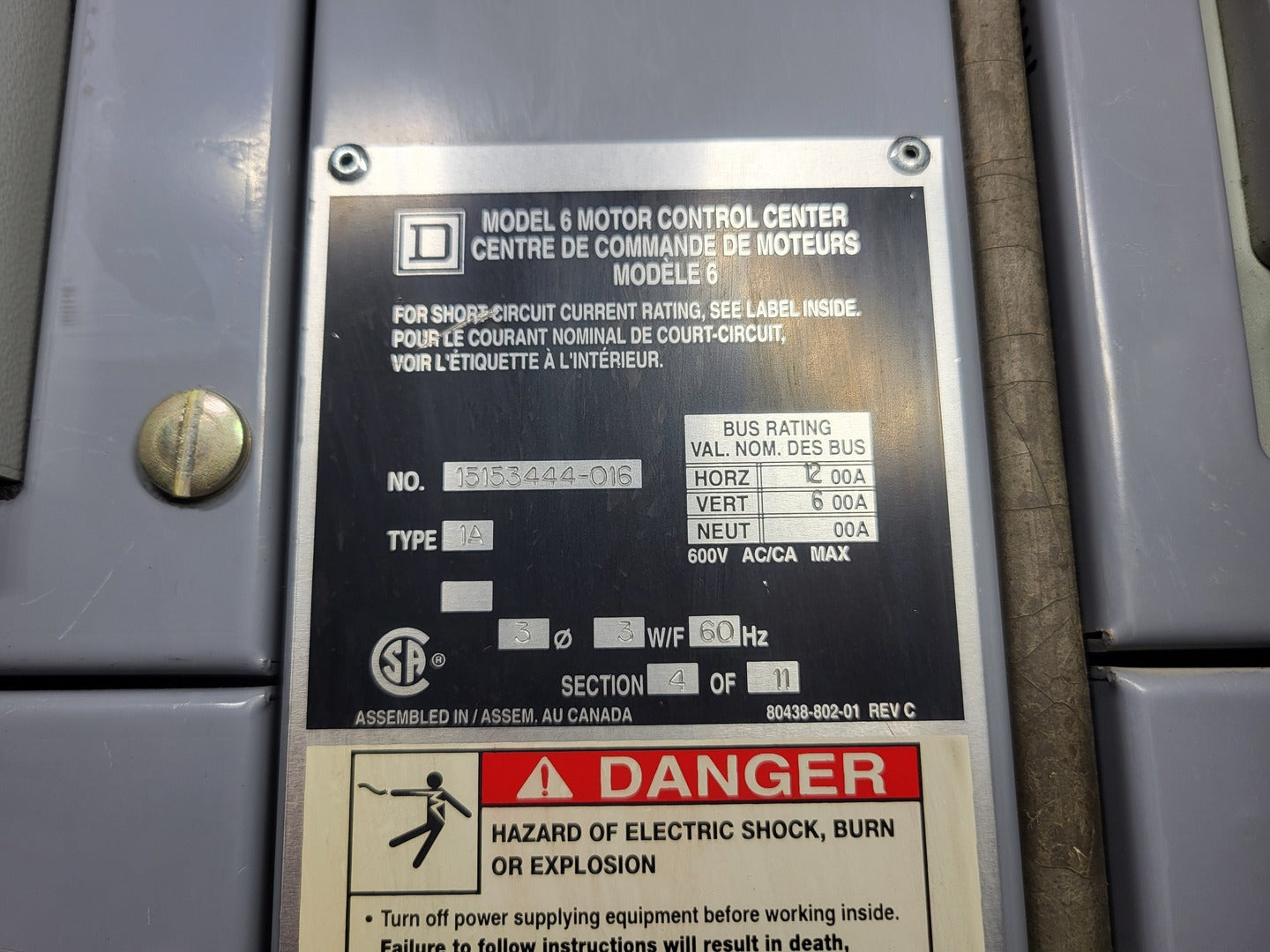

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151776
Price:
$9,500 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Specifications
Model Model 6
Condition Used
Other Specifications

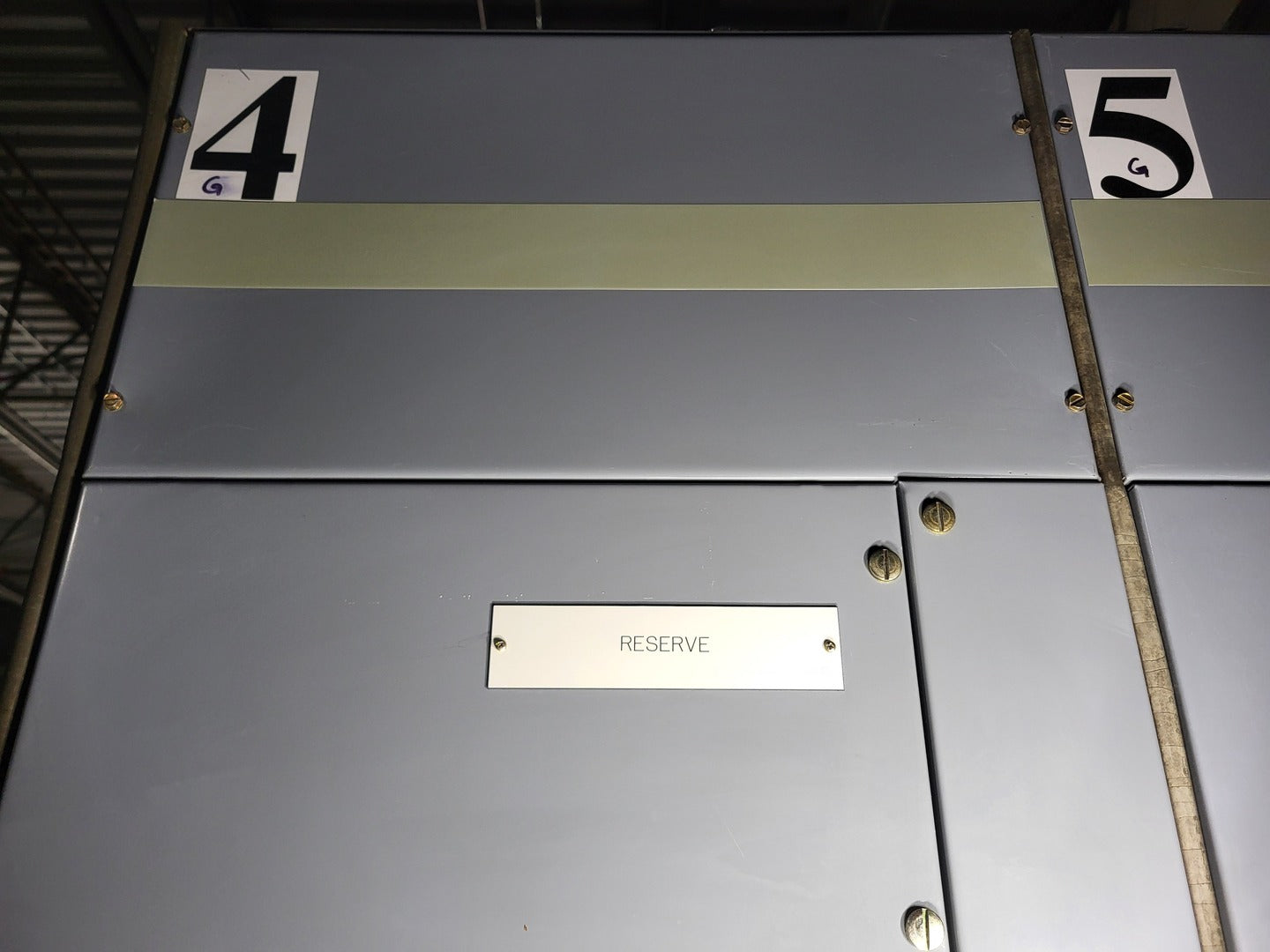

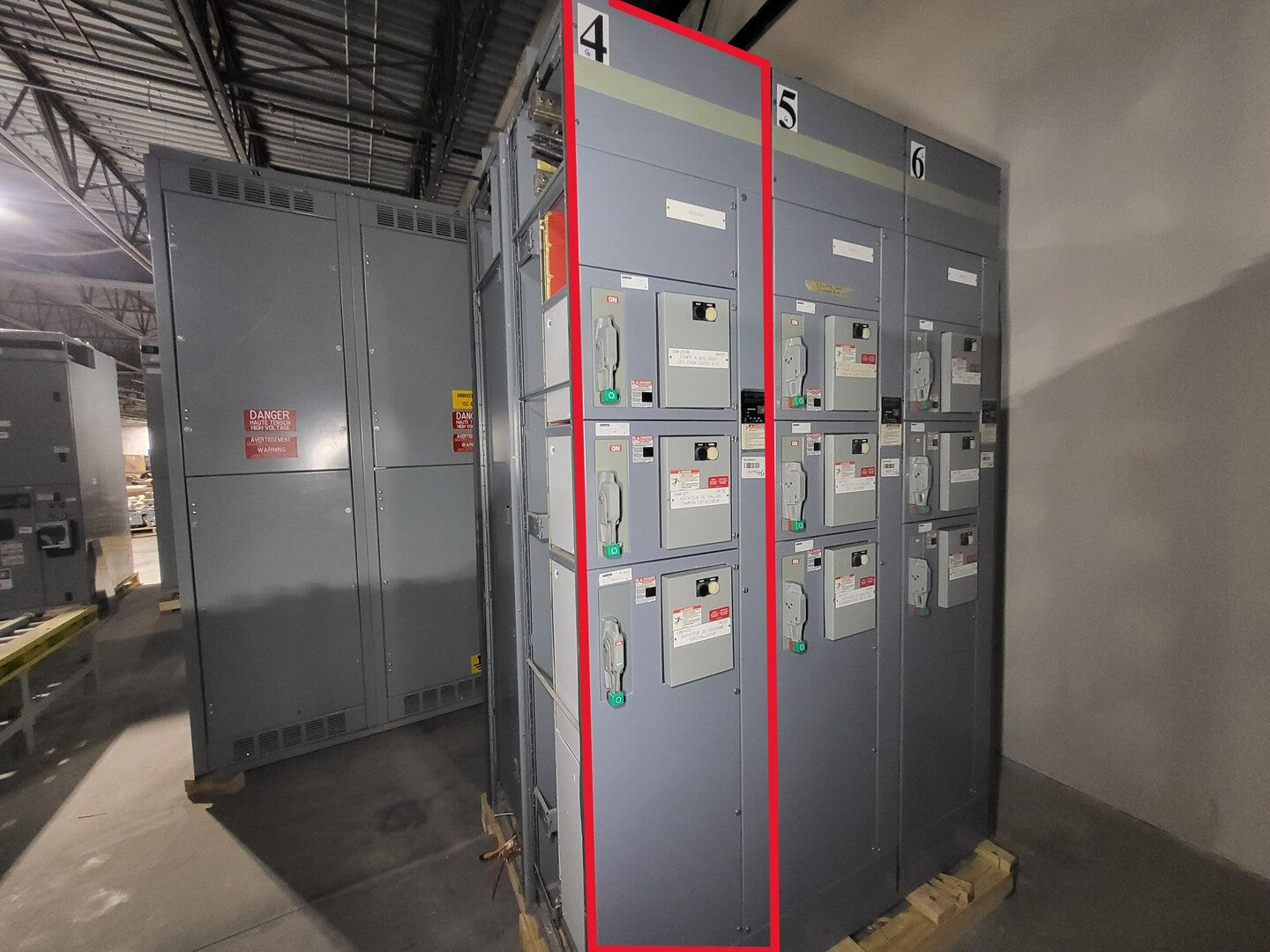

Note: Section 4 only

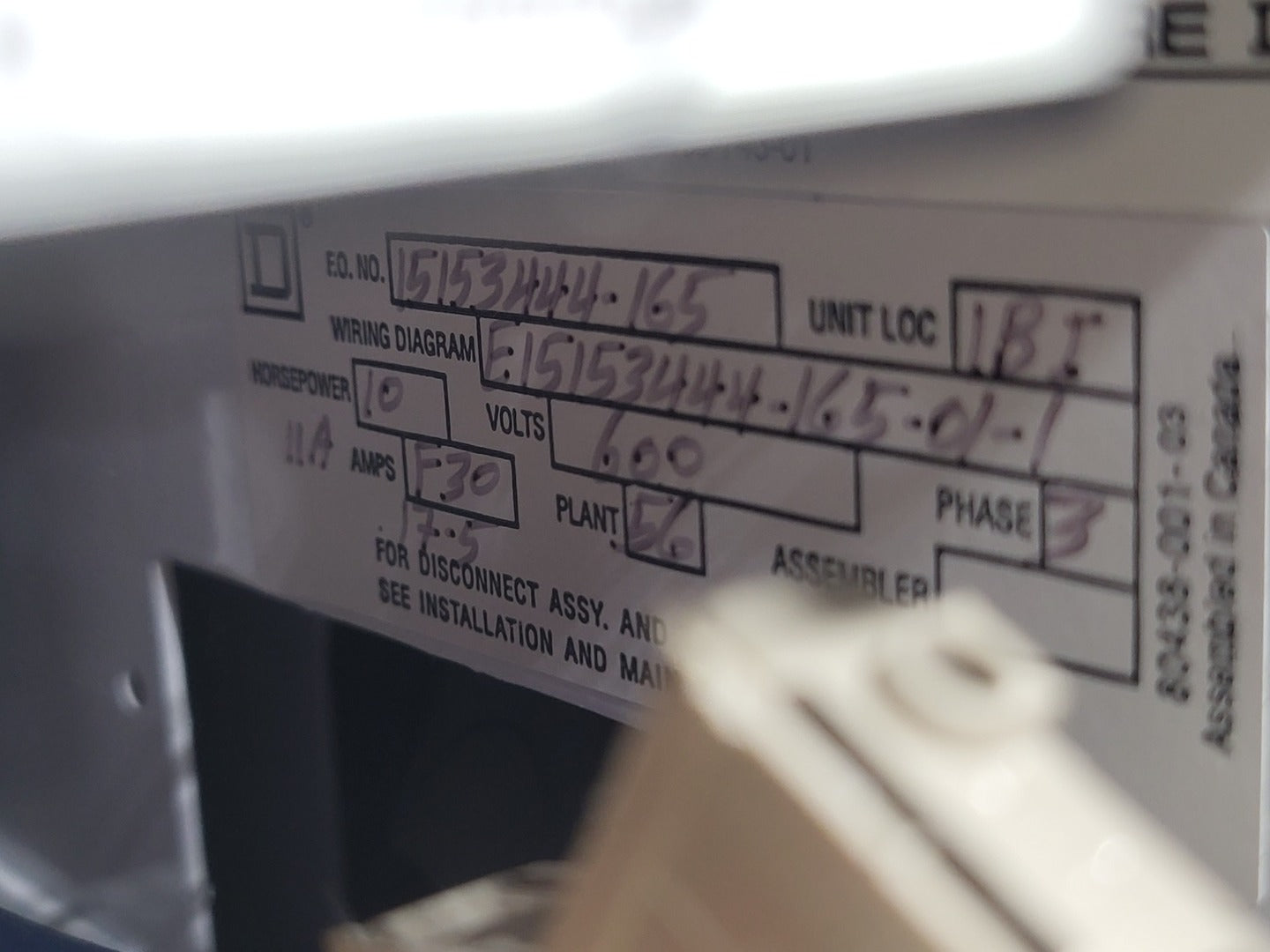

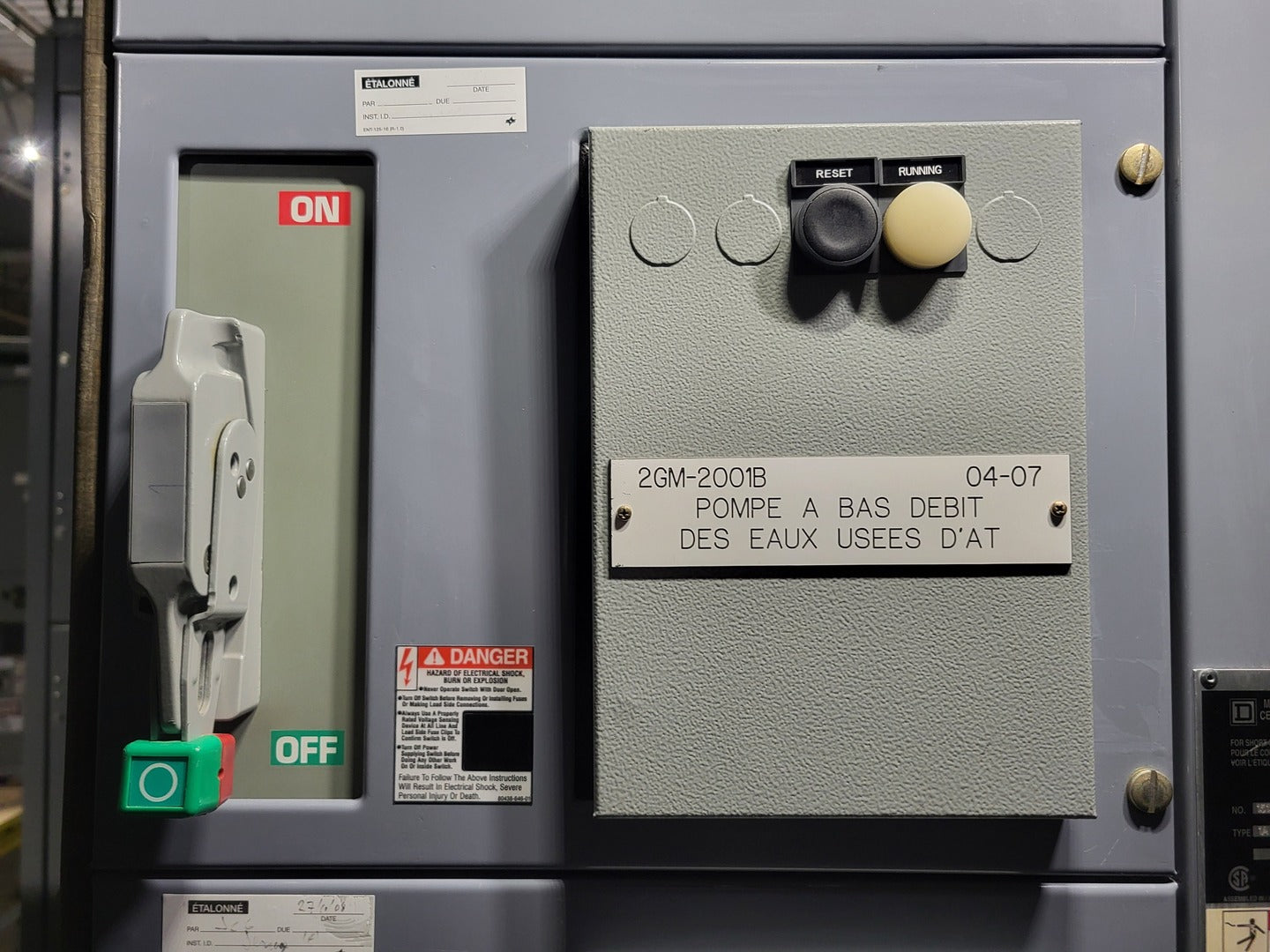

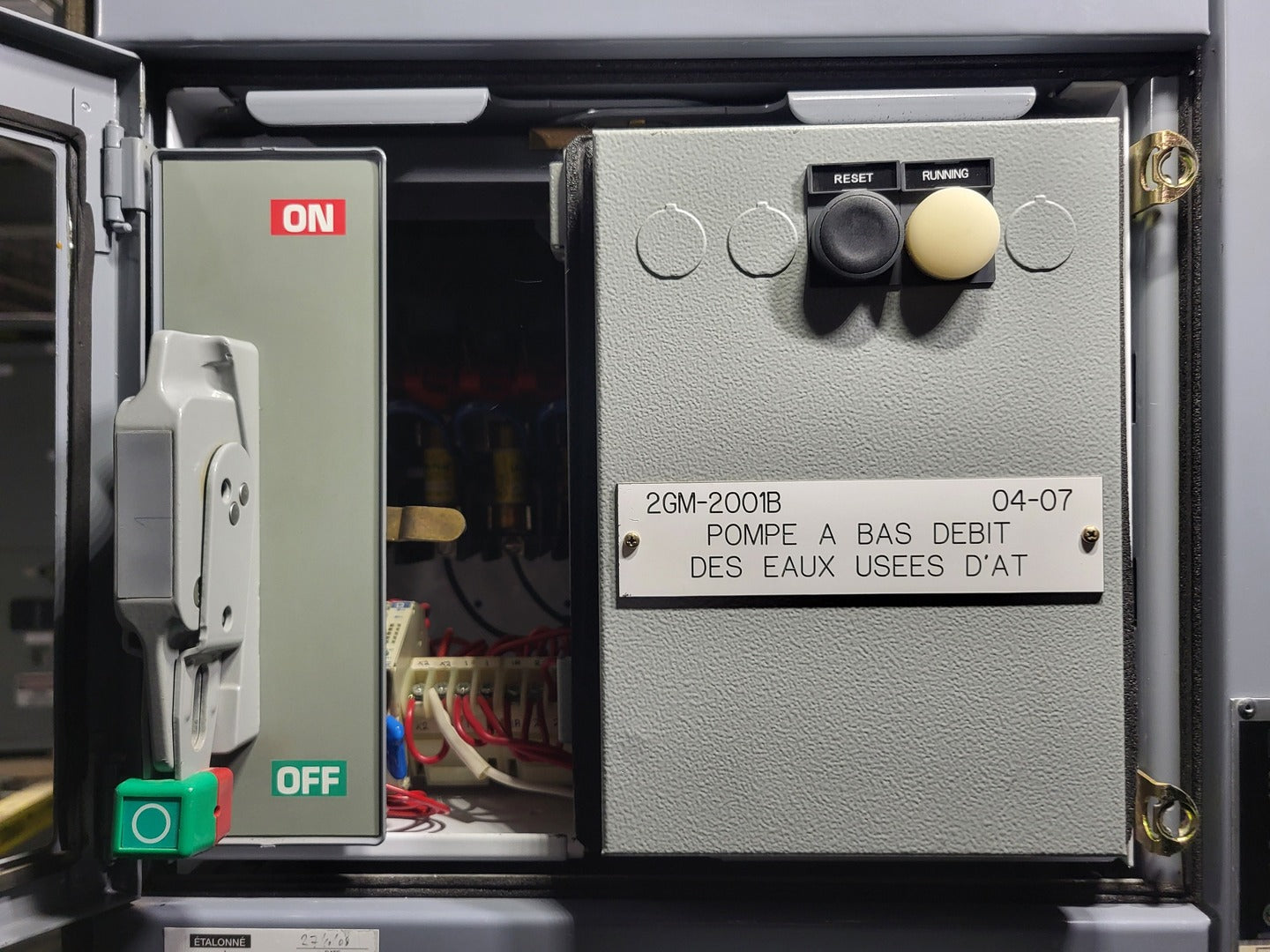

Bucket #1 2GM-2001B

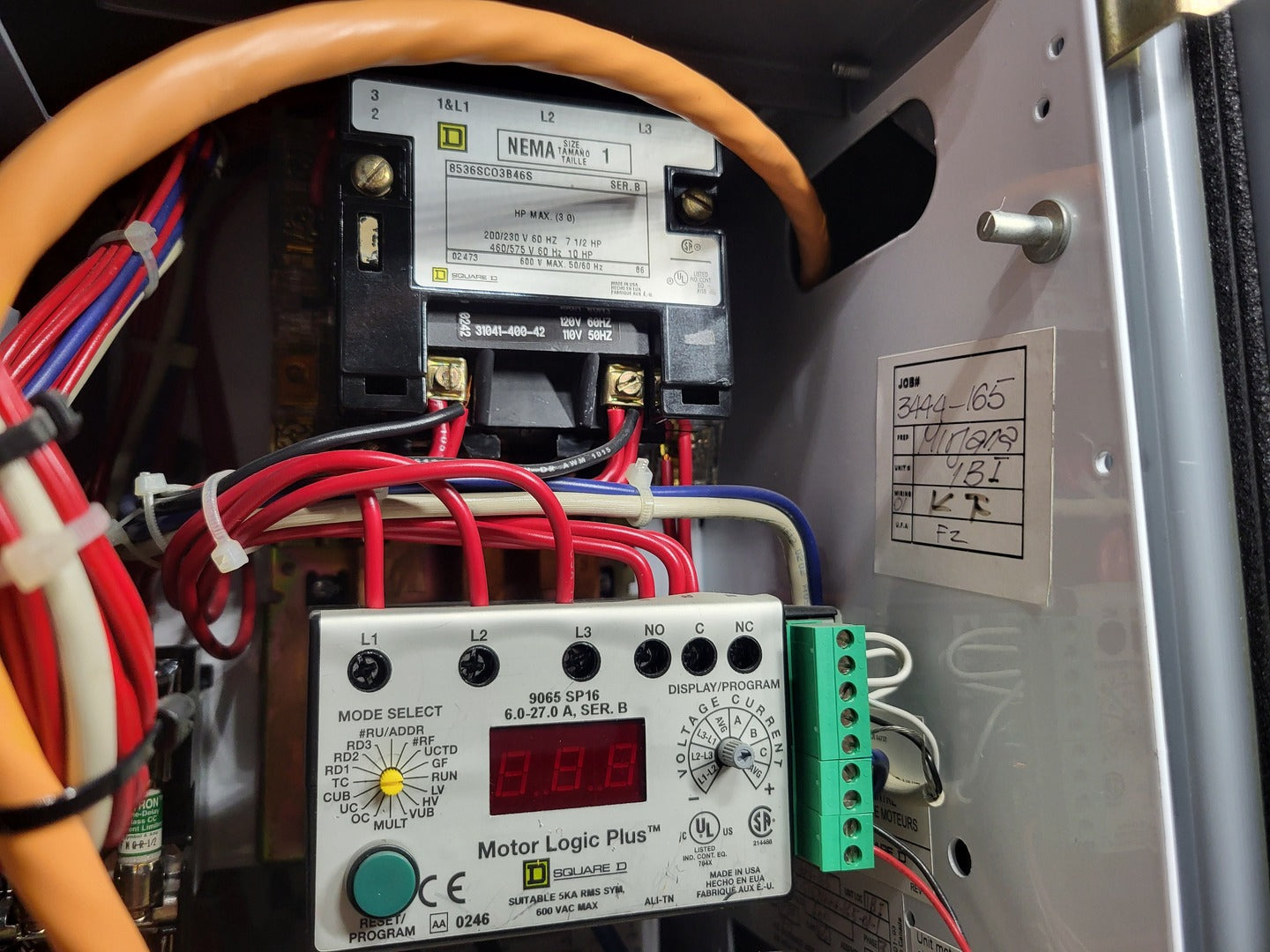

  1. Square D 8536SCO3B46S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SP16, motor protection relay, 6.0-27.0A range, 600VAC max

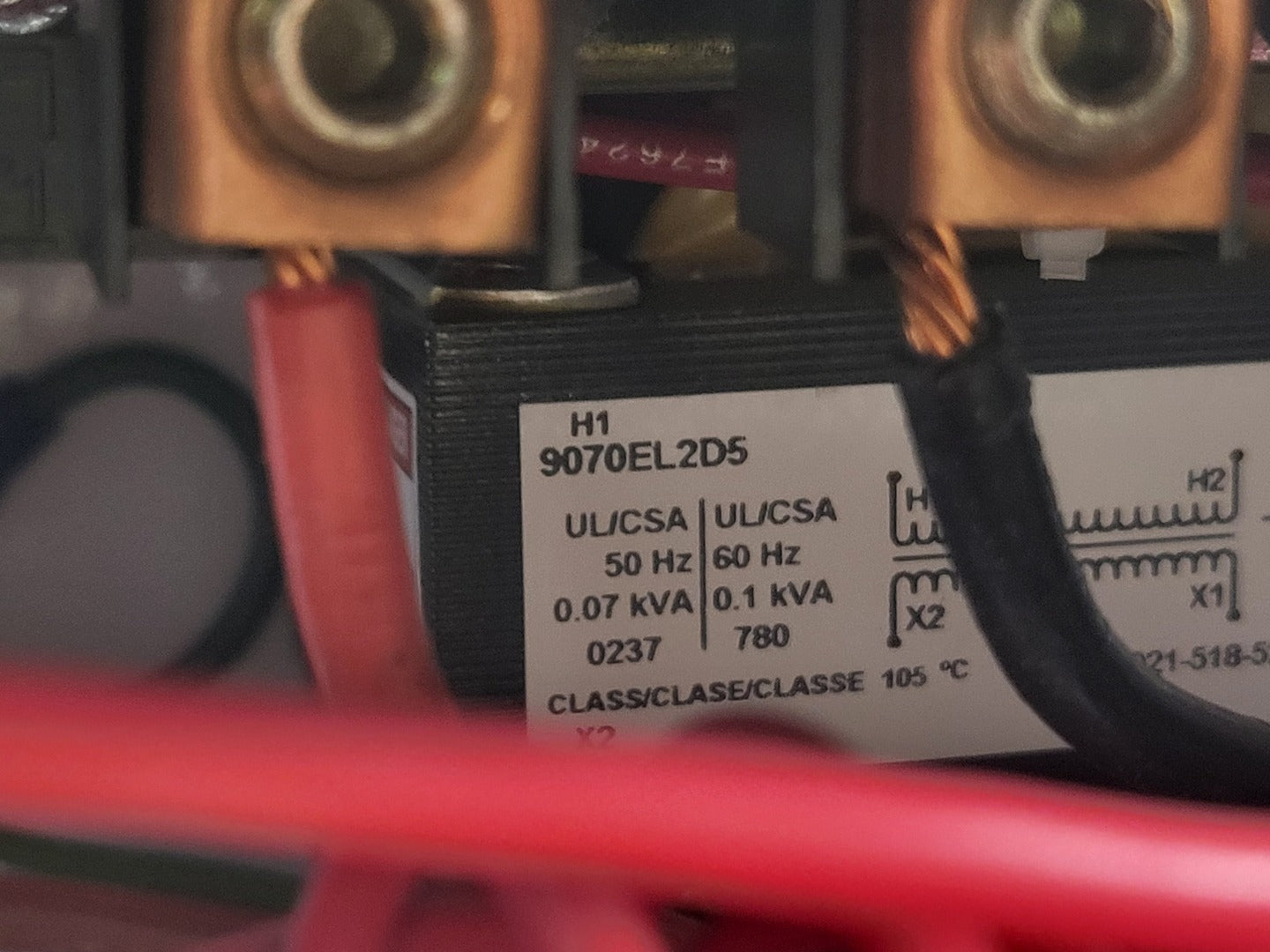

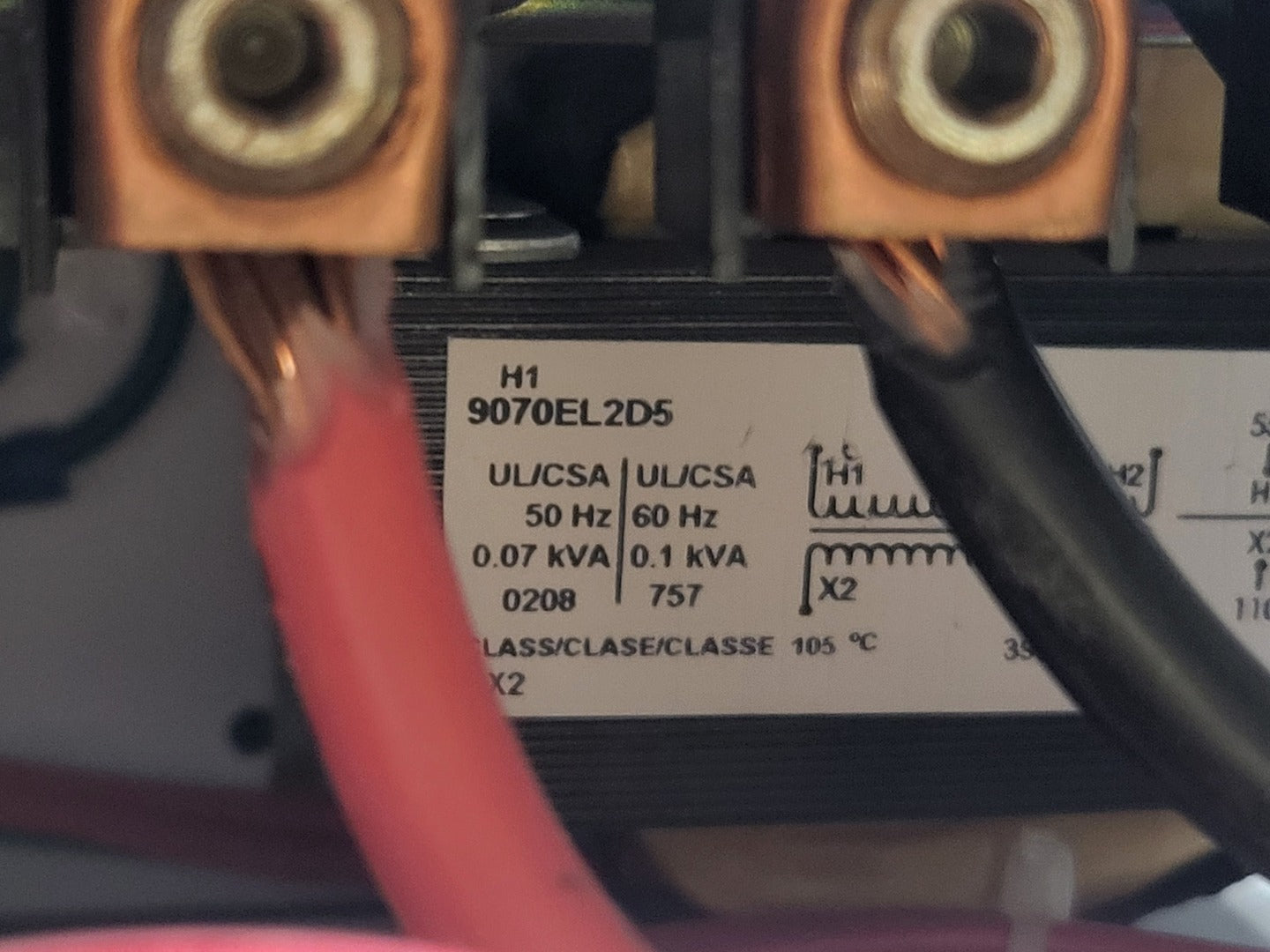

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

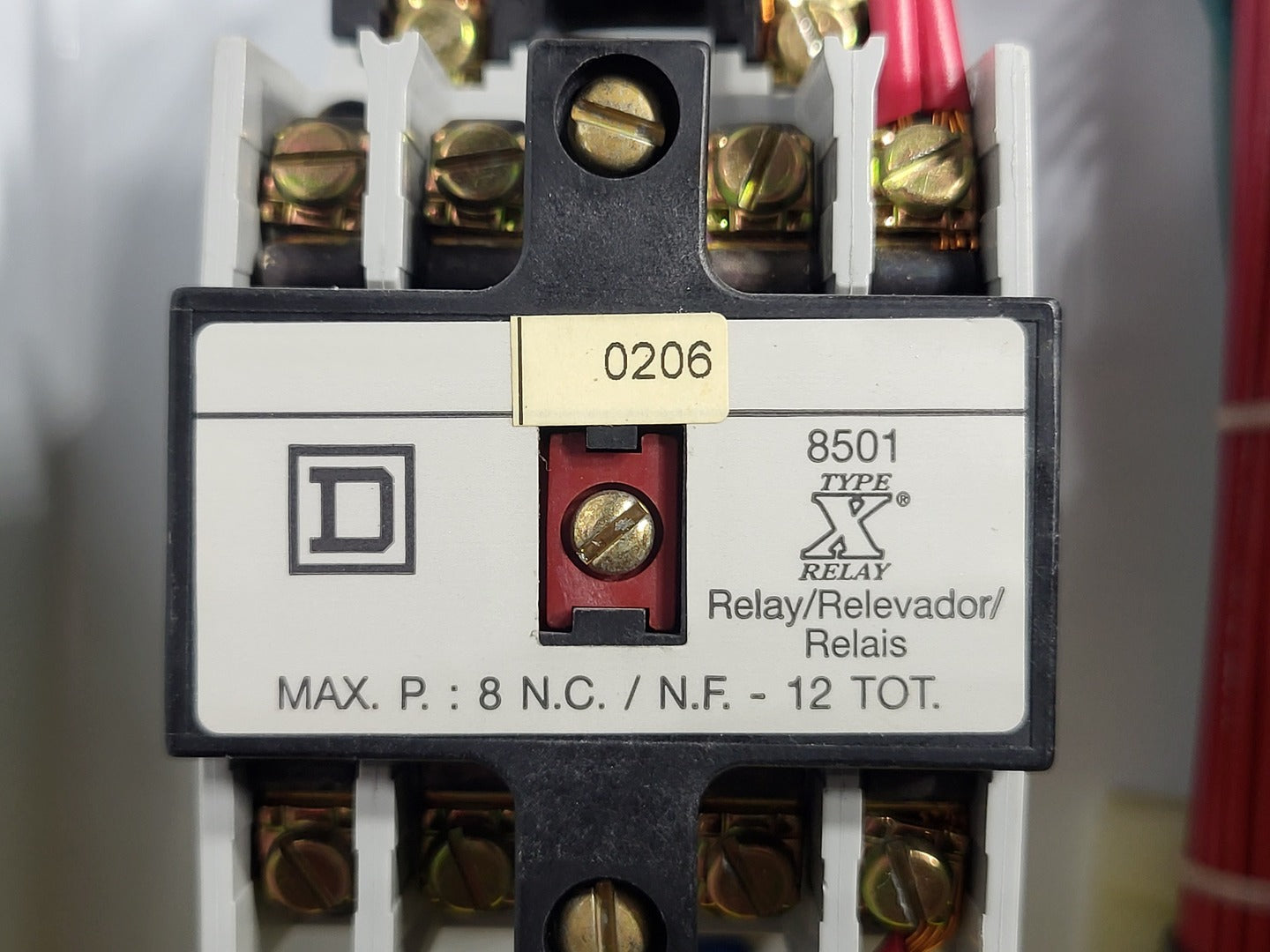

  4. Square D 8501 Type X relay, max 8 N.C. / 12 total contacts

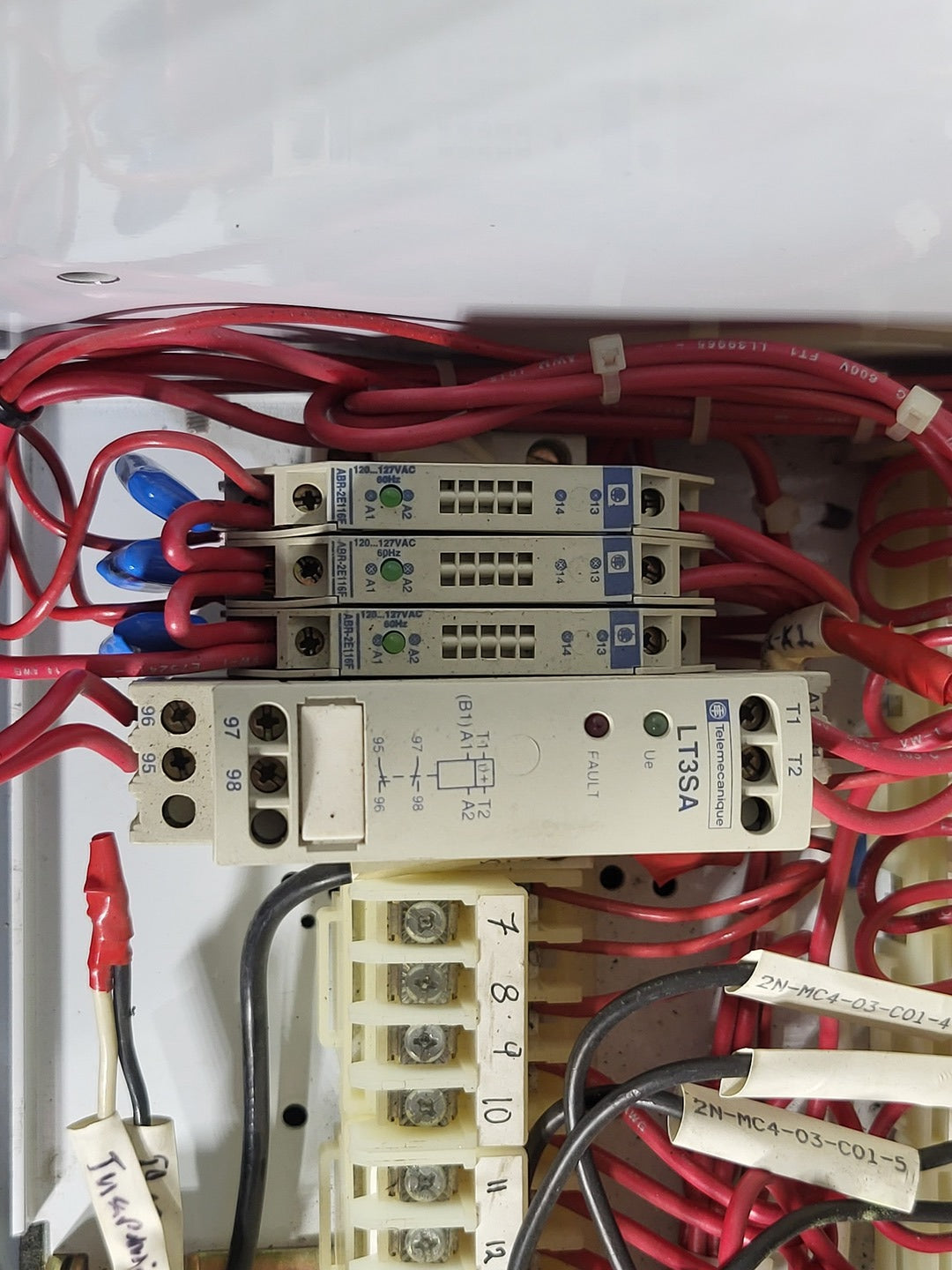

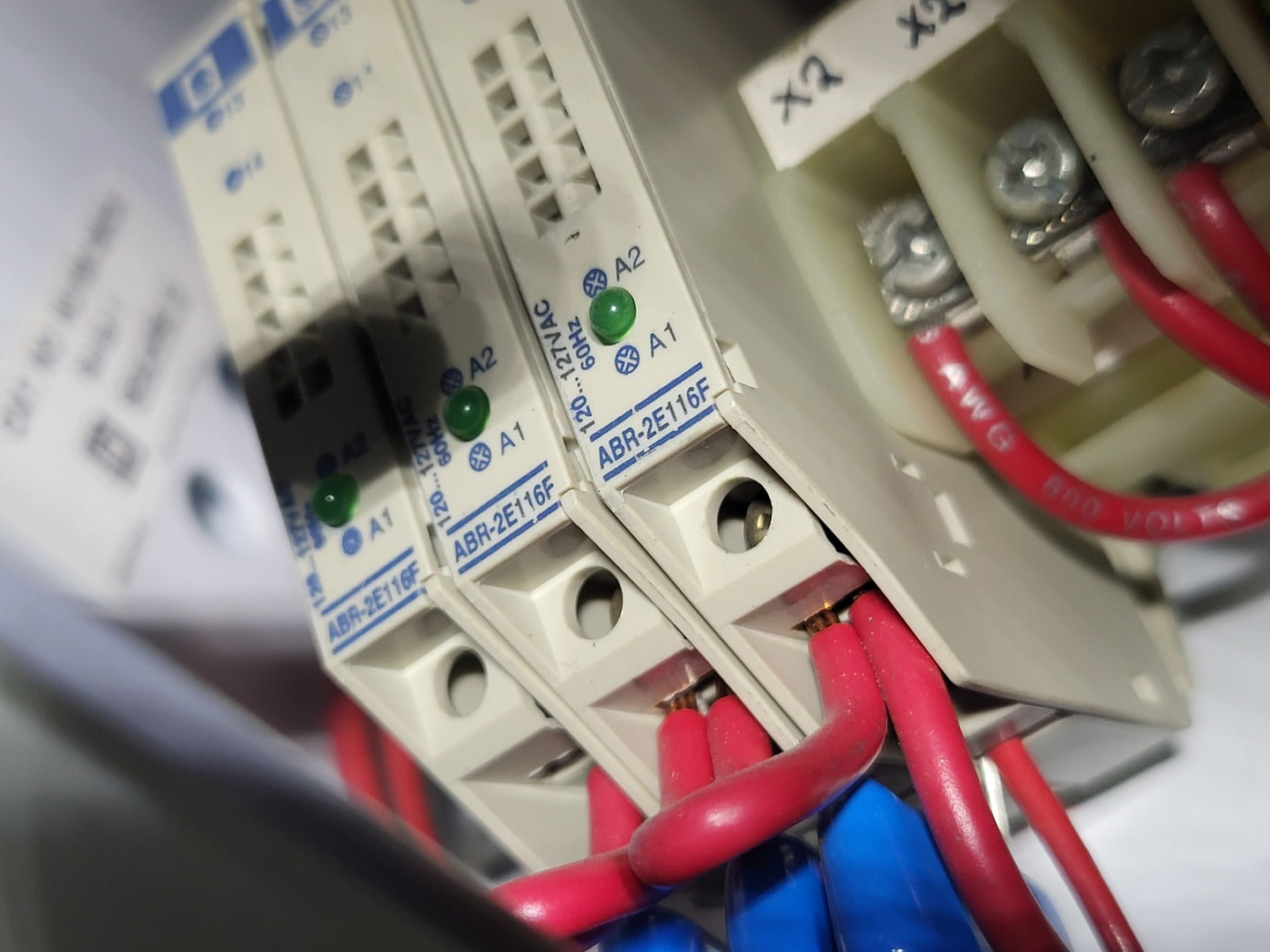

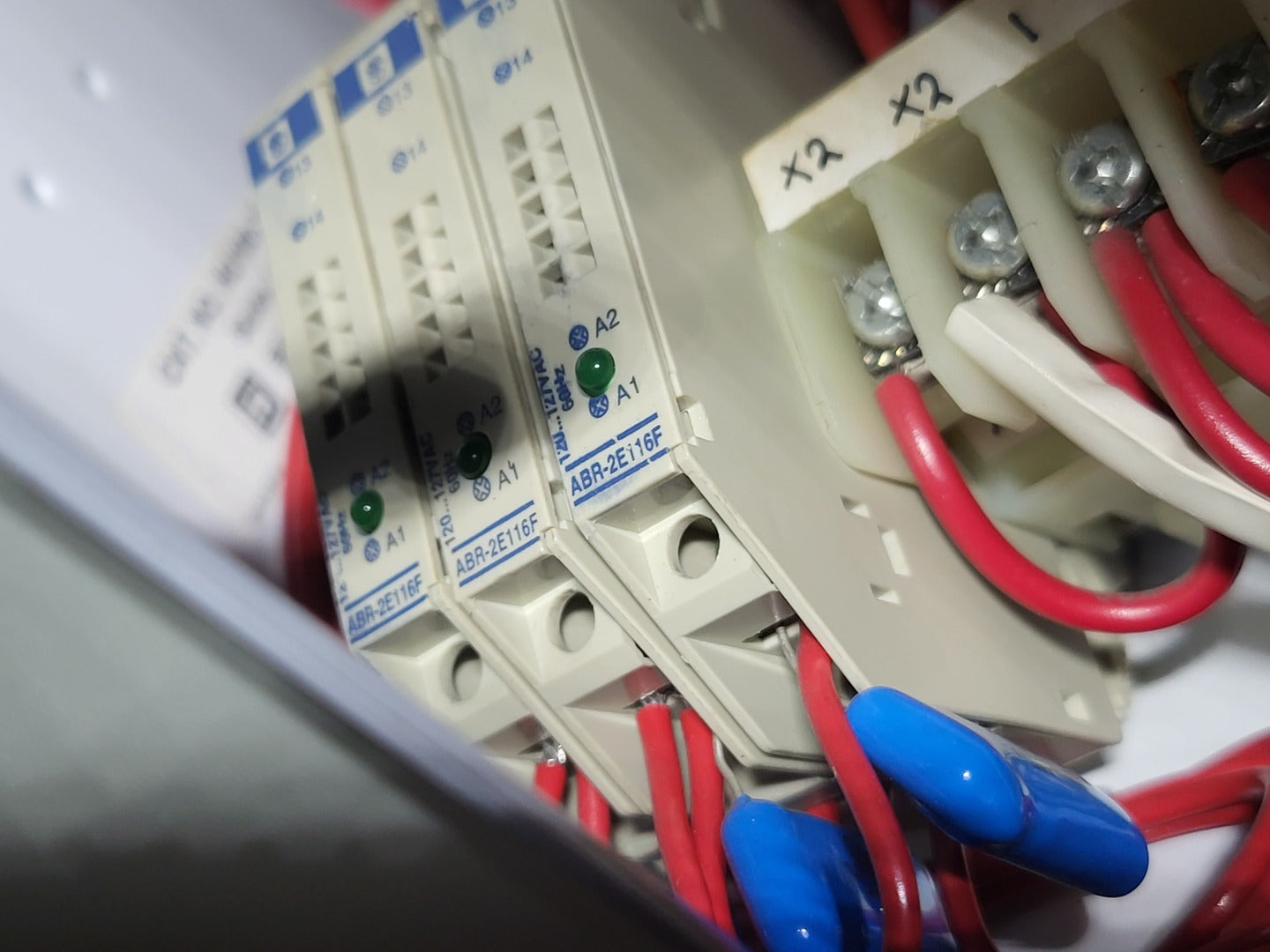

  5. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

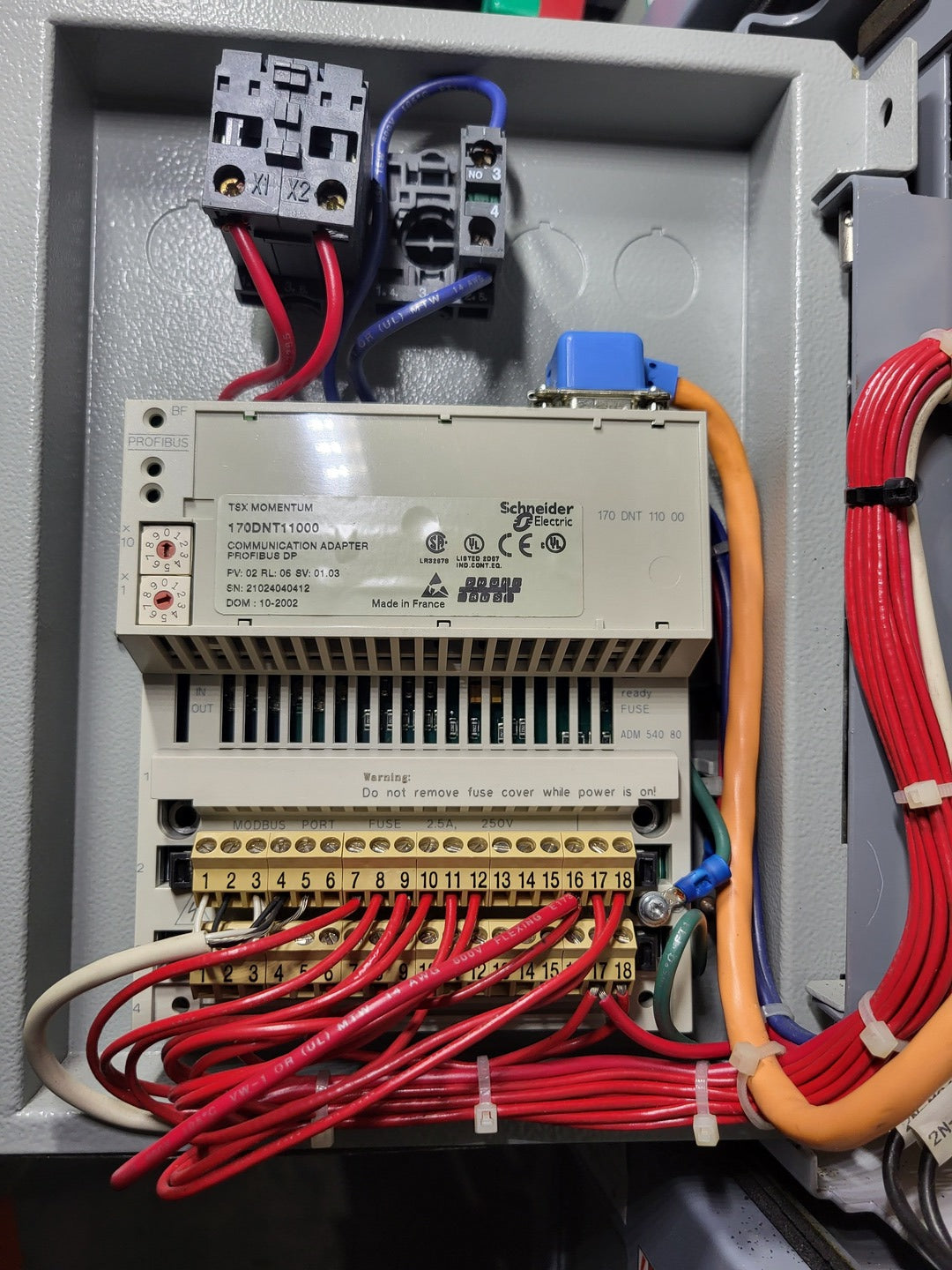

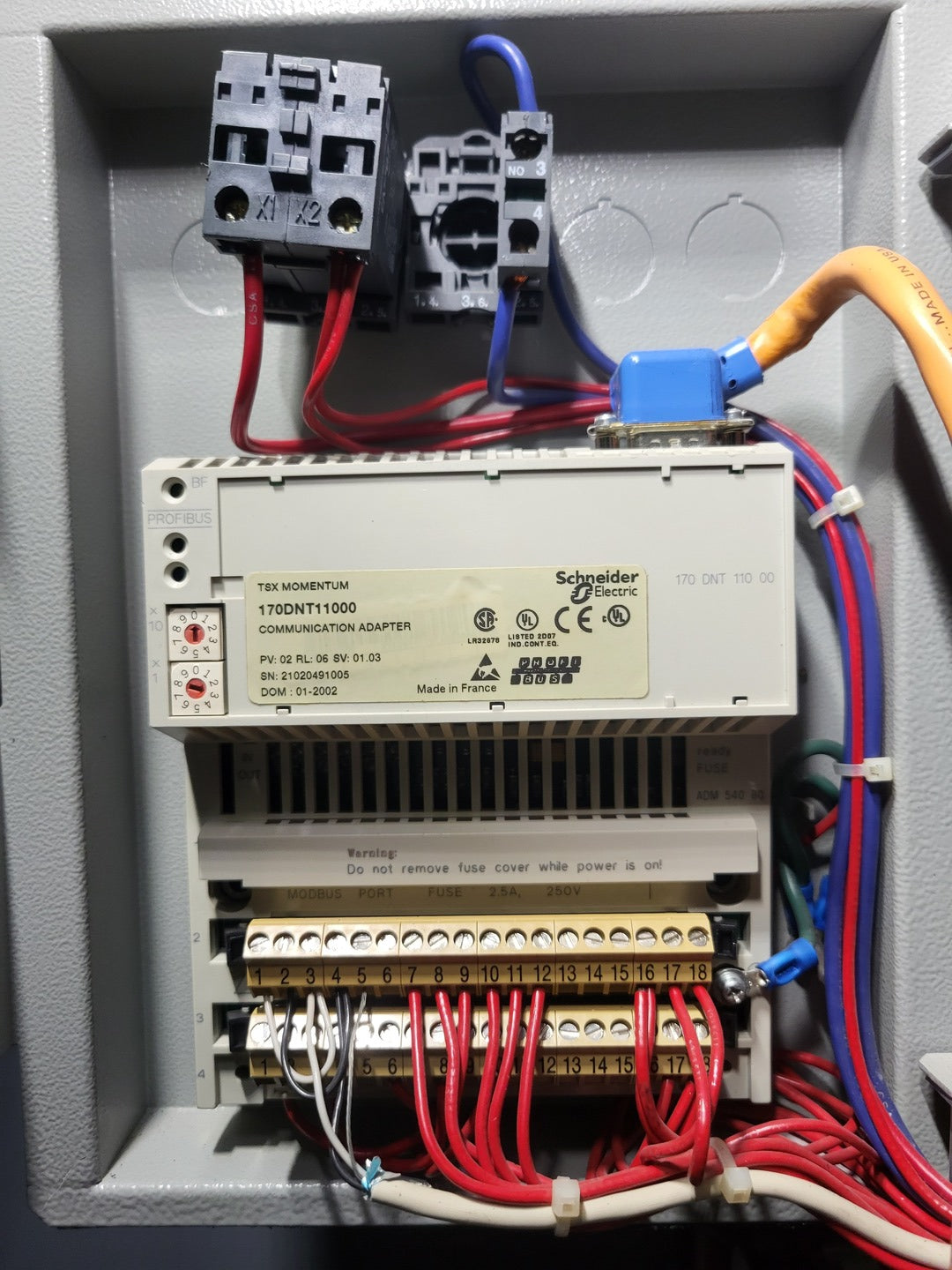

  6. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

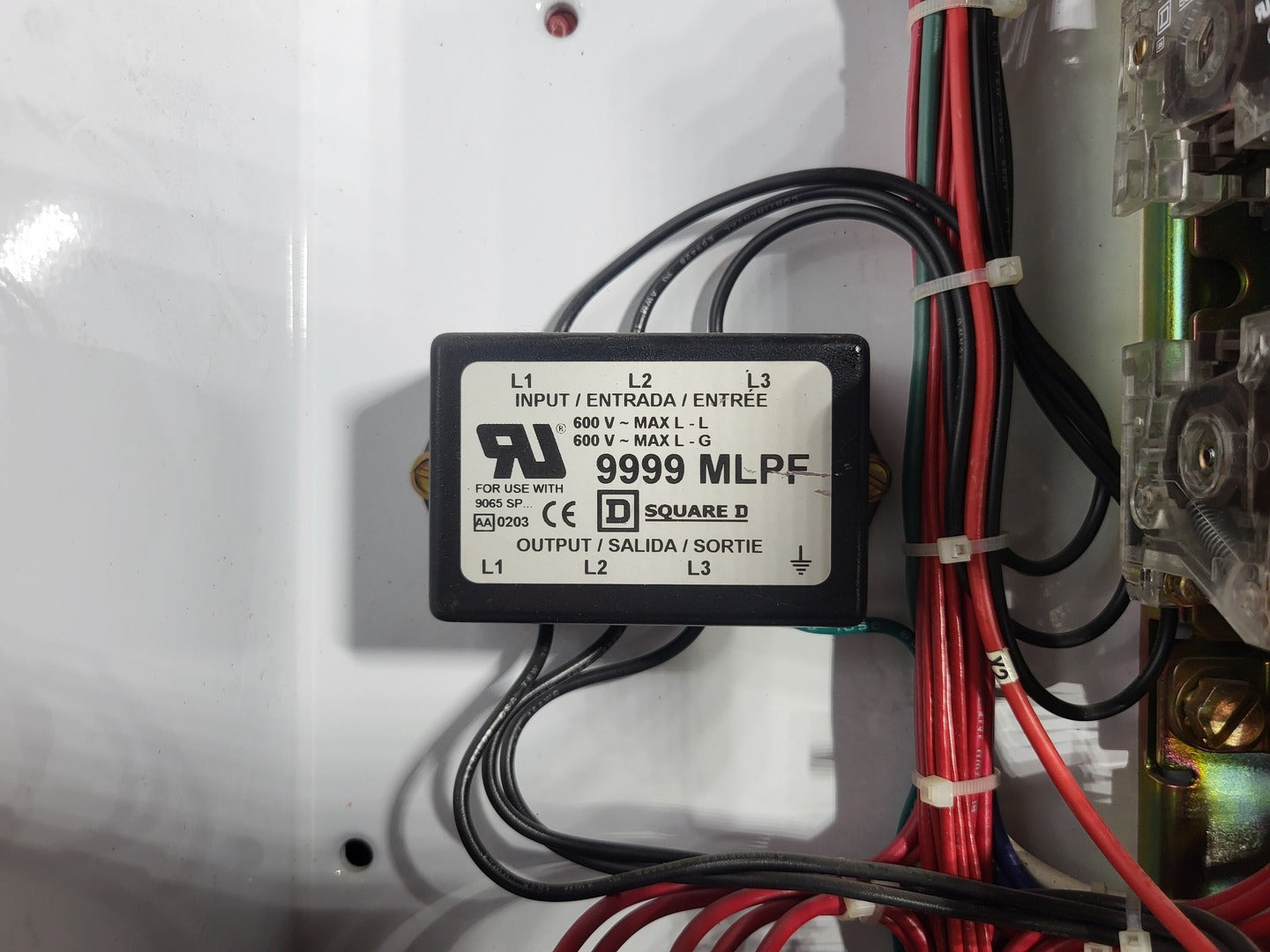

  7. Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max

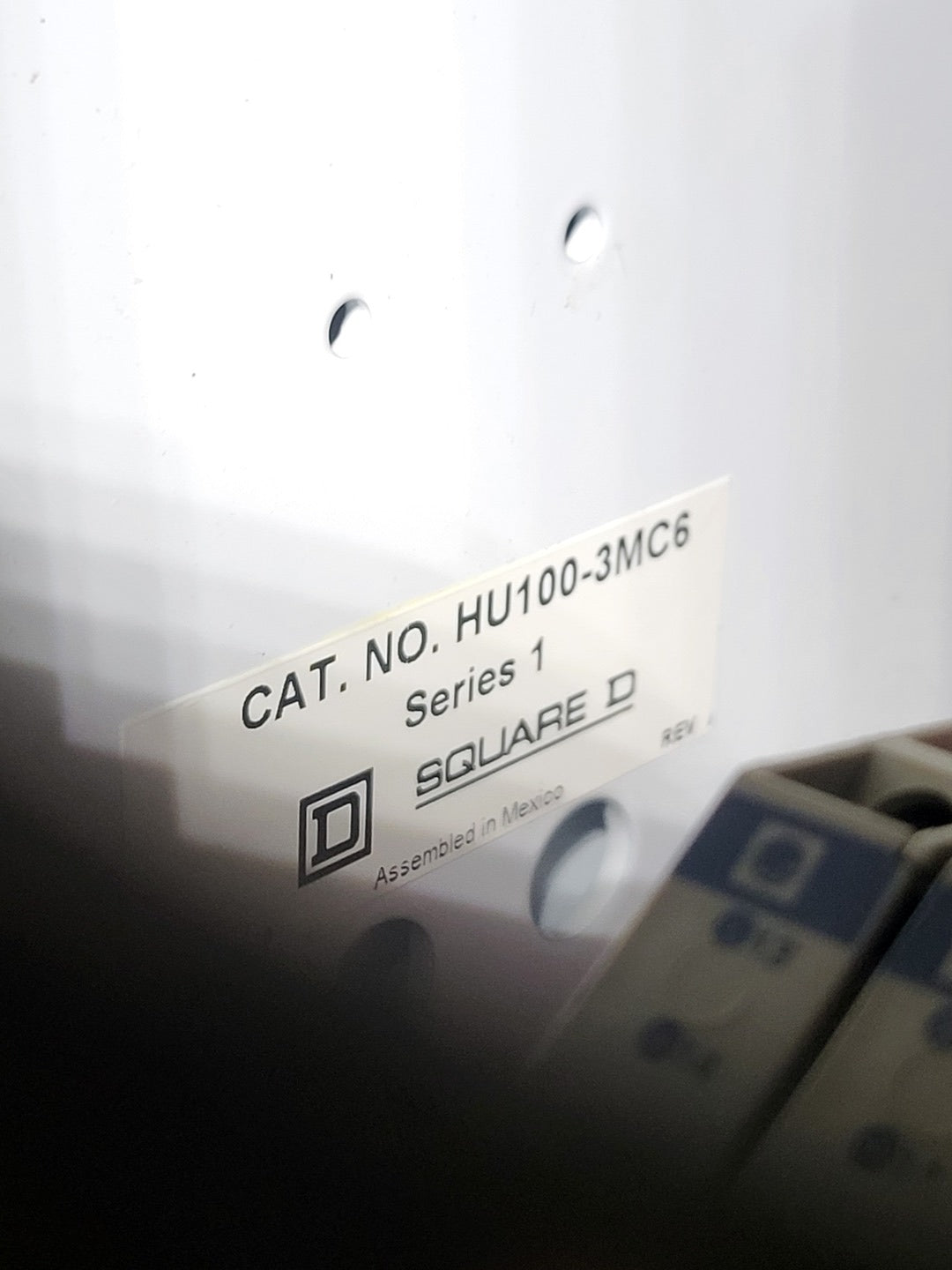

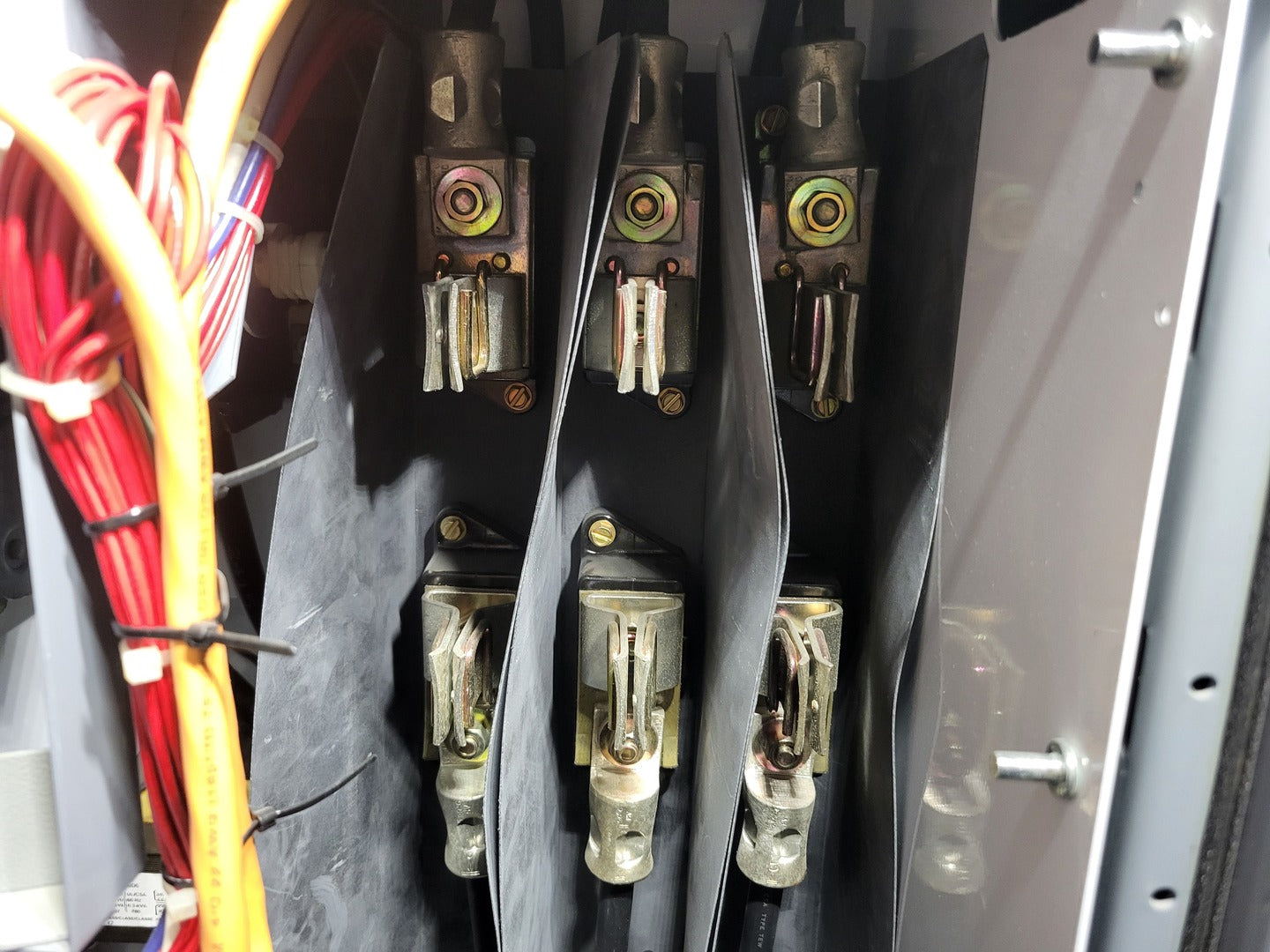

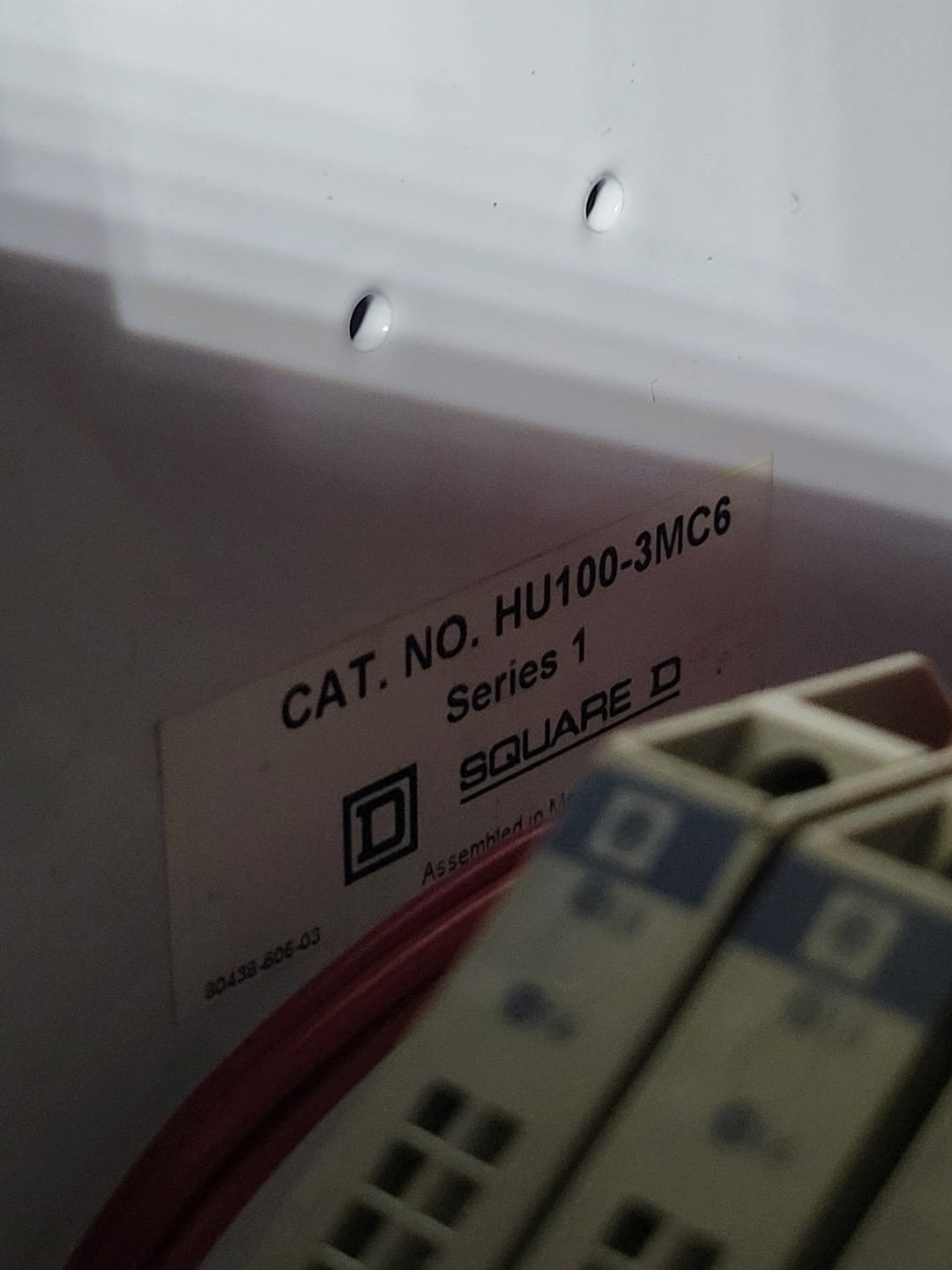

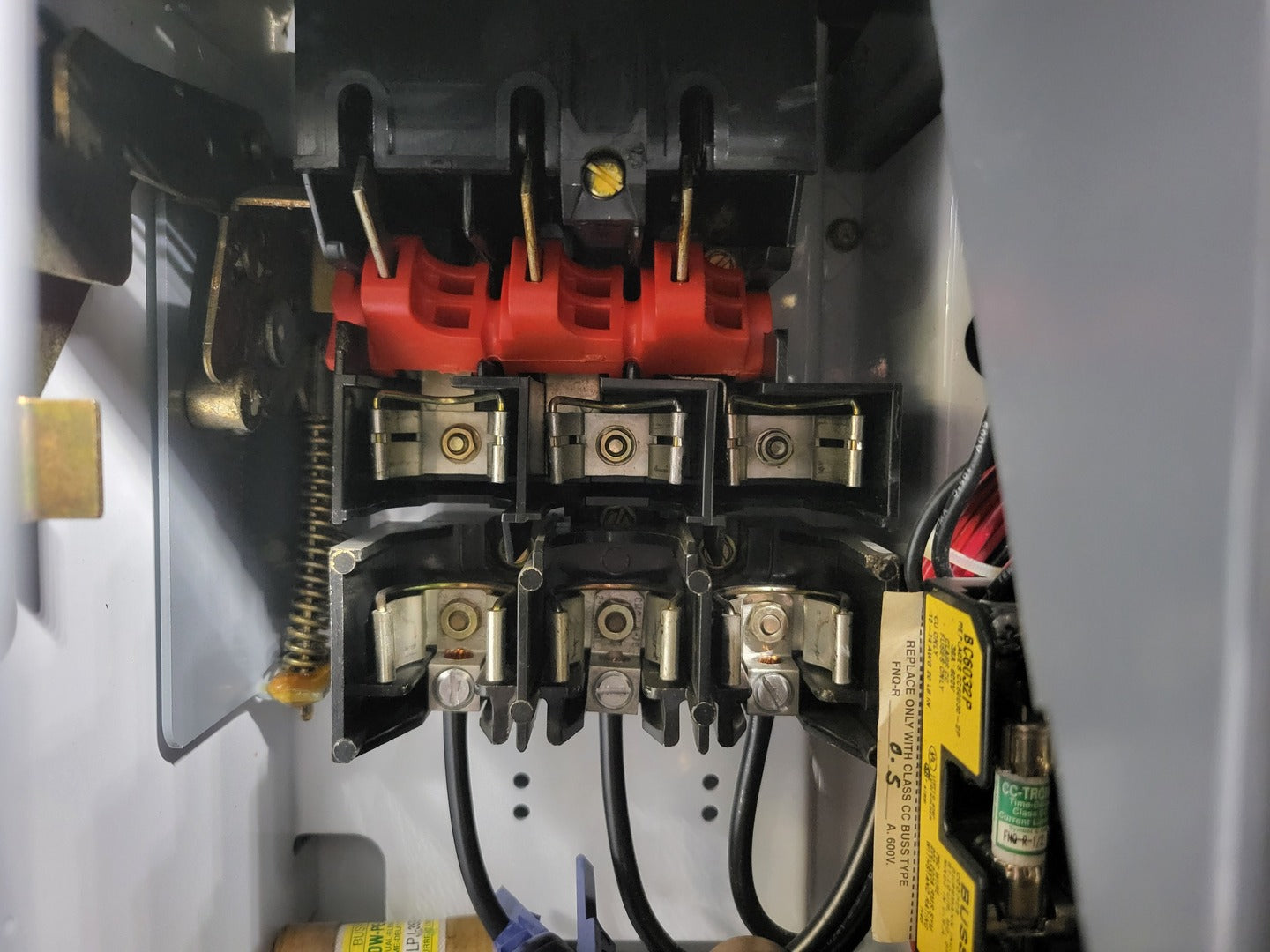

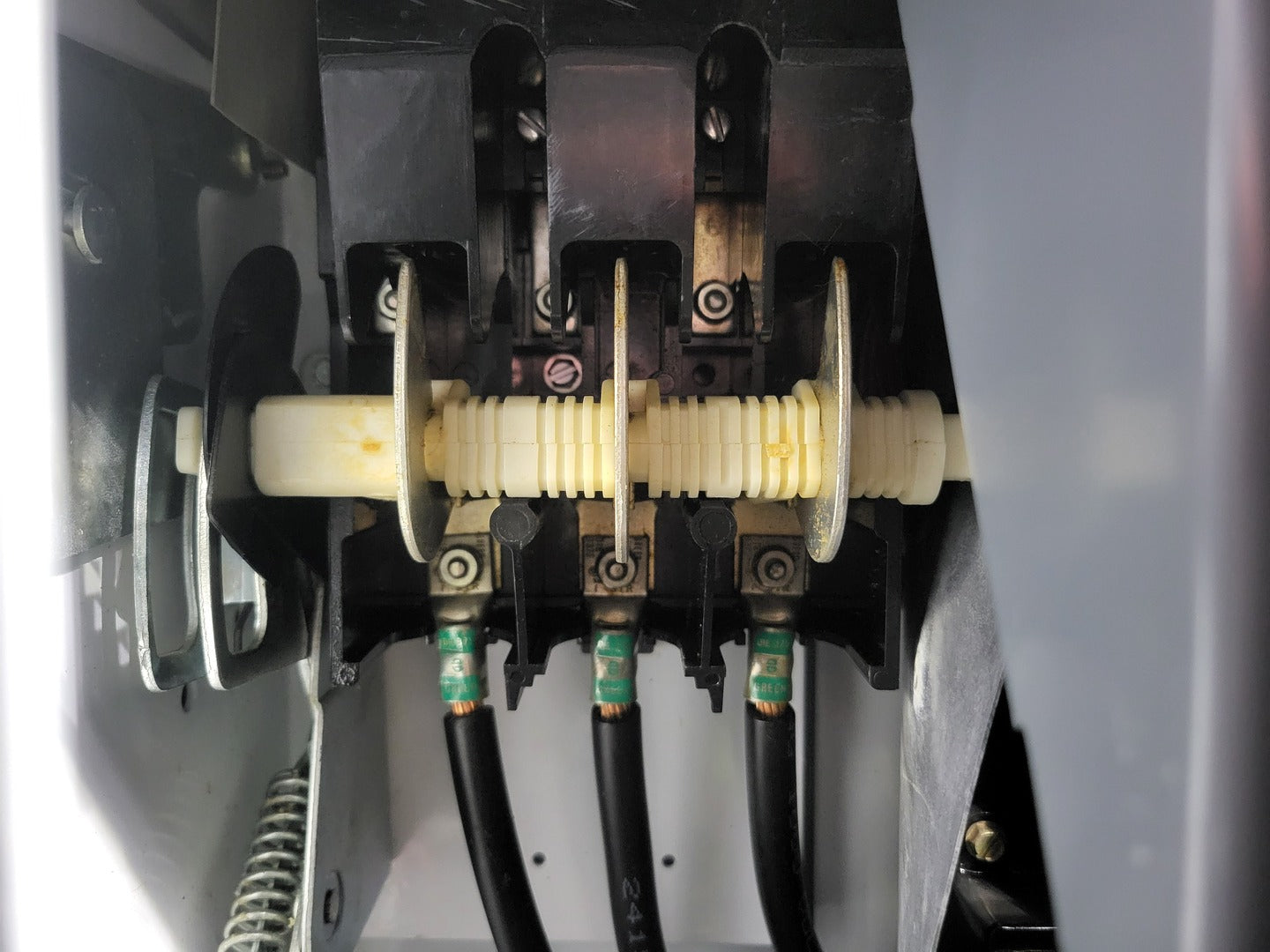

  8. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

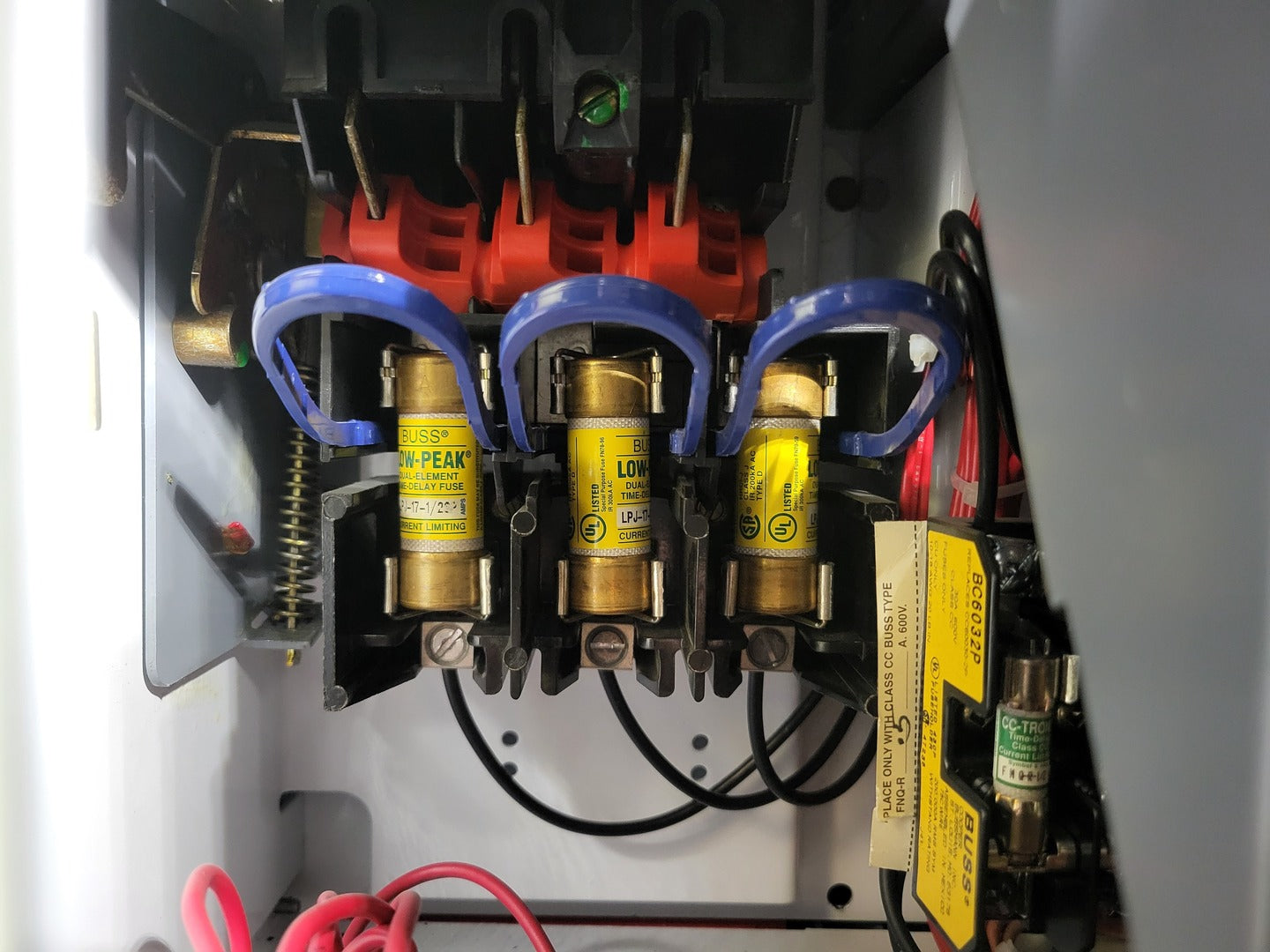

  9. 3 x Bussmann Low-Peak fuses LPJ-17-1/2SP

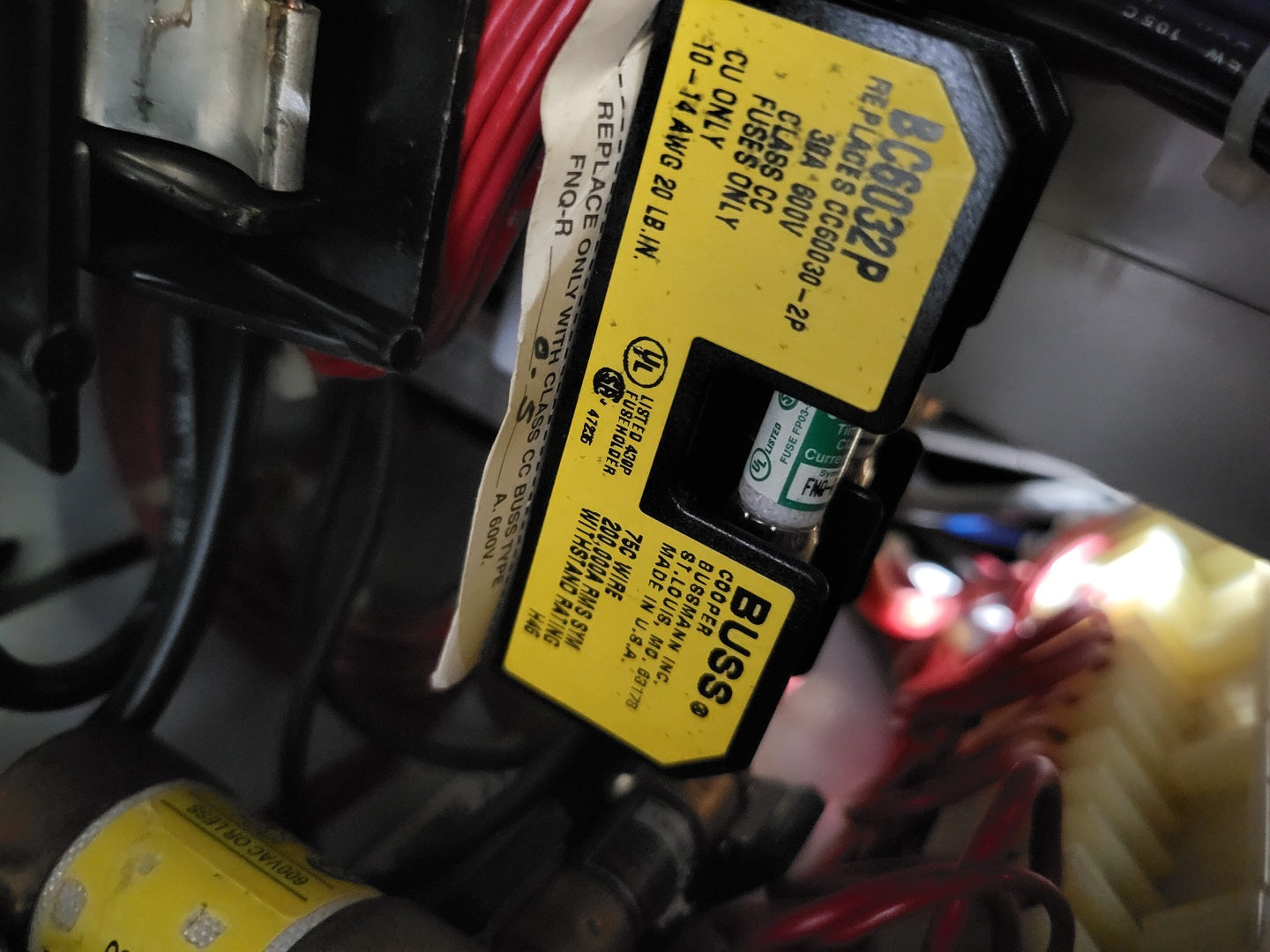

  10. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

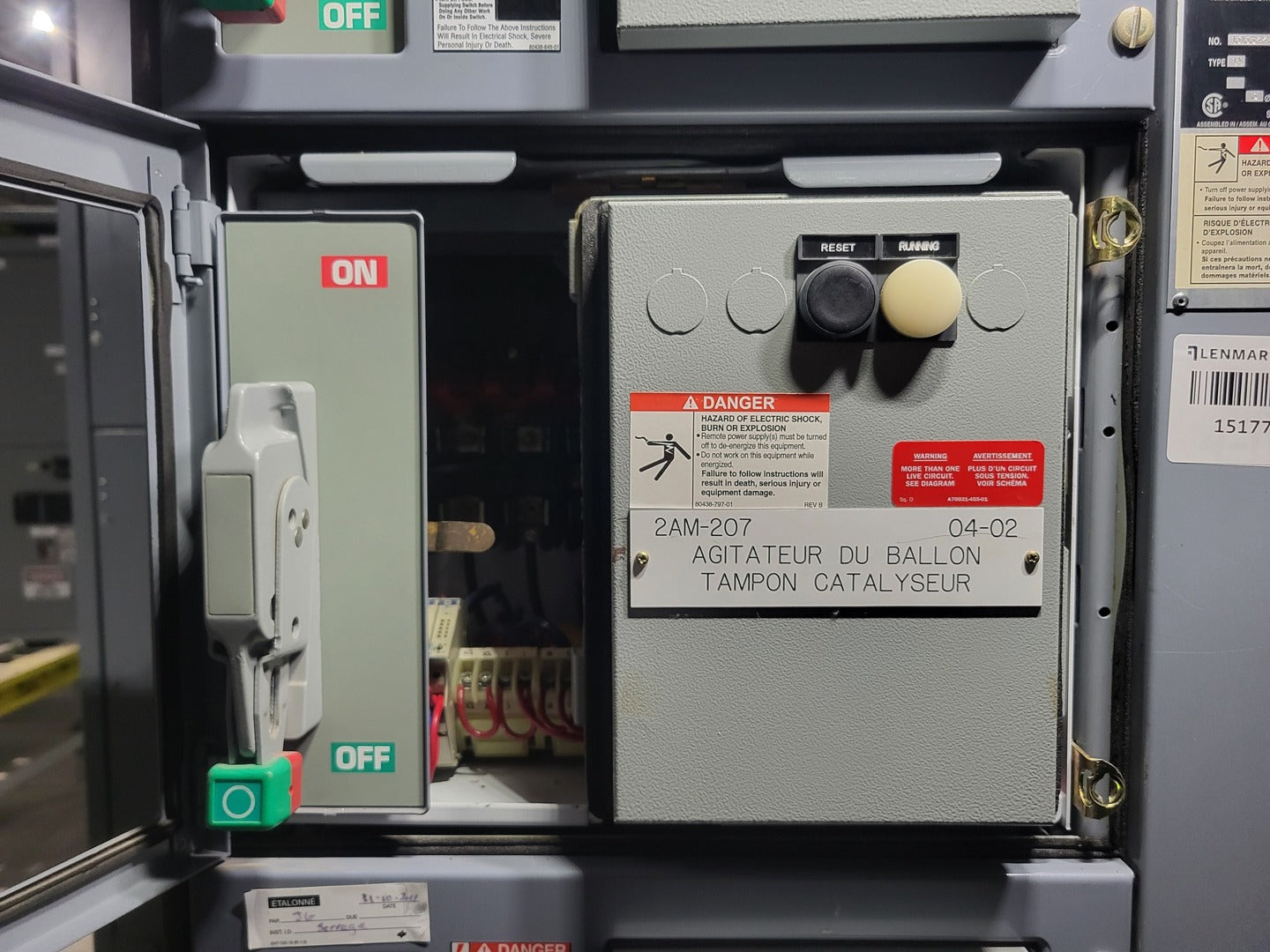

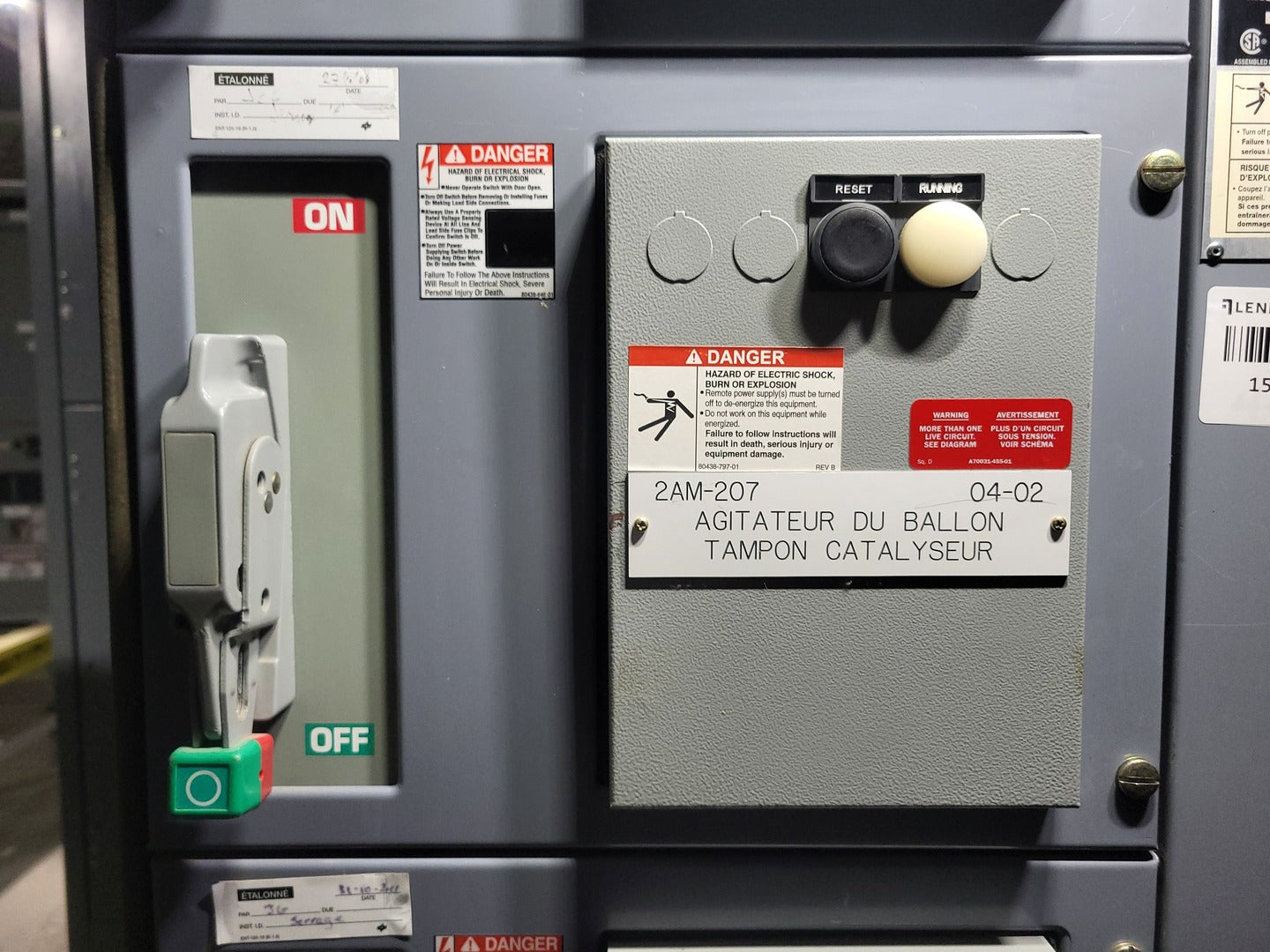

Bucket #2 2AM-207

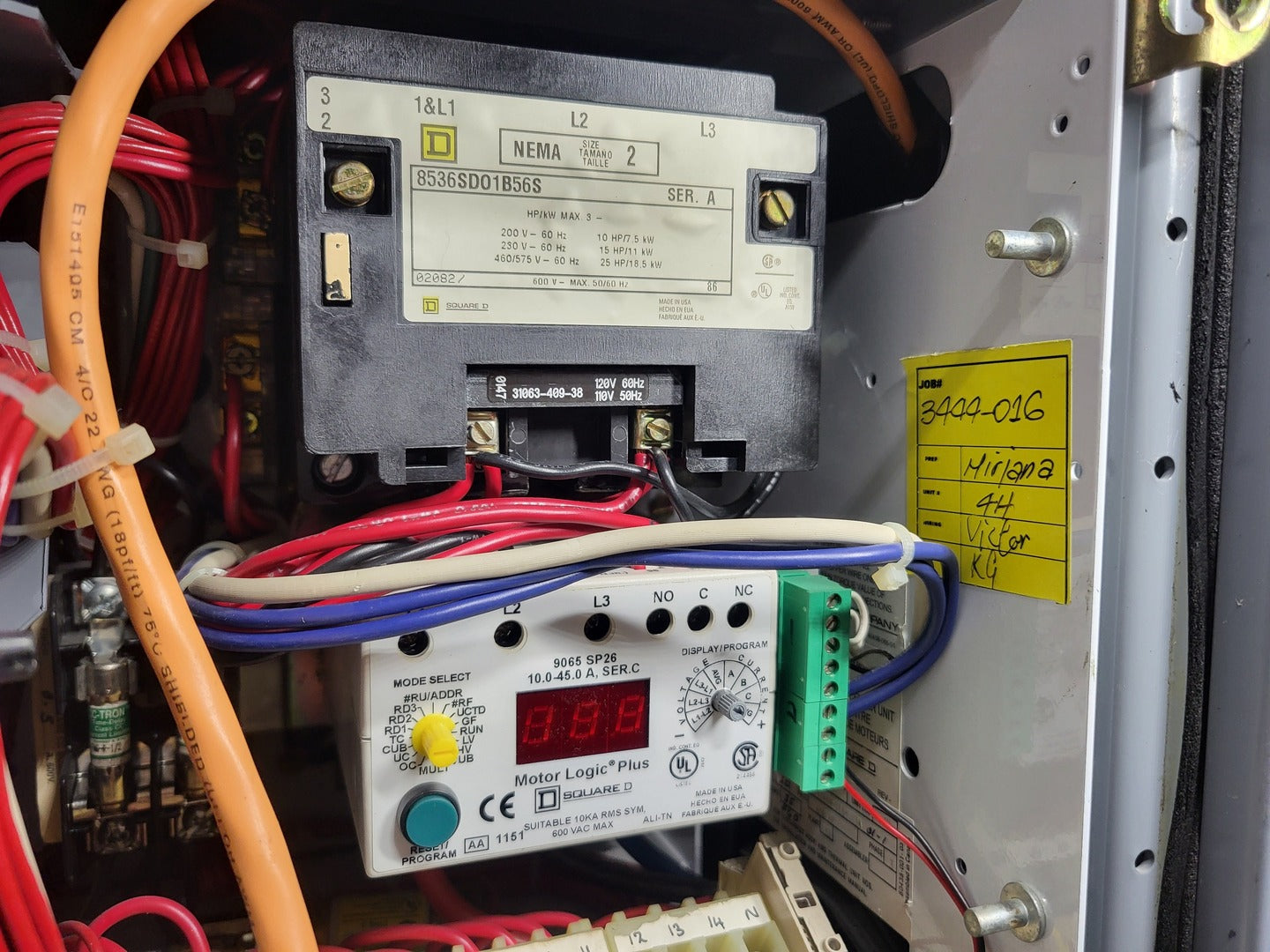

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 25 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

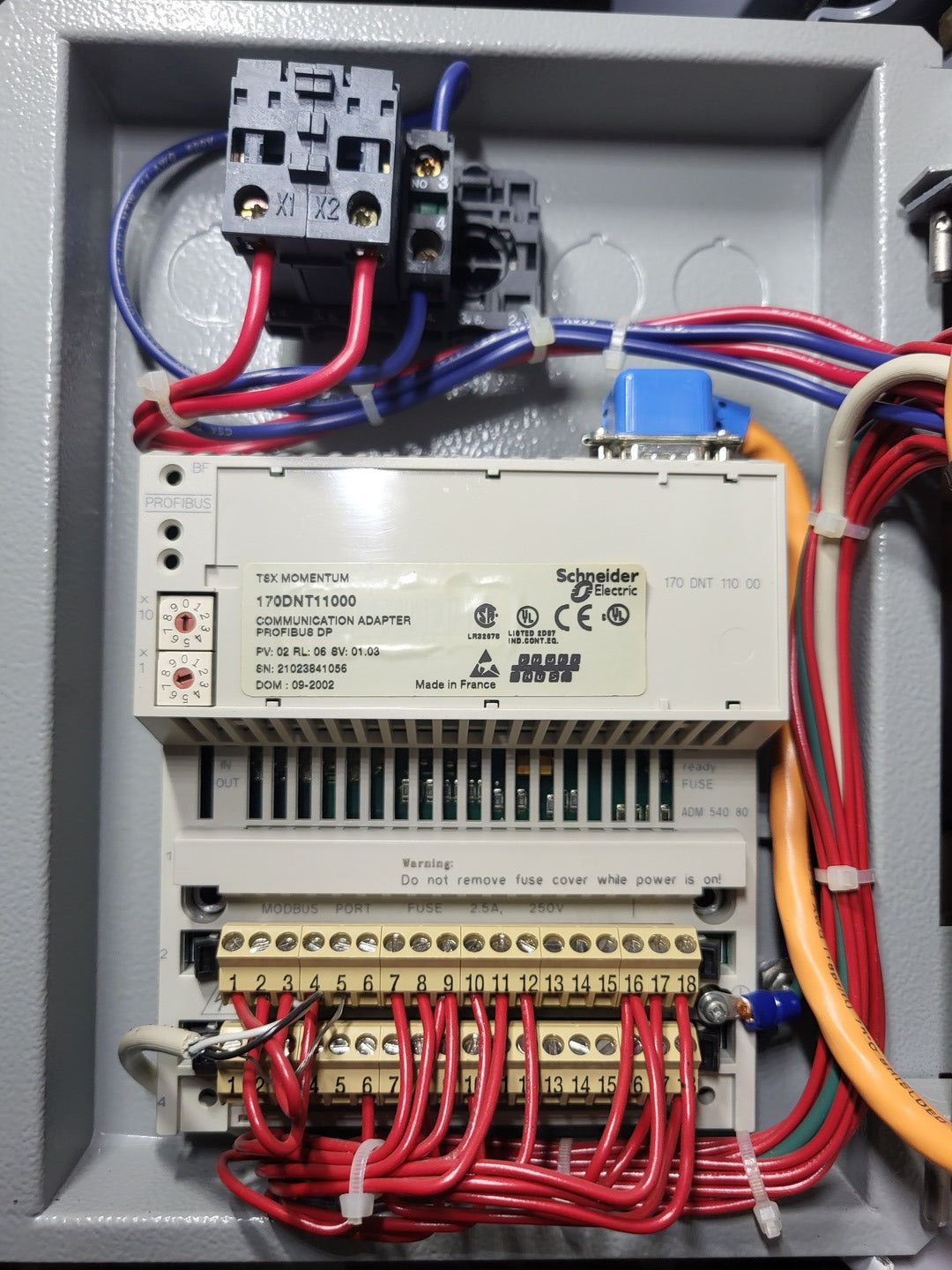

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 3 x Bussmann Low-Peak fuses LPJ-35SP
  8. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

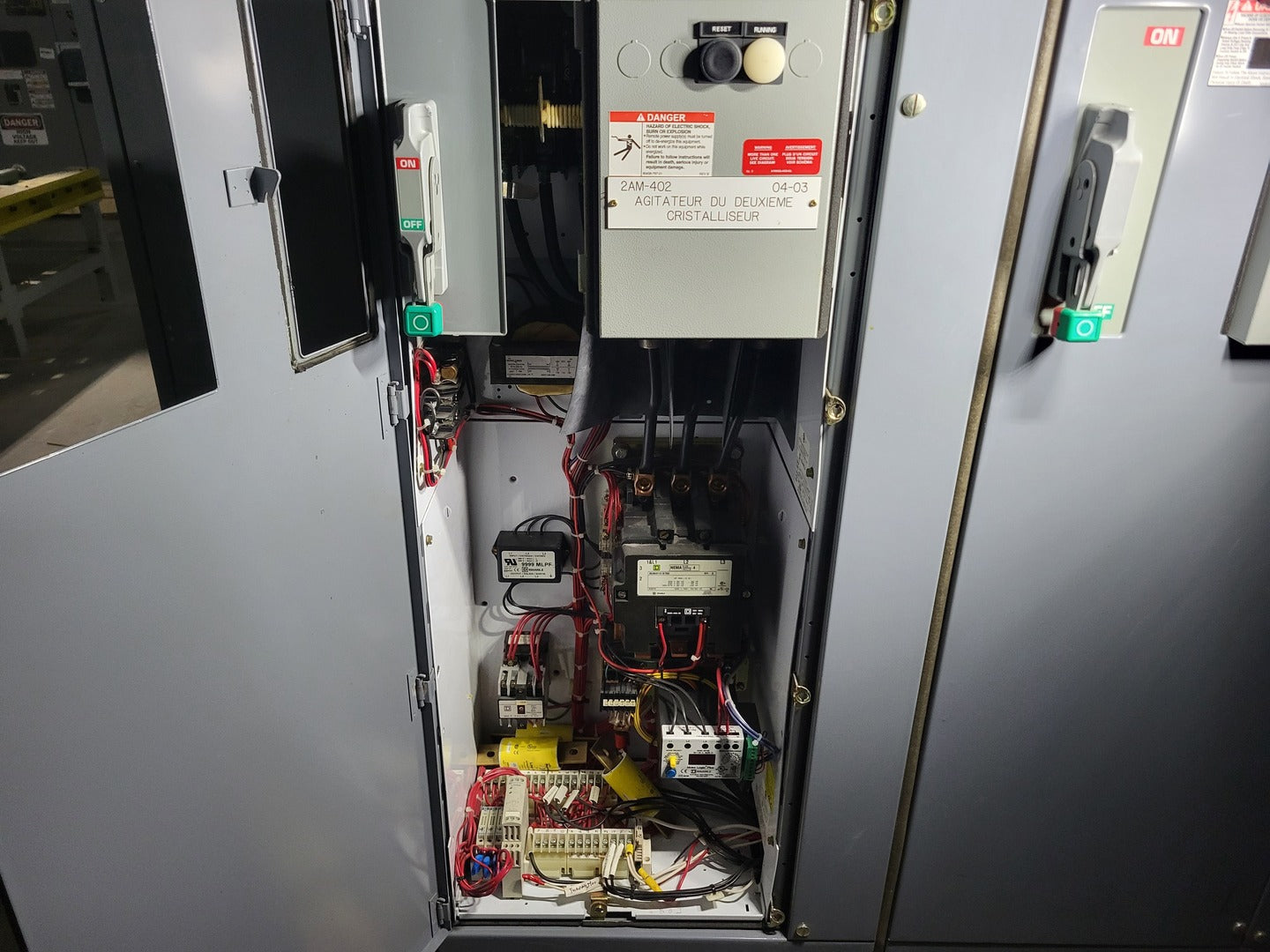

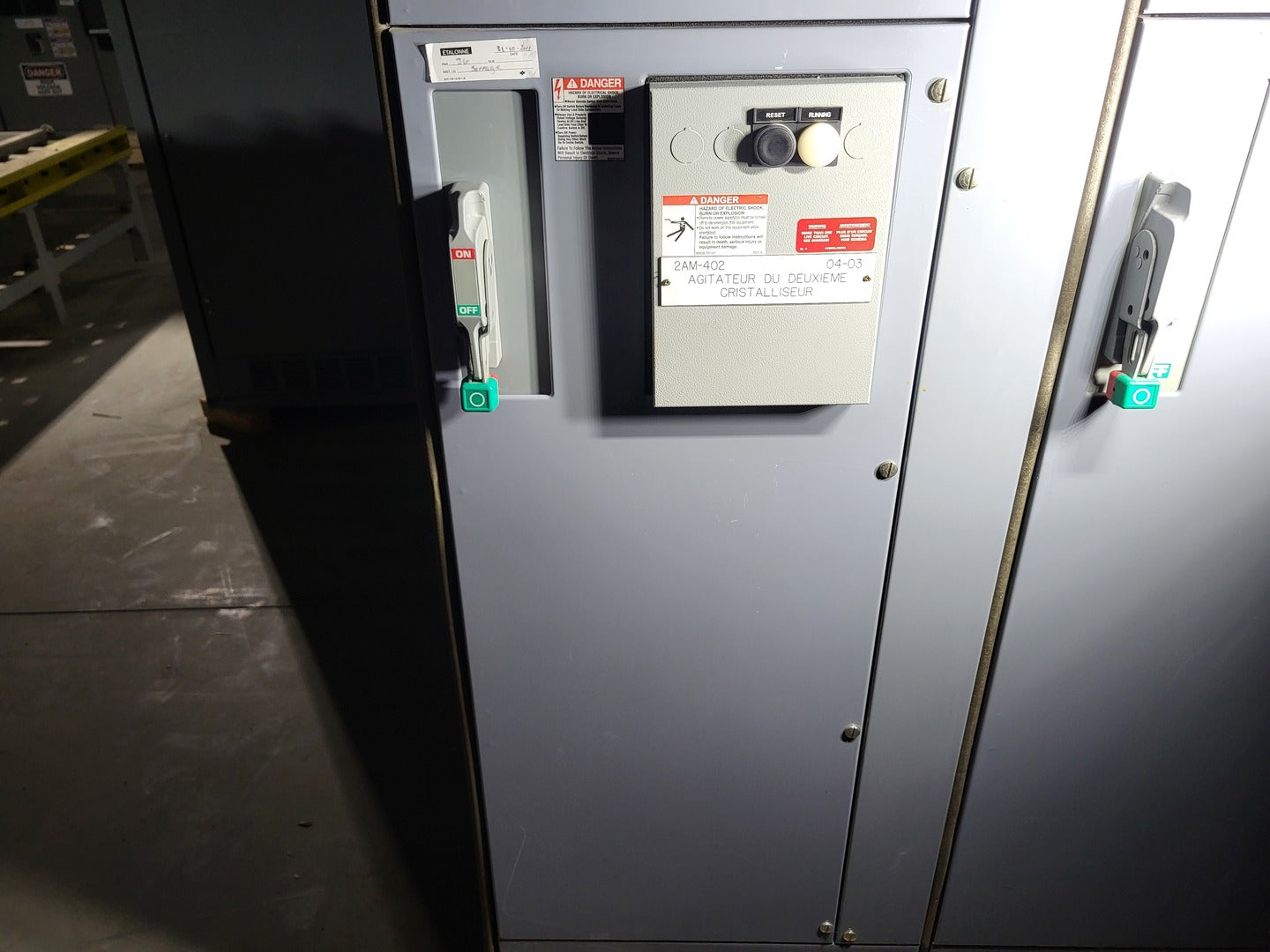

Bucket #3 2AM-402

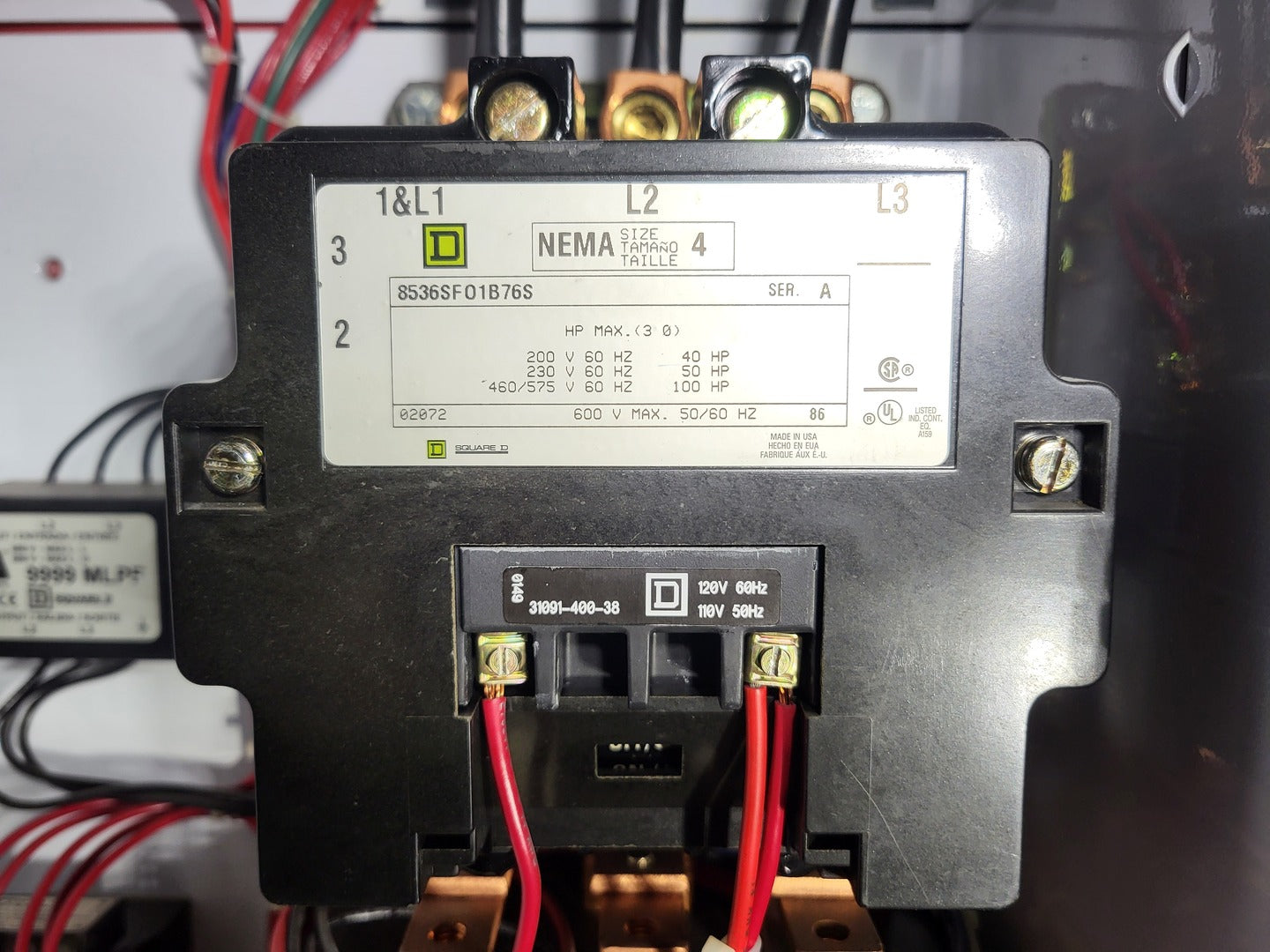

  1. Square D 8536SFO1B76S, NEMA Size 4 contactor, 100 HP @ 460/575V, 120V 60Hz / 110V 50Hz coil

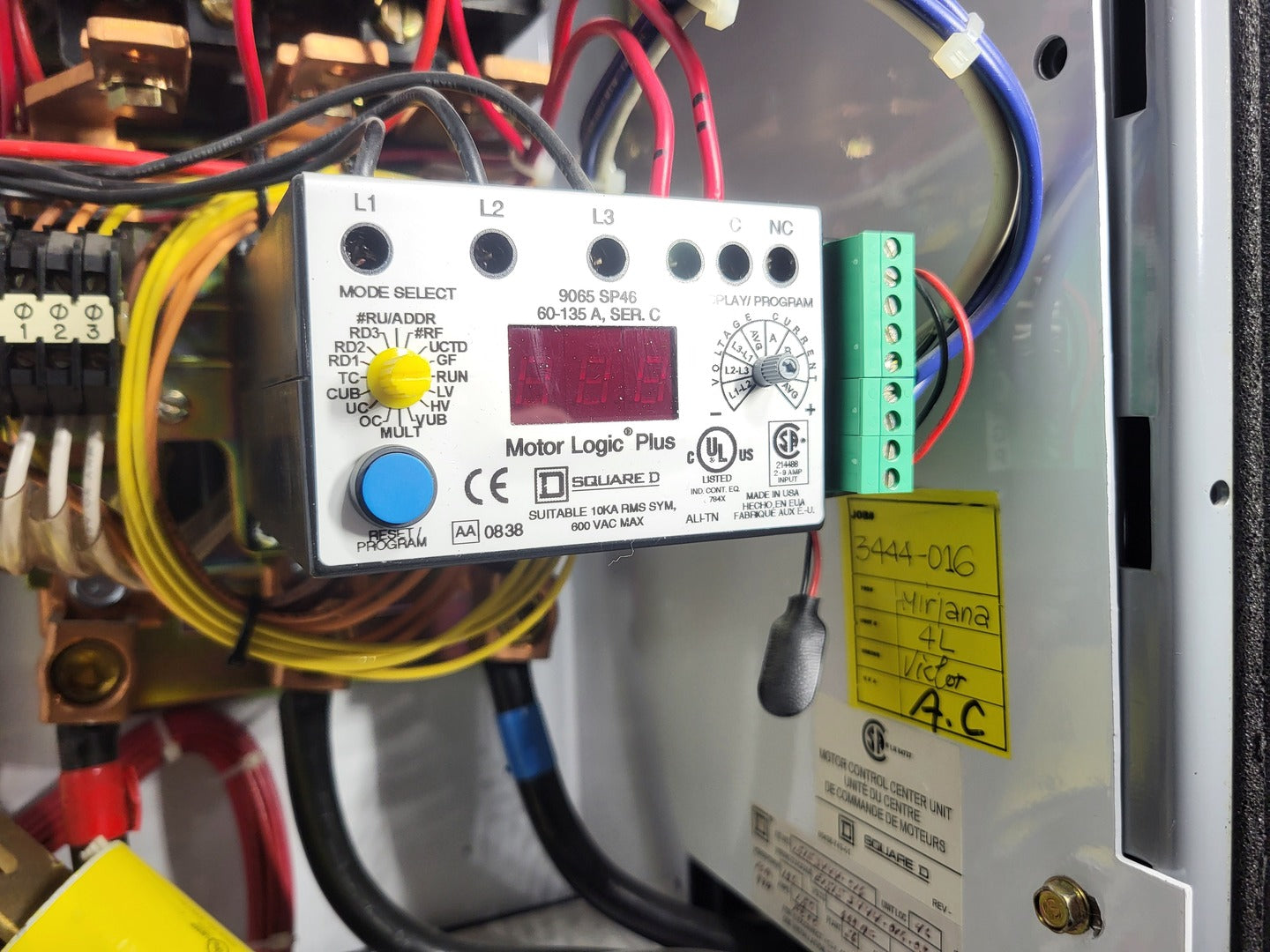

  2. Square D Motor Logic Plus 9065 SP46, motor protection relay, 60-135A range, 600VAC max

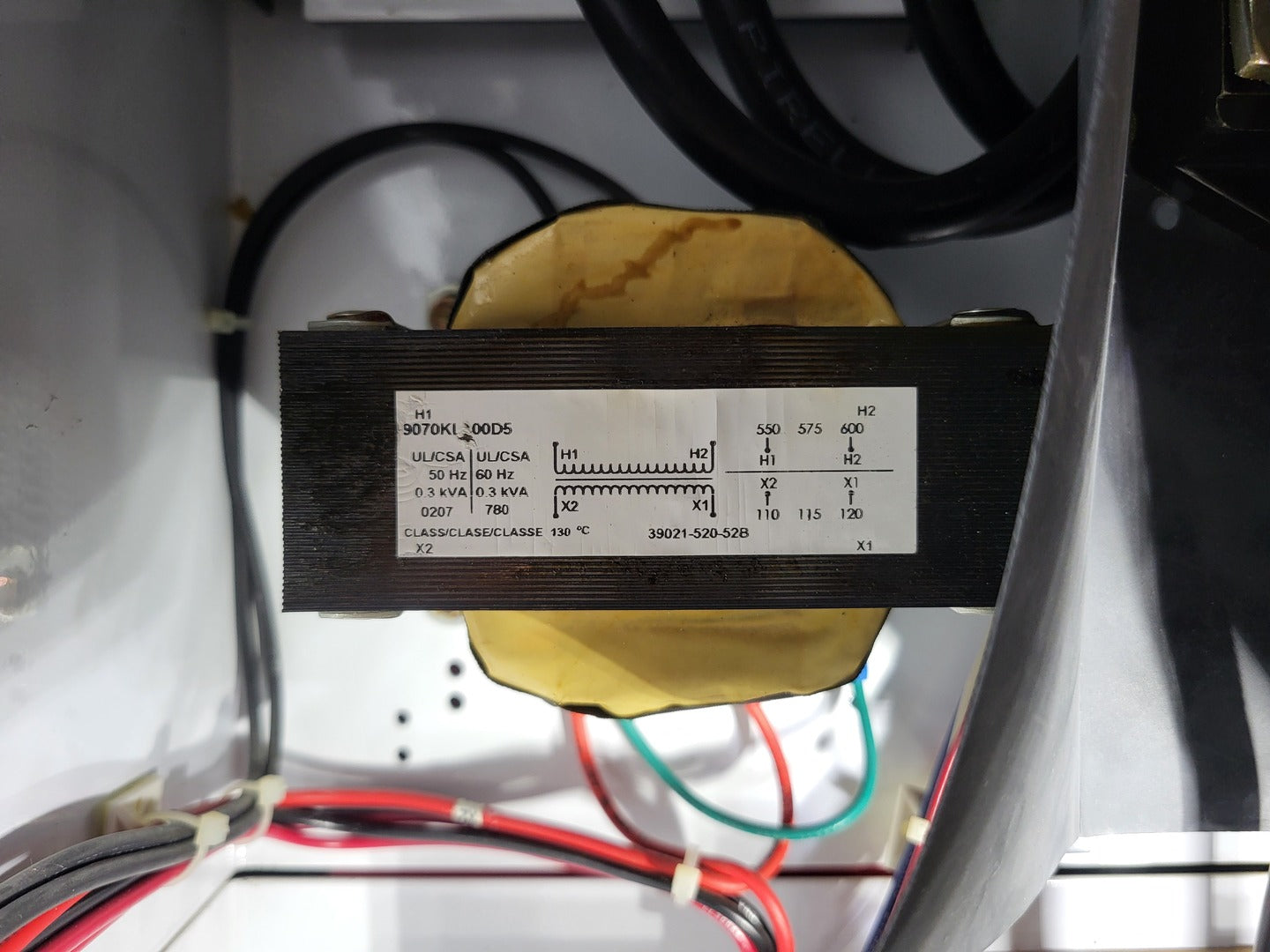

  3. Square D 9070KL300D5, control transformer, 0.3 kVA @ 50/60Hz
  4. Square D 8501 Type X relay, 12-pole max, 8 N.C. max
  5. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  6. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  7. Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max

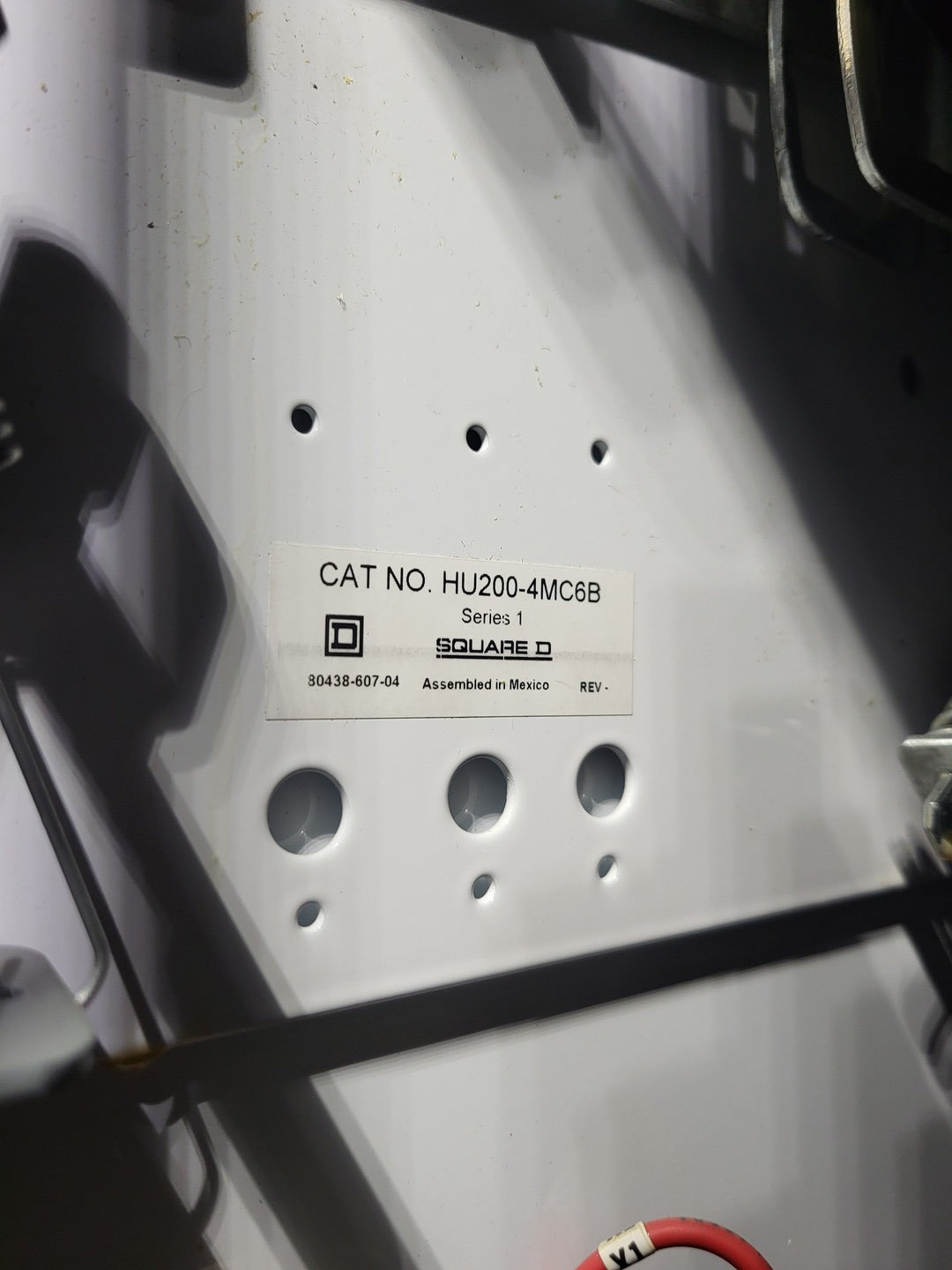

  8. Square D HU200-4MC6B, Series 1, 200A MCC bucket disconnect unit

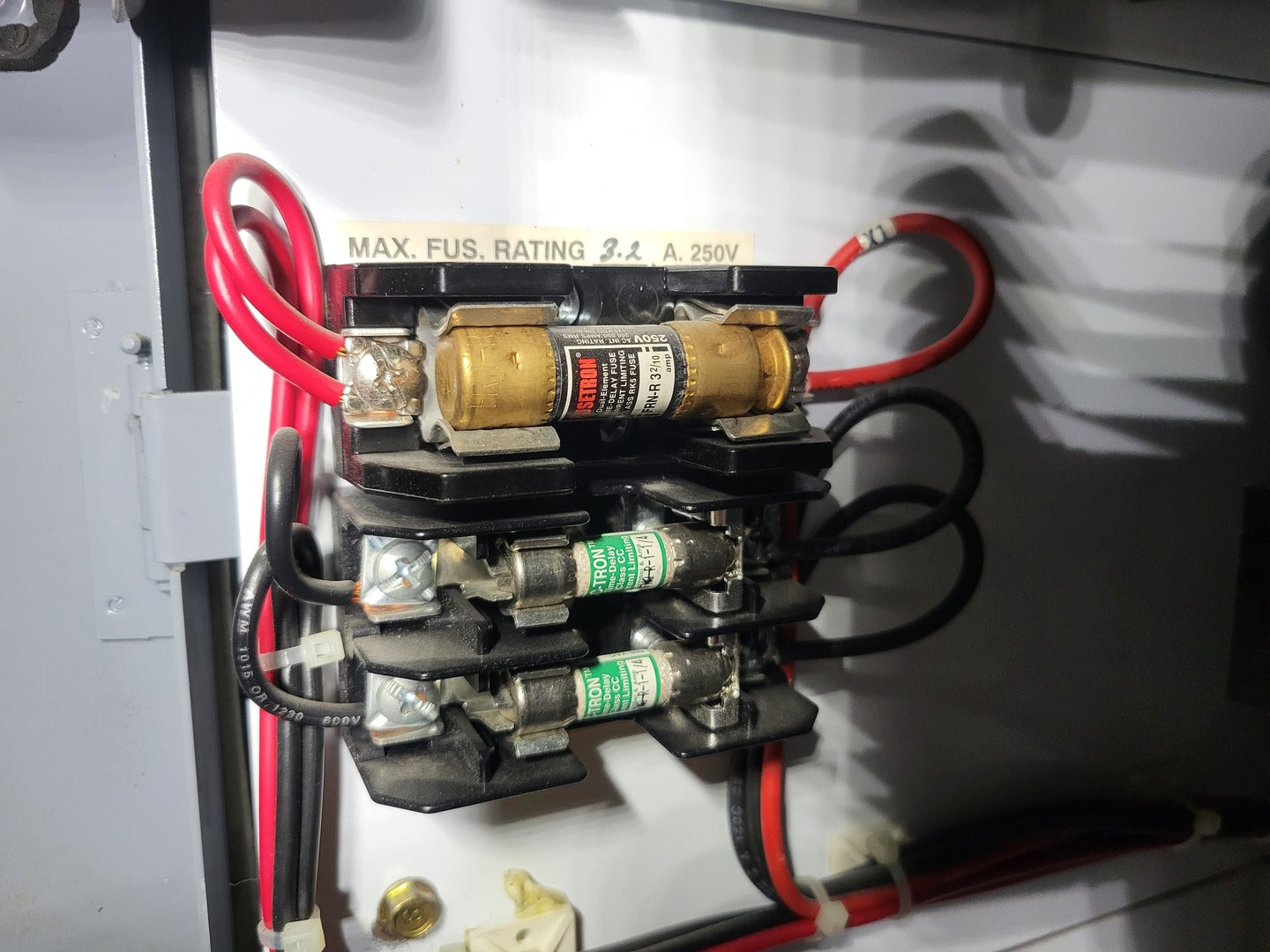

  9. 1 x Bussmann Fusetron fuse FNQ-R-3-2/10
  10. 2 x Bussmann CC-Tron fuses FNQ-R-1-1/4
