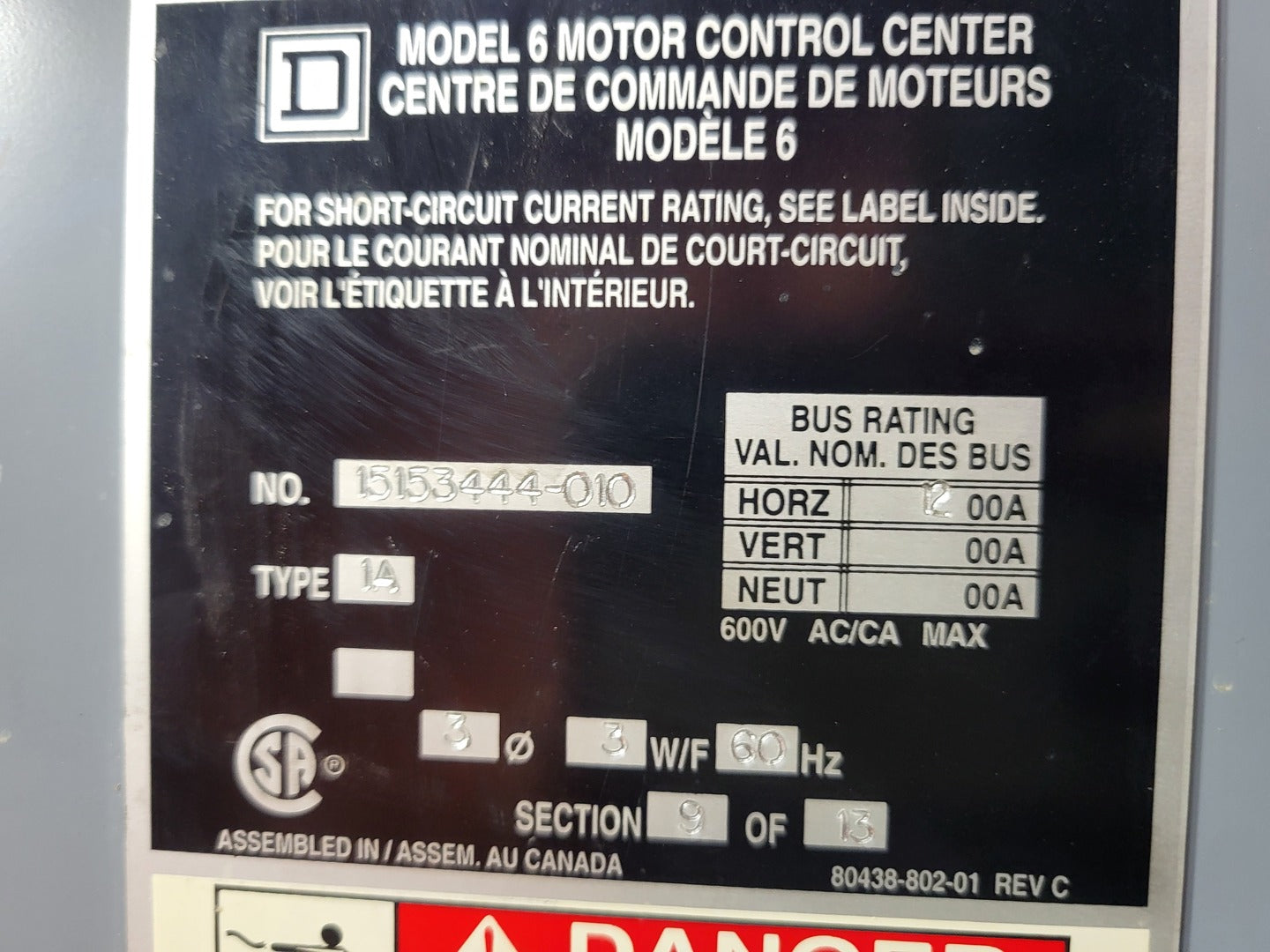

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151206
Price:
$4,950 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

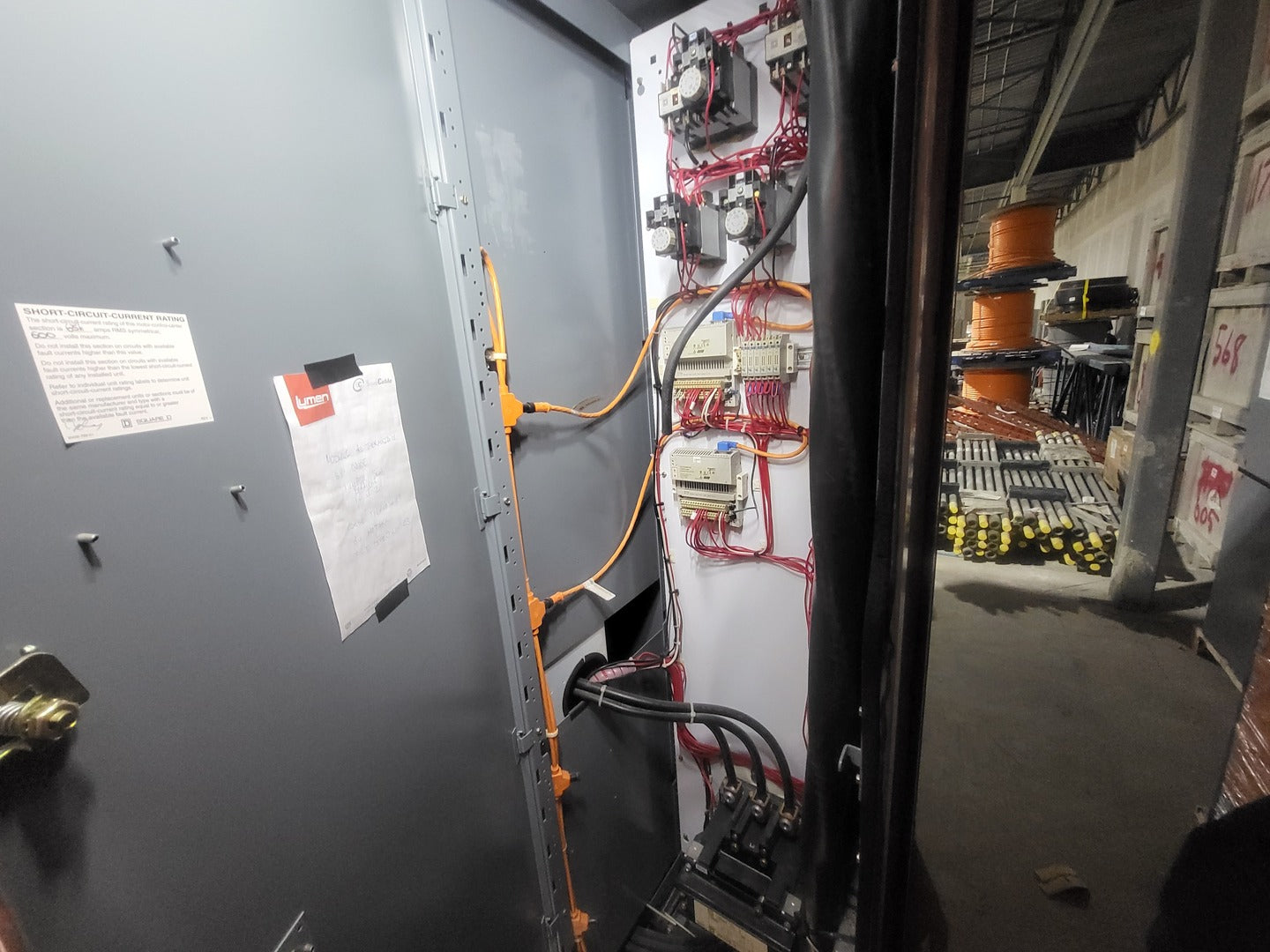

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

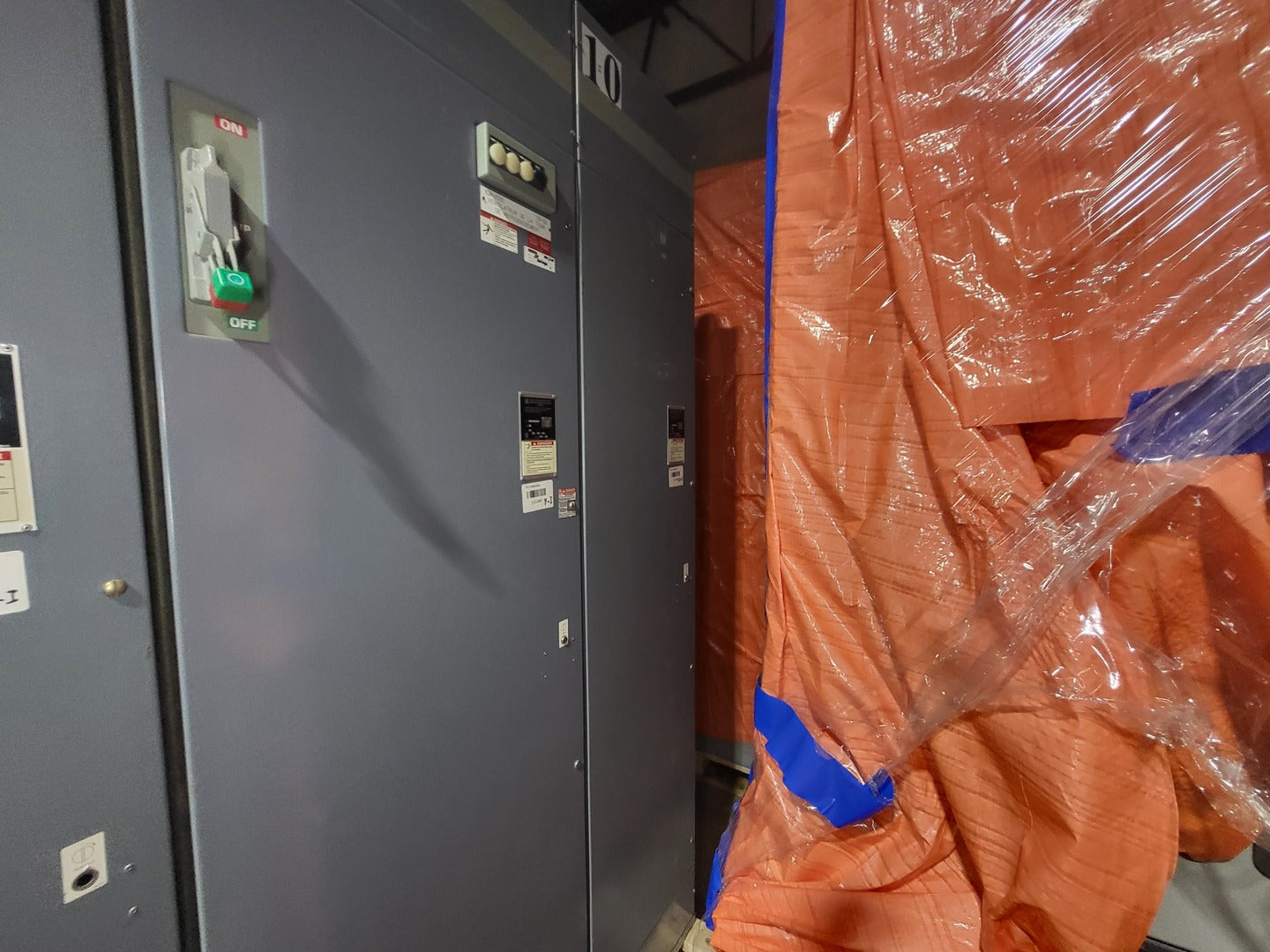

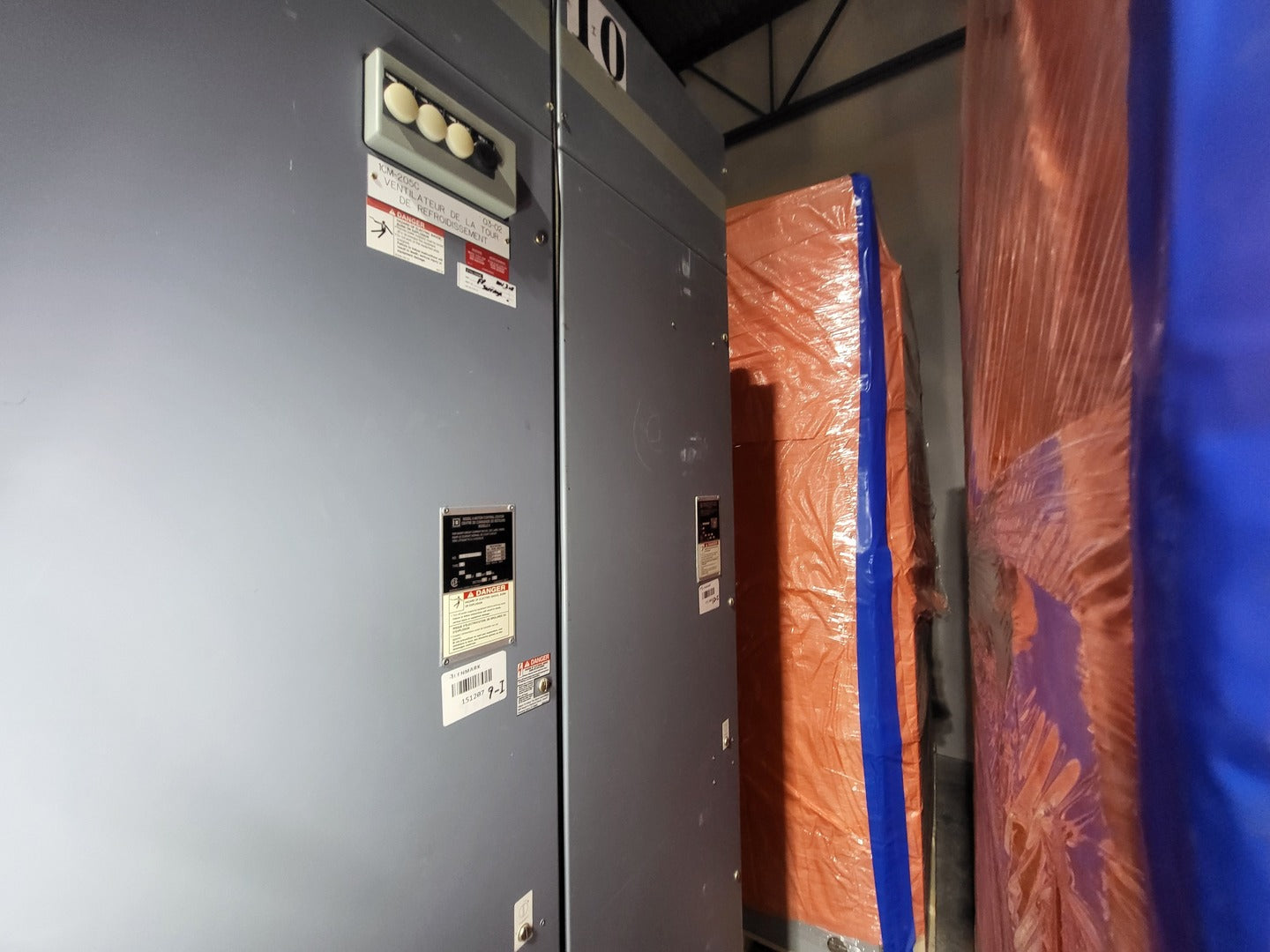

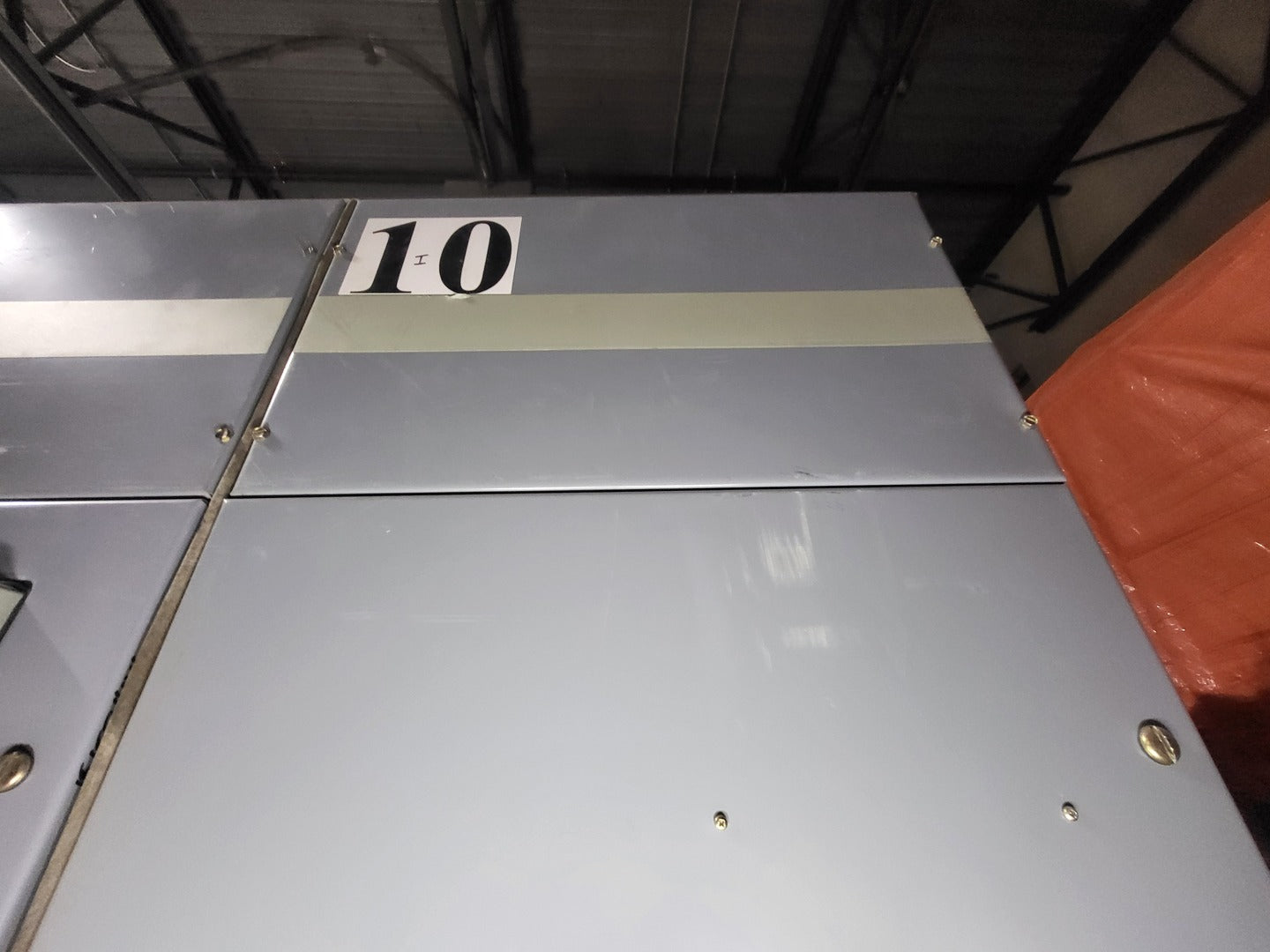

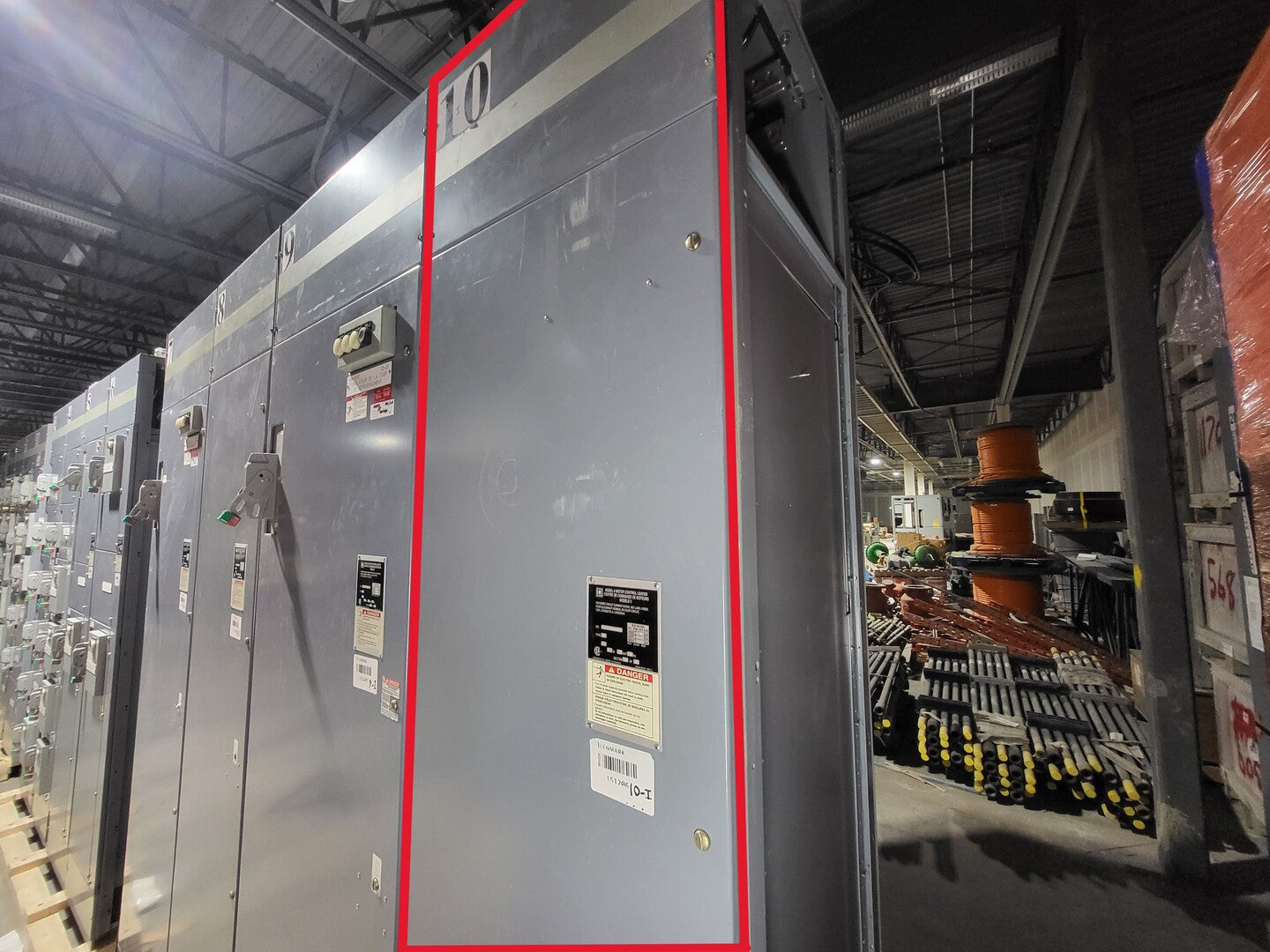

Note: Section 10 only

Bucket #1 1CM-205C

  1. Square D LHL36000MV, 400A molded case switch, Type LAL, 600VAC / 250VDC
  2. Square D LA400-5MC6, Series 1, 400A MCC bucket disconnect unit

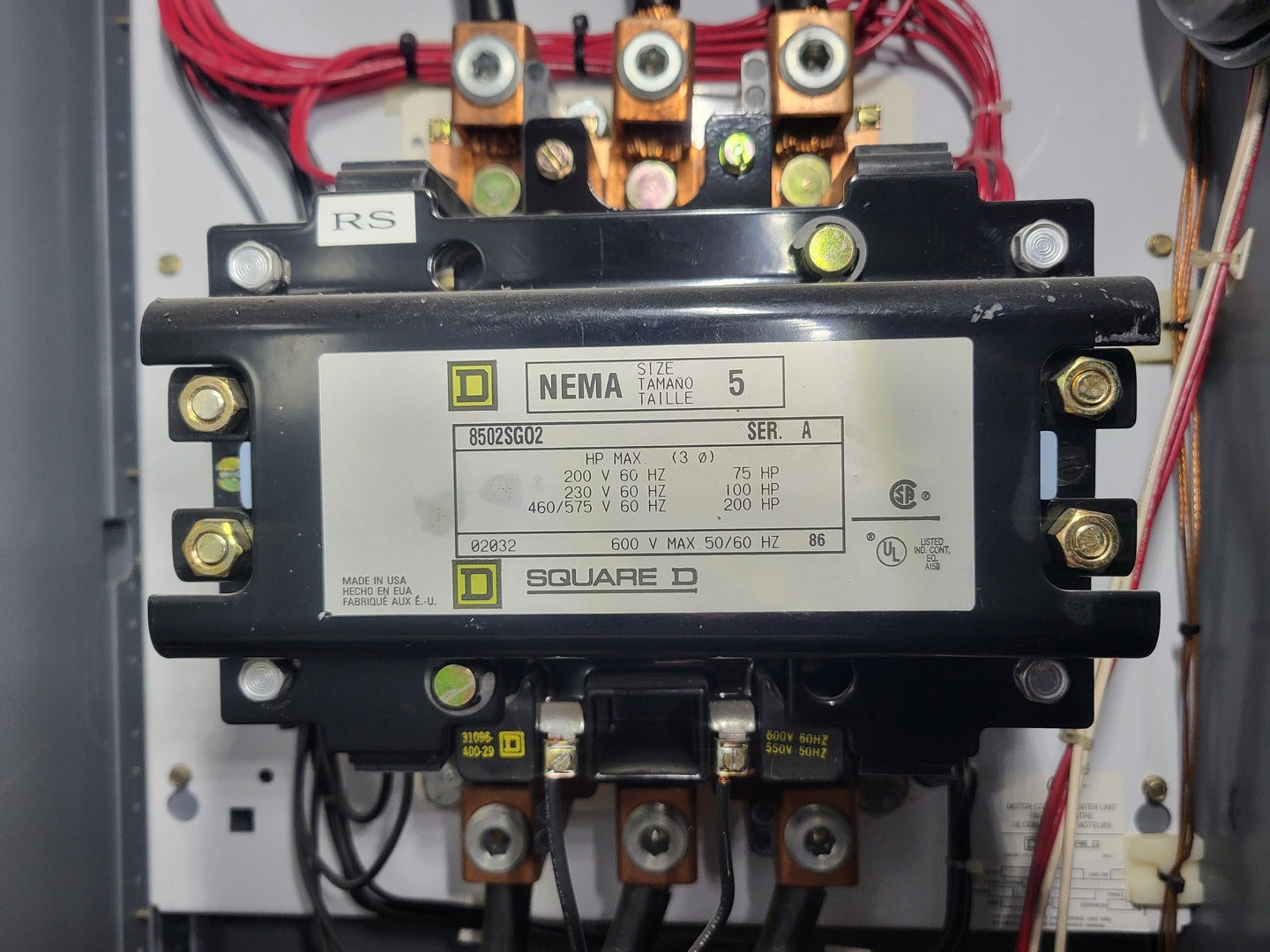

  3. Square D 8502SGO2, NEMA Size 5 contactor, 75 HP @ 200V, 100 HP @ 230V, 200 HP @ 460/575V, 600V max
  4. Square D 8536SGO1B86, NEMA Size 5 starter/contactor, 75 HP @ 200V, 100 HP @ 230V, 200 HP @ 460/575V, 600V max
  5. 2 x Square D Motor Logic Plus overload relays, 9065 SP36 / 9065 SP56 visible, 600VAC max
  6. Square D 9070T300D5, control transformer, 0.3 kVA @ 50/60Hz UL/CSA, 0.2 kVA EN60-742, primary 550/575/600V, secondary 110/115/120V

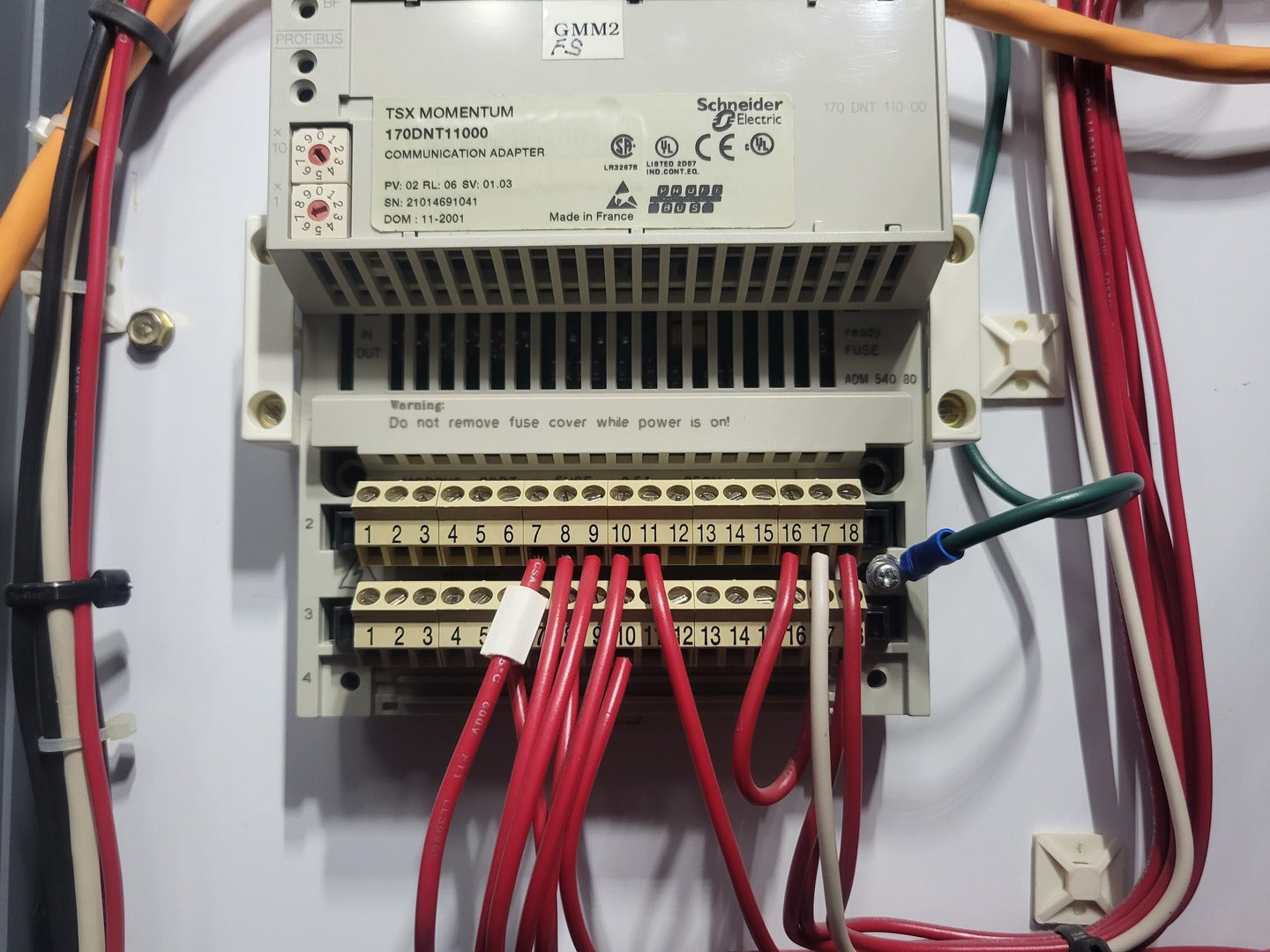

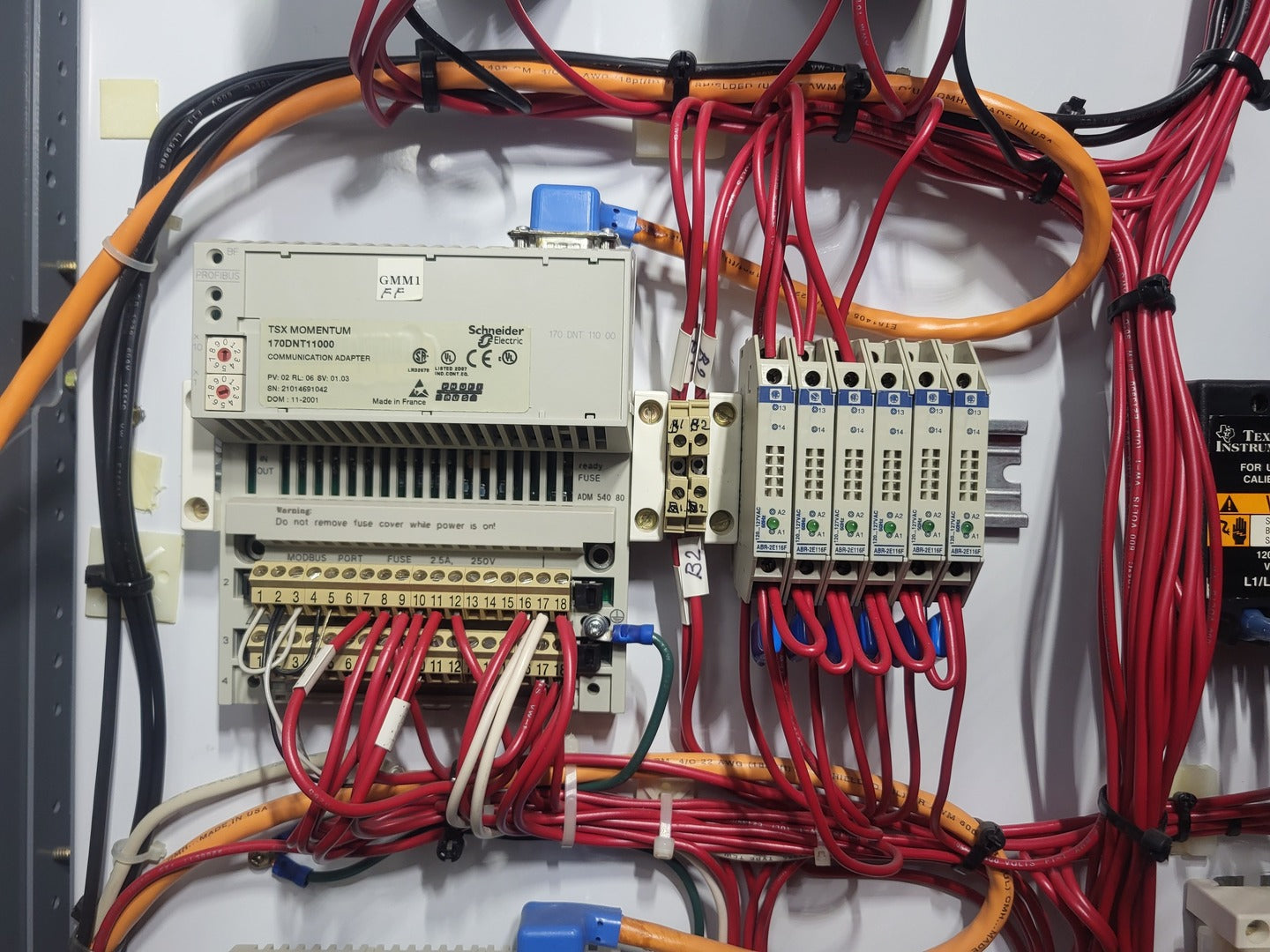

  7. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  8. Multiple Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

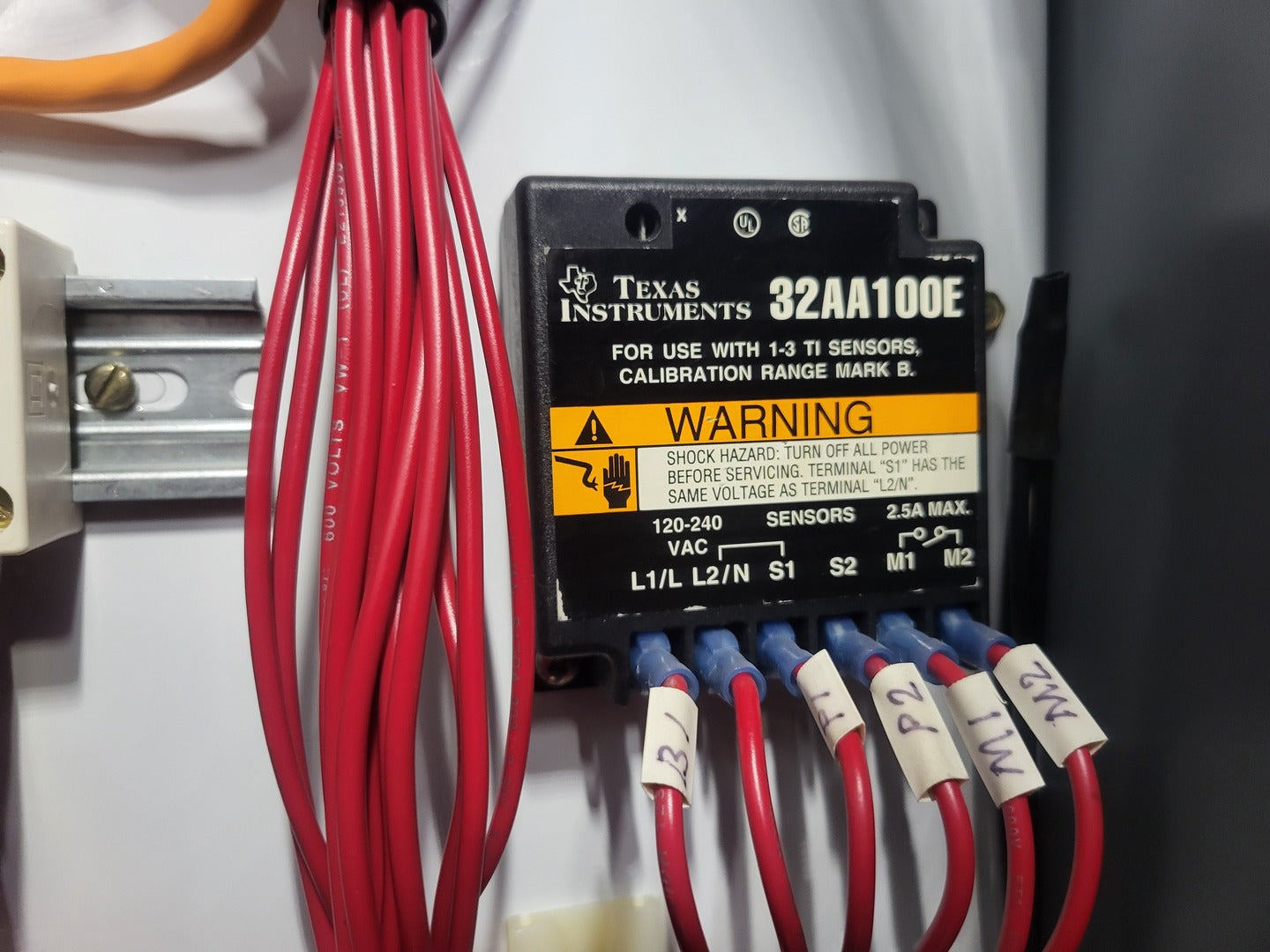

  9. Texas Instruments 32AA100E sensor module, for 1-3 TI sensors, 120-240VAC supply

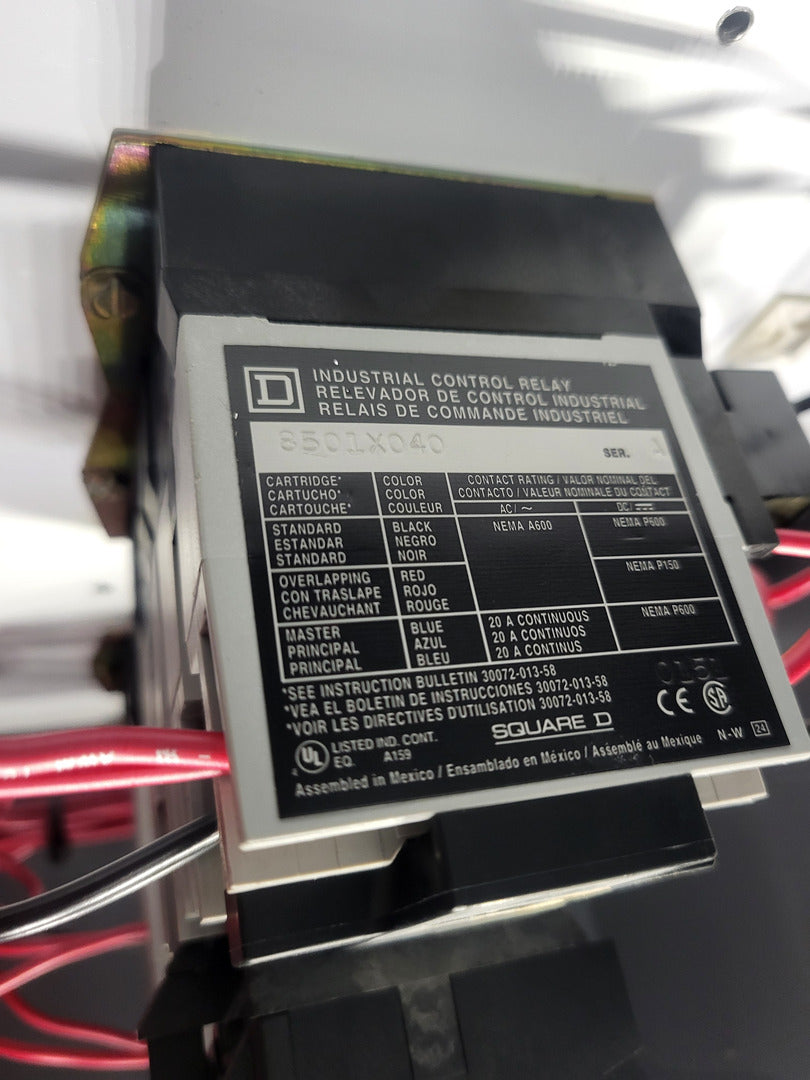

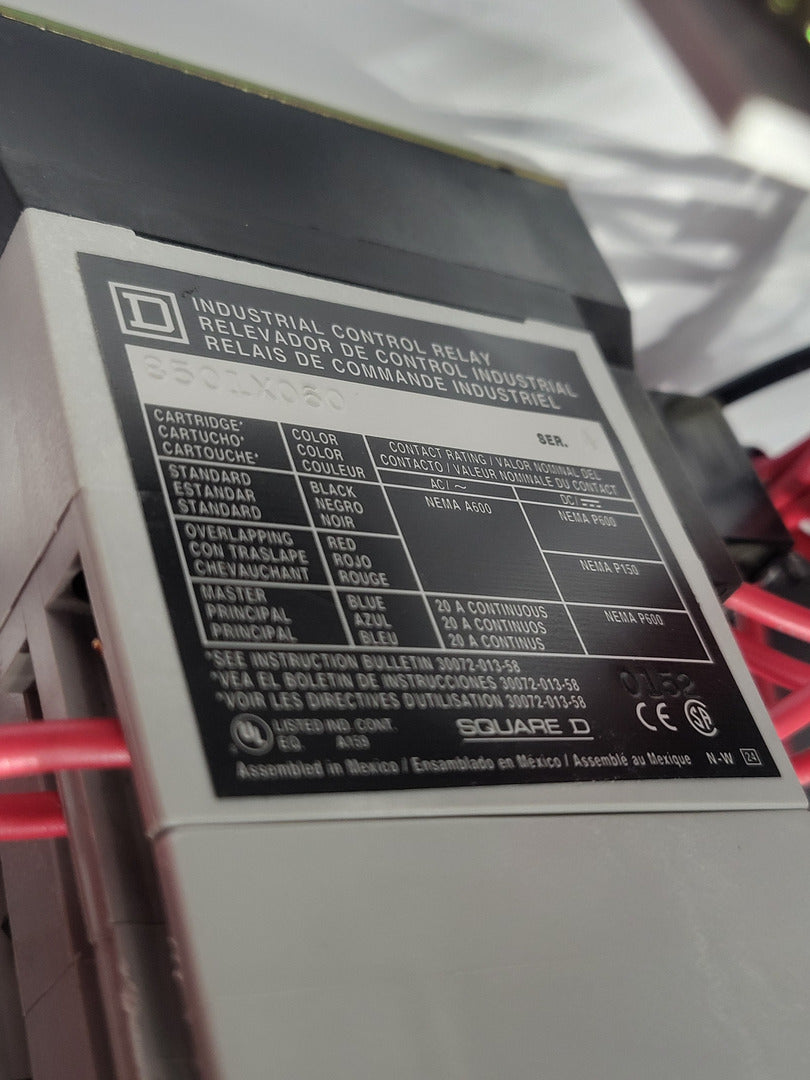

  10. 2 x Square D 8501X040 / 8501X060 industrial control relays, 20A continuous, NEMA A600/P600 contact rating
