SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151213
Price:
$1,700 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

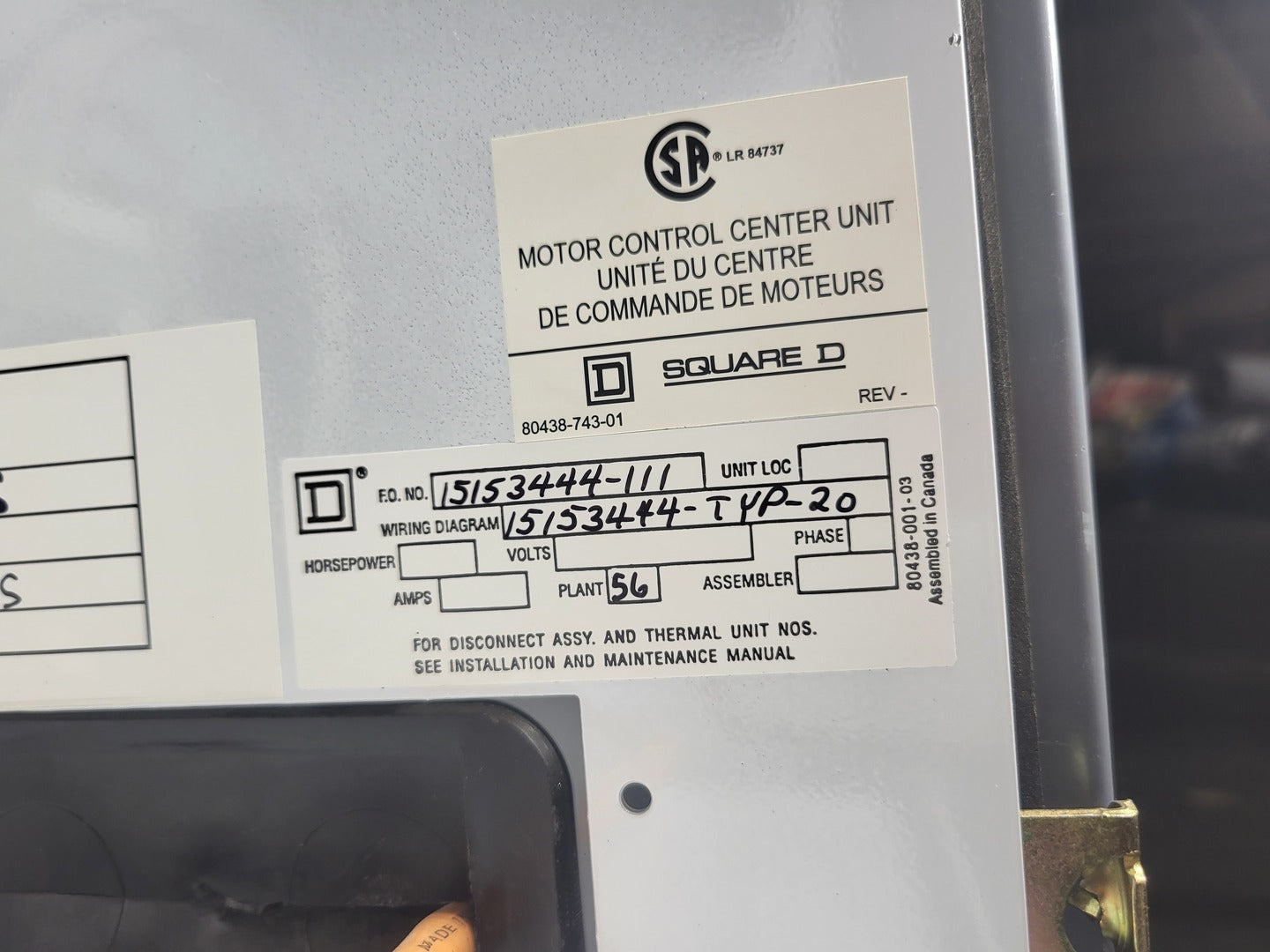

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications

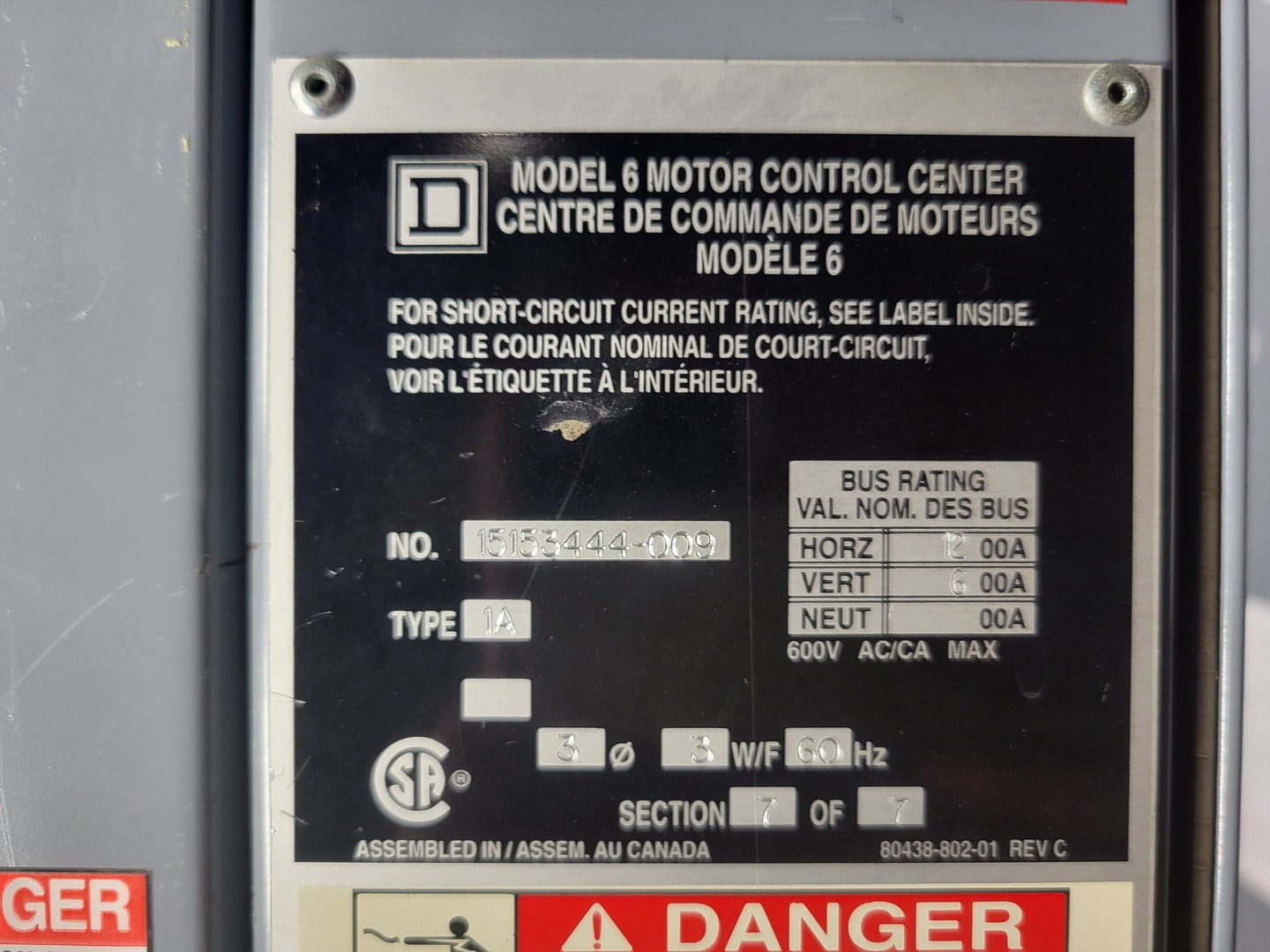

Model Model 6
Condition Used
Other Specifications

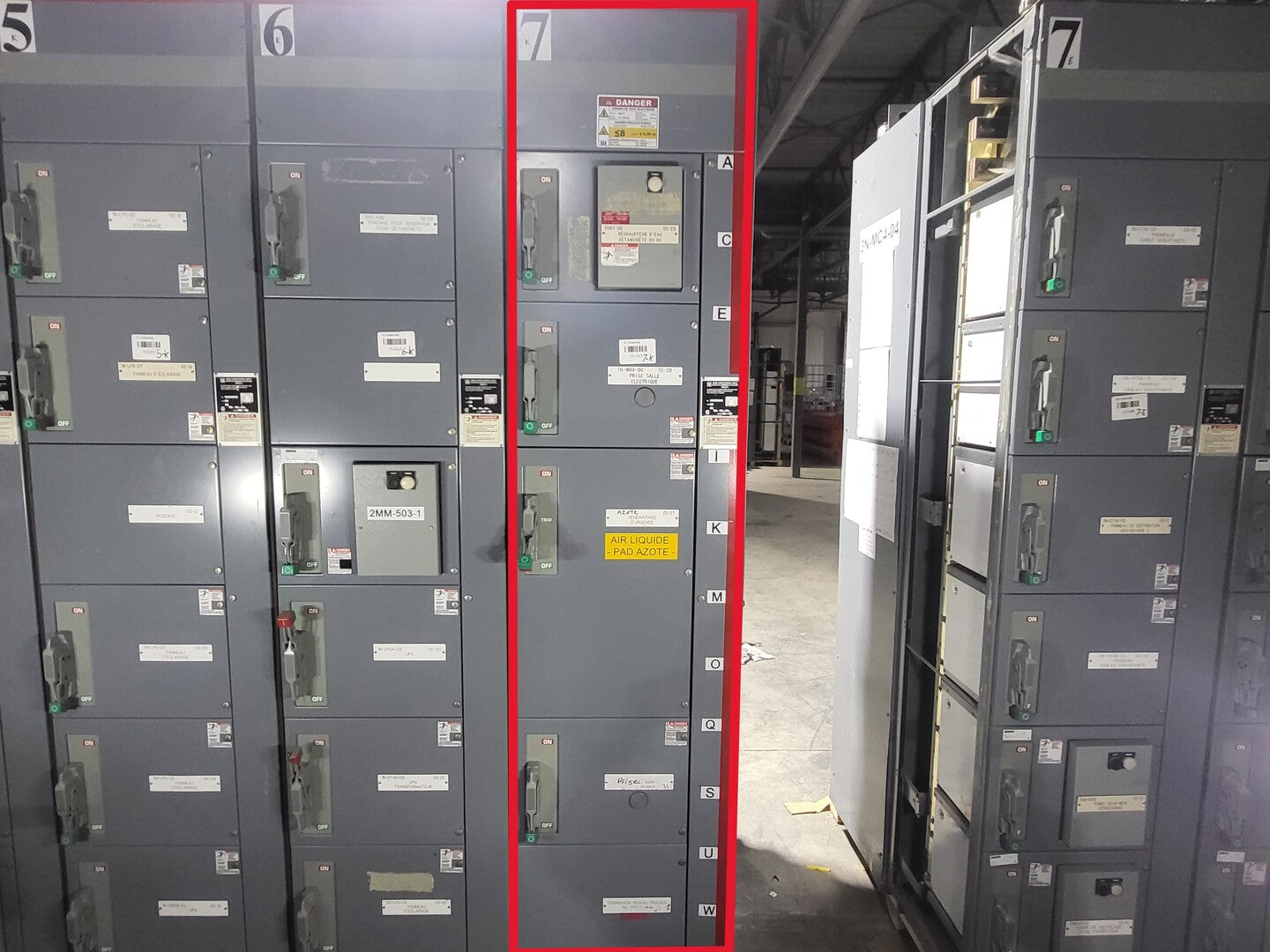

Note: Section 7 only

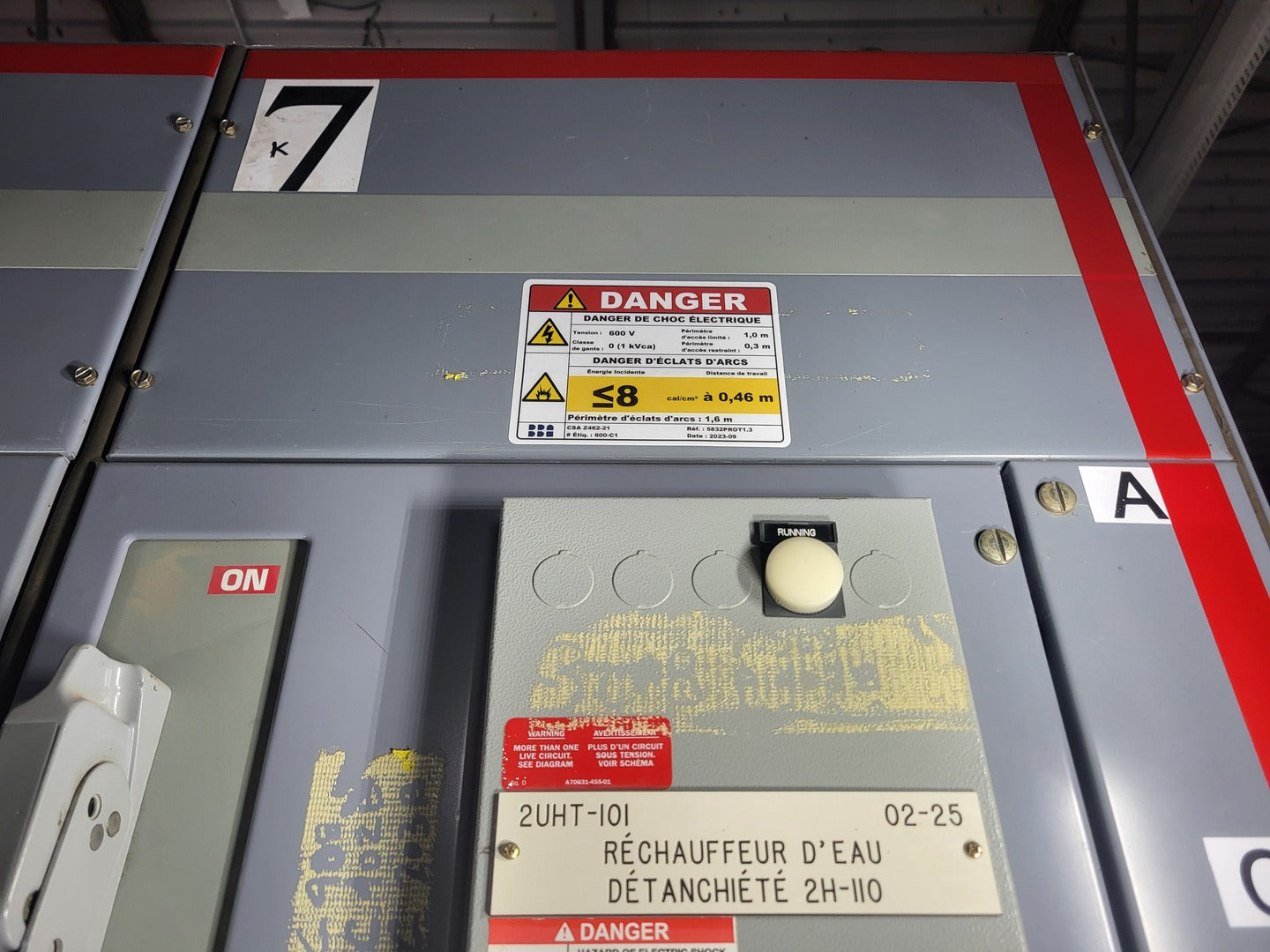

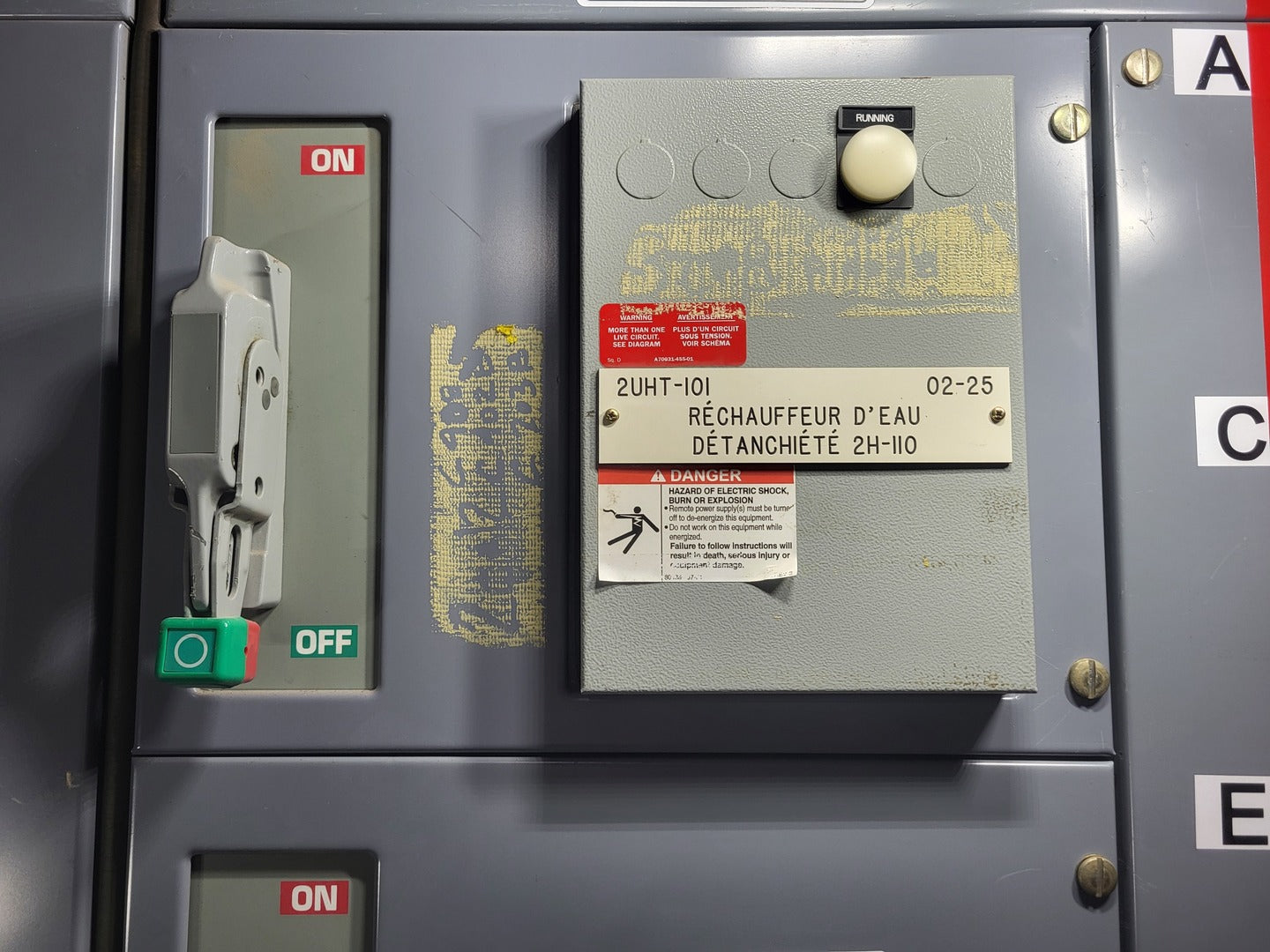

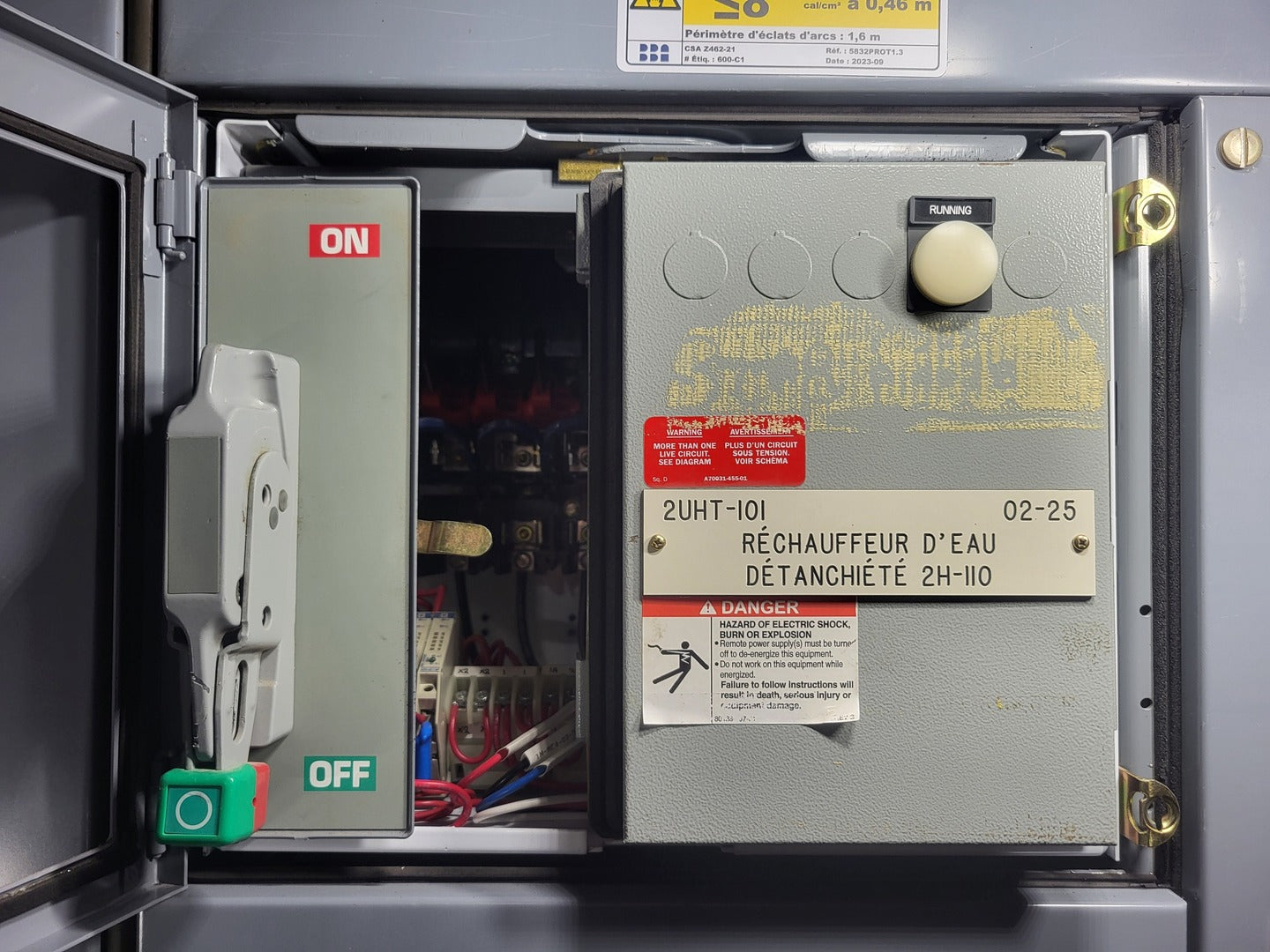

Bucket #1 2UHT-101

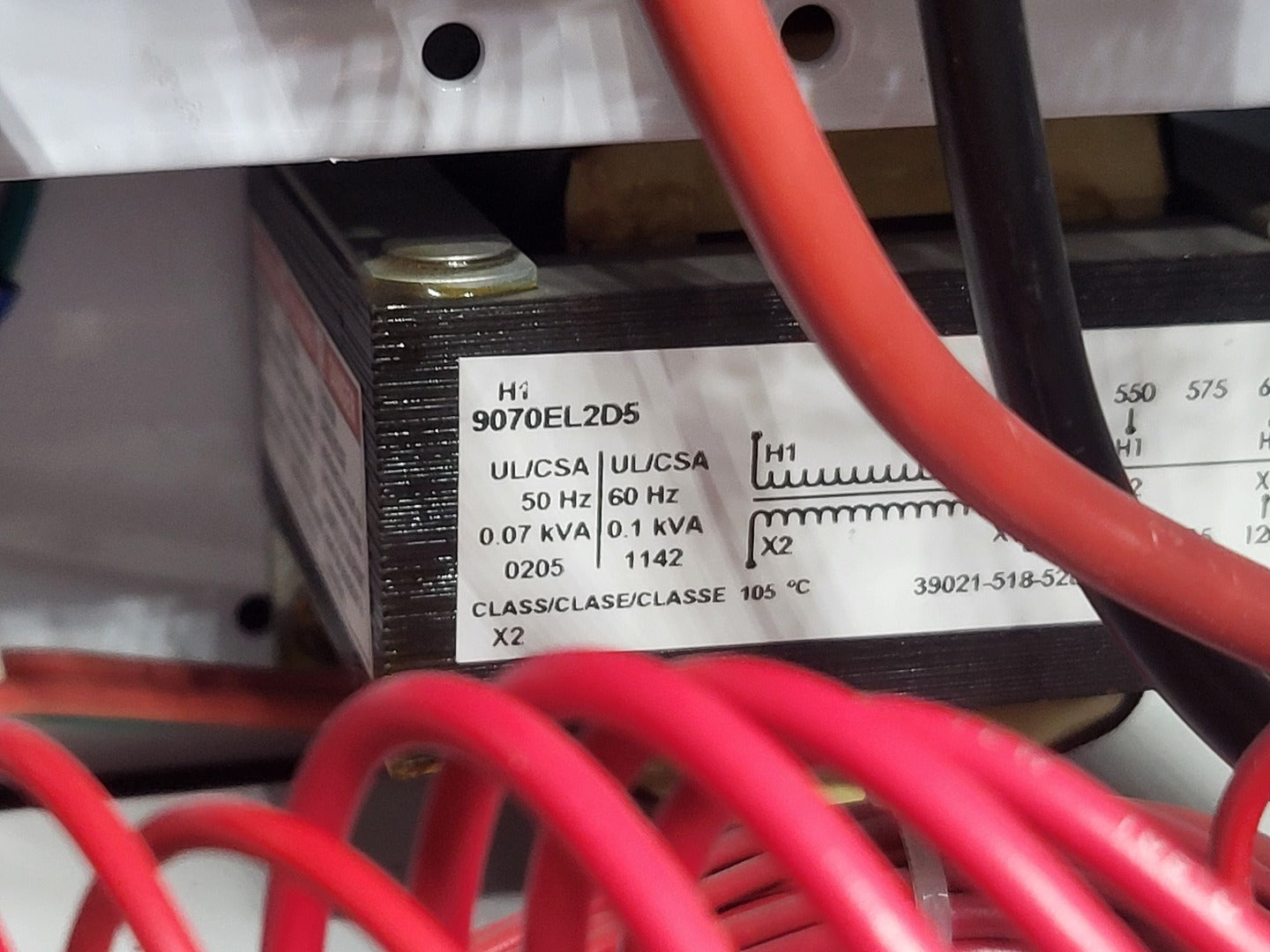

  1. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

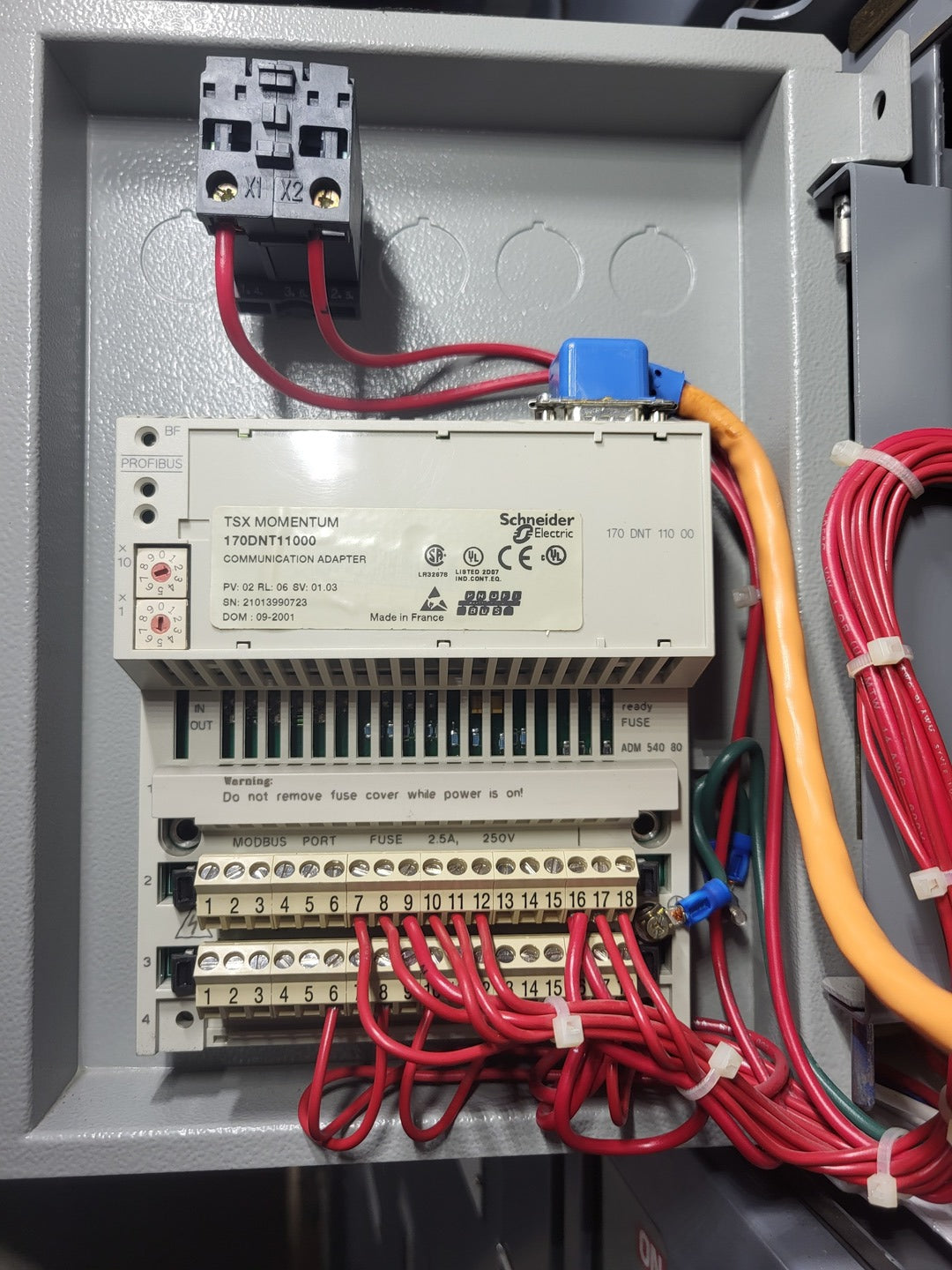

  2. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

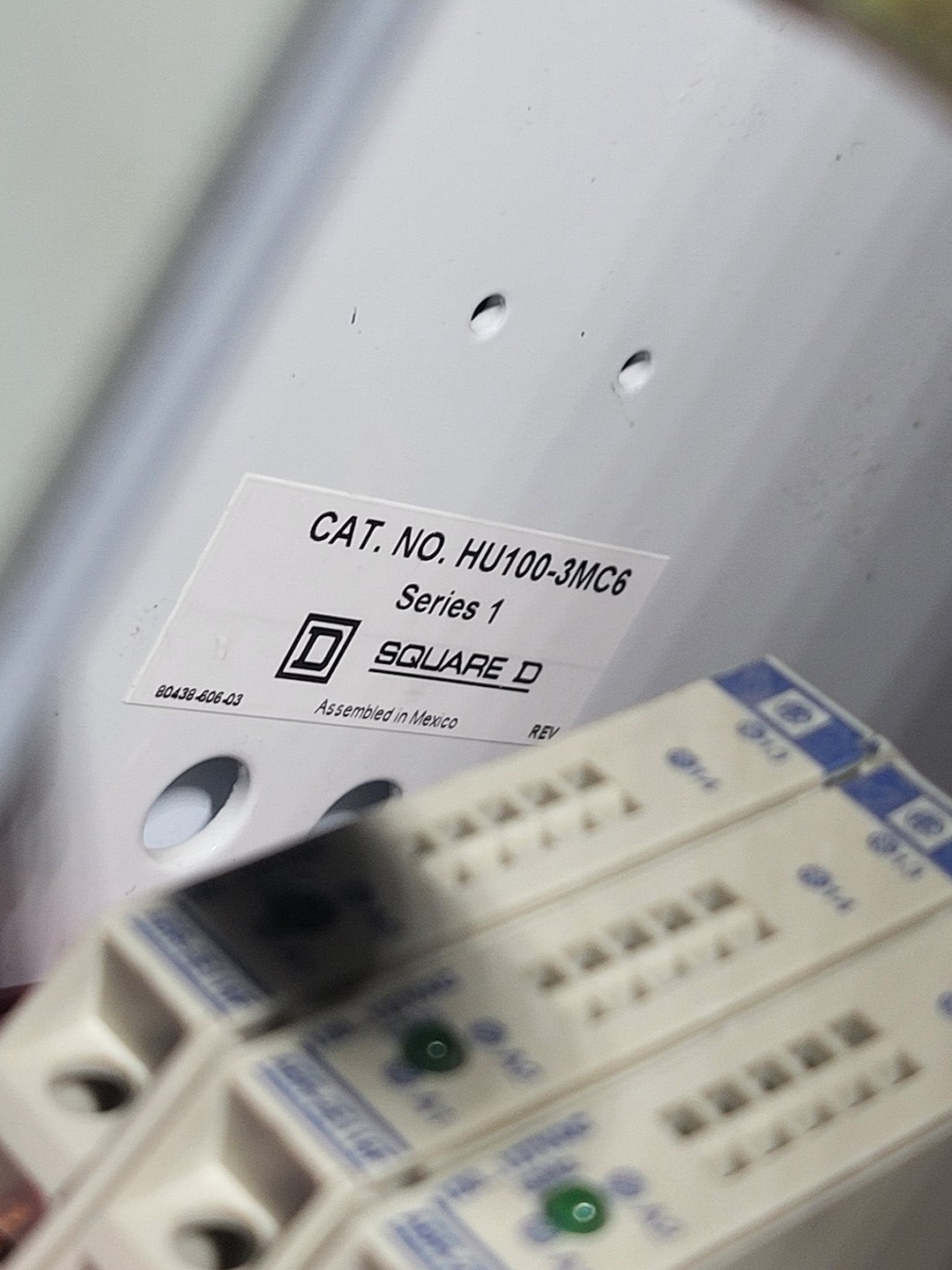

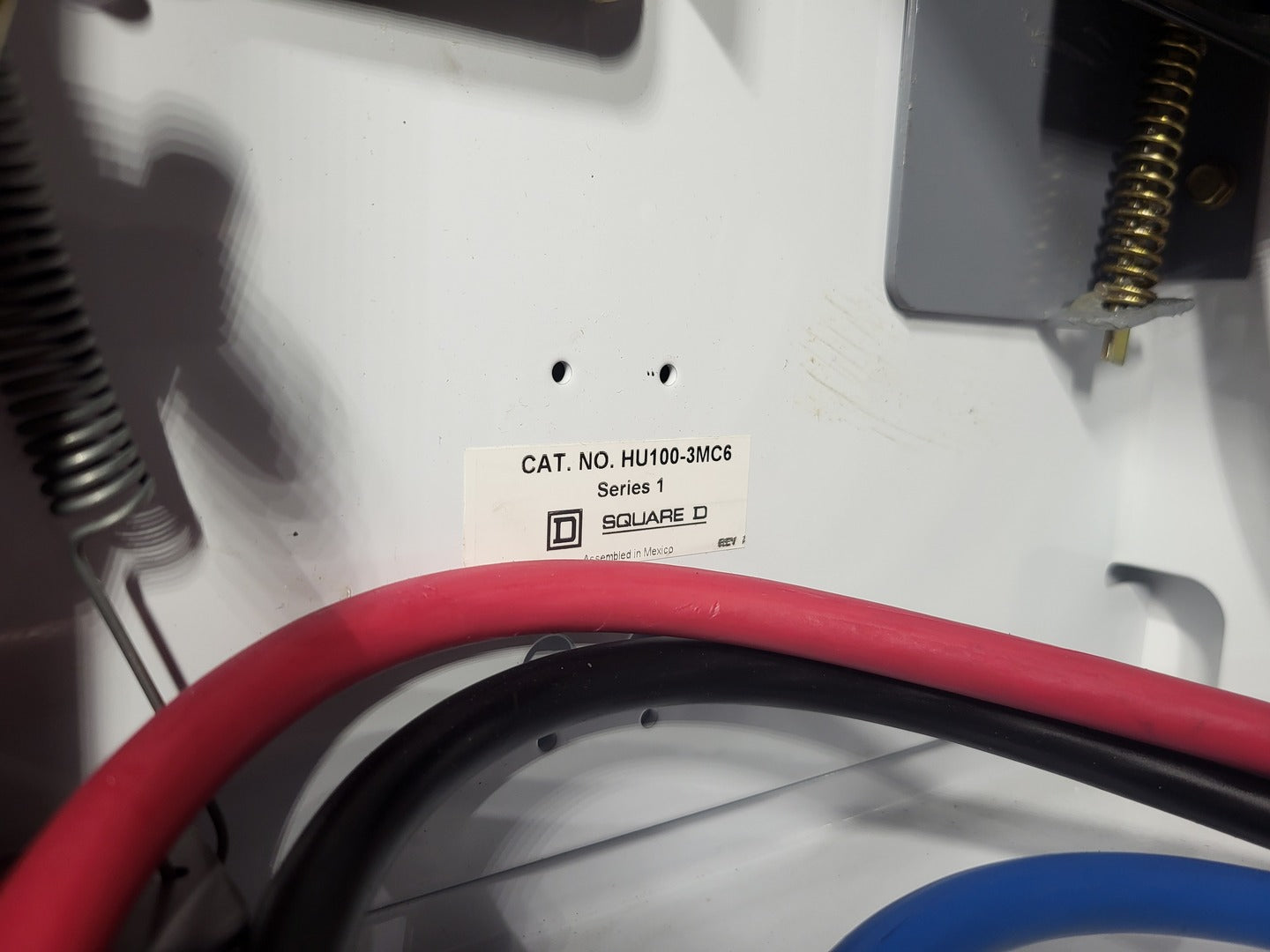

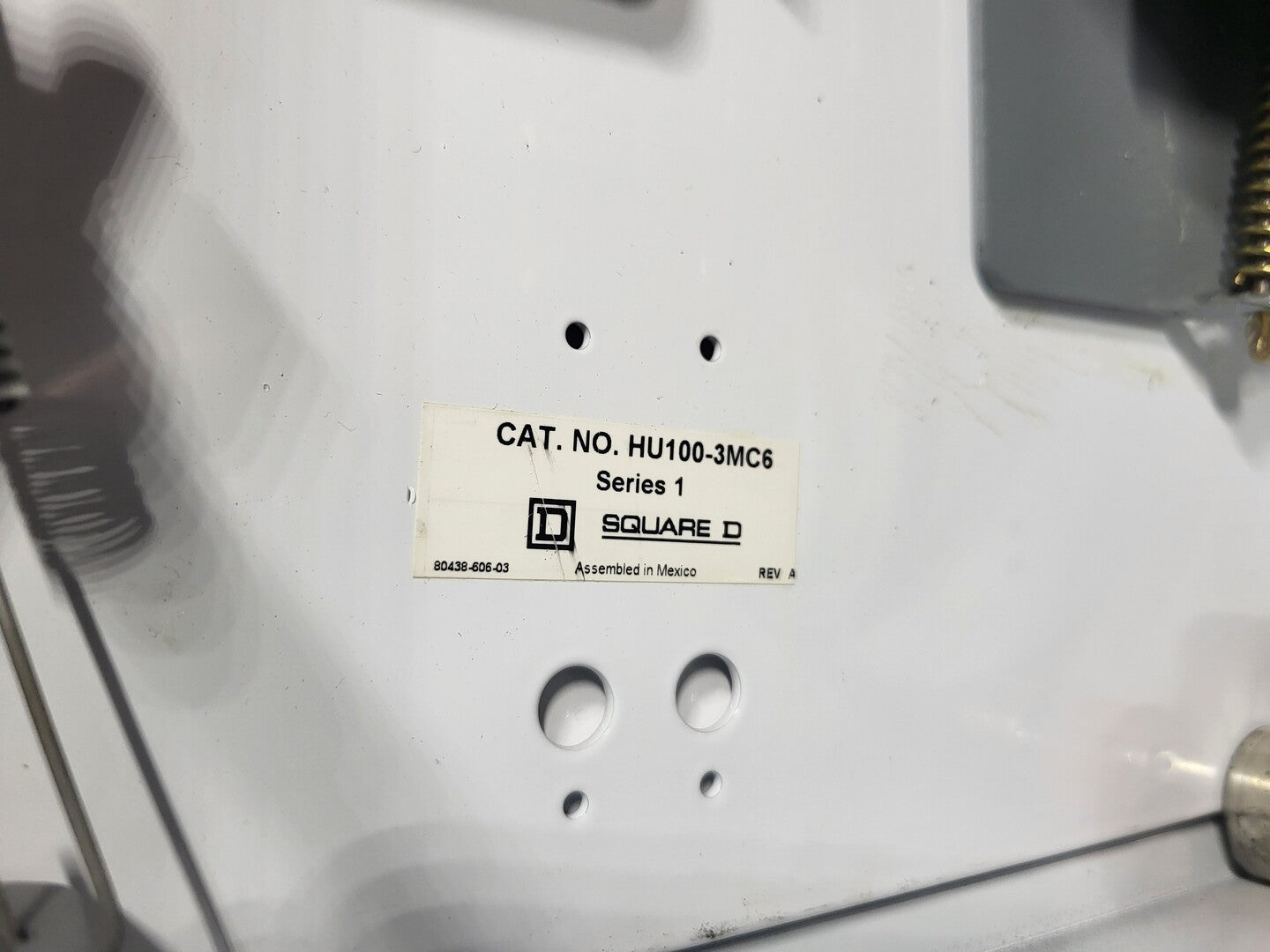

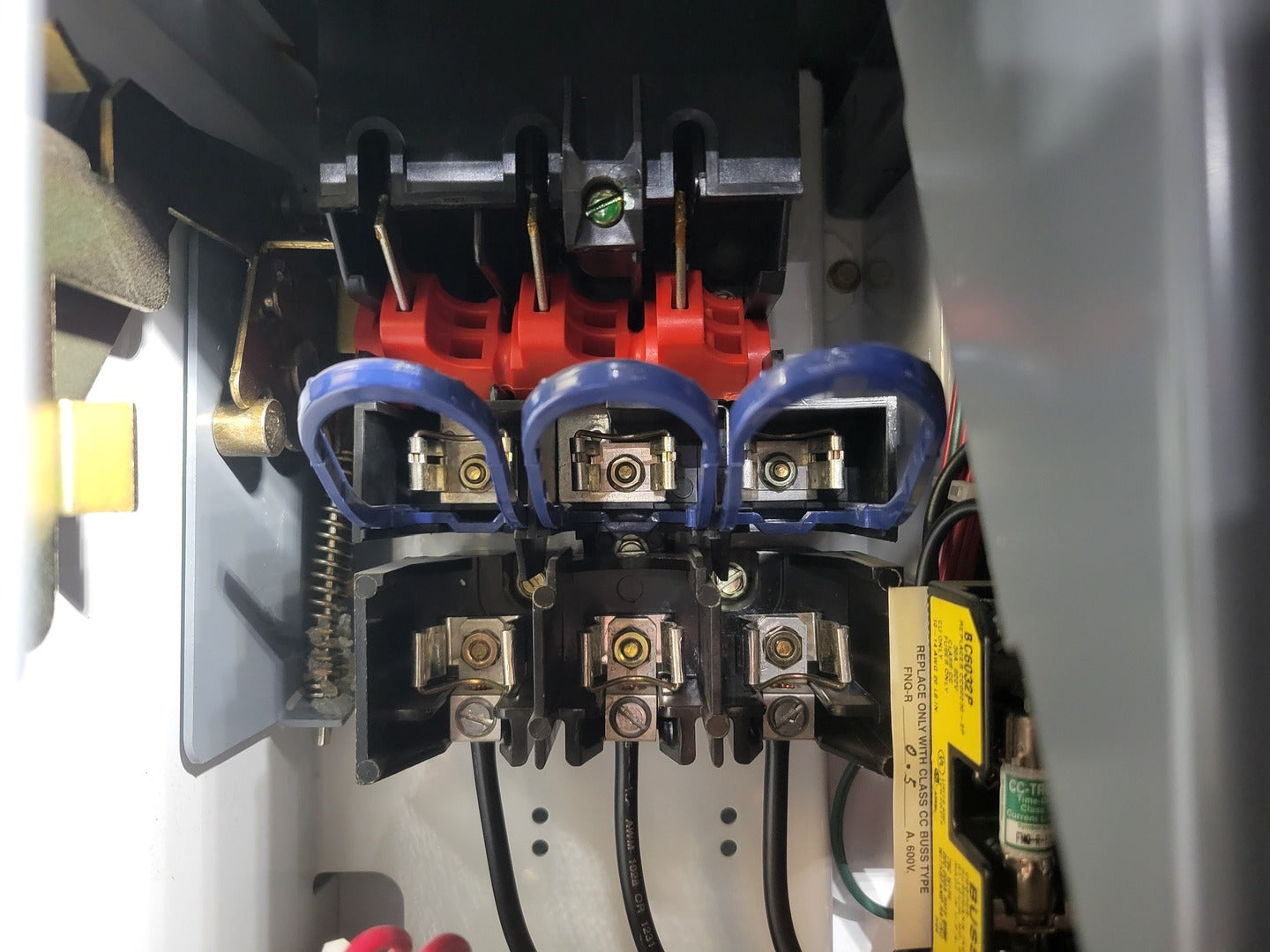

  3. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

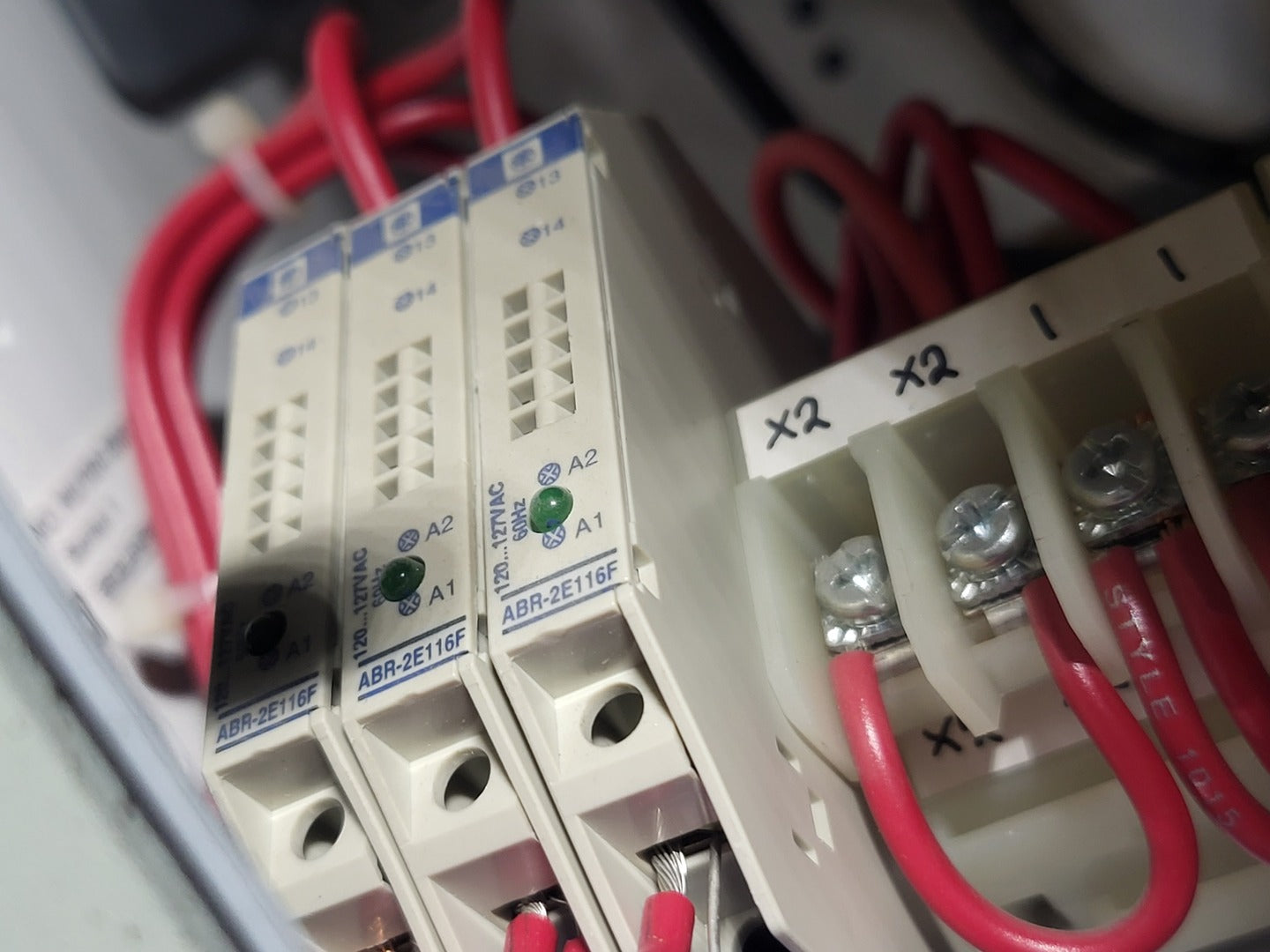

  4. 3 x Allen-Bradley / Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

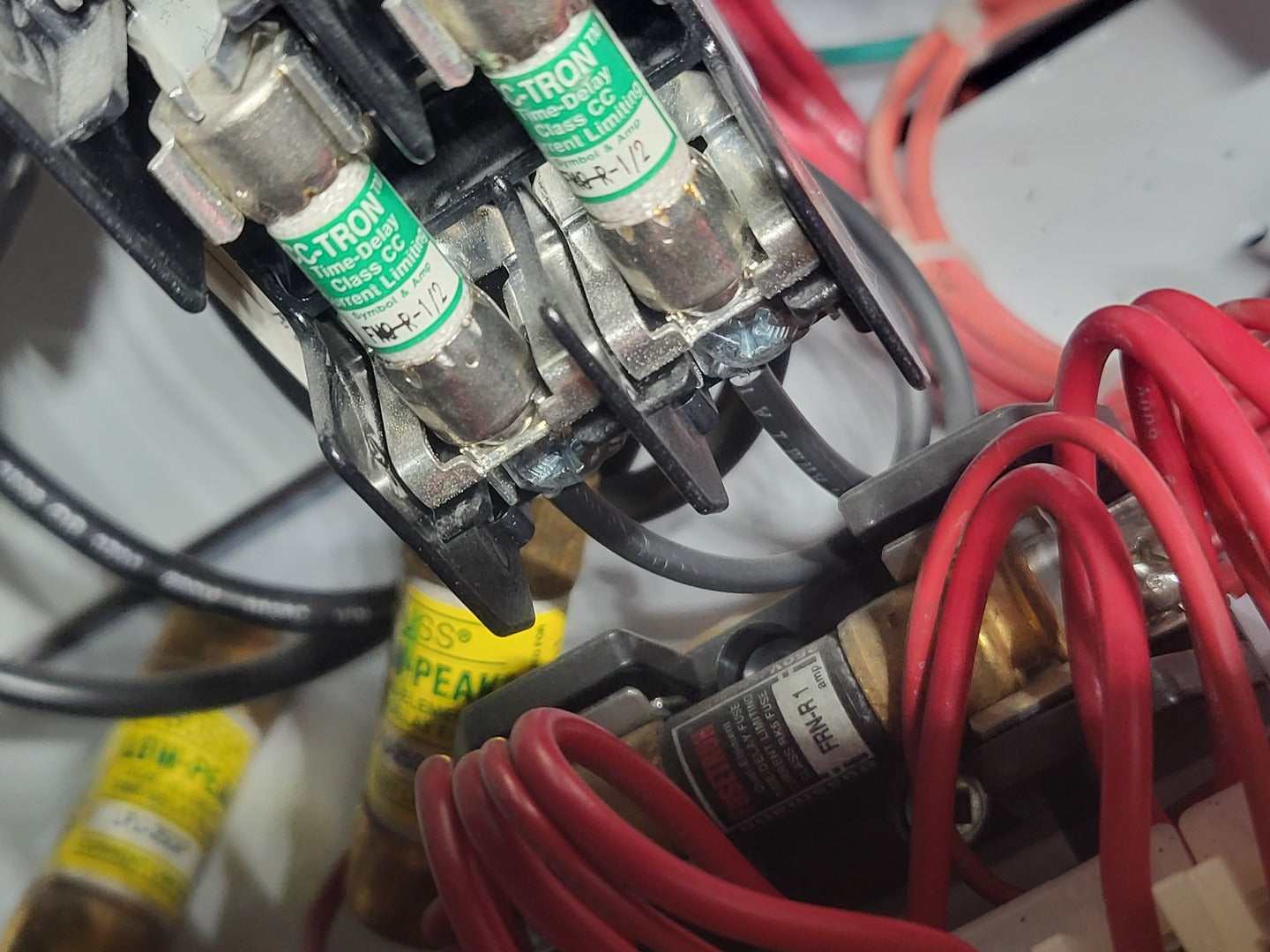

  5. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
  6. 1 x Bussmann Fusetron fuse FRN-R 1

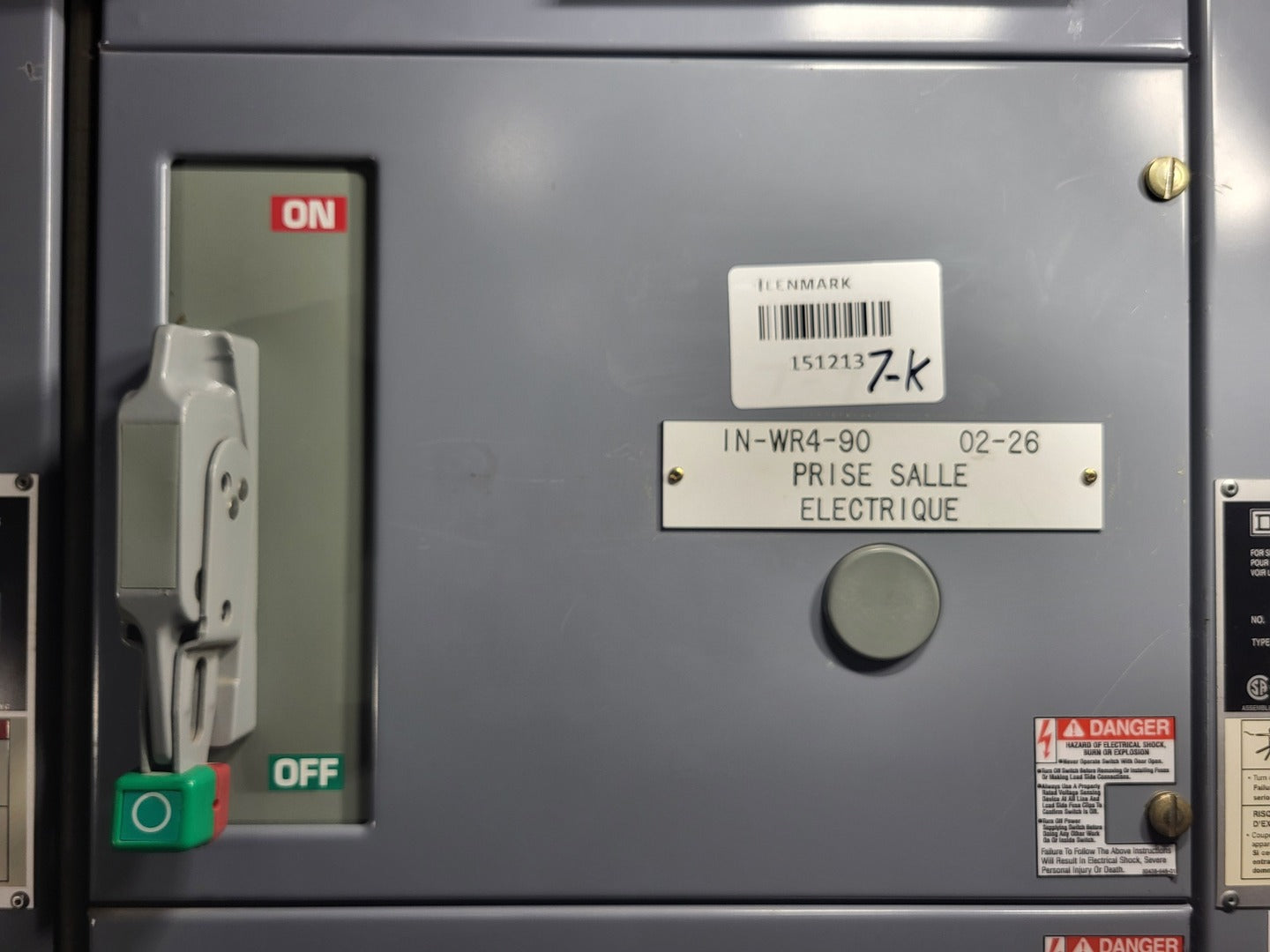

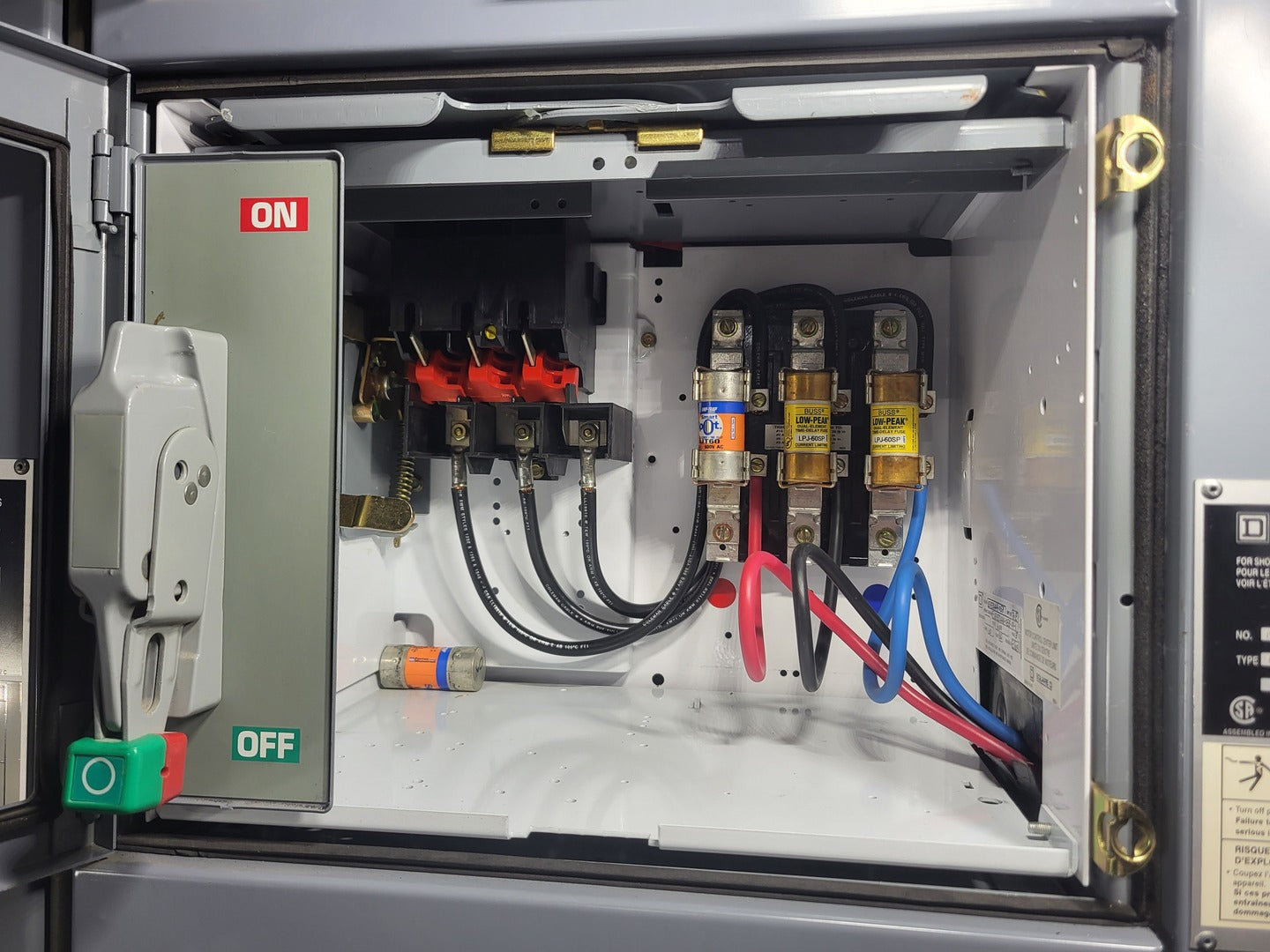

Bucket #2 IN-WR4-90

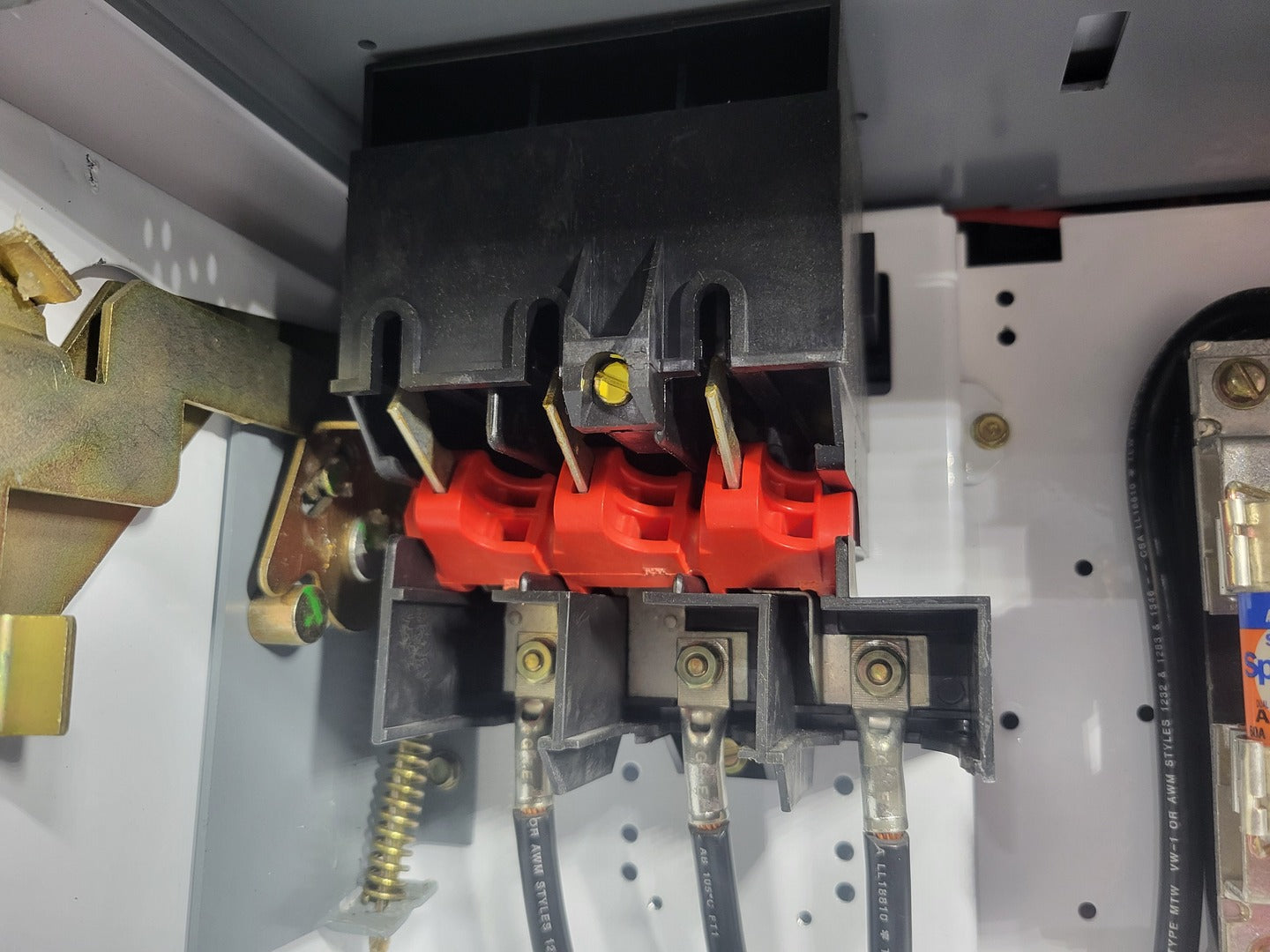

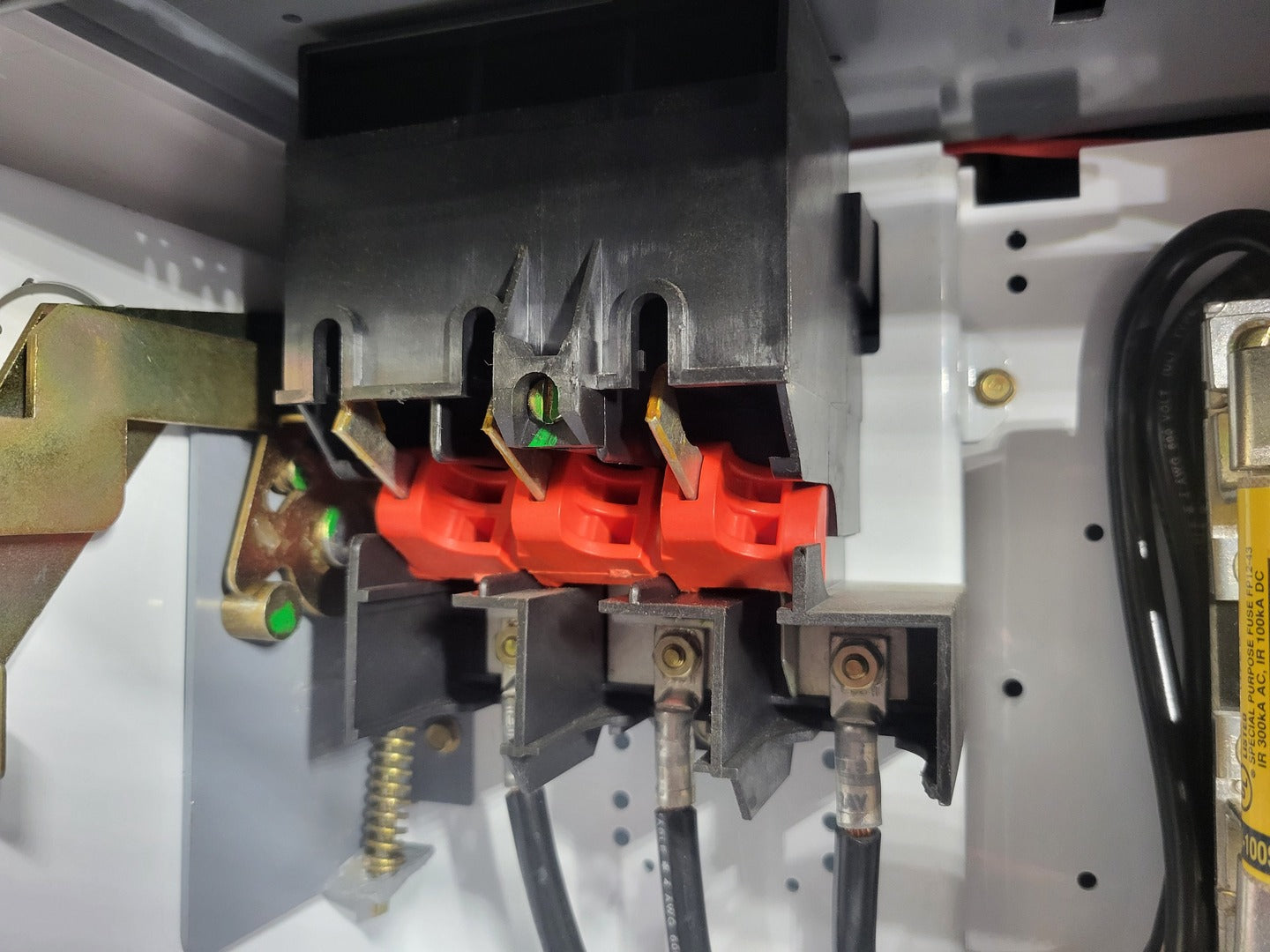

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

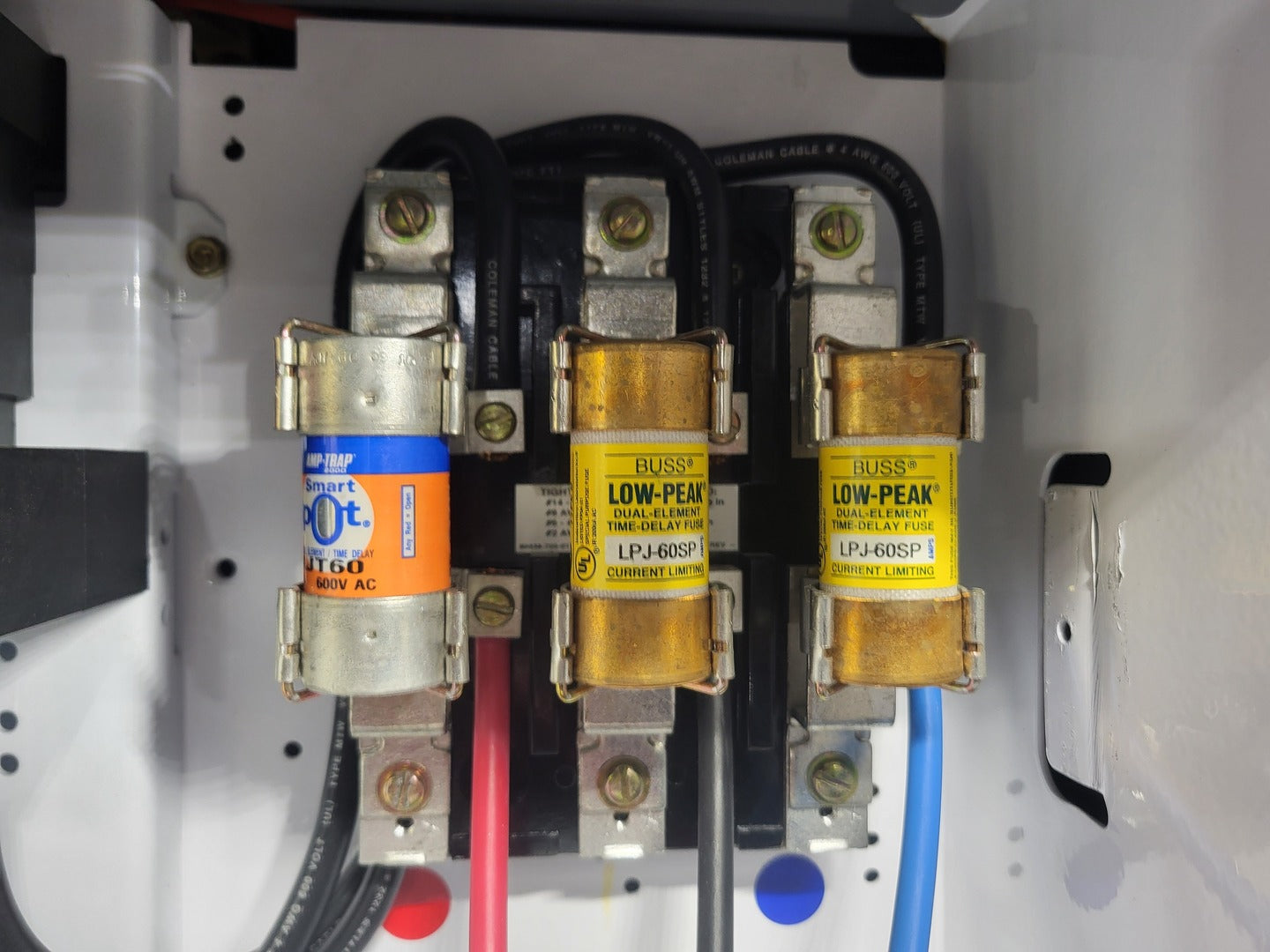

  2. 1 x Ferraz Shawmut Amp-Trap fuse AJT60
  3. 2 x Bussmann Low-Peak fuses LPJ-60SP

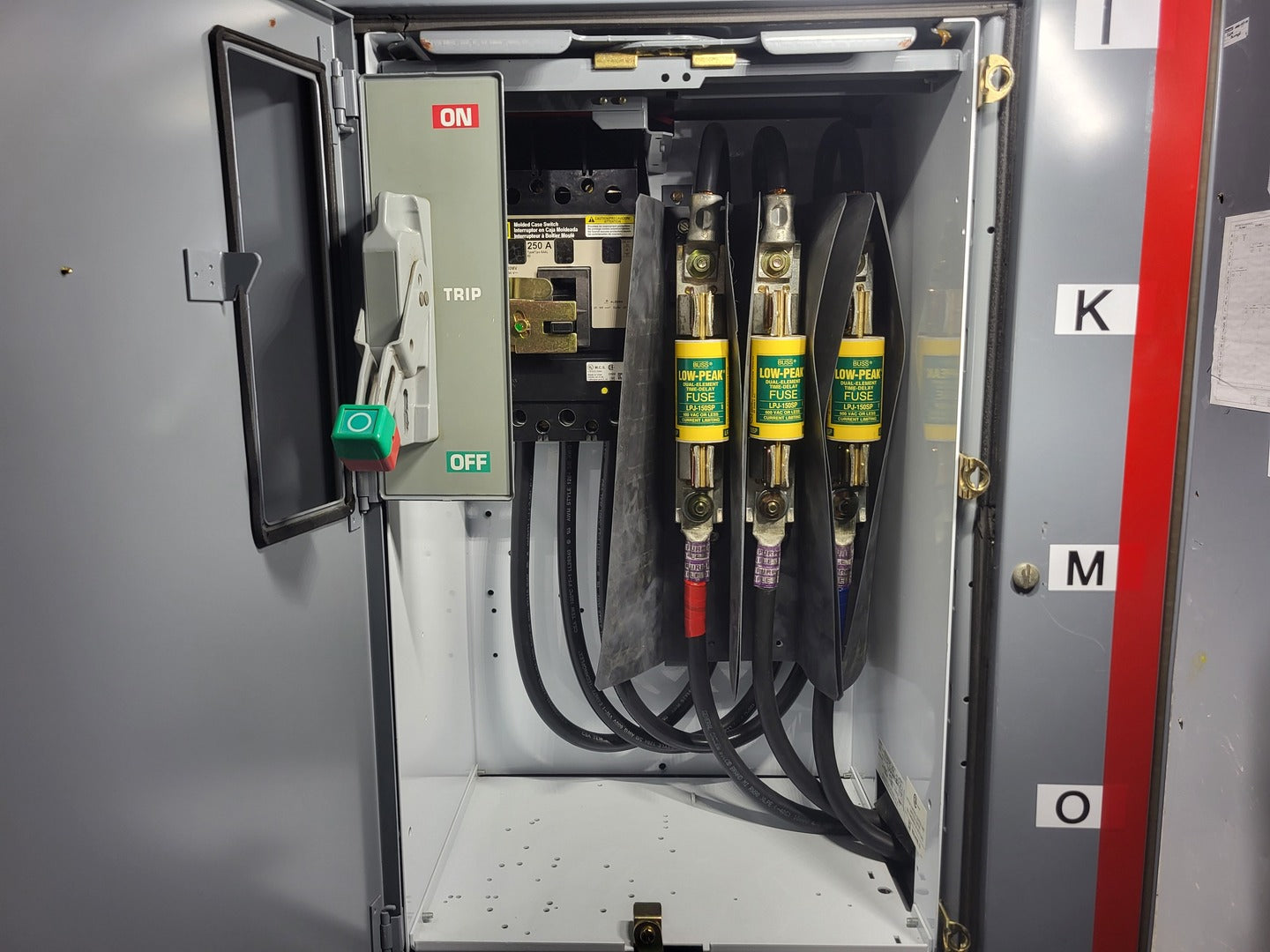

Bucket #3

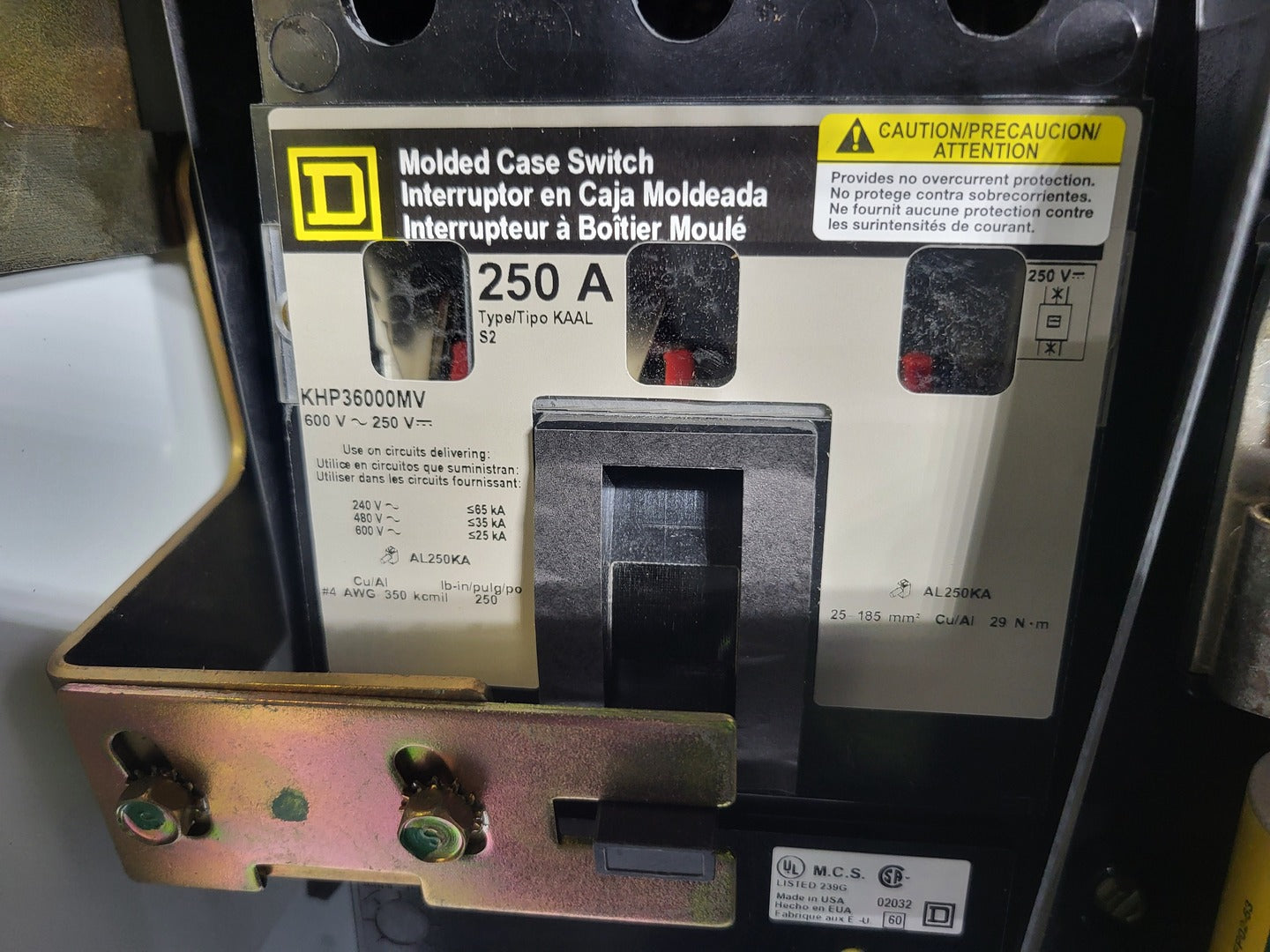

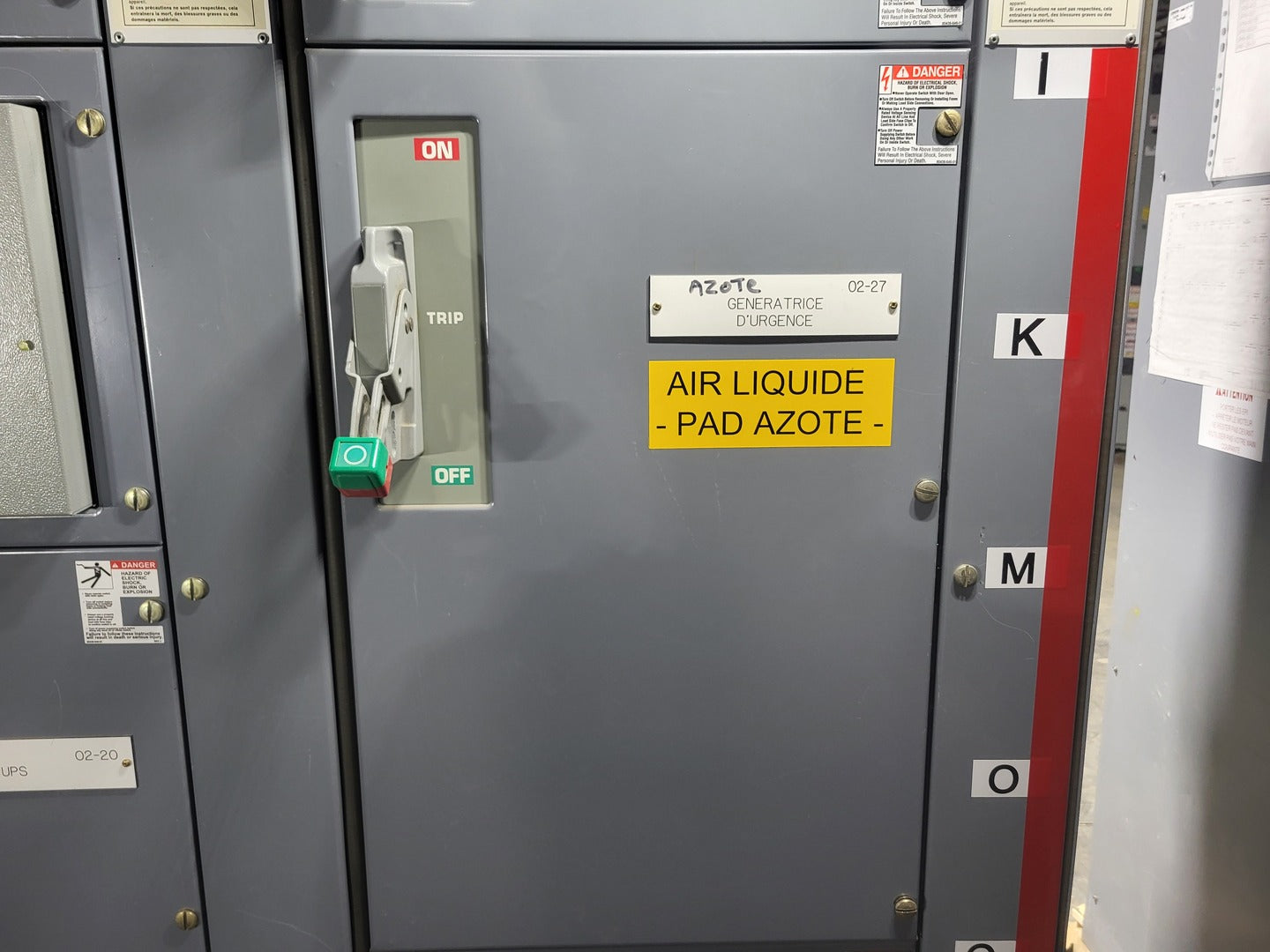

  1. Square D KHP36000MV, 250A molded case switch, Type KAAL, 600VAC / 250VDC, no overcurrent protection

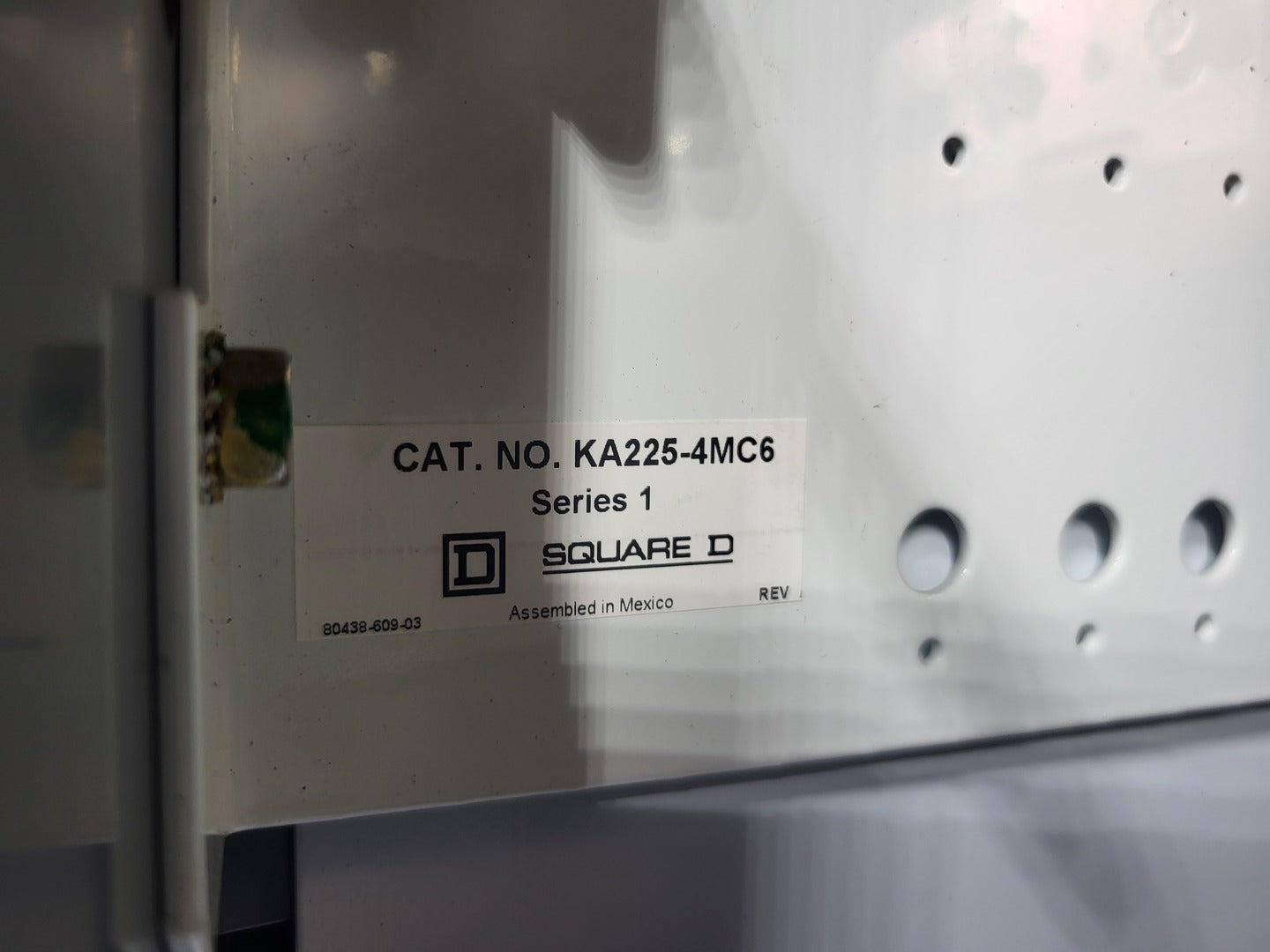

  2. Square D KA225-4MC6, Series 1, MCC bucket disconnect unit

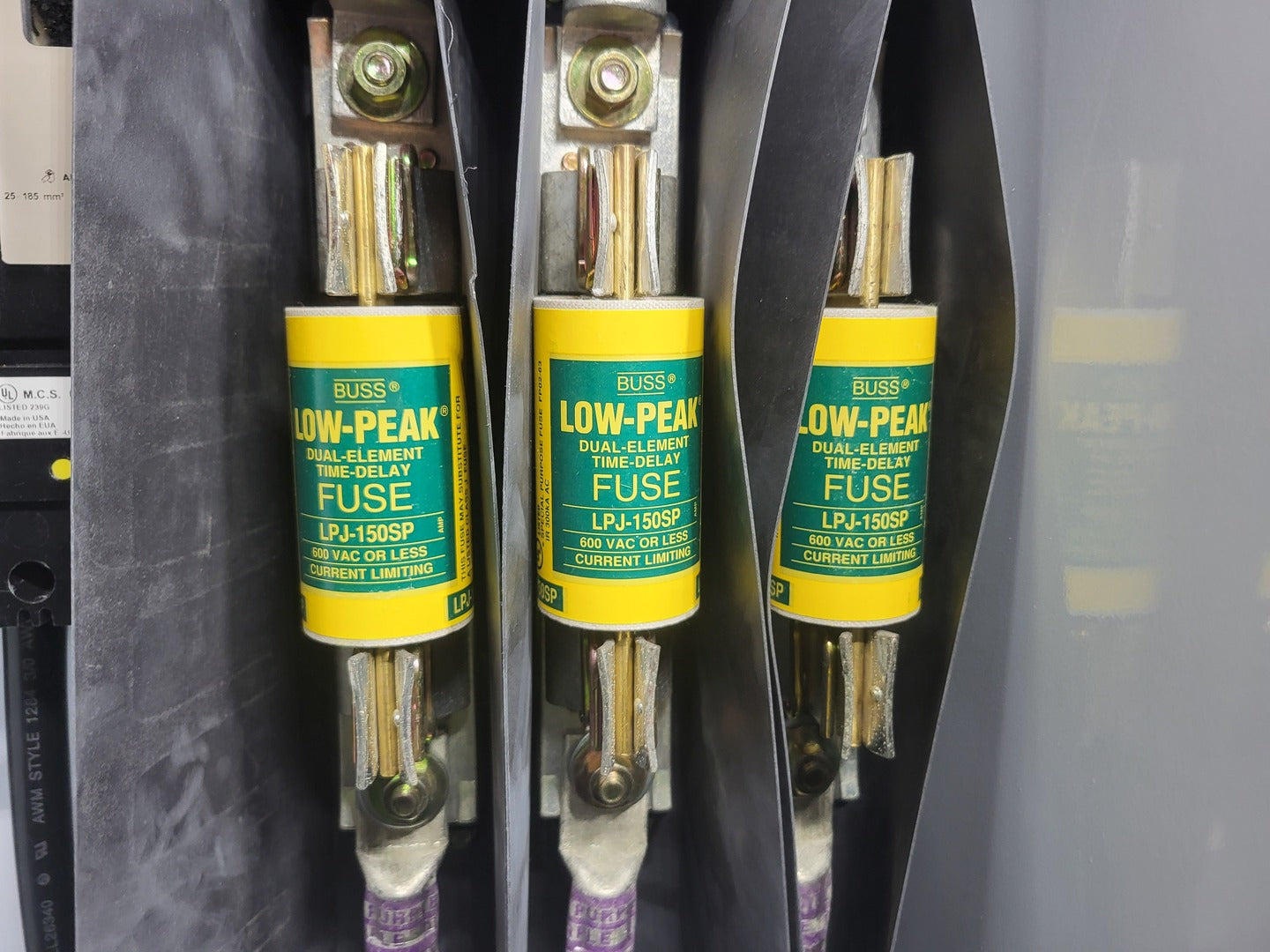

  3. 3 x Bussmann Low-Peak fuses LPJ-150SP

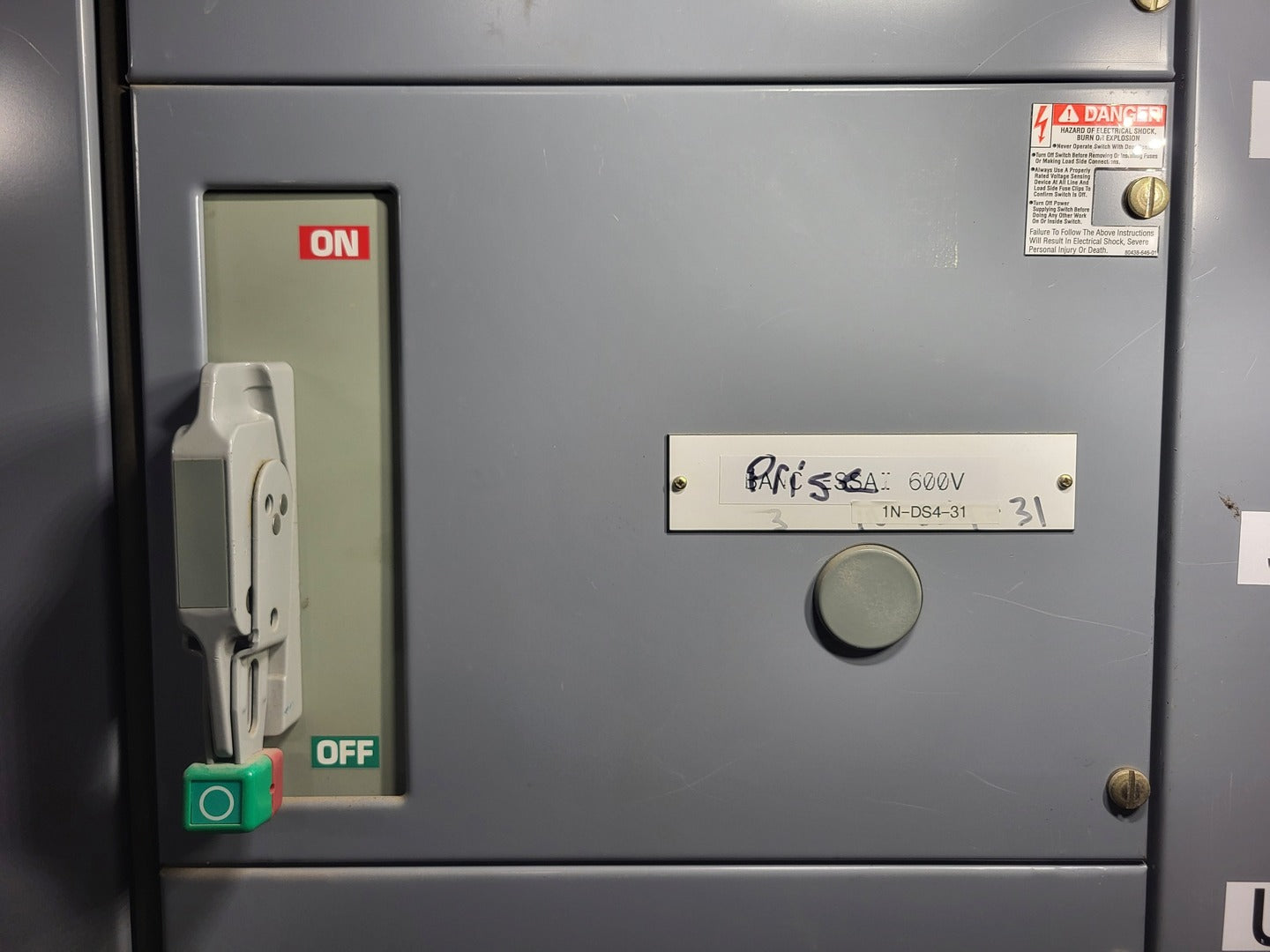

Bucket #4 1N-DS4-31

  1. Square D HU100-3MC6, Series 1, MCC bucket disconnect unit

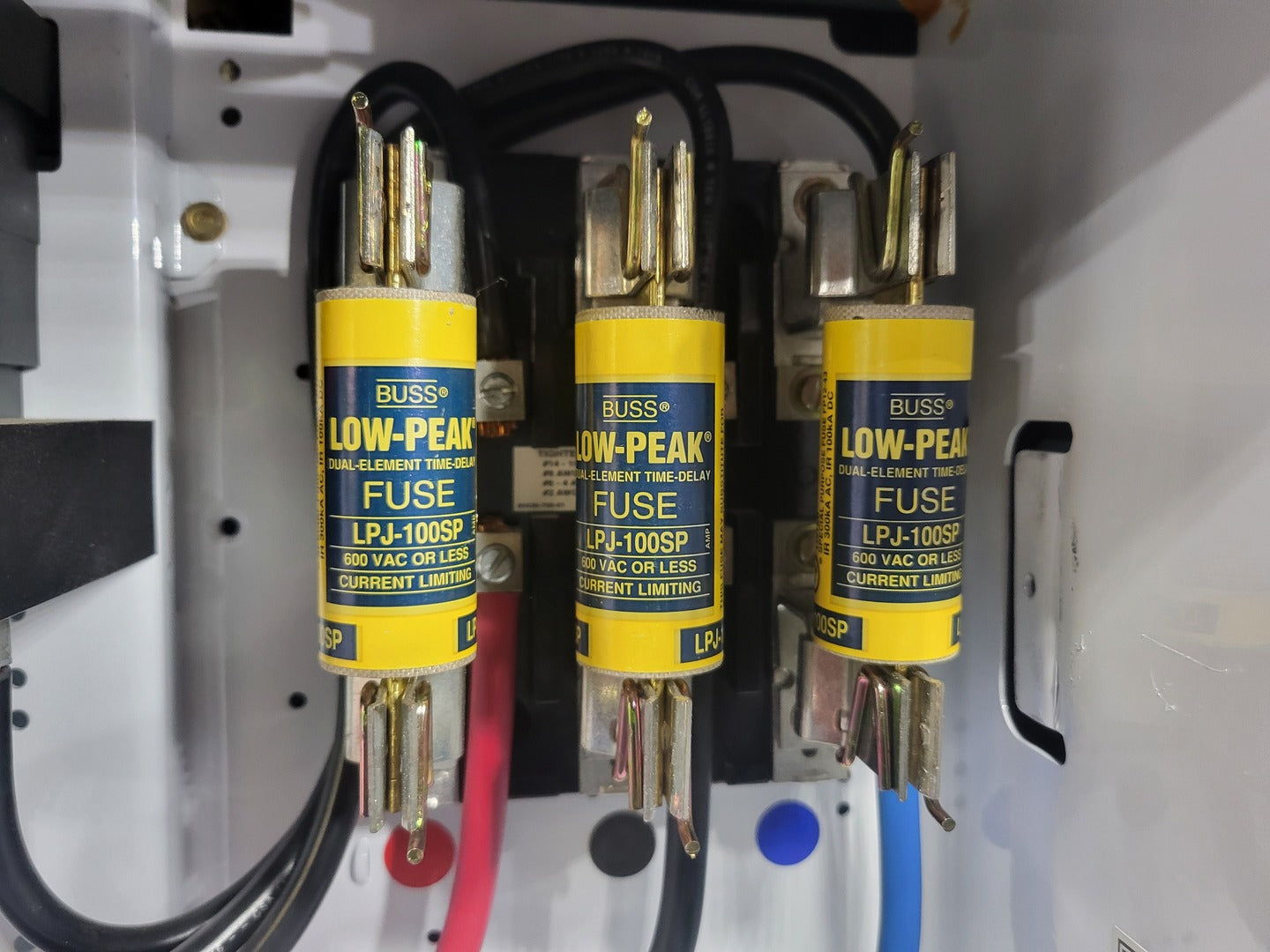

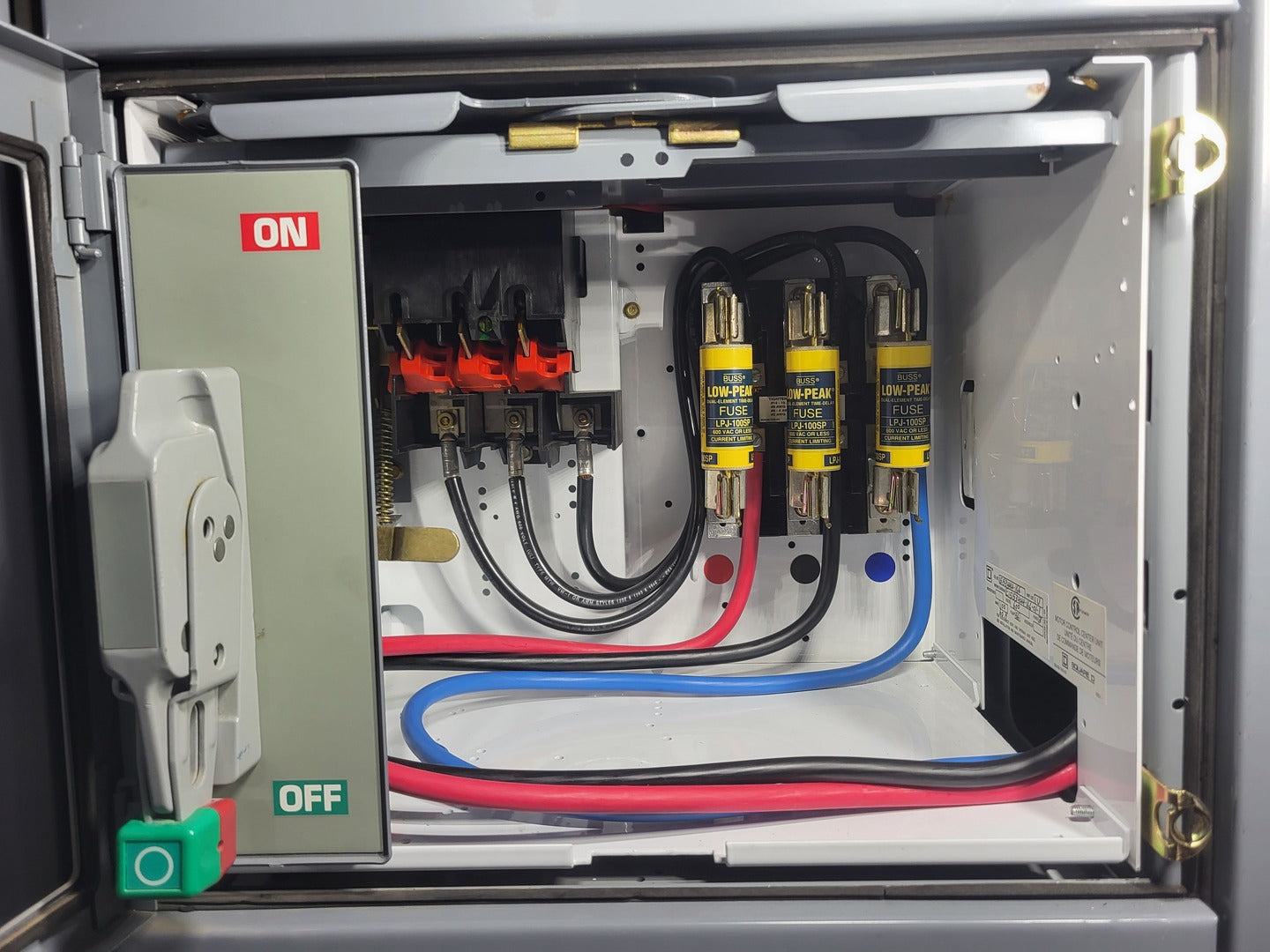

  2. 3 x Bussmann Low-Peak fuses LPJ-100SP

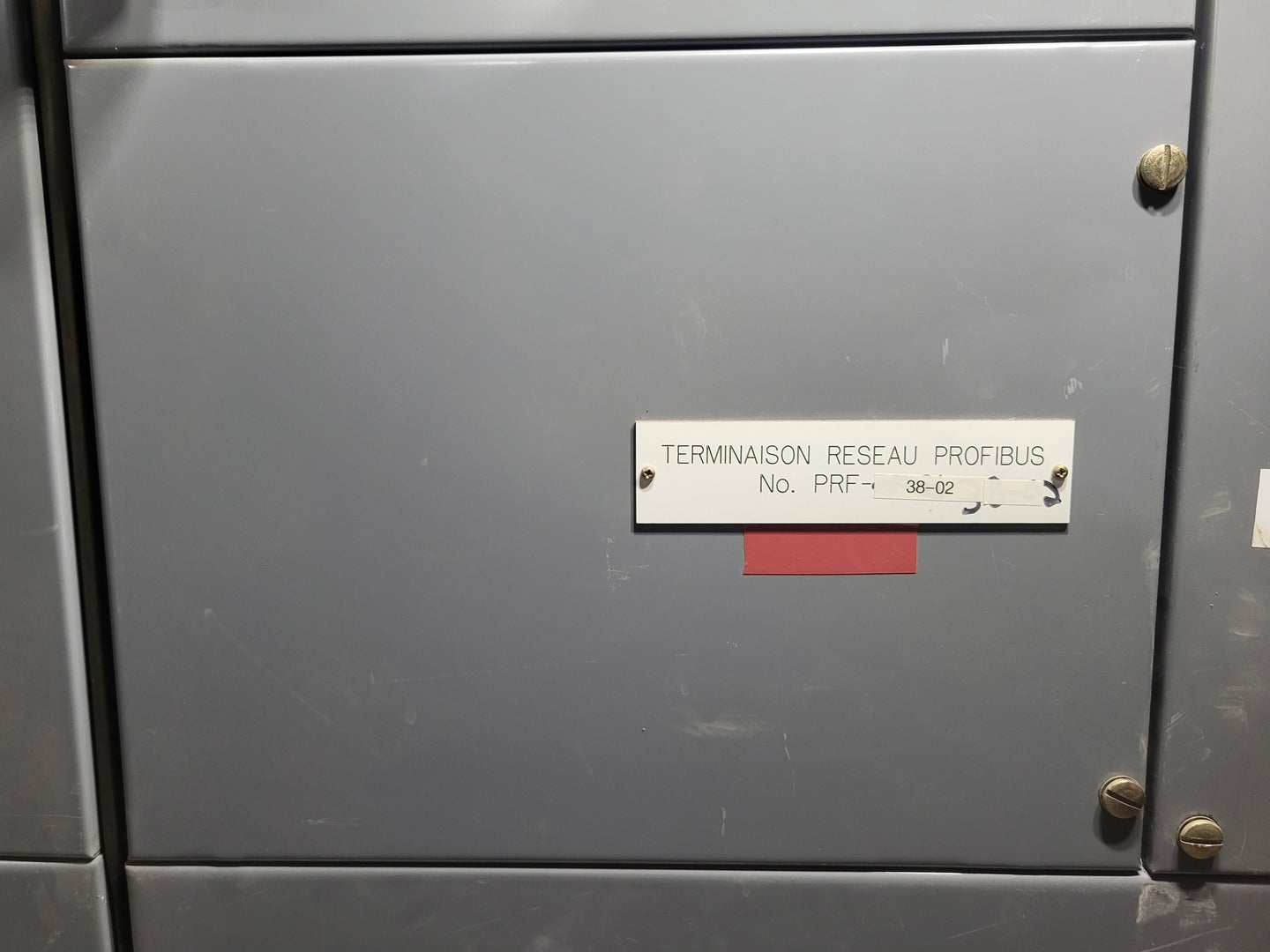

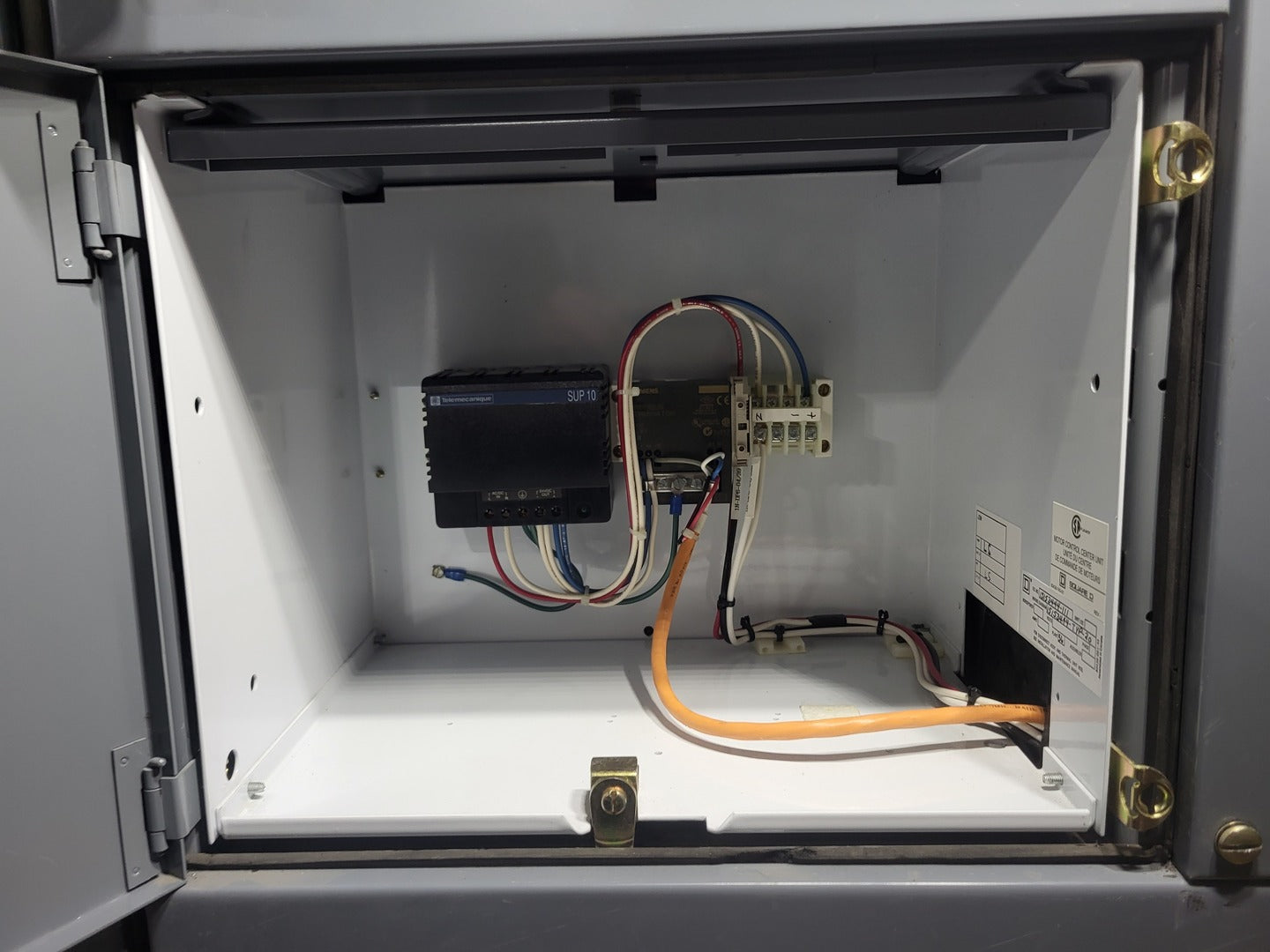

Bucket #5 PRF-38-02

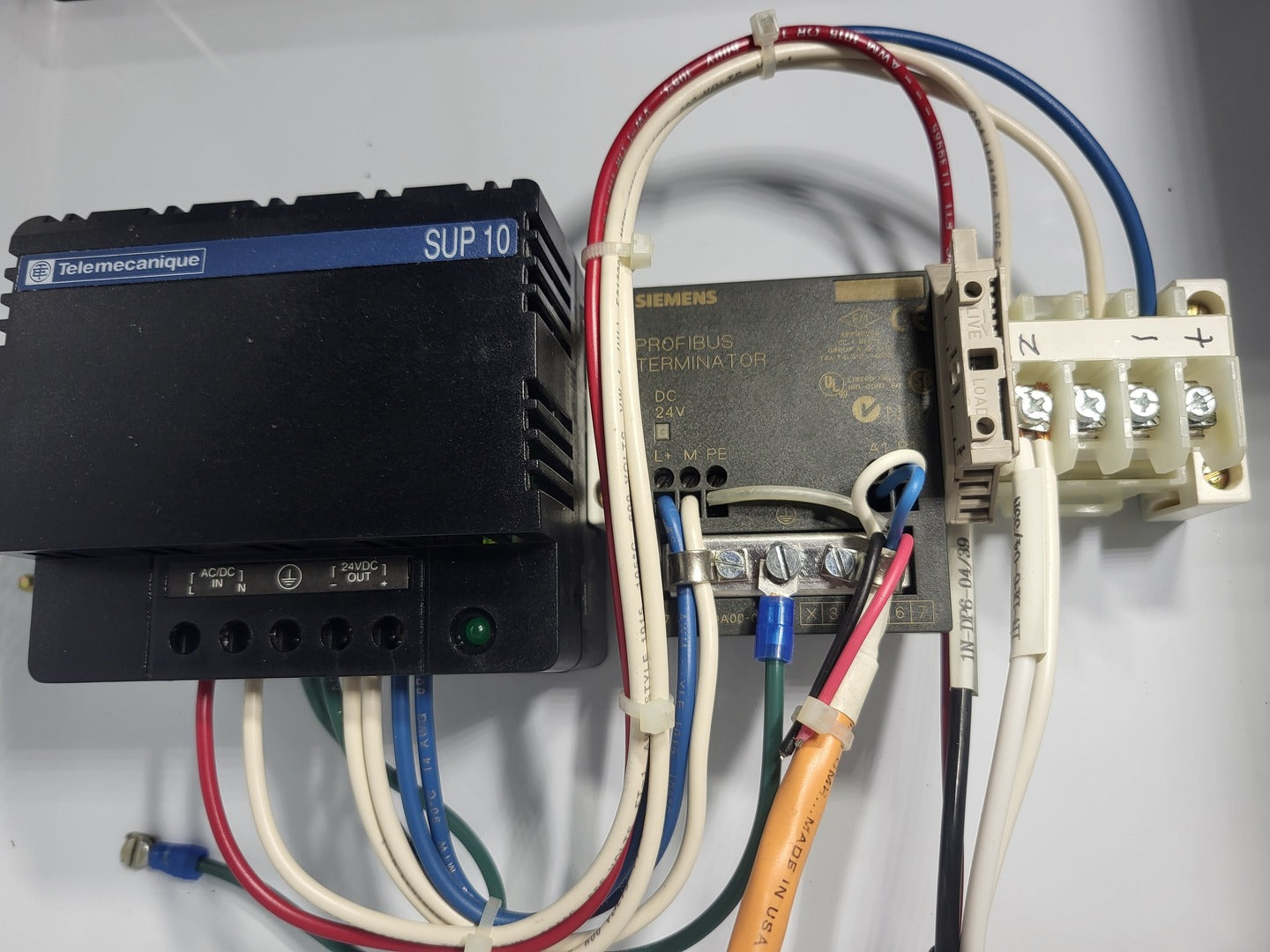

  1. Telemecanique SUP10, 24VDC power supply module
  2. Siemens PROFIBUS Terminator, DC 24V active bus terminator module
