Description

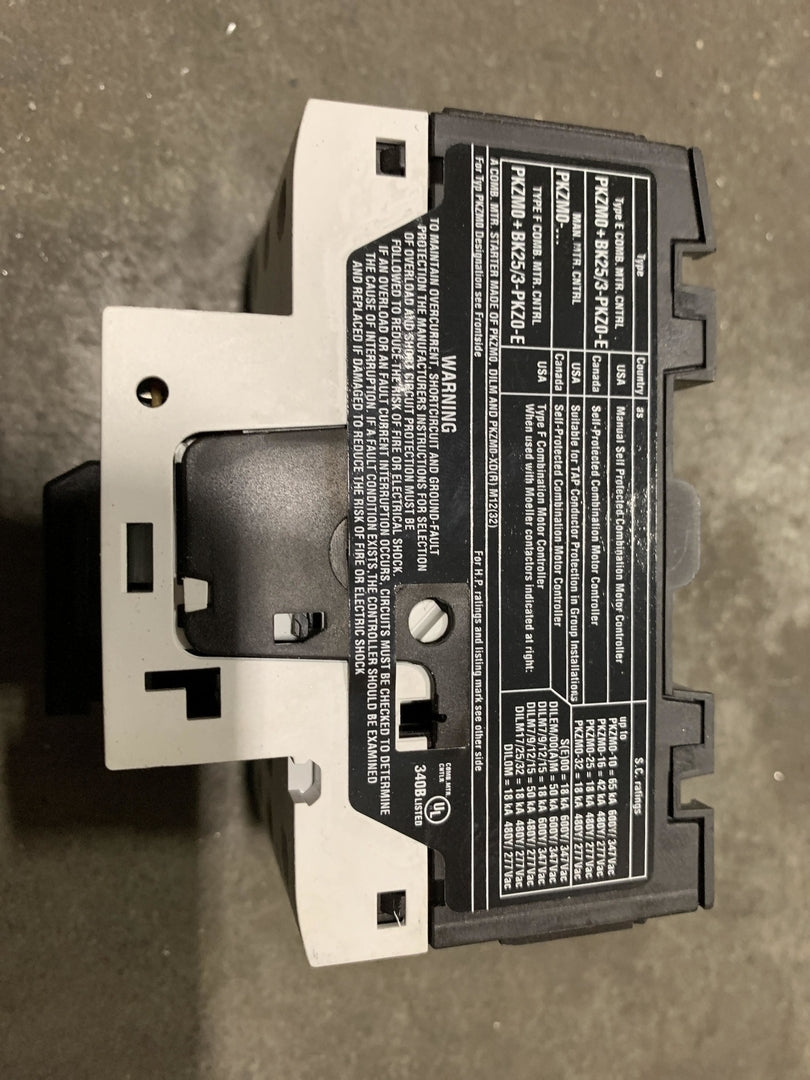

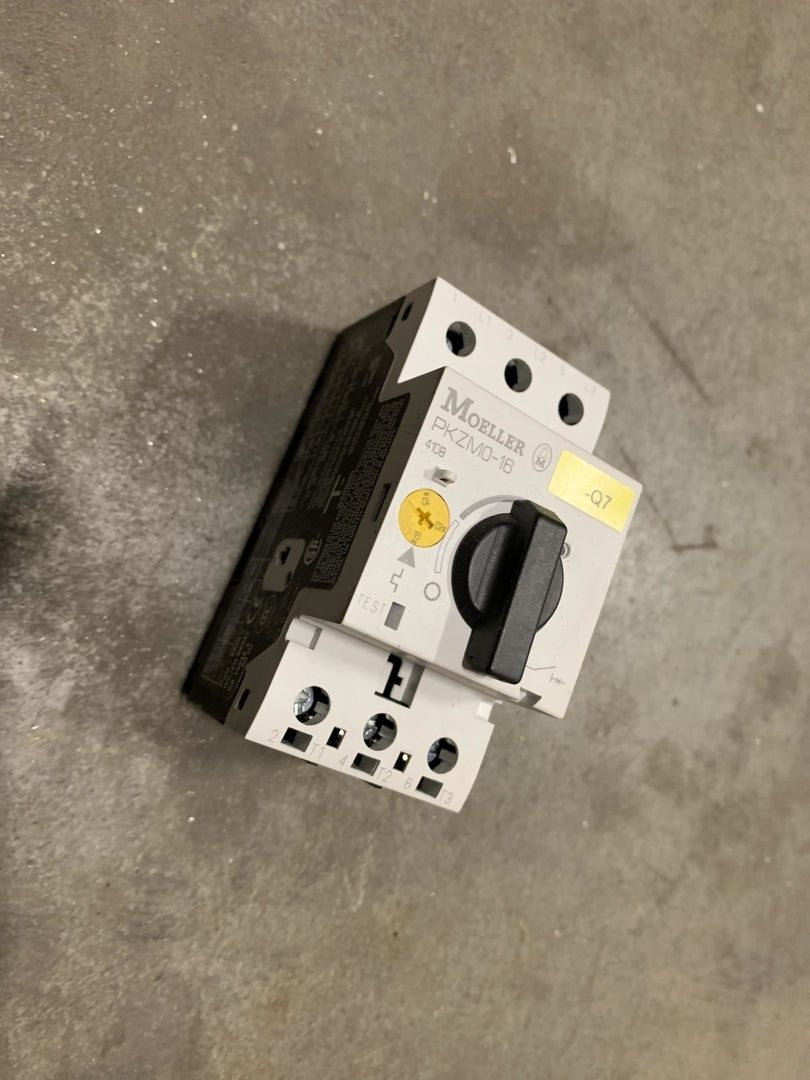

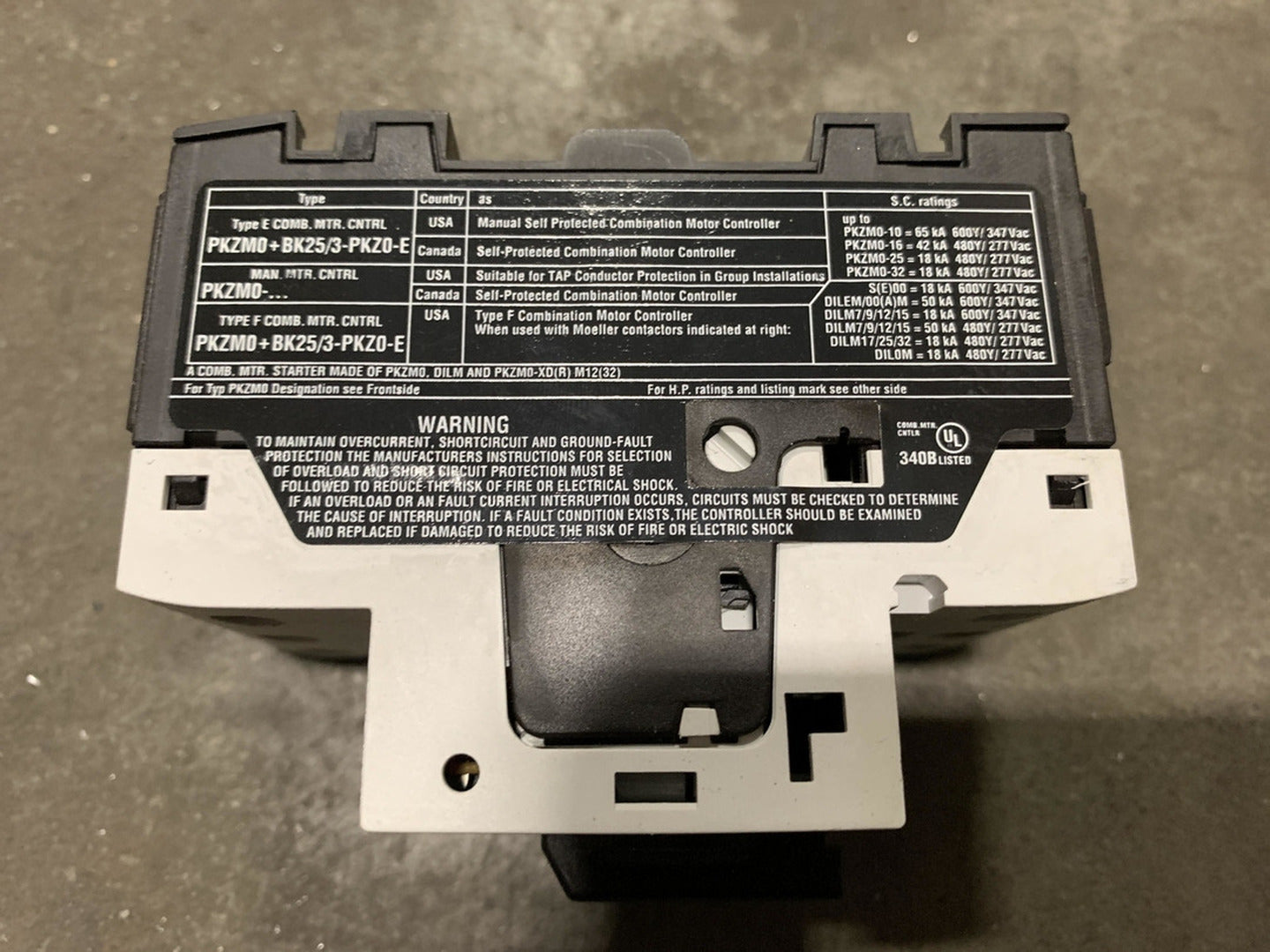

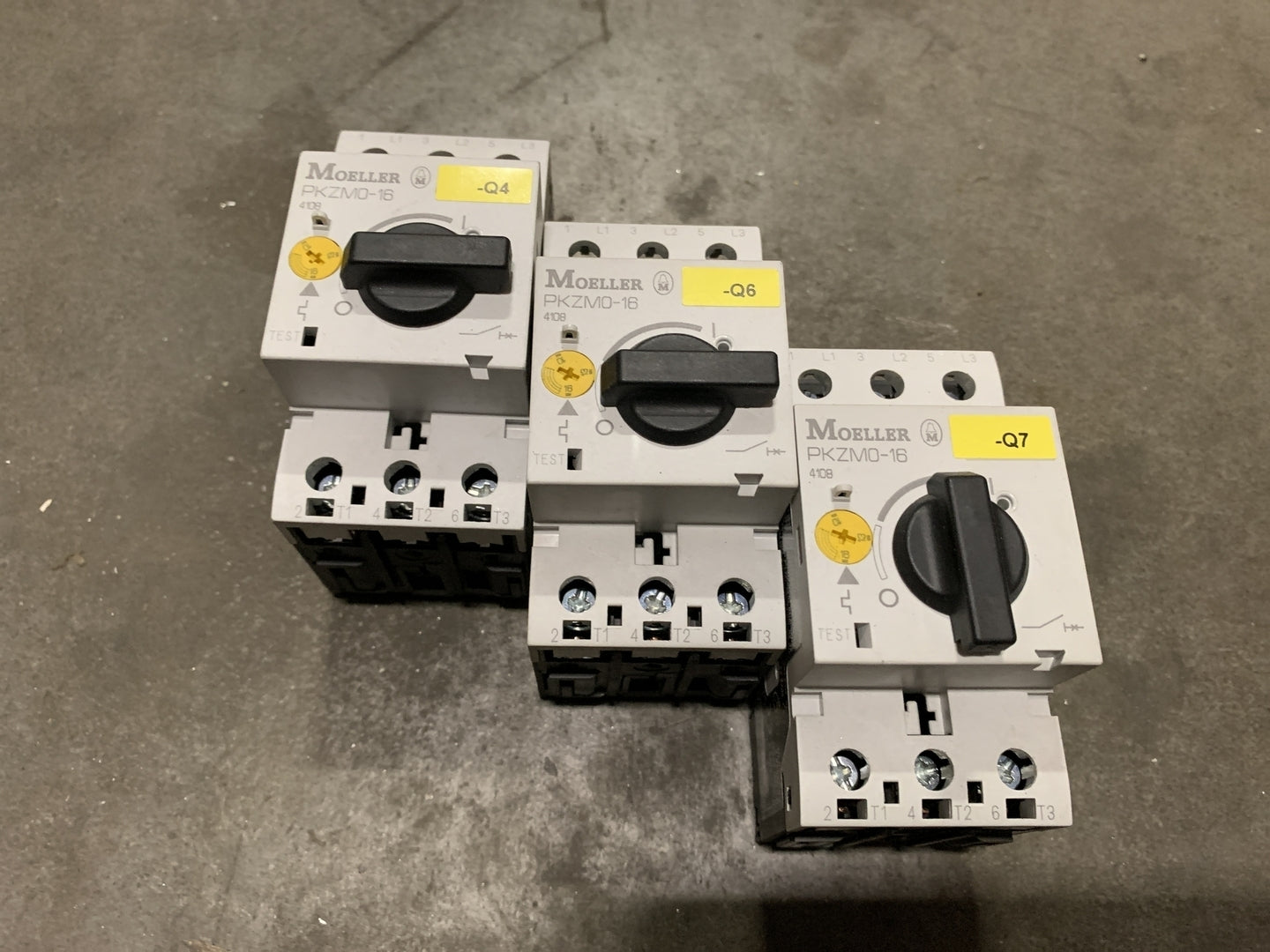

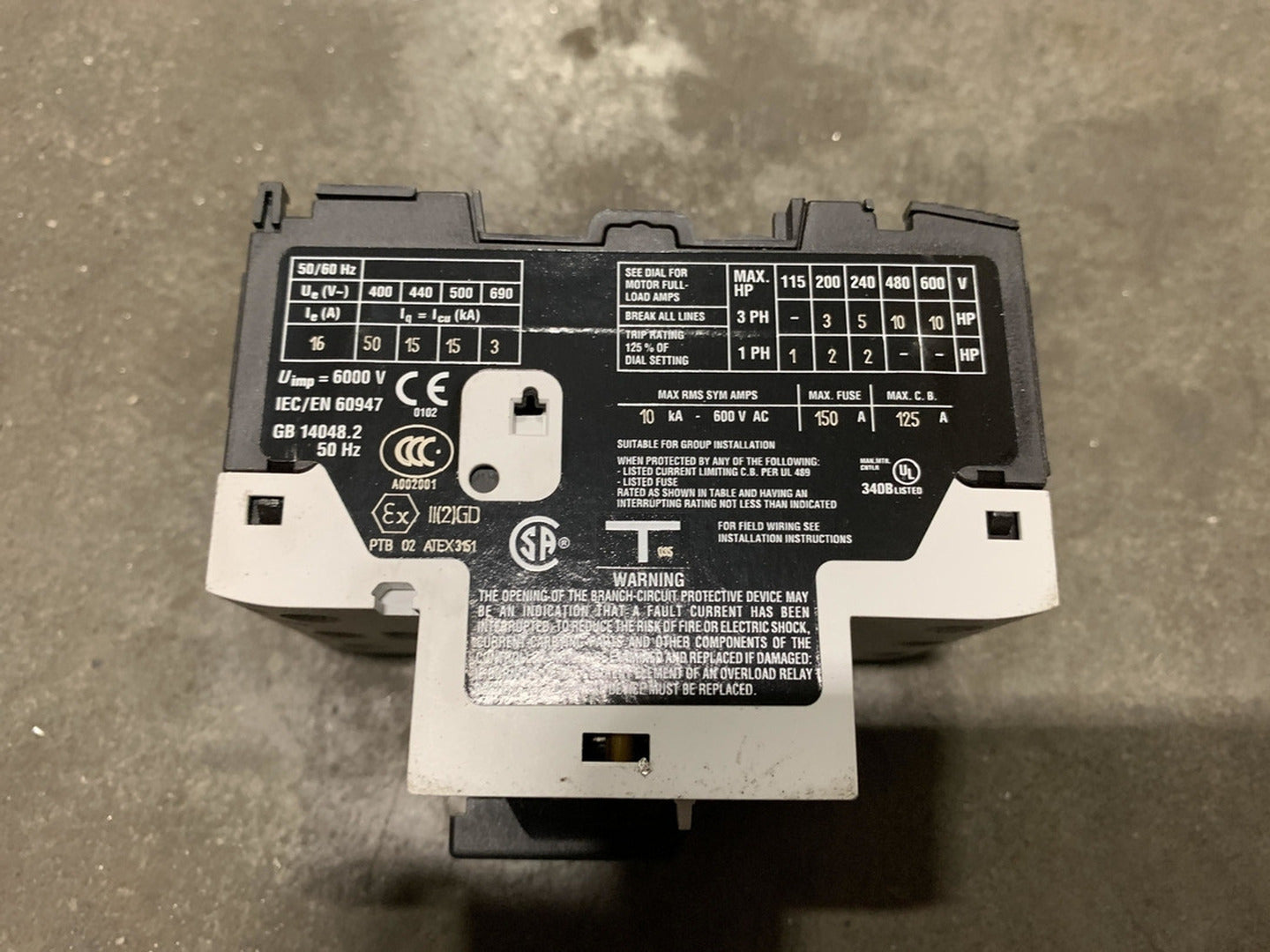

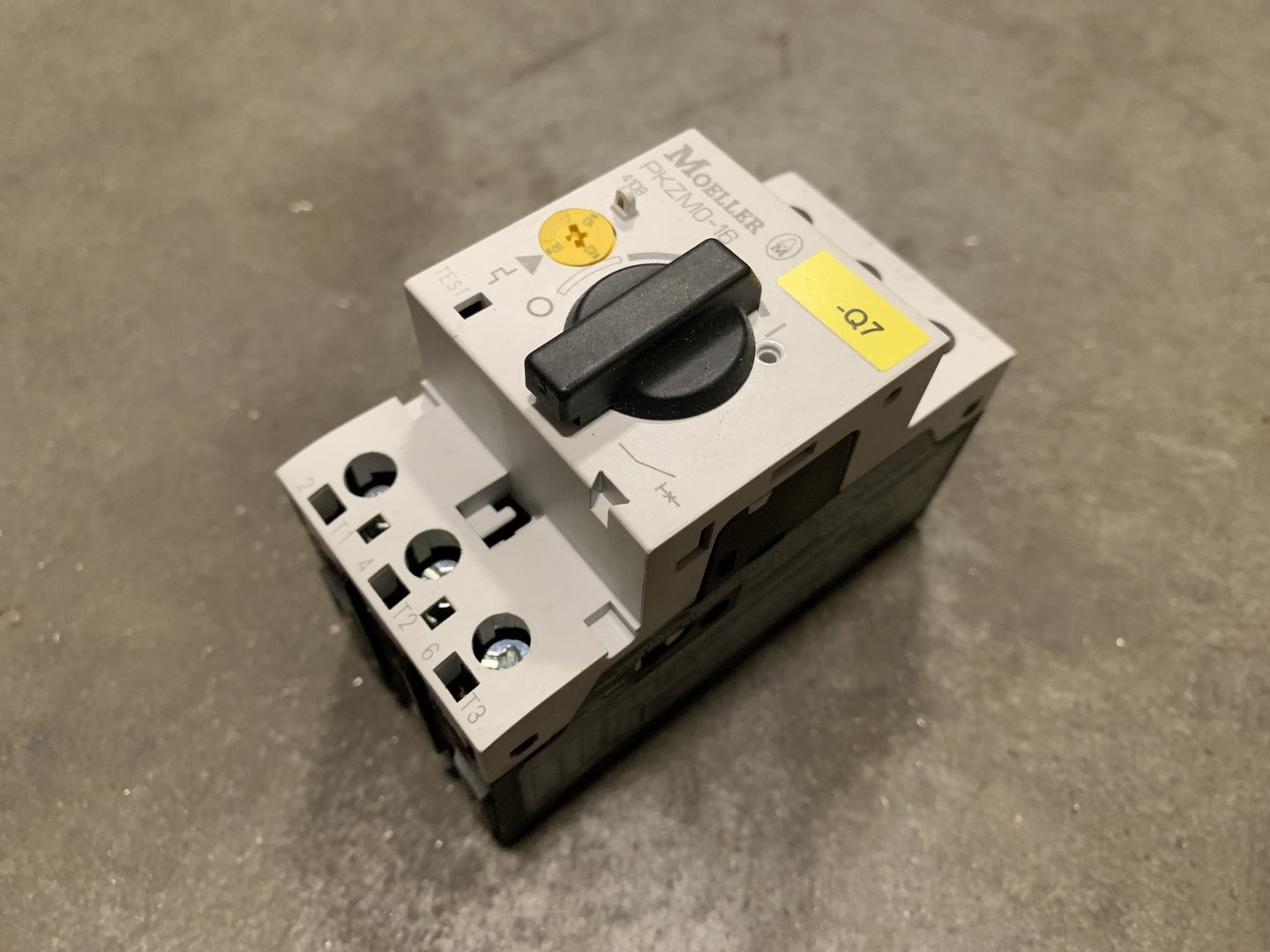

Modular Motor Protective Circuit Breakers designed for use with add-on contactor modules and accessories which provide isolation, short circuit and thermal protection.
| Specifications | |
|---|---|
| Model | PKZM0-16 |
| Condition | Used |
| Other Specifications |
|---|
|
Rated operating voltage: 690Vac
Operating temperature range: -25°C to +55°C
Temperature compensated range: -5°C to +40°C
Adjustable current trip level: 0.6 ? 1.0 x nominal rating
Short-circuit trip level (fixed): 14x nominal rating
Single-phase-failure sensitivity to: IEC60947-4-1
