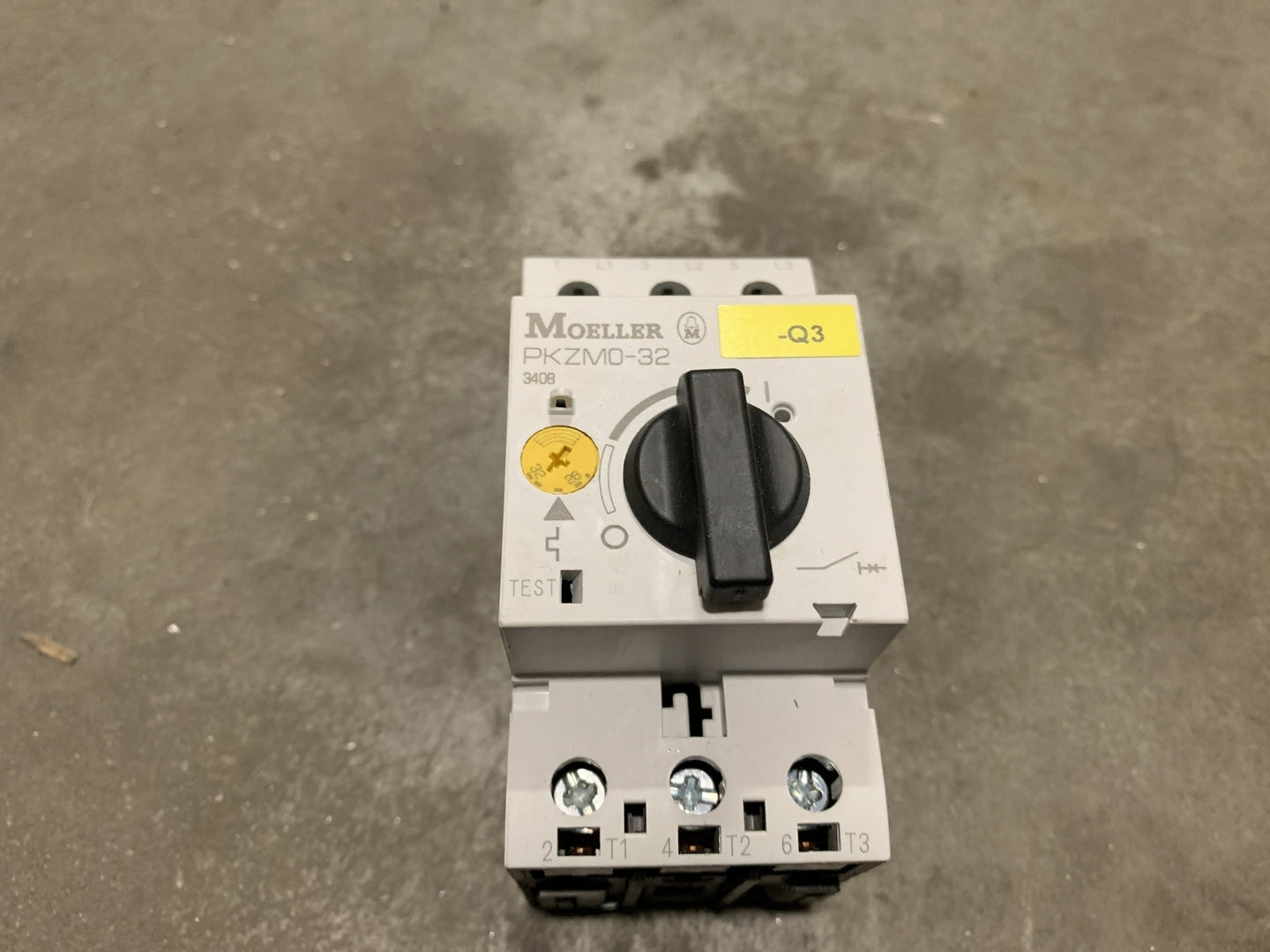

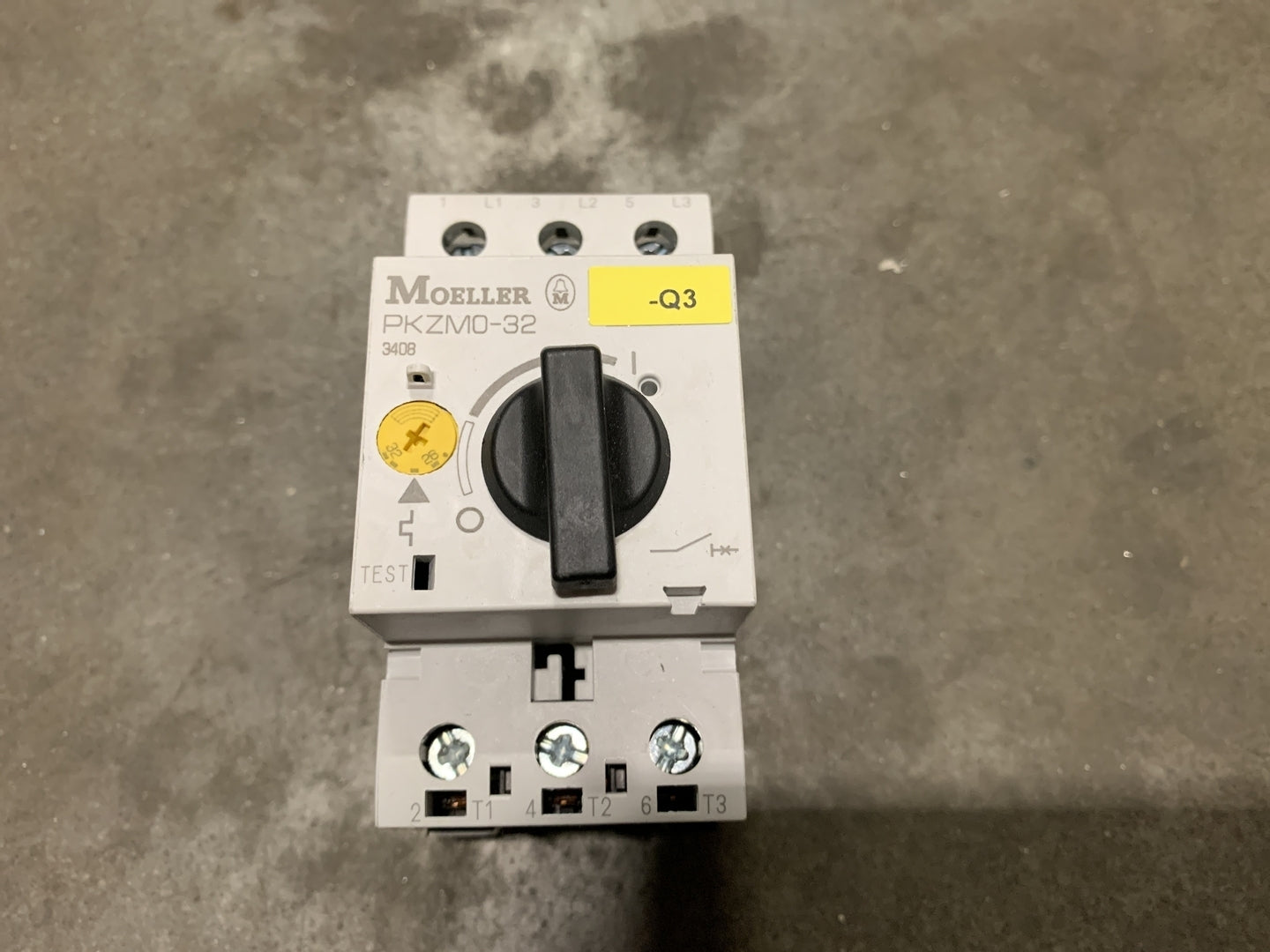

Motor Protection Circuit Breaker PKZM0-32

SKU: 20396
Price:
$70 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

PKZM0 Rotary Switch Operated MPCB Modular Motor Protective Circuit Breakers designed for use with add-on contactor modules and accessories which provide isolation, short circuit and thermal protection.
Specifications
Model PKZM0-32
Condition Used
Other Specifications
Rated operating voltage: 690Vac

Operating temperature range: -25°C to +55°C

Temperature compensated range: -5°C to +40°C

Adjustable current trip level: 0.6 ? 1.0 x nominal rating

Short-circuit trip level (fixed): 14x nominal rating

Single-phase-failure sensitivity to: IEC60947-4-1

Approvals: UL, CSA, LROS, GL

Standards: IEC (EN60) 947-1 general, 947-2 Circuit breakers, 1-4 switch disconnectors, 1-5 Motor starters, 1-6 Electrical equipment of machines
