Description

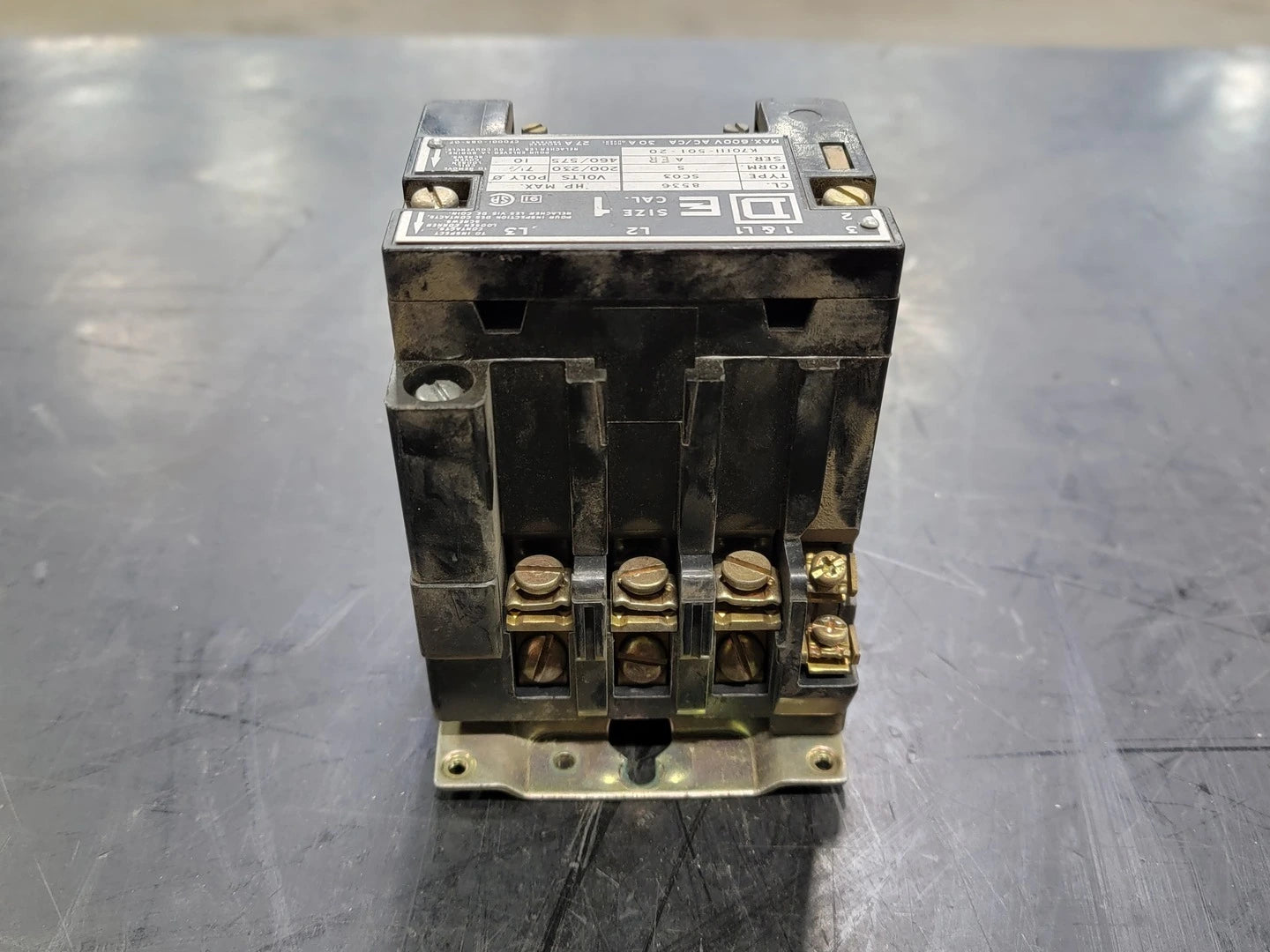

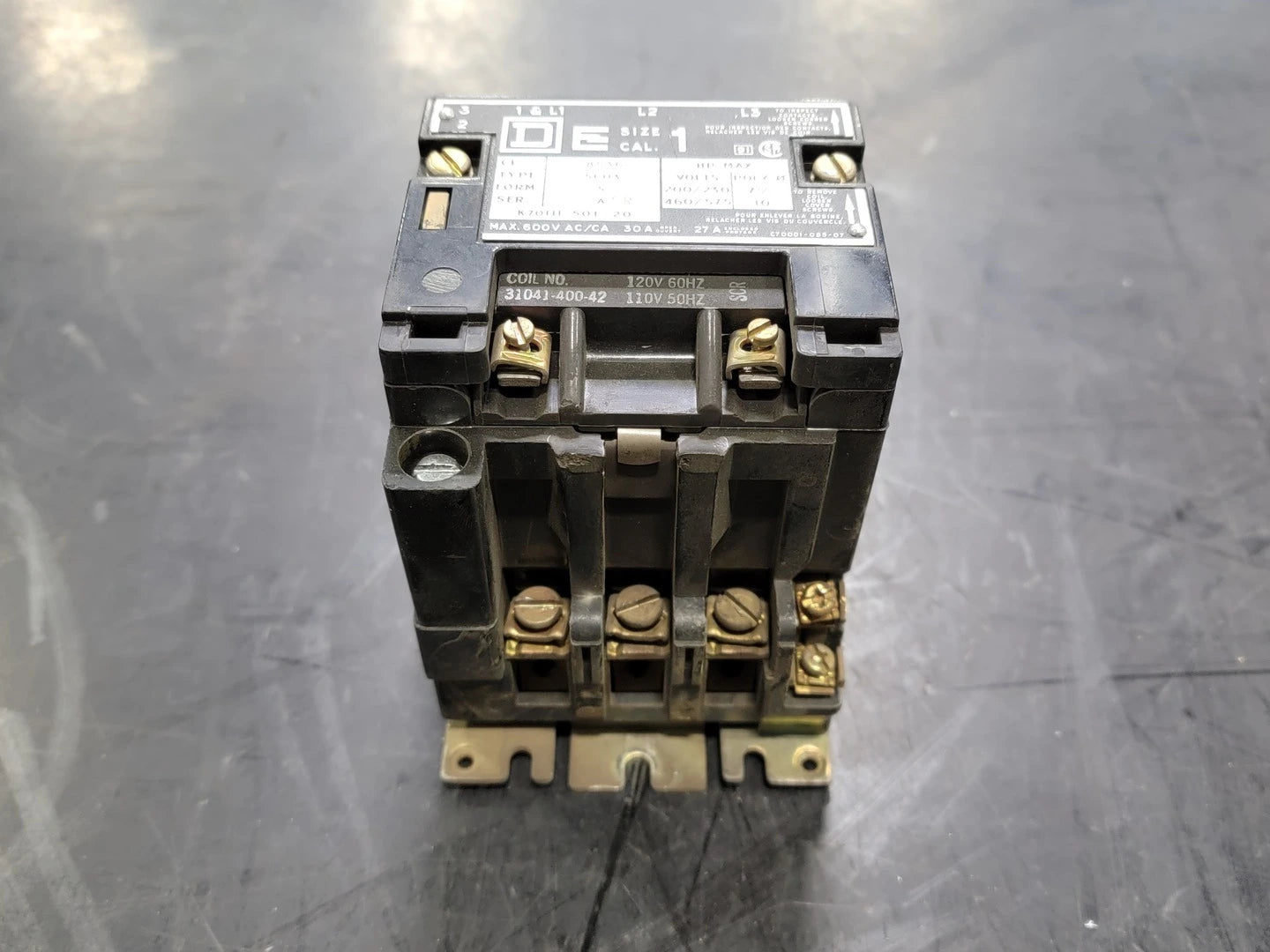

The Motor Starter 8536SC03 by SQUARE D is a NEMA Size 1 starter with a coil voltage rating of 110V at 50Hz and 120V at 60Hz. It has a current rating of 30 Amps and is a 3-phase, 3-pole starter with a voltage rating of 600 volts. This magnetic starter is designed for a HP rating of 10.
| Specifications | |
|---|---|
| Model | 8536SCO3V02S |
| Condition | Used | Electrical |
| Amps | 27 amps |
| Voltage | 600 volts |
| Phase | 3-phase |
| HP Rating | 10 hp | General |
| Enclosure | No |
| Starter Type | Magnetic |
| Other Specifications |
|---|
|
Class: 8536 Type: SCO3 Form: S (Separate control unit0 Series: A Poles: 3 NEMA Size: 1 Enclosure: Open Style Coil Voltage Ratings: 110/120 VAC, 50/60 Hz Polyphase Ratings: 200/230 VAC @ 7.5 hp, 460/575 VAC @ 10 hp |
