Description
Specifications | |
---|---|

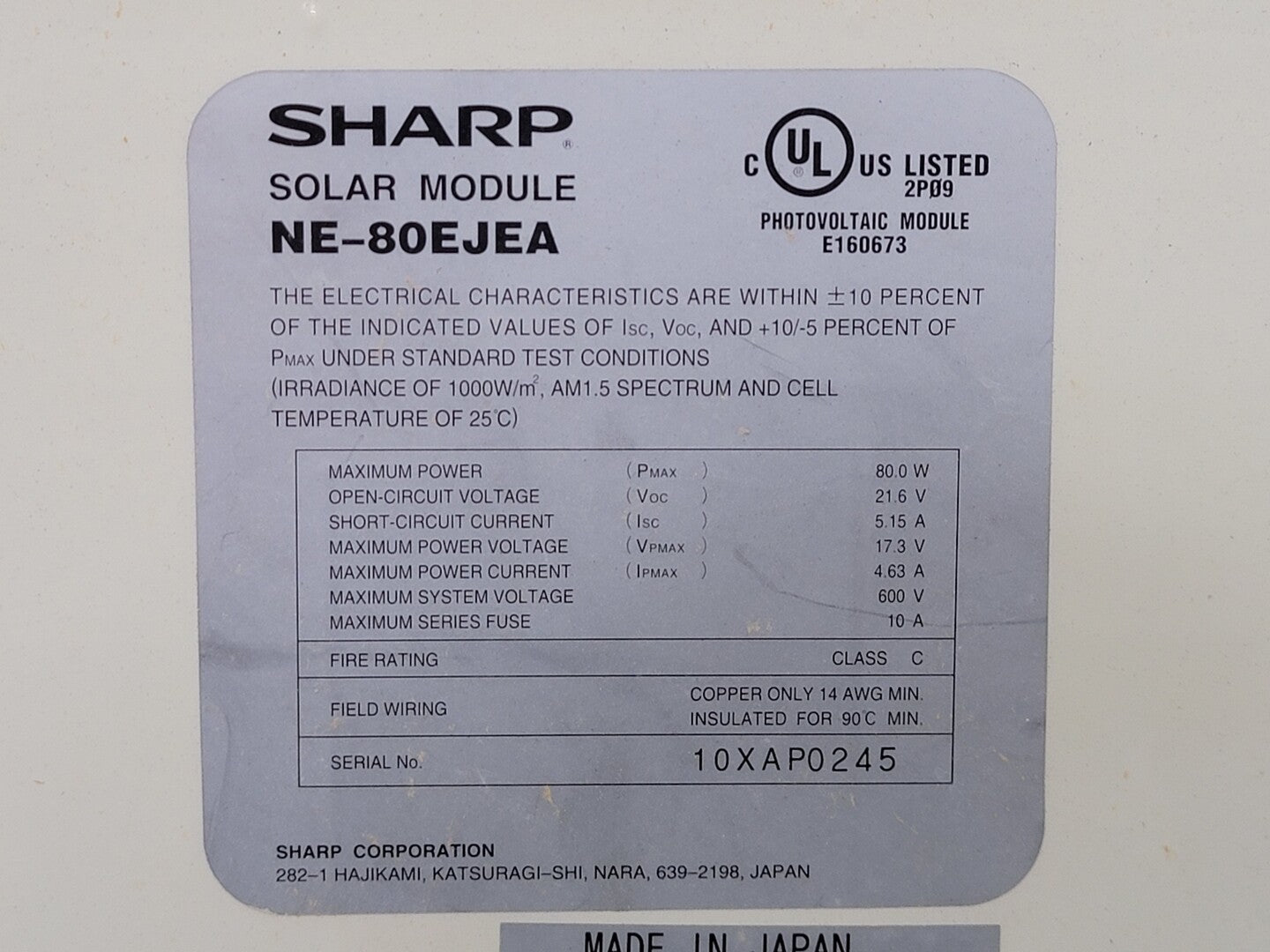

Model | NE-80EJE |

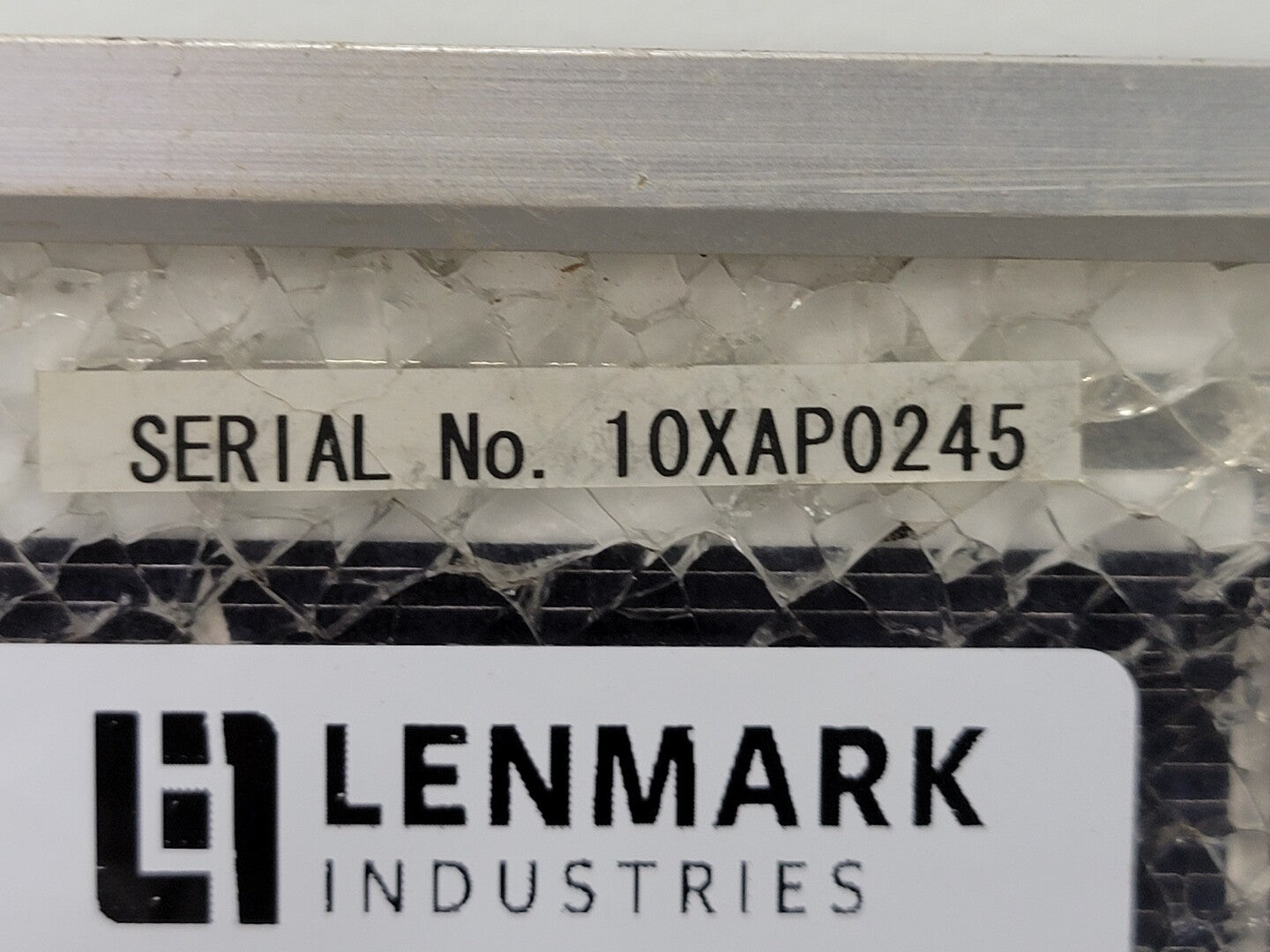

S/N: | 10XAP0245 |
Made In | JAPAN |
Condition | Used |
Other Specifications |
---|
Features:
- High-power module (80W) using 125mm square multi-crystal silicon solar cells with 12.60% module conversion efficiency
- Photovoltaic module with bypass diode minimizes the power drop caused by shade
- Improved cell conversion efficiency: 14.11%
- Water white, tempered glass, EVA laminate, plus aluminum frame for extended outdoor use
- Nominal 12VDC output for battery charging applications
Cell: Poly-crystalline silicon
No. of Cells and Connections: 36 in series
Open Circuit Voltage (Voc): 21.6V
Maximum Power Voltage (Vpm): 17.3V
Short Circuit Current (Isc): 5.16A
Maximum Power Current (Ipm): 4.63A
Maximum Power (Pmax): 80W (+10% / -5%)
Module Efficiency (?m): 12.40%
Maximum System Voltage: 600VDC
Series Fuse Rating: 10A

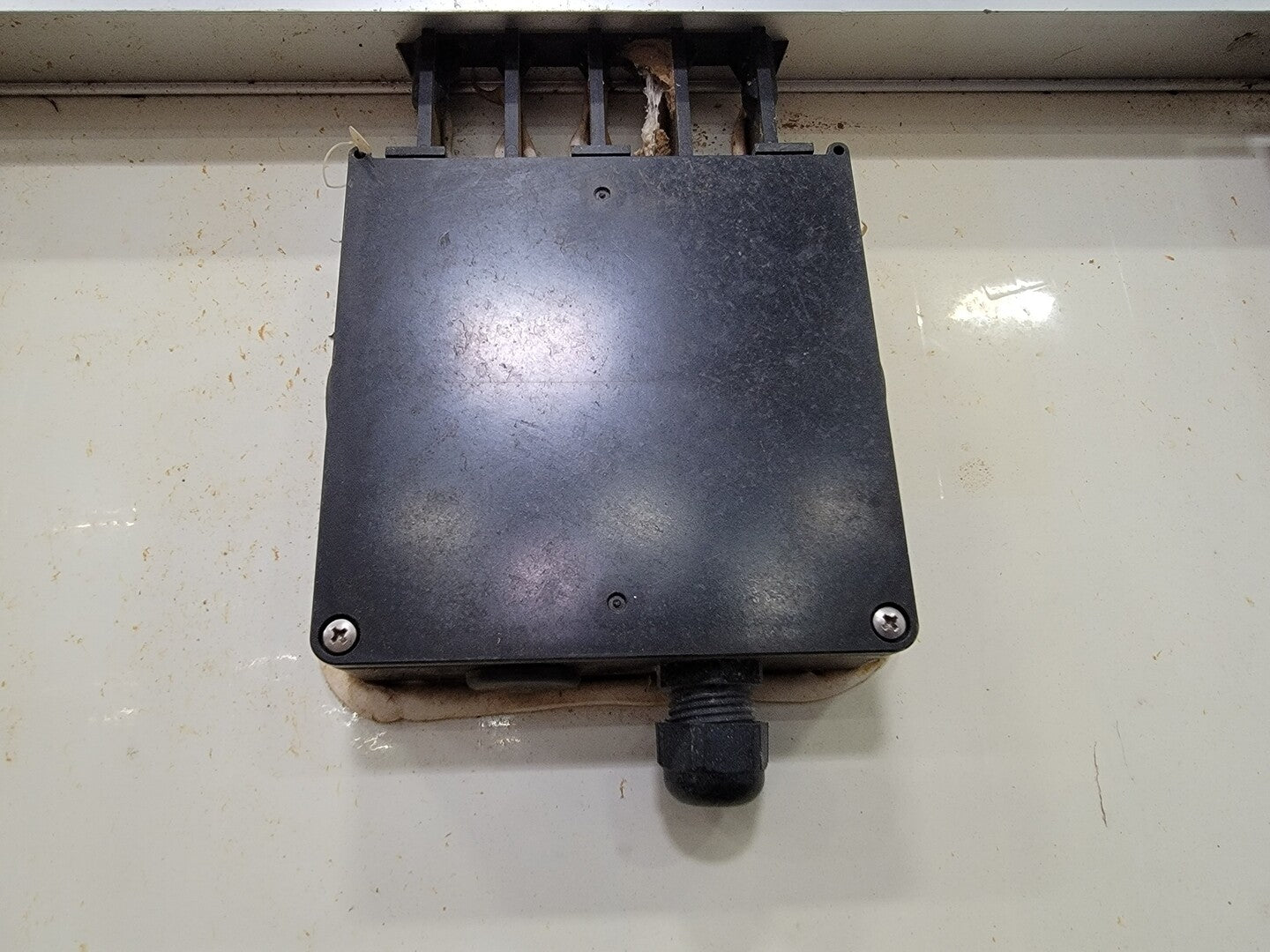

Type of Output Terminal: Junction Box
|
