Description

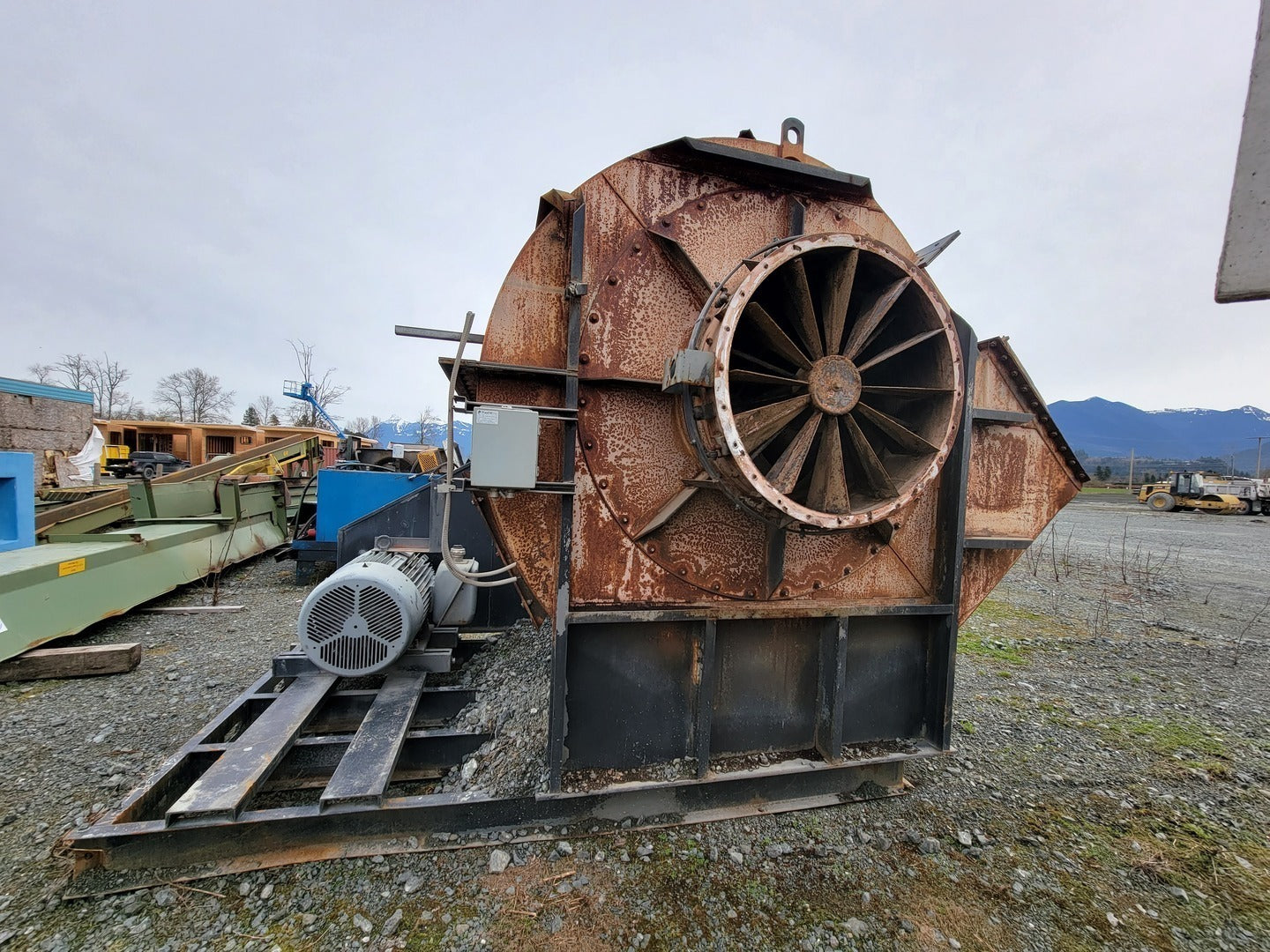

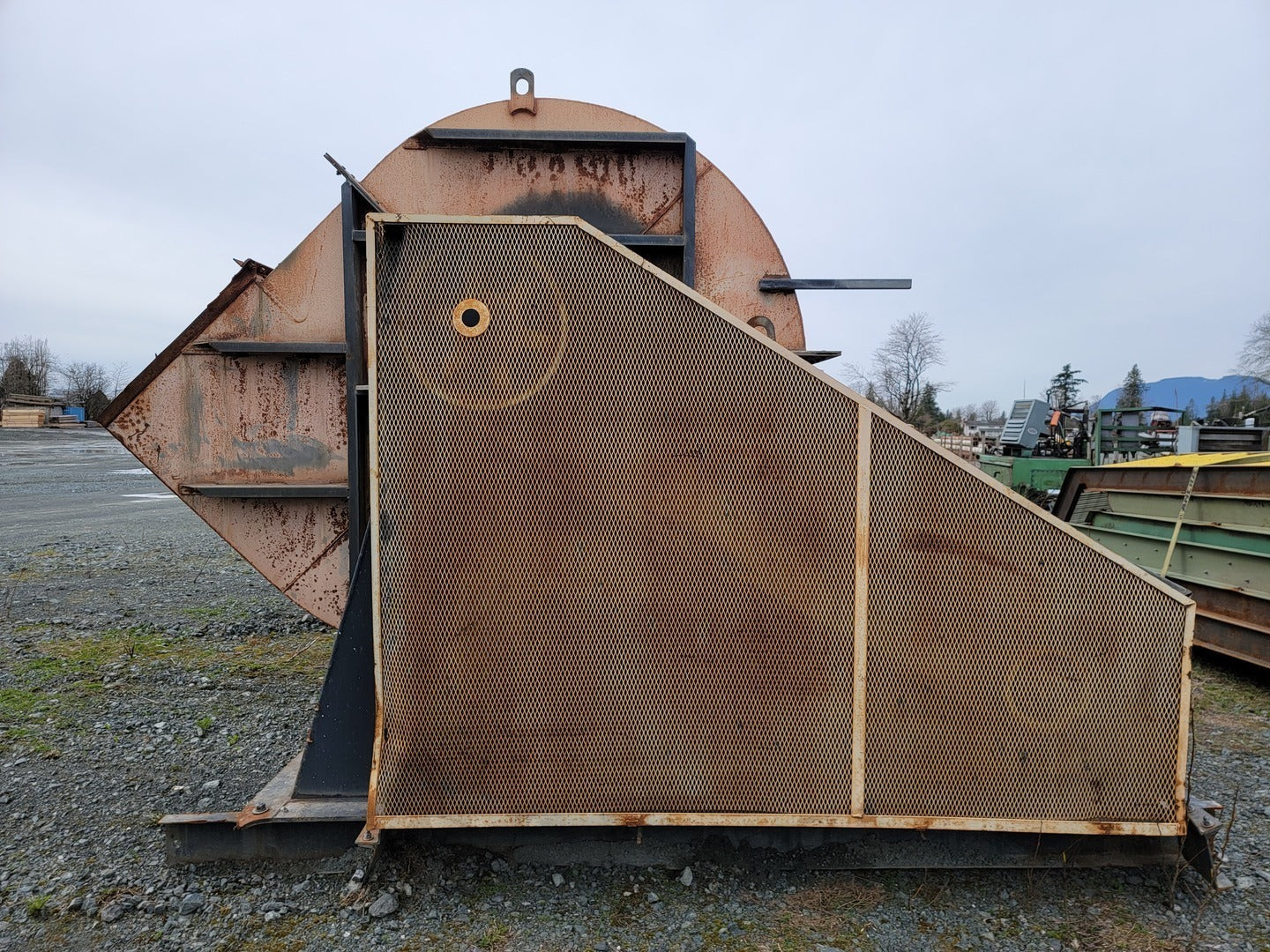

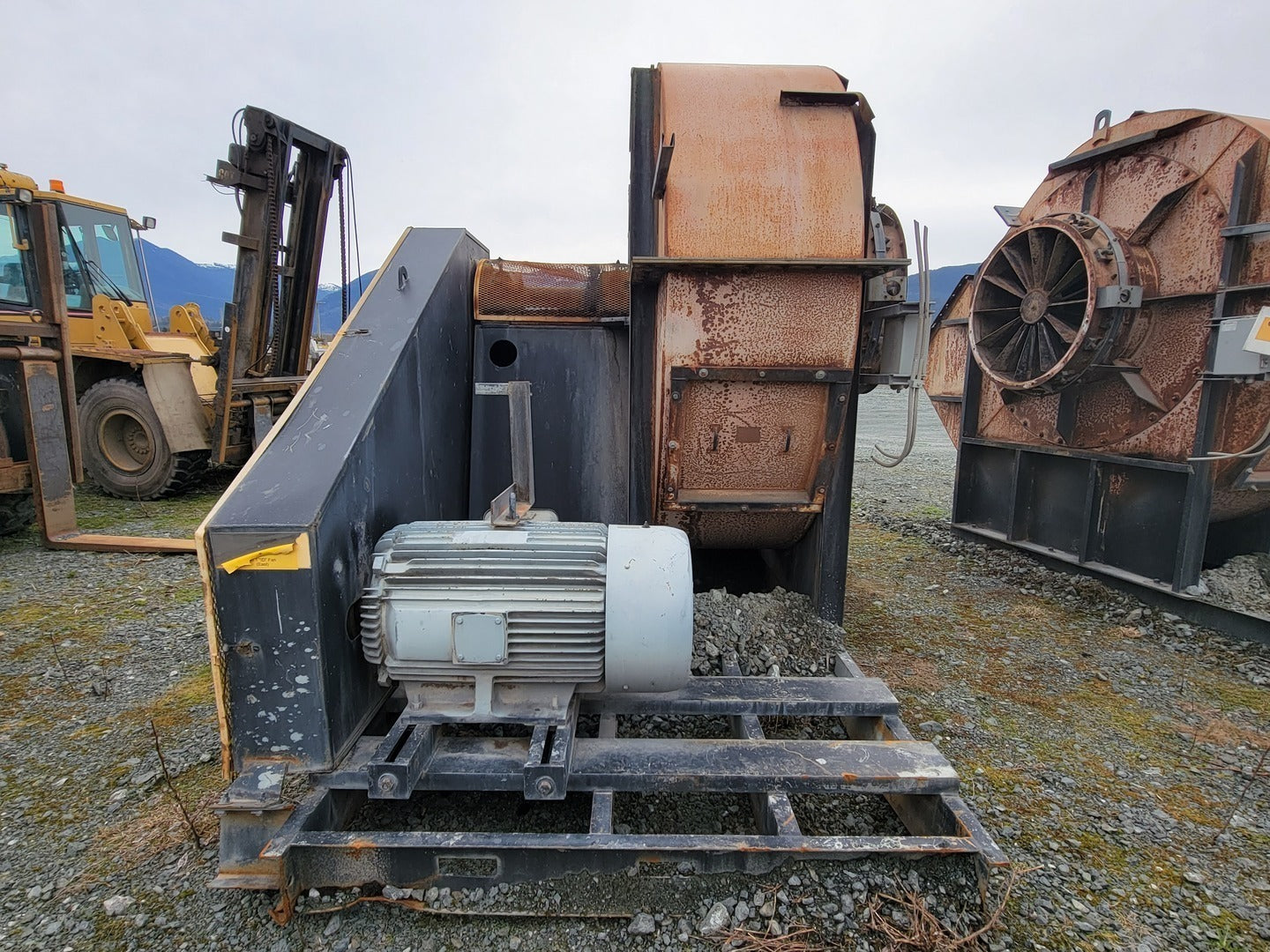

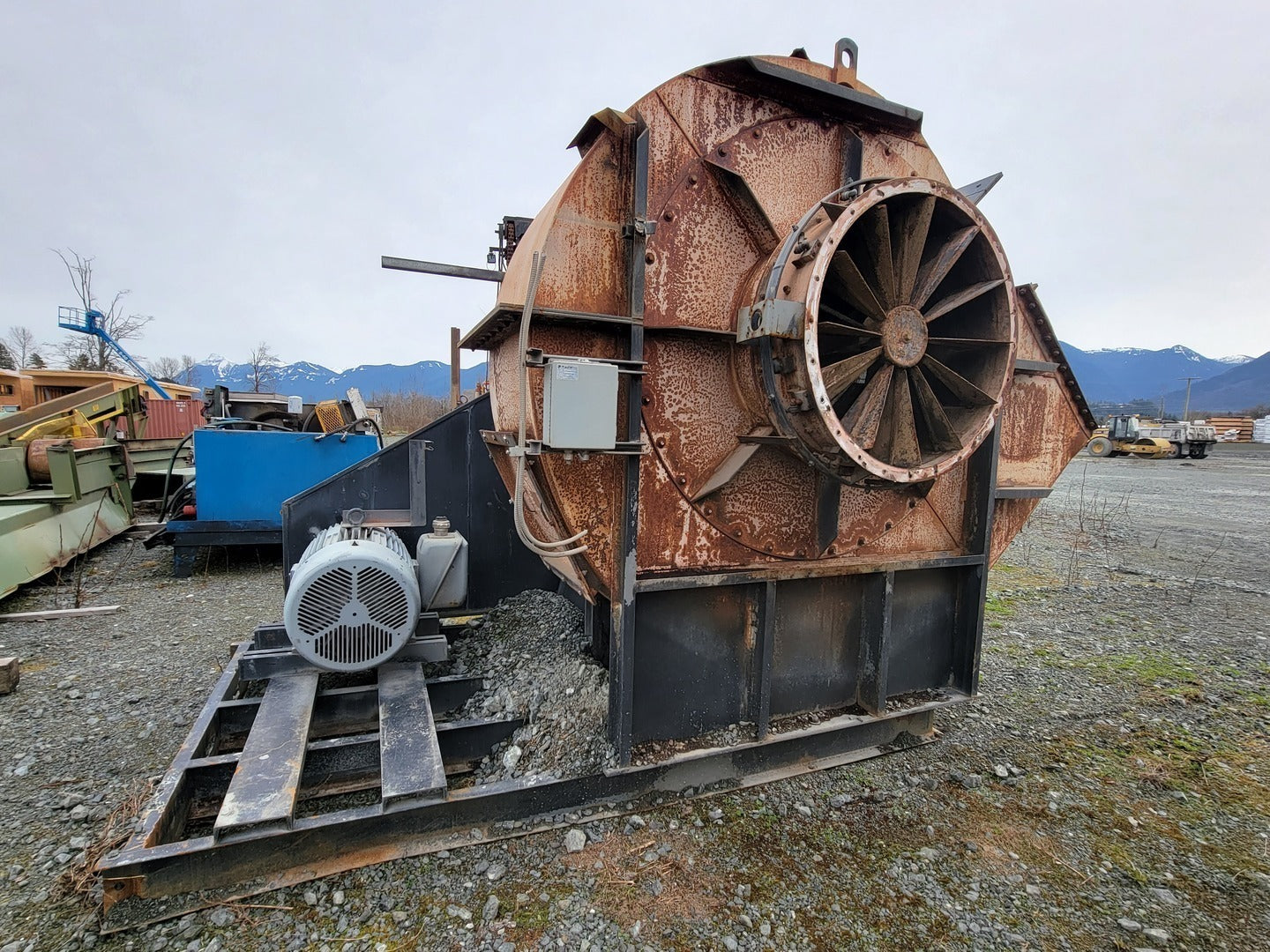

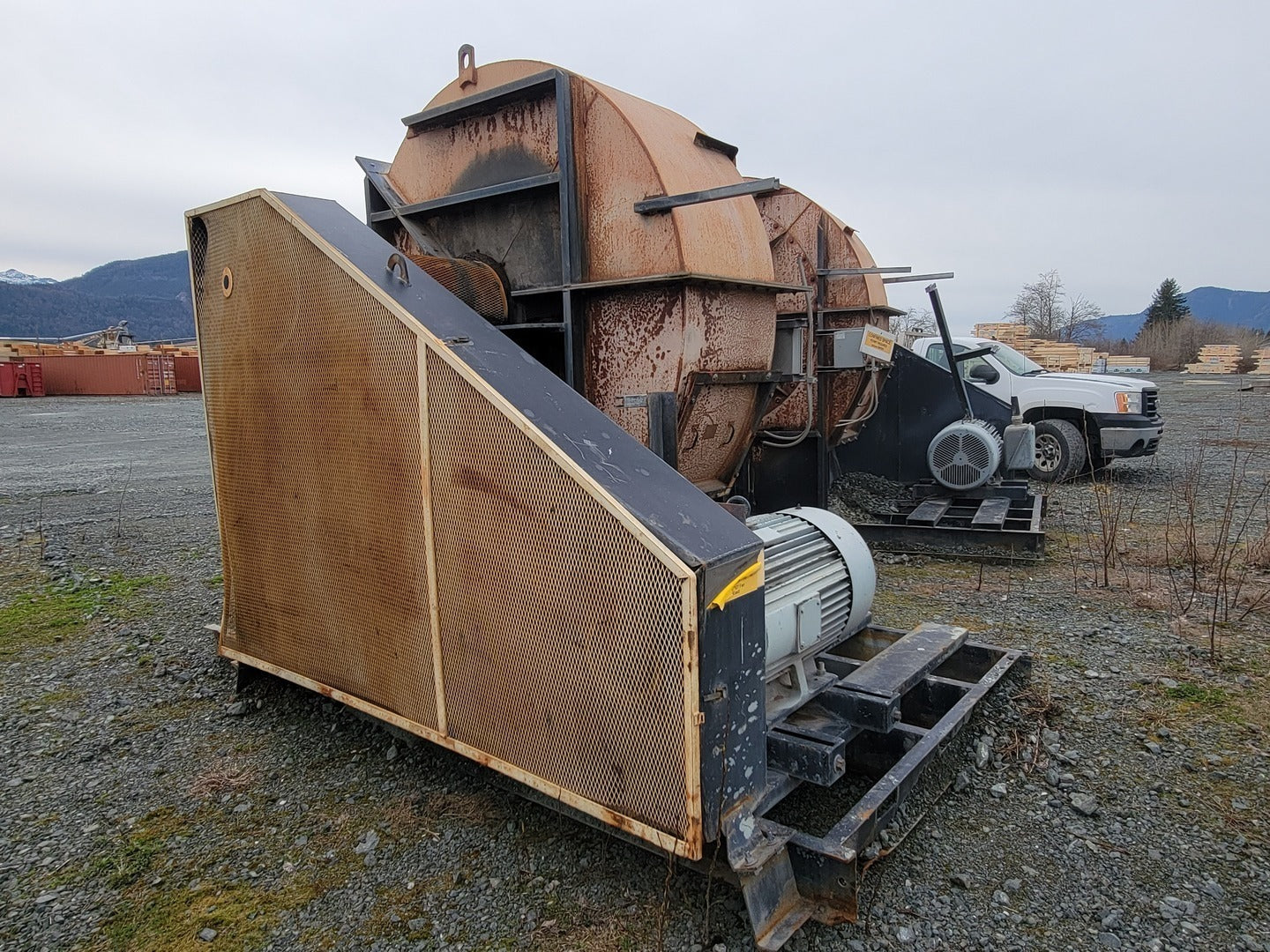

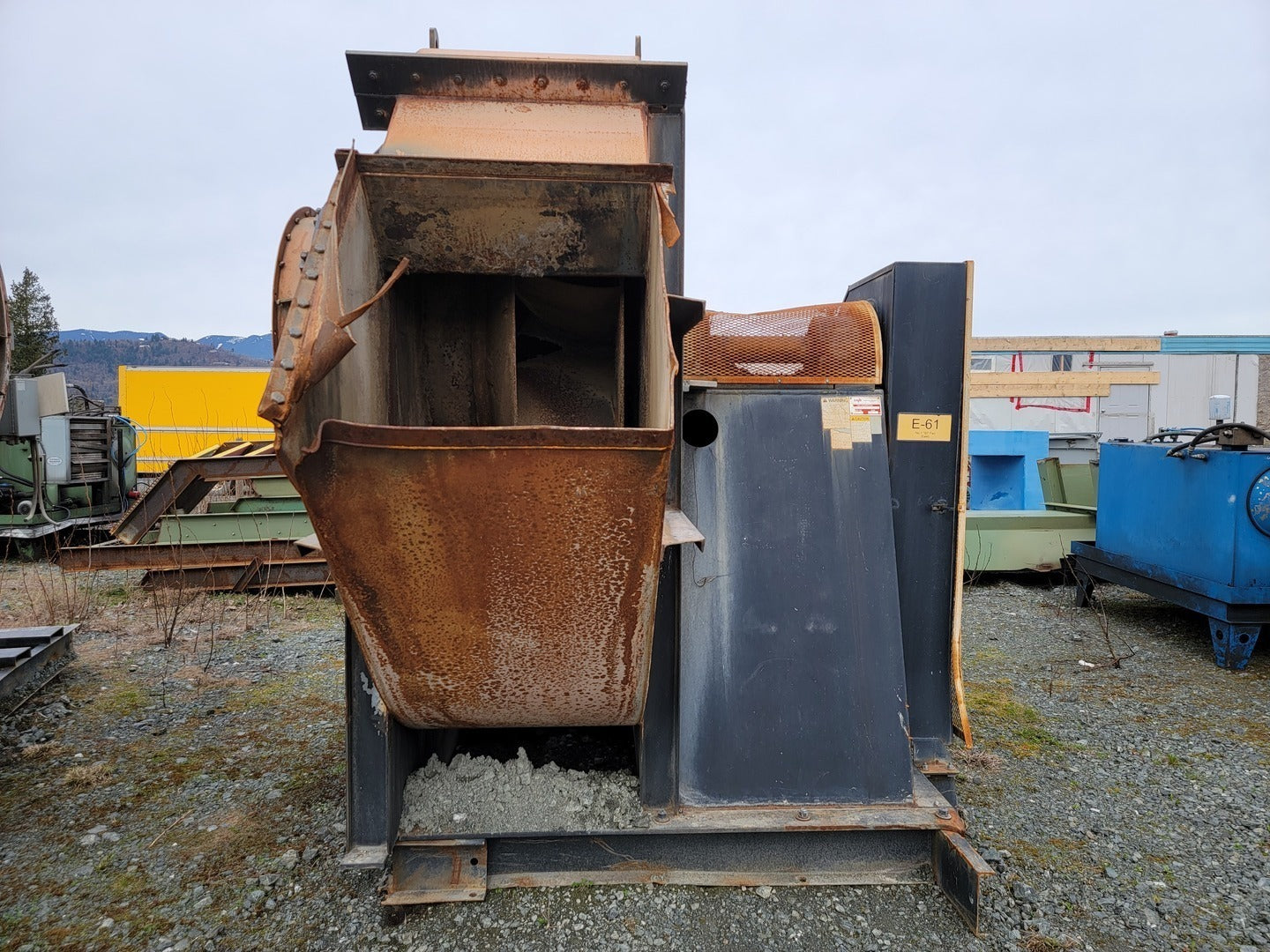

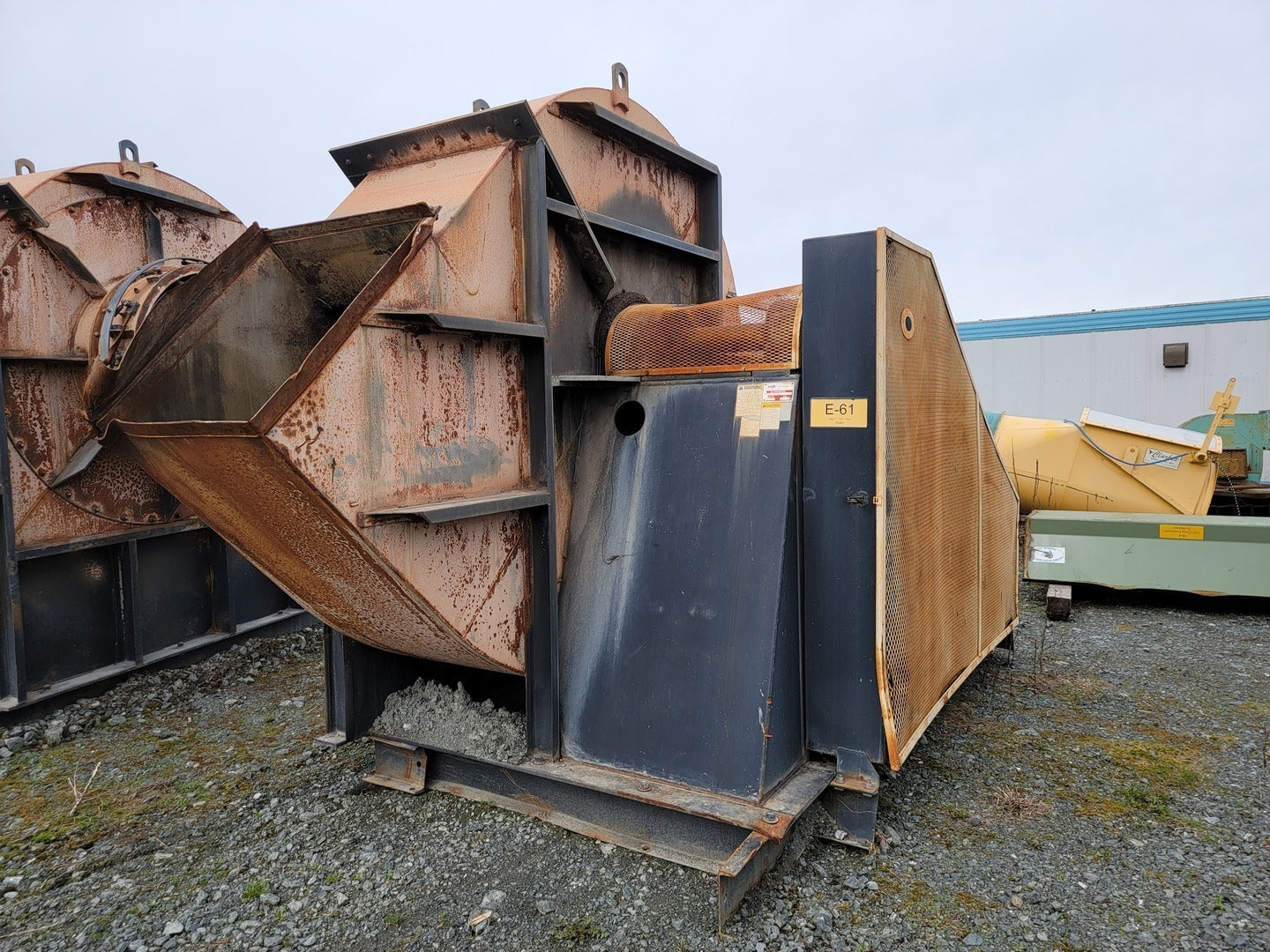

The NYB 150 HP Series 45 GI Radial Fan Size 664 DH is a centrifugal fan manufactured by NEW YORK. Measuring at 9.50 x 8.00 x 14.00 and weighing 9000.00, this fan has an inlet diameter of 37" O.D. and an outlet area of 7.48 sq.ft. inside. With a wheel diameter of 64-3/8" and a wheel circumference of 16.85 ft, it can handle static pressures up to 46" WG and temperatures up to 1000°F. It operates at 1420 rpm and has a horsepower of 150 hp, providing a CFM range of 32,000-56,000 cfm. This fan is compatible with 240/480 volts and is a 3-phase system.
| Specifications | |
|---|---|

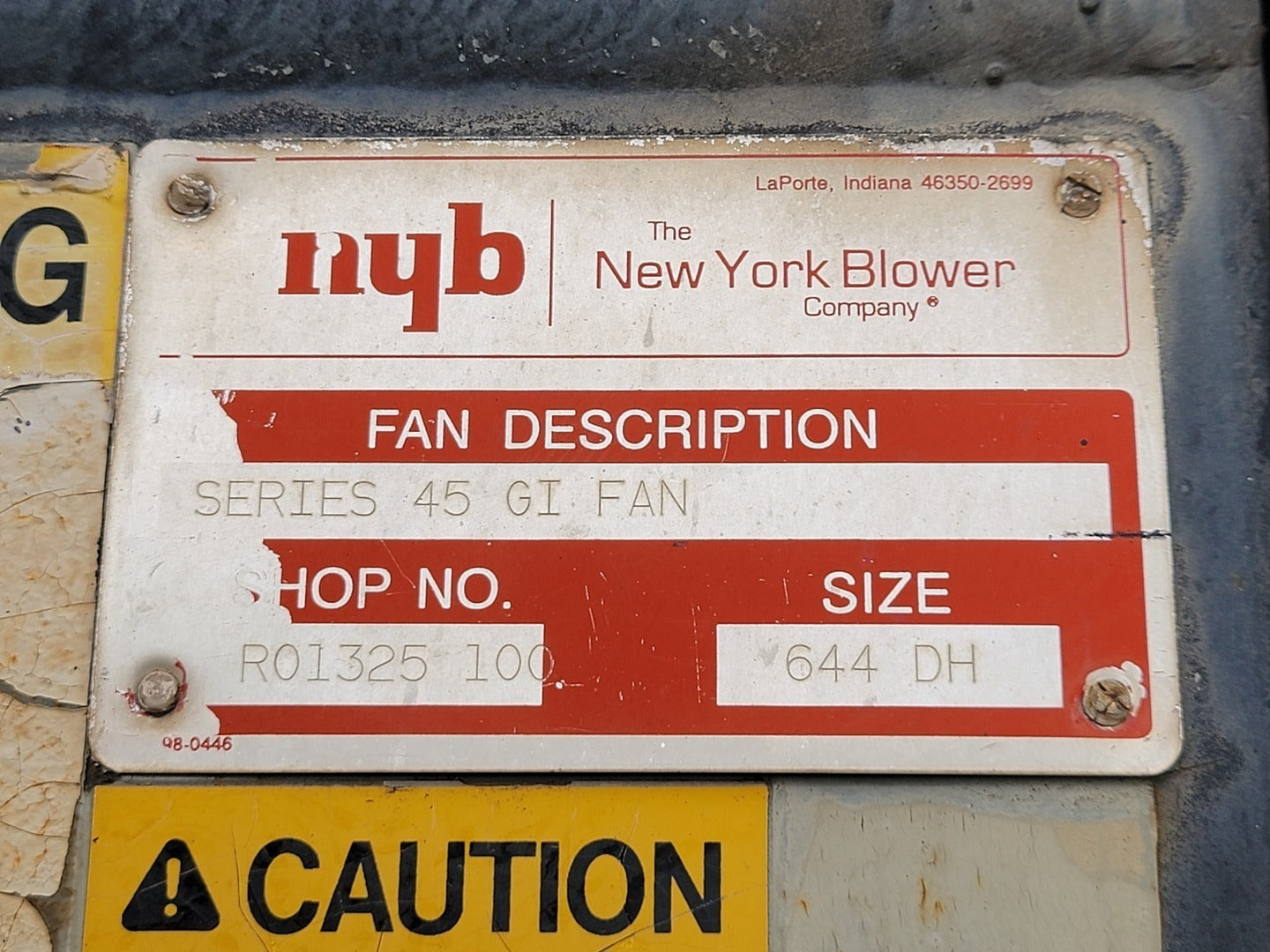

| Model | 664 DH |
| S/N: | R01325 100 |
| Condition | Used | General |
| Type | Centrifugal |
| RPM | 1420 rpm |
| Horsepower | 150 hp |
| CFM | 32,000-56,000 cfm |
| Fan Size | 64-3/8" | Electrical |
| Voltage | 240/480 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Inlet Diameter: 37" O.D.
Outlet Area: 7.48 sq.ft. inside
Wheel Diameter: 64-3/8"
Wheel Circumference: 16.85 ft.
Static Pressure: Up to 46" WG
Temperatures: Up to 1000°F
|
