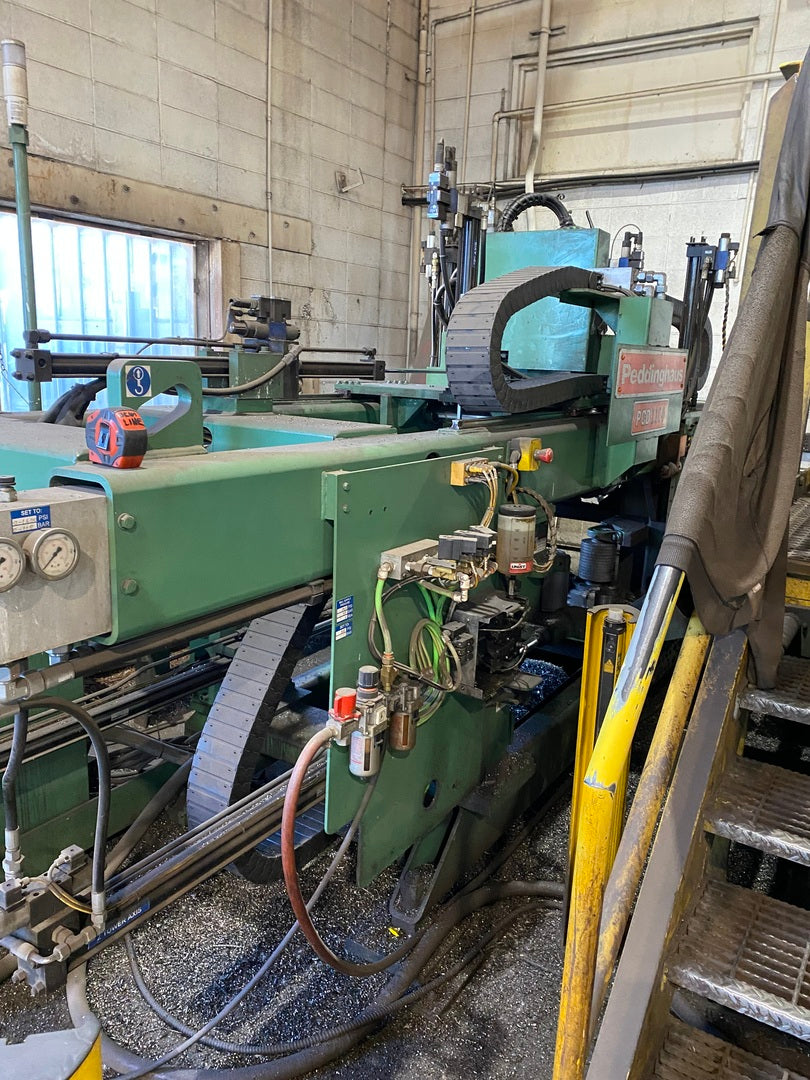

PEDDINGHAUS PCD 1100/3B Advantage CNC Three-Spindle Drill Line w/ Conveyor & Transfer System
PEDDINGHAUS

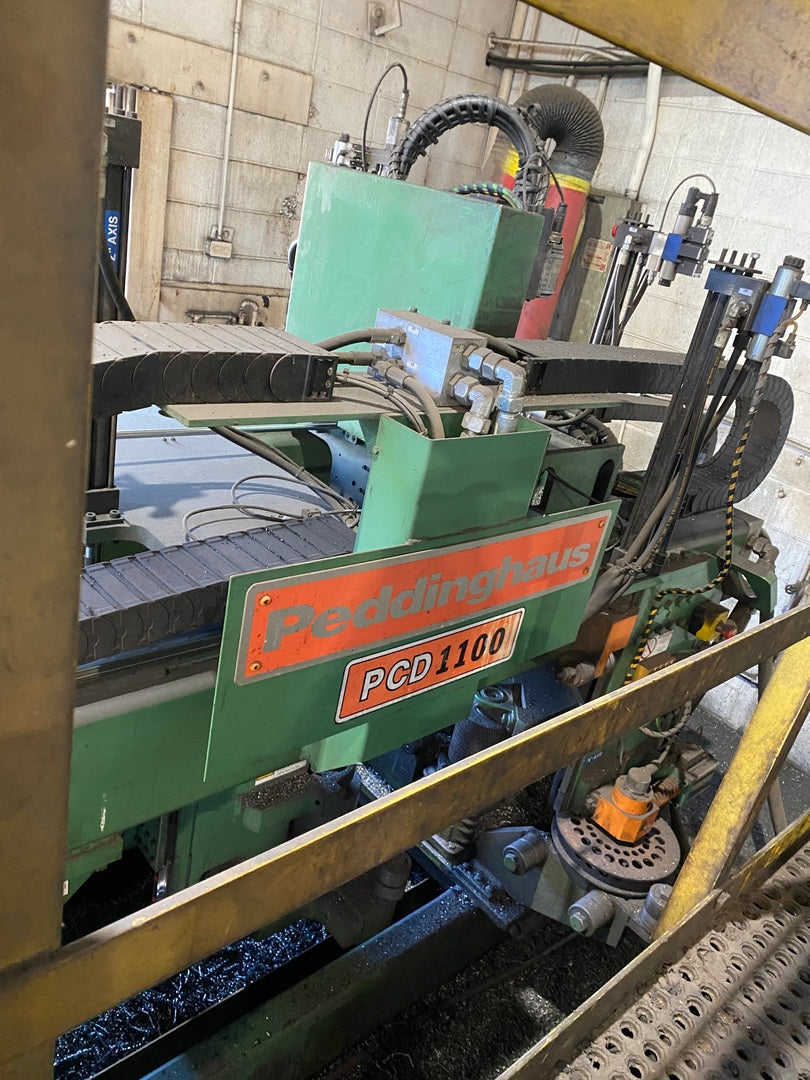

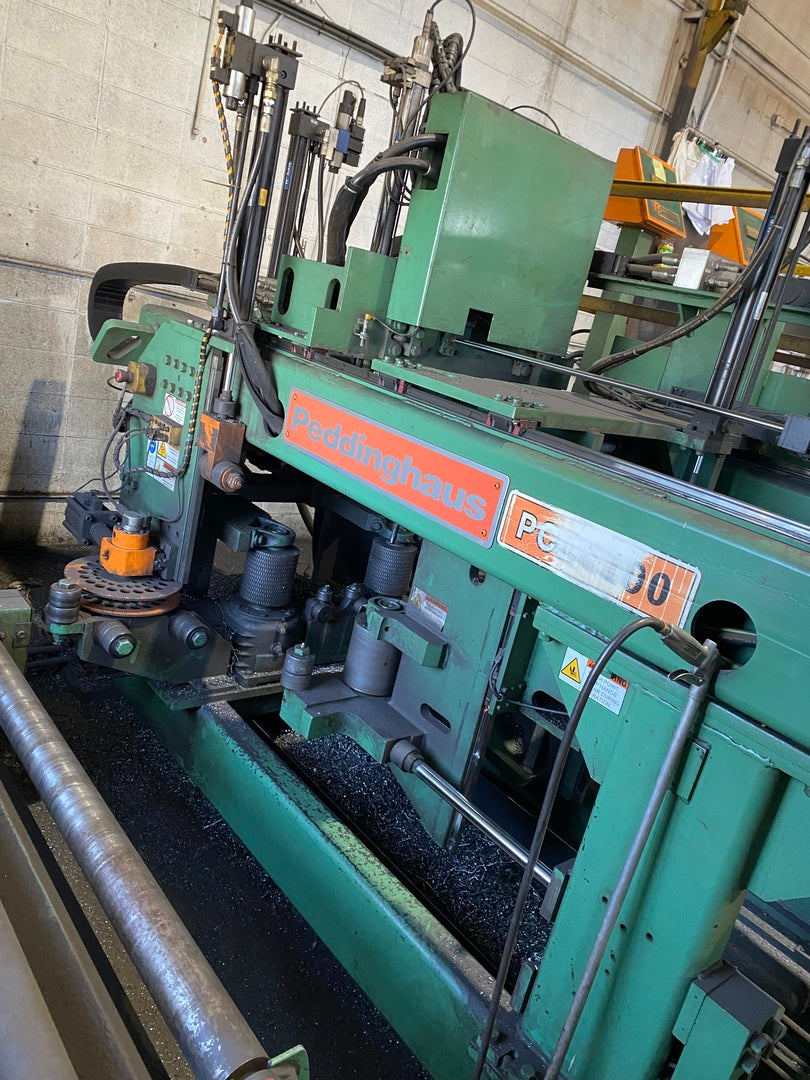

PCD 1100/3B Advantage CNC Three-Spindle Drill Line w/ Conveyor & Transfer System

SKU: 159135
Condition: Used
Year: 2015
Price:
$99,500 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance
Looking for more CNC Machines?
Browse all CNC Machines →

Description

Click for Fulfilment Info
Specifications

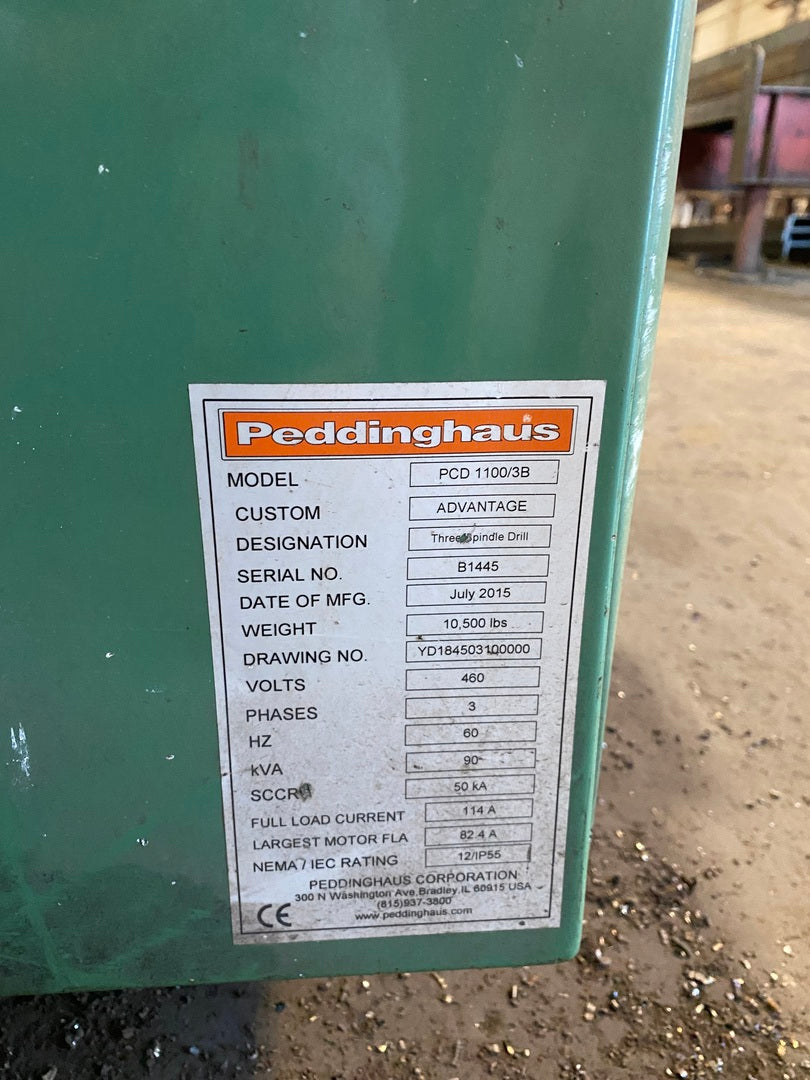

Model PCD 1100/3B Advantage
Year: 2015
S/N: B1445
Condition Used
Electrical
Voltage 460 volts
Phase 3-phase
Other Specifications

PDF PCD 1100/3B MANUAL

Additional Manuals Compilation Link

Part Drawings Compilation Link


General Ratings

Power: 90 kVA

SCCR: 50 kA

Full Load Current: 114 A

Largest Motor FLA: 82.4 A

NEMA / IEC Rating: 12 / IP55

Machine Weight: 10,500 lbs

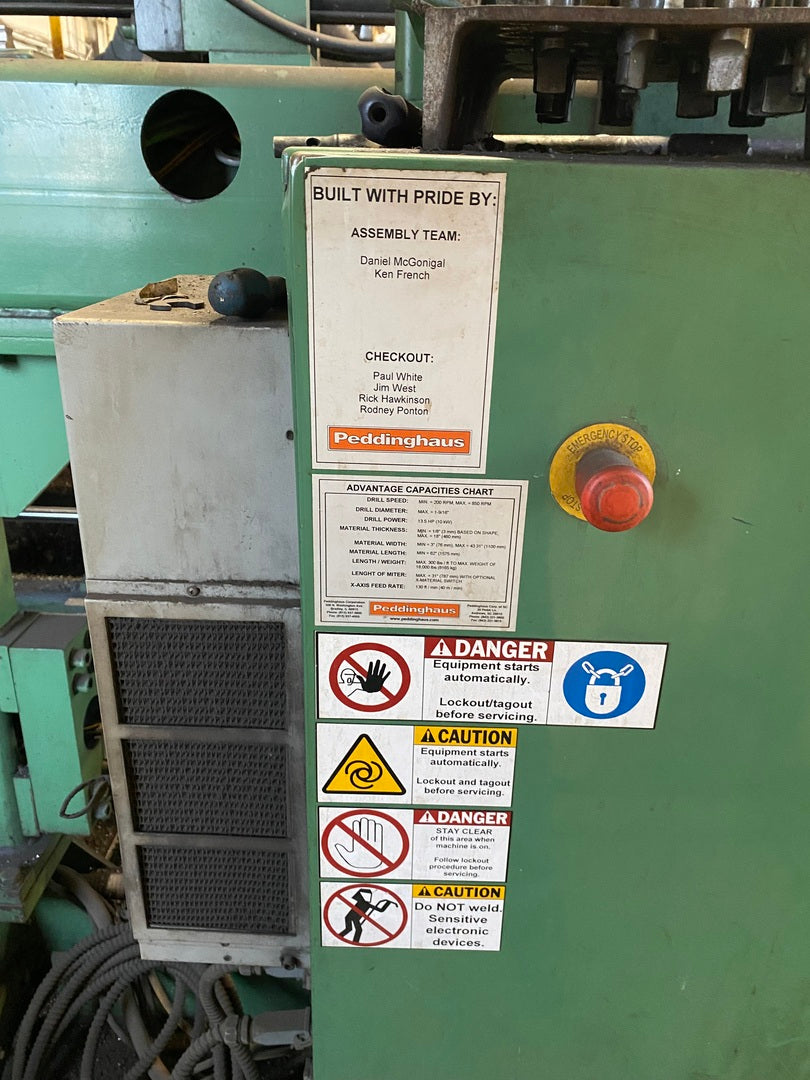

Advantage Capacities Chart

Drill Speed:

  1. Min. 200 rpm
  2. Max. 850 rpm

Drill Diameter: Max. 1-9/16"

Drill Power: 13.5 hp

Material Thickness:

  1. Min. 1/8" (3 mm) Based on shape
  2. Max. 18" (460 mm)

Material Width:

  1. Min. 3" (76 mm)
  2. Max. 43.31" (1100 mm)

Material Length: Min. 62" (1575 mm)

Length/Weight: Max. 300 lbs/ft. to max weight of 18,000 lbs (8165 kg)

Length of Miter: Max. 31" (787 mm) with optional X-material switch

X-Axis Feed Rate: 130 ft./min (40 m/min)


Web & Flange Assembly Specs

Max. Horizontal Travel Speed: 100 ft./min

Max. Web Travel Speed: 66 ft./min

Max. Flange Travel Speed: 66 ft./min

Available Horizontal Clamping Force: 400 - 5000 lbs


Drill Spindle Specs

Number of Drill Spindles: 3

Drill Spindles per Axis: 1

Power Per Spindle: 13.5 hp

Spindle Travel: 13"

Drill Spindle Rapid Advance Speed: 192"/min

Variable Feeds (Individually for every spindle controlled by CNC): 2 - 10 in./min


Additional Notes

  1. Saw Not Included

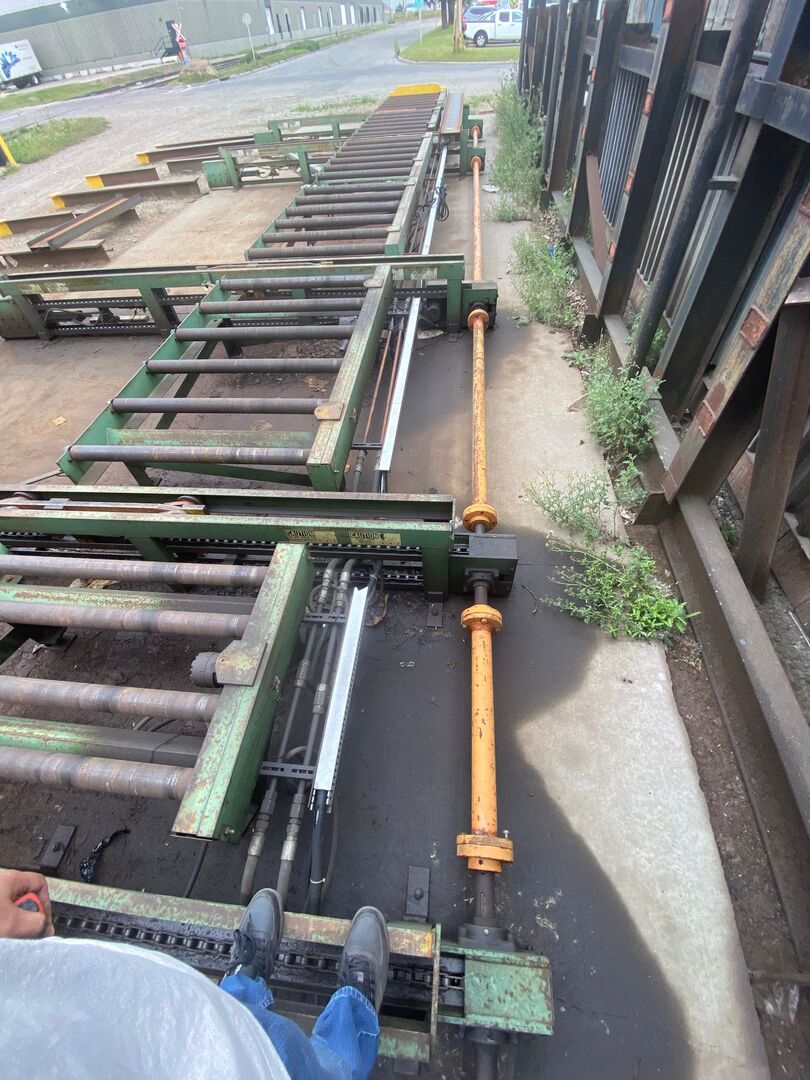

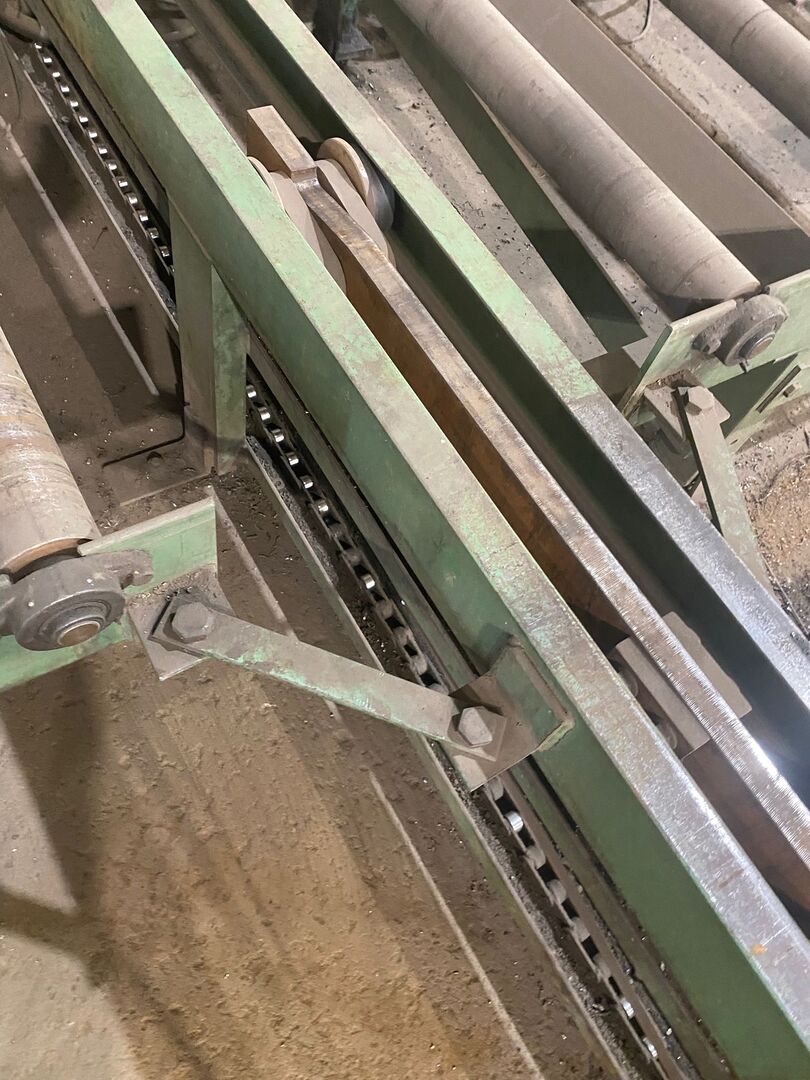

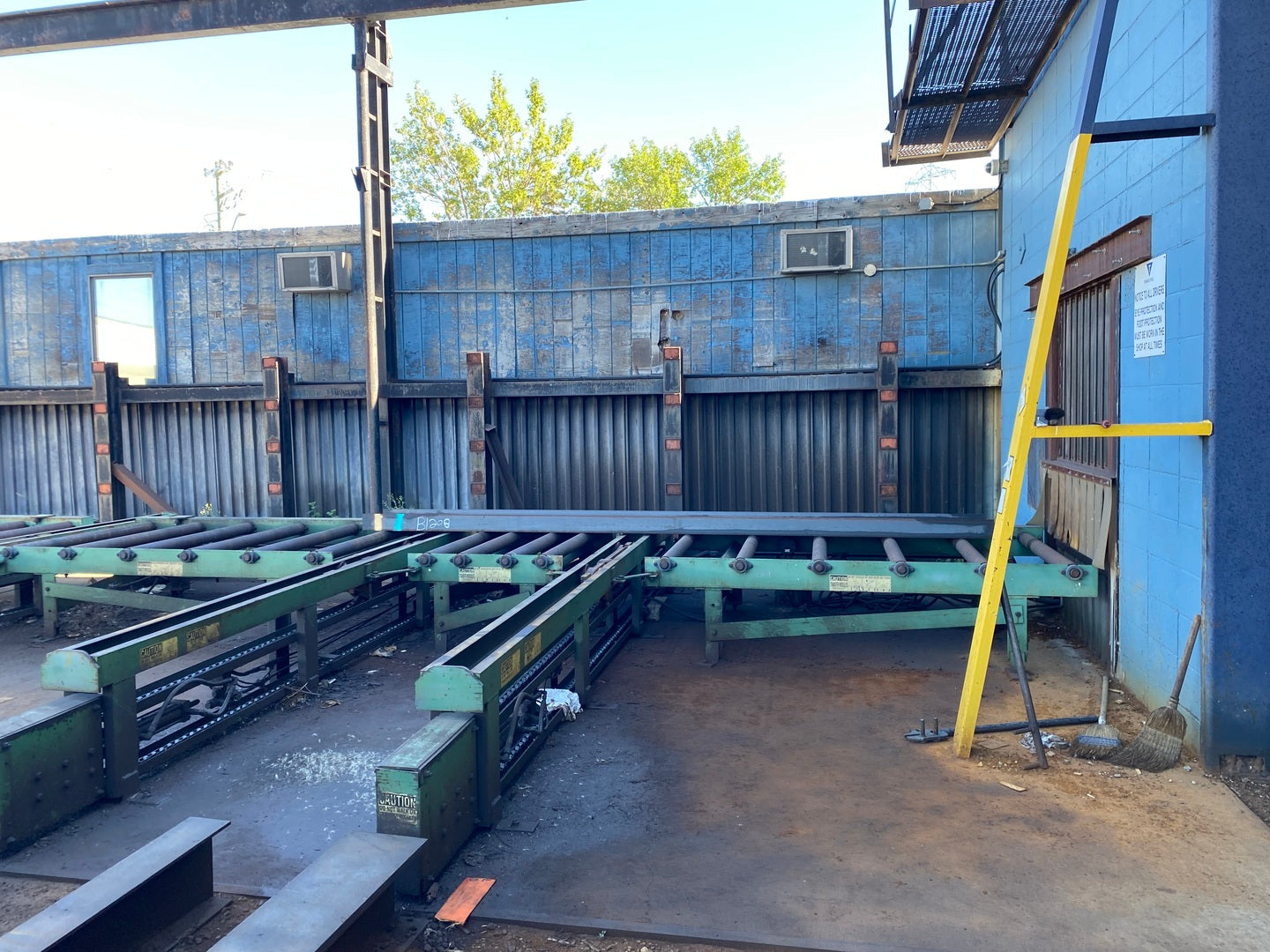

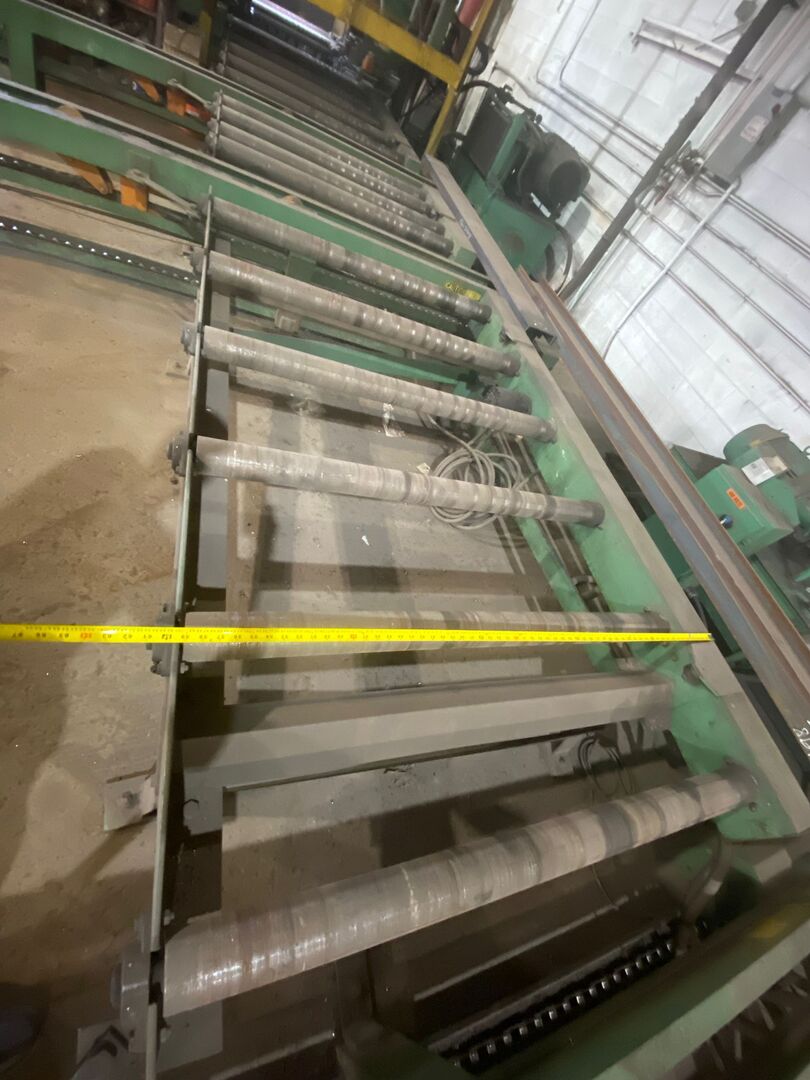

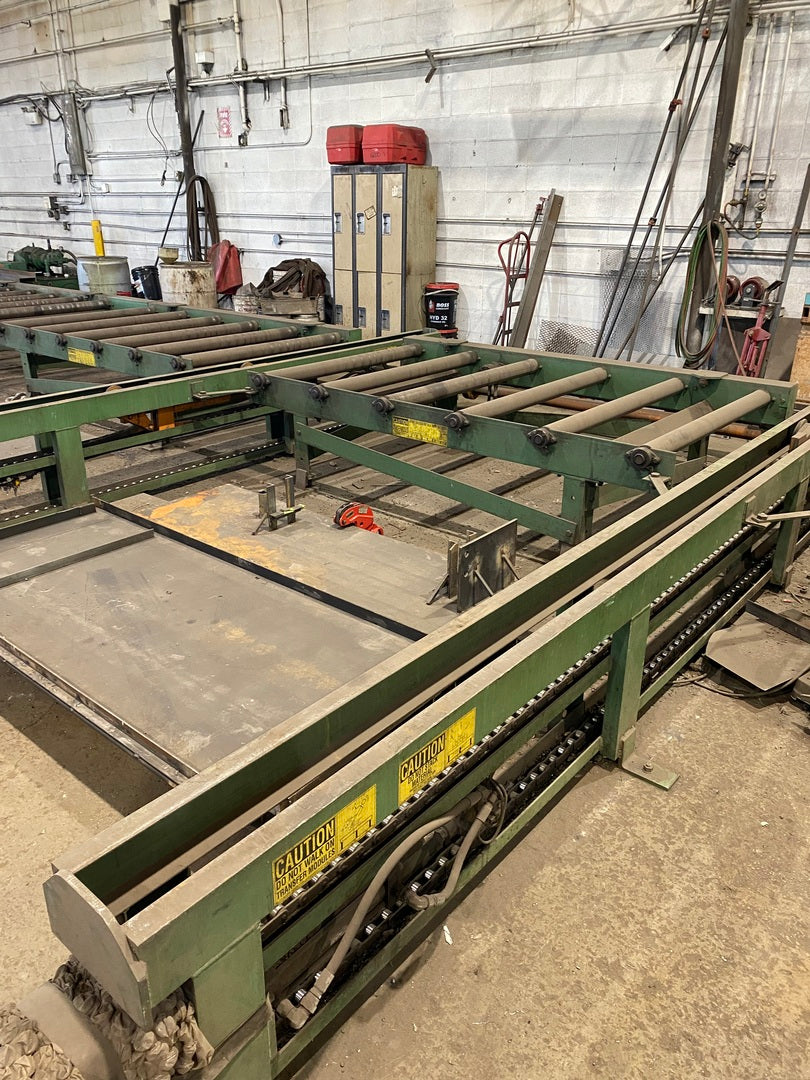

  2. Includes Conveyor System

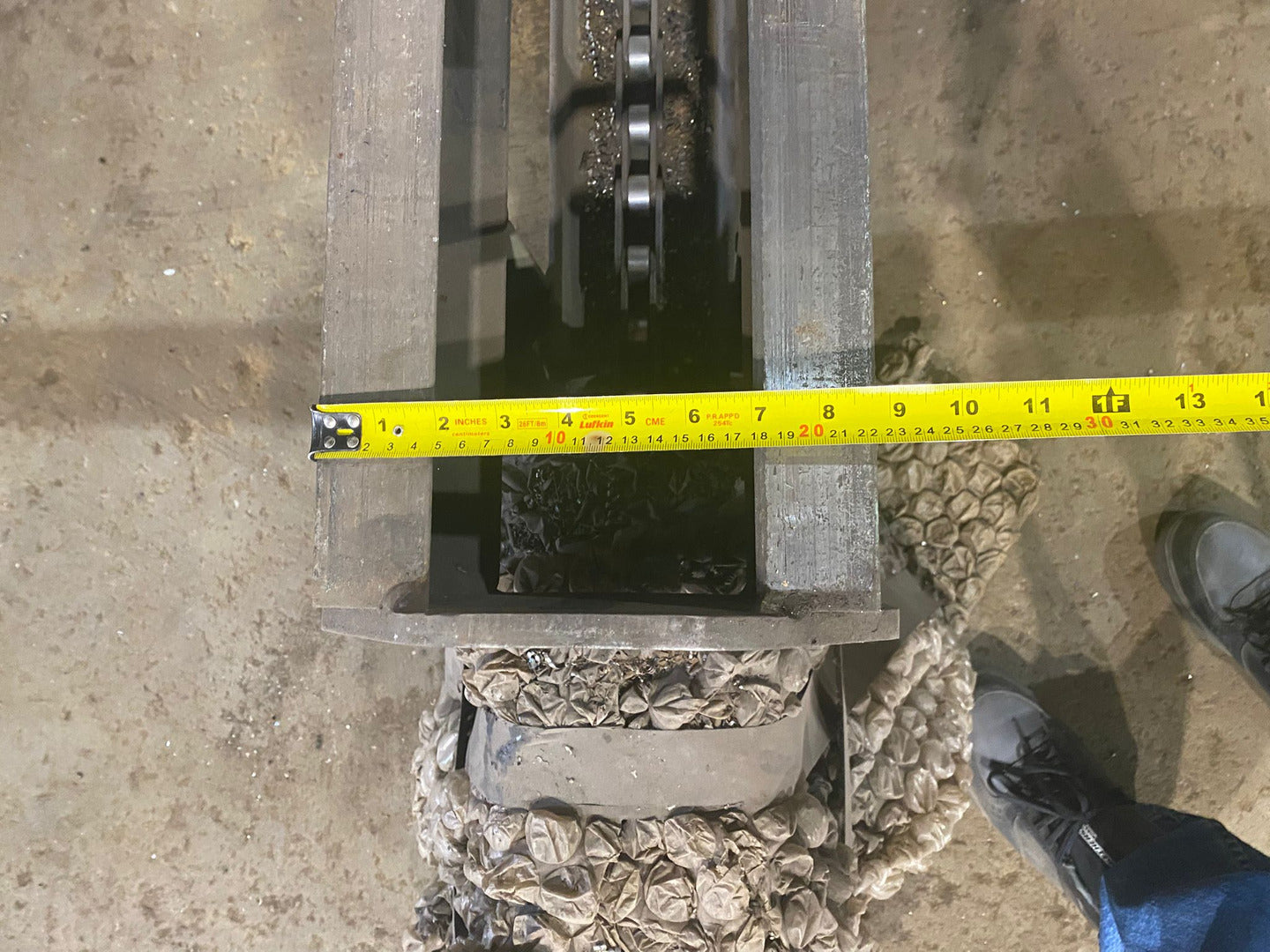

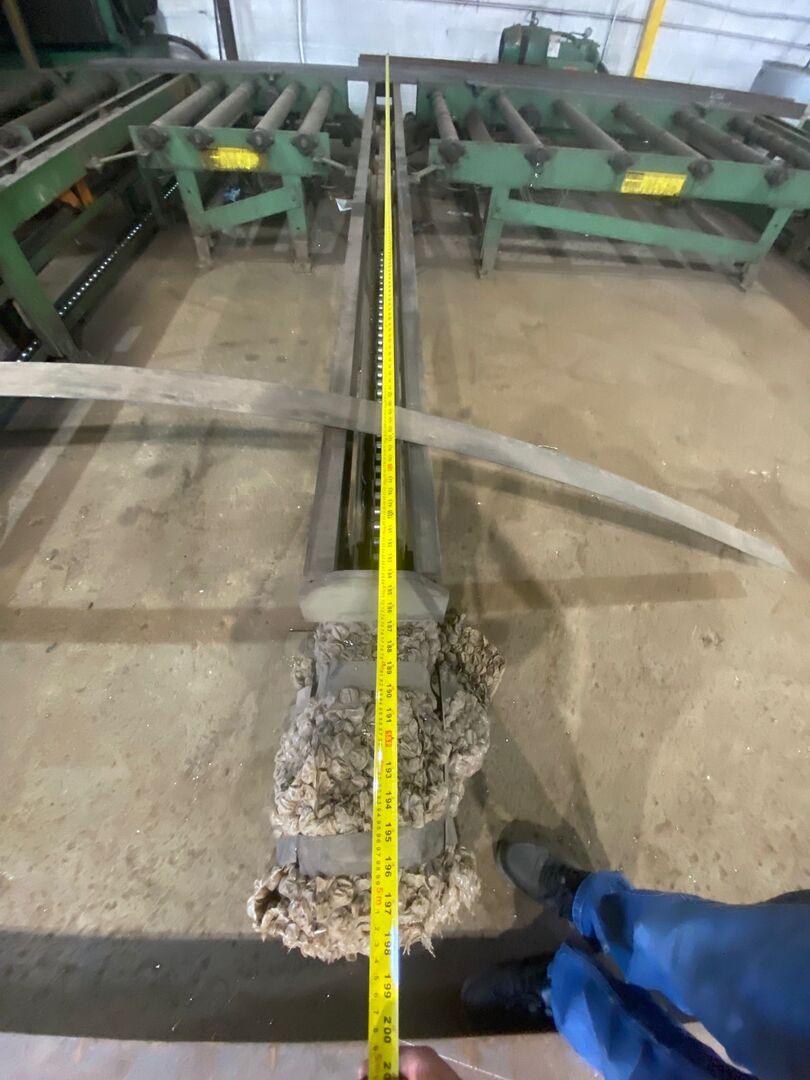

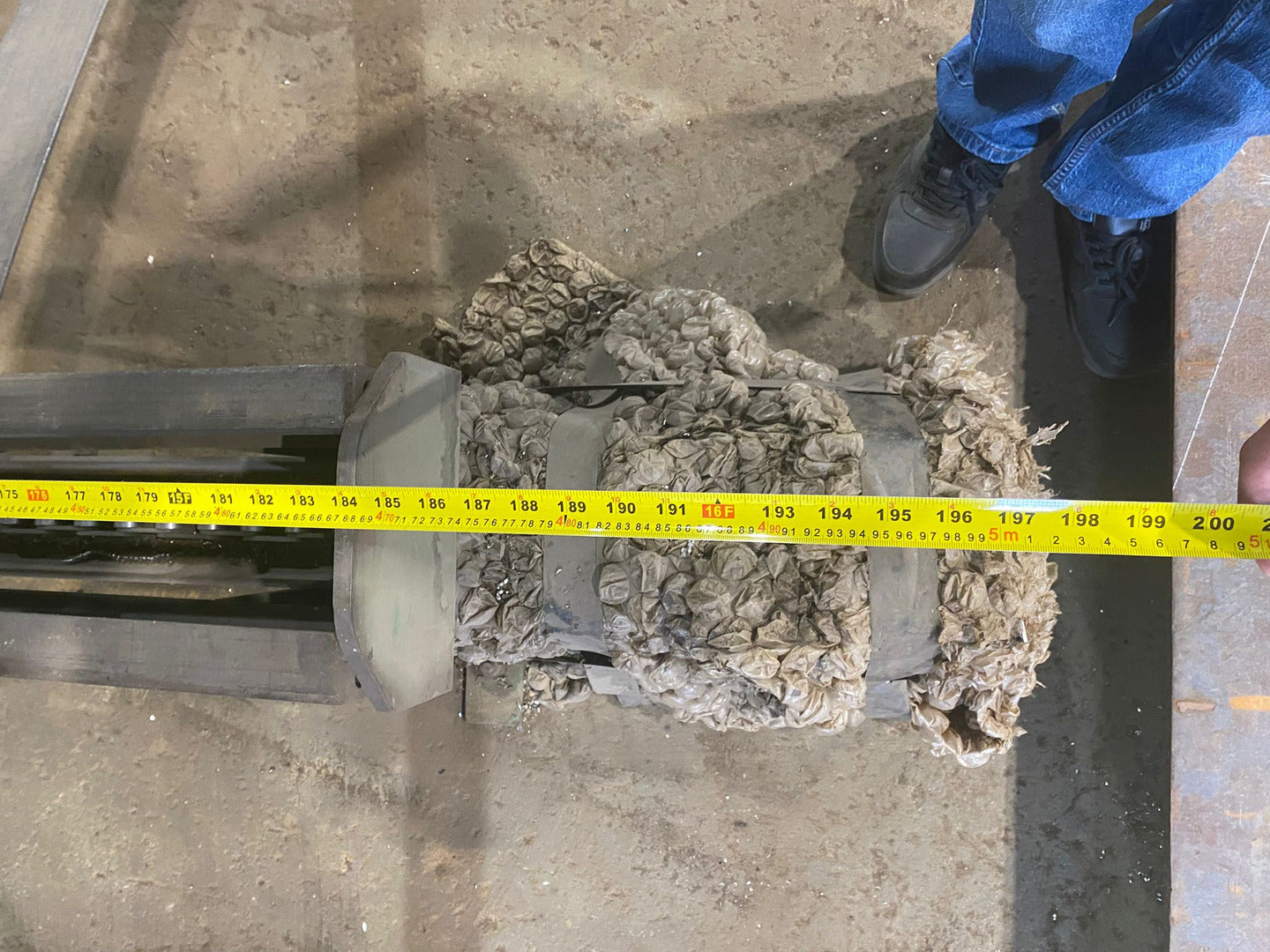

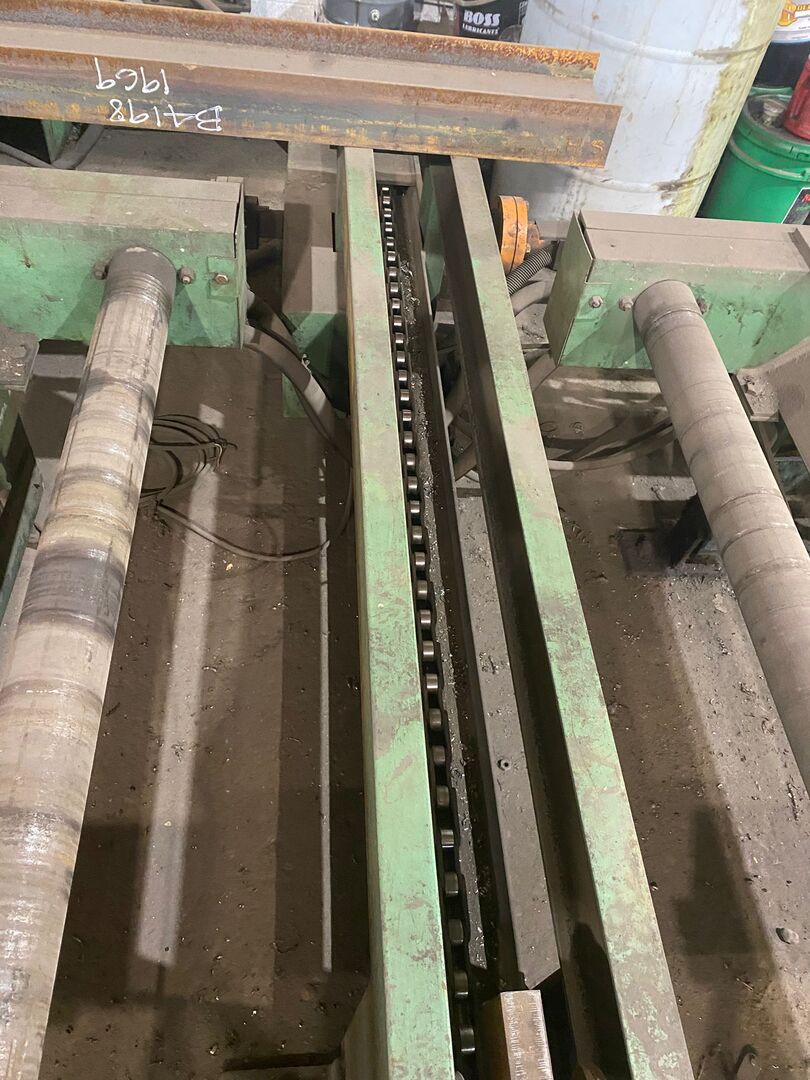

  3. Includes Transfer System
  4. Includes Hydraulic Power Equipment
  5. Approximate Transport Length: 14 ft.
  6. Approximate Transport Width: 6 ft.
  7. Approximate Transport Height: 8.5 ft.
