Description

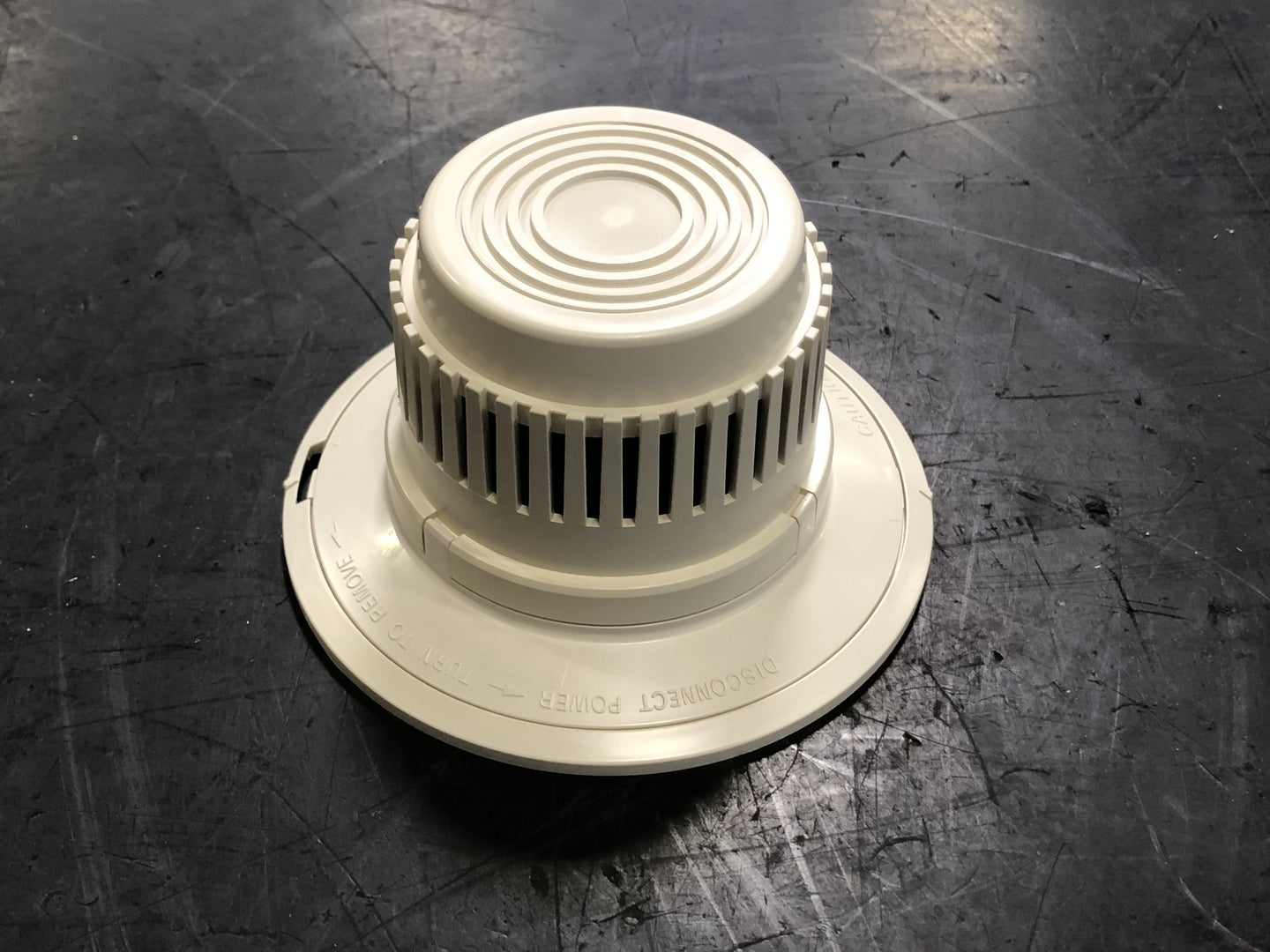

The SD800 series photoelectronic smoke detectors are designed to provide open area protection and to be used with compatible UL-listed 2-wire control panels. The sensors in these detectors operate on the light-scattering principle and feature a unique photo-optic sensing chamber that provides good smoke entry while minimizing the effects of ambient light.
| Specifications | |
|---|---|
| Model | SD800 |
| Made In | UNITED STATES |
| Condition | Surplus New | General |
| Equipment Type | smoke detector |
| Other Specifications |
|---|
|
Base Diameter: 5.50" Cover Height: 3.14" Cover Diameter: 3.30" Operating Temperature Range: 0 to 49 deg. C Operating Humidity Range: 10% to 85% relative humidity Visual Alarm Indicator: Solid-state light-emitting diode (LED) Voltage Range: 10-32 VDC Nominal Voltage: 24 VDC Current Limit (Standby-typical): 100 microAmps at 24 V Current Limit (Alarm Current): 10 - 300 milliAmps Accessories: 8468 A 066 Volume Control Kit
|
