Description

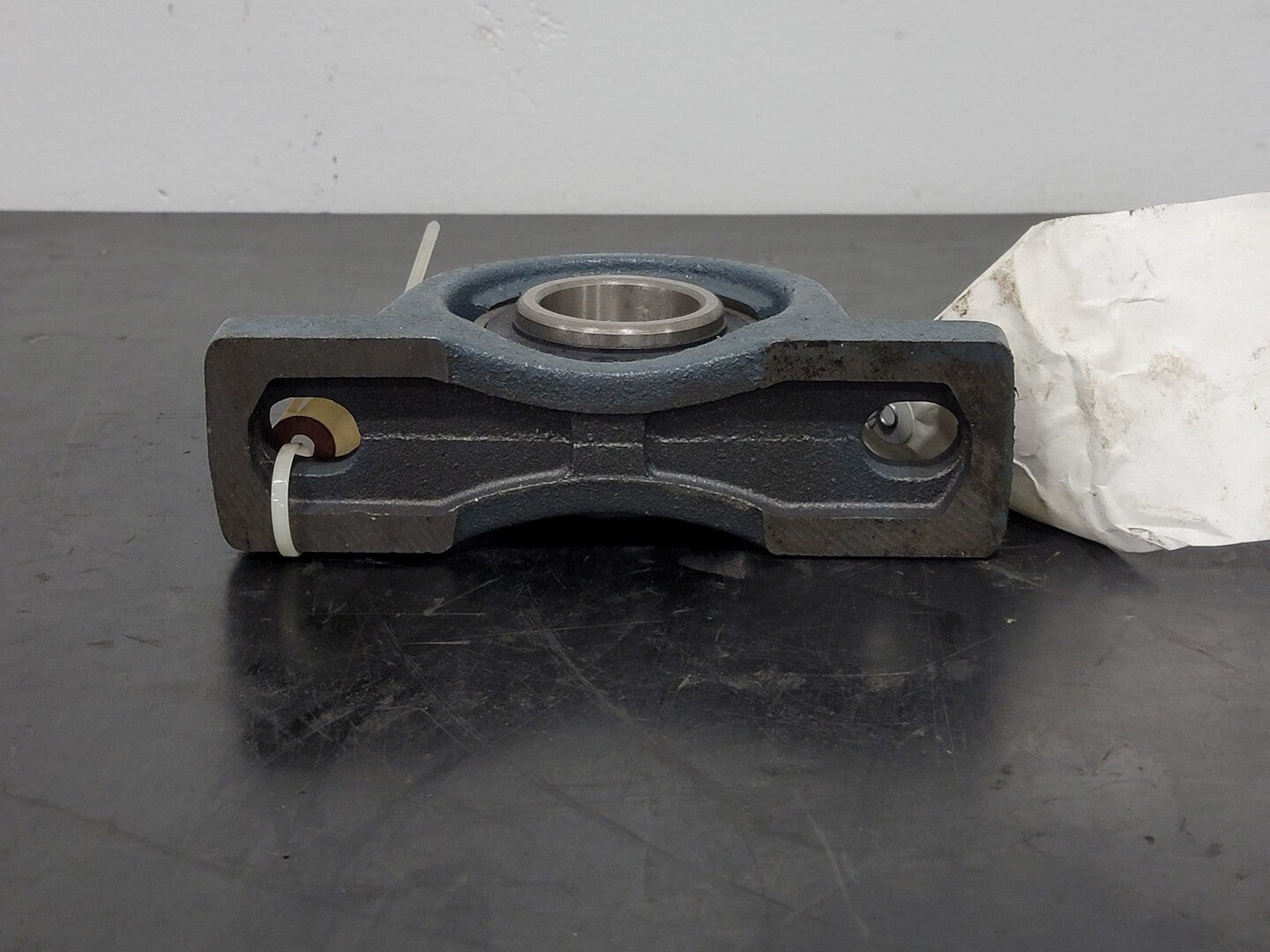

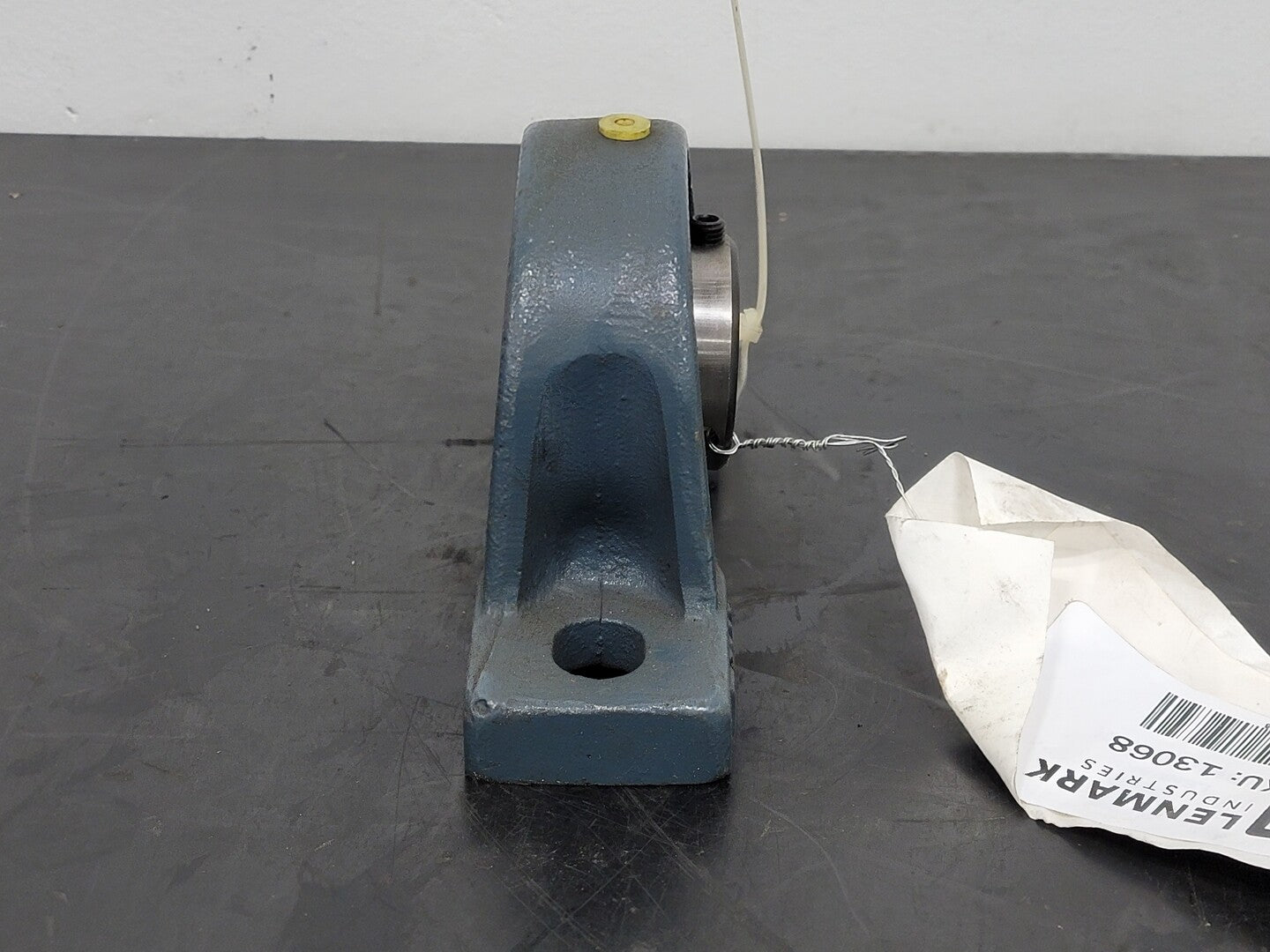

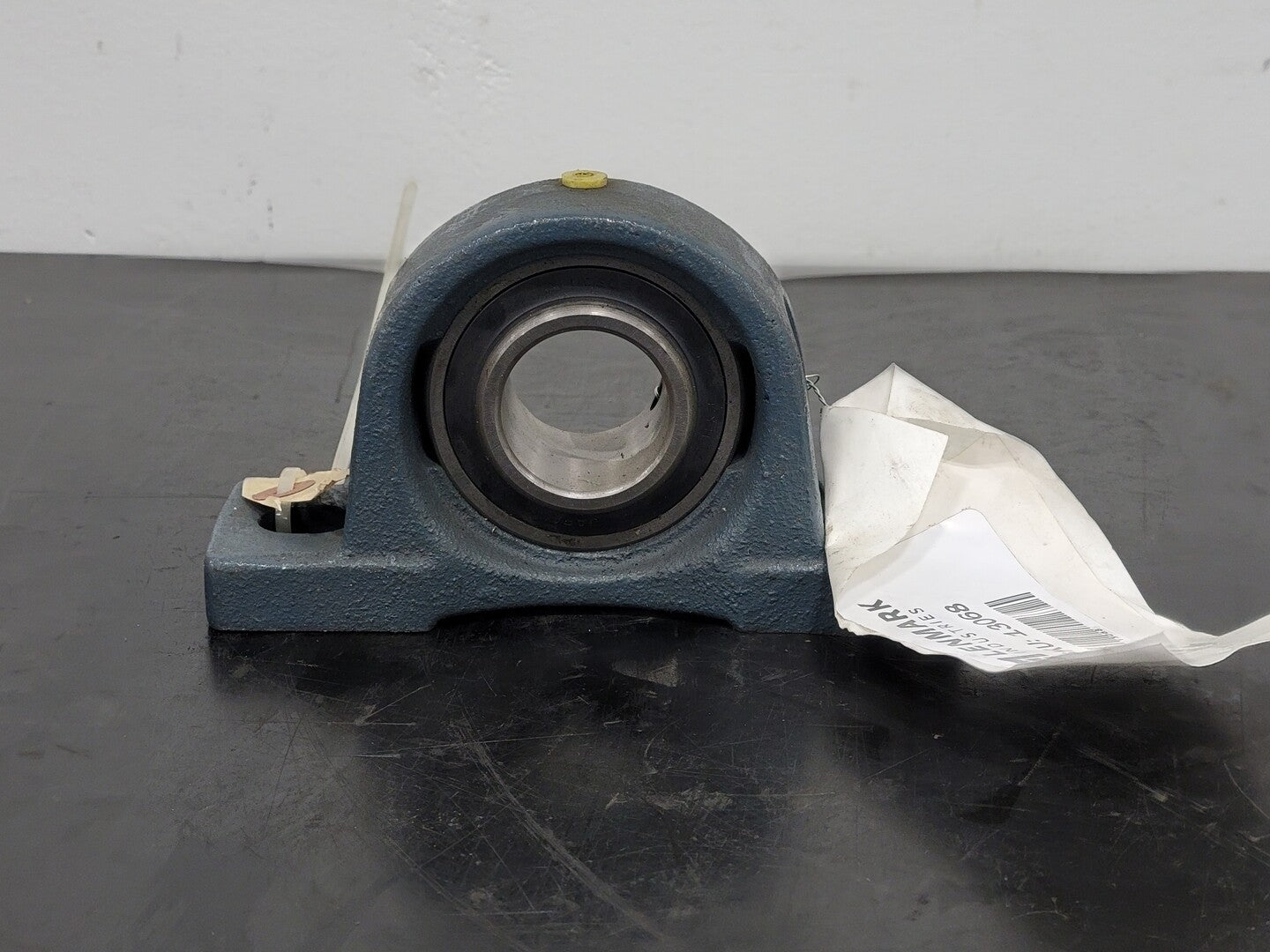

The Pillow Block Bearing UCP307 is a product manufactured by FYH. It is made of cast iron and is designed to mount with two bolts using a non-expansion type. The bearing has a set screw locking device. The dimensions of the pillow block include a height of 105 mm, an outside length of 210 mm, a base to bore centerline of 56 mm, and a distance between bolts of 160 mm. It is compatible with a 35 mm bore diameter and the UC307 bearing series/part. It is currently available in a quantity of 1.
| Specifications | |
|---|---|
| Model | UCP307 |
| Made In | JAPAN |
| Condition | Surplus New | General |
| Type | Pillow Block |
| Height | 105 mm/ 4.13 in |
| Outside Length | 210 mm/ 8.27 in |
| Base to Bore Centerline | 56 mm/ 2.205 in |
| Distance Between Bolts | 160 mm/ 6.3 in |
| Housing Compatible Bore Diameter | 35 mm/ 1.378 in |
| Compatible Bearing Series/Part # | UC307 |
| Other Specifications |
|---|
|
Length Thru Bore: 48 mm/ 1.89 in
Mounting: 2 Bolts, 1/2 in
Expansion Type: Non-Expansion
Material: Cast Iron
Locking Device: Set Screw
|
