Description
| Specifications | |
|---|---|
| Model | SJIII-3220 |

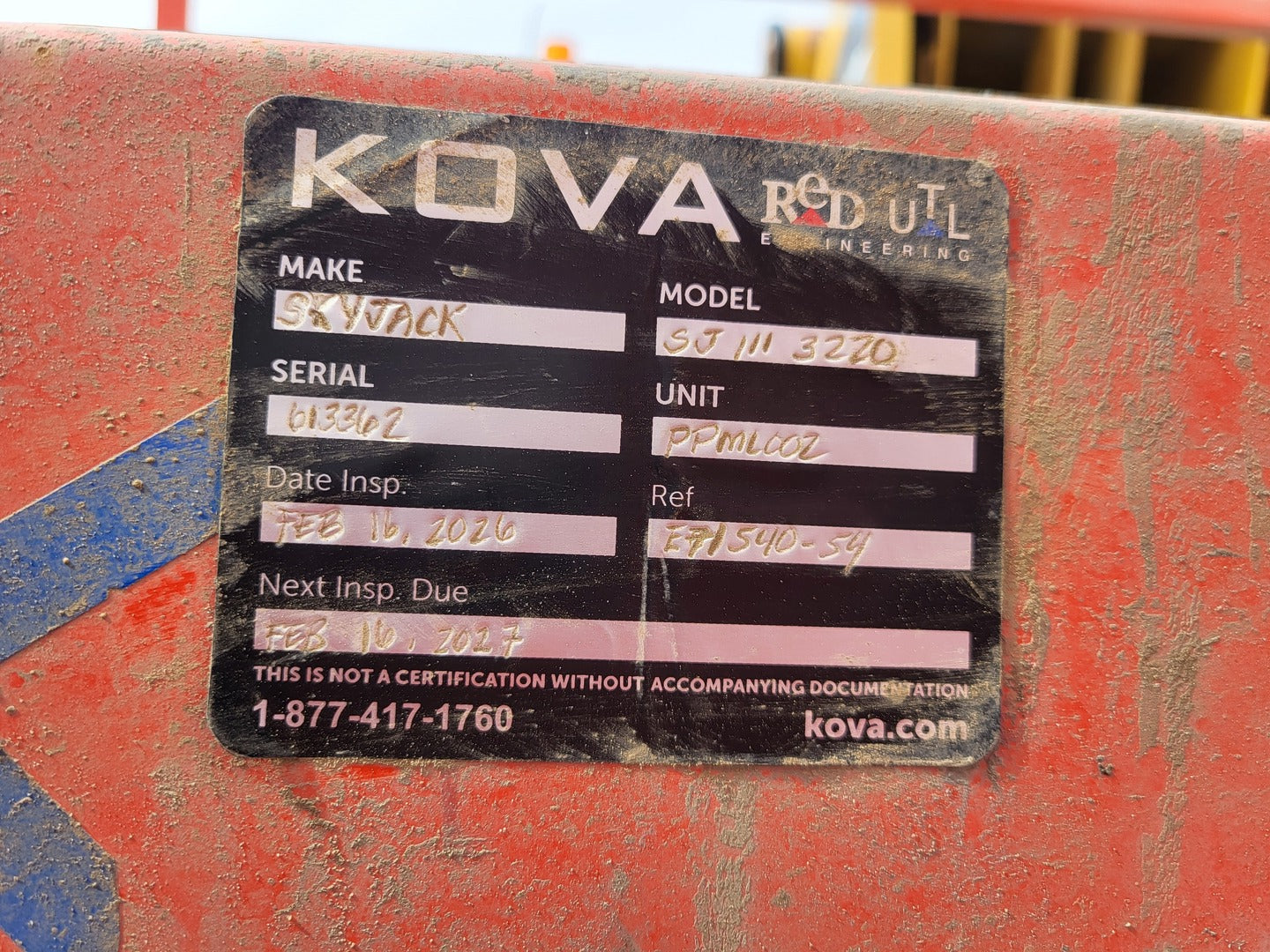

| S/N: | 613362 |
| Condition | Used | General |
| Max. Lift Capacity | 900 lb |
| Tires | Cushion |
| Fuel Type | Electric |
| Platform Size | 84" x 28" |
| Max. Lift Height | 20' |
| Other Specifications |
|---|
|

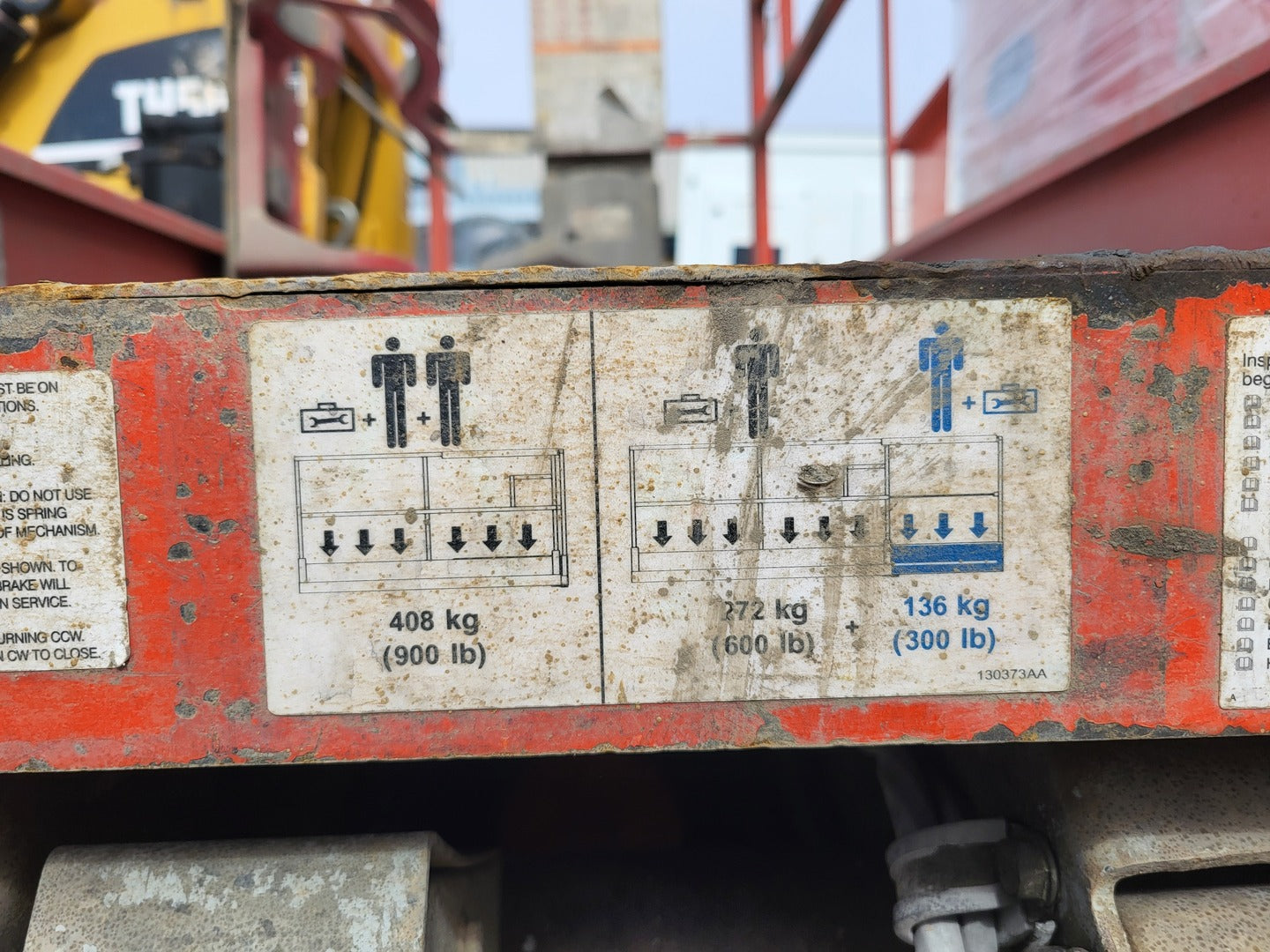

Work Height: 26' // 7.92 m Raised Platform Height: 20' // 6.10 m Lowered Platform Height: 38" // 0.97 m Overall Width: 32" // 0.81 m Overall Length: 91.5" // 2.32 m Stowed Height (Rails Up): 77.5" // 1.97 m Stowed Height (Rails Down): OPT 63.5" // 1.61 m Platform Width (Inside Dimension): 28" // 0.71 m Platform Length (Inside Dimension): 84" // 2.13 m Extension Deck (Roll Out): 3' // 0.91 m Ground Clearance (Stowed): 3.5" // 8.89 cm Ground Clearance (Raised): 0.75" // 1.90 cm Wheelbase: 69" // 1.75 m Gradeability: 30% Turning Radius (Inside): 50" // 1.27 m Turning Radius (Outside):108" // 2.74 m Lift Time (With Rated Load): 33 sec Lower time (With Rated Load): 29 sec Drive Speed (Stowed): 2 mph // 3.2 km/h Drive Speed (Raised): 0.7 mph // 1.1 km/h Maximum Drive Height: Full Height Capacity (Overall): 900 lbs // 408 kg Distributed Capacity (Main Platform): 600 lbs // 159 kg Distributed Capacity (Extension Deck): 300 lbs // 136 kg Local Floor Load (With Rated Load): 130 psi // 897 kPa Overall Floor Load (With Rated Load): 245 psf // 12 kPa Maximum # of Persons: 2 Wind Rating: 28 mph // 12.5 m/s Tire Type: Solid, N/M Tire Size: 16 x 5 x 12 |
