Description

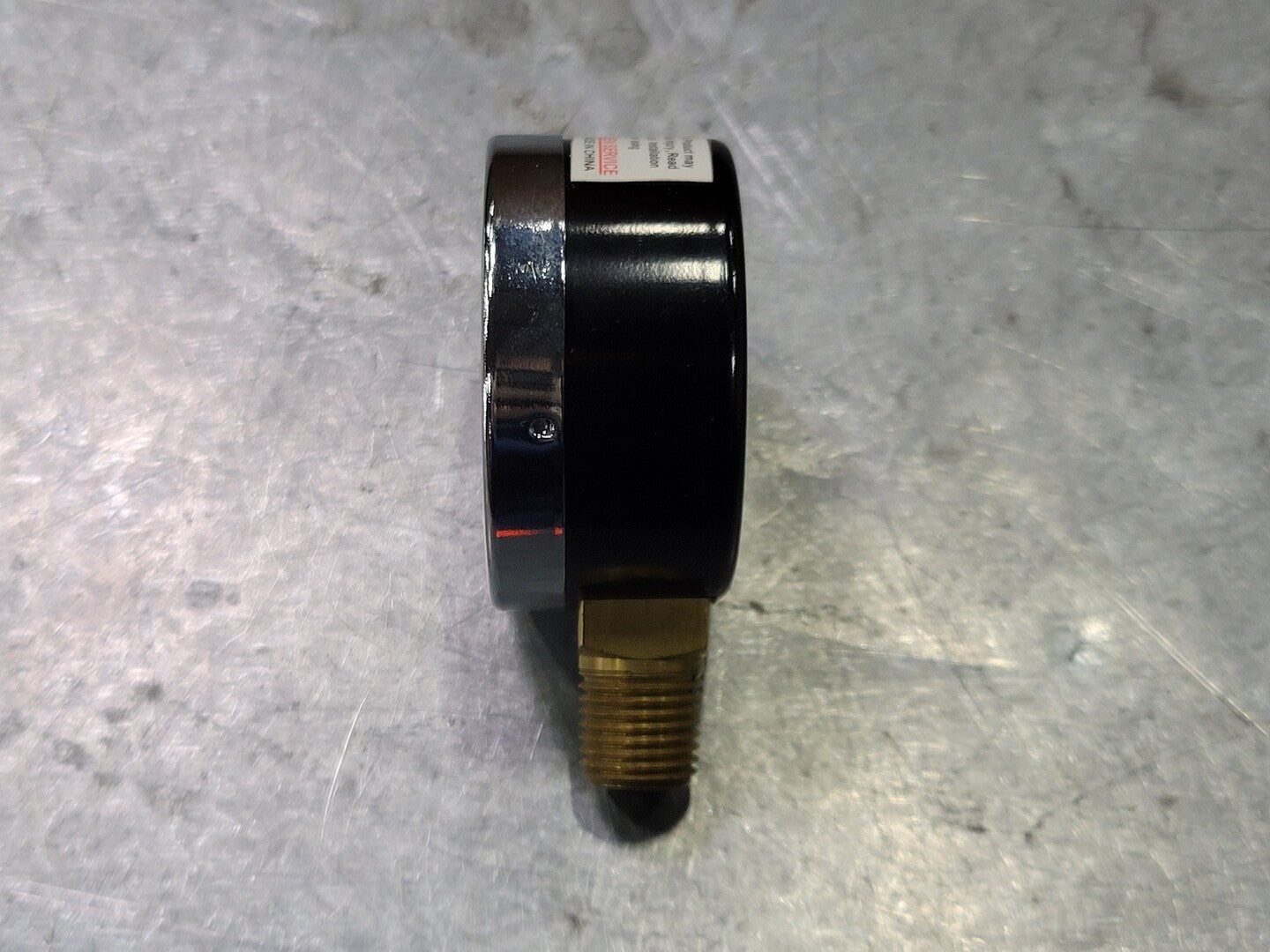

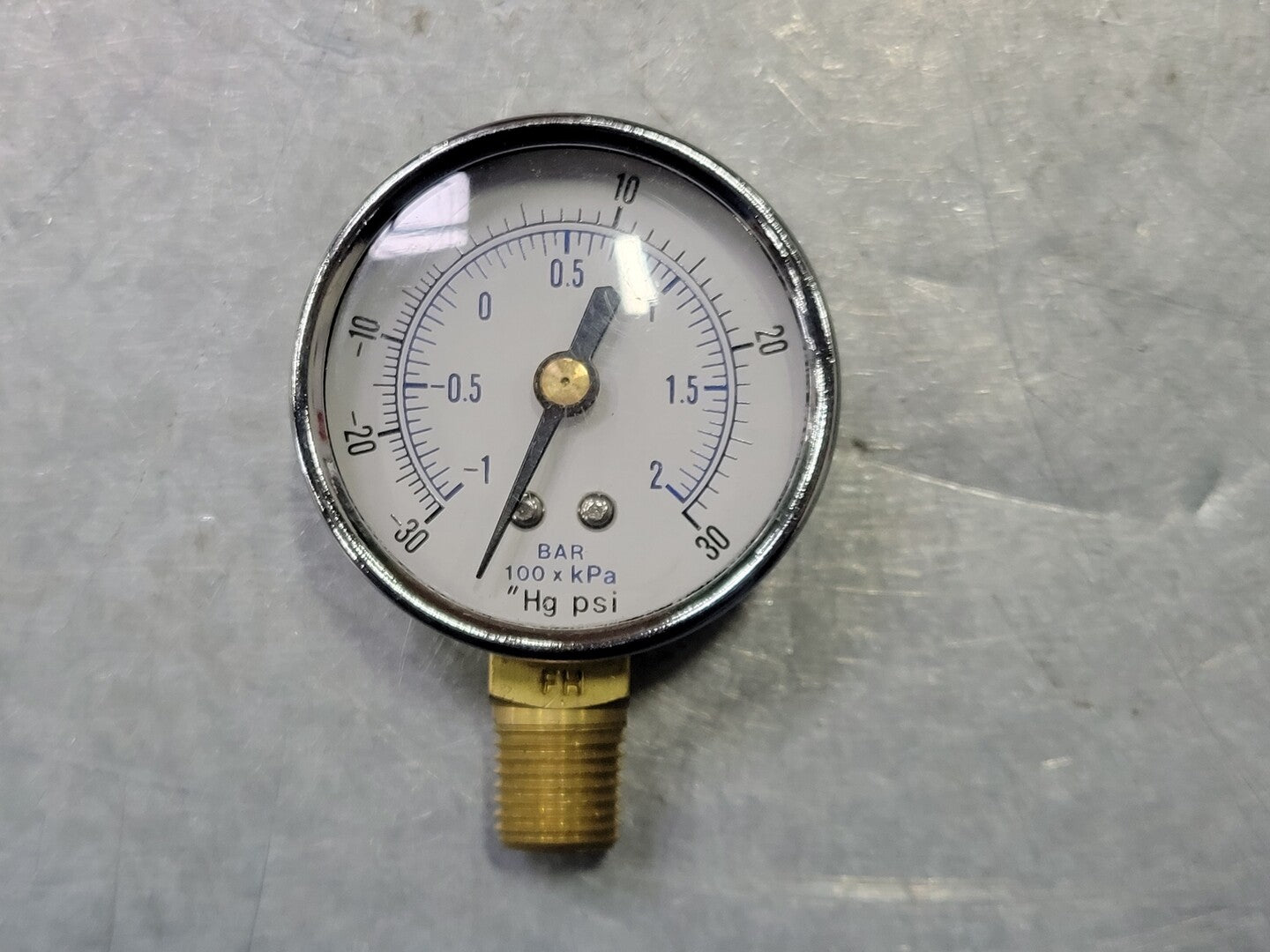

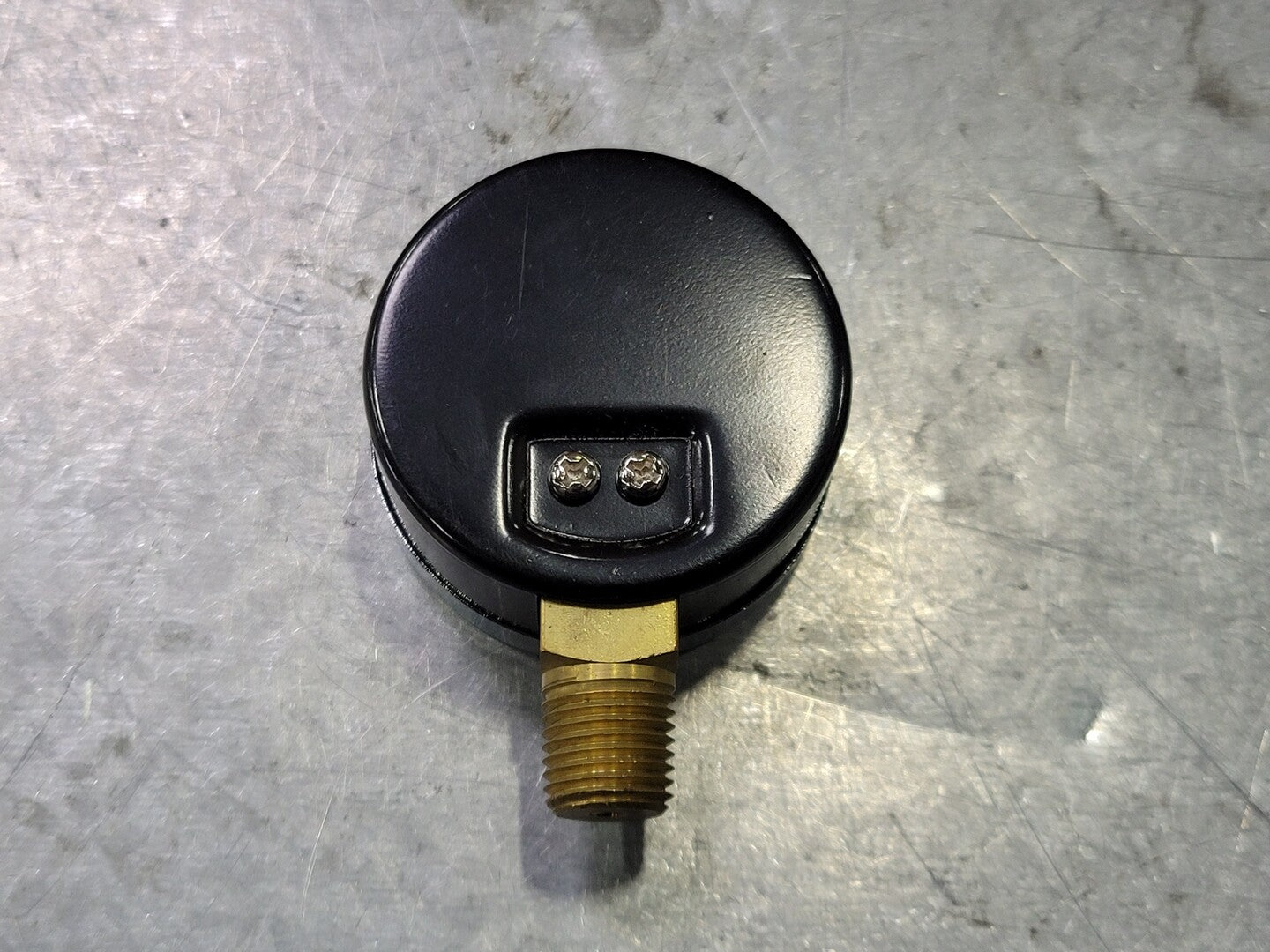

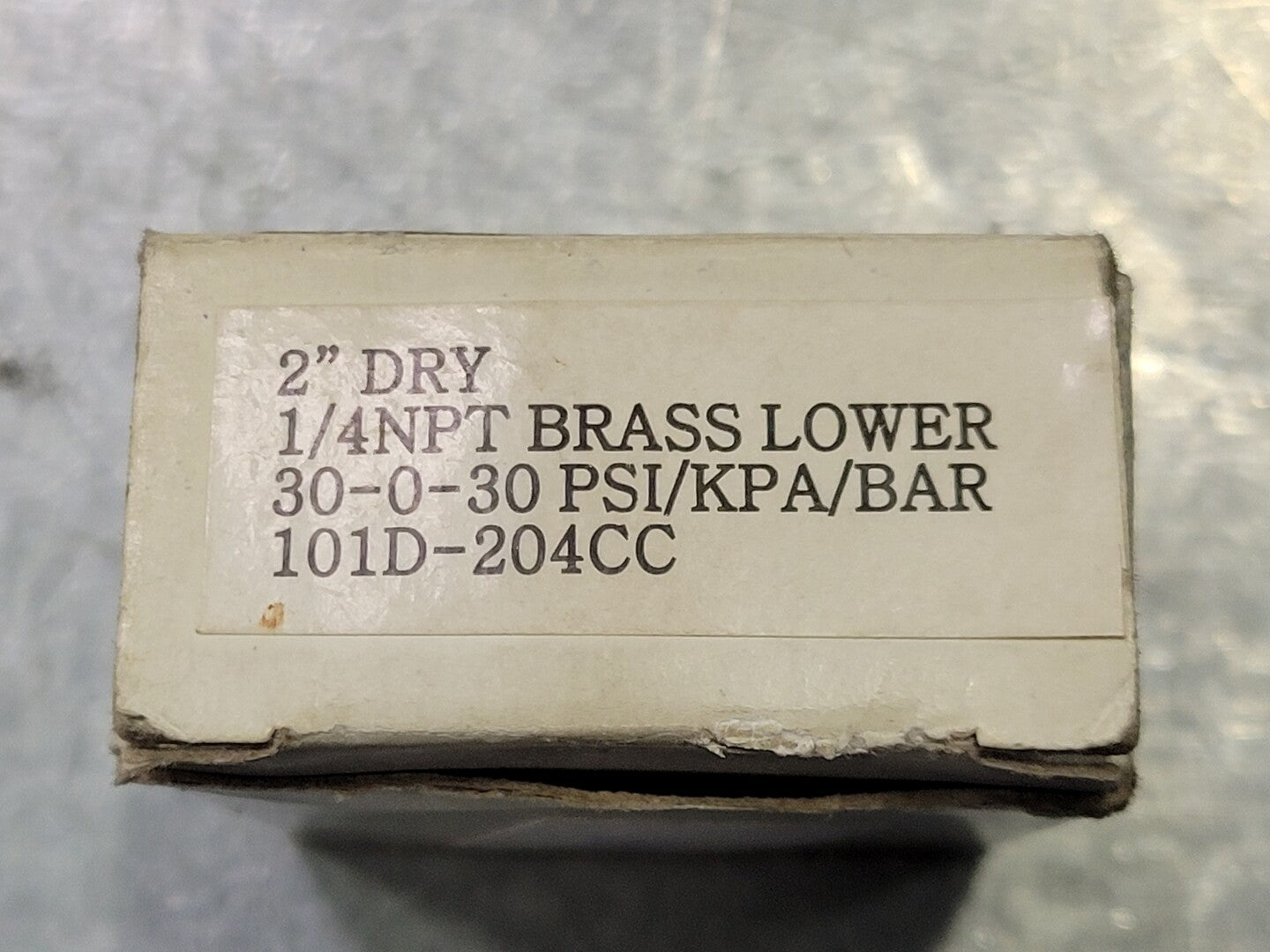

The Pressure Gauge 30-0-30 psi/kPa No. 101D-204CC is a 2-inch pressure gauge that can measure pressure in the range of 0-30 psi/2 bar. It has a 1/4" NPT brass connection and is made of steel. The gauge is designed for dry filling and has a lower mount for mounting purposes. It is part of the Gauges collection.
| Specifications | |
|---|---|
| Model | 101D-204CC |
| Condition | Surplus New | General |
| Gauge Type | Pressure |
| Filling | Dry |
| Pressure Rating | 30 psi | Weight + Dimensions |
| Size | 2" |
| Thread Size | 1/4" |
| Other Specifications |
|---|
|
Range: 30" Hg VAC/0/30 psi Case Material: Black Steel, dry non-fillable Wetted Parts: Copper Alloy Bezel: Chrome Plated Steel, Fixed Lens: Plastic Pointer: Black Aluminum Connection: Lower Mount (without special mounting hardware), 1/4" NPT Scale: Standard: psi/BAR (x100 = kPa) Accuracy: 3-2-3% of span, ASME B40.1 Grade B Ambient Temperature: -50 to 160 deg. F |
