Description

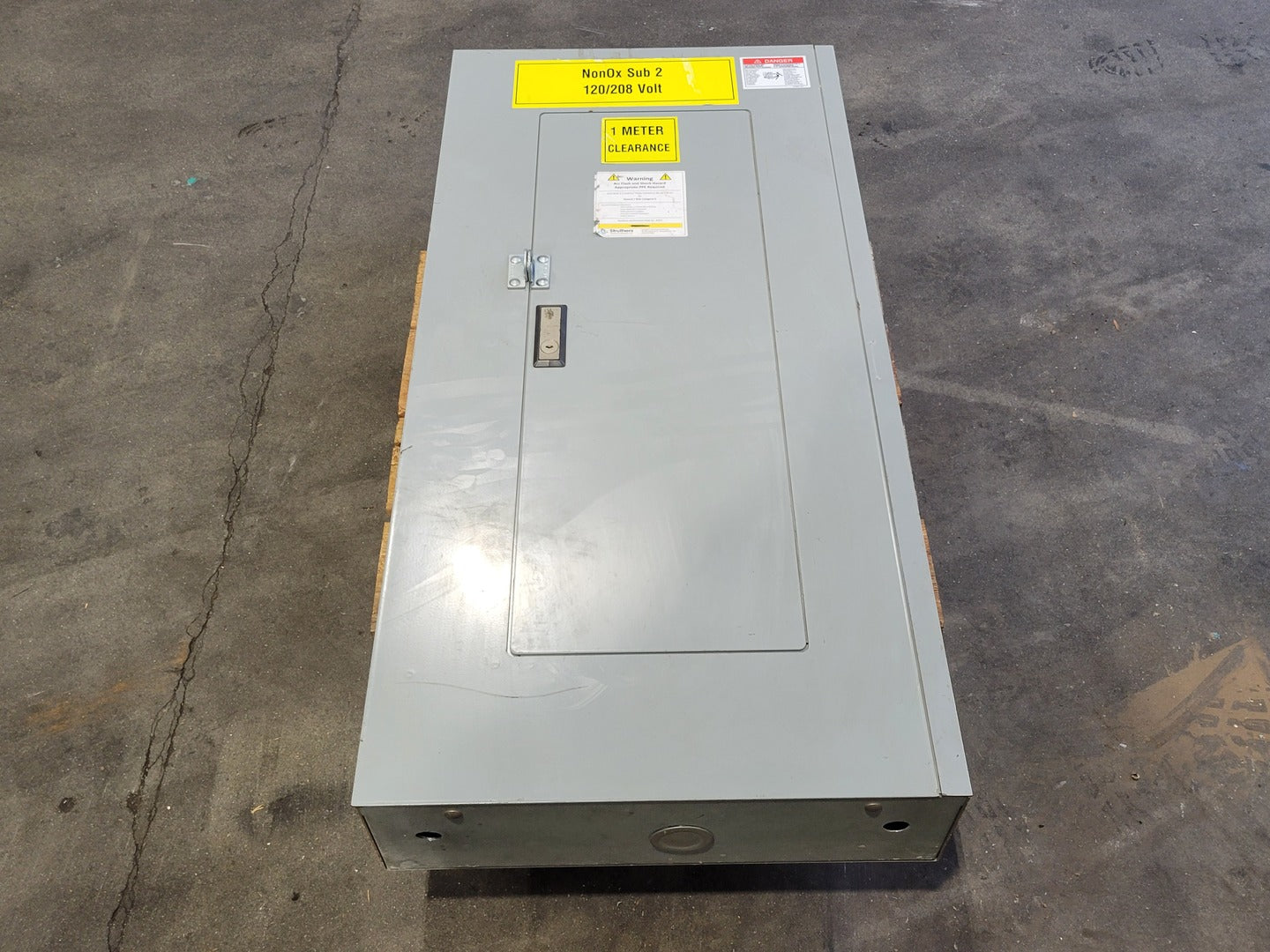

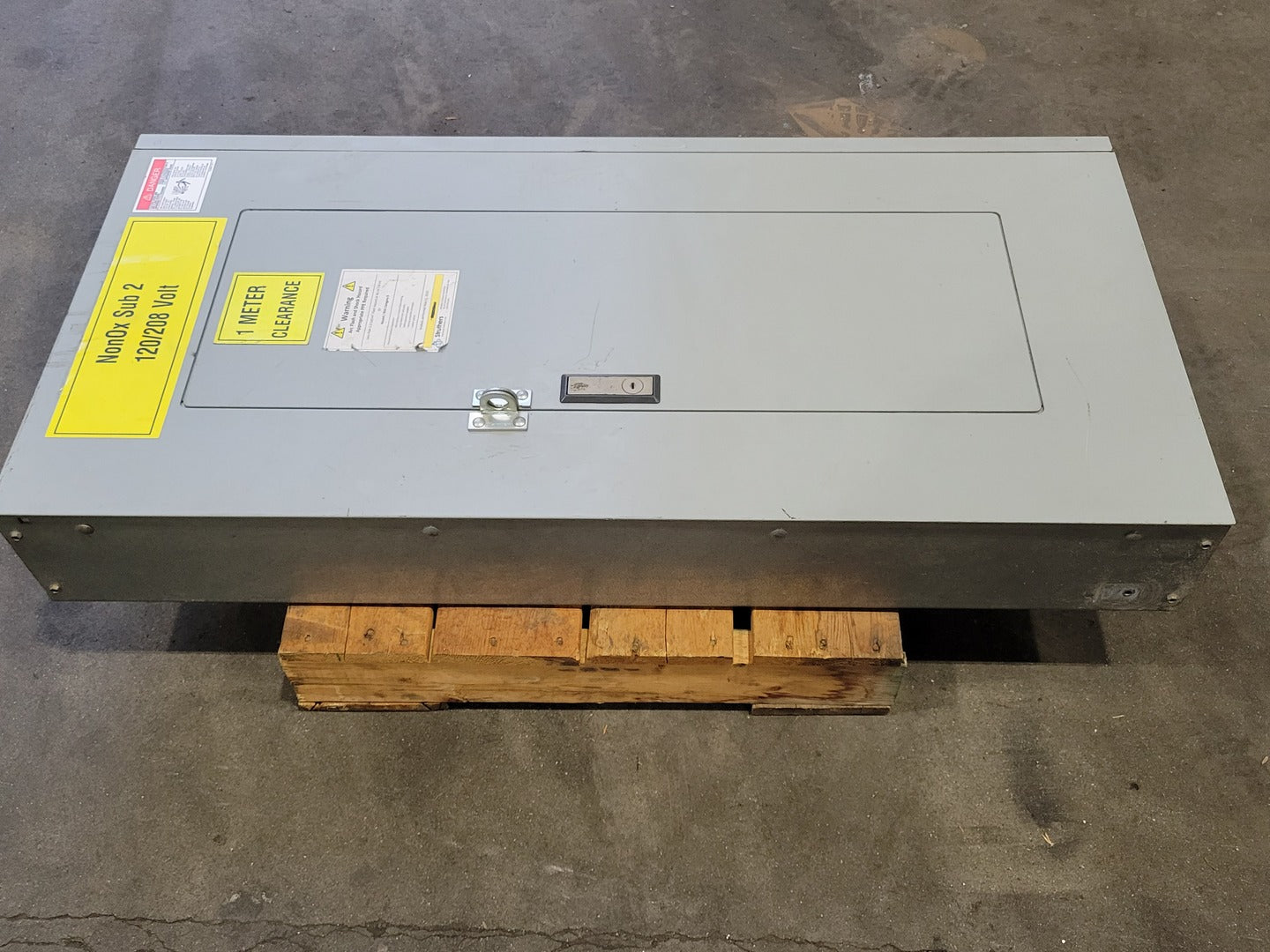

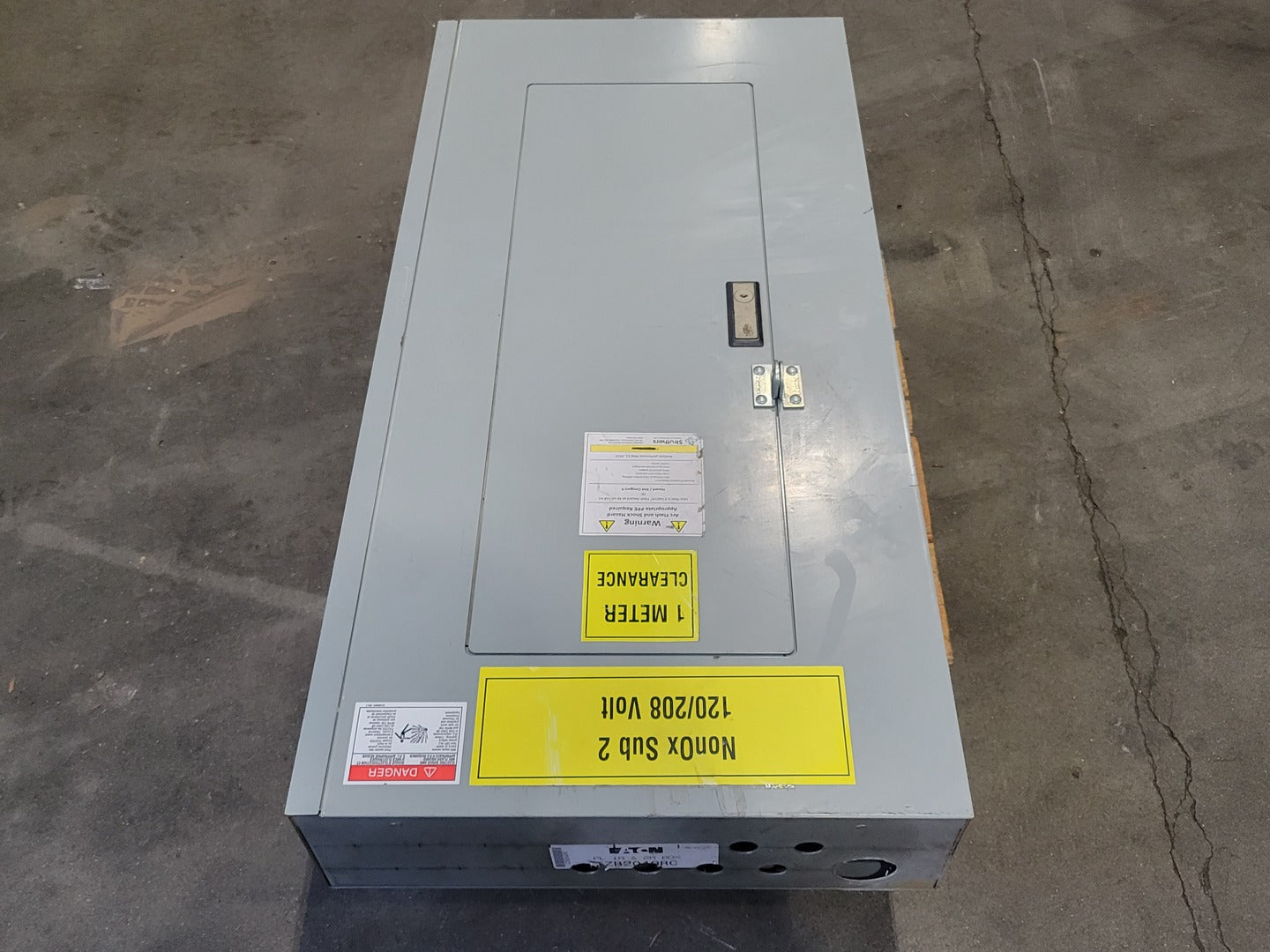

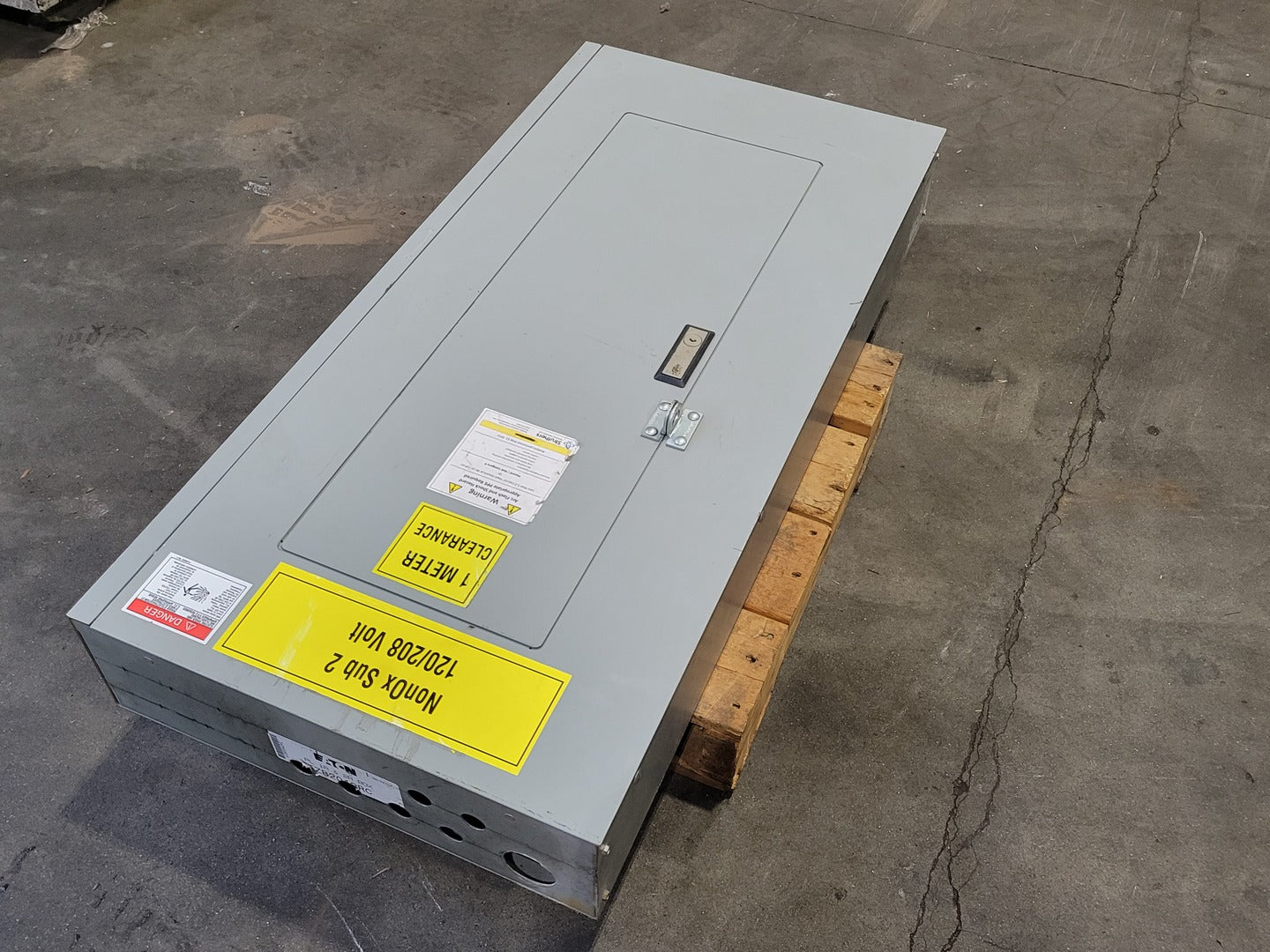

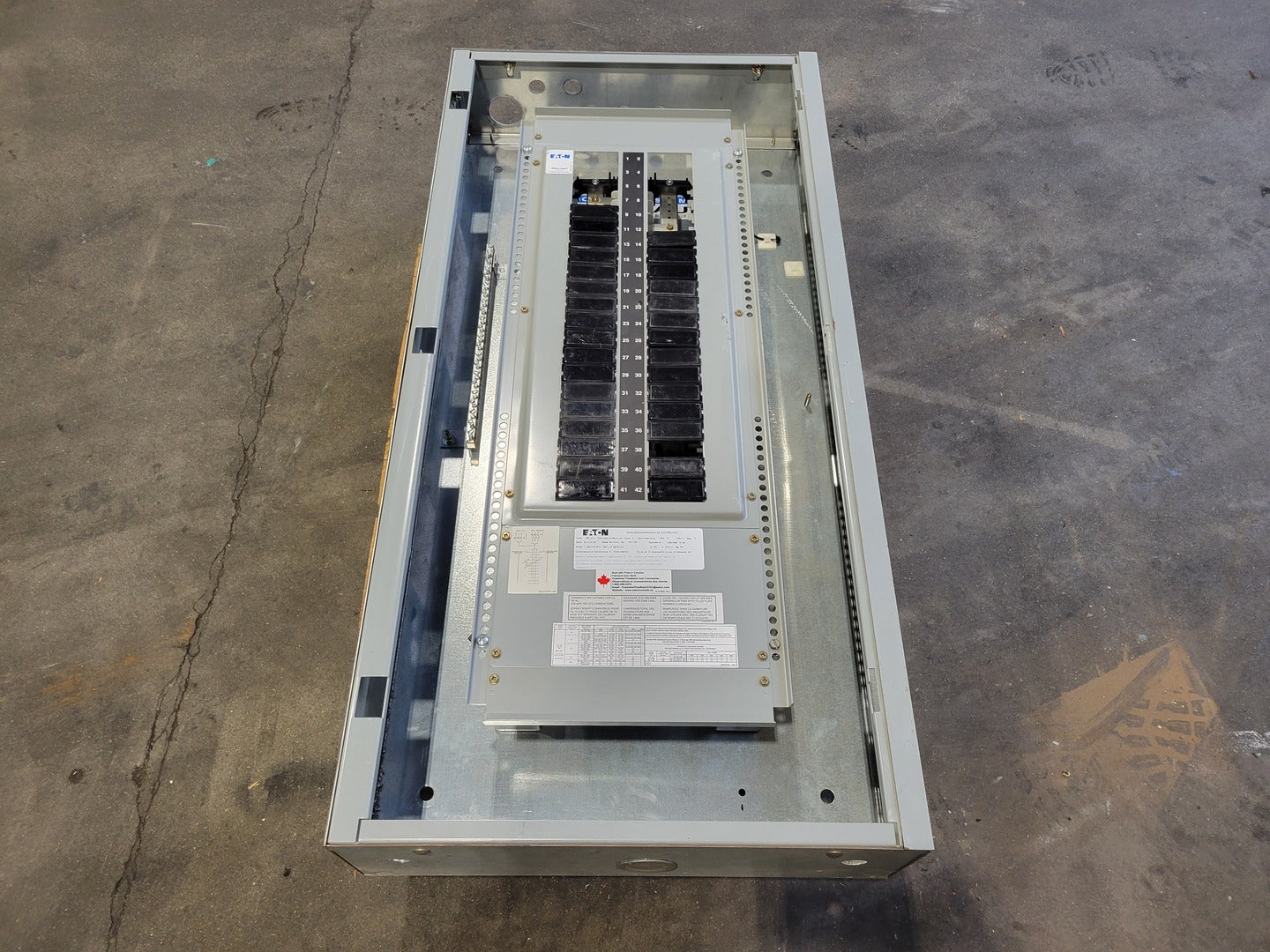

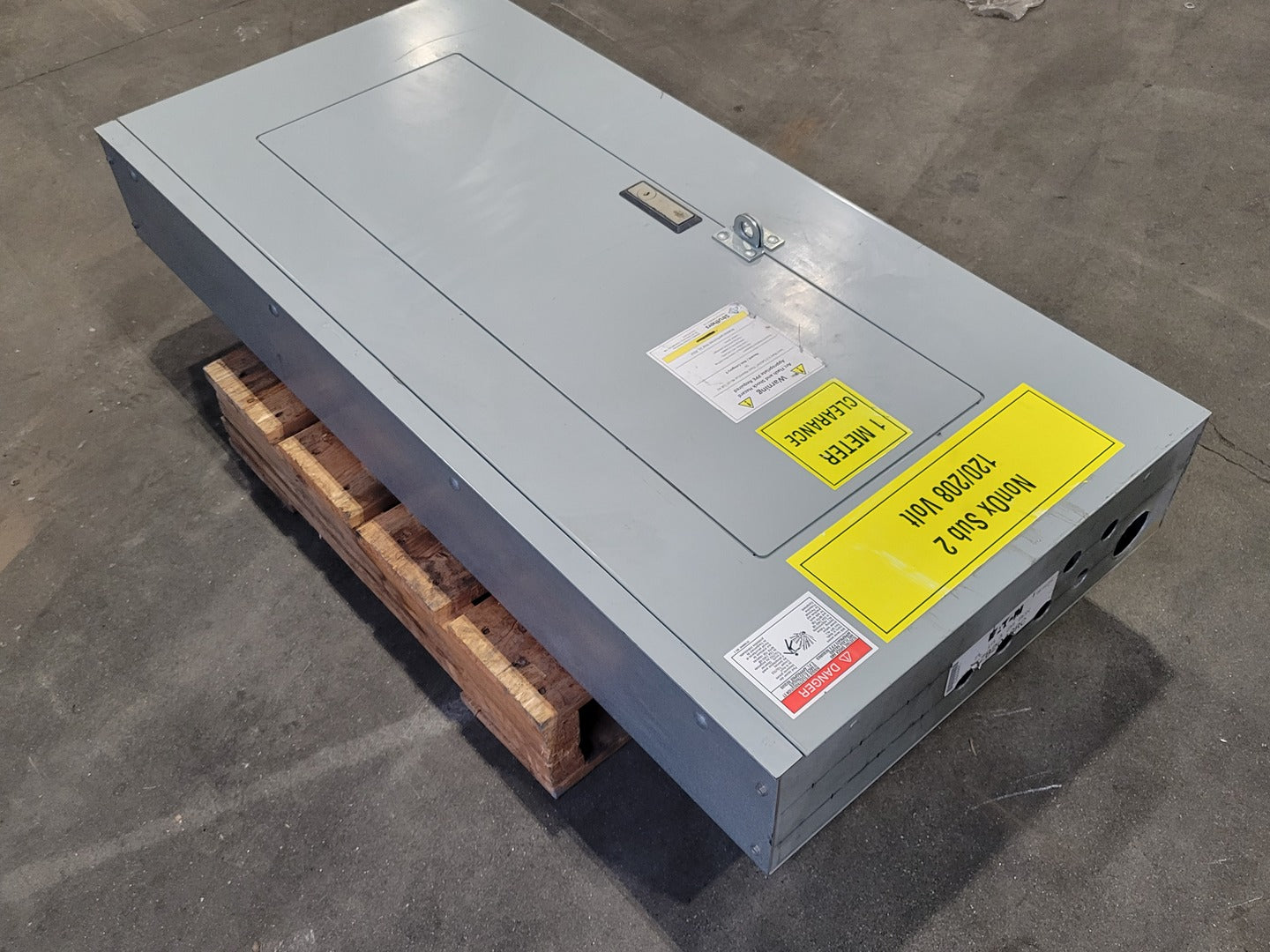

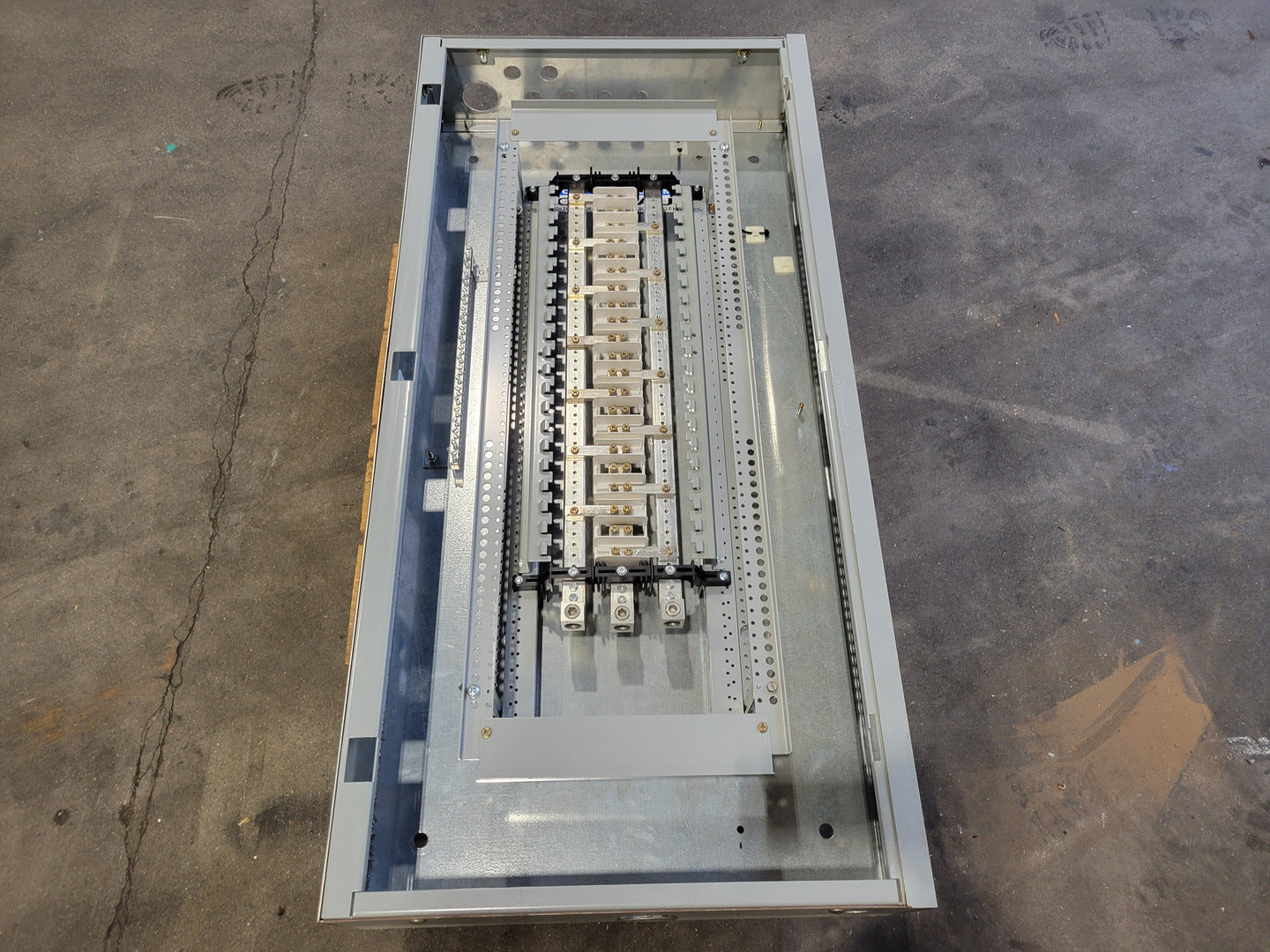

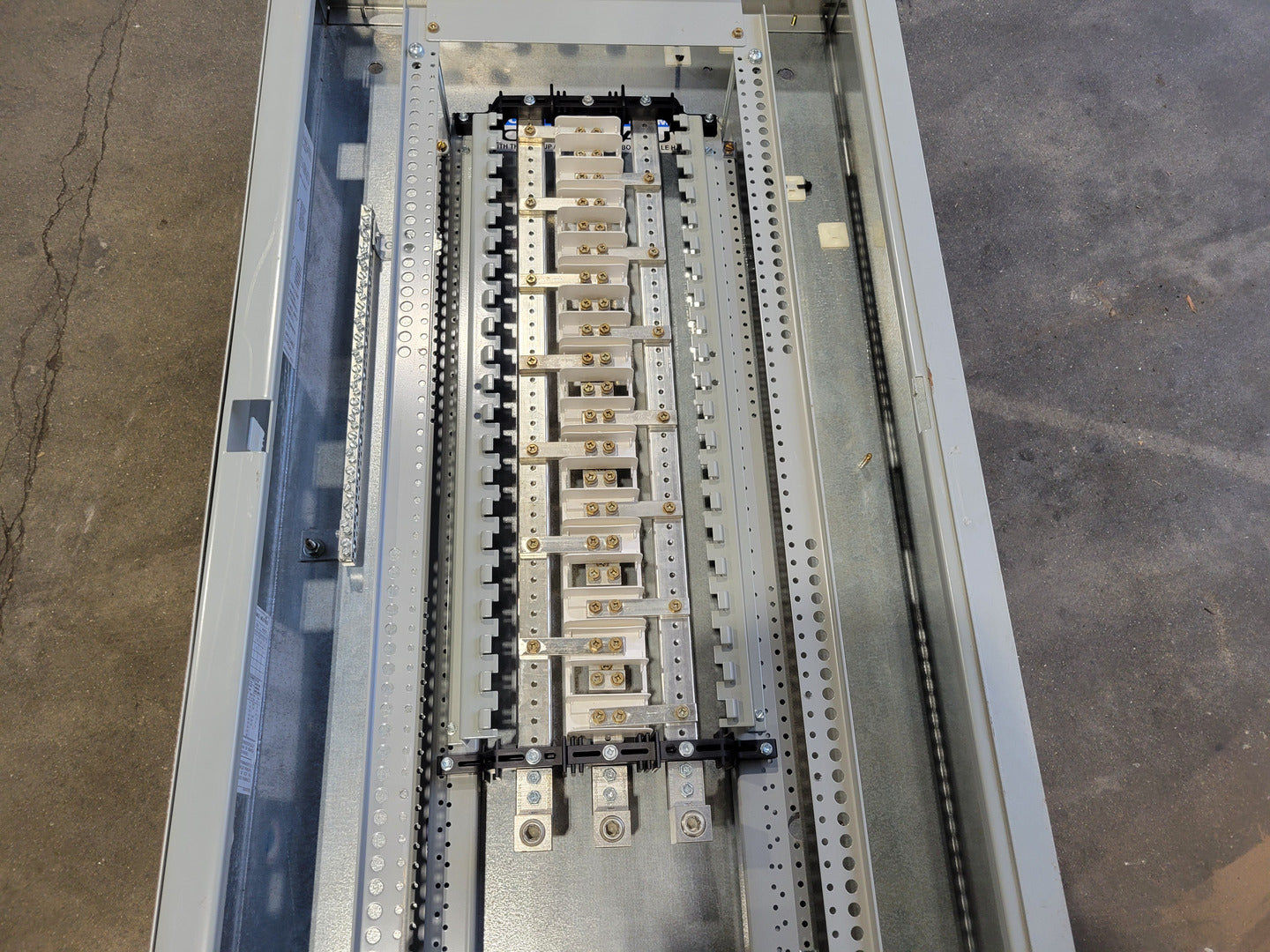

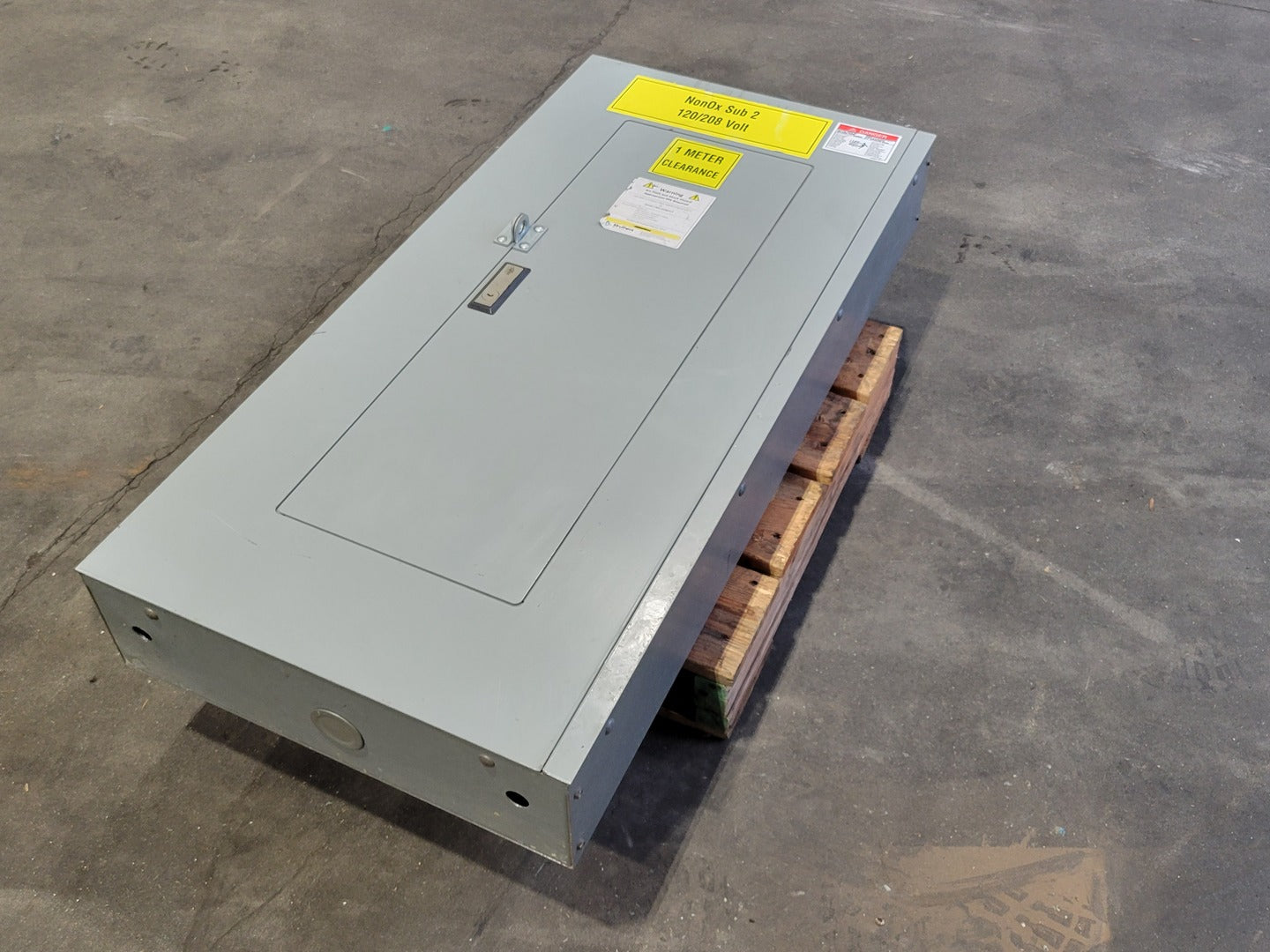

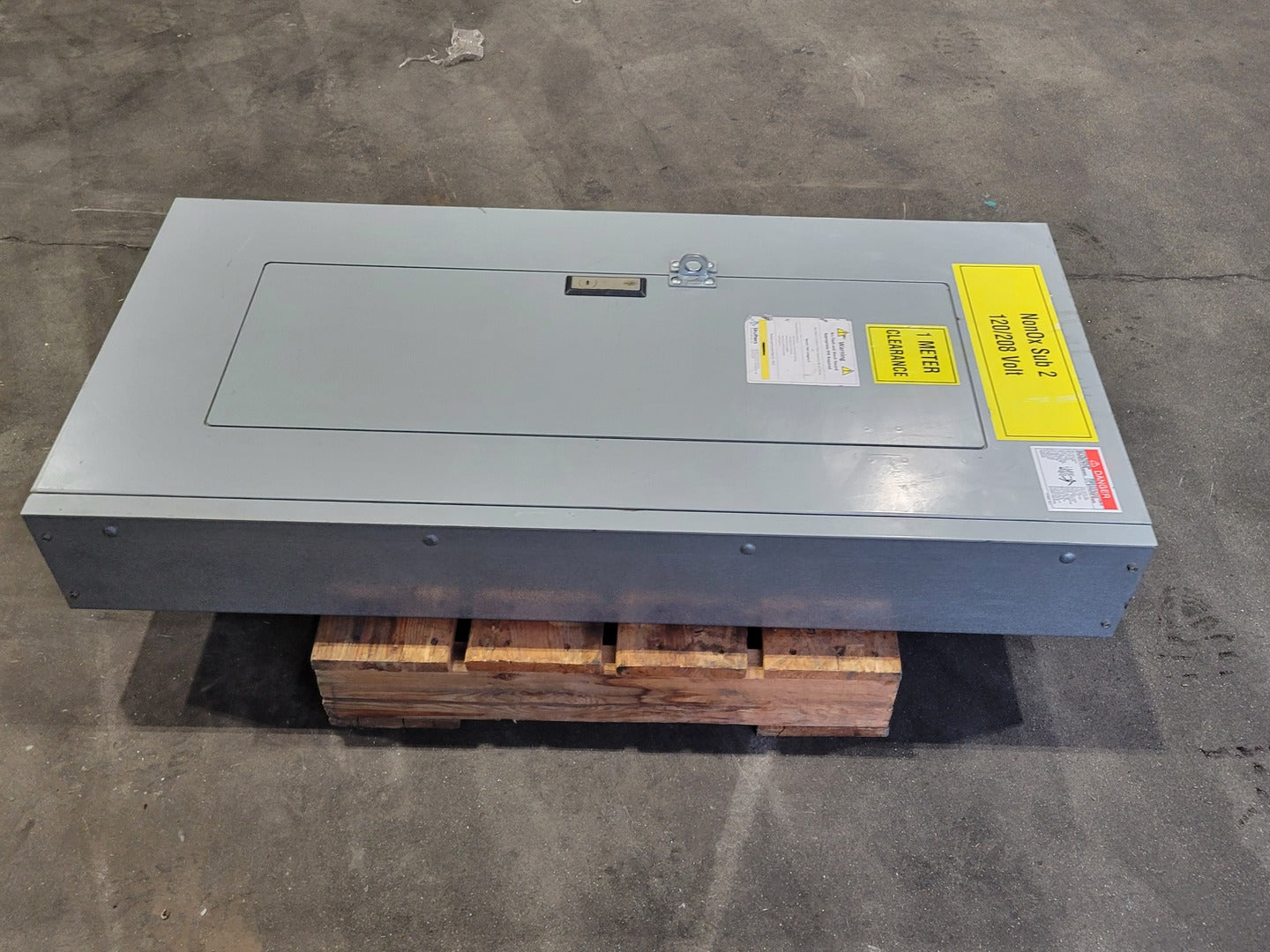

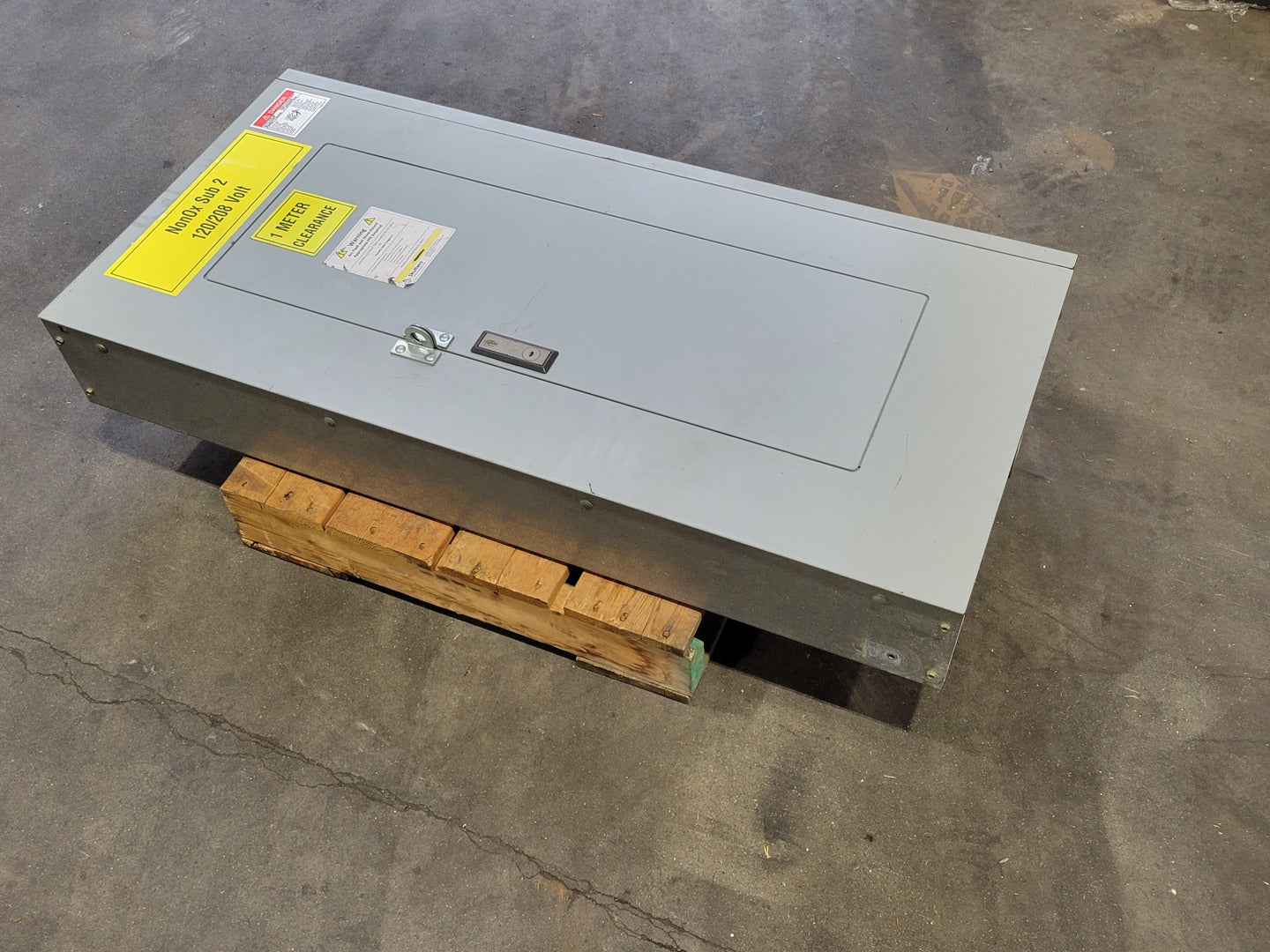

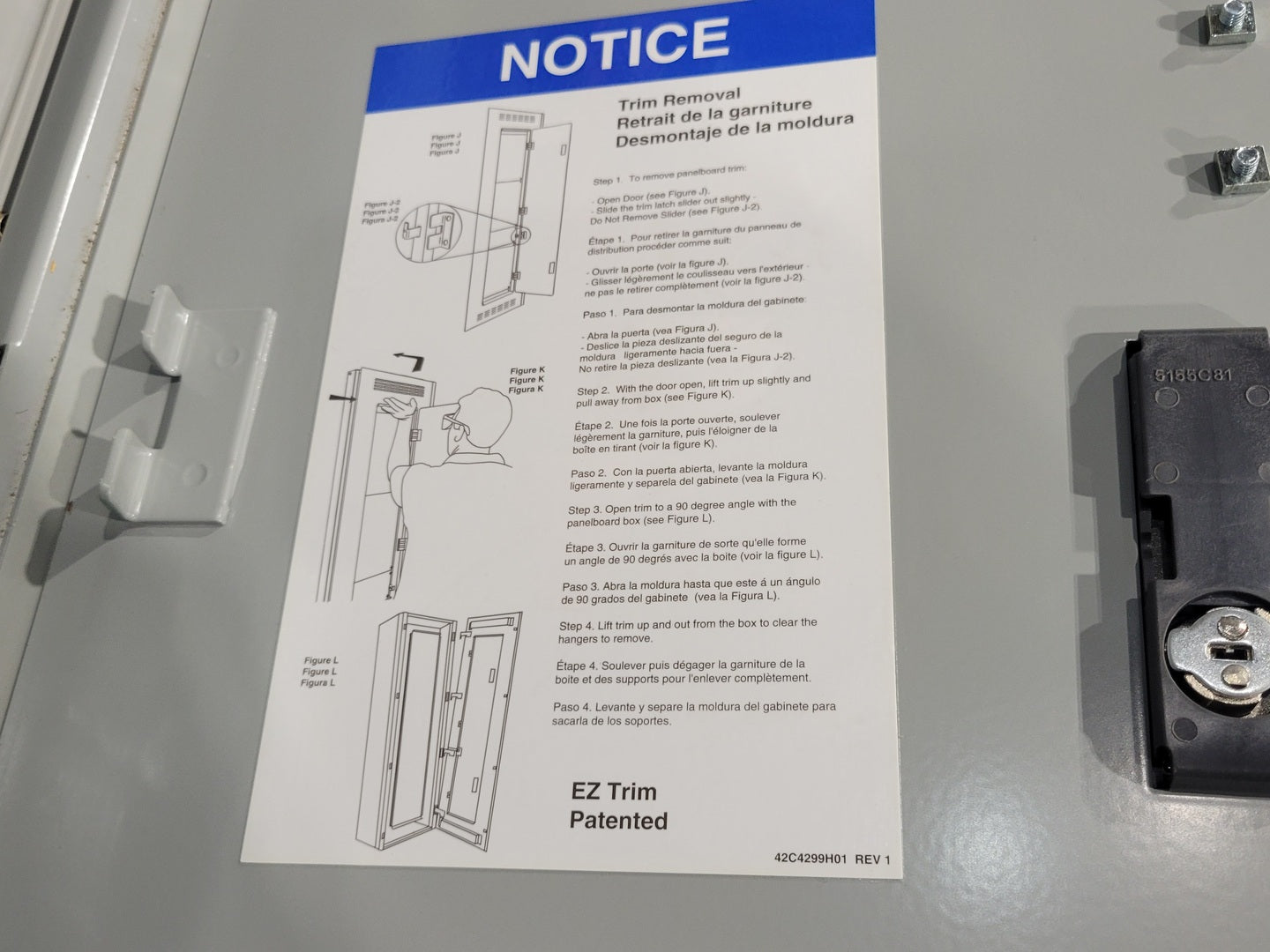

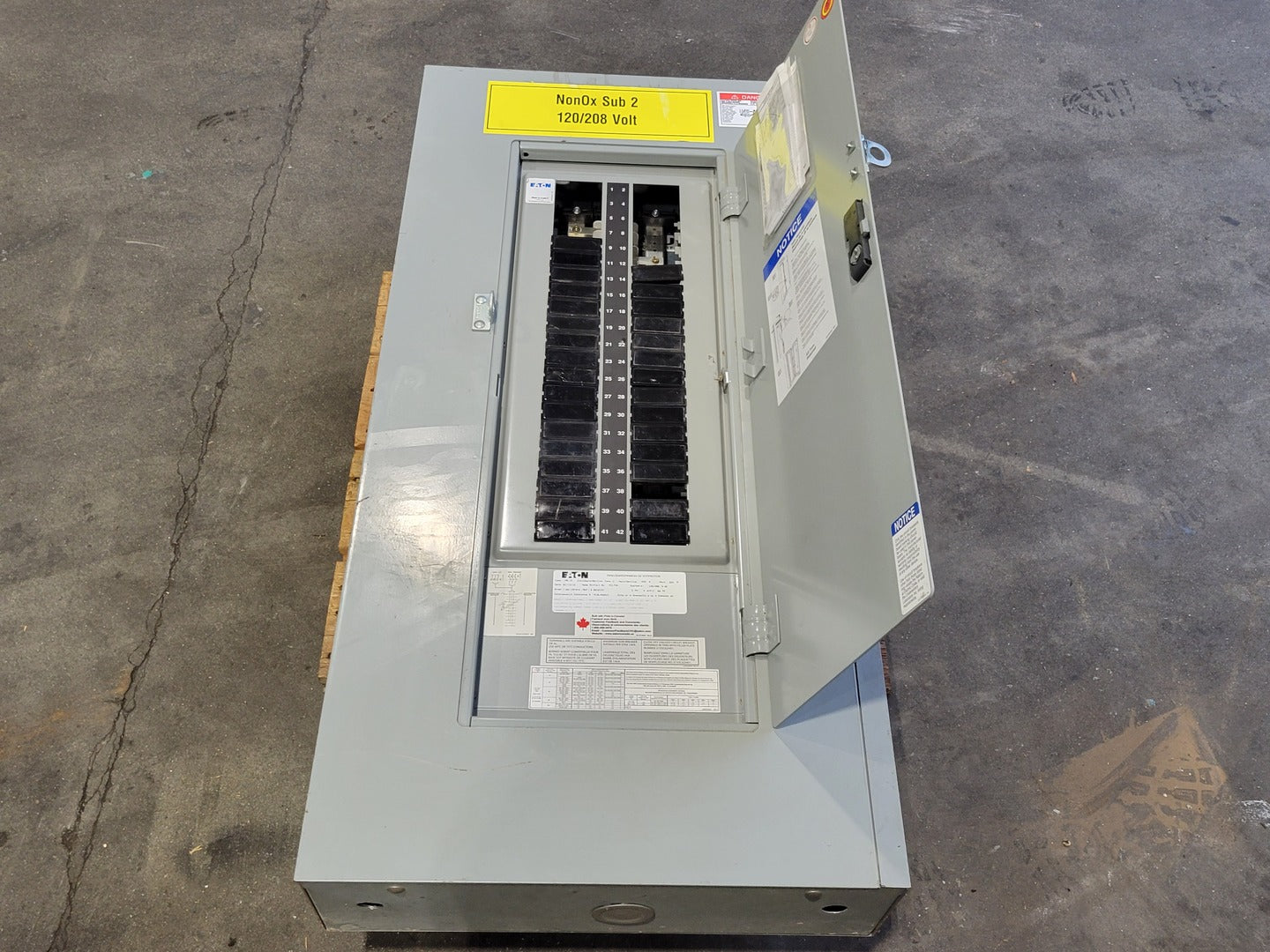

Eaton Pow-R-Line PRL1A industrial/commercial electrical distribution panelboard rated 225 A, 120/208 VAC, 3-phase, 4-wire, 60 Hz, with 42 circuit spaces and a Type 1 enclosure. The panel includes the panelboard interior, copper bus system, neutral assembly, incoming main lugs, EZ Trim, door and enclosure. No branch circuit breakers are currently installed. Eaton's documentation lists a comparable PRL1a 225 A, 42-circuit, 120/208 V, 3-phase, 4-wire configuration with silver-plated copper bus.
| Specifications | |
|---|---|
| Model | P1RL4R242I |
| Condition | Used |
| Other Specifications |
|---|
|

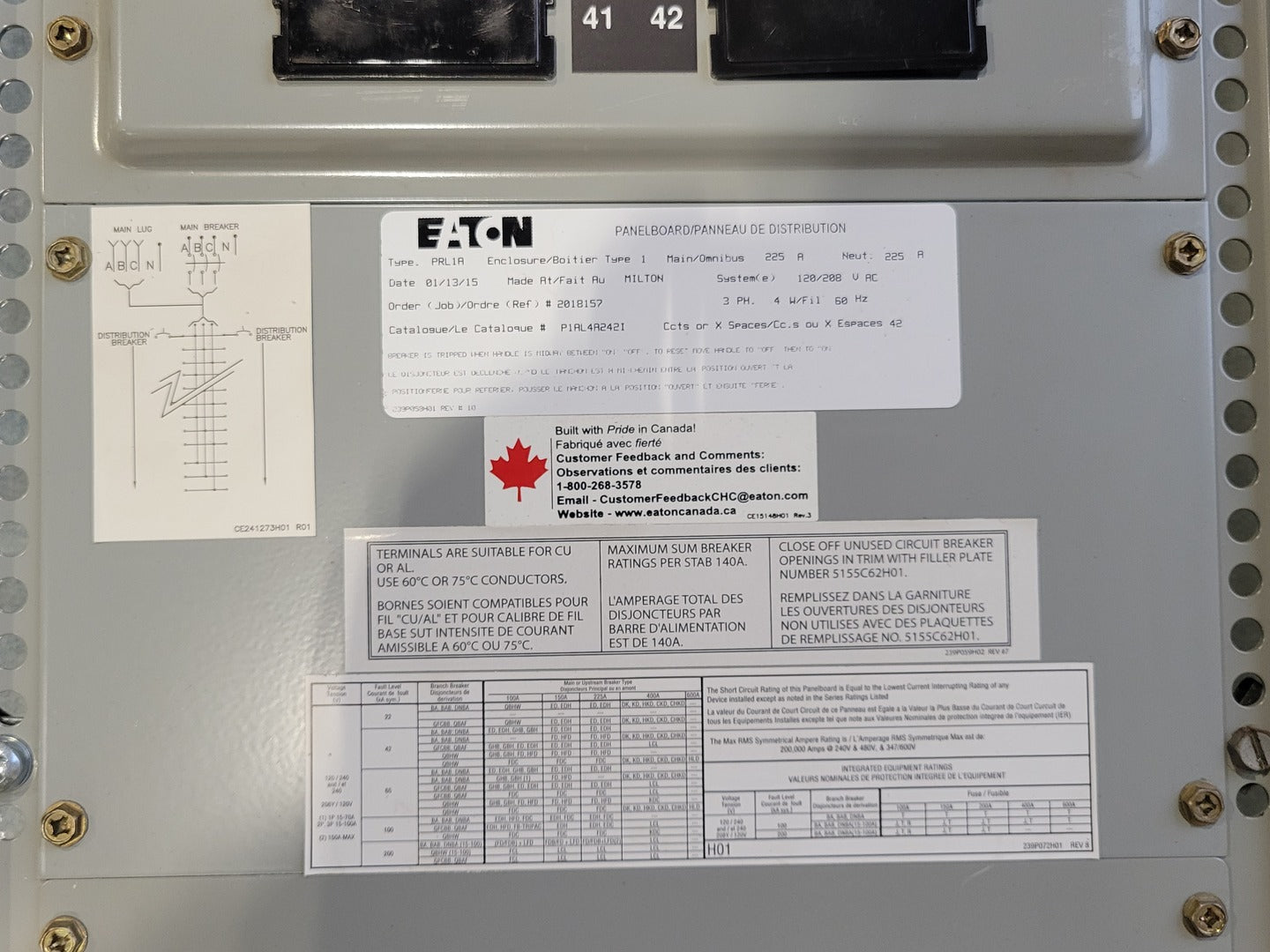

Series: Pow-R-Line PRL1A Type: PRL1A panelboard Catalogue number: P1RL4R242I Order / job number: 2018157 System voltage: 120/208 VAC Phase: 3-phase Wire configuration: 4-wire Frequency: 60 Hz Main bus rating: 225 A Neutral rating: 225 A Number of circuits/spaces: 42 Bus material: Copper Main configuration: Main lug only Incoming connection: 3 main phase lugs Enclosure type: Type 1 Trim: Eaton EZ Trim |
