Description
| Specifications | |
|---|---|

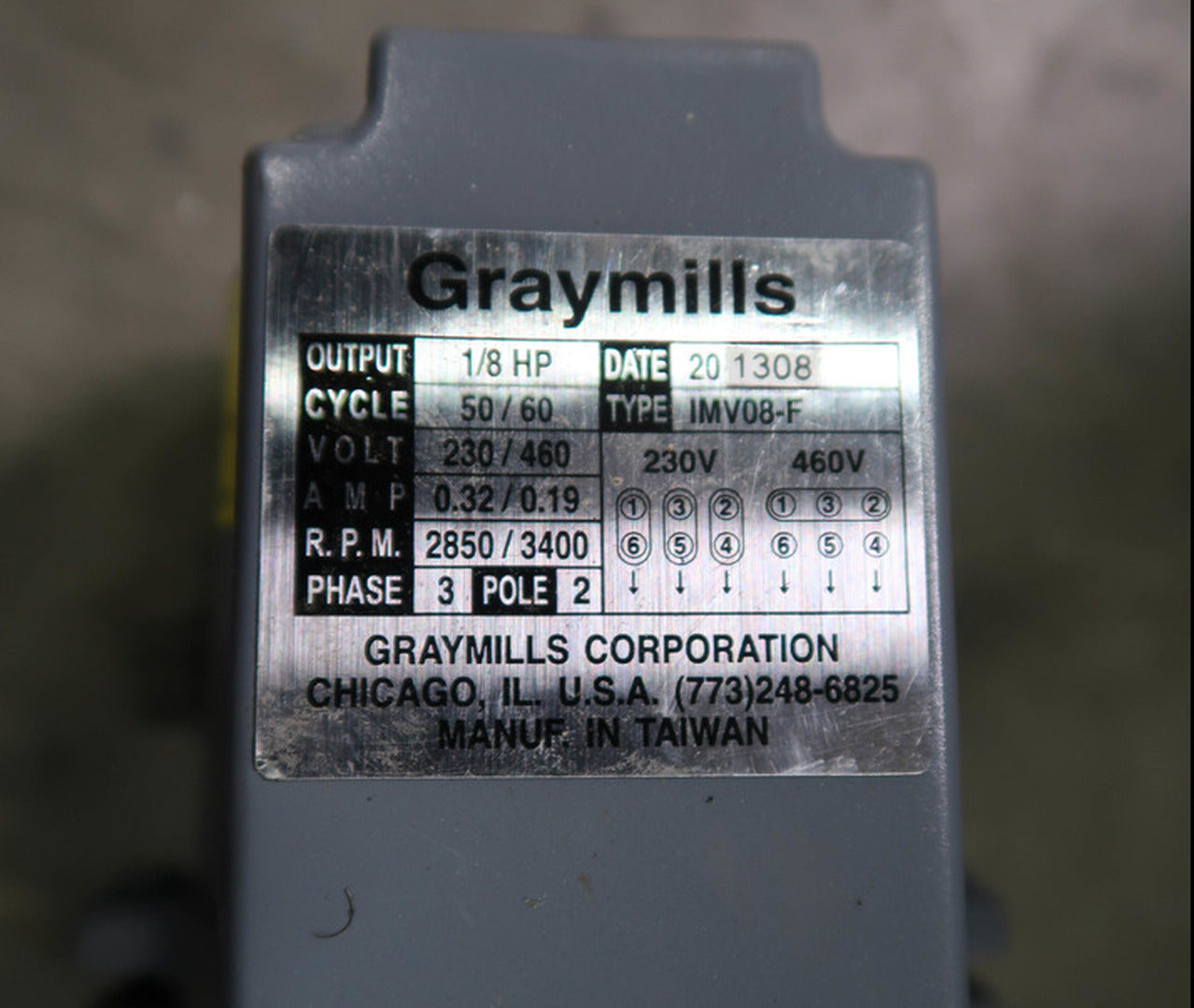

| Model | IMV08-F |
| Condition | Used | General |
| Horsepower | 1/8 hp |
| GPM | 10.00 |
| Pump Material | Cast Iron |
| Head | 6.0 |
| RPM | 2850/3400 rpm | Electrical |
| Voltage | 230/460 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Pump Type: Coolant Cycle: 50/60 Amp: 0.32/ 0.19 Shaft Length: 6 in. Housing Material: Cast Iron Shaft Material: Carbon Steel Head Pressure: 6.0 Thread Type: NPT Outlet Size: 3/8" Mounting Flange Length: 5 in. Mounting Flange Width: 5 in. Impeller Material: Plastic Maximum Viscosity: 500 Flange Bolt Circle: 5.047 in. Volute: 3-1/2" |
