Description

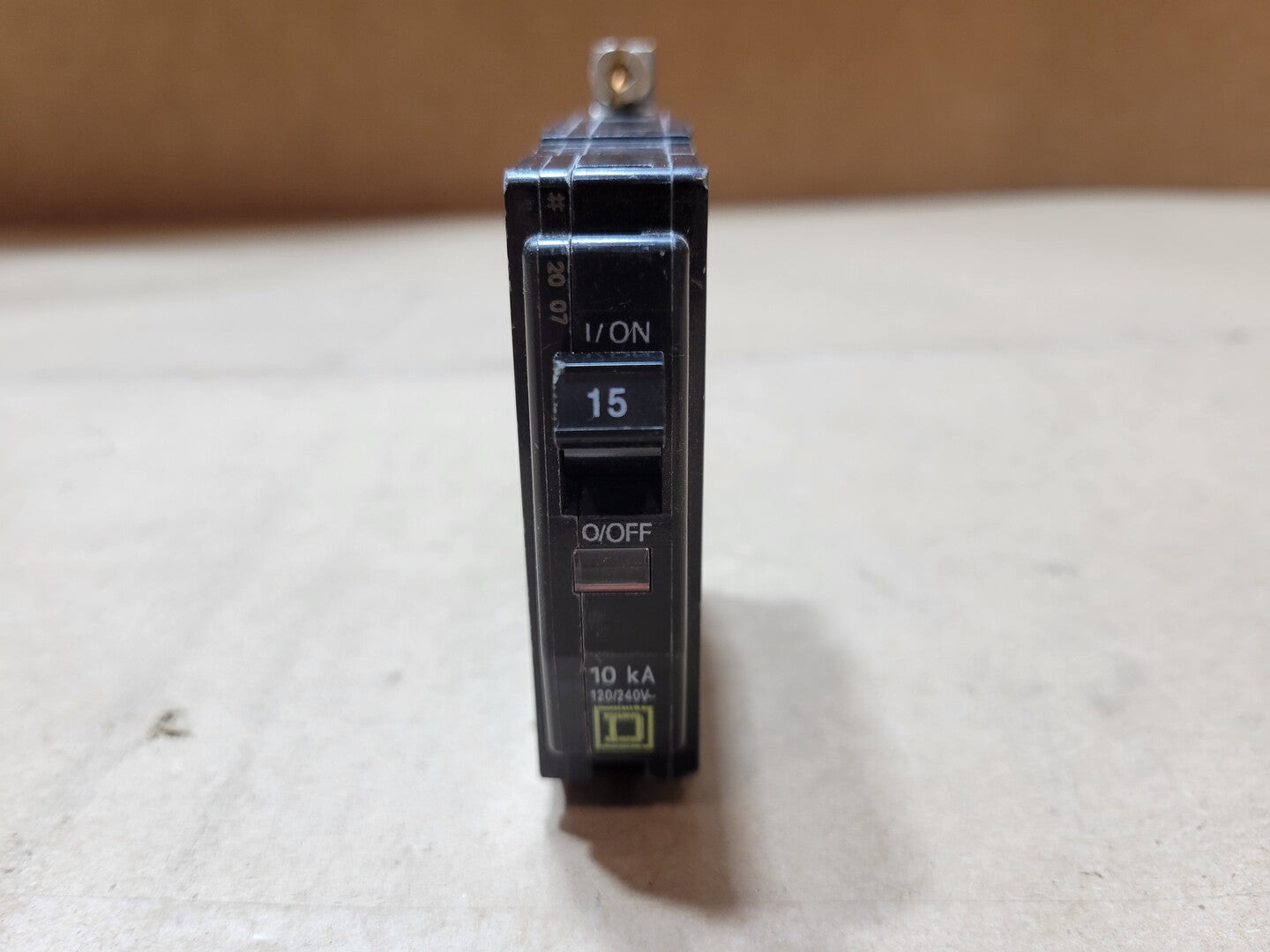

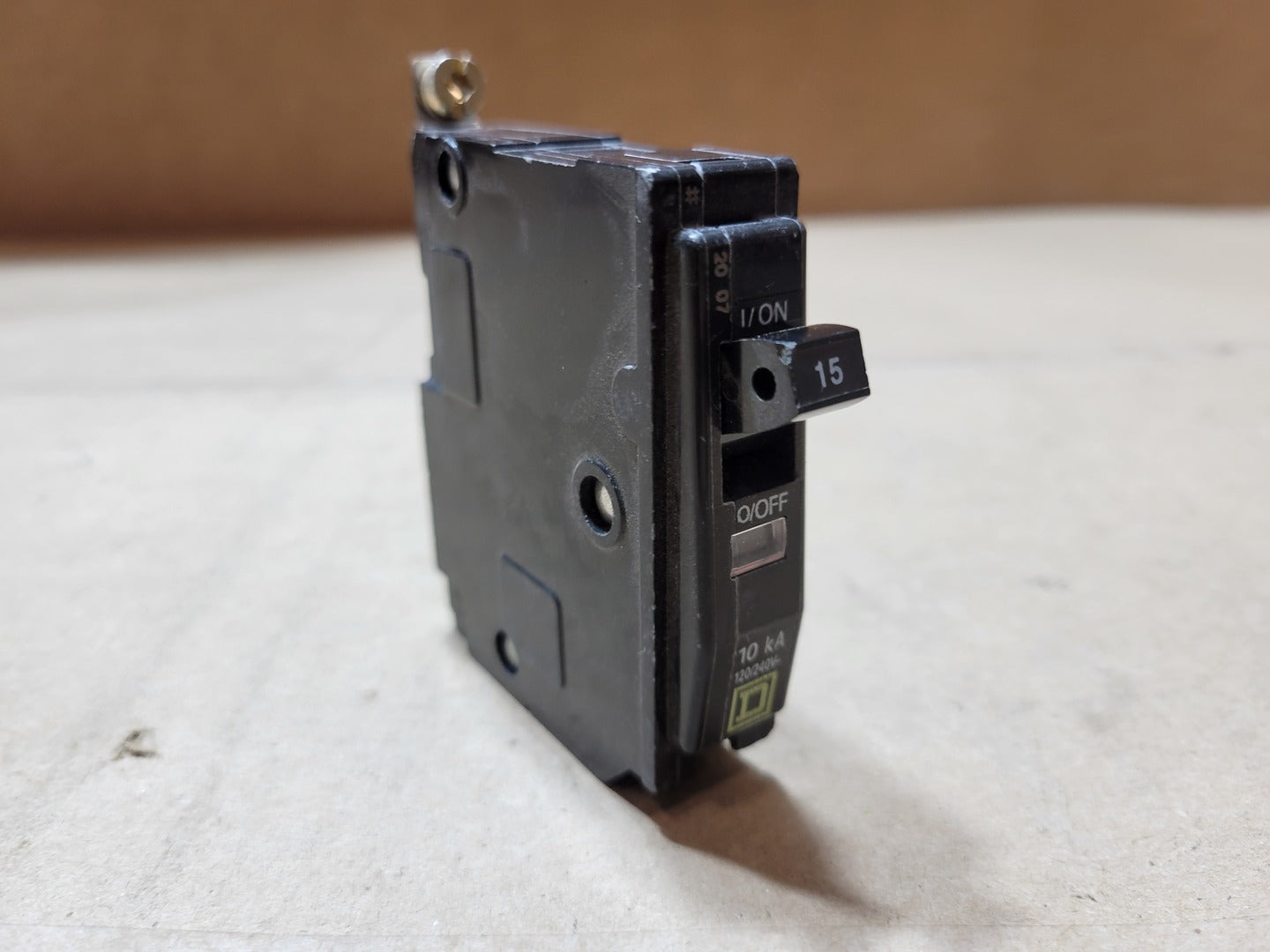

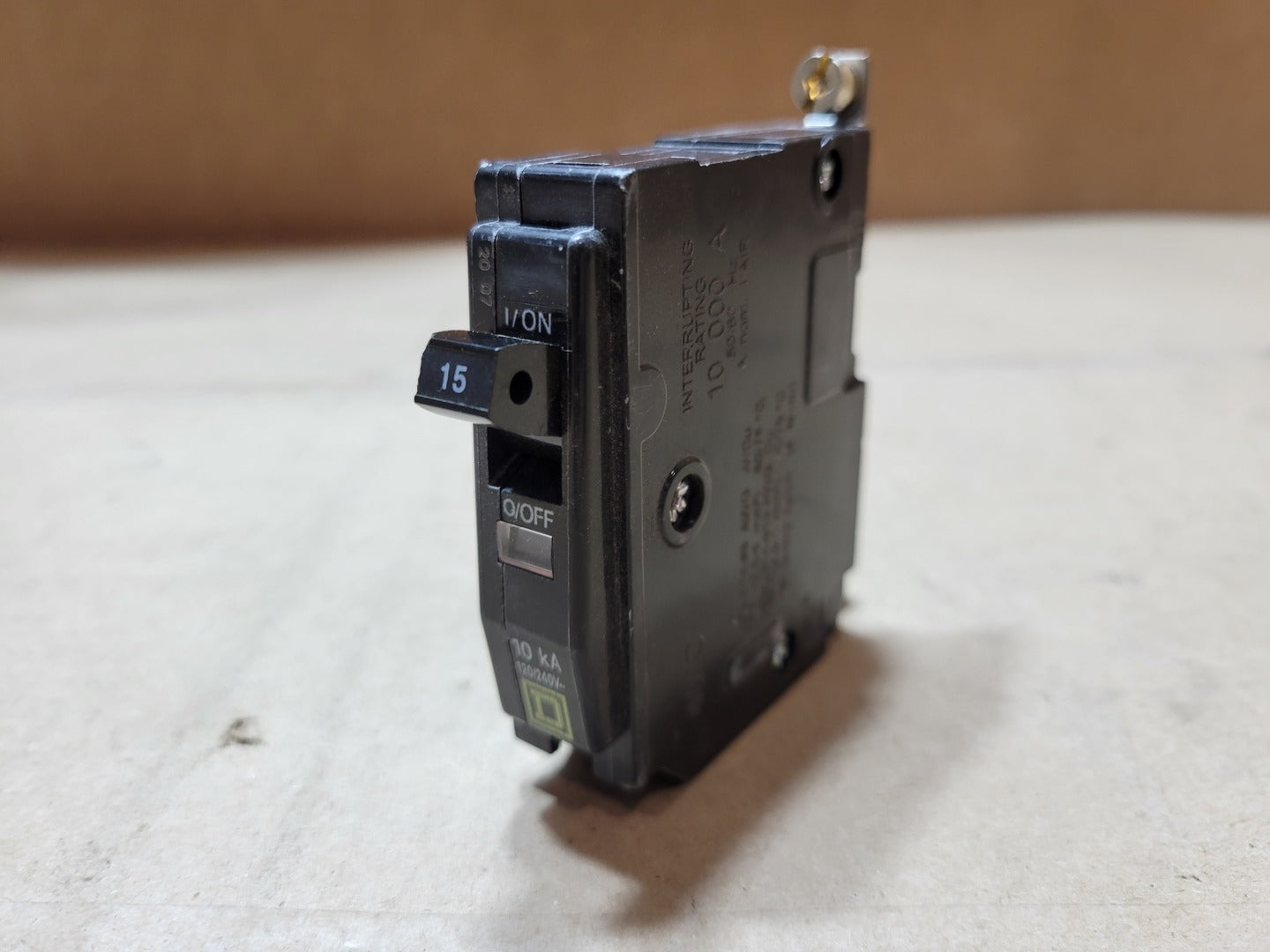

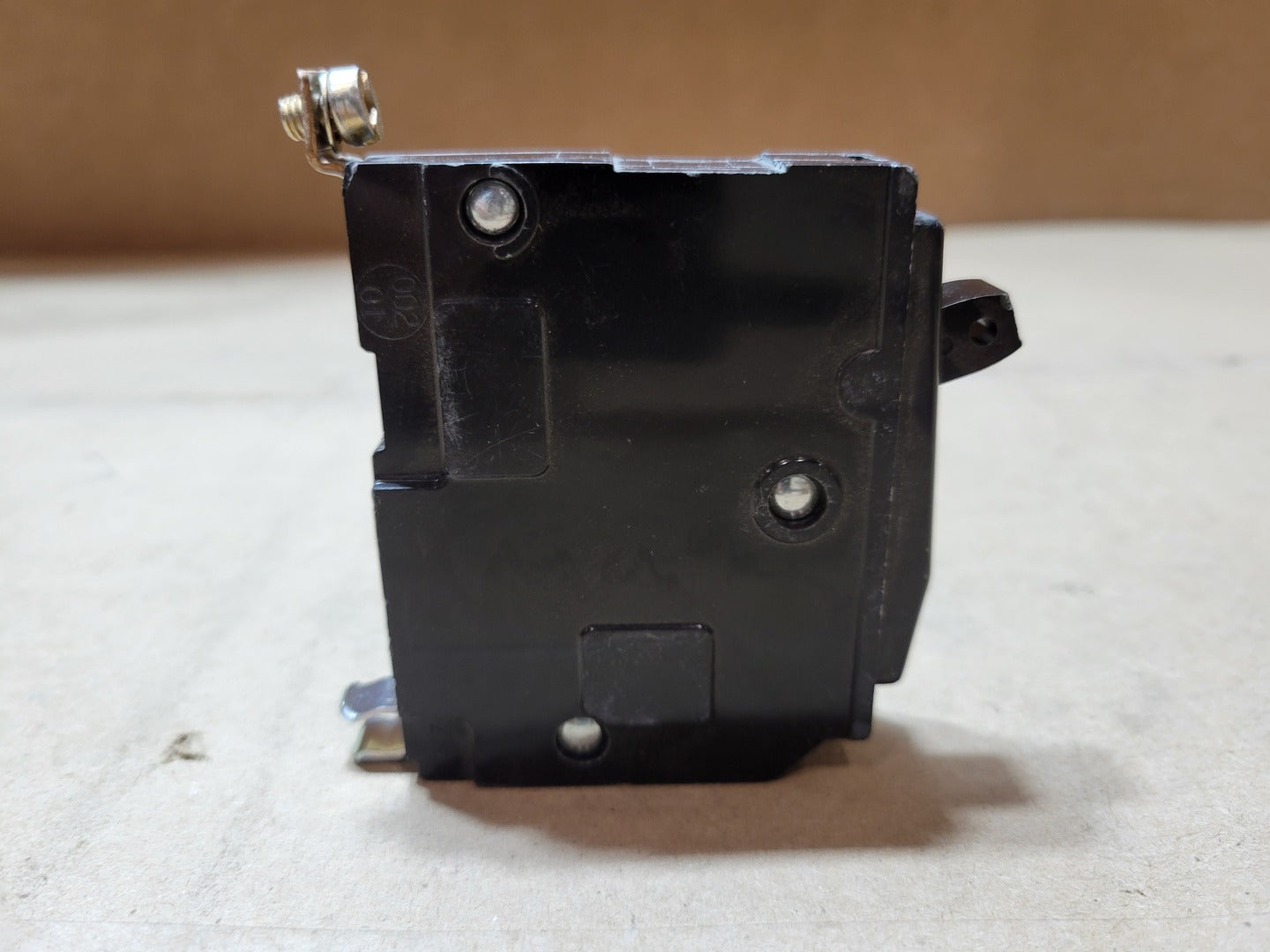

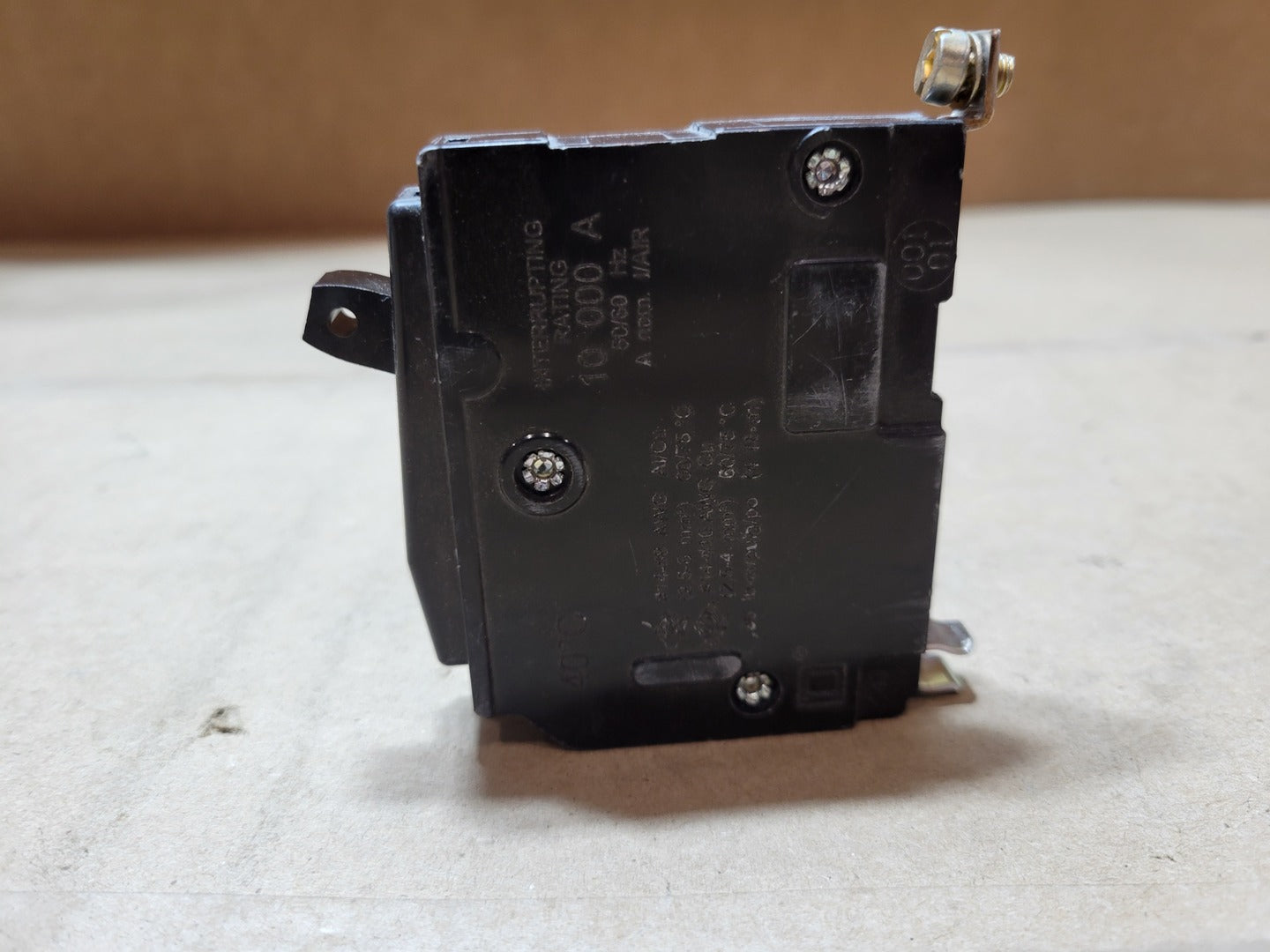

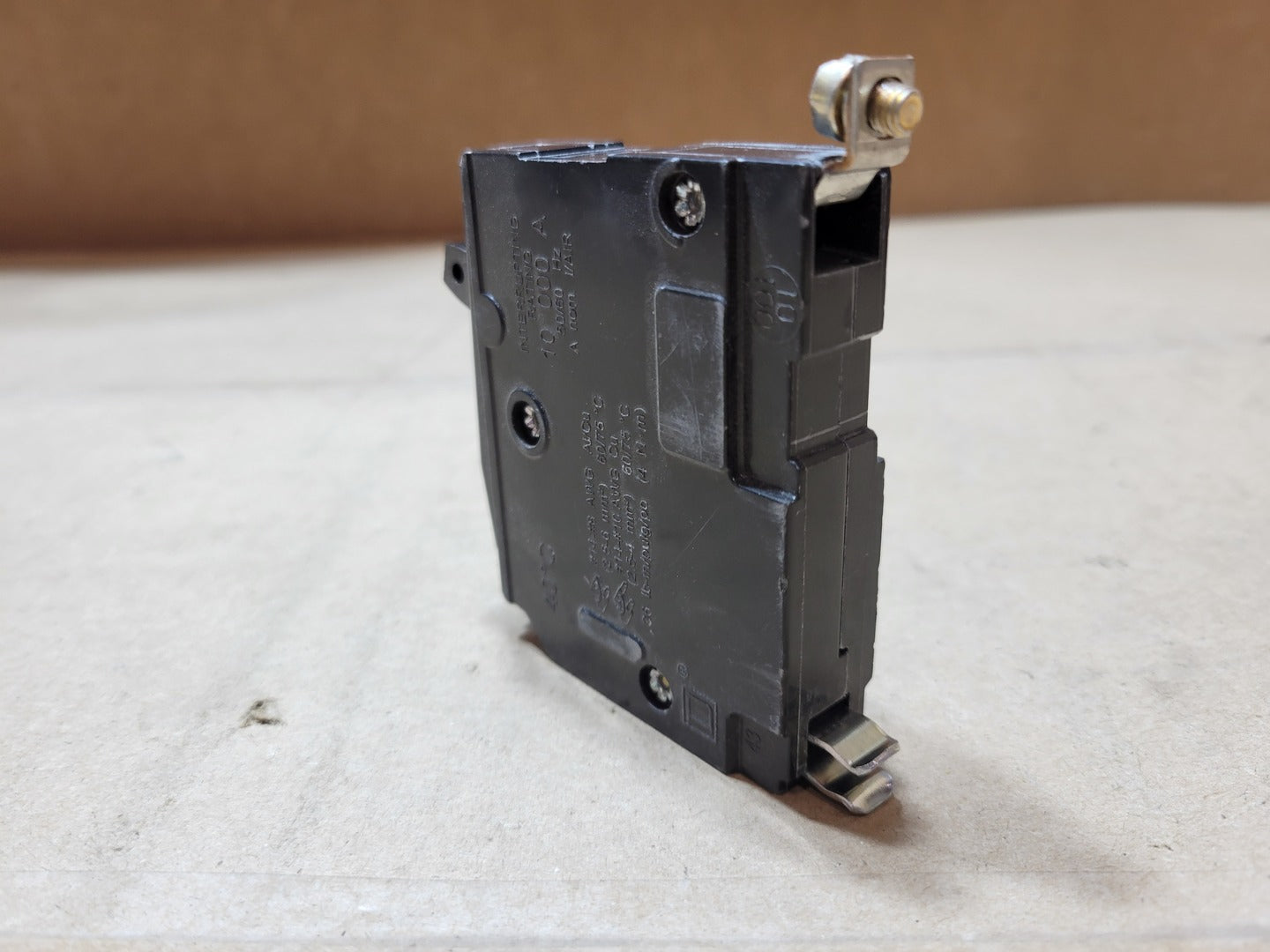

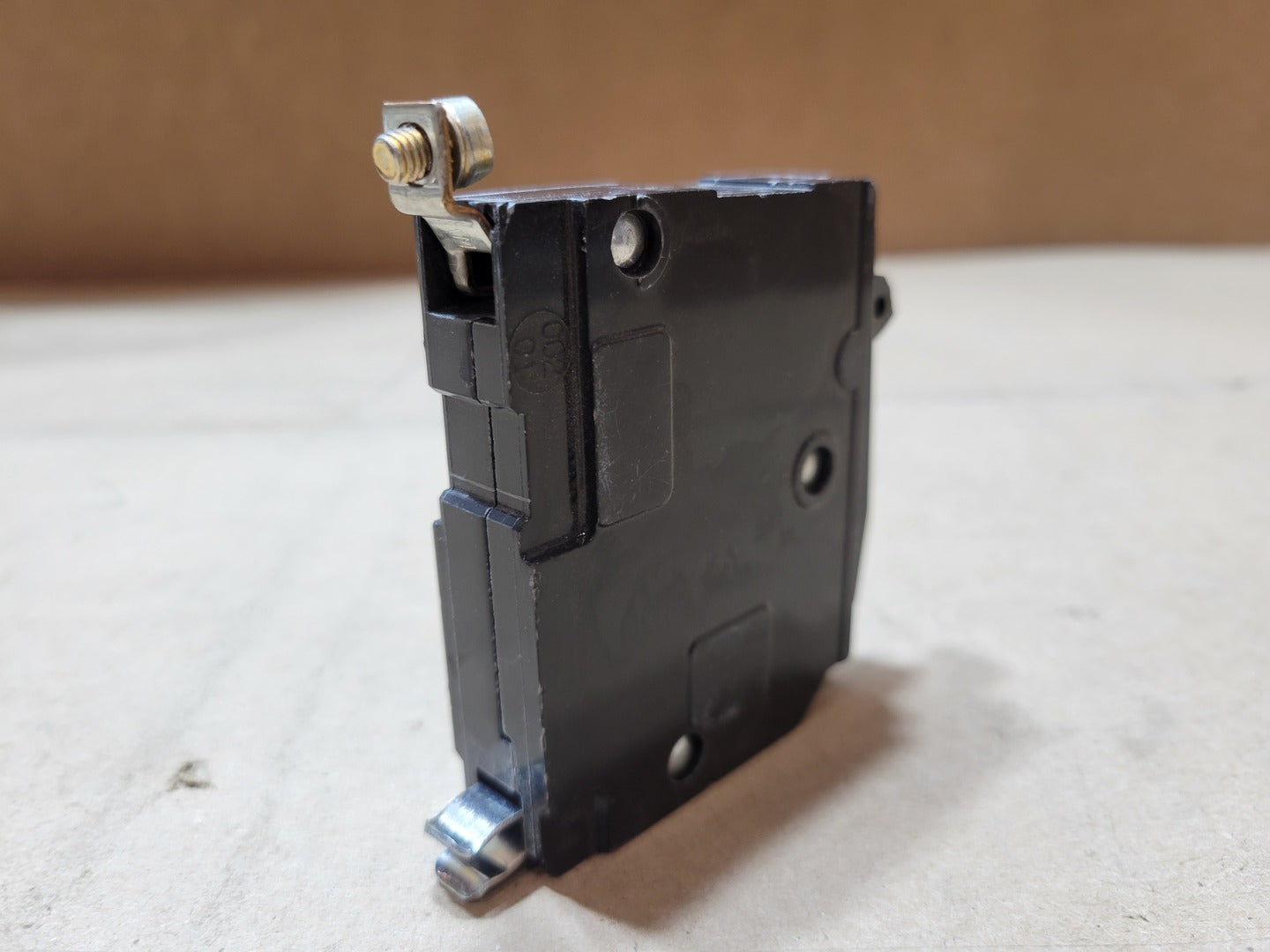

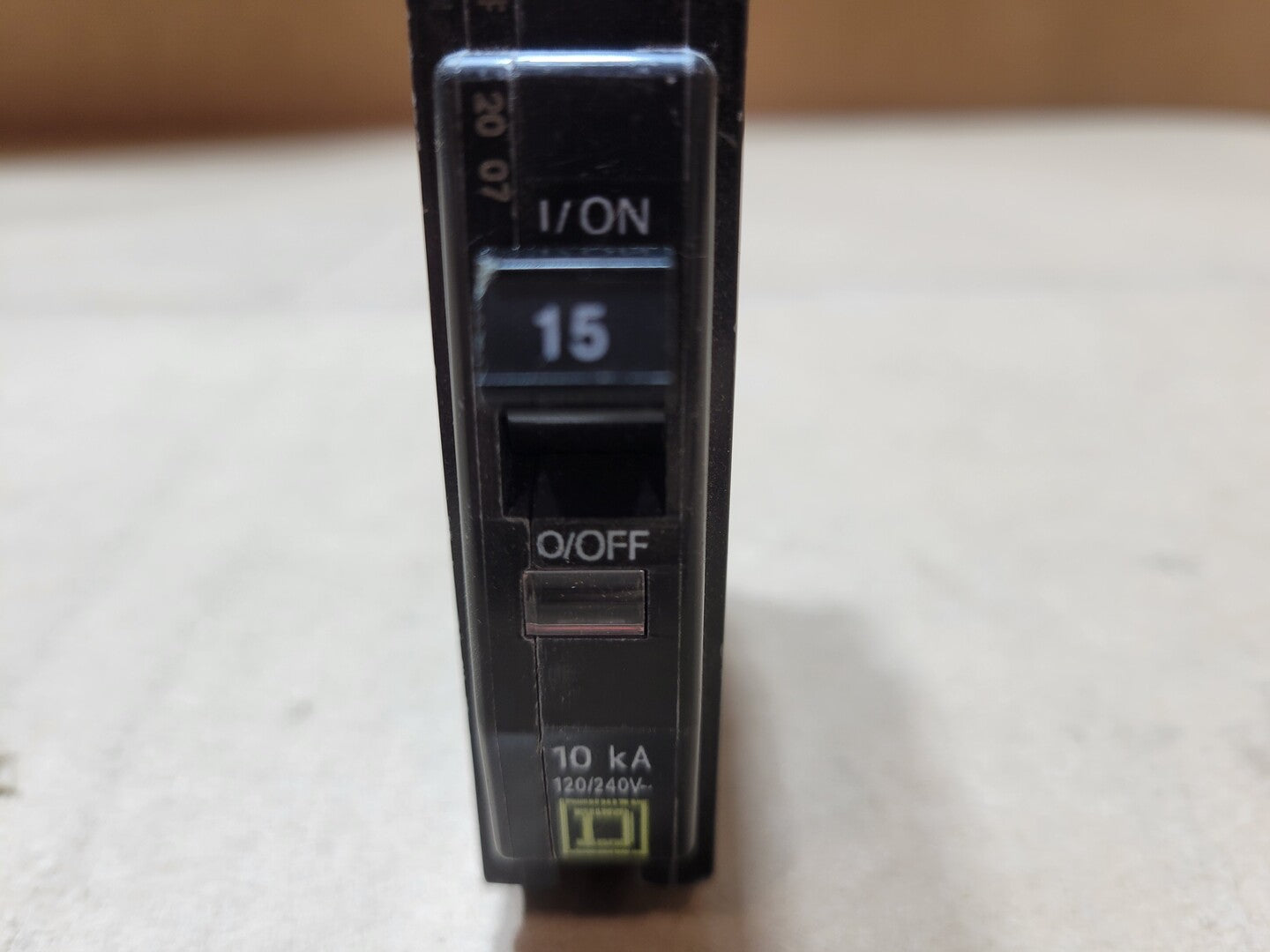

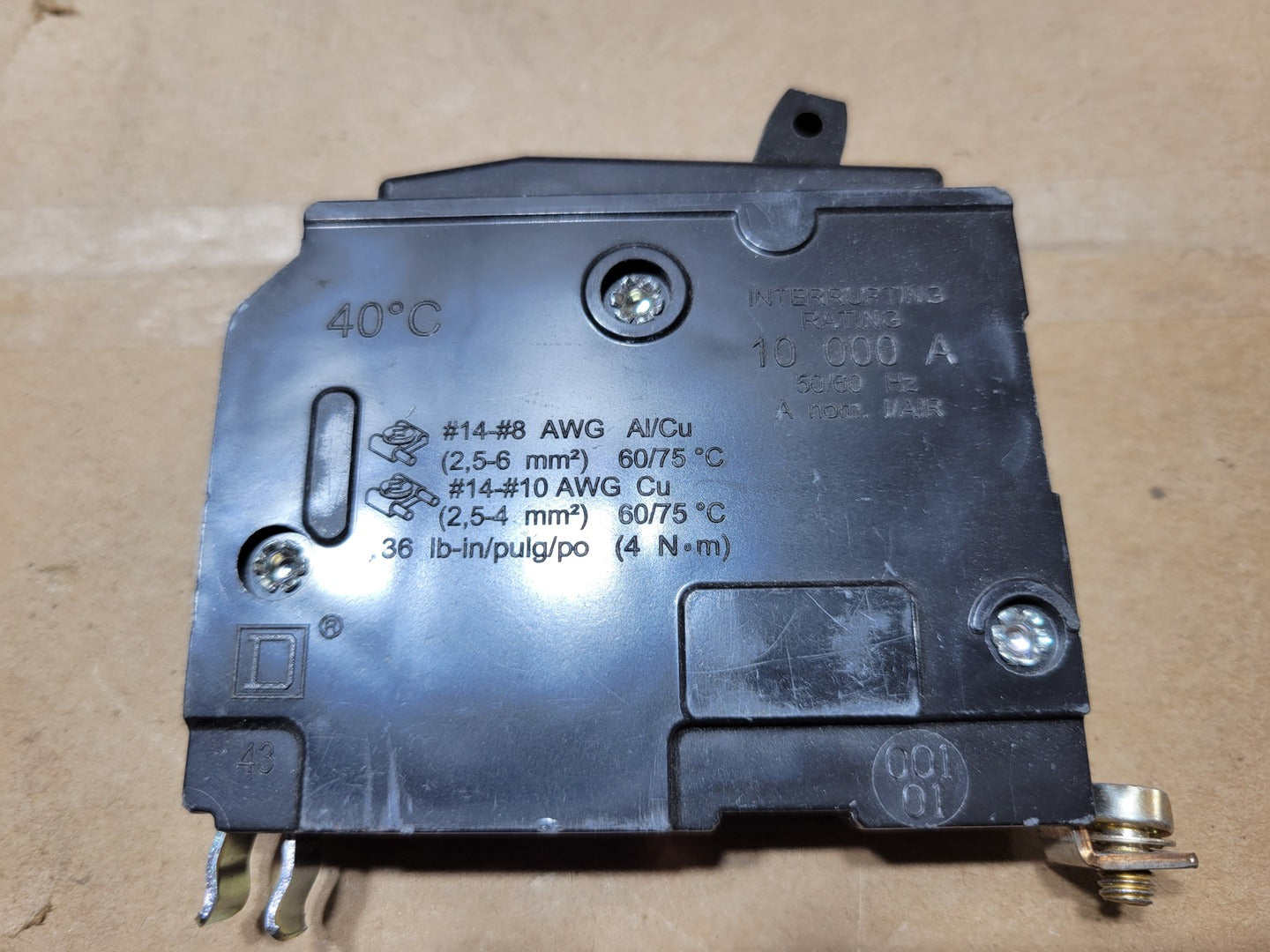

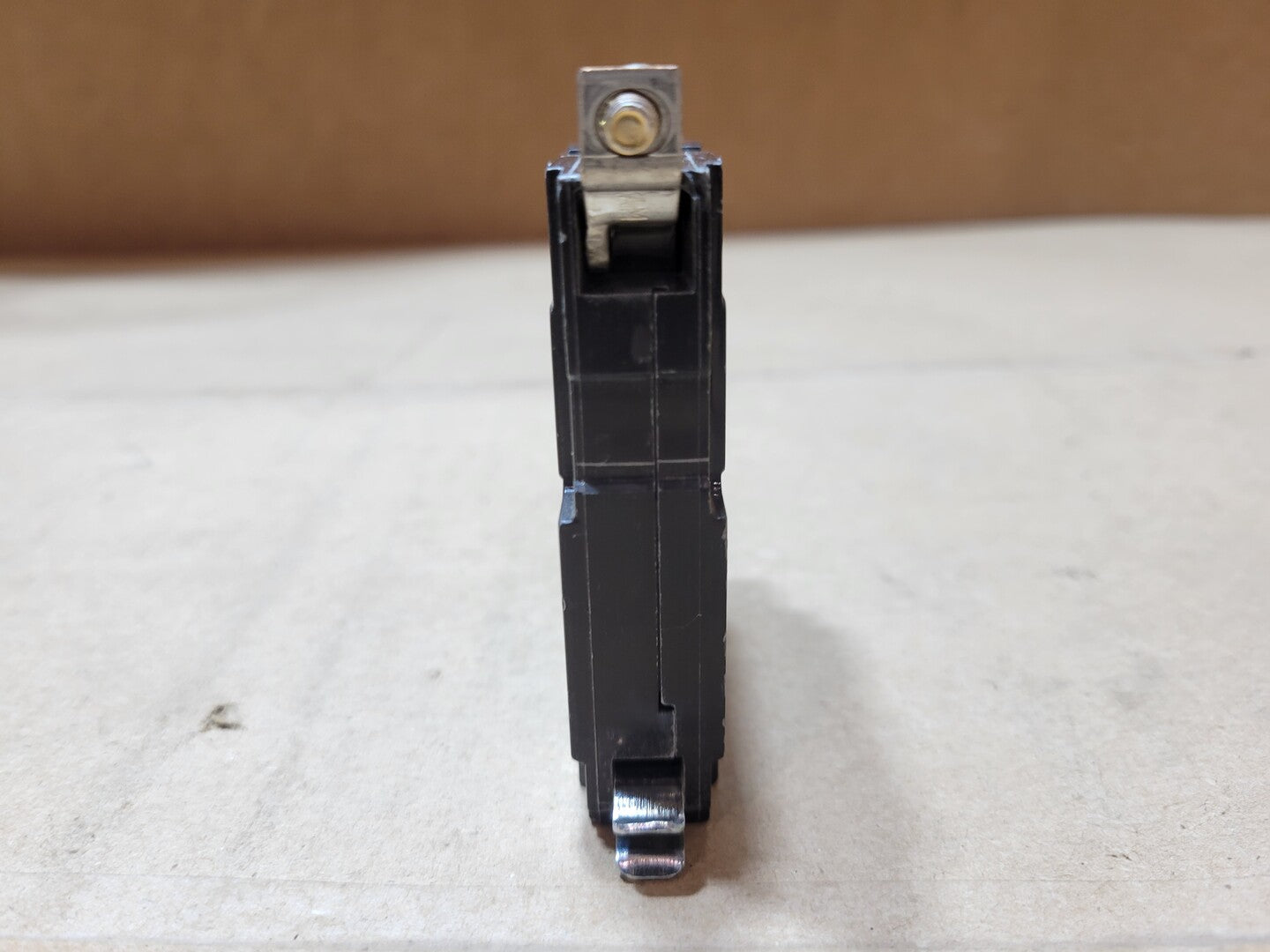

Square D QOB115 miniature circuit breaker rated 15A, 1-pole, 120/240VAC with a 10kA interrupting rating. Features bolt-on mounting, thermal-magnetic protection and pressure-plate terminal connection for use in compatible Square D QOB panelboard applications.
| Specifications | |
|---|---|
| Model | QOB115 |
| Condition | Used | General |
| Amps | 15 amps |
| Series | QOB |
| # of Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|
Frequency: 50/60 Hz Interrupting Rating: 10kA / 10,000A at 120/240VAC Trip Type: Thermal-Magnetic Circuit Breaker Type: Standard Application Rating: HACR and Switching Duty rated Electrical Connection: Pressure Plate Ambient Rating: 40°C / 104°F Panel Spaces: 1 Certifications: UL Listed / CSA Al/Cu Conductor Range: #14-#8 AWG / 2.5-6 mm2 Copper Conductor Range: #14-#10 AWG / 2.5-4 mm2 Conductor Temperature: 60/75°C Terminal Torque: 36 lb-in / 4 N-m |
