Description

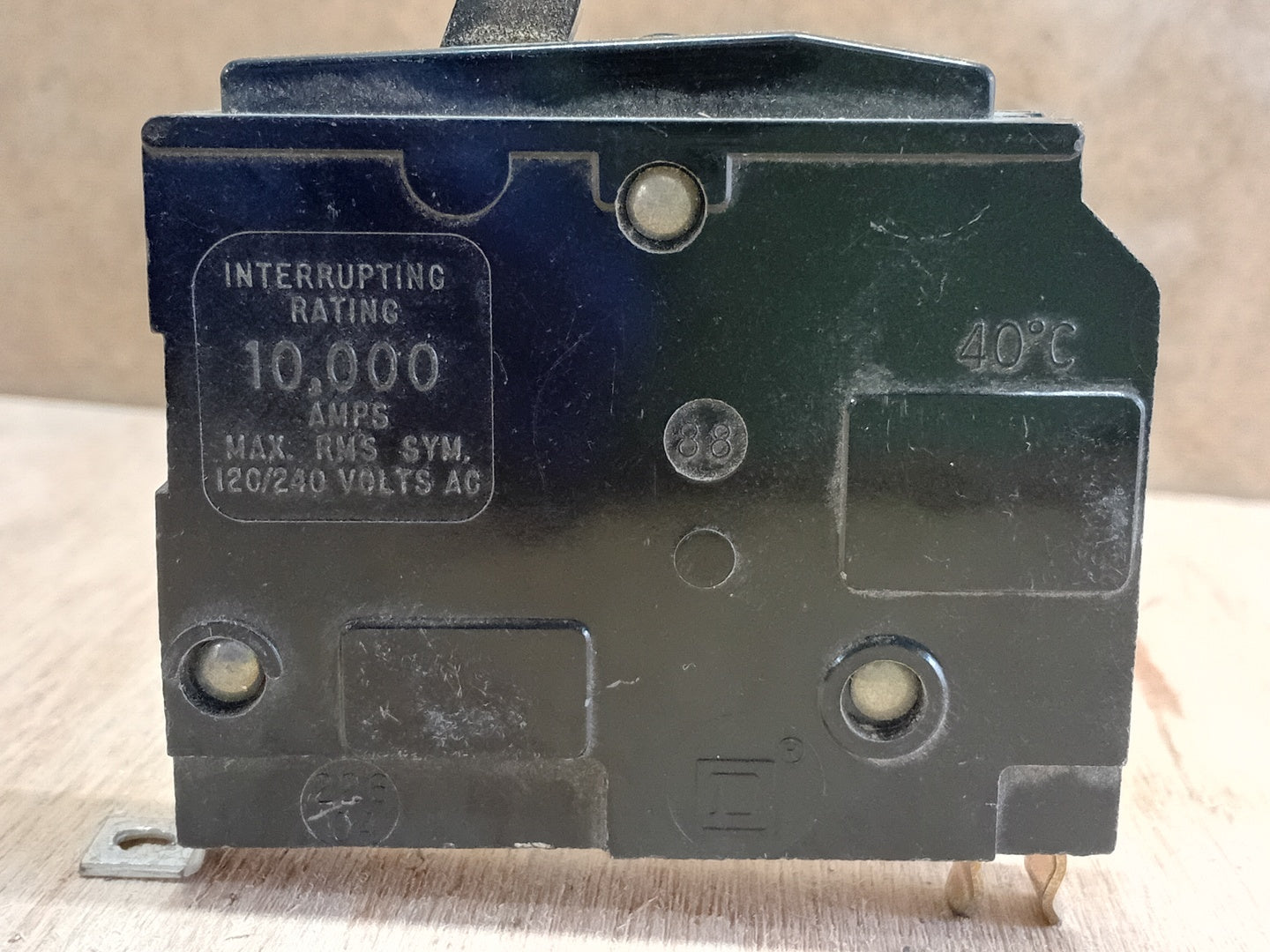

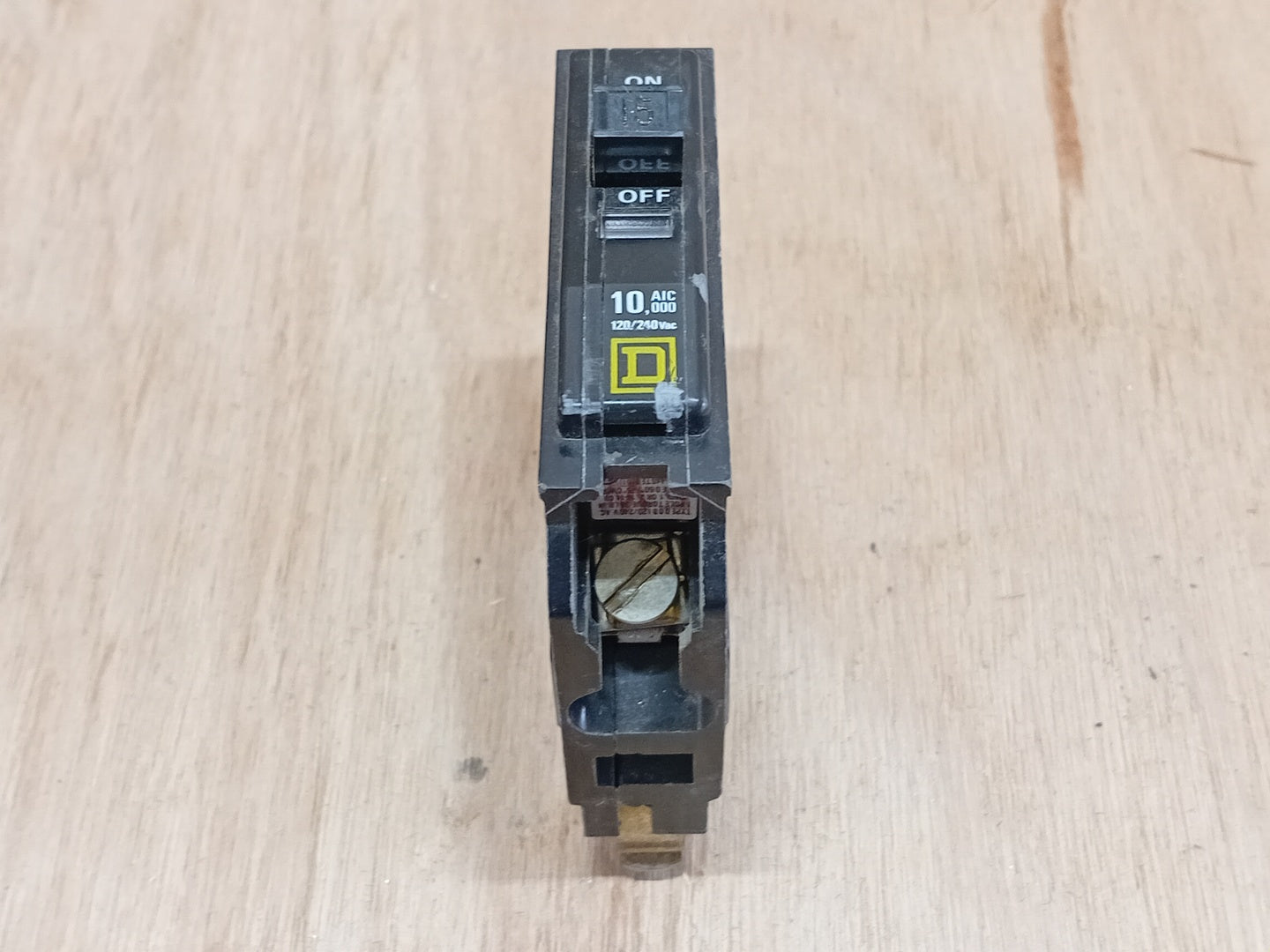

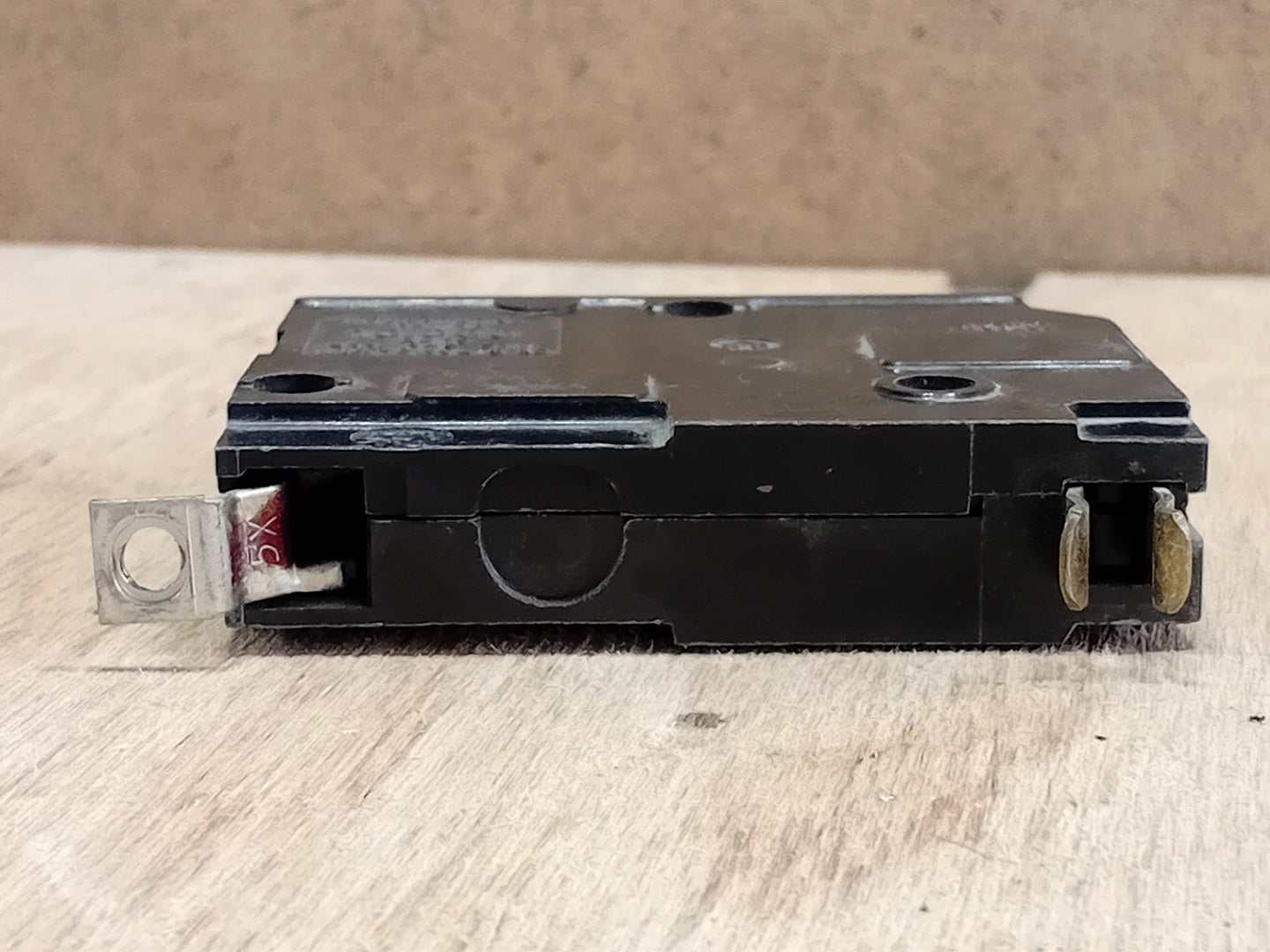

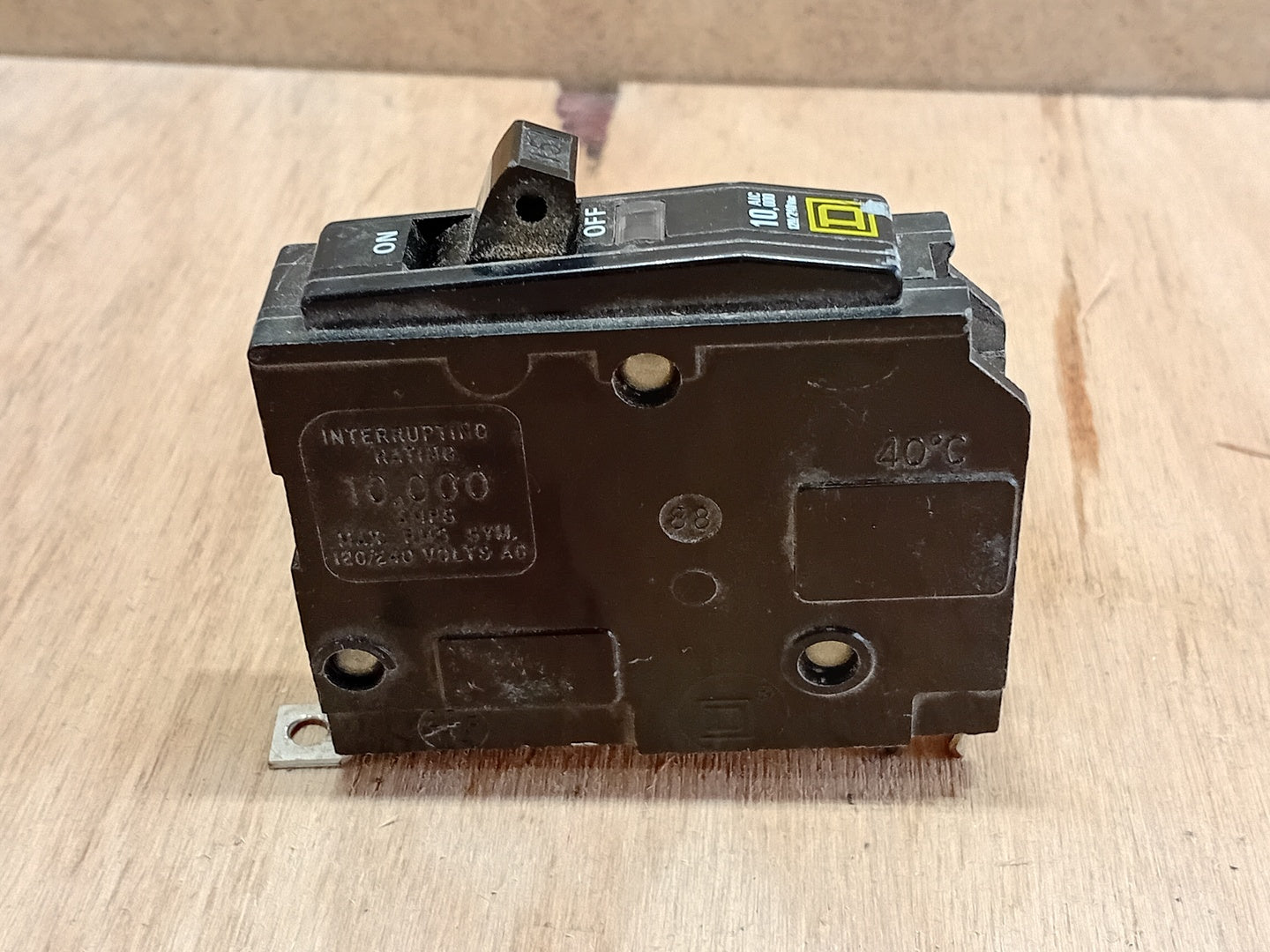

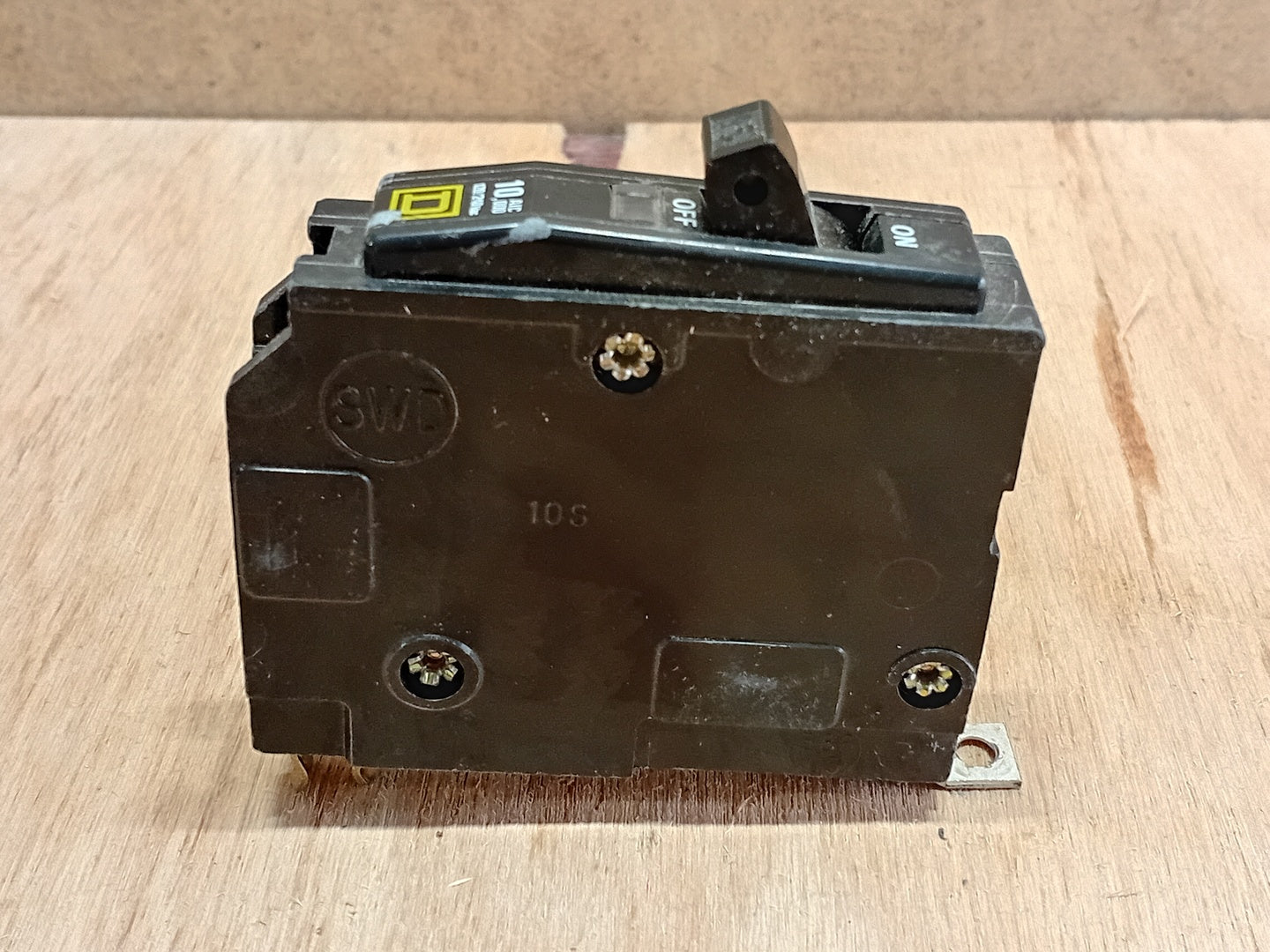

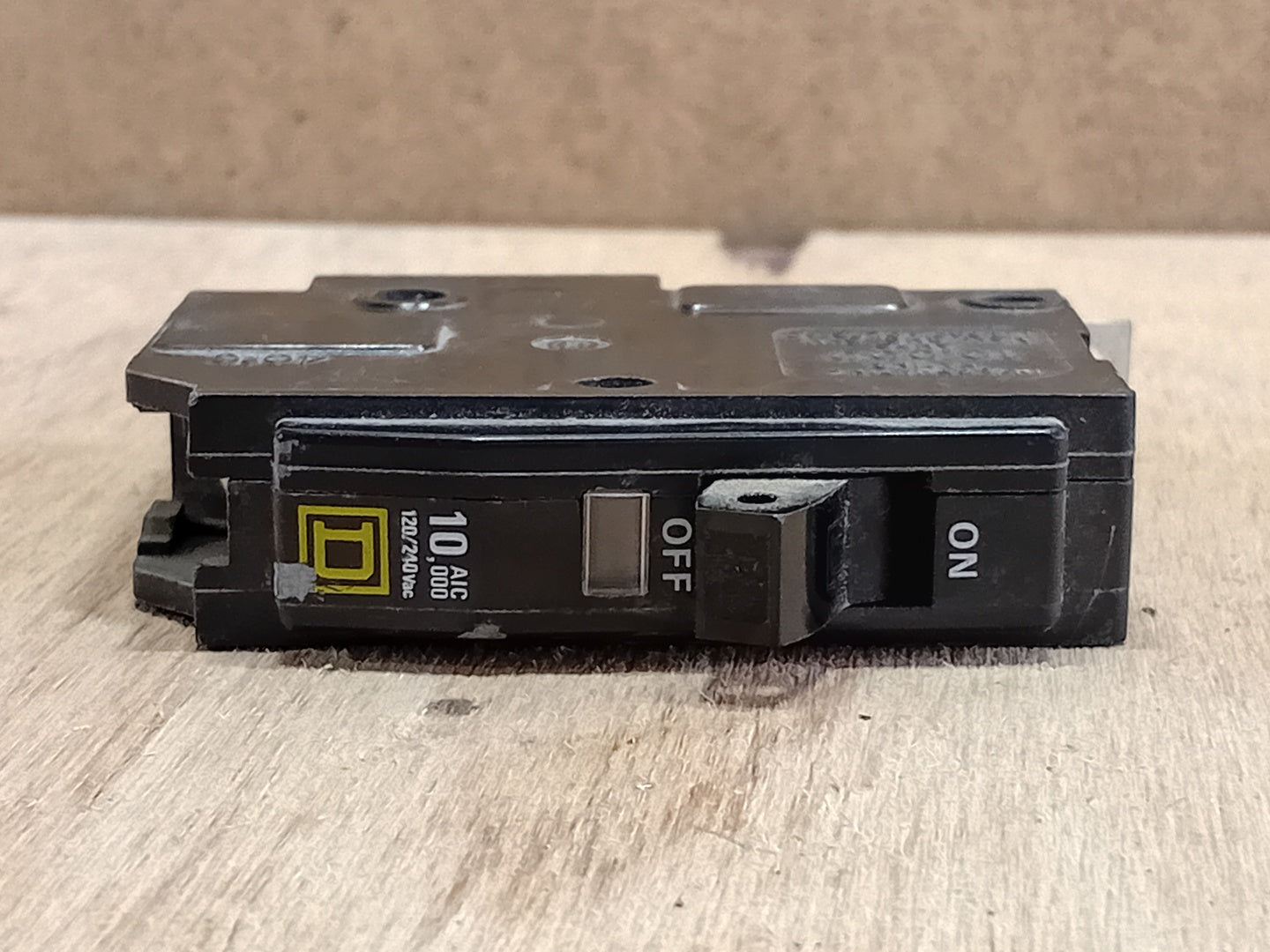

Used Square D QOB115 miniature thermal-magnetic bolt-on circuit breaker rated 15 Amps, single-pole, 120/240 VAC with a 10 kA interrupting capacity. Designed for compatible Square D QOB bolt-on panelboards and lighting panels.
| Specifications | |
|---|---|
| Model | QOB115 |
| Condition | Used | General |
| Amps | 15 amps |
| Series | QOB |
| # of Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|
Product Type: Miniature Circuit Breaker Frequency: 50/60 Hz Trip Type: Thermal-Magnetic Interrupting Rating: 10 kA @ 120/240 VAC Panel Spaces Required: 1 Electrical Connection: Pressure Plate Wire Range: AWG 14-8 Copper/Aluminum Circuit Breaker Ratings:
Ambient Temperature Rating: 40°C Certifications:
|
