Description

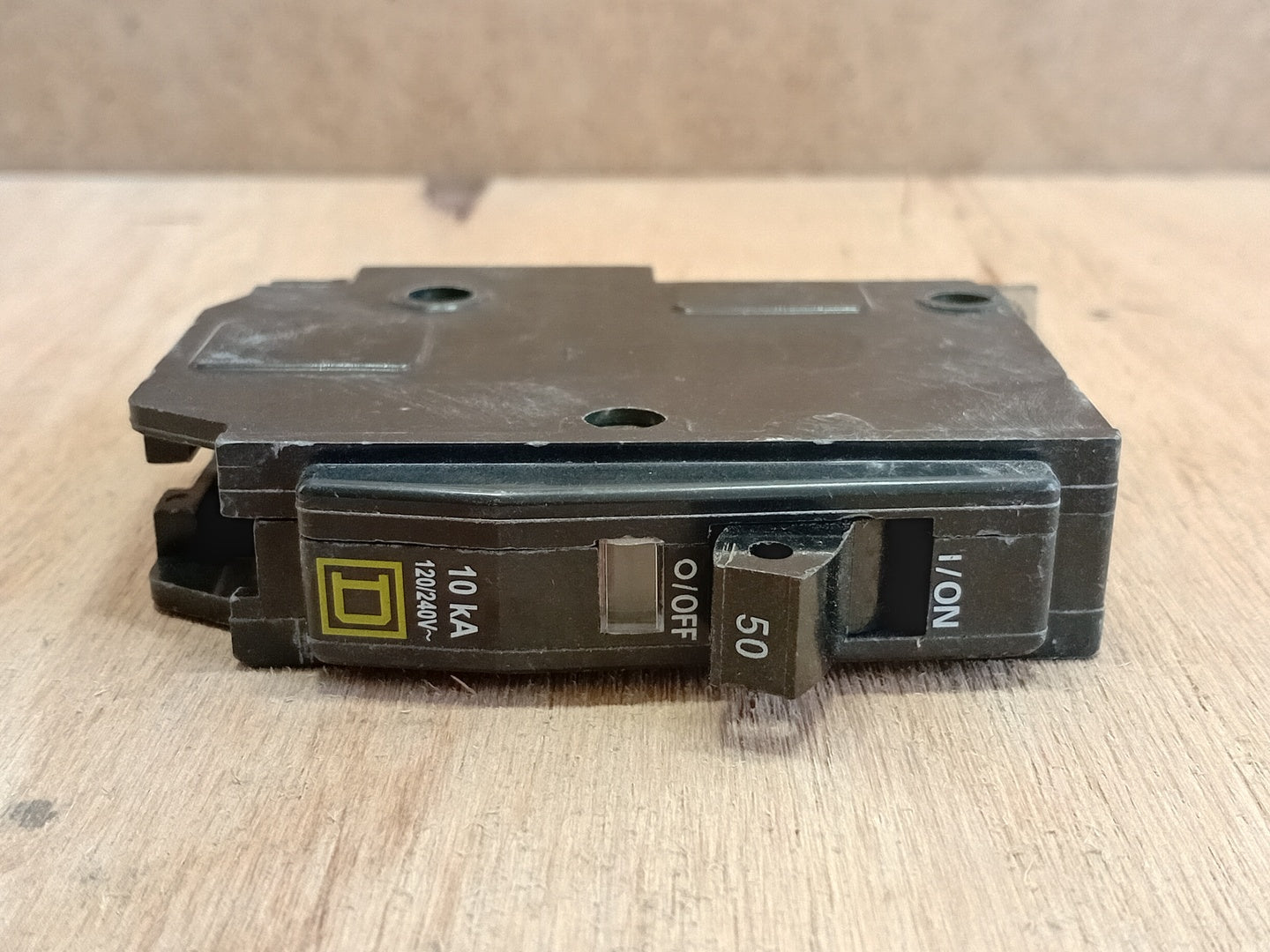

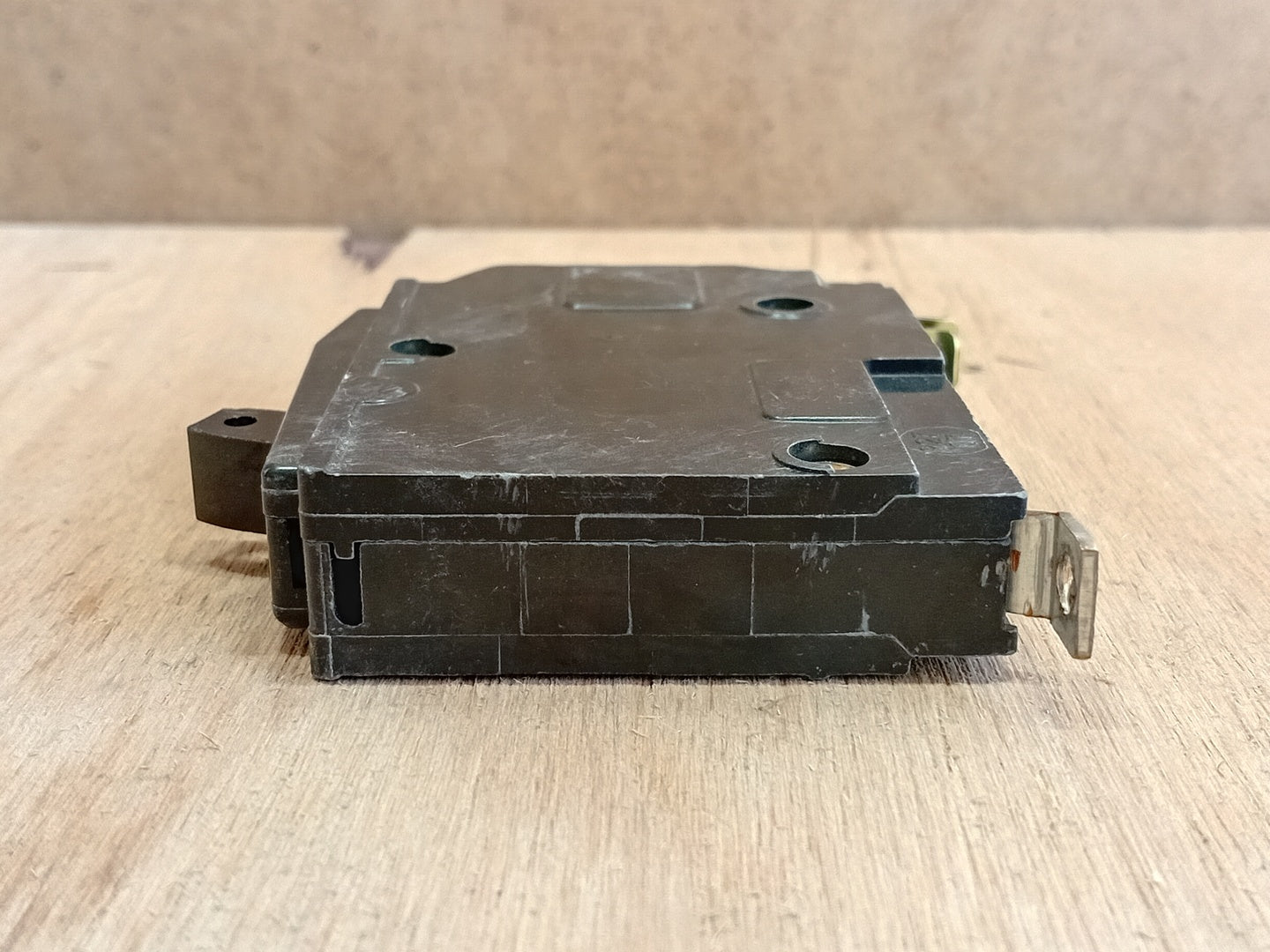

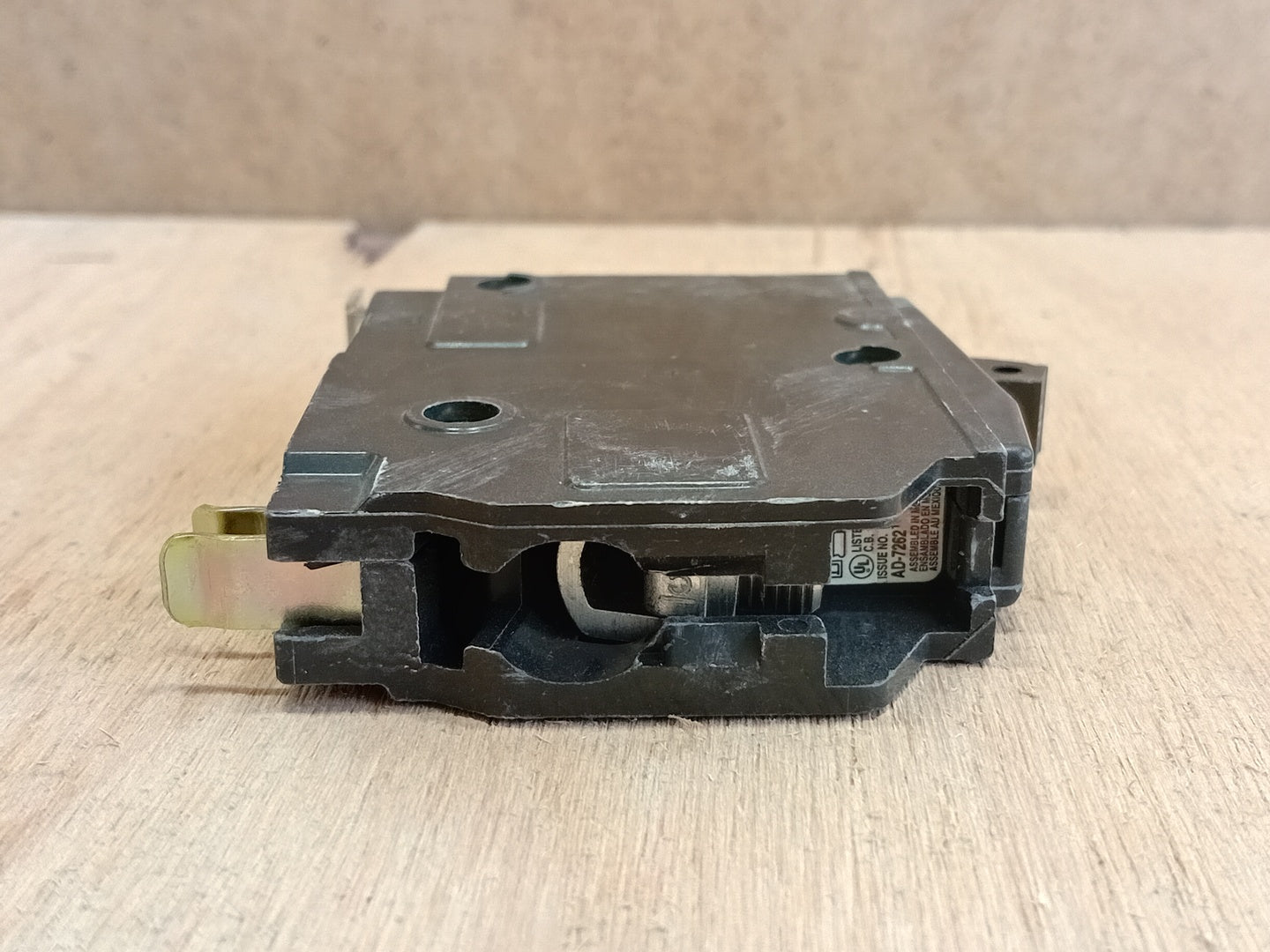

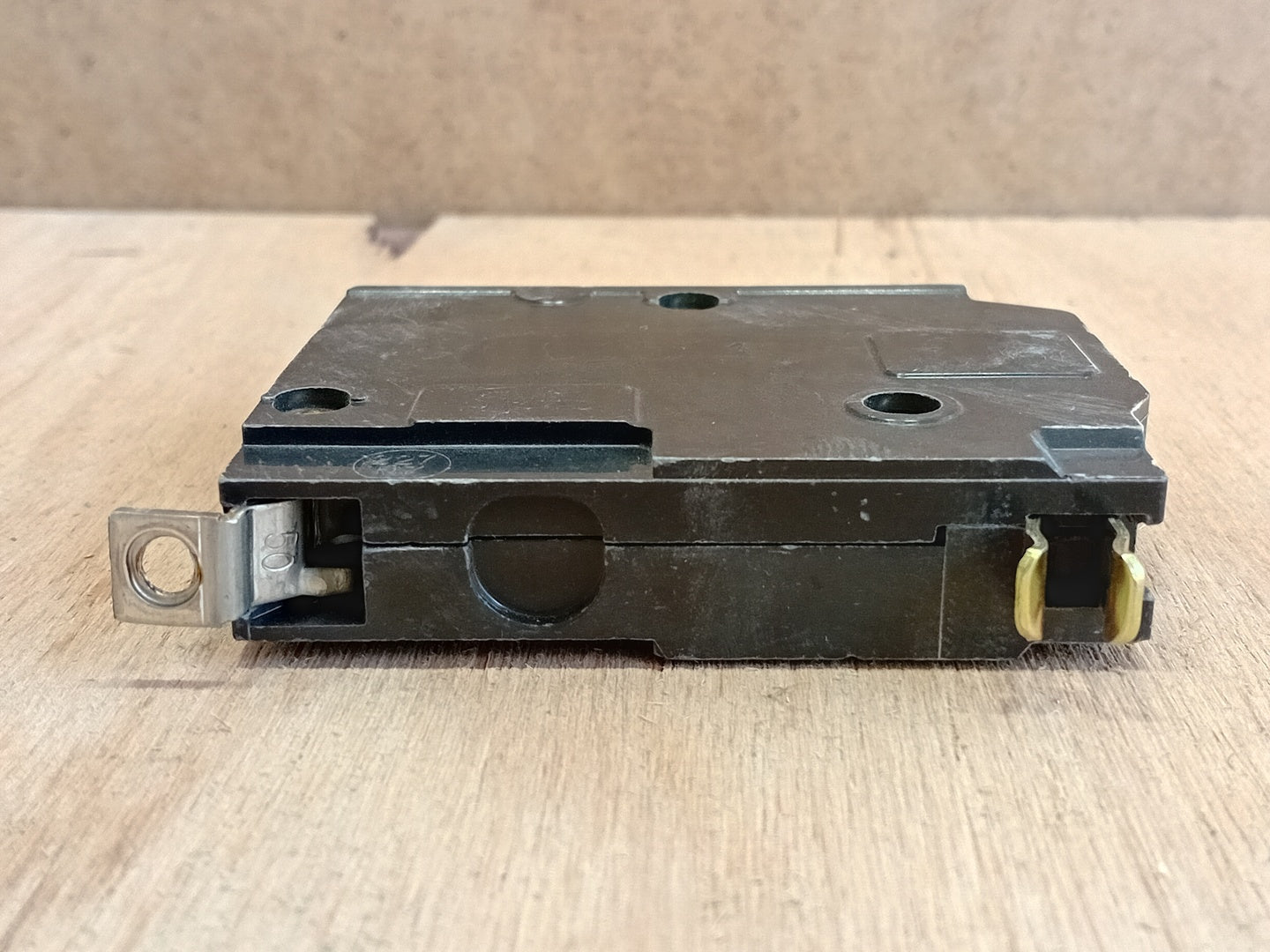

Square D QOB150 bolt-on thermal magnetic circuit breaker rated for 50 Amps and 120/240 VAC operation. This single-pole breaker is designed for use in compatible Square D QOB panelboards and features a 10 kA interrupting rating. The breaker shows normal cosmetic wear from previous service but no visible structural damage.
| Specifications | |
|---|---|
| Model | QOB150 |
| Made In | MEXICO |
| Condition | Used | General |
| Amps | 50 amps |
| Series | QOB |
| # of Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|
Breaker Type: Thermal Magnetic Circuit Breaker Interrupt Rating: 10 kA RMS Symmetrical Terminal Wire Size: #8-#2 AWG Copper/Aluminum Wire Temperature Rating: 60/75°C Terminal Torque: 36 lb-in Trip Indicator: Visi-Trip Window |
