Description

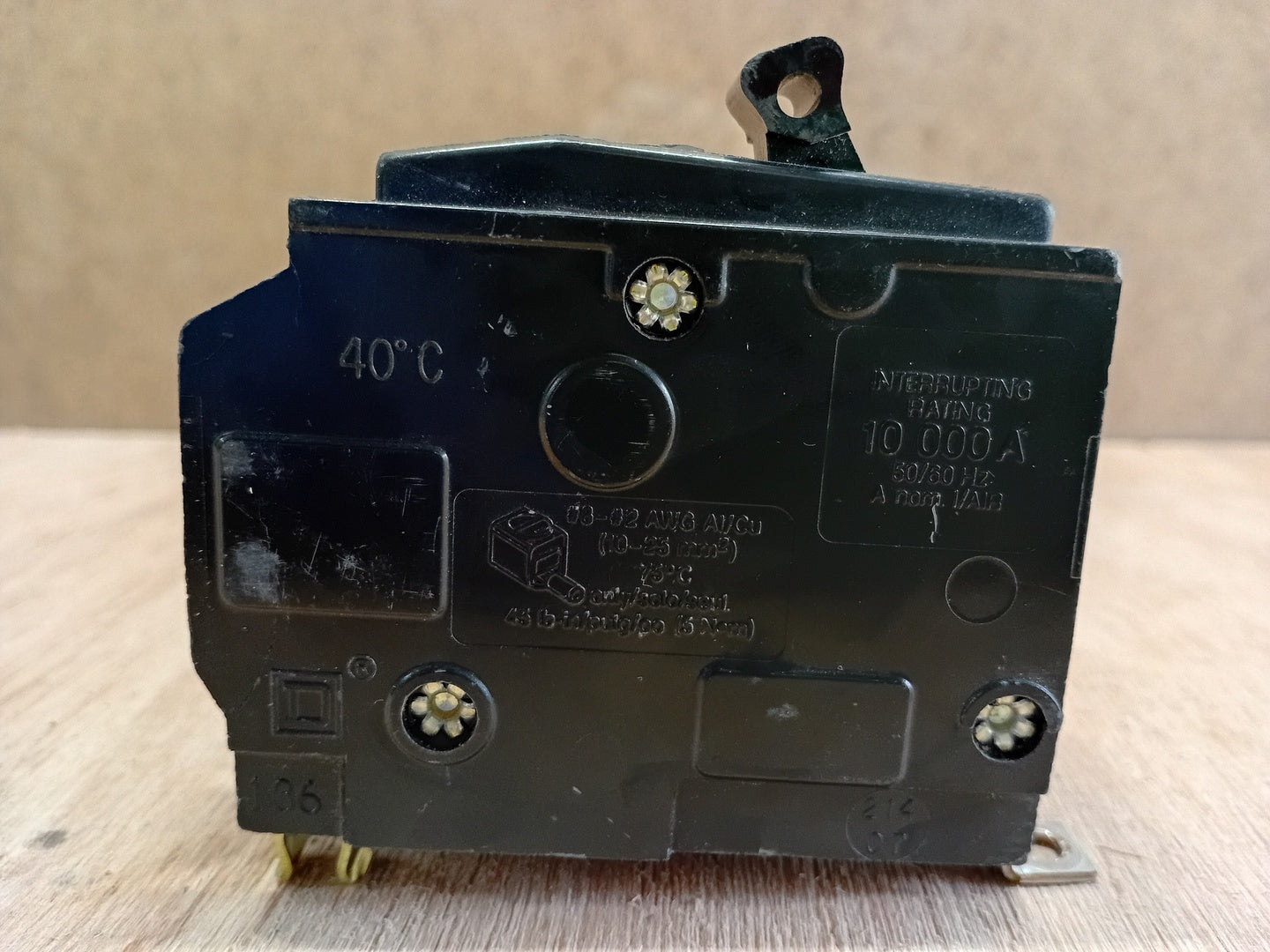

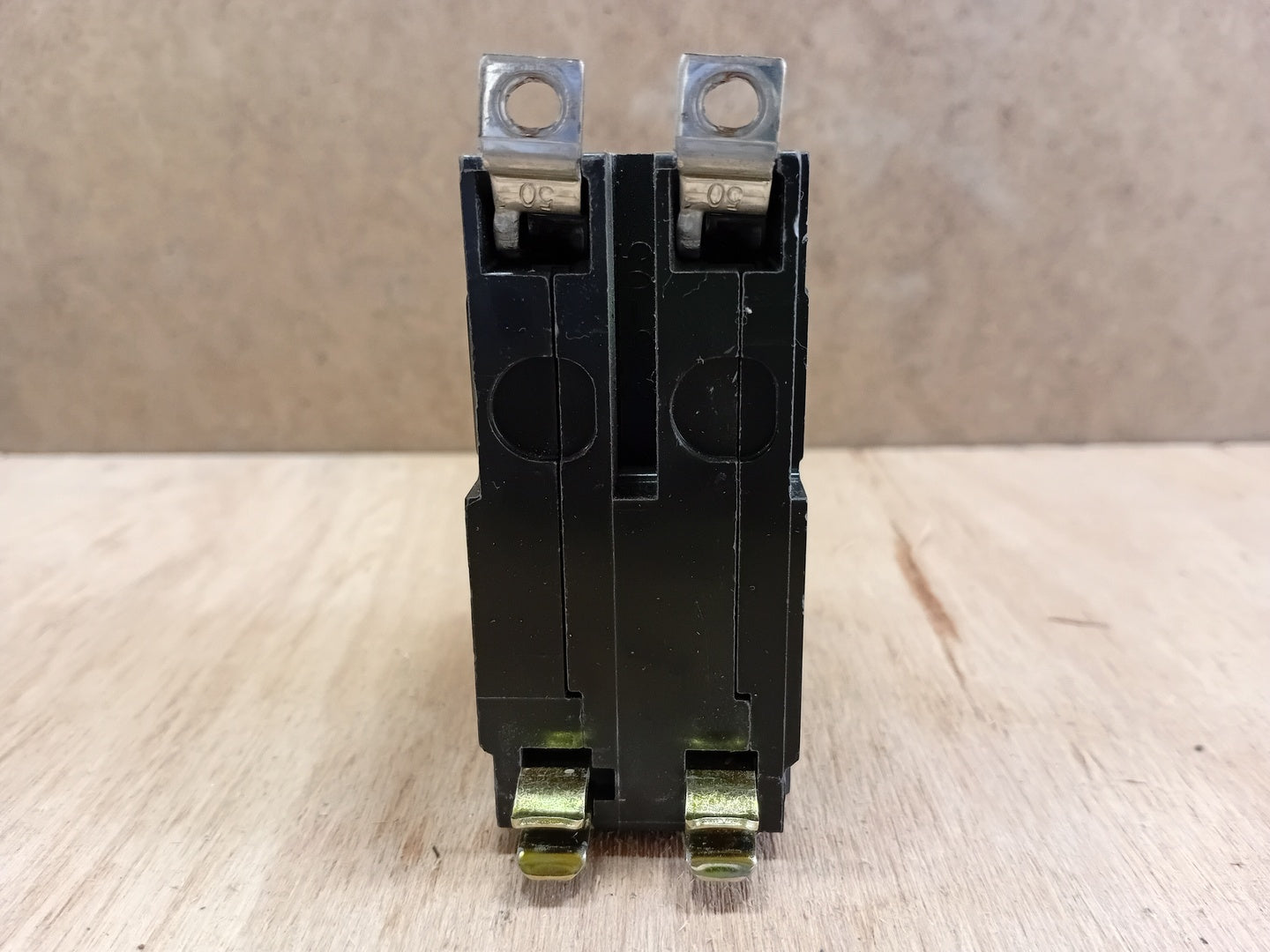

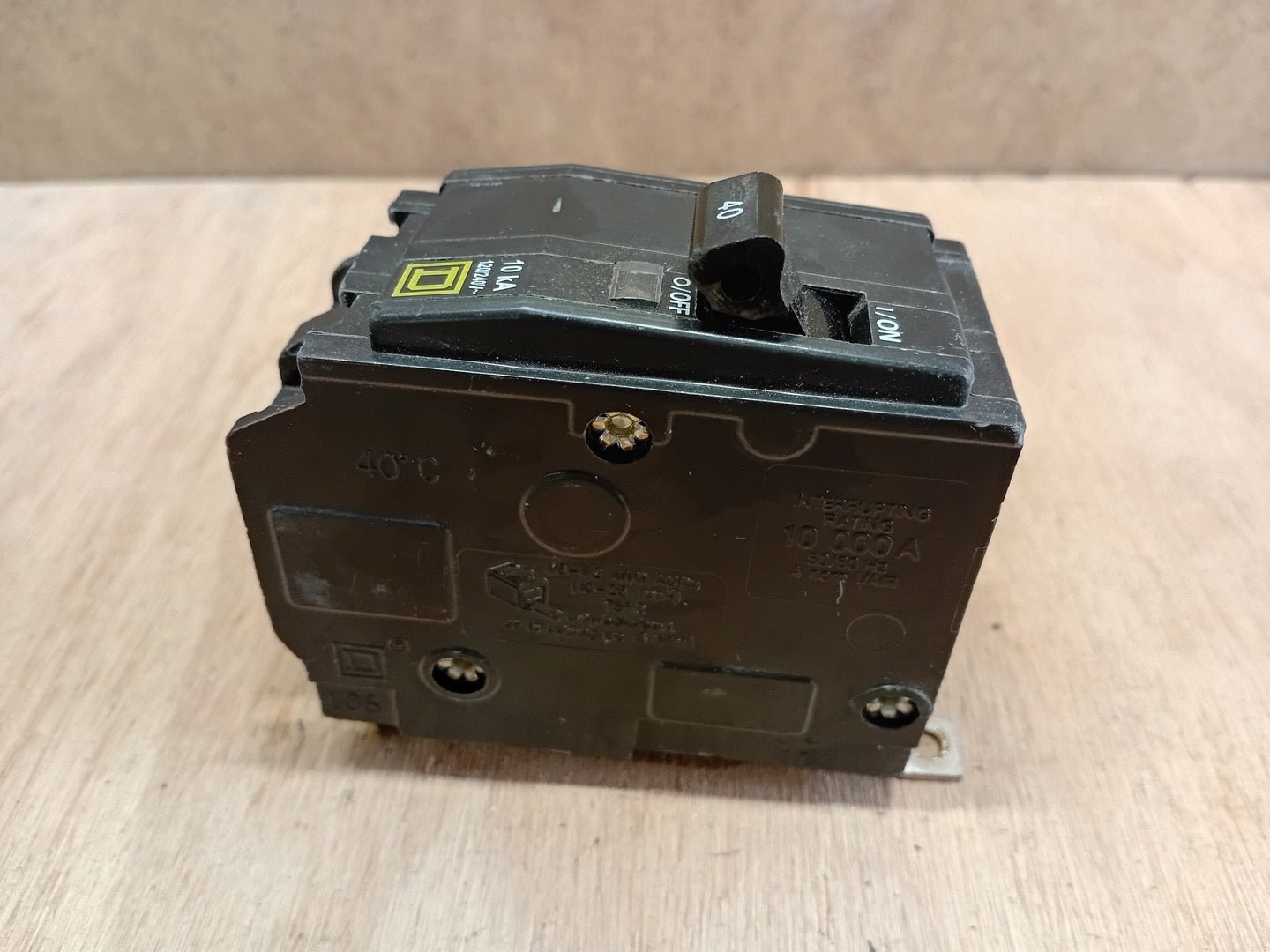

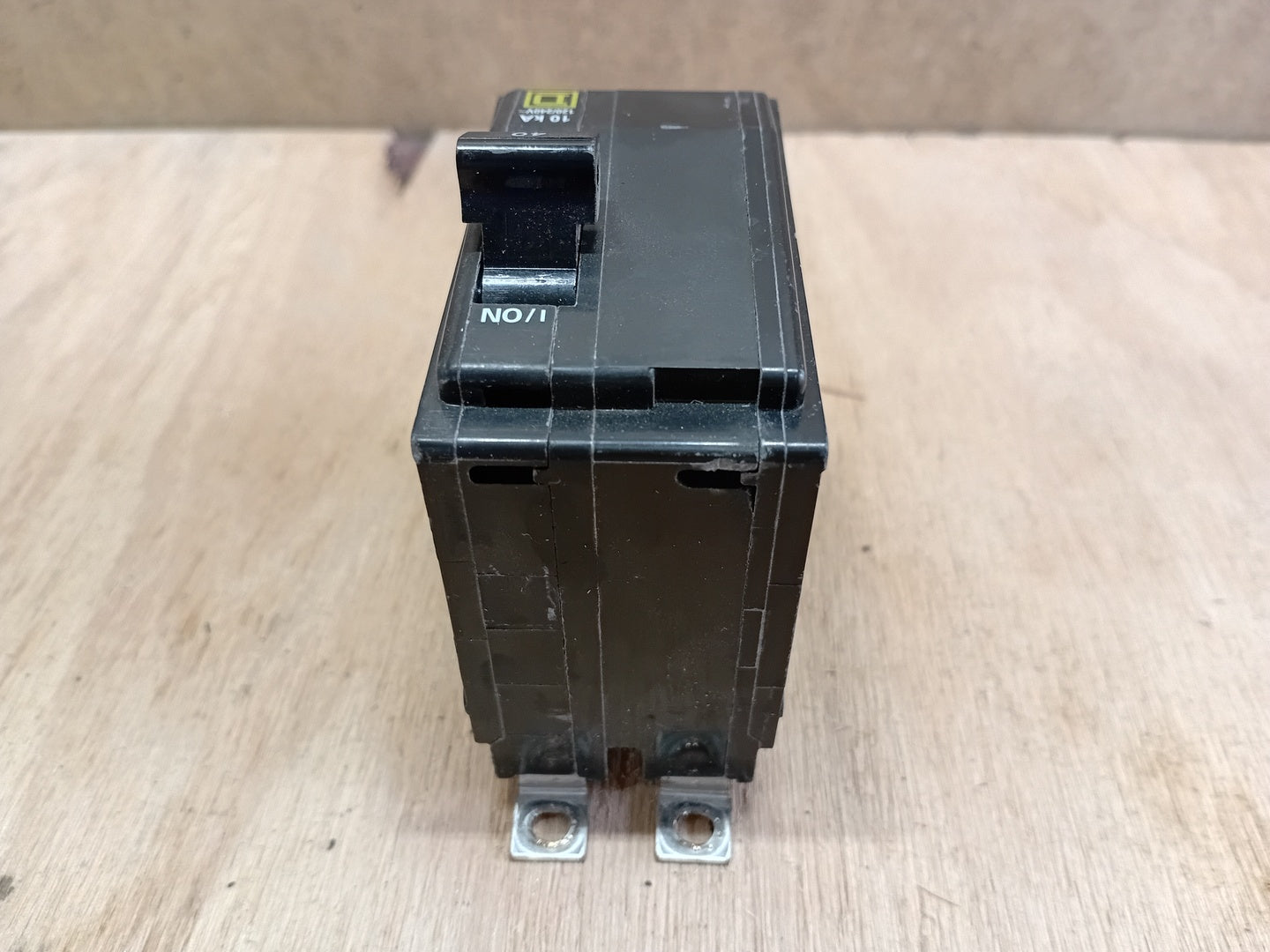

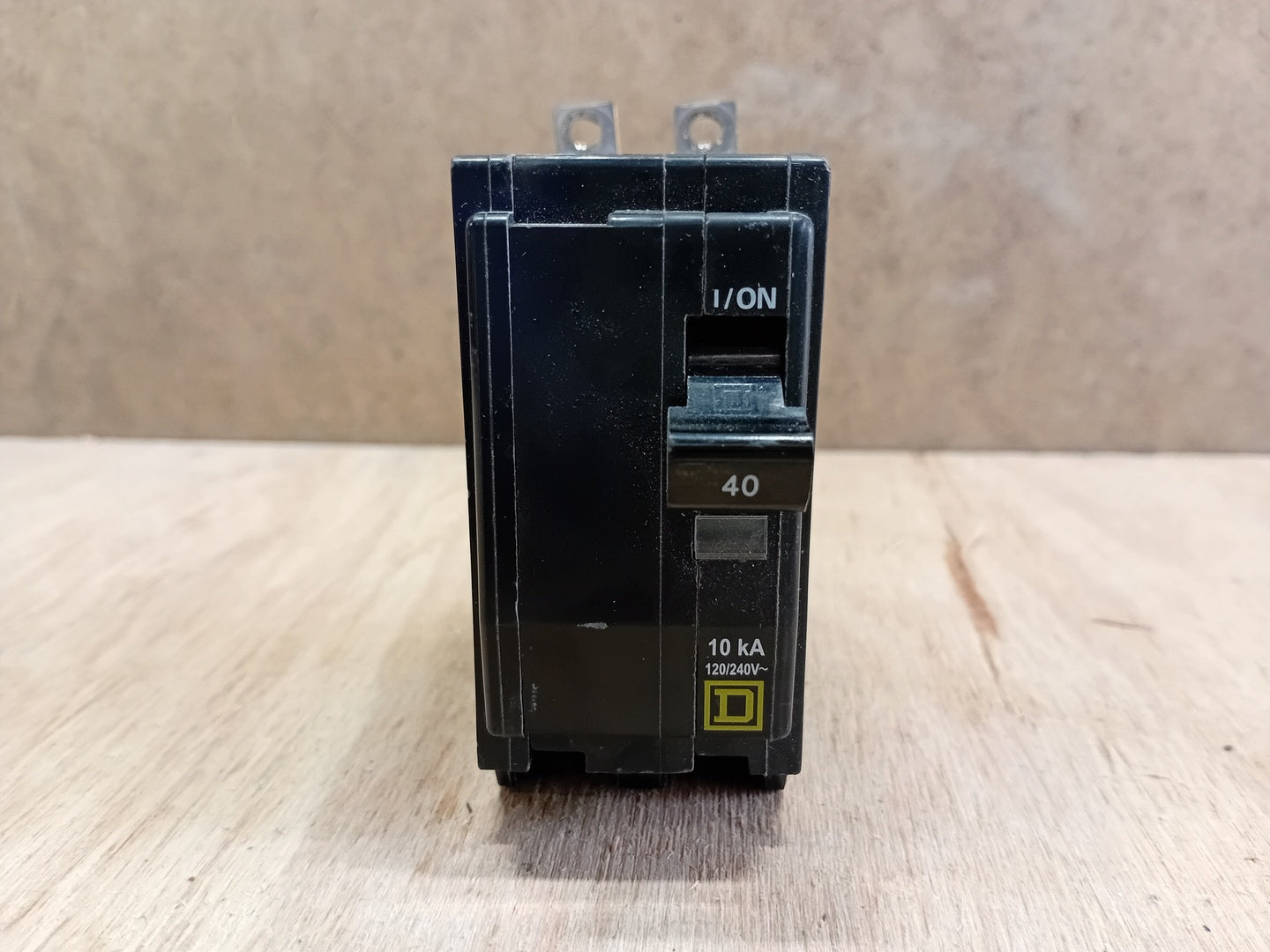

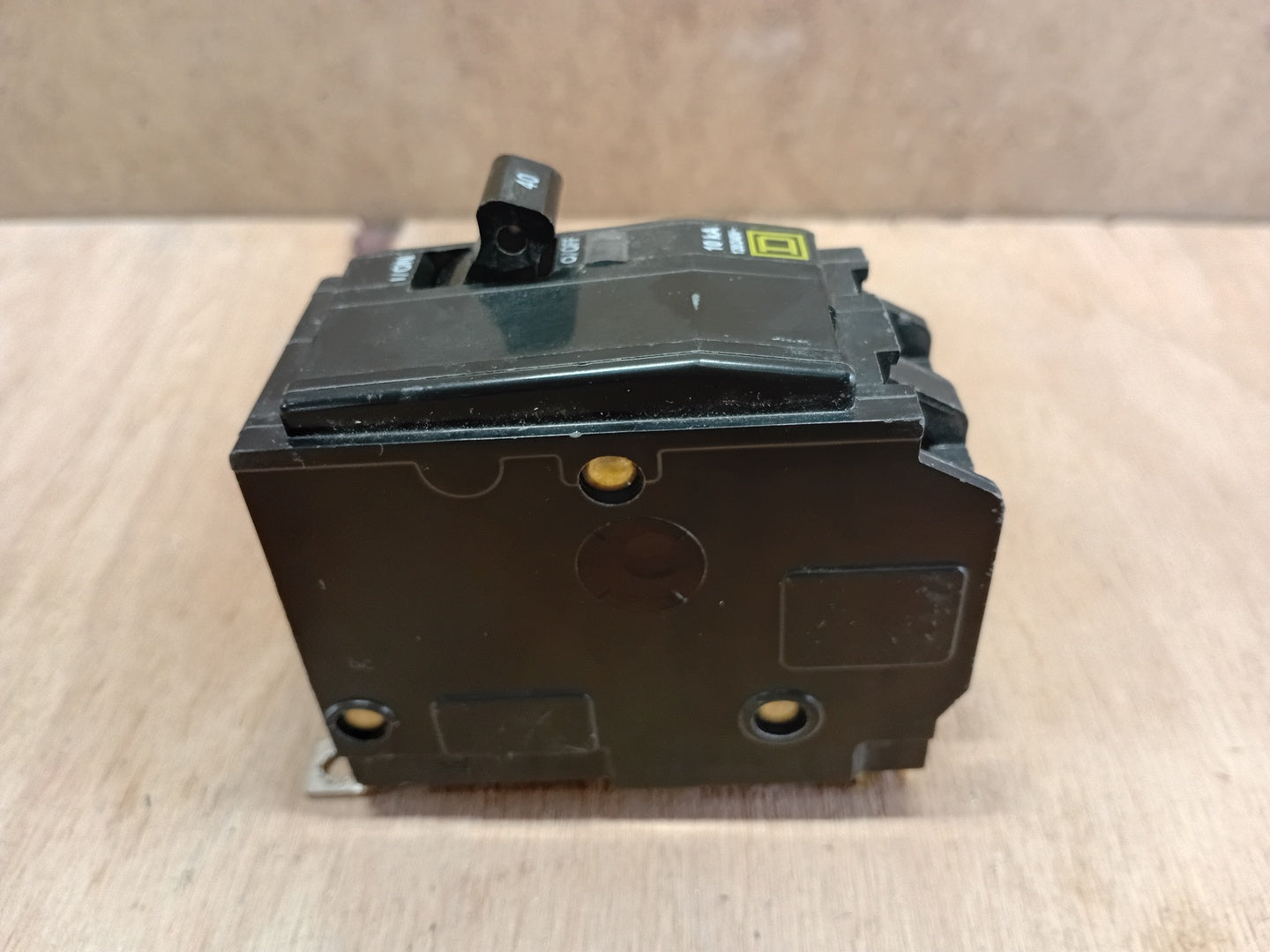

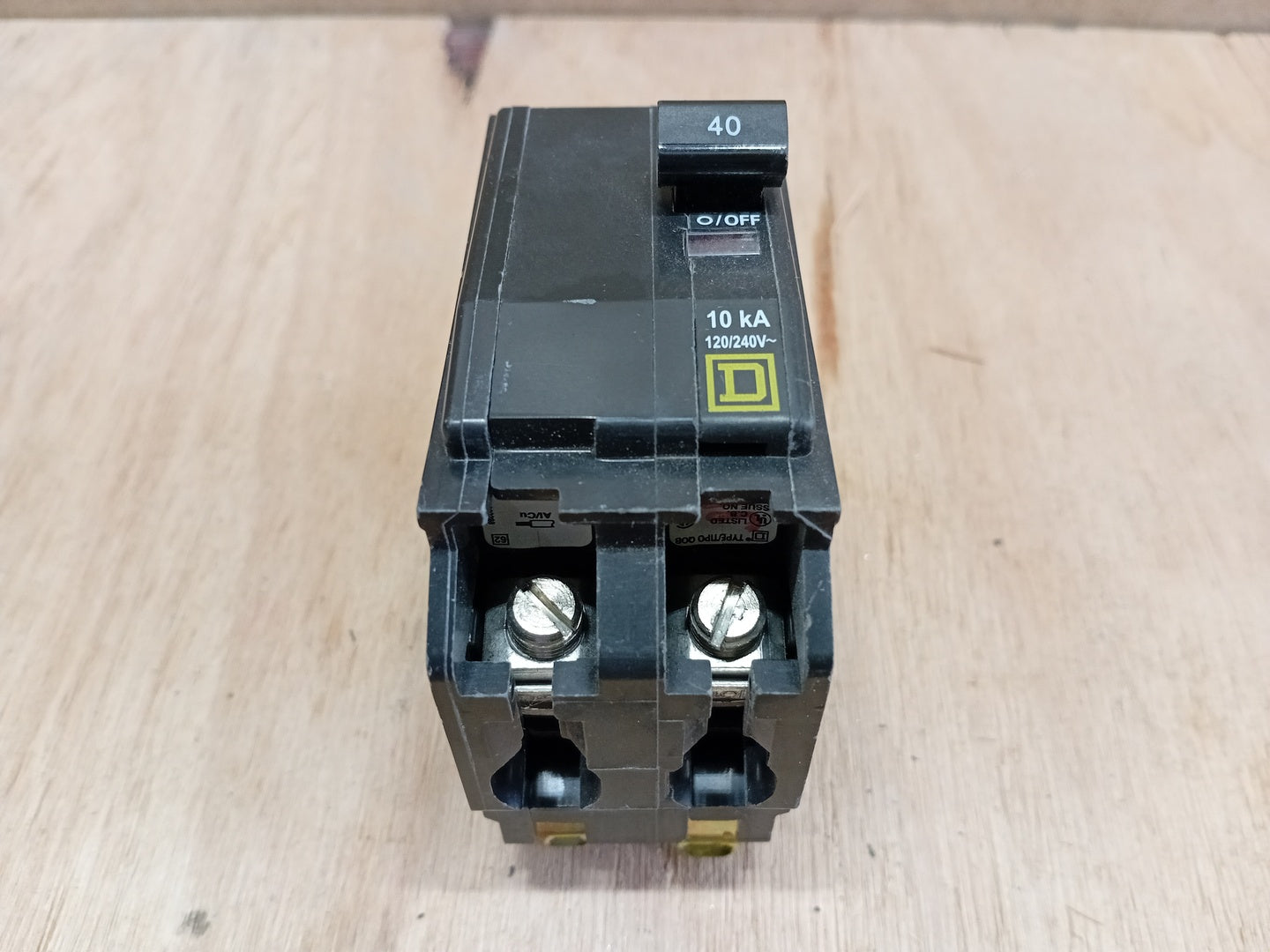

Used Square D QOB240 thermal-magnetic bolt-on circuit breaker rated 40 Amps, 2-pole, 120/240 VAC with a 10 kA interrupting capacity. Designed for compatible Square D QOB bolt-on panelboards and commercial electrical distribution applications.
| Specifications | |
|---|---|
| Model | QOB240 |
| Condition | Used | General |
| Amps | 40 amps |
| Series | QOB |
| # of Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|
Product Type: Thermal-Magnetic Miniature Circuit Breaker Frequency: 50/60 Hz Trip Type: Thermal-Magnetic Interrupting Rating: 10 kA @ 120/240 VAC Trip Indicator: Visi-Trip Electrical Connection: Box Lug Wire Range: AWG 8-2 Copper/Aluminum Terminal Torque: 44.25 lb-in (5 N-m) Panel Spaces Required: 2 Ambient Rating: 40°C Conductor Material: Copper / Aluminum Certifications:
Ratings:
|
