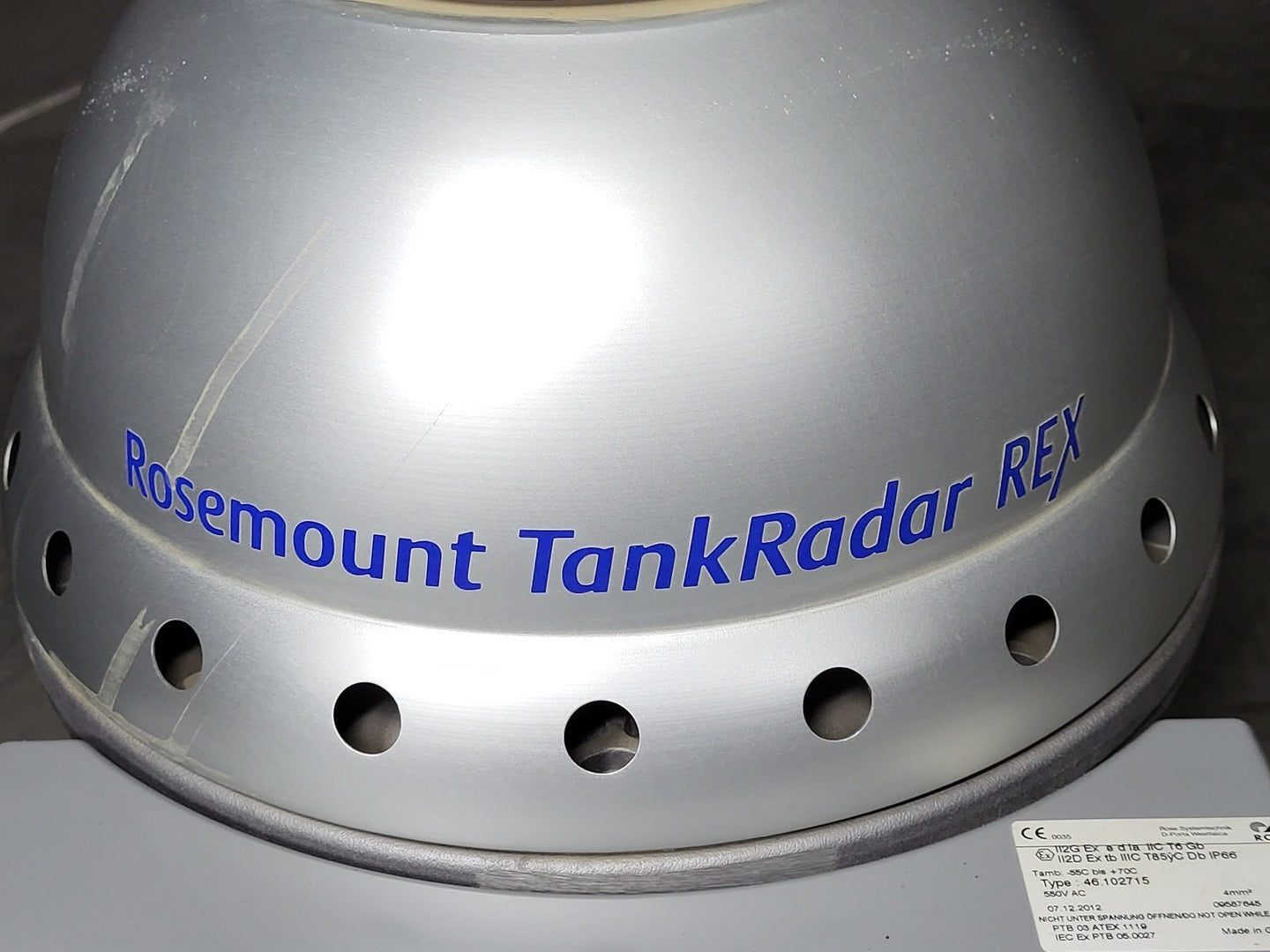

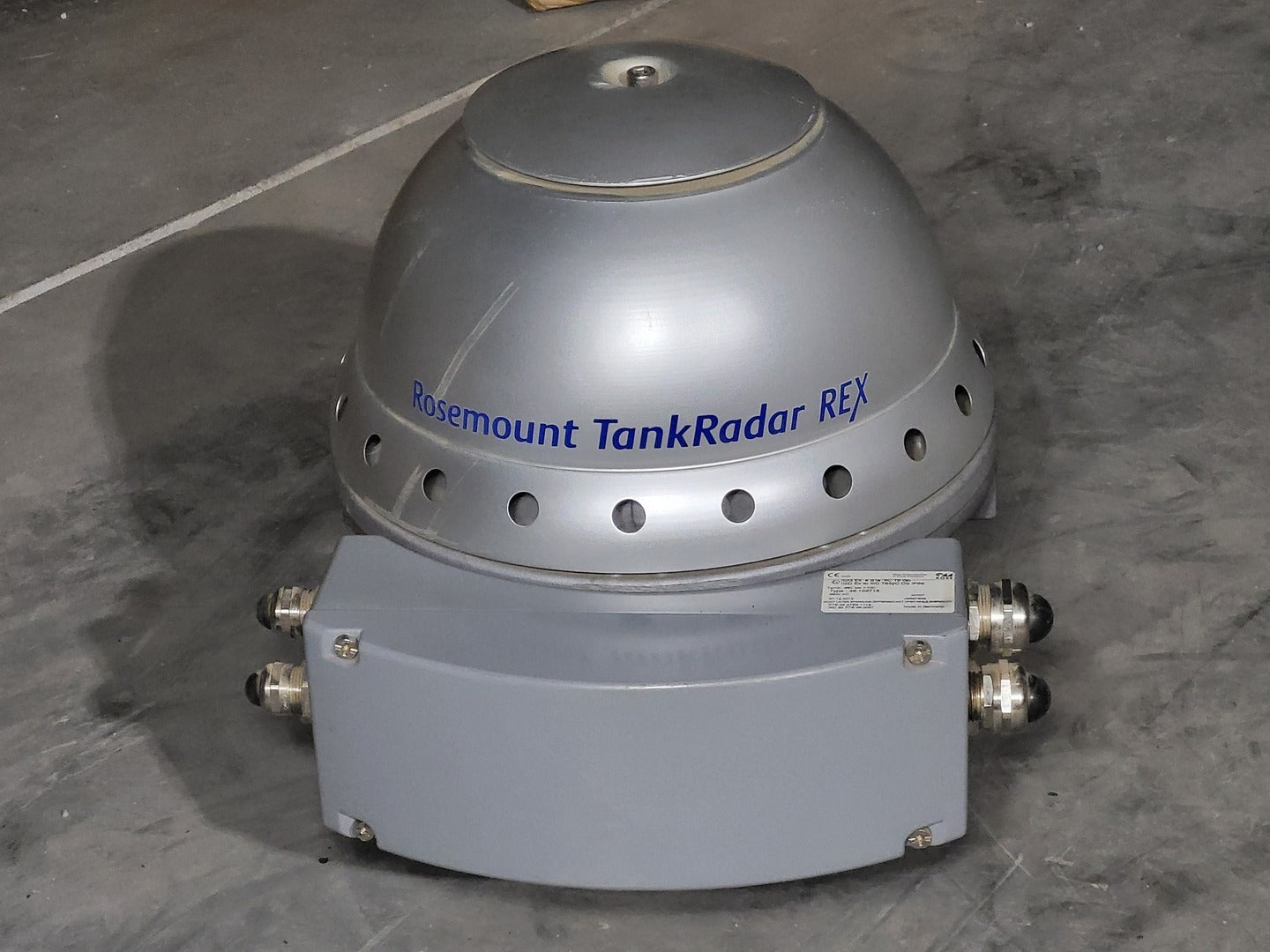

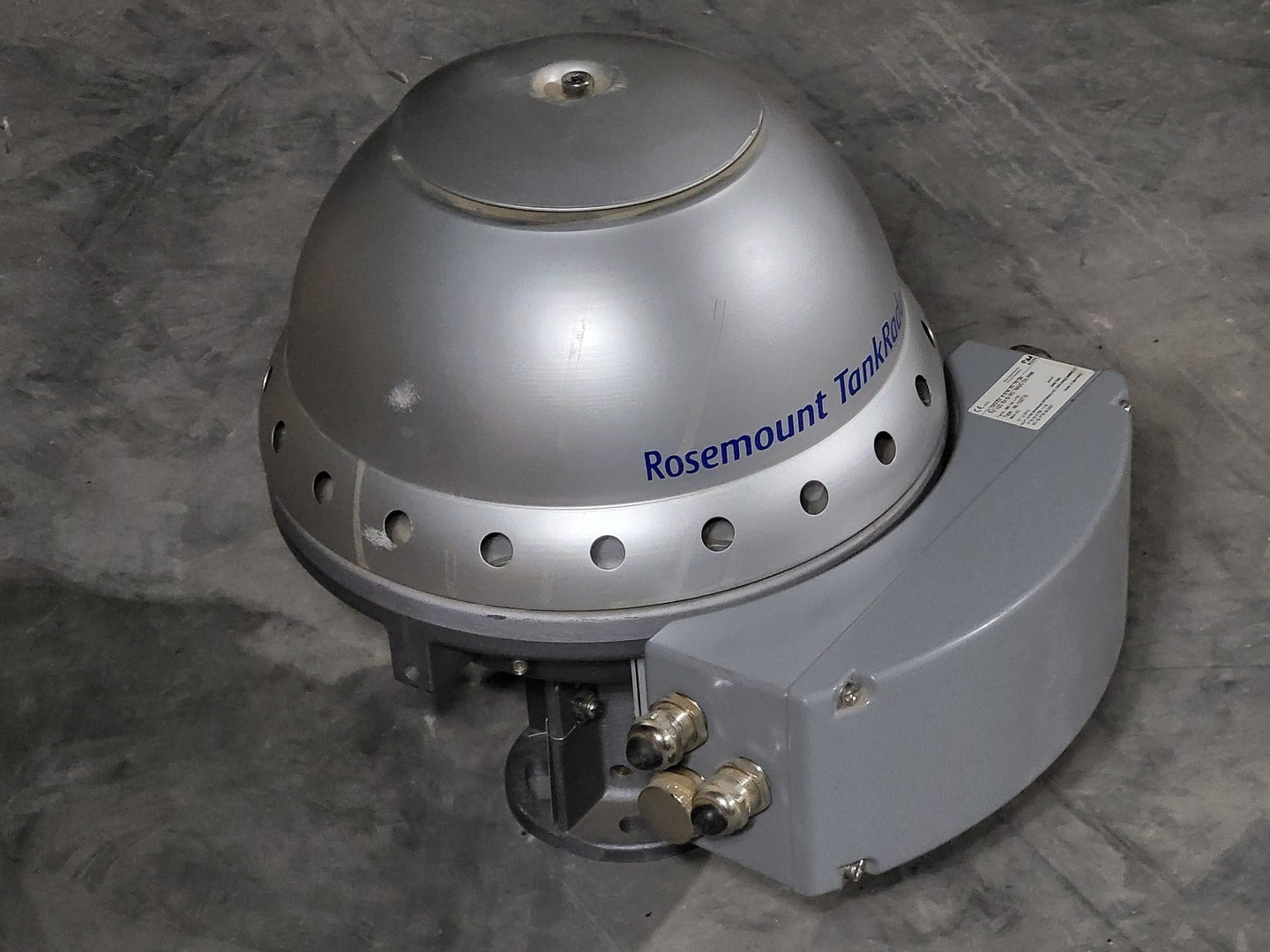

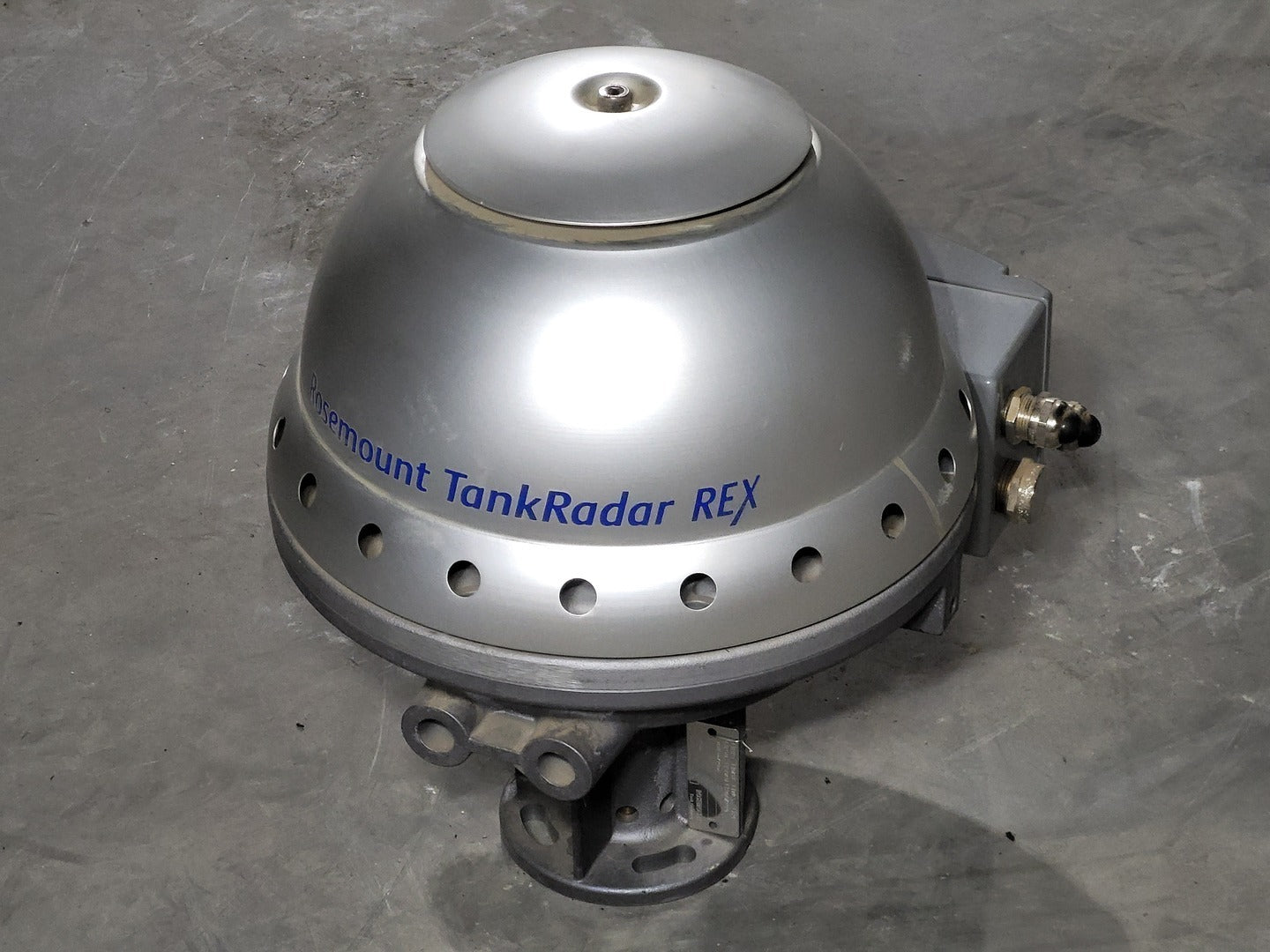

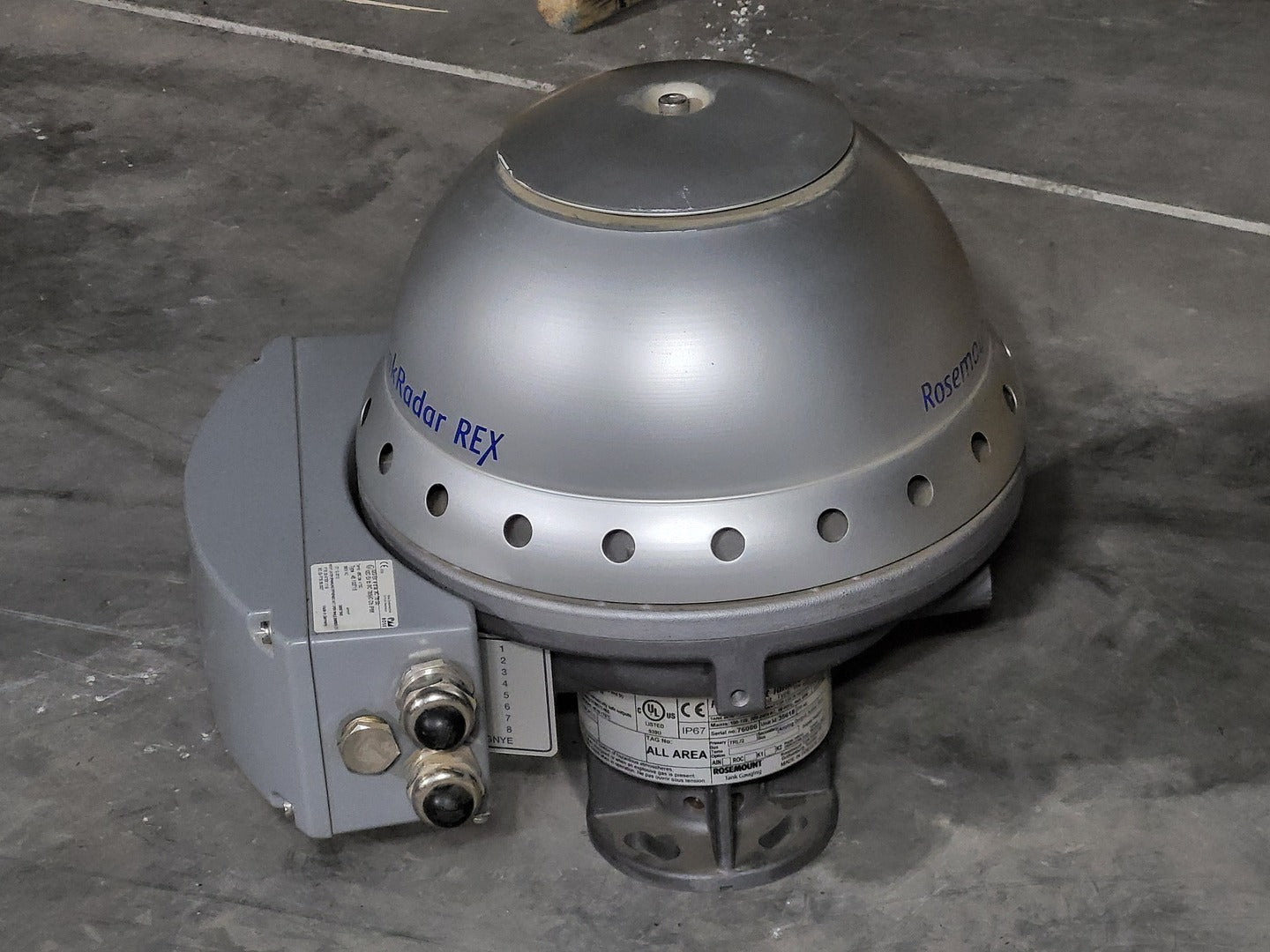

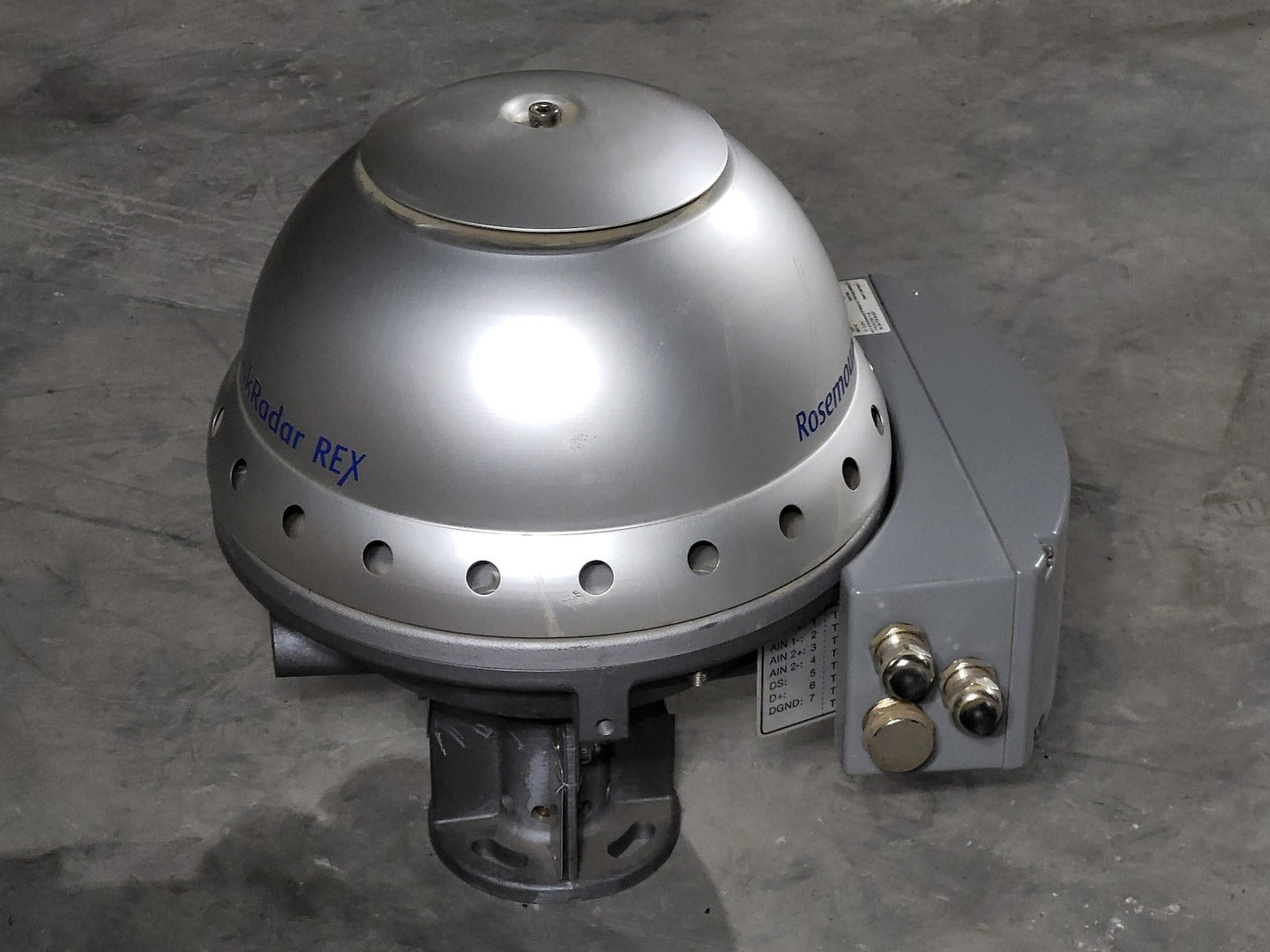

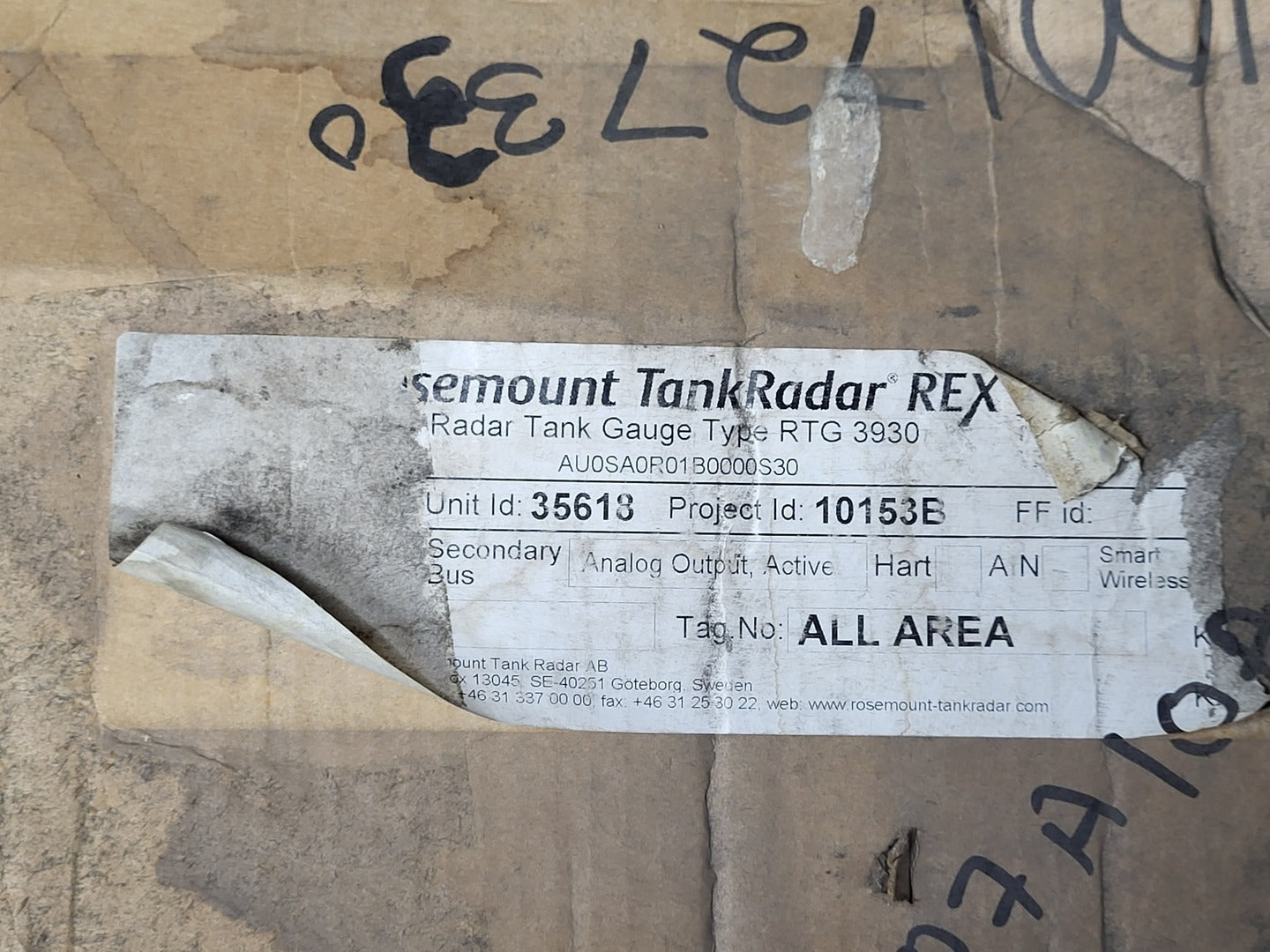

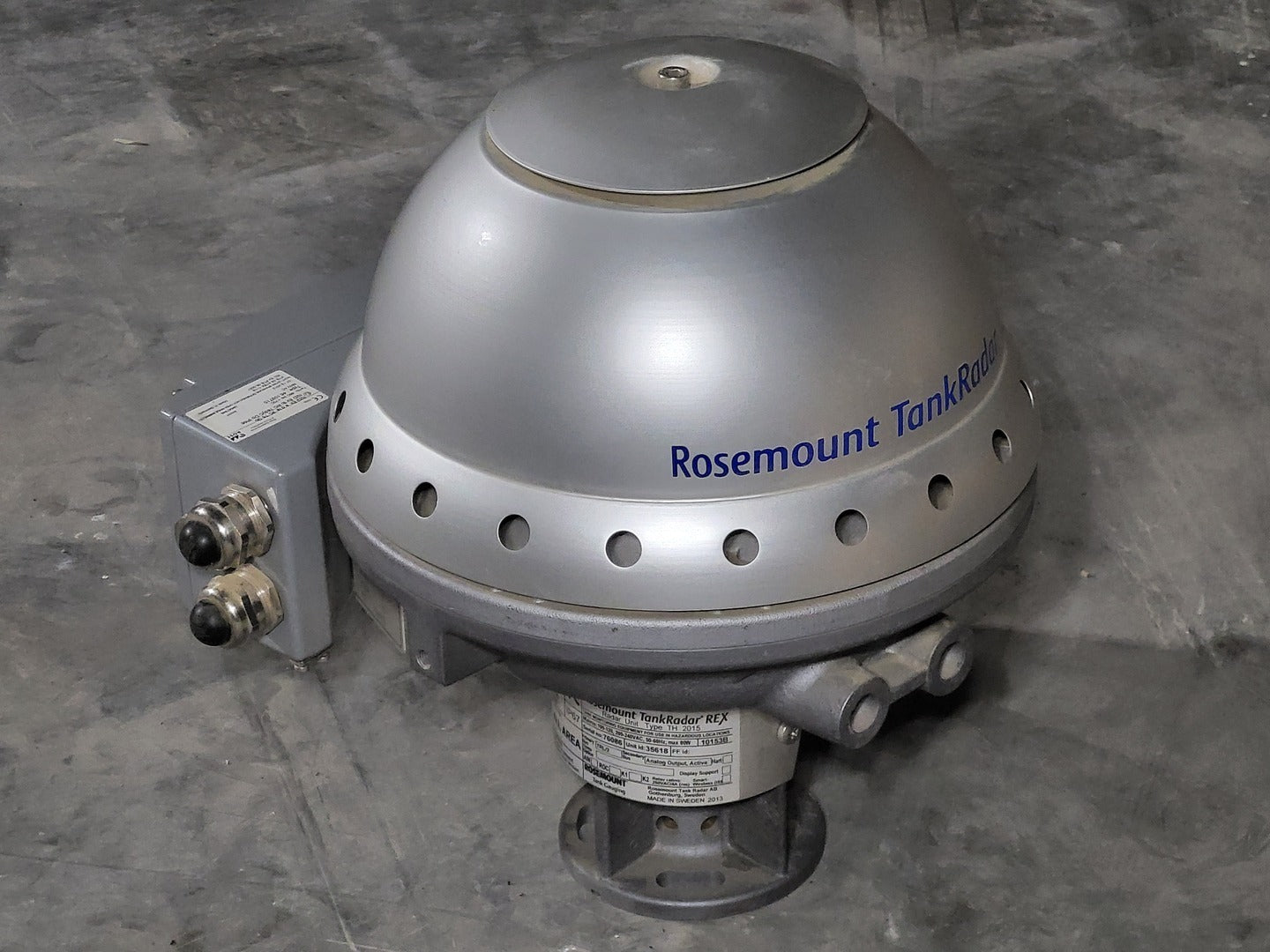

Radar Tank Gauge Type RTG 3930

SKU: 150900

604-449-1880

Specifications
Model	RTG 3930
Condition	Surplus New

Other Specifications

Measuring principle: FMCW radar with digital reference and temperature control

Antenna type: High directivity parabolic reflector with drip-off antenna, 440 mm (17 in.) diameter

Instrument accuracy: +- 0.5 mm (+- 5/256 in.)

Measuring range: 0.8 to 40 m (2.6 to 130 ft) below flange

Temperature:

Pressure:

Material exposed to tank atmosphere: Acid proof steel EN 1.4436 (AISI 316), PTFE and FPM

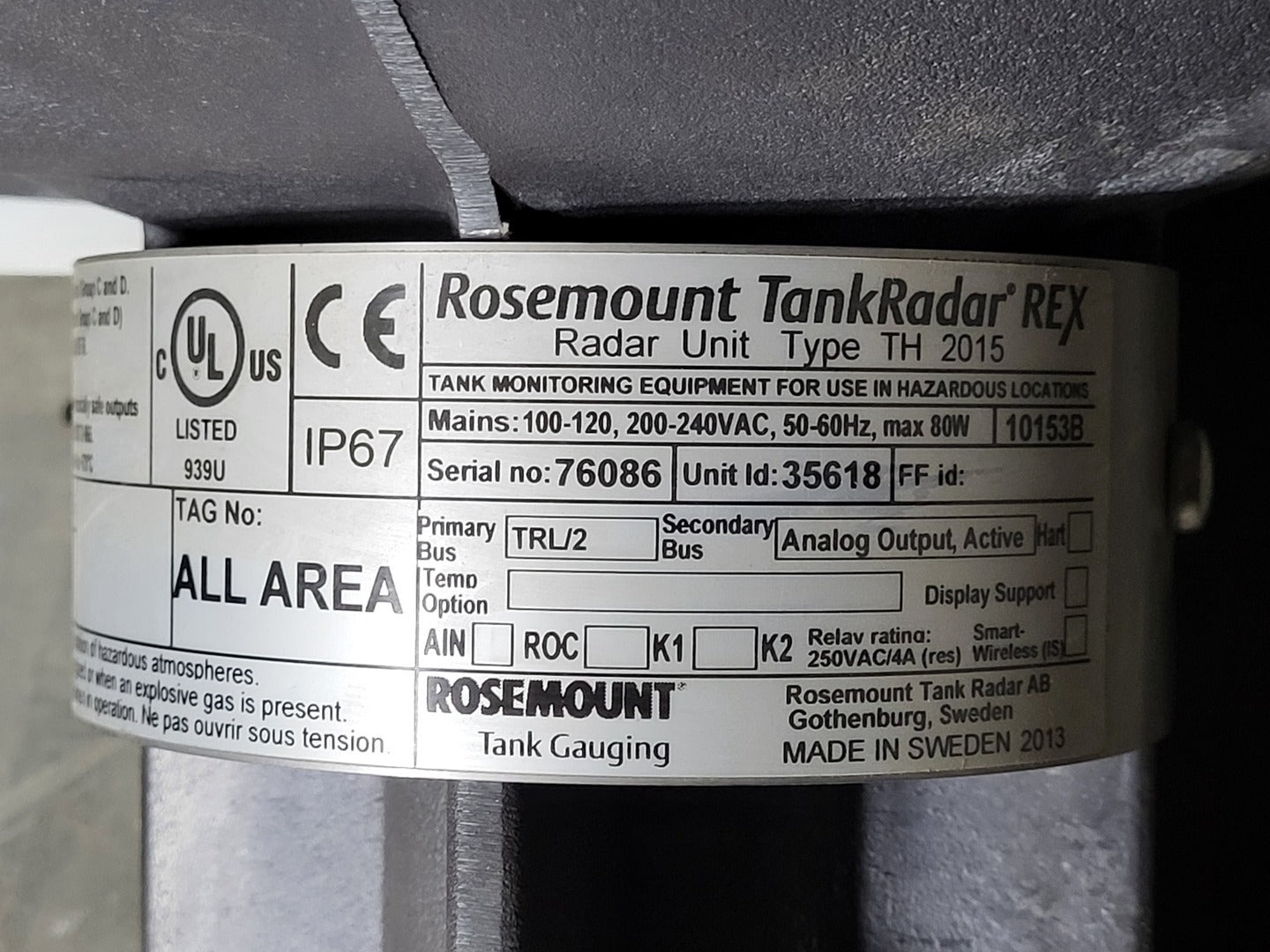

Supply voltage: 100-240 VAC, 50-60 Hz. Optional 34-70 VAC, 20-28 VDC (max 30 W) or 48-99 VDC

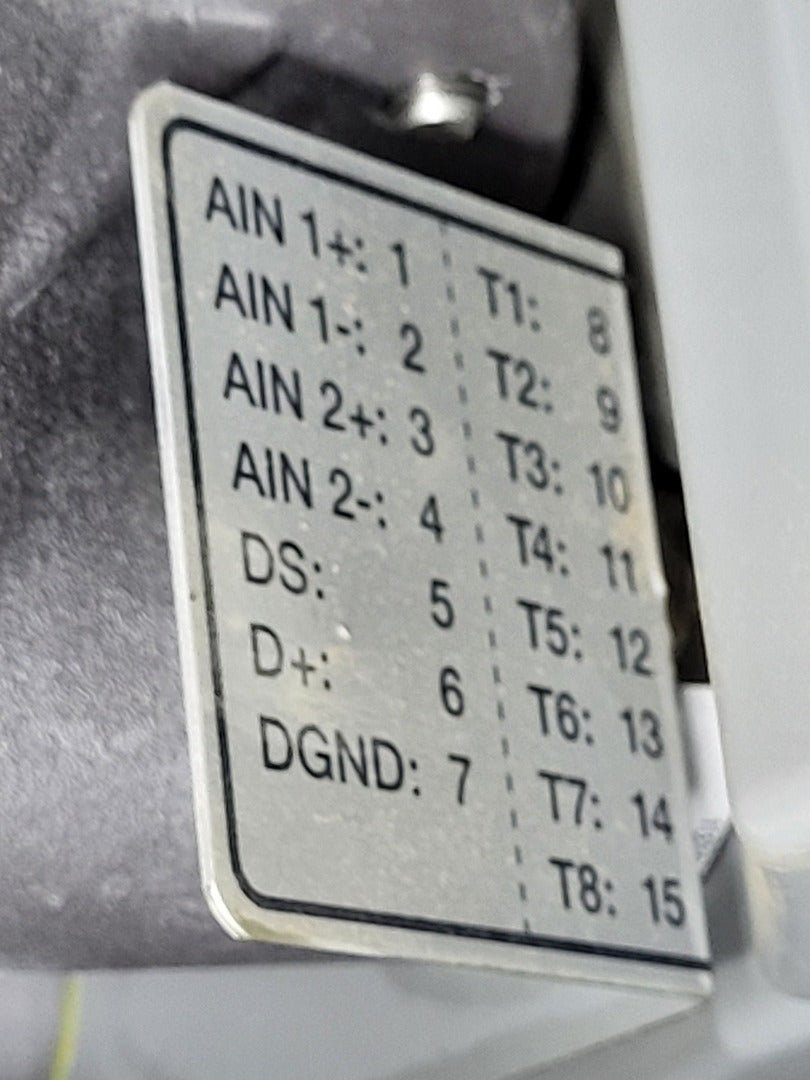

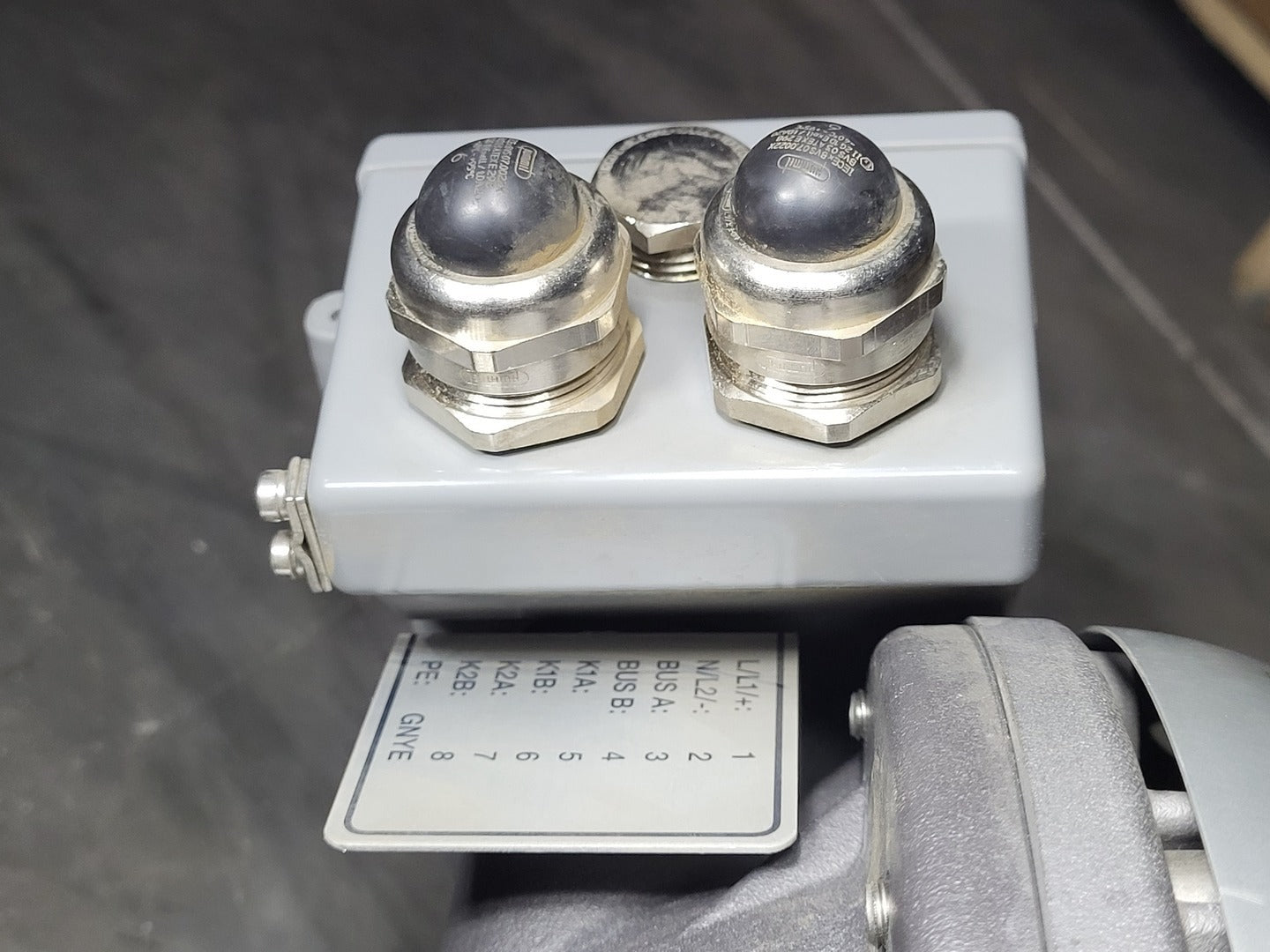

Outputs/inputs:

Outputs: TRL/2 field bus, 1 pc 4-20 mA, Profibus DP, Foundation fieldbus, Tiway, 2 pcs relays, other vendor's field buses
Inputs: Temperature (Pt 100), 2 pcs 4-20 mA

Display: On separate DAU, RDU or remotely in control room

Manway: size Minimum 20 in.

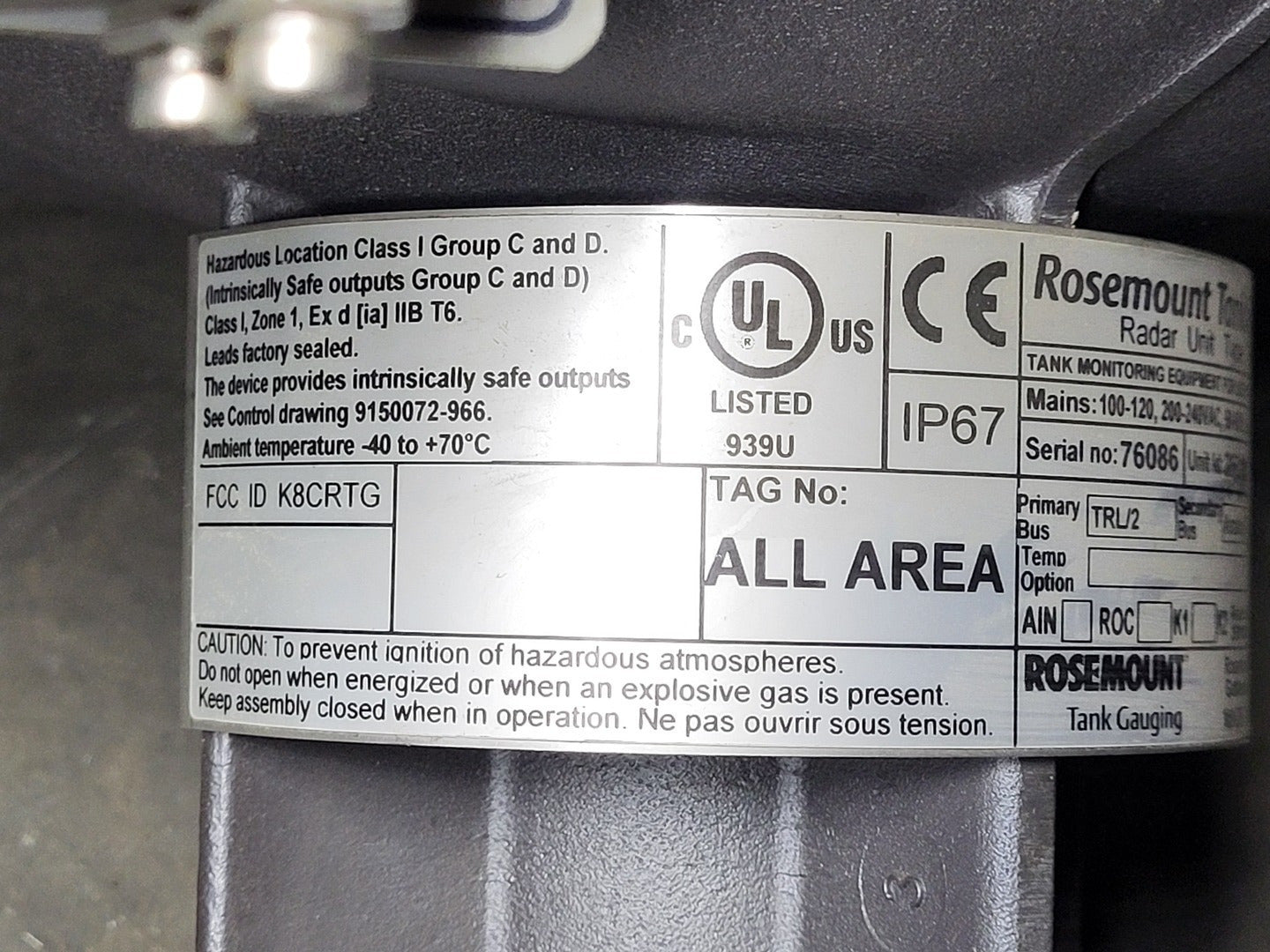

Housing: Aluminium, designed for IP 66 & 67
