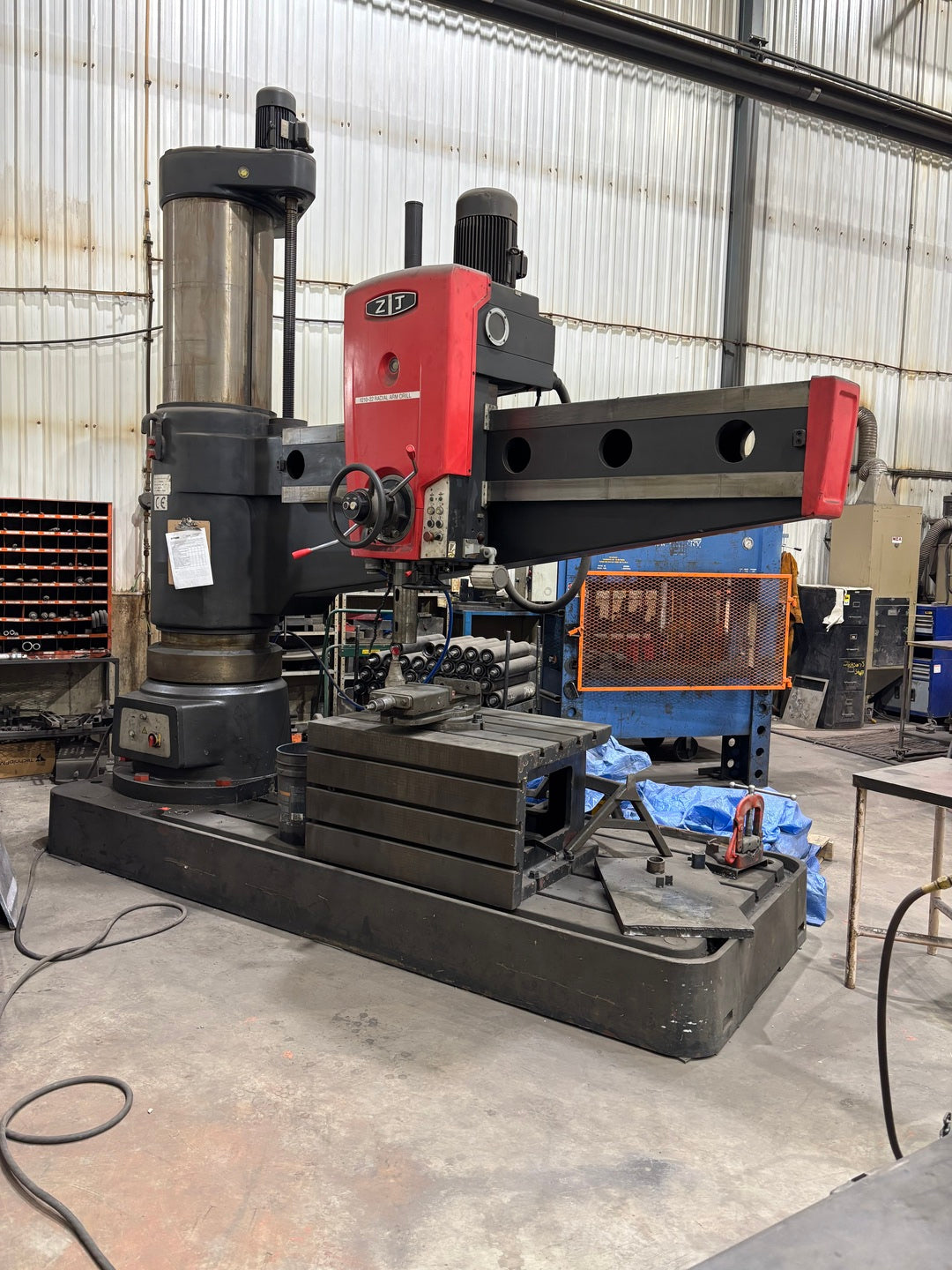

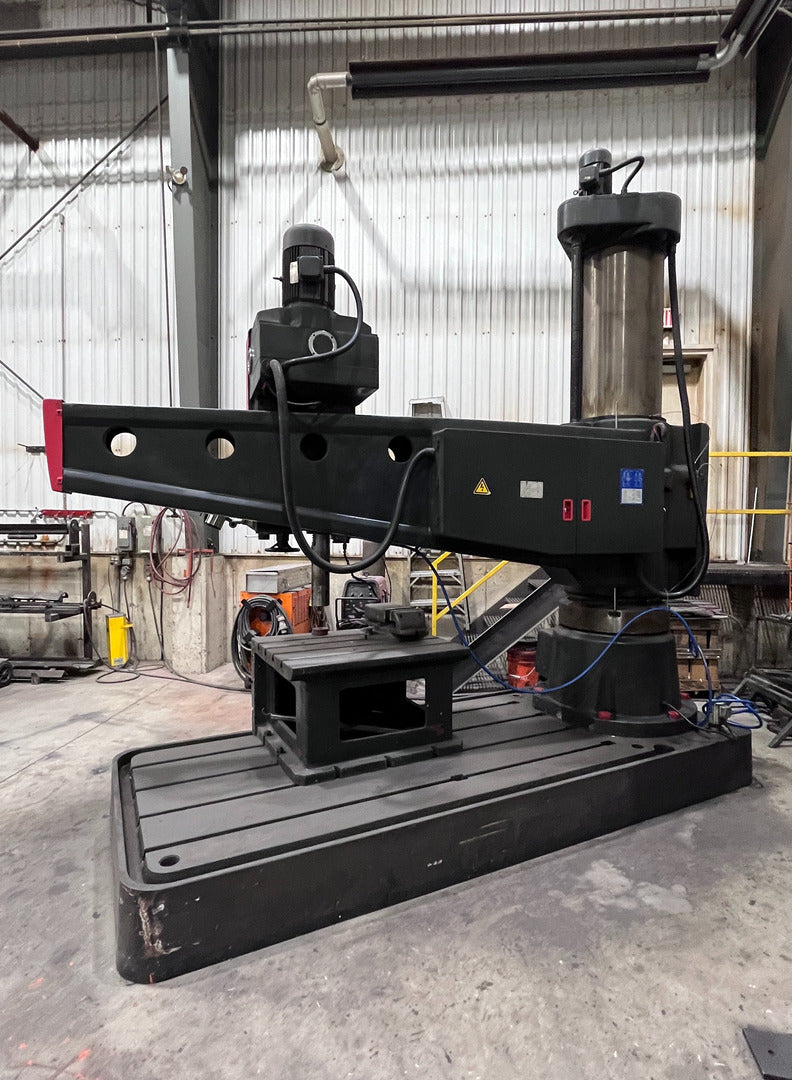

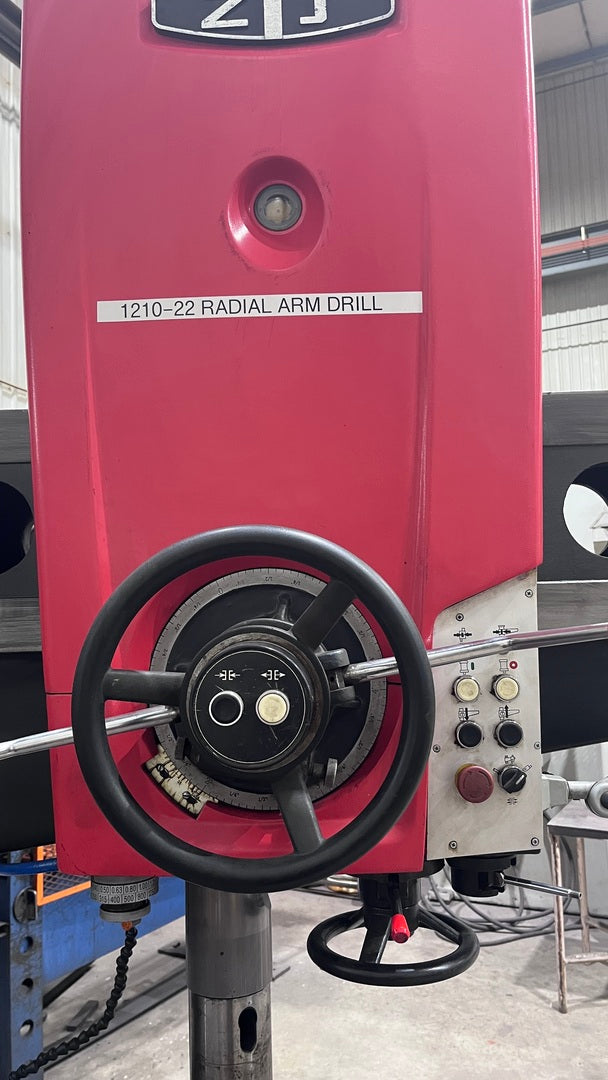

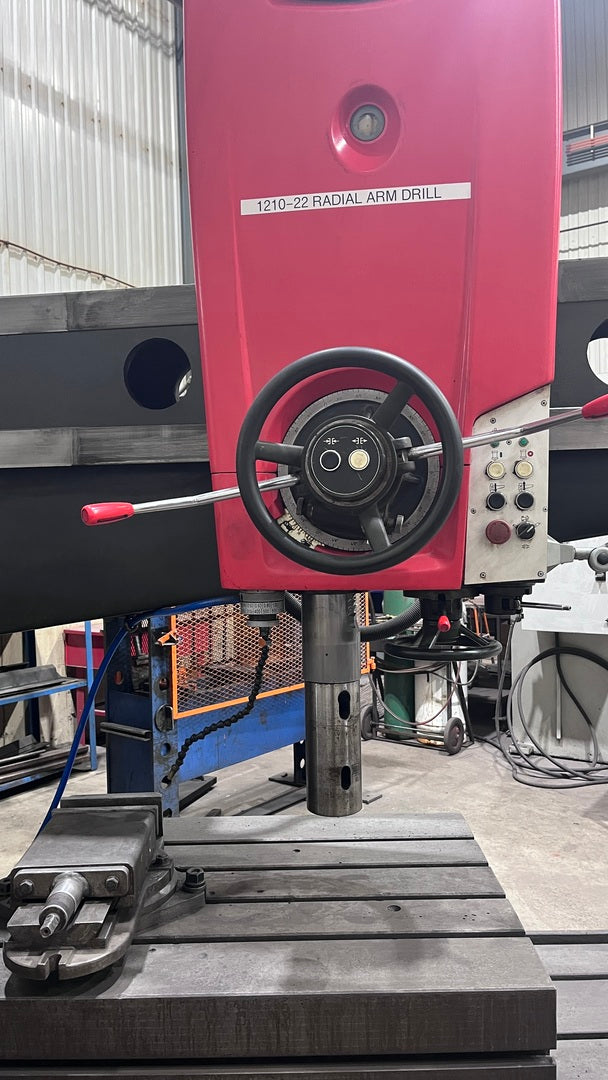

Radial Arm Drill RD-80250

SKU: 138605
Price:
$27,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications

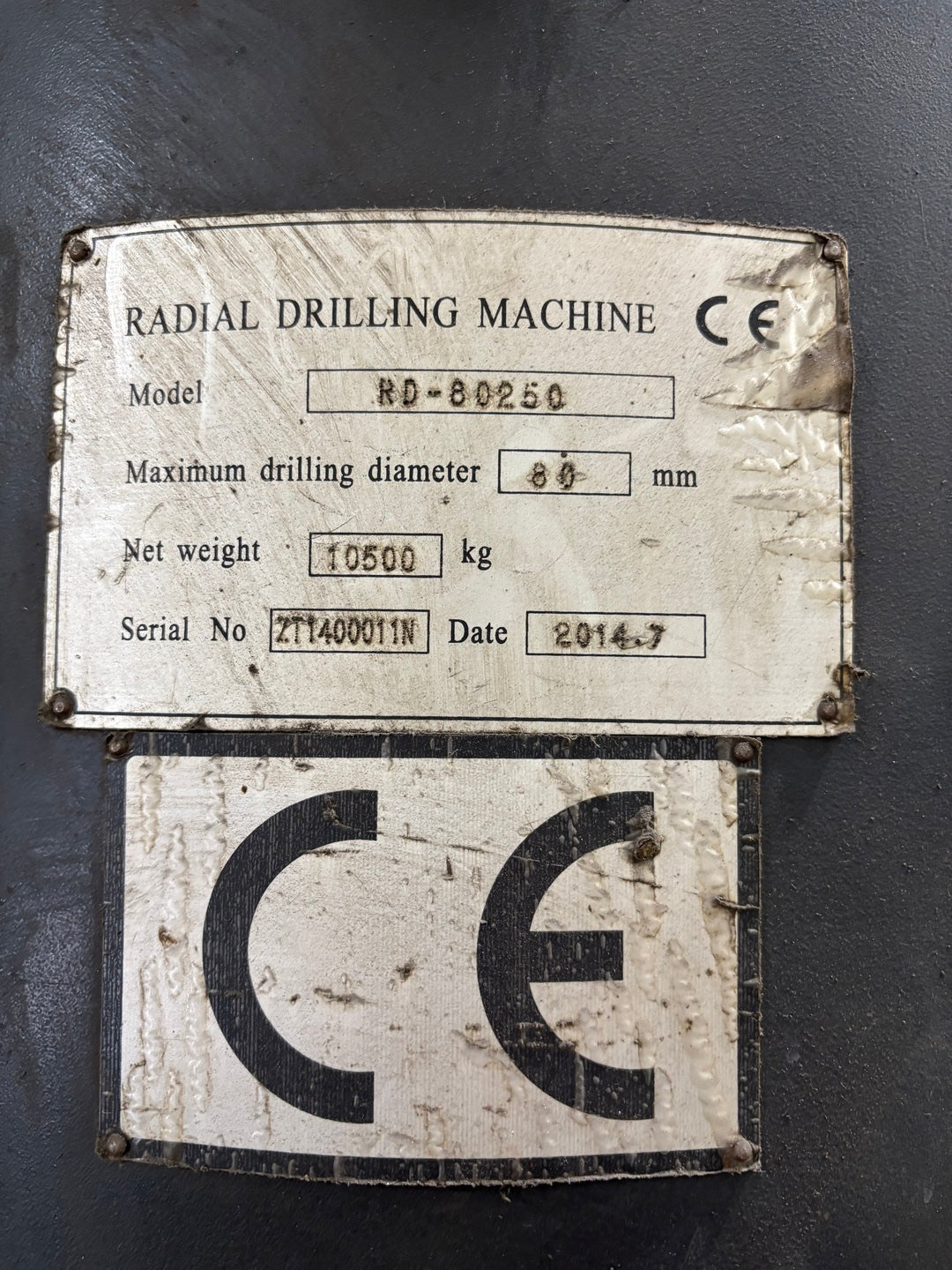

Model RD-80250
Year: 2014
S/N: ZT1400011N
Condition Used
General
Type Radial Arm Drill
Bore Diameter 3.15 "
Arm Travel 39.37"
Morse Taper MT#6
Table Size 39.4" x 31.5" x 22"
Electrical
Horsepower 10 hp
Additional Data
Diameter of Column 21.65 "
Other Specifications

Max drilling diameter: 80 mm // 3.15 in.

Distance between spindle axis and column: 500 - 2500 mm // 19.68 - 98.43 in.

Spindle travel: 450 mm // 17.72 in.

Range of spindle speed: 16 - 1250 rpm

Number of spindle speed: 16 steps

Range of spindle feeds: 0.04 - 3.2 mm

Spindle feed step: 16 steps

Horizontal movement distance of spindle box (cross arm): 2000 mm // 78.74 in.

Radial lift distance: 1000 mm // 39.37 in.
