Description
| Specifications | |
|---|---|
| Model | KC-35/SS-35 |
| Condition | New | General |

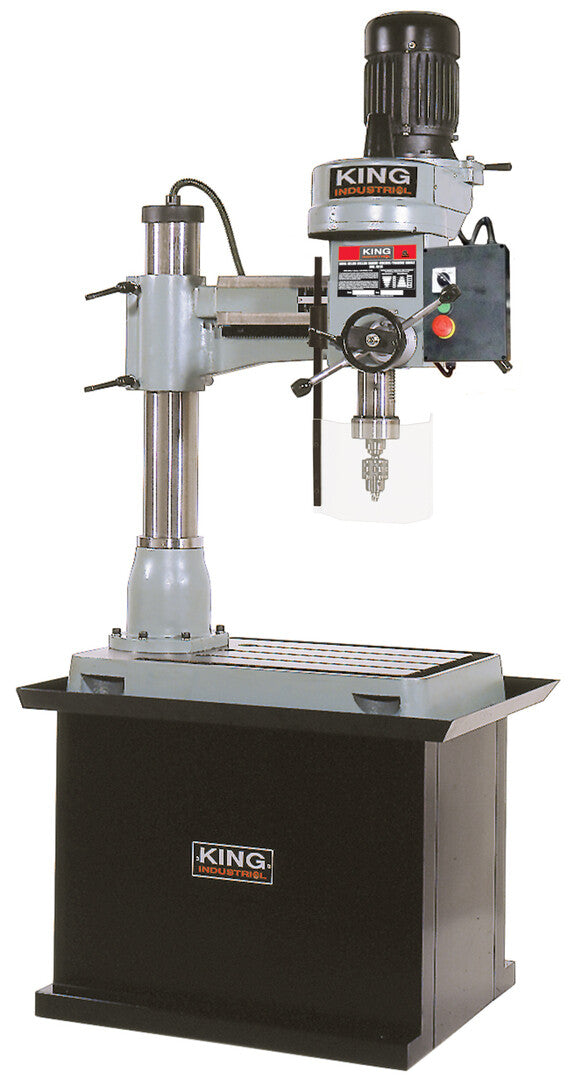

| Type | Radial Arm Drill |
| Bore Diameter | 1-1/4" " |
| Morse Taper | MT#3 |
| Table Size | 21-5/8" x 19-5/8" | Electrical |
| Horsepower | 1.5 hp |
| Voltage | 220 volts |
| Phase | Single-phase | Features |
| Drive Type | Belt Drive |
| Coolant Pump | No | Additional Data |
| Diameter of Column | 4-1/2" " |
| Other Specifications |
|---|
|
Product Features
Specifications
Drilling Capacity: 1-1/4"
Max. Distance Spindle Nose To Table: 21-1/4"
Swing: 8-1/2"
Spindle Stroke: 5-1/4"
Speeds (RPM): 5 (340-3,000)
Head Travel: 14"
Size of T-Slot On Table: 5/8"
|
