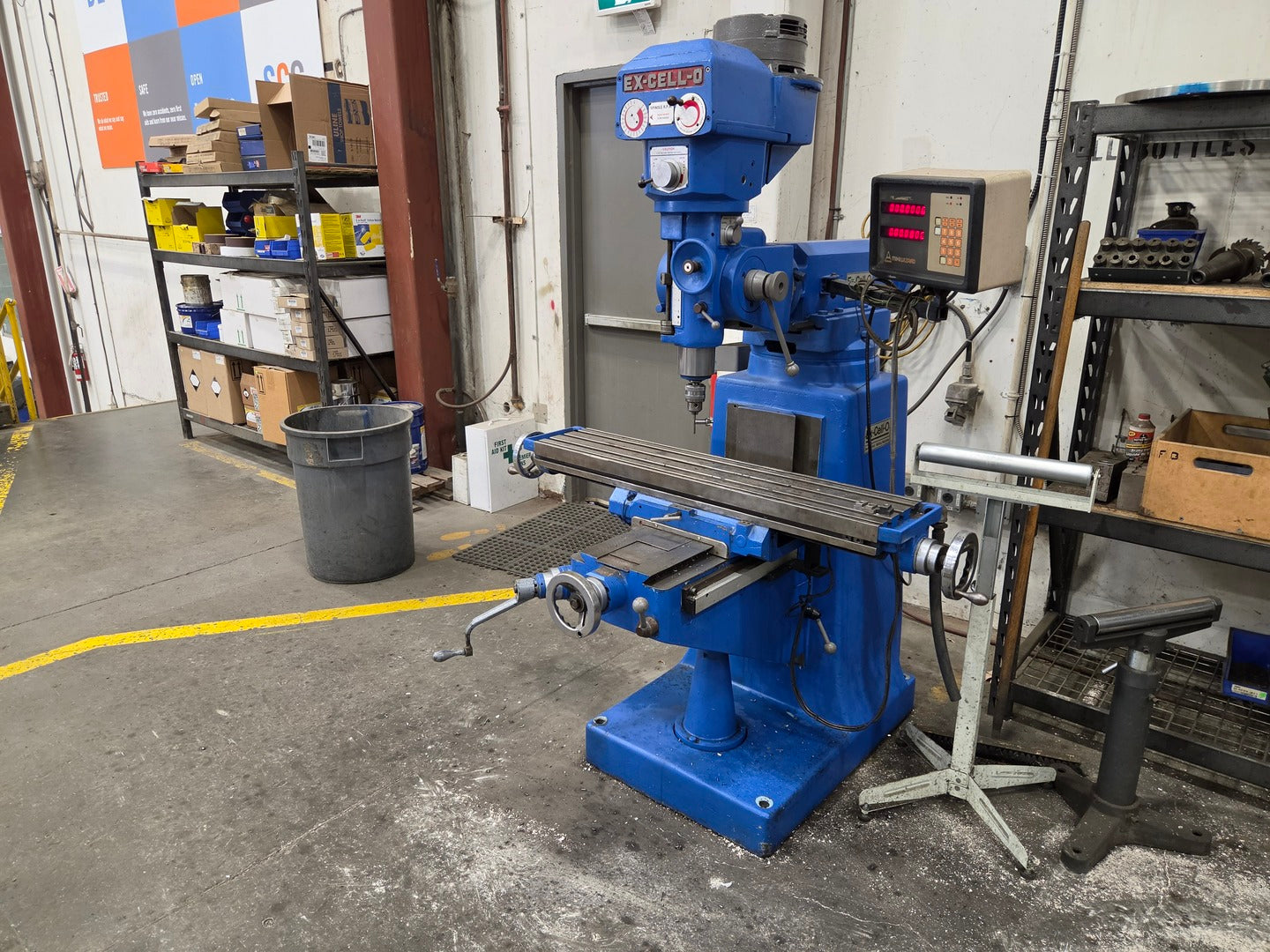

Description
| Specifications | |
|---|---|
| Model | 602 |

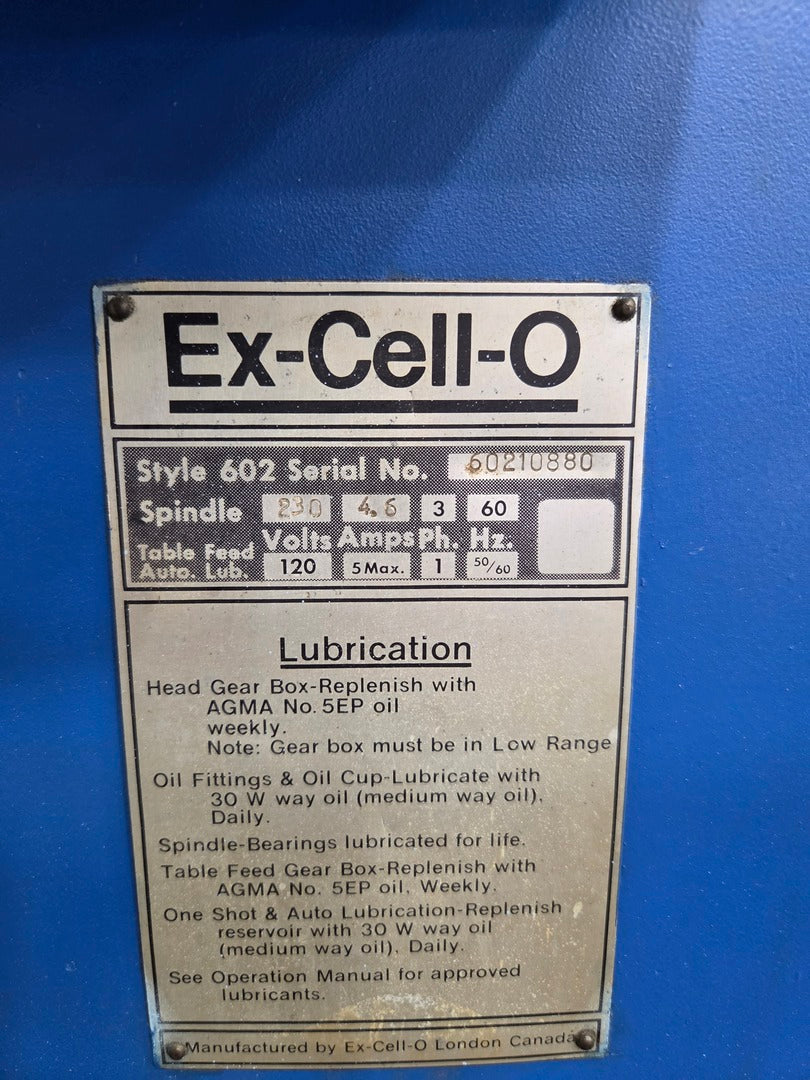

| S/N: | 60210880 |
| Made In | CANADA |
| Condition | Used | General |
| Spindle Taper | R8 |
| Cross Travel (Table) | 13 " |

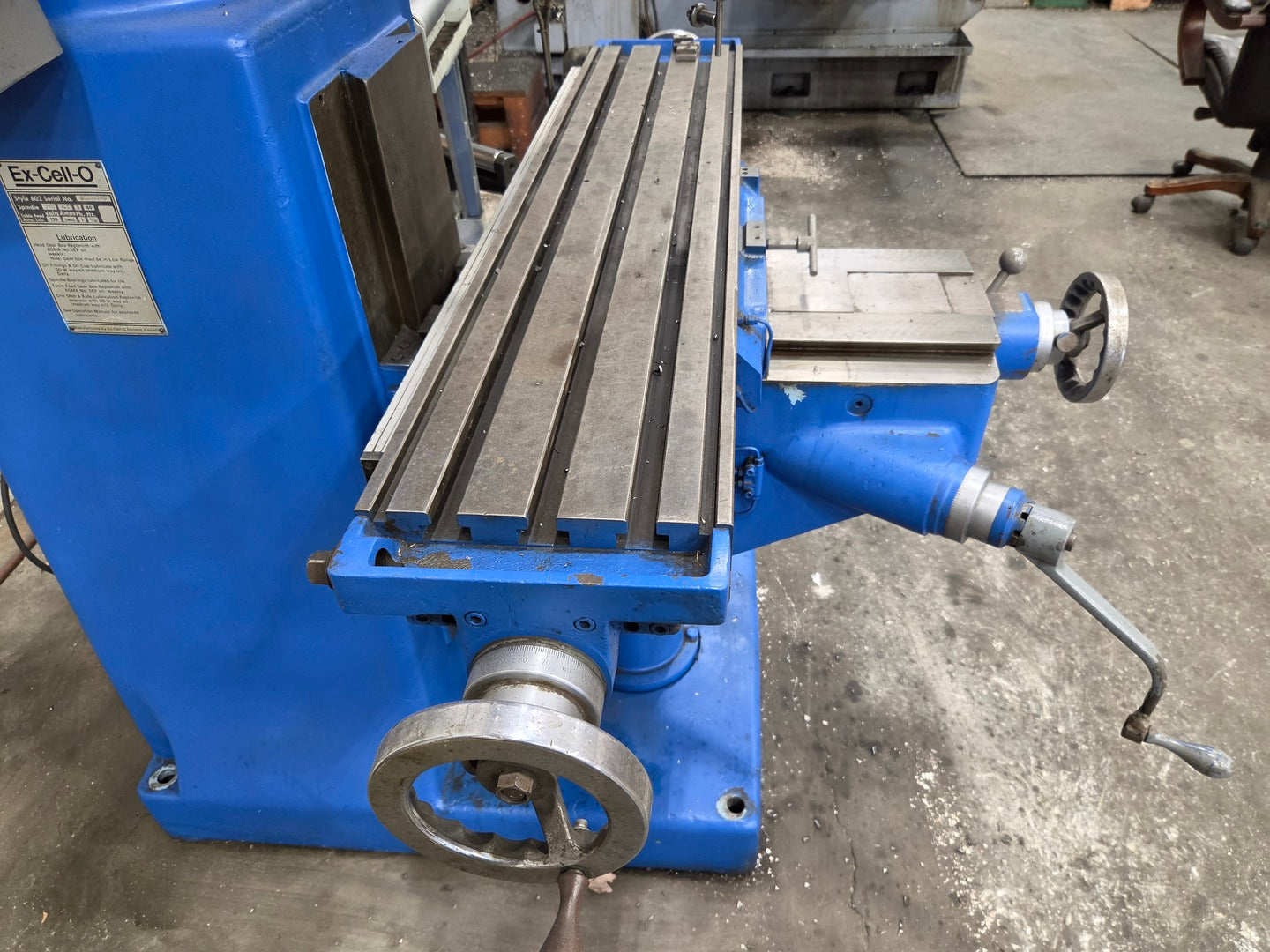

| Table Size | 42" x 9" |

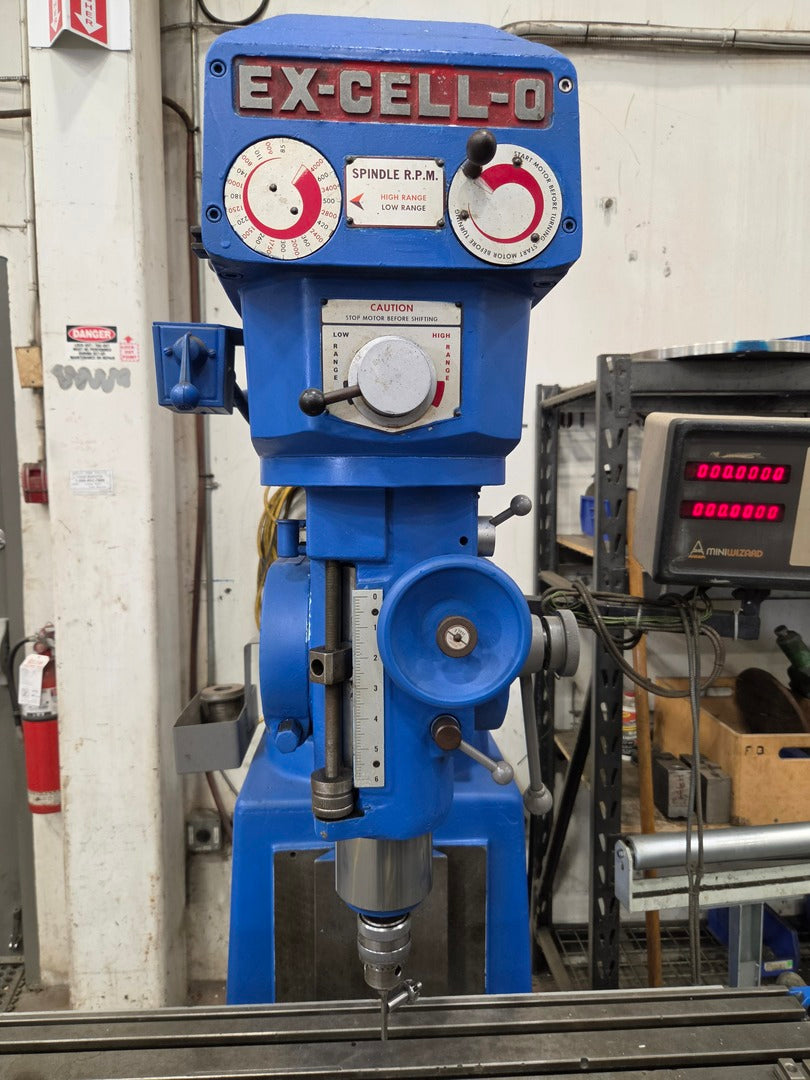

| Speed | 85 - 4000 rpm |
| Other Specifications |
|---|

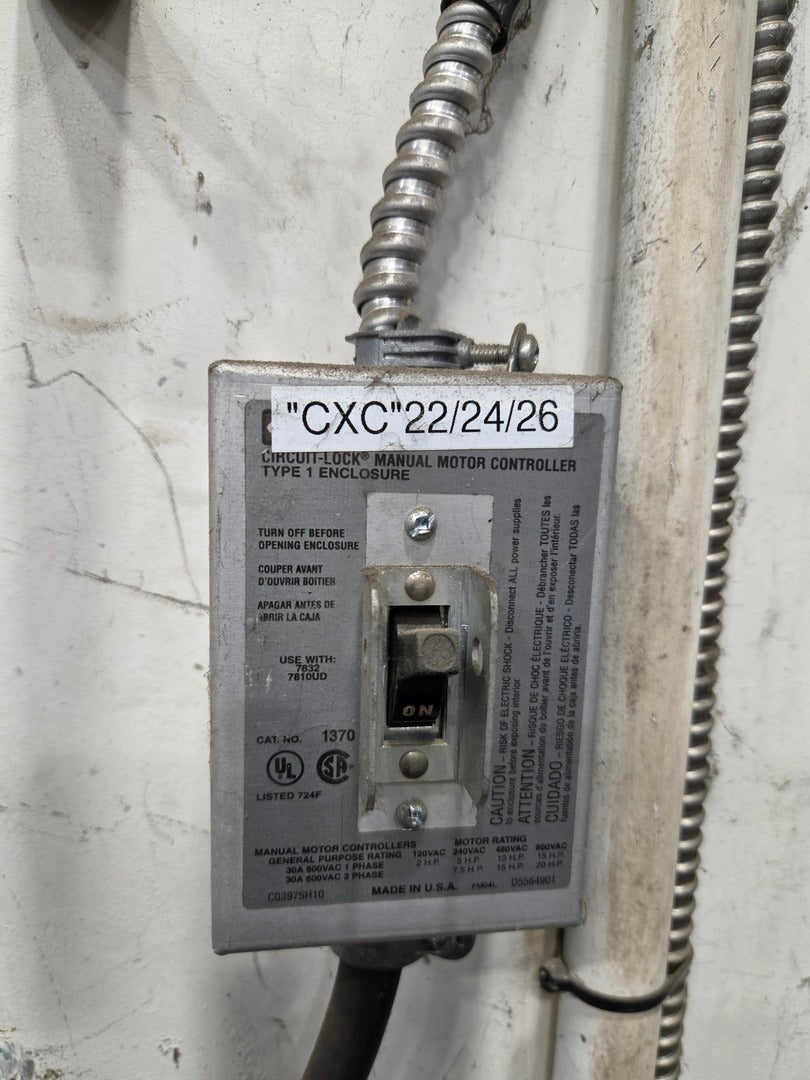

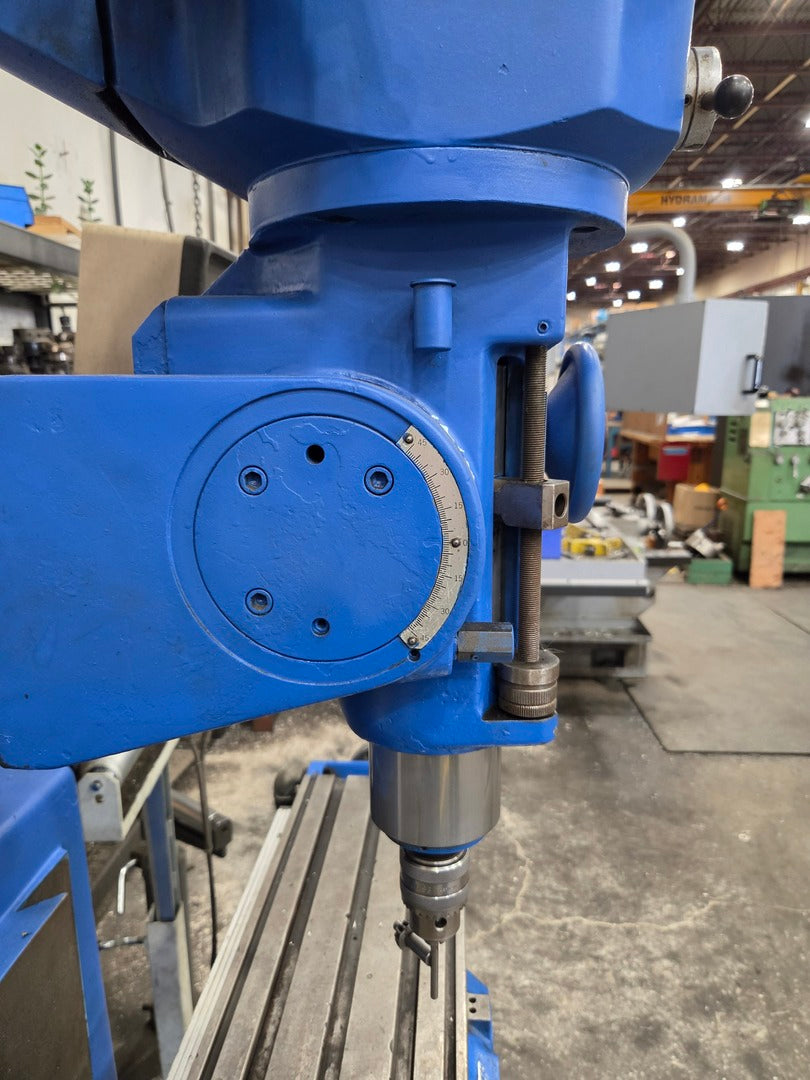

PDF ManualOverall Width (left-most table position to right-most table position): 84" Table Longitudinal Travel (Manual): 31" Table Vertical Travel: 16" Ram Travel: 16" Head Swings Across Table (Worm & Gear Adj.): 45 deg. Forwards & Backwards Head Rotates in Line with Table (Worm & Gear Adj.): 90 deg. Each side of Vertical Turret Rotates: 360 deg. Spindle Nose to Top of Table: 18-1/2" (R8-No. 40 MMT) Spindle Speed (Low Range): 85 - 600 rpm Spindle Speed (High Range): 600 - 4000 rpm Spindle Electrical: 230 V, 3-Ph, 4.6 A, 60 Hz Table Feed Auto. Lube Electrical: 120 V, 1-Ph, 5 A max., 50/60 Hz |
