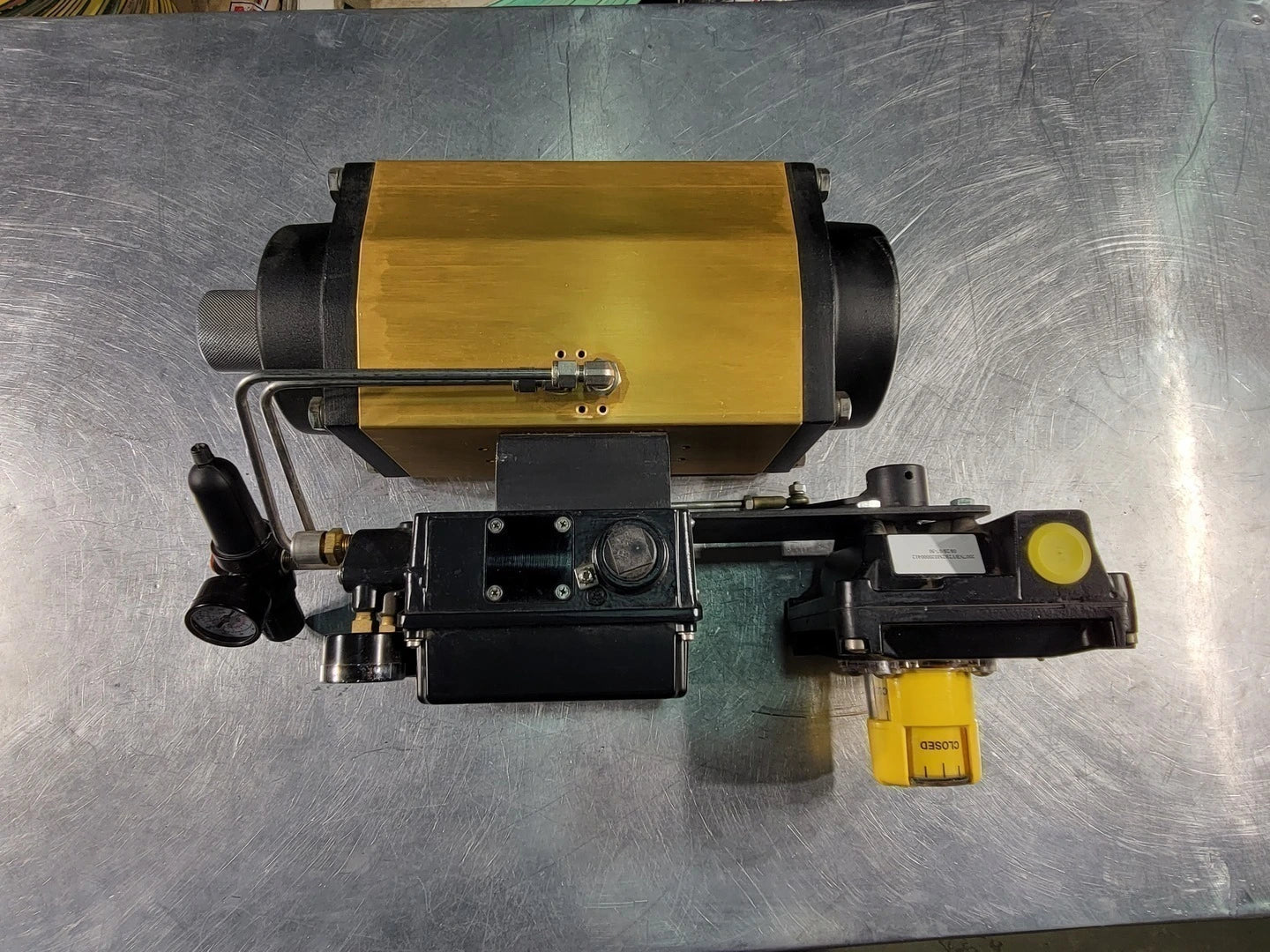

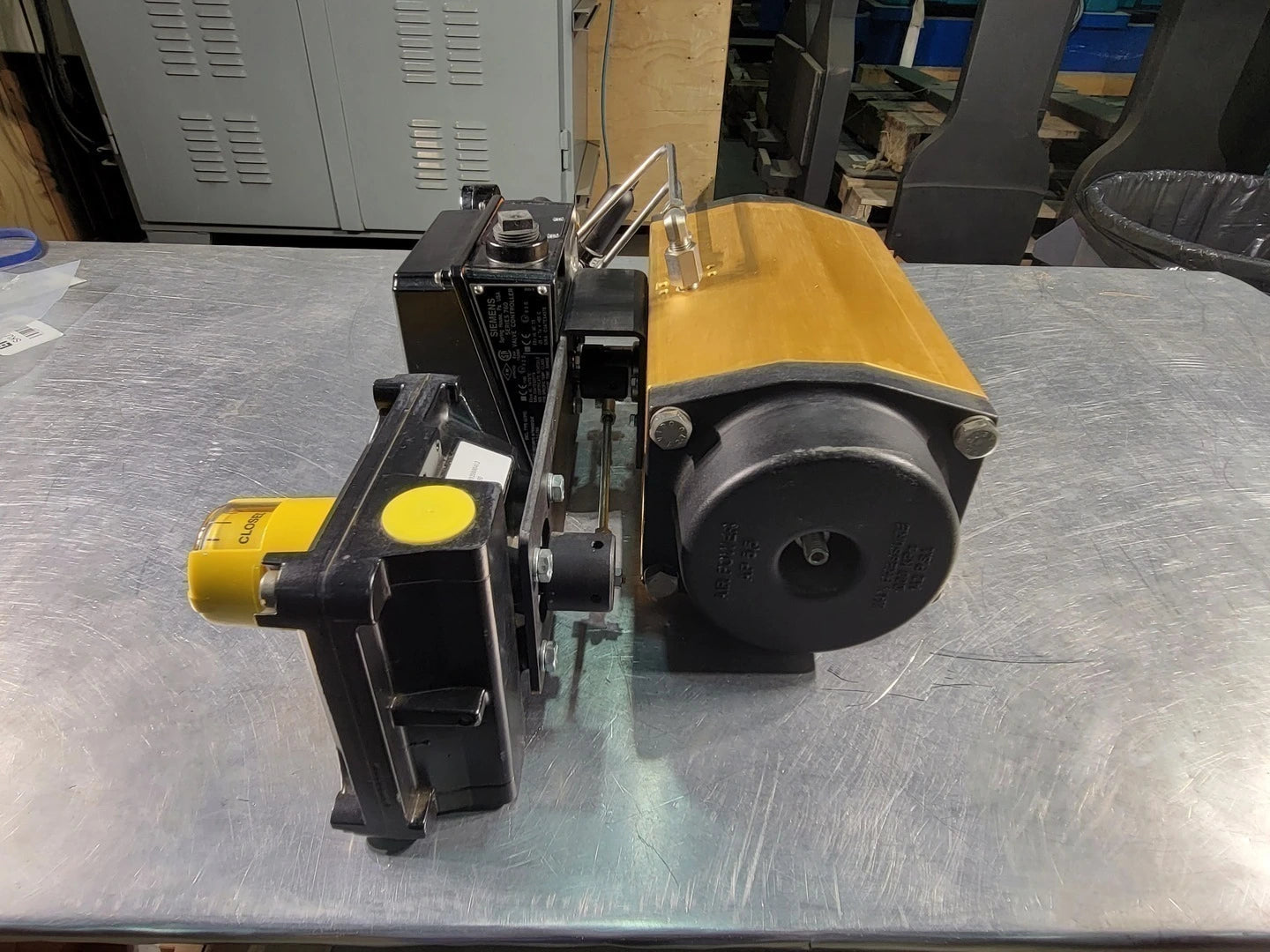

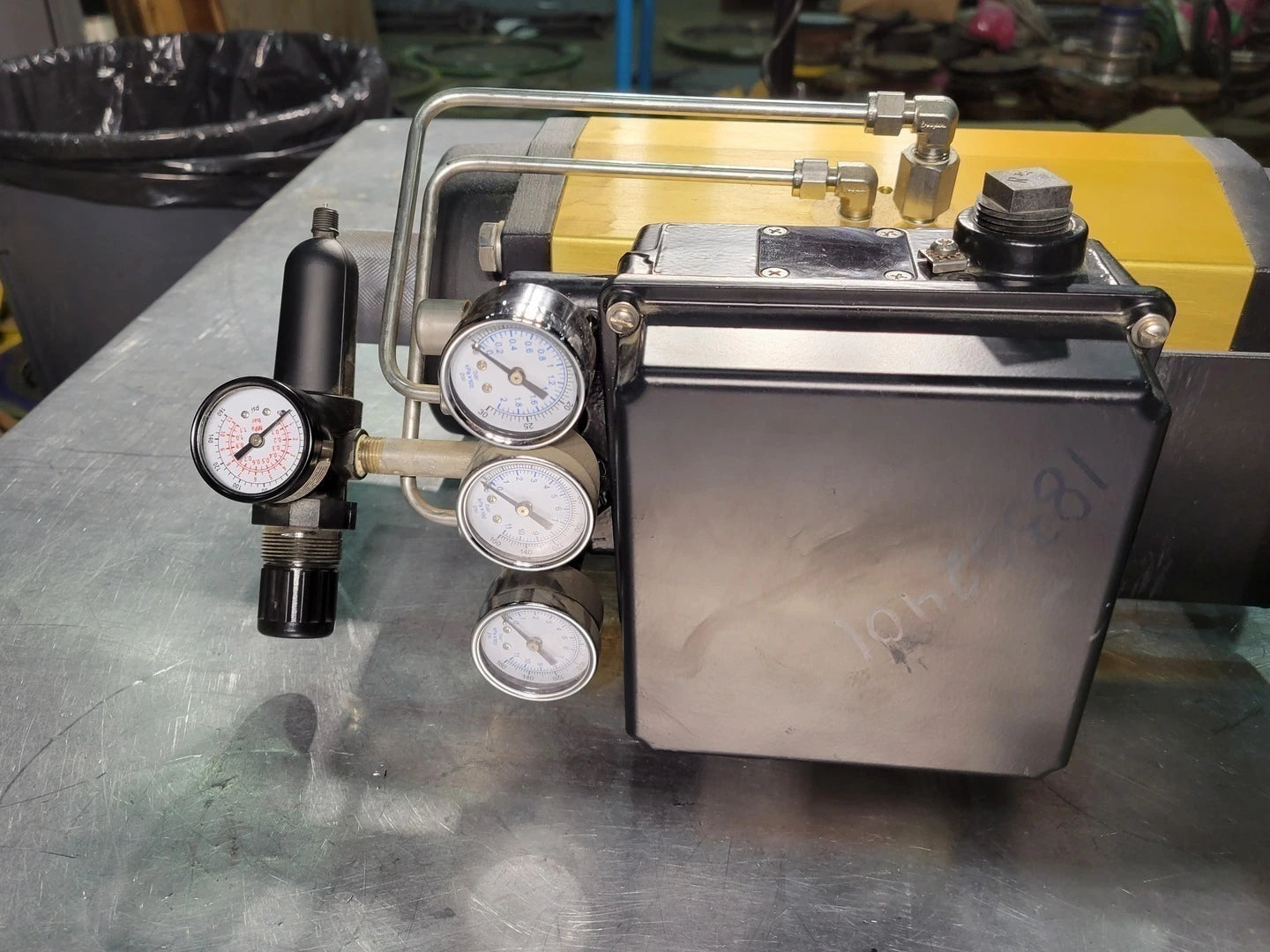

REMOTE CONTROL RCI 455 Double Acting Actuator w/ Valve Position Monitor and Controller
REMOTE CONTROL

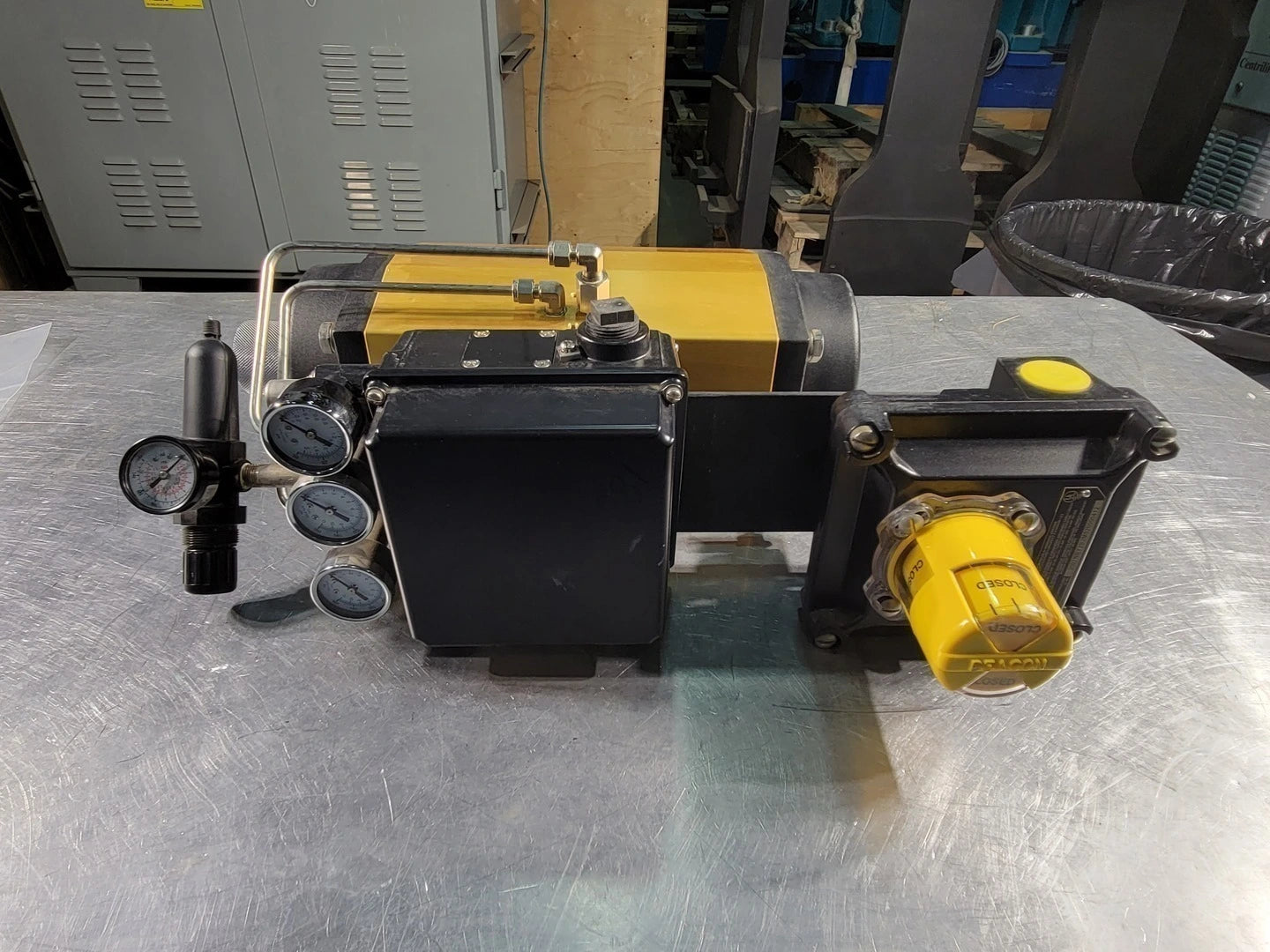

RCI 455 Double Acting Actuator w/ Valve Position Monitor and Controller

SKU: 84523
Price:
$843.75 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Specifications
Model RCI 455 DA
Made In UNITED STATES
Condition Used
Other Specifications

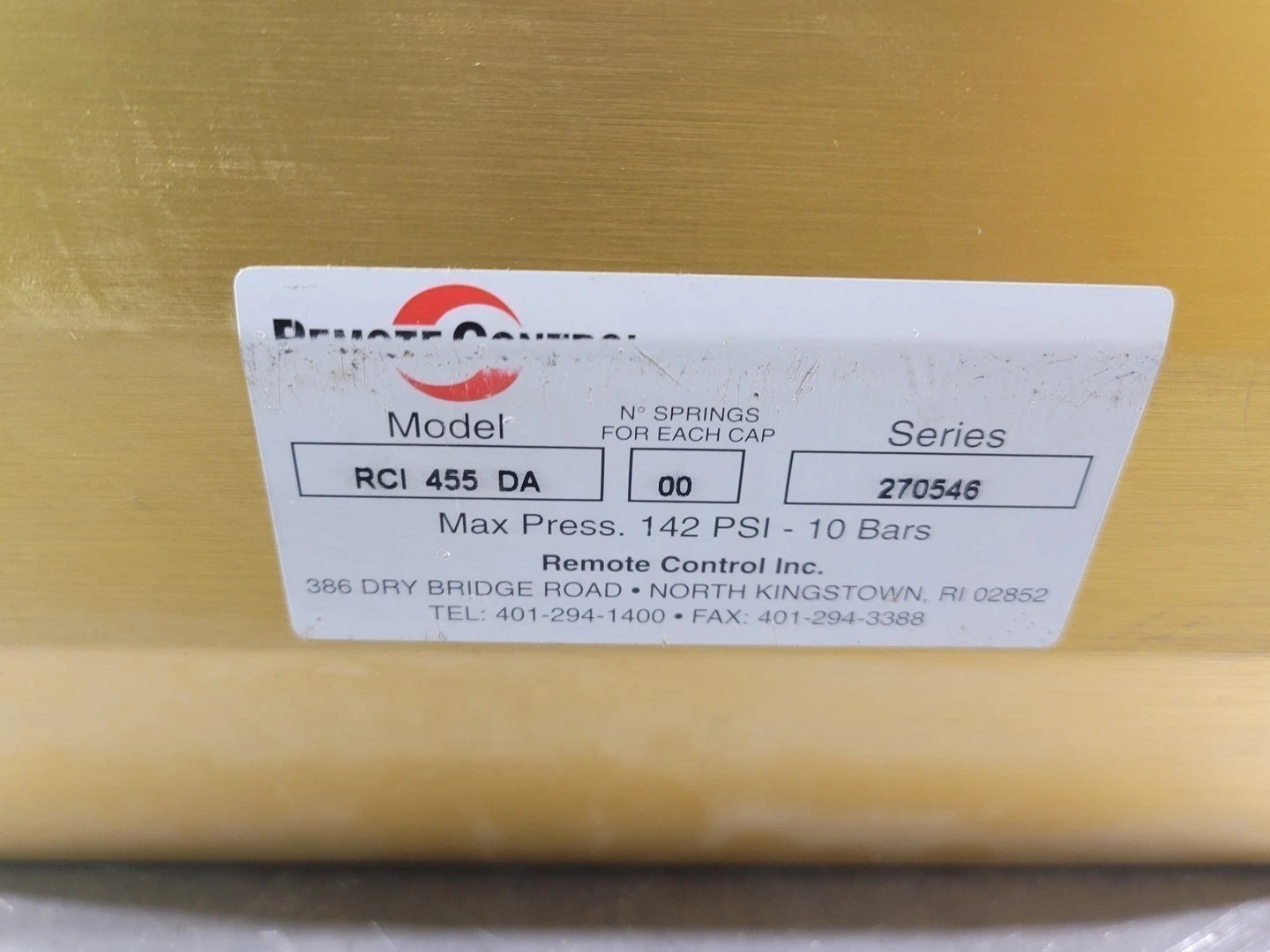

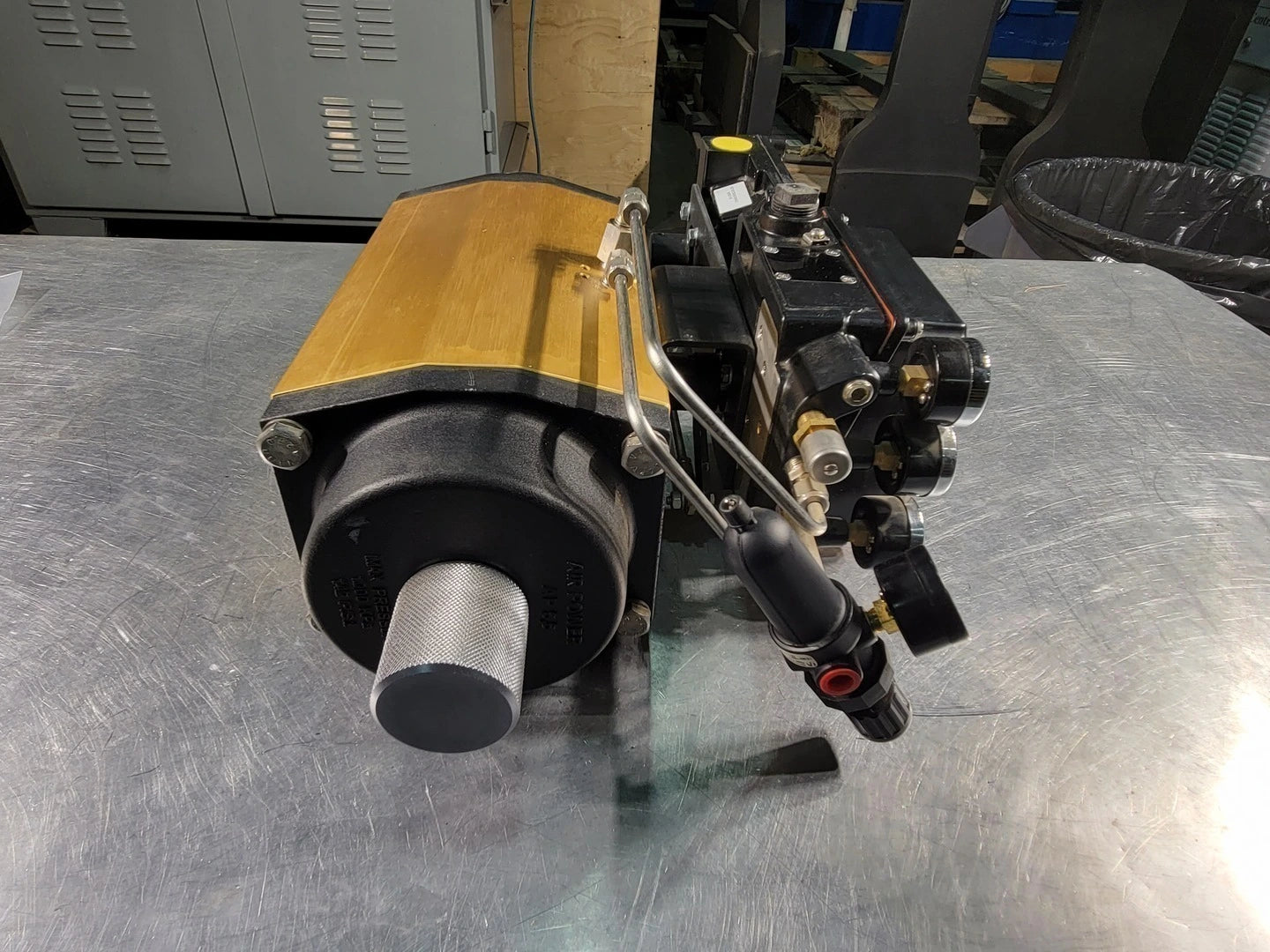

Rack and Pinion Actuator
Model: RCI 455 DA
Double Acting Actuator
No. Springs for each Cap: 00
Max Pressure: 142 PSI - 10 Bar
Air Consumption (Free Air):
  • Anti-Clockwise Rotation: 0.42 (U.S. Gallon)
  • Clockwise Rotation: 0.68 (U.S. Gallon)
Torque Output (Min. / Max.): 1456 in-lbs. at 30 PSI / 5820 in-lbs. at 120 PSI
Stroke: -5o to 95o

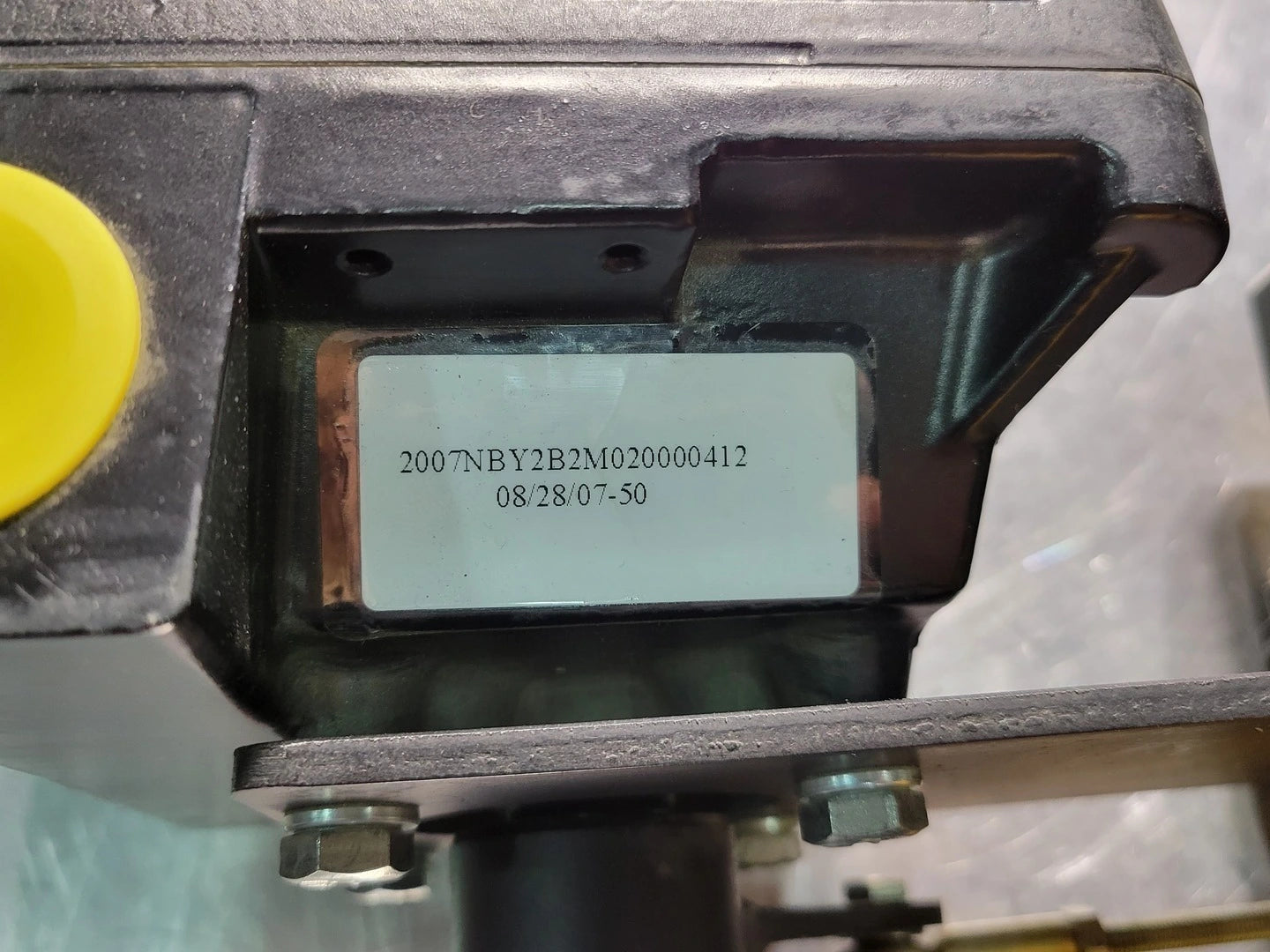

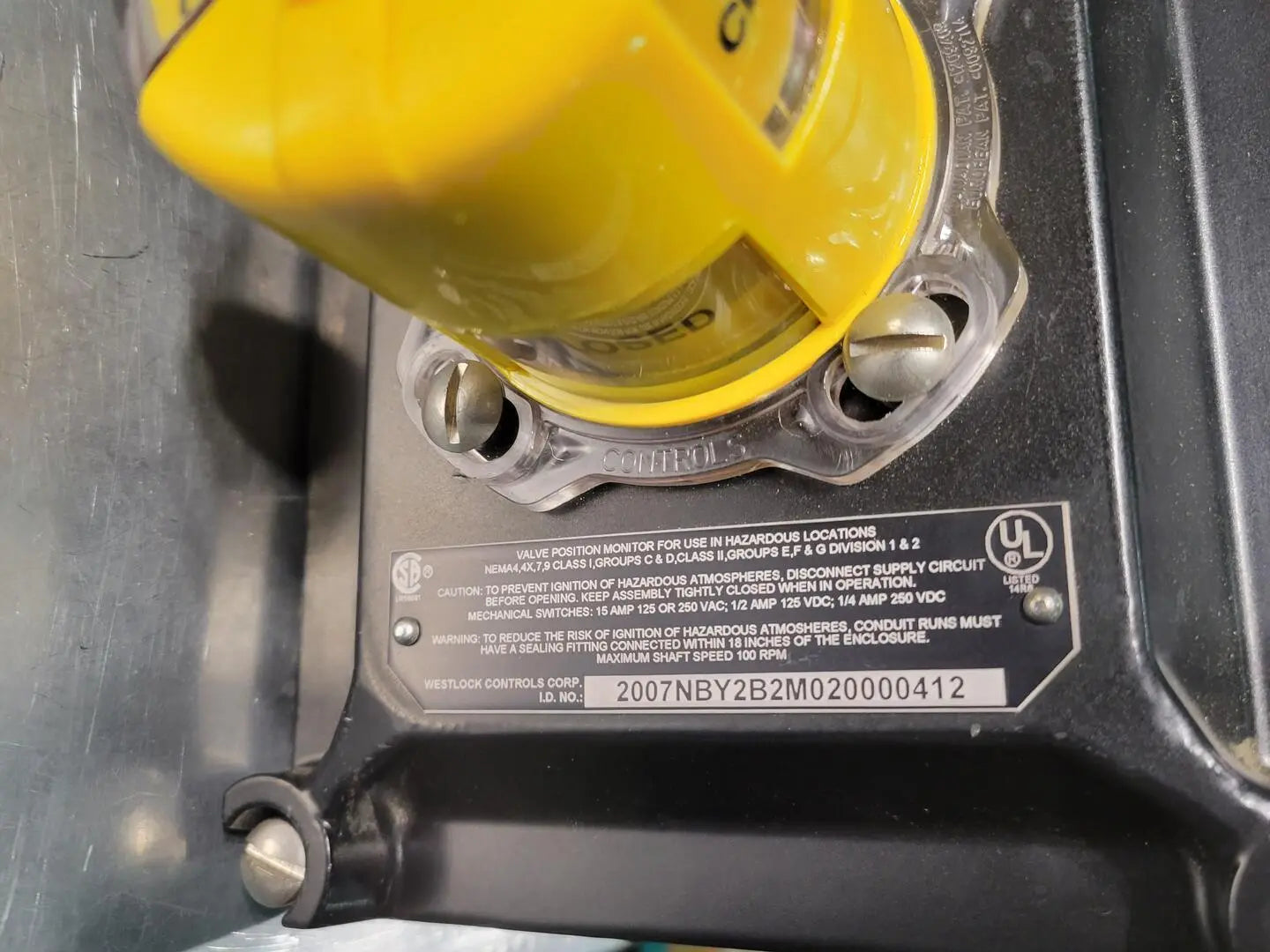

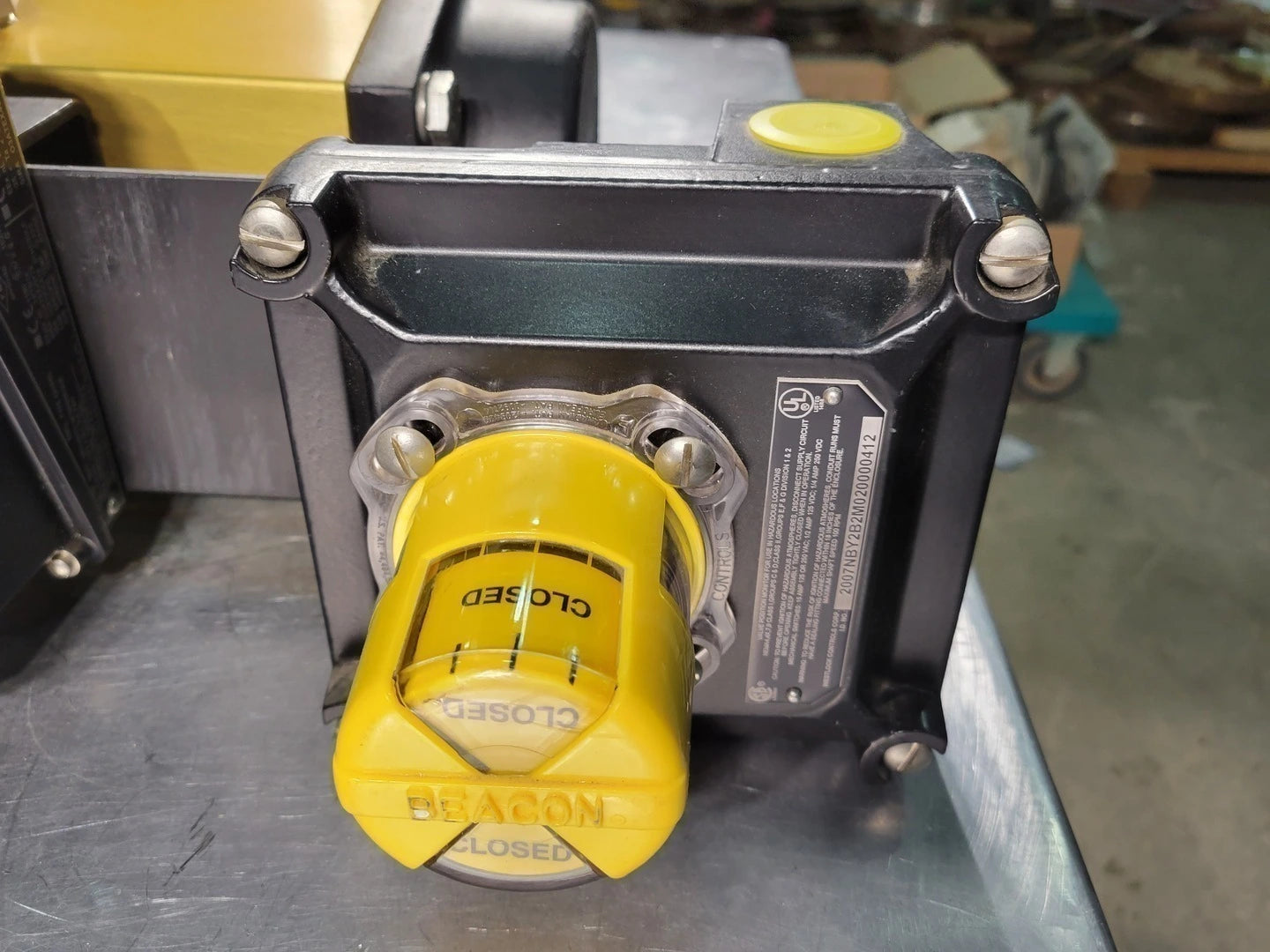

Valve Position Monitor
Model: 2007NBY2B2M020000412
Enclosure: Aluminum
Shaft Output: NAMUR
Beacon: BM2-Y (Standard)
Conduit: Two 3/4" NPT Female
Position Switches: Two SPDT Mechanical Switches - 8 pt. Terminal Strip
  • Electrical Specs:
  • 15 Amp, 125/250 VAC
  • 0.5 Amp, 125 VDC
  • 0.25 Amp, 250 VDC

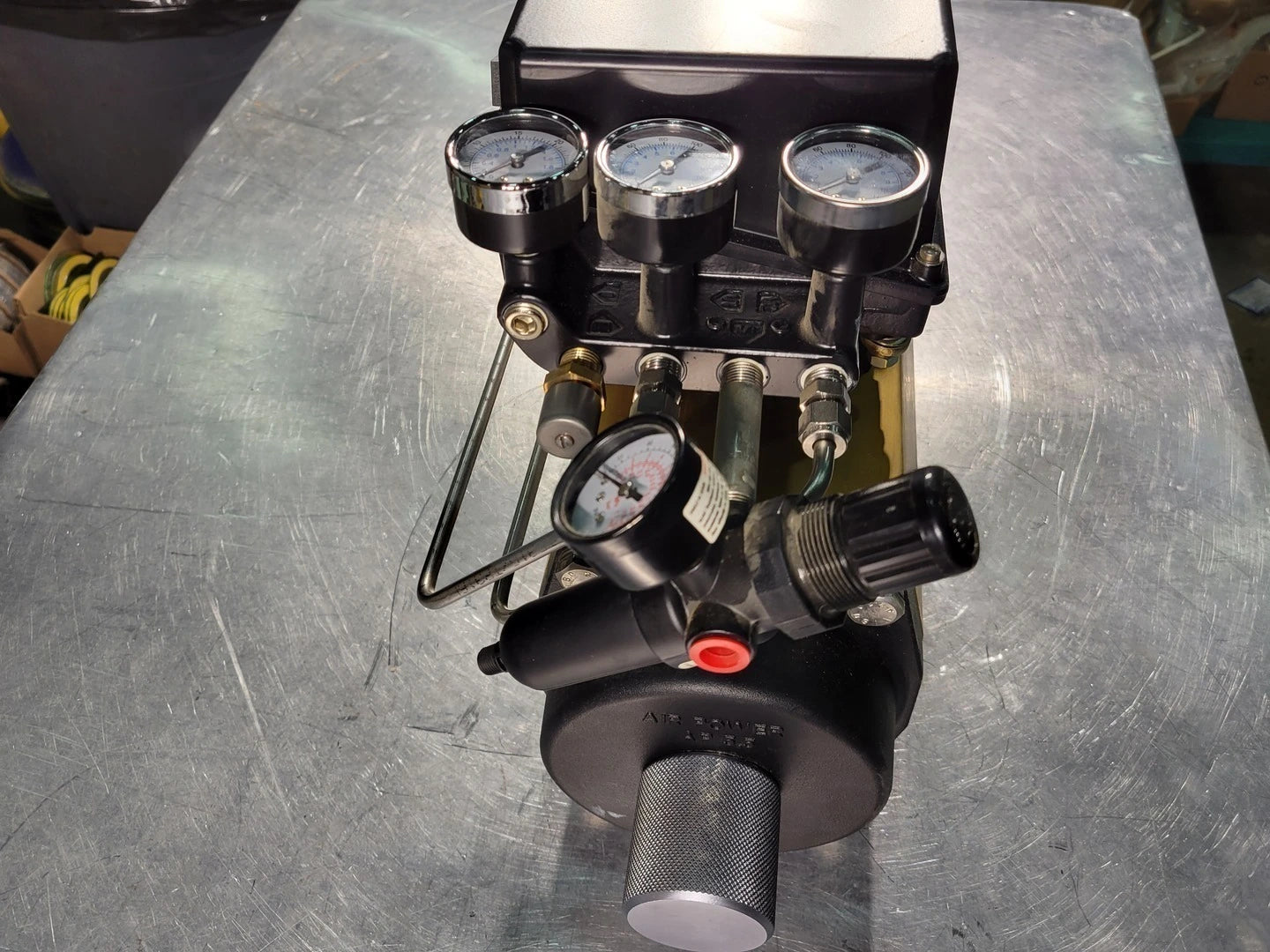

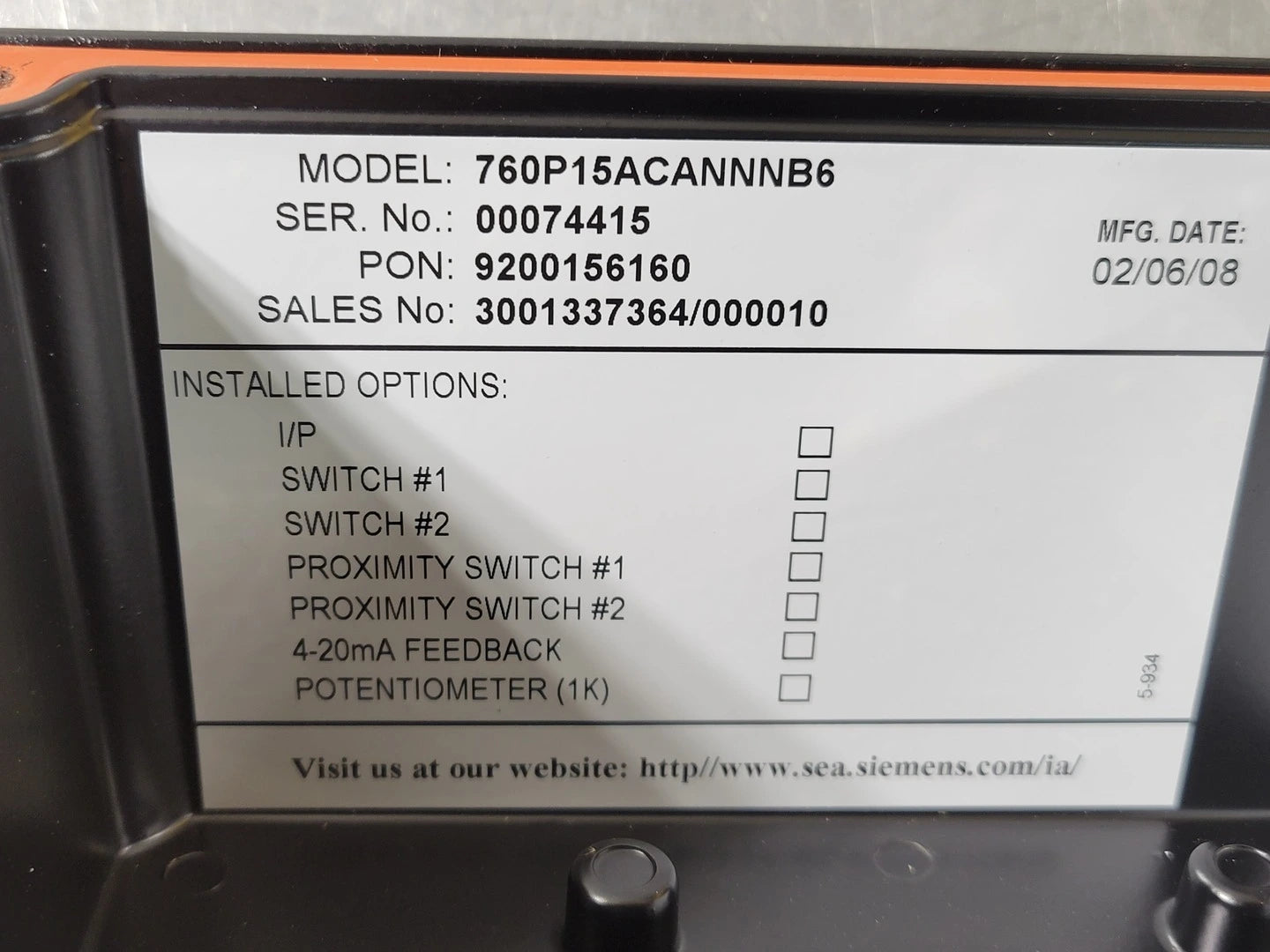

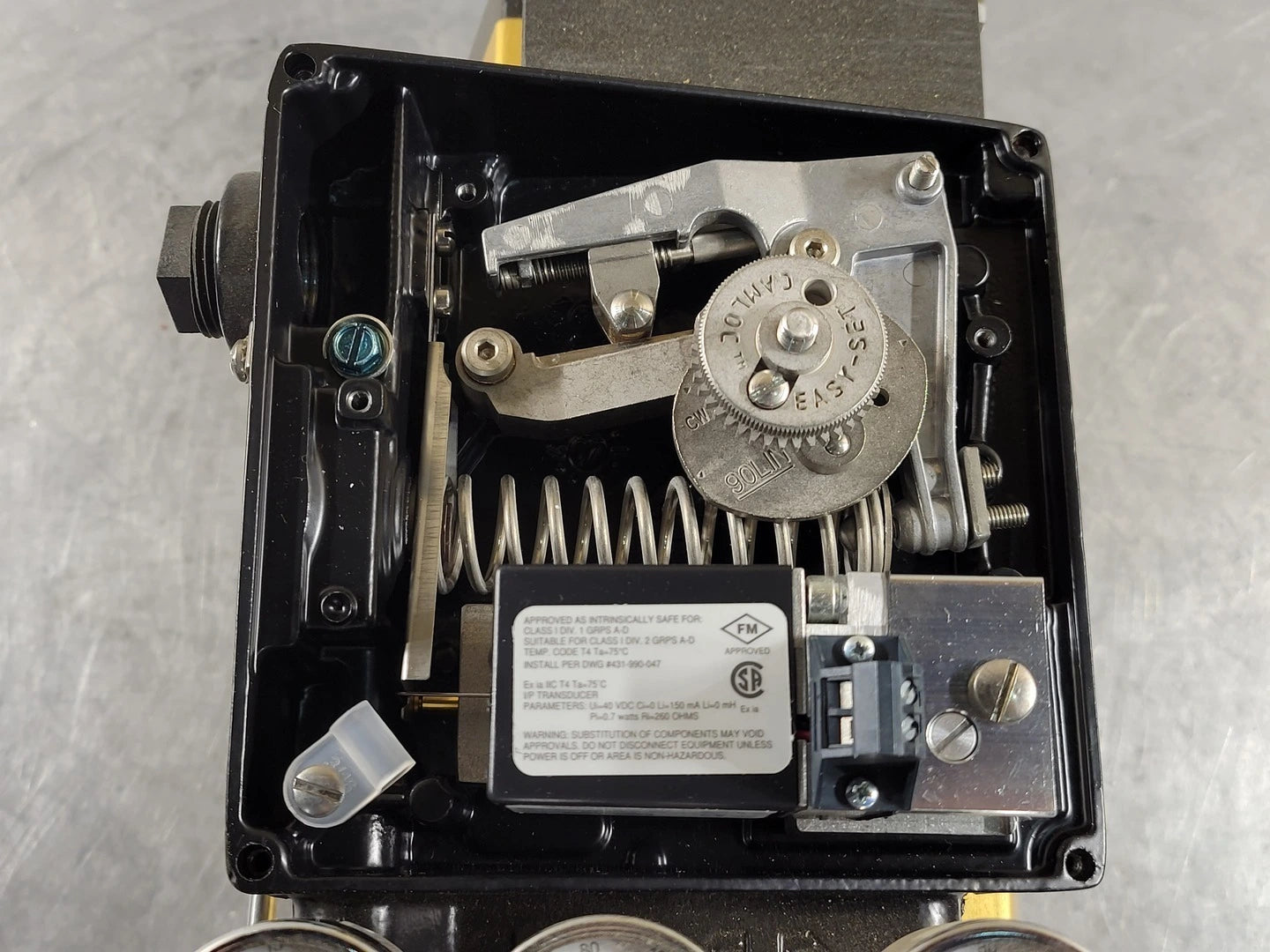

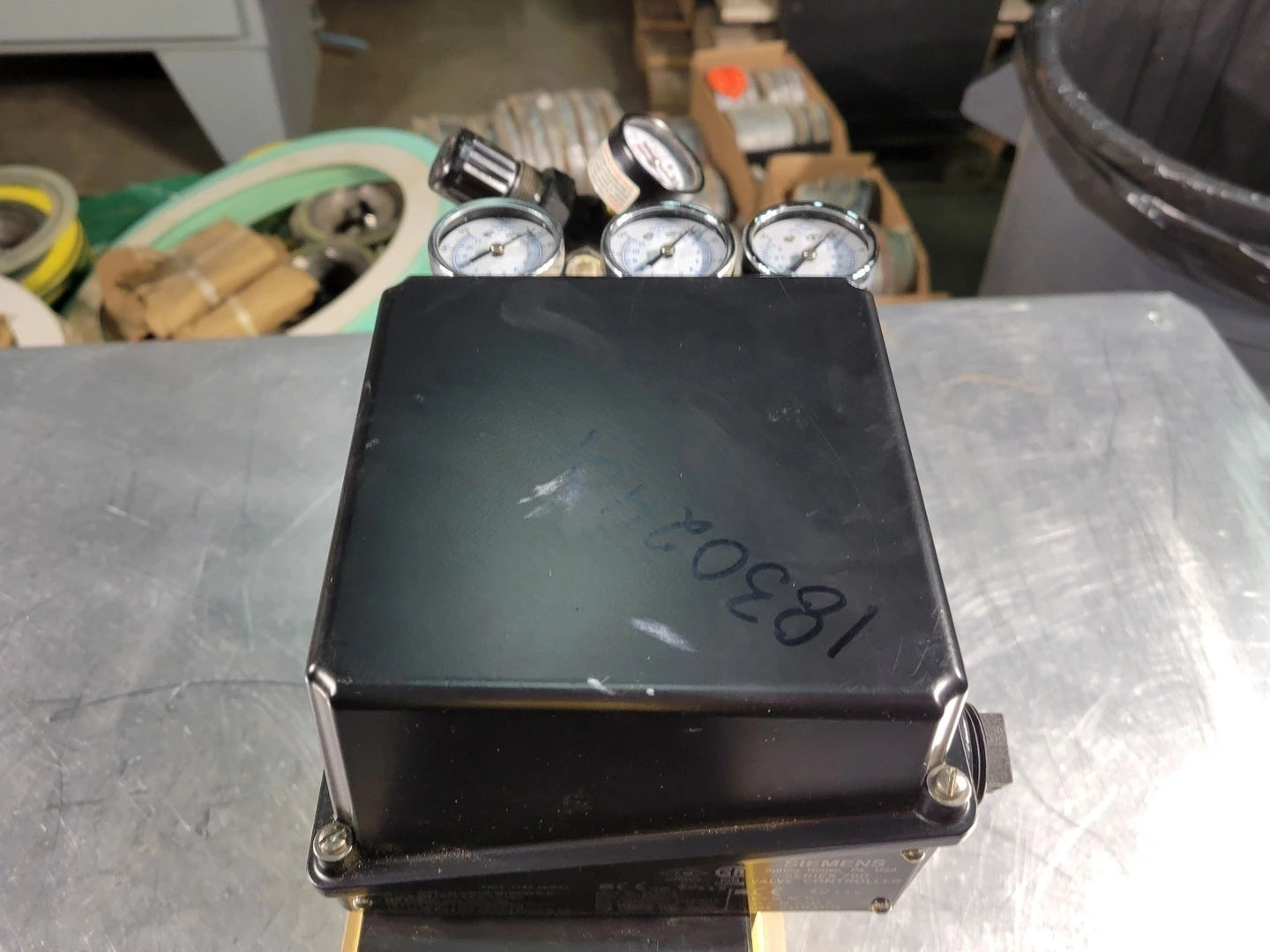

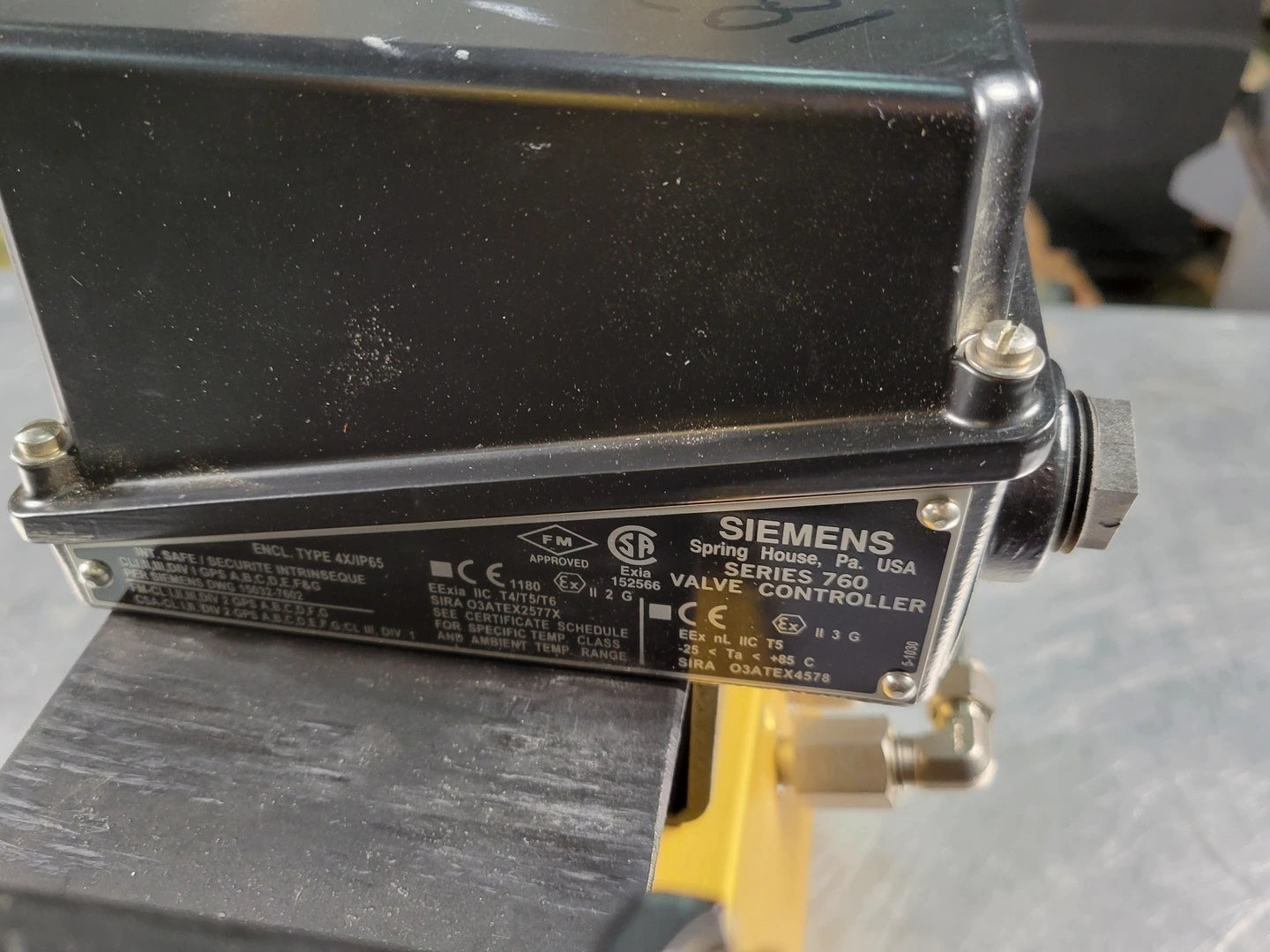

Valve Controller
Series: 760P15ACANNNB6
Encl. Type: 4X/IP65

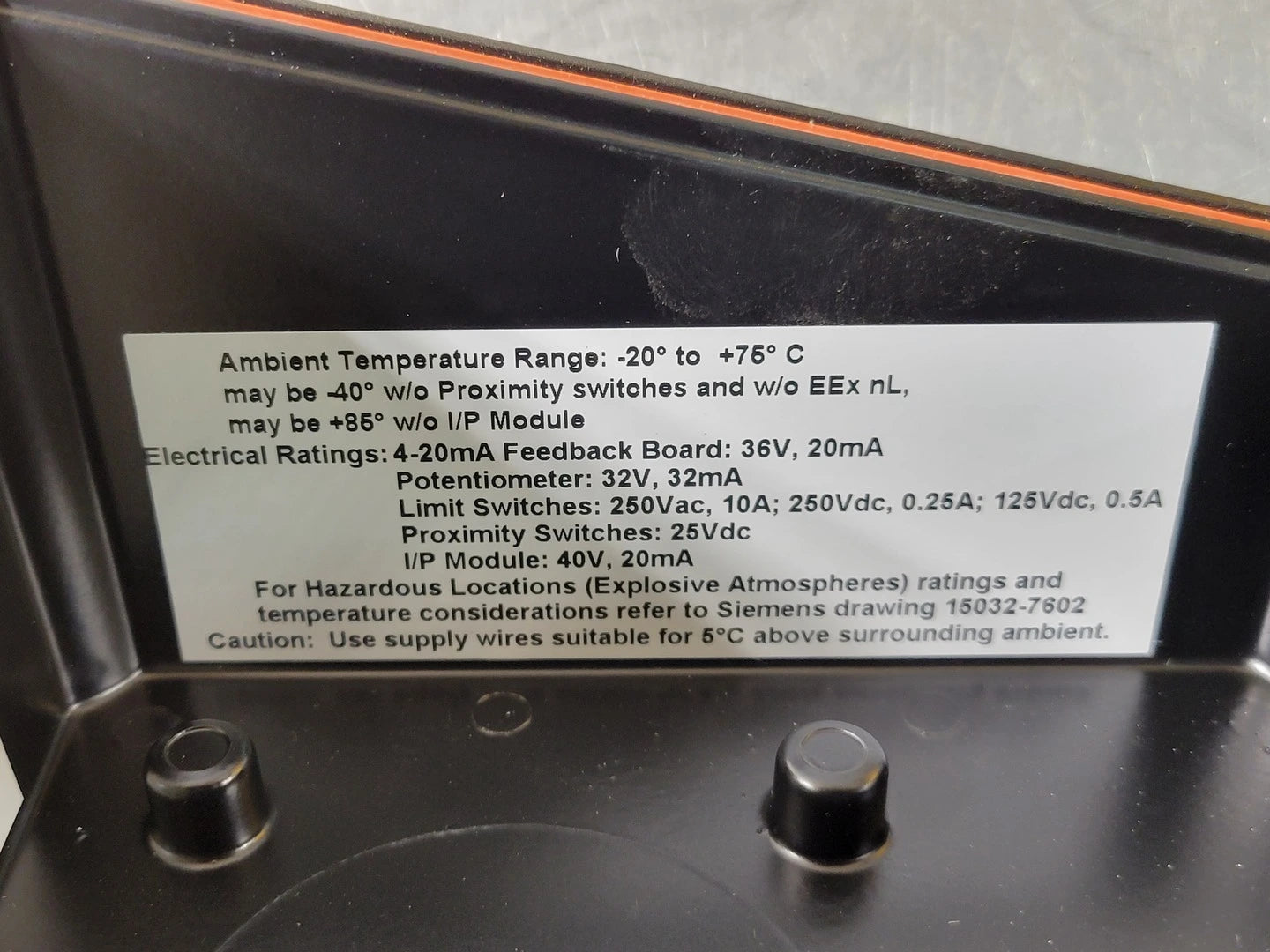

Ambient Temperature Range: -20o to +75oC
Electrical Ratings:
  • Input Signal: 3 to 15 PSIG
  • 4-20 mA Feedback Board: 36 V, 20 mA
  • Potentiometer: 32 V, 32 mA
  • Limit Switches: 250 VAC, 10 A; 250 VDC, 0.25 A; 125 VDC, 0.5 A
  • Proximity Switches: 25 VDC

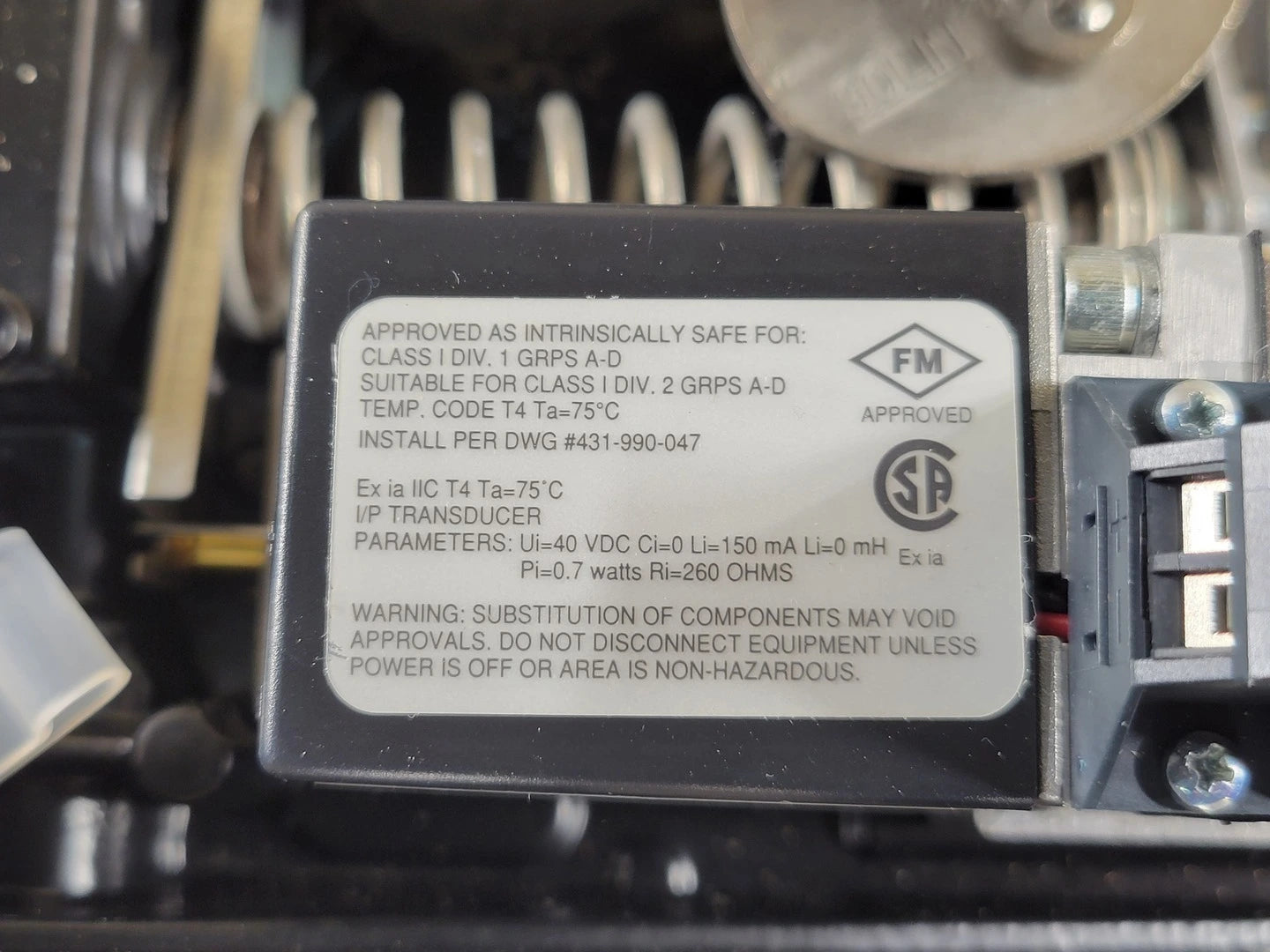

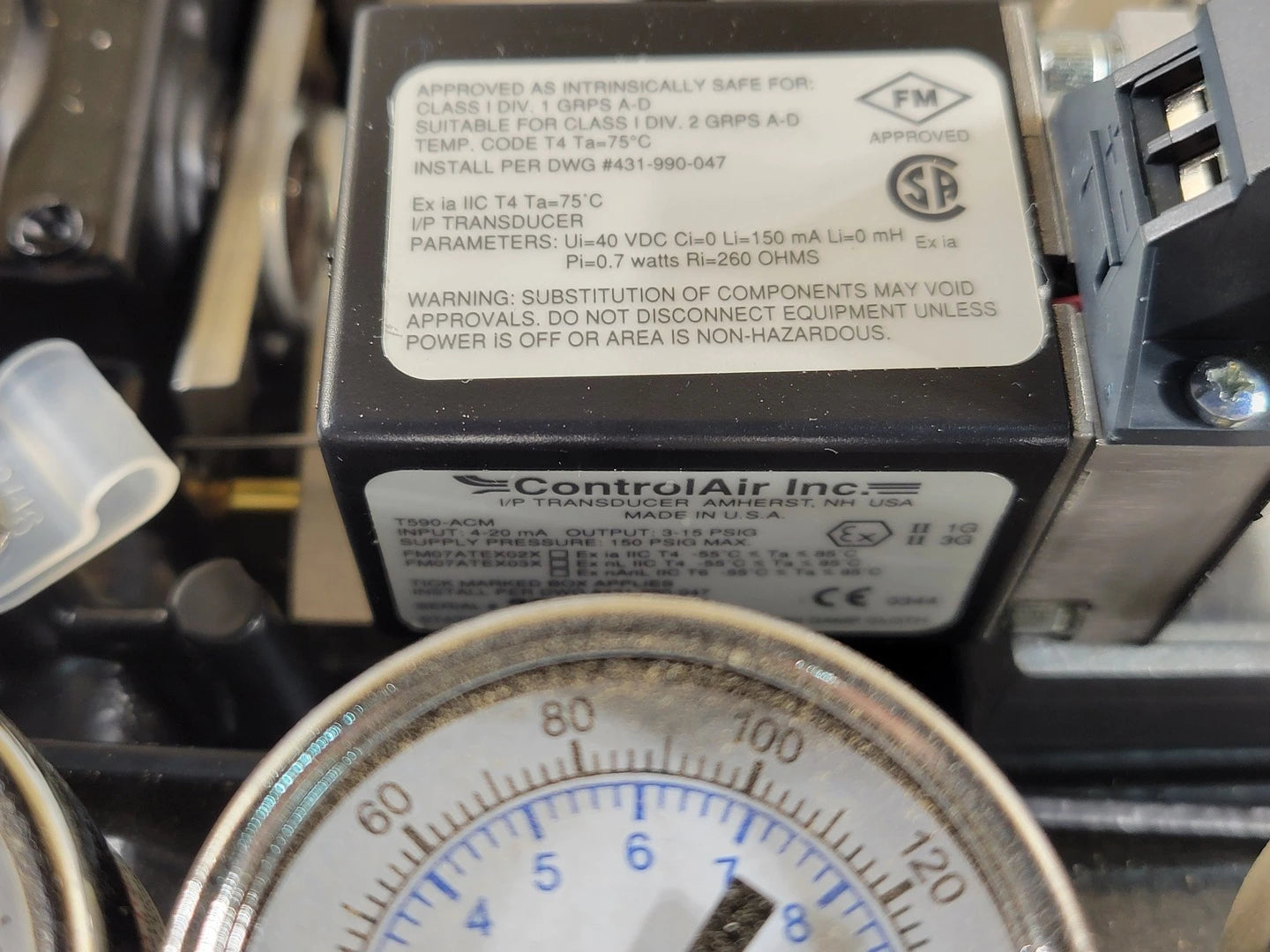

  • I/P Module: 40 V, 20 mA
