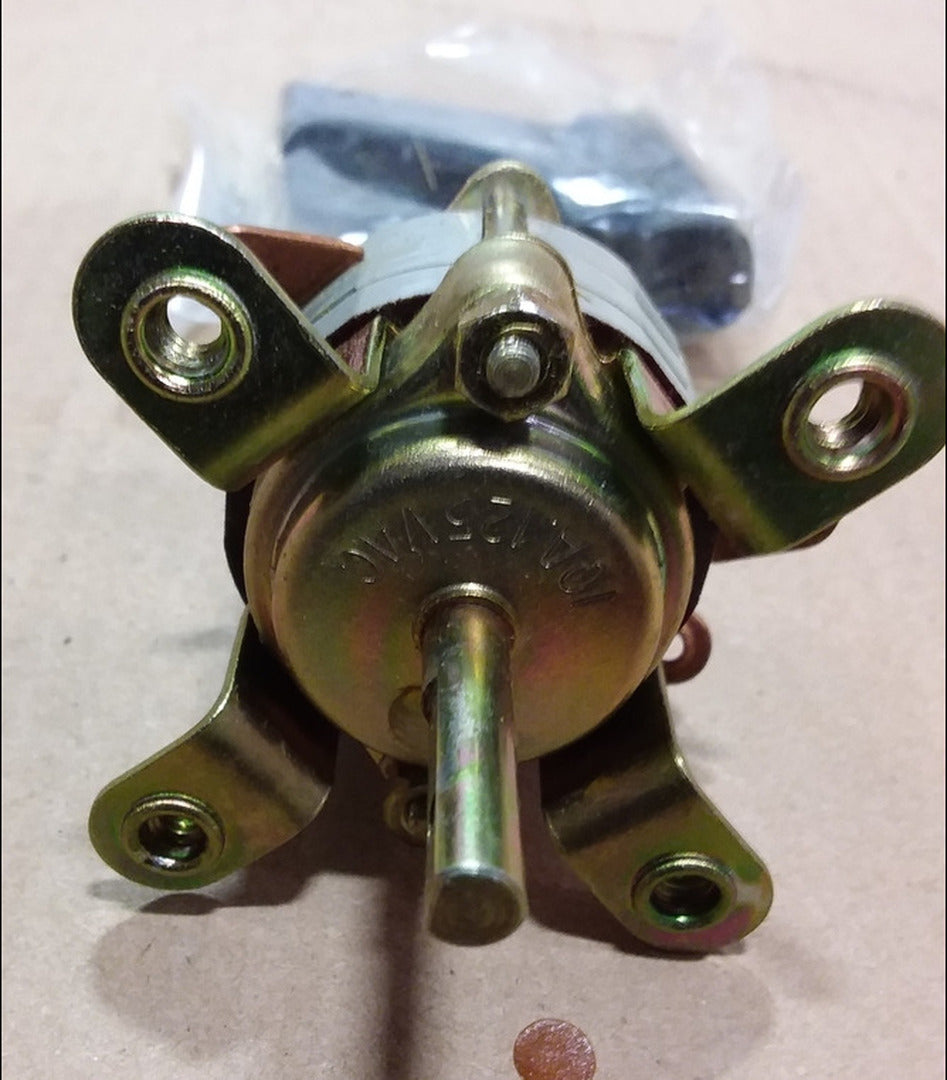

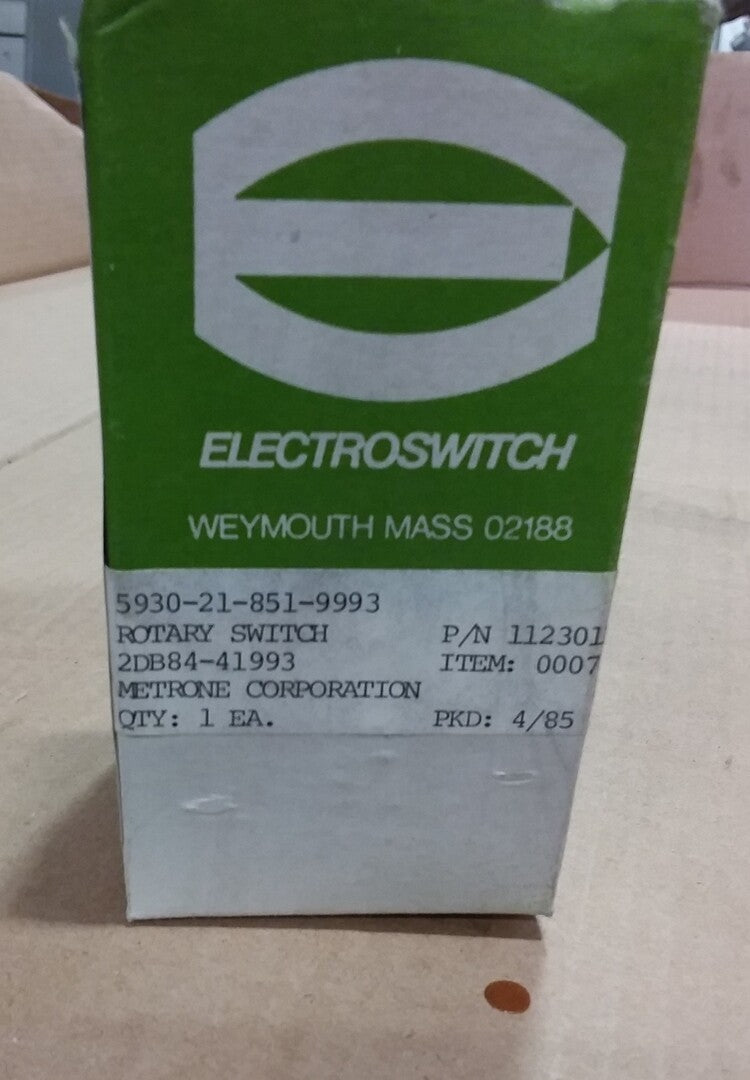

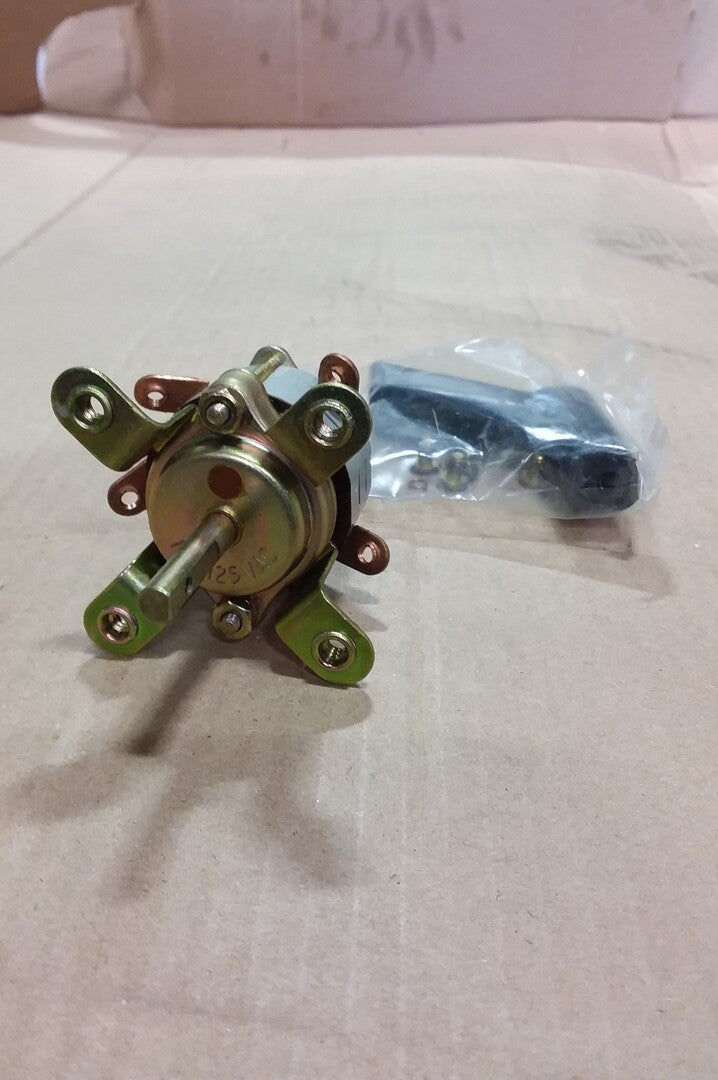

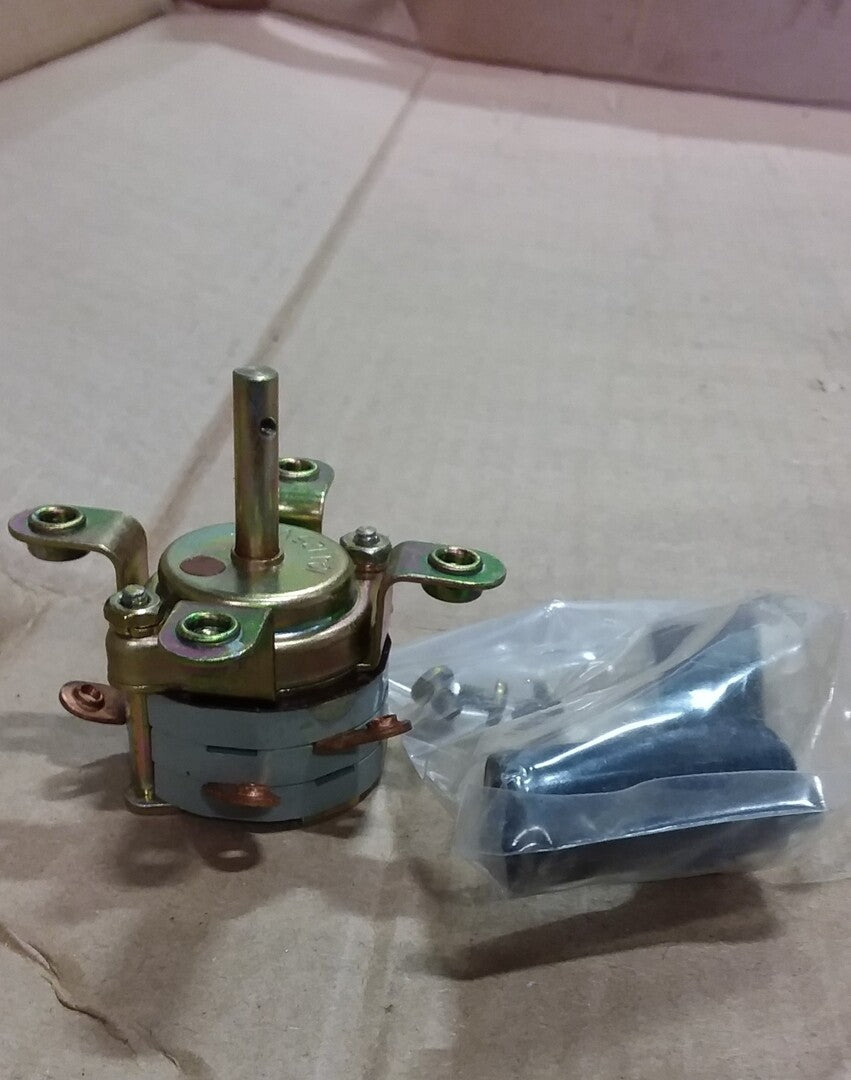

Rotary Switch 5930-21-851-9993

SKU: 11896
Price:
$65 CAD

Shipping calculated at checkout

Stock:
2 in Stock
Make an Offer

Need An Answer Now?

Description

Specifications
Model 5930-21-851-9993
Condition Surplus New
Other Specifications

Switch Sections: 1-30 sections

Switch Poles: 1-60 poles

Switch Positions: 2-8 positions

Switch Detent Angle: 45 deg.

Coninuous Rating: 15A - 600V

Max. Breaking Ability: 30A

Max. Making Ability: 30A

Momentary Current: 30 sec. @ 35A, 60 sec. @ 35A, 3 sec. @ 140A

Overload Current: 120 VAC @ 30A

Dielectric Strength: 2200 Vrms

Insulation Resistance: 100 mega ohms

Contact Resistance: 10 mili ohms

Switch Mountings: 4-hole waterproof mount

Locking Features: Solenoid Lock, Pull-to-Turn

Optional Features: Ganged Gear Operated, Spring Return
