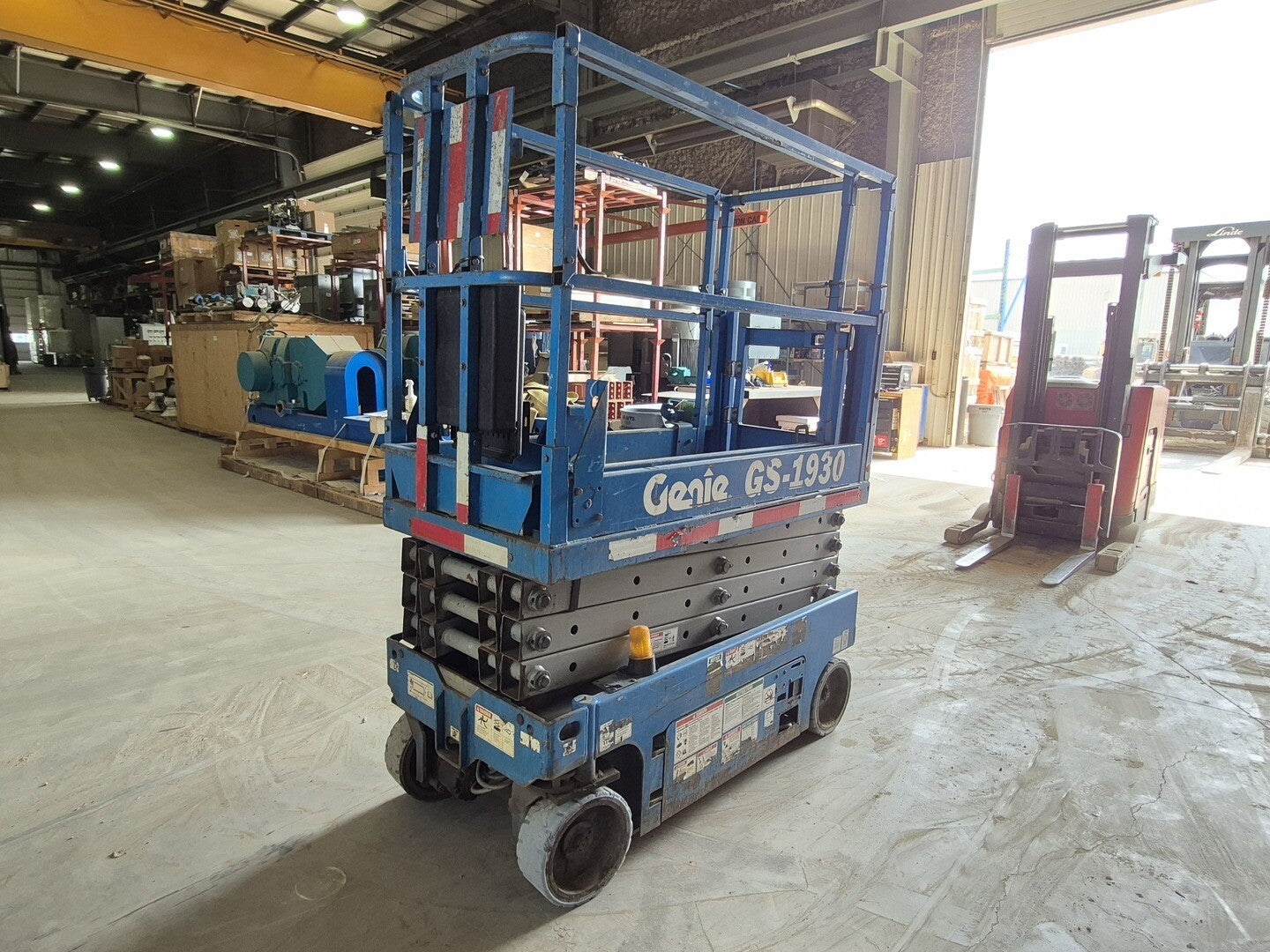

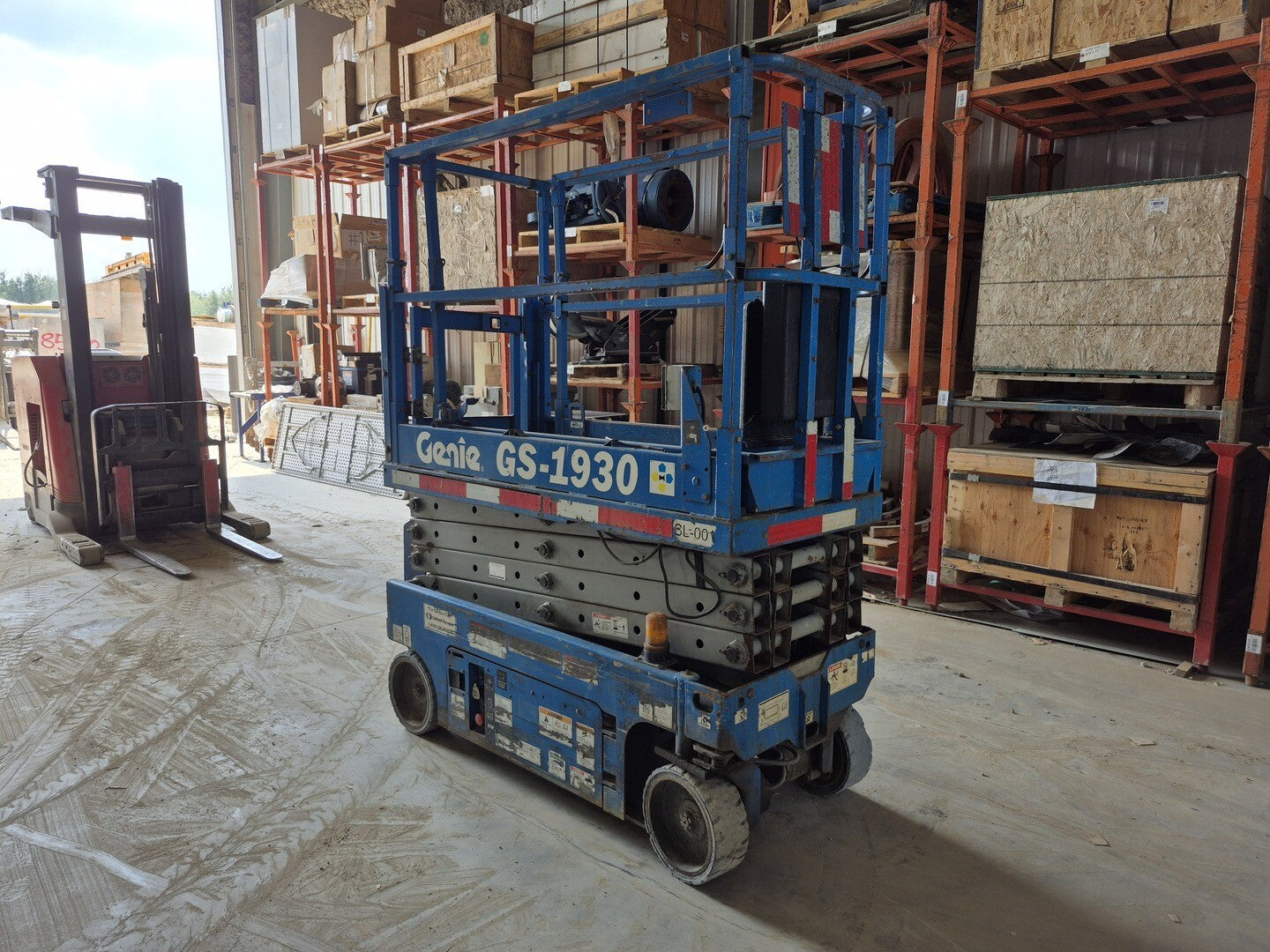

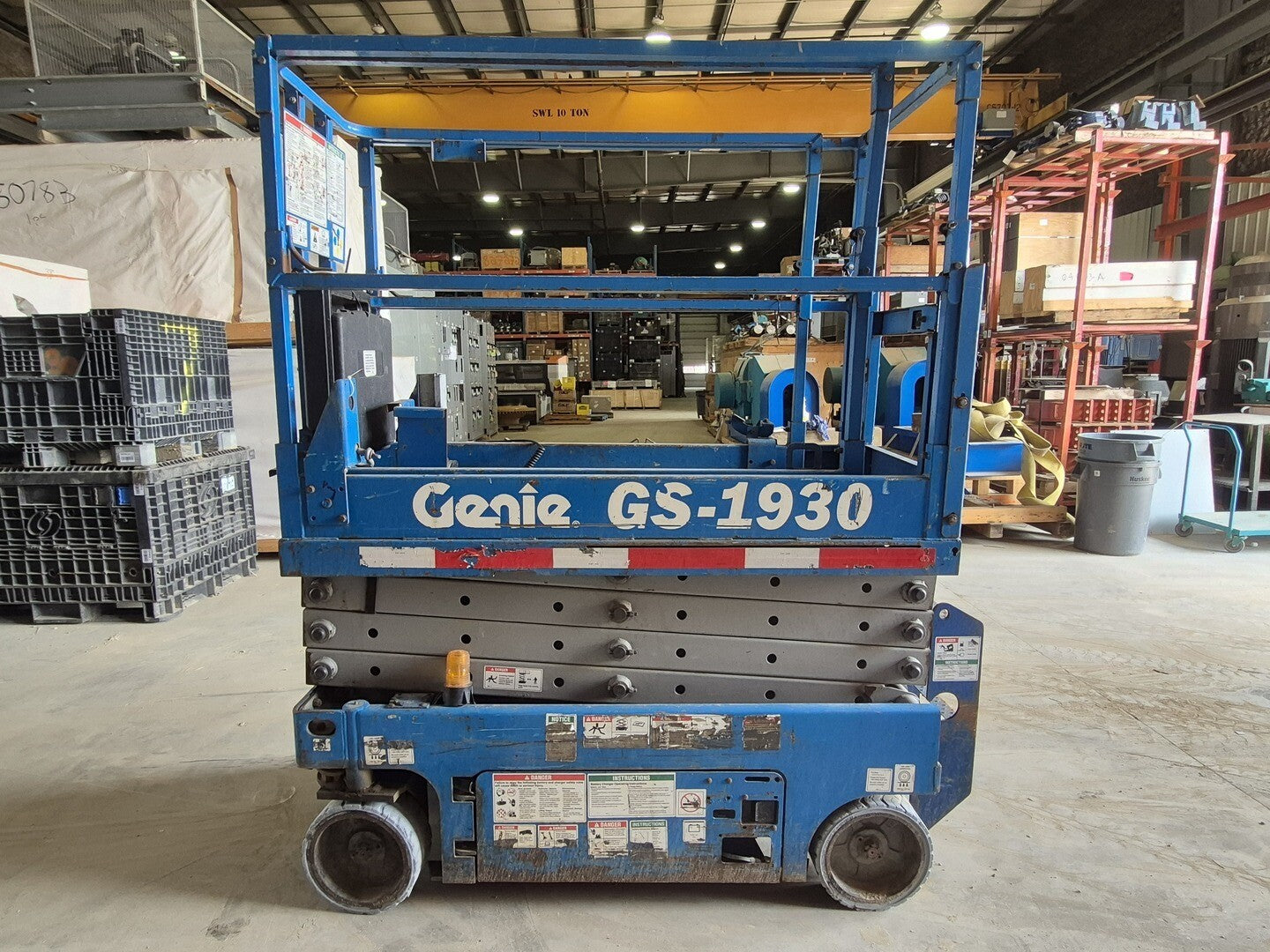

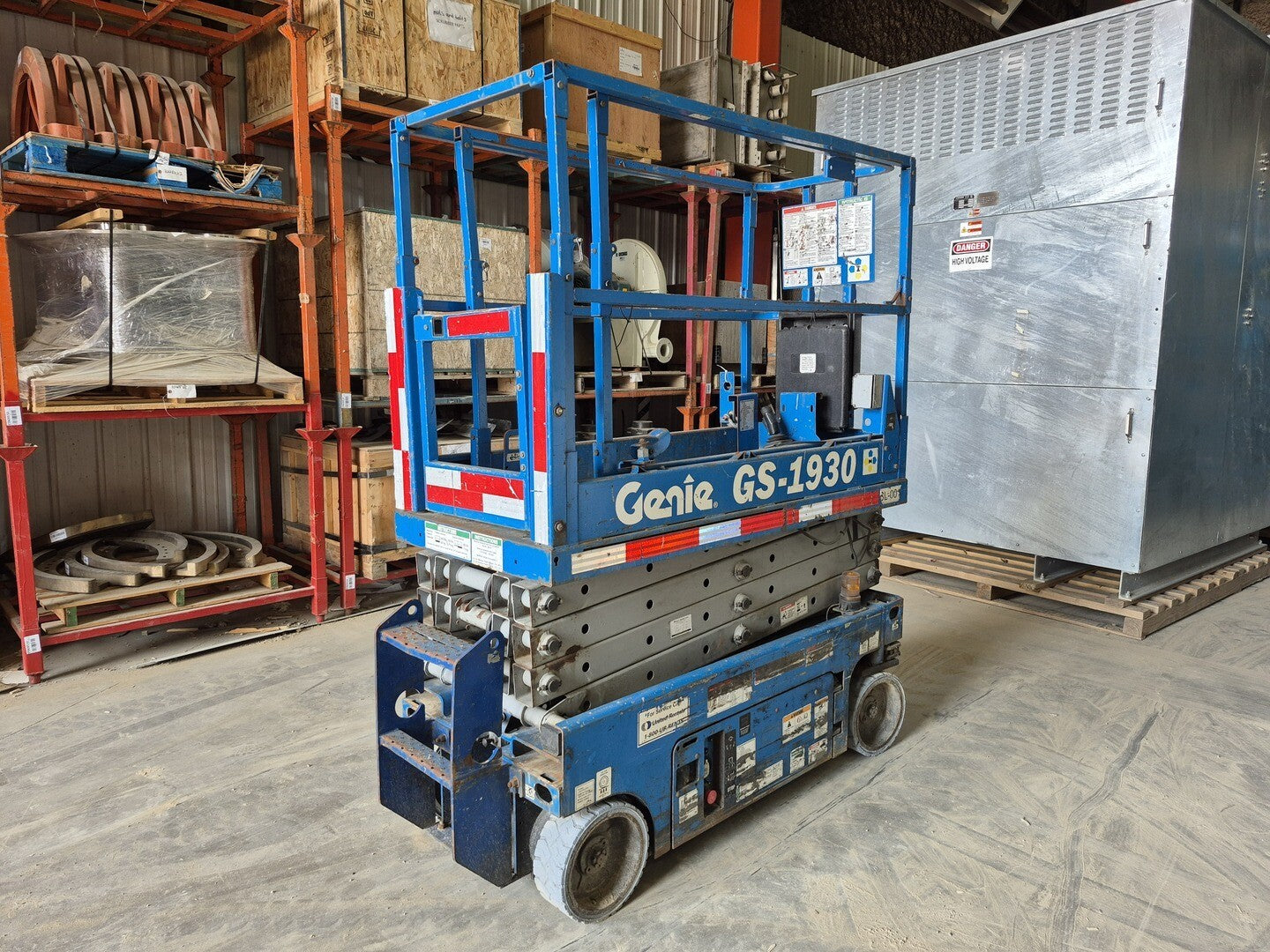

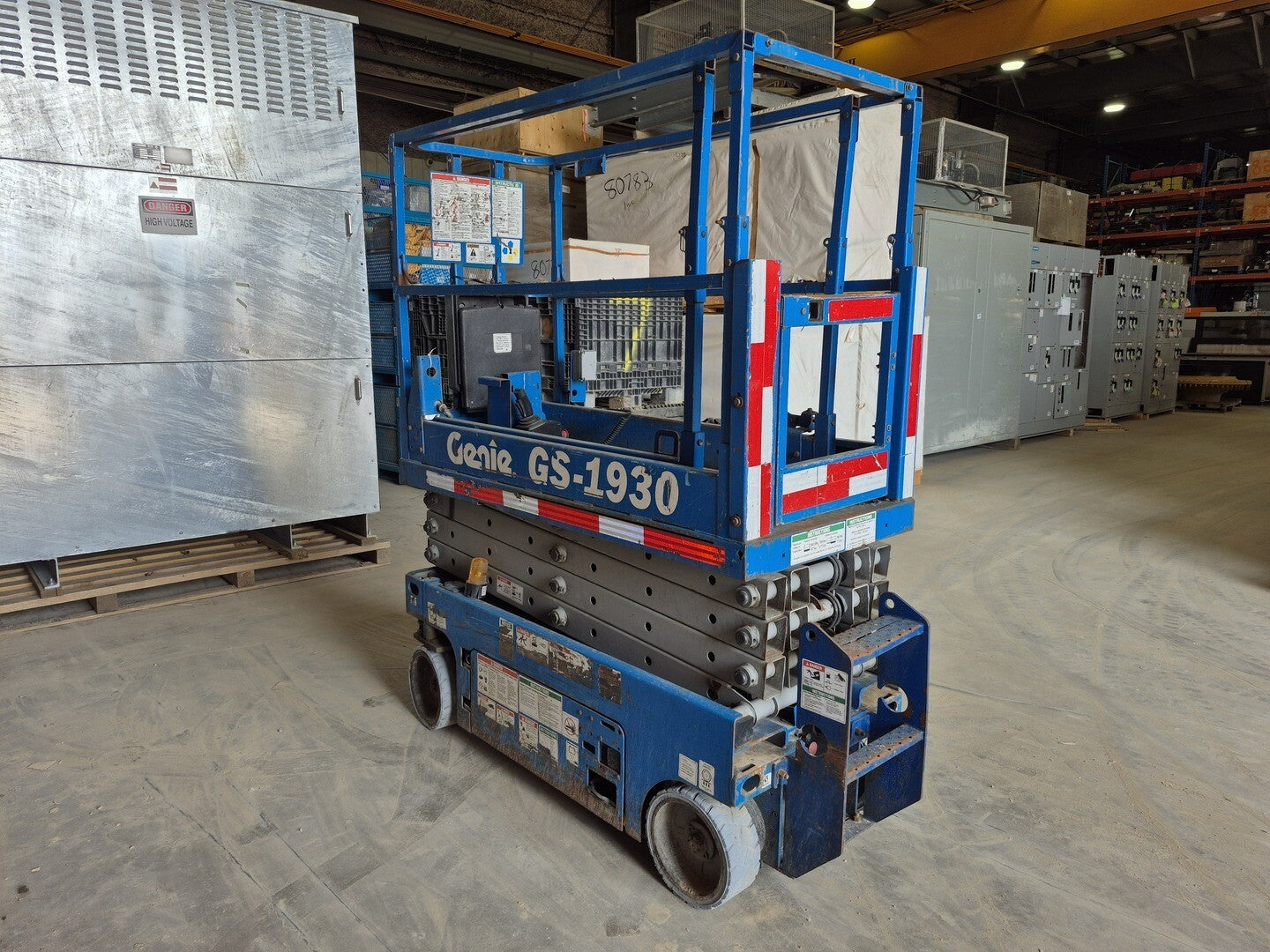

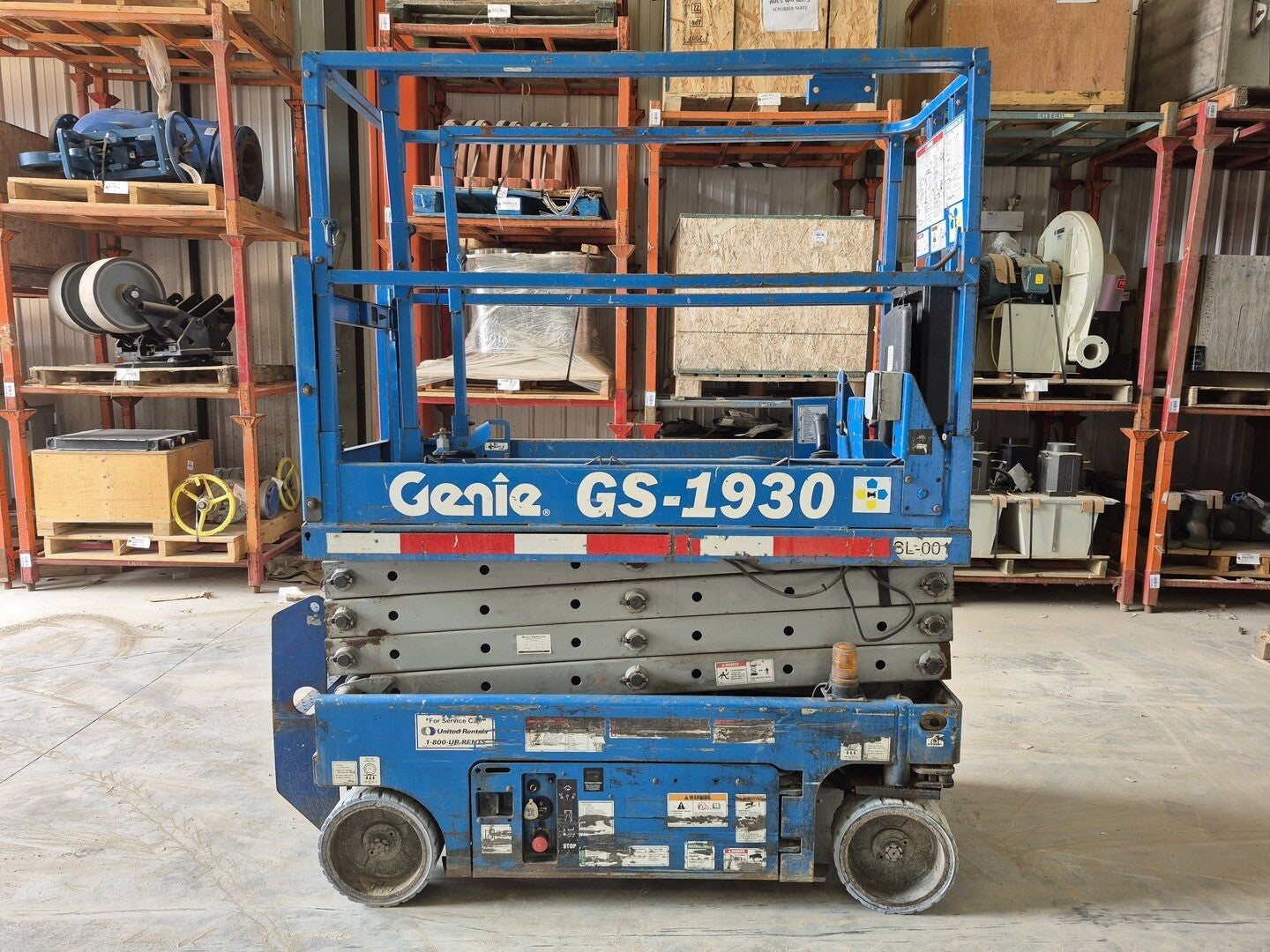

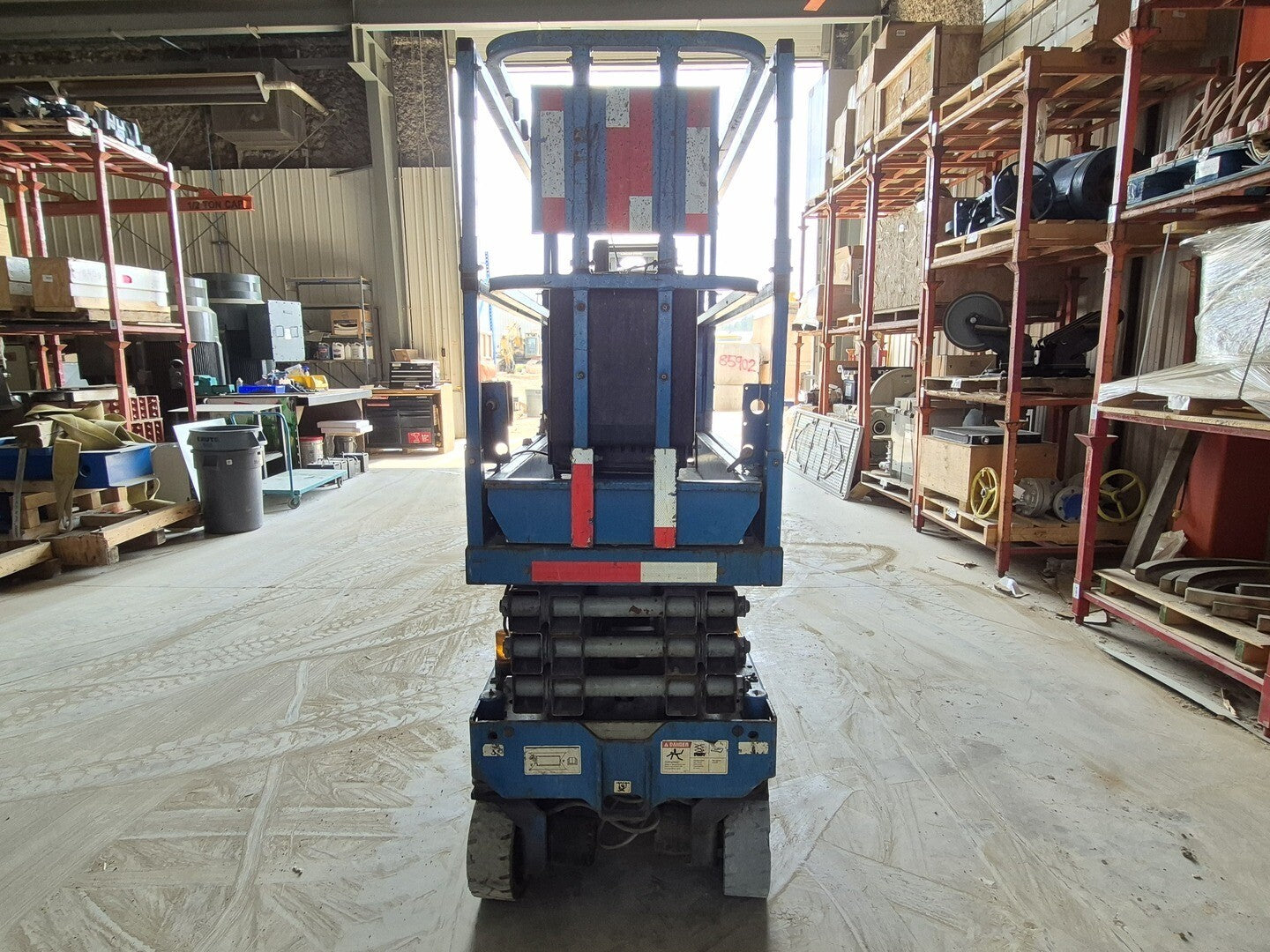

Self-Propelled Scissor Lift GS-1930

SKU: 140223
Price:
$5,500 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Description

Specifications
Model GS-1930
Condition Used
General
Max. Lift Capacity 500 lb
Fuel Type Electric
Platform Size 5'5" x 29.9"
Max. Lift Height 20ft
Other Specifications

Genie GS1930 scissor lift spec sheet

Specifications:

  • Working Height Maximum - Indoor: 25 ft 3 in.
  • Working Height Maximum - Outdoor: 20 ft 8 in.
  • Platform Height Maximum - Indoor: 19 ft 3 in.
  • Platform Height Maximum - Outdoor: 14 ft 8 in.
  • Platform Length - Outside: 5 ft 5 in.
  • Platform Length - Extended: 8 ft 5 in.
  • Roll-out platform Extension Deck: 3 ft
  • Platform Width - Outside: 29.9 in.
  • Guardrail Height: 3 ft 7 in.
  • Toe-board Height: 6 in.
  • Height - Stowed: Folding Rails: 6 ft 11 in.
  • Height - Stowed: Rails Folded: 5 ft 9 in.
  • Length - Stowed: 6 ft
  • Length - Extended: 8 ft 11 in.
  • Width: 2 ft 6 in.
  • Wheelbase: 4 ft 4 in.
  • Ground Clearance - Center: 2.4 in.
  • Ground Clearance - Center - w/ Pothole Guards Deployed: 0.75 in.

Productivity:

  • Maximum Platform Occupancy (in/out): 2/1

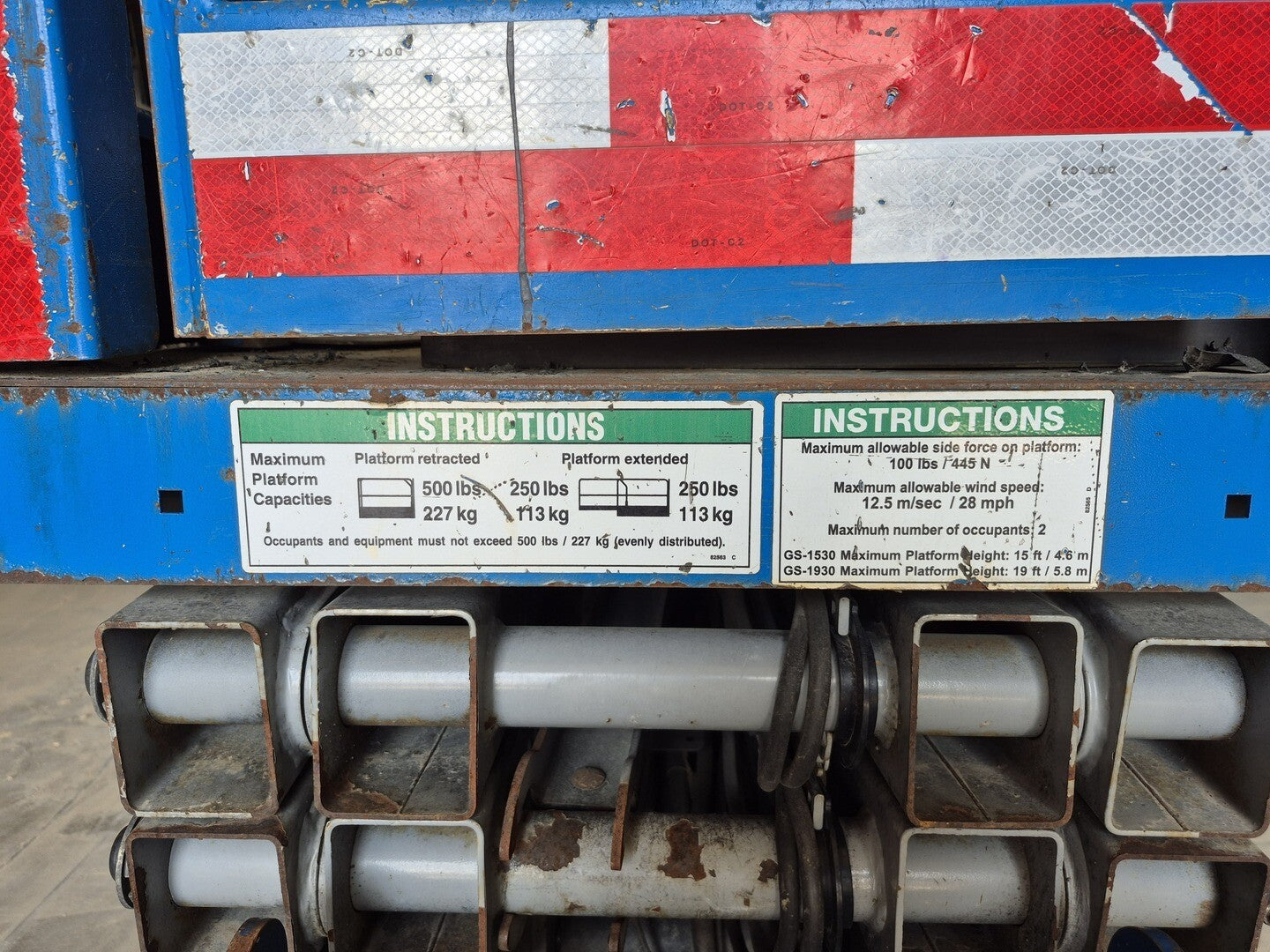

  • Lift Capacity: 500 lb
  • Lift Capacity - Extension Deck: 250 lb
  • Drive Height: Full Height
  • Drive Speed - Stowed: 2.5 mph
  • Drive Speed - Raised: 0.5 mph
  • Grade ability - Stowed: 25 %
  • Turning Radius - Inside: 0
  • Turning Radius - Outside: 5 ft 1 in.
  • Raise / Lower Speed: 16 / 22 sec
  • Tilt Sensor Activation - Front to Back: 3°
  • Tilt Sensor Activation - Side to Side: 1.5°

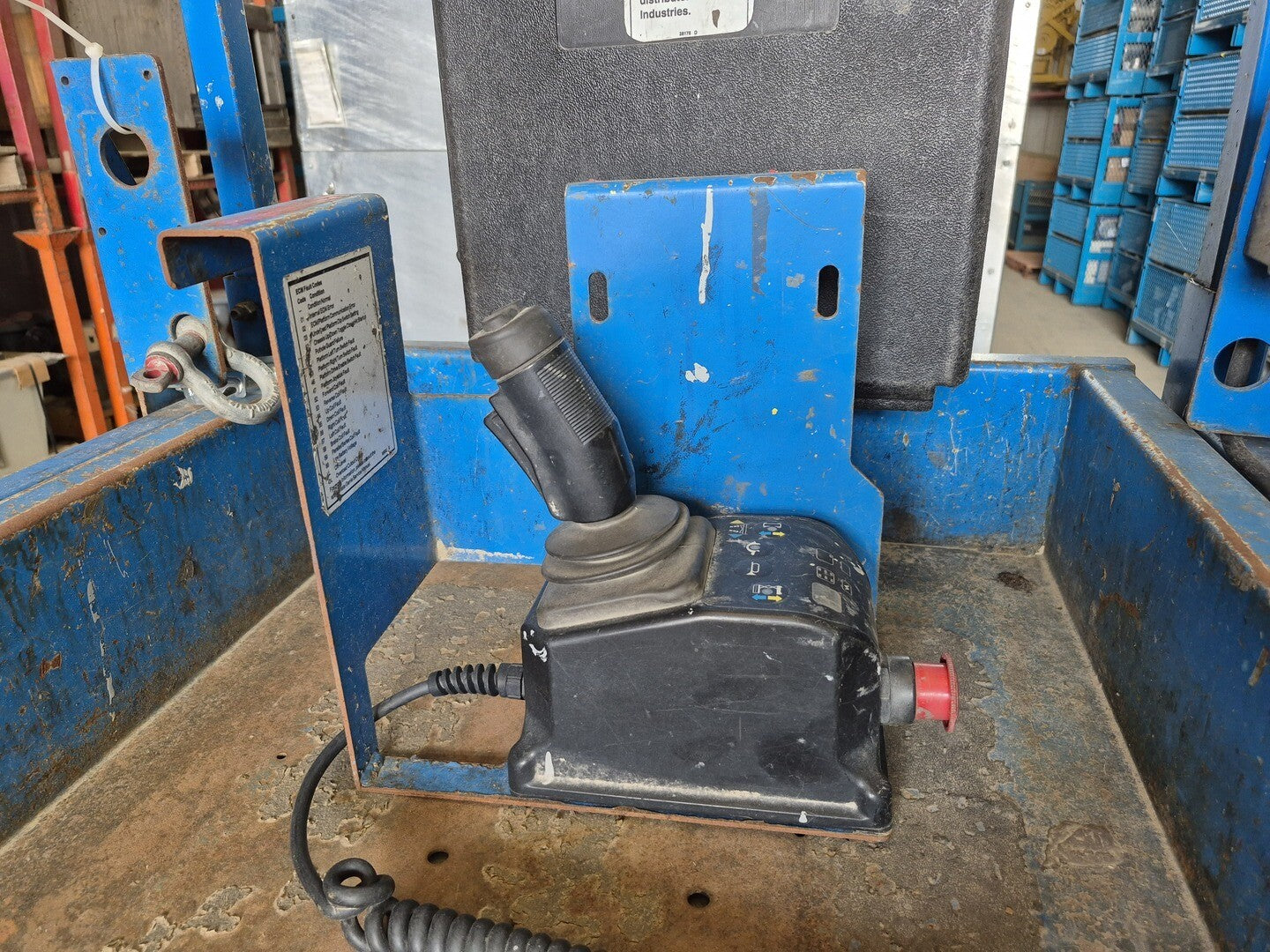

  • Controls: Proportional
  • Drive: Dual Front Wheel
  • Multiple Disc Brakes: Dual Rear Wheel
  • Tires - Solid Non-Marking: 12 x 4.5 in.

Power:

  • Power Source: 24 V (Four 6 V 225 Ah Batteries)

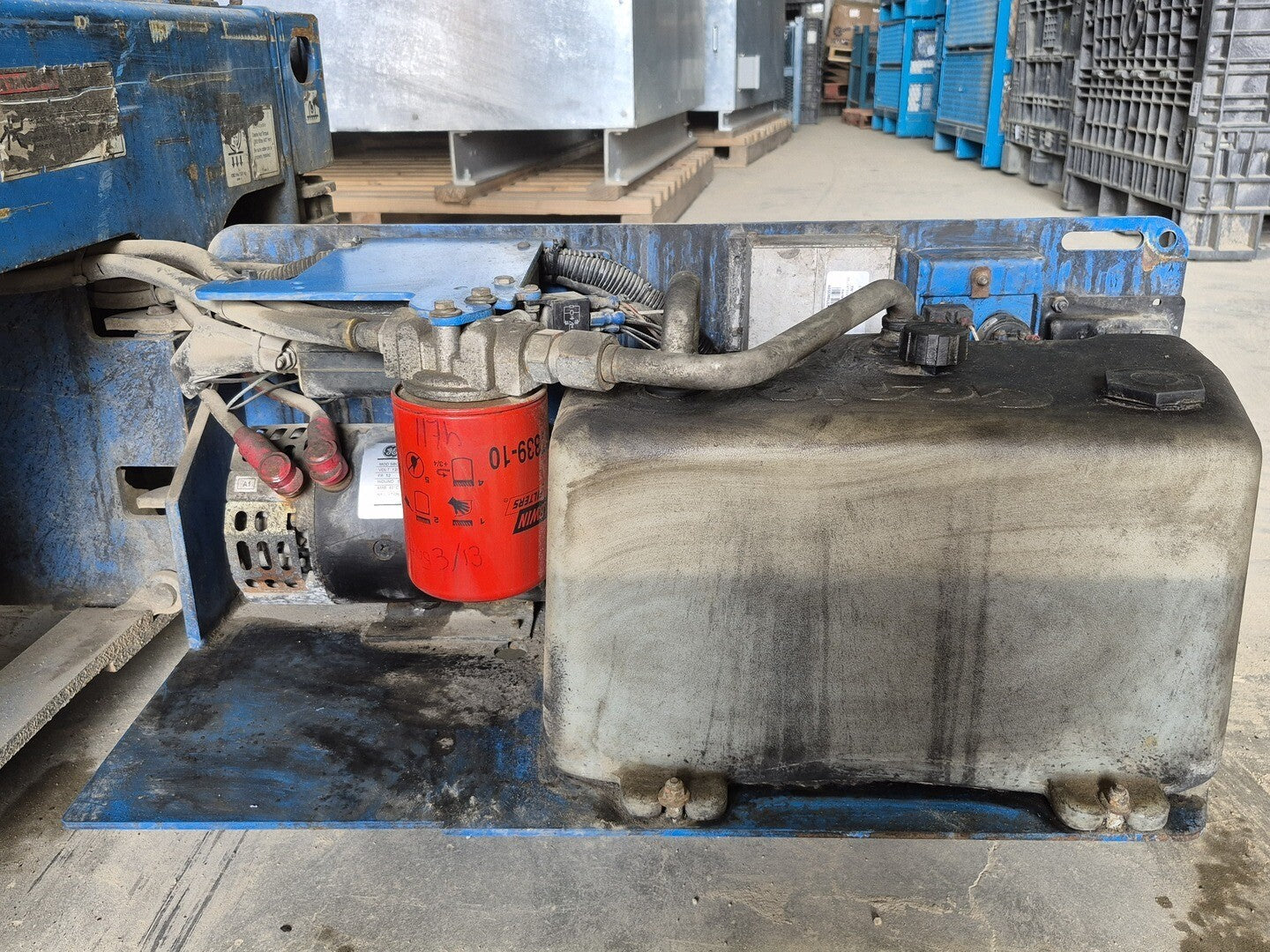

  • Hydraulic System Capacity: 3.8 gal

Weight / Floor Loading:

  • Tire Load, Maximum: 1,460 lbs
  • Tire Contact Pressure: 162 psi
  • Occupied Floor Pressure: 284 psf
