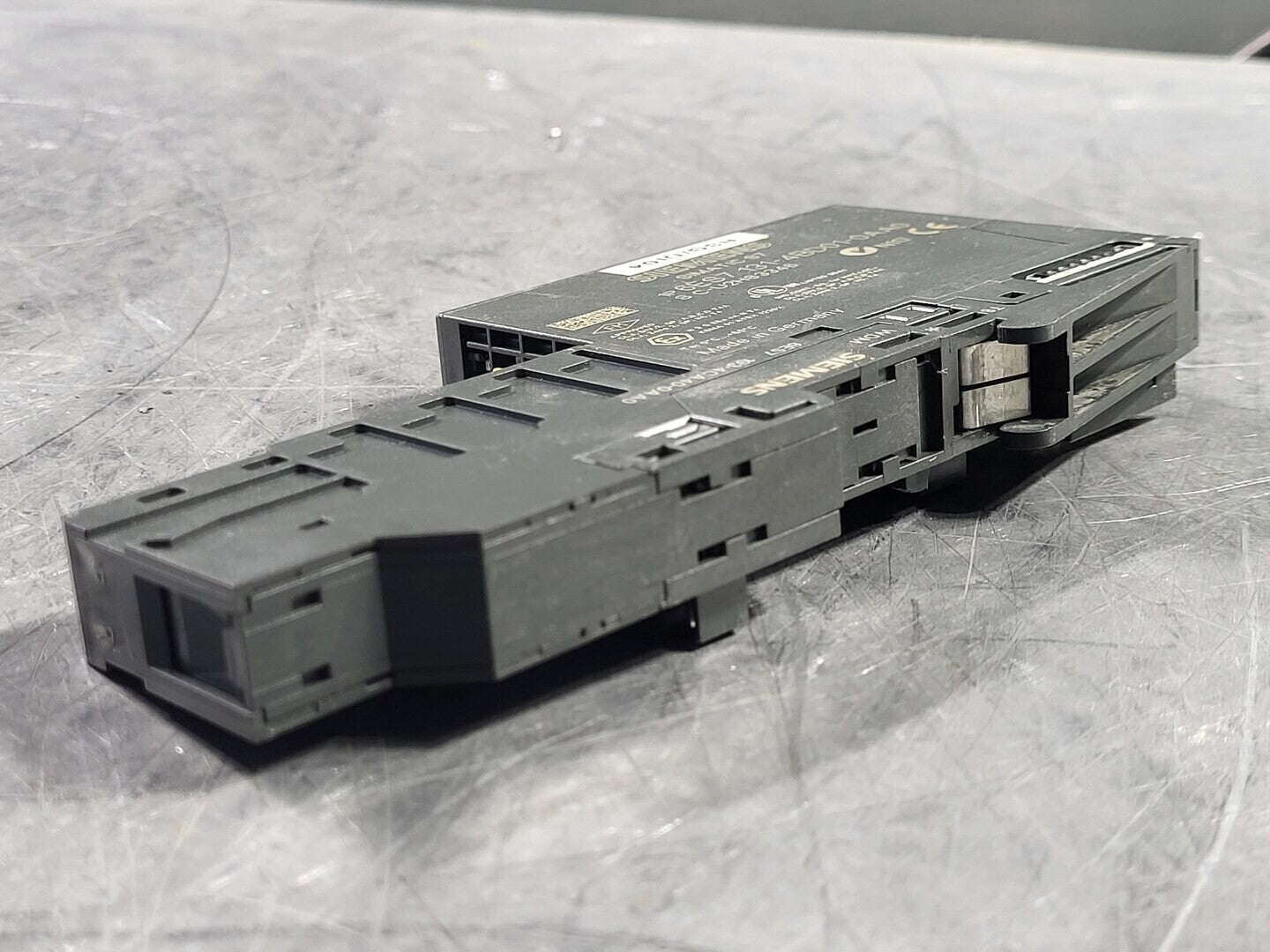

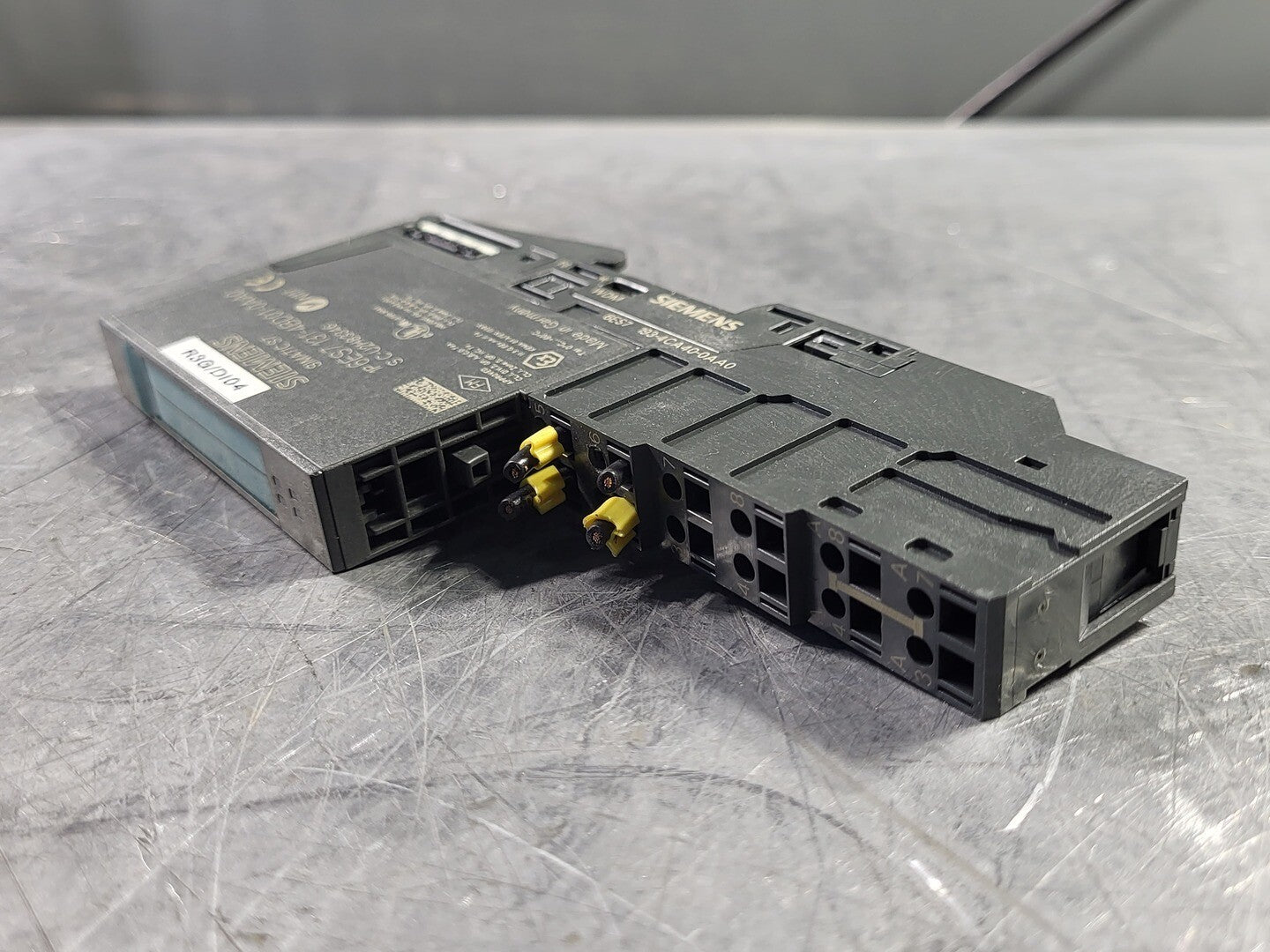

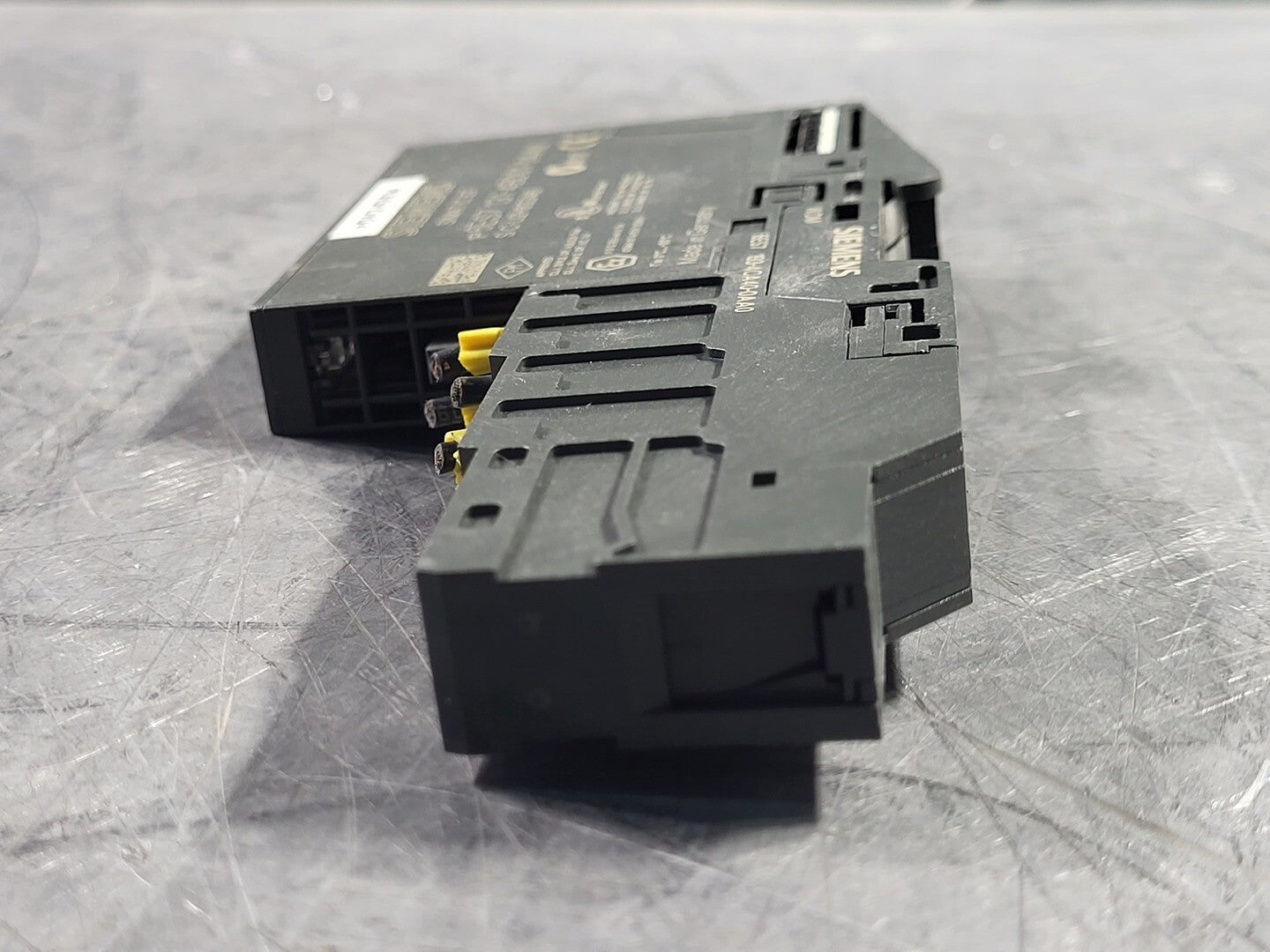

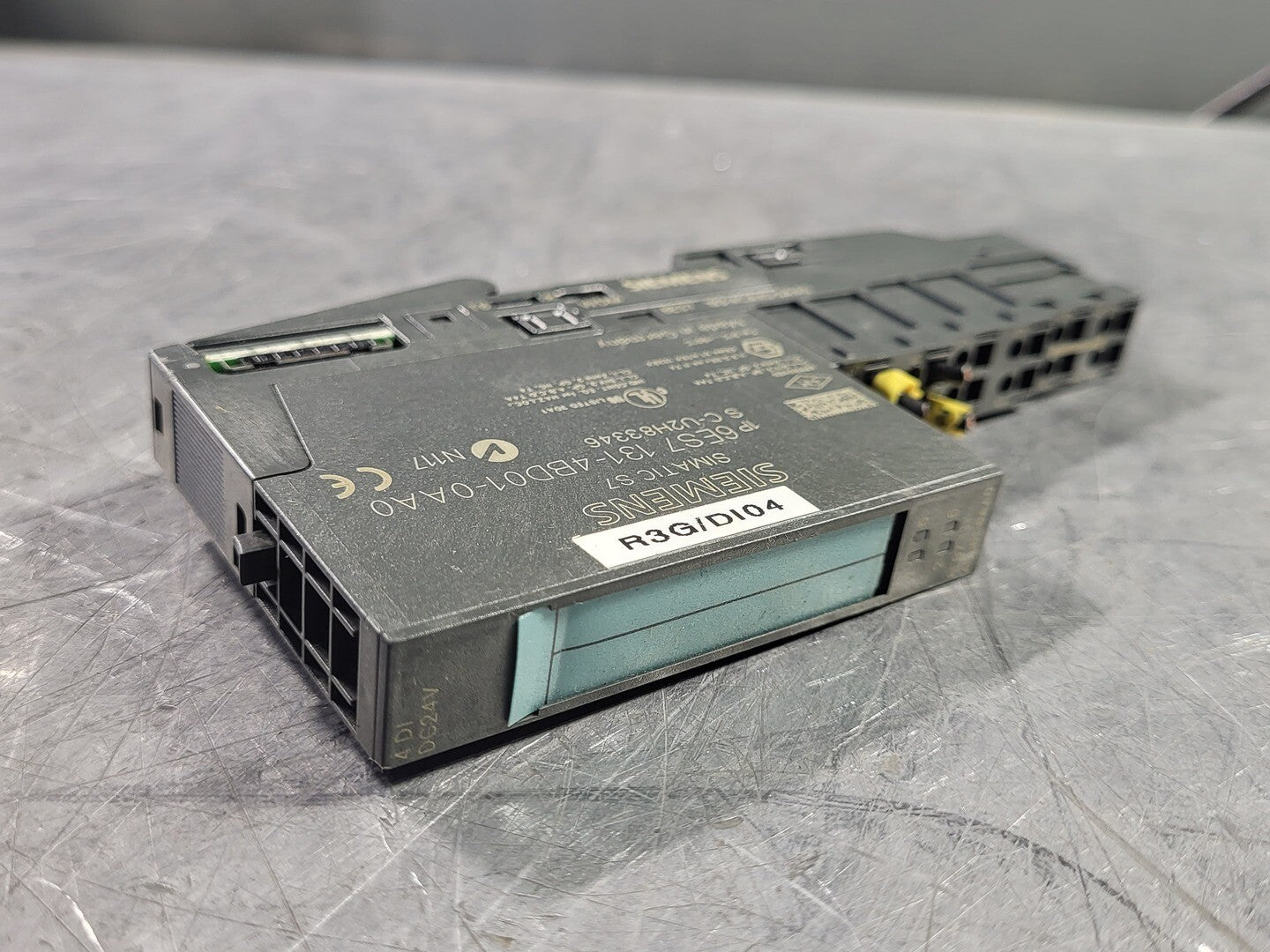

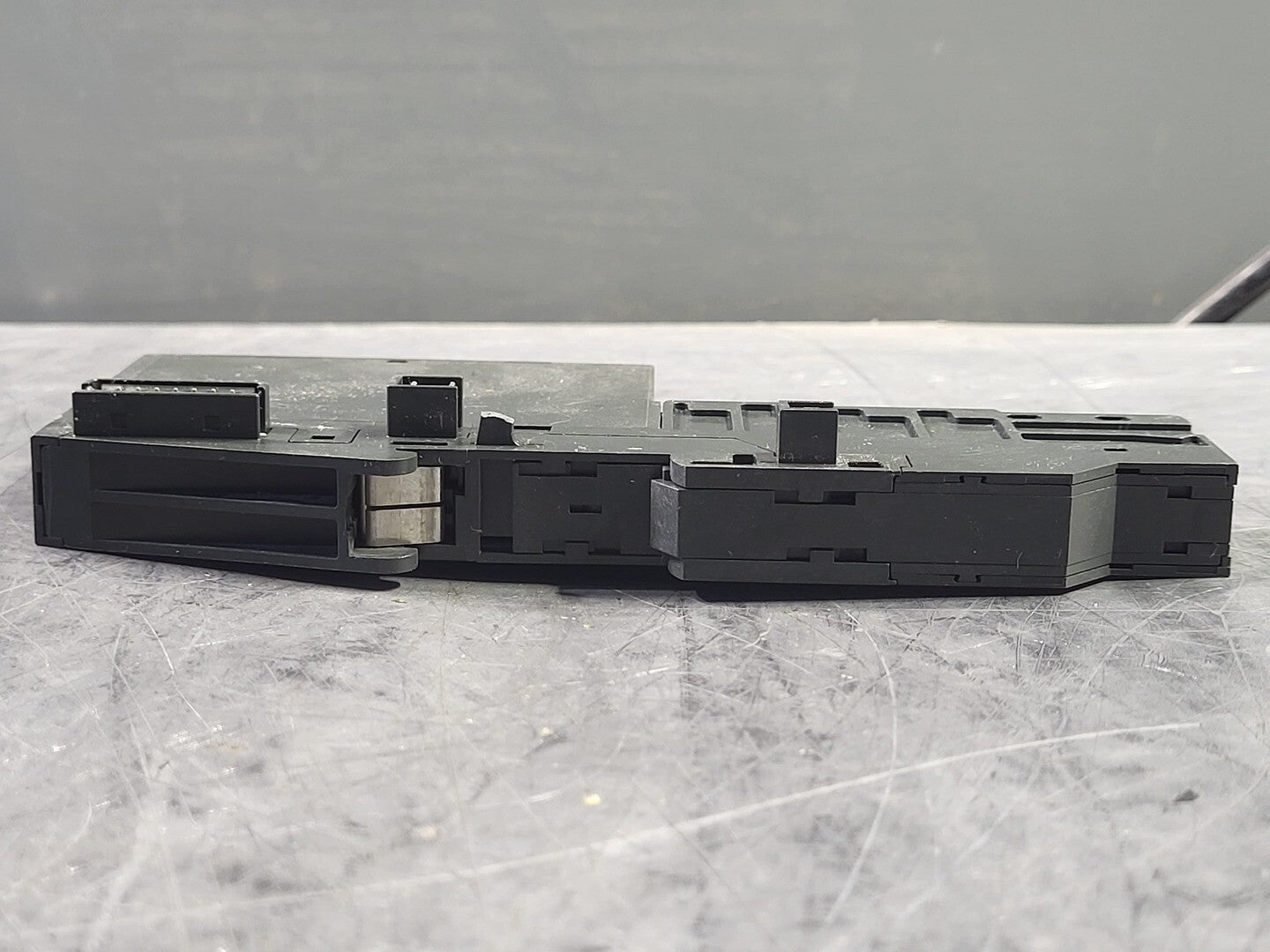

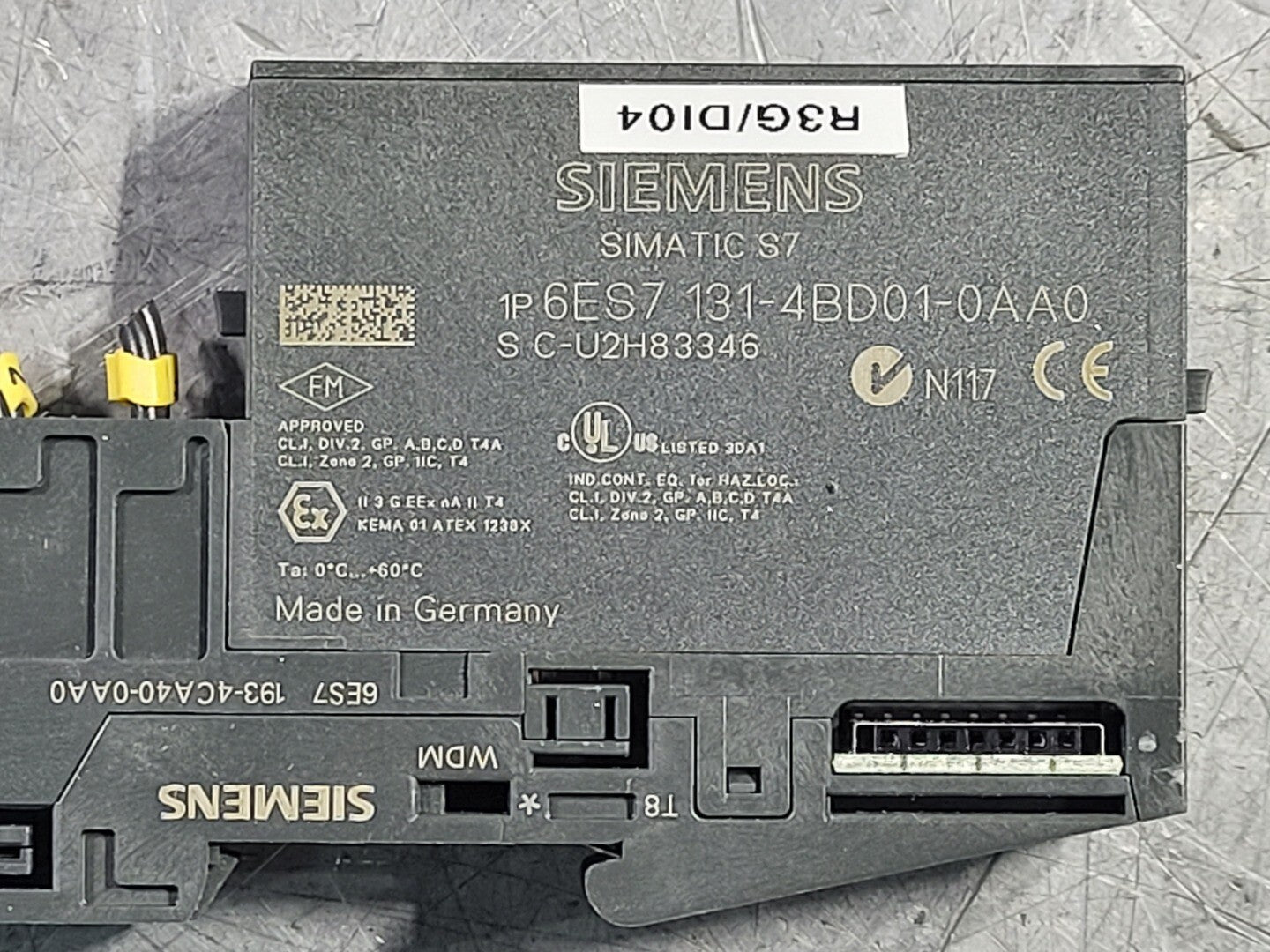

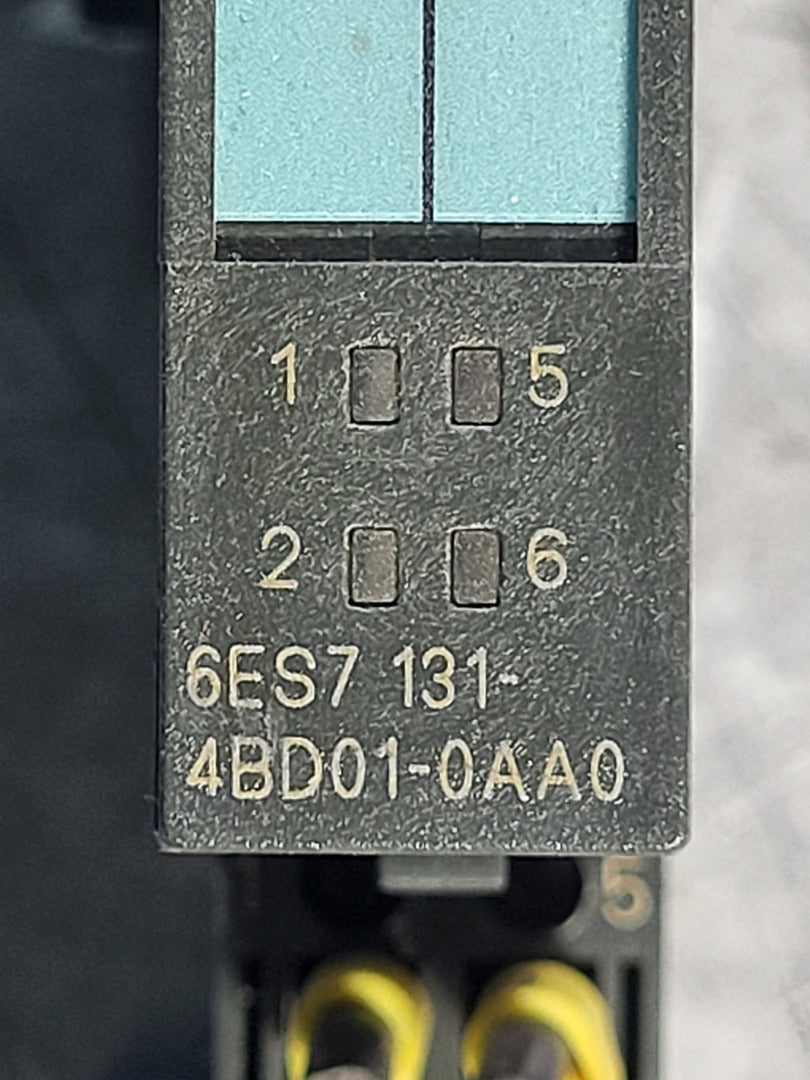

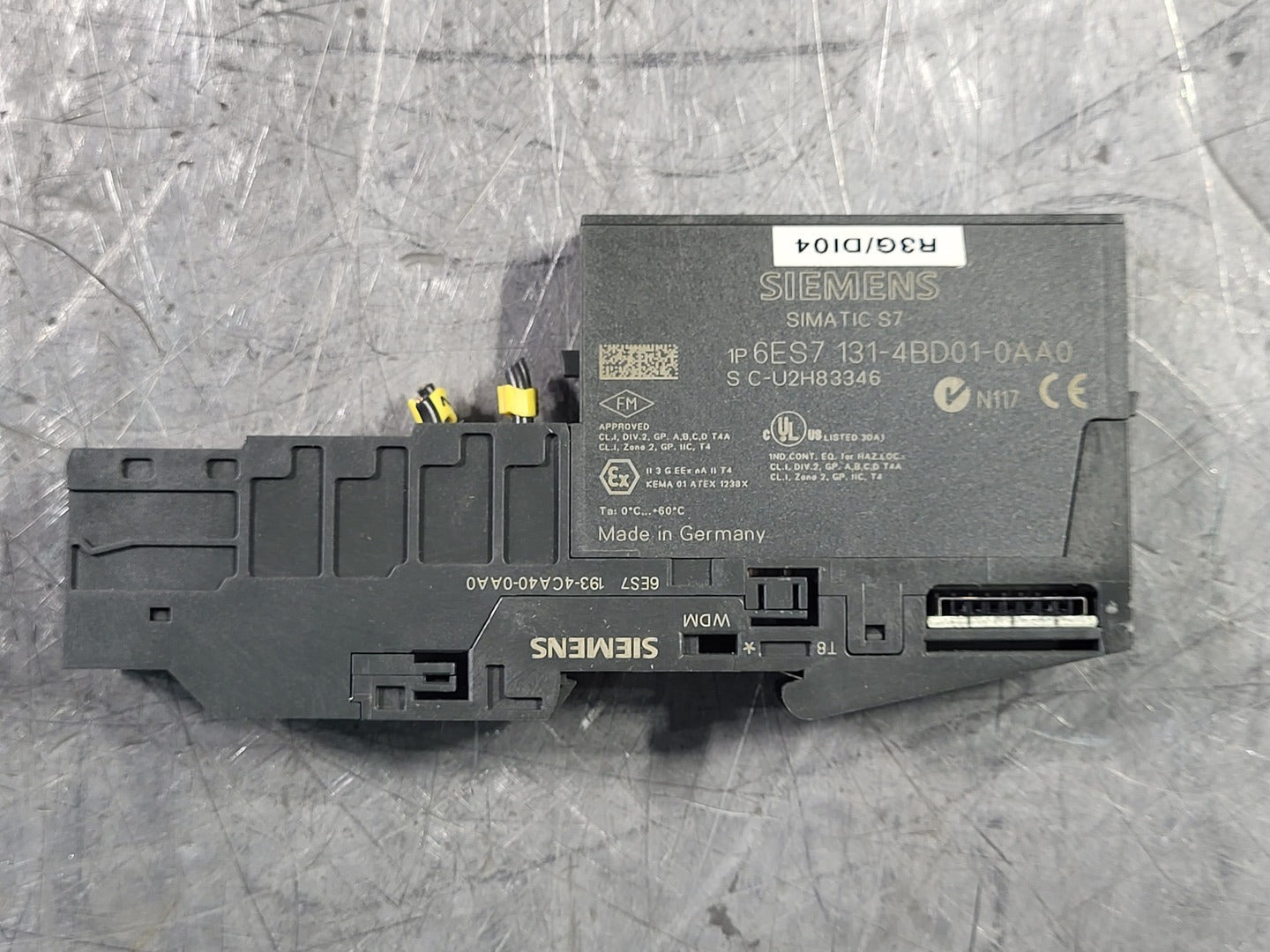

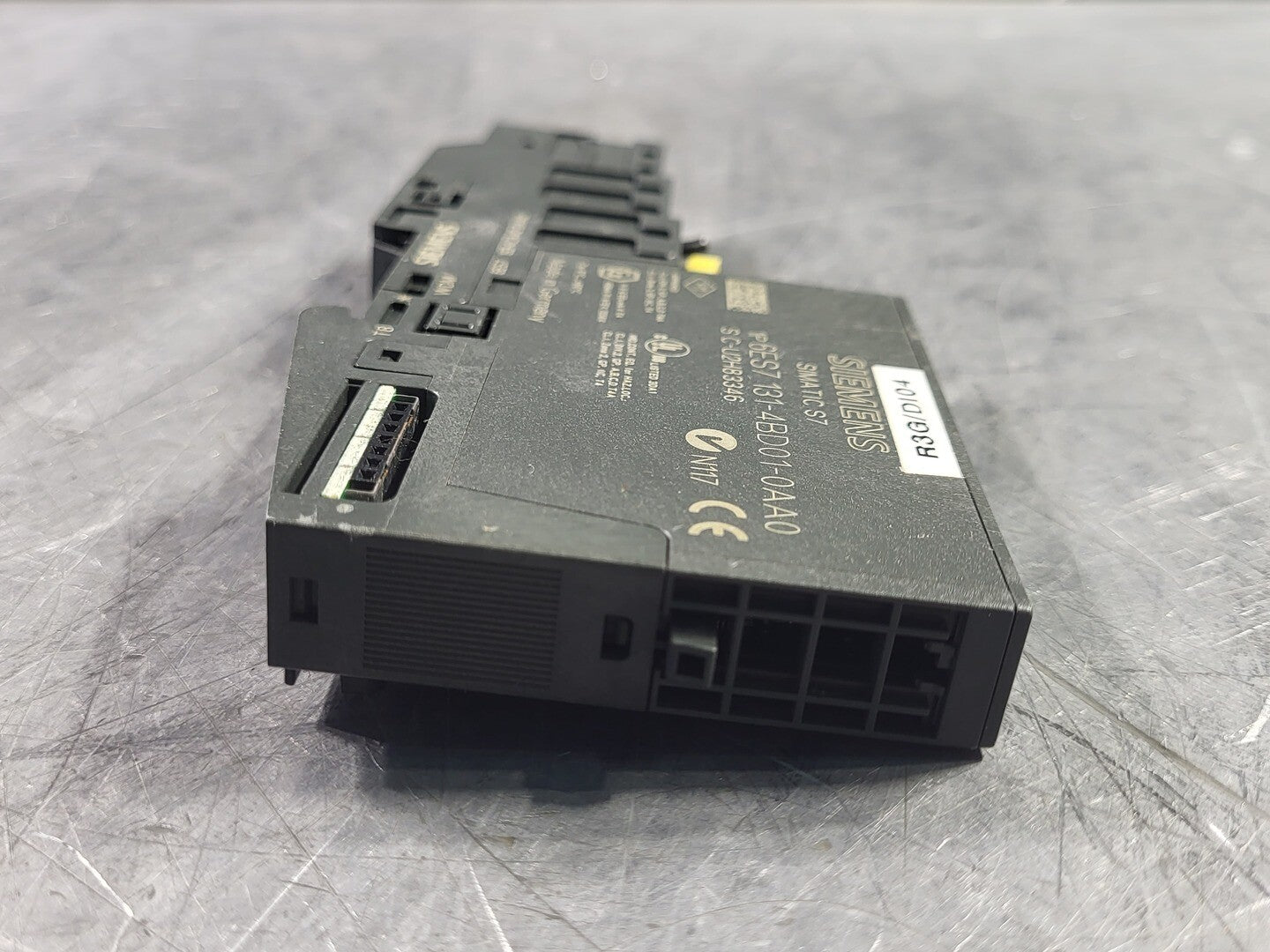

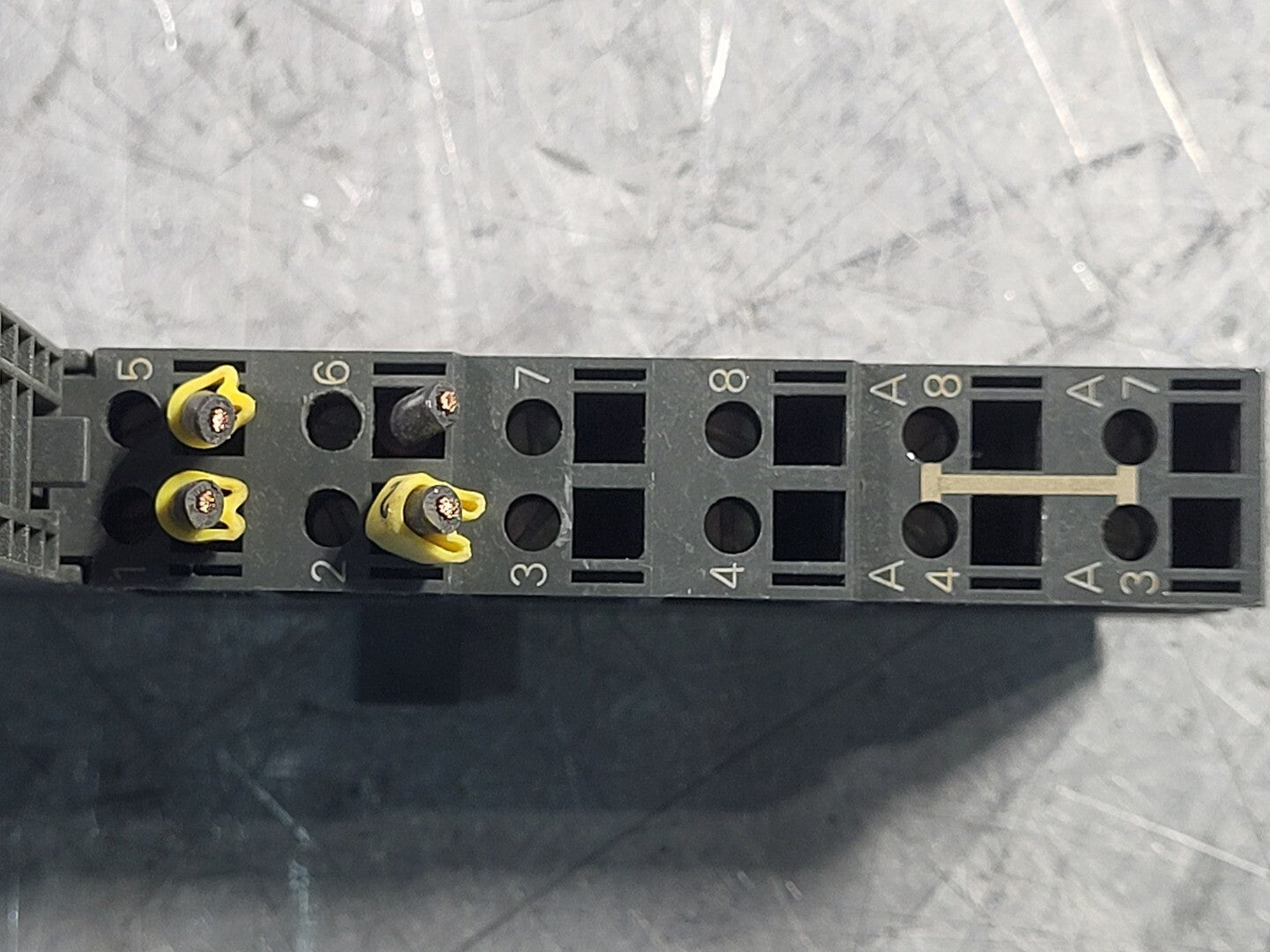

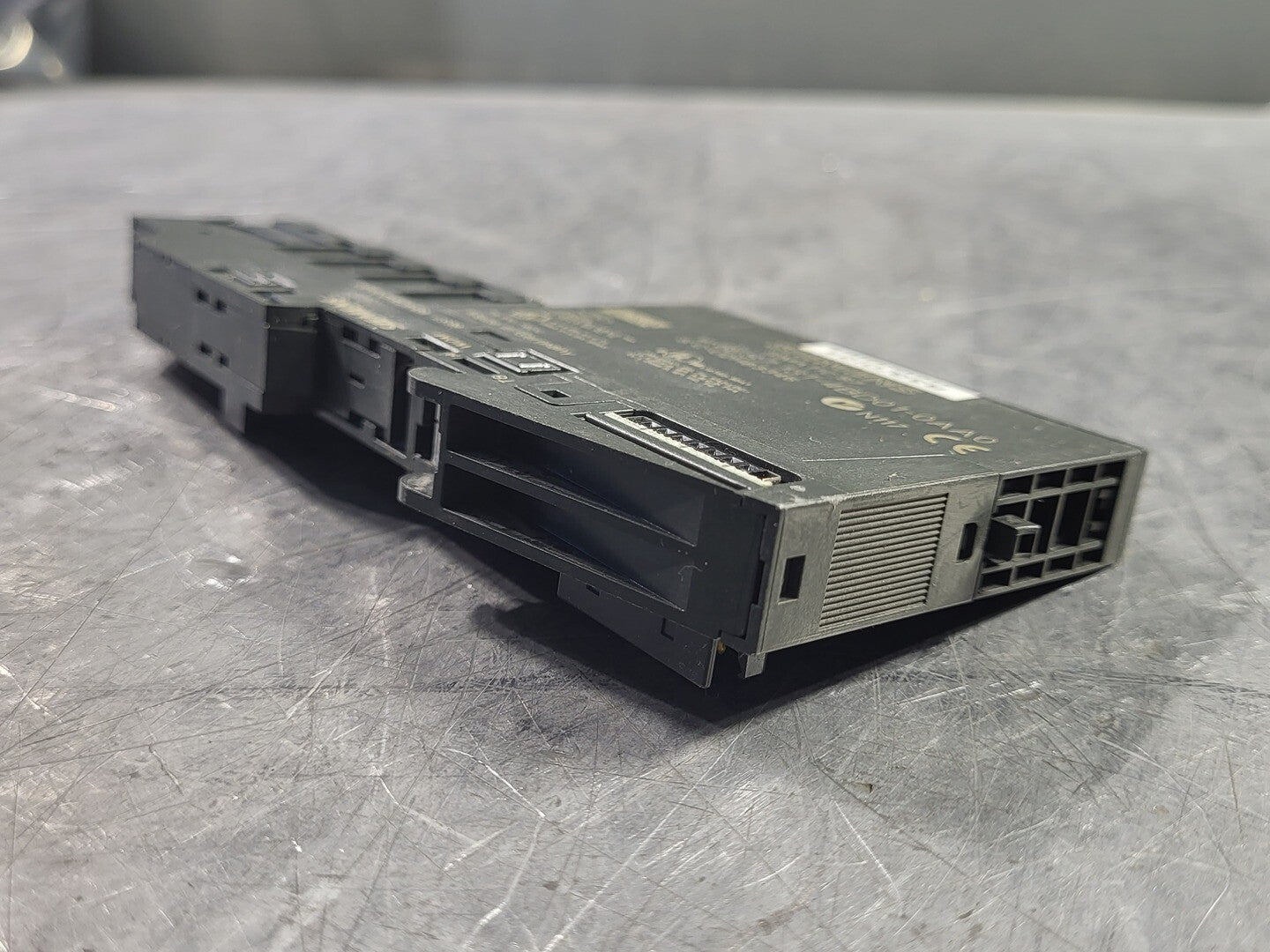

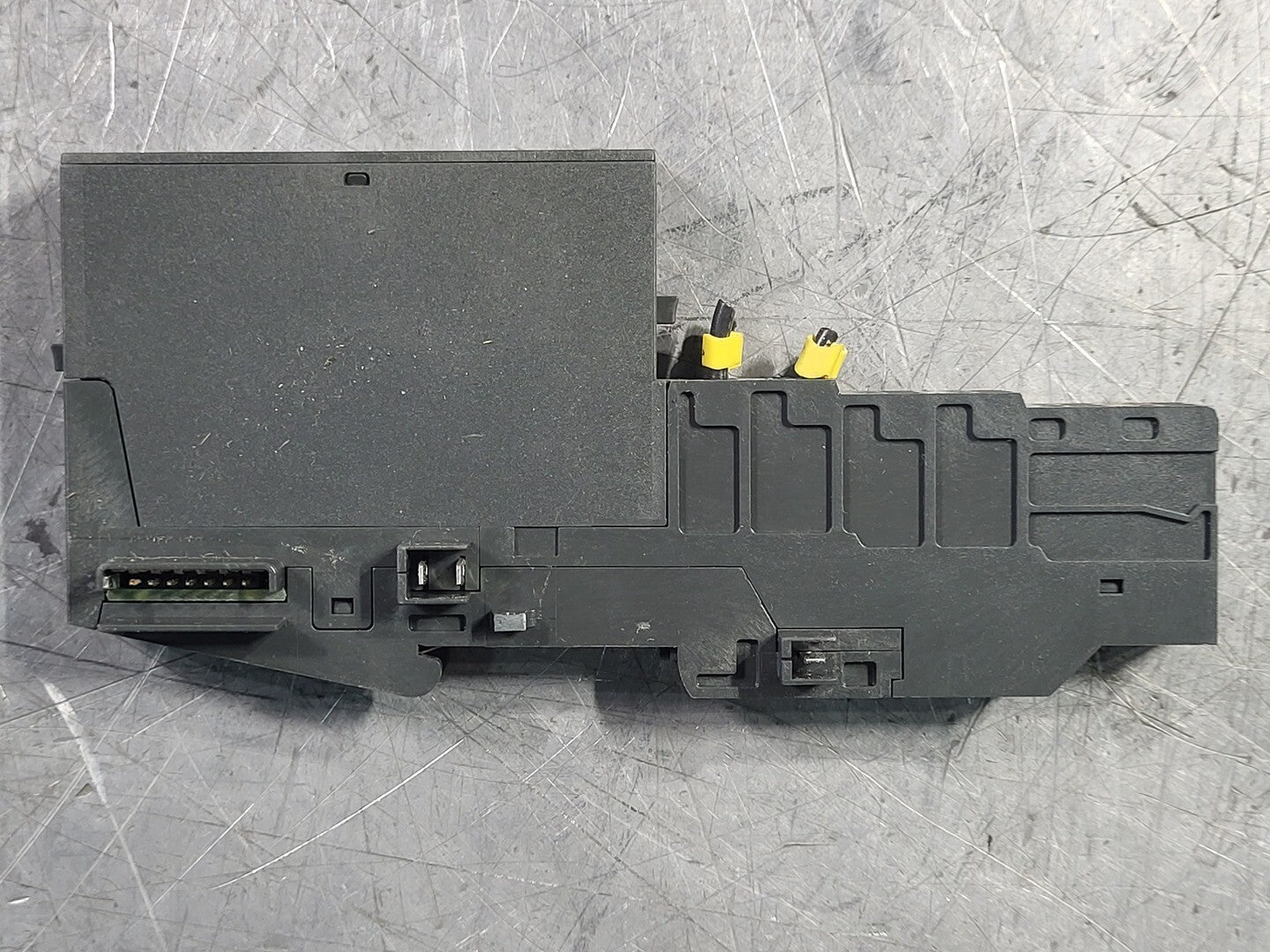

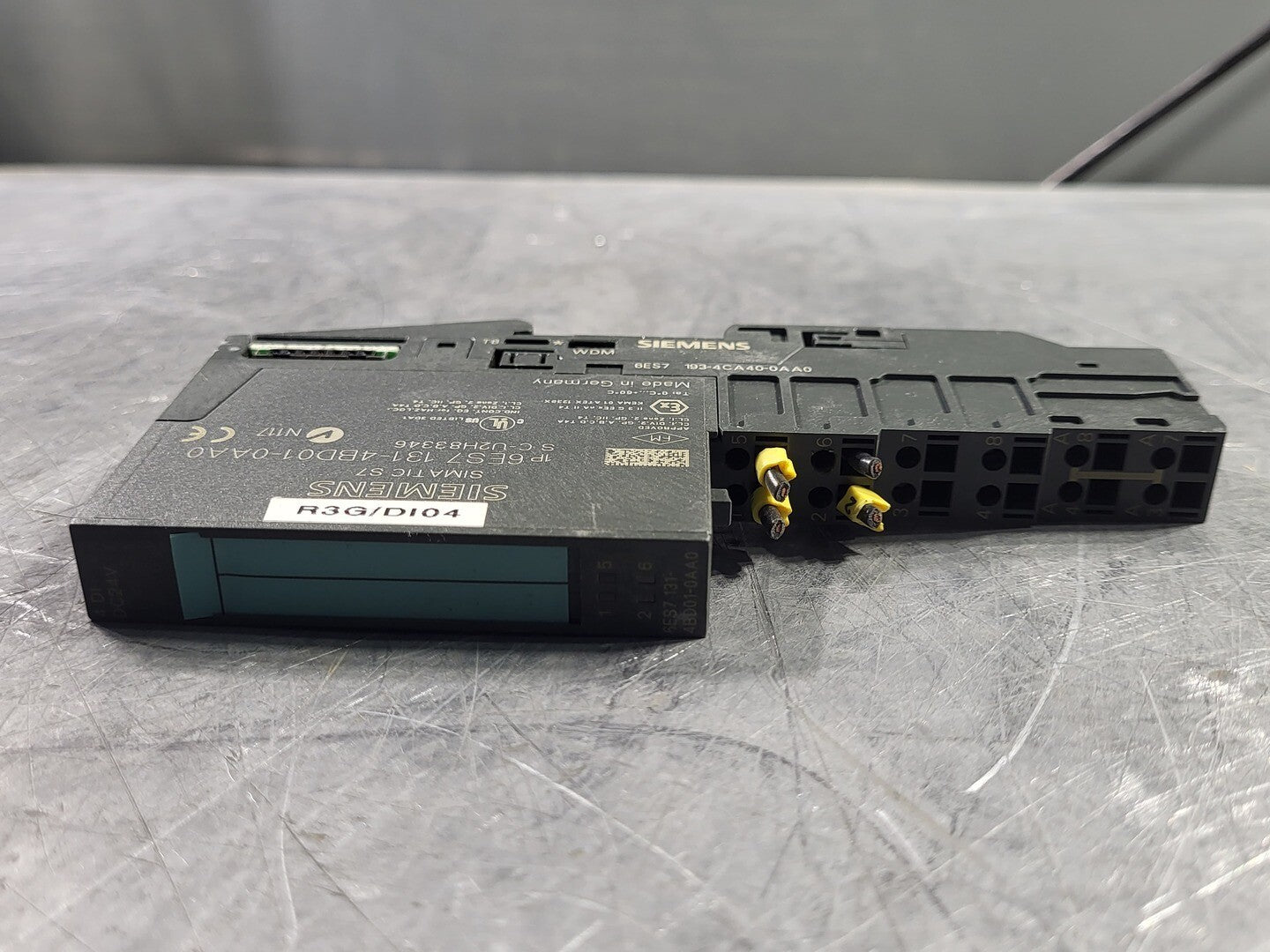

Simatic DP Electronic Module 6ES7 131-4BD01-0AA0

SKU: 111992
$28 CAD

Shipping calculated at checkout

17 in Stock
Make an Offer

Need An Answer Now?


Model 6ES7 131-4BD01-0AA0
Condition Used
Other Specifications

Supply Voltage

Rated Value (DC): 24 V; From Power Module

Reverse Polarity Protection: Yes

Input Current

From Supply Voltage L+, Max.: Dependent On Encoder

From Backplane Bus 3.3 V DC, Max.: 10 mA

Output Current

Rated Value: 500 mA

  • Permissible Range, Lower Limit: 0 mA
  • Permissible Range, Upper Limit: 500 mA

Digital Inputs

Number Of Digital Inputs: 4

Input Characteristic Curve In Accordance With IEC 61131, Type 1: Yes

Input Voltage

Type Of Input Voltage: DC

Rated Value (DC): 24 V

For Signal "0" -30 To +5 V

For Signal "1" +15 To +30 V

Input Current

For Signal "1", Typ. 7 mA; At 24 V

Input Delay (For Rated Value Of Input Voltage)

For Standard Inputs:

  •   Parameterizable: No
  •   At "0" To "1", Min. 2 ms; Typically 3 ms
  • At "0" To "1", Max. 4.5 ms
  •   At "1" To "0", Min. 2 ms; Typically 3 ms
  •   At "1" To "0", Max. 4.5 ms
