Description
| Specifications | |
|---|---|
| Model | 6S1 |
| Made In | MEXICO |
| Condition | Surplus New |
| Other Specifications |
|---|
|

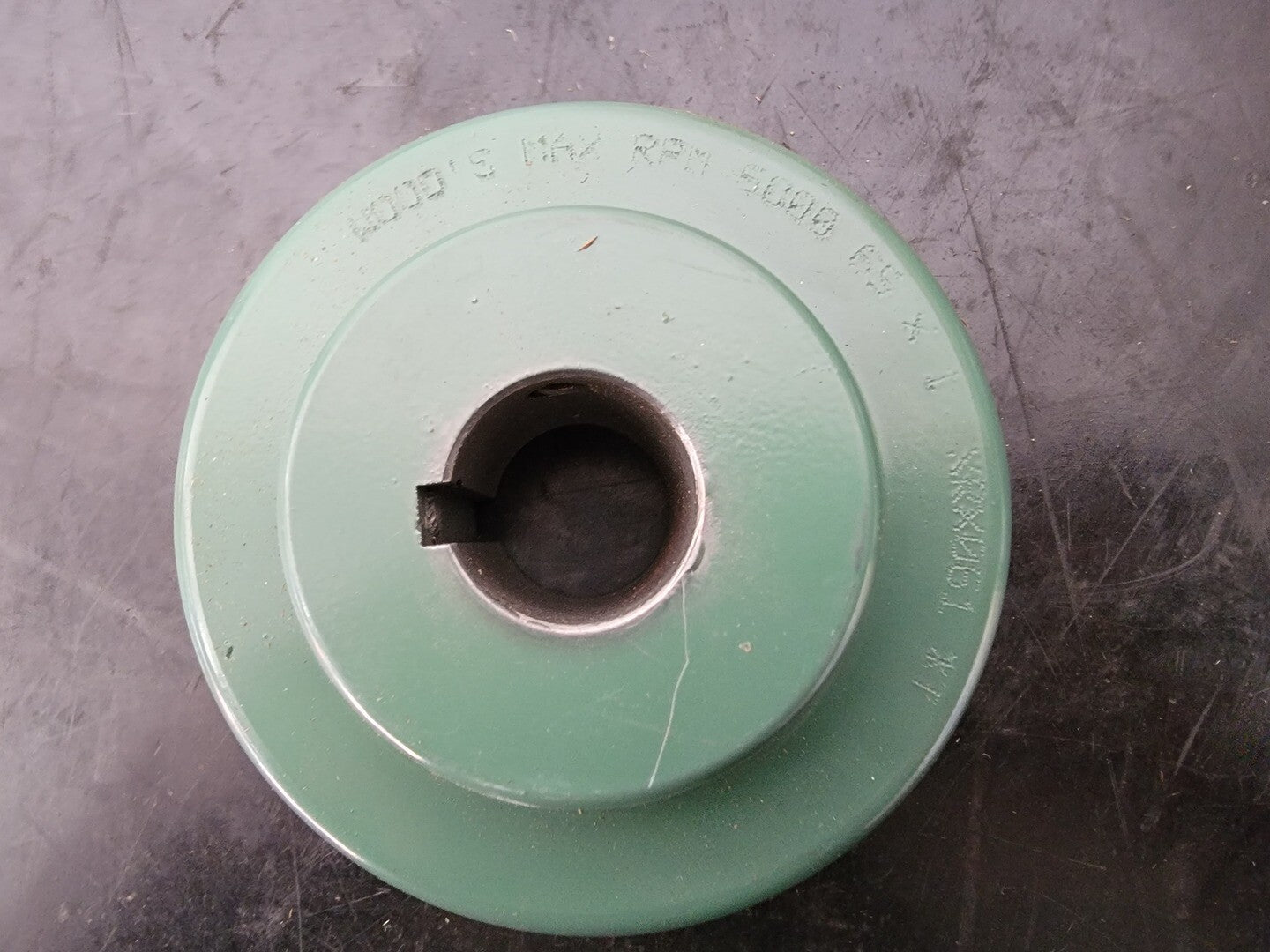

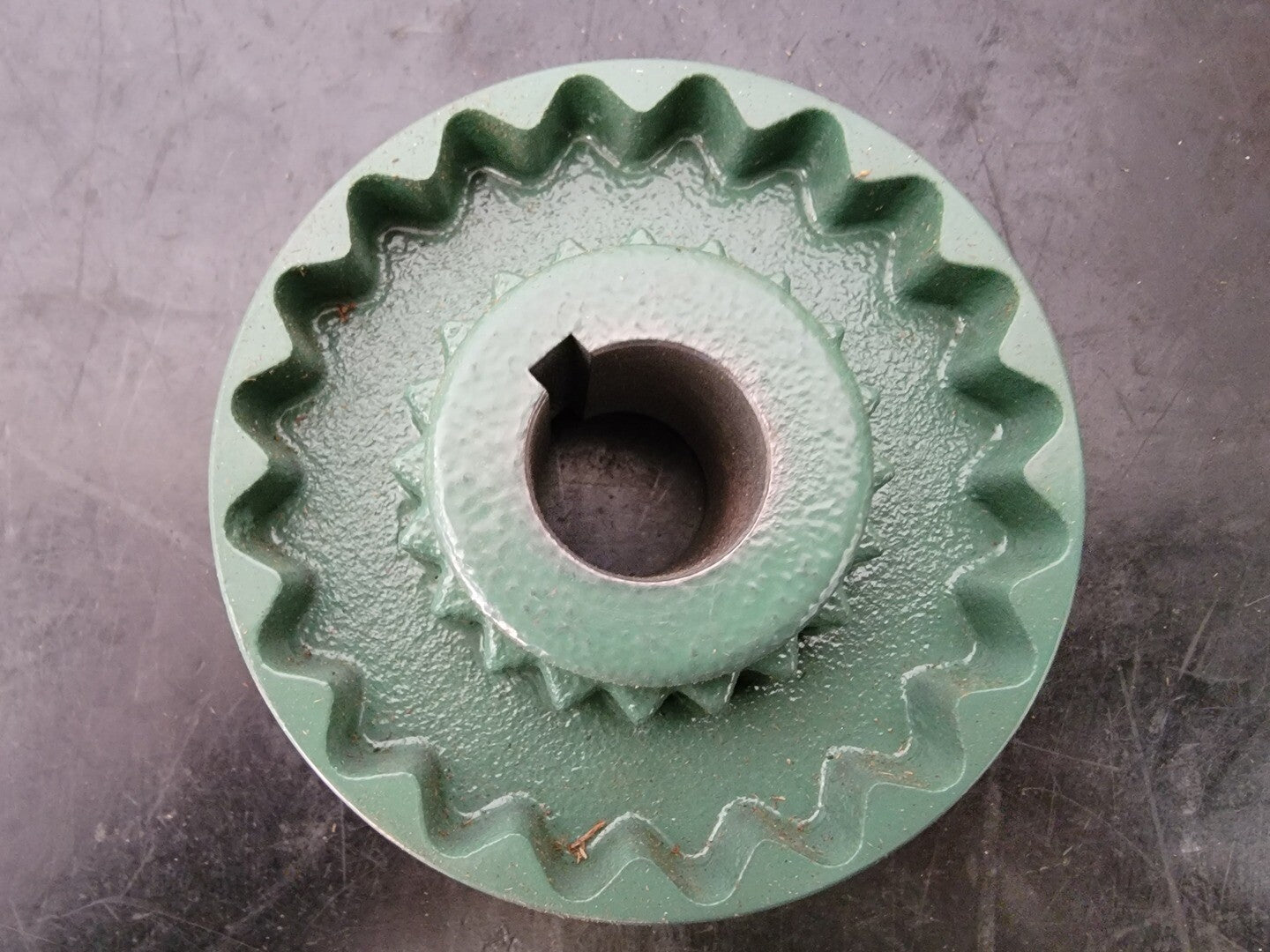

Size - Sleeve Couplings: 6
Flange Type - Sleeve Couplings: S
Bore Type - Couplings: Fixed Bore
Bore Diameter: 1 in
Outside Diameter: 4 in
Keyway Size Type: 1/4 in x 1/8 in
Length through Bore (In.): 1.63 in
Rated Torque (In.-Lb.): 1,800

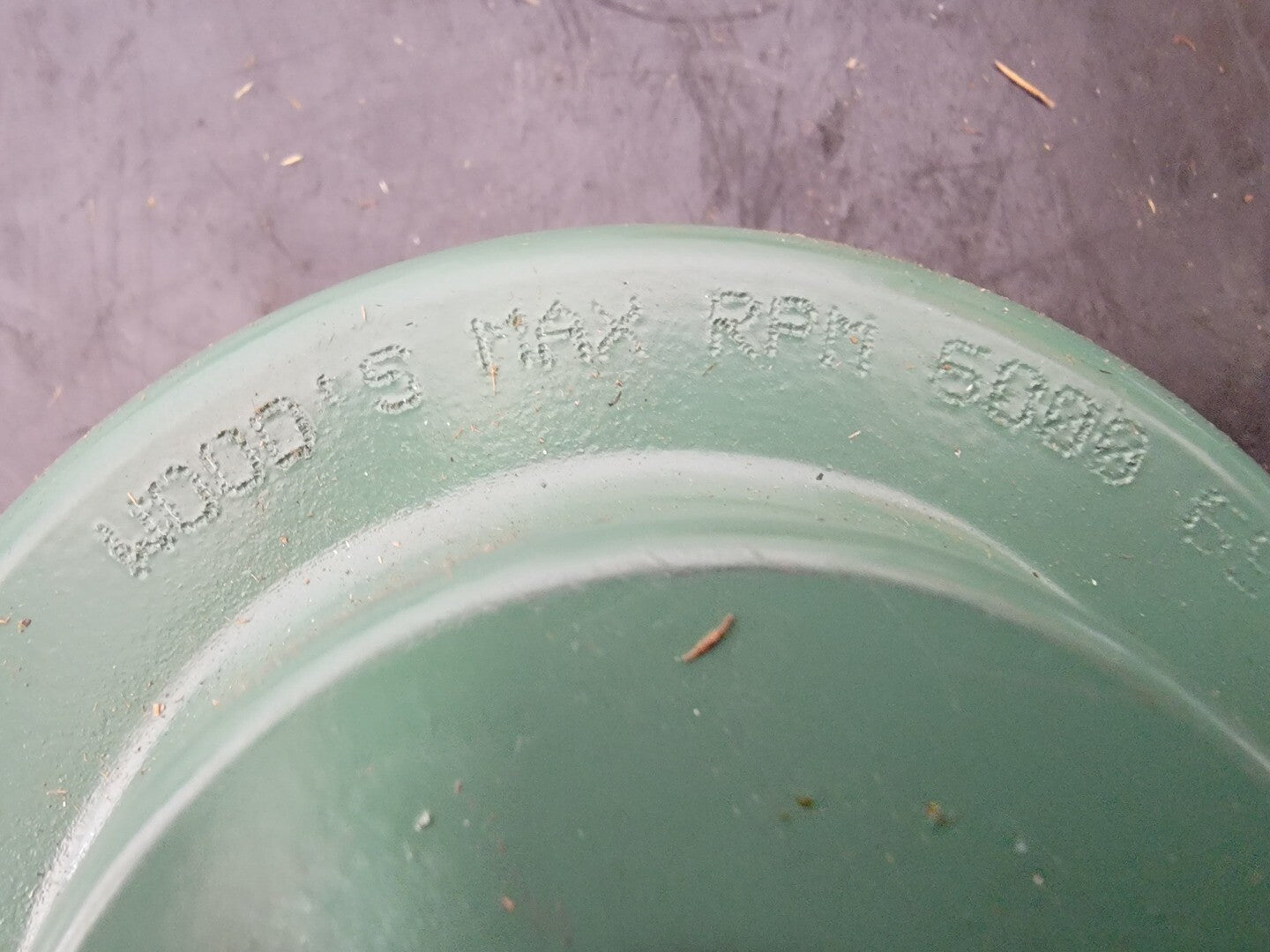

Maximum RPM: 6,000 RPM
Width (In.): 1.625 in
Height (In.): 1.625 in
Hub Dia. (In.): 4.0 in
Material of Construction: Cast Iron

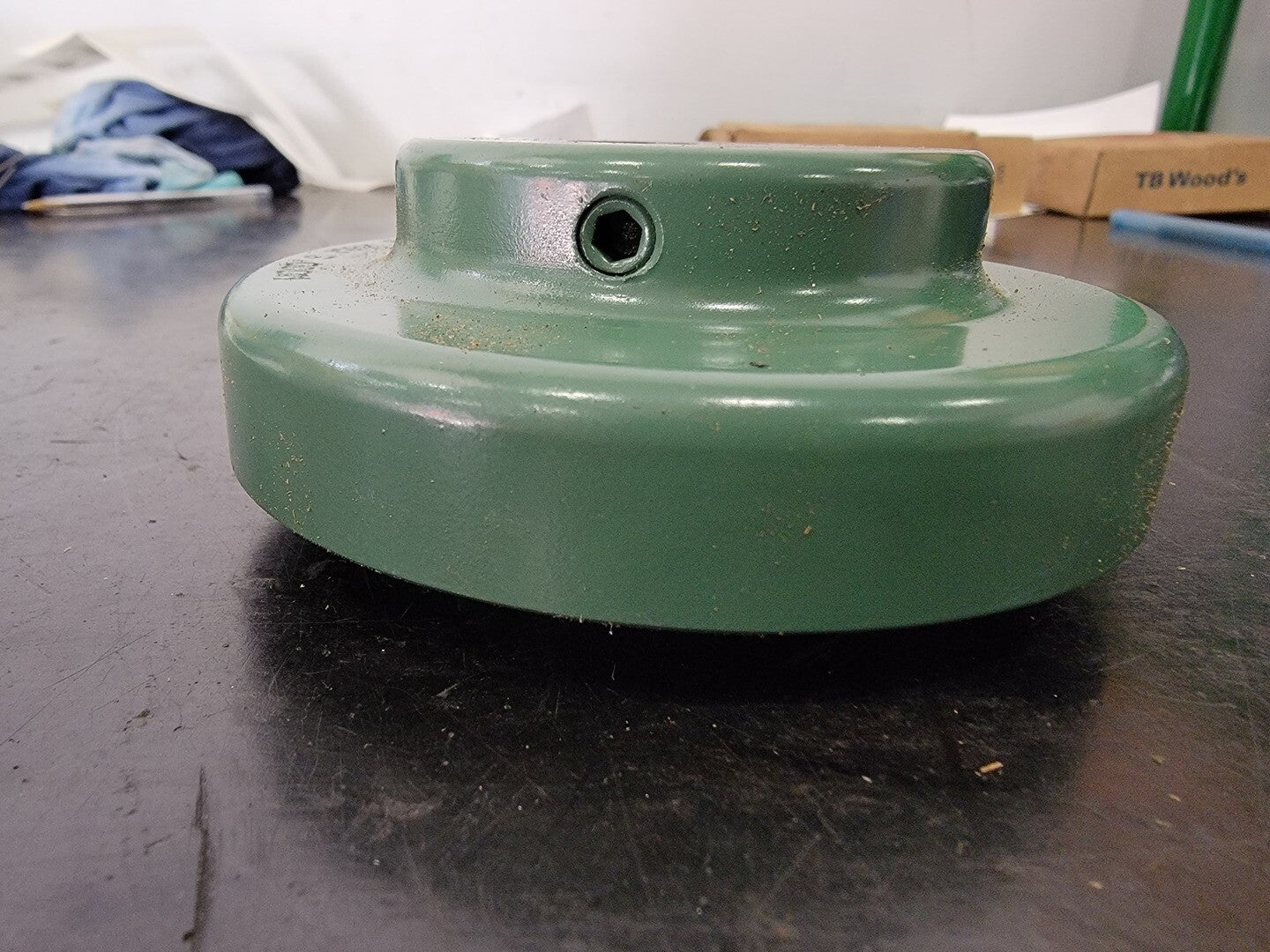

Setscrew Location: One Over the Key and One at 90 Degrees
Maximum Angular Misalignment: 0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Ideal For: Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Bushing Required: None
|
