Description

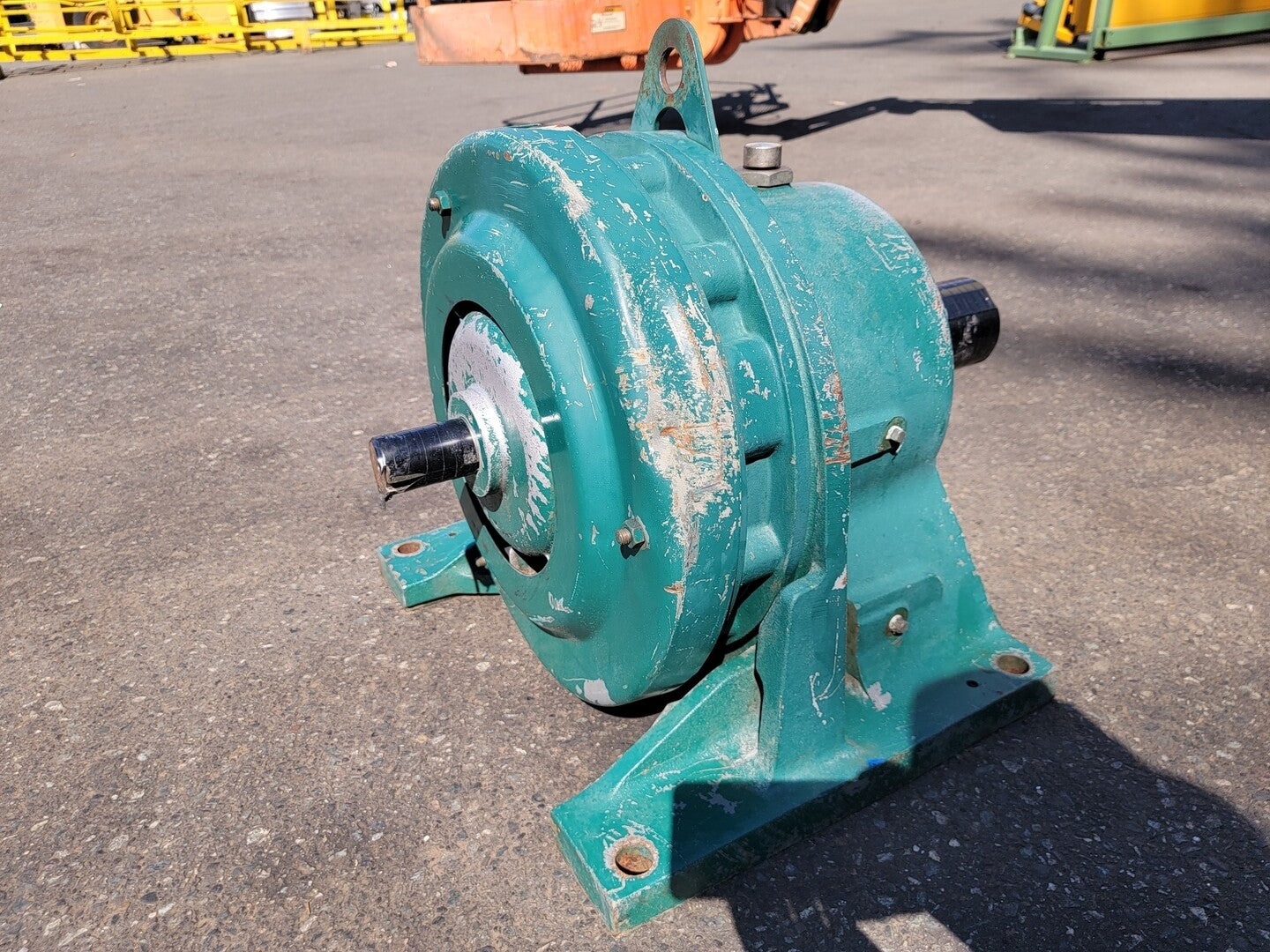

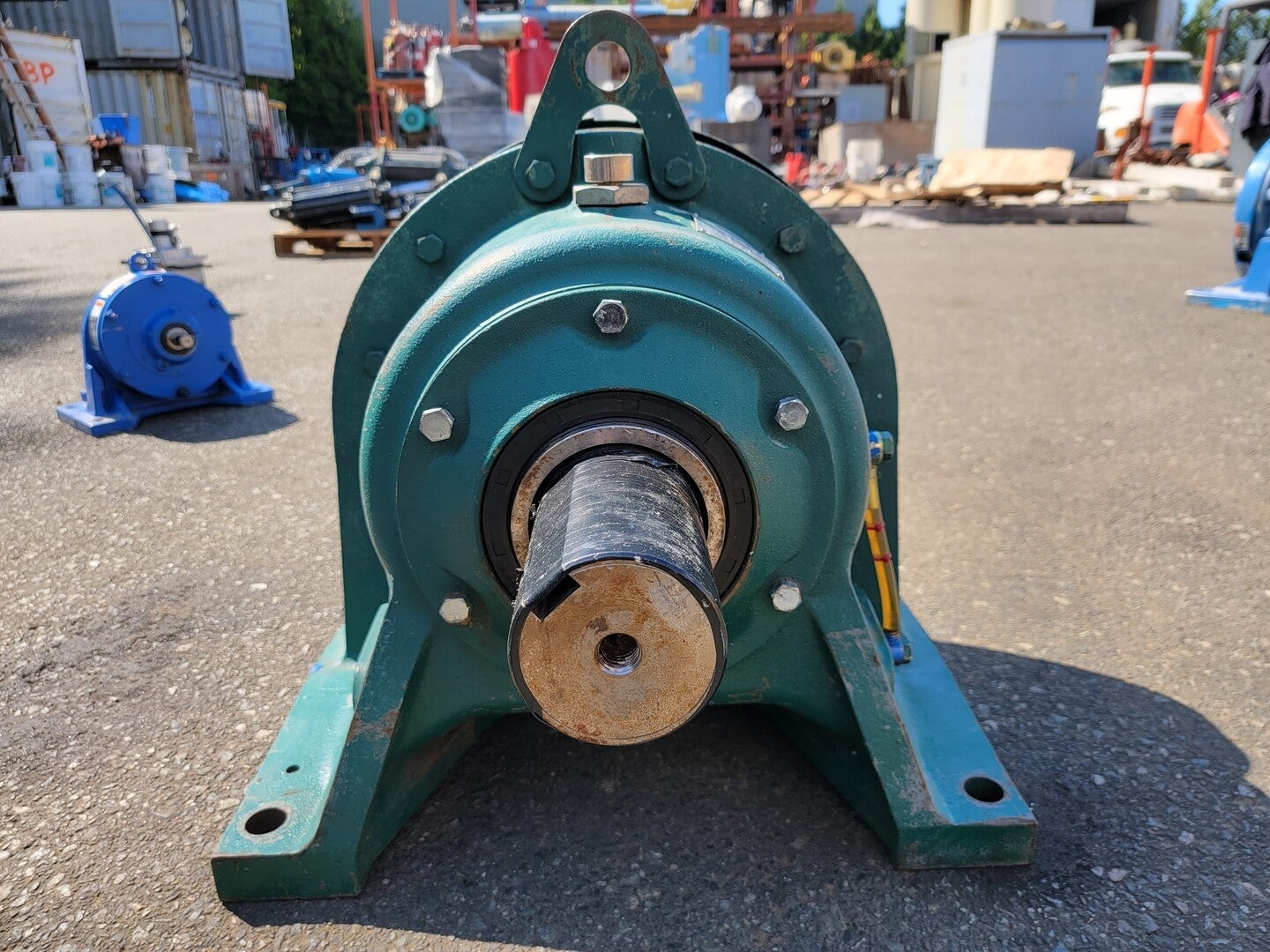

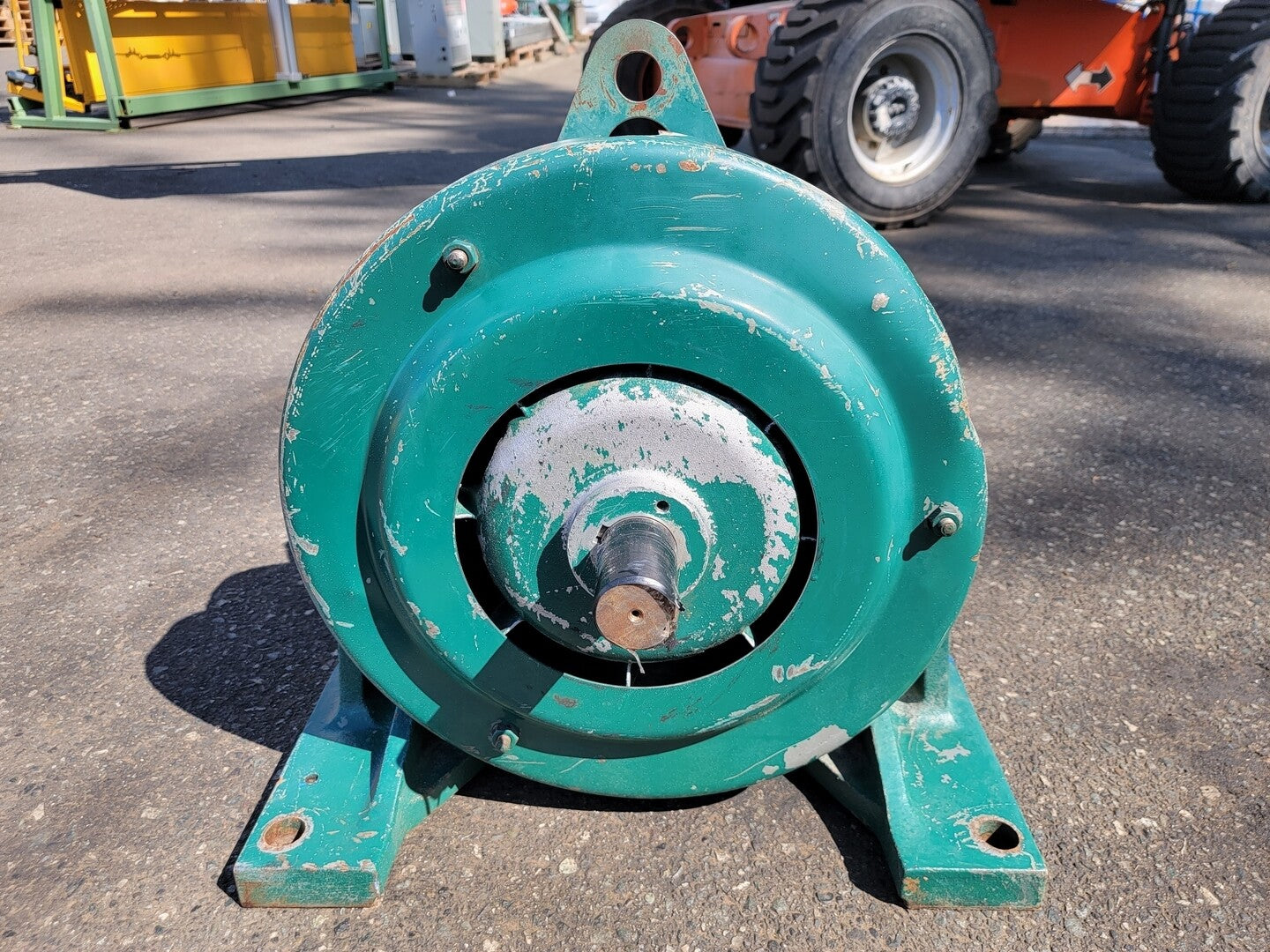

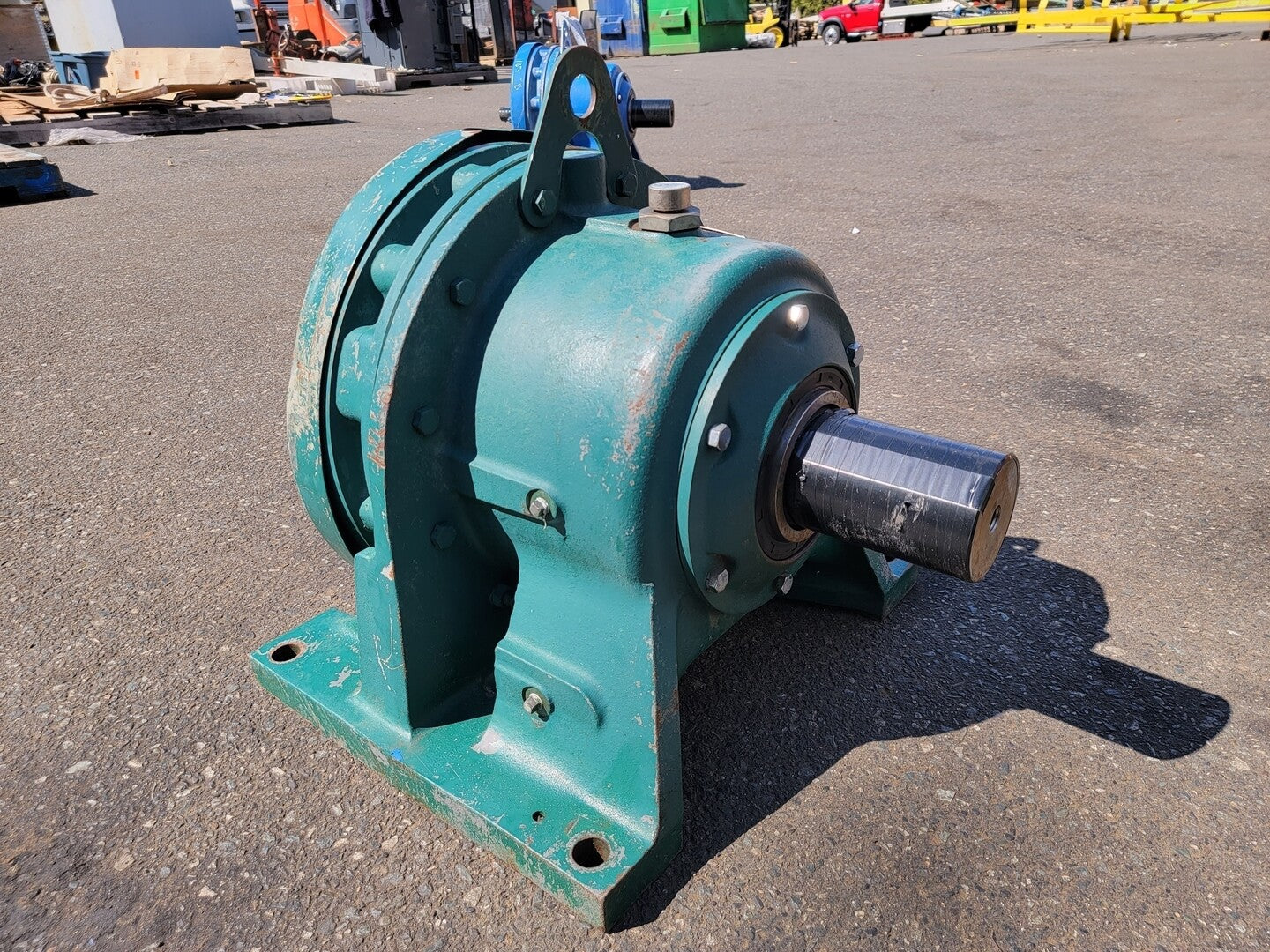

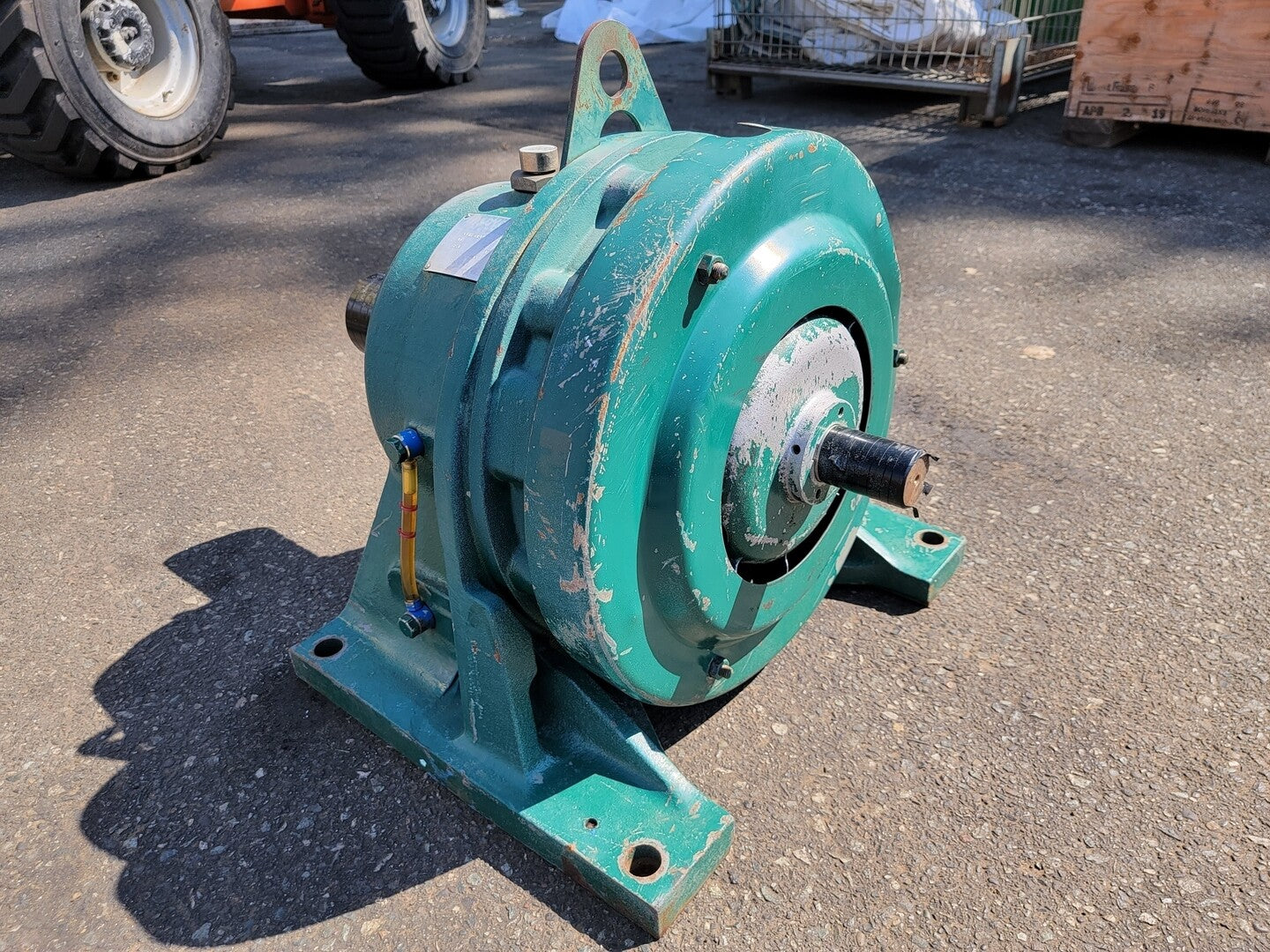

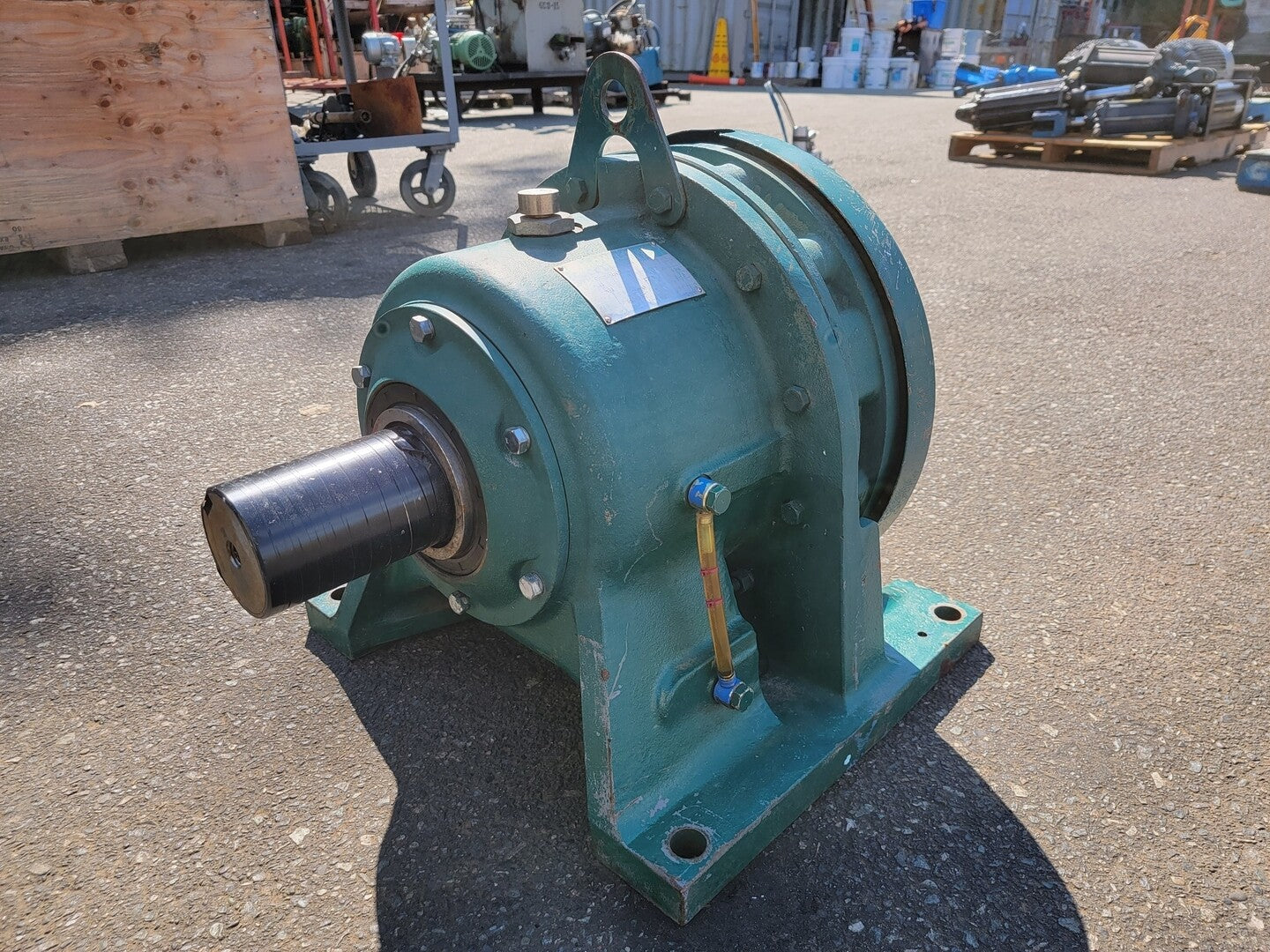

The SM-CYCLO Gear Reducer 11/1 Ratio CHH-4190Y-11 is a high-quality gear reducer by Sumitomo. It has an in-line design and a single reduction capability. With an input RPM of 1750 and an output RPM of 159, it provides reliable and precise performance. The output torque is rated at 18000 in-lb, making it suitable for various industrial applications. The input shaft keyway measures 3/8 x 3/8 x 2.76 in, while the output shaft keyway measures 7/8 x 7/8 x 4.92 in. This gear reducer is part of our Gearboxes collection. Pricing for this product is set at $2500 with a single unit available for purchase.
| Specifications | |
|---|---|

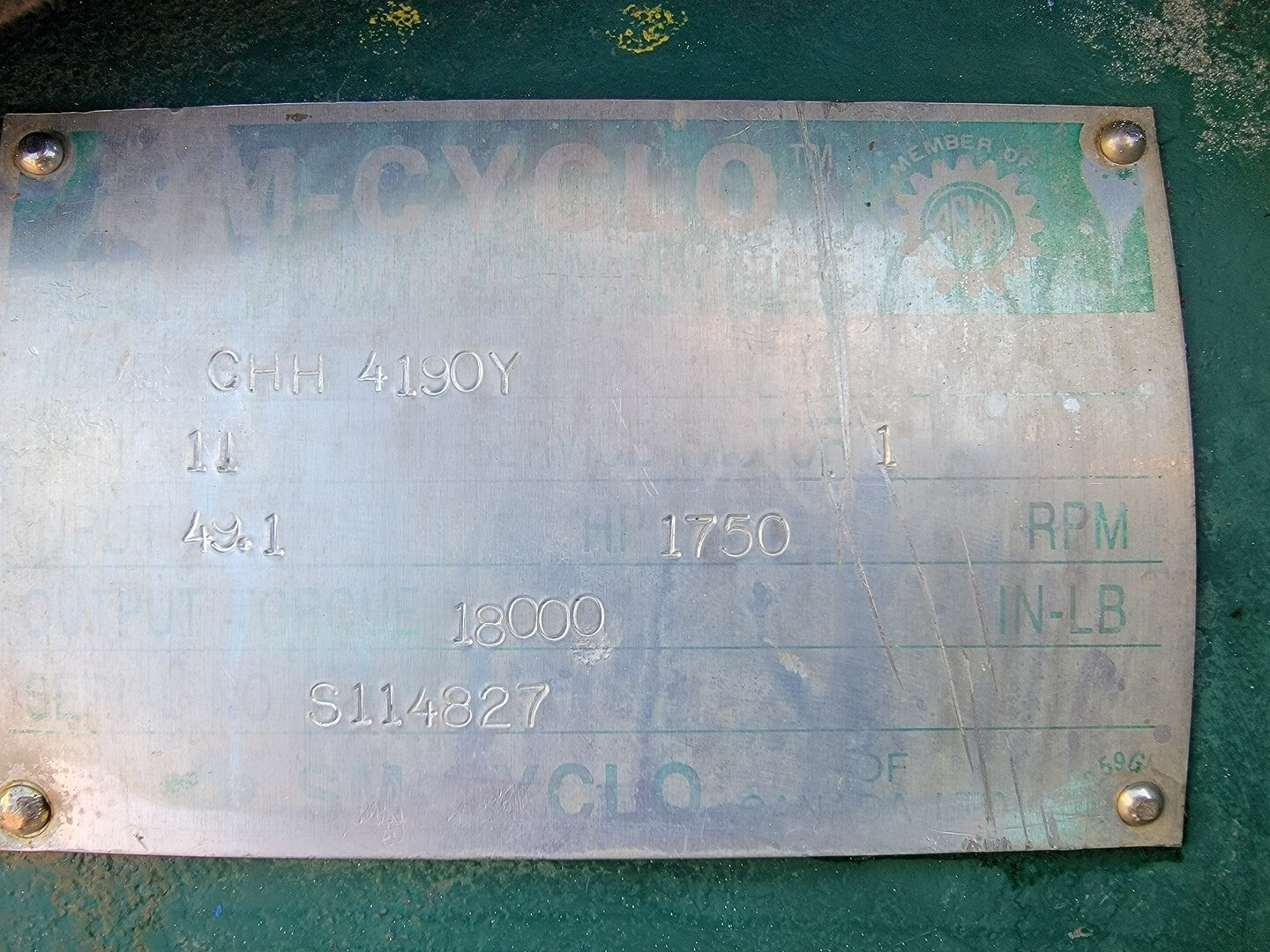

| Model | CHH-4190Y-11 |
| S/N: | S114827 |
| Made In | CANADA |
| Condition | Surplus New | General |
| Ratio | 11:1 |
| Input Shaft Size | 1-3/4 in |
| Output Shaft Size | 3-5/8 in |
| Other Specifications |
|---|
|
Reducer Type: In-line
Reduction: Single
Input RPM: 1750
Output RPM: 159
Output Torque: 18000 in-lb
Input Shaft Keyway: 3/8 X 3/8 X 2.76 in.
Output Shaft Keyway: 7/8 X 7/8 X 4.92 in.
|
