Description

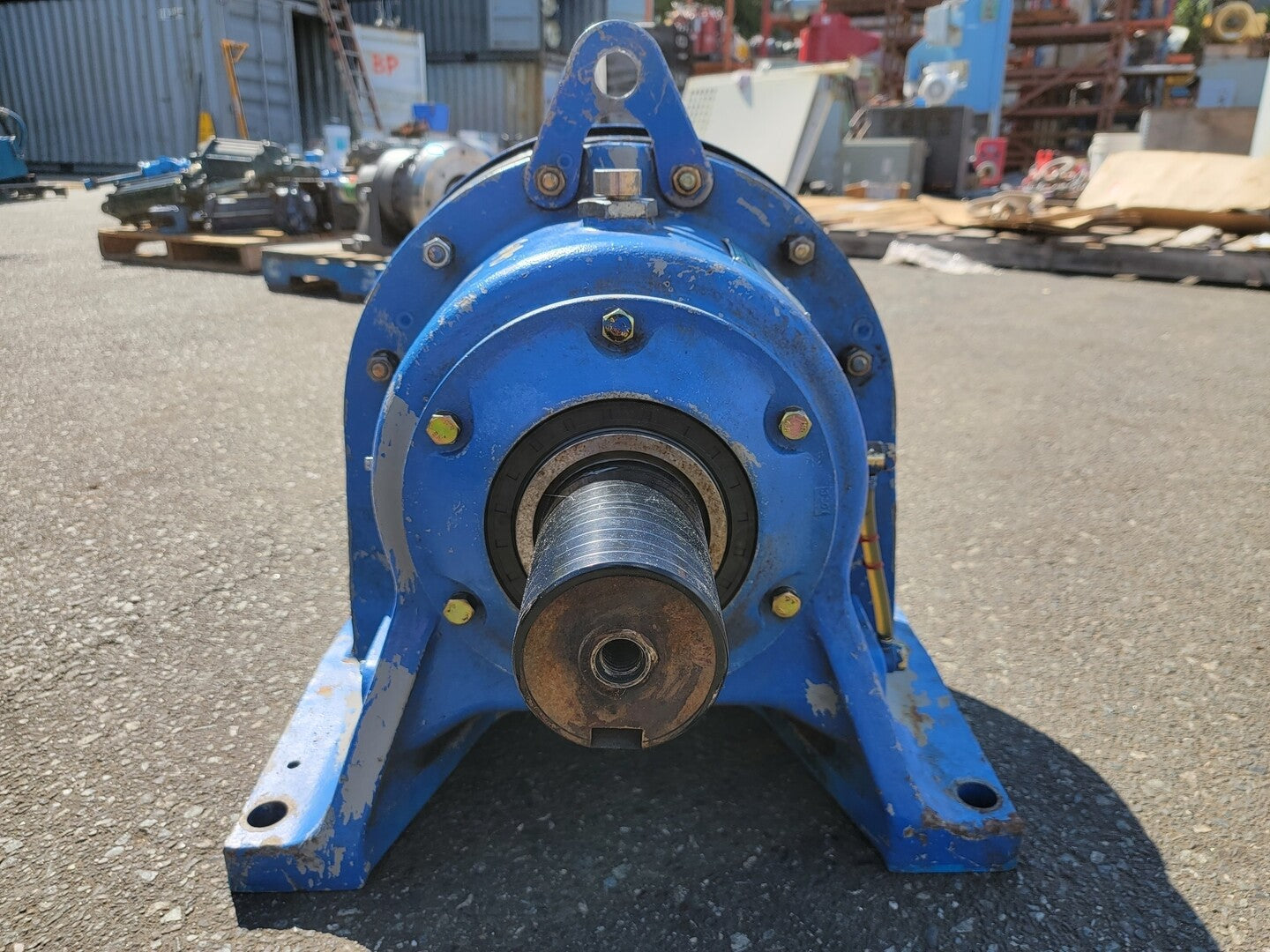

The SM-CYCLO Gear Reducer 11/1 Ratio No. CHH-6190Y-11 is a gear reducer manufactured by Sumitomo. Its dimensions are 21.00 x 24.00 x 25.00 and it weighs 529.00. This gear reducer is of the in-line type and has a single reduction. The input RPM is 1750, output RPM is 159, and output torque is 20700 in-lb. It can handle an overhung load of up to 5690 lb. The input shaft keyway size is 3/8 X 3/8 X 2.76 in, and the output shaft keyway size is 7/8 X 7/8 X 4.92 in. It belongs to the Gearboxes collection. The gear ratio is 11:1, the input shaft size is 1-3/4 in, and the output shaft size is 3-5/8 in. The product is priced at $2500.00 and there is currently only 1 unit available.
| Specifications | |
|---|---|
| Model | CHH-6190Y-11 |
| S/N: | BC0006642 |
| Made In | CANADA |
| Condition | Used | General |
| Ratio | 11:1 |
| Input Shaft Size | 1-3/4 in |
| Output Shaft Size | 3-5/8 in |
| Other Specifications |
|---|
|
Reducer Type: In-line
Reduction: Single
Input RPM: 1750
Output RPM: 159
Output Torque: 20700 in-lb
Overhung Load: 5690 lb
Input Shaft Keyway: 3/8 X 3/8 X 2.76 in.
Output Shaft Keyway: 7/8 X 7/8 X 4.92 in.
|
