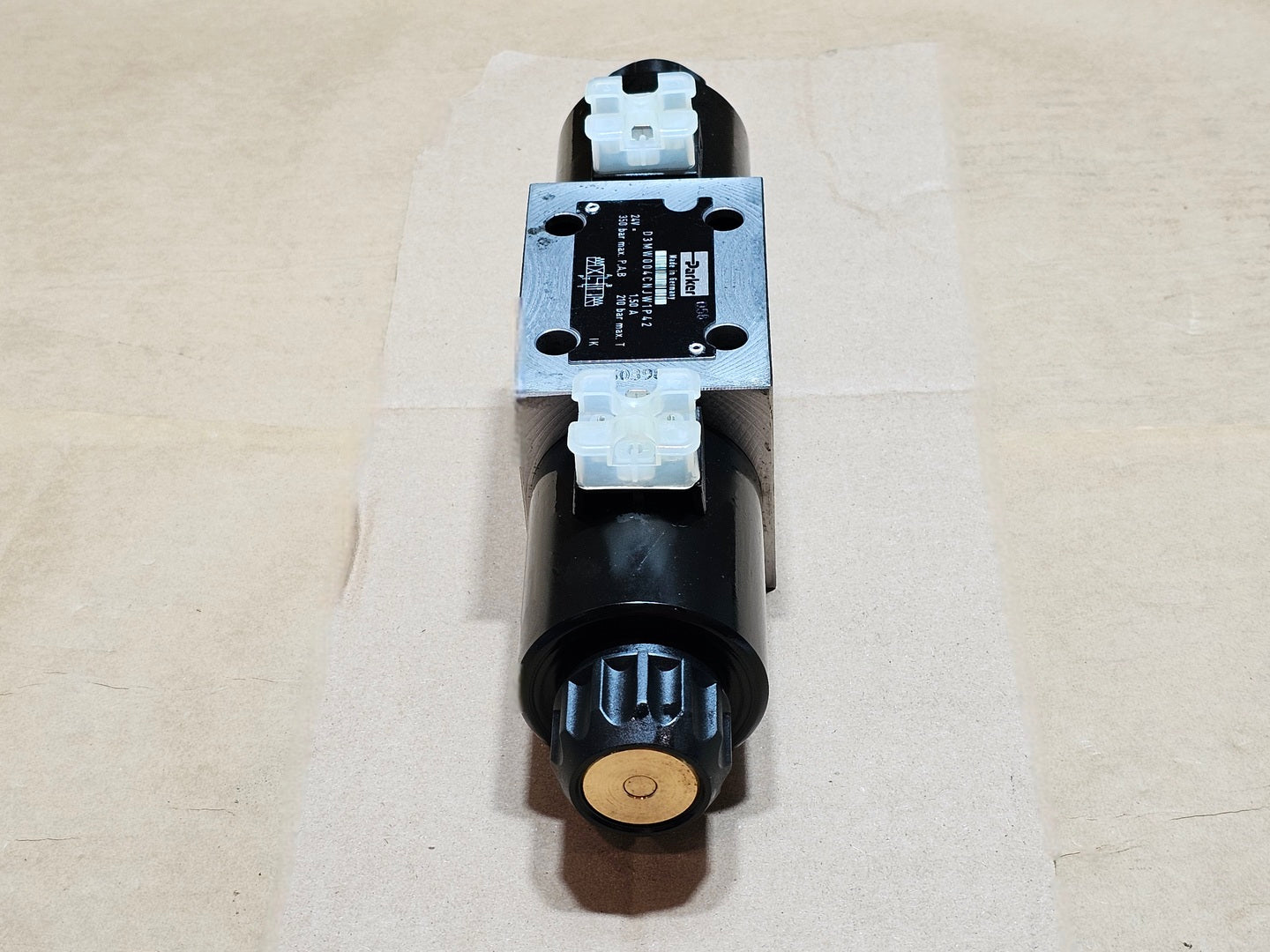

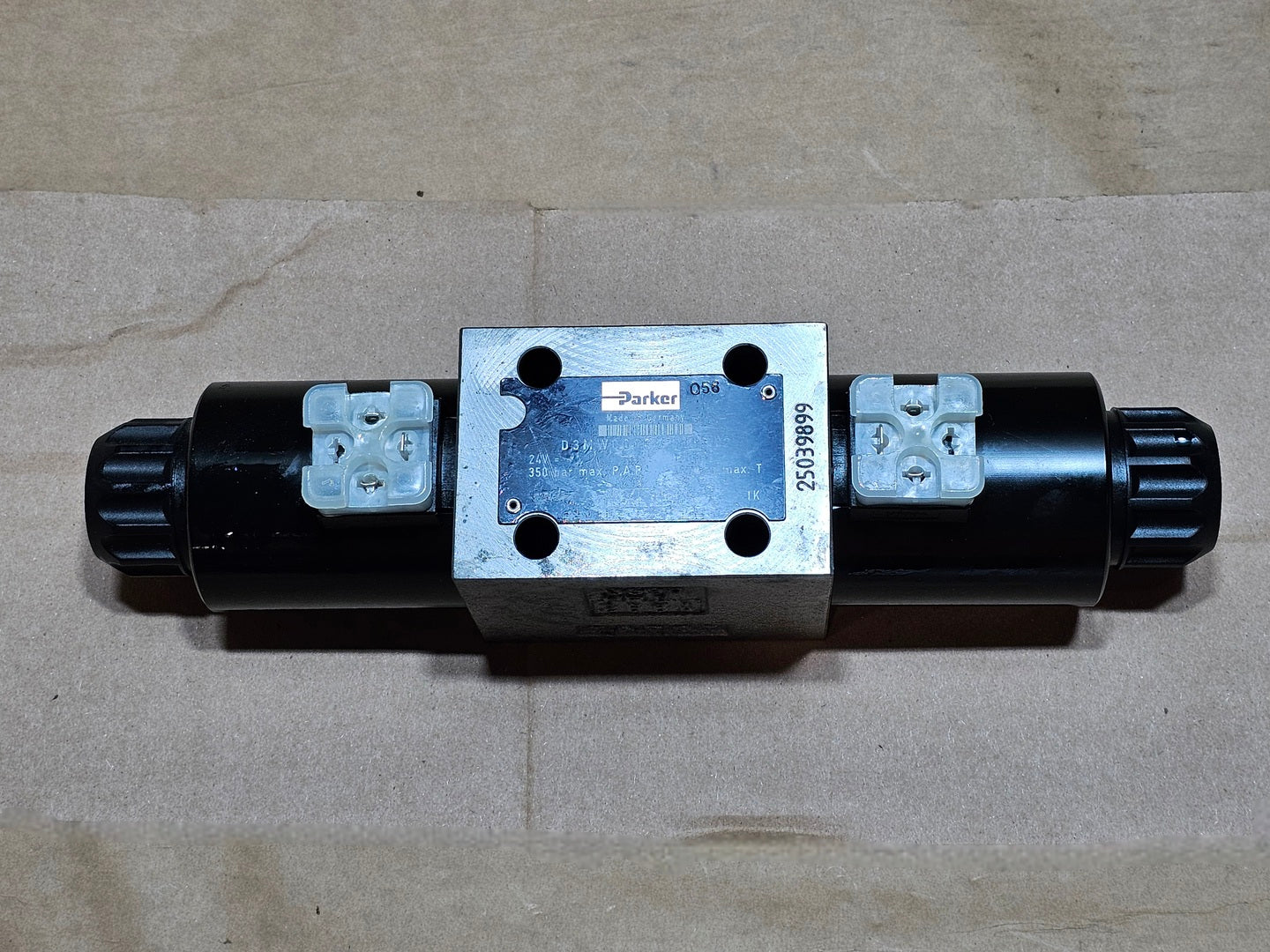

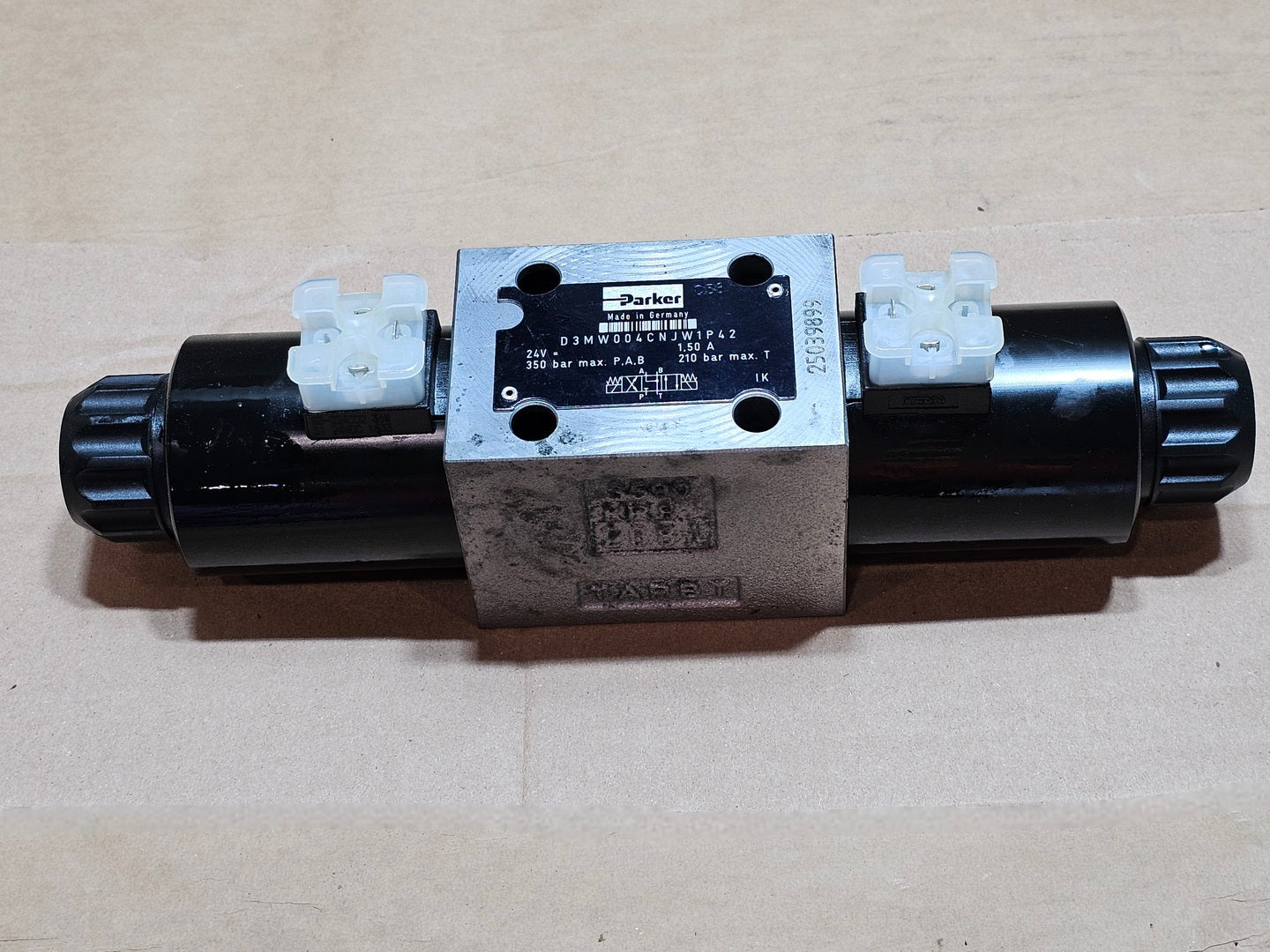

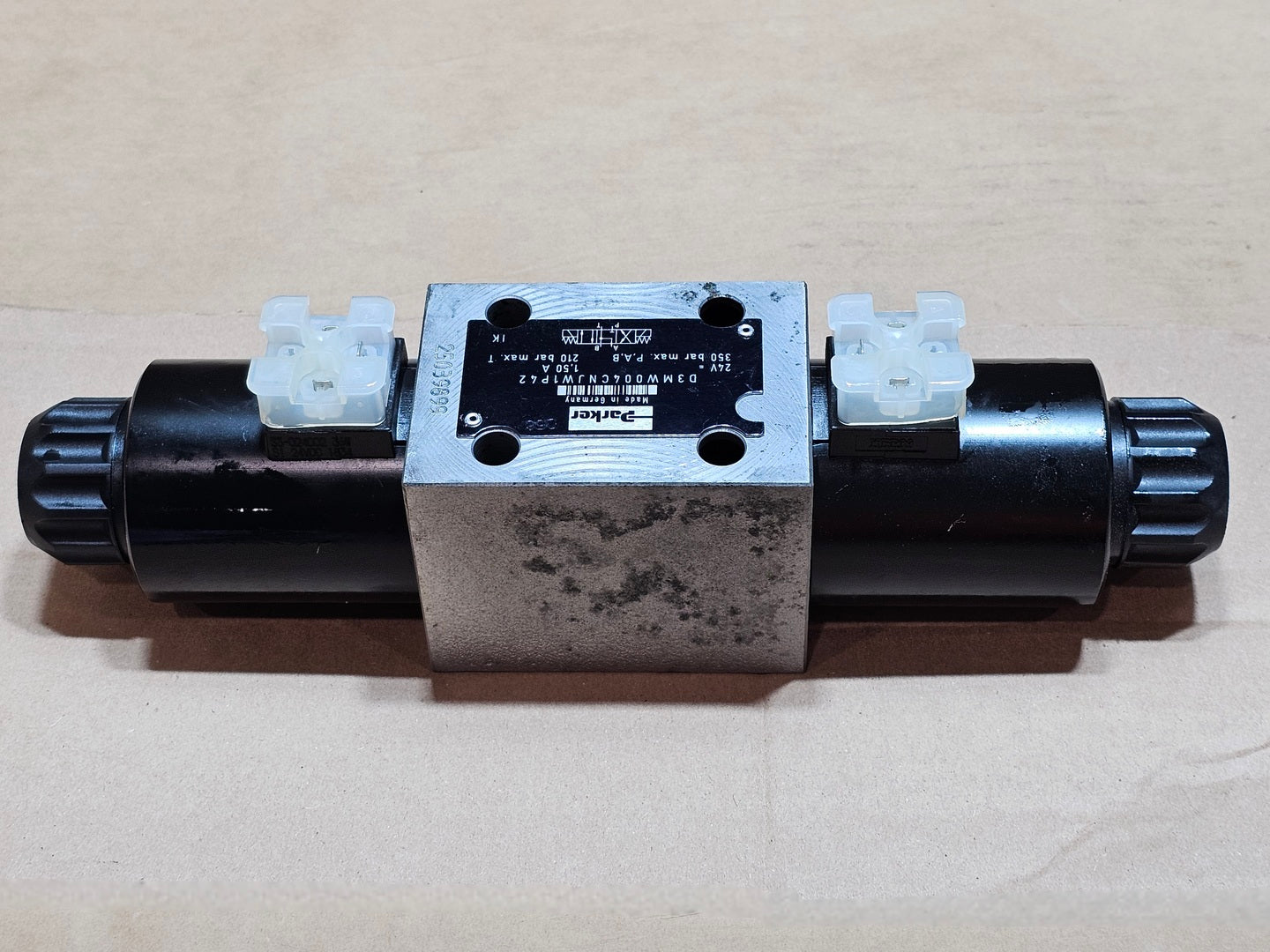

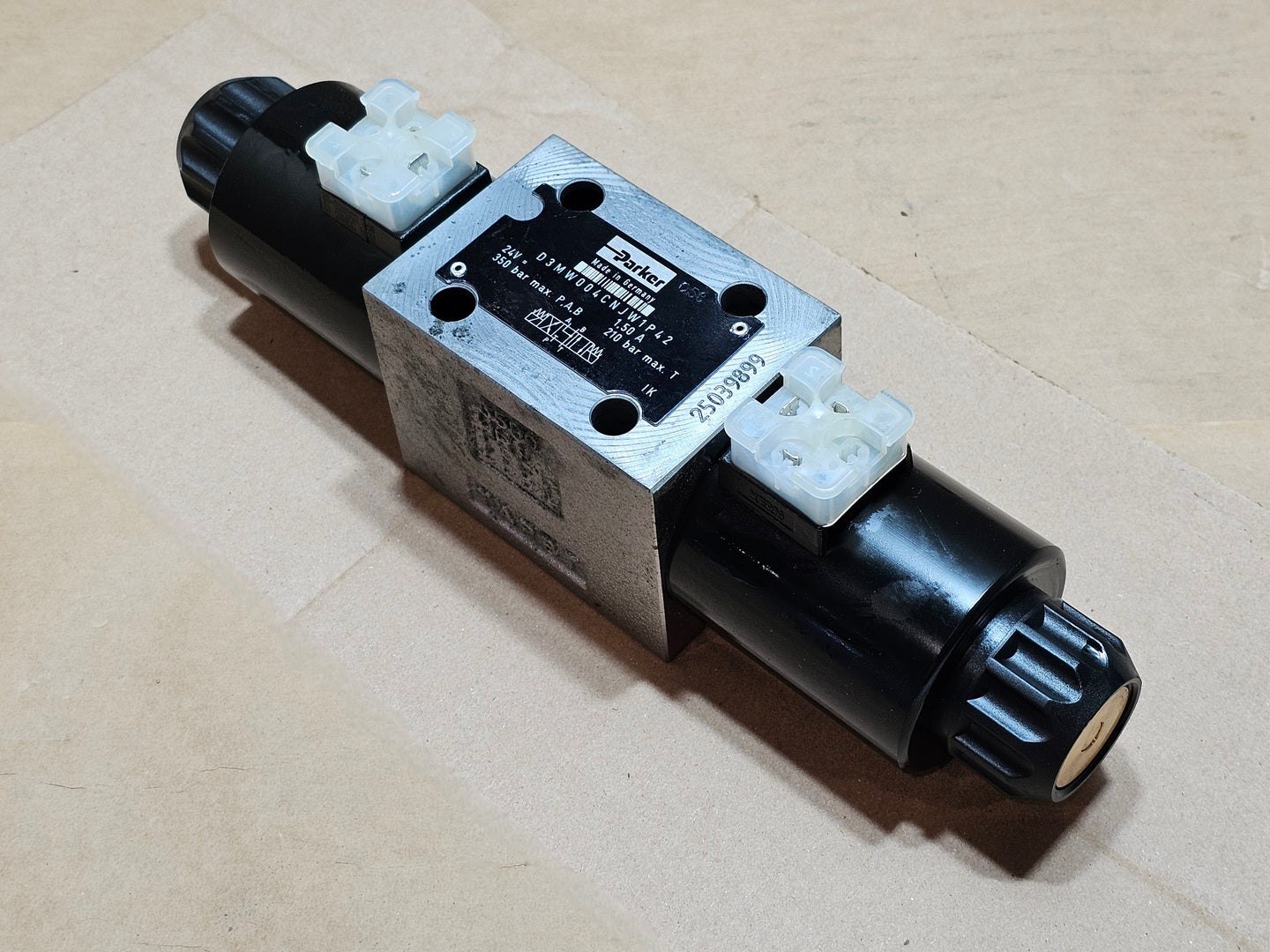

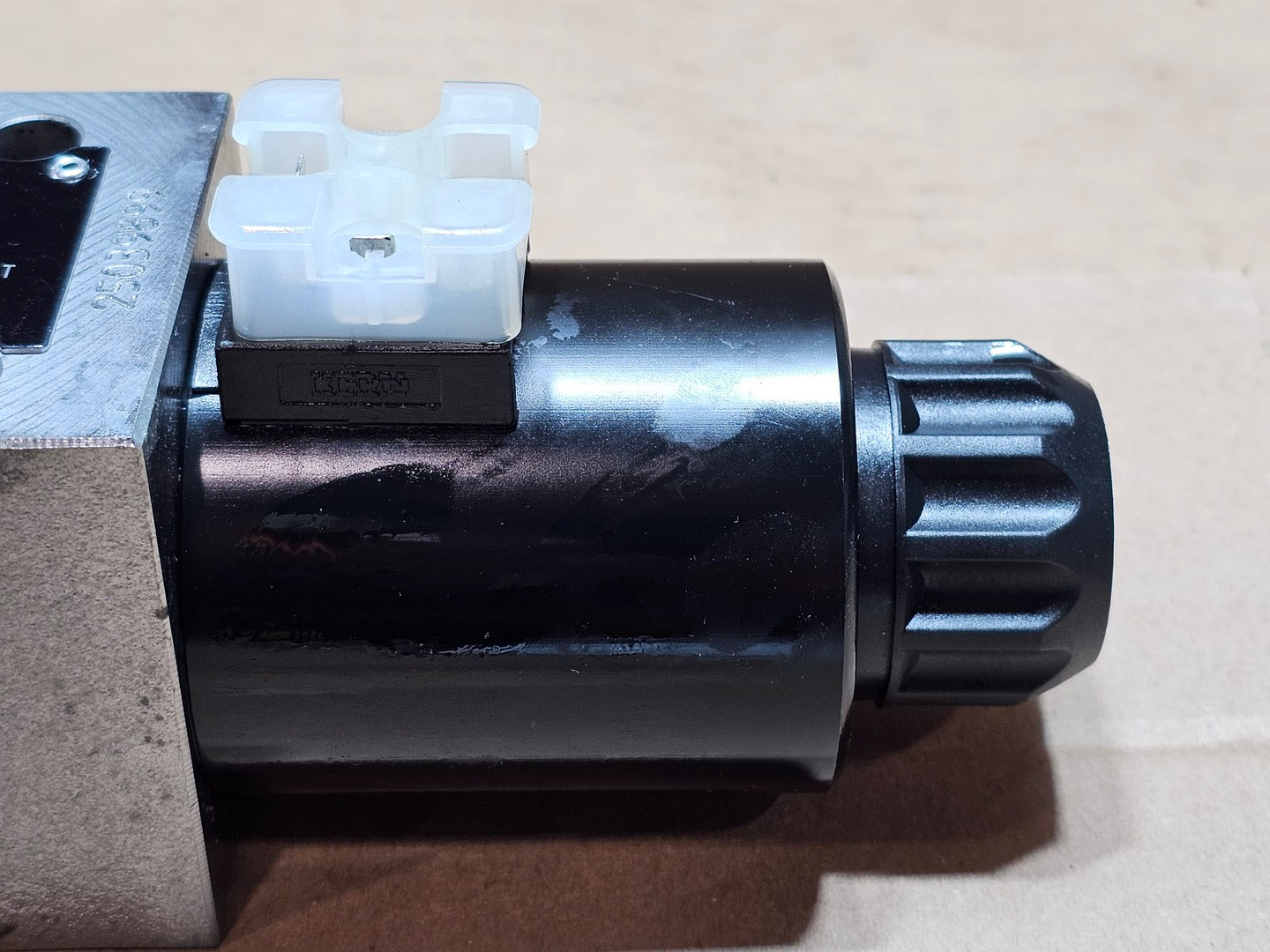

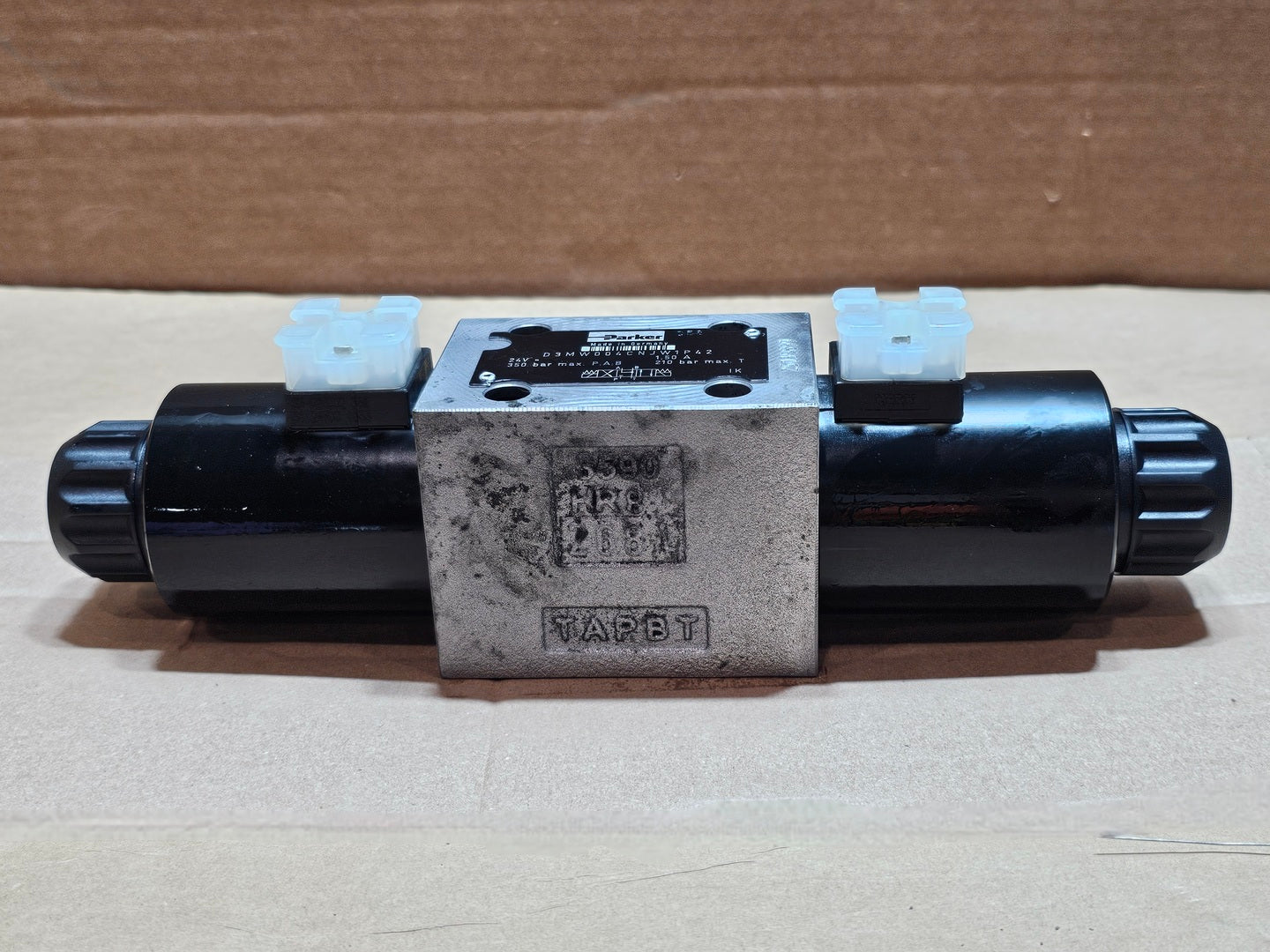

PARKER Solenoid Valve D3MW004CNJW1P42
PARKER

Solenoid Valve D3MW004CNJW1P42

SKU: 153442
Price:
$405.97 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Parker's directional control valves series D1MW (NG06) / D3MW (NG10) are optimally suited for mobile applications due to an excellent surface protection. They provide high flow rates and a wide range of connector versions.
Specifications

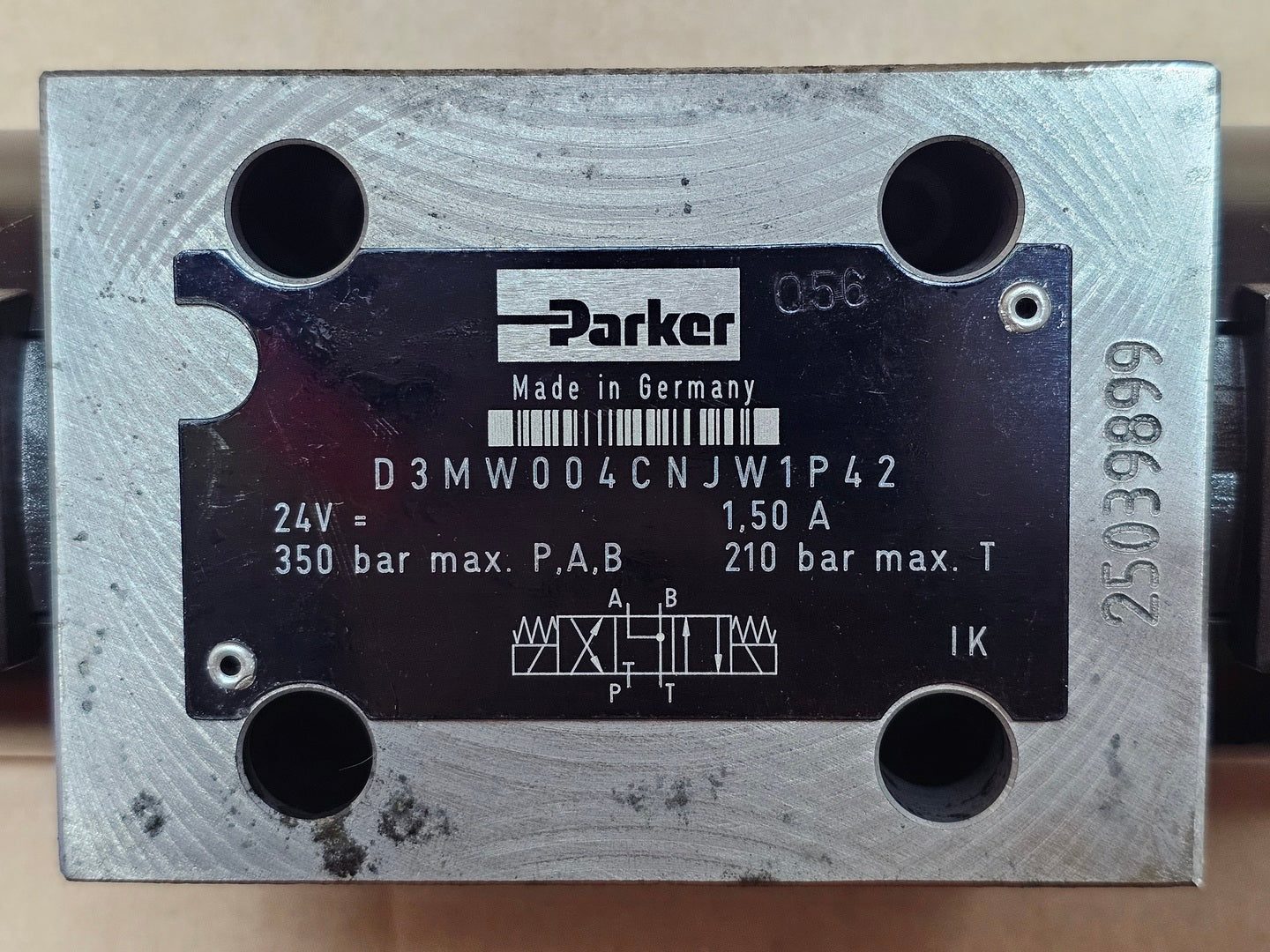

Model D3MW004CNJW1P42
Made In GERMANY
Condition Surplus New
Other Specifications

Overview:

Specs

  1. Product Series: Directional control valve
  2. Port Connection: NG10 / CETOP 05
  3. Solenoid Connection: EN 175301-803
  4. Division: Industrial Systems Division Europe
  5. Function: 3-way
  6. Corrosion Resistance Included: Anti corrosion coating
  7. Signal Input: 24 V
  8. Seal Material: NBR
  9. Body Material: Cast iron
  10. Solenoid Option: Standard solenoid
  11. Spool Position: 3 positions, spring offset in position 0, operated in position a or b
  12. Mounting Position: Unrestriced, preferably horizontal
  13. Maximum Operating Pressure: 350 bar
  14. Maximum Flow Rate: 150 L/min
  15. Nominal Size: NG10 / CETOP 05
  16. Maximum Operating Temperature: 60 °C
  17. Minimum Operating Temperature: -25 °C
  18. For Fluid Type: Hydraulic oil according to DIN 51524
  19. Mounting Type: Subplate mounting
  20. Actuation Type: Solenoid
  21. Operation Type: Direct
