Description
| Specifications | |
|---|---|

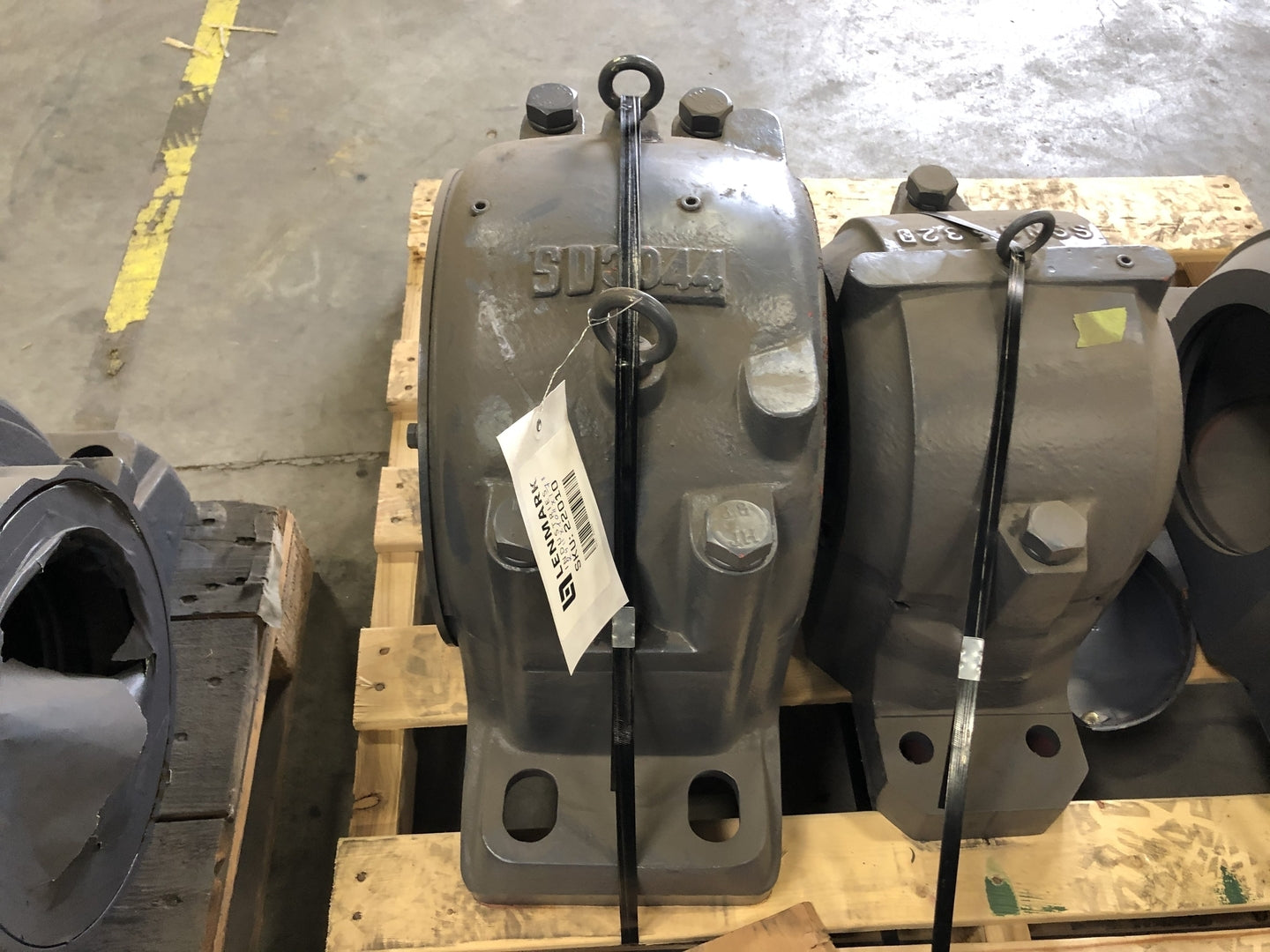

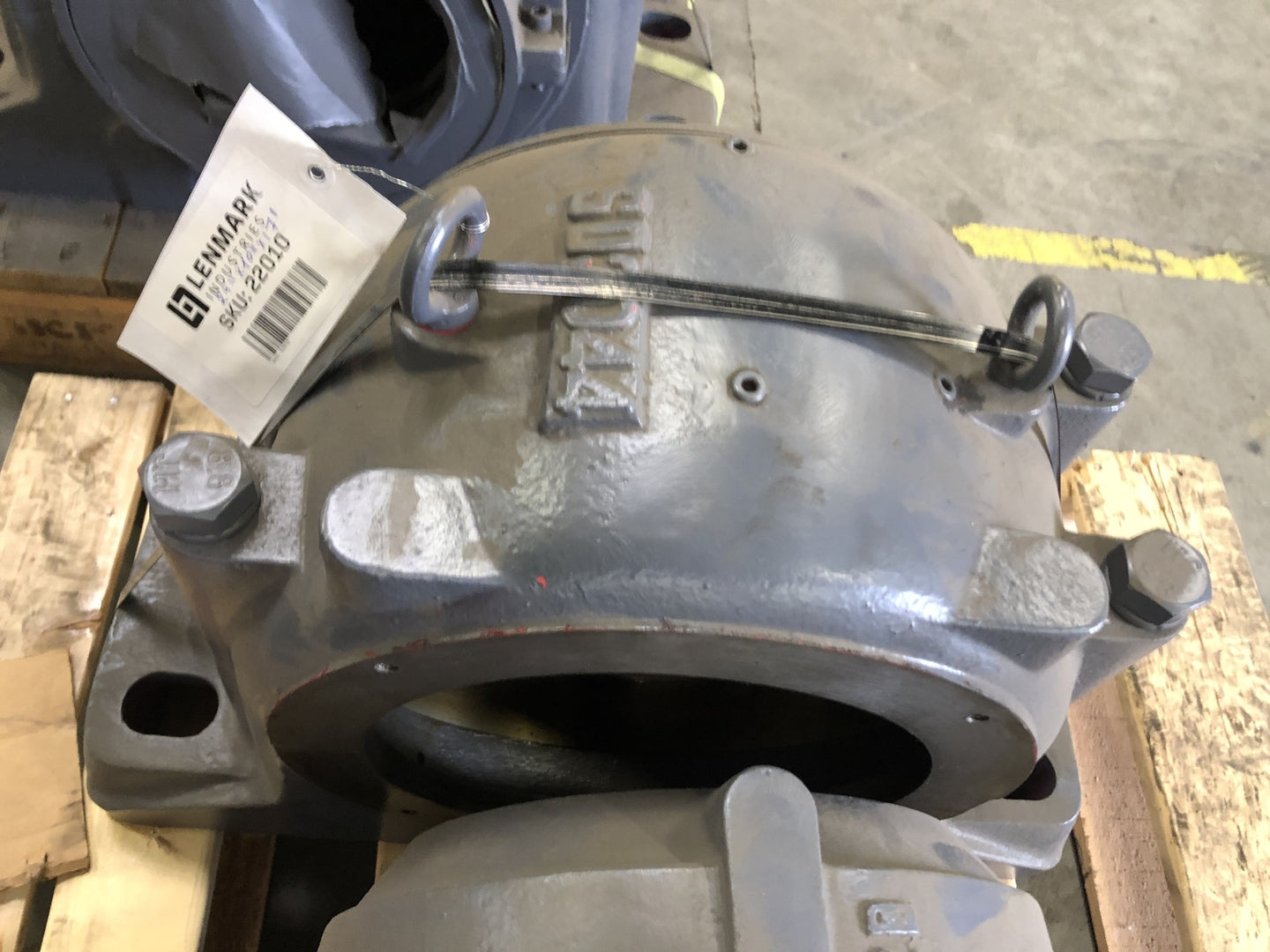

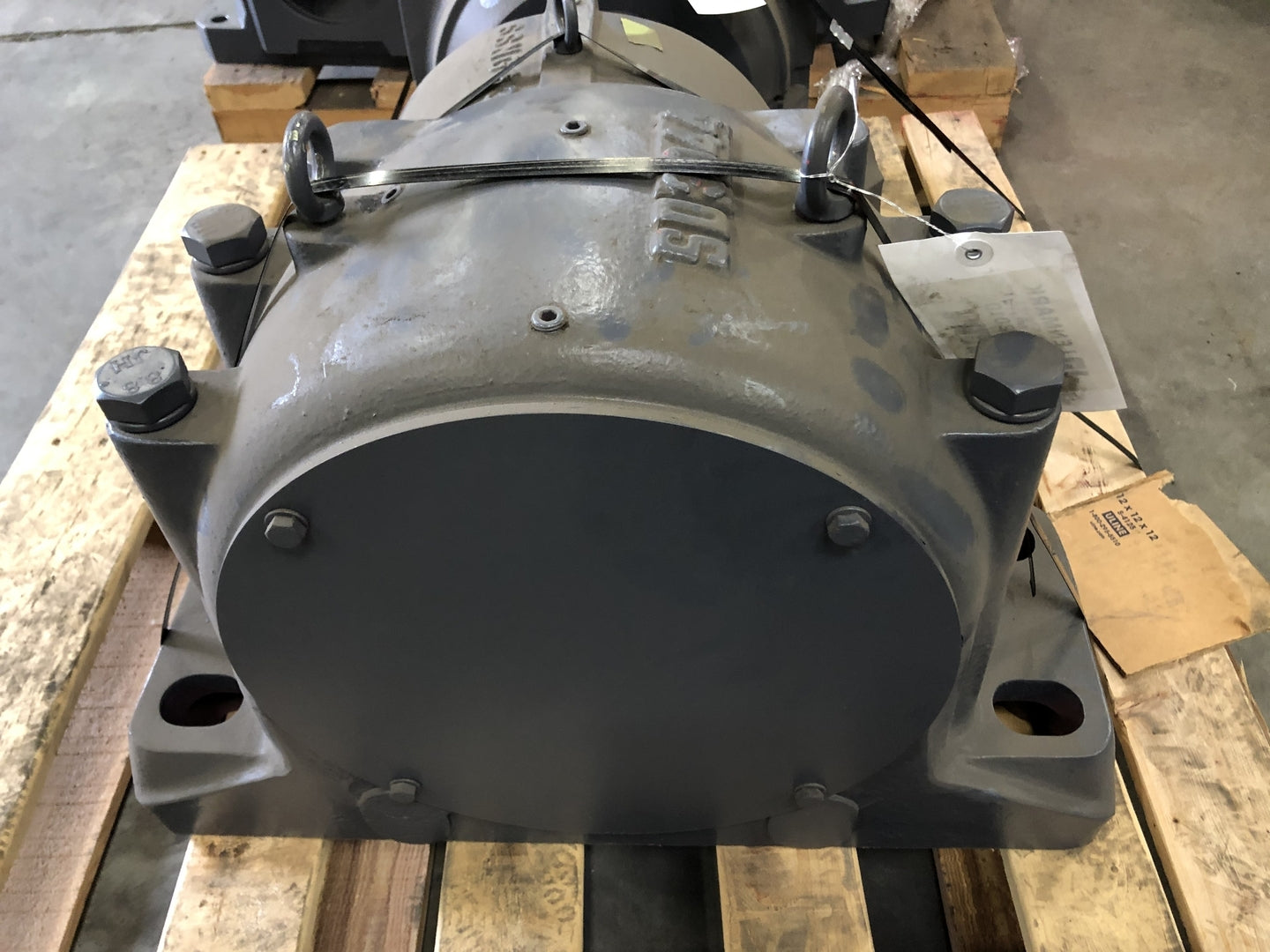

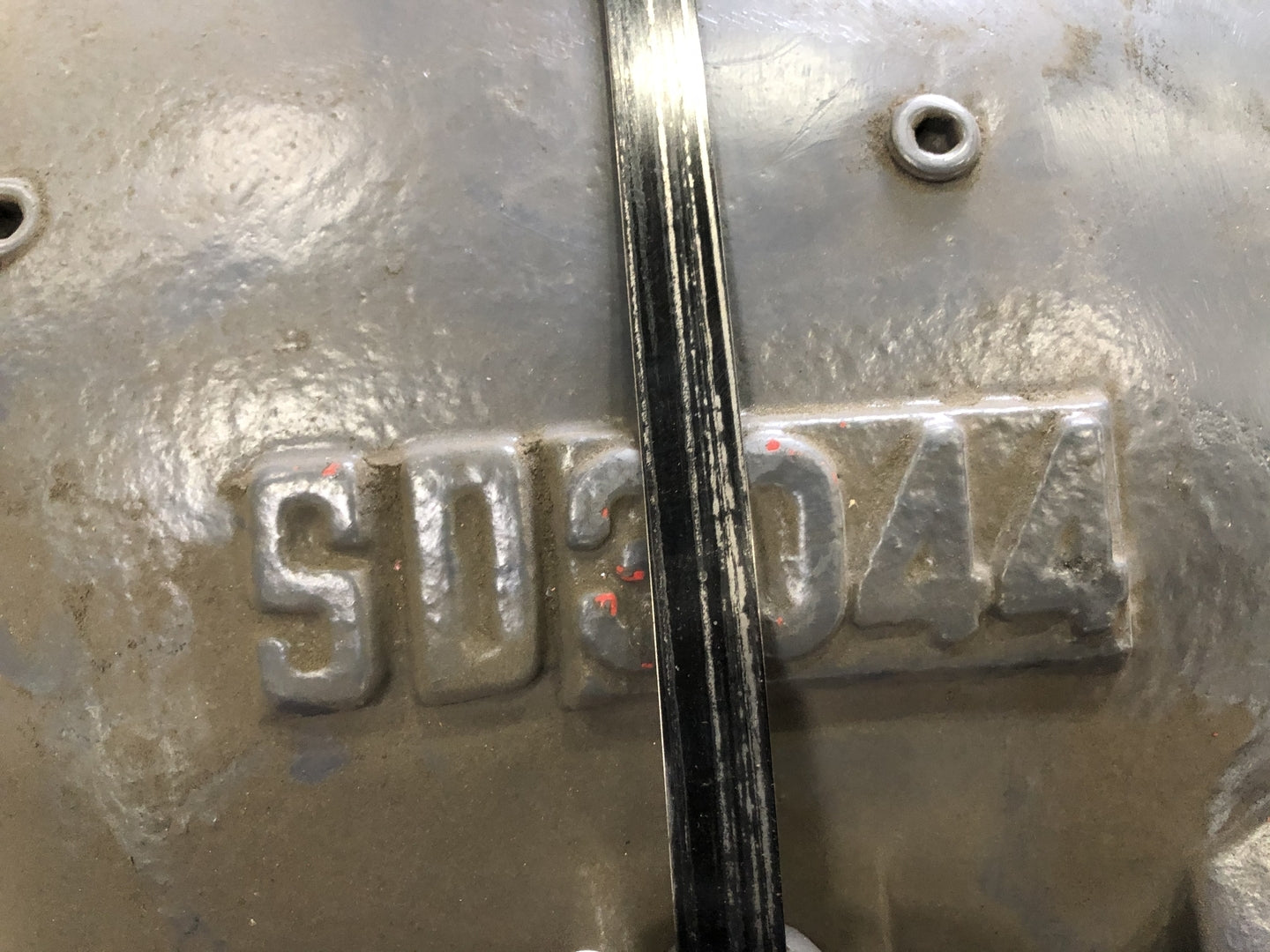

| Model | SD3044 |
| Condition | Surplus New | General |
| Type | Split Plummer Block |
| Height | 400 mm |
| Outside Length | 700 mm |
| Base to Bore Centerline | 200 mm |
| Distance Between Bolts | 570 mm |
| Housing Compatible Bore Diameter | 200 mm |
| Compatible Bearing Series/Part # | 23044K |
| Compatible Bearing Types | Spherical Roller |
| Other Specifications |
|---|
|
Shaft Diameter: 200 mm
Outside Diameter: 340 mm
Base Width: 260 mm
Base Center Height: 200 mm
Bolt Hole Center Length: 570 mm
Bolt Hole Center Width: 160 mm
Mounting: 4 Bolts, M30
Bearing No.: 23044K
Adapter Sleeve: H3044
Locating Ring: SR340x10
|
