Description
| Specifications | |
|---|---|

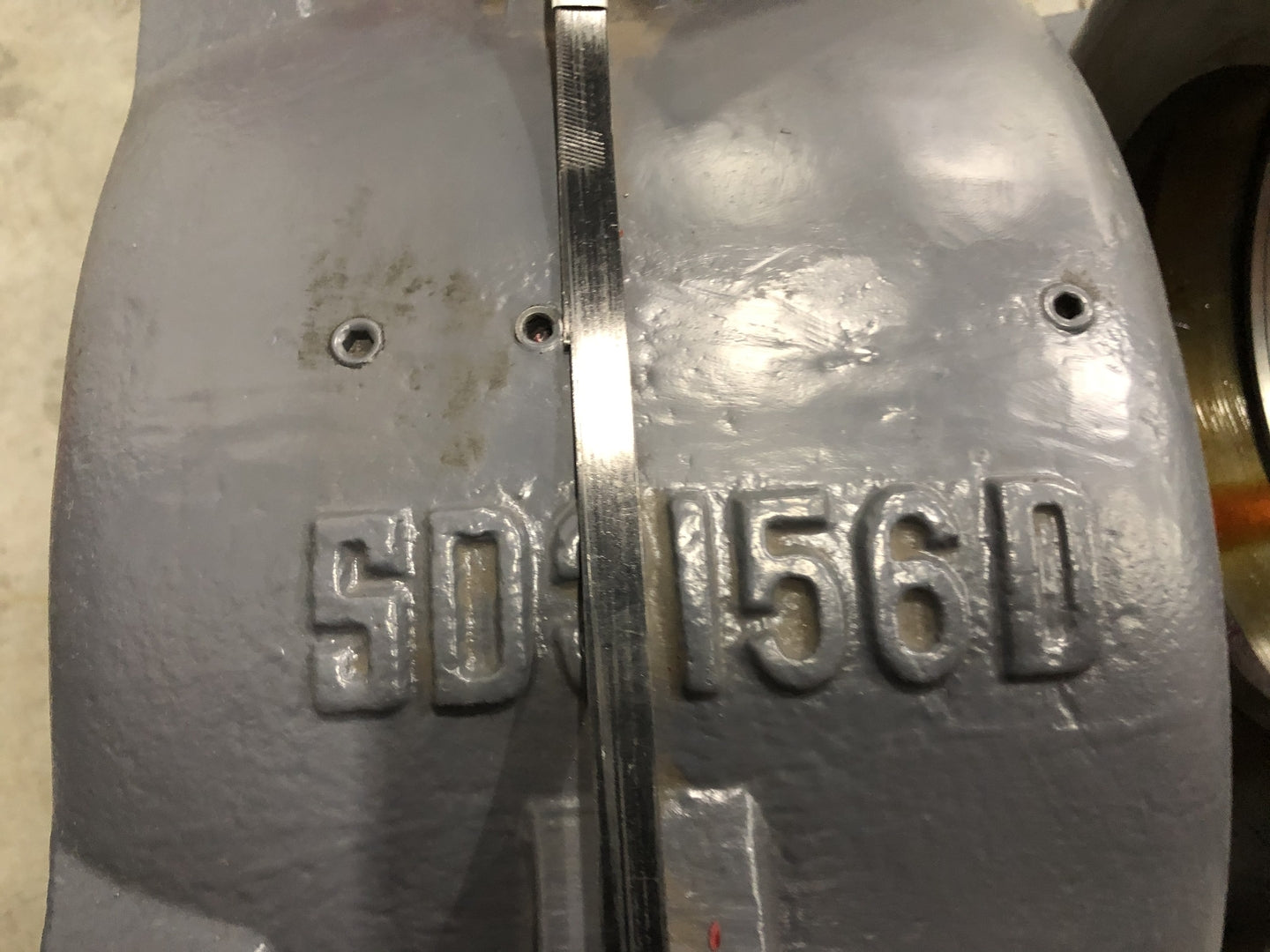

| Model | SD3156D |
| Condition | Surplus New | General |

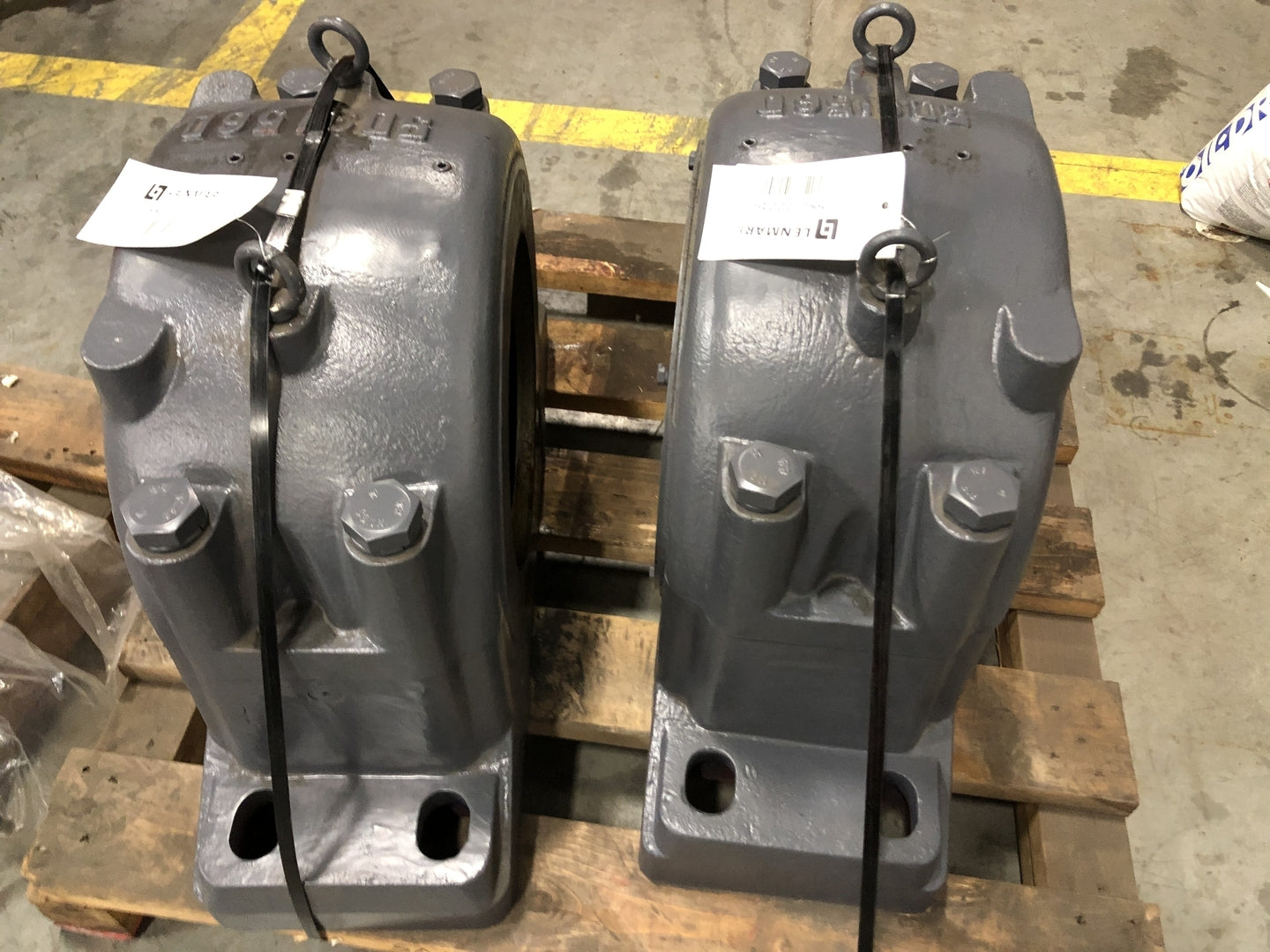

| Type | Split Plummer Block |
| Height | 550 mm |
| Outside Length | 790 mm |
| Base to Bore Centerline | 280 mm |
| Distance Between Bolts | 670 mm |
| Housing Compatible Bore Diameter | 260 mm |
| Compatible Bearing Series/Part # | 23156K |
| Compatible Bearing Types | Spherical Roller |
| Other Specifications |
|---|
|
Shaft Diameter: 260 mm
Outside Diameter: 460 mm
Base Width: 280 mm
Base Center Height: 280 mm
Bolt Hole Center Length: 670 mm
Bolt Hole Center Width: 160 mm
Mounting: 4 Bolts, M36
Bearing No.: 23156K
Adapter Sleeve: H3156
Locating Ring: SR460x10
***Price Per Unit***
|
