Description
| Specifications | |
|---|---|

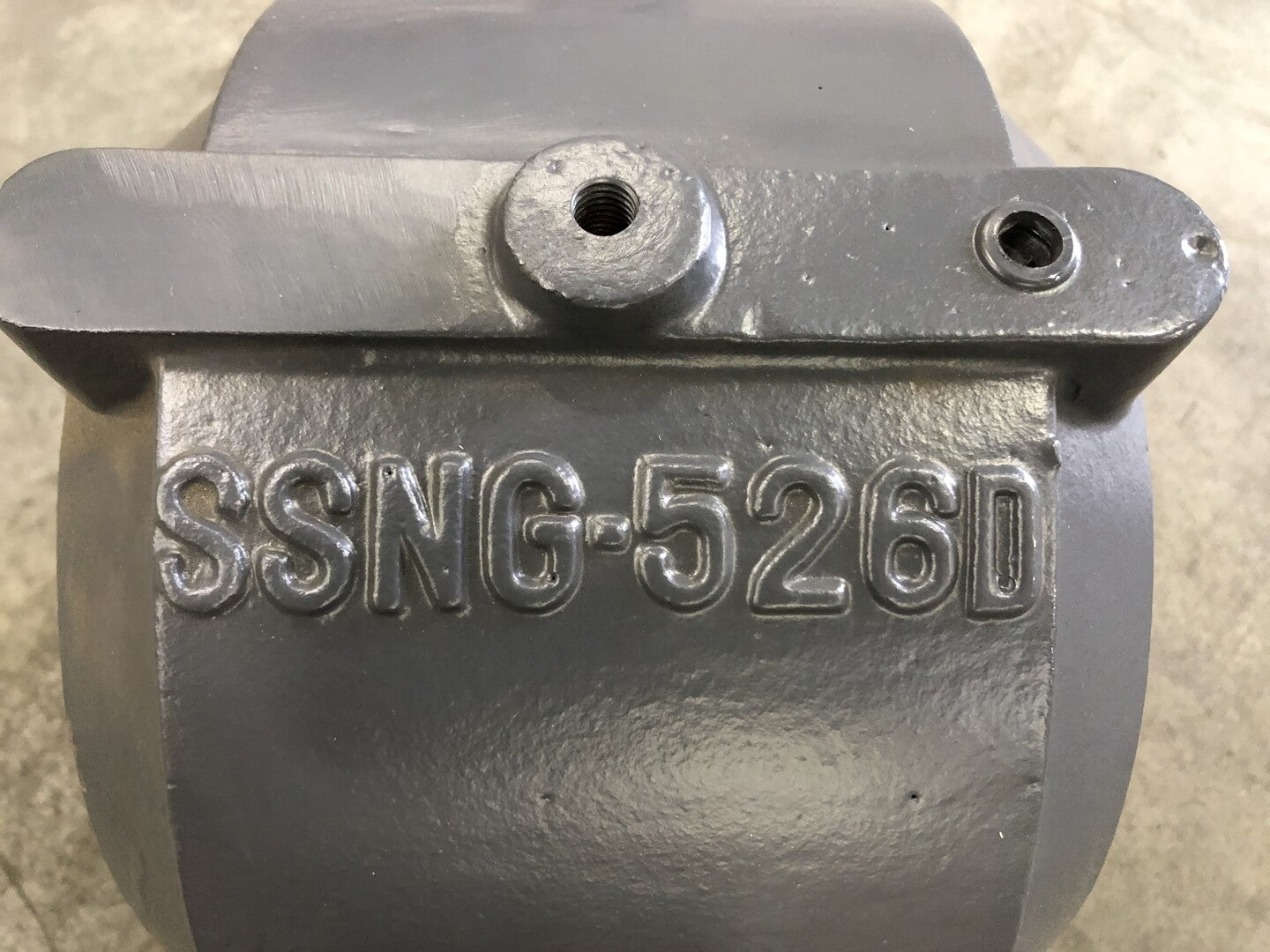

| Model | SSNG-526D |
| Condition | Surplus New | General |

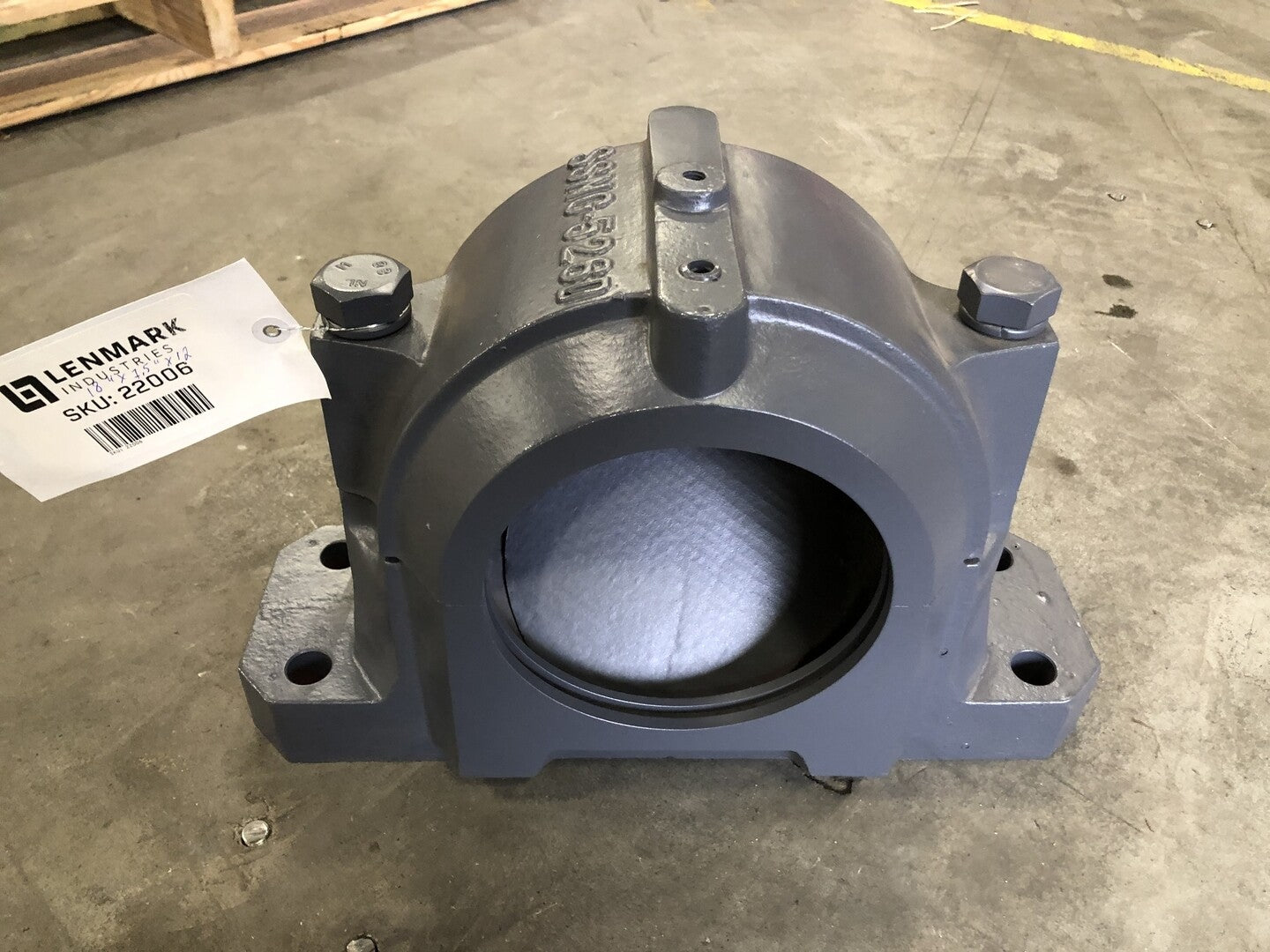

| Type | Split Plummer Block |
| Height | 290 mm |
| Outside Length | 445 mm |
| Base to Bore Centerline | 150 mm |
| Distance Between Bolts | 370 mm |
| Housing Compatible Bore Diameter | 115 mm |
| Compatible Bearing Series/Part # | 22226K, 23226K |
| Compatible Bearing Types | Spherical Roller |
| Other Specifications |
|---|
|
Shaft Diameter: 115 mm, 4-7/16 in., 4-1/2 in.
Outside Diameter: 230 mm
Base Width: 130 mm
Base Center Height: 150 mm
Bolt Hole Center Length: 370 mm
Bolt Hole Center Width: 80 mm
Mounting: 4 Bolts, M20
Seal: TSNG 526
Bearing No.: 22226K/ 23226K
Adapter Sleeve: H3126/ H2326
Locating Ring: SR230x13/ SR230x10
|
