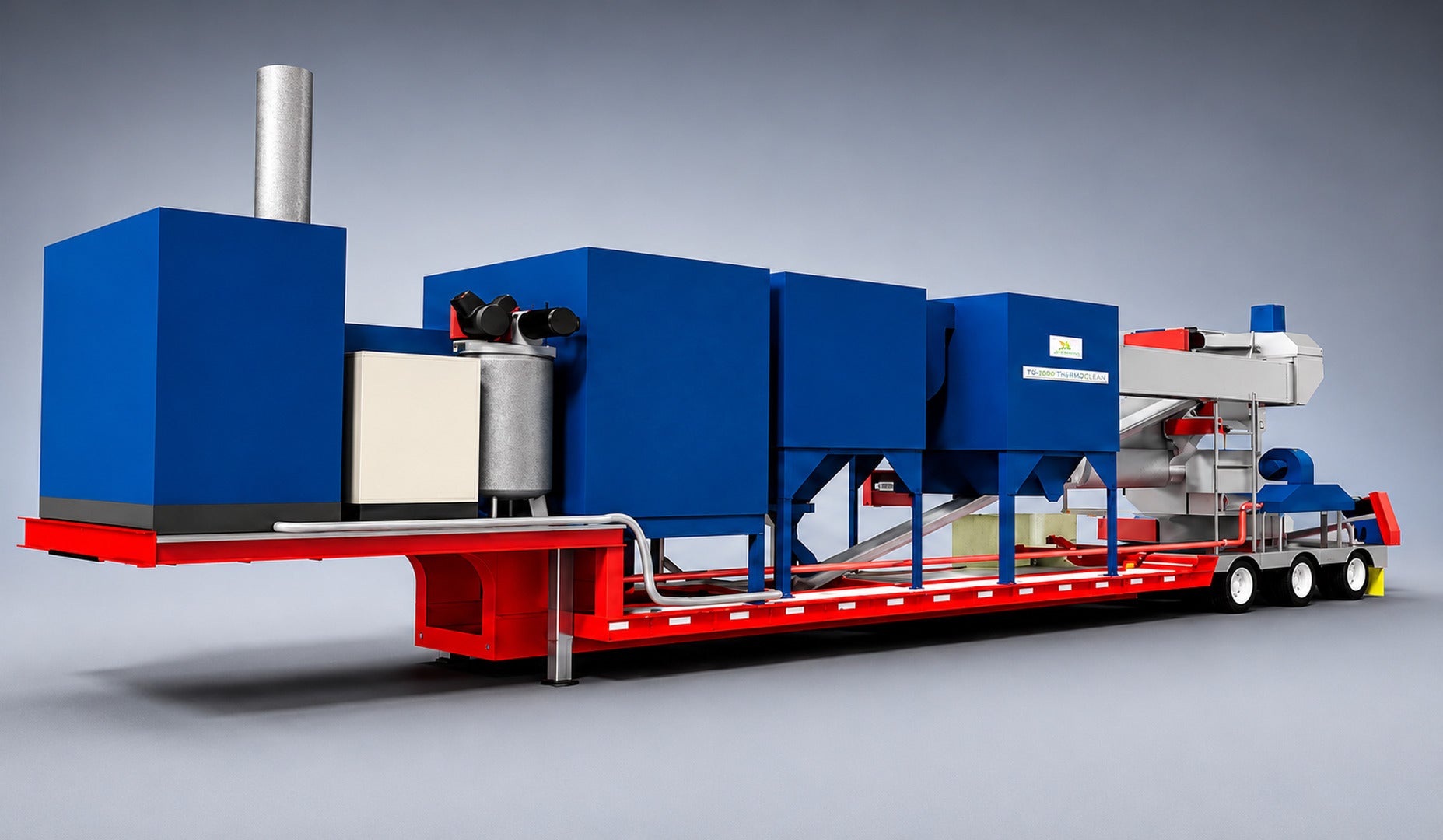

TC-3000 Mobile Thermal Desorption Soil Remediation System c/w Feed System - 24 tph

The TC-3000 Mobile Thermal Desorption Soil Remediation System is supplied new and built to order. Final pricing may vary based on project-specific requirements, selected options, emissions packages, fuel configurations, transportation requirements, commissioning services, and destination.

Lead times vary depending on manufacturing schedule and system configuration. Contact Lenmark for current production lead times and formal quotations.

Key Features

1. Mobile two-trailer remediation system
2. Patented cascading thermal desorption process
3. Throughput up to 24 tons per hour (Actual throughput dependent on soil type, contaminant characteristics, moisture content, and required cleanup levels)
4. Integrated Thermal Oxidizer
5. Self-contained power generation package
6. Computer-controlled operation
7. Remote monitoring capability
8. Highway transportable design
9. Rapid deployment and setup
10. Continuous operation capability
11. Integrated emissions control systems
12. Touchscreen operator interface
13. Available as portable trailer-mounted or stationary skid-mounted configuration
14. One-year manufacturer warranty on major components

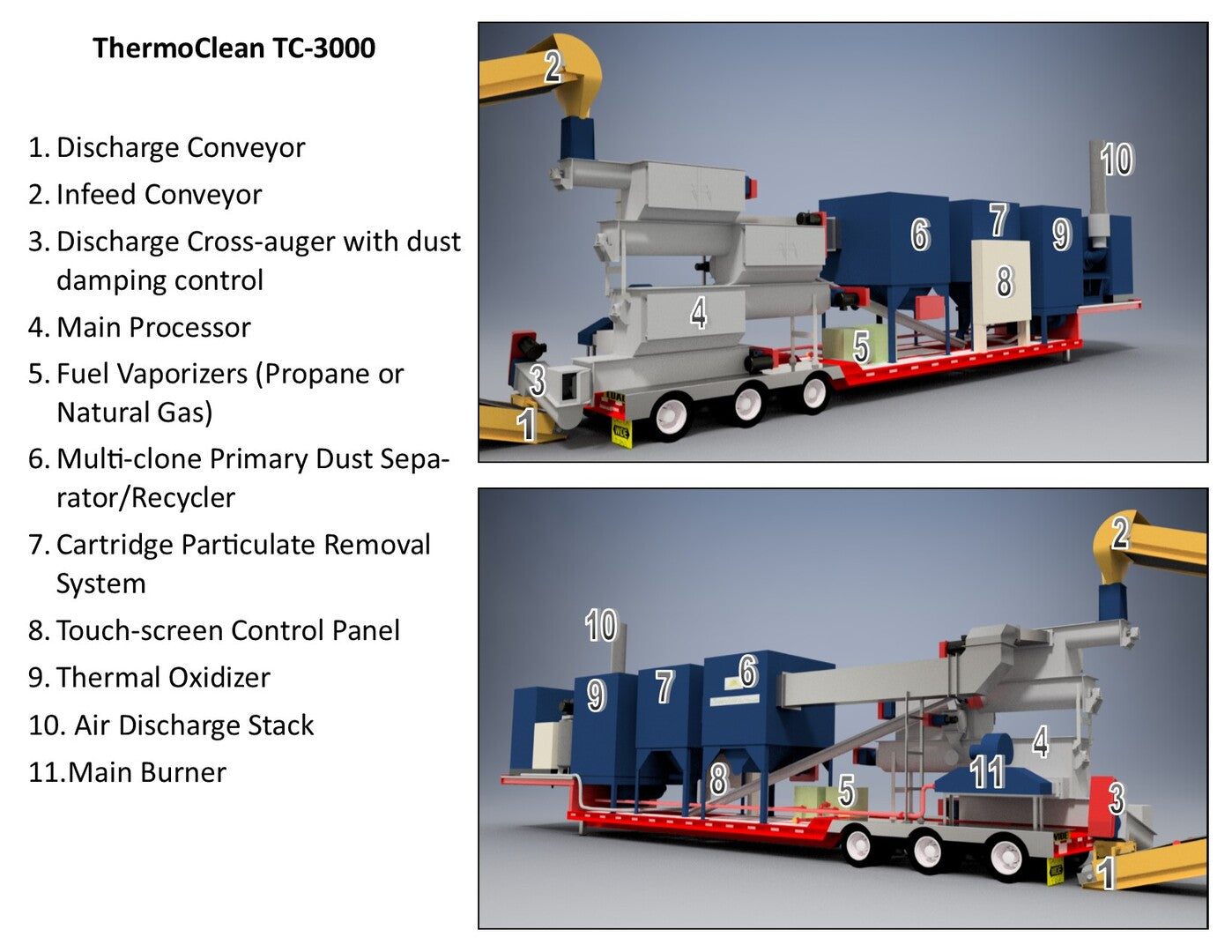

System Components

The TC-3000 package includes:

1. Main Thermal Processor

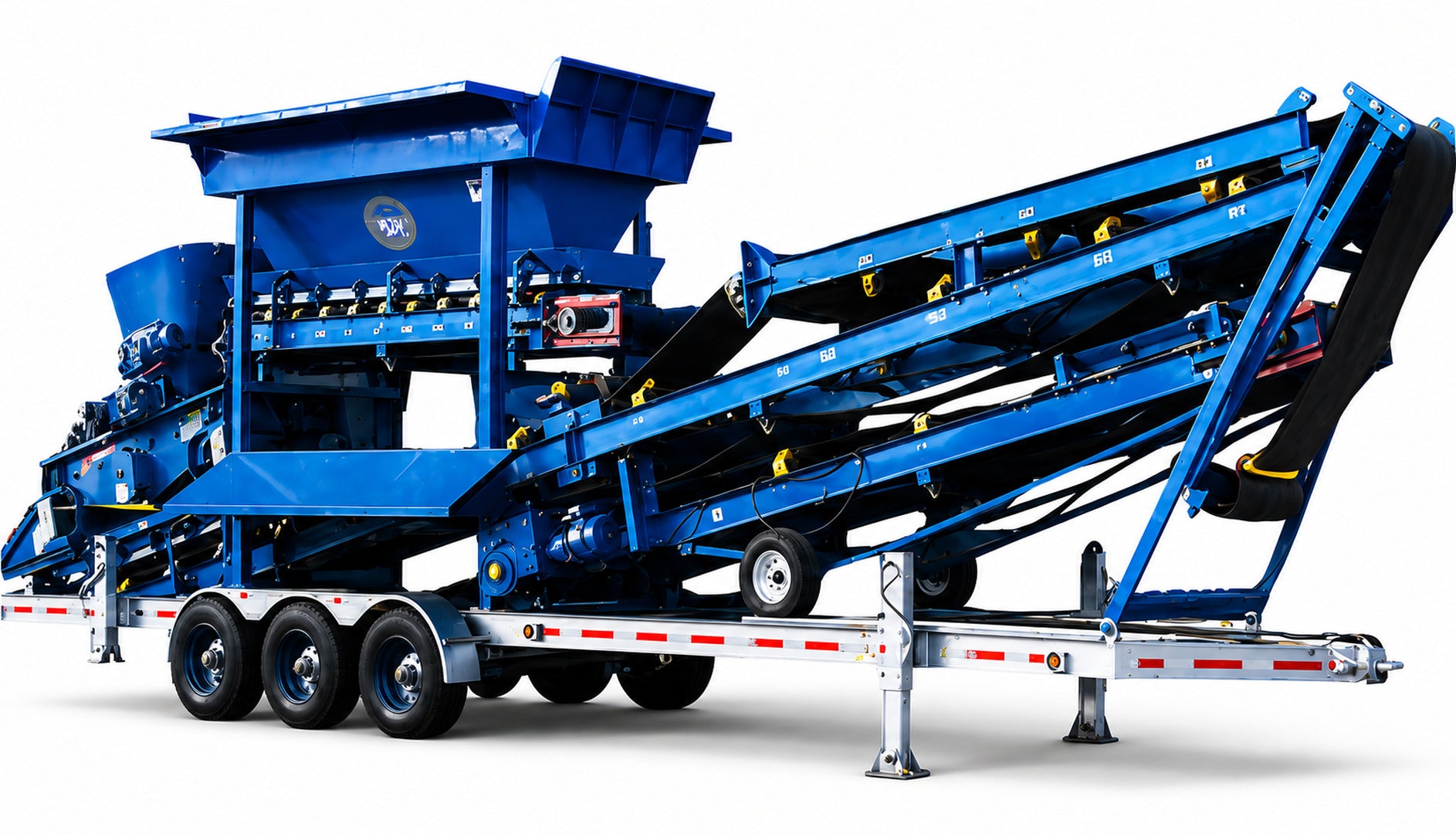

2. Feed System Trailer

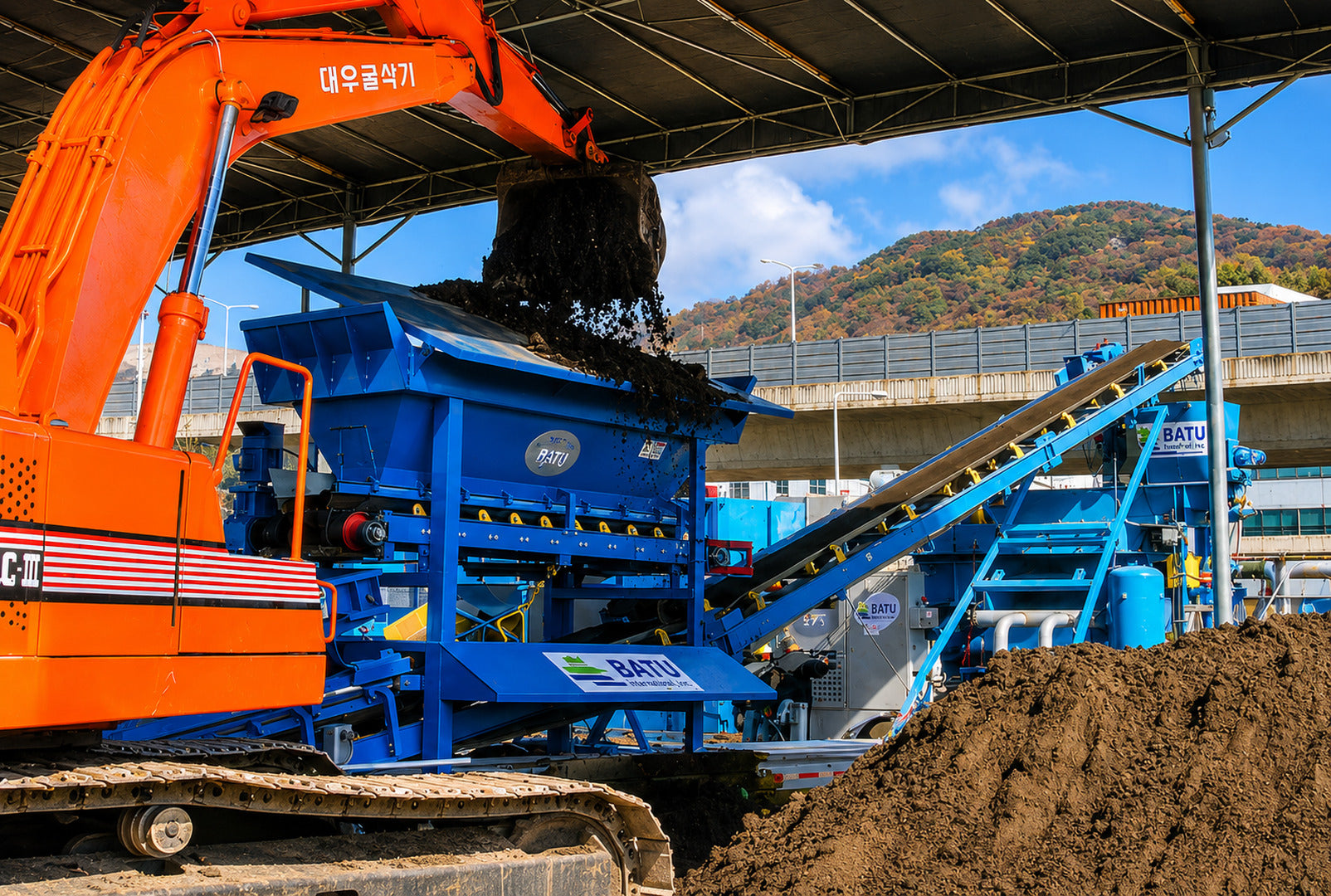

3. Feed Hopper
4. Infeed Conveyor
5. Soil Discharge Conveyor
6. Discharge Cross Auger with Dust Dampening System
7. Thermal Oxidizer
8. Main Burner System
9. Fuel Vaporization System
10. Multi-Cyclone Primary Dust Separator / Recycler
11. Cartridge Particulate Filtration System
12. Induction Fan System
13. Air Discharge Stack
14. Electronic Control System
15. Touchscreen HMI Control Panel
16. Onboard Power Generator
17. Air Compressor Package
18. Fuel Supply Train
19. Safety Shutdown and Burner Suppression Systems

Thermal Processing Technology

The TC-3000 utilizes Jentek's patented cascading soil treatment process. Contaminated soil is introduced into a multi-stage thermal processor where material passes through three separate treatment chambers. Soil is repeatedly spread into a cascading curtain pattern, maximizing heat transfer and contaminant removal efficiency while maintaining a compact footprint.

The processor operates under negative pressure, preventing uncontrolled emissions and directing vaporized contaminants through a multi-stage emissions treatment system before atmospheric discharge.

The system is designed to process petroleum hydrocarbon contaminated soils while preserving soil structure and supporting future site redevelopment.

Environmental Performance

The TC-3000 is engineered to meet stringent air quality requirements and incorporates multiple stages of emissions control:

1. Integrated Thermal Oxidizer
2. Multi-Cyclone Dust Separation
3. Cartridge Filtration System
4. Negative Pressure Processing
5. Optional Continuous Emissions Monitoring System (CEMS)
6. Adjustable Thermal Oxidizer Residence Time
7. Remote Emissions Monitoring Capability

Typical VOC destruction efficiency is reported at up to 99%+ depending on project parameters and regulatory requirements.

Soil & Contaminant Applications

Suitable for treatment of soils contaminated with:

1. Gasoline Range Organics
2. Diesel Range Organics
3. Petroleum Hydrocarbons
4. Lubricating Oils
5. Creosote
6. Volatile Organic Compounds (VOCs)
7. Industrial Hydrocarbon Contamination
8. Brownfield Contaminants

The system is designed to process a wide range of soil types including sand, gravel, and inorganic subsoils commonly encountered in remediation projects.

Technical Specifications

Processor Configuration

1. Portable Two-Trailer System
2. Optional Stationary Two-Skid Configuration

Throughput

1. Typical Operating Range: 8-22 TPH
2. Maximum Throughput: Up to 24 TPH
3. Nominal Design Capacity: 15 TPH

Contaminant Capacity

1. Hydrocarbon concentrations up to 45,000 mg/kg
2. Carbon chain treatment capability up to approximately C40-C45

Operating Temperature

1. Processor Temperature Range: 320°C - 800°C
2. Thermal Oxidizer Temperature: Up to 900°C

Fuel Options

1. Natural Gas
2. LNG
3. Propane
4. Optional Diesel Configuration

Electrical System

1. 480V
2. 3-Phase
3. 60 Hz
4. Self-Contained Generator Package
5. Grid Power Compatible

Compressor

1. Up to 20 CFM @ 150 PSI

Trailer Specifications

1. Length: Approx. 48 ft (14.5 m)
2. Width: 8.5 ft (2.5 m)
3. Height: 13.5 ft (4.0 m)
4. Process Trailer Weight: Approx. 66,400 lbs
5. Feed Trailer Weight: Under 30,000 lbs

Operational Advantages

Mobility

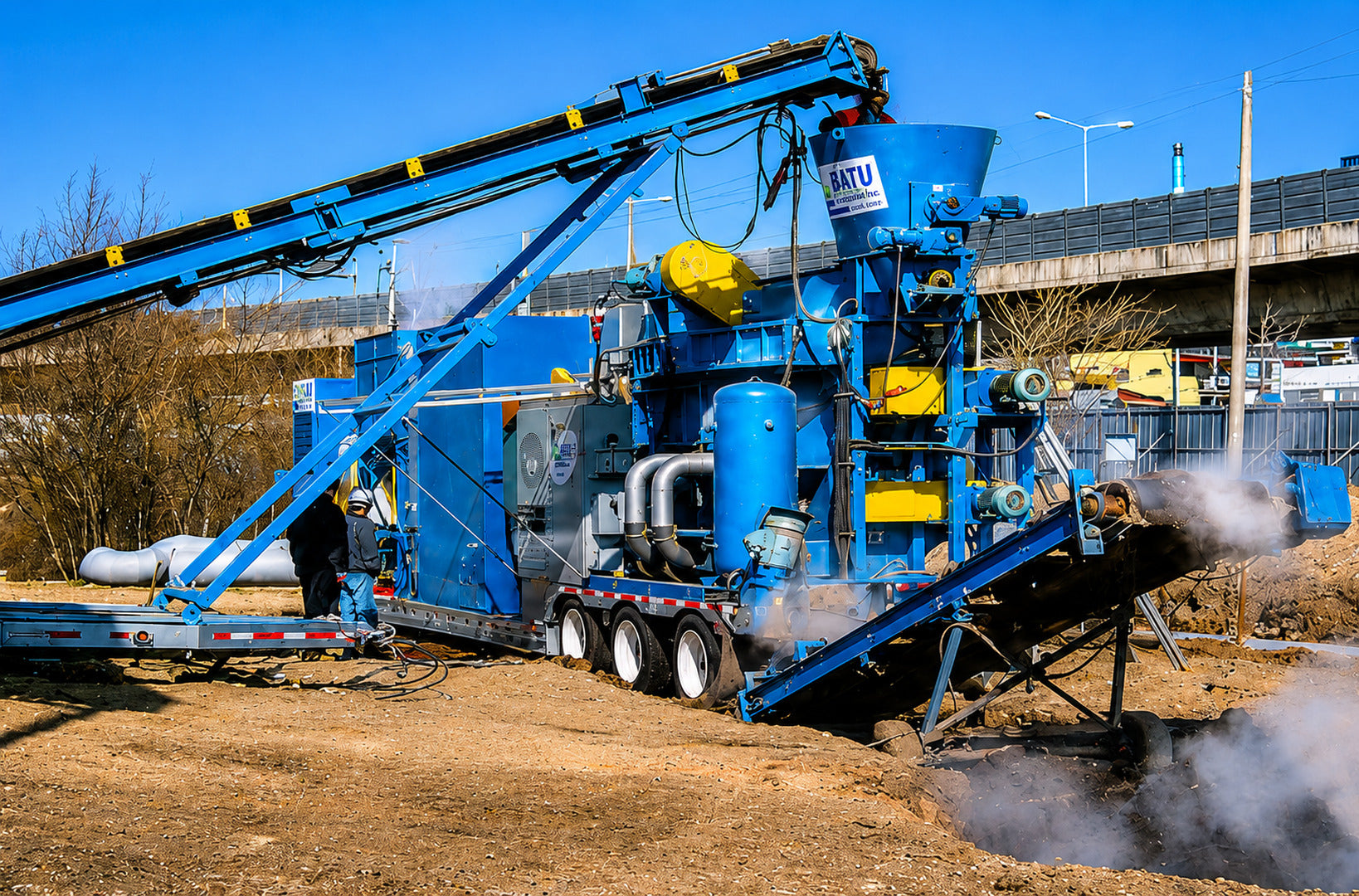

The TC-3000 can be transported using standard highway equipment and deployed directly at remediation sites. Portable configuration minimizes trucking requirements and reduces risks associated with transporting contaminated soils.

Efficiency

The patented cascading processor design maximizes heat utilization and can reduce fuel consumption compared with traditional rotary thermal systems.

Reduced Site Costs

By treating contaminated soil onsite, projects can reduce:

1. Soil hauling costs
2. Landfill disposal costs
3. Imported fill requirements
4. Project timelines
5. Environmental transportation risks

Scalability

Multiple TC-3000 systems can be deployed in parallel on large-scale remediation projects to increase overall processing capacity.

Training & Support

Each TC-3000 system includes:

1. Operator Manual
2. Maintenance Documentation
3. Troubleshooting Information
4. Technical Support Availability
5. Manufacturer Warranty Coverage

Warranty

1. One-Year Manufacturer Warranty on Major Components
2. OEM Warranty Coverage on Applicable Purchased Components
3. Technical Support Available Through Manufacturer

Industries Served

1. Environmental Remediation Contractors
2. Brownfield Redevelopment Firms
3. Mining Operations
4. Oil & Gas Companies
5. Municipal Governments
6. Ports & Marine Facilities
7. Rail Infrastructure
8. Military & Defense Facilities
9. Industrial Site Reclamation Projects
