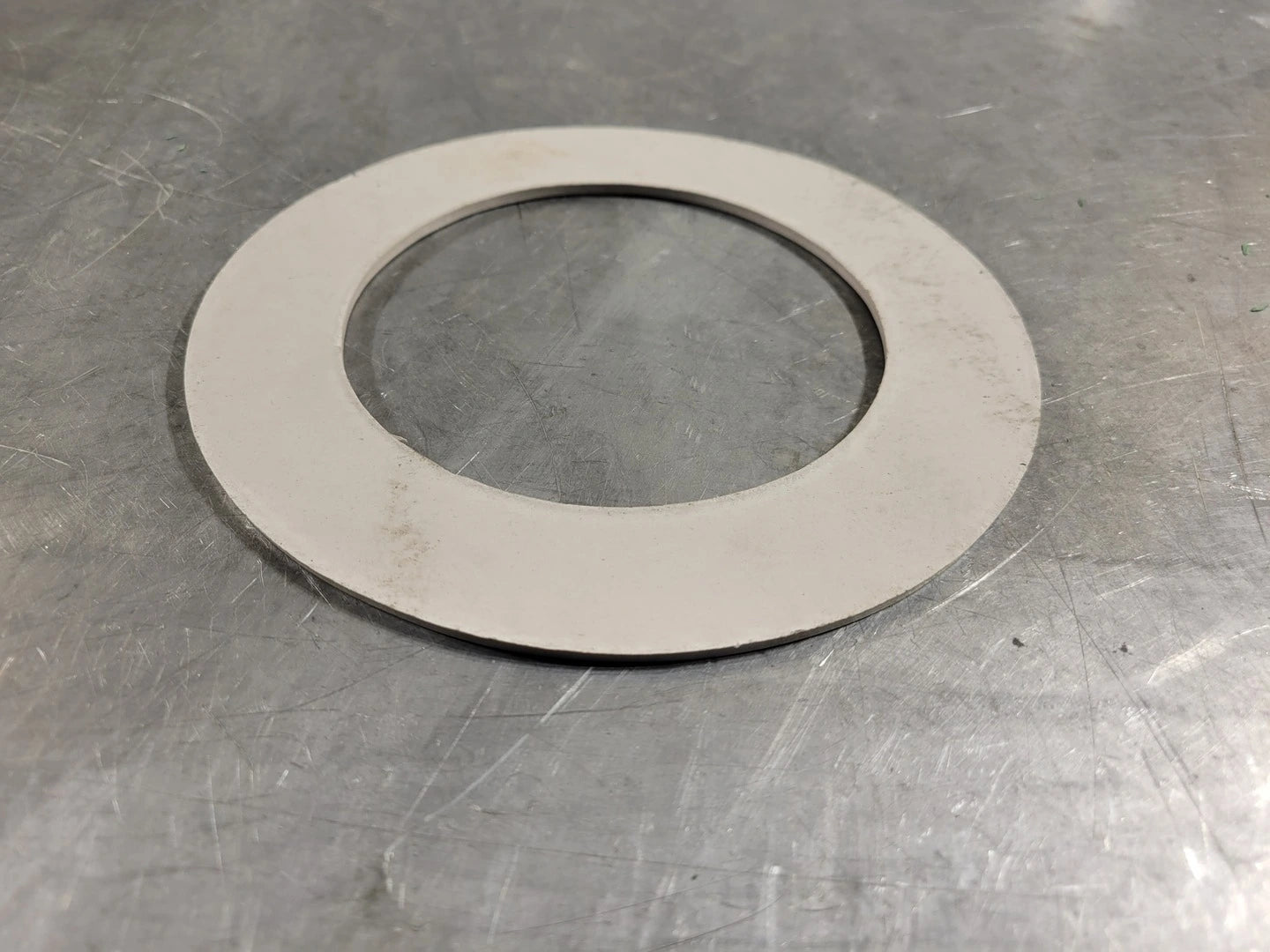

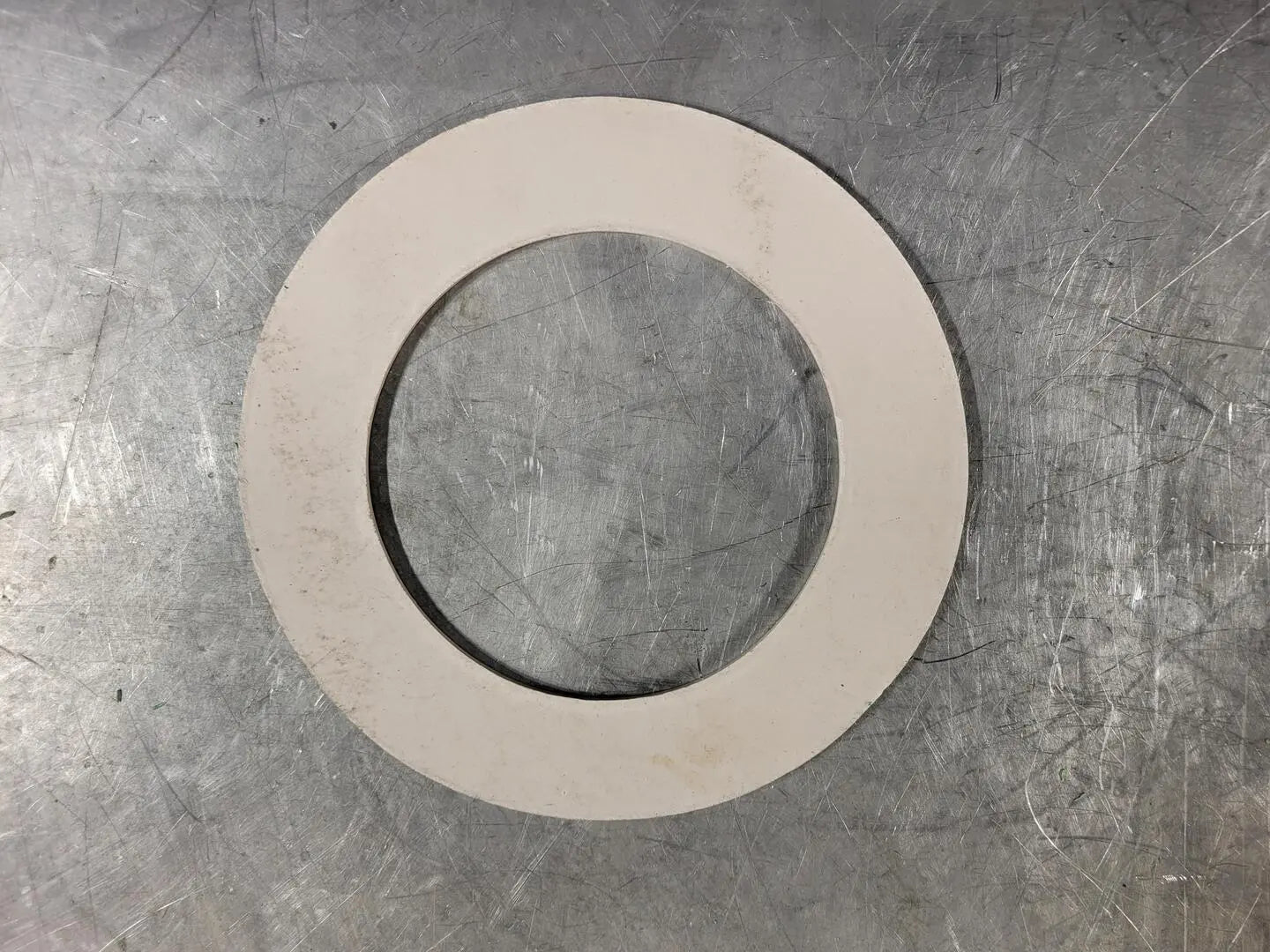

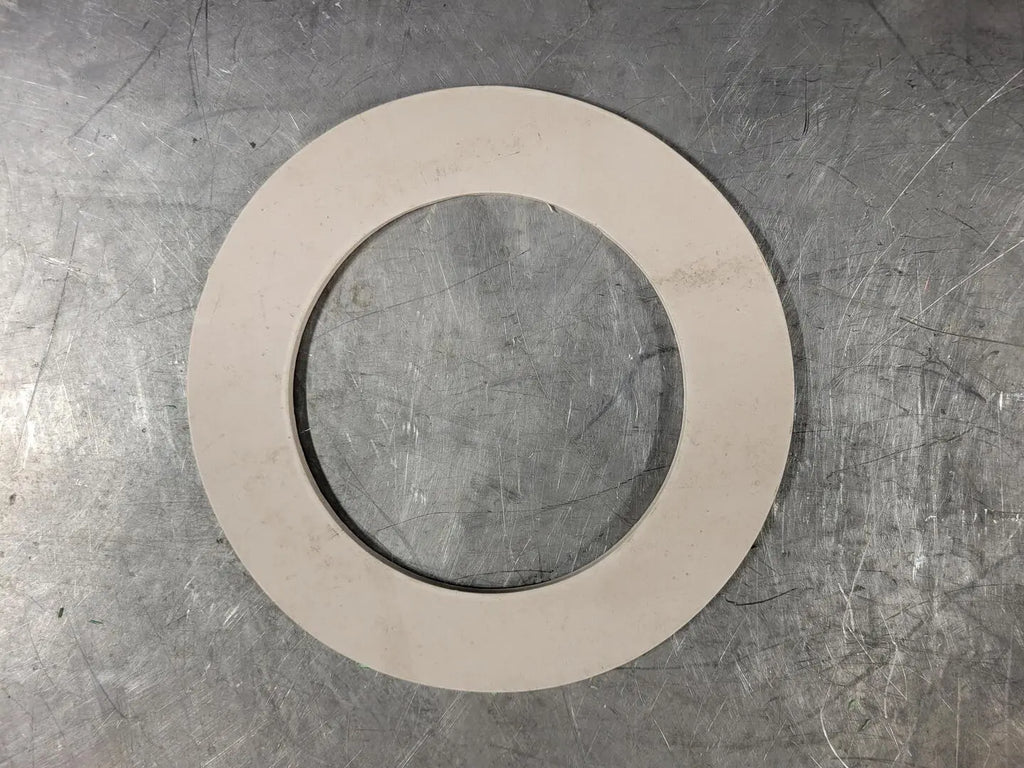

Tealon 4-1/2" Ring Gasket 1580

SKU: 85948
Price:
$7.50 CAD

Shipping calculated at checkout

Stock:
76 in Stock
Make an Offer

Need An Answer Now?

Description

Specifications
Model 1580
Condition Used
General
Material PTFE/Barium Sulfate

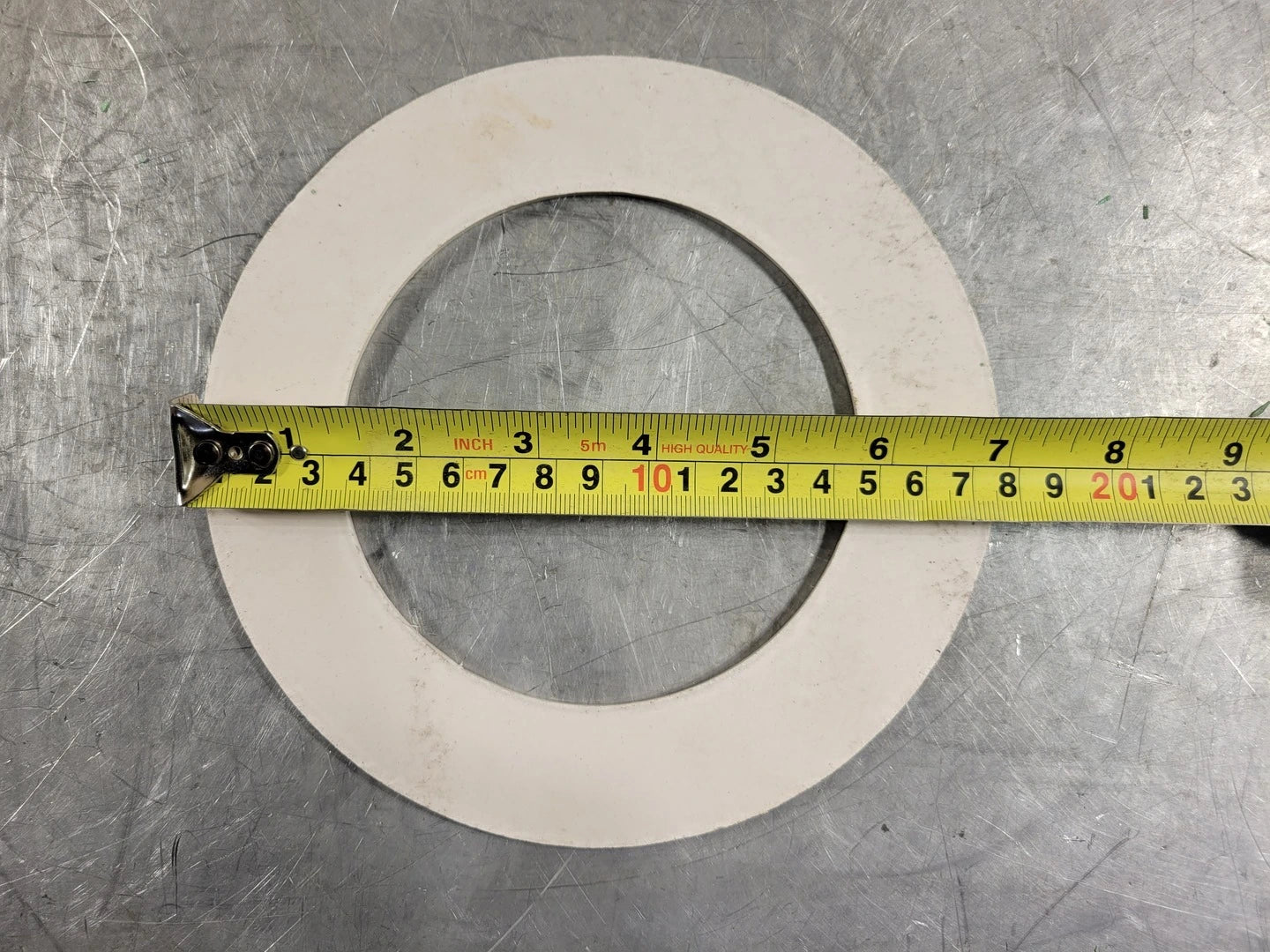

Diameter 4.5 "
Outside Diameter (Metric) 172 mm
Max. Pressure 1200 psi
Pipe Size 4"
Other Specifications
Physical Properties:
Color: Off White
Service Temperature: -450 to 500° F
Maximum Service Pressure: 1200 psi
Compressibility ASTM F36M: 4 to 10 %
Recovery ASTM F36M: 40 %
Creep Relaxation ASTM F38 B: 15 %
Max. P x T 1/16" thick: 350000 (F x psig)
Max. P x T 1/8" thick: 250000 (F x psig)
Sealability ASTM F37A: 0.04 ml/hr
Sealability DIN 3535: < 0.015 cm3/min
Tensile Strength ASTM F152: 2030 psi
Density: 181 lbs/cu. ft.
pH: 0 to 14
