Description

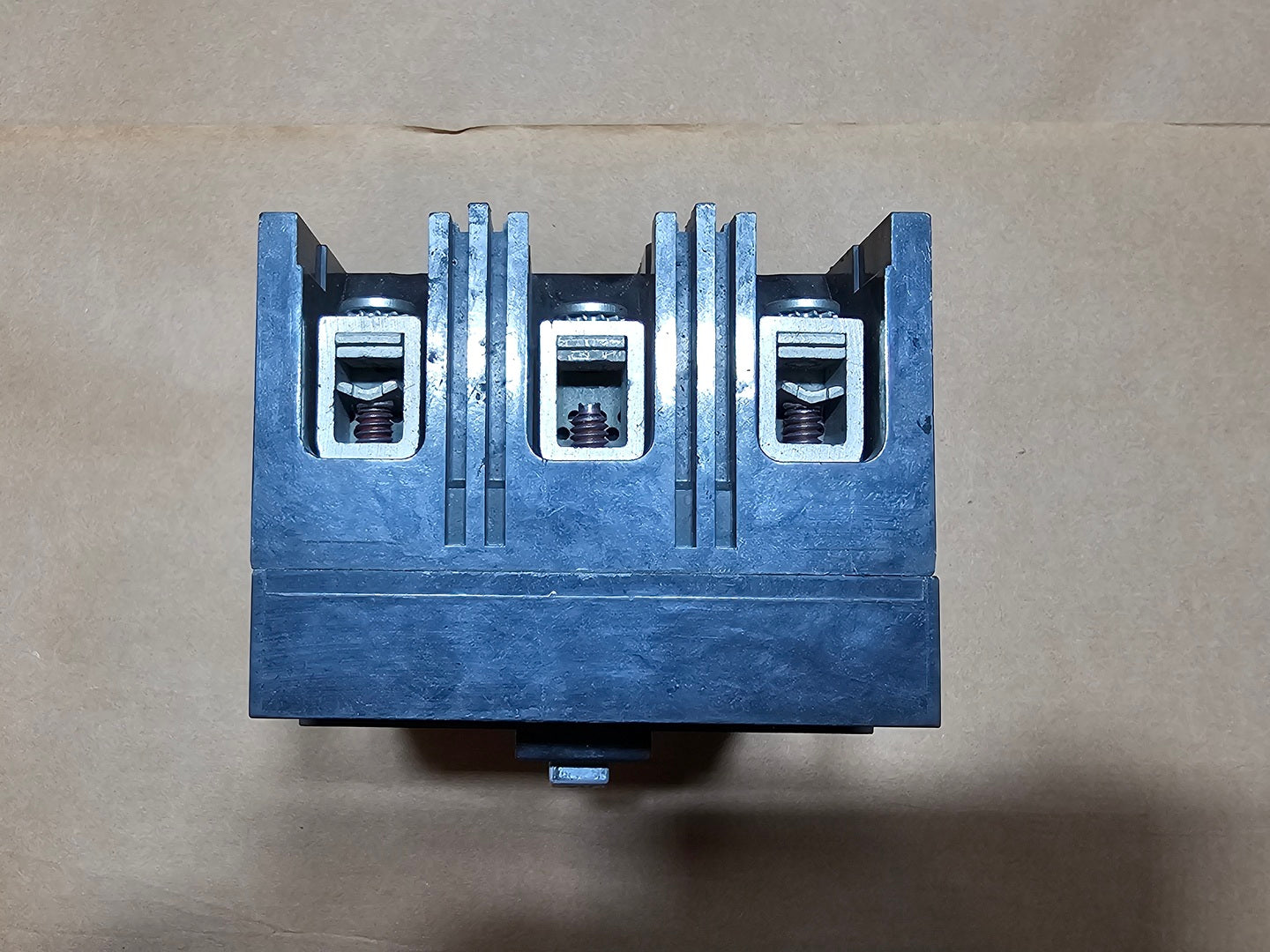

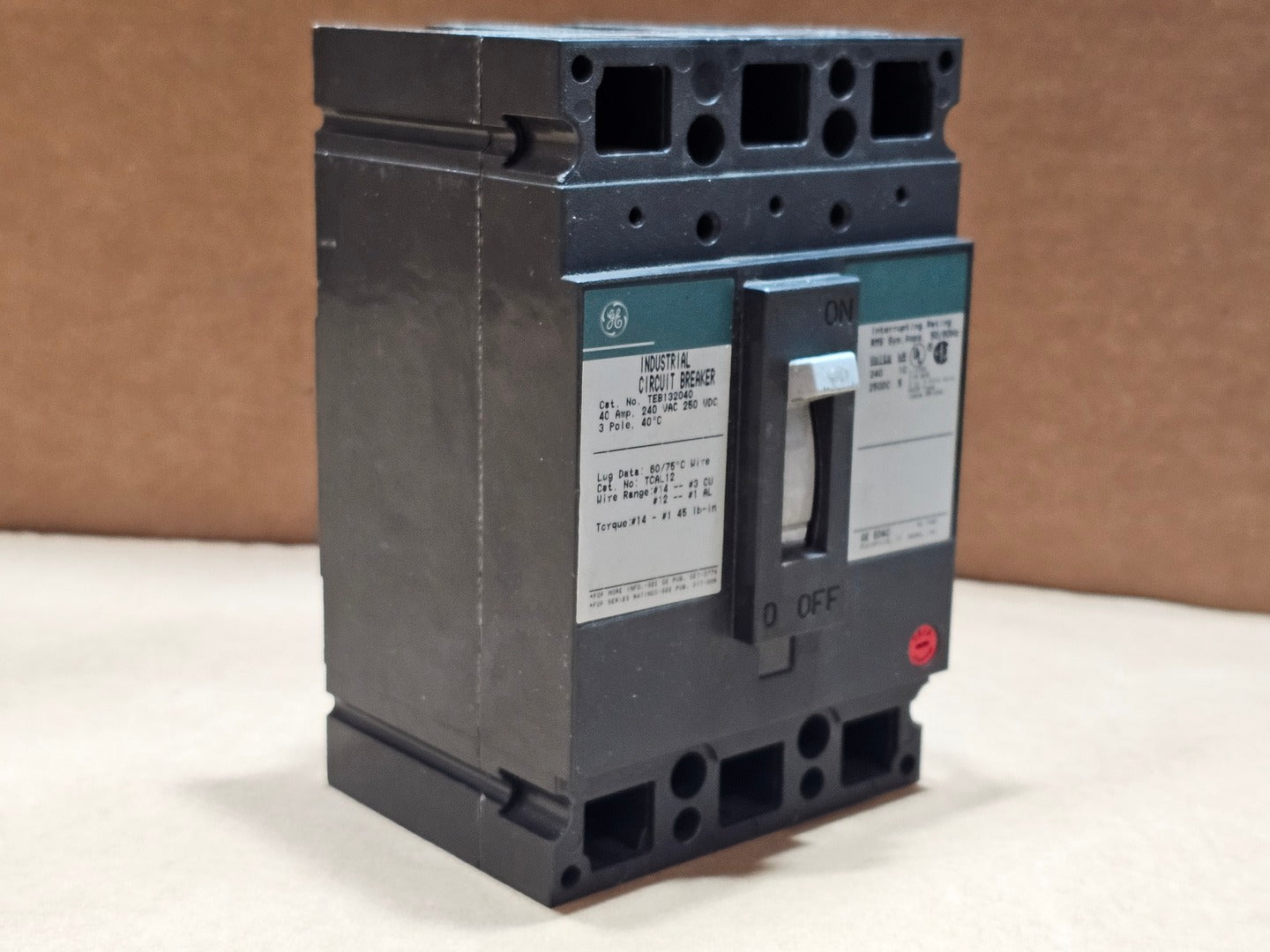

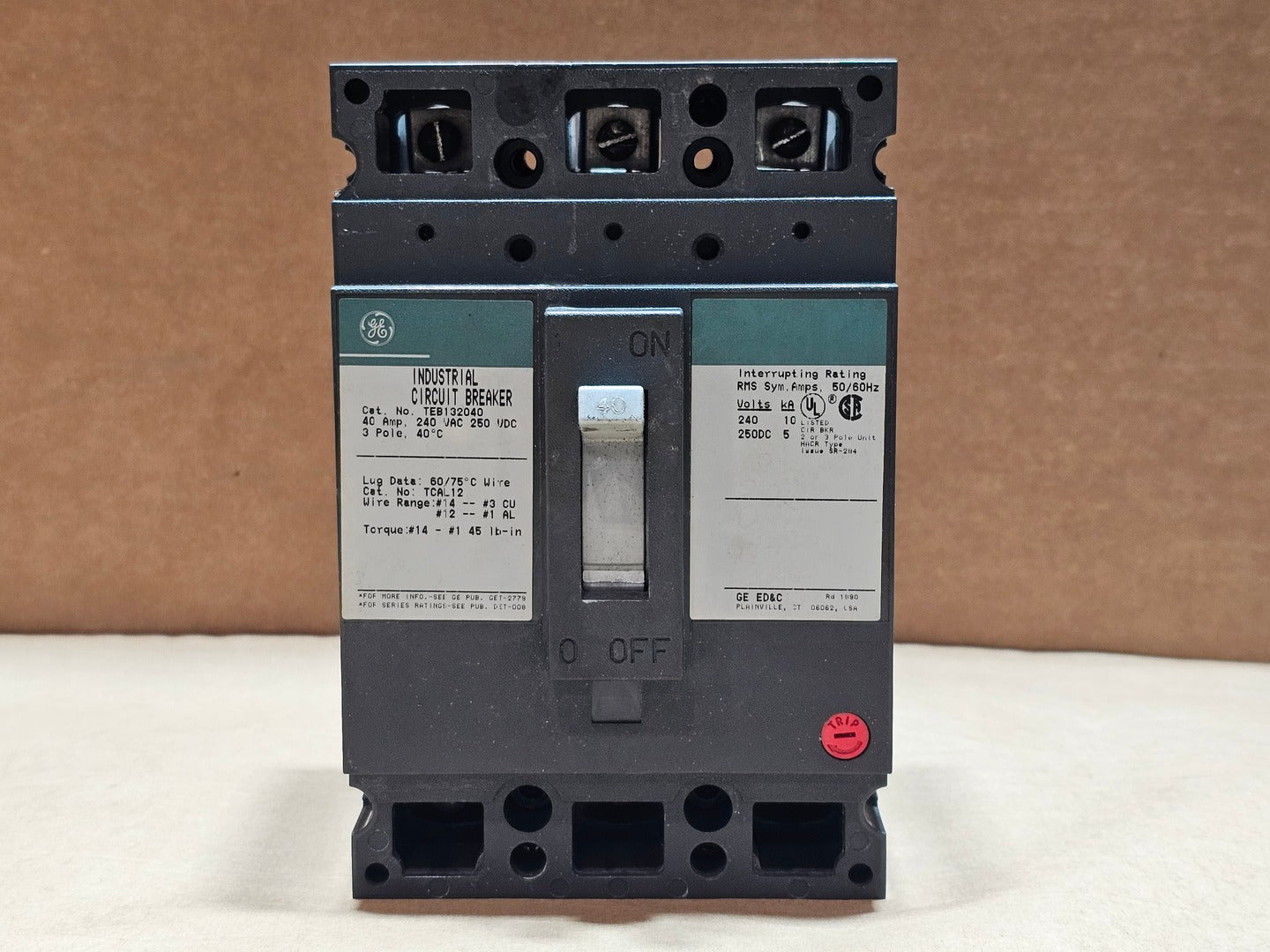

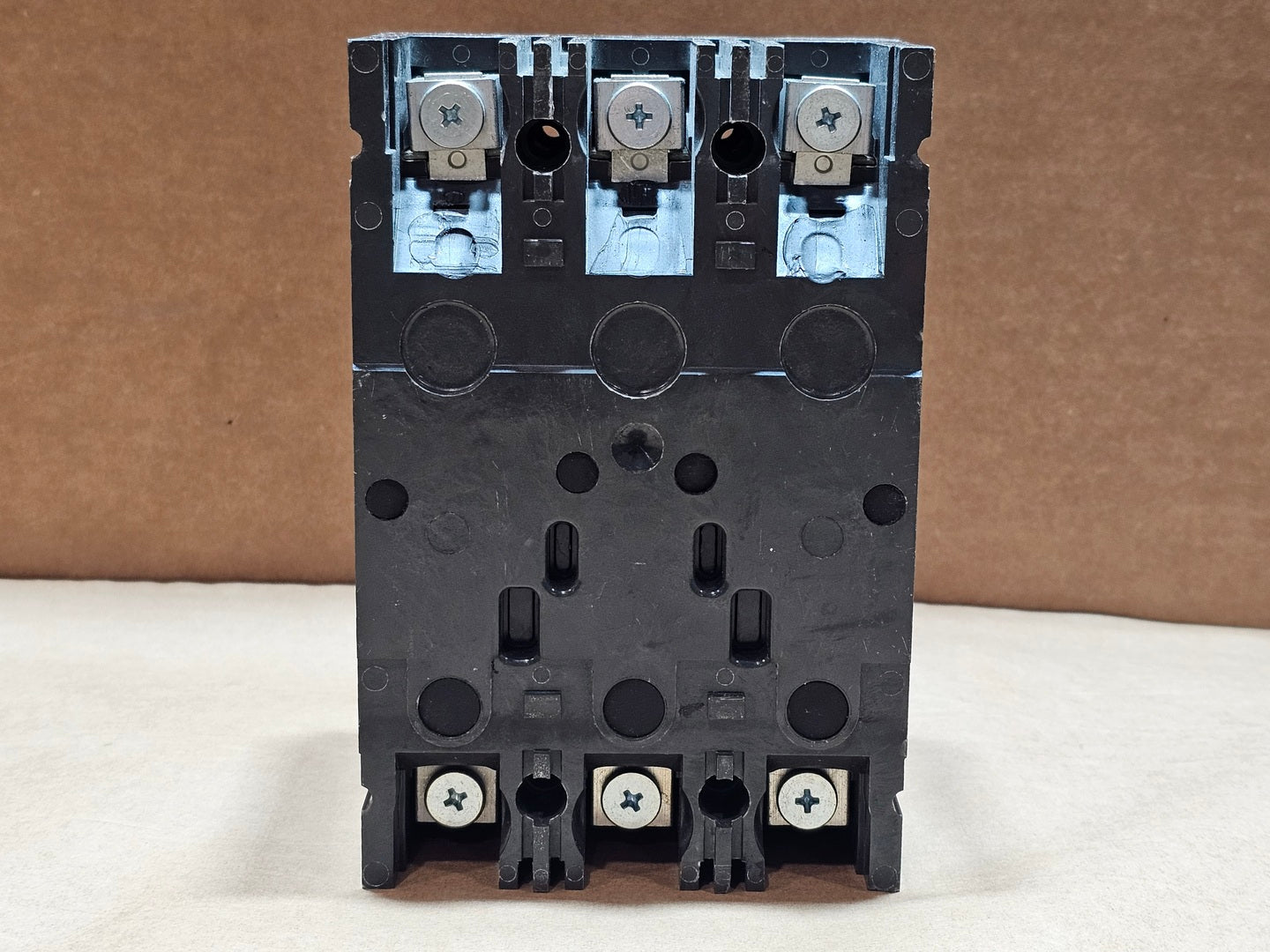

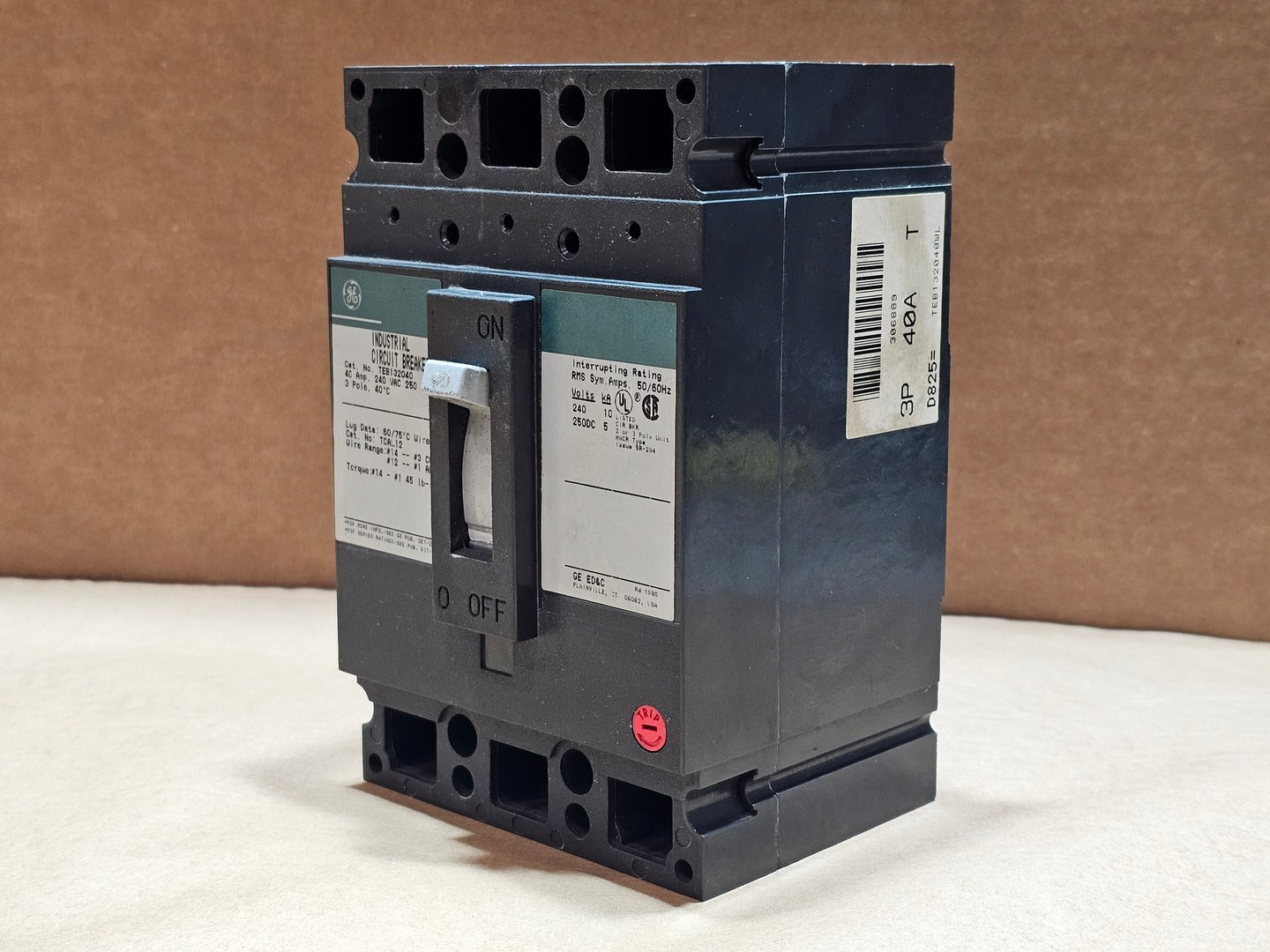

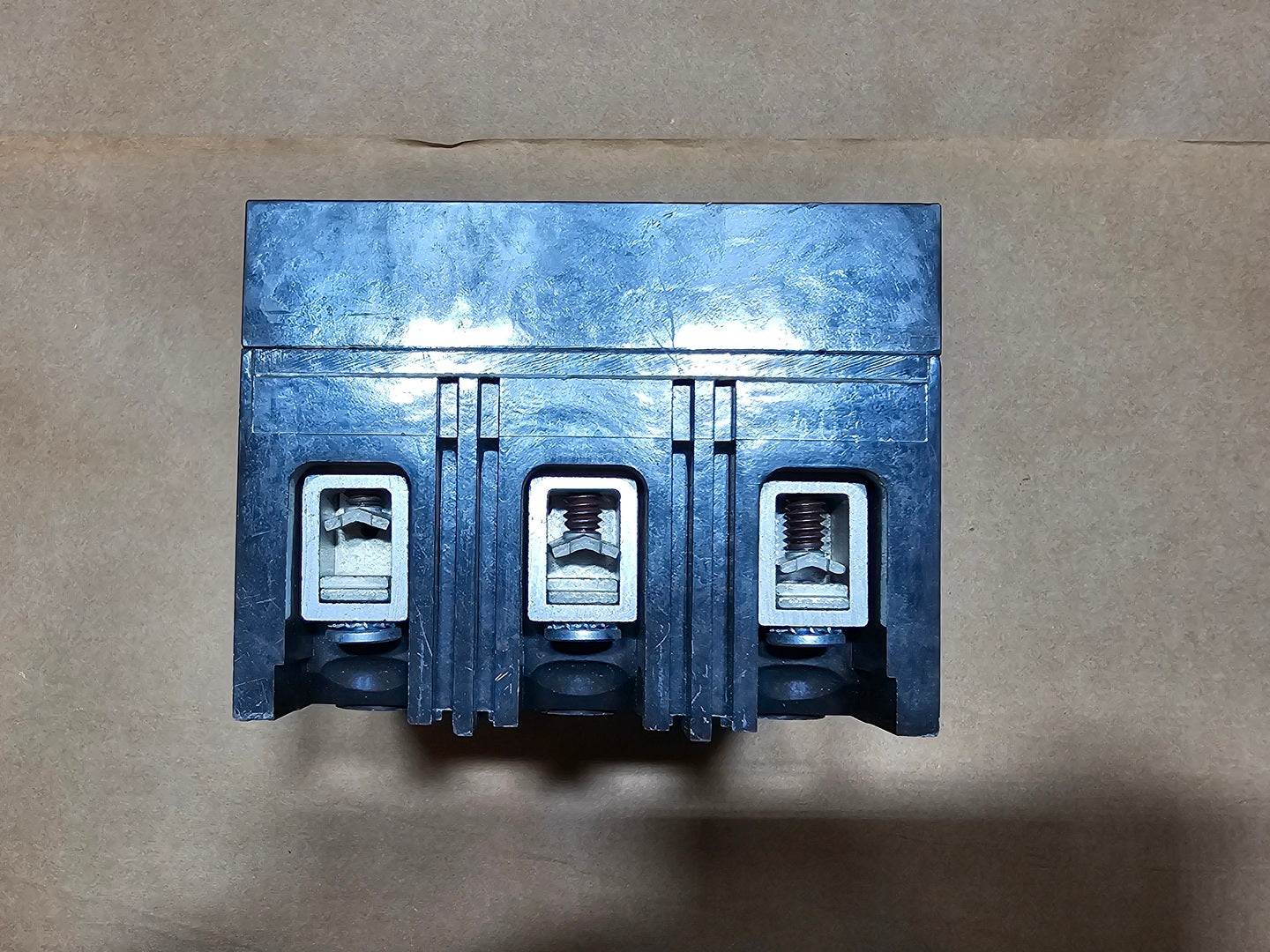

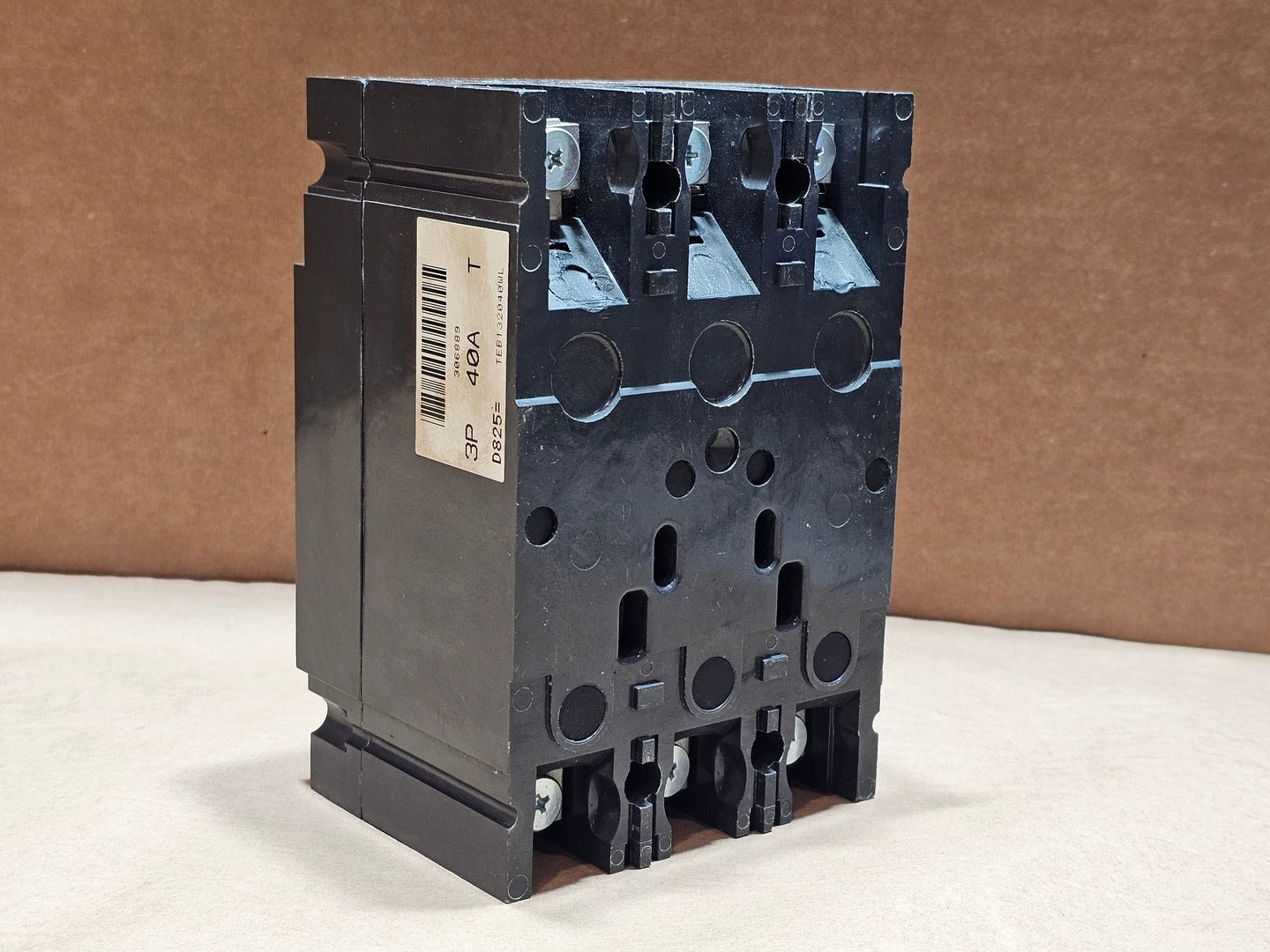

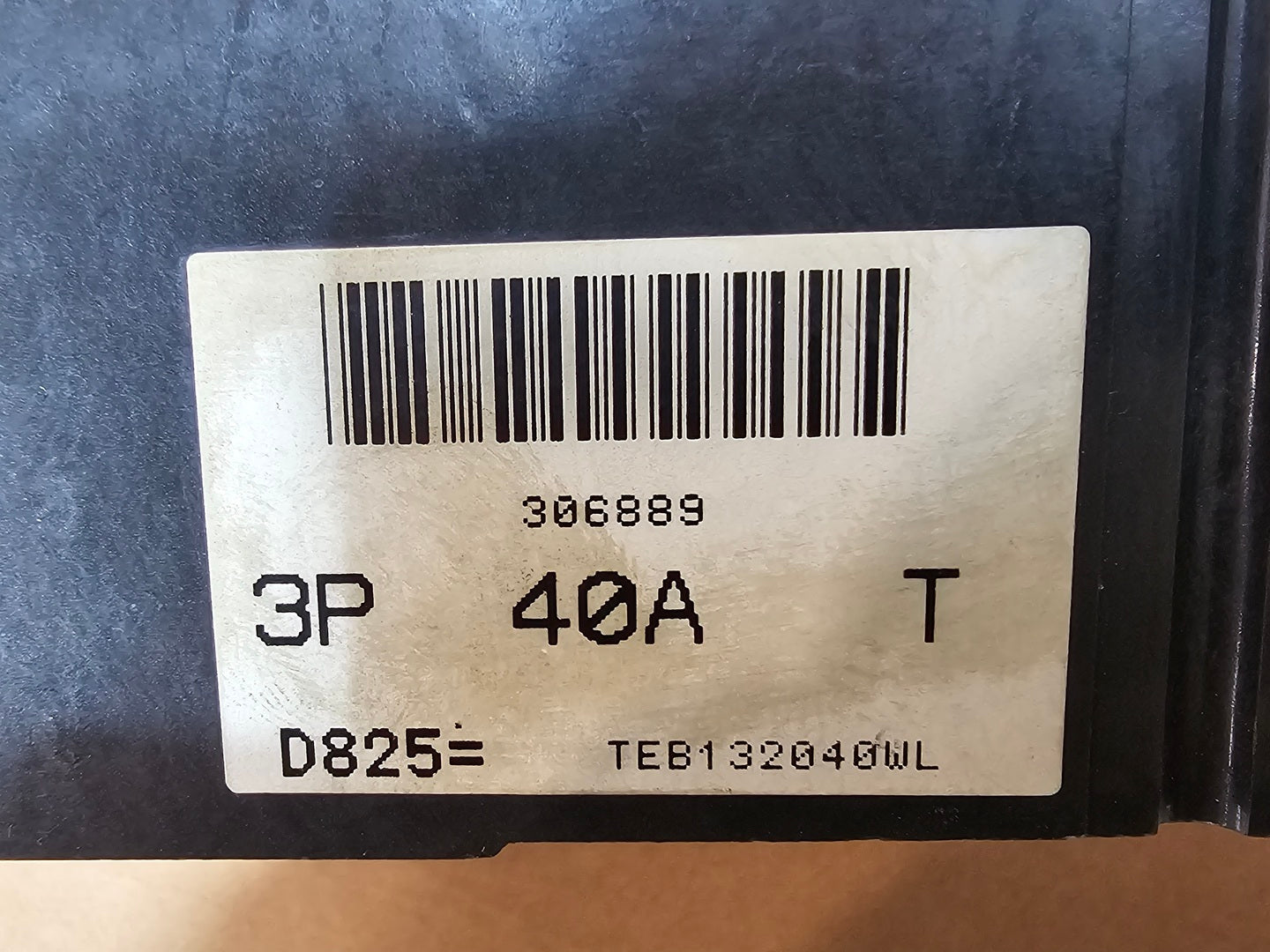

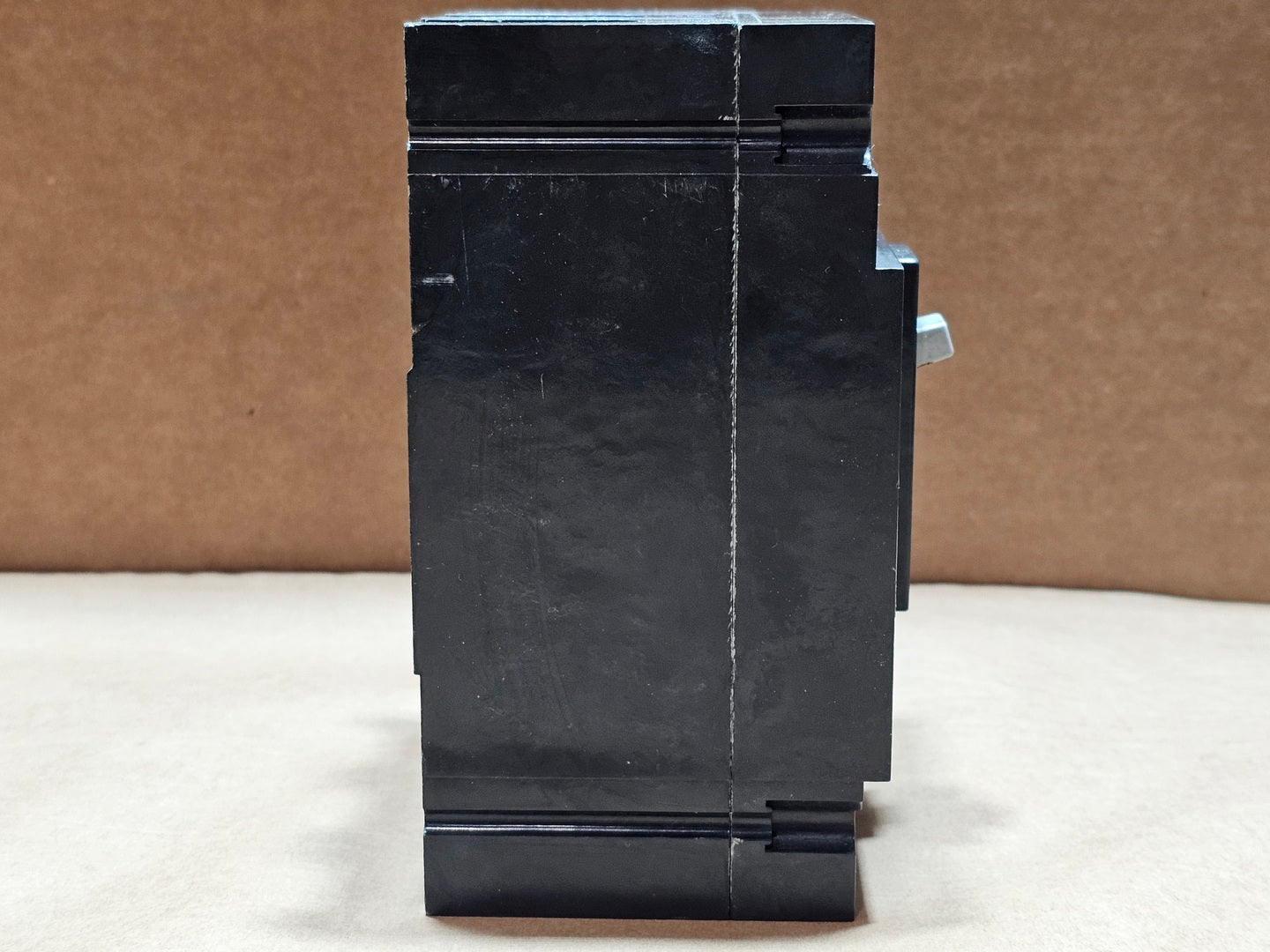

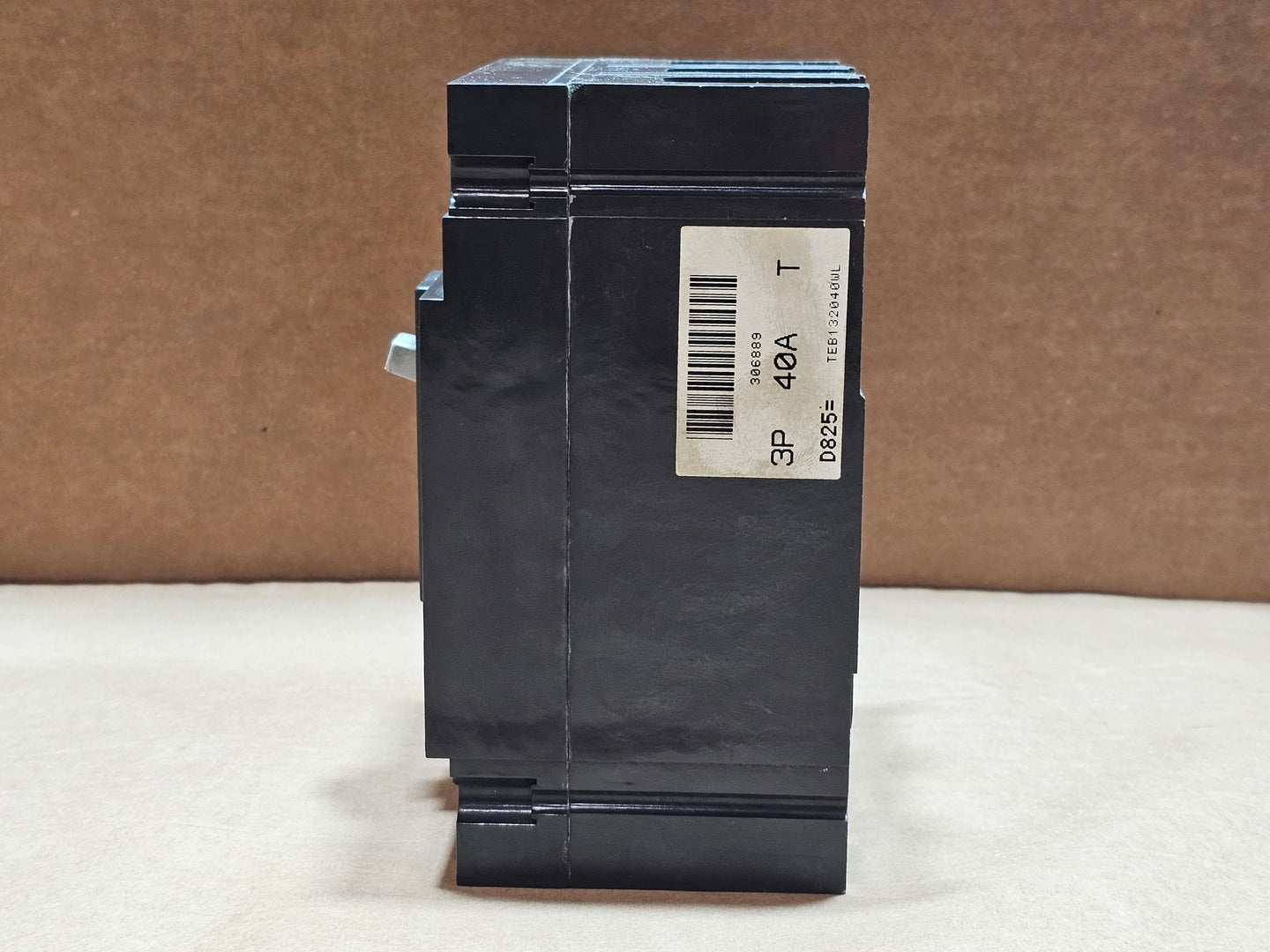

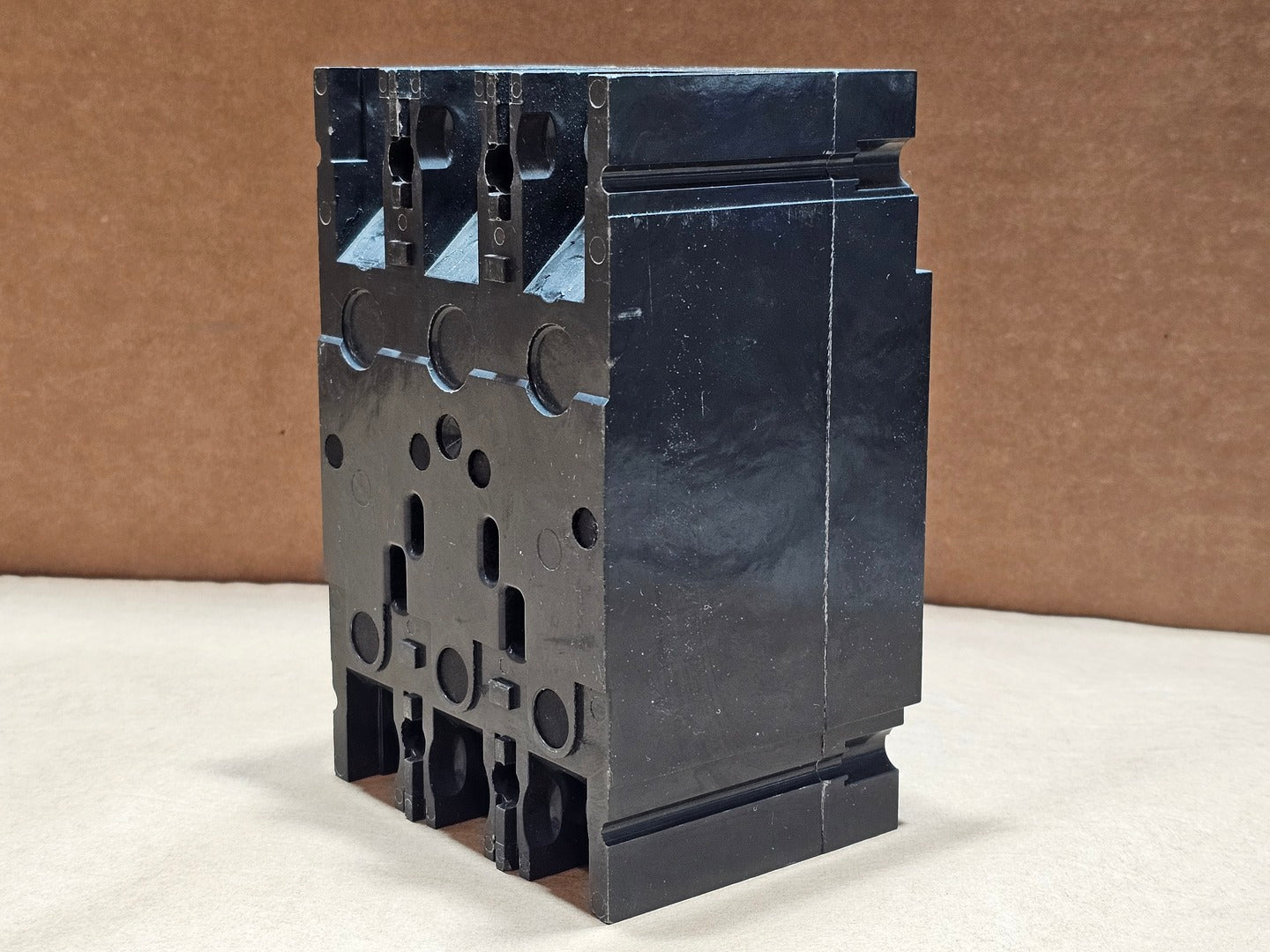

The GE TEB132040WL is an industrial-grade molded case circuit breaker from the GE E150 series designed for protection of industrial power distribution systems, motor control centers, switchboards, and panelboards. It features a 40 Amp fixed thermal-magnetic trip, 3-pole configuration, and is suitable for 240 VAC or 250 VDC applications. The WL suffix indicates factory-installed copper/aluminum line and load lugs.
| Specifications | |
|---|---|
| Model | TEB132040WL |
| Condition | Used | General |
| Amps | 40 amps |
| Series | E150 (TEB Series) |
| # of Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240 volts |
| Phase | 3-phase |
| AFCI | No |
| GFCI | No |
| Other Specifications |
|---|
|

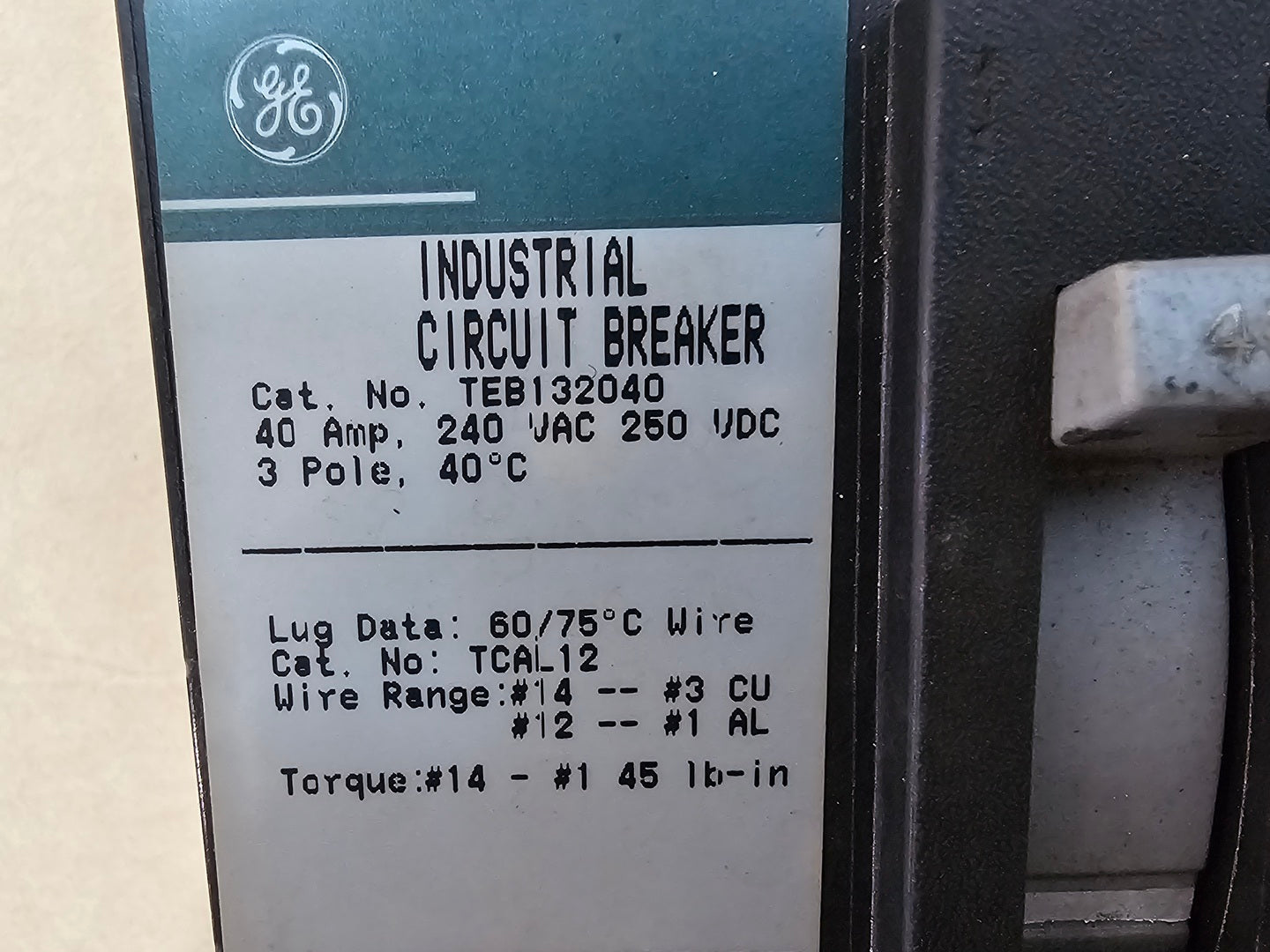

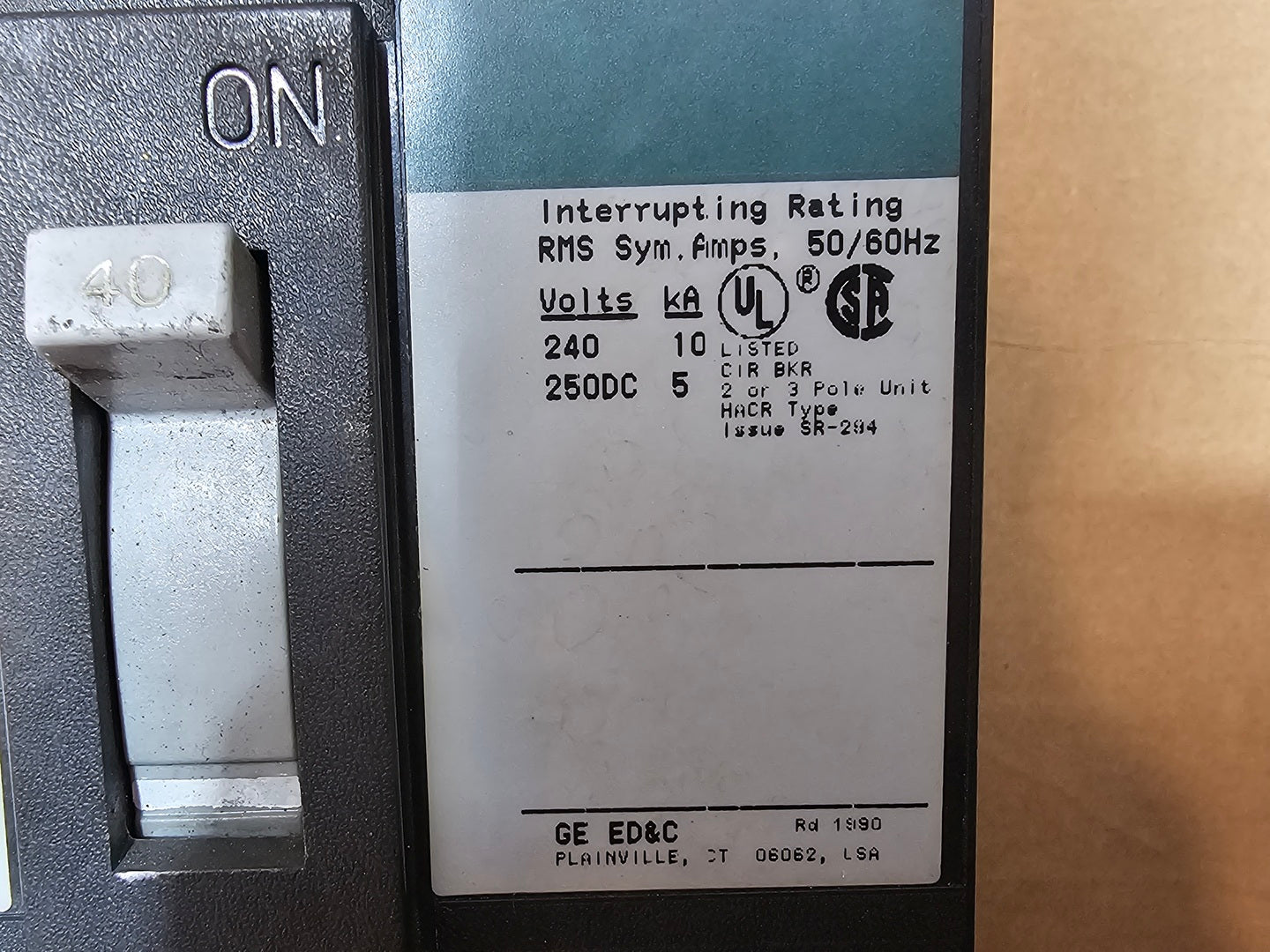

Series: E150 / Type TEB Product Type: Industrial Molded Case Circuit Breaker Condition: Used Surplus Amperage: 40 A Poles: 3 Pole Voltage Rating: 240 VAC / 250 VDC Frequency: 50/60 Hz Interrupting Rating: 10 kA @ 240 VAC, 5 kA @ 250 VDC Trip Type: Fixed Thermal Magnetic (LI) Frame: E150 Terminal Type: Copper/Aluminum Line & Load Lugs (WL) Wire Range (Copper): #14 - #3 AWG Wire Range (Aluminum): #12 - #1 AWG Torque Rating: 45 lb-in (#14 - #1 conductors) Operating Temperature: 40°C Rated Mounting Style: Feed-Through / Unit Mount Certifications: UL Listed, CSA Certified, HACR Rated |
