Titanium Cross-Flow Filter - Automated Beverage Filtration System

It was originally custom-built by AMS Filtration for a water finishing application, but it was never put into full production. The unit is in excellent condition and presents a solid opportunity for buyers in wine, beer, juice, cider, or specialty water applications.

This system is built for precision beverage filtration - particularly effective with liquids that contain pulp or suspended solids. It uses a non-clogging cross-flow design that keeps product flowing across the membrane rather than into it, reducing fouling and downtime.

The design is ideal for wineries and breweries looking for efficient polishing without sacrificing throughput or product quality.

Key Features & Technical Details:

• Construction: Heavy-duty titanium and stainless steel, food-grade and corrosion-resistant Filtration

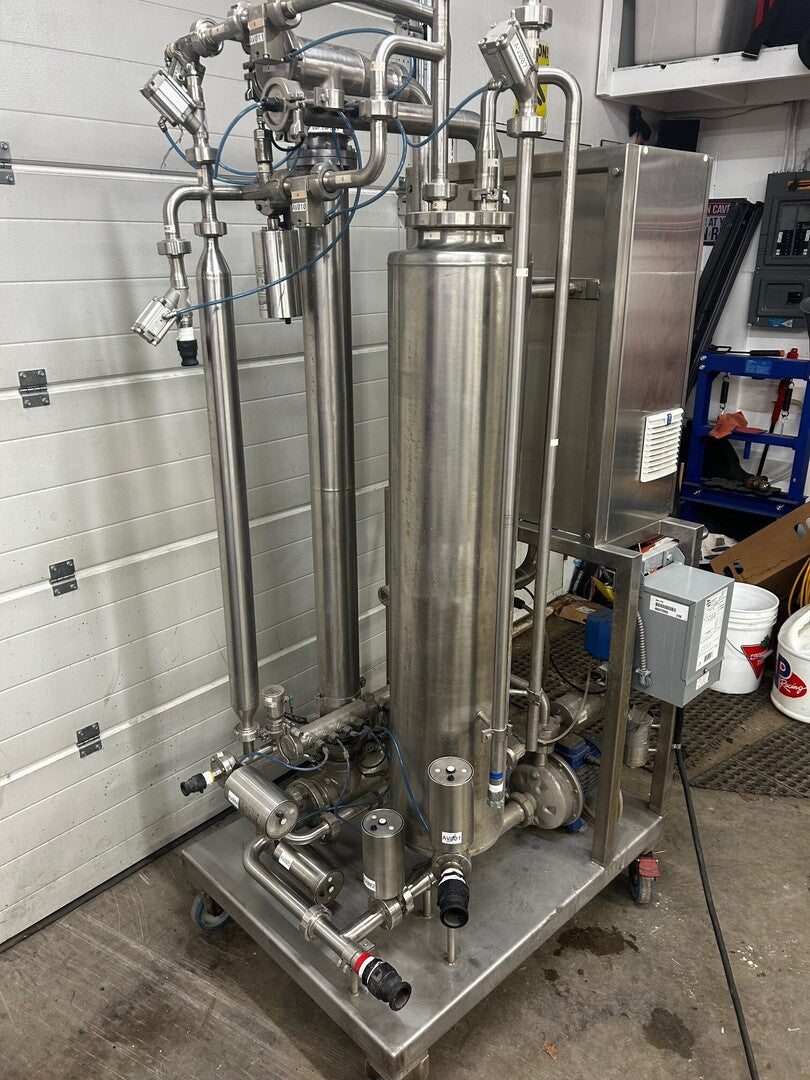

• Type: Cross-flow membrane system with integrated product inlet, filtrate drain, and backflush system

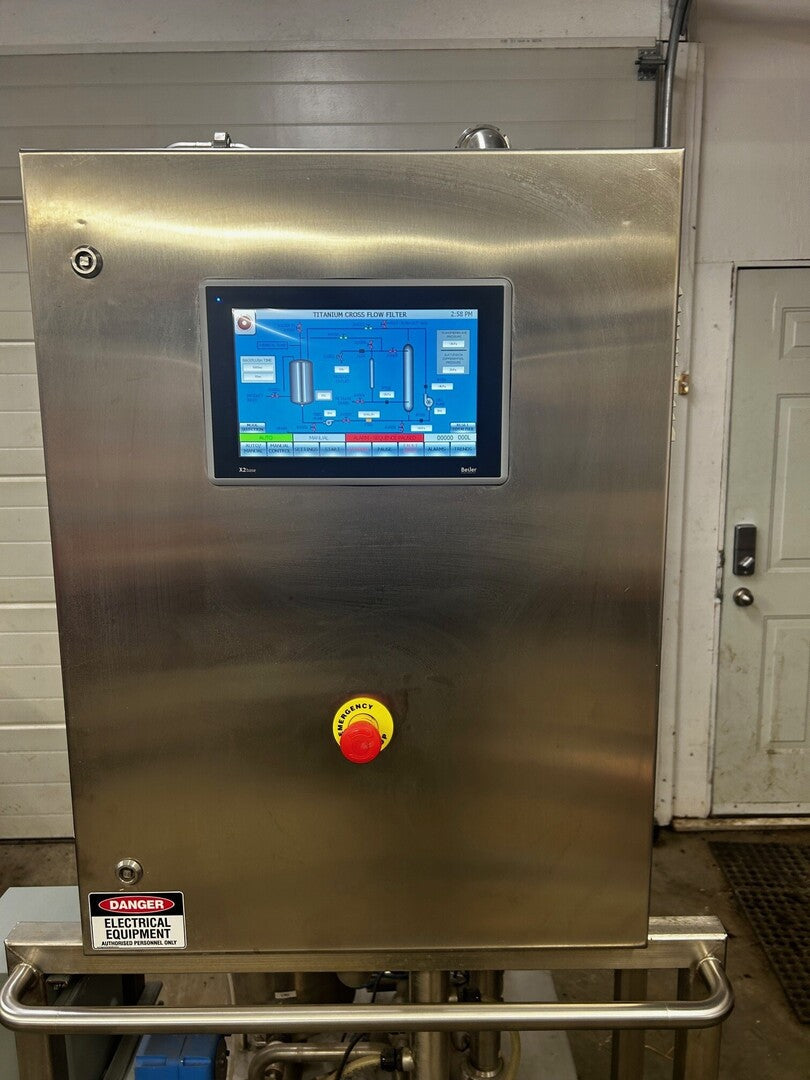

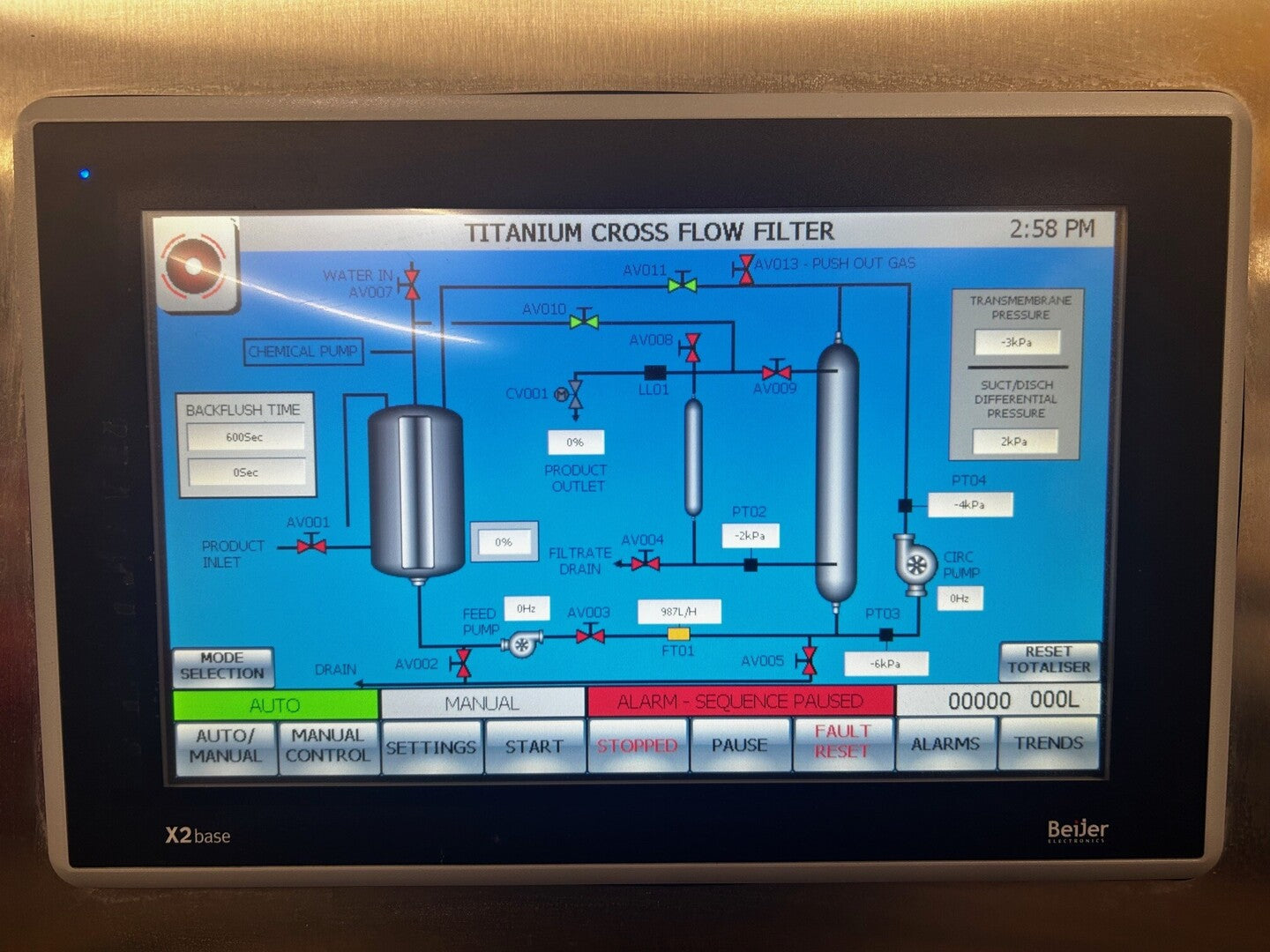

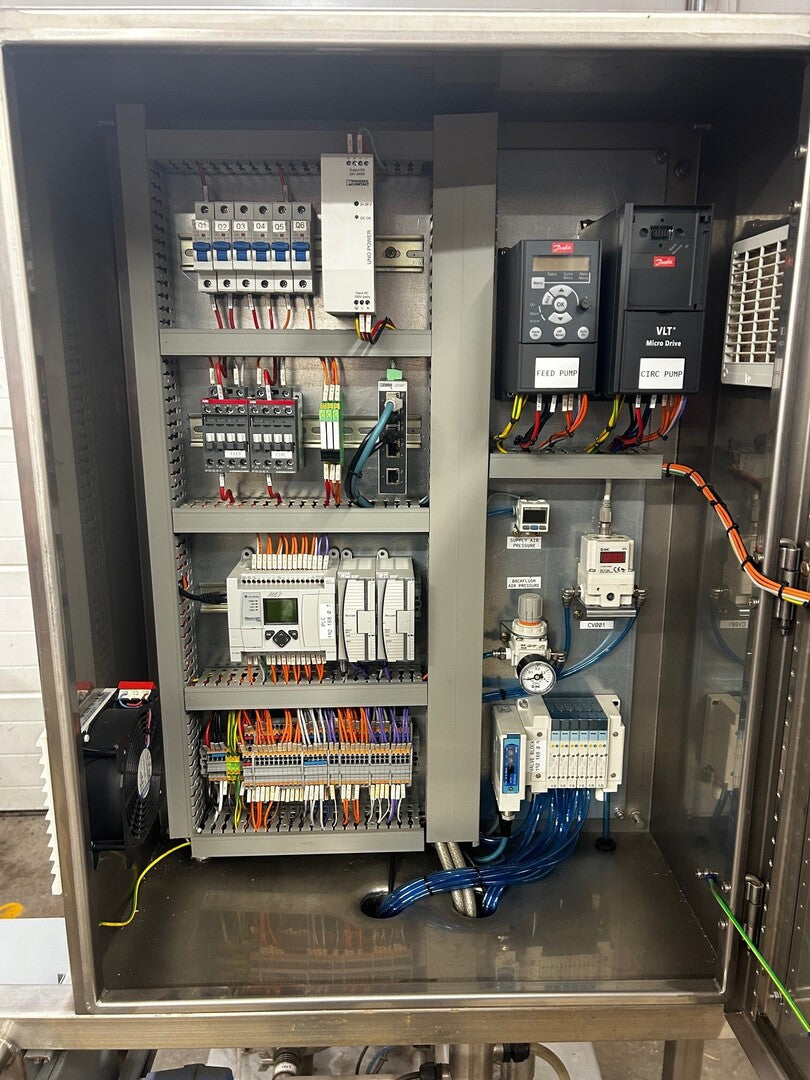

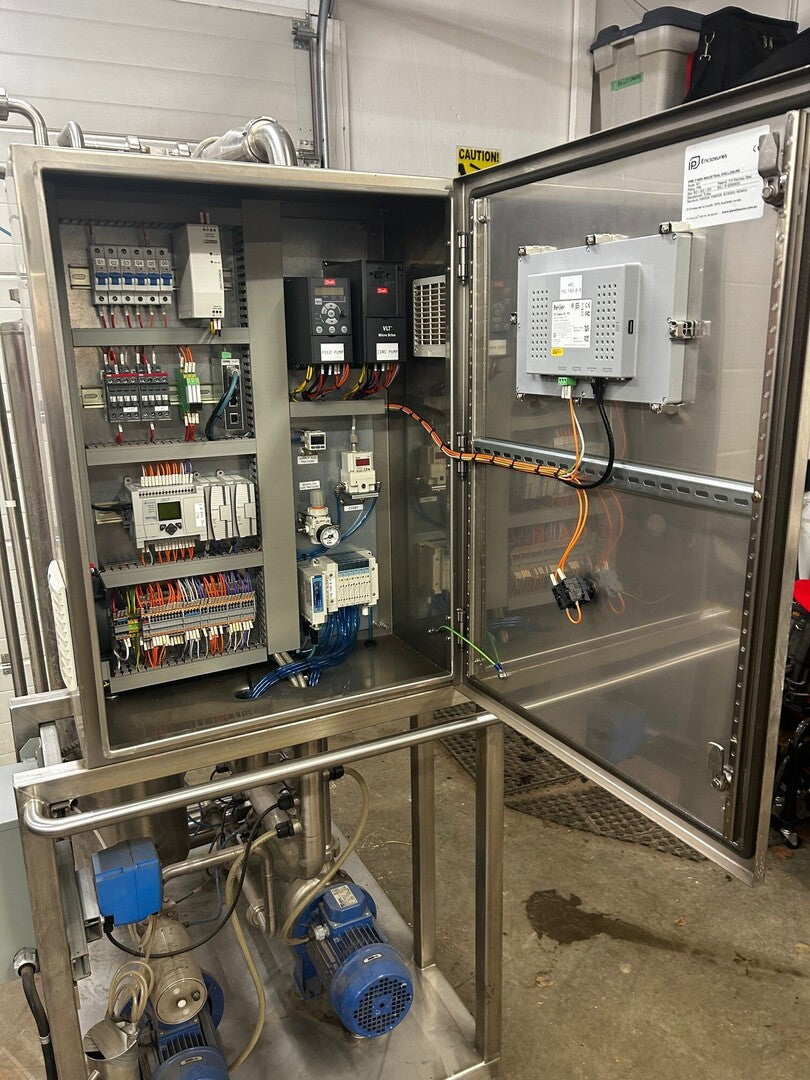

• Automated Controls: Beijer X2 touchscreen HMI with real-time system display Siemens LOGO! PLC with expansion modules Pre-programmed cycles for start-up, filtration, backflush, and fault handling Emergency stop and manual override available

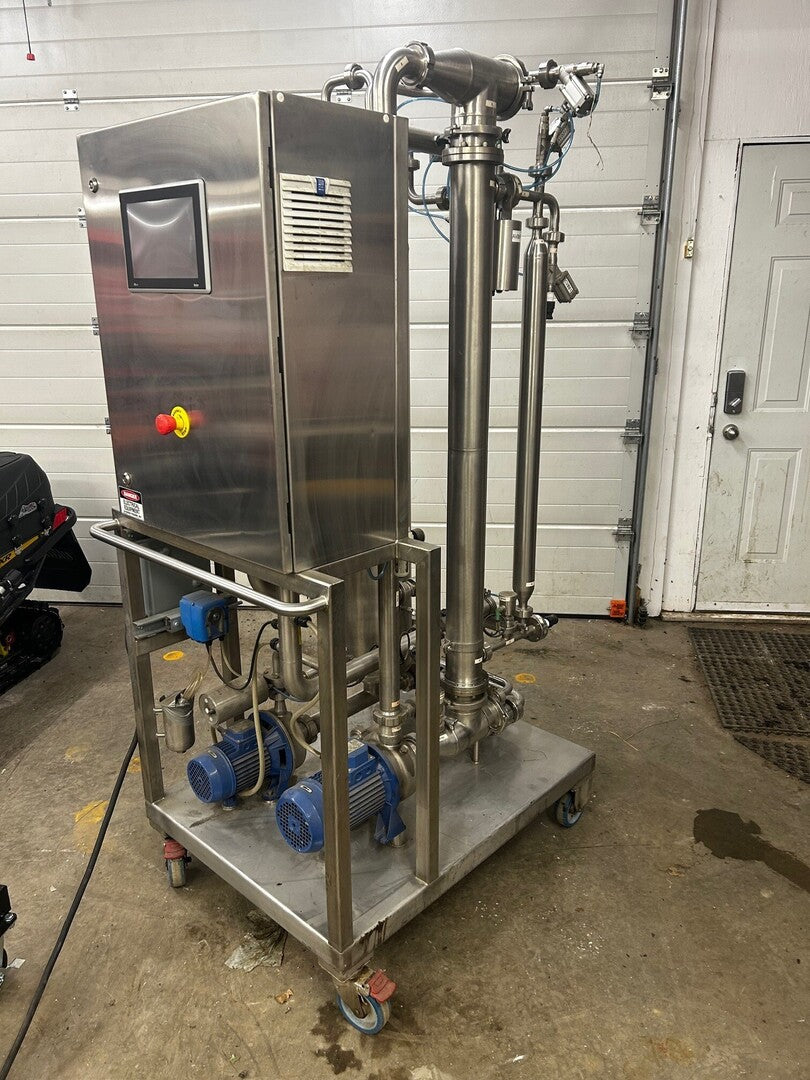

• Pumps & Drives: Grundfos sanitary centrifugal pumps Feed and circulation pumps each controlled via Danfoss VLT micro drives (VFD-controlled)
• Estimated flow capacity: 36 - 72 L/min (0.6 - 1.2 L/s) under normal operation, with potential peak up to 100 L/min, depending on application
• Instrumentation: Integrated pressure transducers for transmembrane pressure and suction/discharge differential Digital flow meter and totalizer display Air/gas purge capability

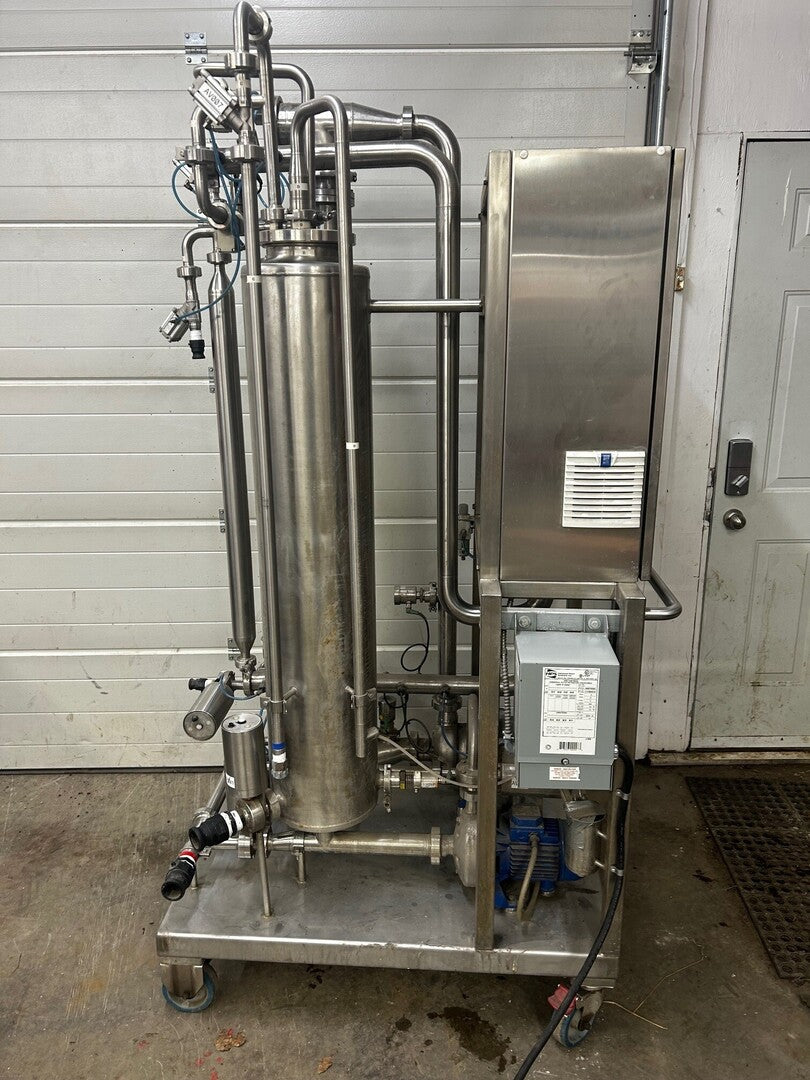

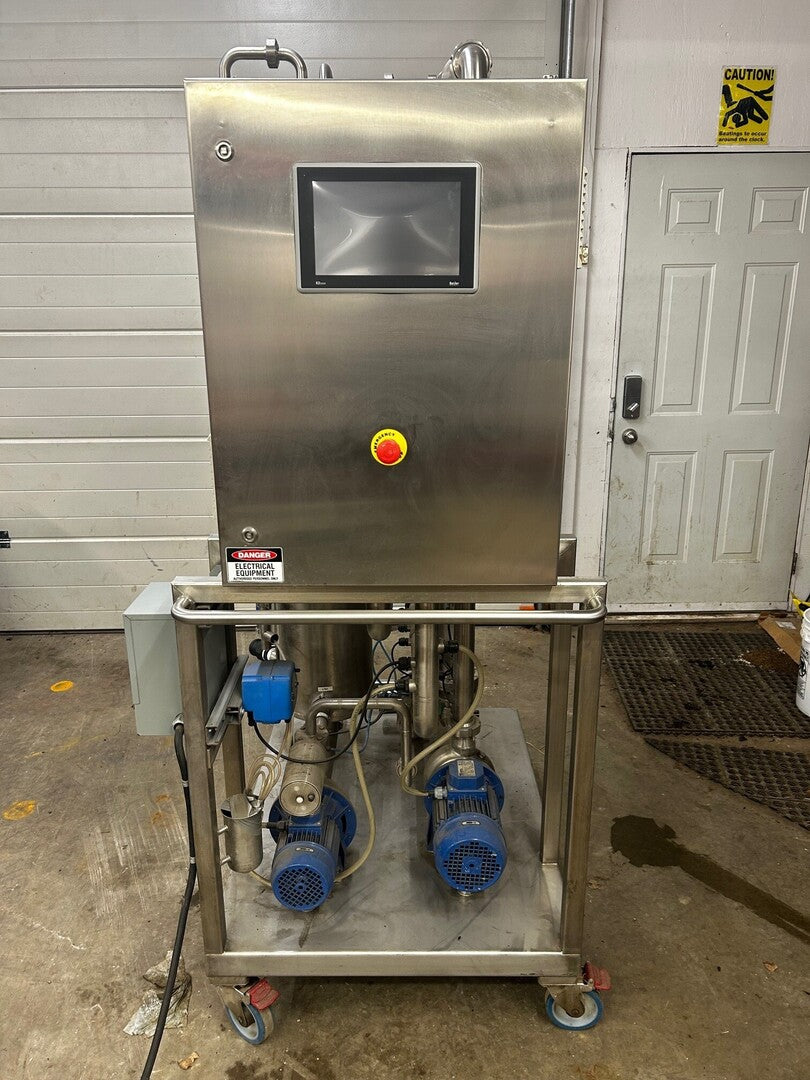

• Mobility: Skid-mounted on stainless frame with locking casters for ease of relocation
• Power: Runs on standard 120 V single - phase power
• Condition: Lightly used for water cycling/testing only - never commissioned for production
• Location: Saskatchewan - ready to ship
