Description

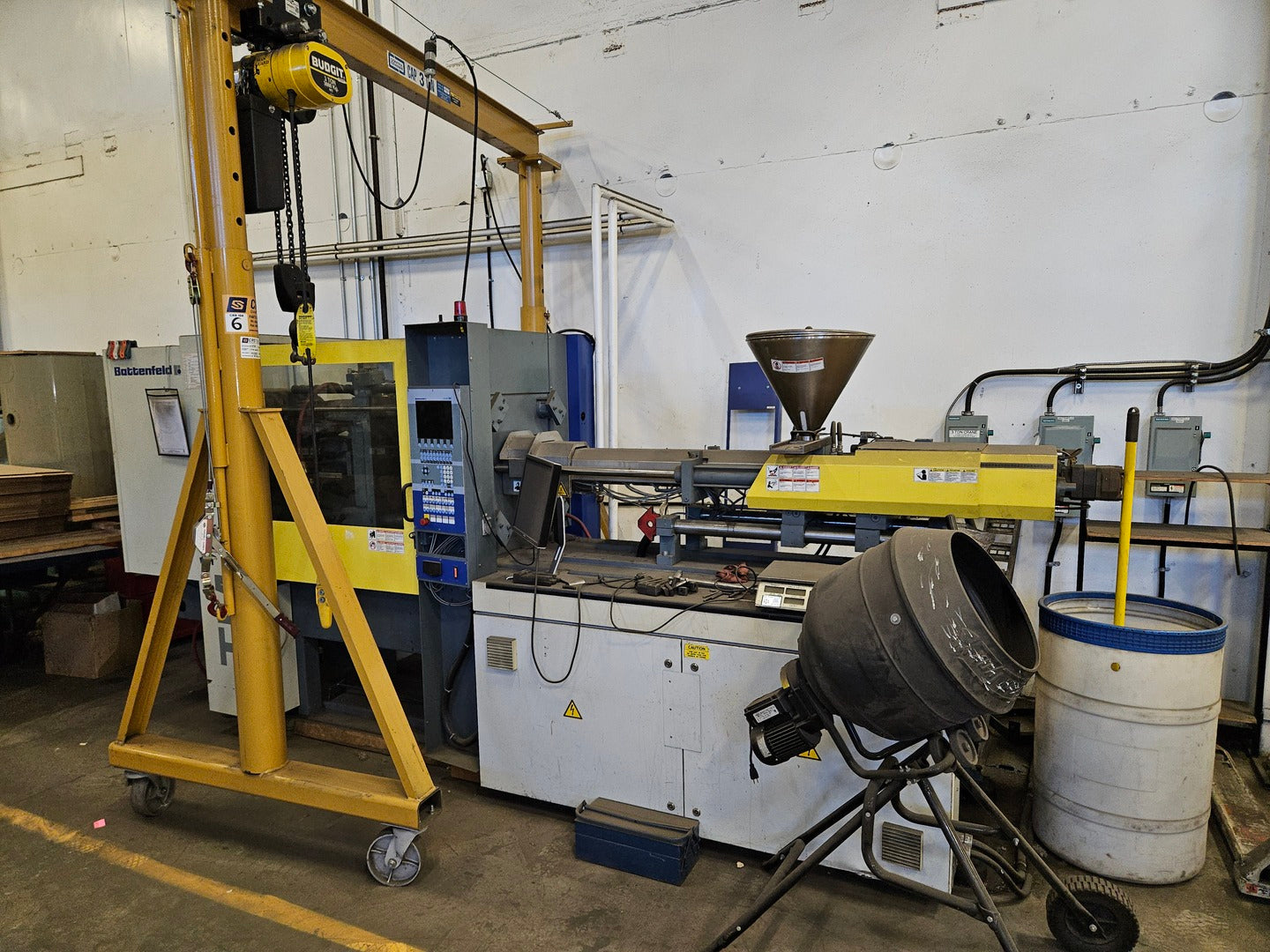

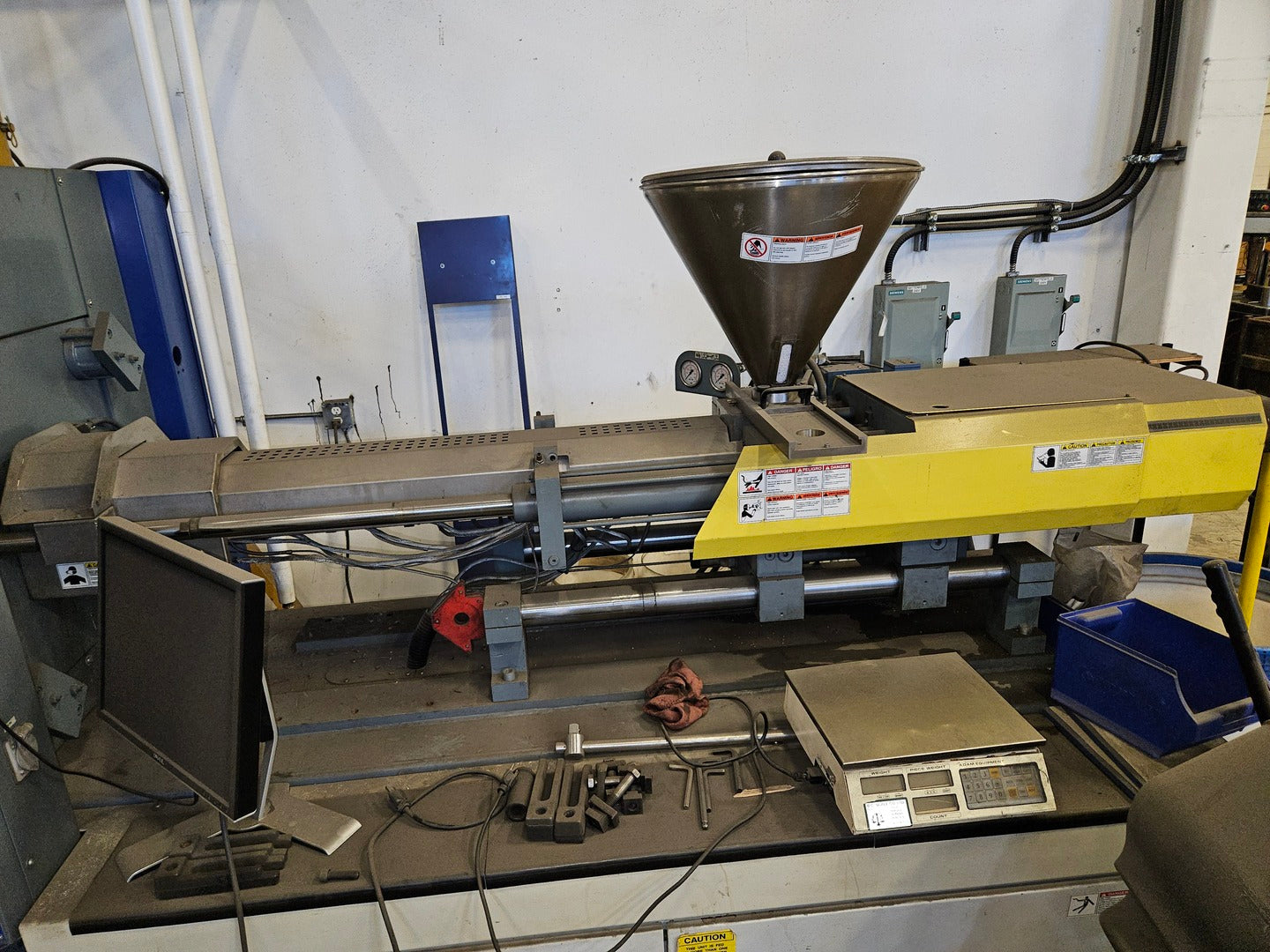

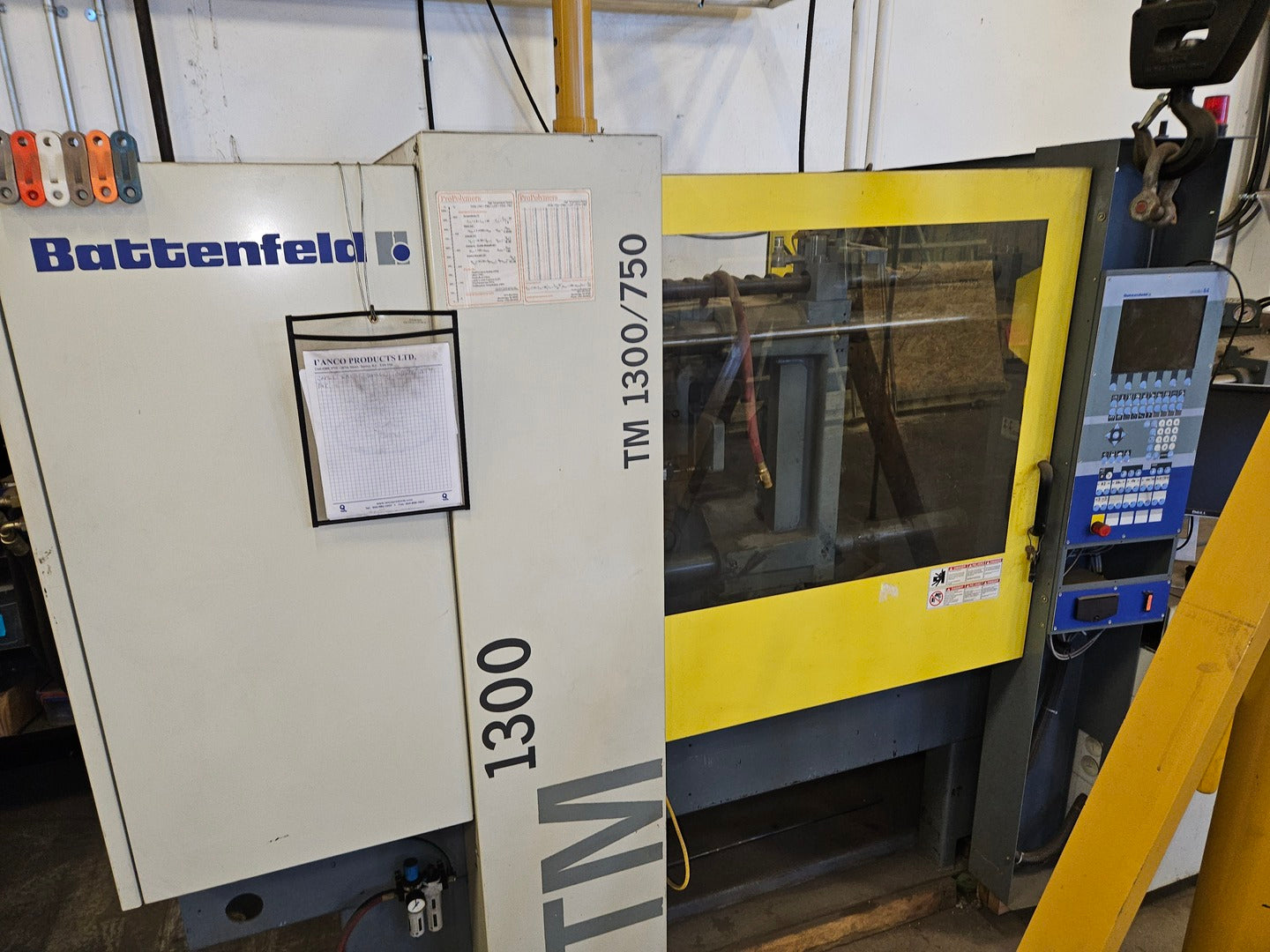

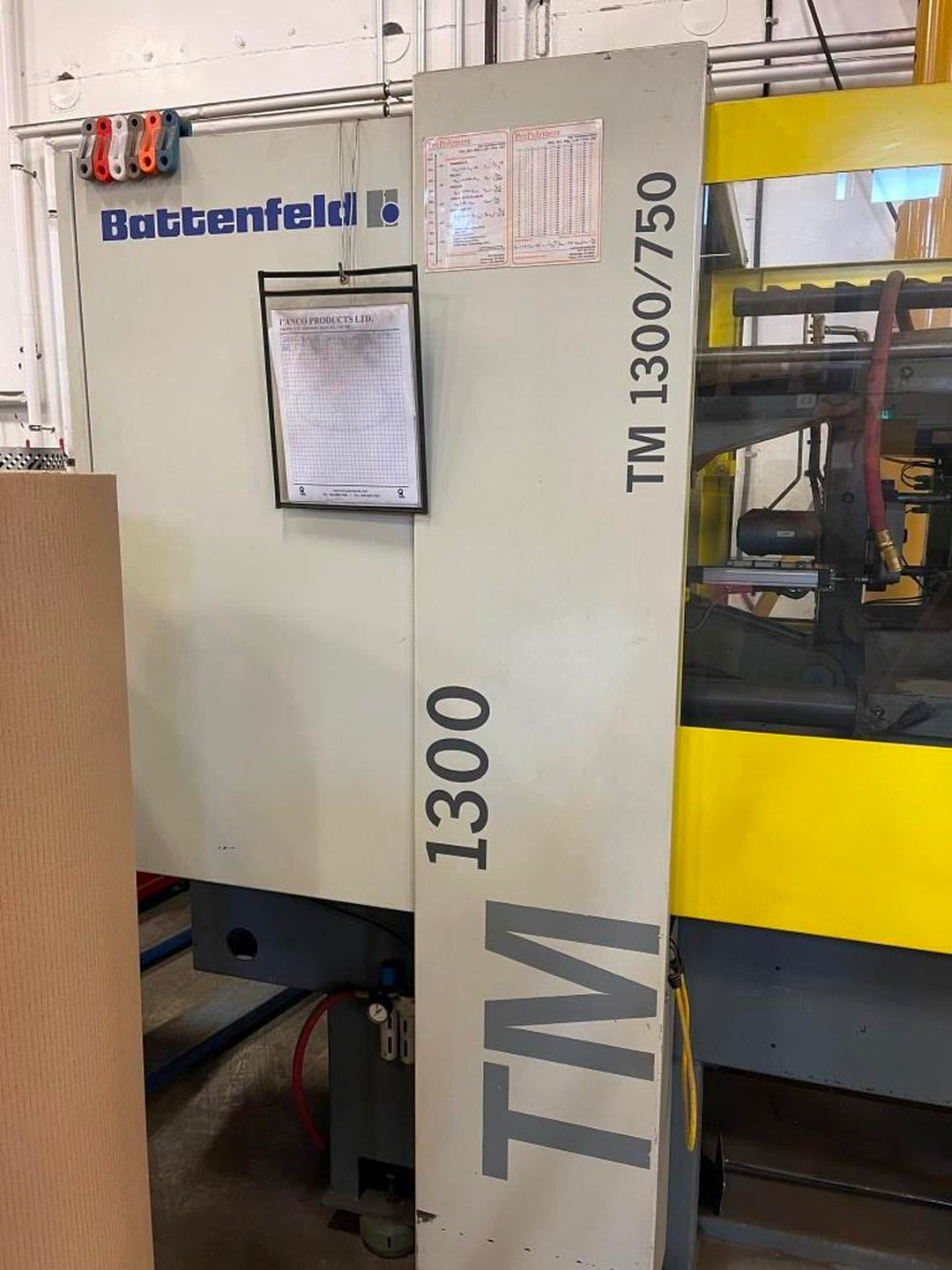

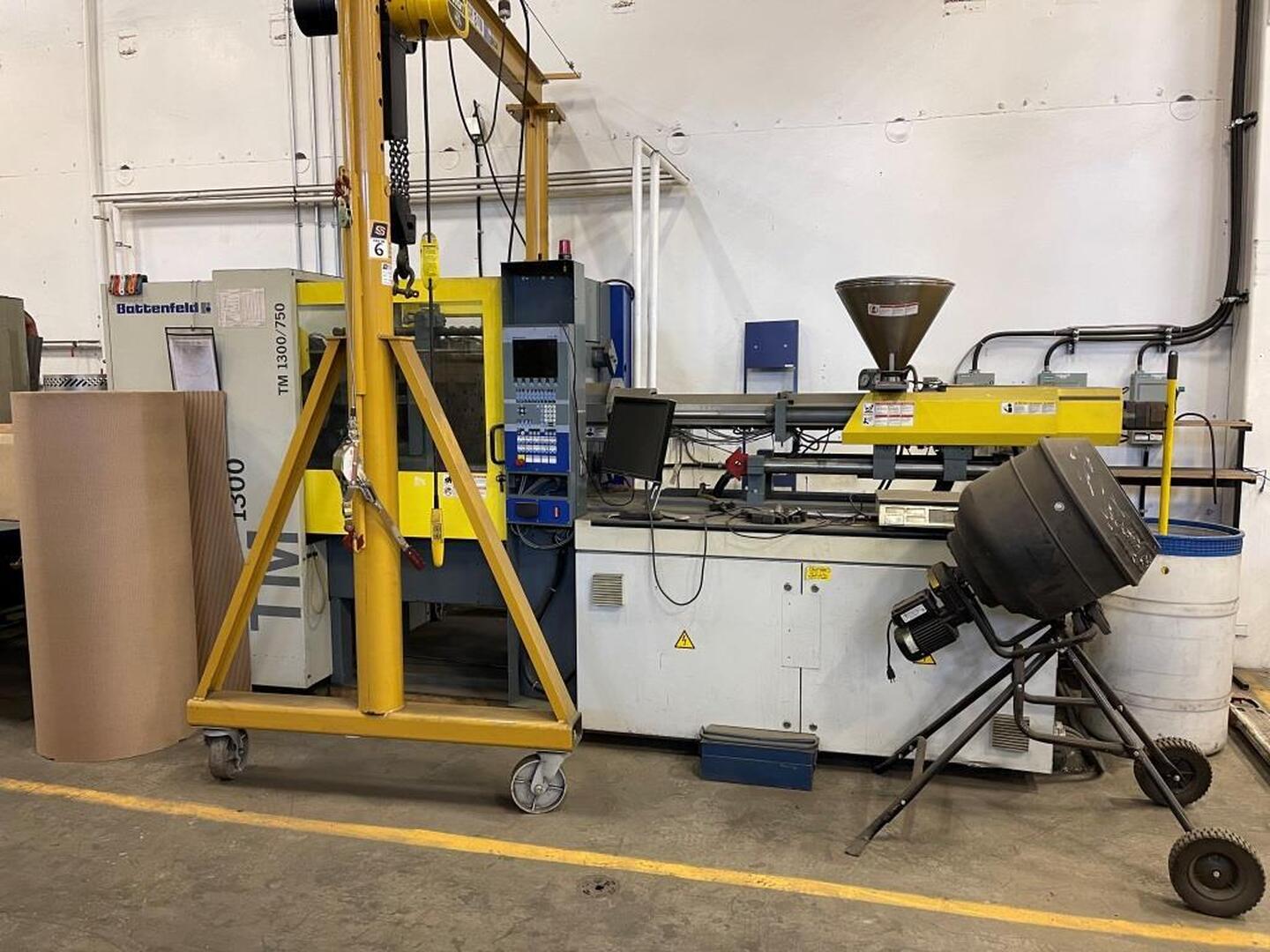

The BATTENFELD TM 1300/750 Injection Moulding Machine has a ball screw diameter of 1.77 inches and tie bar spacing of 18.1 inches horizontally and 2.75 inches vertically. With a shot volume of 442 cm3 and shot weight of 201 g, it operates at a pressure of 1714 Bar. The machine has a platen length and width of 26.3 inches each and an opening of the press measuring 16.9 inches. It is equipped with Unilog B4 control system and runs on 230 volts three-phase power, offering a molding capacity of 130 tons.
| Specifications | |
|---|---|

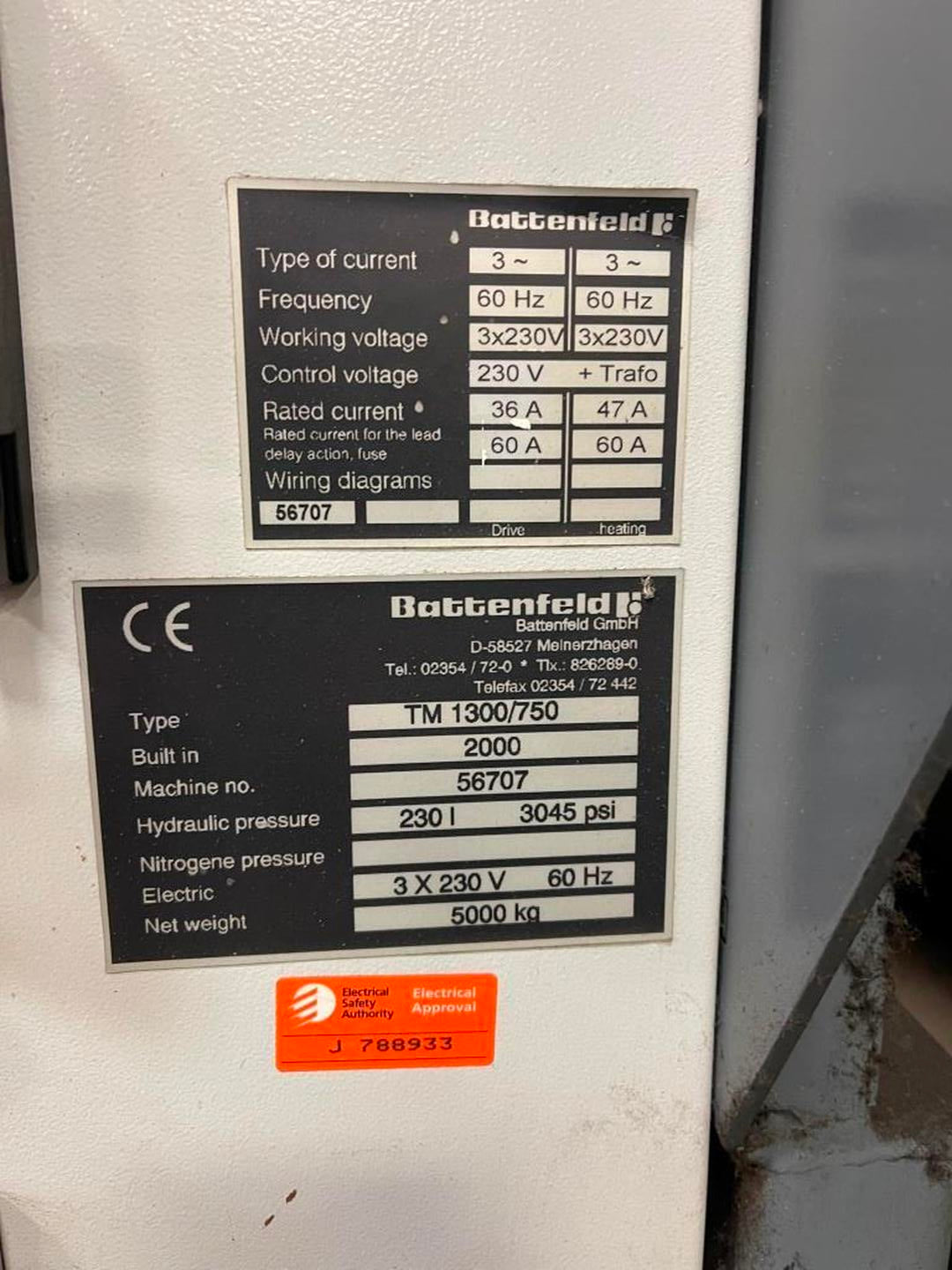

| Model | TM 1300/750 |
| Year: | 2000 |
| S/N: | 56707 |
| Condition | Used | Electrical |
| Voltage | 230 volts |
| Phase | 3-phase | General |
| Tons | 130 ton |
| Other Specifications |
|---|
|

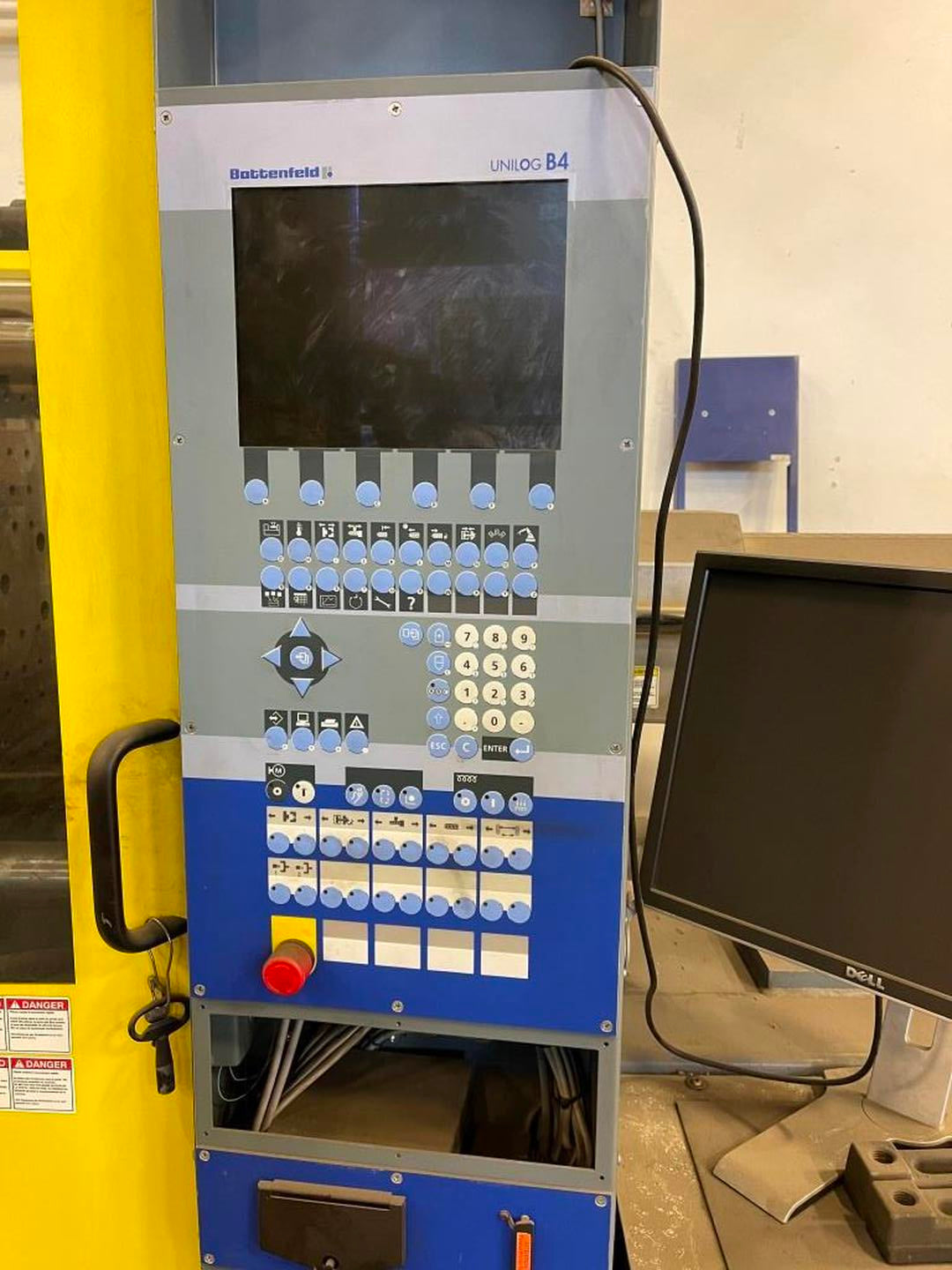

Ball screw diameter: 1.77" Tie bar spacing: 18.1" Tie Bar Spacing (Horizontal) Tie bar spacing (vertical): 2.75" Shot volume: 442 cm3 / 26.9"3 Shot weight: 201 g Pressure on material: 1714 Bar Platen length: 26.3" Platen width: 26.3" Opening of the press: 16.9" Control: Unilog B4 |
