Description

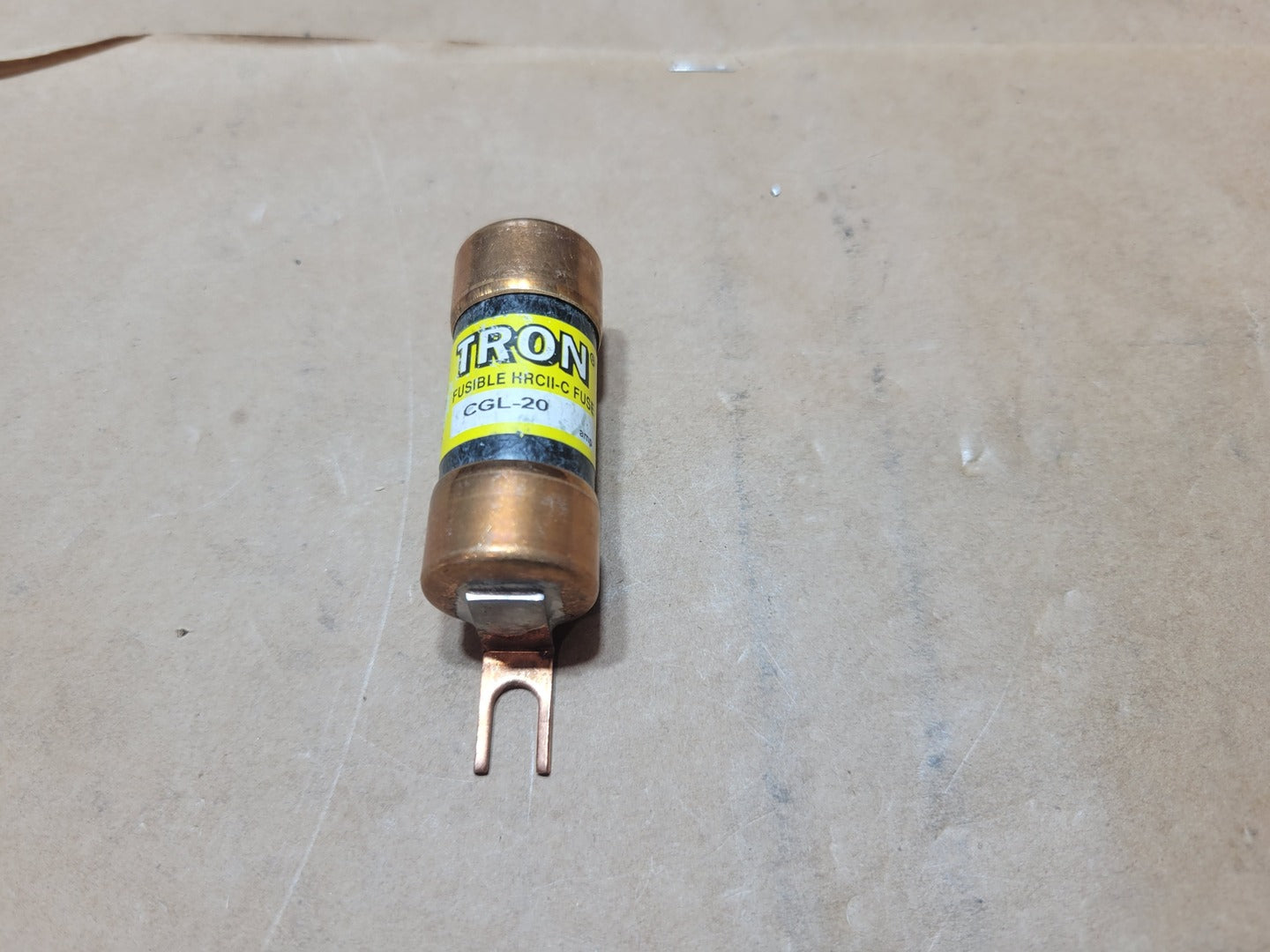

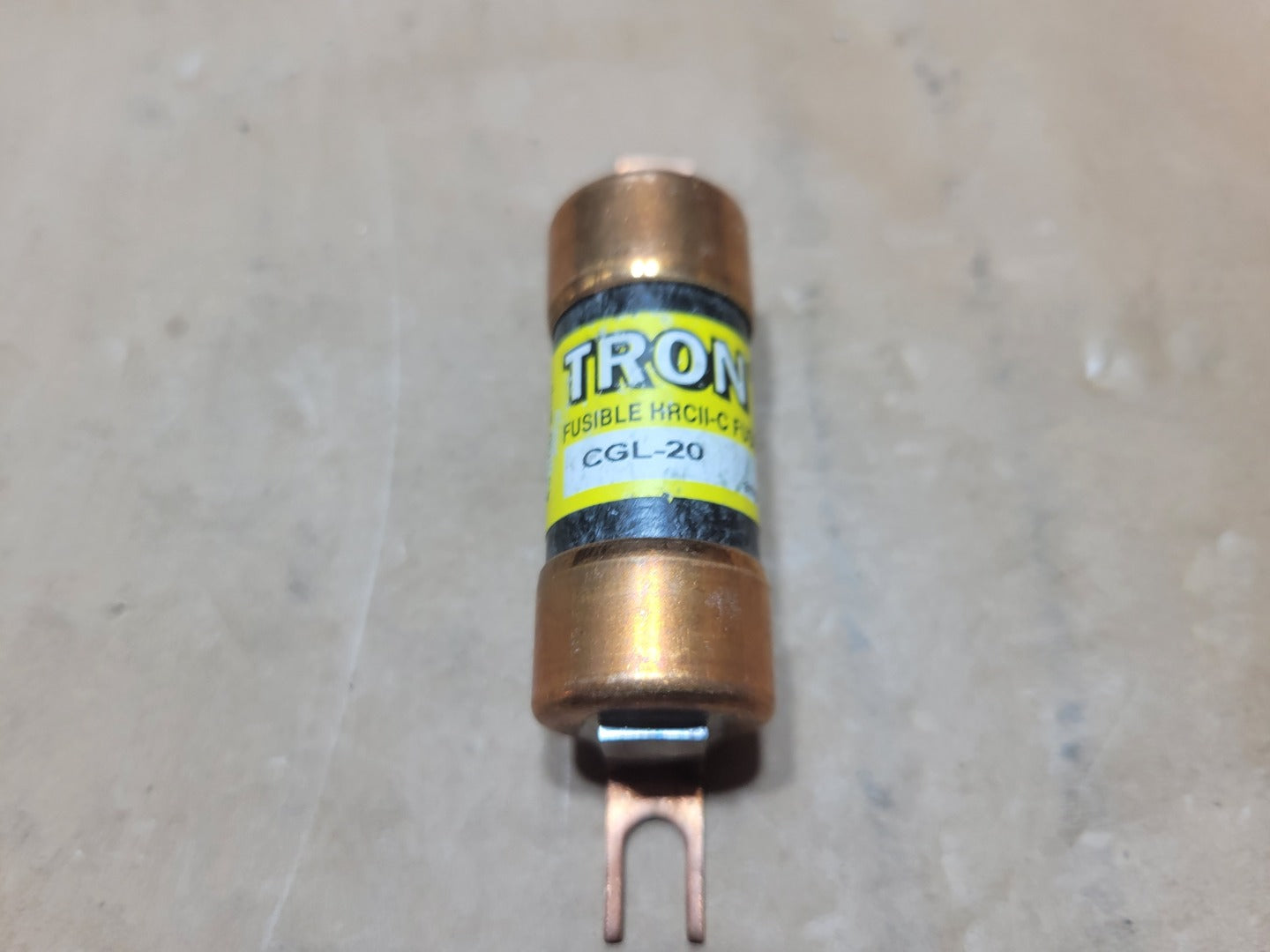

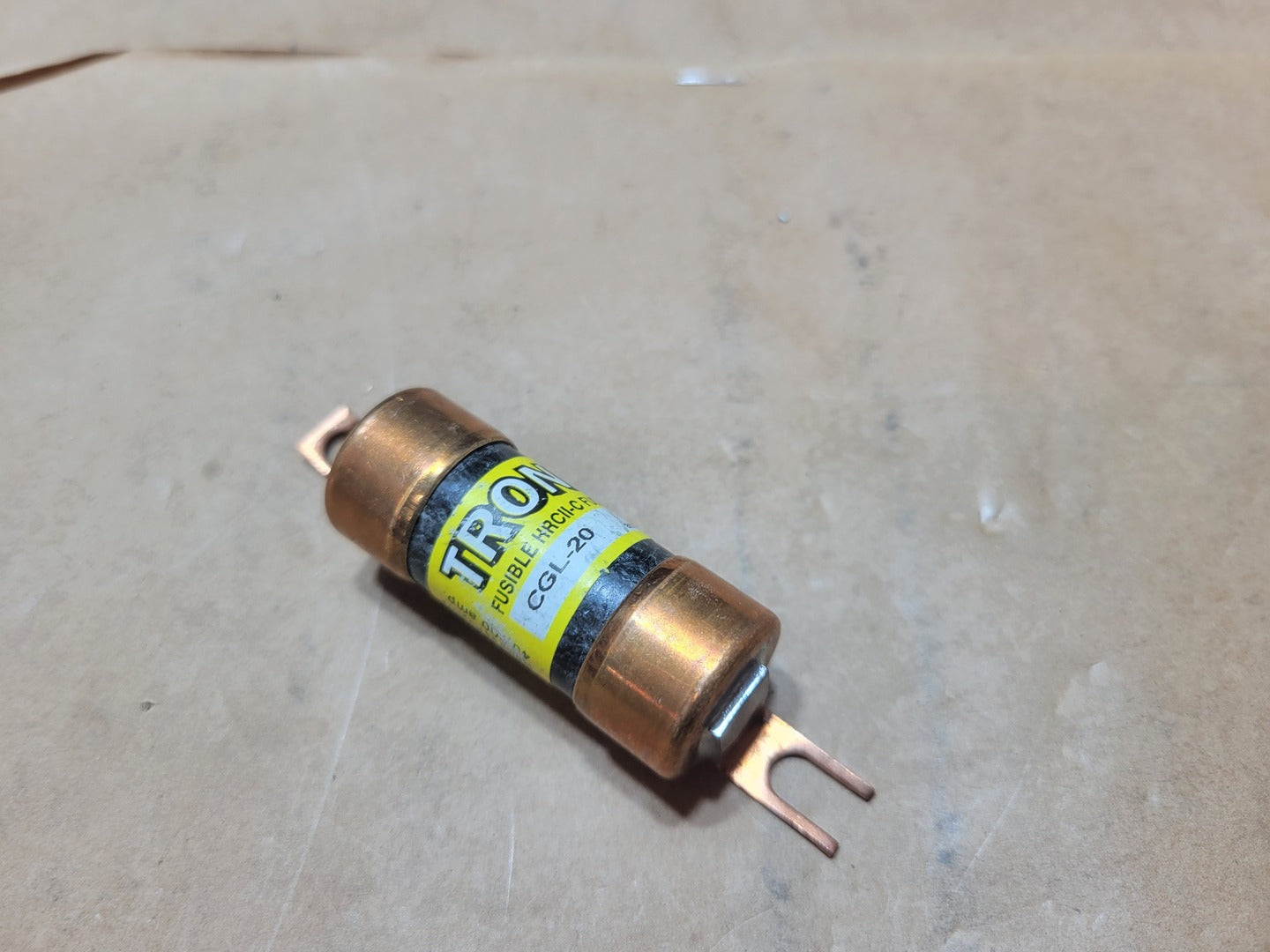

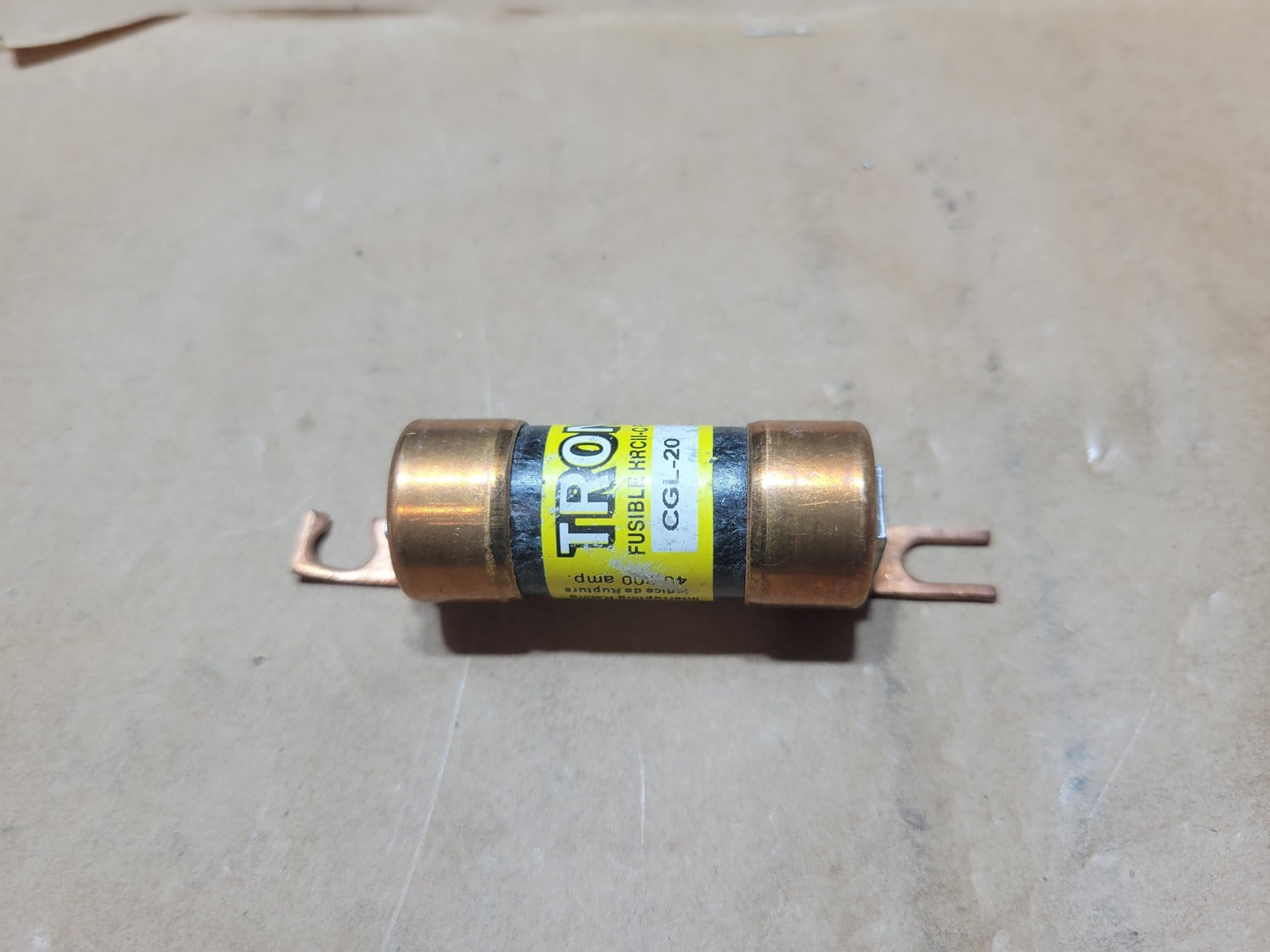

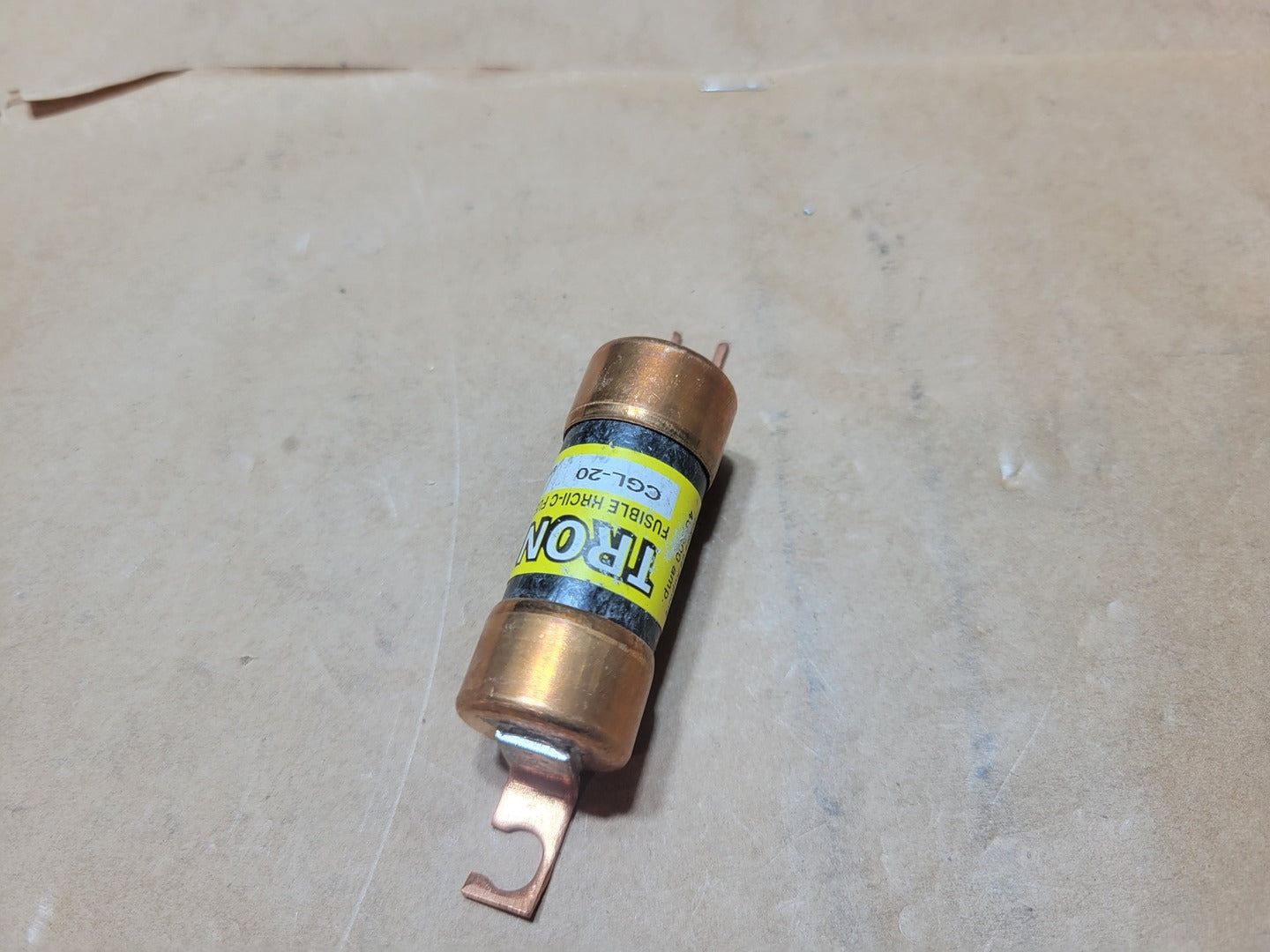

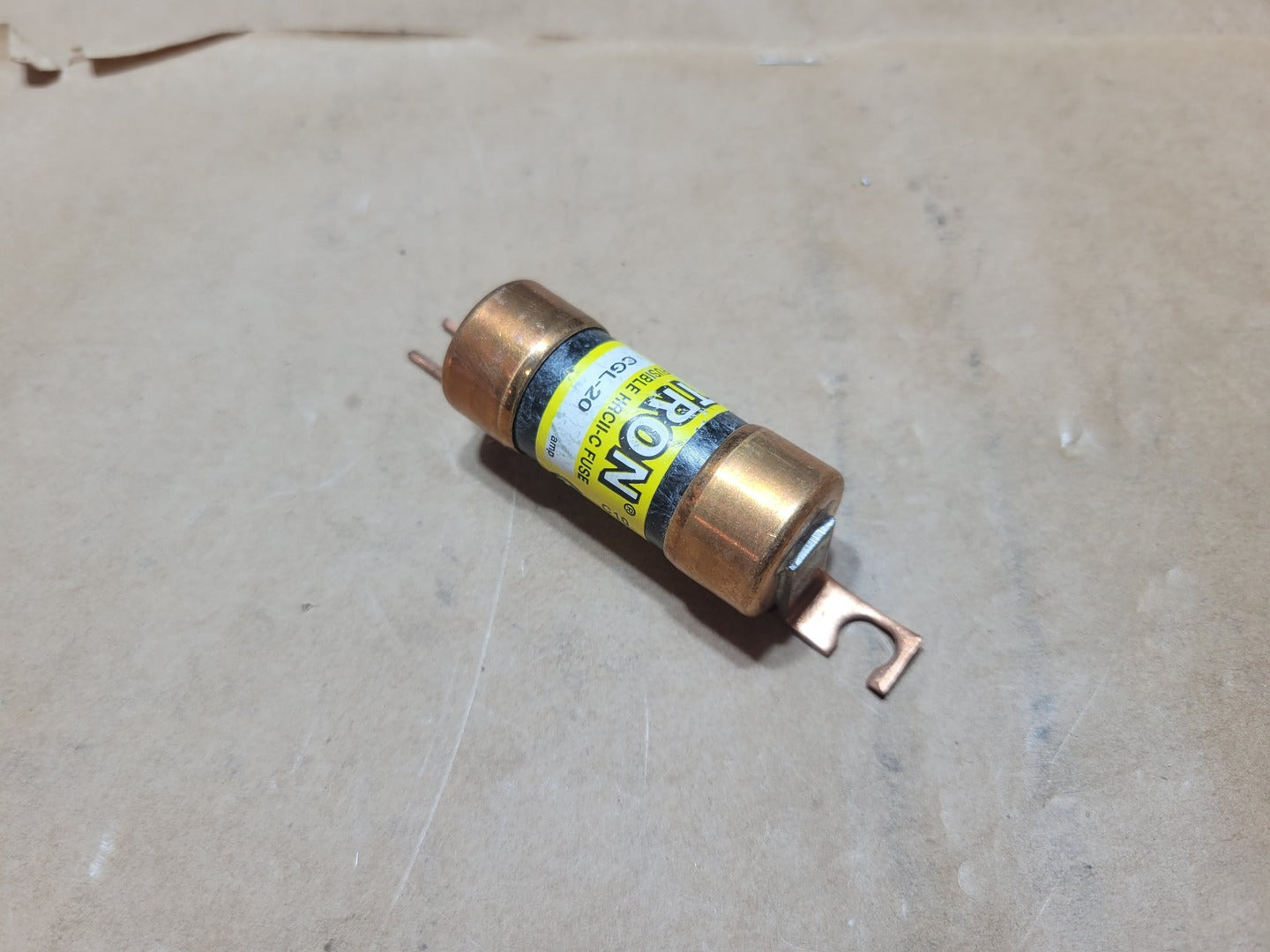

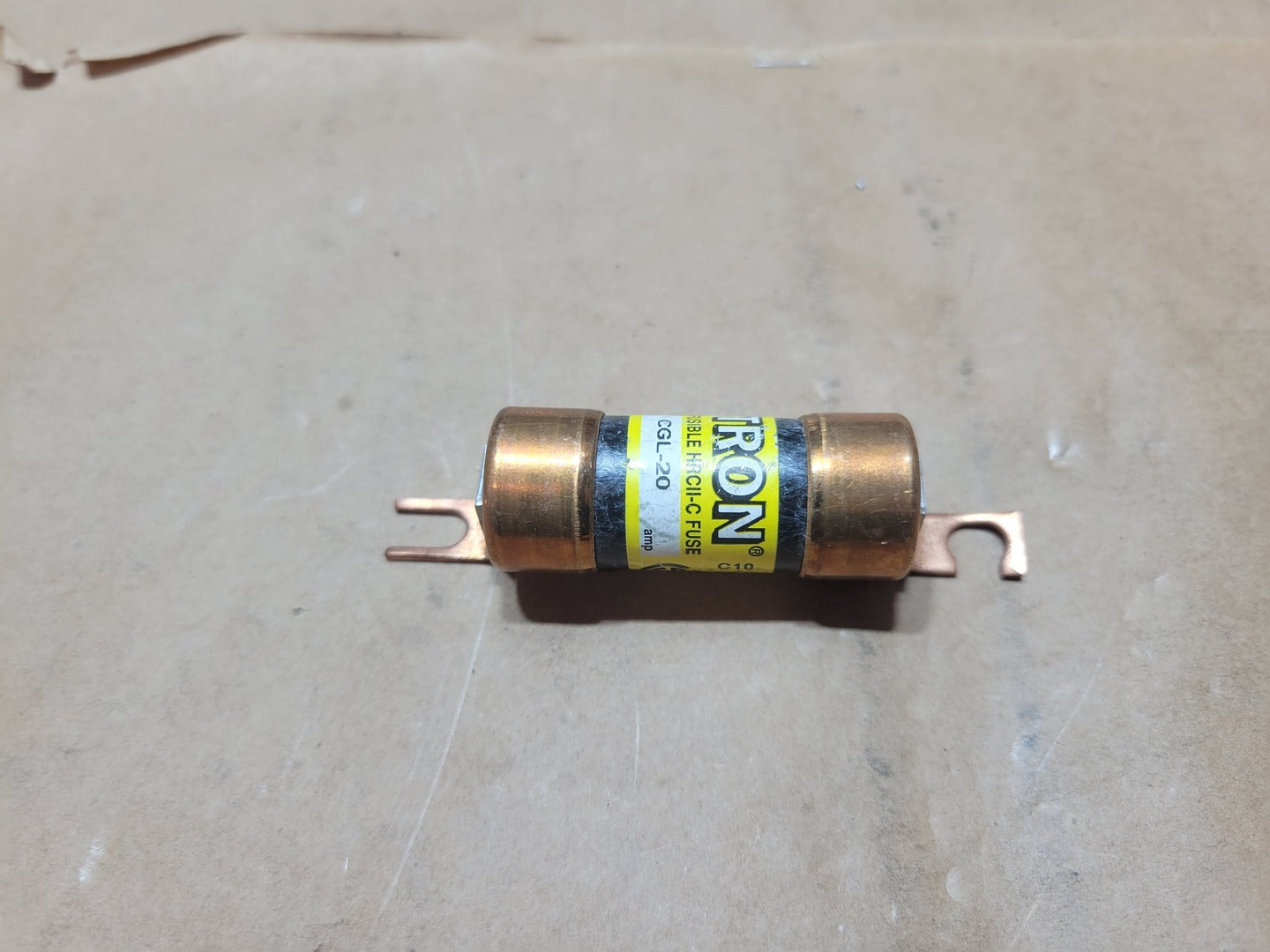

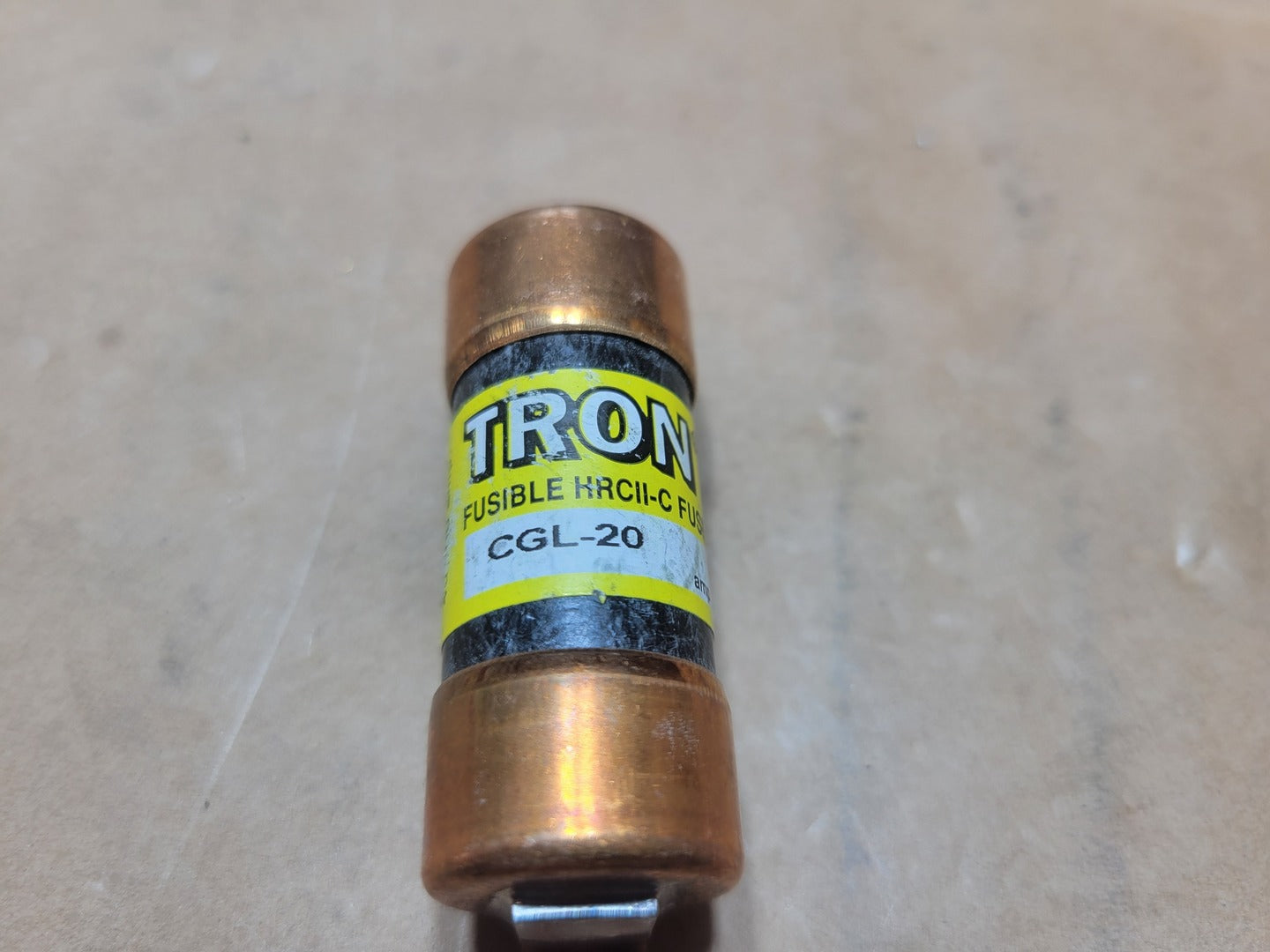

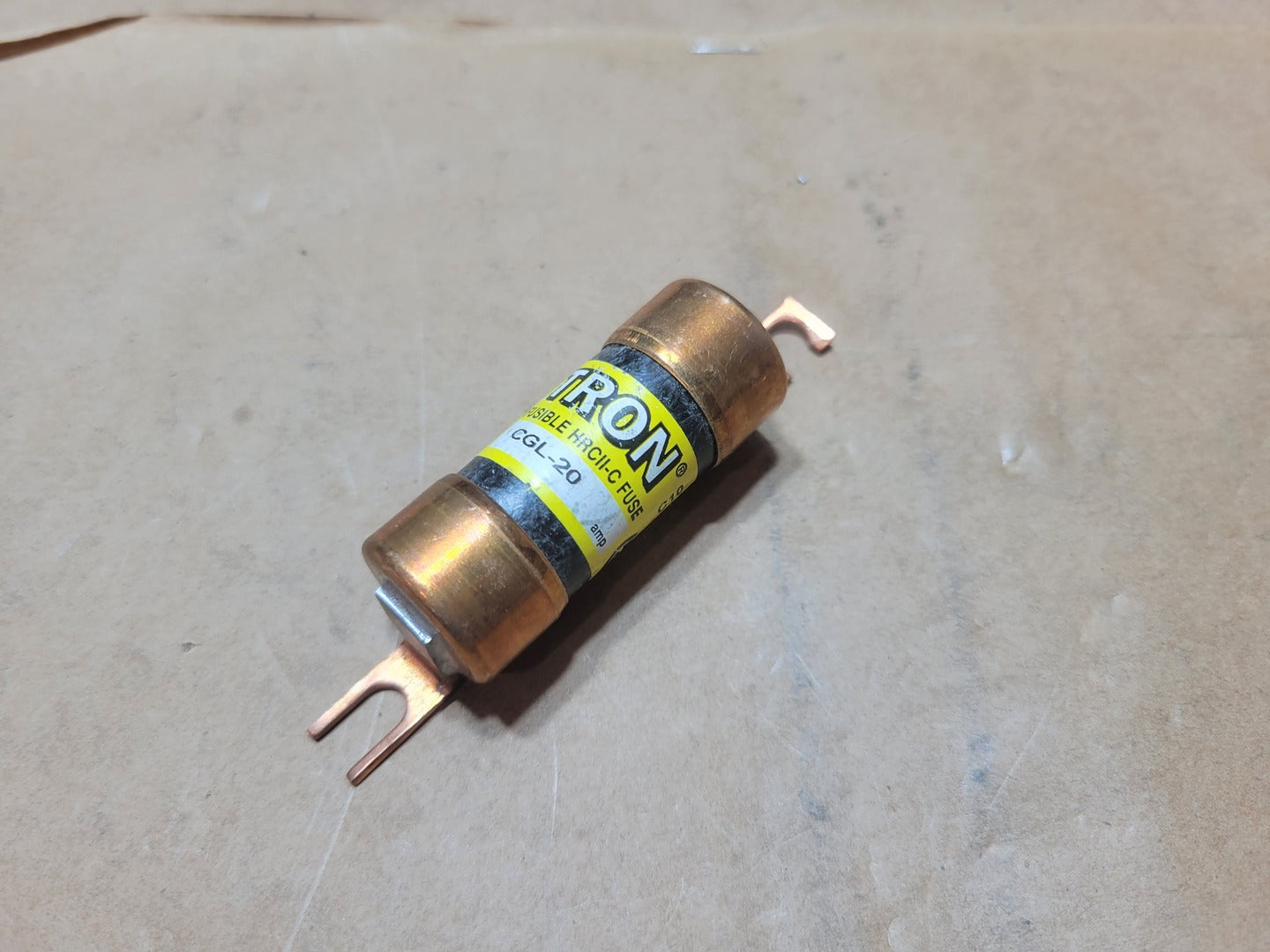

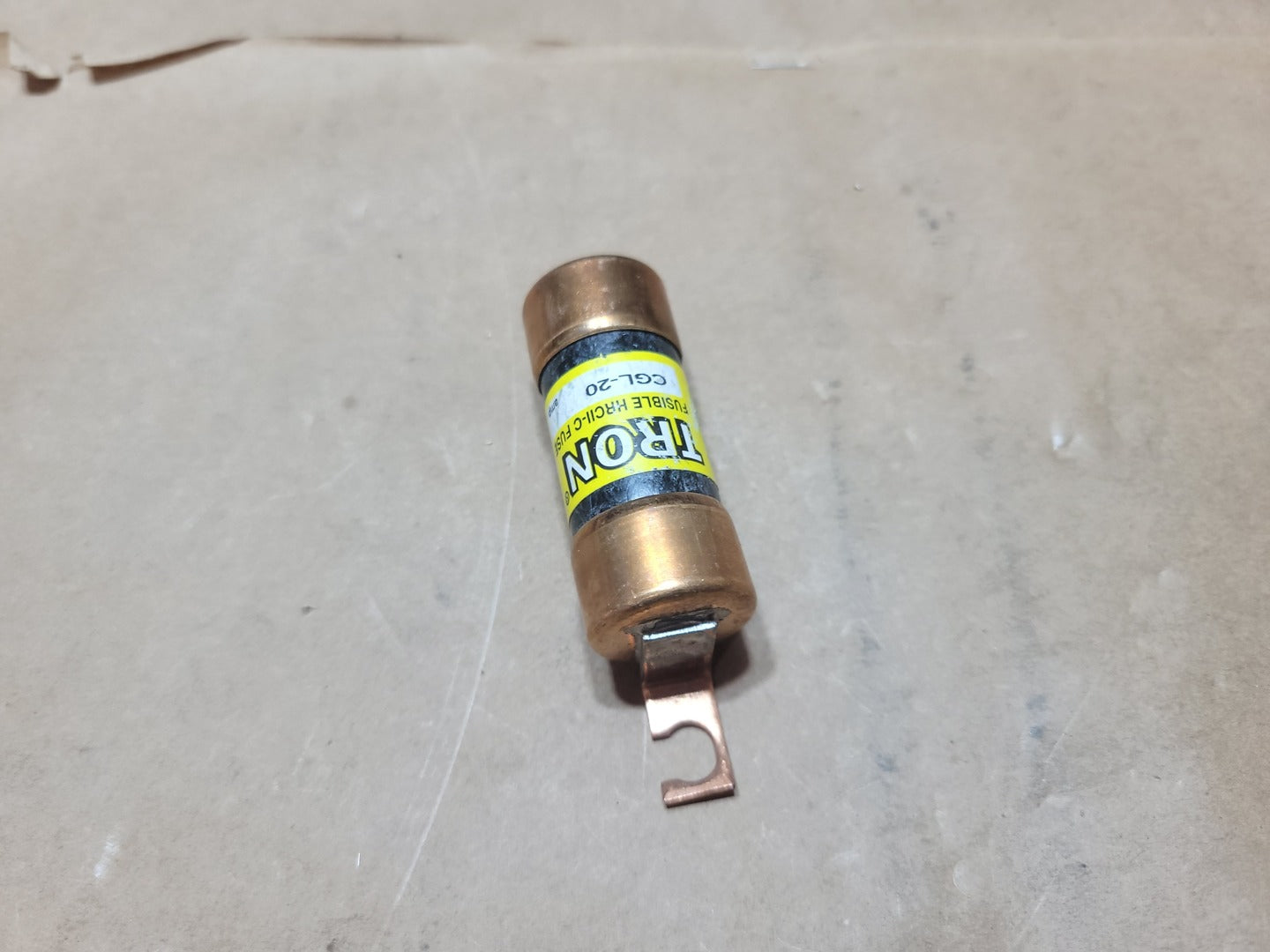

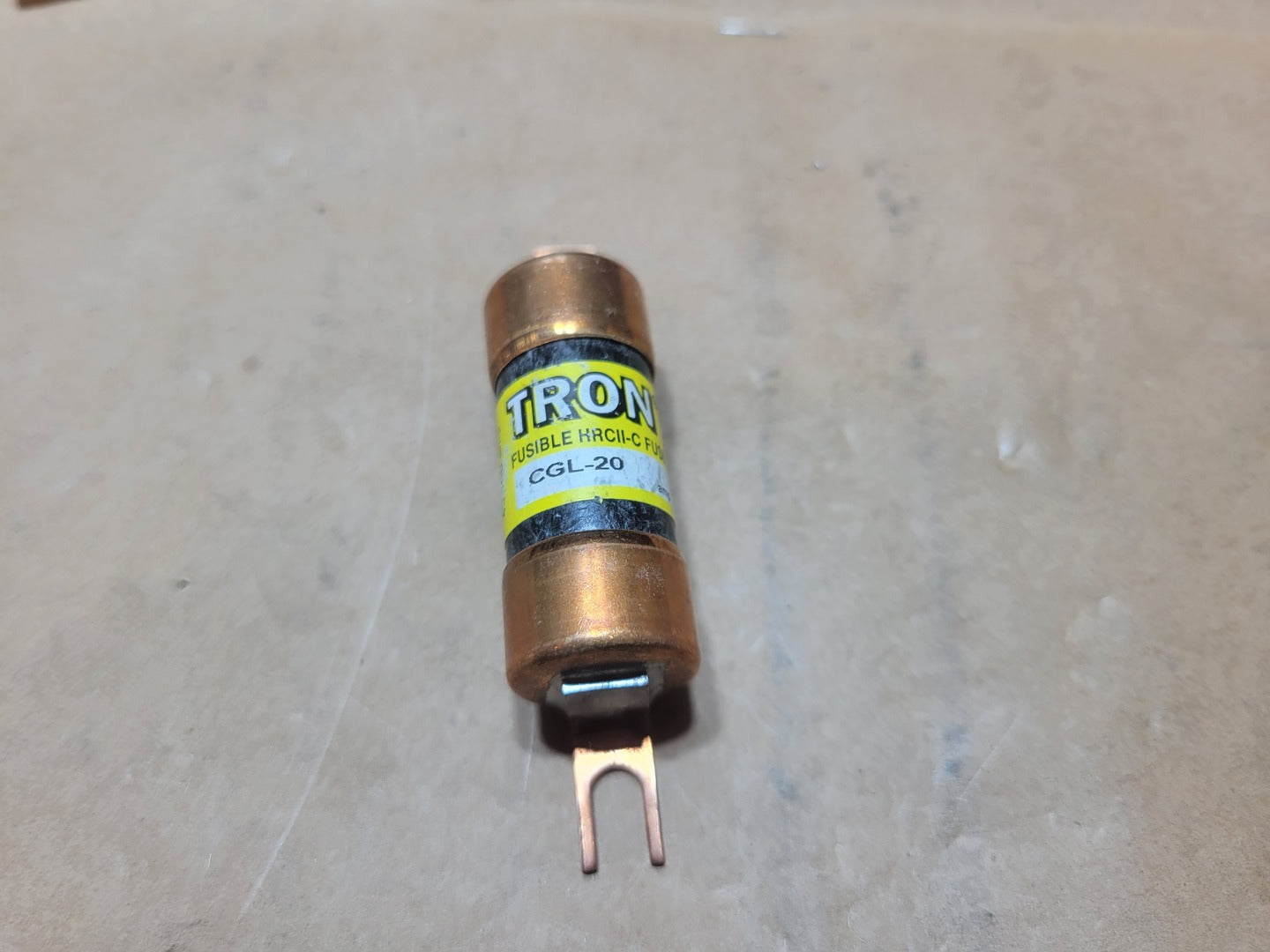

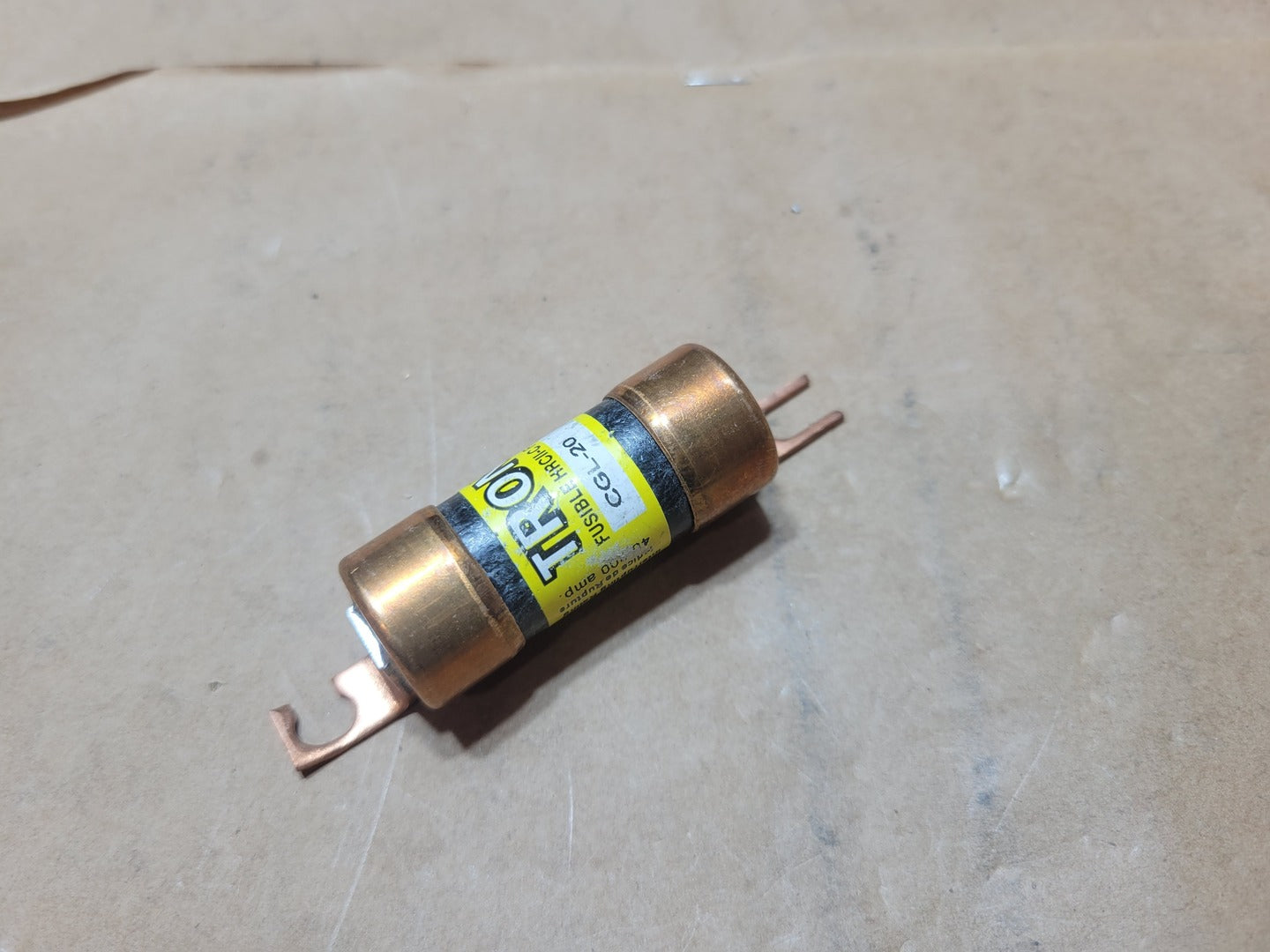

Bussmann TRON CGL-20 industrial current-limiting cartridge fuse rated 20 A, 600 VAC / 250 VDC. The CGL-20 is an HRC Form II Class C fuse using bolt-in offset blade terminals and is intended for industrial circuit protection, including circuits involving motors, transformers, and other inductive loads. Manufacturer/distributor specifications list interrupting ratings of 200 kA at 600 VAC and 40 kA at 250 VDC.
| Specifications | |
|---|---|
| Model | CGL-20 |
| Condition | Used | Electrical |
| Amps | 20 amps |
| Voltage | 600 volts |
| Fuse Type | Low Volt |
| Current Type | AC |
| Class | C |
| Interrupting Rating | 200 kA |
| Other Specifications |
|---|
|
Product Type: Industrial Cartridge Fuse Series: TRON CGL DC Voltage Rating: 250 VDC Fuse Type: Current-Limiting Operating Characteristic: Fast-Acting Indicating: No / Non-Indicating DC Interrupting Rating: 40 kA at 250 VDC Mounting: Bolt Mount / Blade Mount Terminal Configuration: Blade End x Blade End / Offset Blade |
