Description
| Specifications | |
|---|---|

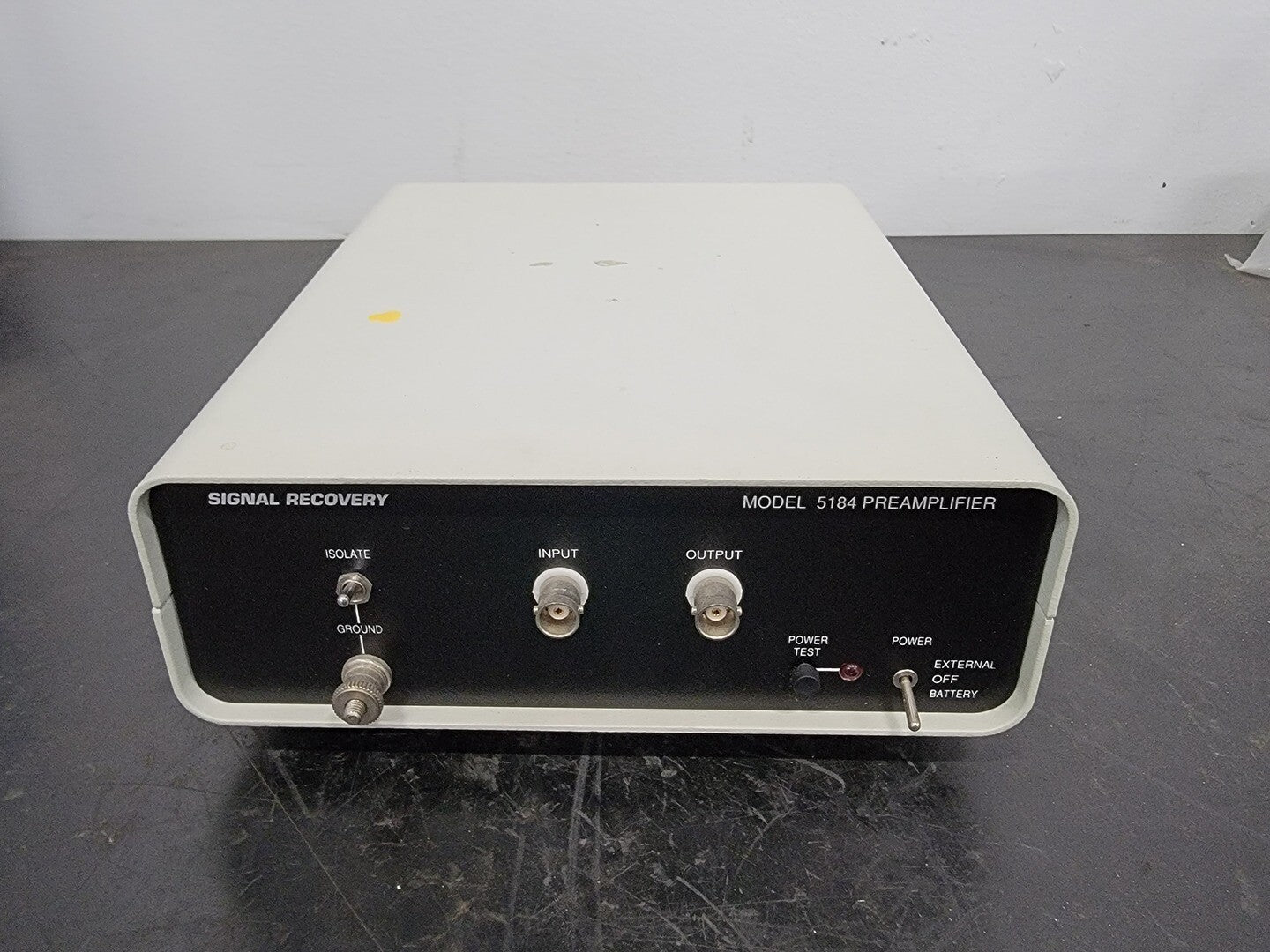

| Model | 5184 |
| Made In | UNITED STATES |
| Condition | Used |
| Other Specifications |
|---|
|
Inputs Specifications:
Modes: Asymmetrical differential. Front panel ground terminal provided.
Coupling: AC
Impedance: 5 M? // 50 pF
Frequency Response: 0.5 to 1 MHz
C.M.R.R.: > 80 dB (100 Hz to 1 kHz)
Max. Differential Input Voltage: 10 mV pk-pk
Max. Common-mode Input Voltage: 300 mV pk-pk
Max. Signal Low Potential W.R.T. Ground Terminal: ±600 mV
Max. Input without Damage: ±15 VDC or 10 Vrms. AC @ 50 Hz
Noise: Typically 800 pV/?Hz @ 1 kHz
Gain: x1000 (60 dB) fixed
Gain Accuracy: ±1%
Gain Stability: ±800 ppm/°C
Output Specifications:
Impedance: 450 ?
Max. Voltage Swing: > 10 V pk-pk
Slew Rate: > 22 V/µs
Polarity: Non-inverting
Distortion: < 0.1% T.H.D.
Power Specifications:

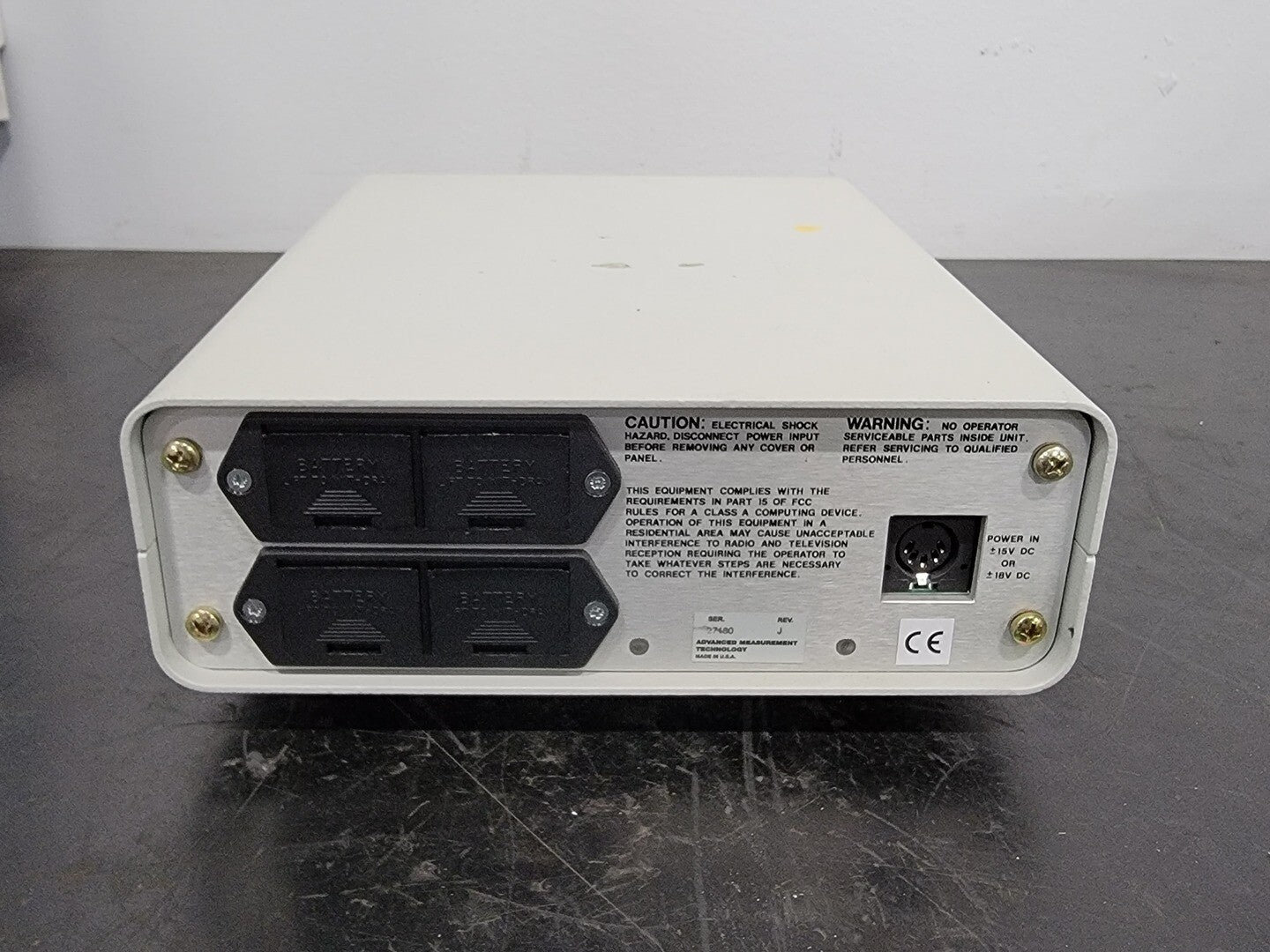

Internal: Four 9 V alkaline batteries provide approx. 12 hours of use.
External:
a): ±15 V or ±18 VDC @ 30 mA
b): 110 VAC or 240 VAC via optional external model PS0108 power supply
|
